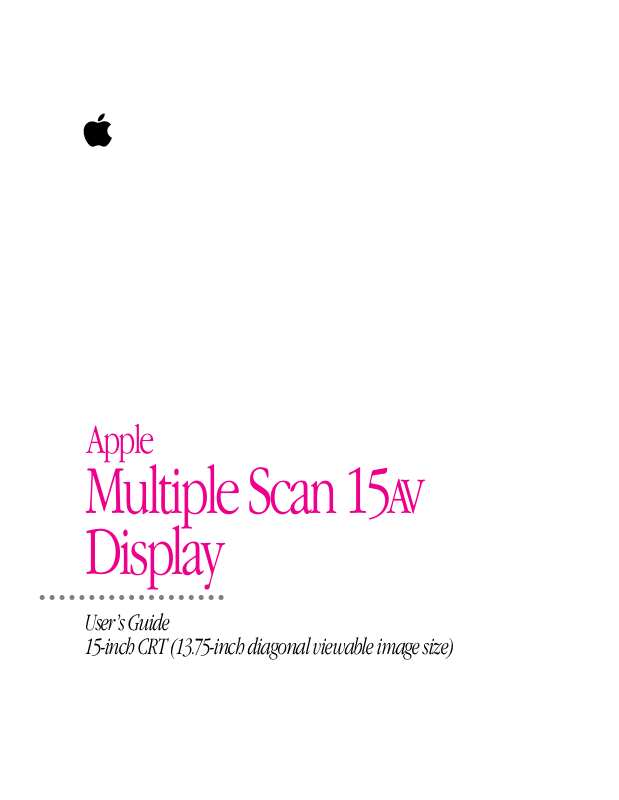

Apple 15AV User Manual



Apple

Multiple Scan 15AV
Display

User’s Guide
15-inch CRT (13.75-inch diagonal viewable image size)

K Apple Computer, Inc.

© 1996 Apple Computer, Inc. All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the

written consent of Apple. Your rights to the software are governed by the accompanying
software license agreement.

The Apple logo is a trademark of Apple Computer, Inc., registered in the U.S. and other
countries. Use of the “keyboard” Apple logo (Option-Shift-K) for commercial purposes without
the prior written consent of Apple may constitute trademark infringement and unfair
competition in violation of federal and state laws.

Every effort has been made to ensure that the information in this manual is accurate. Apple is
not responsible for printing or clerical errors.

Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
[phone]

Apple, the Apple logo, ColorSync, LaserWriter, Macintosh, Power Macintosh, and QuickTake
are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

AppleCD and Mac are trademarks of Apple Computer, Inc.
Acrobat, Adobe, Adobe Illustrator, Adobe Photoshop, and PostScript are trademarks of Adobe

Systems Incorporated or its subsidiaries and may be registered in certain jurisdictions.
The Energy Star logo is a service mark of the U.S. Environmental Protection Agency.
Helvetica and Times are registered trademarks of Linotype-Hell AG and/or its subsidiaries.
NuBus is a trademark of Texas Instruments.
Simultaneously published in the United States and Canada.
Mention of third-party products is for informational purposes only and constitutes neither an

endorsement nor a recommendation. Apple assumes no responsibility with regard to the
performance or use of these products.

Cont ents

Communications regulation information v

1Setting Up 1

Important safety instructions 1
What about electromagnetic emissions? 2
Getting ready to set up 3
Your Multiple Scan 15
Choosing a good location for your monitor 5
Connecting the monitor’s base 6
Positioning the monitor 7
Do you need a video card? 8

Do you need an adapter? 8

Usi ng m ore than on e monitor 8
Connecting the monitor to your computer 9
Connecting headphones to your monitor 11
Tur ni ng t h e monitor on 11
Installing the display software 12

AV Display at a glance 4

iii

2Using the Display Software 15

About the Control Strip 15

Working with the Control Strip 16
Changing screen resolution 17
Other things you can do with the Monitors control panel 19

Conserving energy 20

What happens after you turn on the energy-saving feature 21

Usi ng En ergy Saver with a screen saver 21
Usi ng ColorSync 22
Configuring the Control Strip 23

Show ing and hiding the Control Strip 23

Setti ng a keyboard command to show and hide the Control Strip 24

Changing the font in Control Strip menus 25

3Adjusting the Picture 27

Acce s sing the monitor’s controls 27
Making adjustments to the picture 28

Adjusting t he brightness of the picture 28

Adjusting t he contrast of the picture 28

Adjusting t he center of the picture 28

Adjusting t he s ize of the picture 29

Adjusting the sound volume 30
Resetting controls to the factory settings 30

4Tips and Troubleshooting 31

Care and cleaning 31
Protecting your monitor from theft 32
Troubleshooting 32

Appendix Technical Information 39

iv

Contents

Communications regulation information

FCC statement

This equipment has been tested and found to comply with the limits for a Class B digital device
in accordance with the specifications in Part 15 of FCC rules. See instructions if interference to
radio or television reception is suspected.

Radio and television interference

The equipment described in this manual generates, uses, and can radiate radio-frequency
energy. If it is not installed and used properly—that is, in strict accordance with Apple’s
instructions—it may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device
in accordance with the specifications in Part 15 of FCC rules. These specifications are designed
to provide reasonable protection against such interference in a residential installation. However,
there is no guarantee that interference will not occur in a particular installation.

You can determine whether your computer system is causing interference by turning it off. If
the interference stops, it was probably caused by the computer or one of the peripheral devices.

If your computer system does cause interference to radio or television reception, try to correct
the interference by using one or more of the following measures:

m Turn the television or radio antenna until the interference stops.
m Move the computer to one side or the other of the television or radio.
m Move the computer farther away from the television or radio.
m Plug the computer into an outlet that is on a different circuit from the television or radio.

(That is, make certain the computer and the television or radio are on circuits controlled by
different circuit breakers or fuses.)

If necessary, consult an Apple-authorized service provider or Apple. See the service and support
information that came with your Apple product. Or, consult an experienced radio/television
technician for additional suggestions.

IMPORTANT

could void the FCC Certification and negate your authority to operate the product.
This product was tested for FCC compliance under conditions that included the use of Apple

peripheral devices and Apple shielded cables and connectors between system components. It is
important that you use Apple peripheral devices and shielded cables and connectors between
system components to reduce the possibility of causing interference to radios, television sets,
and other electronic devices. You can obtain Apple peripheral devices and the proper shielded
cables and connectors through an Apple-authorized dealer. For non-Apple peripheral devices,
contact the manufacturer or dealer for assistance.

Changes or modifications to this product not authorized by Apple Computer, Inc.,

Communications Regulation Information

v

DOC statement

DOC Class B Compliance This digital apparatus does not exceed the Class B limits for radio
noise emissions from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus,” ICES-003 of the Department of Communications.

Observation des normes—Classe B Cet appareil numérique respecte les limites de bruits
radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme
sur le matériel brouilleur : “Appareils Numériques”, NMB-003 édictée par le ministre des
Communications.

VCCI statement

vi

Communications Regulation Information

1

Setting Up

The Apple Multiple Scan 15AV Display is a 15-inch color monitor (diagonal
viewable image size is 13.75 inches) that supports a variety of resolutions and
has a built-in amplifier and stereo speakers for producing sounds and music.
This chapter describes important safety information, setting up and
connecting the monitor to your computer, and installing the monitor software
on your computer.

Important safety instructions

For your own safety and that of your equipment, always take the following
precautions.

Disconnect the power plug (by pulling the plug, not the cord) if any of the
following conditions exists:

m the power cord or plug becomes frayed or otherwise damaged
m you spill something into the case
m your monitor is exposed to rain or any other excess moisture
m your monitor has been dropped or the case has been otherwise damaged
m you suspect that your monitor needs service or repair
m you want to clean the case (use only the recommended procedure

described in “Care and Cleaning” in Chapter 4)

IMPORTANT

power cord. Make sure at least one end of the power cord is within easy reach
so th at you can unplug the monitor when you need to.

The only way to disconnect power completely is to unplug the

1

Be sure that you always do the following:
m Keep your monitor away from sources of liquids, such as wash basins,

bathtubs, shower stalls, and so on.

m Don’t remove the cover of the monitor.
m Don’t set anything on top of the monitor (such as a book or cup).
m Keep the monitor’s vents free from obstruction.
m Protect your monitor from dampness or wet weather, such as rain, snow,

and so on.
m Read all the installation instructions carefully before you plug your

monitor into a power source.

m Keep these instructions handy for reference by you and others.
m Follow all instructions and warnings dealing with your system.

WARNING

Electrical equipment may be hazardous if misused. Operation
of this product, or similar products, must always be supervised by an
adult. Do not allow children access to the interior of any electrical
product and do not permit them to handle any cables.

What a bout electromagnetic emissions?

There has been recent public discussion of the possible health effects of
prolonged exposure to extremely low frequency (ELF) and very low
frequency (VLF) electromagnetic fields. Such fields are associated with
electromagnetic sources such as television sets, electrical wiring, and some
household appliances—as well as computer monitors.

Apple has reviewed scientific reports and sought the counsel of government
regulatory agencies and respected health organizations. Based on the
prevailing evidence and opinions, Apple believes that the electric and
magnetic fields produced by computer monitors do not pose a health risk.

In response to those customers who wish to reduce their exposure to
electromagnetic fields, Apple has lowered the emission levels of our products.
We are also actively encouraging further scientific research so we can
continue to promote the health and safety of our customers and employees.

2

Chapter 1

Getting ready to set up

As you begin to set up your display system, be sure you have easy access to
the following items for your Multiple Scan 15

Scan 15

AV Display:

Apple Multiple

AV Display

f

Sound cable

Power cord

I

Monitor cable

Software

User’s guide

Note: Your power cord may appear different from the one pictured here.

Setting Up

3

Your Multiple Sc an 15AV Display at a glance

Stereo

speakers

f

Headphone

jack

_

Sound input port

≤

Control panel

Power cord

receptacle

f

O

Contrast control¤ Brightness control

_

≤

I

F

I

Power button

_

Volume control

F

Security slot

™

Monitor cable

4

Chapter 1

Choosing a goo d location for your monitor

Here are some key factors to consider when determining where to place your
monitor:

m Be sure that the desk or table can support the monitor’s weight—

approximately 30 pounds.

m Make sure that the power cord will reach an available AC outlet.
m Make sure the monitor cable will reach from the back of the monitor to

your computer. Th e monitor cable should be unobstructed when you swivel
and tilt the monitor, so allow at least 6 inches of clearance in the back. If
you don’t allow enough clearance, the monitor connector might be
damaged when the cable hits an obstruction.

Setting Up

5

Connectin g the monitor’s base

The monitor and base are packaged separately. To connect the monitor’s base,
follow these steps:

1Place the monitor on its left side on a table or other firm surface.
2Place the base on its side facing the bottom of the monitor.
3Hook the rear latches into the holes at the rear of the monitor.
4 Insert the front latches into the slots at the front of the monitor.

First, hook the rear latches into

the holes at the rear of the base.

6

Then, snap the front latches

into the slots.

5Turn the monitor upright.

Yo u’ re finished connecting the base.

Chapter 1

Posi tioning t he mo n itor

Once your monitor is in place, either on top of your computer or next to it
on a desk or table, follow these steps:

1Place the monitor so that the screen faces the user.
2 To slide the monitor, lift the front up slightly and push or pull in the direction you want.
3Adjust the viewing angle of the monitor by tilting it up or down and turning it left or right

on its stand.

Position the monitor so that when you use it, no bright light is behind the
monitor or reflected on the screen. Your eyes should be about level with the
top edge of the screen and between 18 and 28 inches (45 to 70 cm) away. Take
occasional breaks when using your computer, to focus your eyes on a distant
object.

For your greatest comfort, use the following illustration to help you in
positioning your monitor.

45–70 cm (18–28 in.)

Shoulders relaxed

Forearms and hands

in a straight line

Forearms level

or tilted up slightly

Lower back supported

Thighs horizontal

Top of the screen at or slightly
below eye level (You may need
to adjust the height of your
monitor by placing something
under it or by raising your
work surface.)

Screen positioned to avoid
reflected glare

Clearance under work surface

Feet flat on the floor

Setting Up

7

Do you need a video card?

To use the Multiple Scan 15AV Display, you need compatible video circuitry
built into your computer or a compatible video card installed in your
computer. If you are unsure whether your computer has the appropriate built­in video capability, check the technical specifications that came with your
computer or check with an Apple-authorized dealer or service provider.

If your computer does not have built-in video capability, you need to install a
video card (available from an Apple-authorized dealer or service provider).
Depending on your computer model, you will need either a NuBus
PCI card. You should install the video card before you connect the monitor to
your computer. For instructions on installing a card inside your computer, see
the manual that came with your computer or video card.

Do you need an adapter?

Some Maci n tosh computer models and some video cards from manufacturers
other than Apple require an adapter to connect the monitor to the computer.
Adapters are available from an Apple-authorized dealer or service provider.

Using more th an one monitor

™

card or a

8

If your computer has NuBus or PCI expansion slots, you can connect
additional monitors to your computer. You may need to install a video card
for each additional monitor you are using. See the do cumentation that came
with your computer for information on working with additional monitors.

Chapter 1

Connecting the monitor to your computer

Foll o w these steps to connect the Multiple Scan 15AV Display to your
computer:

IMPORTANT

Before you connect any cords or cables, make sure that your

computer is turn ed off and unplugged.

WARNING

Your monitor is equipped with a three-wire grounding plug—
a plug that has a third (grounding) pin. This plug will fit only a
grounded AC outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact a licensed electrician to replace the
outlet with a properly grounded outlet. Do not defeat the purpose of the
grounding plug!

1Connect the socket end of the power cord to the power cord receptacle on the back of

the monitor.

_

≤

F

Setting Up

9
