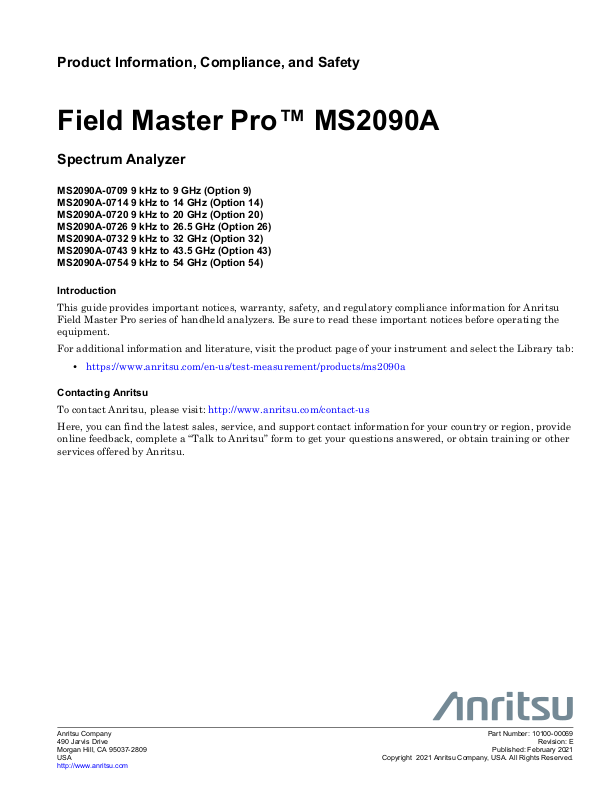

Anritsu MS2090A User Manual

Product Information, Compliance, and Safety

Field Master Pro™ MS2090A

Spectrum Analyzer

MS2090A-0709 9 kHz to 9 GHz (Option 9)

MS2090A-0714 9 kHz to 14 GHz (Option 14)

MS2090A-0720 9 kHz to 20 GHz (Option 20)

MS2090A-0726 9 kHz to 26.5 GHz (Option 26)

MS2090A-0732 9 kHz to 32 GHz (Option 32)

MS2090A-0743 9 kHz to 43.5 GHz (Option 43)

MS2090A-0754 9 kHz to 54 GHz (Option 54)

Introduction

This guide provides important notices, warranty, safety, and regulatory compliance information for Anritsu Field Master Pro series of handheld analyzers. Be sure to read these important notices before operating the equipment.

For additional information and literature, visit the product page of your instrument and select the Library tab:

• https://www.anritsu.com/en-us/test-measurement/products/ms2090a

Contacting Anritsu

To contact Anritsu, please visit: http://www.anritsu.com/contact-us

Here, you can find the latest sales, service, and support contact information for your country or region, provide online feedback, complete a “Talk to Anritsu” form to get your questions answered, or obtain training or other services offered by Anritsu.

Anritsu Company	Part Number: 10100-00069
490 Jarvis Drive	Revision: E
Morgan Hill, CA 95037-2809	Published: February 2021
USA	Copyright 2021 Anritsu Company, USA. All Rights Reserved.
http://www.anritsu.com

Table of Contents

1— Important Notices and Warranty

1-1 Applicable Product Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1-2 Unauthorized Use or Disclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1-3 Export Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1-4 Trademark Acknowledgments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

1-5 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Limitation of Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Disclaimer of Warranties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 No Liability For Consequential Damages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

2—Safety

2-1 Safety Notices Used in Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1

2-2 Safety Symbols Used on Equipment and in Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 2-3 Safety Symbols and Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

3—Regulatory Compliance

3-1 Compliance Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 CE Conformity Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 European Parliament and Council Directive 2012/19/EC . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 RCM Conformity Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 KCC Conformity Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Canadian ICES-001 and ICES-003 Conformity Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Recycle Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2 Proposition 65 Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Perchlorate Material Notification – Special Handling May Apply . . . . . . . . . . . . . . . . . . . . . 3-3 Chinese RoHS Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Contents-1

PN: 10100-00069 Rev. E

Handheld Instruments PICS

1 — Important Notices and Warranty

1-1 Applicable Product Models

The information in this guide relates to the following product models:

Field Master Pro: MS2090A

IQ Data Converter: MA25424A IQ Streaming PCIe Kit: MA25101A

1-2 Unauthorized Use or Disclosure

Anritsu Company has prepared the product user documentation for use by Anritsu Company personnel and customers as a guide for the proper installation, operation, and maintenance of Anritsu Company equipment and software programs. The drawings, specifications, and information contained therein are the property of Anritsu Company, and any unauthorized use or disclosure of these drawings, specifications, and information is prohibited; they shall not be reproduced, copied, or used in whole or in part as the basis for manufacture or sale of the equipment or software programs without the prior written consent of Anritsu Company.

1-3 Export Management

The Anritsu products identified herein and their respective manuals may require an Export License or approval by the government of the product country of origin for re-export from your country. Before you export these products or any of their manuals, please contact Anritsu Company to confirm whether or not these items are export-controlled. When disposing of export-controlled items, the products and manuals must be broken or shredded to such a degree that they cannot be unlawfully used for military purposes.

1-4 Trademark Acknowledgments

The following trademark acknowledgments are listed for one or more of the products listed in Section 1-1.

•Windows is a registered trademark of Microsoft Corporation.

•Acrobat and Acrobat Reader are registered trademarks of Adobe Corporation.

•Wi-Fi is a registered trademark of the Wi-Fi Alliance.

•Field Master and Field Master Pro are trademarks of Anritsu Company.

•All other trademarks mentioned are the property of their respective companies.

Handheld Instruments PICS

PN: 10100-00069 Rev. E

1-1

1-5 Warranty Information

Important Notices and Warranty

1-5 Warranty Information

The following Anritsu products are warranted against defects in materials and workmanship from the date of shipment:

MS2090A Field Master Pro: Three (3) years (one (1) year on battery)

MA25424A IQ Data Converter: One (1) year MA25101A IQ Streaming PCIe Kit: 90 days

Anritsu’s obligation covers repairing or replacing products which prove to be defective during the warranty period. Buyers shall prepay transportation charges for equipment returned to Anritsu for warranty repairs. Obligation is limited to the original purchaser. Anritsu is not liable for consequential damages.

Limitation of Warranty

The foregoing warranty does not apply to Anritsu connectors that have failed due to normal wear. Also, the warranty does not apply to defects resulting from improper or inadequate maintenance, unauthorized modification or misuse, or operation outside of the environmental specifications of the product. No other warranty is expressed or implied, and the remedies provided herein are the Buyer’s sole and exclusive remedies.

Disclaimer of Warranties

To the maximum extent permitted by applicable law, Anritsu Company and its suppliers disclaim all warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product. The user assumes the entire risk of using the product. Any liability of provider or manufacturer will be limited exclusively to product replacement.

No Liability For Consequential Damages

To the maximum extent permitted by applicable law, in no event shall Anritsu Company or its suppliers be liable for any special, incidental, indirect, or consequential damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or any other pecuniary loss) arising out of the use of or inability to use the product, even if Anritsu Company has been advised of the possibility of such damages. Because some states and jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.

1-2

PN: 10100-00069 Rev. E

Handheld Instruments PICS

2 — Safety

To reduce the risk of personal injury or loss related to equipment malfunction, Anritsu Company uses the following symbols to indicate safety-related information. You may encounter them on your products and in documentation. For your own safety, please read the information carefully before operating the equipment.

2-1 Safety Notices Used in Manuals

Warning

Danger or Warning indicates a risk from a very hazardous condition or procedure that could result in light-to-severe injury or death, or loss related to equipment malfunction. Follow all safety precautions and procedures to minimize this risk.

Caution

Caution indicates a risk from a hazardous condition or procedure that could result in injury or loss related to equipment malfunction. Follow all safety precautions and procedures to minimize this risk.

2-2 Safety Symbols Used on Equipment and in Manuals

The following symbols are used inside or on the equipment near operation locations to provide information about safety items and operation precautions and status. Ensure that you clearly understand the meanings of the symbols and take the necessary precautions before operating the equipment. Some or all of the following symbols may or may not be used on Anritsu equipment. In addition, there may be other labels attached to products that are not shown in the diagrams in the manual.

This indicates a prohibited operation. The prohibited operation is indicated symbolically in or near the barred circle.

This indicates a compulsory safety precaution. The required operation is indicated symbolically in or near the circle.

This indicates a danger, warning, or caution. The contents are indicated symbolically in or near the triangle.

This indicates a note. The contents are described in the box.

This indicates a push button Out position (generally Off condition).

This indicates a push button In position (generally On condition).

This indicates an Off condition.

This indicates On condition.

This indicates Alternating Current (AC).

This indicates Direct Current (DC).

Handheld Instruments PICS

PN: 10100-00069 Rev. E

2-1
