DOOR AND PANEL PARTS
UNDERCOUNTER DISHWASHER
For Models: ADB1500AWB41, ADB1500AWW41, ADB1500AWQ41, ADB1500AWS41, ADB1500AWZ41 (Black) (White) (Bisque) (Stainless) (Oiled Bronze)
Illus. |
Part |
|
|
|
Illus. |
|
Part |
|
|
|
|
Illus. |
|
Part |
|
||
No. |
No. |
DESCRIPTION |
|
|
No. |
|
No. |
DESCRIPTION |
|
|
No. |
|
No. |
DESCRIPTION |
|||
1 |
|
Literature Parts |
|
5 |
|
|
|
Panel, Front |
|
8 |
|
|
Support, Front |
||||
|
W10158012 |
Instructions, |
|
|
|
|
99002768 |
|
Black |
|
|
|
|
99002591 |
Black |
||
|
|
Installation |
|
|
|
|
99002770 |
|
White |
|
|
|
|
99002593 |
White |
||
|
W10114399 |
Energy Guide |
|
|
|
|
99002769 |
|
Bisque |
|
|
|
|
99002592 |
Bisque |
||
|
Y6920185 |
Guide, Use & Care |
|
|
|
|
99002771 |
|
Stainless |
|
9 |
W10117748 |
Insulation, Door |
||||
2 |
|
Bracket, Hinge |
|
|
|
|
99003425 |
|
Oiled Bronze |
|
10 |
99003540 |
Liner, Door |
||||
|
W10163109 |
Left |
|
6 |
|
|
|
|
Screw |
|
|
|
|
|
|
Secondary |
|
|
W10163108 |
Right |
|
|
|
|
912366 |
|
Black |
|
11 |
99003481 |
Foam Strip (Short) |
||||
3 |
99001075 |
Screw |
|
|
|
|
99001194 |
|
White |
|
12 |
99003482 |
Foam Strip (Long) |
||||
4 |
Y99002587 |
Pad, Foam |
|
|
|
|
99002114 |
|
Bisque |
|
13 |
99003541 |
Bracket, Secondary |
||||
|
|
|
|
7 |
|
|
|
Panel, Toe |
|
|
|
|
|
|
Door Liner |
||
|
|
|
|
|
|
|
99002765 |
|
Black |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
99002766 |
|
White |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
99002767 |
|
Bisque |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
08−08 Litho In U.S.A. (cre) (psw) |
1 |
Part No. W10222477 Rev. A |
CONTROL PANEL PARTS
For Models: ADB1500AWB41, ADB1500AWW41, ADB1500AWQ41, ADB1500AWS41, ADB1500AWZ41 (Black) (White) (Bisque) (Stainless) (Oiled Bronze)
Illus. Part
No. No. DESCRIPTION
1 99002575 Housing, Board
(Top)
2W10111824 Board, Control
399002576 Housing, Board
4Panel, Control 99003414 Black 99003368 White 99003367 Bisque
599002751 Switch, Door
699003347 Latch, Assembly
799002931 Vent Seal,
Control Panel
|
|
|
|
|
2 |
|
W10222477 |
||
DOOR AND LATCH PARTS
For Models: ADB1500AWB41, ADB1500AWW41, ADB1500AWQ41, ADB1500AWS41, ADB1500AWZ41 (Black) (White) (Bisque) (Stainless) (Oiled Bronze)
Illus. |
Part |
|
|
|
|
Illus. |
|
Part |
|
|
|
|
|
Illus. |
Part |
|
||
No. |
No. |
DESCRIPTION |
|
|
|
No. |
|
No. |
DESCRIPTION |
|
|
|
No. |
No. |
DESCRIPTION |
|||
1 |
99003537 |
Harness, Wiring |
|
|
5 |
99003321 |
|
Dispenser, Rinse |
|
|
8 |
99003424 |
Inner Door |
|||||
2 |
99002590 |
Bezel, Door Vent |
|
|
|
|
|
|
|
|
Aid |
|
|
|
|
|
|
W/ Damper |
3 |
99002186 |
Seal, Door Vent |
|
|
6 |
99002673 |
|
Housing, Vent Assy |
|
|
9 |
99003316 |
Bracket, Dispenser |
|||||
4 |
99002992 |
Cap, Rinse Aid |
|
|
7 |
Y912620 |
|
Screw, Door |
|
|
10 |
912615 |
Screw |
|||||
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
W10222477 |
3 |

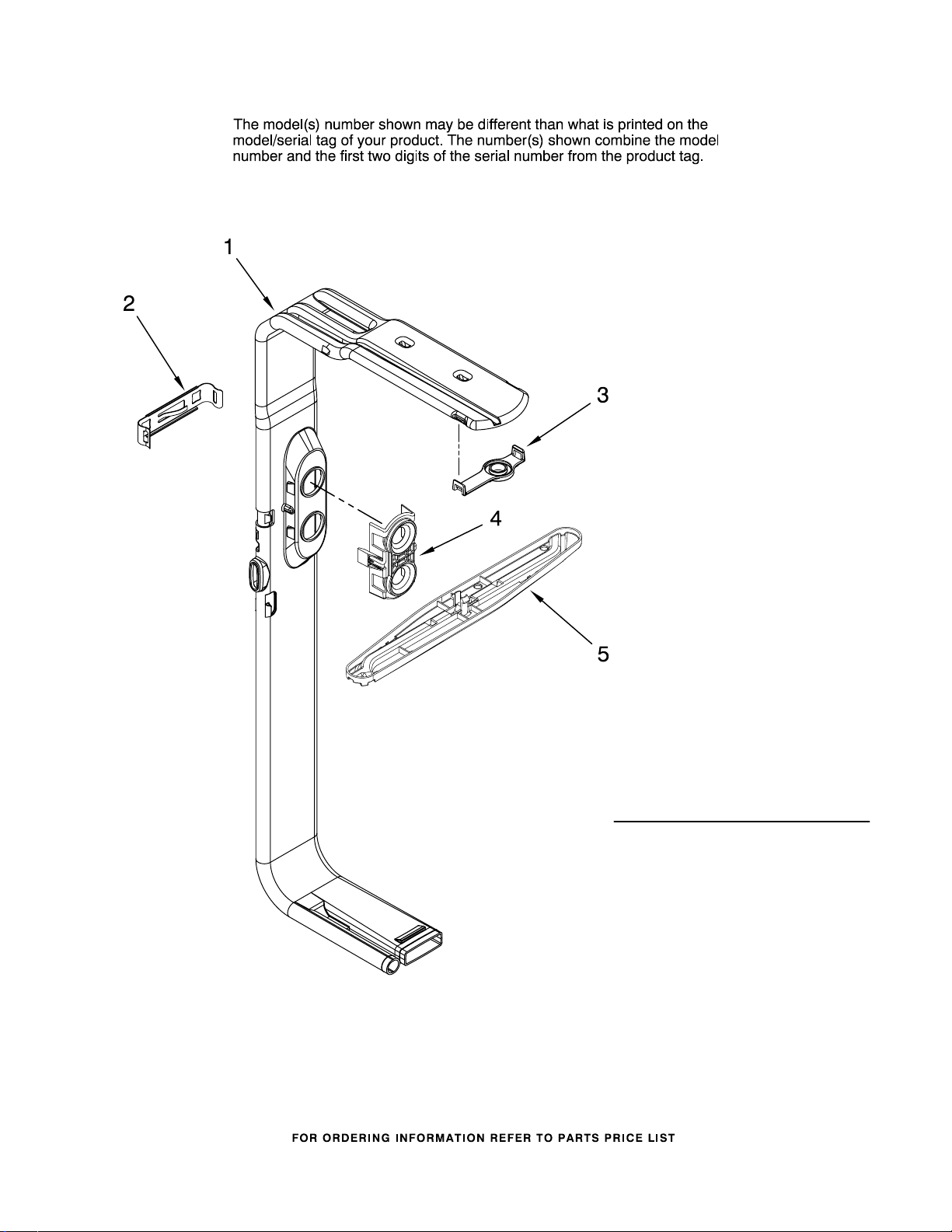

LOWER WASHARM PARTS
For Models: ADB1500AWB41, ADB1500AWW41, ADB1500AWQ41, ADB1500AWS41, ADB1500AWZ41 (Black) (White) (Bisque) (Stainless) (Oiled Bronze)
Illus. Part
No. No. DESCRIPTION
199002654 Cap, Wash Arm
299002678 Wash Arm, Lower
(Includes Item 3)
3 W10167918 Shield, Radiant
|
|
|
|
W10222477 |
4 |
|
|||
HEATER PARTS
For Models: ADB1500AWB41, ADB1500AWW41, ADB1500AWQ41, ADB1500AWS41, ADB1500AWZ41
(Black) (White) (Bisque) (Stainless) (Oiled Bronze)
Illus. Part
No. No. DESCRIPTION
1 99002971 Heater Element
Assembly
W/ Gasket
299002972 Nut, Heater
399002626 Bracket, Heater
Support
NOTE: If heater element is removed, it must be replaced.
W10222477 |
|
|
|
|
5 |
|
|||
