GE AGW18, AGH18 User Manual

0 (0)

AGH18 AGW18

3828A21031G 49-7526 11-05 JR

Owner’s Manual and

Installation Instructions

Write the model and serial numbers here:

Model # __________________________

Serial # __________________________

Find these numbers on a label on the side of the air conditioner.

Air Conditioners

Room

ge.com

Safety Instructions . . . . . . . .2, 3

Operating Instructions

. . . . .4, 5

Care and Cleaning

Air Filter . . . . . . . . . . . . . . . . . .6 Grille and Case . . . . . . . . . . . . .6 Outdoor Coils . . . . . . . . . . . . . .6

Installation Instructions

Preparing to Install the Air Conditioner . . . . . . . . . . . . .7 Window Installation . . . . . . .8–12

Troubleshooting Tips . . .13, 14

Normal Operating Sounds . . .14

Consumer Support

Consumer Support . . . . . . . . .18 Product Registration . . . . .15, 16 Warranty . . . . . . . . . . . . . . . . .17

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.

■ Use this appliance only for its intended

purpose as described in this Owner’s Manual.

■ This air conditioner must be properly

installed in accordance with the Installation Instructions before it is used.

■ Never unplug your air conditioner by

pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.

■ Replace immediately all electric service

cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.

■ Turn the unit OFF and unplug your air

conditioner before making any repairs or cleaning.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

■ For your safety…do not store or use

combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

■ All air conditioners contain refrigerants,

which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.

SAFETY PRECAUTIONS

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.

Where a 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.

The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.

This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.

See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.

HOW TO CONNECT ELECTRICITY

Consumer Support

Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

WARNING!

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 125 volts.

CAUTION:

DO NOT use an extension cord with any of the 230/208 volt models.

USE OF EXTENSION CORDS—115-Volt models only

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.

However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.

The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.

If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.

Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.

USE OF ADAPTER PLUGS—115-Volt models only

ge.com

SAVE THESE INSTRUCTIONS

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

About the controls on the air conditioner.

Features and appearance may vary.

Consumer Support

Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

■ To ensure proper operation, aim the remote

control at the signal receiver on the air conditioner.

■ The remote control signal has a range

of up to 21 feet.

■ Make sure nothing is between the air conditioner

and the remote control that could block the signal.

■ Make sure batteries are fresh and installed

correctly as indicated on the remote control.

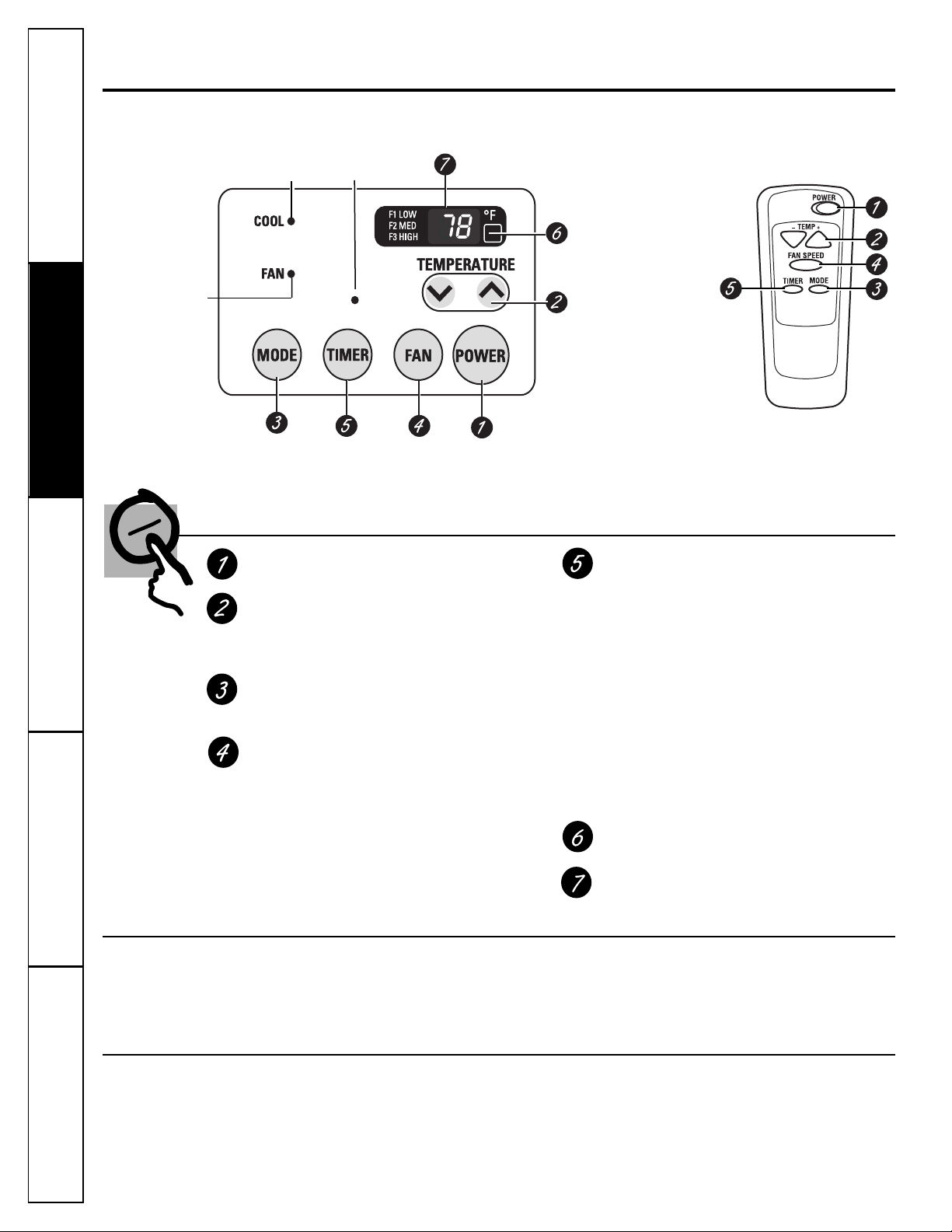

Air Conditioner Controls

Controls

ON/OFF Pad

Turns air conditioner on and off.

Increase ▲ /Decrease ▼ Pads

Use to set temperature when in COOL mode.

MODE

Use to set the air conditioner to COOL or FAN mode.

FAN Pad

Use to set the fan speed to LOW (F1), MED (F2) or HIGH (F3).

TIMER Pad

ON—When the air conditioner is off,

it can be set to automatically come on in 1 to 12 hours at its previous setting. Each touch will set the timer in hours.

OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours. Each touch will set the timer in hours.

To cancel the timer, press the TIMER pad until the display time disappears.

Remote Control Signal Receiver

Display

Shows the set temperature or time remaining on timer.

Remote Control

Timer on

Cool on

Fan on

In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. If the TIMER

feature was set, it will resume its countdown. You may need to set a new time if desired.

Power Outage Recovery Feature

ge.com

Lights next to the touch pads on the air conditioner control panel indicate the selected settings.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions

Use the COOL mode with HIGH (F3), MED (F2) or LOW (F1) fan for cooling. Use the INCREASE ▲ / DECREASE ▼ pads to set the desired temperature

between 60°F and 86°F in 1°F increments.

An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.

NOTE: If the air conditioner is off and is then turned on while set to a COOL setting or if turned from a fan setting to a COOL setting, it will take approximately 3 minutes for the compressor to start and cooling to begin.

Cooling Descriptions

For Normal Cooling—Select the COOL mode and HIGH (F3) or MED (F2) fan with a middle set

temperature.

For Maximum Cooling—Select the COOL mode and HIGH (F3) fan with a lower set temperature.

For Quieter & Nighttime Cooling—Select the COOL mode and LOW (F1) fan with a middle set

temperature.

NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.

COOL Mode

Use the FAN at HIGH (F3), MED (F2) or LOW (F1) to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling, a temperature setting will not be displayed.

FAN Mode

The vent control is located above the control panels.

When set at CLOSE, only the air inside the room will be circulated and conditioned. When set at

OPEN, some inside air is exhausted outside.

Vent Control

To open the vent, pull the lever toward you. To close it, push it in.

The side-to-side air direction is adjusted by moving the lever to the left or right.

Air Direction—Side-to-Side

Fingertip pressure on the horizontal louvers adjusts the air direction up or down.

Air Direction—Up and Down

I T

Consumer Support

Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

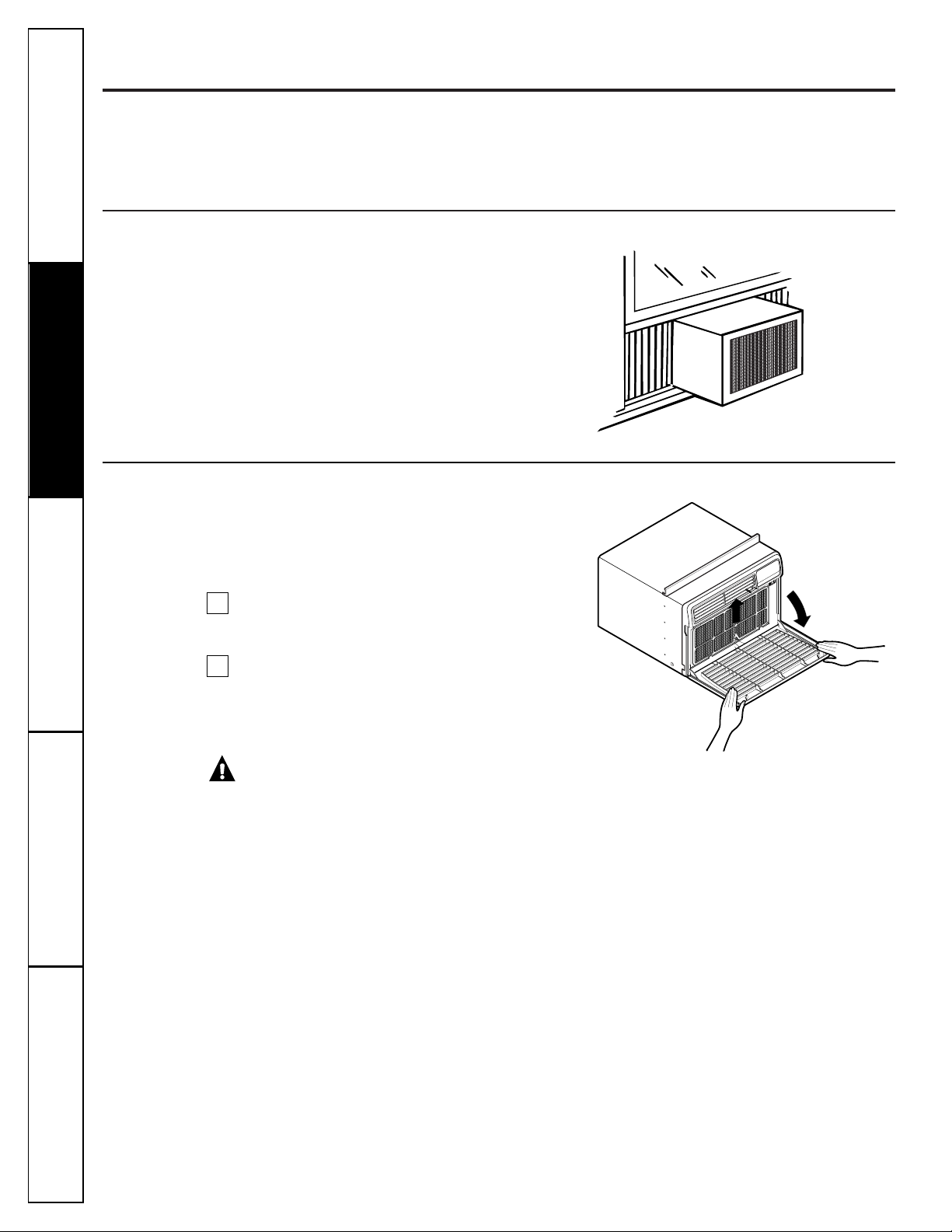

Care and cleaning of the air conditioner.

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Grille and Case

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

Outdoor Coils

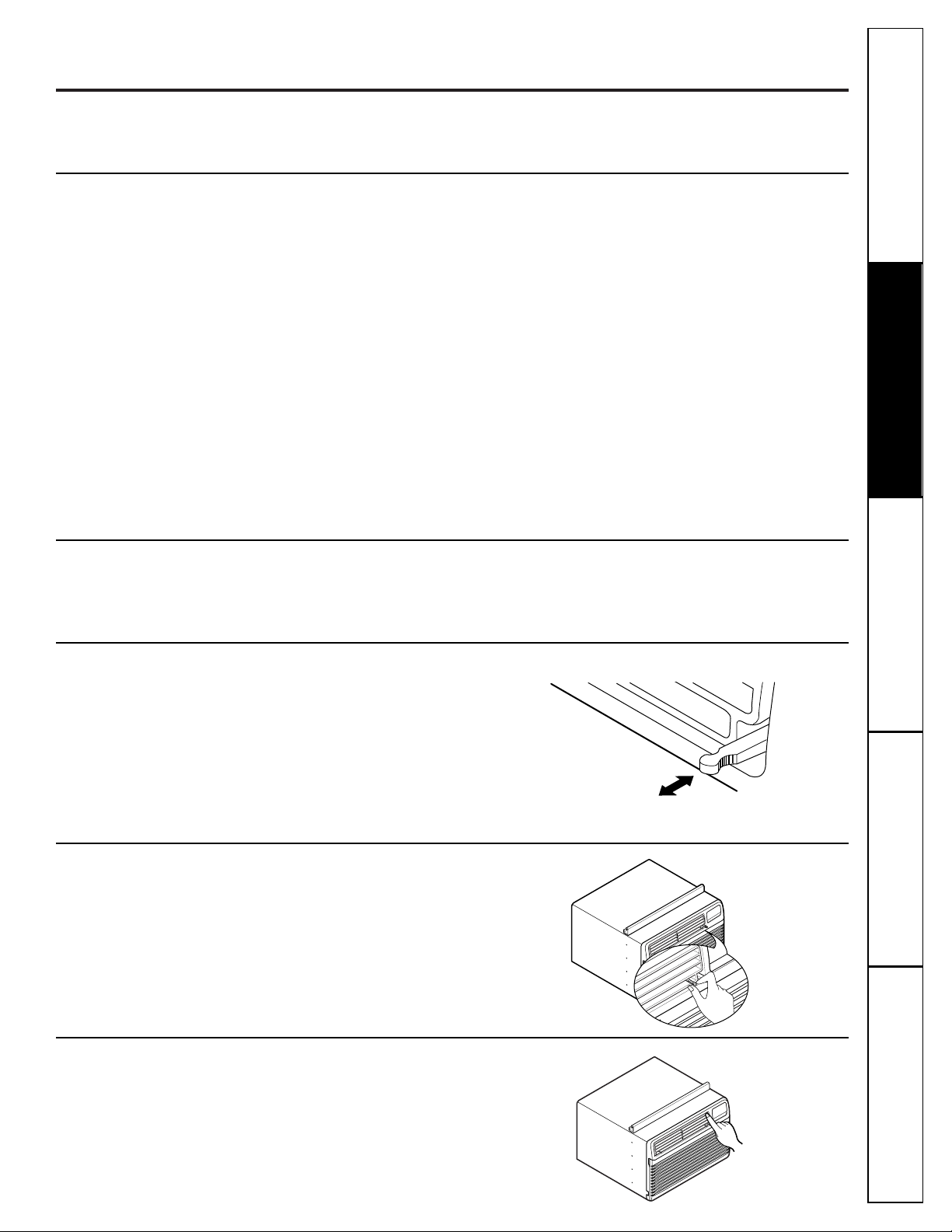

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

To remove:

Open the inlet grille downward by pulling out the top corners of the inlet grille.

Pull up slightly on the filter to release it and pull it out.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.

CAUTION: DO NOT operate the air

conditioner without a filter because dirt and lint will clog it and reduce performance.

Air Filter

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT — Save these

instructions for local inspector’s use.

•

IMPORTANT — Observe all

governing codes and ordinances.

• Note to Installer – Be sure to leave these instructions with the Consumer.

• Note to Consumer – Keep these instructions for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Approximately 1 hour

• We recommend that two people install

this product.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com

Installation

Air Conditioner

Instructions

Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

ELECTRICAL REQUIREMENTS

TOOLS YOU WILL NEED

Phillips head screwdriver

Ruler or tape measurePencil

Level

Scissors or knife

CAUTION:

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Do not change the plug on the power cord of this air conditioner.

Aluminum house wiring may present special problems—consult a qualified electrician.

Flat-blade screwdriver

Installation Instructions

Type A (14)

Support bracket (2)

Sill bracket (2)

Type B (7) Type C (5) Type D (2) Carriage Bolt (2) Lock Nut (4)

Window locking

bracket

Frame guide (2)

Top

mounting

rail

Top mounting

rail seal strip

Right

accordion

panel

Foam top

window gasket

Window

sash seal

Left

accordion

panel

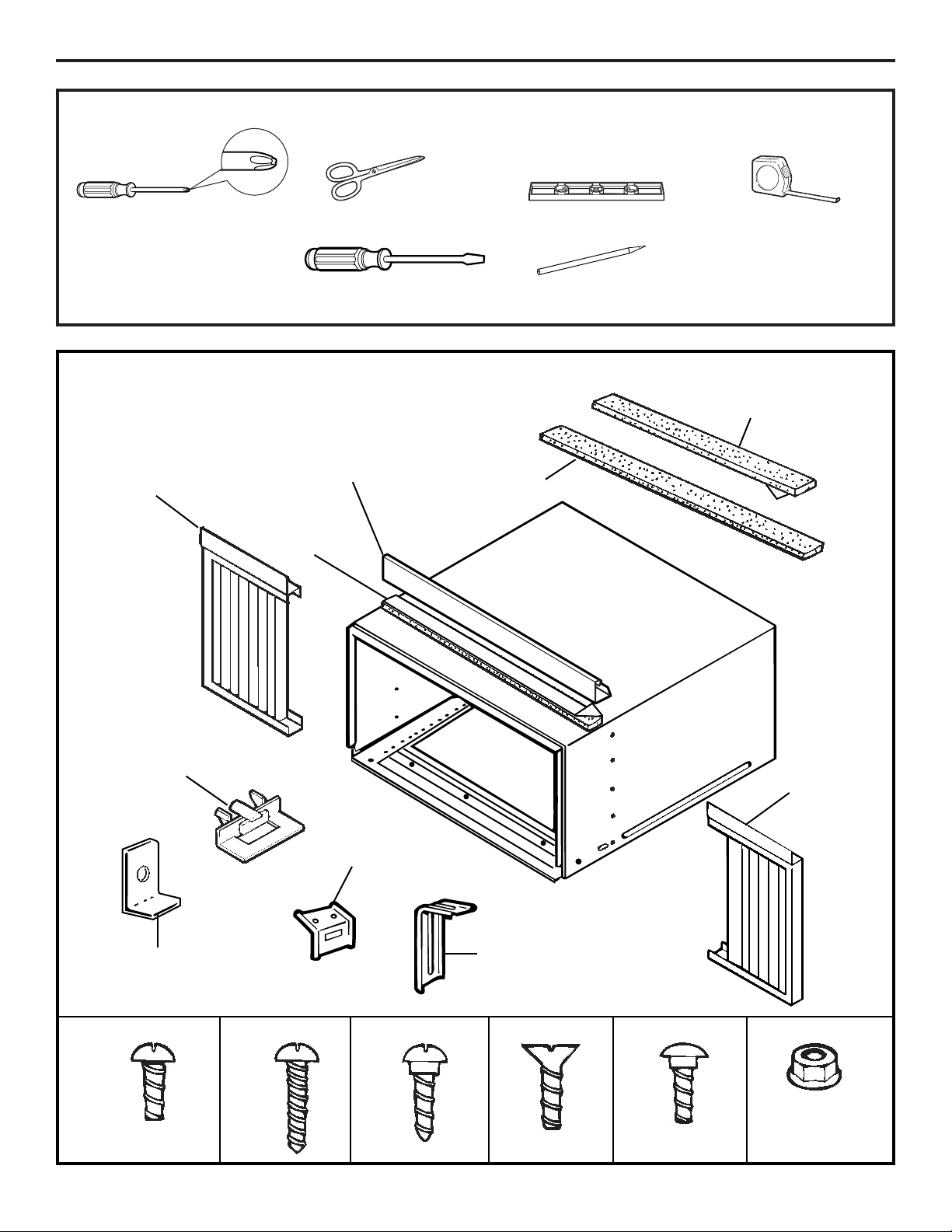

PARTS INCLUDED

(Appearance may vary)

Installation Instructions

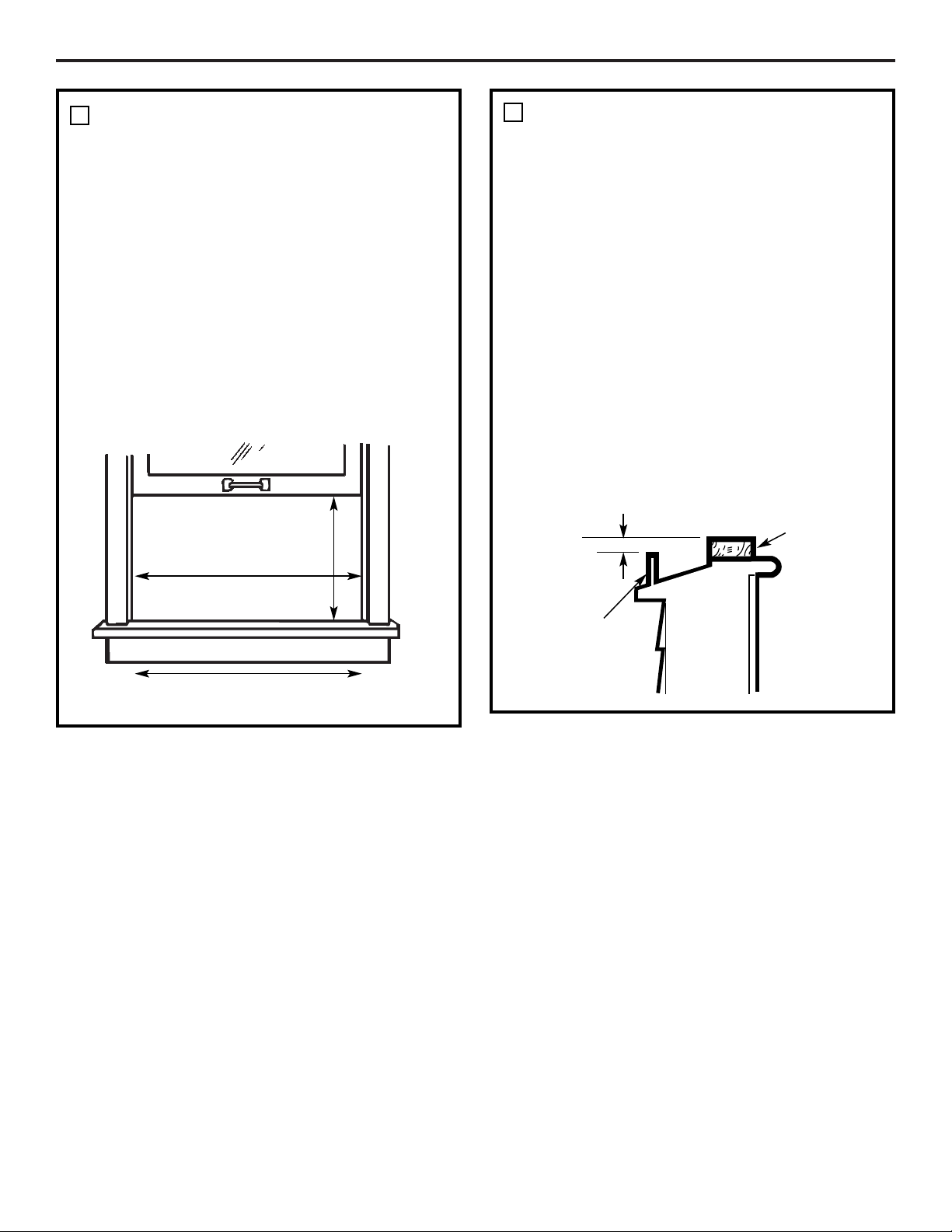

WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.

• The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.

• All supporting parts must be secured to firm wood, masonry or metal.

• The electrical outlet must be within reach of the power cord.

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly. To adjust for this, attach a piece of wood to the stool.

WOOD PIECES– WIDTH: 2″ LENGTH: Long enough to fit inside the

window frame. THICKNESS: To determine the thickness,

place a piece of wood on the stool to make it 1/2″ higher than the top of the storm window frame.

Attach securely with nails or screws provided by the installer.

1/2″ higher than frame

Storm window frame

Wood

Stool

18″ min.

29″ to 41″

(With accordion panels)

27″ min.

(Without accordion panels)

Installation Instructions

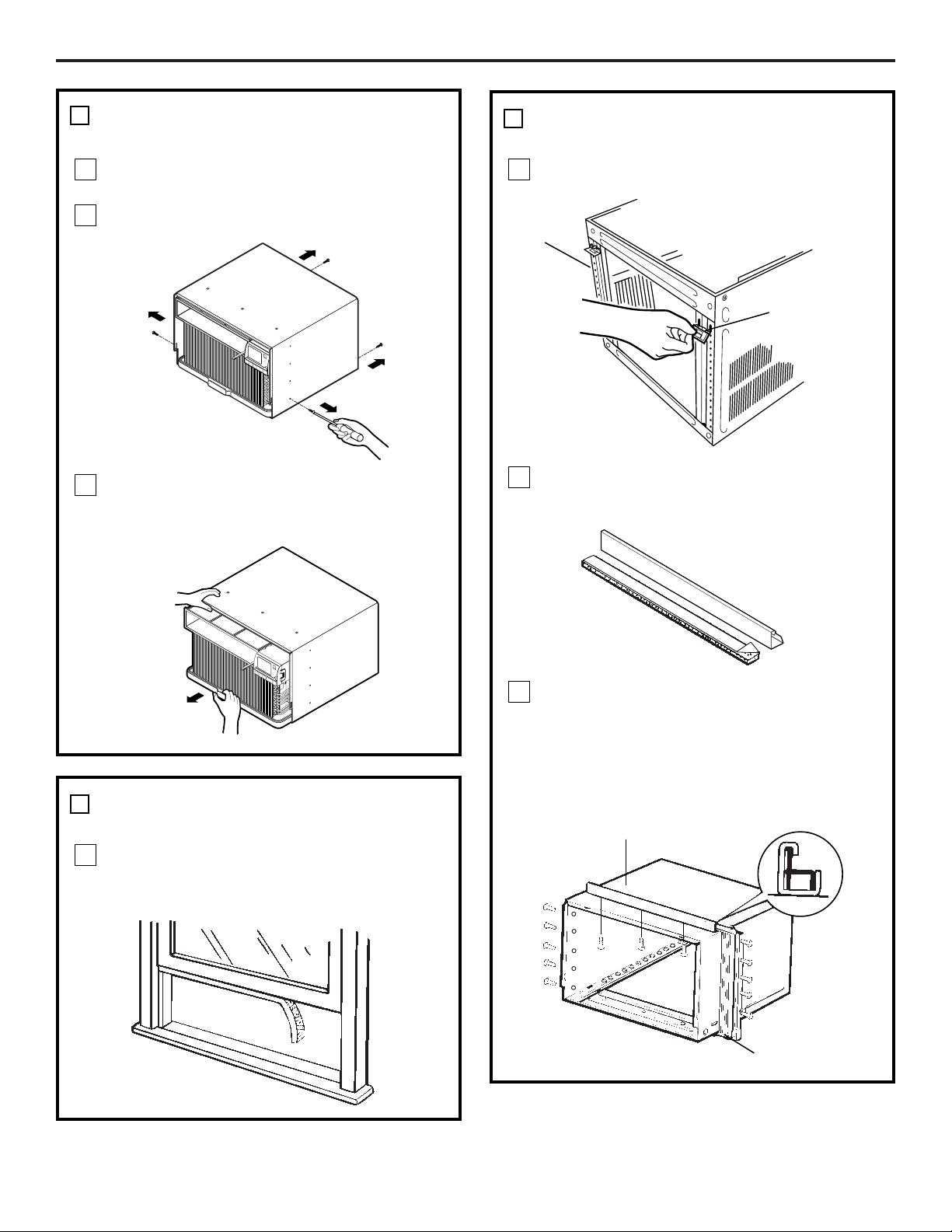

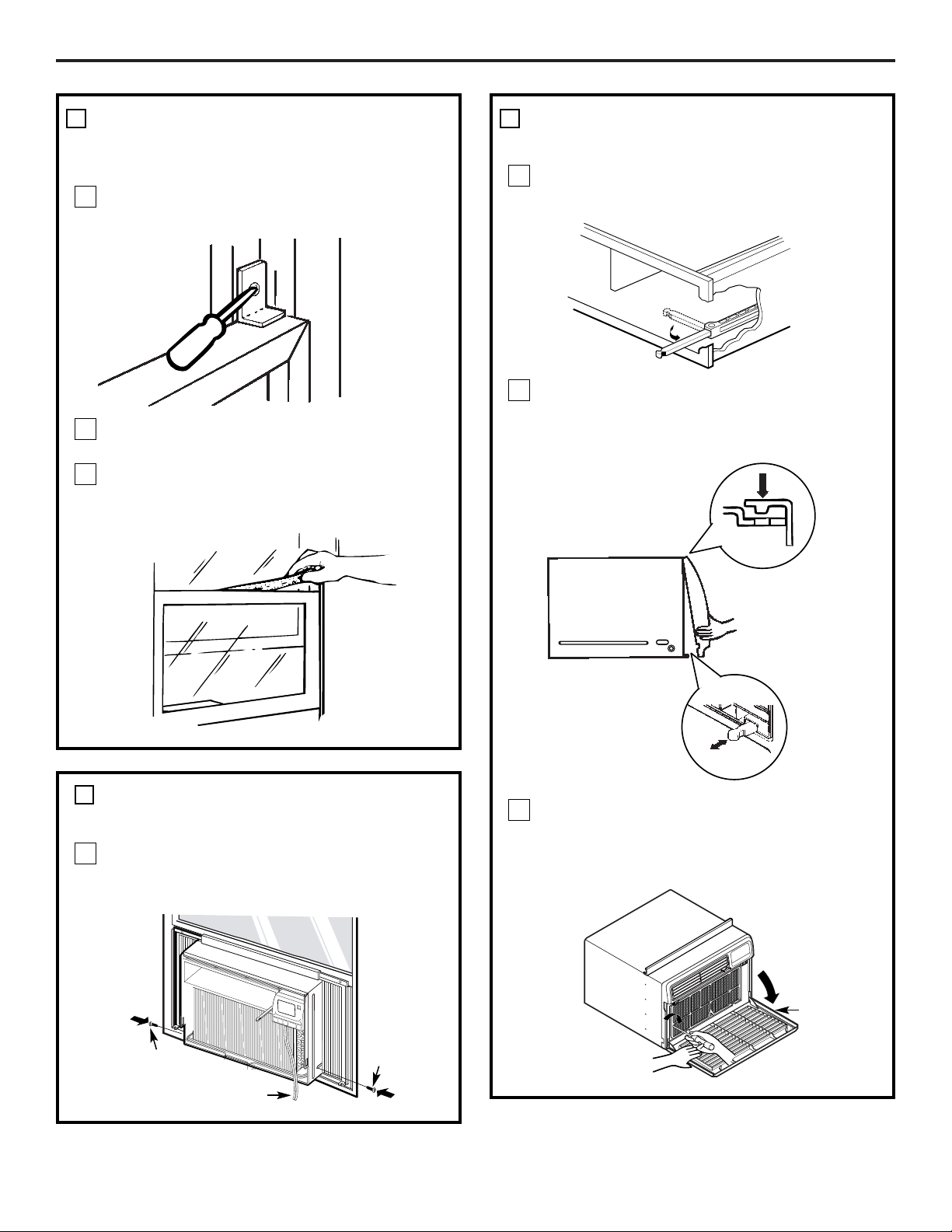

REMOVE THE AIR CONDITIONER FROM THE CASE

Remove the 2 shipping screws from the back of the case.

Remove the 2 screws on each side of the case. Keep these for later use.

Slide the air conditioner from the case by gripping the base pan handle and pulling forward while bracing the case.

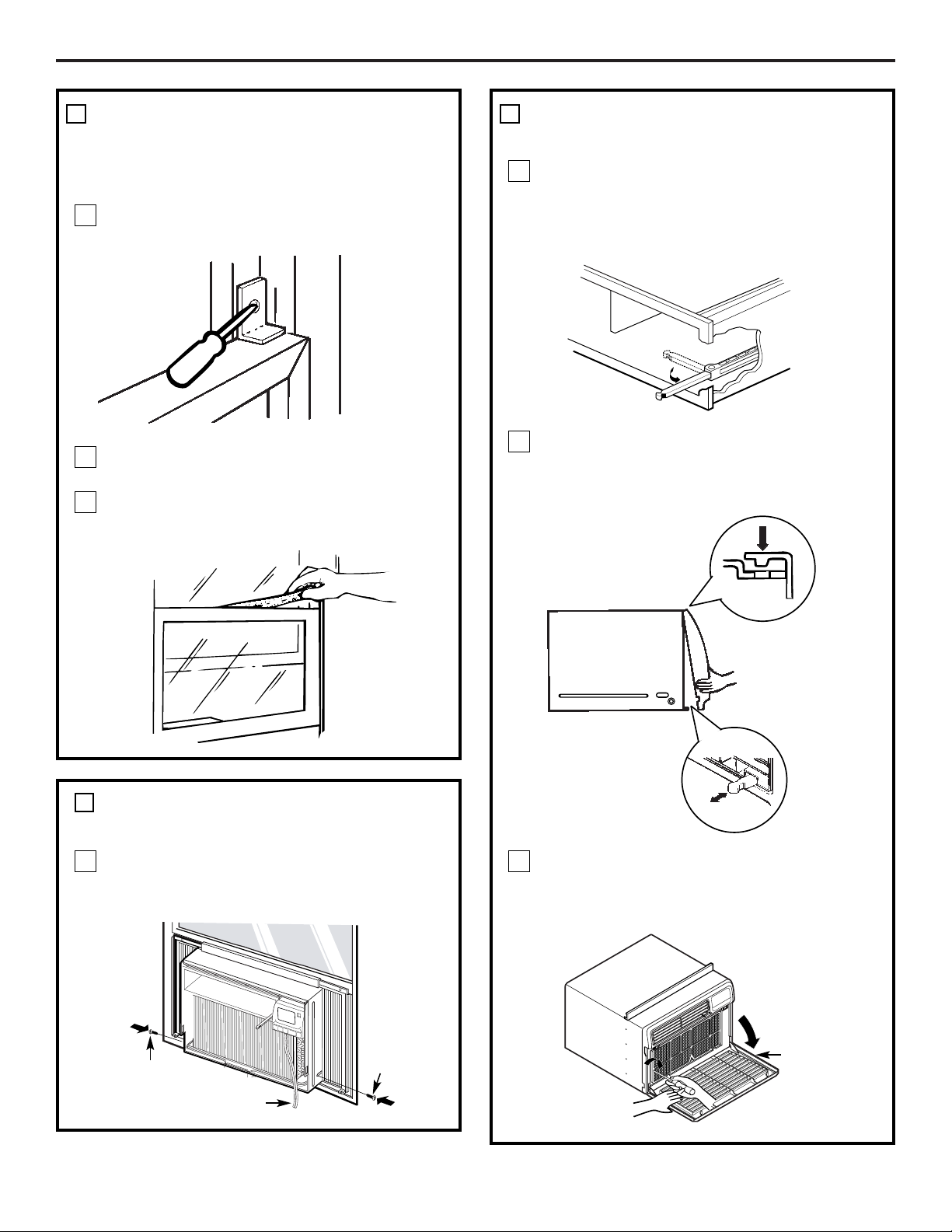

PREPARE THE WINDOW AND THE CASE

Cut the window sash seal to the proper length. Peel off the backing and attach the seal to the underside of the window sash.

PREPARE THE WINDOW AND THE CASE (CONT.)

Carefully insert the plastic frame guides into the bottom of the case on each side.

Remove the backing from the top mounting rail seal strip and attach it to the bottom of the top mounting rail.

Install the top mounting rail with 3 type A screws on the inside of the case. Insert the frames for the accordion panels into the top mounting rail and the frame guides. Attach the accordion panels to the side of the case using 5 type A screws on each side.

Bottom of case

Frame guide

Top mounting rail

Frame guides

Installation Instructions

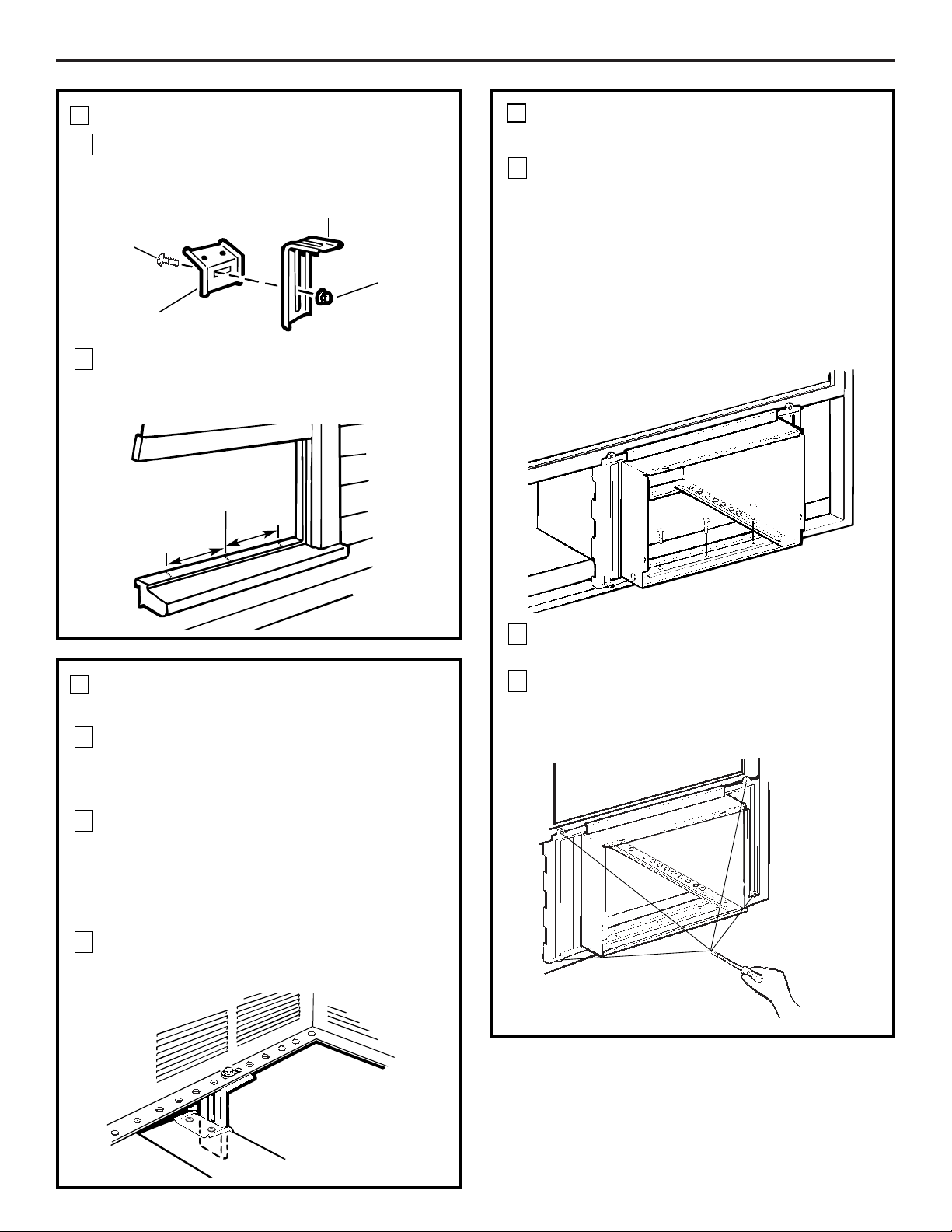

INSTALL THE CASE IN THE WINDOW

Align the inside edge of the sill brackets with the 11″ marks from the centerline and attach them to the window sill using 2 type B screws on each side.

Carefully place the case on the window stool aligning the center front on the bottom with the centerline marked on the window stool. Close the window making sure the window sash is behind the top mounting rail.

Using the larger diameter hole in the case, attach

the brackets to the case using two

type D screws and 2 lock nuts on each side.

INSTALL THE CASE IN THE WINDOW (CONT.)

Adjust the carriage bolts and the lock nuts in each support so that the case is installed with a slight tilt to the outside. Use a level; about 1/3 bubble will be the correct case slant to the outside. Tighten the bolts.

CAUTION: DO NOT drill a hole in the base pan. The unit is designed to operate with approximately 1/2 ″ of water in the base pan.

Secure the case to the window stool by using 3 type B screws.

Pull the accordion panels to each window sash track. Attach them on each side to the window sash and the window stool using 4 type C screws.

PREPARE THE WINDOW

Loosely attach the sill brackets to the support brackets using the 2 carriage bolts and 2 lock nuts.

Open the window and mark the centerline of the window stool. Measure and mark 11″ to the left and right of the centerline.

Sill bracket

Lock nut

Support bracket Carriage bolt

Centerline

″
