Air Conditioners
Room
www.GEAppliances.com
Safety Instructions . . . . . . . . . . .2, 3
Operating Instructions
Control knob models . . . . . . . . .6, 7 Touch pad models . . . . . . . . . . . .4, 5
Care and Cleaning
Air Filter . . . . . . . . . . . . . . . . . . . . . .8
Front Grille and Case . . . . . . . . . . .8
Outdoor Coils . . . . . . . . . . . . . . . . .8
Installation Instructions . . . . .9–13
Troubleshooting Tips . . . . . .14, 15
Normal Operating Sounds . . . . . .15
Consumer Support
Consumer Support . . . . . . . . . . . .18
Warranty . . . . . . . . . . . . . . . . . . . . .17
Write the model and serial numbers here:
Model # __________________________
Serial # __________________________
Find these numbers on a label on the side of the air conditioner.
Owner’s Manual and
Installation Instructions
AGH06
AGW06
3828A20514D 49-7494-1 03-05 JR
Consumer Support Troubleshooting Tips Installation Instructions Operating Instructions Safety Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock or personal injury.
SAFETY PRECAUTIONS
■Use this appliance only for its intended purpose as described in this Owner’s Manual.
■This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
■Never unplug your air conditioner by pulling on the power cord. Always grip plug firmly and pull straight out from the receptacle.
■Replace immediately all electric service cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
■Turn the mode control to OFF and unplug your air conditioner before cleaning.
■GE does not support any servicing of the air conditioner. We strongly recommend that you do not attempt to service the air conditioner yourself.
■For your safety…do not store or use combustible materials, gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
■All air conditioners contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old product with refrigerants, check with the company handling disposal about what to do.
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.
Power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified
service technician.
Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet.
The air conditioner should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical Requirements section for specific electrical connection requirements.
2
www.GEAppliances.com
WARNING!
USE OF EXTENSION CORDS—115-Volt models only
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed, 14 gauge, 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the 230/208 volt models.
USE OF ADAPTER PLUGS—115-Volt models only
Because of potential safety hazards under certain conditions, we strongly recommend against the use of an adapter plug.
However, if you must use an adapter, where local codes permit, a temporary connection may be made to a properly grounded 2-prong wall outlet by use of a UL-listed adapter available at most local hardware stores.
The larger slot in the adapter must be aligned with the larger slot in the wall outlet to provide proper polarity in the connection of the power cord.
When disconnecting the power cord from the adapter, always hold the adapter in place with one hand while pulling the power cord plug with the other hand. If this is not done, the adapter ground terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT USE the air conditioner until a proper ground has been established.
Attaching the adapter ground terminal to a wall outlet cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall outlet is grounded through the house wiring. You should have the circuit checked by a qualified electrician to make sure the outlet is properly grounded.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
3
Support Consumer Tips Troubleshooting Instructions Installation Instructions Operating Instructions Safety
Consumer Support Troubleshooting Tips Installation Instructions Operating Instructions Safety Instructions

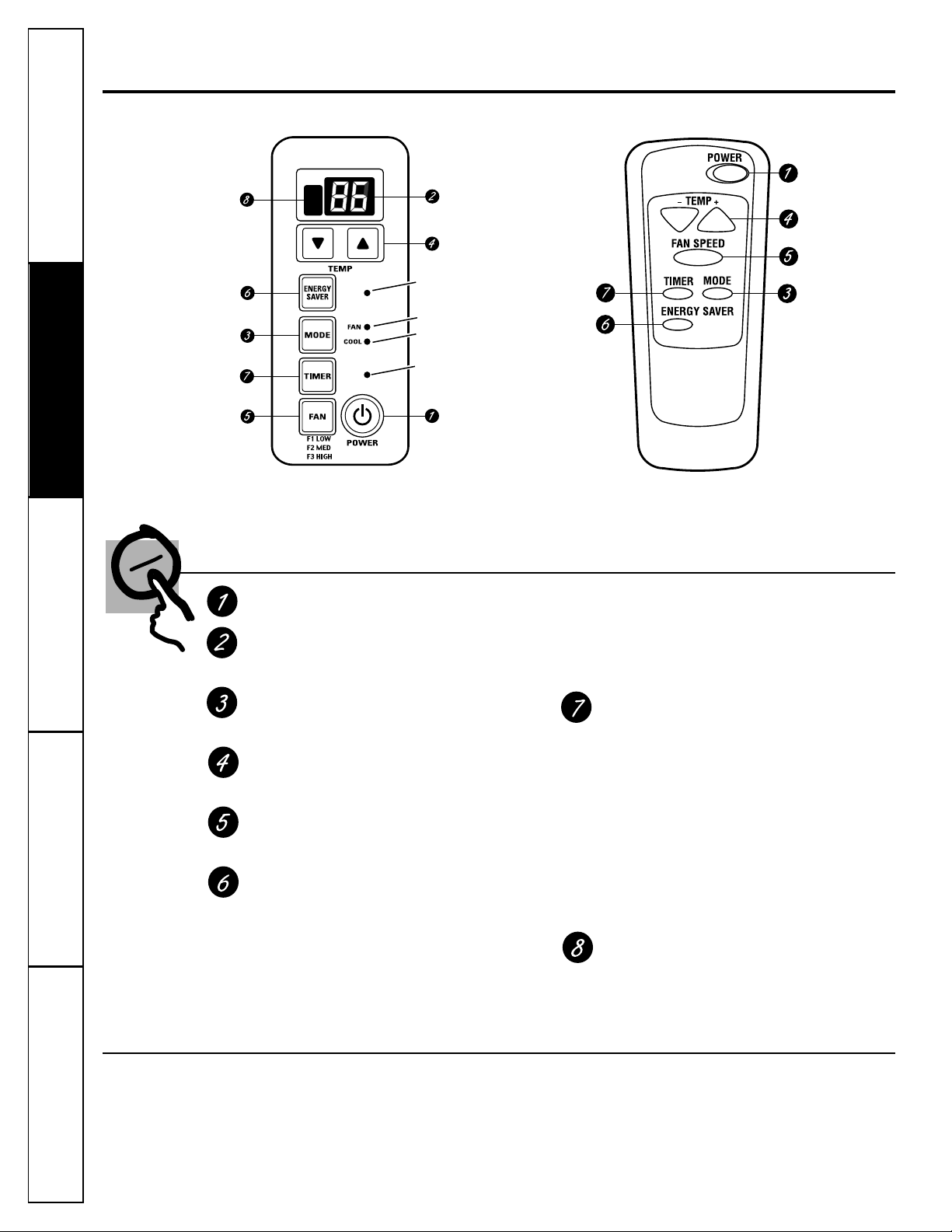

About the controls on the air conditioner—models with touch pads.
Features and appearance will vary.
Energy
Saver on
Fan on
Cool on
Timer on
|
|
|
Air Conditioner Controls |
Remote Control |
|
Controls
ON/OFF Pad
Turns air conditioner on and off.
Display
Shows the set temperature or time remaining on timer.
MODE
Use to set the air conditioner to COOL or FAN mode.
Increase ▲ /Decrease ▼ Pads
Use to set temperature when in COOL mode.
FAN Pad
Use to set the fan speed to LOW (F1), MED (F2) or HIGH (F3).
ENERGY SAVER (on some models)—Controls the fan.
ON—The fan and compressor cycle on and off. This results in wider variations of room temperature and humidity. Normally used when the room is unoccupied. NOTE: The fan will continue to run for a short time after the compressor cycles off.
OFF—The fan runs all the time, while the compressor cycles on and off.
This feature must be set at OFF in order to use the fan settings (on the mode control).
TIMER Pad
ON—When the air conditioner is off, it can be set to automatically come on in 1 to 12 hours at its previous setting. Each touch will set the timer in hours.
OFF—When the air conditioner is on, it can be set to automatically turn off in 1 to 12 hours. Each touch will set the timer in hours.
To cancel the timer, press the TIMER pad until the display time disappears.
Remote Control Signal Receiver
Remote Control
■To ensure proper operation, aim the remote control at the signal receiver on the air conditioner.
■The remote control signal has a range of up to 21 feet.
4
■Make sure nothing is between the air conditioner and the remote control that could block the signal.
■Make sure batteries are fresh and installed correctly as indicated on the remote control.
www.GEAppliances.com
Lights next to the touch pads on the air conditioner control panel indicate the selected settings.
Power Outage Recovery Feature
In the case of a power outage or interruption, the unit will automatically re-start in the settings last used after the power is restored. The TIMER feature will reset to the original setting. You may need to set a new time if desired.
COOL Mode
Use the COOL mode with HIGH (F3), MED (F2) or
LOW (F1) fan for cooling. Use the INCREASE ▲ / DECREASE ▼ pads to set the desired temperature between 60°F and 86°F in 1°F increments.
An electronic thermostat is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the set level of comfort. Set the thermostat at a lower number and the indoor air will become cooler. Set the thermostat at a higher number and the indoor air will become warmer.
NOTE: If the air conditioner is off and is then turned on while set to COOL, it will take approximately 3 minutes for the compressor to start and cooling to begin.
Cooling Descriptions
For Normal Cooling—Select the COOL mode and
HIGH (F3) or MED (F2) fan with a middle set temperature.
For Maximum Cooling—Select the COOL mode and HIGH (F3) fan with a lower set temperature.
For Quieter & Nighttime Cooling—Select the
COOL mode and LOW (F1) fan with a middle set temperature.
NOTE: If you switch from a COOL setting to OFF or to a fan setting, wait at least 3 minutes before switching back to a COOL setting.
FAN Mode
Use the FAN at HIGH (F3), MED (F2) or LOW (F1) to provide air circulation and filtering without cooling. Since fan only settings do not provide cooling,
a temperature setting will not be displayed.
Additional controls and important information.

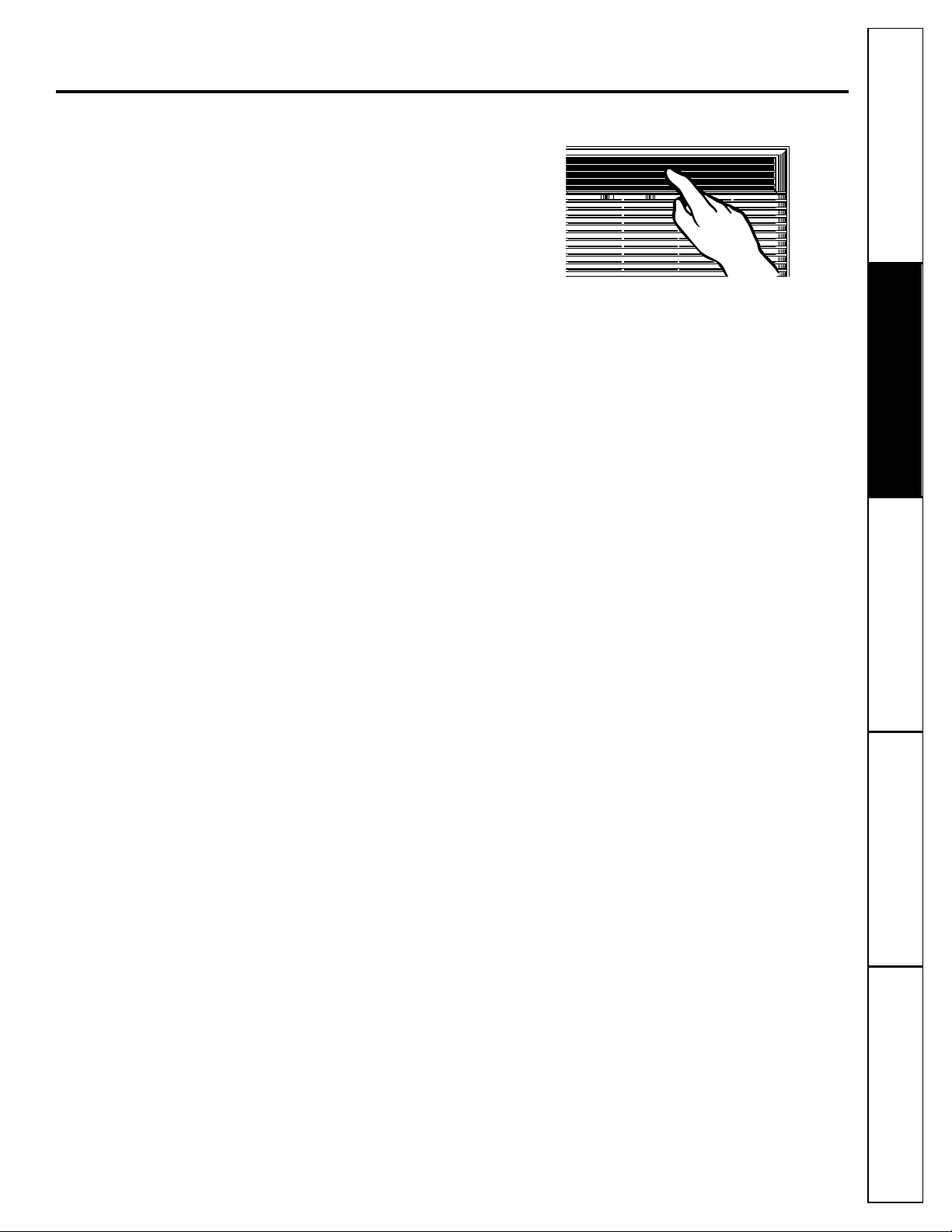

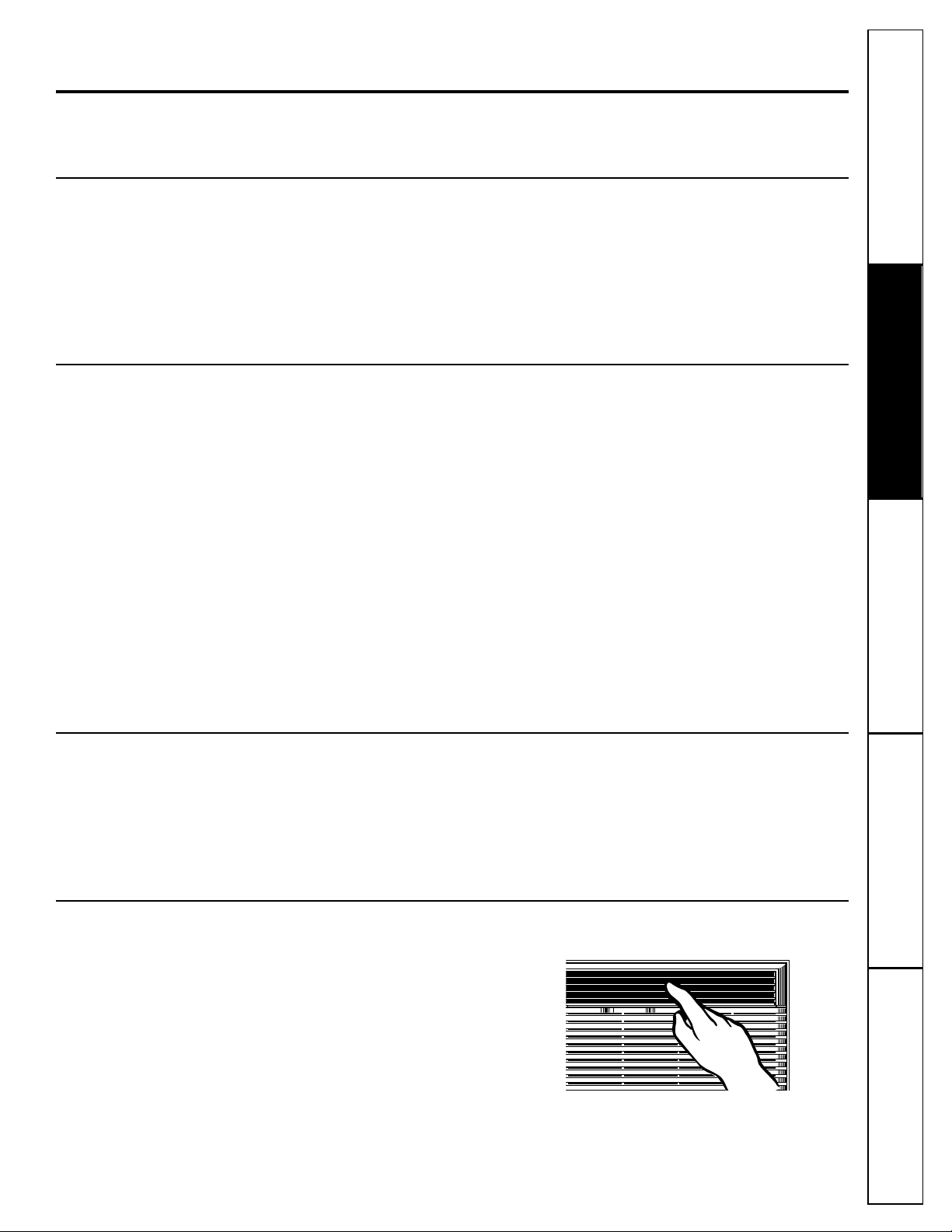

Air Direction
Fingertip pressure on the louvers lets you control the air direction left, right, straight ahead or any combination of these directions.
5
Support Consumer Tips Troubleshooting Instructions Installation Instructions Operating Instructions Safety
Consumer Support Troubleshooting Tips Installation Instructions Operating Instructions Safety Instructions

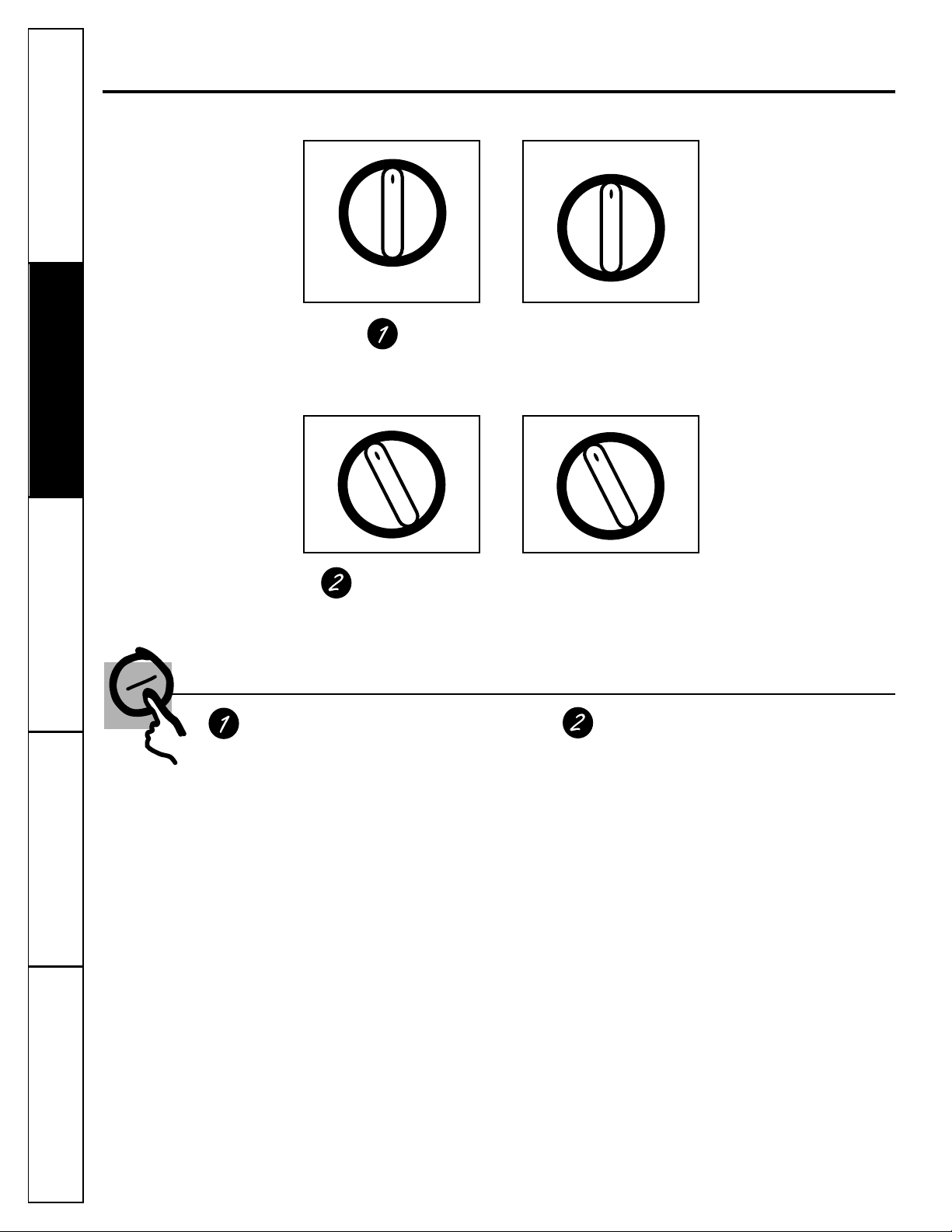

About the controls on the air conditioner—models with control knobs.
Features and appearance will vary.
|
OFF |
HI |
HI |
FAN |
COOL |
LOW |
MED |
FAN |
COOL |
|
LOW |
|
COOL |
|
|
|
OFF |
HI |
HI |
FAN |
COOL |
LOW |
LOW |
FAN |
COOL |
MODE
Your model will have one of the above type controls.
3 |
4 |
4 |
5 |
|
|
||
|
|
3 |
6 |
2 |
|
5 |
|
|
|
2 |
7 |
1 |
6 |
1 |
8 |
TEMP
Your model will have one of the above type controls.
Controls
Mode Control
HI COOL , MED COOL and LOW COOL provide cooling with different fan speeds.
HI FAN and LOW FAN provide air circulation and filtering without cooling.
NOTE: If you move the mode control from a cool setting to OFF or to a fan setting, wait at least
3 minutes before switching back to a cool setting.
Temp Control
The temp control is used to maintain the room temperature. The compressor will cycle on and off to keep the room at the same level of comfort. When you turn the knob to a higher number the indoor air will become cooler. Turn the knob to a lower number and the indoor air will become warmer.
Cooling Descriptions
For Normal Cooling—Select HI COOL or MED COOL with the temp control at midpoint.
For Maximum Cooling—Select HI COOL with the temp control at the highest number available on your knob.
For Quieter & Nighttime Cooling—Select LOW COOL with the temp control at midpoint.
6
Additional controls and important information.
Air Direction
Fingertip pressure on the louvers lets you control the air direction left, right, straight ahead or any combination of these directions.
www.GEAppliances.com
7
Support Consumer Tips Troubleshooting Instructions Installation Instructions Operating Instructions Safety
Consumer Support Troubleshooting Tips Installation Instructions Operating Instructions Safety Instructions
Care and cleaning of the air conditioner.

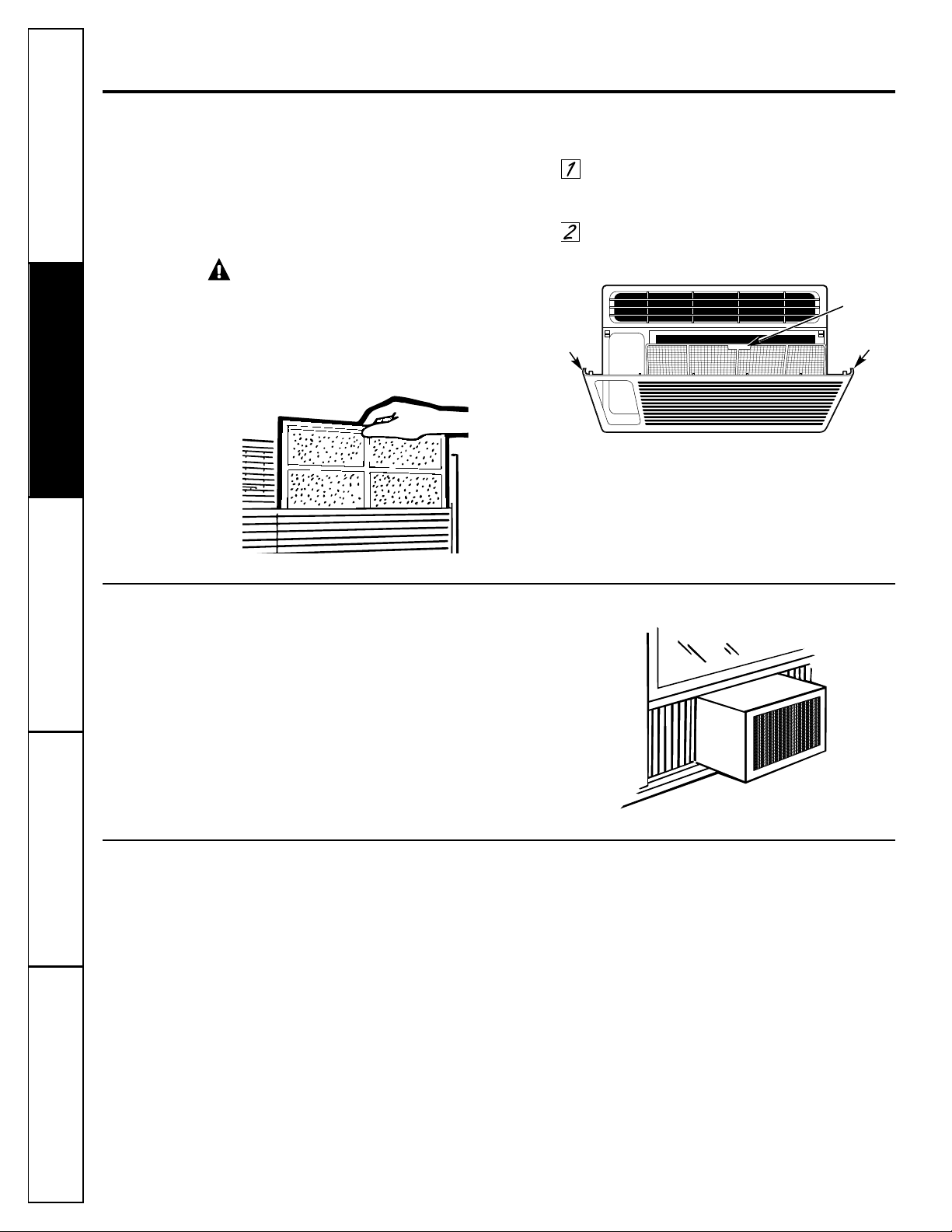

Air Filter
The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.
Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.
To remove (on some models):
Grasp the tab and gently pull the filter up and out.
To remove (on some models):
Open the inlet grille downward by pulling out the upper corners of the inlet grille.
Using the tab, push down on the filter to release it and pull it out.
|
Filter |
|
tab |
Grasp |
Grasp |
corner |
corner |
Outdoor
The conditioner should be checked regularly. If they are clogged with dirt or soot they may be professionally cleaned.
Front Grille and Case
Turn the air conditioner off and remove the plug from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not use bleach or abrasives.
8
Installation |
Air Conditioner |
Instructions |
|
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com
BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT — Save these
instructions for local inspector’s use.
• IMPORTANT — Observe all governing codes and ordinances.
•Note to Installer – Be sure to leave these instructions with the Consumer.
•Note to Consumer – Keep these instructions for future reference.
•Skill level – Installation of this appliance requires basic mechanical skills.
•Completion time – Approximately 1 hour
•We recommend that two people install this product.
•Proper installation is the responsibility of the installer.
•Product failure due to improper installation is not covered under the Warranty.
CAUTION:
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
Do not change the plug on the power cord of this air conditioner.
Aluminum house wiring may present special problems—consult a qualified electrician.
ELECTRICAL REQUIREMENTS
Some models require a 115/120-volt a.c., 60 Hz grounded outlet protected with a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the possibility of electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c., protected with a time delay fuse or circuit breaker. These models should be installed on their own single branch circuit for best performance and to prevent overloading house or apartment wiring circuits, which could cause a possible fire hazard from overheating wires.

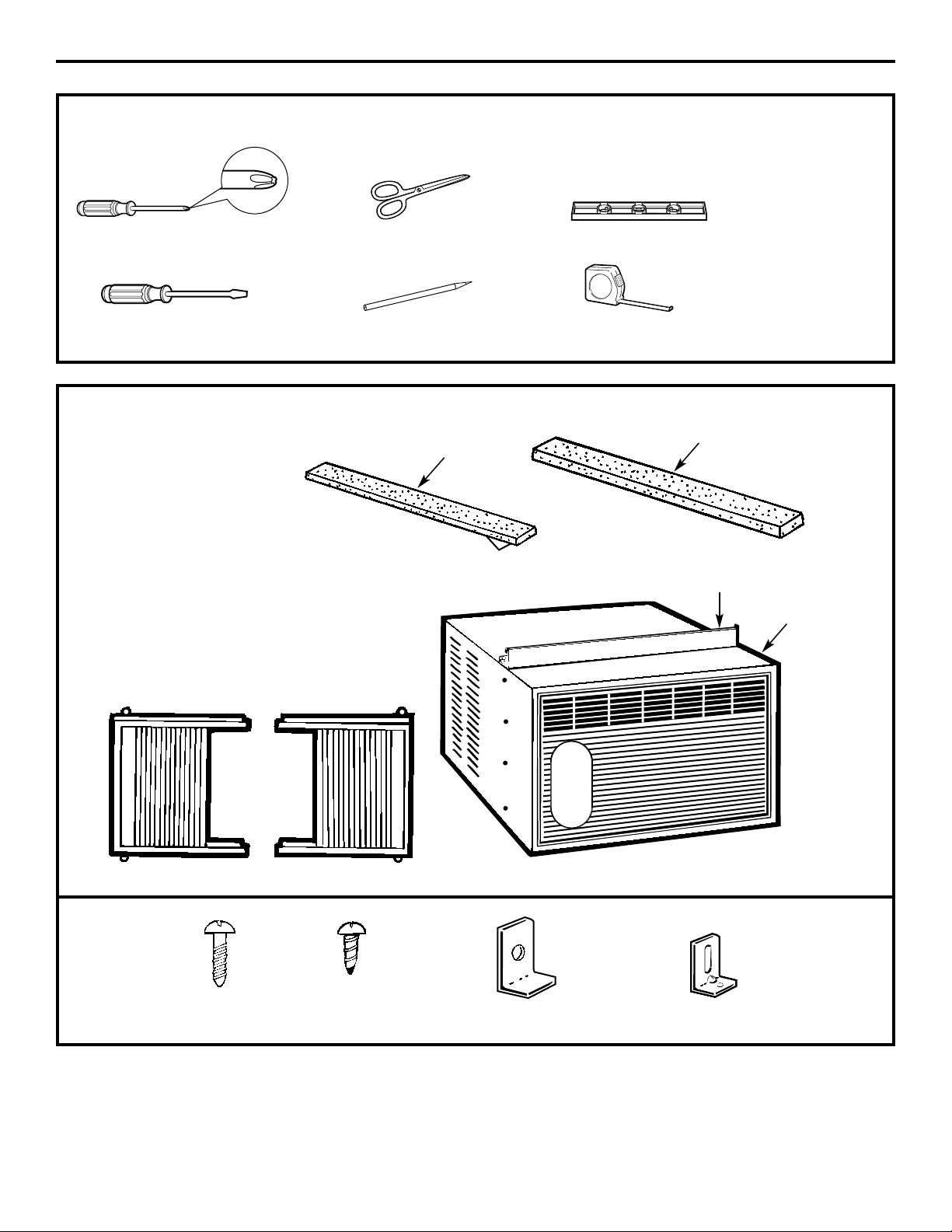

TOOLS YOU WILL NEED
Phillips head screwdriver |
Scissors or knife |
Flat-blade screwdriver |
Pencil |
Level
Ruler or tape measure
Power cord includes a current interrupter |
button does not trip or if the RESET button will |
device. A test and reset button is provided on |
not stay engaged, discontinue use of the air |
the plug case. The device should be tested on |
conditioner and contact a qualified service |
a periodic basis by first pressing the TEST |
technician. |
button and then the RESET button. If the TEST |
|
|
|
9
Installation Instructions
PARTS INCLUDED |
|
|
Foam top window gasket |
|
(Appearance may vary) |
Window sash seal |
|||
|
||||
|
|
|
Top mounting rail |
|
|
|
|
Air conditioner |
|
Side |
|
|
|
|
accordion |
|
|
|
|
panels |
|
|
|
|
Type A (5) |
Type B (11) |
Support brackets (3) |
Security bracket (1) |
|
10
Installation Instructions
1WINDOW REQUIREMENTS
•These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
•The air conditioner can be installed without the accordion panels if needed to fit in a narrow window. See the window opening dimensions.
•All supporting parts must be secured to firm wood, masonry or metal.
•The electrical outlet must be within reach of the power cord.
13″ min.
22″ to 36″
(With accordion panels)
183⁄4″ min. (Without accordion panels)
2 STORM WINDOW REQUIREMENTS
A storm window frame will not allow the air conditioner to tilt toward the outside, and will keep it from draining properly.
To adjust for this, attach a piece of wood to the stool.
WOOD PIECES—
WIDTH: 2″
LENGTH: Long enough to fit inside the window frame.
THICKNESS: To determine the thickness, place a piece of wood on the stool to make it 1/2″ higher than the top of the storm window frame.
Attach securely with nails or screws provided by the installer.
Wood
1/2″ higher |
|
than frame |
Stool |
|
Storm window frame
11
3 PREPARE THE WINDOW
ACut the window sash seal to the window width and stick the adhesive side to the bottom of the sash.
Window
sash seal
INSIDE
BMark the centerline of the sill. Measure
and mark the locations for the support brackets 8″ from both sides of the centerline.
CPlace 2 support brackets on the sill,
against the back edge of the stool with their holes centered on each 8″ mark.
Type B screw
Inside
Stool
Sill
Support bracket
Outside Support
bracket
DAttach them to the sill with one Type B screw through each support bracket.
Loading...
