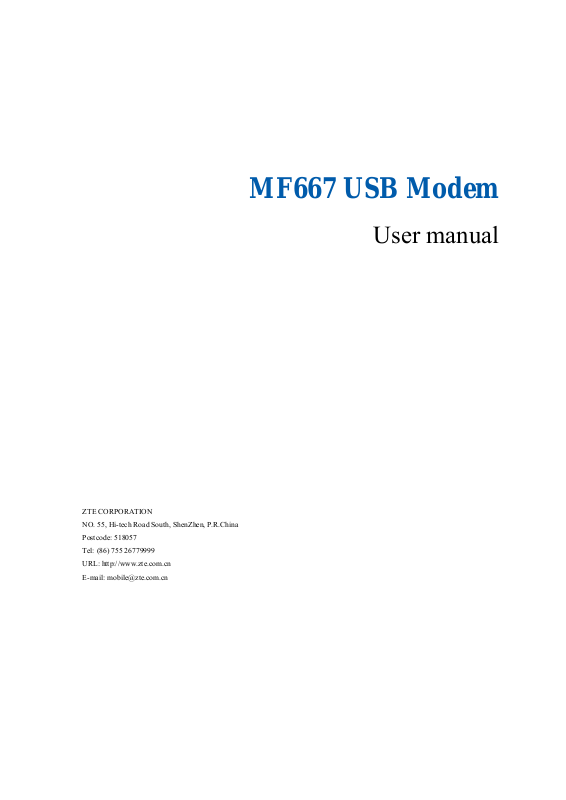

ZTE MF667 User Manual
MF667 USB Modem
User manual
ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057
Tel: (86) 755 26779999
URL: http://www.zte.com.cn
E-mail: mobile@zte.com.cn
LEGAL INFORMATION
Copyright © 2010 ZTE CORPORATION.
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.
Version No. : R1.0
Edition Time :
Manual No. :
Contents
Quick Guide .......................................................................................................................... 1
Introduction ....................................................................................................................... 1
Specification...................................................................................................................... 1
Getting to know your device ............................................................................................. 2
Hardware Installation ........................................................................................................ 3
LED Lights ........................................................................................................................ 5
Radio Frequency (RF) Energy .......................................................................................... 5
FCC Compliance ............................................................................................................... 6
How to get help ................................................................................................................. 6
Warning and Notice .............................................................................................................. 7
To the owner ..................................................................................................................... 7
Using your USB Modem .................................................................................................. 7
Limited Warranty .............................................................................................................. 8
Limitation of Liability ....................................................................................................... 9
Management Software ........................................................................................................ 10
System Requirements ...................................................................................................... 10
Access the management software ................................................................................... 10
Interface Introduction .......................................................................................................... 13
Main Interface ................................................................................................................. 13
System information Icons ............................................................................................... 13
Access mobile network ....................................................................................................... 15
Set the Band Selection Mode .......................................................................................... 15
View the 3G and system information ............................................................................. 15
Surfing on the Internet ........................................................................................................ 17
Set APN parameters ........................................................................................................ 17
Set WAN Connection Mode ........................................................................................... 18
Connect to the Internet .................................................................................................... 19
View the Statistics ........................................................................................................... 19
SMS ..................................................................................................................................... 21
Set SMS parameters ........................................................................................................ 21
Send a new message ........................................................................................................ 22
Read Short Message ........................................................................................................ 22
SMS Operation Guide ..................................................................................................... 23
Phonebook ........................................................................................................................... 25
Add a new contact ........................................................................................................... 25
Edit a contact ................................................................................................................... 25
Delete contacts ................................................................................................................ 26
Others .................................................................................................................................. 27
View Network Status ...................................................................................................... 27
Restore Factory Defaults ................................................................................................. 27
Enabling PIN Code ......................................................................................................... 28
Modifying PIN Code ....................................................................................................... 28
USSD .............................................................................................................................. 29
STK ................................................................................................................................. 29
microSD Card ..................................................................................................................... 31
Use microSD Card .......................................................................................................... 31
Uninstall microSD Card .................................................................................................. 31
FAQ ..................................................................................................................................... 33
C h a p t e r 1
Quick Guide
Introduction
Thank you for using ZTE MF667 USB Modem.
To guarantee the modem always in its best condition, please read this manual carefully and keep
it for further use.
The pictures, symbols and contents in this manual are just for your reference. They might not be
completely identical with your modem. We operate a policy of continuous development. We
reserve the right to update the technical specifications in this document at any time without prior
notice.
The ZTE MF667 USB modem is a multi-mode USB modem, working in
HSPA+/HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface
connecting to a laptop or a desktop PC, it integrates the functionality of a modem and a mobile
phone (SMS), and combines mobile communication with Internet perfectly. It supports data and
SMS services through the mobile phone network, enabling you to communicate anytime and
anywhere.
Specification
The following table shows the specification of your device.
Interface Type USB 2.0 HIGH SPEED
Systems supported Supports most types of laptop and desktop PC.
Operating systems
supported
Windows XP (SP3 and above), Vista, Windows 7
MAC 10.4.11 and later
Linux
Functions SMS service, Data service, Applications management, support
microSD card, etc.
Confidential and Proprietary Information of ZTE CORPORATION 1
Network Standards HSPA+/HSUPA/HSDPA/EDGE/GPRS/GSM
Transmission speed
(Max)
Temperature
HSPA+: 21.6 Mbps DL
HSUPA: 5.76 Mbps UL
Storage: -20 ℃ ~ +70 ℃
Operation:-10 ℃ ~ +60 ℃
Dimension 76.5 mm * 27.2 mm * 10.5 mm (Without USB Cap)
Weight About 28 g
microSD capability Support up to 32 GB microSD card
Notes:
The microSD Logo ( ) is a trademark of SD Card Association.
Getting to know your device
The following figure shows the appearance of the MF667. It is only for your reference. The
actual product may be different.
1. microSD card slot
2. SIM/USIM card slot
3. USB Connector
4. Modem Cap
5. Front Cover
2 Confidential and Proprietary Information of ZTE CORPORATION
Hardware Installation
1. Press and push the front cover and remove it.
Notes:
Do not open the front cover rudely so as to avoid the damage of the front cover.
2. Insert the SIM/USIM card into the SIM/USIM card slot.
Insert the SIM/USIM card with the metal contact area facing downwards into the slot, and then push
SIM/USIM card as far as possible, shown as the following picture.
3. Insert the microSD card into the microSD card slot.
Notes:
This modem only supports microSD card.
Insert your microSD card into the microSD card slot, shown as the following picture.
Confidential and Proprietary Information of ZTE CORPORATION 3
4. Put the front cover flatly upon the body of modem and push the front cover to lock the cover in its
place.
5. Connect the Modem to your laptop or desktop PC.
f Plug the USB connector into your computer’s USB port and make sure that it is tightly inserted.
f The OS automatically detects and recognizes new hardware and starts the installation wizard.
4 Confidential and Proprietary Information of ZTE CORPORATION
k
LED Lights
Indication Modem Status
Red Power on, but not registered to a networ
Green bright Register to 2G/3G network
Green twinkling Connect to 2G/3G network
Radio Frequency (RF) Energy
This model device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio
frequency (RF) energy set by the Federal Communications Commission of the U.S. Government:
The exposure standard for wireless devices employs a unit of measurement known as the Specific
Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. *Tests for SAR are
conducted using standard operating positions accepted by the FCC with the device transmitting at
its highest certified power level in all tested frequency bands. Although the SAR is determined at
the highest certified power level, the actual SAR level of the device while operating can be well
below the maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the closer you are to a
wireless base station antenna, the lower the power output.
The highest SAR value for the model device as reported to the FCC when worn on the body, as
described in this user guide, is 1.1 W/kg (Body-worn measurements differ among device models,
depending upon available enhancements and FCC requirements.)
For body worn operation, this device has been tested and meets the FCC RF exposure guidelines
for use with an accessory that contains no metal and the positions the handset a minimum of 5
mm from the body. Use of other enhancements may not ensure compliance with FCC RF
exposure guidelines. If you do not use a body-worn accessory and are not holding the phone at
the ear, position the handset a minimum of 5 mm from your body when the phone is switched on.
While there may be differences between the SAR levels of various devices and at various
positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all reported SAR
levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this
model device is on file with the FCC and can be found under the Display Grant section of
http://www.fcc.gov/oet/ea/fccid/ after searching on
Confidential and Proprietary Information of ZTE CORPORATION 5
FCC ID: Q78-ZTEMF667
FCC Compliance
This device complies with part 15 of the FCC Rules. Operation is subject to the condition that
this device does not cause harmful interference and this device must accept any interference
received, including interference that may cause undesired operation.”
Caution: Changes or modifications not expressly approved by the manufacturer could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
How to get help
You can get Help by:
• Clicking Help on the software.
• Sending E-mail to mobile@zte.com.cn
• Visiting http://www.zte.com.cn
• Calling Service Hotline: +86–755–26779999
6 Confidential and Proprietary Information of ZTE CORPORATION
C h a p t e r 2
Warning and Notice
To the owner
• Some electronic devices are susceptible to electromagnetic interference sent by modem if
inadequately shielded, such as the electronic system of vehicles. Please consult the
manufacturer of the device before using the modem if necessary.
• Operating the modem may interfere with medical devices like hearing aids and pacemakers.
Please always keep them more than 20 centimeters away from such medical devices when they
are turned on. Turn the modem off if necessary. Consult a physician or the manufacturer of the
medical device before using the modem.
• Be aware of the usage limitation when using a modem at places such as oil warehouses or
chemical factories, where there are explosive gases or explosive products being processed.
Turn off your modem if required.
• The use of electronic transmitting devices is forbidden in aircrafts, at petrol stations and in
hospitals. Please observe and obey all warning signs and switch off your modem in these
conditions.
• Do not touch the inner antenna area if not necessary. Otherwise it will affect your modem’s
performance.
• Store the modem out of the reach of little children. The modem may cause injury if used as a
toy.
• Do not touch the metallic parts of the modem so as to avoid a burn, when the modem is
working.
Using your USB Modem
• Please use original accessories or accessories that are authorized. Using any unauthorized
accessories may affect your modem’s performance, and violate related national regulations
about telecom terminals.
• Avoid using the modem near or inside metallic structures or establishments that can emit
Confidential and Proprietary Information of ZTE CORPORATION 7
electromagnetic waves. Otherwise it may influence signal reception.
• The modem is not waterproof. Please keep it dry and store in a shady and cool place.
• Do not use the modem immediately after a sudden temperature change. In such case, it will
produce dew inside and outside the modem, so don’t use it until it becomes dry.
• Handle the modem carefully. Do not drop, bend or strike it. Otherwise the modem will be
damaged.
• No dismantling by non-professionals and only qualified technicians can undertake repair work.
• Operating temperature range of -10 ℃ ~ +60 ℃ and humidity range of 5% ~ 95% are
recommended.
Limited Warranty
• This warranty does not apply to defects or errors in the Product caused by:
i. Reasonable abrasion.
ii. End User’s failure to follow ZTE’s installation, operation or maintenance instructions or
procedures.
iii. End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage,
servicing or operation of the Product.
iv. Modifications or repairs not made by ZTE or a ZTE-certified individual.
v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside
ZTE’s reasonable control.
vi. Usage of third-party products, or usage in conjunction with third-party products provided
that such defects are due to the combined usage.
vii. Any other cause beyond the range of normal usage intended for the Product.
End User shall have no right to reject or return the Product, or receive a refund for the Product
from ZTE under the above-mentioned situations.
• This warranty is End User’s sole remedy and ZTE’s sole liability for defective or
nonconforming items, and is in lieu of all other warranties, expressed, implied or statutory,
including but not limited to the implied warranties of merchantability and fitness for a
particular purpose, unless otherwise required under the mandatory provisions of the law.
8 Confidential and Proprietary Information of ZTE CORPORATION
Loading...
