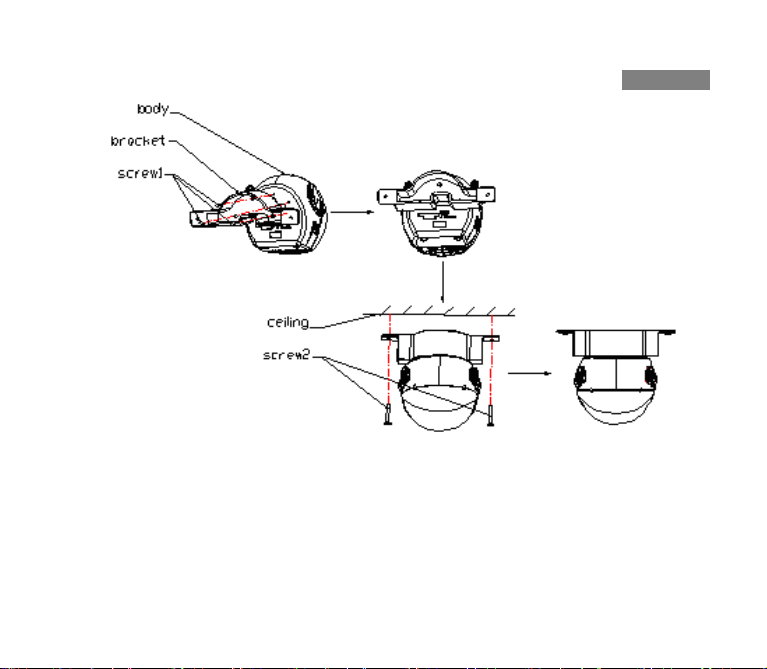

Fixing the Mobile .........................................................................Cam onto the ceiling |
22 |
|
3White list................................................................................... |
|
24 |
Mobile Cam’s own .................................................................................phone number |
24 |
|
Setting administrator ................................................................................(AD) number |
24 |
|
Setting other user ...........................................................................................numbers |
25 |
|
User entry...................................................................................................................... |
|
26 |
4Mobile CAM ..............................controlled by 3G video phone |
27 |
|
Camera adjustment....................................................................................................... |
27 |
|
3
ZTE MF58 |
|
|
Adjusting speaker volume............................................................................................. |
28 |
|
5Administrator main menu operation........................................ |
29 |
|
Video phone main menu operation............................................................................... |
29 |
|
5.1.1 |
Adding users........................................................... |
31 |
5.1.2 |
Deleting user .......................................................... |
32 |
5.1.3 |
Changing PIN code.............................................. |
33 |
5.1.4 |
Changing administrator number................... |
34 |
5.1.5 |
Video recording..................................................... |
35 |
SMS command operation ............................................................................................. |
36 |
|
6Infrared/daylight Operation Modes and Non-white List User |
||
Validation Function .................................................................. |
41 |
|
7Trouble Shooting ...................................................................... |
43 |
|
4
ZTE MF58
Thank you for using the Mobile Cam.
To guarantee the Mobile Cam is always in best condition, please read this manual carefully and keep for further use. The pictures and contents in this manual are for your reference only. They might not be completely identical to your Mobile Cam.
5
ZTE MF58
1 Warning and precautions
Precautions
The Mobile Cam contains delicate electronic circuitry and battery systems. You should treat it with care and pay particular attention to the following points:
Do not allow the Mobile Cam, battery or accessories to come into contact with liquids or moisture at any time. Do not immerse in any liquid.
The Mobile Cam can’t do the video call over 4.5 hours continuously. If the time is over 4.5 hours, it will shut off automatically.
Do not place the Mobile Cam alongside computer disks, credit cards, travel cards or other magnetic media. The information contained on disks or cards may be affected by the Mobile Cam.
Do not leave the Mobile Cam in places where the temperature could exceed 60°C – e.g. on a car’s dashboard or a windowsill or behind glass in direct sunlight.
Do not dispose the Mobile Cam in a fire. This equipment is fitted with an internal battery that can only be replaced by a qualified service engineer so used batteries must be safely disposed at a recycling point.
6
ZTE MF58
Do not attempt to dismantle the Mobile Cam or any of its accessories.
The Mobile Cam may become warm during normal use. The Mobile Cam may also become warm while the battery is being charged.
Use a damp or anti-static cloth to clean the Mobile Cam. Do not use chemical or abrasive cleaners as these could damage the case.
Aircraft safety
Onboard an aircraft, please turn off your Mobile Cam before take-off. In order to protect aircraft communications systems from interference, do not use the Mobile Cam while in flight. Using the Mobile Cam before take-off requires aircrew permission, according to safety regulations.
Do not use the Mobile Cam on the ground at an airport without permission from ground staff.
Precautions for medical Mobile Cams and facilities
When using your Mobile Cam near pacemakers, please: Always keep the Mobile Cam more than 8 inches (20 centimeters) from the pacemaker while the Mobile Cam is switched on.
If you use any other personal medical device, please consult the device manufacturer
7
ZTE MF58
to determine if it is adequately shielded from RF energy.
If on premises with special demands, such as hospital or healthcare facilities, please pay attention to the restriction of the use of the Mobile Cams. Switch off your Mobile Cam if required.
General safety
Keep the Mobile Cam out of the reach of small children. The Mobile Cam may cause injury if used as a toy.
The operation of some medical electronic items, such as hearing aids and pacemakers, may be affected if the Mobile Cam is used in close proximity. Observe any related signs and manufacturer recommendations.
Road safety
Switch off your Mobile Cam at refueling points, such as petrol stations, even if you are not refueling your own car.
Do not store or carry flammable or explosive materials in the same compartment as a radio transmitter.
Electronic vehicle systems, such as anti-lock brakes, speed control and fuel injection systems are not normally affected by radio transmissions. The manufacturer of such
8
ZTE MF58
equipment can advise if it is adequately shielded from radio transmissions. If you suspect vehicle problems caused by radio transmissions, consult your dealer and do not switch on the Mobile Cam until it has been checked by qualified and approved installers.
Vehicles equipped with an air bag
An air bag inflates with great force. Do not place objects, including installed or portable wireless equipment in the area above the air bag or in the air bag deployment area. If in-vehicle wireless equipment is improperly installed and the air bag inflates, serious injury could result.
Third-party equipment
The use of third-party equipment, cables or accessories, not provided or authorized by ZTE, may invalidate the warranty of your Mobile Cam and also adversely affect the Mobile Cam’s operation.
9
ZTE MF58
Radio frequency energy
Your Mobile Cam is a low-power radio transmitter and receiver. When it is switched on, it intermittently receives and transmits radio frequency (RF) energy (radio waves). The system that handles the call also controls the power level at which the Mobile Cam transmits.
10
ZTE MF58
2 Getting to know your Mobile Cam
Overview
Empowered by the latest 3G technology, ZTE Mobile Cam is capable of receiving video phone calls automatically. Users can dial the Mobile Cam from any WCDMA handset supporting video phone calls, and view the picture with sound captured by the Mobile Cam anytime, anywhere. The Mobile Cam support video call, but doesn’t support voice call.
|
Technical parameters |
Type |
ZTE Mobile Cam(Model: MF58) |
Dimensions W×L×H |
104mm×101mm×101mm approximately |
Weight |
263g (with integrated battery) approximately |
Camera |
0.3 megapixel (solar/infrared dual mode) |
Battery |
|
Continuous standby time |
approx 300 hours (subject to network status) |
11
ZTE MF58
Recording time (in sunlight environment): approx 18 hours (subject to network status) Recording time (in infrared environment): approx 8 hours (subject to network status) Video communication time (in sunlight environment): 5 hours (subject to network status) Video communication time (in infrared environment): 4 hours (subject to network status) Charge time: 7 hours approximately.
Environment requirement
The Mobile Cam can be used indoors or half-outdoors – e.g. inside an automobile. Environment parameter details are as follow:
Working temperature range: 10 60 Relative humidity: 5 95 without dew
Power supply: 220V supply, integrated spare battery This mobile camera is only used in WCDMA network.
12
ZTE MF58
Your Mobile Cam
Front view of your mobile cam
1.Camera 2.Power indicator 3.Signal indicator
4.Infrared spotlight 5.Infrared sensor 6.MIC
Camera: The camera can rotate upward at an angle up to about 40 degrees, downward at
13
ZTE MF58
an angle up to about 5 degrees, and left and right at an angle up to about 45 degrees. Power indicator: Indicates the level of charge in your battery. There are five colors: white, blue, cyan, green and red.
Signal indicator: Indicates local network signal strength. There are two colors: red and green.
Infrared spotlight: The infrared spotlight will start up automatically when the light intensity is lower than 20 LUX.
Infrared sensor: This senses daylight intensity. When the light intensity is higher than 20 LUX, the infrared spotlight will be closed and the Mobile Cam will switch to daylight working style.
MIC: An integrated microphone dedicated to receive local audio signal.
Back view of your mobile cam
14
