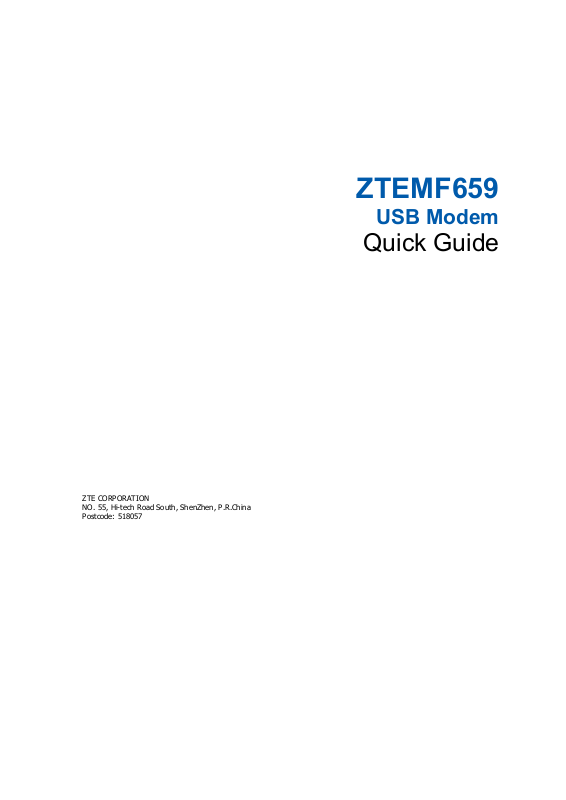

ZTE MF659 User Manual

ZTEMF659

USB Modem

Quick Guide

ZTE CORPORATION
NO. 55, Hi-tech Road South, ShenZhen, P.R.China
Postcode: 518057

LEGAL INFORMATION

Copyright © 2011 ZTE CORPORATION.

All rights reserved.

No part of this publication may be excerpted, reproduced, translated or utilized in any form or by
any means, electronic or mechanical, including photocopying and microfilm, without the prior
written permission of ZTE Corporation.

The manual is published by ZTE Corporation. We reserve the right to make modifications on print
errors or update specifications without prior notice.

Version No. : R1.0

Date: Jan 2011
Manual NO.:079584500000

C h a p t e r

1

Quick Guide

Introduction

The ZTE USB modem is a multi-mode USB modem, working in
HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM networks. With USB interface connecting to a laptop or a
desktop PC, it integrates the functionality of a modem and a mobile phone (SMS), and combines mobile
communication with Internet perfectly. It supports data and SMS services through the mobile phone
network, enabling you to communicate anytime and anywhere.

Specification

The following table shows the specification of your device.

Interface Type USB 2.0 HIGH SPEED

Systems supported Supports most types of laptop and desktop PC.

Operating systems supported

Windows XP, Vista, Windows 7
MAC 10.4, 10.5, 10.6
Linux

Functions SMS service, Data service, Applications management,

support microSD card, etc.

Network Standards HSUPA/HSDPA/WCDMA/EDGE/GPRS/GSM

Transmission speed (Max)

Temperature

Dimension 87.1 mm×27 mm×12 mm

microSD capability Support up to 32GB microSD card

Notes:

microSD is a trademark of SD Card Association.

HSUPA: 5.76 Mbps UL
HSDPA: 14.4 Mbps DL

Storage: -40 ℃ ~ +80 ℃

Operation:-10 ℃ ~ +55 ℃

Getting to know your device

The following figure shows the appearance of the MF659. It is only for your reference. The actual product
may be different.

Confidential and Proprietary Information of ZTE CORPORATION 1
