Zodiac TRi-XO User Manual
CHLORINATOR
USE WITH SALT AND
MINERAL SALTS
Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
All electrical work must be performed in accordance with AS/NZ 3000.
When installing and using this electrical equipment, basic safety precautions
should always be followed, including the following:
DANGER
To reduce the risk of severe injury or death, do not remove the suction fittings
of your spa or hot tub. Never operate a spa or hot tub if the suction fittings are
broken or missing. Never replace a suction fitting with one rated less than the
flow rate marked on the equipment assembly.
WARNING
Prolonged immersion in hot water may induce hyperthermia. Hyperthermia
occurs when the internal temperature of the body reaches a level several
degrees above the normal body temperature of 37°C. The symptoms of
hyperthermia include dizziness, fainting, drowsiness, lethargy, and an increase
in the internal temperature of the body. The effects of hyperthermia include:
1) unawareness of impending danger; 2) failure to perceive heat; 3) failure to
recognize the need to exit spa; 4) physical inability to exit spa; 5) fetal damage
in pregnant women; 6) unconsciousness resulting in a danger of drowning.
The use of alcohol, drugs, or medication can greatly increase the risk of fatal
hyperthermia.
WARNING
Risk of electric shock which could result in severe injury or death - Install
the controller at least 3.5 metres from the inside wall of the pool and/or hot tub
using non-metallic plumbing.
Children should not use spas or hot tubs without adult supervision.
Do not use spas or hot tubs unless all suction guards are installed to prevent
body and hair entrapment.
People using medications and/or having an adverse medical history should
consult a physician before using a spa or hot tub.
WARNING
To avoid injury ensure that you use this control system to control only
packaged pool/spa heaters which have built-in operating and high limit controls
to limit water temperature for pool/spa applications. This device should not be
relied upon as a safety limit control.
2
WARNING
To Reduce the Risk of Injury -
a) The water in a spa should never exceed 40°C. Water temperatures
between 38°C and 40°C are considered safe for a healthy adult. Lower water
temperatures are recommended for young children and when spa use exceeds
10 minutes.
b) Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possibly pregnant
women should limit spa water temperatures to 38°C.
c) Before entering a spa or hot tub, the user should measure the water
temperature with an accurate thermometer since the tolerance of water
temperature-regulating devices varies.
d) The use of alcohol, drugs, or medication before or during spa or hot tub use
may lead to unconsciousness with the possibility of drowning.
e) Obese persons and persons with a history of heart disease, low or high
blood pressure, circulatory system problems, or diabetes should consult a
physician before using a spa.
f) Persons using medication should consult a physician before using a spa or
hot tub since some medication may induce drowsines while other medication
may affect heart rate, blood pressure, and circulation.
People with infectious diseases should not use a spa or hot tub.
To avoid injury, exercise care when entering or exiting the spa or hot tub.
Do not use drugs or alcohol before or during the use of a spa or hot tub to
avoid unconsciousness and possible drowning.
Pregnant or possibly pregnant women should consult a physician before using
a spa or hot tub.
Water temperature in excess of 38°C may be injurious to your health.
Before entering a spa or hot tub, measure the water temperature with an
accurate thermometer.
Do not use a spa or hot tub immediately following strenuous exercise.
Prolonged immersion in a spa or hot tub may be injurious to your health.
Do not permit any electric appliance (such as a light, telephone, radio, or
television) within 1.52m of a spa or hot tub.
The use of alcohol, drugs or medication can greatly increase the risk of fatal
hypothermia in hot tubs and spas.
SAVE THESE INSTRUCTIONS
3
WELCOME TO ZODIAC
Congratulations on your purchase of the Zodiac TRi-XO CrossOver Chlorinator.
TRi-XO allows users to select between using normal pool salt or mineral salt blends.
Simply select the type of salt you are using from the start up screen to program it
into the software.
Zodiac recommends using Element™ mineral salts if
you want to have a more luxurious feeling pool. Zodiac
Element™ mineral salts include magnesium chloride
which has been used for centuries in mineral spa resorts
across the world. Magnesium has been associated with
helping with relaxation and may also be considered as
an element which may benet the skin.
In this Kit you will receive the following:
1 x Power Pack/Control unit
1 x Electrolytic Cell
1 x Owners Manual
1 x Mounting bracket with wall plugs and screws set
1 x Set couplings, unions and reducers to suit 40mm/50mm piping
4
INSTALLATION GUIDE

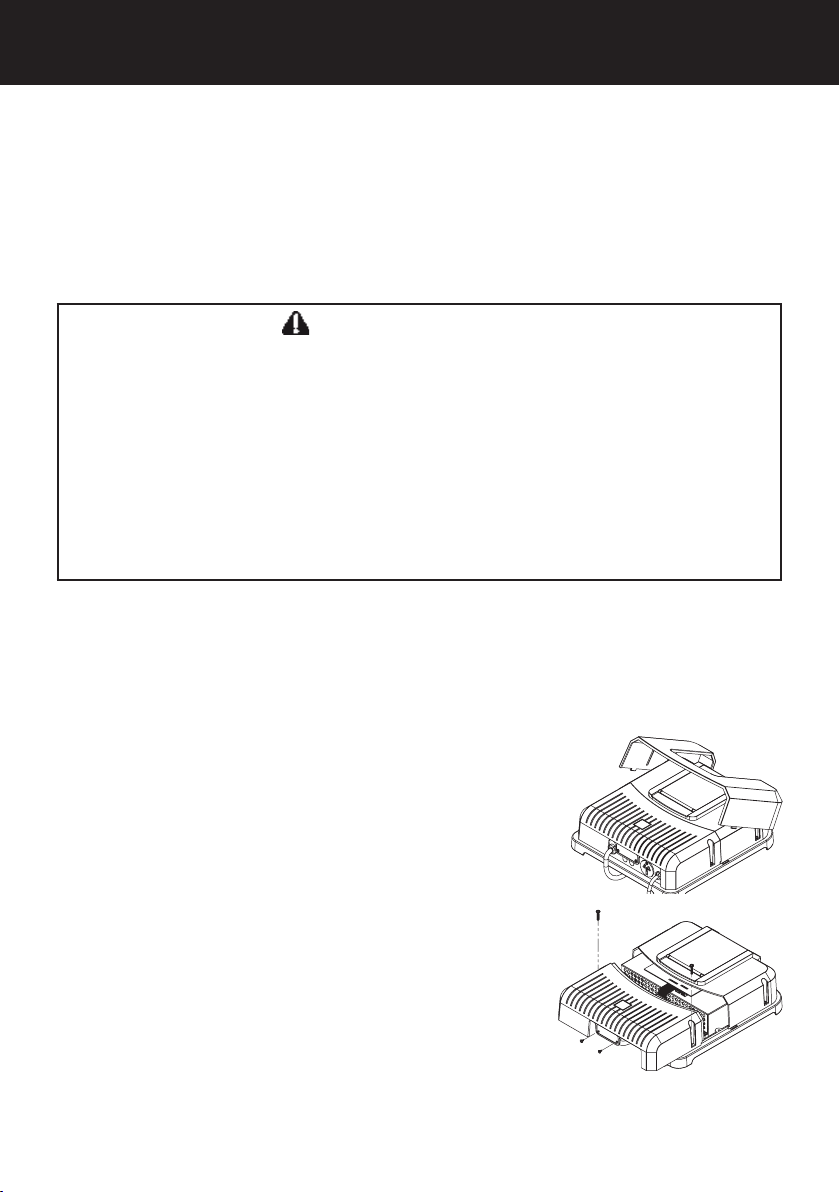

POSITIONING THE POWER PACK
1. Locate a suitable space for the power pack bracket. It should be installed no
further than 1.8 metres away from the cell - ideally in a ltration shed or close to
the ltration equipment.
PLEASE NOTE: If xing to a post it must have a waterproof panel tted (behind
the unit), at least 450mm wide and 470 mm high.
2. The power pack must be installed a minimum of 3.5m from the inside wall of
the pool and/or hot tub. Any additional local installation codes must also be
adhered to.
3. Ensure the power pack is protected from pressurized water spray such as that
from irrigation sprinklers, mechanical impacts and/or damage, and inaccessible
to children.
4. Using screws provided, fasten the bracket securely to the wall and position the
power pack on the bracket. Plug into power point, but don’t turn on the power.

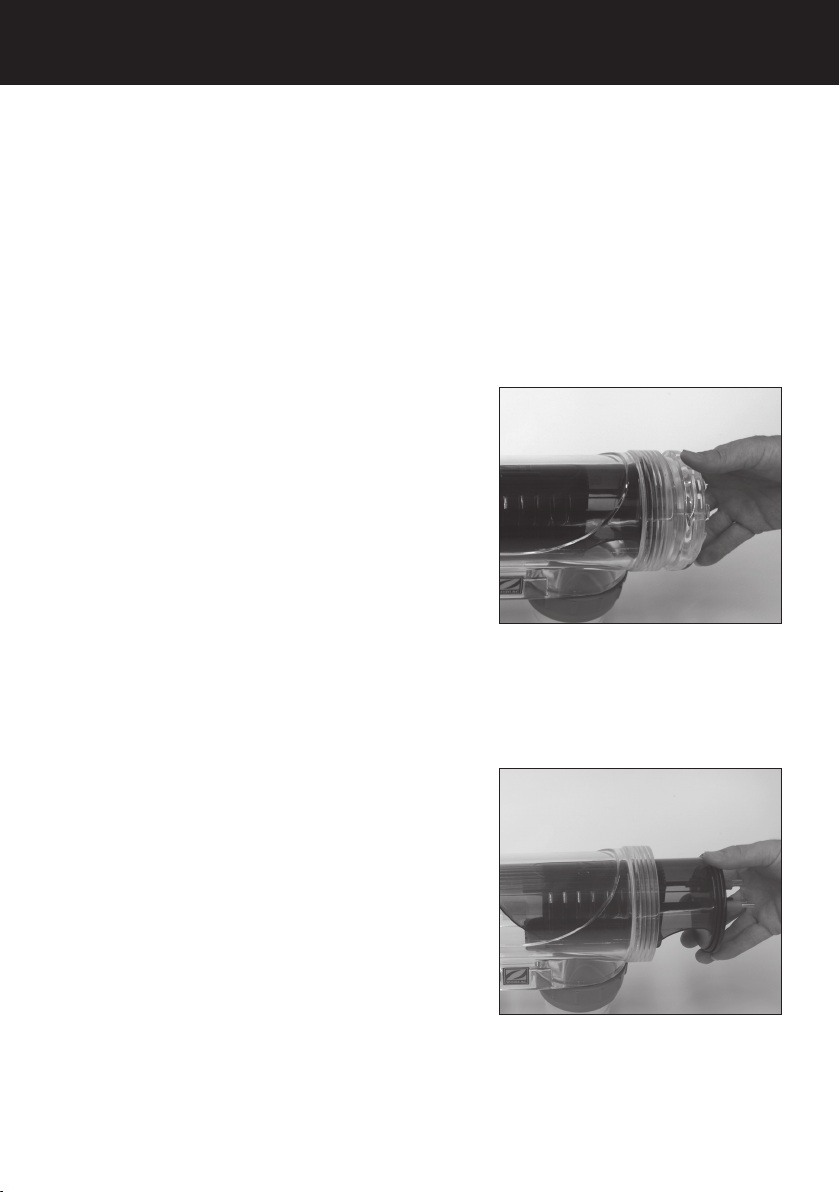

POSITIONING THE CHLORINE GENERATING CELL
PLEASE NOTE: The cell should always be the last device placed on the water
pipe (In the return line to the pool).
5. Ensure the cell is placed horizontally, with the Inlet pipe connecting to the tting
closest to the cell lead.
6. Using screw barrel ttings (supplied), attach the cell to the pipe. If using 40mm
pipe, you will need to t the cell using the reducing bushes (also supplied).

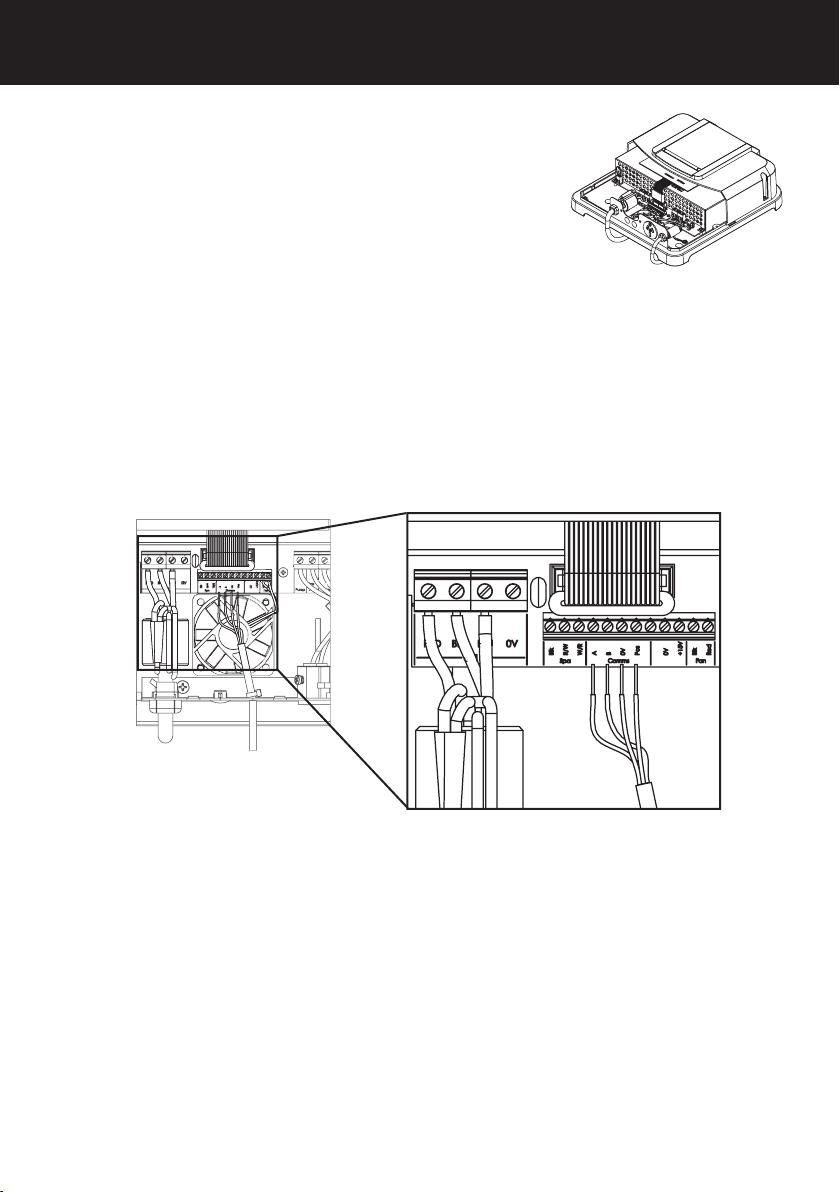

7. When connecting the lead from the power pack to the cell match up the
5

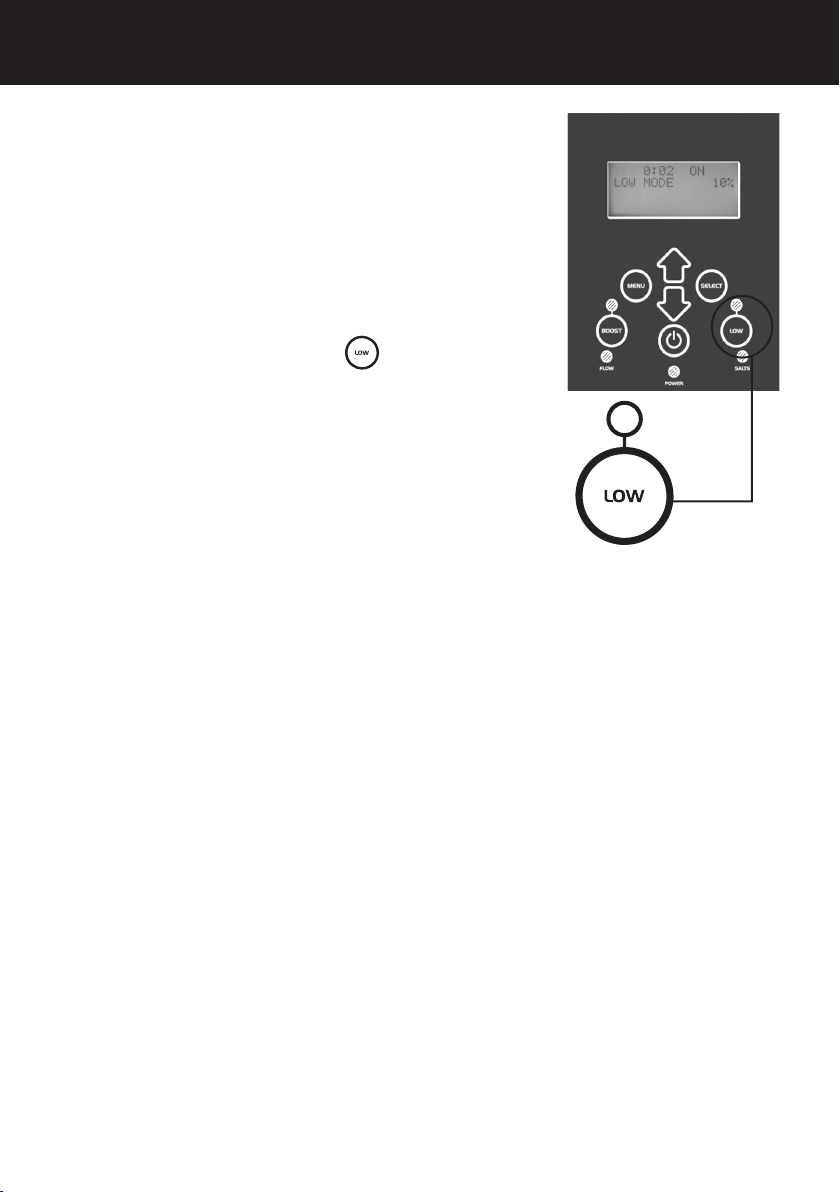

NAVIGATION BUTTONS
corresponding colours and pins, then t the end cap.
(Note: Either RED wire can be connected to either RED pin on the electrode.)
8. Plug your pool pump into the outlet socket in the bottom of the TRi-XO (this will
allow the TRi-XO timer to control the ltration times)
9. Once all connections are together press the mains power switch to ON.
Use the following UI buttons to access and select all menus and commands:
ON/OFF
Turn Chlorinator on/off.
UP/DOWN
Scroll up/down within current menu to highlight a specic menu
command.
MENU/BACK
Enters into the main menu, and used to go back to previous menu.
SELECT/ENTER
Select/enters current highlighted menu command.
Display the next related command or activate the selected function
6
SELECTING THE RIGHT SALT TYPE
At start up it is necessary to select the correct salt type being used in the pool. If
using salt or using a mineral blended salt simply select the correct type as shown
on the screen once the unit is powered up.
1.Use / to scroll to the right selection
2. Press to set the software to your preference
Note: If the choice selected is wrong or you wish to change at any future time you
can reset the software and start again. This will clear all settings, time, timers etc...
To reset the software hold / at the same time then release, you should now
see the start up screen. The software has been reset.
7
USING THE BUILD-IN CLOCK AND TIMERS
When it comes to chlorination, every pool is different. To get what’s right for you,
you will need to set the unit’s clock and timers.

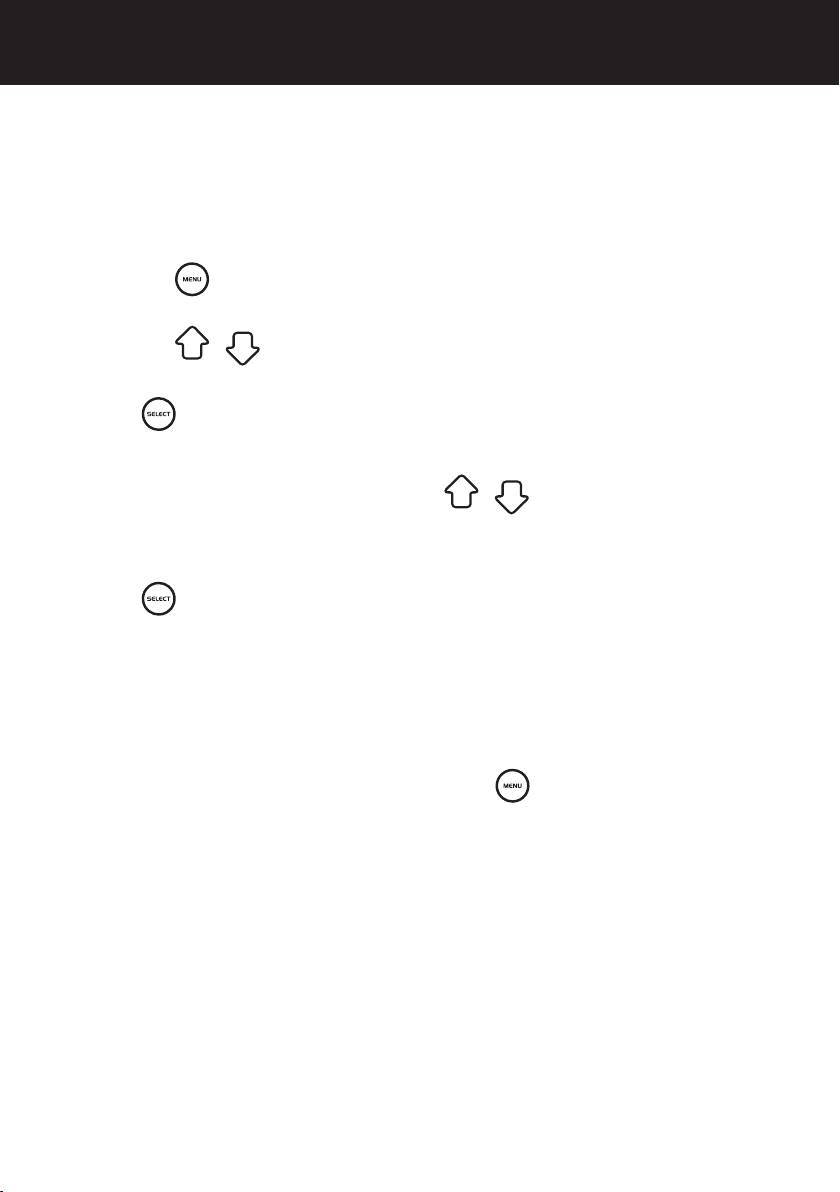

SETTING THE CLOCK

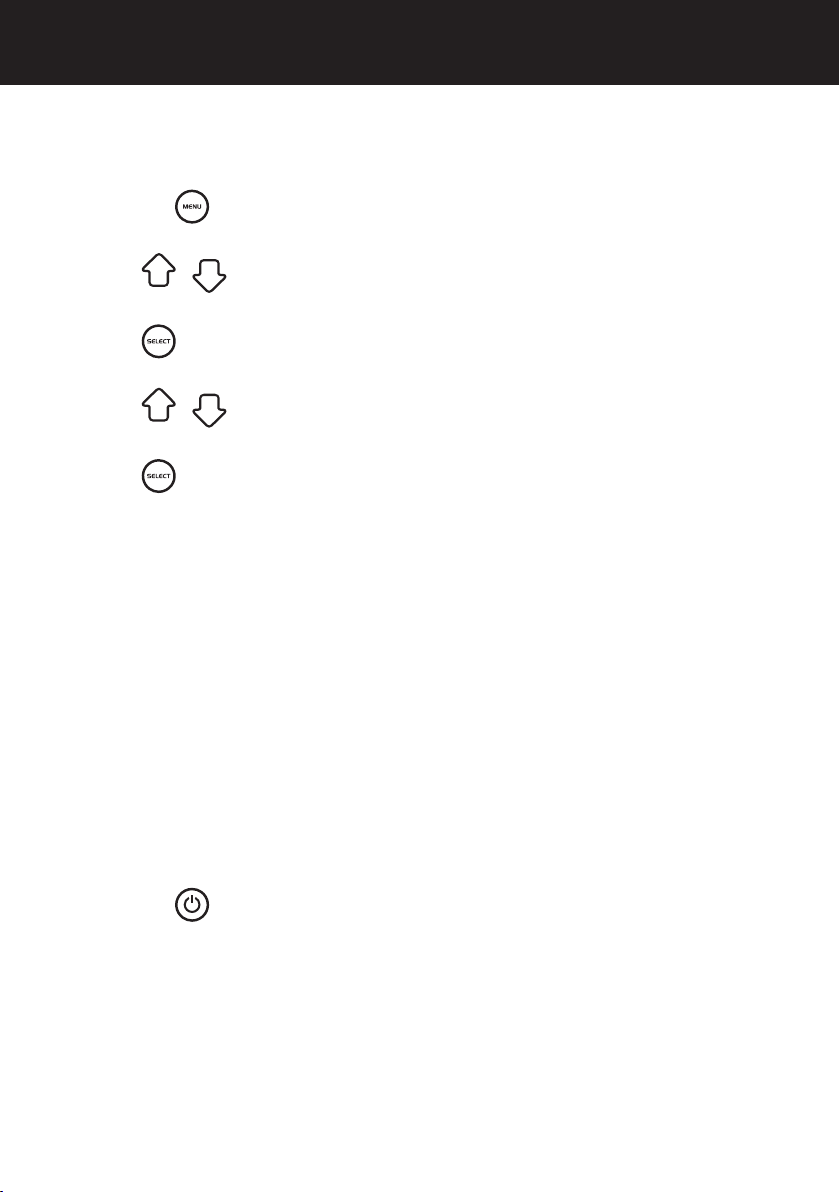

1. Press the button to enter the MAIN MENU.
2. Use / buttons and scroll to SET CLOCK.
3. Press .
4. Use / buttons to set the hours.
5. Press to save the hours.
6. Use the / buttons to set the minutes.
7. Press to save the minutes.
TRi-XO will then return to the MAIN MENU.
8. Press to return to the operating screen.
NOTE: The time is displayed in 24 Hour format
