Xilinx ML561 User Manual

Virtex-5 FPGA ML561
Memory Interfaces
Development Board

User Guide

UG199 (v1.2.1) June 15, 2009

R

R

Xilinx is disclosing this user guide, manual, release note, and/or specification (the "Documentation") to you solely for use in the development
of designs to operate with Xilinx hardware devices. You may not reproduce, distribute, republish, download, display, post, or transmit the
Documentation in any form or by any means including, but not limited to, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written consent of Xilinx. Xilinx expressly disclaims any liability arising out of your use of the Documentation. Xilinx reserves
the right, at its sole discretion, to change the Documentation without notice at any time. Xilinx assumes no obligation to correct any errors
contained in the Documentation, or to advise you of any corrections or updates. Xilinx expressly disclaims any liability in connection with
technical support or assistance that may be provided to you in connection with the Information.

THE DOCUMENTATION IS DISCLOSED TO YOU “AS-IS” WITH NO WARRANTY OF ANY KIND. XILINX MAKES NO OTHER
WARRANTIES, WHETHER EXPRESS, IMPLIED, OR STATUTORY, REGARDING THE DOCUMENTATION, INCLUDING ANY
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT OF THIRD-PARTY
RIGHTS. IN NO EVENT WILL XILINX BE LIABLE FOR ANY CONSEQUENTIAL, INDIRECT, EXEMPLARY, SPECIAL, OR INCIDENTAL
DAMAGES, INCLUDING ANY LOSS OF DATA OR LOST PROFITS, ARISING FROM YOUR USE OF THE DOCUMENTATION.

© 2007–2009 Xilinx, Inc. All rights reserved.

XILINX, the Xilinx logo, Virtex, Spartan, ISE, and other designated brands included herein are trademarks of Xilinx in the United States and
other countries. PCI EXPRESS is a registered trademark of PCI-SIG. All other trademarks are the property of their respective owners.

Revision History

The following table shows the revision history for this document.

Date Version Revision

02/12/07 1.0 Initial Xilinx release.

08/09/07 1.1 Revised Read and Write Strobe in Ta b le 5-4 , pag e 4 9 . Added Chapter 7, “ML561

Hardware-Simulation Correlation.”

04/19/08 1.2 Revised Figure 3-11, page 37 and Table 3-19, page 38. Corrected FPGA driver for Read

Data and Read Strobe in Ta bl e 5- 4, pa ge 49. Updated Data and Strobe entries in Ta bl e 5- 5,

page 49. Updated manufacturers and links in Appendix B, “Bill of Materials.”

06/15/09 1.2.1 Clarified VIH(max) voltage in “Terminology.”

Virtex-5 FPGA ML561 User Guide www.xilinx.com UG199 (v1.2.1) June 15, 2009

Table of Contents

Preface: About This Guide

Guide Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Additional Support Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Typographical. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Online Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chapter 1: Introduction

About the Virtex-5 FPGA ML561 Memory Interfaces Tool Kit . . . . . . . . . . . . . . . . 11

Virtex-5 FPGA ML561 Memory Interfaces Development Board. . . . . . . . . . . . . . . 12

Chapter 2: Getting Started

Documentation and Reference Design CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Initial Board Check Before Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Applying Power to the Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Chapter 3: Hardware Description

Hardware Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DDR400 SDRAM Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DDR2 DIMM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DDR2 SDRAM Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

QDRII SRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

RLDRAM II Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Memory Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DDR400 and DDR2 Component Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

DDR2 SDRAM DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

QDRII and RLDRAM II Memories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

External Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

RS-232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Clocks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

200 MHz LVPECL Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SMA Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

33 MHz Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

33 MHz System ACE Controller Oscillator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

GTP Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

User I/Os. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

General-Purpose Headers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DIP Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Virtex-5 FPGA ML561 User Guide www.xilinx.com 3

UG199 (v1.2.1) June 15, 2009

Seven-Segment Displays. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Light Emitting Diodes (LEDs). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Pushbuttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Power On or Off Slide Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Soft Touch Probe Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Power Measurement Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Liquid Crystal Display Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Power Regulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Power Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Voltage Regulators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Board Design Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Chapter 4: Electrical Requirements

Power Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

FPGA Internal Power Budget. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Chapter 5: Signal Integrity Recommendations

Termination and Transmission Line Summaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

R

Chapter 6: Configuration

Configuration Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

JTAG Chain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

JTAG Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Parallel IV Cable Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

System ACE Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Chapter 7: ML561 Hardware-Simulation Correlation

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Test Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Signal Integrity Correlation Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

DDR2 Component Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

DDR2 Component Read Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

DDR2 DIMM Write Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

DDR2 DIMM Read Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

QDRII Write Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

QDRII Read Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Summary and Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

How to Generate a User-Specific FPGA IBIS Model . . . . . . . . . . . . . . . . . . . . . . . . . 93

Appendix A: FPGA Pinouts

FPGA #1 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

FPGA #2 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

FPGA #3 Pinout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

4 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Appendix B: Bill of Materials

Appendix C: LCD Interface

General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Display Hardware Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Hardware Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Peripheral Device KS0713 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Controller – Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Controller – LCD Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Controller – Power Supply Circuits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Operation Example of the 64128EFCBC-3LP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Instruction Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

Read/Write Characteristics (6800 Mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Design Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

LCD Panel Used in Full Graphics Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

LCD Panel Used in Character Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Array Connector Numbering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Virtex-5 FPGA ML561 User Guide www.xilinx.com 5

UG199 (v1.2.1) June 15, 2009

R

6 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

About This Guide

This user guide describes the Virtex®-5 FPGA ML561 Memory Interfaces Development
Board. Complete and up-to-date documentation of the Virtex-5 family of FPGAs is
available on the Xilinx website at http://www.xilinx.com/virtex5

Guide Contents

This manual contains the following chapters:

• Chapter 1, “Introduction”

• Chapter 2, “Getting Started”

• Chapter 3, “Hardware Description”

• Chapter 4, “Electrical Requirements”

• Chapter 5, “Signal Integrity Recommendations”

• Chapter 6, “Configuration”

• Chapter 7, “ML561 Hardware-Simulation Correlation”

• Appendix A, “FPGA Pinouts”

• Appendix B, “Bill of Materials”

• Appendix C, “LCD Interface”

Preface

.

Additional Documentation

The following documents are also available for download at

http://www.xilinx.com/virtex5

• Virtex-5 Family Overview

The features and product selection of the Virtex-5 family are outlined in this overview.

• Virtex-5 FPGA Data Sheet: DC and Switching Characteristics

This data sheet contains the DC and Switching Characteristic specifications for the
Virtex-5 family.

• Virtex-5 FPGA User Guide

Chapters in this guide cover the following topics:

- Clocking Resources

- Clock Management Technology (CMT)

- Phase-Locked Loops (PLLs)

-Block RAM

Virtex-5 FPGA ML561 User Guide www.xilinx.com 7

UG199 (v1.2.1) June 15, 2009

.

Preface: About This Guide

• Virtex-5 FPGA RocketIO GTP Transceiver User Guide

• Virtex-5 FPGA RocketIO GTX Transceiver User Guide

• Virtex-5 FPGA Embedded Processor Block for PowerPC

• Virtex-5 FPGA Embedded Tri-Mode Ethernet MAC User Guide

- Configurable Logic Blocks (CLBs)

-SelectIO™ Resources

- SelectIO Logic Resources

- Advanced SelectIO Logic Resources

This guide describes the RocketIO™ GTP transceivers available in the Virtex-5 LXT
and SXT platforms.

This guide describes the RocketIO GTX transceivers available in the Virtex-5 FXT
platform.

®

440 Designs

This reference guide is a description of the embedded processor block available in the
Virtex-5 FXT platform.

This guide describes the dedicated Tri-Mode Ethernet Media Access Controller
available in the Virtex-5 LXT, SXT, and FXT platforms.

R

• Virtex-5 FPGA Integrated Endpoint Block User Guide for PCI Express Designs

This guide describes the integrated Endpoint blocks in the Virtex-5 LXT, SXT, and FXT
platforms used for PCI Express

®

designs.

• Virtex-5 FPGA XtremeDSP Design Considerations User Guide

This guide describes the XtremeDSP™ slice and includes reference designs for using
the DSP48E.

• Virtex-5 FPGA Configuration Guide

This all-encompassing configuration guide includes chapters on configuration
interfaces (serial and SelectMAP), bitstream encryption, Boundary-Scan and JTAG
configuration, reconfiguration techniques, and readback through the SelectMAP and
JTAG interfaces.

• Virtex-5 FPGA System Monitor User Guide

The System Monitor functionality available in all the Virtex-5 devices is outlined in
this guide.

• Virtex-5 FPGA Packaging and Pinout Specifications

This specification includes the tables for device/package combinations and maximum
I/Os, pin definitions, pinout tables, pinout diagrams, mechanical drawings, and
thermal specifications.

• Virtex-5 FPGA PCB Designer’s Guide

This guide provides information on PCB design for Virtex-5 devices, with a focus on
strategies for making design decisions at the PCB and interface level.

Additional Support Resources

To search the database of silicon and software questions and answers, or to create a
technical support case in WebCase, see the Xilinx website at:

http://www.xilinx.com/support

8 www.xilinx.com Virtex-5 FPGA ML561 User Guide

.

UG199 (v1.2.1) June 15, 2009

R

Conventions

Typographical

Conventions

This document uses the following conventions. An example illustrates each convention.

This document uses the following typographical conventions. An example illustrates each
convention.

Convention Meaning or Use Example

Italic font

Underlined Text

Online Document

The following conventions are used in this document:

Convention Meaning or Use Example

Blue text

Red text

Blue, underlined text

References to other documents

Emphasis in text

Indicates a link to a web page. http://www.xilinx.com/virtex5

Cross-reference link to a location
in the current document

Cross-reference link to a location
in another document

Hyperlink to a website (URL)

See the Virtex-5 Configuration Guide
for more information.

The address (F) is asserted after
clock event 2.

See the section “Additional

Documentation” for details.

Refer to “Clock Management

Technology (CMT)” in
Chapter 2 for details.

See Figure 5 in the Virtex-5 FPGA

Data Sheet

Go to http://www.xilinx.com
for the latest documentation.

Terminology

This section defines terms used in Chapter 7, “ML561 Hardware-Simulation Correlation,”
of this document.

DVW is the data valid window opening measured by the VIH and VIL masks. The

Data Valid Window (DVW)

Extrapolation

Virtex-5 FPGA ML561 User Guide www.xilinx.com 9

UG199 (v1.2.1) June 15, 2009

smaller of the two values are listed as absolute time as well as in terms of the percentage
of UI (Unit Interval), or bit time.

The ultimate goal of a design is to ascertain quality of signal at the receiver I/O Buffer
(IOB). This measurement can only be simulated. When the hardware measurements are
correlated with the simulation at the probe point, the extra probe capacitance is
removed from the IBIS schematics, and the simulation is repeated at two extreme
corners (slow-weak and fast-strong). Removal of probe capacitance is important to
represent the actual hardware. If the SI characteristics of these simulations are proved
to be within the acceptable range with sufficient margin, then the performance
requirements for data signal interface of the corresponding memory operation at the
target clock frequency are proved to have been met.

Preface: About This Guide

Hardware Measurements

Inter-Symbol Interference
(ISI)

Noise Margin

R

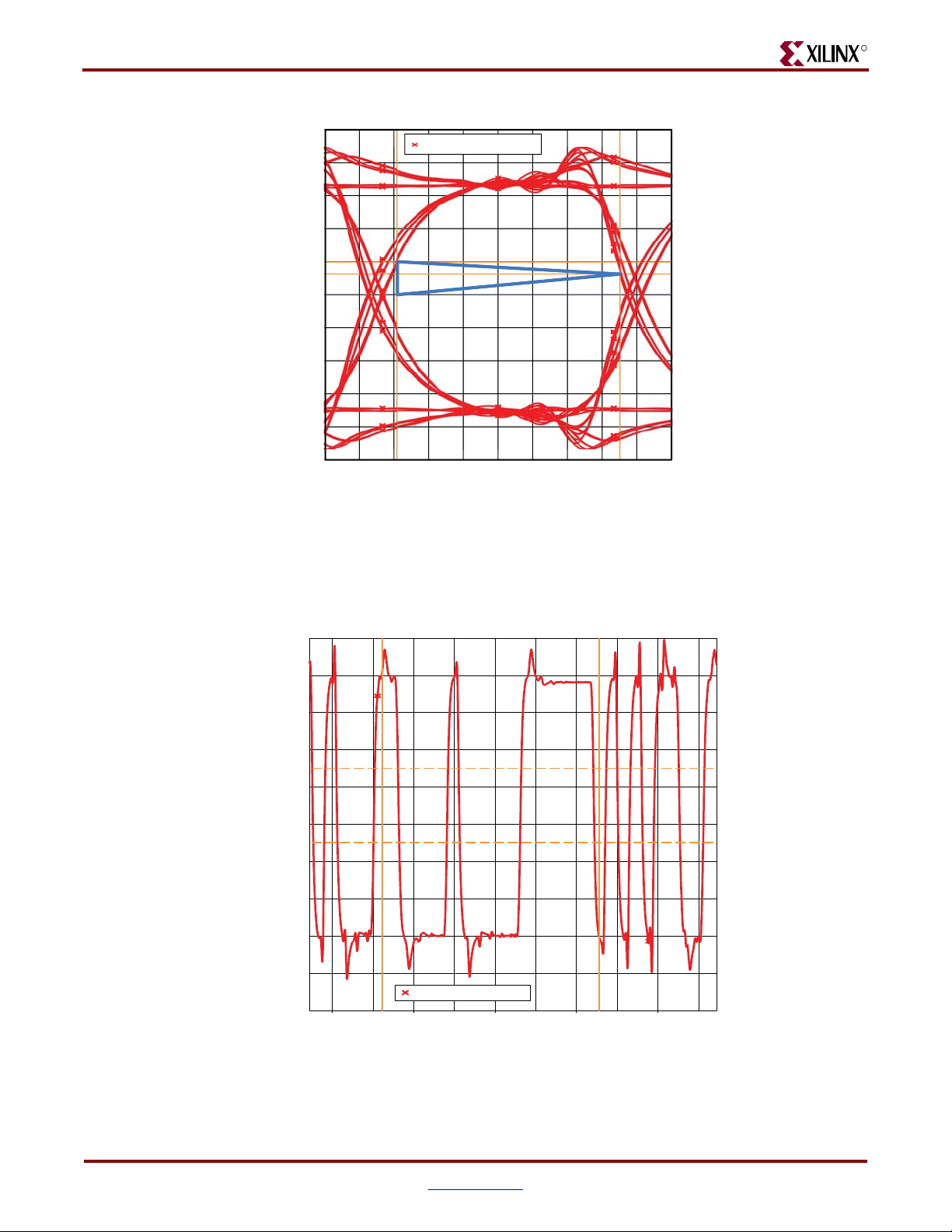

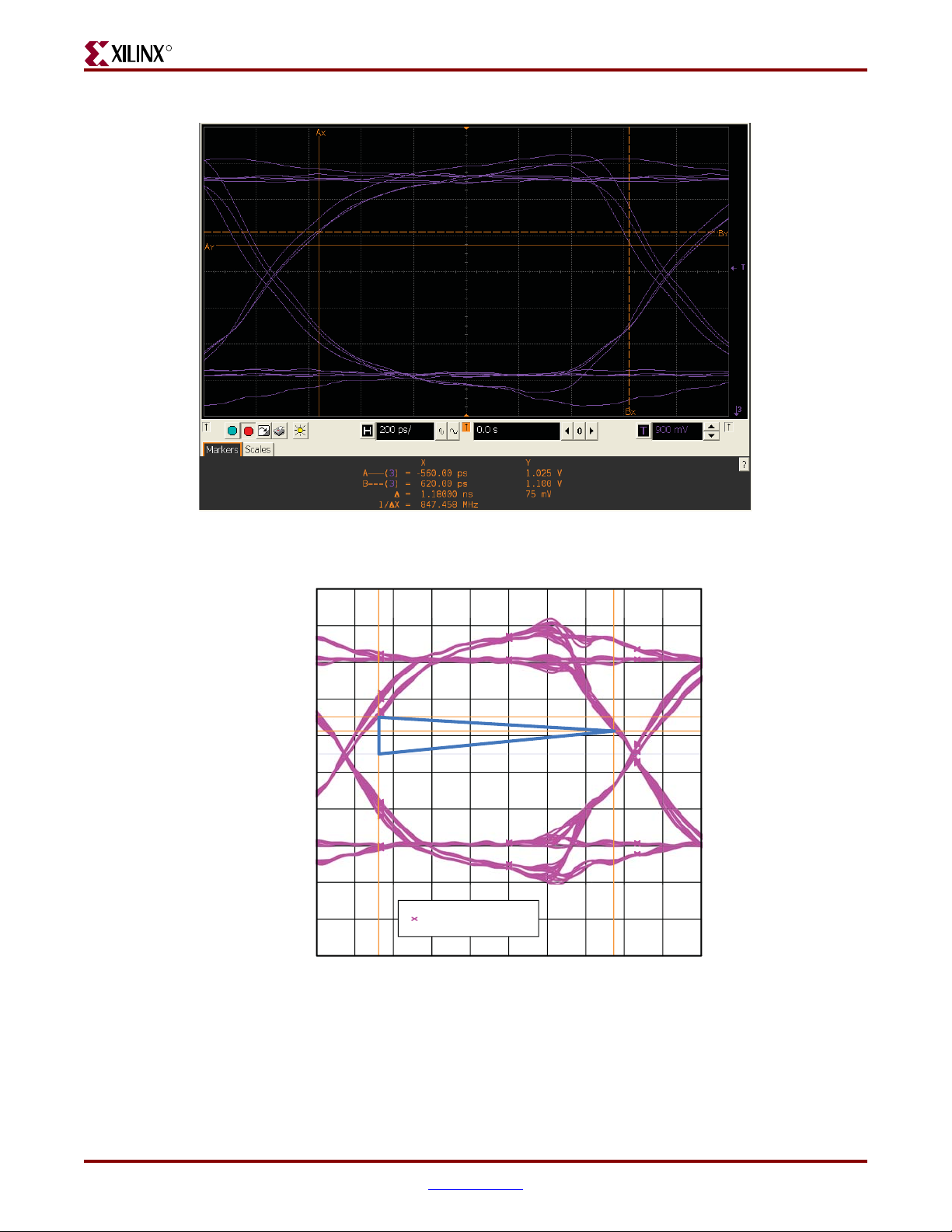

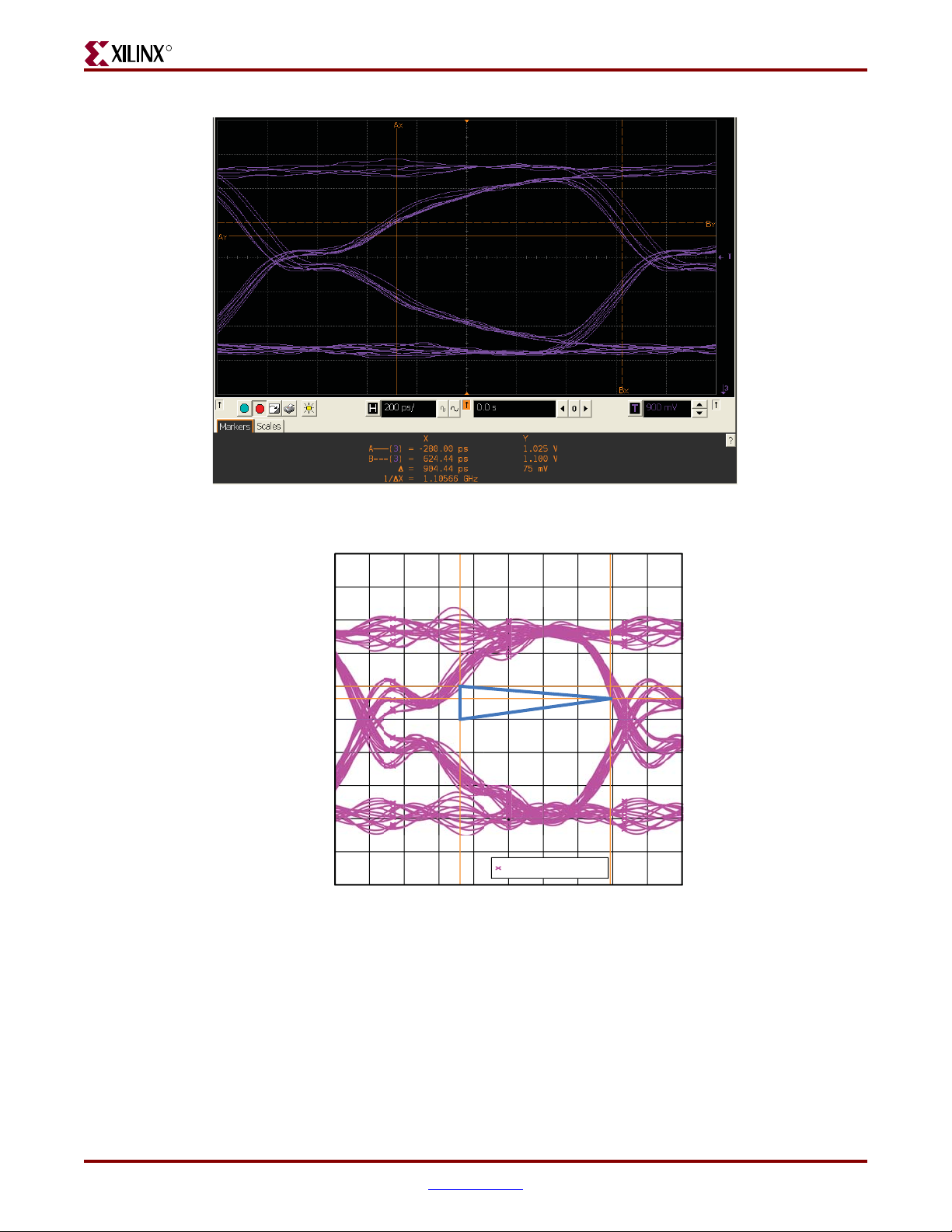

These measurements are the actual real-time measurements of an eye diagram and a
segment of the test pattern (PRBS6) waveform captured on ML561 hardware at the
designated probe point using an Agilent scope.

As the frequency of operation increases, the signal delay is affected by the data pattern
that precedes the current data bit. This is called the inter-symbol interference (ISI) effect.
All testing is performed with a pseudo-random bitstream (PRBS) of order 6, that is,
PRBS6. ISI is the jitter represented by the eye at all four voltage thresholds. The worst
of the following two sum values are listed in this table:

• Sum of ISI at VIH(ac)-min and VIH(dc)-min

• Sum of ISI at VIL(ac)-max and VIL(dc)-max

This is the noise margin available at the receiver. Measurements are taken at the AC
voltage levels as the minimum vertical opening of the eye in the vicinity of the center
of the bit period. Ideally, the input voltage needs to remain above the DC voltage
specifications. However, by considering the AC voltage specifications for the nominal
voltage level for VREF, these measurements are more conservative values that also
include the effects of VREF variations.

• VIH margin: Difference between the top of the eye opening and VIH(ac)-min

• VIL margin: Difference between VIL(ac)-max and the bottom of the eye opening

These measurements are performed in stand-alone fashion for the signal under test.
Thus no consideration of crosstalk or Simultaneously Switching Output (SSO) effects
are accounted for.

Overshoot / Undershoot
Margin

Simulation Correlation

VIH(ac)-min

VIH(dc)-min

VIL(ac)-max

Overshoot margin is the difference between the maximum allowable VIH per JEDEC
specification and the maximum amplitude of the measured eye. Similarly, undershoot
margin is the difference between the minimum amplitude of the measured eye and the
minimum allowable VIL value per JEDEC specification. For both SSTL18 and 1.8V
HSTL specifications:

• VIH(max) < (VDDQ + 300 mV) = (1.8 + 0.3)V = 2.1V

• VIL(min) > -300 mV = 0.3V

Note: VIH(max) must not exceed 1.9V for all Micron Parts.

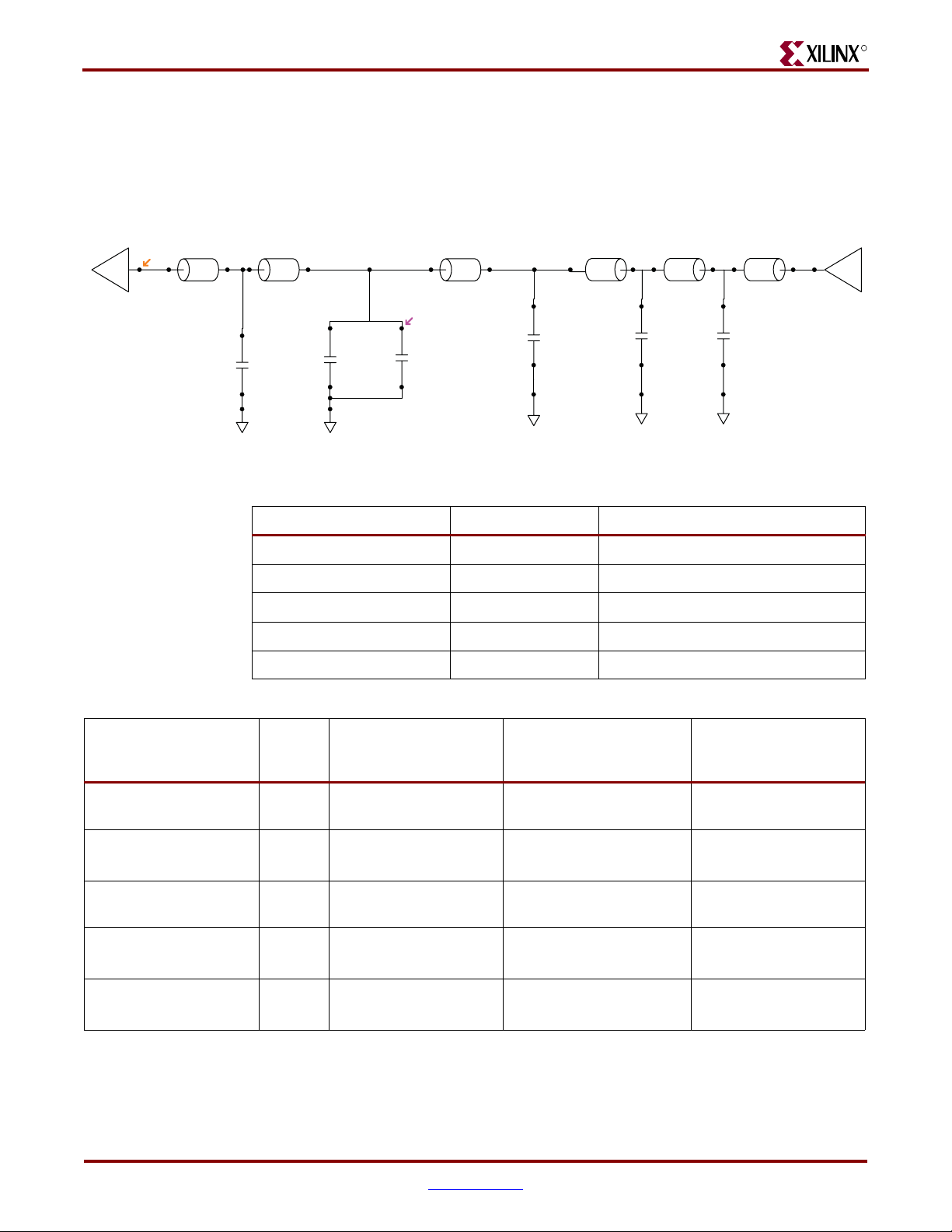

The BoardSim utility of the HyperLynx simulator is used to extract the IBIS schematics
of the same signal net for which hardware measurements are made. To replicate the
hardware measurement probe set up at the probe point, a 0.5 pF probe capacitance is
added based on Agilent probe loading specifications to the extracted IBIS schematics of
the memory signal. For the FPGA devices soldered on the ML561 board under test, the
process corner (slow, typical, or fast) is not known. Thus simulation is performed for all
three corners (slow-weak, typical, and fast-strong), and the results of the case that best
fits with hardware measurement is selected for tabulation.

This term is the minimum input level at which the receiver must recognize input logic
High.

When the input signal reaches VIH(ac)-min, the receiver continues to interpret the
input as a logic High as long as the signal remains above this voltage. (This parameter
is basically the hysteresis for a logic ‘1’.)

This term is the maximum input level at which the receiver must recognize input logic
Low.

When the input signal reaches VIL(ac)-max, the receiver continues to interpret the input

VIL(dc)-max

as a logic Low as long as the signal remains below this voltage. (This parameter is
basically the hysteresis for logic ‘0’.)

10 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Chapter 1

Introduction

This chapter introduces the Virtex®-5 FPGA ML561 reference design. It contains the
following sections:

• “About the Virtex-5 FPGA ML561 Memory Interfaces Tool Kit”

• “Virtex-5 FPGA ML561 Memory Interfaces Development Board”

About the Virtex-5 FPGA ML561 Memory Interfaces Tool Kit

The Virtex-5 FPGA ML561 Memory Interfaces Tool Kit provides a complete development
platform to interface with external memory devices for designing and verifying
applications based on the Virtex-5 LXT FPGA platform. This kit allows designers to
implement high-speed applications with extreme flexibility using IP cores and customized
modules. The Virtex-5 LXT FPGA, with its column-based architecture, makes it possible to
develop highly flexible memory interface applications.

The Virtex-5 FPGA ML561 Memory Interfaces Tool Kit includes the following:

• Virtex-5 FPGA ML561 Memory Interfaces Development Board (XC5VLX50T-FFG1136
FPGA)

• 5V/6.5 A DC power supply

• Country-specific power supply line cord

• RS-232 serial cable, DB9-F to DB9-F

• Documentation and reference design CD-ROM

Optional items that also support development efforts include:

• Xilinx

• JTAG cable

• Xilinx Parallel IV cable

For assistance with any of these items, contact your local Xilinx distributor or visit the
Xilinx online store at www.xilinx.com

The heart of the Virtex-5 FPGA ML561 Memory Interfaces Tool Kit is the Virtex-5 FPGA
ML561 Development Board. This manual provides comprehensive information on Rev A3
and later revisions of this board.

®

ISE® software

.

Virtex-5 FPGA ML561 User Guide www.xilinx.com 11

UG199 (v1.2.1) June 15, 2009

Chapter 1: Introduction

Virtex-5 FPGA ML561 Memory Interfaces Development Board

A high-level functional block diagram of the Virtex-5 FPGA ML561 Memory Interfaces
Development Board is shown in Figure 1-1.

External Interfaces:

System ACE Controller,

USB, RS-232, LCD

SSTL18/SSTL2 SSTL18 HSTL

R

FPGA #1

XC5VLX50T/

FFG1136

FPGA #2

XC5VLX50T/

FFG1136

XC5VLX50T/

72

32

32

DDR2 SDRAM

DDR400 SDRAM

72

DDR2 DIMM

DDR2 DIMM

WIDE

DDR2 DIMM

DDR2 DIMM

DEEP

DDR2 DIMM

36

Figure 1-1: Virtex-5 FPGA ML561 Development Board Block Diagram

The Virtex-5 FPGA ML561 Development Board includes the following major functional
blocks:

• Three XC5VLX50T-FFG1136 FPGAs (see D

S100, Virtex-5 Family Overview)

• DDR400 components: 128 MB (32M x 32 bits) at 200 MHz clock speed. See XAPP851,
DDR SDRAM Controller Using Virtex-5 FPGA Devices.

• DDR2 DIMM: Five PC2-5300 DIMM sockets for up to 2 GB (128M x 144 bits). See

XAPP85

8, High-Performance DDR2 SDRAM Interface in Virtex-5 Devices.

• DDR2-667 components: 64 MB (16M x 32 bits) at 333 MHz clock speed

• QDRII memory: 16 MB (2M x 72 bits) at up to 300 MHz clock speed. See XAPP853

QDR II SRAM Interface for Virtex-5 Devices.

• RLDRAM II memory: 64 MB (16M x 36 bits) at up to 300 MHz clock speed. See

XAPP852

, RLDRAM II Memory Interface for Virtex-5 FPGAs.

• One DB9-M RS-232 port and one USB 2.0 port

• A System ACE™ CompactFlash (CF) Configuration Controller that allows storing

and downloading of up to eight FPGA configuration image files

• On-board power regulators with ±5% output margin test capabilities

FPGA #3

FFG1136

72

(CIO)

RLDRAM II

UG191_c1_01_020807

72

QDRII SRAM

,

12 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

144 bits wide

DDR2

SDRAM

DIMM

72 bits wide,
up to 4 deep

Virtex-5 FPGA ML561 Memory Interfaces Development Board

Figure 1-2 shows the Virtex-5 FPGA ML561 Development Board and indicates the

locations of the resident memory devices.

32-bit

DDR400

SDRAM

32-bit

DDR2

SDRAM

36-bit

RLDRAM II

72-bit
QDRII
SRAM

UG199_c1_02_050106

Figure 1-2: Virtex-5 FPGA ML561 Development Board

Virtex-5 FPGA ML561 User Guide www.xilinx.com 13

UG199 (v1.2.1) June 15, 2009

Chapter 1: Introduction

R

14 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Getting Started

This chapter describes the items needed to configure the Virtex-5 FPGA ML561 Memory
Interfaces Development Board. The Virtex-5 FPGA ML561 Development Board is tested at
the factory after assembly and should be received in working condition. It is set up to load
a bitstream from the CompactFlash card at socket J27 through the System ACE controller
(U45).

This chapter contains the following sections:

• “Documentation and Reference Design CD”

• “Initial Board Check Before Applying Power”

• “Applying Power to the Board”

Chapter 2

Documentation and Reference Design CD

The CD included in the Virtex-5 FPGA ML561 Memory Interfaces Tool Kit contains the
design files for the Virtex-5 FPGA ML561 Development Board, including schematics,
board layout, and reference design files. Open the ReadMe.rtf file on the CD to review
the list of contents.

Initial Board Check Before Applying Power

Perform these steps before applying board power:

1. Set up the Configuration Mode jumpers (P27, P46, and P112) for JTAG configuration.

See “Configuration Modes” on page 51 for all available modes for the Virtex-5 FPGA
ML561 Development Board.

2. Confirm that the JTAG chain jumpers P38, P44, and P109 are connecting pins 1 to 2 and
pins 3 to 4. This way, all three devices are in the chain. Otherwise, the ISE iMPACT
software will not find all three devices to configure. For more information see “JTAG

Chain” on page 52.

3. Make sure that no inhibit jumpers are present on any of the power supply regulator
modules. For more information, see “Voltage Regulators” on page 34.

4. The Virtex-5 FPGA ML561 Development Board has a 200 MHz on-board oscillator,
which provides a copy of a differential LVPECL clock to each of the three FPGAs
through a differential clock buffer (ICS853006). There is also a connection to a pair of
SMA connectors (J19, J20) to provide a differential LVDS clock from an off-board signal
generator. Another differential clock buffer (ICS853006) provides a copy of this clock to
each of the three FPGAs. These clocks are available after configuration for the design to
use for various system clocks.

Virtex-5 FPGA ML561 User Guide www.xilinx.com 15

UG199 (v1.2.1) June 15, 2009

Chapter 2: Getting Started

5. Insert the CompactFlash card included in the kit into socket J27 on the Virtex-5 FPGA
ML561 Development Board. To select the startup file, check that SW8 is set to position

0.

Applying Power to the Board

The Virtex-5 FPGA ML561 Development Board is now ready to power on. The Virtex-5
FPGA ML561 Development Board is shipped with a country-specific AC line cord for the
universal input 5V desktop power supply. Follow these steps to power up the Virtex-5
FPGA ML561 Development Board:

1. Confirm that the ON-OFF switch, SW5, is in the OFF position.

2. Plug the 5V desktop power supply into the 5V DC input barrel jack J28 on the Virtex-5
FPGA ML561 Development Board. Plug the desktop power supply AC line cord into
an electrical outlet supplying the appropriate voltage.

3. Turn SW5 to the ON position. The power indicators for all regulator modules should
come on, indicating output from the regulators. The System ACE status LED D37
comes on when the System ACE controller (U45) extracts the BIT configuration file
from the CompactFlash card to the FPGA. If no CompactFlash card is installed in the
card socket J27 on the Virtex-5 FPGA ML561 Development Board, the red System ACE
error LED D38 flashes.

4. If a CompactFlash card is not installed in socket J27, a JTAG cable must be used to
configure the FPGAs. To use a Parallel IV cable or other JTAG pod, download the
FPGA configuration bitstream into each FPGA. After the DONE LED (D28) comes on,
the FPGAs are configured and ready to use.

5. Push the reset button SW4.

R

16 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Hardware Description

This chapter describes the major hardware blocks on the Virtex-5 FPGA ML561
Development Board and provides useful design consideration. It contains the following
sections:

• “Hardware Overview”

• “Memory Details”

• “External Interfaces”

• “Power Regulation”

• “Board Design Considerations”

Chapter 3

Hardware Overview

The ML561 Development/Evaluation system reference design is implemented with three
XC5VLX50T-FFG1136 devices from the Virtex-5 FPGA family to demonstrate high-speed
external memory application interfaces. The memory technologies supported by the
Virtex-5 FPGA ML561 Development Board are DDR2 SDRAM, DDR400 SDRAM, QDRII
SRAM, and RLDRAM II SDRAM.

Figure 3-1 provides a view of all the major components on ML561 board. It shows the

placement of the three Virtex-5 FPGAs, and the position of the associated major interfaces
for each FPGA.

Virtex-5 FPGA ML561 User Guide www.xilinx.com 17

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

R

12V Banana

Jacks

ON

OFF

12V Input

Jack

5V Banana

Jacks

ON

OFF

5V Input

Jack

DIMM5

DIMM4

External

12V -> 5V

MGT Connections

DIMM1

DIMM2

DIMM3

Clocks &

Buffers

CLK

HSTL

3.3V

Pwr Measure Header

A1

_M

SSTL18

7SEG2

SPY

RLDRAM II

RLDRAM II

SSTL18

FPGA #2

FPGA #2

Test Header 2

LEDs

SSTL18

V

& V

TT

Config2

DIP2

A1

FPGA #3

LCD Connector

SPY

SPY

REF

DIP1

FPGA #3 LEDs

HSTL

_M

SSTL2

SSTL2

& V

V

TT

REF

DDR

DDR

Test Header 1

AVC

CPLL

VVTTR

XC

V

CCINT

QDRII

QDRII

SPY

Test Header 3

Config3

7SEG3

DDR2

AVTTX

JTAG Test Header

DIP3

PROG

FPGA #1

DDR2

AVTRX

SSTL2

V

CCAUX

V

CCO

HSTL

V

& V

TT

REF

USB

/

FPGA #1

LEDs

FPGA #1

LEDs

A1

Config1

FBD

VCC

7SEG1

Serial Header

JTAG

MGT

RS-232

Driver

RESET

System ACE

Controller

CLK

FPGA

UG199_c3_01_050106

Figure 3-1: ML561 XC5VLX50T-FFG1136 Board Placement Diagram

The ML561 uses three Virtex-5 XC5VLX50T-FFG1136 devices, each in a 1136-pin,
35 mm x 35 mm BGA package. Figure 1-1, page 12 shows the memory devices associated
with the three FPGAs. Refer to Appendix A, “FPGA Pinouts,” for a complete pinout of all
Virtex-5 devices on the board. Refer to Appendix B, “Bill of Materials,” for a list of major
components on the Virtex-5 FPGA ML561 Development Board, including their reference
designators and links to their corresponding data sheets.

18 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Memories

Tab le 3 -1 lists the types of memories that the ML561 board supports.

Table 3-1: Summary of ML561 Memory Interfaces

Hardware Overview

Memory Type Maximum Speed Data Rate Data Width I/O Standard

DDR400 SDRAM 200 MHz 400 Mbps 32 SSTL2 8:1

DDR2 DIMM 333 MHz 667 Mbps 144 SSTL18 8:1

DDR2 SDRAM 333 MHz 667 Mbps 32 SSTL18 8:1

QDRII SRAM 300 MHz 1.2 Gbps 72 HSTL18 18:1, 36:1

RLDRAM II 300 MHz 600 Mbps 36 HSTL18 9:1, 18:1

Data/Strobe

Ratios

When a larger data/strobe ratio is implemented, for example, a x36 QDRII device, the
smaller configurations can also be demonstrated by programming the FPGA for a smaller
data width, such as a 9:1 data/strobe ratio for the QDRII device.

DDR400 SDRAM Components

The Virtex-5 FPGA ML561 Development Board has two 200 MHz Micron
MT46V32M16BN-5B (16-bit) DDR400 SDRAM components that provide a 32-bit interface.
Each 16-bit device is packaged in a 60-ball FBGA package, with a common address and
control bus and separate clocks and DQS/DQ signals.

DDR2 DIMM

The Virtex-5 FPGA ML561 Development Board contains five PC-5300 240-pin DIMM
sockets for a maximum data width of 144 bits or a maximum depth of four DIMMs. The
sockets are arranged in a row leading away from the FPGA so they can share common
address and control signals. DIMM1 through DIMM4 share DQ/DQS signals to form a
deep 72-bit memory interface, while DIMM5 has separate DQ/DQS signals.

For the deep DDR2 interface, the sockets are to be populated starting at socket DIMM4.

Tab le 3 -2 illustrates how the sockets should be populated based on the interface wanted.

Table 3-2: Populating DDR2 DIMM Sockets

DIMM Interface

One Deep 5 or 4 72-bit

Two Deep 4 and 3 72-bit

Three Deep 4, 3, and 2 72-bit

Four Deep 4, 3, 2, and 1 72-bit

Two Wide 5 and 4 144-bit

DIMM Sockets

Populated

Interface Width

Populating the DIMMs in this order is necessary due to the placement of the termination
on the signals being shared. More detail on termination is given in “Board Design

Considerations,” page 36.

Virtex-5 FPGA ML561 User Guide www.xilinx.com 19

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

Wide

DIMM4 (XP2)

DIMM5 (XP1)

Deep

DIMM2 (XP4)

DIMM3 (XP3)

DIMM1 (XP5)

BY0-BY7, CB0_7

BY8-BY15, CB8_15

R

DQ and DQS

DQ and DQS

Address and Commands

DIMM1 Control
DIMM2 Control
DIMM3 Control
DIMM4 Control
DIMM5 Control

UG199_c3_02_050106

Figure 3-2: DDR2 Deep and Wide DIMM Sockets

DDR2 SDRAM Components

The ML561 board contains two 333 MHz Micron MT47H32M16CC-3 (16-bit) DDR2
SDRAM components that provide a 32-bit interface to FPGA #1. Each 16-bit device is
packaged in an 84-ball FBGA package, with a common address and control bus and
separate clocks and DQS/DQ signals.

QDRII SRAM

The ML561 board contains a 300 MHz QDRII SRAM interface with a 72-bit Read interface
and a 72-bit Write interface using two Samsung K7R643684M-FC30 components (x36).
They are packaged in a 165-ball FBGA package with a body size of 15 x 17 mm. These two
components share the same address/control signals but have separate clock and data
signals.

RLDRAM II Devices

The ML561 contains a 300 MHz 36-bit RLDRAM II interface using two Micron
MT49H16M18BM-25 devices (x18) packaged in a 144-ball PBGA package. They share a
common address and control bus but have separate clocks and DQS/DQ signals.

20 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Memory Details

DDR400 and DDR2 Component Memories

The FPGA #1 device on the Virtex-5 FPGA ML561 Development Board is connected to
DDR and DDR2 component memories, as shown in Figure 3-3.

Figure 3-3 summarizes the distribution of DDR and DDR2 discrete component interface

signals among the different banks of the FPGA #1 device.

BANK 25 (40) BANK 6 (20)

Memory Details

GTP I/O

BANK 126

BANK 21 (40)

BANK 17 (40) BANK 18 (40) BANK 118

BANK 13 (40)

DDR Components

DQ 0, 1, 2

BANK 11 (40)

DDR Components

DQ 3 & Controls

BANK 15 (40)

DDR2 Component

DQ 0, 1

BANK 19 (40)

DDR2 Component

BANK 4 (20)

Global Clock Inputs

BANK 2 (20)

Voltage Control

(Configuration)

BANK 0

BANK 1 (20)

DDR2 Component

Address

BANK 3 (20)

DDR2 Component

BANK 22 (40) BANK 122

BANK 114

BANK 12 (40)

USB Controls

RS232

BANK 112

BANK 116

BANK 120BANK 20 (40)

DQ 2, 3

BANK 23 (40) BANK 124BANK 5 (20)

Controls

Inter-FPGA MII Links

UG199_c3_03_050106

Figure 3-3: FPGA #1 Banks for DDR400 and DDR2 Component (Top View)

Virtex-5 FPGA ML561 User Guide www.xilinx.com 21

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

Tab le 3 -3 describes all signals associated with DDR400 Component memories.

Table 3-3: DDR400 Component Signal Summary

DDR1_A[13:0] 14 DDR400 Component Address

DDR1_CK[2:1]_[P,N] 4 DDR400 Component Differential Clock

R

Board Signal Name(s) Bits Description

DDR1_[RAS,CAS,WE]_N, DDR1_CKE,

12 DDR400 Component Control Signals
DDR1_BA[1:0], DDR1_BY[0_1,2_3]_CS_N,
DDR1_DM_BY[3:0]

DDR1_DQ_BY0_B[7:0], DDR1_DQS_BY0_P 9 DDR400 Data and Strobe: Byte 0

DDR1_DQ_BY1_B[7:0], DDR1_DQS_BY1_P 9 DDR400 Data and Strobe: Byte 1

DDR1_DQ_BY2_B[7:0], DDR1_DQS_BY2_P 9 DDR400 Data and Strobe: Byte 2

DDR1_DQ_BY3_B[7:0], DDR1_DQS_BY3_P 9 DDR400 Data and Strobe: Byte 3

Notes:

1. DDR1_CKE signal has a weak 4.7KΩ pull-down resistor to meet the memory power-up requirements.

Tab le 3 -4 describes all signals associated with DDR2 Component memories. For a complete

list of FPGA #1 signals and their pin locations, refer to Appendix A, “FPGA Pinouts.”

Table 3-4: DDR2 Component Signal Summary

Board Signal Name(s) Bits Description

DDR2_A[12:0] 13 DDR2 Component Address

DDR2_CK[1:0]_[P,N] 4 DDR2 Component Differential

Clock

DDR2_ODT[1:0], DDR2_[RAS,CAS,WE]_N,

14 DDR2 Component Control Signals
DDR2_CKE, DDR2_BA[1:0], DDR2_CS[1:0]_N,
DDR2_DM_BY[3:0]

DDR2_DQ_BY0_B[7:0], DDR2_DQS_BY0_[P,N] 10 DDR2 Data and Strobe: Byte 0

DDR2_DQ_BY1_B[7:0], DDR2_DQS_BY1_[P,N] 10 DDR2 Data and Strobe: Byte 1

DDR2_DQ_BY2_B[7:0], DDR2_DQS_BY2_[P,N] 10 DDR2 Data and Strobe: Byte 2

DDR2_DQ_BY3_B[7:0], DDR2_DQS_BY3_[P,N] 10 DDR2 Data and Strobe: Byte 3

Notes:

1. DDR2_CKE and DDR2_ODT[1:0] signals have a weak 4.7KΩ pull-down resistor to meet the memory
power-up requirements.

X

APP851, DDR SDRAM Controller Using Virtex-5 FPGA Devices, XAPP858, High-

Performance DDR2 SDRAM Interface in Virtex-5 Devices, and the corresponding demos are
included on the CD shipped with the ML561 Tool Kit. For a complete list of FPGA #1
signals and their pin locations, refer to Appendix A, “FPGA Pinouts.”

22 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

DDR2 SDRAM DIMM

The FPGA #2 device on the Virtex-5 FPGA ML561 Development Board is connected to
DDR2 memories. The DDR2 memory interface includes a 144-bit wide DIMM connection
to up to five 240-pin DDR2 DIMM sockets.

For the 144-bit wide DIMM datapath, the data bytes are spread across multiple banks of
the FPGA #2 device. Figure 3-4 summarizes the distribution of DDR2 DIMM interface
signals among the different banks of the FPGA #2 device.

TX 0, 1

Memory Details

BANK 5 (20) BANK 23 (40)BANK 124

BANK 120

RX 0, 1

BANK 116

GTP CLK

BANK 112

BANK 114

BANK 118

BANK 122 BANK 21 (40)

BANK 20 (40)

DDR2 DIMM

DQ 8, 9, 10

BANK 12 (40)

DDR2 DIMM

DQ 11, 12, CB8_15

BANK 18 (40)

DDR2 DIMM

DQ 14, 15, 13

BANK 22 (40)

DDR2 DIMM

BANK 3 (20)

General I/O

BANK 1 (20)

General I/O

(Configuration)

BANK 0

BANK 2 (20)

Inter-FPGA MII Links

BANK 4 (20)

Global Clock Inputs

BANK 19 (40)

DDR2 DIMM

Controls & DIMM1 Cntl

BANK 15 (40)

DDR2 DIMM

DQ 0, 1, 2

BANK 11 (40)

DDR2 DIMM

DQ 6, 3 CB0_7

BANK 13 (40)

DDR2 DIMM

DQ 5, 7, 4

BANK 17 (40)

DDR2 DIMM

Common Controls

DDR2 DIMM

DIMM 4 & 5 Cntl

DIMM 1, 2, 3 Cntl

BANK 25 (40)BANK 126 BANK 6 (20)

UG199_c3_04_050106

Figure 3-4: FPGA #2 Banks for DDR2 DIMM (SSTL18) Interfaces (Top View)

Virtex-5 FPGA ML561 User Guide www.xilinx.com 23

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

Tab le 3 -5 describes all the signals associated with DDR2 DIMM component memories. For

the Deep DIMM interface to four DIMMs, the individual dedicated control signals are
listed at the bottom of Tab le 3- 5.

Table 3-5: DDR2 DIMM Signal Summary

Board Signal Name(s) Bits Description

DDR2_DIMM_A[15:0] 16 DDR2 DIMM Address

DDR2_DIMM[5:1]_CK[2:0]_[P,N] 30 DDR2 DIMM Differential Clocks: Three copies per

DIMM

R

DDR2_DIMM_[RAS,CAS,WE,RESET]_N,

37 DDR2 DIMM Common Control Signals
DDR2_DIMM[5:1]_CKE[1:0], DDR2_DIMM_BA[2:0],
DDR2_DIMM[5:1]_CS[1:0]_N,
DDR2_DIMM[5:1]_ODT[1:0]

DDR2_DIMM[1:5]_CS[1:0]_N,

20 DDR2 DIMM Dedicated Control Signals
DDR2_DIMM[1:5]_CKE[1:0],
DDR2_DIMM[1:5]_ODT[1:0]

DDR2_DIMM_LB_BK[11,13,15]_[IN,OUT] 6 Deep DIMMs (DIMM1 through DIMM4) Loopback

Signals

DDR2_DIMM_LB_BK[12,18,20] 3 Wide DIMM (DIMM5) Loopback Signals (Total of six

FPGA pins)

DDR2_DIMM[1:5]_CNTL_PAR,
DDR2_DIMM[1:5]_CNTL_PAR_ERR,

20 Miscellaneous Place Holder Signals to the Five

DIMMs

DDR2_DIMM[1:5]_NC_019, DDR2_DIMM[1:5]_NC_102

DDR2_DIMM_DQ_BY[0:15]_B[7:0],
DDR2_DIMM_DQS_BY[0:15]_L_[P,N],

176 DDR2 DIMM Data, Strobes, and Data Mask: Bytes 0

through 15

DDR2_DIMM_DM_BY[0:15]

DDR2_DIMM_DQ_CB0_7_B[7:0],
DDR2_DIMM_DQS_CB0_7_L_[P,N],

11 DDR2 DIMM Data, Strobes, and Data Mask: Check

Byte 0

DDR2_DIMM_DM_CB0_7

DDR2_DIMM_DQ_CB8_15_B[7:0],
DDR2_DIMM_DQS_CB8_15_L_[P,N],

11 DDR2 DIMM Data, Strobes, and Data Mask: Check

Byte 1

DDR2_DIMM_DM_CB8_15

DDR2_DIMM[1:5]_SA[2:0] 15 Serial PROM Address

DDR2_DIMM_[SCL,SDA]" 2 Serial PROM interface CLK and Data

Notes:

1. DDR2_DIMM_CKE and DDR2_DIMM_ODT signals are connected to a 4.7KΩ pull-down resistor to meet the memory power-up
requirements.

XAPP858

, High-Performance DDR2 SDRAM Interface in Virtex-5 Devices and its

corresponding demo are included on the CD shipped with the ML561 Tool Kit.

24 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

QDRII and RLDRAM II Memories

Figure 3-5 summarizes the distribution of QDRII and RLDRAM II component interface

signals among the different banks of the FPGA #3 device.

Memory Details

BANK 5 (20) BANK 23 (40)BANK 124

BANK 120

BANK 116

BANK 112

BANK 114

BANK 118

BANK 20 (40)

RLDII Data

DQ 0, 1 & D0

BANK 12 (40)

RLDII Data

DQ 2, 3 & D1

BANK 18 (40)

RLDII Data

D 2, 3

BANK 3 (20)

General I/O

BANK 1 (20)

System ACE Controls

(Configuration)

BANK 0

BANK 2 (20)

Inter-FPGA MII Links

BANK 19 (40)

QDRII Data

Q1, 3 & D1

BANK 15 (40)

QDRII Data

D7, 2, 3, 0

BANK 11 (40)

QDRII Data

Q0, 2 & D6

BANK 13 (40)

QDRII Data

Q4, 5, 6

BANK 17 (40)

QDRII Data

Q7 & D4, 5

BANK 122 BANK 21 (40)

BANK 22 (40)

RLDII Address

and Control

BANK 4 (20)

Global Clock Inputs

QDRII Address

and Control

BANK 25 (40)BANK 126 BANK 6 (20)

UG199_c3_05_050106

Figure 3-5: FPGA #3 Banks for QDRII SRAM and RLDRAM II Interfaces (Top View)

Virtex-5 FPGA ML561 User Guide www.xilinx.com 25

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

Tab le 3 -6 describes all the signals associated with QDRII component memories.

Table 3-6: QDRII Component Signal Summary

Board Signal Name(s) Bits Description

QDR2_SA[18:0] 19 QDRII Address

R

QDR2_CK_BY0_3_[P,N],

4QDRII Differential Clock

QDR2_CK_BY4_7_[P,N]

QDR2_[R,W,DLL_OFF]_N 3 QDRII Control Signals

QDR2_D_BY[3:0]_B[8:0],

42 QDRII Write Data, Strobes, and Byte Write: Bytes 3:0
QDR2_K_BY0_3_[P,N],
QDR2_BW_BY[3:0]

QDR2_Q_BY[3:0]_B[8:0],

38 QDRII Read Data and Strobes: Bytes 3:0
QDR2_CQ_BY0_3_[P,N]

QDR2_D_BY[7:4]_B[8:0],

42 QDRII Write Data, Strobes, and Byte Write: Bytes 7:4
QDR2_K_BY4_7_[P,N],
QDR2_BW_BY[3:0]

QDR2_Q_BY[7:4]_B[8:0],

38 QDRII Read Data and Strobes: Bytes 7:4
QDR2_CQ_BY4_7_[P,N]

Notes:

1. QDR2_SA[18] is incorrectly labeled QDR2_NC_A3 in the ML561 schematics and layout file.

APP853: QDR II SRAM Interface for Virtex-5 Devices and its corresponding demo are

X

included on the CD shipped with the ML561 Tool Kit.

For a complete list of FPGA #3 signals and their pin locations, refer to Appendix A, “FPGA

Pinouts.”

Tab le 3 -7 describes all signals associated with RLDRAM II devices.

Table 3-7: RLDRAM II Component Signal Summary

Board Signal Name(s) Bits Description

RLD2_A[19:0], RLD2_BA[2:0] 23 RLDRAM II Address

RLD2_CK_BY0_1 _[P,N] 2 RLDRAM II Differential Clock

RLD2_CK_BY2_3 _[P,N] 2 RLDRAM II Differential Clock

RLD2_CS_BY[0_1,2_3]_N, RLD2_[REF,WE]_N,

8 RLDRAM II Control Signals

RLD2_DM_BY[0_1,2_3]_N, RLD2_QVLD_BY[0_1,2_3]

RLD2_DQ_BY[1:0]_B[8:0], RLD2_DK_BY0_1_[P,N],

24 RLDRAM II Data and Strobes: Bytes 1:0

RLD2_QK_BY[1:0]_[P,N]

RLD2_DQ_BY[3:2]_B[8:0], RLD2_DK_BY0_1_[P,N],

24 RLDRAM II Data and Strobes: Bytes 3:2

RLD2_QK_BY[3:2]_[P,N]

X

APP852, RLDRAM II Memory Interface for Virtex-5 FPGAs and its corresponding demo are

included on the CD shipped with the ML561 Tool Kit.

26 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

External Interfaces

The external interfaces of the Virtex-5 FPGA ML561 Development Board are described in
this section.

RS-232

The ML561 board provides an RS-232 serial interface using a Maxim MAX3316ECUP
device. The maximum speed of this device is 460 Kbps.

Hooks are provided to connect and disconnect FPGAs to the RS-232 serial interface, by
placing jumpers on headers based on the FPGA involved in the communication. Only one
FPGA is allowed in the communication, and others must be dis conne cted b efore operation.
The ML561 toolkit CD contains code to implement a UART core in one FPGA for
interfacing with a host PC.

The RS-232 interface is accessible through a male DB-9 serial connector (P73).

Table 3-8: RS-232 Jumper Settings

External Interfaces

USB

To Connect FPGA # to

DB-9 (P73)

FPGA #1 P52 Pin 2 -> P52 Pin 1 P53 Pin 2 -> P53 Pin 1

FPGA #2 P52 Pin 2 -> P51 Pin 1 P53 Pin 2 -> P54 Pin 1

FPGA #3 P52 Pin 2 -> P52 Pin 3 P53 Pin 2 -> P53 Pin 3

Full-speed (12 Mbps) USB functionality is proved using a Silicon Laboratories CP2102-GM
USB to RS-232 Bridge. RS-232 and USB signals are converted between one another so a
RS-232 core needs to be implemented in the FPGA for communication. A level translator is
used to convert between the 2.5V I/O of the FPGA and the 3.3V I/O the CP2102 uses.

Hooks are provided to connect and disconnect FPGAs to the USB connection, by placing
jumpers on headers based on the FPGA involved in the communication. Only one FPGA is
allowed in the communication, and others must be disconnected before operation.

The USB interface is accessible through a female ‘A’ USB connector (J29).

Table 3-9: USB Jumper Settings

To Connect FPGA # to DB-9

(J29)

FPGA #1 P36 Pin 2 -> P36 Pin 1 P22 Pin2 -> P22 Pin 1

TX RX

TX RX

FPGA #2 P36 Pin 2 -> P35 Pin 1 P22 Pin2 -> P23 Pin 1

FPGA #3 P36 Pin 2 -> P36 Pin 3 P22 Pin2 -> P22 Pin 3

Clocks

The ML561 board contains a 200 MHz LVPECL clock oscillator and connectors for external
clock inputs for use as system clocks (J19 and J20). The GTP transceivers use their own
clock source that can be provided through SMA connectors on the board (J16 and J21).

Virtex-5 FPGA ML561 User Guide www.xilinx.com 27

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

200 MHz LVPECL Clock

The 200 MHz LVPECL clock source is an Epson EG-2121CA200M-PCHS oscillator (Y1)
with a differential output. The oscillator runs at 200 MHz ± 100 PPM with an operating
voltage of 2.5V ±5%. This output is fed into an ICS853006 LVPECL buffer for generating a
separate differential copy for each FPGA as well as a test point (P59).

Table 3-10: FPGA 200 MHz IDELAY Reference Clock Source

FPGA # Signal Name

1 DIRECT_CLK_TO_FPGA1_P

1 DIRECT_CLK_TO_FPGA1_N

2 DIRECT_CLK_TO_FPGA2_P

2 DIRECT_CLK_TO_FPGA2_N

3 DIRECT_CLK_TO_FPGA3_P

3 DIRECT_CLK_TO_FPGA3_N

R

SMA Clock

Two SMA connectors are provided for the input of an off-board differential clock (J19 and
J20). A differential clock buffer (ICS853006) is used on the board (U17 and U18) to generate
four LVPECL copies of the differential clock signal, one for each FPGA along with a probe
point (P40) for testing. The traces from the buffer are routed as a differential pair to each
FPGA where they are terminated with 100Ω differential termination.

Table 3-11: FPGA External Clock Sources

FPGA # Signal Name

1 EXT_CLK_TO_FPGA1_P

1 EXT_CLK_TO_FPGA1_N

2 EXT_CLK_TO_FPGA2_P

2 EXT_CLK_TO_FPGA2_N

3 EXT_CLK_TO_FPGA3_P

3 EXT_CLK_TO_FPGA3_N

33 MHz Clock

A single-ended 33 MHz Epson SG-8002CA oscillator is provided on the board (Y2) for
testing purposes. Four copies of this clock are generated using a clock buffer (ICS8304) on
the board, one per FPGA along with a probe point for testing (P41).

The application using this clock source as an input to the PLL on the Virtex-5 device has
not yet been fully verified.

28 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009

R

Table 3-12: FPGA Slow Clock Sources

FPGA Signal Name

1 FPGA1_LOW_FREQ_CLK

2 FPGA2_LOW_FREQ_CLK

3 FPGA3_LOW_FREQ_CLK

33 MHz System ACE Controller Oscillator

A single-ended 33 MHz Epson SG-8002CA oscillator is provided on the board (Y3) as a
clock source for System ACE functionality.

GTP Clocks

Two SMA connectors are provided for the input of an off-board differential clock (J16 and
J21). A differential clock buffer (ICS8543BG) is used on the board (U20) to generate four
LVDS copies of the differential clock signal, two for FPGA #1, one for FPGA #2, and one for
FPGA #3.

External Interfaces

User I/Os

General-Purpose Headers

A header is used to select between a clock forwarded by the GTP or from the external clock
source used to provide a clock to the FPGA logic.

This subsection describes the devices that connect to the User I/Os of the ML561 board.
These I/Os are provided to ease hardware development using the ML561.

The 16-pin test headers are surface mounted, one per FPGA. Of the two bytes of test
signals, traces are matched for signals within a byte.

Table 3-13: Test Headers

Header Signal Description Location Header Pin #

FPGA1_TEST_HDR_BY0_B[0:7] P20 (TEST1) Odd pins: 1, 3, 5, 7, 9, 11, 13, 15

FPGA1_TEST_HDR_BY1_B[0:7] P20 (TEST1) Even pins: 2, 4, 6, 8, 10, 12, 14, 16

FPGA2_TEST_HDR_BY0_B[0:7] P21 (TEST2) Odd pins: 1, 3, 5, 7, 9, 11, 13, 15

FPGA2_TEST_HDR_BY1_B[0:7] P21 (TEST2) Even pins: 2, 4, 6, 8, 10, 12, 14, 16

FPGA3_TEST_HDR_BY0_B[0:7] P93 (TEST3) Odd pins: 1, 3, 5, 7, 9, 11, 13, 15

FPGA3_TEST_HDR_BY1_B[0:7] P93 (TEST3) Even pins: 2, 4, 6, 8, 10, 12, 14, 16

DIP Switch

One four-position DIP switch per FPGA (for a total of three) is available to externally pull
up or pull down a signal on the FPGA. This can be used to manually set values used by the
design running on the FPGA.

Virtex-5 FPGA ML561 User Guide www.xilinx.com 29

UG199 (v1.2.1) June 15, 2009

Chapter 3: Hardware Description

Seven-Segment Displays

One seven-segment display per FPGA (for a total of three) is available for use. The red
Stanley-Electric NAR131SB displays are active Low, using seven inputs to display a
character or number plus another input for a decimal point.

R

7SEG_0_N

7SEG_5_N 7SEG_1_N

7SEG_6_N

7SEG_4_N 7SEG_2_N

7SEG_3_N

7SEG_DP_N

UG199_c3_06_050106

Figure 3-6: Seven-Segment Display Signal Mapping

Light Emitting Diodes (LEDs)

Each FPGA is able to control four active-high green LEDs. The green is used to distinguish
the User LEDs from the blue system LEDs on the Virtex-5 FPGA ML561 Development
Board.

Pushbuttons

The ML561 board contains two momentary pushbuttons. Their functions and locations are
described in Tabl e 3 -1 4.

Table 3-14: User Pushbuttons

Button Description Pin Connection

SW7 PROG_B: Configure FPGA System ACE Controller: Pin 33

SW4 RESET_N: Reset the FPGA designs FPGA #1: AH14

FPGA #2: AH14

FPGA #3: AH14

The Reset signal goes to a buffer (U32) that provides a separate copy of Reset to each
FPGA.

30 www.xilinx.com Virtex-5 FPGA ML561 User Guide

UG199 (v1.2.1) June 15, 2009
