ML505/506

QuickStart

May 2008

Overview

Setup

Boot with ACE-loader ACE File

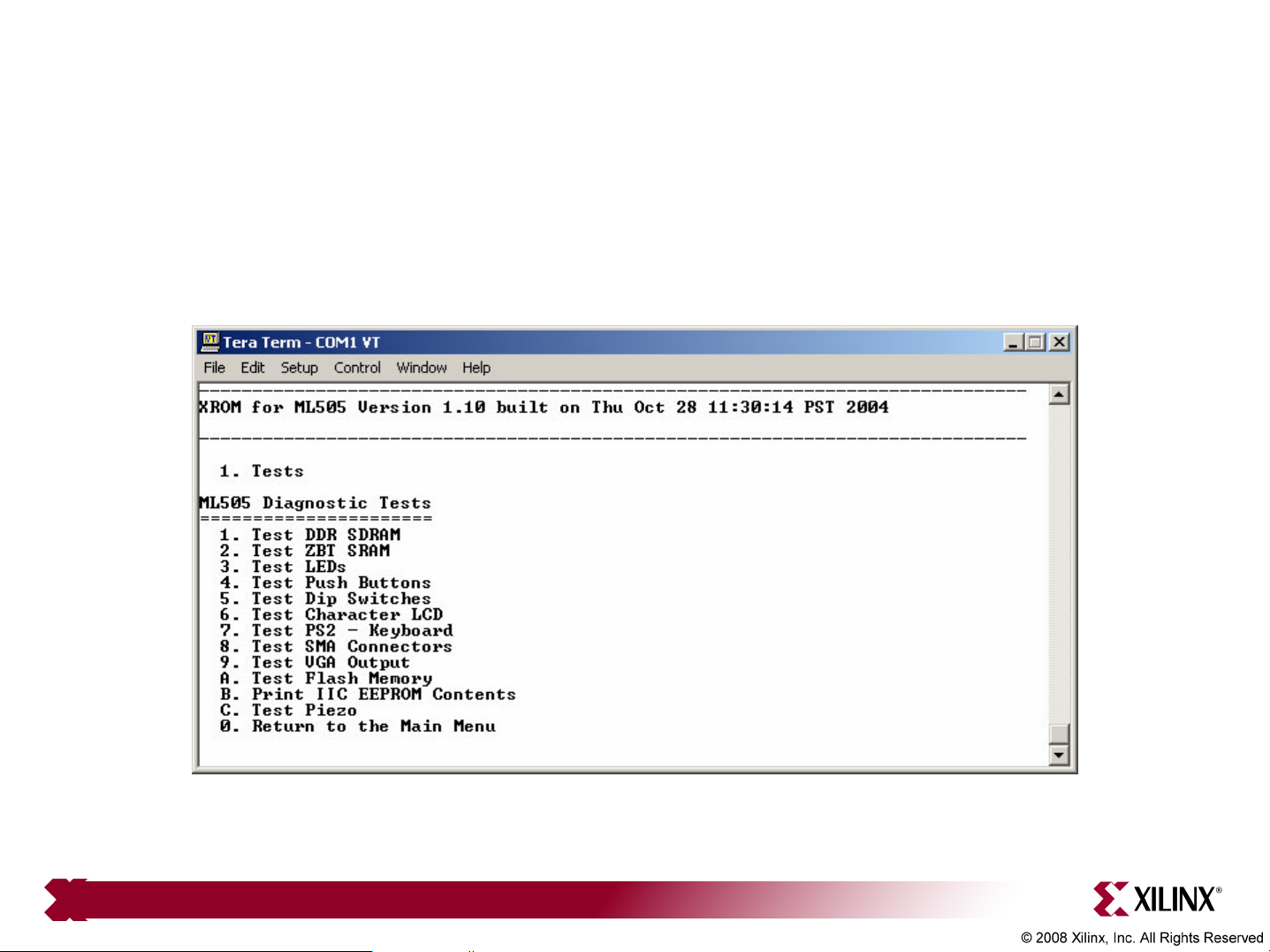

Observe LCD and Terminal messages

Load new Configuration

Re-load ACE-loader

ML505 BSB Hardware

The ML505 MicroBlaze design hardware includes:

DDR2 Interface (256 MB)

BRAM

External Memory Controller (EMC)

ZBT SRAM

Networking

UART

Interrupt Controller

System ACE CF Interface

GPIO (IIC, LEDs and LCD)

PLB Arbiter

Note: Presentation applies to the ML505 and ML506

Additional Setup Details

Refer to ml505_overview_setup document for details on:

Software Requirements

ML505 Board Setup

Equipment and Cables

Software

Network

Terminal Programs

This presentation requires the 9600-8-N-1 Baud terminal setup

Note: Presentation applies to the ML505 and ML506

Hardware Setup

Connect the Xilinx Parallel Cable IV (PC4) to the ML505 board

Connect the RS232 null modem cable to the ML505 board

Note: Presentation applies to the ML505 and ML506

Hardware Setup

The ML505 uses a DVI video interface

Connect a DVI monitor

or

Use a DVI/VGA adapter to connect a VGA monitor

http://www.belkin.com

Note: Presentation applies to the ML505 and ML506

Hardware Setup

USB Keyboard

www.dell.com

Note: Presentation applies to the ML505 and ML506

Factory CompactFlash

The CompactFlash shipped with the ML505 board has the following ace files preloaded:

Note: Presentation applies to the ML505 and ML506

Xilinx ML506, ML505 User Manual

Verify Factory Default Settings

Set the Ethernet PHY jumpers, J22, J23 to positions 1-2 (1)

Insert the Factory CompactFlash into the ML505 board (2)

Set the Front DIP switches (SW3) to 00010101 (1 = ON) (3)

Set the Rear DIP switches (SW6) to 11001010 (4)

Power-up the ML505 board

2

1

4

3

Note: Presentation applies to the ML505 and ML506
