Xantrex Technology PV100S-480 User Manual

PV100S 100 kW
Grid-Tied
Photovoltaic
Inverter

PV100S-208
PV100S-480

Planning and Installation Manual

PV100S 100 kW Grid-Tied
Photovoltaic Inverter

Planning and Installation Manual

About Xantrex

Xantrex Technology Inc. is a world-leading supplier of advanced power electronics and controls with products from
50 watt mobile units to 1.5 MW utility-scale systems for wind, solar, batteries, fuel cells, microturbines, and backup
power applications in both grid-connected and stand-alone systems. Xantrex products include inverters, battery
chargers, programmable power supplies, and variable speed drives that convert, supply, control, clean, and distribute
electrical power.

Trademarks

PV100S 100 kW Grid-Tied Photovoltaic Inverter is a trademark of Xantrex International. Xantrex is a registered
trademark of Xantrex International.

Other trademarks, registered trademarks, and product names are the property of their respective owners and are used
herein for identification purposes only.

Notice of Copyright

PV100S 100 kW Grid-Tied Photovoltaic Inverter Planning and Installation Manual© May 2005 Xantrex
International. All rights reserved.

Disclaimer

UNLESS SPECIFICALLY AGREED TO IN WRITING, XANTREX TECHNOLOGY INC. (“XANTREX”)

(a) MAKES NO WARRANTY AS TO THE ACCURACY, SUFFICIENCY OR SUITABILITY OF ANY
TECHNICAL OR OTHER INFORMATION PROVIDED IN ITS MANUALS OR OTHER DOCUMENTATION.

(b) ASSUMES NO RESPONSIBILITY OR LIABILITY FOR LOSS OR DAMAGE, WHETHER DIRECT,
INDIRECT, CONSEQUENTIAL OR INCIDENTAL, WHICH MIGHT ARISE OUT OF THE USE OF SUCH
INFORMATION. THE USE OF ANY SUCH INFORMATION WILL BE ENTIRELY AT THE USER’S RISK.

Date and Revision

May 2005 Revision C

Part Number

152315 Rev C

Contact Information

Telephone: [phone] (toll free North America)

1 360 925 5097 (direct)

Fax: [phone] (direct)

Email: [e-mail]

Web: www.xantrex.com

About This Manual

Purpose

The purpose of this Planning and Installation Manual is to provide explanations
and procedures for planning and installing the PV100S 100 kW Grid-Tied
Photovoltaic Inverter.

Scope

The Manual provides safety guidelines, detailed planning and setup information,
and procedures for installing the inverter.

Audience

The Manual is intended for use by anyone who plans to construct or install a
system involving the PV100S 100 kW Grid-Tied Photovoltaic Inverter. Installers
must meet all local and state code requirements for licensing and training for the
installation of Electrical Power Systems with AC and DC voltage to 600 volts.

Organization

This Manual is organized into four chapters:

Chapter 1, “Introduction” provides information about the features and functions
of the PV100S 100 kW Grid-Tied Photovoltaic Inverter.

Chapter 2, “Planning” provides information to help plan the installation of the
PV100S 100 kW Grid-Tied Photovoltaic Inverter.

Chapter 3, “Installation” describes the procedures needed to install the PV100S
100 kW Grid-Tied Photovoltaic Inverter. This section includes unpacking and
moving instructions, mounting instructions, and cabling instructions.

Chapter 4, “Verification” provides a checklist to ensure the installation of the
PV100S is correct and complete.

152315 Rev C iii

About This Manual

Conventions Used

The following conventions are used in this guide.

WARNING

Warnings identify conditions or practices that could result in personal injury or loss of life.

CAUTION

Cautions identify conditions or practices that could result in damage to the unit or other
equipment.

Important:

serious as a caution or warning.

This Manual contains information for two models of the PV100S 100 kW Grid­Tied Photovoltaic Inverter. One model is designed to operate with a 208 Vac
utility input, and the other model is designed to operate with a 480 Vac utility
input.

• The model PV100S-208 100kW Grid-Tied Photovoltaic Inverter
(208 Vac input) will be referred to as the PV100S-208 when it is being
referenced individually.

• The model PV100S-480 100kW Grid-Tied Photovoltaic Inverter
(480 Vac input) will be referred to as the PV100S-480 when it is being
referenced individually.

• When the both models are being referenced together, they will be referred to
as the PV100S.

These notes describe things which are important for you to know, but not as

iv 152315 Rev C

Abbreviations and Acronyms

ANSI American National Standards Institute

CCU2 Converter Control Unit 2

CFM Cubic Feet per Minute

CW Clockwise

DSP Digital Signal Processor

FPGA Field Programmable Gate Array

GUI Graphical User Interface

IEEE Institute of Electrical and Electronics Engineers

IGBT Insulated Gate Bipolar Transistor

IPM Intelligent Power Module

kcmil 1000 circular mils

LAN Local Area Network

About This Manual

LCD Liquid Crystal Display

NFPA National Fire Protection Association

PBX Private Branch Exchange

PSL Phase-Shift Loop

POTS Plain Old Telephone Service

PV Photovoltaic

UFCU Universal Frontpanel Control Unit

Related Information

You can find more information about Xantrex Technology Inc. as well as its
products and services at www.xantrex.com.

152315 Rev C v

vi

Important Safety Instructions

SAVE THESE INSTRUCTIONS - DO NOT DISCARD

This manual contains important safety instructions for the PV100S that shall be
followed during installation and maintenance procedures.

WARNING: Shock Hazard

Read and keep this Planning and Installation Manual for future reference. Before
installing PV100S (either model), read all instructions, cautionary markings, and all other
appropriate sections of this manual. Failure to adhere to these warnings could result in
severe shock or possible death. Exercise extreme caution at all times to prevent accidents.

WARNING: Shock Hazard

The PV100S enclosures contain exposed high-voltage conductors. The enclosure doors
should remain closed with the latches tightened, except during installation, maintenance
or testing. These servicing instructions are for use by qualified personnel who meet all
local and state code requirements for licensing and training for the installation of
Electrical Power Systems with AC and DC voltage to 600 volts. To reduce the risk of
electric shock, do not perform any servicing other than that specified in the installation
instructions unless you are qualified to do so. Do not open the cabinet doors if extreme
moisture is present (rain or heavy dew).

WARNING: Lethal Voltage

In order to remove all sources of voltage from the PV100S, the incoming power must be
de-energized at the source. This may be done at the main utility circuit breaker and by
opening the AC Disconnect and the DC Disconnect Switches on the PV100S. Review the
system configuration to determine all of the possible sources of energy. In addition, allow
5 minutes for the DC bus capacitors, located on the ceiling of the cabinet, to discharge
after removing power.

152315 Rev C vii

Safety

General Safety Precautions

1. When installing the PV100S use only components recommended or sold by
Xantrex. Doing otherwise may result in a risk of fire, electric shock, injury to
persons, and will void the warranty.

2. Do not attempt to operate the PV100S if it has been dropped, or received more
than cosmetic damage during transport or shipping. If the PV100S is
damaged, or suspected to be damaged, see the Warranty for this unit in the
PV100S 100 kW Grid-Tied Photovoltaic Inverter Operation and Maintenance
Manual.

3. To reduce the risk of electrical shock, lock-out and tag the PV100S before
attempting any maintenance, service, or cleaning.

Personal Safety

Follow these instructions to ensure your safety while working with the PV100S.

Safety Equipment

Authorized service personnel must be equipped with standard safety equipment
including the following:

• Safety glasses

• Ear protection

• Steel-toed safety boots

• Safety hard hats

• Padlocks and tags

• Appropriate meter to verify that the circuits are de-energized
(600 Vac and DC rated, minimum)

Check local safety regulations for other requirements.

Wiring Requirements

1. All wiring methods and materials shall be in accordance with the National
Electrical Code ANSI/NFPA 70. When sizing conductors and conduits
interfacing to the PV100S, both shall be in accordance with the National
Electric Code ANSI/NFPA 70, as well as all state and local code
requirements.

2. Use copper conductors only with insulation rated for 90 °C.

3. The PV100S has a three-phase output. It is marked with this symbol:

4. The AC power conductor wiring interfacing with the AC terminals in the
Transformer Enclosure are located at T6-X1, T6-X2, and T6-X3. These
terminals should be tightened to a torque value of 420 in-lbs (47.5 Nm) for
model PV100S-208 and model PV100S-480. Conductors terminated to these

viii 152315 Rev C

Safety

terminals must use a crimp-on type ring terminal or compression-type lug.
The terminals are one bolt per pole. See Figure 3-14 on page 3–15 for the
location of these terminals.

5. The AC power conductor wiring interfacing with the AC terminals in the
Main Inverter Enclosure are located at TB4-A, TB4-B, and TB4- C. These
terminals are to be tightened to a torque value of 275 in-lbs (31.1 Nm) for
model PV100S-208 and model PV100S-480. The terminals will accept a
conductor size of 350 kcmil. See Figure 3-15 on page 3–16 for the location of

these terminals.

6. The AC power conductor wiring interfacing with the AC terminals in the
AC Interface Enclosure are located at S1-2T1, S1-4T2, and S1-6T3. These
terminals should be tightened to a torque value of 310 in-lbs (35.0 Nm) for
model PV100S-208 and to a torque value of 115 in-lbs (13.0 Nm) for model
PV100S-480. See Figure 3-16 on page 3–16 for the location of these

terminals and the cautionary note on page 3–17.

7. The AC neutral conductor from the utility is terminated in the AC Interface
Enclosure at the TB6-Neutral terminal. This terminal requires the use of a
crimp-on type ring terminal or compression-type lug and should be tightened
to a torque value of 228 in-lbs (25.7 Nm) for model PV100S-208 and model
PV100S-480. See Figure 3-18 on page 3–18 for the location of these

terminals.

8. The DC power conductor wiring interfacing with the DC terminals at TB3-1,
TB3-2, and TB3-3 are to be tightened to a torque value of 500 in-lbs
(56.5 Nm) for model PV100S-208 and model PV100S-480. These terminals
will accept a conductor size of 500 kcmil. Keep these cables together as much
as possible and ensure that all cables pass through the same knockout and
conduit fittings, thus allowing any inductive currents to cancel. See Figure 3-

19 on page 3–19 for the location of these terminals.

9. This product is intended to be installed as part of a permanently grounded
electrical system per the National Electric Code ANSI/NFPA 70. A copper
ground rod must be installed within three feet of the PV100S enclosure. This
is the single point earth ground for the inverter system. The single point
ground for the system is to be made at the AC ground bus bar (TB2) in the AC
Interface Enclosure. This terminal requires the use of a crimp on type ring
terminal or compression-type lug and should be tightened to a torque value of
420 in-lbs (47.5 Nm) for model PV100S-208 and model PV100S-480.

10. The equipment grounds on the PV100S are marked with this symbol:

11. AC overcurrent protection for the utility interconnect (Grid-tie) must be
provided by the installers as part of the PV100S installation.

CAUTION: Fire Hazard

In accordance with the National Electrical Code, ANSI/NFPA 70, connect only to a circuit
provided with 400 amperes maximum branch circuit overcurrent protection for model
PV100S-208 and only to a circuit provided with 200 amperes maximum branch circuit
overcurrent protection for model PV100S-480.

152315 Rev C ix

Safety

Operational Safety Procedures

Never work alone when servicing this equipment. A team of two is required until
the equipment is properly de-energized, locked-out and tagged, and verified de­energized with a meter.

Thoroughly inspect the equipment prior to energizing. Verify that no tools or
equipment have inadvertently been left behind.

Lockout and Tag

Safety requirements mandate that this equipment not be serviced while energized.
Power sources for the PV100S must be locked-out and tagged prior to servicing.

A padlock and tag should be installed on each energy source prior to
servicing.

WARNING: Shock Hazard

Review the system schematic for the installation to verify that all available energy sources
are de-energized. DC bus voltage may also be present. Be sure to wait the full 5 minutes to
allow the capacitors to discharge completely.

The PV100S can be energized from both the AC source and the DC source. To
ensure that the inverter is de-energized prior to servicing, lockout and tag the
PV100S using the following procedure.

1. Open, lockout, and tag the incoming power at the utility main circuit breaker.

2. Open, lockout, and tag the AC Disconnect Switch (S1) on the AC Interface
Enclosure. See Figure 1-4 on page 1–9 for the location of the AC Disconnect
Switch.

3. Open, lockout, and tag the DC Disconnect Switch (S2) on the DC Interface
Enclosure. See Figure 1-4 on page 1–9 for the location of the DC Disconnect
Switch.

4. Using a confirmed, accurate meter, verify all power to the inverter is de­energized. A confirmed, accurate meter must be verified on a known voltage
before use. Ensure that all incoming energy sources are de-energized by
checking the following locations.

a) Inverter Terminals: TB4-A, TB4-B, TB4-C (Phase A, B, C)

See Figure 3-15 on page 3–16.

b) Utility Terminals: Bottom of S1-2T1, S1-4T2, S1-6T3

See Figure 3-16 on page 3–16.

c) PV Terminals: Bottom of TB3-1, TB3-2, TB3-3 (PV+, PV-, GND)

See Figure 3-19 on page 3–19.

x 152315 Rev C

De-Energize/Isolation Procedure

The following procedure should be followed to de-energize the PV100S for
maintenance.

WARNING

The terminals of the DC input may be energized if the PV arrays are energized. In
addition, allow 5 minutes for all capacitors within the main enclosure to discharge after
disconnecting the PV100S from AC and DC sources.

To isolate the PV100S:

Safety

1. Turn the

2. Open the DC interface disconnect switch.

3. Open the AC interface disconnect switch.

4. Open the utility connection circuit breaker.

5. Install lockout devices on the utility connection circuit breaker and DC
disconnect switch.

ON/OFF switch to the OFF position.

Interconnection Standards Compliance

The PV100S has been tested and listed by Underwriters Laboratories to be in
compliance with UL1741 Static Inverters And Charge Controllers For Use In

Photovoltaic Power Systems, as well as IEEE-929-2000 Recommended Practice
For Utility Interface of Photovoltaic (PV) Systems.

IEEE-929-2000 provides guidance regarding equipment and functions necessary
to ensure compatible operation of photovoltaic systems which are connected in
parallel with the electric utility.

UL1741 is the standard applied by Underwriters Laboratory to the PV100S to
verify it meets the recommendations of IEEE-929-2000.

Refer to both documents for details of these recommendations and test
procedures.

152315 Rev C xi

xii

Contents

Important Safety Instructions

1

Introduction

Description of the PV100S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2
System Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4

Electrical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4

Over Voltage, Under Voltage and Frequency Ranges - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
System Ground Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5
System Neutral Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5
Utility Side Isolation Transformer Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–5

Environmental Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–6

Operator Interface Controls- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–7

Main Enclosure Door Interlock Switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–7
On/Off Switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–8
AC and DC Disconnect Switches - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9

Communication Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9

System Status and Fault Reporting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–10
Data Logging - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–10

Communication Methods - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–11

Universal Front Panel Control Unit (UFCU) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–11
PC Connection Methods - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–12

POTS Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–13
Wireless Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–13
Ethernet LAN Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–14
Direct Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–14

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -vii

2

Planning

Overview of PV100S Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–2
PV Planning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
Ventilation and Serviceability Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
Ground Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
System Neutral Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Communication Requirements- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Utility Side Isolation Transformer Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
Electrical Diagrams and Schematics - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–5
Layout Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–6
Conduit Penetration - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–8
Conductor and Conduit Sizing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–11
Anchoring the PV100S- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–13

152315 Rev C xiii

Contents

3

Installation

Equipment Required - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–2
Unloading - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–2

Moving the PV100S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–3
Unpacking the PV100S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–3

Removing the Pallet and Moving the PV100S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–4
Mounting and Anchoring the Units - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–5
Opening or Closing Access Doors- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–6
Conduit Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–9
Wiring - General - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–10

Overcurrent Protection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–11

Conductor Termination - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–11

Wire Gauge and Torque Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–12

Grounding - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–12

System Neutral Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–13

Utility Side Isolation Transformer Requirements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–13
Wiring - Specific - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–14

AC Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–14

PV Array Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–19
PC Communications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–20

PC Connection Methods - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–20

Establishing a POTS Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–21
Establishing Wireless Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–22
Establishing an Ethernet LAN Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–22
Direct Connection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–23

4

Verification

Verification Procedure Summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–2
Visual Inspection of Mechanical Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3
Visual Inspection of Electrical Connections - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3
Visual Inspection, Isolation Transformer Wye/Wye - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–4
Corrective Action - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–4

A

Schematics

Index

xiv 152315 Rev C

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - IX–1

Tables

Table 1-1 Electrical Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
Table 1-2 Over/Under Voltage and Over/Under Frequency Ranges - - - - - - - - - - - - - - - - - - - - - - 1–4
Table 1-3 Environmental Specifications - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–6
Table 3-1 AC Terminal Wire Gauge, Bolt Size, and Torque Values - - - - - - - - - - - - - - - - - - - - 3–12
Table 3-2 DC Terminal Wire Gauge, Bolt Size, and Torque Values - - - - - - - - - - - - - - - - - - - - 3–12

152315 Rev C xv

xvi

Figures

Figure 1-1 Dimensions (Not to scale) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–3
Figure 1-2 PV100S Operator Interface Components- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–7
Figure 1-3 On/Off Switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–8
Figure 1-4 AC and DC Disconnect Switches- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–9
Figure 1-5 LCD Display and UFCU Location - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–11
Figure 1-6 PC Connections in the Communications Enclosure- - - - - - - - - - - - - - - - - - - - - - - - - 1–12
Figure 1-7 POTS Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–13
Figure 1-8 Wireless Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–13
Figure 1-9 Ethernet LAN Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–14
Figure 1-10 Direct Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–14
Figure 2-1 PV100S Layout Option A- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–6
Figure 2-2 PV100S Layout Option B- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–7
Figure 2-3 Conduit Entry Figure Reference - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–8
Figure 2-4 Inductor Enclosure Conduit Entry, Left Side - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–9
Figure 2-5 Transformer Enclosure Conduit Entry, Right Side - - - - - - - - - - - - - - - - - - - - - - - - - - 2–9
Figure 2-6 AC Interface Enclosure Conduit Entry, Left Side - - - - - - - - - - - - - - - - - - - - - - - - - - 2–10
Figure 2-7 DC Interface Enclosure, Bottom Side - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–10
Figure 2-8 Communications Enclosure Conduit Entry, Bottom Side- - - - - - - - - - - - - - - - - - - - - 2–10
Figure 2-9 Main Inverter Anchor Bolt Pattern (Not to scale) - - - - - - - - - - - - - - - - - - - - - - - - - - 2–13
Figure 2-10 AC Interface/Transformer Anchor Bolt Pattern (Not to Scale) - - - - - - - - - - - - - - - - - 2–14
Figure 3-1 Moving the crated PV100S - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–3
Figure 3-2 Forklift Lifting Locations - Underneath Unit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–4
Figure 3-3 Mounting Hole Locations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–5
Figure 3-4 Inverter Enclosure Access Doors - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–6
Figure 3-5 AC Interface Access Door - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–7
Figure 3-6 DC Interface Access Door - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–7
Figure 3-7 Transformer Access Panels- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–8
Figure 3-8 Inductor Access Panels - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–8
Figure 3-9 Conduit Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–9
Figure 3-10 Single-point Ground (TB2) Ground Bar - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–12
Figure 3-11 Chassis Ground Bar (TB1) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–13
Figure 3-12 Route AC Cables through the Conduit - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–14
Figure 3-13 Tie-wraps on the AC Sense Harness- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–15
Figure 3-14 AC Terminal Connections in the AC Interface/Transformer Enclosure - - - - - - - - - - - 3–15
Figure 3-15 AC Terminal Connections in the Main Inverter Enclosure - - - - - - - - - - - - - - - - - - - - 3–16
Figure 3-16 AC Terminal Connections in the AC Interface Enclosure - - - - - - - - - - - - - - - - - - - - 3–16
Figure 3-17 Connecting the AC Sense Harness - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–17

152315 Rev C xvii

Figures

Figure 3-18 AC Terminal Connections from the Utility- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–18
Figure 3-19 PV Array Cable Routing and Terminations - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–19
Figure 3-20 Telephone Cable Routing - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–21

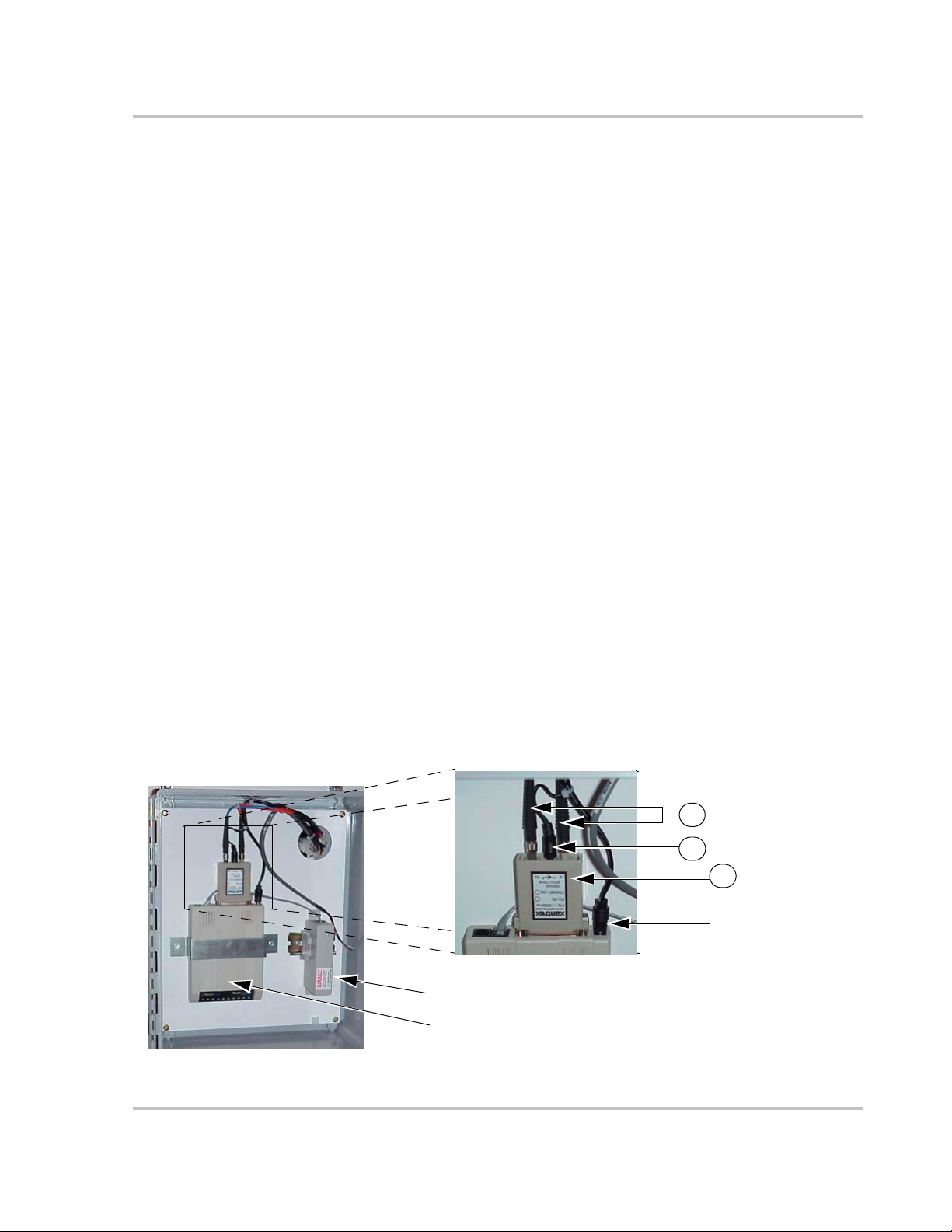

Figure 3-21 RS232/FO Converter Kit Installation- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–23
Figure 3-22 Direct Connect Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -3–24

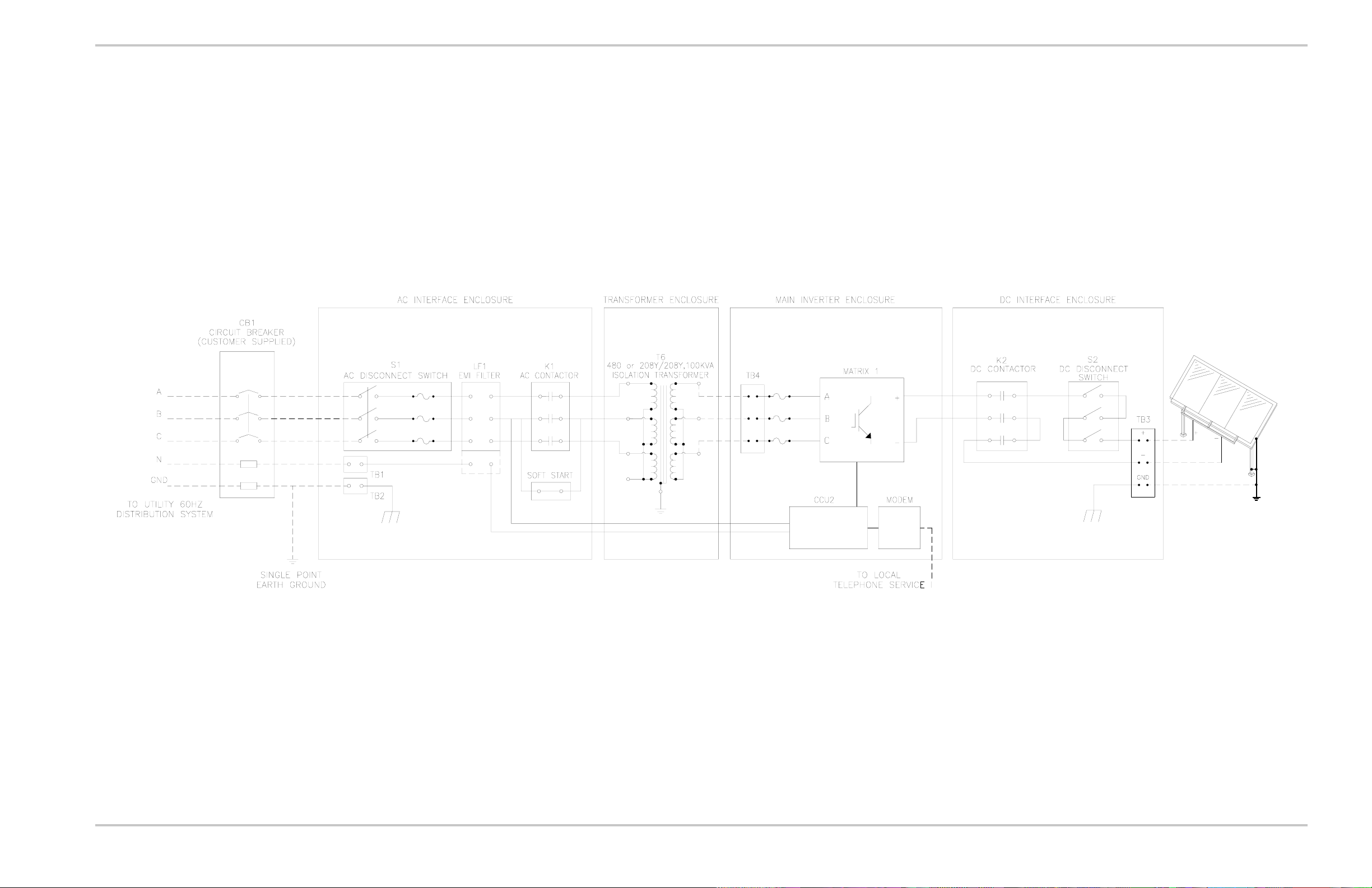

Figure A-1 Electrical Diagram (sample)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–3
Figure A-2 PV100S-480 Schematic for Main Power Distribution (152316 E1) - - - - - - - - - - - - - - A–4
Figure A-3 PV100S-480 Schematic for Control Power Distribution (152316 E2) - - - - - - - - - - - - - A–5
Figure A-4 PV100S-480 Schematic for Converter Control Unit (152316 E3)- - - - - - - - - - - - - - - - A–6

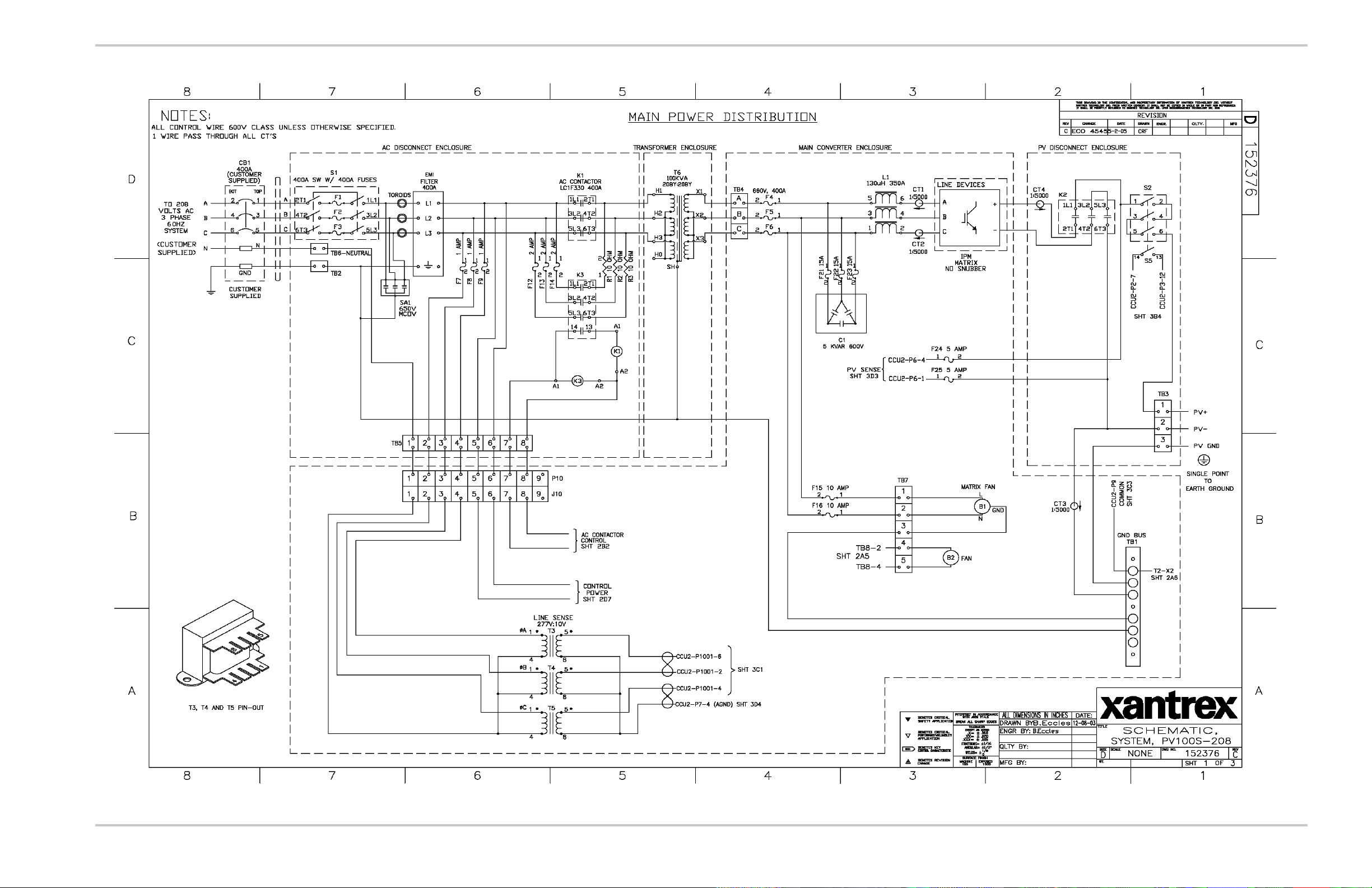

Figure A-5 PV100S-208 Schematic Main Power Distribution (152376 C1) - - - - - - - - - - - - - - - - - A–7
Figure A-6 PV100S-208 Schematic for Control Power Distribution (152376 C2) - - - - - - - - - - - - - A–8
Figure A-7 PV100S-208 Schematic for Converter Control Unit (152376 C3)- - - - - - - - - - - - - - - - A–9

xviii 152315 Rev C

1

Introduction

Chapter 1, “Introduction” provides information about the features and

functions of the PV100S 100 kW Grid-Tied Photovoltaic Inverter.

Introduction

Description of the PV100S

The PV100S 100 kW Grid-Tied Photovoltaic Inverter is a UL 1741 listed, utility
interactive, three-phase power conversion system for grid-connected photovoltaic
arrays with a power rating of 100 kW. Designed to be easy to install and operate,
the PV100S automates start-up, shutdown, and fault detection scenarios. With
user-definable power tracking that matches the inverter to the array and adjustable
delay periods, users are able to customize start up and shut down sequences.
Multiple PV100S inverters are easily paralleled for larger power installations.

The PV100S power conversion system consists of a pulse-width modulated
(PWM) inverter, switch gear for isolation and protection of the connected AC and
DC power sources, and a custom Wye/Wye isolation transformer. Housed in a
rugged NEMA 3R rated, powder-coated steel enclosure, the PV100S incorporates
sophisticated Intellimod
the main power switching devices. An advanced, field-proven, Maximum Peak
Power Tracker (MPPT) integrated within the PV100S control firmware ensures
the optimum power throughput for harvesting energy from the photovoltaic array.

The advanced design of the PV100S includes an EMI output filter and the main
AC contactor located electrically on the utility side of the isolation transformer.
The location of the main AC contactor, and the ability to de-energize the isolation
transformer during times of non-operation, greatly reduces the night-time tare
losses consumed by an idle isolation transformer. An integrated soft-start circuit
precludes nuisance utility-tie circuit breaker trips as the result of isolation
transformer inrush current.



(IPM) Insulated Gate Bipolar Transistors (IGBTs) as

Additionally, the PV100S integrated controller contains self-protection features
including over and under voltage and frequency safeguards. An integral
anti-island protection scheme prevents the inverter from feeding power to the grid
in the event of a utility outage. The PV100S includes a local user interface
comprised of an O
user-friendly, Graphic User Interface (GUI) provides a remote interface for
operator interrogation of PV100S system status, control, metering/data logging
and protective functions within the PV100S. The status, control, and logging
features are also supported by the data modem (included) and can be accessed
remotely.

The PV100S comes in two modules comprised of six enclosures to house the
electronics described above. The first module includes the Main Inverter
Enclosure, Inductor Enclosure, DC Interface Enclosure, and Communications
Enclosure. The second module includes the Transformer Enclosure and AC
Interface Enclosure. These components are identified in Figure 1-1 on page 1–3.
Figure 1-1 also shows the dimensions and locations of the various enclosures that
comprise the PV100S.

See “Layout Options” on page 2–6 for information on configuration options.

N/OFF switch, keypad, and 4-line, 80 character LCD display. A

1–2 152315 Rev C

Description of the PV100S

Front View

44.0"

(110 cm)

AC

Interface

Enclosure

Communications
Enclosure

49 7/8"

(124.8 cm)

Transformer

Enclosure

60 ¼"

(150.5 cm)

4

DC Interface

Enclosure

PV

DISCONNECT

59 ¼"

(148 cm)

29 ¼"

(73 cm)

THIS UNIT EMPLOYS FIELD ADJUSTABL E VO LTAGE AND
FREQUENC Y SETPOINTS AND TIME DELAYS. THEY ARE
FACTORY SET IN COMPLIANCE WITH UL1741 AND MAY
ONLY BE CHANGED BY TRAINED SERVICE TECHNICIANS
WITH APPROVAL BY BOTH THE LOCAL UTILITY AND

EQUIPMENT OWNER.

REFER TO THE OPERATO R’S

MANUAL FOR FURTHER DETAIL.

TYPE 3R

U
L

®

61CN

Mfg - Arl

LISTED UTILITY INTERACTIVE PHASE INVERTER

Max. system DC

Max. input

AC

DC

current 3A

Voltage 600V

Max. operating

Oper. Volt. Range

AC

183-229 L-L

DC

current 319A

Oper. Freq. range

Range of oper.

AC

59.3 - 60.5

Volts. 330-480V

DC

Normal output frequency

Max. array abort

60 Hz

AC

circuit current

DC

Enclosure

480A

Max. output
overcurrent

Nominal output

AC

protection

voltage 208V

DC

400A

Maximum utility

Maximum output

feedback current

fault current

DC

AC

178A

323 A

Max. continuous

Max continuous

output current

output power

AC

DC

278A

100 kVA

Maximum operating ambient 50 °C

MANUFACTURED

MODEL NUMBER:

JAN

04

MAY

SEP

PV100S-208

FEB

JUN

05

OCT

SERIAL NUMBER:

06

APR

JUL

NOV

XXXX

07

MAR

AUG

DEC

L-152462 Rev A

Inductor

Enclosure

987 F1

^

^

F2654

F3MENU

32

.

-10

F4ENTER

0

I

This is a class A product.
In a domestic environment this

product may cause radio
interferenc es, in which case, the user
may be requ ired to take adequate measures.

Main

Inverter

WARNING

RISK OF ELECTRICAL SHOCK

WARNING:

DO NOT REMOVE COVER,
NO USER SERVICEABLE

PARTS INSIDE,
STORED ENERGY IN CAPACITOR.
ALLOW AT LEAST 5 MINUTES
AFTER DISCONNECTING ALL
SOURCES OF SUPPLY.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

BOTH AC AND DC VOLTRAGE SOURC ES ARE

TERMINAED
INSIDE THIS EQUIPMENT.
EACH CIRCUIT MUST BE
INDIVIDUAL DISCONNECTED
BEFORE SERVICING.

WHEN THE PHOTOVOLTAIC ARRAY

IS EXPOSED TO LIGHT,
IT SUPPLIES A DC VOLTAGE
TO THIS EQUIPMENT.

21 3/8"

(53.5 cm)

Back Front

AC Interface
Enclosure

AC

DISCONNECT

33 ½"

(83.75 cm)

AC Side View

Figure 1-1

Dimensions (Not to scale)

Communications
Enclosure

Front

DC Interface
Enclosure

83"

(205.7 c m)

DC Side View

Back

59 ¼"

(148 cm)

Inductor

Enclosure

152315 Rev C 1–3

Introduction

System Specifications

The PV100S has been designed for photovoltaic power systems, which operate
within the following specifications.

CAUTION: Equipment Damage

Operation of the PV100S in a manner other than specified in this manual may cause
damage to the PV100S and other system components and will void the terms of the
warranty.

Electrical Specifications

Table 1-1 provides the AC and DC specifications for the PV100S.

Table 1-1

Specification PV100S-208 PV100S-480

Nominal AC Input Voltage
(+10% to -12% acceptable range)

Maximum AC Output Current 278 A

Nominal AC Input Frequency
(+0.5 to -0.7 Hz acceptable range)

Output Power 100.0 kW 100.0 kW

Peak Power Tracking Window 330 to 600 Vdc 330 to 600 Vdc

Maximum Open Circuit Voltage 600 Vdc 600 Vdc

Maximum DC Input Current 319 amps 319 amps

Electrical Specifications

208 Vac
(183 to 228 Vac)

rms

60 Hz
(59.3 to 60.5 Hz)

480 Vac
(422 to 528 Vac)

121 A

rms

60 Hz
(59.3 to 60.5 Hz)

Over Voltage, Under Voltage and Frequency Ranges

Table 1-2 provides the over voltage, under voltage, over-frequency, and
under-frequency detection limits for the PV100S. These detection limits have
been factory tested and deemed to be in compliance with IEEE-929 and UL 1741
requirements for utility interaction.

Table 1-2

Vac Condition
(% of Nominal)

Vac < 50% Vac < 104 6 cycles Vac < 240 6 cycles

50% <

88% < Vac <

110% < Vac < 137% 228 < Vac < 285 2 seconds 528 < Vac < 657 2 seconds

137% <

f < rated -0.7 f < 59.3 6 cycles f < 59.3 6 cycles

f > rated +0.5 f > 60.5 6 cycles f > 60.5 6 cycles

Over/Under Voltage and Over/Under Frequency Ranges

PV100S-208 PV100S-480

Voltage Range Trip Time Voltage Range Trip Time

Va c < 88% 104 < Vac < 183 2 seconds 240 < Vac < 422 2 seconds

110% 183 < Vac < 228 normal operation 422 < Vac < 528 normal operation

Vac 28 5 < Vac 2 cycles 657 < Vac 2 cycles

1–4 152315 Rev C

System Ground Requirements

This product is intended to be installed as part of a permanently grounded
electrical system per the National Electric Code ANSI/NFPA 70. A copper ground
rod must be installed within three feet of the PV100S enclosures and connected to
the unit as described in “System Grounding” on page 3–12. The single-point
ground for the system is to be made at the AC ground bus bar (TB2) in the AC
Interface Enclosure.

System Neutral Requirements

The PV100S is designed to be installed as a 4-wire system. As required by the
UL 1741 listing, a neutral conductor from the utility-interconnect must be
terminated at TB6 within the AC Interface Enclosure to ensure that the AC
voltage sensing circuit can perform an individual phase voltage (line-to-neutral)
measurement. The function of the neutral connection is to provide a point of
reference for measurement purposes that is essentially at ground potential. No
power will flow through the neutral conductor.

Utility Side Isolation Transformer Requirements

The PV100S is supplied with a custom, high-efficiency, isolation transformer as
part of the AC Interface/Transformer assembly. The utility side windings of the
isolation transformer are configured Wye and must match the voltage at the utility
inter-tie. The PV100S is a balanced, three-phase, current-sourcing inverter and
only operates with the presence of a stable utility voltage. The transformer is also
supplied with a neutral connection on the utility interconnect. Connection of this
utility-side neutral does not affect the operation of the inverter, however
connection of the neutral on the inverter-side does affect the operation and must
be left floating or disconnected. Single-phase, grounded loads which may be
present between the transformer and utility, will maintain their existing ground
reference at the utility distribution transformer.

System Specifications

CAUTION: Equipment Damage

If the Isolation Transformer (T6-X0) neutral terminal is tied to ground, it will cause
irreparable damage to the PV100S. Check local regulations for their requirements
regarding the connection of the neutral.

WARNING: Lethal Voltage

Grounding the neutral of a Wye-wound transformer may create an “open delta” condition,
depending on the utility configuration. This condition may keep the PV100S from
detecting a loss of phase condition on the utility system, which may allow potentially
lethal voltage to be present on the open-phase wiring.

152315 Rev C 1–5

Introduction

Environmental Specifications

The following environmental specifications are the same for both models of the
PV100S 100 kW Grid-Tied Photovoltaic Inverter.

Table 1-3

Specification Value

Environmental Specifications

Dimensions

Inverter and DC Interface

82 in H x 60 1/4 in W x 22 in D
(208 cm H x 153 cm W x 56 cm)

Transformer and AC Interface

44 in H x 50 in W x 34 in D
(112 cm H x 127 cm W x 86 cm D)

Overall System Footprint:

Layout Option A

12 ft W x 6 ft L (approximate)
(3.6 m x 1.8 m)

Layout Option B

9 ft W x 7 ft L (approximate)
(2.7 m W x 2.1 m L)

Weig ht

Inverter and DC Interface
Transformer and AC Interface
Overall Weight

1000 lbs (approximate)
1400 lbs (approximate)
2400 lbs (approximate)

Allowable Ambient Temperature

Operating
Storage

-20 °C to 50 °C Maximum

-40 °C to 50 °C Maximum

Relative Humidity To 95%, Non-condensing

Elevation Power Derated above 6600 ft

Clearance (ventilation and
serviceability)

In front of access doors: 36 in (91 cm)

In front of access panels: 36 in (91 cm)

Sides: 12 in (30 cm)

Back: 6 in (15 cm)

Maximum Distance between Main

15 ft (4.5 m)
Inverter Enclosure and AC
Interface/Transformer Enclosure

1–6 152315 Rev C

Operator Interface Controls

Operator interface controls are located on the front door of the main inverter
enclosure. These controls include an ON/OFF Switch, 4-line LCD display and
keypad called the Universal Frontpanel Control Unit (UFCU). Additionally there
is an AC and DC Disconnect on the AC Interface Enclosure and the DC Interface
Enclosure Doors.

Communication

Enclosure

Operator Interface Controls

AC Disconnect

Switch

Figure 1-2

AC Interface Enclosure

(AC Side View)

PV100S Operator Interface Components

Display

Universal
Frontpanel
Control
(UFCP)

ON/OFF

Switch

Main Enclosure Door Interlock Switch

LCD

DC Disconnect

Switch

DC Interface

Enclosure

Main Inverter Enclosure

(Front View)

The front door of the PV100S main enclosure is equipped with an interlock switch
to preclude operation while the front door is open. Opening the door of the main
inverter enclosure will initiate an immediate controlled shutdown of the PV100S
and opens both the main AC and DC contactors. The main AC and DC contactors
cannot be closed unless the door’s interlock is in the engaged position. The
PV100S is prevented from being restarted until the door is again closed and the
switch is in the engaged position.

It is required that the PV100S main enclosure door must be locked during normal
operation. The door interlock switch does NOT remove all hazardous voltages
from inside the inverter. Before attempting to service the PV100S, follow the
de-energize Lockout and Tag procedure on

152315 Rev C 1–7

page x.
