GPIB

Chapter 1, “GPIB” provides information and procedures on programming the XG 850 Watt Series Programmable DC Power Supply from the GPIB (General Purpose Interface Bus) interface.

GPIB

Overview

The power supply can be programmed from a remote terminal using a GPIB interface. Communication over the GPIB interface meets IEEE

488.2 standards and are Standard Commands for Programmable

Instrumentation (SCPI) compliant.

Codes and Standards

The GPIB interface of the XG 850 Watt Series Programmable DC Power Supply has been implemented according to IEEE Std 488.1-1987, IEEE Standard Digital Interface for Programmable Instrumentation. The communication protocol complies with IEEE 488.2-1992.

GPIB Interface Description and Required Cable Size

The GPIB interface is an 8-bit parallel data bus having a host of bus commands for synchronization and up to one megabyte data transfer rate. Use standard IEEE-488, 26 AWG GPIB cable up to 3 metres in length.

GPIB Pin Description

The GPIB port is a special GPIB female connector. See Figure 1-1.

GPIB Connector

Figure 1-1

GPIB Connector and Pins

1-2 M370078-06

100-240 Vac 47-63 Hz, 11.5-6A

MADE IN CANADA

Table 1-1 identifies the pin name and describes the pin functions.

Overview

Table 1-1

Pin # Name Function Note

1DIO1 DIO1 Data

2DIO2 DIO2 Data

3DIO3 DIO3 Data

4DIO4 DIO4 Data

5 EOI End of Identify Control

6 DAV Data Valid Handshake

7 NRFD Not Ready for Data Handshake

8 NDAC No Data Accepted Handshake

9 IFC Interface Clear Control

10 SRQ Service Request Control

11 ATN Attention Control

12 - Shield Chassis

13 DIO5 DIO5 Data

14 DIO6 DIO6 Data

15 DIO7 DIO7 Data

16 DIO8 DIO8 Data

17 REN Remote Enable Control

18 - DAV Return Chassis

19 - NRFD Return Chassis

20 - NDAC Return Chassis

21 - IFC Return Chassis

22 - SRQ Return Chassis

23 - ATN Return Chassis

24 - Signal Ground Chassis

GPIB Pin Description (J2)

M370078-06 1-3

GPIB

Communication with Your Device

This section provides information on selecting the GPIB interface as the communication port used on the XG, and it also provides an example of how commands can be sent and received. The details of the IEEE 488.2 and SCPI status reporting register structures and a complete list of commands available can be found in the XG 850 Watt Series Programmable DC Power Supply Operating Manual (M370046-01).

Selecting a Communication Port

To select the GPIB as the communication port:

1. Turn the 9-position Mode control to PGM.

rE is displayed in the output voltage display.

2. Turn the rotary Adjust/Enter control to select the 6PIb communication port.

3. Press the rotary Adjust/Enter control.

ADDR is displayed on the output voltage display.

4. Turn the rotary Adjust/Enter control to select the desired address between 1 to 30. For the purpose of this example, 10 will be selected.

5. Press the rotary Adjust/Enter control to commit the new address.

6. Click Scan For Instruments on the GPIB Explorer toolbar. See Figure 1-2.

The power supply will be found as shown in Figure 1-2.

Important:

communicate with the XG. This is for demonstration purposes only. Any software that is capable of addressing a GPIB device and sending and receive text could be used in its place. Consult your GPIB card manufacturer to see if they provide an equivalent program.

1-4 M370078-06

This section uses the National Instruments™ MAX program to

Communication with Your Device

Figure 1-2

Scanning for Instruments

7. In the right window, click on Instrument1 and review the device

properties. See Figure 1-3.

M370078-06 1-5

GPIB

Figure 1-3

Instrument Properties

8. Click Communicate with Instrument in the GPIB Explorer toolbar. See Figure 1-3.

NI-488.2 Communicator appears. See Figure 1-4.

Figure 1-4

1-6 M370078-06

ID String Query

Communication with Your Device

9. In the Send String box, enter *IDN? and click Query.

Important:

Communicator program will exit.

If you press Enter while typing the string to be sent, the NI-488.2

10. The String Received window will show the ID string for the XG.

The ID string indicates the model, serial number, firmware version as well as the GPIB card firmware version. This will be shown in the text box below String Received. See Figure 1-4.

M370078-06 1-7

1-8

Ethernet (ENET)

Chapter 2, “Ethernet (ENET)” provides information and procedures to connect and configure the power supply to the ENET.

Ethernet (ENET)

Overview

This chapter is intended for network administrators responsible for the configuration and maintenance of devices on the network. This chapter provides information for connecting and configuring the power supply to Ethernet.

Basic Section

This section describes the equipment and procedures to fully set up the simplest configuration of an XG unit with the ENET option and a single computer.

Important:

Section” on page 2–26. Xantrex recommends that you read through this section even if the configuration doesn't match your final setup.

System Requirements

• Windows XP, Windows 2000, Windows NT4.0 (with service pack

6.0a or later), Windows ME, or Windows 98

• Internet Explorer 5.01 or later

• 30 MB hard drive space

•64 MB RAM

Accessories

• Power supply with ENET port

• ENET RJ-45 and RJ-45 STP, Cat 5 cross-cable 9.84 feet (3 m) in length or longer⑧

•PC

• Installation CD

Communication Cable

Use a standard RJ-45 (see Figure 2-1) and RJ-45 cross-cable (see Figure 2-2).

The information in this section is applicable to the “Advanced

Figure 2-1

2-2 M370078-06

Computer or HUB Plug

Basic Section

Figure 2-2

Figure 2-3

Table 2-1

Power Supply Plug

RJ-45 Plug

Description of PIN on RJ-45 Plug

Pin# Name Description

1 TX+ Transmit data +

2 TX– Transmit data –

3 RX+ Receive data +

4 Gnd Ground

5 Gnd Ground

6 RX– Receive data –

7 Gnd Ground

8 Gnd Ground

TX+

TX-

RX+

3 4 5

RX-

6 7 8

Figure 2-4

Scheme of ENET Cross-Cable

1 2 3 4 5 6 7 8

M370078-06 2-3

Ethernet (ENET)

ENET Connector

The XPort® ENET connector is located on the rear panel of the power supply. See Figure 2-5.

XPort™ LEDs

Left LED

Contact 8

XPort™ ENET connector

Figure 2-5

XPort® ENET Connector and LEDs

Right LED

Contact 1

The device contains two bi-color LEDs built into the front of the XPort™ connector. See Figure 2-5.

Table 2-2

LED Color Description

Link LED (Left side) Off No link

Activity LED (Right side)

Description of LEDs

Amber 10 Mbps

Green 100 Mbps

Off No activity

Amber Half-duplex

Green Full-duplex

2-4 M370078-06

Network Topology and Connection

The following section describes the network topology for the single computer and single XG power supply unit. The other possible network topologies will be discussed later in the “Advanced Section” on page 2–

26. The additional topologies build on the configuration ideas present in this section by referencing the various setup instructions.

Single Computer and Single Power Supply Unit

Figure 2-6 shows the connection between the ENET unit and Local Computer through a crossover cable; however, a HUB could also be used with straight through Ethernet cables as well. Connect your computer to the ENET as shown in Figure 2-6, or if this topology does not match your configuration, refer to the “Advanced Section” on page 2–26 to identify the topology you wish to implement and follow the instructions described in that section.

Local Computer

Basic Section

ENET

Power Supply

Figure 2-6

M370078-06 2-5

Single Computer, Single Power Supply

Ethernet (ENET)

Setting Up the Computer

To set up the computer:

1. Open Explorer on the main computer, go to Control Panel > Network Connections > Local Area connections. See Figure 2-7.

Figure 2-7

Configuring the Network Connection of the Computer

2. Right click on the mouse button and click on Properties.

The Local Area Connection Properties window appears. See Figure 2-8.

2-6 M370078-06

Basic Section

Figure 2-8

LAN Properties Dialog Box

3. Click the Internet Protocol (TCP/IP) check box and click Properties.

See Figure 2-8.

The Internet Protocol (TCP/IP) Properties Dialog Box appears. See Figure 2-9.

M370078-06 2-7

Ethernet (ENET)

Figure 2-9

Internet Protocol (TCP/IP) Properties Dialog Box

4. Click on Use the following IP address option and type the appropriate IP address in the box, or select the Obtain an IP address automatically setting if your network is configured using DHCP.

5. Click OK.

2-8 M370078-06

Software Installations

To set up the ENET option card, the Lantronix® DeviceInstaller program needs to be installed on your PC. DeviceInstaller is an all-in-one utility for setting up various Lantronix devices on a network. Device Installer auto detects any devices on the network and allows for configuration of network settings. As a management tool, the DeviceInstaller allows for device monitoring and status verification of the ENET option card.

To install the DeviceInstaller:

1. Insert the DeviceInstaller CD into the CD ROM drive.

The CD should launch automatically.

If you need to manually launch the CD, click the Start button on the Task Bar and select Run. Enter the CD drive letter, for example, D:\Launch.exe. The DeviceInstaller Setup Wizard opens to guide the installation process. See Figure 2-10.

Basic Section

Figure 2-10

2. Click Next to open the Select Installation Folder window.

The Select Installation Folder window prompts for a destination folder for the installation.

M370078-06 2-9

DeviceInstaller Setup Wizard

Ethernet (ENET)

Figure 2-11

Select Installation Folder Window

3. Click Next to begin the installation.

The Installation Complete window displays when the installation is finished.

6. Click Close to exit.

2-10 M370078-06

Configuring the Device Using DeviceInstaller

The DeviceInstaller displays a list of the XG units with the ENET option that are on the network. When the DeviceInstaller initially starts, the device list is empty. Devices may be added by performing a search for the devices on the network or by adding them manually.

Selecting a Network Adapter

After the installation of DeviceInstaller to your PC, you must select which network adaptor you wish the DeviceInstaller to use for all its network communications.

To select the network adaptor:

1. Start DeviceInstaller by clicking Start > All Programs > Lantronix

> DeviceInstaller > DeviceInstaller.

2. If this is the first time you have started the program after installing it

and there are more than one network adaptors on the PC, you might be prompted to select the network adaptor as seen in Figure 2-12. If this prompt does not appear, click Tools > Options... to bring up the Options window shown in Figure 2-13.

3. Verify that the network adaptor that is connected to the network that

you are running your XG unit (s) on, is selected.

Important:

cable connected will be shown in this list. If one of your networks adaptors is not shown in this list, verify that it is enabled and has a network cable connected to it.

4. Click the OK button.

Figure 2-12

M370078-06 2-11

Only network adaptors that are enabled and have an Ethernet

Multiple Network Adapters

Ethernet (ENET)

Figure 2-13

Selecting Network Adapter

Assigning an IP Address to the Power Supply Unit

If your system is auto-IP configured, the following warning message is displayed:

Figure 2-14

Important:

single power supply configuration.

To assign an IP address to the power supply unit:

1. Click OK to dismiss the Auto-IP warning message. If you are not intending on using an Auto-IP, debug your network connection at this time.

Auto-IP Address Message

Auto-IP mode is acceptable only for the single computer and

The Lantronix DeviceInstaller window appears. See Figure 2-15.

2-12 M370078-06

Configuring the Device Using DeviceInstaller

2. Click Search to get a list of all the XG devices that can be reached

from the network adaptor that you previously selected. If your XG unit (s) are powered up, they should appear in this list.

Figure 2-15

Searching for Power Supply IP Address

After a short delay, your power supply will be found. See Figure 2-15. If the power supply is not found or the found device is not reachable, contact your network administrator for details about network settings.

3. If the IP address shown and the method that the XG unit is using to

obtain this address is correct, stop here and exit/close this window. Otherwise, continue to step 4.

4. Expand the Local Area Connection tree; if necessary, expand further

until the IP address of the XG unit is displayed. Then left click the IP address; the screen should display as shown in Figure 2-16.

M370078-06 2-13

Ethernet (ENET)

Figure 2-16

Important:

window. The IP address is assigned using Steps 5 through 9 that follow.

IP Address Details Window

Do NOT use the Assign IP button in the tool bar, upper left of this

5. In this window, click the Web Configuration tab, which will open a new window. See Figure 2-17.

2-14 M370078-06

Configuring the Device Using DeviceInstaller

Figure 2-17

Entering the Lantronix Interface

6. Next to the Address field, click the green Go button.

7. You will be prompted for user name and password: ignore these

fields (leave blank) and click OK

XPort® interface

M370078-06 2-15

(Figure 2-18).

This brings up the Lantronix

Ethernet (ENET)

Figure 2-18

Lantronix XPort® Interface

8. At the top of the sidebar menu click Network.See Figure 2-19.

2-16 M370078-06

Configuring the Device Using DeviceInstaller

Figure 2-19

Assigning IP Settings

9. In the IP Configuration section, click the radio button next to “Use the

following IP configuration.”

Important:

network administrator for the appropriate information to complete the IP Address, Subnet Mask and Default Gateway fields

If you are working within a network system, please contact the

10. Click OK at the bottom of the page to complete the task.

11. Repeat this procedure for every power supply. Every device must

have a unique fixed IP address.

Selecting ENET as the Communication Port

Once the XG unit with the ENET option has the option card configured, you’ll need to configure the XG to use the ENET option card as the active communication port.

To select ENET as the communication port:

1. Turn the 9-position Mode control to PGM.

rE is displayed in the output voltage display.

M370078-06 2-17

Ethernet (ENET)

2. Turn the rotary Adjust/Enter control to select the LAn communication port.

3. Press the rotary Adjust/Enter control.

ADDR is displayed on the output voltage display.

4. Turn the rotary Adjust/Enter control to select the desired address between 1 to 30.

5. Press the rotary Adjust/Enter control to commit the new address.

2-18 M370078-06

Terminal Configuration

The terminal program allows for communication with the power supply. To use a terminal program, set it up using the parameters from the following sections. If you wish to use HyperTerminal, see “Setting Up a HyperTerminal Connection” for instructions.

Data Format

Serial data format is 8 bit, one stop bit. No parity bit. Flow control: none.

End of Message

The end of message is the Carriage Return character (ASCII 13, 0x0D).The power supply ignores the Line Feed (ASCII 10, 0x0A) character.

Setting Up a HyperTerminal Connection

To set up a HyperTerminal connection:

1. Start Windows HyperTerminal by clicking Start >All Program

>Accessories > Communications > HyperTerminal.

See Figure 2-20.

Terminal Configuration

Figure 2-20

M370078-06 2-19

HyperTerminal Connection

Ethernet (ENET)

2. Click New to create a new connection.

The Connection Description window appears. See Figure 2-21.

Figure 2-21

Connection Description Window

3. Enter the name of the connection and select the icon.

4. Click OK.

The new connection setup dialog box will appear. See Figure 2-22.

Figure 2-22

New Connection Dialog Box

2-20 M370078-06

Terminal Configuration

5. In the Connect using: box, select “TCP/IP (Winsock)”.

6. In the Host address box, enter the IP address, obtained in step 14 of

the section entitled “Assigning an IP Address to the Power Supply Unit” on page 2–12.

7. In the Port number box, enter “10001” as the value.

8. Click OK.

To specify the terminal connection properties:

1. Click Disconnect if necessary, and click Properties in the main

HyperTerminal window. See Figure 2-23.

Figure 2-23

Main Terminal Window

2. In the ENET Properties window, click on XGthe Settings tab. See

Figure 2-24.

M370078-06 2-21

Ethernet (ENET)

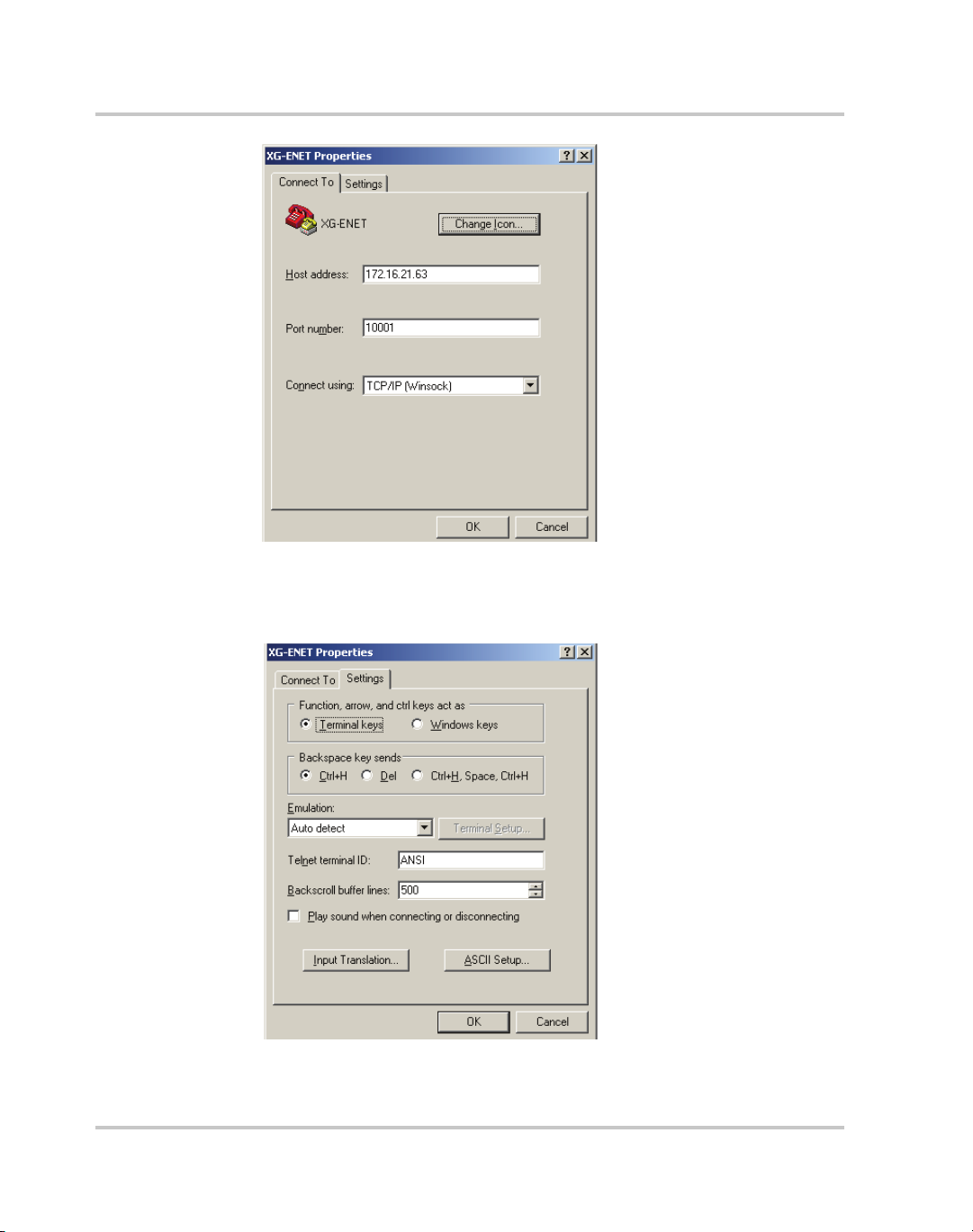

Figure 2-24

ENET Properties Window

The XG-ENET Properties dialog box appears. See Figure 2-25.

Figure 2-25

XG-ENET Properties Dialog Box

2-22 M370078-06

Terminal Configuration

3. Click the ASCII Setup button.

The ASCII Setup dialog box will appear as shown in Figure 2-26.

4. Verify that the ASCII Sending and ASCII Receiving boxes are

checked as shown in Figure 2-26.

Figure 2-26

5. Click OK.

ASCII Setup Dialog Box

Establishing Communication with the Power Supply

To establish communication with the power supply:

1. In the main HyperTerminal window, click Call. See Figure 2-27.

2. To verify that the XG unit is connected and functioning, type the

following command "*ADR <#>;*IDN?" where the be replaced by the address assigned to the power supply in the “Selecting ENET as the Communication Port” on page 2–17.

3. Verify that the XG unit responds with the ID string.

4. To save your session for future use, click File > Save As….

See Figure 2-28.

M370078-06 2-23

<#> should

Ethernet (ENET)

Figure 2-27

Figure 2-28

Main HyperTerminal Window

Saving Session

2-24 M370078-06

Terminal Configuration

5. Type the name of the session. It is recommended that you include the

IP in your naming convention so that it is clear which XG you are connecting to.

6. Click Save.

Figure 2-29

Saved Session

Congratulations! Your network is installed and functioning properly.

M370078-06 2-25

Ethernet (ENET)

Advanced Section

The advanced section describes the setup and connection for various network topologies involving multiple power supplies.

Network Topology 1: Simple LAN

The simple LAN topology is the most common configuration for setting up the ENET option on the XG. The topology follows the typical star topology provided by a HUB and multiple XGs with the ENET option and one or more computers. Figure 2-30 shows this configuration.

Local Computer #1 Local Computer #2

HUB

Power Supply #1

Figure 2-30

ENET

Power Supply #2

Multiple Power Supplies and Two Computers

Power Supply #30

ENET

All devices connects via the HUB. Every device must have a unique IP address, for example:

• Computer #1: 169.254.117.231

• Computer #2: 169.254.117.232

• Power supply #1: 169.254.117.220

• Power supply #2: 169.254.117.221

• Power supply #3: 169.254.117.222

• Power supply #30: 169.254.117.230.

You must set up every device manually.

2-26 M370078-06

Advanced Section

To set up for multiple power supplies and two computers:

1. Set up your computer as described in “Setting Up the Computer” on

page 2–6. Repeat the procedure for each computer hooked up to the system.

2. Install the DeviceInstaller software on the PC you wish to use to

configure the XG unit (s) with. See the instructions for “Software Installations” on page 2–9.

3. Configure each XG unit with an ENET option. See the instructions

for “Configuring the Device Using DeviceInstaller” on page 2–11

4. Create terminal connections for each of the XG unit (s) with the

ENET option that were configured in step 3. See the instructions for “Terminal Configuration” on page 2–19.

5. If more than one computer is going to be used, copy the filename.ht

files saved in step 3 to a disk and copy them over to each computer that you will be using to access the XG unit (s) over the Ethernet. If copying the files is not possible, repeat step 3 for each computer that you wish to use.

The configuration is complete. You are now ready to use your system.

Controlling Your System

For every connected XG unit, create a separate terminal session. This should have been done according to the instructions in “Establishing Communication with the Power Supply” on page 2–23. Also, open a separate HyperTerminal session for each XG unit that you wish to control. An example of two XG units in a system is shown in Figure 2-31.

M370078-06 2-27

Ethernet (ENET)

Figure 2-31

HyperTerminal Session

There are two HyperTerminal windows for controlling two power supply units. See Figure 2-31.

2-28 M370078-06

Advanced Section

Figure 2-32

System with Two Connected Devices

Figure 2-32 shows a system with two connected devices.

Important:

IP address, whereas the address defined from front panel (power supply’s own address) may be arbitrary.

M370078-06 2-29

In this system configuration, every power supply needs a unique

Ethernet (ENET)

Network Topology 2: ENET and RS-485 Bus

Up to 30 units may be connected to the RS-485 bus. The first unit connects to the controller via ENET, and the other units are connected with the RS-485 bus.

Figure 2-33 shows the system of an XG unit with the ENET option and several XG units connected via the RS-485 bus. Each power supply must have its own address, defined from the front panel. Only one IP address is required for your network (excluding computers) and only one controlling program is required (one per XG with ENET option as noted in “Network Topology 1: Simple LAN” on page 2–26).

Local Computer

ENET

RS-485

IN OUT IN OUT IN OUT

Power Supply #1

Figure 2-33

2-30 M370078-06

ENET and RS-485 Bus

Power Supply #2

Power Supply #30

Advanced Section

Figure 2-34

HyperTerminal Window

Figure 2-34 shows the HyperTerminal session for the combined configuration which is an ENET and RS-485 network. This figure also shows access to power supplies #2 and #10 sequentially.

Setting Up Your System

To set up your system:

1. Connect your system as shown in Figure 2-33, and turn every power

supply unit to ON.

2. Set up your computer as described in “Setting Up the Computer” on

page 2–6. Repeat this section for each computer hooked up to the system.

3. Install the DeviceInstaller software on the PC you wish to use to

configure the XG unit (s) with. See the instructions for “Software Installations” on page 2–9.

4. Configure the ENET card of the master XG (power supply #1 in

Figure 2-33). See the instructions for “Configuring the Device Using DeviceInstaller” on page 2–11.

M370078-06 2-31

5. Configure the master power supply which is the unit with the ENET option (power supply #1 in Figure 2-33) by following the instructions in “Selecting ENET as the Communication Port” on page 2–17.

6. The following Steps 7, 8 and 9 must be repeated for each slave unit.

7. For the slave unit that you are setting up, turn the 9-Position Mode Control Knob to PGM.

rE is displayed in the output voltage display.

8. Turn the rotary Adjust/Enter control to select SLA and press the rotary Adjust/Enter control.

9. Set a unique address and press the rotary Adjust/Enter control. See the XG 850 Watt Series Programmable DC Power Supply Operating Manual (Part number: M370078-01), Chapter 5, “Multichannel Address Setting” section for a more detailed discussion of addressing. Once all slave units have been setup, proceed with the next step.

10. Set up the fixed IP address for the first unit using DeviceInstaller as described in “Assigning an IP Address to the Power Supply Unit” on page 2–12.

11. Create and set up a new HyperTerminal session as described in “Terminal Configuration” on page 2–19.

2-32

12. In the HyperTerminal session window, type the *ADR <#>;*IDN? command where the <#> should be replaced by the

address assigned to the power supply in step 9. Press enter to send the command.

13. Verify that the unit responds with the ID string. Perform this test for each unit that is connected including the master unit.

14. If additional XG units are using Network Topology 2, repeat the setup procedure steps 1 to 14 for each ENET and RS-485 group.

Important:

but the RS-485 bus addresses can be reused for each unique ENET – RS-485 group.

The IP address for each ENET and RS-485 group must be unique,

Advanced Section

M370078-06 2-33

Ethernet (ENET)

2-34 M370078-06

Troubleshooting

Appendix A, “Troubleshooting” provides troubleshooting information for the combined ENET and RS-485 communication and for ENET communication.

Troubleshooting

Troubleshooting for ENET – RS-485 Communication

This section describes specific troubleshooting for the combined ENET – RS-485 communication only.

See “Troubleshooting for ENET Communication” on page A–3 for typical troubleshooting procedures for connecting and setting up ENET communications.

Table A-1

Symptom Check Action

One of the power supply units is not responding.

Sequentially several units are not responding, e.g. from #21 to end.

All of the units are not responding.

Troubleshooting for ENET – RS-485 Communication

The power supply is not turned on.

The communication interface is not set as a slave unit (RS-485) or the address has not been set correctly.

RS-485 communication is disconnected at the first unit that is not responding.

The ENET communication is disconnected.

The HyperTerminal session is not configured properly.

Turn the power supply ON.

Check that the RS-485 bus is selected as the communication interface and the address is correct.

Check your RS-485 communication. Try switching the cable linking this unit to the last unit that is known to have given a response.

Check the ENET communication.

Check the settings of the HyperTerminal session. Follow the instructions in the “Selecting ENET as the Communication Port” on page 2–17.

A-2 M370078-06

Troubleshooting for ENET Communication

This section describes typical troubleshooting for connecting and setting up the ENET communication.

Table A-2

Symptom Check Action

DeviceInstaller does not detect your device.

Troubleshooting for ENET Communication

Your ENET cable is not a cross cable.

Power supply is not turned on.

The network that your computer is on cannot reach the network that the XG with the ENET option is connected to.

DeviceInstaller is not configured to use the Ethernet card on your computer that is connected to the network which has the XG with ENET option on it.

Use the correct ENET cross cable.

Turn the power supply ON.

Connect a laptop to the HUB or to the switch that the XG with the ENET option is connected to, and ping the computer you are trying to use DeviceInstaller on. If no response is seen, then contact your network administrator and find out if ICMP requests are being filtered on the network and a possible reason for not being able to contact the computer.

See “Selecting a Network Adapter” on page 2–11.

Found device is not reachable.

Typed text is not visible. Echo mode is not active. Select Echo typed characters

M370078-06 A-3

Your network is not configured properly.

Contact your network administrator.

locally in the ASCII Setup dialog box of HyperTerminal.

Troubleshooting

Table A-2

The power supply is not responding.

Troubleshooting for ENET Communication

The communication port on the power supply unit is not selected properly.

The address of the power supply unit is not valid. The address has

not been selected using the

*ADR

Select “ENET” as the communication port.

Refer to the correct power supply address using the front panel.

See the

XG 850 Watt Series

Programmable DC Power Supply Operating Manual (Part number: M370078-01), Chapter 5: Remote

Interface Addressing for a detailed explanation on how to use the

*ADR command.

A-4 M370078-06

Warranty and Product Information

Warranty

What does this warranty cover? This Limited Warranty is provided by Xantrex Technology Inc.

("Xantrex") and covers defects in workmanship and materials in your XG 850 Watt Series Programmable DC Power Supply. This warranty period lasts for five (5) years from the date of purchase at the point of sale to you, the original end user customer. You require proof of purchase to make warranty claims.

What will Xantrex do? Xantrex will, at its option, repair or replace the defective product free of

charge, provided that you notify Xantrex of the product defect within the Warranty Period, and provided that Xantrex through inspection establishes the existence of such a defect and that it is covered by this Limited Warranty.

Xantrex will, at its option, use new and/or reconditioned parts in performing warranty repair and building replacement products. Xantrex reserves the right to use parts or products of original or improved design in the repair or replacement. If Xantrex repairs or replaces a product, its warranty continues for the remaining portion of the original Warranty Period or 90 days from the date of the return shipment to the customer, whichever is greater. All replaced products and all parts removed from repaired products become the property of Xantrex.

Xantrex covers both parts and labor necessary to repair the product, and return shipment to the customer via a Xantrex-selected non-expedited surface freight within the contiguous United States and Canada. Alaska and Hawaii are excluded. Contact Xantrex Customer Service for details on freight policy for return shipments outside of the contiguous United States and Canada.

How do you get service? If your product requires troubleshooting or warranty service, contact your

merchant. If you are unable to contact your merchant, or the merchant is unable to provide service, contact Xantrex directly at:

Telephone: 1 800 733 5427 (toll free North America)

1 858 450 0085(direct)

Fax: 1 858 458 0267

Email: sales@programmablepower.com

service@programmablepower.com

Web: www.programmablepower.com

Direct returns may be performed according to the Xantrex Return Material Authorization Policy described in your product manual. For some products, Xantrex maintains a network of regional Authorized Service Centers. Call Xantrex or check our website www.programmablepower.com to see if your product can be repaired at one of these facilities.

M370078-01 WA-1

Warranty and Return

What proof of purchase is required? In any warranty claim, dated proof of purchase must

accompany the product and the product must not have been disassembled or modified without prior written authorization by Xantrex.

Proof of purchase may be in any one of the following forms:

• The dated purchase receipt from the original purchase of the product at point of sale to the end user, or

• The dated dealer invoice or purchase receipt showing original equipment manufacturer (OEM) status, or

• The dated invoice or purchase receipt showing the product exchanged under warranty

What does this warranty not cover? This Limited Warranty does not cover normal wear and tear

of the product or costs related to the removal, installation, or troubleshooting of the customer's electrical systems. This warranty does not apply to and Xantrex will not be responsible for any defect in or damage to:

a) the product if it has been misused, neglected, improperly installed, physically damaged or altered,

either internally or externally, or damaged from improper use or use in an unsuitable environment;

b) the product if it has been subjected to fire, water, generalized corrosion, biological infestations, or

input voltage that creates operating conditions beyond the maximum or minimum limits listed in the Xantrex product specifications including high input voltage from generators and lightning strikes;

c) the product if repairs have been done to it other than by Xantrex or its authorized service centers

(hereafter "ASCs");

d) the product if it is used as a component part of a product expressly warranted by another

manufacturer;

e) the product if its original identification (trade-mark, serial number) markings have been defaced,

altered, or removed.

Disclaimer

Product

THIS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY XANTREX IN CONNECTION WITH YOUR XANTREX PRODUCT AND IS, WHERE PERMITTED BY LAW, IN LIEU OF ALL OTHER WARRANTIES, CONDITIONS, GUARANTEES, REPRESENTATIONS, OBLIGATIONS AND LIABILITIES, EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE IN CONNECTION WITH THE PRODUCT, HOWEVER ARISING (WHETHER BY CONTRACT, TORT, NEGLIGENCE, PRINCIPLES OF MANUFACTURER'S LIABILITY, OPERATION OF LAW, CONDUCT, STATEMENT OR OTHERWISE), INCLUDING WITHOUT RESTRICTION ANY IMPLIED WARRANTY OR CONDITION OF QUALITY, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE TO THE EXTENT REQUIRED UNDER APPLICABLE LAW TO APPLY TO THE PRODUCT SHALL BE LIMITED IN DURATION TO THE PERIOD STIPULATED UNDER THIS LIMITED WARRANTY.

IN NO EVENT WILL XANTREX BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES, LOSSES, COSTS OR EXPENSES HOWEVER ARISING WHETHER IN CONTRACT OR TORT INCLUDING WITHOUT RESTRICTION ANY ECONOMIC LOSSES OF ANY KIND, ANY LOSS OR DAMAGE TO PROPERTY, ANY PERSONAL INJURY, ANY DAMAGE OR INJURY ARISING FROM OR AS A RESULT OF MISUSE OR ABUSE, OR THE INCORRECT INSTALLATION, INTEGRATION OR OPERATION OF THE PRODUCT.

WA-2 M370078-01

Warranty and Return

Exclusions

If this product is a consumer product, federal law does not allow an exclusion of implied warranties. To the extent you are entitled to implied warranties under federal law, to the extent permitted by applicable law they are limited to the duration of this Limited Warranty. Some states and provinces do not allow limitations or exclusions on implied warranties or on the duration of an implied warranty or on the limitation or exclusion of incidental or consequential damages, so the above limitation(s) or exclusion(s) may not apply to you. This Limited Warranty gives you specific legal rights. You may have other rights which may vary from state to state or province to province.

Return Material Authorization Policy

Before returning a product directly to Xantrex you must obtain a Return Material Authorization (RMA) number and the correct factory "Ship To" address. Products must also be shipped prepaid. Product shipments will be refused and returned at your expense if they are unauthorized, returned without an RMA number clearly marked on the outside of the shipping box, if they are shipped collect, or if they are shipped to the wrong location.

When you contact Xantrex to obtain service, please have your instruction manual ready for reference and be prepared to supply:

• The serial number of your product

• Information about the installation and use of the unit

• Information about the failure and/or reason for the return

• A copy of your dated proof of purchase

Record these details in “Information About Your System” on page WA–4.

M370078-01 WA-3

Warranty and Return

Return Procedure

1. Package the unit safely, preferably using the original box and packing materials. Please ensure that your product is shipped fully insured in the original packaging or equivalent. This warranty will not apply where the product is damaged due to improper packaging.

2. Include the following:

• The RMA number supplied by Xantrex Technology Inc. clearly marked on the outside of the

box.

• A return address where the unit can be shipped. Post office boxes are not acceptable.

• A contact telephone number where you can be reached during work hours.

• A brief description of the problem.

3. Ship the unit prepaid to the address provided by your Xantrex customer service representative.

If you are returning a product from outside of the USA or Canada In addition to the above,

you MUST include return freight funds and are fully responsible for all documents, duties, tariffs, and deposits.

If you are returning a product to a Xantrex Authorized Service Center (ASC) A Xantrex

return material authorization (RMA) number is not required. However, you must contact the ASC prior to returning the product or presenting the unit to verify any return procedures that may apply to that particular facility.

Out of Warranty Service

If the warranty period for your XG 850 Watt Series Programmable DC Power Supply has expired, if the unit was damaged by misuse or incorrect installation, if other conditions of the warranty have not been met, or if no dated proof of purchase is available, your unit may be serviced or replaced for a flat fee.

To return your XG 850 Watt Series Programmable DC Power Supply for out of warranty service, contact Xantrex Customer Service for a Return Material Authorization (RMA) number and follow the other steps outlined in “Return Procedure” on page WA–4.

Payment options such as credit card or money order will be explained by the Customer Service Representative. In cases where the minimum flat fee does not apply, as with incomplete units or units with excessive damage, an additional fee will be charged. If applicable, you will be contacted by Customer Service once your unit has been received.

Information About Your System

As soon as you open your XG 850 Watt Series Programmable DC Power Supply package, record the following information and be sure to keep your proof of purchase. See “Product Numbers (FGAs)” on page iii.

❐ Serial Number

❐ Purchased From

❐ Purchase Date

WA-4 M370078-01

_________________________________

Xantrex Technology Inc.

1 800 733 5427 (toll free North America) 1 858 450 0085 (direct)

1 858 458 0267 (direct) sales

@programmablepower.com

service@programmablepower.com

www.programmablepower.com

M370078-06

Printed in USA

Xantrex Technology M370078-01 II User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

GPIB

Overview

Codes and Standards

GPIB Interface Description and Required Cable Size

GPIB Pin Description

Communication with Your Device

Selecting a Communication Port

Ethernet (ENET)

Overview

Basic Section

System Requirements

Accessories

Communication Cable

ENET Connector

XPort™ LEDs

Network Topology and Connection

Single Computer and Single Power Supply Unit

Setting Up the Computer

Software Installations

Configuring the Device Using DeviceInstaller

Selecting a Network Adapter

Assigning an IP Address to the Power Supply Unit

Selecting ENET as the Communication Port

Terminal Configuration

Data Format

End of Message

Setting Up a HyperTerminal Connection

Establishing Communication with the Power Supply

Advanced Section

Network Topology 1: Simple LAN

Controlling Your System

Network Topology 2: ENET and RS-485 Bus

Setting Up Your System

Troubleshooting

Troubleshooting for ENET Communication

Links

Links

Warranty and Product Information
