Read the installation and maintenance instructions carefully before using the dishwasher!
GSX 5962

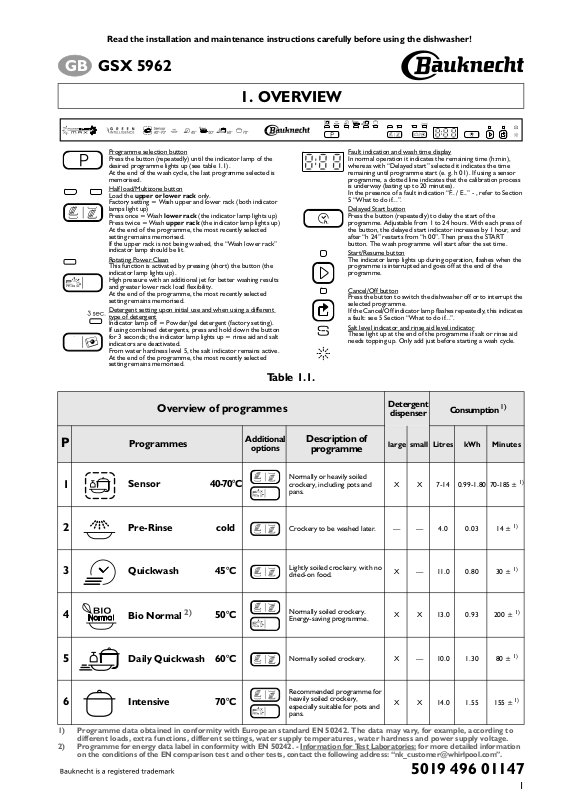

1. OVERVIEW
Programme selection button
Press the button (repeatedly) until the indicator lamp of the
desired programme lights up (see table 1.1).
At the end of the wash cycle, the last programme selected is
memorised.
Half load/Multizone button
upper or lower rack
Load the
Factory setting = Wash upper and lower rack (both indicator
lamps light up)
Press once = Wash
Press twice = Wash
At the end of the programme, the most recently selected
setting remains memorised.
If the upper rack is not being washed, the “Wash lower rack”
indicator lamp should be lit.
Rotating Power Clean
This function is activated by pressing (short) the button (the
indicator lamp lights up).
High pressure with an additional jet for better washing results
and greater lower rack load flexibility.
At the end of the programme, the most recently selected
setting remains memorised.
Detergent setting upon initial use and when using a different
type of detergent
Indicator lamp off = Powder/gel detergent (factory setting).
If using combined detergents, press and hold down the button
for 3 seconds; the indicator lamp lights up = rinse aid and salt
indicators are deactivated.
From water hardness level 5, the salt indicator remains active.
At the end of the programme, the most recently selected
setting remains memorised.
only.
lower rack
(the indicator lamp lights up)
upper rack
(the indicator lamp lights up)
Fault indication and wash time display
In normal operation it indicates the remaining time (h:min),
whereas with “Delayed start” selected it indicates the time
remaining until programme start (e. g. h 01). If using a sensor
programme, a dotted line indicates that the calibration process
is underway (lasting up to 20 minutes).
In the presence of a fault indication “F.. / E..” - , refer to Section
5 “What to do if...”.
Delayed Start button
Press the button (repeatedly) to delay the start of the
programme. Adjustable from 1 to 24 hours. With each press of
the button, the delayed start indicator increases by 1 hour, and
after “h 24” restarts from “h 00”. Then press the START
button. The wash programme will start after the set time.
Start/Resume button
The indicator lamp lights up during operation, flashes when the
programme is interrupted and goes off at the end of the
programme.
Cancel/Off button
Press the button to switch the dishwasher off or to interrupt the
selected programme.
If the Cancel/Off indicator lamp flashes repeatedly, this indicates
a fault: see 5 Section “What to do if...”.
Salt level indicator and rinse aid level indicator
These light up at the end of the programme if salt or rinse aid
needs topping up. Only add just before starting a wash cycle.
Table 1.1.
Overview of programmes
P
1
Programmes
Sensor 40-70°C
Additional
options
Description of
programme
Normally or heavily soiled
crockery, including pots and
pans.
Detergent
dispenser
large small Litres kWh Minutes
X X 7-14 0.99-1.80 70-185 ±
Consumption
1)
1)
2
3
4
5
6
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to
different loads, extra functions, different settings, water supply temperatures, water hardness and power supply voltage.
2) Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories:
on the conditions of the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Pre-Rinse cold
Quickwash 45°C
2)
Bio Normal
50°C
Daily Quickwash 60°C
Intensive 70°C
Crockery to be washed later. — — 4.0 0.03 14 ±
Lightly soiled crockery, with no
dried-on food.
Normally soiled crockery.
Energy-saving programme.
Normally soiled crockery. X — 10.0 1.30 80 ±
Recommended programme for
heavily soiled crockery,
especially suitable for pots and
pans.
X — 11.0 0.80 30 ±
X X 13.0 0.93 200 ±
X X 14.0 1.55 155 ±
for more detailed information
5019 496 01147
1)
1)
1)
1)
1)
1
