GSX 5503

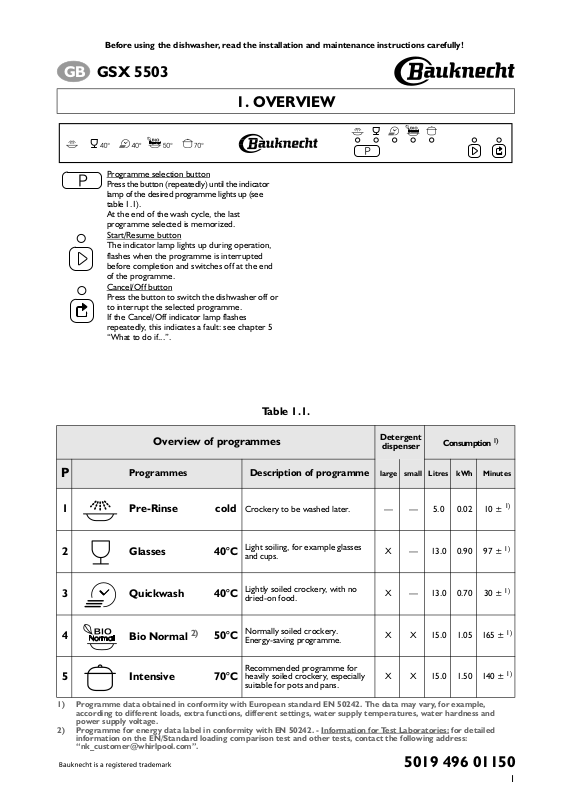

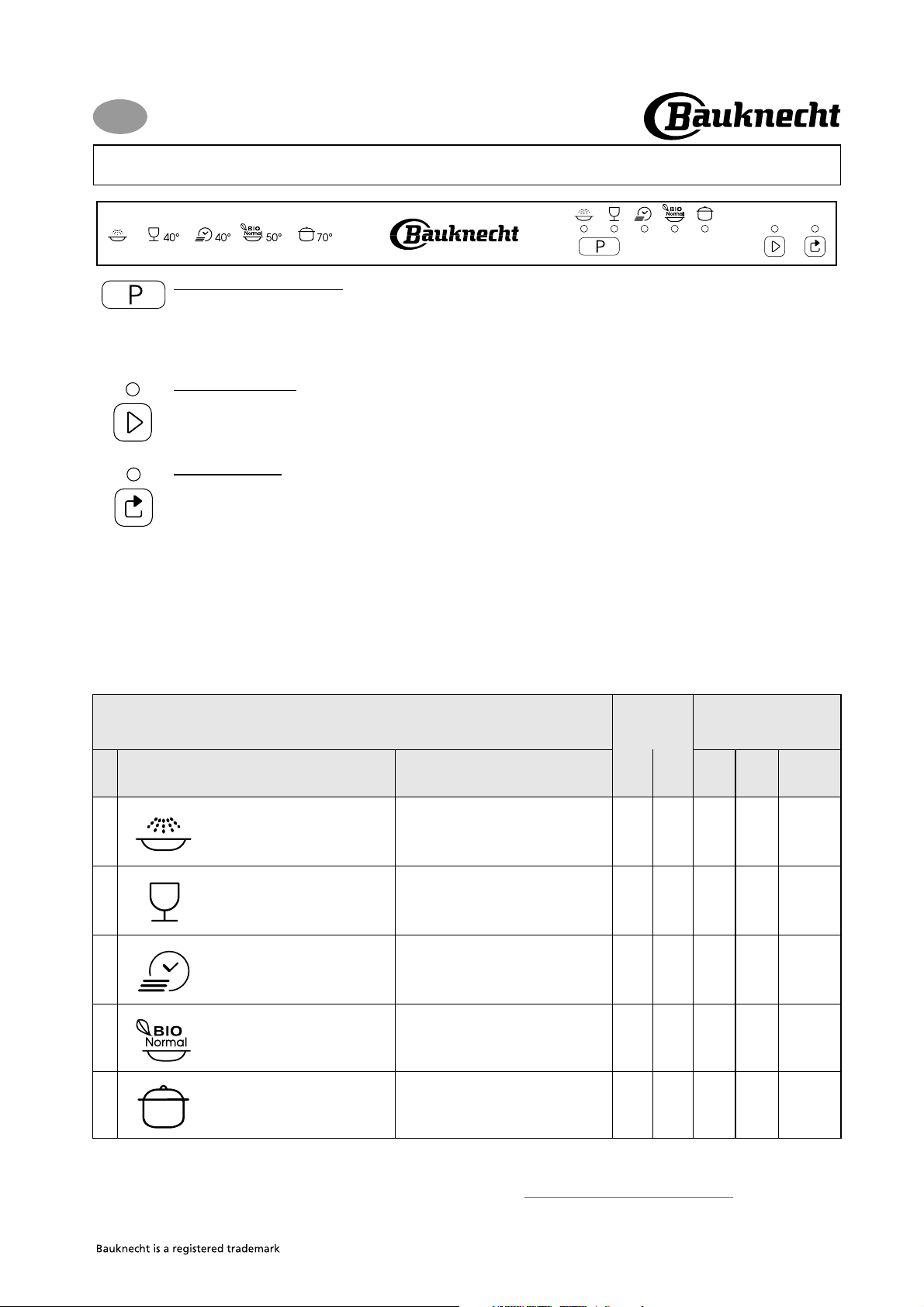

1. OVERVIEW
Programme selection button
Press the button (repeatedly) until the indicator
lamp of the desired programme lights up (see
table 1.1).
At the end of the wash cycle, the last
programme selected is memorized.
Start/Resume button
The indicator lamp lights up during operation,
flashes when the programme is interrupted
before completion and switches off at the end
of the programme.
Cancel/Off button
Press the button to switch the dishwasher off or
to interrupt the selected programme.
If the Cancel/Off indicator lamp flashes
repeatedly, this indicates a fault: see chapter 5
“What to do if...”.
Overview of programmes
P
Programmes Description of programme
1 Pre-Rinse cold
2 Glasses 40°C
3 Quickwash 40°C
4
Bio Normal
2)
50°C
5 Intensive 70°C
Table 1.1.
Detergent
dispenser
large small Litres kWh Minutes
Crockery to be washed later. — — 5.0 0.02 10 ±
Light soiling, for example glasses
and cups.
Lightly soiled crockery, with no
dried-on food.
Normally soiled crockery.
Energy-saving programme.
Recommended programme for
heavily soiled crockery, especially
suitable for pots and pans.
X — 13.0 0.90 97 ±
X — 13.0 0.70 30 ±
X X 15.0 1.05 165 ±
X X 15.0 1.50 140 ±
Consumption
1)
1)
1)
1)
1)
1)
1) Programme data obtained in conformity with European standard EN 50242. The data may vary, for example,
according to different loads, extra functions, different settings, water supply temperatures, water hardness and
power supply voltage.
2) Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories:
information on the EN/Standard loading comparison test and other tests, contact the following address:
“[email protected]”.
for detailed
5019 496 01150
1
Page 2

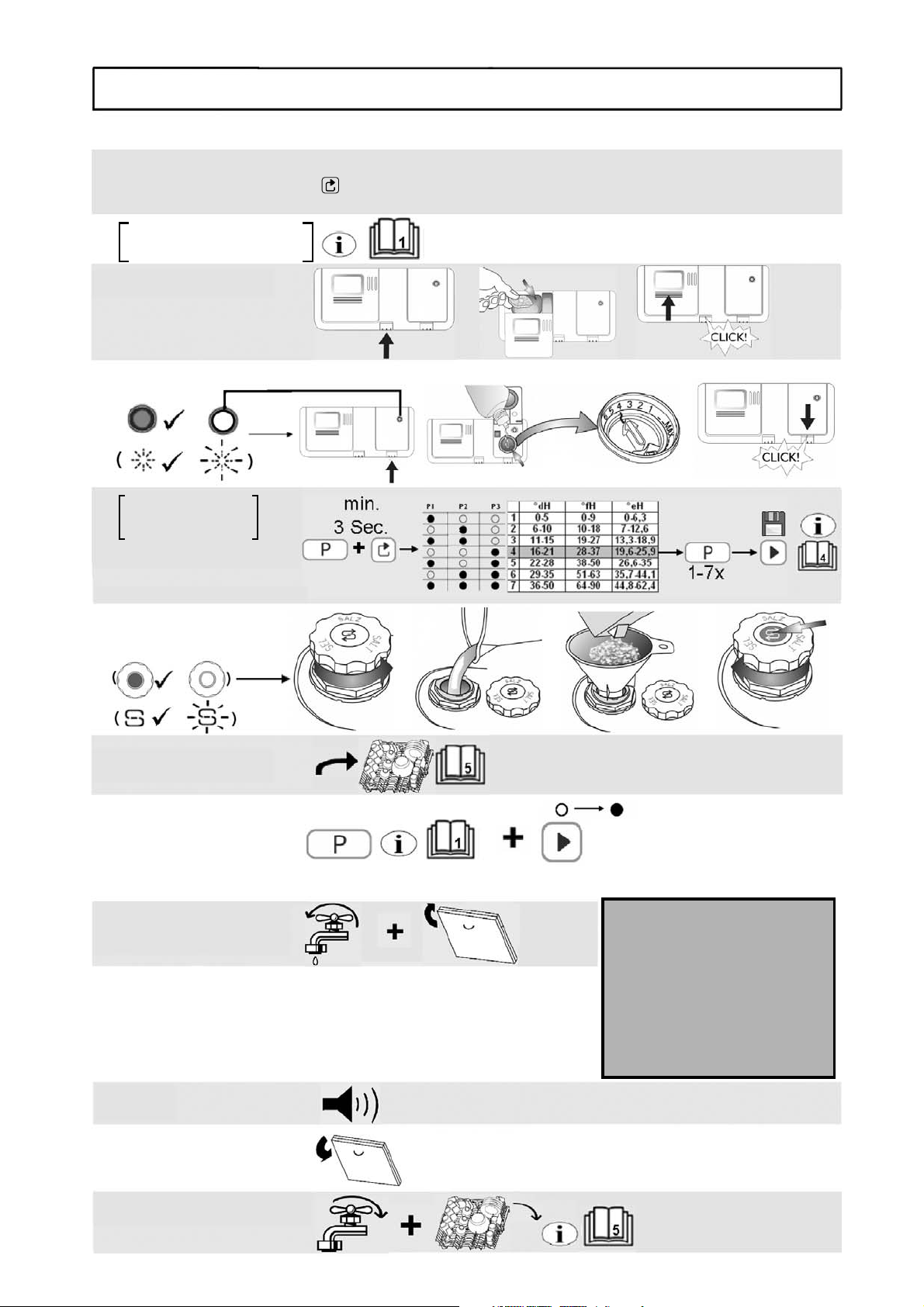

2. QUICK REFERENCE GUIDE
Detailed instructions are given on the following pages; also see section “5. What to do if...”.
1. Switch the
appliance on
2. Select the right type
of detergent
3. Fill the detergent
dispenser
4. Check the rinse aid level
5. Set the water
hardness level
The dishwasher switches on automatically when any button is pressed, except for the
button. If no button is pressed within 30 seconds, the appliance switches to Energy
Saving mode.
Depending on the dishwasher model
6. Check the salt level
7. Load the racks
8. Select a programme,
and start
9. Turn on the water tap,
close the door
Wash cycle
Fill dishes: beware of hot steam! The Start
indicator blinks, press the Start button
again, the programme resumes from
where it had stopped (as happens after a
power shortage as well).
Change the programme
in progress:
- Press the Cancel/Off button.
- Close the door.
- (Water drains for up to 60 seconds).
- Open the door.
- Select a new programme.
- Press the START button.
10.End of programme
11.Open the door
12.Turn off the water tap,
unload the racks
2
Page 3
3. HOW TO USE THE APPLIANCE

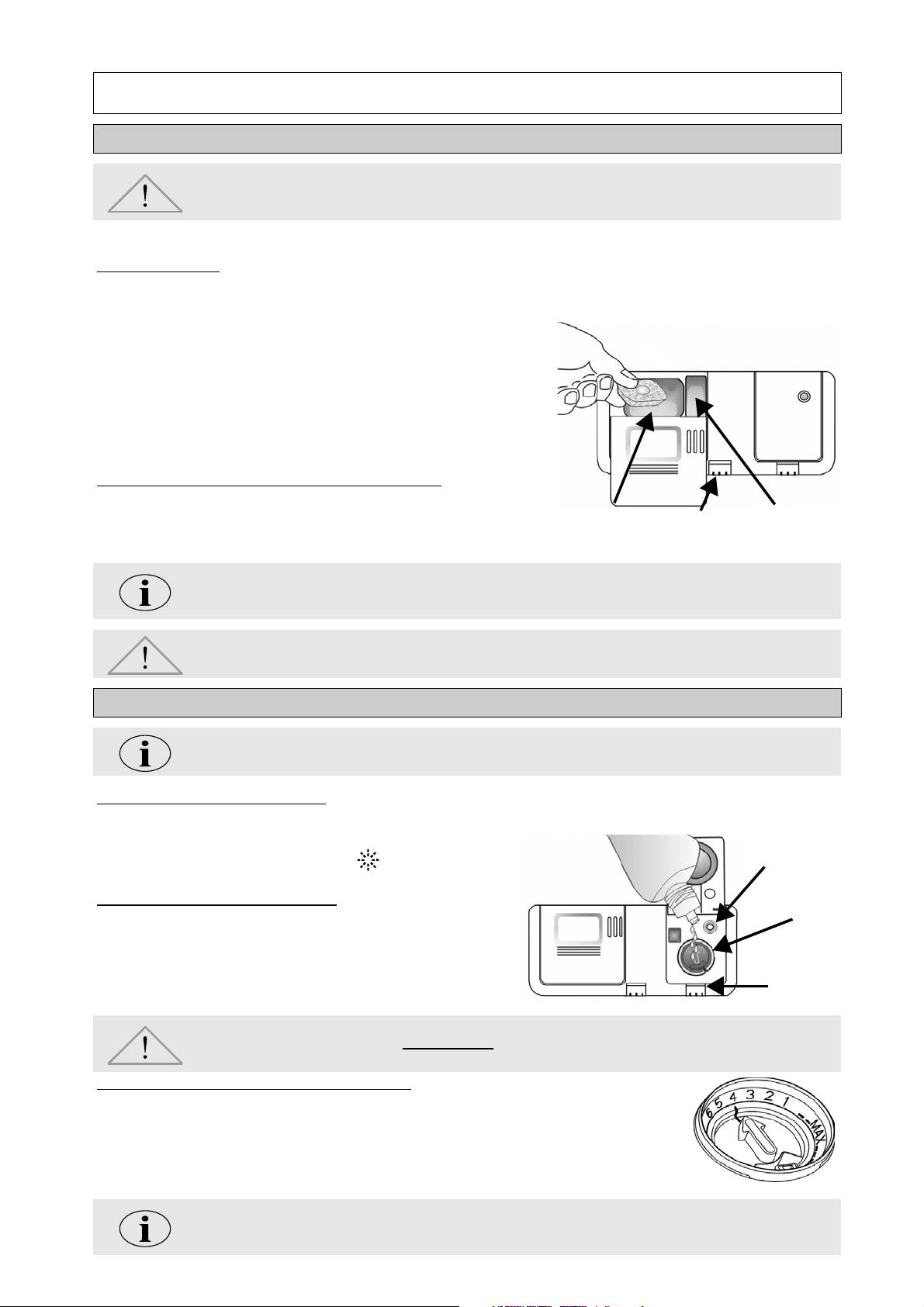

HOW TO FILL THE DETERGENT DISPENSER
Only fill the detergent dispenser prior to starting a wash programme.
specially recommended for dishwashers, observing the manufacturer’s recommended dosage.
Observe the manufacturer’s safety warnings!
Press the left button (button 1) on the dispenser to open the detergent dispenser compartments.
a. Powder/gel/tabs
Fill the detergent dispenser compartments in accordance with the wash programme selected (table 1.1).
Programmes without pre-wash:
Pour the entire recommended dosage into compartment A.
Programmes with pre-wash:
Pour 2/3 of the recommended dosage into the large compartment
and 1/3 into the small compartment B.
A
Dishwasher tabs should be placed, as per the manufacturer’s
recommendations, in compartment A.
If the “Half load” option is selected, detergent dosage should be
reduced by approximately 1/3.
b. Combined action detergents (2 in 1/3 in 1/... etc.)
Dishwasher tabs should be placed, as per the manufacturer’s
recommendations, in compartment A.
Shut and firmly press the detergent compartment lid shut after filling.
Detergents with rinse aid incorporated may be effective only with longer programmes. In the
case of shorter programmes, detergent residue may be a problem (if necessary, use powder
detergent). Detergents with rinse aid incorporated tend to form excess suds.
Large
compartment
A
use detergents
Only
Button
1
compartment
Small
B
The guarantee is not applicable if faults are caused by the use of these products.
HOW TO CHECK/FILL/ADJUST RINSE AID
Not necessary when using a combined action detergent.
a. How to check the rinse aid level
Check the visual indicator C on the dispenser: dark = sufficient rinse aid, clear = add rinse aid.
In the case of appliances with an electric indicator on the
control panel, the rinse aid indicator lights up at the end
of the wash cycle when rinse aid needs to be added.
b. How to fill the rinse aid dispenser
Press the right button on the dispenser (button 2 ) to open
the rinse aid compartment.
Fill the dispenser with rinse aid up to the “max” line
(approx. 150 ml).
Shut the lid again.
Only use rinse aids recommended for use in domestic dishwashers.
If rinse aid is accidentally spilt,
which could cause appliance malfunctioning.
c. How to adjust the rinse aid dosage regulator:
The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less
rinse aid is dispensed (factory setting: position 4).
Press the button 2 to open the cover.
Using a coin or similar object, turn the arrow to the desired setting.
After adjusting the rinse aid setting, shut the cover again.
immediately
remove it to avoid the formation of excessive suds
Indicator
max
Button
C
2
If the dishes often have whitish streaks: reduce the dosage by turning the dial to a lower setting
(1-3). Dishes did not dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic
dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.
3
Page 4
3. HOW TO USE THE APPLIANCE

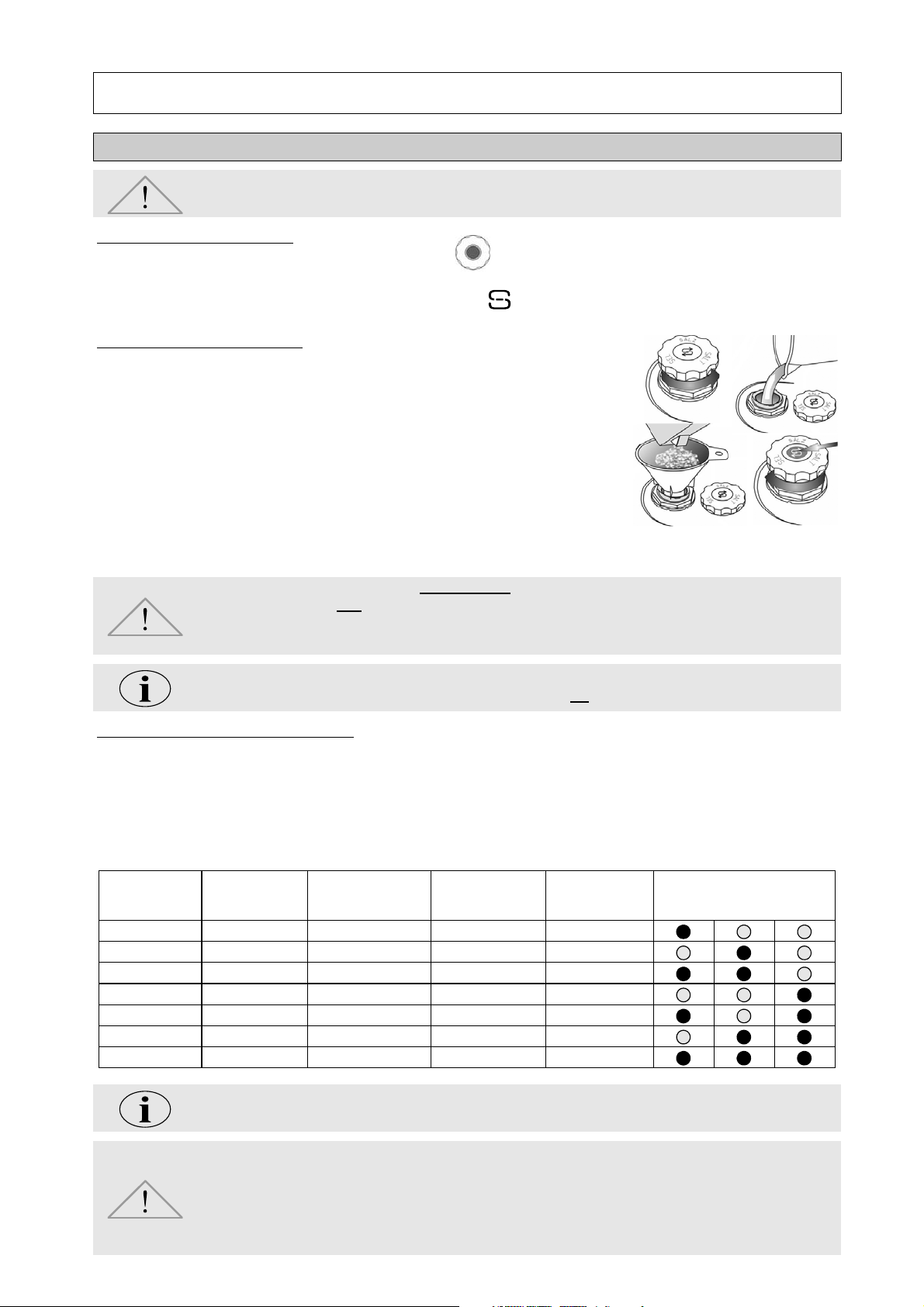

HOW TO CHECK/FILL/ADJUST SALT
use regeneration salt specifically intended for dishwashers.
Only
a. How to check the salt level
Depending on the model, check the visual indicator . The window on the salt reservoir cap is clear when
salt needs to be added and coloured when the salt present is sufficient. In the case of appliances with an
electric indicator on the control panel, the salt indicator lights up at the end of the wash cycle when salt
needs to be added.
b. How to fill the salt container
- Remove the lower rack.
- Turn the salt container cap anti-clockwise to open it.
- When using the dishwasher for the first time, fill the salt container to the
rim with water.
- To make sure no grains of salt touch the stainless steel components, fill the
salt container up to the rim using a funnel (when filling for the first time, use
min. 0.8 kg and max. 1kg).
- Stir with the handle of a wooden spoon to help dissolve the salt.
- Close the cap of the salt container by turning it clockwise.
- Fit the lower rack.
1. 2.
3.
4.
Once regeneration salt is added,
programme alone is
sufficient). Residual saline solution or grains of salt can lead to deep-
not
immediately
start a wash programme (the “Pre-wash”
down corrosion, irreparably damaging the stainless steel components. The guarantee is not
applicable if faults are caused by such circumstances.
The salt level indicator lamp may remain lit at the end of several wash cycles.
If the water hardness level falls within category 1 (soft),
salt is required.
no
c. How to set the water hardness level
- Press and hold the programme selection button and the Cancel/Off button for at least three seconds.
- The hardness level set is shown on the display (where present) or the LEDs for programmes 1 - 3 indicate
the water hardness setting according to the table below.
- With each successive touch of the programme selection button, the setting increases and when it reaches 7
it returns to 1 again.
- Press and hold the START button or wait 30 seconds for the setting to be saved!
Water
hardness
Soft 0 - 5 0 - 9 0 - 6.3 1
Average 6 - 10 10 - 18 7 - 12.6 2
Average 11 - 15 19 - 27 13.3 - 18.9 3
Medium-hard 16 - 21 28 - 37 19.6 - 25.9 4
Hard 22 - 28 38 - 50 26,6 - 35 5
Very hard 29 - 35 51 - 63 35.7 - 44.1 6
Extremely hard 36 - 50 64 - 90 44.8 - 62.4 7
Hardness in
German degrees
°dH
Hardness in
French degrees
°fH
Hardness in
English degrees
°eH
Setting/
Indication on
the display
Programme LED indicator
P1 P2 P3
The factory setting for water hardness is 4 for medium-hard water (display 4 or programme 3
LED lights up).
Water hardness level 4 with combined action detergent
Even if you use tablets which include salt functionality, you must still add regeneration salt. They
are not effective enough at softening hard water.
If the appliance is equipped with the “Set detergent type” function (see Section “1. Quick
Reference Guide”) and this function has been selected, the salt indicator remains on starting
from water hardness level 5.
4
Page 5
3. HOW TO USE THE APPLIANCE

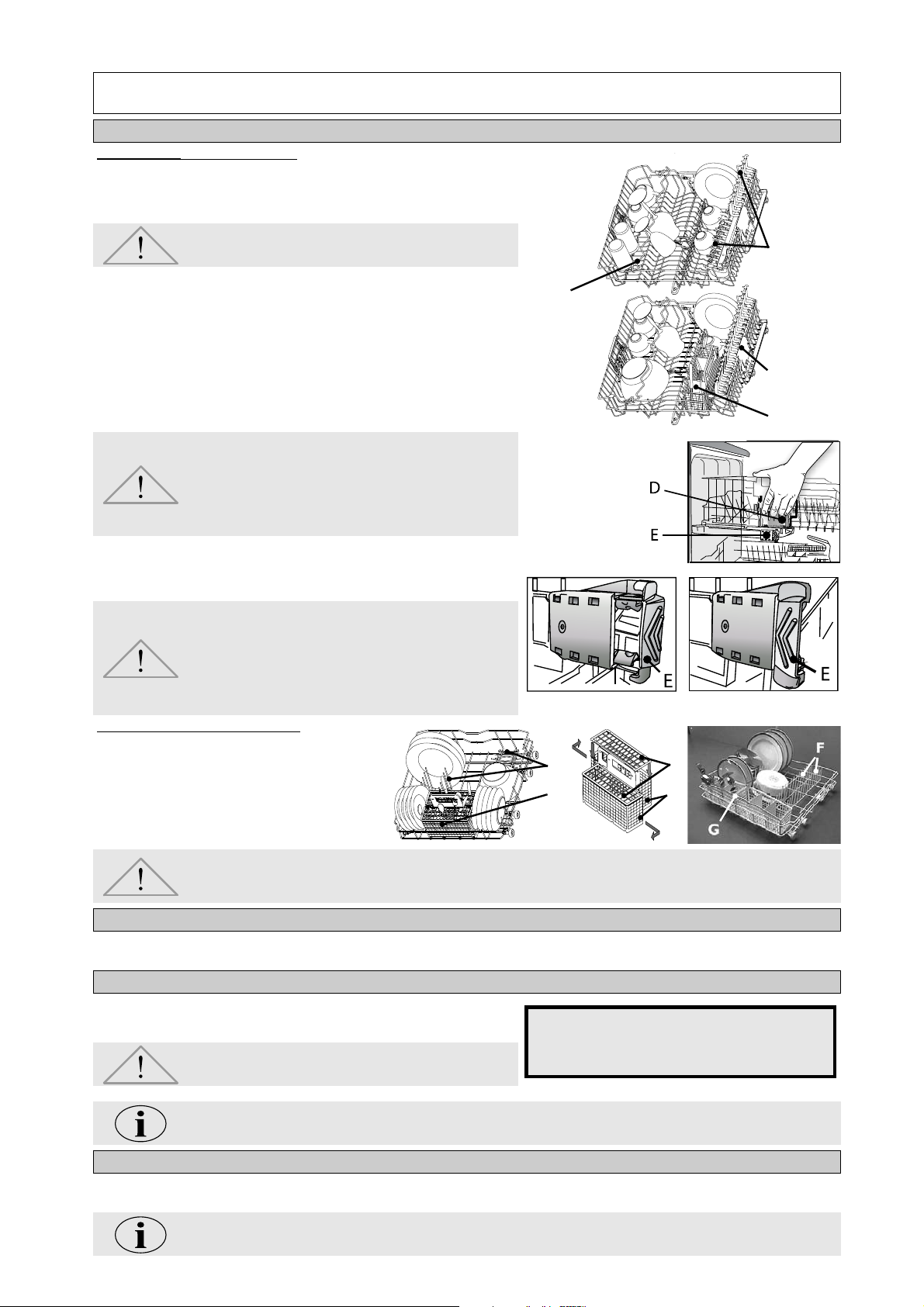

HOW TO LOAD THE RACKS
UPPER RACK
Adjustable glass holderADepending on the position, for small glasses or stemware.
Crockery holder
- depending on model:
Horizontal for: cups/long utensils, in raised position
B
for plates and stemware.
Long-handled utensils (kitchen knives) must be arranged with
the sharp end facing in towards the appliance.
Cutlery basket
Rack height adjustmentDThe upper rack height can be changed even when
The two handles D must be level.
Washing without the upper rack
If the appliance is equipped with the adjustable retainers shown in the figure, the
upper rack can be removed in order to accommodate large plates, trays etc.
Open the two retainers E and slide the upper rack out.
When the upper rack is in place the retainers must always be
closed.
It can be placed on the upper rack when the “Half
C
load/Multizone” function is selected and there is no
divider inserted.
loaded:
Lower adjustment: pull out the two handles D and
Upper adjustment: pull the two handles D up until
gently lower the rack.
the rack clicks into place
(standard position).
B
A
D
C
Retainer closed Retainer open
LOWER RACK
Plate holders
Cutlery basket
Cutlery basket
- depending on model:
Fixed or flip-up (space-saving for
F
pots and pans).
or
G
It splits into two parts, the divider
H
can be inserted to separate cutlery
to achieve a better wash.
Sharp utensils that might cause injury must be placed in the cutlery basket with the sharp end facing downwards. Arrange
crockery so that water does not collect in cavities, ensuring that the spray arms turn freely.
Only use dishwasher-proof crockery and dishes. Do not use the dishwasher for washing wooden items, aluminium, tin, silver
cutlery or decorated crockery (unglazed).
I
F
I
HH
SELECT PROGRAMME
Press the programme selection button until the required programme appears (Table 1.1, Page 1). The appliance will switch on automatically. If required,
select options (if supplied). These are saved at the end of the cycle even if another programme is selected. The corresponding indicator lamp lights up.
WASH CYCLE
The dishwasher door must be closed and the water tap open.
To load crockery, open the door carefully (the Start indicator lamp will flash and a
beep will sound):
Beware of hot steam!
Press the Start button again. The programme resumes from where it was interrupted, with the door closed.
The wash cycle can be interrupted at any time by pressing Cancel/Off button. The appliance drains water for about 60 seconds
(with the door closed) then switches off automatically.
Changing the programme in progress/RESET
- Press the Cancel/Off button.
- Water drains automatically for up to 60 seconds with the door closed.
- Select the programme and press the Start button.
END OF PROGRAMME
Open the door carefully only after all the lights have switched off and a beep has sounded:
starting from the lower rack in order to avoid any residual drips of water falling onto crockery below.
For even better drying results, leave the dishwasher door open a little before unloading in order to allow the steam to dissipate, helping
the dishes to dry. The underside of the kitchen worktop must be protected (see instructions in “Maintenance and Installation”).
hot steam may escape!
Unload the appliance,
5
Page 6
4. PRECAUTIONS AND GENERAL RECOMMENDATIONS
1. Packaging
The packaging materials are 100% recyclable and marked with the recycling symbol .
2. Removing the packaging and inspecting the contents
After unpacking, make sure that the dishwasher has not been damaged during shipping and that the door closes
correctly. If in doubt, contact a qualified technician or your local retailer.
3. Before using the dishwasher for the first time
- The appliance is designed to operate at ambient temperatures of between 5°C and 45°C.
- This dishwasher has been tested by the manufacturer to ensure it functions correctly. Such testing may leave slight
drips/water marks which will disappear with the first wash.
4. Energy and water savings
- Do not rinse crockery under running water.
- Always fully load the dishwasher before running it or select the “Half load/Multizone” function (if available).
- If ecological energy sources are available such as solar panel heating, heat pumps or centralised heating systems,
the appliance may be connected to the hot water mains up to a maximum temperature of 60°C. Make sure the
water inlet hose is of the correct type (“70°C Max” or “90°C Max”).
5. Child lock
- Keep the packaging materials out of the reach of children.
- Children must not be allowed to play with the dishwasher.
- Store the detergent, rinse aid and salt out of the reach of children.
6. Safety warnings
- The appliance is not intended for use by children or physically or mentally impaired persons, unless adequately
supervised by a responsible adult capable of guaranteeing safe use of the appliance.
- Do not operate the appliance in the open air.
- Do not store flammable materials in close proximity to the dishwasher.
- The water in the dishwasher is not potable.
- Do not use solvents inside the dishwasher:
- Be careful when the door is open:
- The open dishwasher door can only support the weight of the loaded rack when pulled out. Do not rest objects on
the open door or sit or stand on it.
- Sharp items that might cause injury (e.g. knives), must be placed in the cutlery basket (where present) with the
sharp end facing downwards. Long-handled utensils must be arranged horizontally in the upper rack, with the
sharp end facing away from the front of the appliance.
- Before cleaning or carrying out maintenance, or in the event of a fault, unplug the appliance and turn off the water tap.
- Repairs and technical modifications must be carried out exclusively by a qualified technician.
7. Resistance to frost
If the appliance is placed in surroundings exposed to the risk of frost, it must be drained completely.
Turn off the water tap, remove the inlet and outlet hoses, and let all the water run out. Make sure there is at least 1 kg
of dissolved regeneration salt in the salt reservoir to protect the appliance at temperatures of up to -20°C. When the
program resumes, an error message may be displayed when it switches on:
“F6/E2” or the Cancel/Off light flashes “6 times/2 times”: the appliance must remain at an ambient temperature
of at least 5°C for at least 24 hours.
After eliminating these faults, do a RESET (see Section “5. What to do, if...”).
8. Disposing of packaging and old machine
- The appliance is manufactured using recyclable materials. If you decide to scrap the dishwasher, it must be
disposed of in compliance with local waste disposal regulations. If necessary, make it unusable by cutting off the
power cord. To prevent situations of potential danger to children (e.g. danger of suffocation), break the lock of the
door so that it can no longer be closed.
- This appliance is marked according to the European Directive 2002/96/EC on Waste Electrical and Electronic
Equipment (WEEE). By ensuring this product is disposed of correctly, you can help prevent potential negative
consequences for the environment and human health. Unsuitable disposal of an appliance of this type as household
waste could have detrimental effects on the environment. The symbol on the appliance or accompanying
documentation. indicates that this appliance must not be handled as normal household waste, but must be taken to
the nearest collection centre for the recycling of electrical and electronic appliances. Disposal must be carried out
in accordance with local environmental regulations for waste disposal. For further information on the treatment,
recovery and recycling of this appliance, contact your competent local authority, the collection service for
household waste or the shop where you purchased the appliance.
EC Declaration of conformity
This appliance has been designed, constructed and distributed in compliance with the safety requirements of EC Directives:
2006/95/CE, 89/336/CE, 93/68/CE and 2002/95/CE (RoHS Directive).
Load capacity:
12 place settings.
risk of tripping!
risk of explosion!
6
Page 7
5. WHAT TO DO IF...
If a fault occurs,
problem. Most faults can be remedied by taking the following courses of action, quickly restoring normal
appliance operation.
The appliance... Possible causes/solutions
...is not working/will not start - The appliance must be switched on.
... shows “F6 / E2” on the display or the
Cancel/Off light flashes alternately
6 times / 2 times
... shows “F6 / E7” or “F6 / E1” on the
display or the Cancel/Off light flashes
alternately 6 times / 7 times or
6 times / 1 time
... shows “F6 / E3” on the display or the
Cancel/Off light flashes alternately
6 times / 3 times
before
contacting the After-Sales Service, make the following checks to try and remedy the
- Check the household circuit fuse if there is no power supply.
- The dishwasher door must be closed.
- Check whether the “Delayed Start” option has been selected (if
available). If it has, the appliance will only start once the set time
has elapsed. If you want to start the appliance before that time,
set the start delay to “0” (RESET).
- The water tap must be open.
- The water inlet hose must not be kinked and the relative inlet
filter in the water tap connector must not be dirty or clogged.
- The water tap must be fully open during water inlet (minimum
capacity: 0.5 litres per minute).
- The water inlet hose must not be kinked and the relative inlet
filter in the water tap connector must not be dirty or clogged.
- The filters must not be dirty or clogged.
- Concave items (e.g. bowls, cups) must be arranged facing
downwards in the rack.
- The drain hose must be fitted correctly (for raised built-in
appliances, leave min. 200-400 mm from the lower edge of the
appliance - see instructions in “Maintenance and Installation”).
... shows “F8 / E1” on the display or the
Cancel/Off light flashes alternately
8 times / 1 time
... shows other faults “F.. / E..” on the display
of the Cancel/Off light flashes X times
After taking the above course of action, no fault message should be displayed.
In the majority of cases the fault is thus eliminated.
Press the Cancel/Off button.
RESET:
Crockery... Possible causes/solutions
...are not perfectly clean/have food residues - Arrange crockery so that items do not touch each other.
➯
Water drains automatically for up to 60 seconds with the door closed.
➯
The appliance is now ready to be restarted.
➯
- The filters must not be dirty or clogged.
- The drain hose must not be kinked.
- The retaining washer of the syphon hose connection must be
removed.
- Reset the appliance (see below).
Concave items (e.g. bowls, cups) must be arranged facing
downwards in the rack.
- If necessary, use more detergent, observing the manufacturer's
indications as regards dosage. Always store detergent in a dry
place and do not store it for excessively long periods of time.
- For heavily soiled crockery, select a wash programme with a
higher temperature (see table 1.1 on the first page).
- If you select the “Half load/Multizone” option (if available),
remember to load
to increase aspersion and thus obtain optimum wash results.
the upper rack or
only
the lower rack
only
7
Page 8
5. WHAT TO DO IF...
Crockery and cutlery ... Possible causes/solutions
...are not perfectly clean/have food
residues
...have deposits:
- regeneration salt residue
- rust marks - Salty or acidic food residues can cause rust marks even on
- other marks - In the presence of marks, increase the rinse aid dosage (see
- streaks - In the presence of streaks, reduce the rinse aid dosage (page 3,
- In the event of frequent use of low temperature programmes
(50°C or lower) (if available), every now and again select a
higher temperature programme
- The spray arms must not be clogged, the filters must not be
dirty and must be fitted correctly (see the instructions in
“Maintenance and installation”).
- The spray arms must be able to turn freely and must not be
impeded by crockery or cutlery.
- In areas with very hard water, more regeneration salt needs to
be added (see page 4, “How to check/fill/adjust salt”).
- Close the salt container lid properly.
- If you use a combined action detergent which includes salt, do
not add any additional regeneration salt.
stainless steel cutlery.
To avoid this, always use the pre-wash programme if the dishes
are to be washed later.
page 3, “How to check/fill/adjust rinse aid”).
- If you use a combined action detergent, possibly add more rinse
aid.
“How to check/fill/adjust rinse aid”). If you use a combined
action detergent which includes rinse aid, do not add any
additional rinse aid.
- suds - Only use the amount of detergent/rinse aid required, since
excessive amounts can lead to excess suds.
- opaque glasses, etc. - Only use dishwasher-proof crockery and dishes.
...have discoloured plastic parts Tomato sauce, for example, can lead to discolouring of plastic parts.
Powder detergent is recommended as it allows slightly higher doses
to be used for improved whitening. Programmes with higher wash
temperatures should be used.
...are not dry - Arrange crockery so that water does not collect in cavities.
- Increase the dosage of rinse aid (see page 3, “How to check/fill/
adjust rinse aid”).
- Dishes dry better if the dishwasher door is left open a little
before unloading; this allows the steam to dissipate.
- With the Quickwash 40°C / 45°C programme (if available),
dishes may not be perfectly dry since this is a short programme.
If necessary, select a longer programme.
If, after carrying out the above checks, the fault persists, disconnect the mains plug and turn off the
water tap. Contact the After-sales Service (see warranty).
Before contacting our After-Sales Service, take note of the following:
- the description of the fault,
- the appliance type and model,
- the service code (the number indicated on the adhesive rating plate) inside the door on the right-hand side:
We reserve the right to make technical modifications.
8
Loading...
