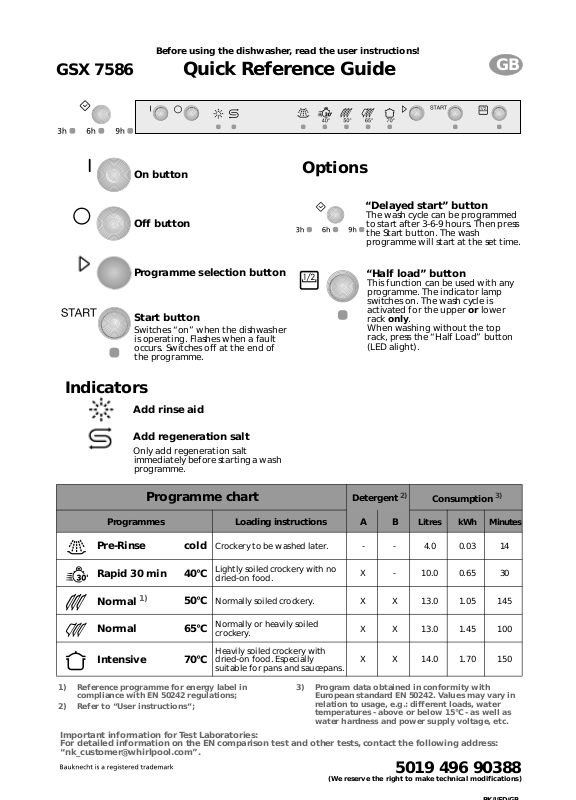

GSX 7586
Before using the dishwasher, read the user instructions!
Quick Reference Guide
GB
On button
Off button
Programme selection button
Start button
Switches “on” when the dishwasher
is operating. Flashes when a fault
occurs. Switches off at the end of
the programme.
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt
immediately before starting a wash
programme.
Programme chart
Options
Detergent
“Delayed start” button
The wash cycle can be programmed
to start after 3-6-9 hours. Then press
the Start button. The wash
programme will start at the set time.
“Half load” button
This function can be used with any
programme. The indicator lamp
switches on. The wash cycle is
activated for the upper
only
rack
When washing without the top
rack, press the “Half Load” button
(LED alight).
.
2)
Consumption
or
lower
3)
Programmes Loading instructions A B
Pre-Rinse cold
Rapid 30 min 40°C
Normal
1)
Normal 65°C
Intensive 70°C
1) Reference programme for energy label in
compliance with EN 50242 regulations;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address:
“[email protected]”.
Crockery to be washed later. - - 4.0 0.03 14
Lightly soiled crockery with no
dried-on food.
Normally soiled crockery. X X 13.0 1.05 145
50°C
Normally or heavily soiled
crockery.
Heavily soiled crockery with
dried-on food. Especially
suitable for pans and saucepans.
3) Program data obtained in conformity with
European standard EN 50242. Values may vary in
relation to usage, e.g.: different loads, water
temperatures - above or below 15°C - as well as
water hardness and power supply voltage, etc.
X - 10.0 0.65 30
X X 13.0 1.45 100
X X 14.0 1.70 150
(We reserve the right to make technical modifications)
Litres kWh Minutes
5019 496 90388
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door
Switch on the appliance
How to fill the
detergent dispenser
Check the
rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select options
Press the
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator D.
Electric indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the button until the desired programme lights up.
If necessary (and if provided) the corresponding indicator
lamp lights up.
ON
button.
A:
CBA
B:
Press the START button
T urn on the water tap
close the dishwasher door
Wash cycle
Switch off the appliance
Shut off the water tap,
unload the racks
The selected programme
is then memorised (even
in the event of power
failure).
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the
button. All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 sec. until
the Start indicator lamp switches off;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switched off
during a wash cycle, when switched
on again it will resume the cycle
from where it was interrupted.
OFF
Page 3
Dishwasher loading instructions and racks provided

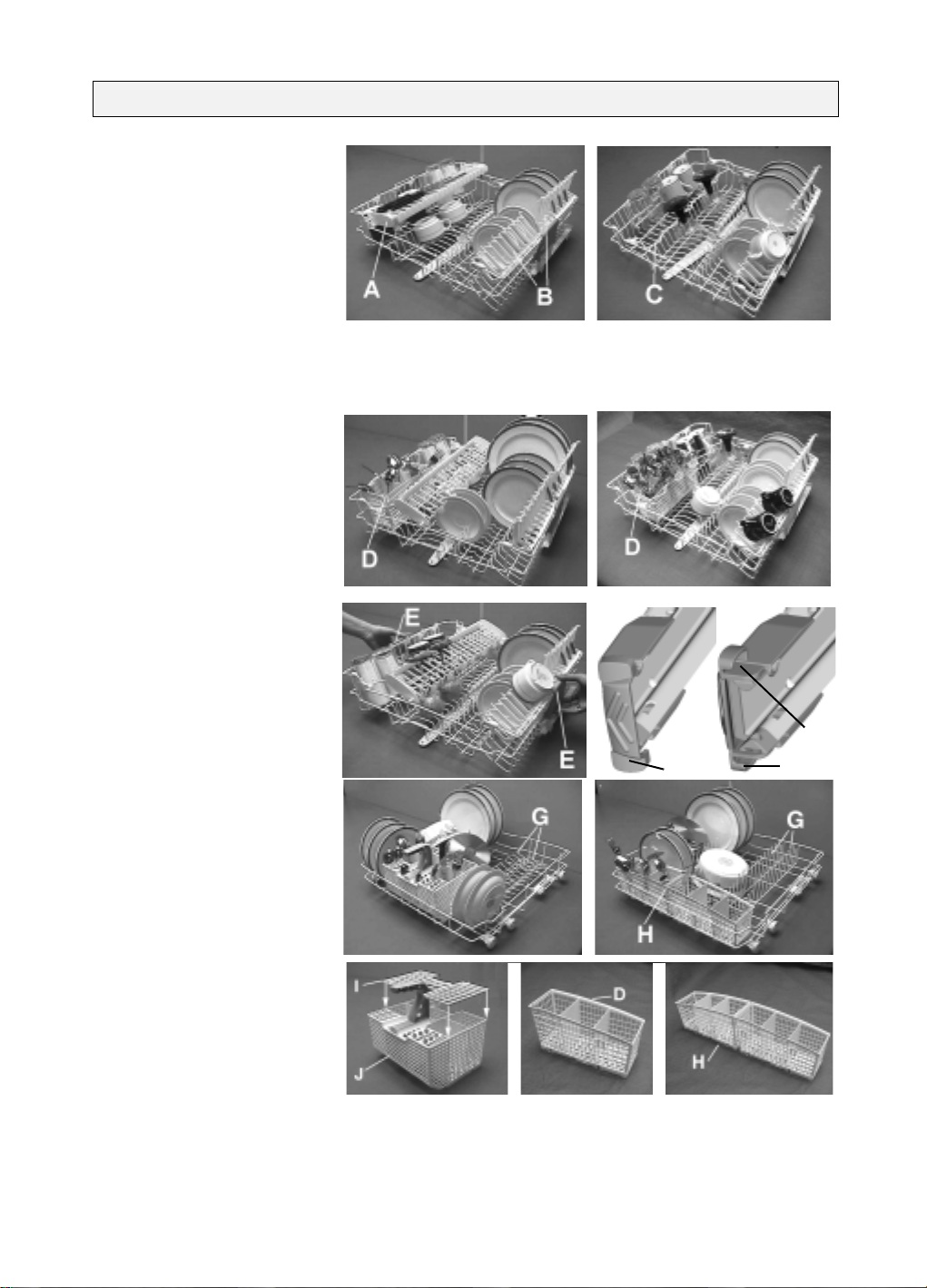

Upper rack:
Multi-purpose support (A) 1):
Depending on the position, for
long-handles utensils, cups and
glasses. May be used in three
different positions.
Crockery holders (B):
Depending on the position, for
example plates, cups and
long-stemmed glasses.
Revolving glass support (C) 2):
Depending on the position, for
example small or long-stemmed
glasses.
Long-handled utensils (e.g.
carving forks, knives) must be
arranged with the sharp end
facing in towards the appliance.
Half Load:
Load the upper rack
Place the cutlery basket (D) in the
upper rack.
Rack height adjustment (also
when loaded):
Lower adjustment:
•
two
the
(E) and lower the rack.
Upper adjustment:
•
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to
provide clearance for large
items of crockery in the
bottom rack:
Open the rack guide retainers (F)
on the right and left and remove
the top rack.
When the upper rack is in place the
retainers must always be closed.
rack handles outwards
only
pull out
pull the
.
two
depending on the model
Retainer
closed
F
Retainer
F
open
Lower rack:
Depending on the model with fixed
or tilting plate holders (G).
Half Load:
Load the lower rack
Greater washing power,
particularly for plates and
saucepans.
Cutlery basket (J) or (H):
Some models are provided with a
grid (I) that can be fitted onto the
cutlery basket to keep items
separated.
Cutlery basket (D), if provided, for
appliances with half load only.
Sharp knives and forks that
might cause injury must be
placed in the cutlery basket
with the sharp end facing
downwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in
a dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed),
silver cutlery.
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369.
2)
Revolving glass support (C) - N. WGH 1000.
only
.
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the
problem (* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Sandy or grainy
residues
Colour of plastic
parts faded
• No water supply. • Open the tap.
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• I nsufficient rinse aid. • Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
• The water jet does not reach the
crockery.
• I nsufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The sp ray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water
• Incorrect detergent/detergent too
old.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice... • Depending on the material, if necessary use a
• Clean the water supply tap filter.
Ensure there are no kinks in the water hose.
• Press the Start button.
• Close the door.
• Check the domestic circuit fuse.
• Arrange crockery so that items do not touch
each other. Load crockery upside down.
flow *.
• Use a good quality detergent.
detergent with a greater whitening p ower.
Deposits on crockery
•removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly* .
• not removable • Insufficient water softening,
Opaque glasses/
glasses not sparkling
Rust on cutlery
Identifying
appliance faults
calcium deposits.
• Cannot be washed in the
dishwasher.
• Not made of stainless steel. • Use suitable cutlery.
• The START indicator lamp flashes.
• Indicator F... (if provided).
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off
and turn off the water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating
plate) inside the door on the right-hand side.
• Change water hardness setting, if necessary
add salt *.
• Use suita ble glasses.
• Ensure the filter assembly is not clogged and
that there is no interruption to the water
supply (if necessary, clean the filters *).
Start the programme again. Press the START
button for 2 seconds, until the ST ART indicat or
lamp switches off. Select a new programme
and press the Start button again .
