GSX 7586

Before using the dishwasher, read the user instructions!

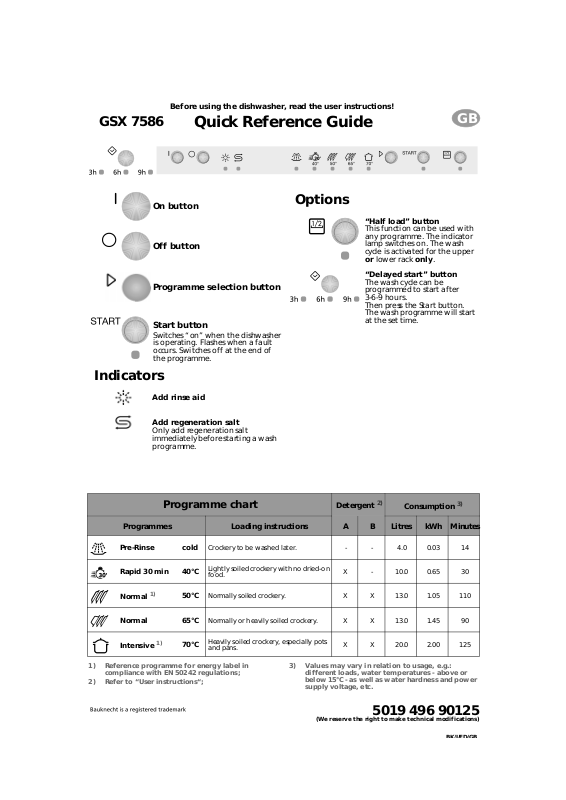

Quick Reference Guide

On button

Off button

Programme selection button

Start button

Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Indicators

Add rinse aid

Add regeneration salt

Only add regeneration salt immediately before starting a wash programme.

Options

“Half load” button

This function can be used with any programme. The indicator lamp switches on. The wash cycle is activated for the upper

lower rack

“Delayed start” button

The wash cycle can be programmed to start after 3-6-9 hours. Then press the Start button. The wash programme will start at the set time.

only

Programme chart

Programmes Loading instructions A B Litres kWh Minutes

Pre-Rinse cold

Rapid 30 min 40°C

Normal

Normal 65°C

Intensive

1) Reference programme for energy label in compliance with EN 50242 regulations;

2) Refer to “User instructions“;

Crockery to be washed later. - - 4.0 0.03 14

Lightly soiled crockery with no dried-on food.

Normally soiled crockery. X X 13.0 1.05 110

50°C

Normally or heavily soiled crockery. X X 13.0 1.45 90

Heavily soiled crockery, especially pots

70°C

and pans.

Detergent

X - 10.0 0.65 30

X X 20.0 2.00 125

3) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.

(We reserve the right to make technical modifications)

Consumption

5019 496 90125

Page 2

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Open the door

Switch on the appliance

How to fill the

detergent dispenser

Check the

rinse aid level

Check the regeneration

salt level

Load the racks

Select a programme

Select options

Press the

Large compartment With each wash cycle. Small compartment For programmes with pre-wash only.

Mechanical indicator lamp C. Electric indicator on control panel (if provided).

On models with water softener system only.

Mechanical indicator lamp D. Electric indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up. Press the button until the desired programme lights up.

If necessary (and if provided) the corresponding indicator lamp lights up.

button.

“Change programme”

Press the START button for 2 sec. until the Start indicator lamp switches off; Select another programme and press the START button again.

Press the START button

The selected programme is then memorised (even in the event of power failure).

Turn on the water tap

close the dishwasher door

- Only open the dishwasher if necessary (Warning: beware of hot steam).

- If the appliance is switched off during a wash cycle, when switched on

Wash cycle

At the end of the programme an acoustic signal will sound.

Switch off the appliance

Shut off the water tap,

unload the racks

Only after the START button has switched off: press the button. All the indicator lamps switch off.

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

again it will resume the cycle from where it was interrupted.

OFF

Page 3

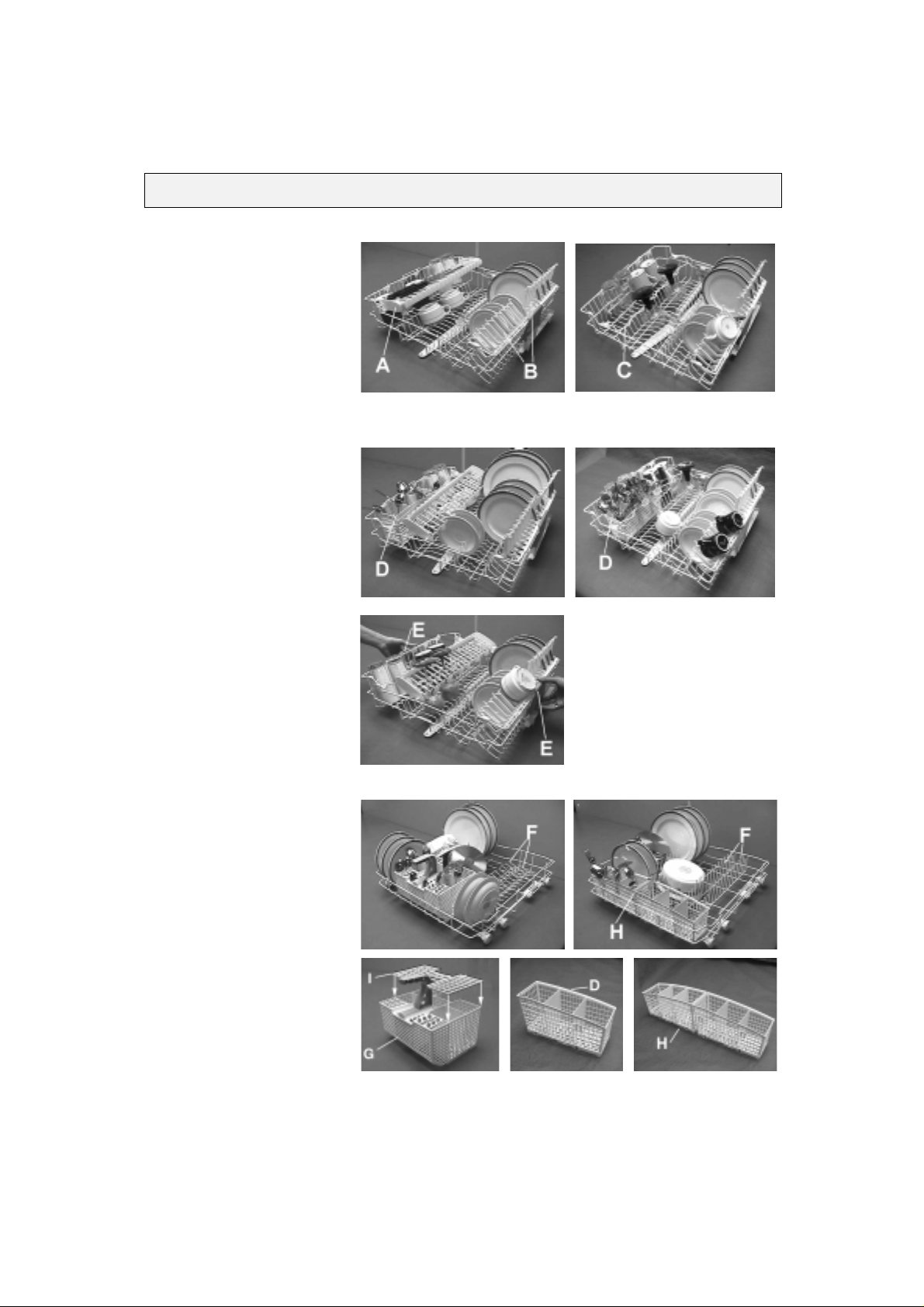

Dishwasher loading instructions and racks provided

Upper rack:

Multi-purpose support (A)

Depending on the position, for long-handles utensils, cups and glasses. May be used in three different positions.

Crockery holders (B):

Depending on the position, for example plates, cups and longstemmed glasses.

Revolving glass support (C)

Depending on the position, for example small or longstemmed glasses.

Half Load:

Load the upper rack Place the cutlery basket (D) in

the upper rack.

only

Rack height adjustment (also when loaded):

Lower adjustment:

•

two

the

rack handles outwards (E) and lower the rack.

Upper adjustment:

•

two

handles (E) upwards until the rack clicks into place (Factory setting).

The rack must be level on both sides.

pull out

pull the

depending on the model

Lower rack:

Depending on the model with fixed or tilting plate holders (F).

Half Load:

Load the lower rack Greater washing power,

particularly for plates and saucepans.

only

Cutlery basket (G) or (H):

Some models are provided with a grid (I) that can be fitted onto the cutlery basket to keep items separated. Cutlery basket (D) for appliances with half load only.

Do not use the appliance for items not suitable for washing in a dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery.

Spare parts which are sold separately:

Multi-purpose support (A) - N. AMH 369.

Revolving glass support (C) - N. WGH 1000.

Page 4

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not working

If crockery is not perfectly dry

If crockery is not perfectly clean

Sandy or grainy residues

Colour of plastic parts faded

• No water supply. • Open the tap.

• The appliance does not load sufficient water.

• There is a power failure. • Insert the plug into the mains socket.

• Starting the selected programme. • The programme can be set to “0” to start.

• Insufficient rinse aid. • Increase dosage *.

• Residual water in cavities. • Load crockery at an angle.

• The water jet does not reach the crockery.

• Insufficient detergent. • Follow recommended detergent dosage.

• Unsuitable programme. • Select a more intense wash cycle.

• Spray arms blocked. • The spray arms must be able to turn freely.

• Spray arm nozzles clogged. • Remove any impurities obstructing the water

• Incorrect deter gent/detergent too old.

• Clogged filters. • Check filters regularly/if necessary clean *.

• Filters incorrectly assembled. • Insert the filter correctly *.

• Tomato/carrot juice... • Depending on the material, if necessary use a

• Clean the water supply tap filter. Ensure there are no kinks in the water hose.

• Press the Start button.

• Close the door.

• Check the domestic circuit fuse.

• Arrange crockery so that items do not touch each other. Load crockery upside down.

flow *.

• Use a good quality detergent.

detergent with a greater whitening power.

Deposits on crockery

•removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.

• Streaks on glasses. • Reduce the rinse aid dosage *.

• Layer of salt on crockery/glasses. • Close the salt container lid properly* .

• not removabl e • Insufficient water softening,

Opaque glasses/ glasses not sparkling

Rust on cutlery Identifying

calcium deposits.

• Cannot be washed in the dishwasher.

• Not made of stainless steel. • Use suitable cutlery.

• The START indicator lamp flashes. • Ensure that the filter assembly is not clogged

appliance faults

• Indicator F... (if provided). • Call the After-Sales Service.

If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water supply tap, then call our After-Sales Service (see guarantee).

Before contacting our After-Sales Service, take note of the following:

• The nature of the fault.

• The appliance type and model.

• The service code (the number indicated on the adhesive rating plate) inside the door on the right-hand side.

• Change water hardness setting, if necessary add salt *.

• Use suitable glasses.

and if necessary clean it *. Start the programme again. Press the START button for about 2 seconds, until the START indicator lamp switches off. Select a new programme and press the Start button again.
