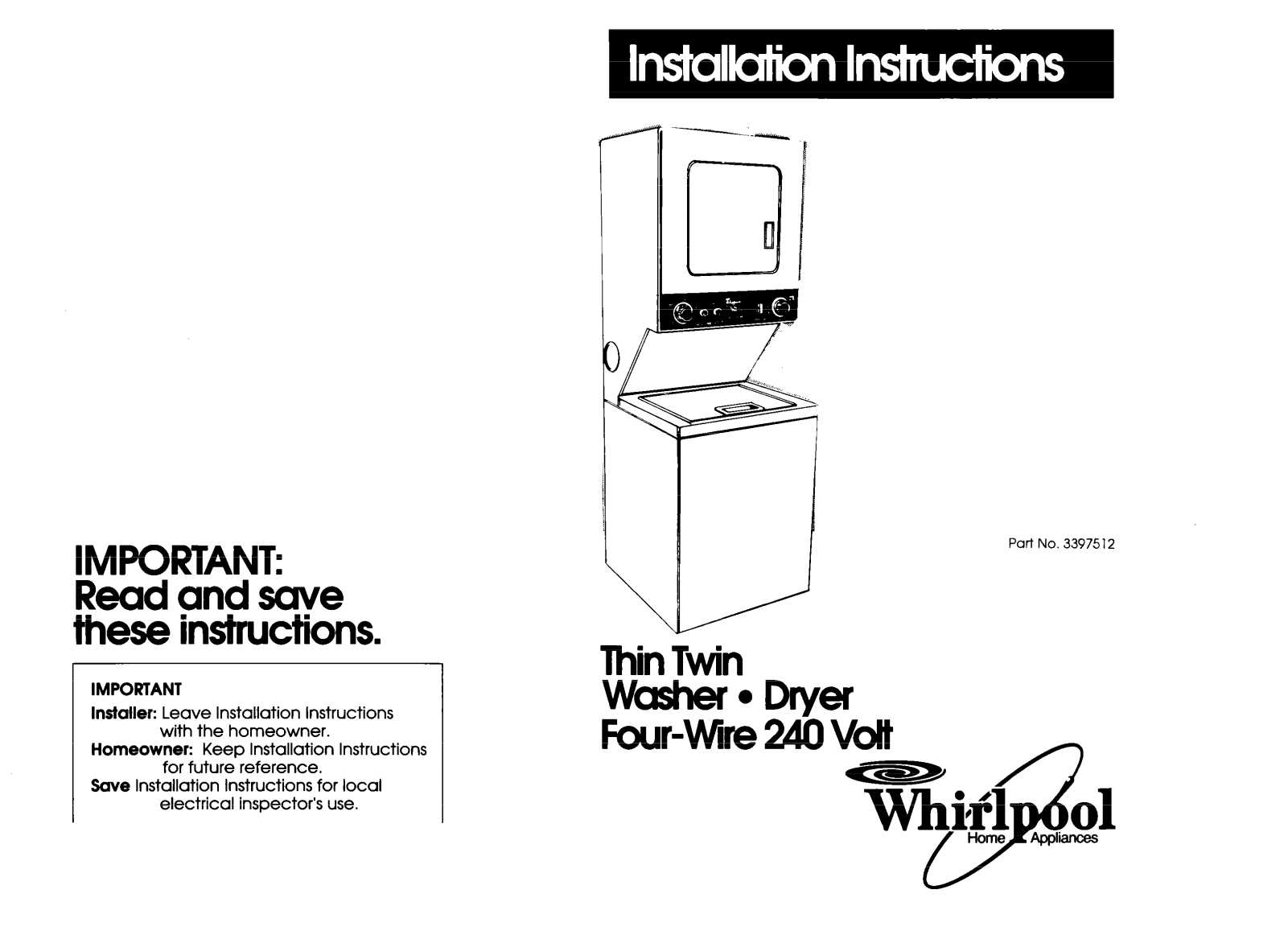

Whirlpool 3397512 User Manual

IMPORTANT: Read and save
these instructions.
Part No. 3397512
IMPORTANT Installer:
Homeowner:
Save Installation Instructions for local
Leave Installation Instructions
with the homeowner.
for future reference.
electrical inspector’s use.
\Nasher l Dryer Four-wire al0 vat

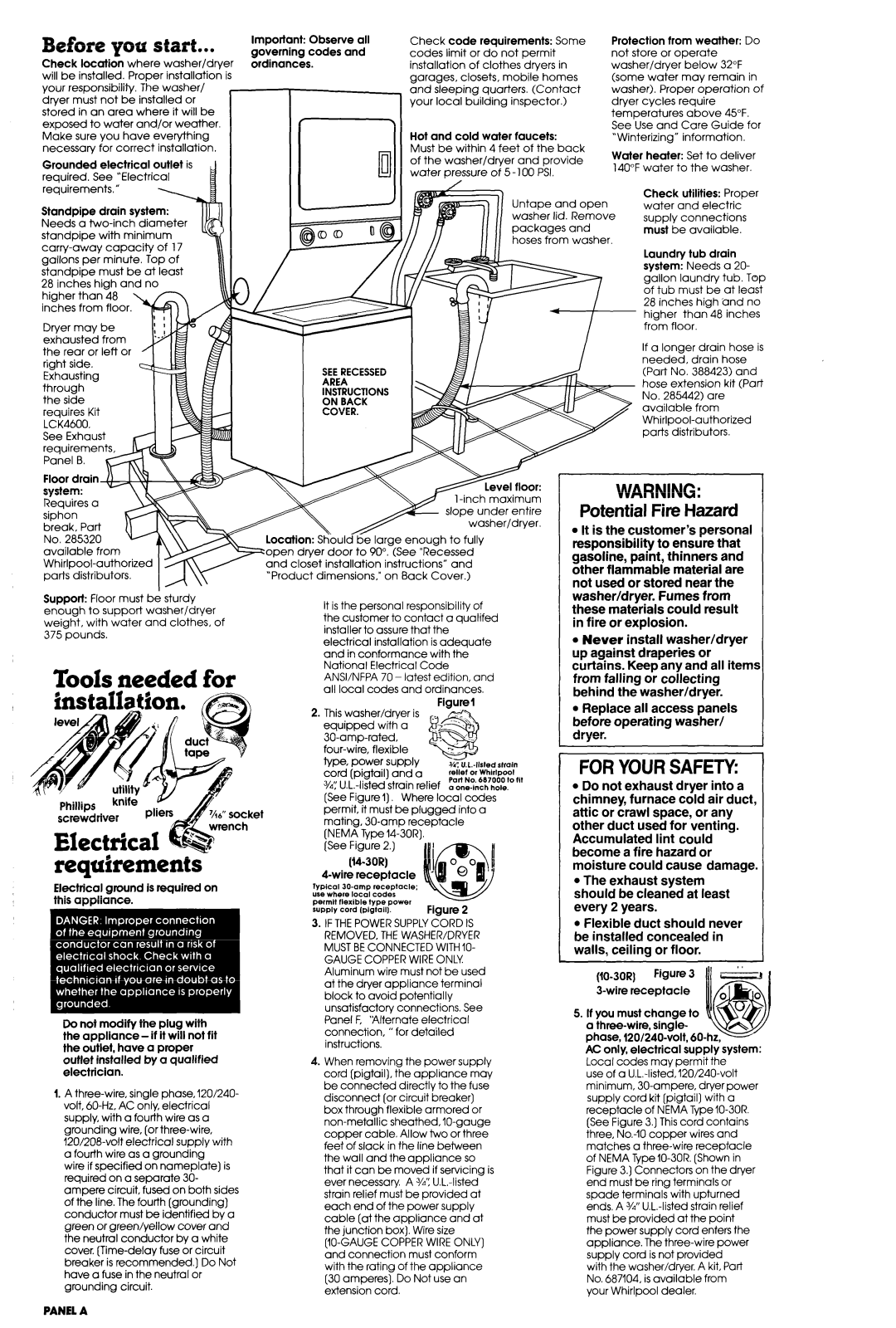

Before you start...
Check location
will be installed. Proper installation is your responsibility. The washer/ dryer must not be installed or stored in an area where it will be exposed to water and/or weather. Make sure you have everything
necessary for correct installation.
Grounded electrical outlet
required. See “Electrical
requirements,”
Standpipe drain system:
Needs a two-inch diameter standpipe with minimum carry-away capacity of 17 gallons per minute. Top of standpipe must 28 inches high a higher than 48 inches from floor.
Dryer may be exhausted from the rear or left or right side.
Exhausting
through
the side requires Kit
LCK4600.
See Exhaust
where washer/dryer
is
d
Q
Important: Observe all governing codes and ordinances.
SEE RECESSED AREA l&l;T;;WJ;ONS
COVER.
Check codes limit or do not permit installation of clothes dryers in garages, closets, mobile homes and sleeping quarters. (Contact your local building inspector.)
code requirements:
Some

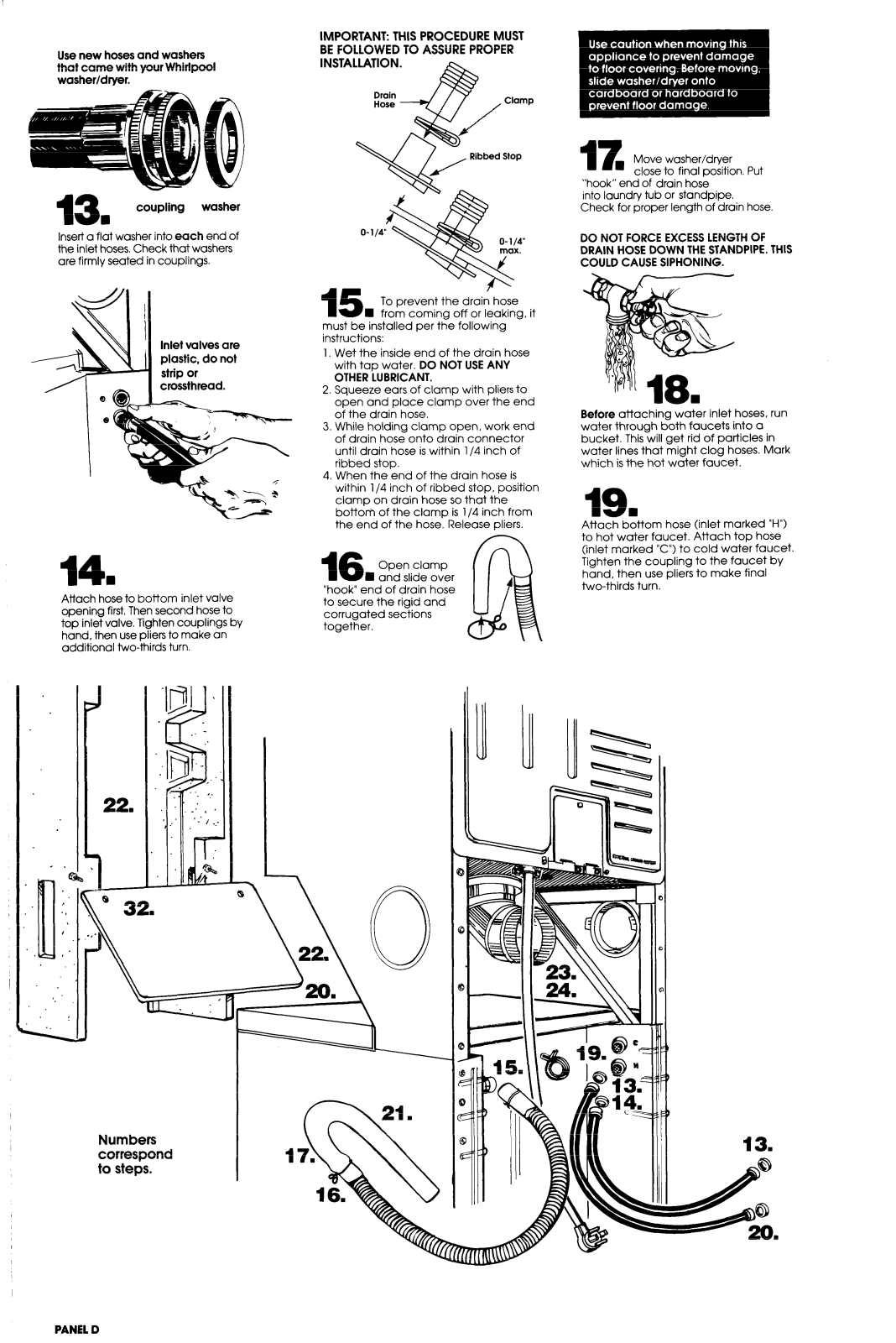

Hot and cold water faucets:
Must be within 4 feet of the back of the washer/dryer and provide water bressure of 5 - 100 PSI.
Untape and open washer lid. Remove packages and hoses from washer.
7-
Protection from weather:
not store or operate
washer/dryer below 32°F
(some water may remain in washer). Proper operation of dryer cycles require temperatures above 45°F.
See Use and Care Guide for
“Winterizing” information.
Water heater:
140°F water to the washer.
Set to deliver
Check utilities:
water and electric supply connections
must
be available.
Do
Proper
laundry tub drain system:
gallon laundry tub. Top of tub must be at least 28 inches high and no higher than-48 inches from floor.
If a longer drain hose is needed, drain hose (Par-f No. 388423) and hose extension kit (Par-t No. available from Whirlpool-authorized parts distributors.
Needs a 20-
285442)
are
available from
Whirlpool-authorized
parts distributors.
Support:
enough to support washer/dryer weight, with water and clothes, of 375 pounds.
Floor must be sturdy

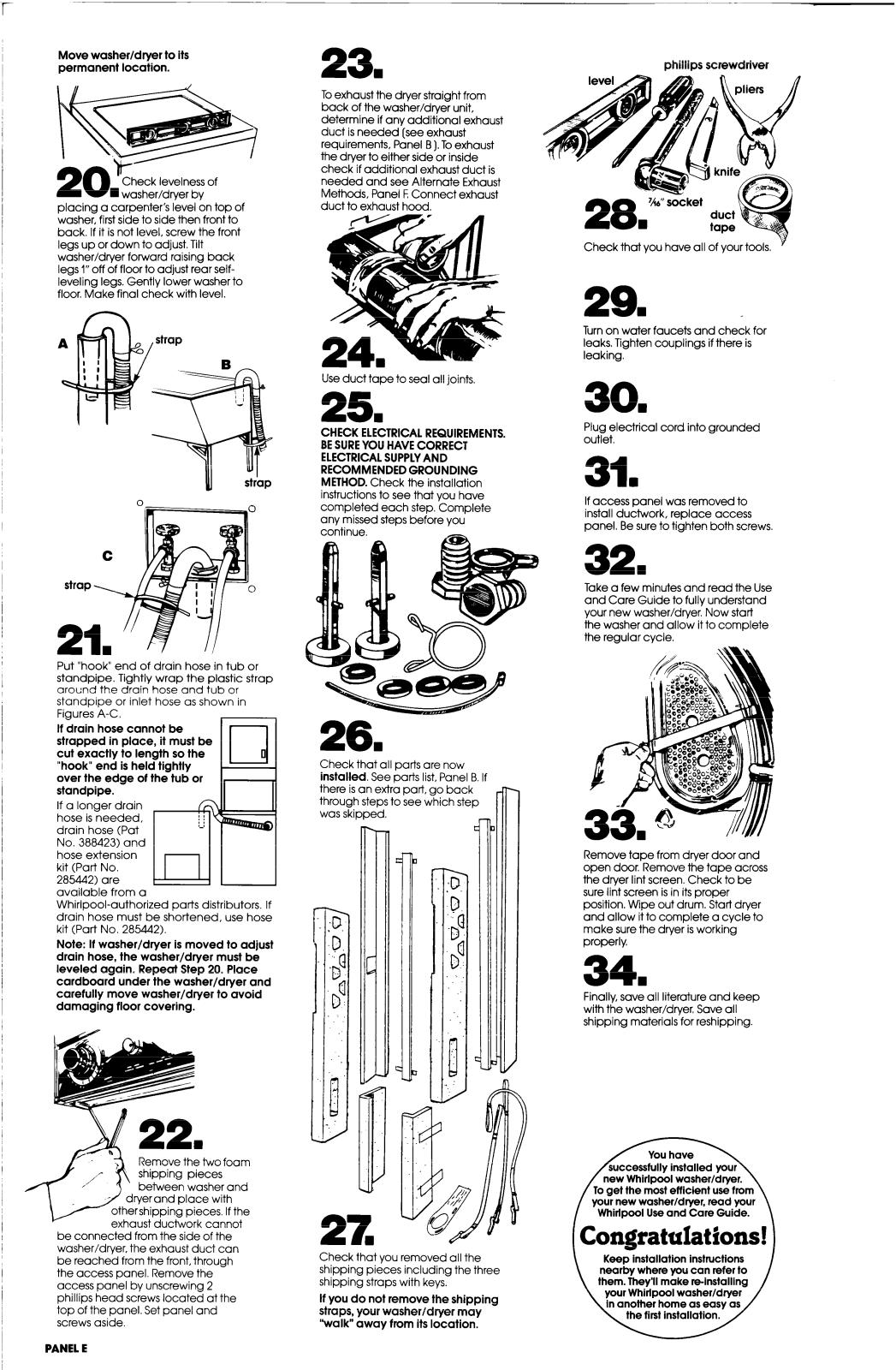

Tools needed for
screwdriver
requirements-
Electrical ground is required on
this appliance.
Do not modify the plug with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1.
A three-wire, single phase,120/240­volt, 60-Hz, AC only, electrical supply, with a fourth wire as a grounding wire, (or three-wire,
120/208-volt electrical supply with
a fourth wire as a grounding wire if specified on nameplate) is required on a separate 30­ampere circuit, fused on both sides of the line. The fourth (grounding) conductor must be identified by a green or green/yellow cover and the neutral conductor by a white cover. [Time-delay fuse or circuit breaker is recommended.) Do Not have a fuse in the neutral or grounding circuit.
slope under entire
washer/dryer.
Location:

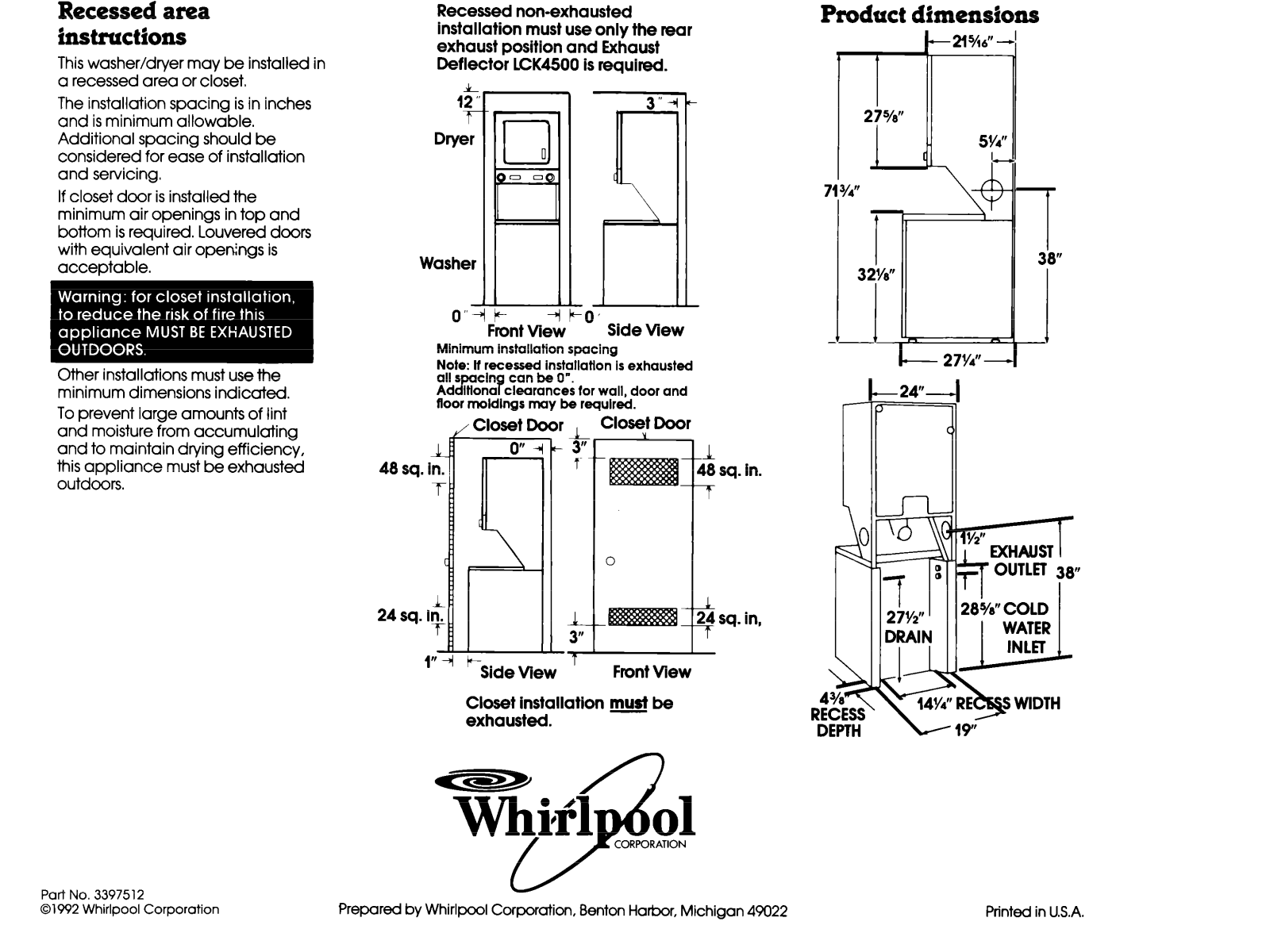

*open dryer door to 90”.-(See “Recessed
and closet installation instructions” and “Product dimensions,” on Back Cover.)
Should be larae enouah to fullv
It is the personal responsibility of the customer to contact a qualifed installer to assure that the electrical installation is adequate and in conformance with the National Electrical Code ANSI/NFPA 70 - latest edition, and all local codes and ordinances.
Figure1
2. This washer/dryer is equipped with a 30-amp-rated, four-wire, flexible type, power supply cord (pigtail) and a 3h:’ u.L.-listed strain relief [See Figure I). Where local codes permit, it must be plugged into a mating, 30-amp receptacle lNEMA Tvbe 14-30R1. iSee Figure 2.)
%:
relief or Whirlpool Part No. 687000 to fit a
one-inch
‘1111 A
U.L.-llsted strain
(14-30R)
4-wire receptacle
Typical JO-amp receptacle; permit flexible type power
Supply cord (pigtail).
3. IF THE POWER SUPPLY CORD IS
REMOVED, THE WASHER/DRYER MUST BE CONNECTED WITH IO­GAUGE COPPER WIRE ONLY Aluminum wire must not be used at the dryer appliance terminal
block to avoid potentially
unsatisfactory connections. See
Panel F, ‘Alternate electrical
connection, ” for detailed
instructions.
4. When removing the power supply cord (pigtail), the appliance may be connected directly to the fuse disconnect [or circuit breaker) box through flexible armored or non-metallic sheathed, IO-gauge copper cable. Allow two or three feet of slack in the line between the wall and the appliance so that it can be moved if servicing is ever necessary A %I’: U.L.-listed strain relief must be provided at each end of the power supply cable (at the appliance and at the junction box). Wire size
[IO-GAUGE COPPER WIRE ONLY] and connection must conform with the rating of the appliance (30 amperes). Do Not use an extension cord.
-
Figure 2
hole.
WARNING:
Potential Fire Hazard
l
It is the customer’s personal
responsibility to ensure that gasoline, paint, thinners and other flammable material are
not used or stored near the washer/dryer. Fumes from these materials could result
in fire or explosion.
l
Never install washer/dryer up against draperies or curtains. Keep any and all
from falling or collecting behind the washer/dryer.
l
Replace all access panels
before operating washer/ dryer.
items
1 FOR YOUR SAFETY:
l
Do not exhaust dryer into a
chimney, furnace cold air duct, attic or crawl space, or any
other duct used for venting.
Accumulated lint could
become a fire hazard or
moisture could cause damage.
l
The exhaust system should be cleaned at least every 2 years.
l
Flexible duct should never be installed concealed in walls, ceiling or floor.
5. If you must change to
AC only, electrical supply system:
Local codes may permit the use of a U.L.-listed,120/240-volt minimum, 30-ampere, dryer power
supply cord kit [pigtail] with a receptacle of NEMA Type IO-30R. (See Figure 3.) This cord contains three, No.-10 copper wires and matches a three-wire receptacle of NEMA Type IO-30R. (Shown in Figure 3.) Connectors on the dryer end must be ring terminals or spade terminals with upturned ends, A %” U.L.-listed strain relief must be provided at the point the power supply cord enters the appliance. The three-wire power supply cord is not provided with the washer/dryer. A kit, Part No. 687104, is available from your Whirlpool dealer.
PANEL A

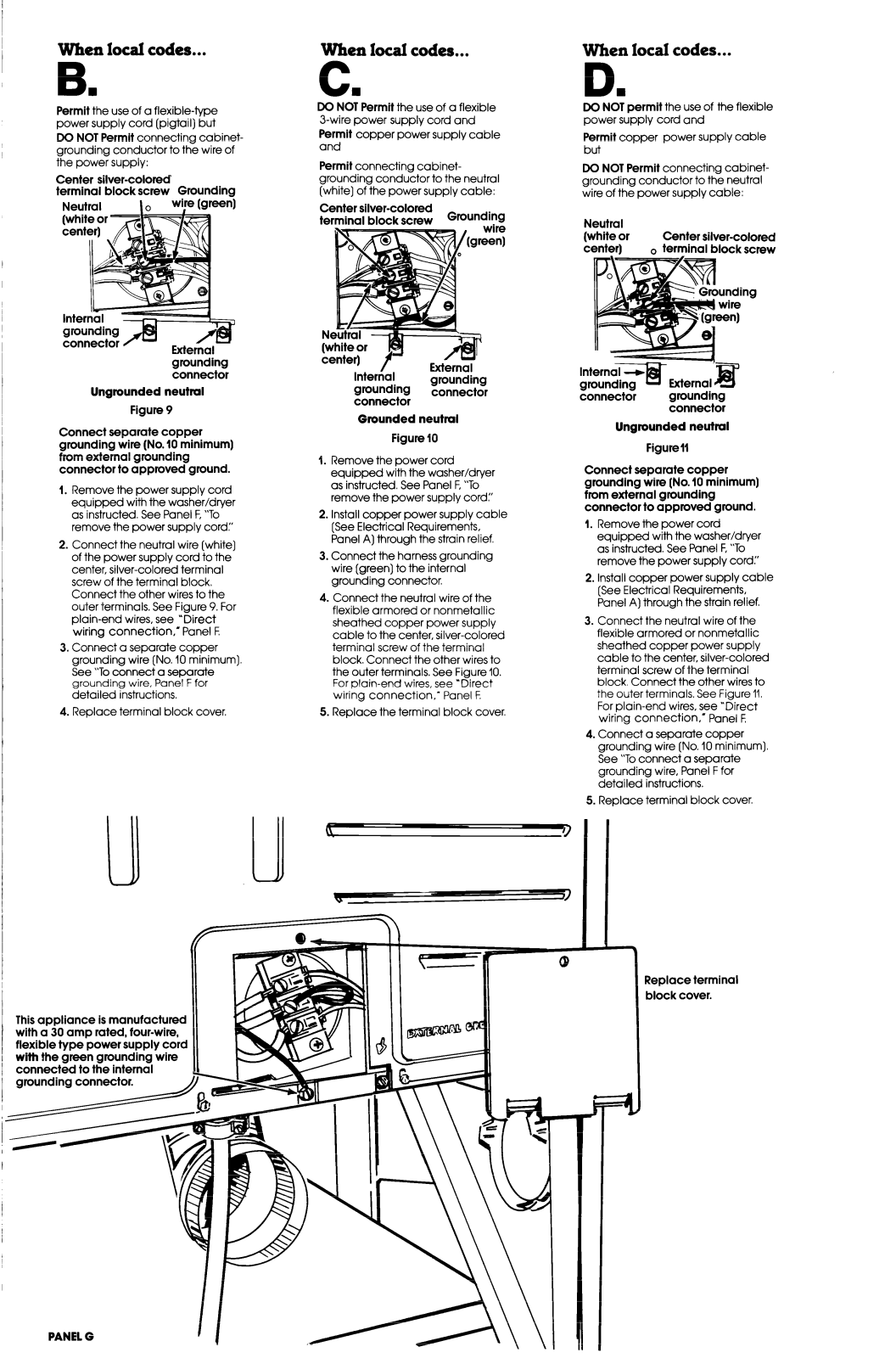

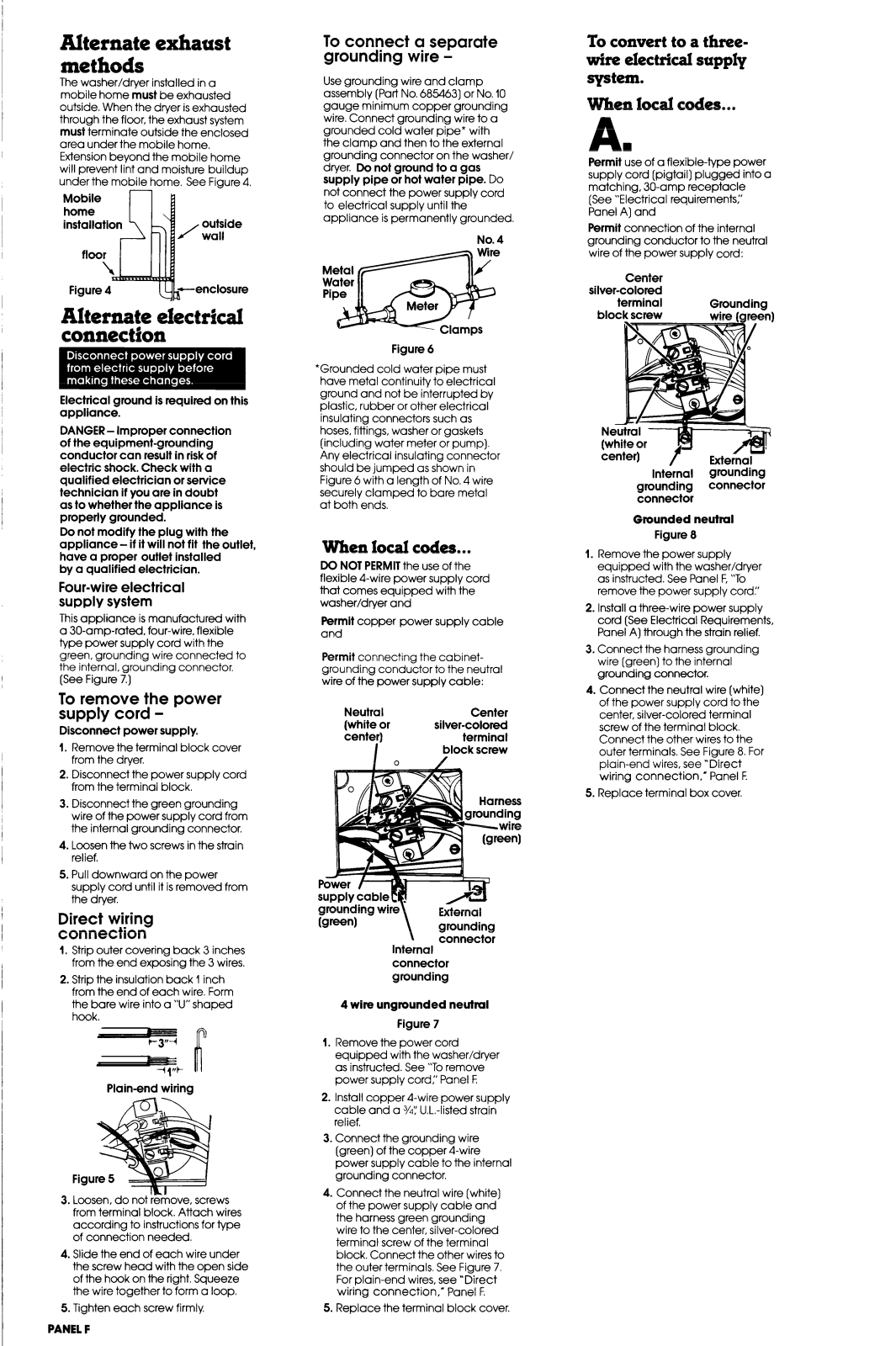

NOTE: If local codes require permanently connected wiring, see “Alternate electrical connection,” Panel F.
To convert to three-wire electrical system, the four-wire power supply cord must be removed and the appliance cabinet must be grounded according to local codes either by using the neutral terminal or a separate grounding wire.
(See Panel F, ‘Alternate electrical connection;’ for detailed instructions.)

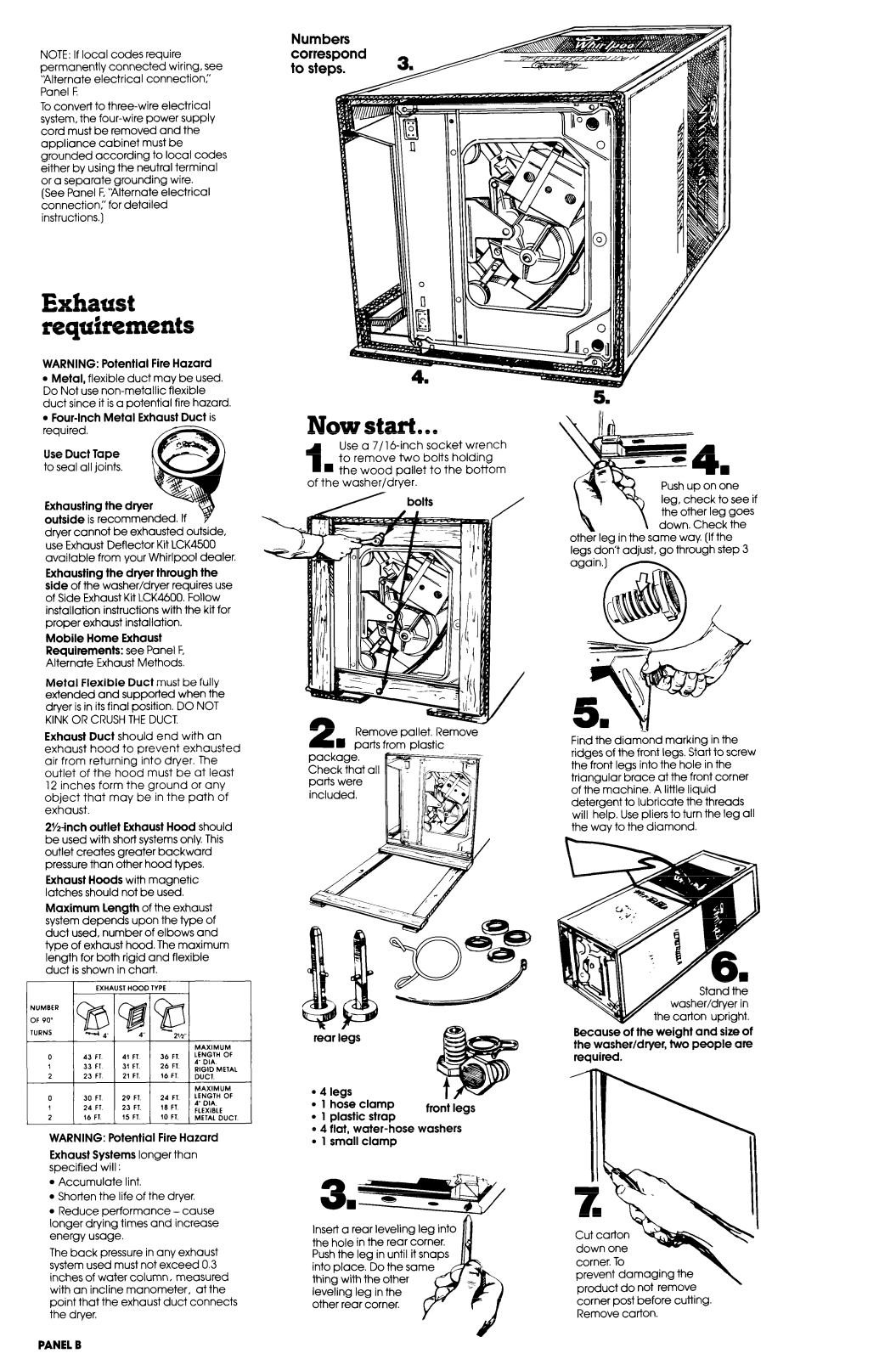

Exhaust reqdrements
WARNING: Potential Fire Hazard
l
Metal,
Do Not use non-metallic flexible duct since it is a potential fire hazard.
l
Four-Inch Metal Exhaust Duct
required.
Use Duct Tape
to seal all joints.
Exhausting the dryer
outside
dryer cannot be exhausted outside,
use Exhaust Deflector Kit LCK4500
available from your Whirlpool dealer.
Exhausting the dryer through the
side
of Side Exhaust Kit LCK4600. Follow installation instructions with the kit for proper exhaust installation.
Mobile Home Exhaust Requirements:
Alternate Exhaust Methods.
flexible duct may be used.
is
is recommended. If
of the washer/dryer requires use
see Panel F,
Now start...
Use a 7/ 1 &inch socket wrench
to remove two bolts holding
1
n
the wood pallet to the bottom
of the washer/dryer.
/ bolts
/
other leg in the same way. (If the
legs don’t adjust, go through step 3
leg, check to see if the other leg goes
down. Check the
Metal Flexible Duct must be fully
extended and supported when the
dryer is in its final position. DO NOT KINK OR CRUSH THE DUCT
Exhaust Duct
exhaust hood to prevent exhausted
air from returning into dryer. The outlet of the hood must be at least
12 inches form the ground or any
object that may be in the path of
exhaust.
2Yzinch outlet Exhaust Hood
be used with short systems only. This outlet creates greater backward pressure than other hood types.
Exhaust Hoods
latches should not be used.
Maximum length
system depends upon the type of duct used, number of elbows and type of exhaust hood. The maximum
length for both rigid and flexible duct is shown in chart.
I
should end with an
with magnetic
of the exhaust
EXHAUST HOOC I VPE
should
I
Remove pallet. Remove
parts from plastic
n
Find the diamond marking in the
ridges of the front legs. Start to screw the front legs into the hole in the triangular brace at the front corner of the machine. A little liquid detergent to lubricate the threads
will help. Use pliers to turn the leg all
the way to the diamond.
WARNING: Potential Fire Hazard Exhaust Systems
specified will :
l Accumulate lint. l Shorten the life of the dryer. l Reduce performance - cause
longer drying times and increase energy usage.
The back pressure in any exhaust system used must not exceed 0.3 inches of water column. measured with an incline manometer, at the point that the exhaust duct connects the dryer.
longer than
PANEL B
rear leas
l
4 legs
l
1 hose clamp
l
1 plastic strap
l
4 flat, water-hose washers
l
1 small clamp
Insert a rear leveling leg into
the hole in the rear corner.
Push the leg in until it snaps into place. Do the same thing with the other
leveling leg in the other rear corner.
front legs

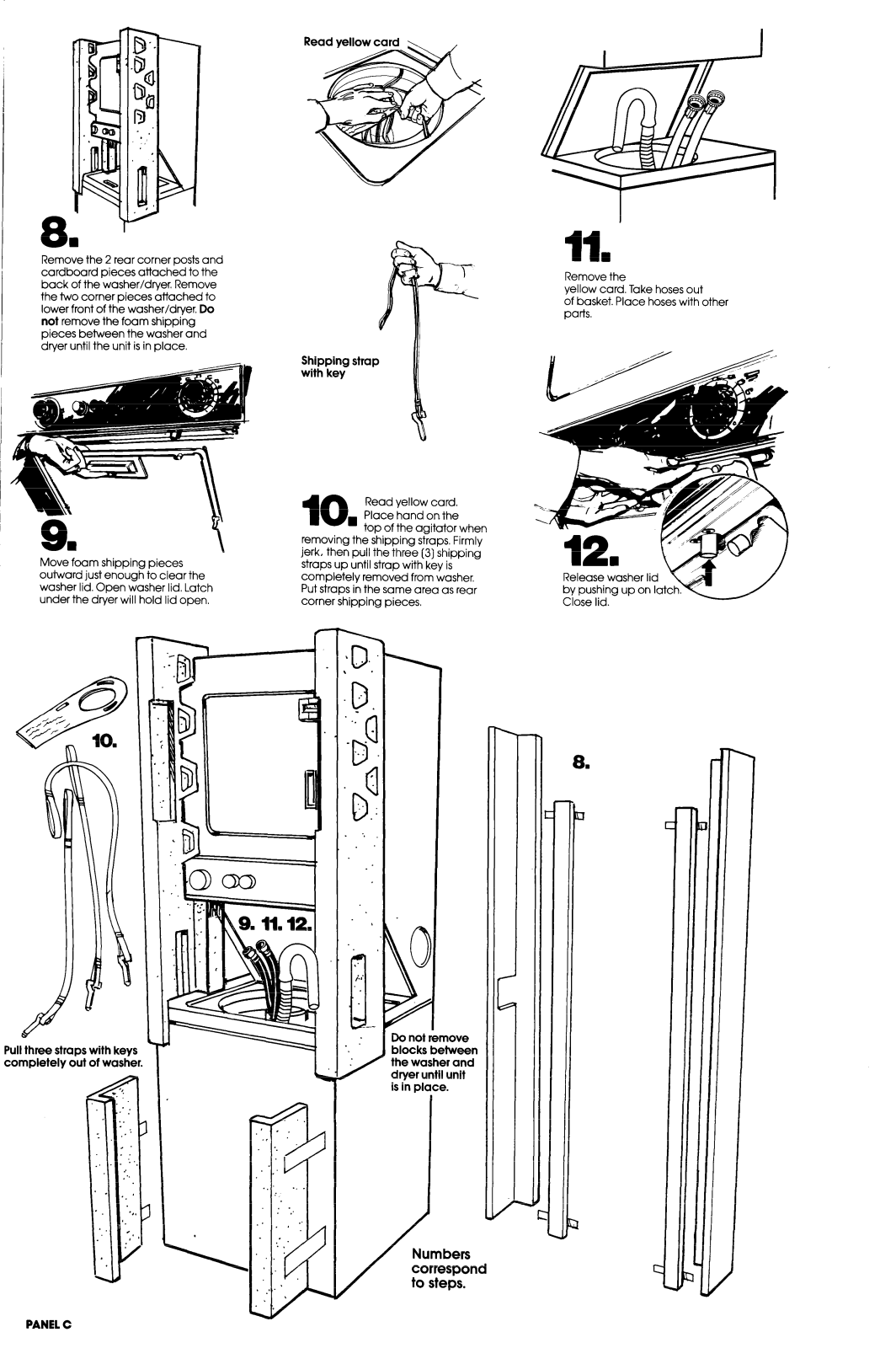

Because of the weight and size of the washer/dryer, two people are required.
corner. To prevent damaging the
product do not remove corner post before cutting. Remove carton.
