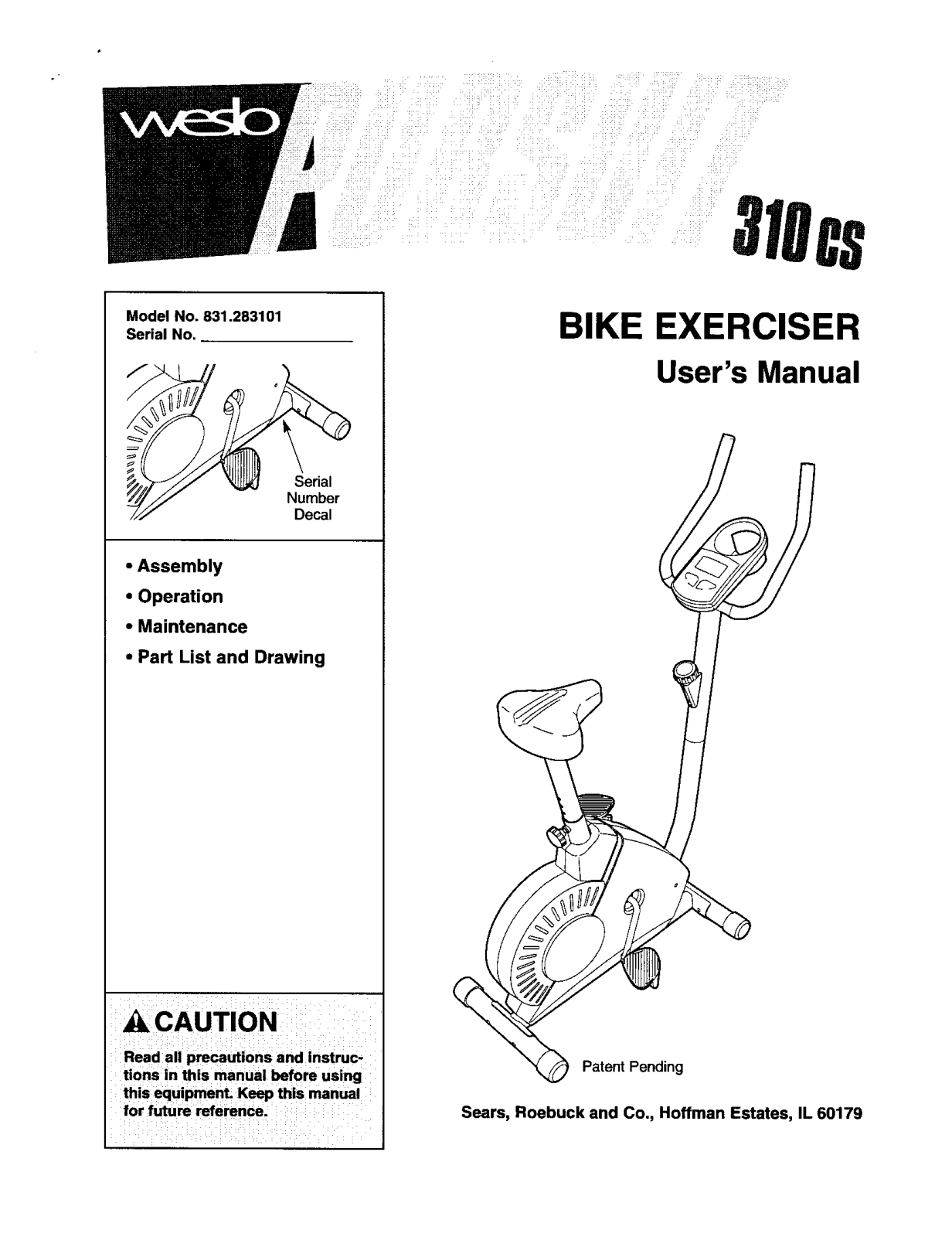

Weslo 831283101 Owner’s Manual
Model No. 831.283101
Serial No.
Serial
Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
BIKE EXERCISER
User's Manual
_kCAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Patent Pending
Sears, Roebuck and Co., Hoffman Estates, IL 60179

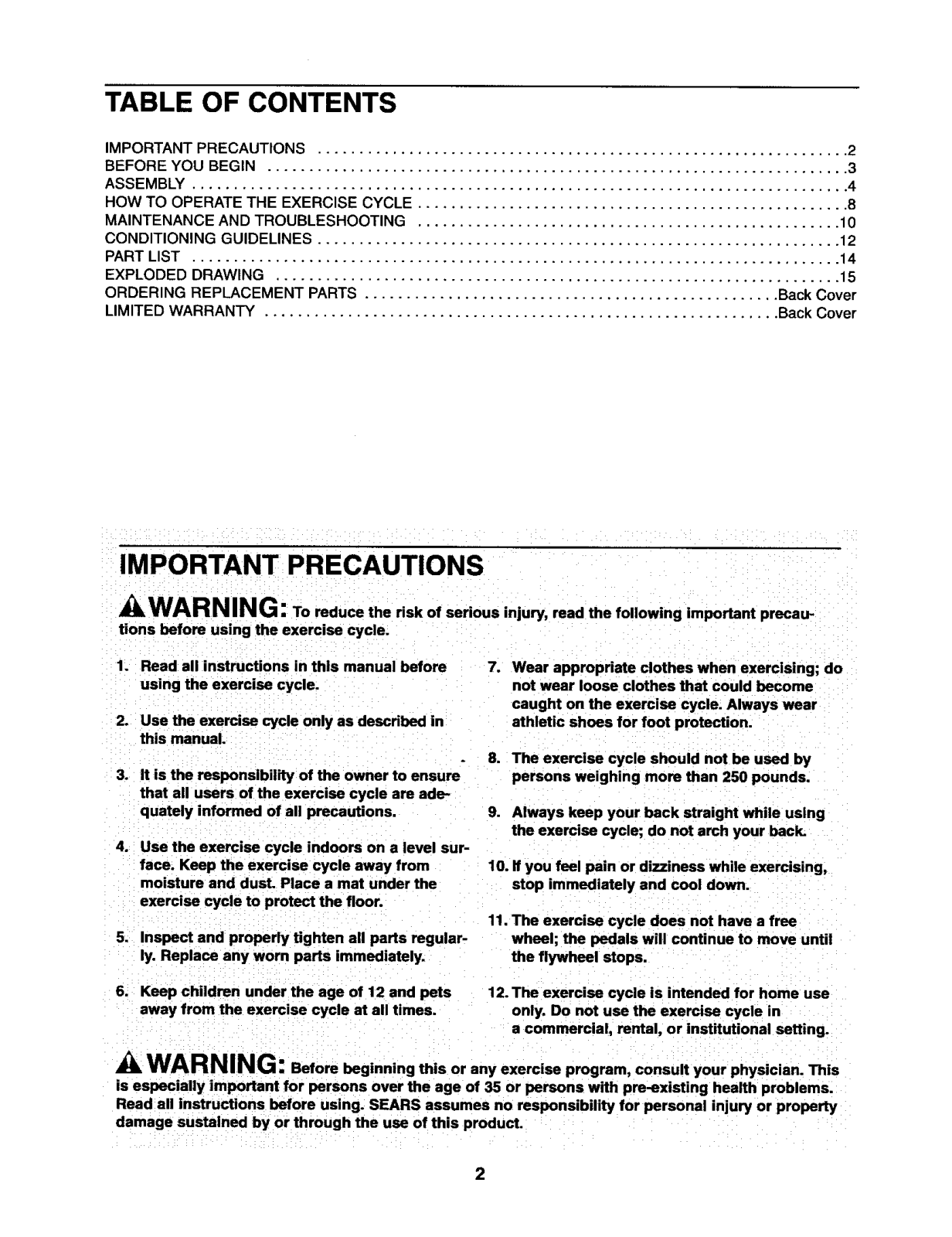

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................ 2
BEFORE YOU BEGIN ...................................................................... 3
ASSEMBLY ............................................................................... 4
HOW TO OPERATE THE EXERCISE CYCLE .................................................... 8

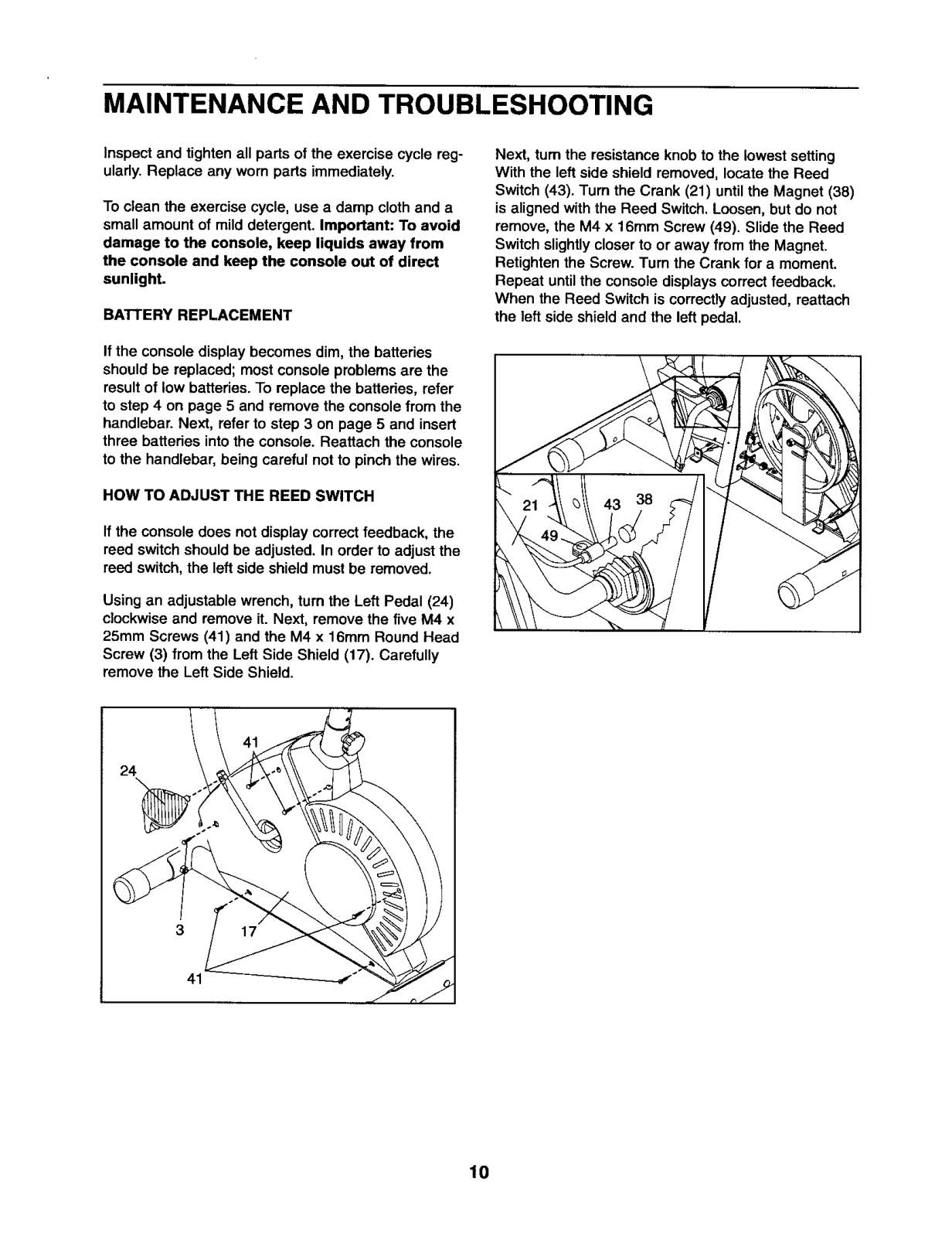

MAINTENANCE AND TROUBLESHOOTING ................................................... 10

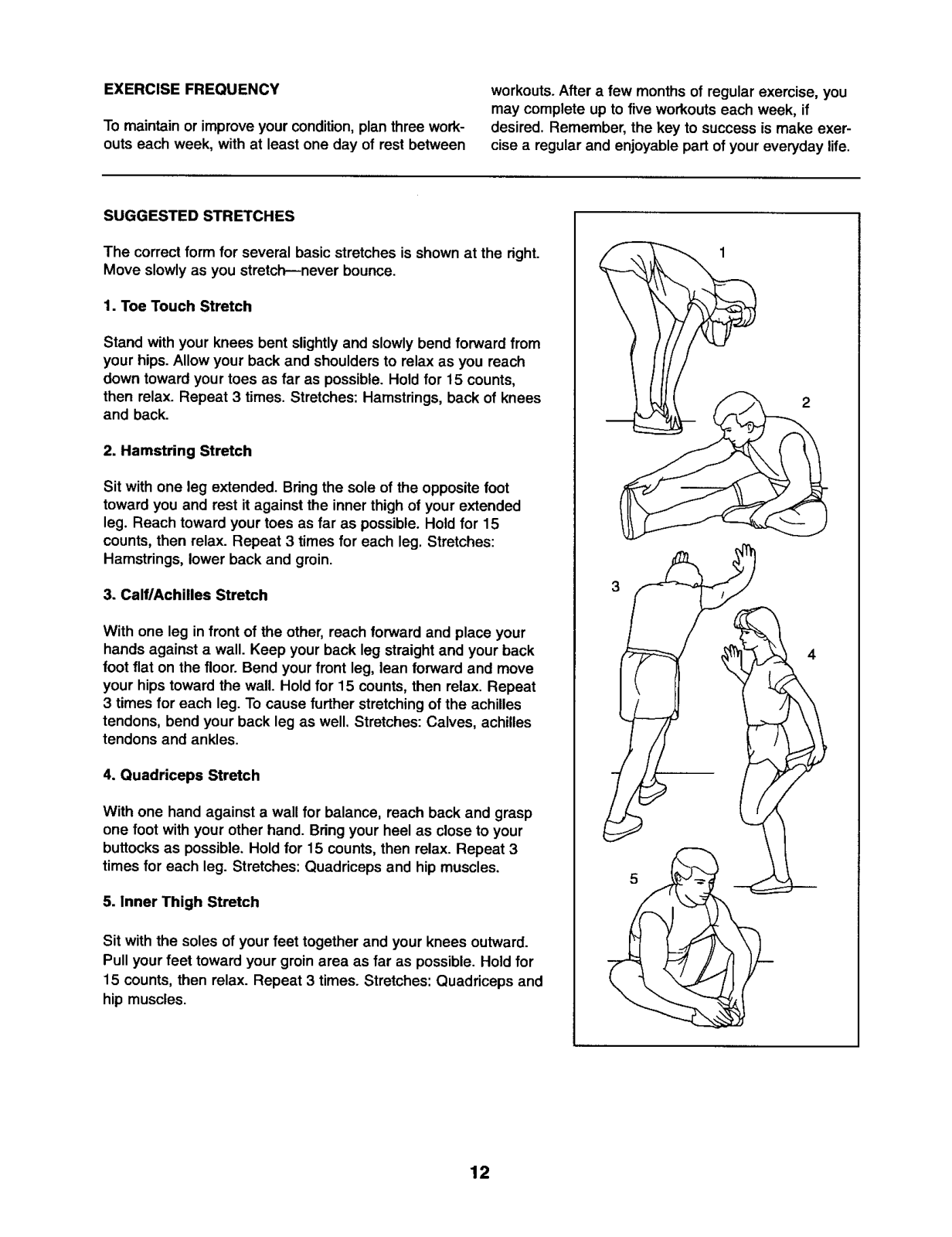

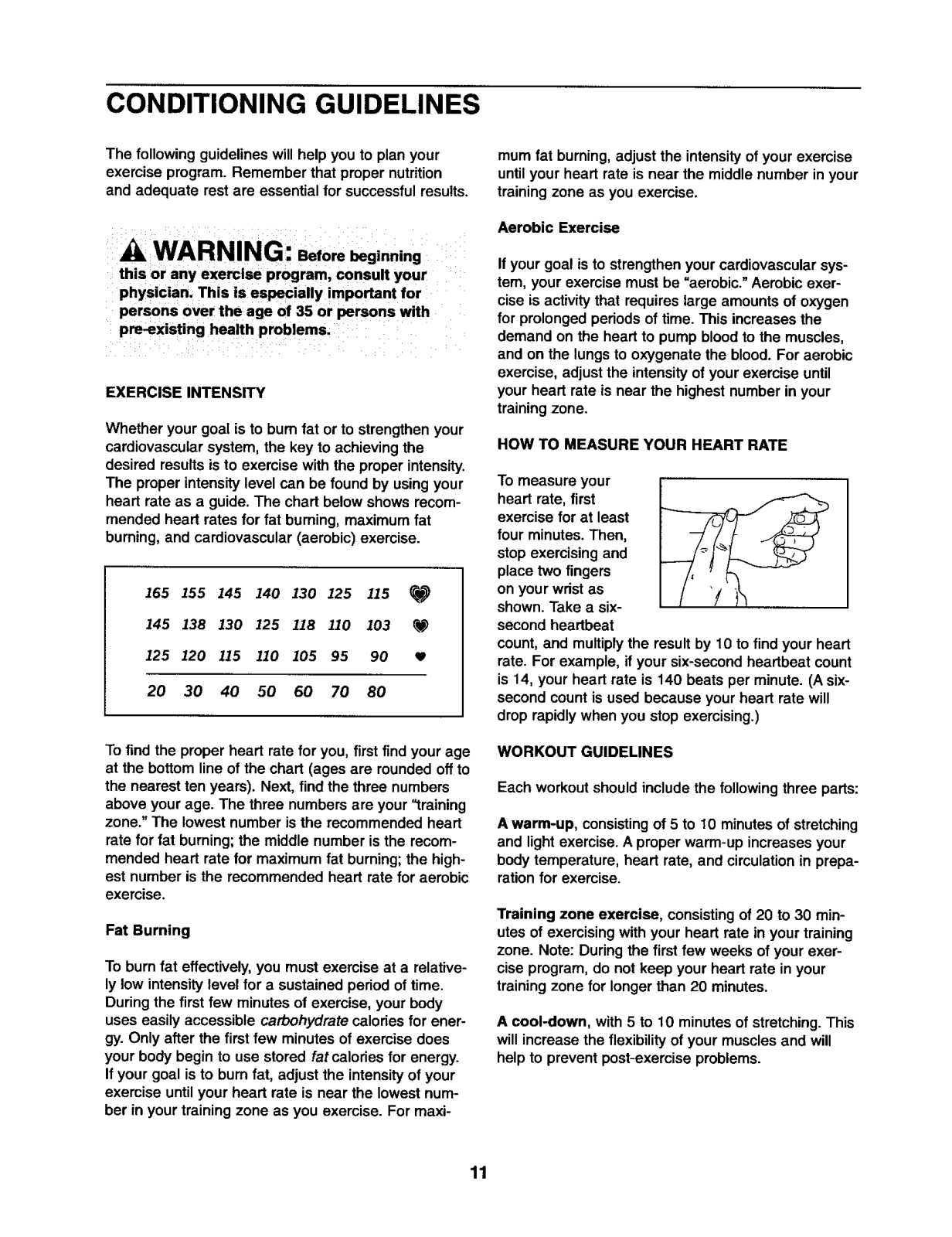

CONDITIONING GUIDELINES ............................................................... 12

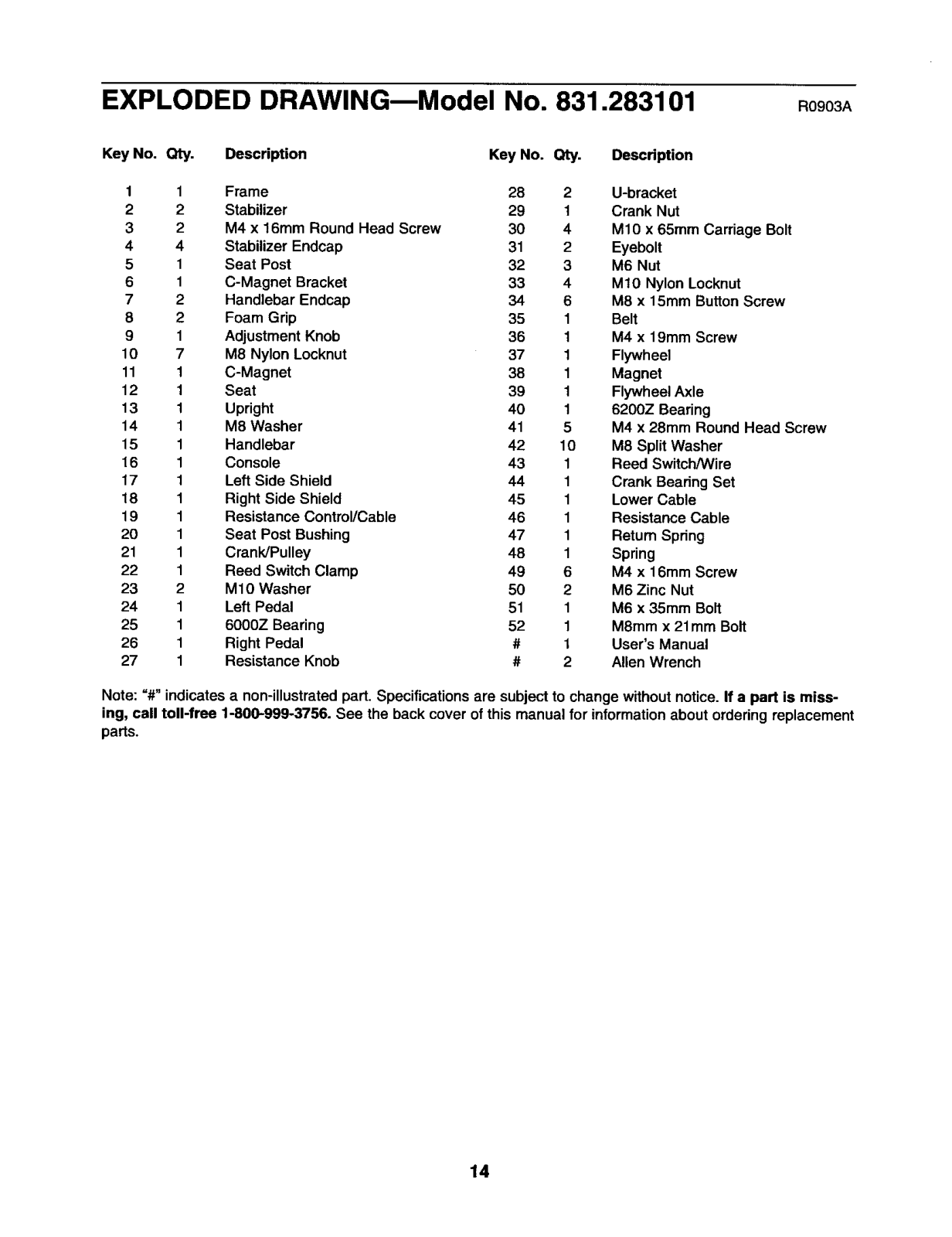

PART LIST .............................................................................. 14

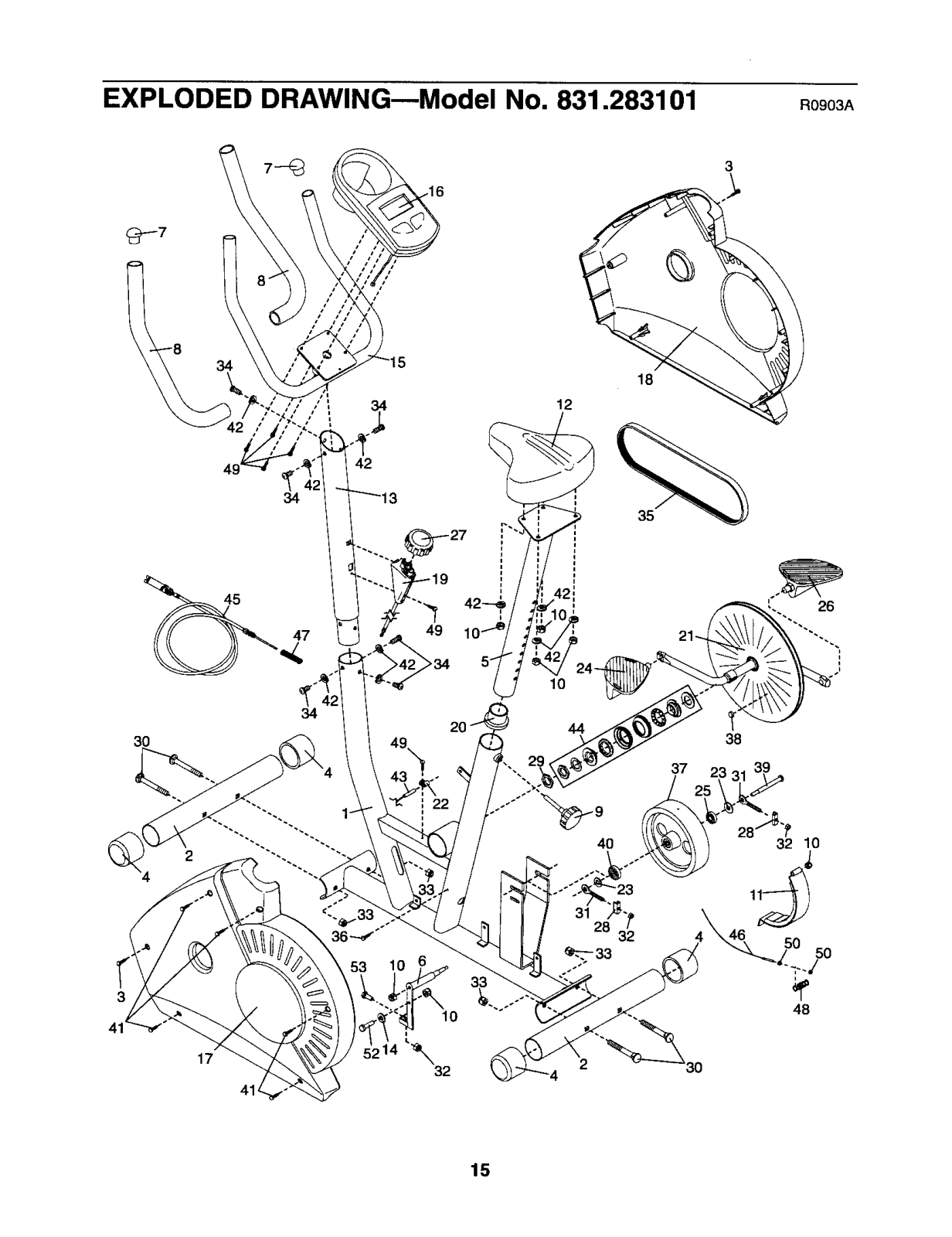

EXPLODED DRAWING .................................................................... 15
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY .............................................................. Back Cover
IMPORTANT PRECAUTIONS
WARNING: TOreduce the dsk of serious injury, read the following important precau-
tions before using the exercise cycle.
1. Read all instructions in this manual before
using the exercise cycle.
2. Use the exercise cycle only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions. 9. Always keep your back straight while using
4,
Use the exercise cycle indoors on a level sur-
face. Keep the exercise cycle away from 10. If you feel pain or dizziness while exercising,
moisture and dust. Place a mat under the stop .......... and cool down.
exercise cycle to protect the floor.
5. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. Wear appropriate clothes when exercising; do
not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
8. The exercise cycle should not be used by
persons weighing more than 250 pounds.
the exercise cycle; do not arch your back.
11.The exercise cycle does not have a free
wheel; the pedals will continue to move until
the flywheel stops.
12. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
WARNIN G: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

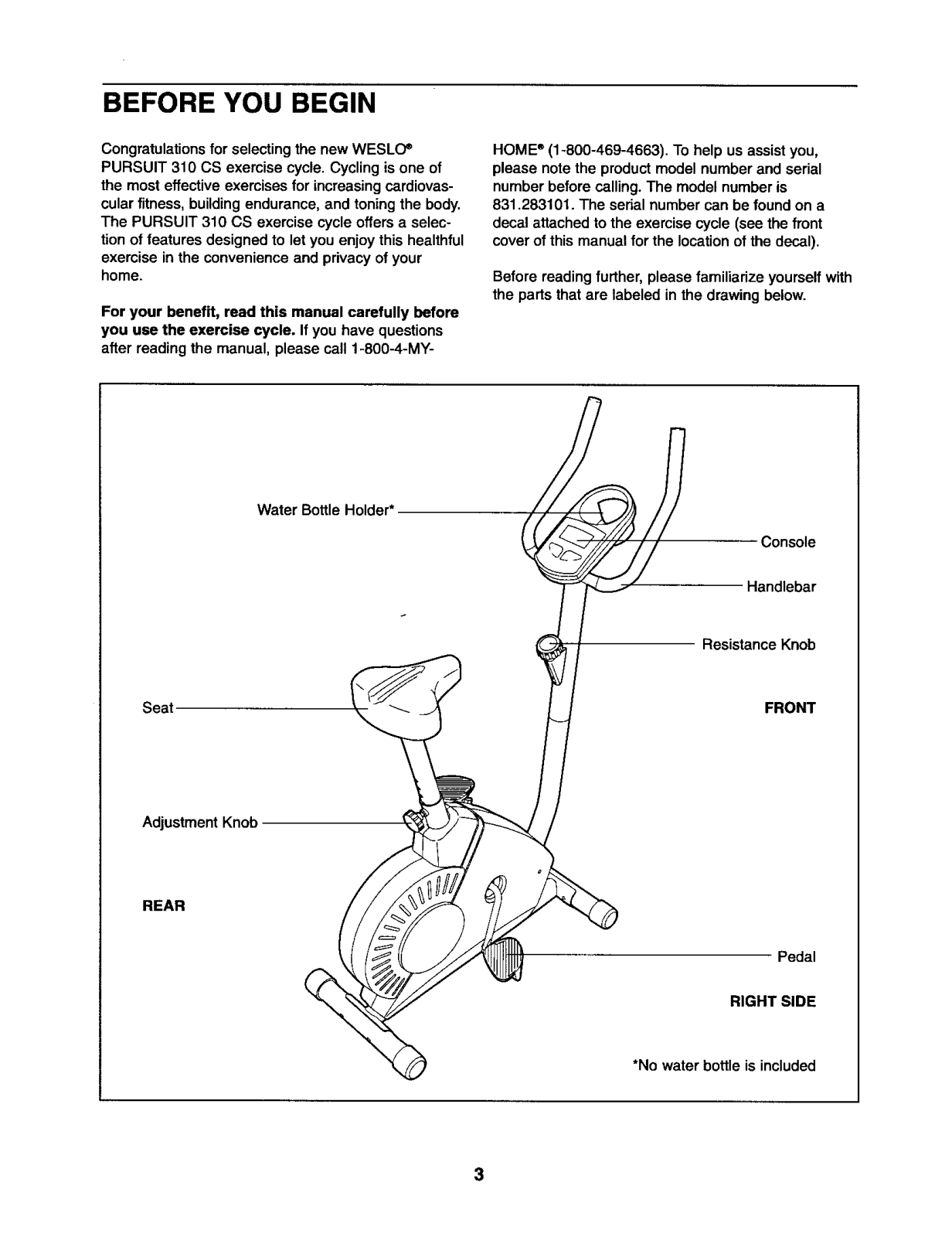

BEFORE YOU BEGIN
Congratulations for selecting the newWESLO °
PURSUIT 310 CS exercise cycle. Cycling is one of
the most effective exercises for increasing cardiovas-
cular fitness, building endurance, and toning the body.
The PURSUIT 310 CS exercise cycle offers a selec-
tion of features designed to let you enjoy this healthful
exercise in the convenience and privacy of your
home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after readingthe manual, please call 1-800-4-MY-
Water Bottle Holder*
HOME ®(1-800-469-4663). To help us assist you,
please note the product model number and serial
number before calling. The model number is
831.283101. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Handlebar
Seat
Adjustment Knob
REAR
Resistance Knob
FRONT
Pedal
RIGHT SIDE
*No water bottle is included
3

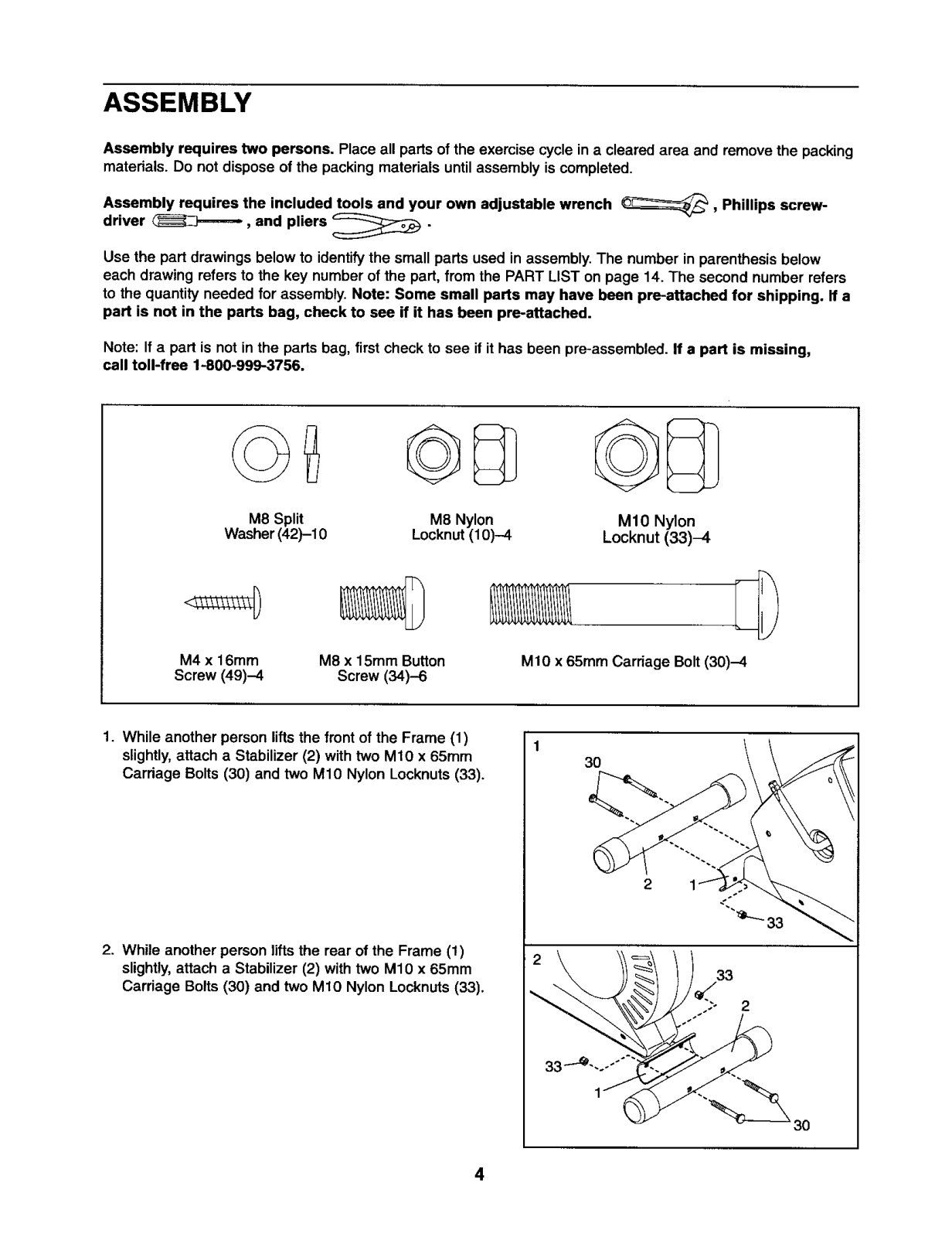

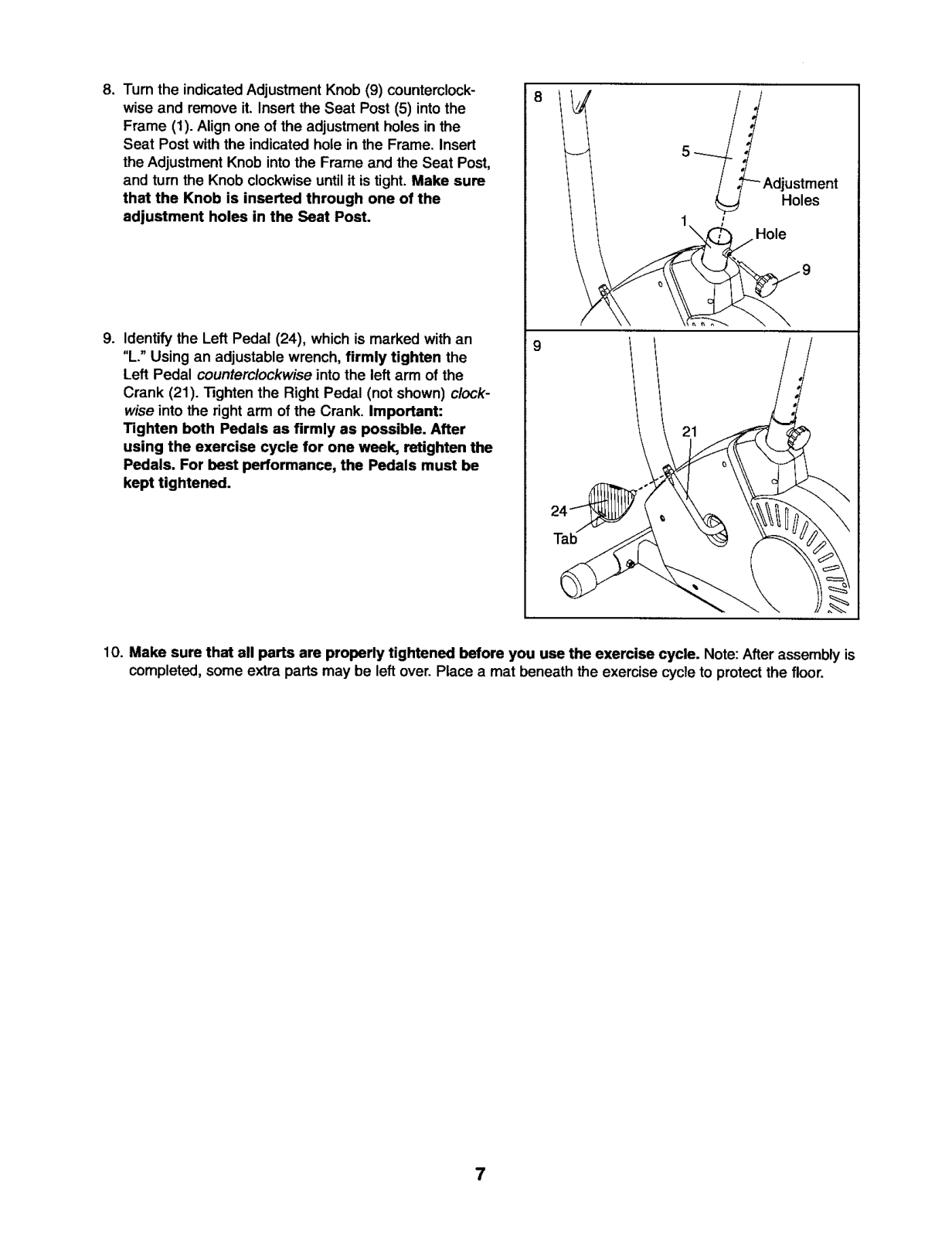

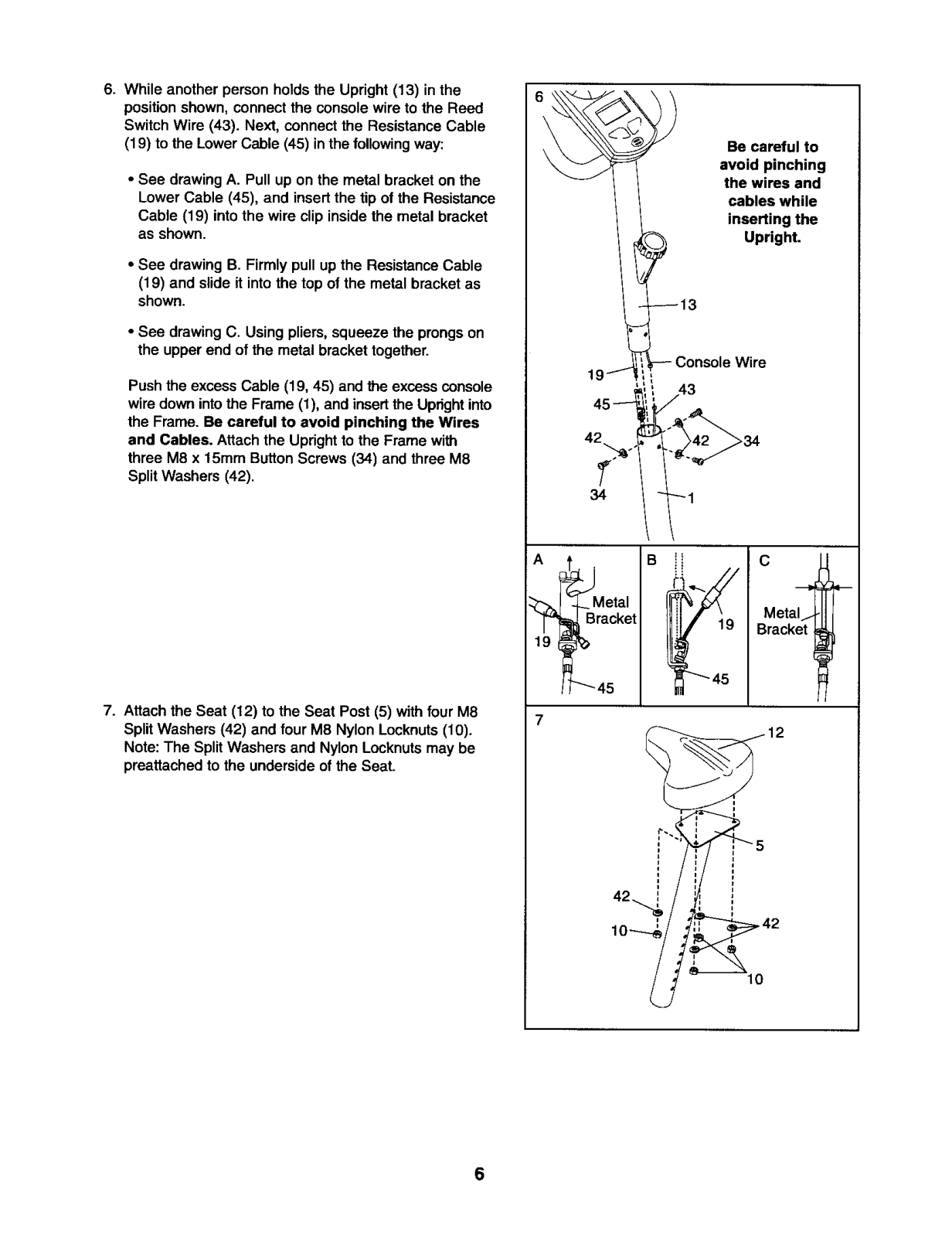

ASSEMBLY
Assembly requires two persons. Placeall partsofthe exercise cyclein a cleared area and removethe packing
materials. Do notdispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench _, Phillips screw-
driver _Y,,..-,,.=,--, and pliers _.
Use the part drawings below to identifythe small parts used in assembly.The number in parenthesis below
each drawing refers to the key numberofthe part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
Note: If a part is not inthe parts bag, firstcheck to see if it has been pre-assembled. If a part is missing,
call toll-free 1-800-999-3756.
M8 Split M8 Nylon
Washer(42)-10 Locknut(10)-4
M4 x 16mm
Screw (49)-4
1. While another person lifts the front of the Frame (1)
slightly, attach a Stabilizer (2) with two MIO x 65ram
Carriage Bolts (30) and two MIO Nylon Locknuts (33).
2. While another person lifts the rear ofthe Frame (1)
slightly, attach a Stabilizer (2) with two MIO x 65mm
Carriage Bolts (30) and two MIO Nylon Locknuts (33).
M8 x 15mm Button
Screw (34)-6
M10 Nylon
Locknut (33)-4
M10 x 65mm Carriage Bolt(30)-4
3O
33
2
33
3O
4

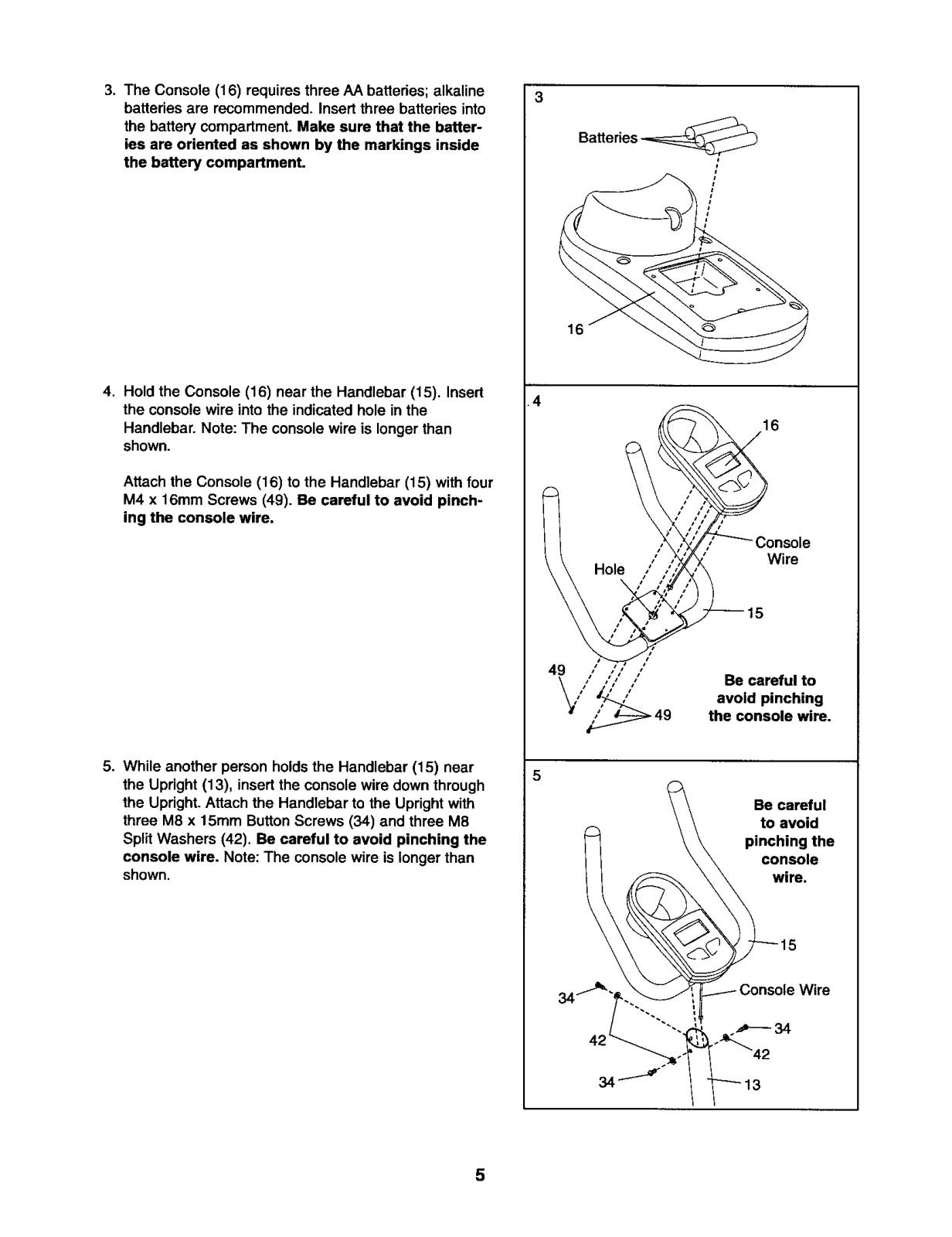

3. The Console (16) requires three AA batteries;alkaline
batteries are recommended. Insert three batteries into
the battery compartment. Make sure that the batter-
ies are oriented as shown by the markings inside
the battery compartment.
Batteries
J
16
4. Hold the Console (16) near the Handlebar (15). Insert
the console wire into the indicated hole in the
Handlebar. Note: The console wire is longer than
shown.
Attach the Console (16) to the Handlebar (15) with four
M4 x 16mm Screws (49). Be careful to avoid pinch-
ing the console wire,
5. While another person holds the Handlebar (15) near
the Upright (13), insert the console wire down through
the Upright. Attach the Handlebar te the Upright with
three M8 x 15ram Button Screws (34) and three M8
Split Washers (42). Be careful to avoid pinching the
console wire. Note: The console wire is longer than
shown,
4
16
Wire
49
isI
Be careful to
avoid pinching
the console wire.
5
Be careful
to avoid
pinching the
console
wire.
