Model No. WLTL19105.1
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
erial No.
S
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.wesloservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
O
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
The treadmill should not be used by persons
7.
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local WESLO dealer or call the toll-free
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 4 if the treadmill is not working properly.)
2
15. Read, understand, and test the emergency
•Hazardous Voltage
•Risk of Electric Shock
•Unplug Treadmill before Assembly
/Disassembly.
top procedure before using the treadmill (see
s
TREADMILL OPERATION).
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in use.
19. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5 and HOW TO FOLD
AND MOVE THE TREADMILL on page 11.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Do not change the incline of the treadmill by
lacing objects under the treadmill.
p
22. Inspect and properly tighten all parts of the
treadmill regularly.
23. Never drop or insert any object into any
opening.
DANGER: Always unplug the power
24.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
25. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been
placed on your treadmill. If a decal is
missing, or if it is not legible, please
call the toll-free telephone number on
the front cover of this manual and
order a free replacement decal. Apply
the decal in the location shown. Note:
The decals are not shown at actual
size.
3
BEFORE YOU BEGIN
Thank you for selecting the WESLO®CADENCE G-25
treadmill. The CADENCE G-25 treadmill combines advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
he convenience and privacy of your home. And when
t
you’re not exercising, the unique CADENCE G-25 can
be folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, see the front cover of this manual. To
Water Bottle Holder
(Bottle not included)
Handrail
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is WLTL19105.1. The serial
number can be found on a decal attached to the tread-
ill (see the front cover of this manual for the location).
m
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.wesloservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Key/Clip
Handrail
Walking Belt
Foot Pad
LEFT SIDE
RIGHT SIDE
Hood
Power Cord
Circuit Breaker
Wheel
Incline Leg
Rear Roller
Adjustment Bolts
4
ASSEMBLY
•Hazardous Voltage
•Risk of Electric Shock
•Unplug Treadmill before Assembly
/Disassembly.
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not
dispose of the packing materials until assembly is completed. Do not remove the long plastic tape is inside
the Right Handrail until told to. Note: The underside of the treadmill walking belt is coated with high-performance
lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the
shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt, simply
wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver ,
adjustable wrenches , and 9/16” socket wrench , wire cutters .

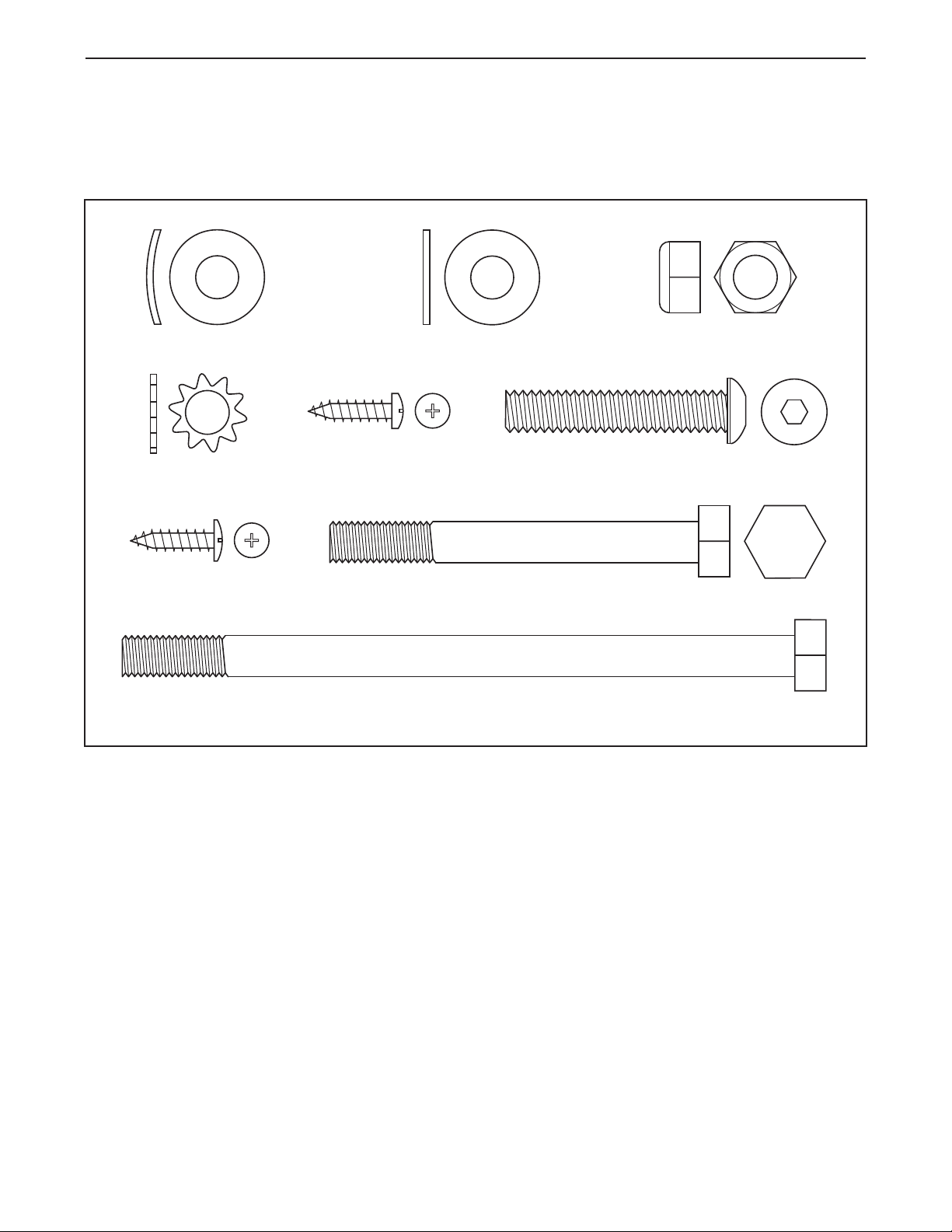

Note: To identify small parts used during assembly, see the PART IDENTIFICATION CHART in the center of
this manual.
1. Hold the Base
(71) in the position shown.
Identify the
Right Handrail
(6), which has a
large hole near
the lower end.
Hold the Right Handrail with the bend in the position
shown.
Using a 9/16” socket wrench and the included allen
wrench, attach the Right Handrail (6) to the Base (71) with
two Handrail Bolts (12), two Formed Washers (31), and
two Nuts (17). Do not tighten the Handrail Nuts yet.
Attach the Left Handrail (7) to the Base (71) in the same
way.
2. Position the treadmill near the Handrails (6, 7) as shown. A
long plastic tape is inside the Right Handrail (6). Secure
the end of the plastic tape to the Wire Harness (22) with
the included plastic tie. Pull on the other end of the tape
to pull the Wire Harness through the Right Handrail and
out of the top.
2
17
2
71
7
Large
Hole
31
12
6
Bend
12
7
71
22
6
With the help of a second person, raise the Handrails (6,
7) so that the Base (71) is resting flat on the floor.
5
Tape
Tie
6
22
3. Using two adjustable wrenches, attach the Wheels (15)
to the inner sides of the Base (71) with two Wheel Bolts
14) and two Nuts (17) as shown. D
(
the Wheel Nuts; the Wheels should turn freely.
It may be helpful to tip the Handrails (6, 7) forward when
attaching the Wheels (15).
o not overtighten
3
7
6
4
1
71
15
17
4. Have a second person raise and hold the front end of the
treadmill.
Handrail (6) and the Frame (55). Attach the Right Handrail
and the Base (71) to the Frame with a Frame Bolt (10), a
Handrail Washer (11), and a Star Washer (33).
Repeat this step on the left side of the treadmill.
5. Hold the Console Base (1) near the Right Handrail (6).
Touch the Right Handrail to discharge any static.
Insert the end of the Wire Harness (22) through the three
looped plastic ties. Press the end of the Wire Harness
into the connector on the back of the Console Base (1) in
the location shown. The connectors should slide to-
gether easily and snap into place. If the connectors do
not slide together easily and snap into place, turn one
connector and then try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS TURNED
ON.
Hold a Frame Spacer (13) between the Right
4
6
55
12
71
5
1
6
13
33
10
11
Connector
22
Plastic
Ties
6
6. Set the Console (1) on the Right Handrail (6) and the Left
andrail (not shown). Start four Console Screws (58)
H
(only two are shown) into the Console. After you have
started all four Console Screws, tighten them.
Insert the excess Wire Harness (22) down into the Right
andrail (6). Tighten the three plastic ties around the Wire
H
Harness, and then cut off the ends of the plastic ties.
6
58
1
22
Plastic
Ties
6
7. Attach the Console Back (4) to the Console (1) with four
Console Screws (58). Make sure that no wires are
pinched.
See step 4. Tighten the four Handrail Bolts (12).
8. Raise the Frame to the vertical position (55). Make sure
that the Latch Pin (69) is in the Storage Latch (41) as
shown. Attach the Storage Latch to the Frame (55) with
three Latch Screws (70).
Do not tighten the Screws yet.
7
8
55
1
58
58
4
58
See the inset drawing. Position the Storage Latch (69) so
the Latch Pin (69) is aligned with the hole in the Left
Handrail (7). Slide the Latch Pin into the hole, as shown.
70
Tighten the three Latch Screws (70).
9. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen
wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the
floor or carpet, place a mat under the treadmill.
41
69
Hole
7
41
69
7
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances being turned on or off. To decrease the possi-
bility of your treadmill being damaged, always
use a surge suppressor with your treadmill (see
drawing 1 at the right). To purchase a surge suppressor, see your local WESLO dealer or call the
toll-free telephone number on the front cover of
this manual and order part number 146148, or see
your local electronics store.
ric shock. This product is equipped with a cord having
t
an equipment-grounding conductor and a grounding
plug.
Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
If it should malfunc-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw.
covers are not grounded. Contact a qualified elec
trician to determine if the outlet box cover is
grounded before using an adapter.
Some 2-pole receptacle outlet box
8
-

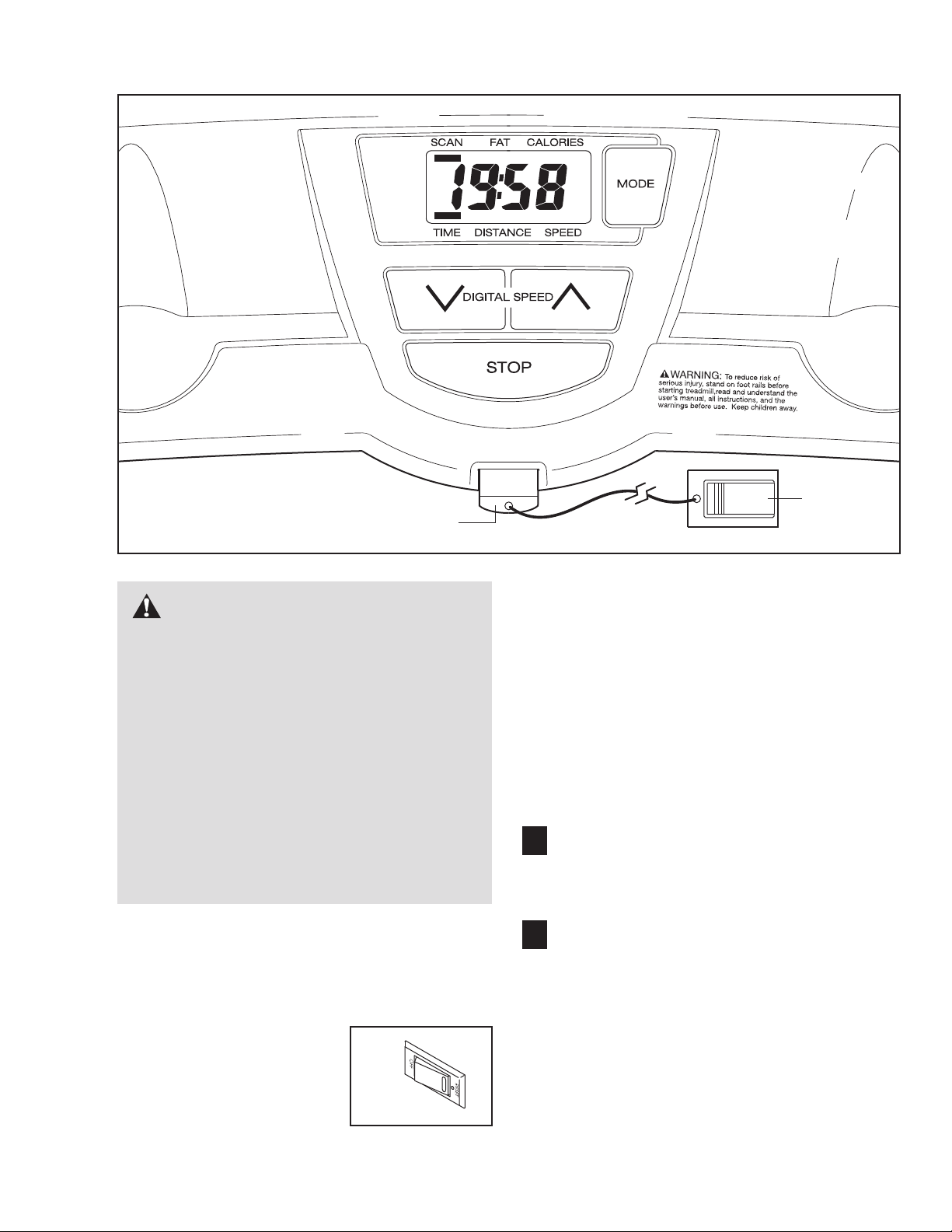

DIAGRAM OF THE CONSOLE
Note: If there is a sheet of clear plastic
on the console, remove the plastic.
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
• Always wear the clip (see the drawing
above) while operating the treadmill.
Adjust the speed in small increments to
•
avoid sudden jumps in speed.
To reduce the possibility of electric shock,
•
keep the console dry. Avoid spilling liquids
on the console and place only a sealed
water bottle in the water bottle holders.
STEP-BY-STEP CONSOLE OPERATION
Key
Clip
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothes. Then,
insert the key fully into the console. After a moment,
the display will light.
uation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the position of the clip.
Follow the steps below to operate the console.
Insert the key fully into the console.
Important: In an emergency sit-
1
A moment after the key is inserted, the display will
light.
Press the Digital Speed increase button to start
2
the walking belt.
Before operating the console, make sure that the
power cord is properly plugged in (see page 8).
In addition, locate the reset/off
circuit breaker on the treadmill
near the power cord, and
make sure that the circuit
breaker is in the reset position.
Reset
A moment after the button is pressed, the walking
belt will begin to move at 1 mph. Hold the handrails
and begin walking.
As you exercise, change the speed of the walking
belt as desired by pressing the Digital Speed buttons. Each time a button is pressed, the speed
setting will change by 0.1 mph; if a button is held
down, the speed setting will change in increments
of 0.5 mph.
9
To stop the walking belt, press the Stop button.
Note: If the time mode is displayed (see step 3
elow), the time will begin to flash.
b
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and center the
walking belt if necessary (see page 13).
Follow your progress with the display.
3
As you exercise, the console can display the following modes:
• Time—This
mode displays
the elapsed
time. Note: If the
time is displayed
when the walking belt is
stopped, the
time will begin to flash.
above or below
the word TIME,
ISTANCE,
D
SPEED, CALO-
IES, or FAT.
R
Make sure that
there is not a
mode indicator
below the word
SCAN.
To reset all modes, press the Stop button, remove
the key, and then reinsert the key.
When you are finished exercising, remove the
4
key from the console.
Step onto the foot rails, press the Stop button, and
remove the key from the console. Keep the key in a
secure place. Then, switch the reset/off circuit
breaker to the “off” position and unplug the power
cord.
Mode Indicator
• Distance—This mode displays the distance that
you have walked or run, in miles.
• Speed—This mode displays the speed of the
walking belt, in miles per hour.
• Calories—This mode displays the approximate
number of calories you have burned during your
workout.
• Fat Calories (FAT)—This mode displays the approximate number of fat calories you have
burned (see FAT BURNING on page 14).
• Scan—This mode displays the Time, Distance,
Speed, Calories, and Fat Calories modes, for
about seven seconds each, in a repeating cycle.
When the key is
inserted, the Scan
mode will be selected. One mode
indicator will appear below the
word SCAN, and
a second mode
indicator will show
which mode is
currently displayed.
To select only the Time, Distance, Speed,
Calories, or Fat Calories mode, press the Mode
button repeatedly until a mode indicator appears
Mode Indicator
HOW TO CHANGE THE INCLINE OF THE TREADMILL
To vary the intensity of your exercise, the incline of the
treadmill can be changed. There are two incline levels.
Before changing the incline, remove the key and
unplug the power cord. Next, fold the treadmill to the
storage position (see page 11).
To change
the incline, remove the incline pin from
one of the incline legs as
shown. Adjust
the incline leg
to the desired
height, and
fully reinsert
the incline
pin. Make
sure that the incline pin is in the “locked” position
shown in the inset drawing. Adjust the other incline leg
in the same way.
mill, make sure that both incline legs are at the
same height and that both incline pins are fully in
serted from the direction shown. Do not use the
treadmill with the incline pins removed.
After you have adjusted the incline legs, lower the
treadmill (see page 11).
Incline
Pin
CAUTION: Before using the tread-
Incline
Pin
Incline
Pin
-
10
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Unplug the power cord. CAUTION: You must be able to
safely lift 45 pounds (20 kg) to raise, lower, or move the
readmill.
t
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As
you raise the treadmill, make sure to lift with your legs
rather than your back.
to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the latch pin is
aligned with the hole in the left handrail. Slide the latch pin
into the hole.
as far as possible into the hole. Lock the latch pin by
pressing the end of the pin into the slot in the storage
latch as shown in the inset drawing.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage
position in temperatures above 85° Fahrenheit.
Make sure that the latch pin is inserted
Raise the treadmill about halfway
1
2
Latch
Pin
Hole
Slot
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch
pin is fully inserted into the hole in the handrail and
locked into place as described above.
1. Hold the handrails and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location.
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill until it is in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Using your left hand, slide the
latch pin to the right. Lock the latch pin in place by pressing the end of the pin into the slot in the storage latch.
Never
Wheel
2. See drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
1
1
MAINTENANCE AND TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 8. Important: The treadmill is not compatible
with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes,
and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, see the front cover of this manual.
PROBLEM: The displays of the console do not function properly
SOLUTION:
a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the Hood Screws (24) from
the Hood (23). Carefully remove the Hood.
c
Tripped
a
24
Reset
b. Locate the Reed Switch (46) and the Magnet (49) on
the left side of the Pulley (53). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8”. If necessary, loosen the Screw
(24), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Hood, and run the
treadmill for a few minutes to check for a correct
speed reading.
12
b
Top View
1/8”
24
24
23
53
49
46
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
OWER CORD.Using the allen wrench, turn both
P
rear roller bolts counterclockwise, 1/4 of a turn. When
the walking belt is properly tightened, you should be
able to lift each side of the walking belt 2 to 3 inches
off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the
key, and run the treadmill for a few minutes. Repeat
until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt has shifted to the left, first re-
move the key and
Using the allen wrench, turn the left rear roller bolt
clockwise 1/2 of a turn. Be careful not to overtighten
the walking belt. If the walking belt has shifted to
the right, turn the left rear roller bolt counterclockwise
1/2 of a turn. Plug in the power cord, insert the key,
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
UNPLUG THE POWER CORD.
b
Rear Roller
Adjustment Bolts
a
2”–3”
SOLUTION: a. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key, and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
b
13
CONDITIONING GUIDELINES
Aerobic Exercise
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for individuals over the age of 35 or individuals
ith pre-existing health problems.
w
The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the desired
results is to exercise with the proper intensity. The
proper intensity level can be found by using your heart
rate as a guide. The chart below shows recommended
heart rates for fat burning and aerobic exercise.
f your goal is to strengthen your cardiovascular sys-
I
tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count,
and multiply the result by ten to find
your heart rate. (A six-second count is used because
your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, adjust the
speed or incline of the treadmill accordingly.
To find the proper heart rate for you, first find your age
at the top of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers below
your age. The three numbers are your “training zone.”
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible
the first few minutes does your body begin to use
stored
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone.
carbohydrate calories
fat calories
for energy. If your goal is to burn fat,
for energy. Only after
WORKOUT GUIDELINES
Each workout should include the following three important parts:
A Warm-up
Warming up prepares the body for exercise by increasing circulation, delivering more oxygen to the muscles,
and raising the body temperature. Begin each workout
with 5 to 10 minutes of stretching and light exercise to
warm up (see SUGGESTED STRETCHES on page 15).
Training Zone Exercise
After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20
to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise—never hold your breath.
A Cool-down
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
14
EXERCISE FREQUENCY
o maintain or improve your condition, complete three
T
workouts each week, with at least one day of rest be-
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back, and groin.
tween workouts. After a few months, you may complete up to five workouts each week if desired. The key
o success is to make exercise a regular and enjoyable
t
part of your everyday life.
1
2
3
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for both legs. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
4
5
15
PART LIST—Model No. WLTL19105.1 R1005A
Key No. Qty. Description
1 1 Console
2 2 Handrail Endcap
3 1 Key/Clip
4 1 Console Back
5 6 Ground Screw
6 1 Right Handrail
7 1 Left Handrail
8 2 Rear Foot
9 1 Motor Tension Bolt
10 2 Frame Bolt
11 2 Handrail Washer
12 4 Handrail Bolt
13 2 Frame Spacer
14 2 Wheel Bolt
15 2 Wheel
16 2 Base Cap
17 7 Nut
18 1 Belly Pan Plug
19 6 Base Pad
20 4 Belly Pan Screw
21 1 Latch Warning Decal
22 1 Wire Harness
23 1 Hood
24 7 Hood Screw
25 1 Belly Pan
26 4 Small Screw
27 2 Belt Guide
28 2 Roller Spacer
29 1 Allen Wrench
30 1 Reset/Off Circuit Breaker
31 4 Formed Washer
32 1 Controller Bracket
33 2 Star Washer
34 2 Incline Leg Washer
35 1 Controller
36
37
38 1
39
1 Motor Bolt
1 Foot Pad, Left
Motor Tension Nut
1
Motor Star Washer
Key No. Qty. Description
40 1 Motor Tension Washer
41 1 Storage Latch
42 6 Base Pad Screw
43 1 Motor Assembly
44 1 Power Cord
45 1 Large Warning Decal
46 1 Reed Switch
47 1 Wire Tie Clamp
48 1 Reed Switch Clip
49 1 Magnet
50 1 Belt
51 2 Roller Adj. Bolt
52 6 Platform Screw
53 1 Front Roller/Pulley
54 1 Foot Pad, Right
55 1 Frame
56 1 Walking Belt
57 1 Walking Platform
58 8 Console Screw
59 2 Endcap Plate
60 1 Ground Wire
61 8 8” Cable Tie
62 1 Power Cord Grommet
63 2 Incline Leg
64 2 Incline Pin
65 1 Voltage Warning Decal
66 2 Roller Adj. Washer
67 2 Frame Endcap
68 2 U-nut
69 1 Latch Pin
70 3 Latch Screw
71 1 Base
72 1 Rear Roller
# 1 8” White Wire, Male/Female
# 1 4” Black Wire, Male/Flag
#
*Includes all parts shown in the box.
Specifications are subject to change without notice.
1 User’s Manual
Star Washer (33)–2
Nut (17)–6
Handrail Washer (11)–2
Formed Washer (31)–4
Handrail Bolt (12)–4
Frame Bolt (10)–2
Wheel Bolt (14)–2
Latch Screw (70)–3
Console Screw (58)–8
PART IDENTIFICATION CHART
Remove this chart and use it to identify small parts during assembly. Save
this chart and the EXPLODED DRAWING/PART LIST for future reference.
65
8
63
69
41
27
70
29
24
66
51
67
51
66
67
24
61
5
60
57
55
52
56
52
52
54
37
26
49
28
53
50
46
24
48
28
27
24
25
1
3
6
14
15
17
71
11
10
16
17
15
14
19
42
17
23
24
26
30
44
62
47
20
20
31
21
9
40
39
38
36
32
5
43
45
13
10
11
13
7
17
31
33
33
68
68
22
16
12
12
22
19
42
42
19
42
19
42
18
2
58
2
58
5
35
4
58
58
58
64
8
64
63
34
34
72
17
5
42
19
19
59
59
EXPLODED DRAWING—Model No. WLTL19105.1 R1005A
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information:
• the MODEL NUMBER of the product (WLTL19105.1)
• the NAME of the product (WESLO®CADENCE G-25 treadmill)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED
DRAWING in the center of this manual)
WESLO is a registered trademark of ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customer’s responsibility. For inhome service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
2005 ICON IP, Inc.
Part No. 227090 R1005A
Printed in CANADA
©
Loading...
