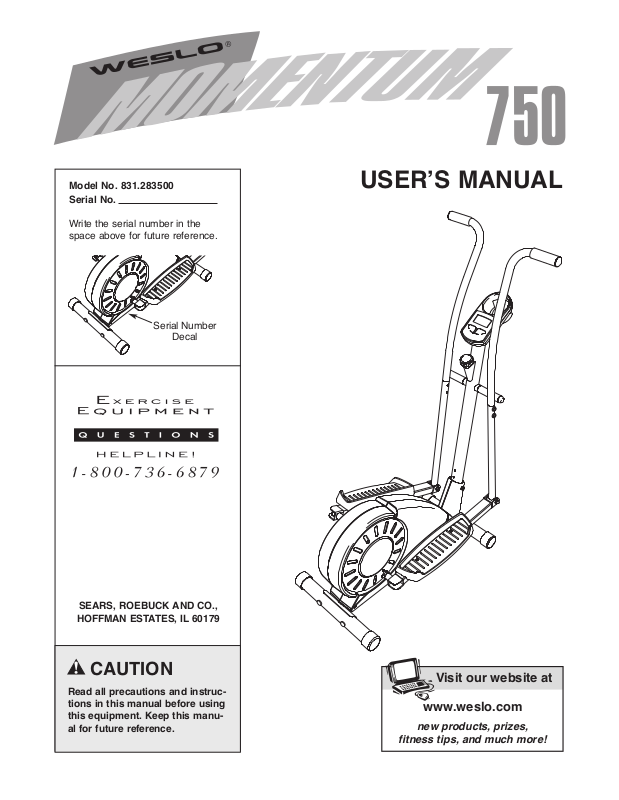

Page 1
Model No. 831.283500
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal
USERʼS MANUAL
SEARS, ROEBUCK AND CO.,
HOFFMAN ESTATES, IL 60179
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

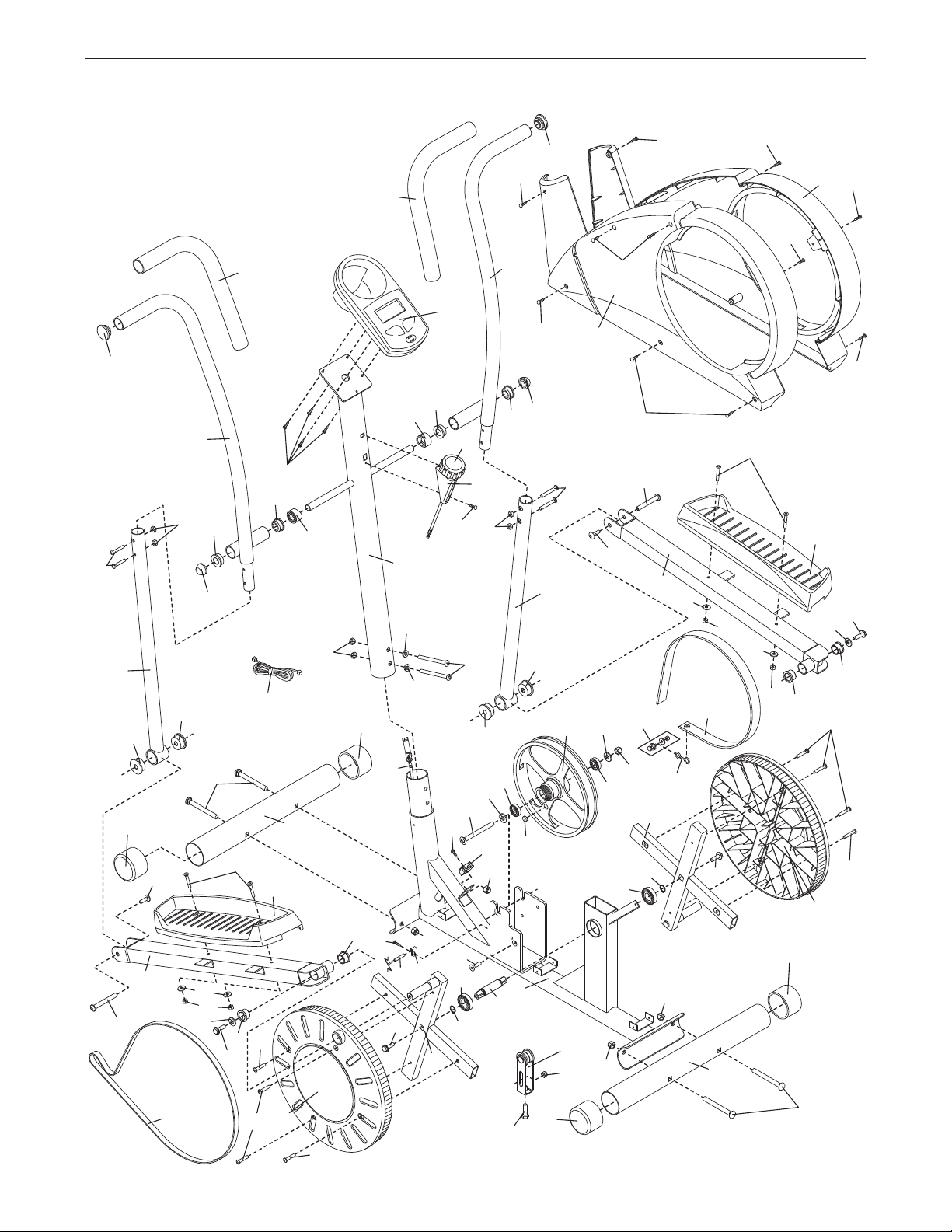

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90-DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual before
using the elliptical crosstrainer. Use the
elliptical crosstrainer only as described.
2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.
3. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrainer indoors, away from moisture and dust.
4. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
5. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.
6. The elliptical crosstrainer should not be used
by persons weighing more than 250 pounds.
7. Wear appropriate exercise clothing when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection.
8. Always hold the handlebars when mounting,
dismounting, or using the elliptical
crosstrainer.
9. Keep your back straight when using the elliptical crosstrainer. Do not arch your back.
10. If you feel pain or dizziness while exercising, stop immediately and cool down.
11. When you stop exercising, allow the pedals
to slowly come to a stop.
12. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. SEARS assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Congratulations for selecting the new WESLO
OMENTUM 750 elliptical crosstrainer. The MOMEN-
M
TUM 750 elliptical crosstrainer is an incredibly smooth
exerciser that moves your feet in a natural elliptical
path, minimizing the impact on your knees and
ankles. And the unique MOMENTUM 750 features
adjustable resistance and a simple-to-use console to
help you get the most from your exercise.
For your benefit, read this manual carefully before
using the elliptical crosstrainer. If you have ques-
tions after reading this manual, please call our toll-
Handlebar
®
free HELPLINE at 1-800-736-6879, Monday through
aturday, 7 a.m. until 7 p.m. Central Time (excluding
S
holidays). To help us assist you, please note the product model number and serial number before calling.
The model number is 831.283500. The serial number
is found on a decal attached to the elliptical
crosstrainer (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
Resistance Knob
BACK
Pedal Disk
Console
FRONT
Pedal Arm
Pedal
*No water bottle is included
4
Page 5
ASSEMBLY
M4 x 16mm
Screw (42)–4
M10
Washer (35)–2
M10 Split
Washer (59)–2
M10 Nylon
Locknut (33)–6
Pedal Arm Bolt Set (40)–2
M8 Nylon
Locknut (38)–4
M10 x 25mm
Patch Screw (22)–2
M10 x 75mm Carriage Bolt (34)–4M10 x 66mm Button Bolt (48)–2
M8 x 38mm Button Bolt (50)–4
M6 Nylon
Locknut (27)–4
M6
Washer (25)–4
M6 x 54mm Flat Head
Bolt (36)–4
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
rench , and a rubber mallet .
w
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 14. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
1. Identify the Front Stabilizer (10), which is narrower than
the Rear Stabilizer (not shown). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33).
5
1
34
10
1
33
Page 6

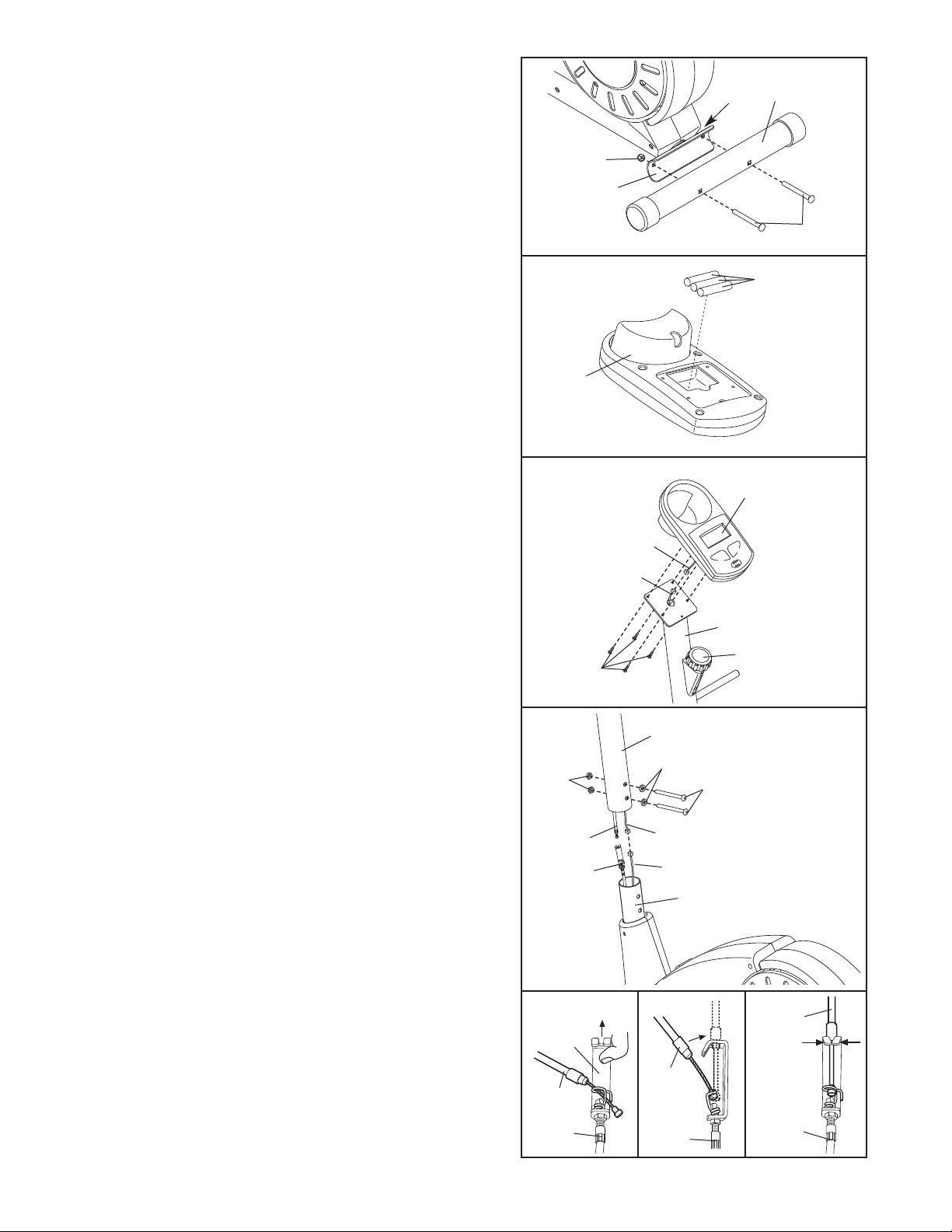

2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (28) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
ocknuts (33).
L
2
8
2
33
33
1
34
3. The Console (23) requires three “AA” batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the battery compartment. Make
sure that the batteries are oriented as shown by
the diagram inside the battery compartment.
4. While another person holds the Console (23) near the
Upright (2), connect the console wire to the Upper
Wire (44). Insert the console wire and the Upper Wire
into the Upright.
Attach the Console (23) to the Upright (2) with four M4
x 16mm Screws (42). Be careful to avoid pinching
the console wire or the Upper Wire (44).
Turn the Resistance Knob (63) counterclockwise to
the lowest setting before continuing to the next
step.
3
23
4
Console Wire
42
Batteries
23
44
2
63
5. While another person holds the Upright (2) near the
Frame (1), connect the Upper Wire (44) to the Reed
Switch Wire (53).
Next, connect the Resistance Cable (63) to the Lower
Cable (55) in the following way:
• Refer to drawing A. Pull up on the metal bracket on
the Lower Cable (55), and insert the tip of the
Resistance Cable (63) into the wire clip inside of the
metal bracket.
• Refer to drawing B. Firmly pull the Resistance Cable
(63) and slide it into the metal bracket on the Lower
Cable (55) as shown.
• Refer to drawing C. Using pliers, squeeze together
the prongs on the upper end of the metal bracket.
Push the excess cable and wire down into the Frame
(1). Slide the Upright (2) onto the Frame. Be careful
not to pinch the wires or cables. Secure the Upright
to the Frame with two M10 x 66mm Button Bolts (48),
two M10 Split Washers (59), and two M10 Nylon
Locknuts (33). Do not tighten the Button Bolts yet.
5
33
A
Metal
Bracket
63
55
63
55
2
59
44
53
1
B
63
55
Make sure that
the wires and
cables do not
48
get pinched
and damaged
during this
step.
C
63
55
6
Page 7

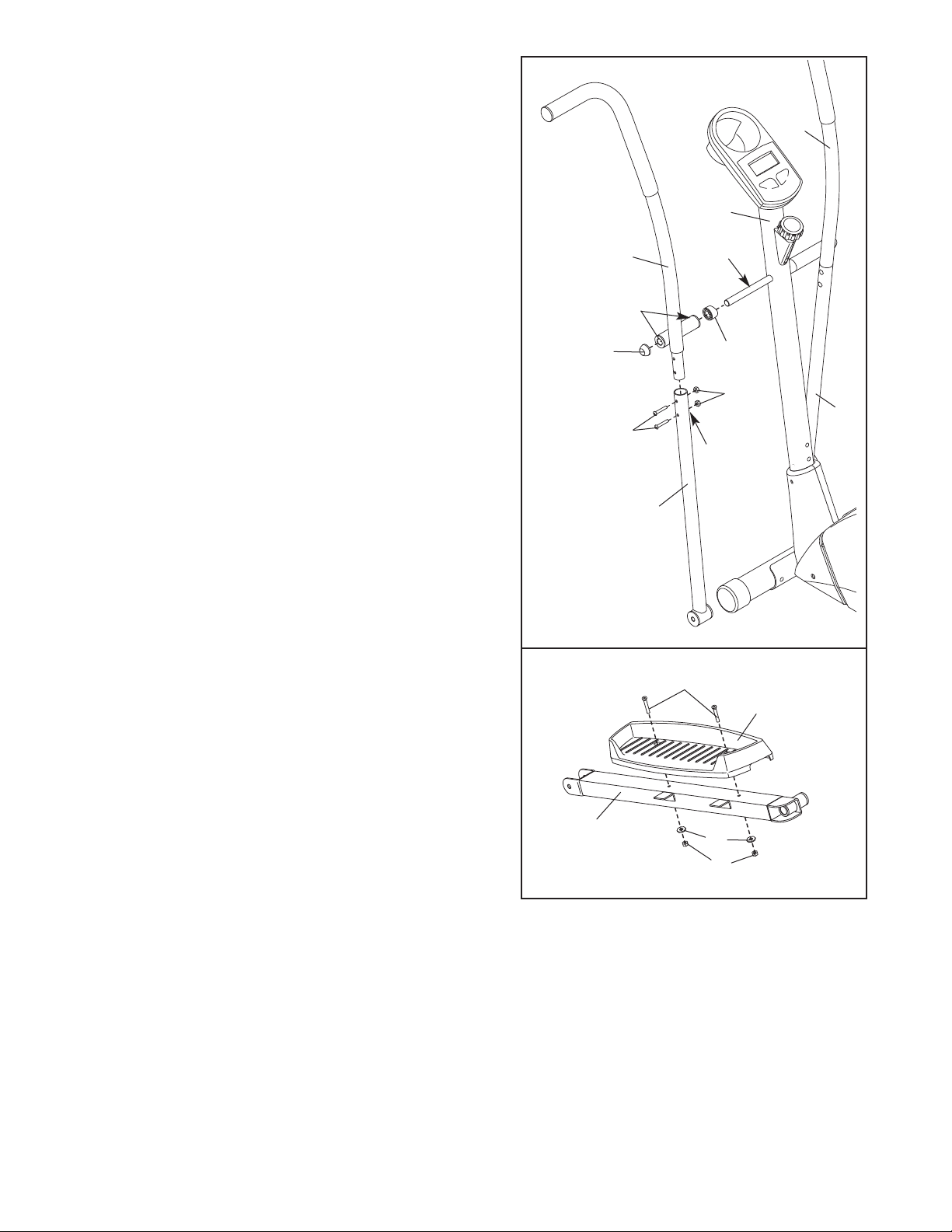

6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Arms (5); make sure that the Handlebar
rm is turned so the hexagonal holes are on the
A
indicated side. Attach the Left Handlebar to the
andlebar Arm with two M8 x 38mm Button Bolts (50)
H
and two M8 Nylon Locknuts (38). Make sure that the
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
6
8
2
Apply a small amount of the included grease to the left
axle on the Upright (2).
Make sure that there are two Small Handlebar
Bushings (49) in the Left Handlebar (6). Slide a
Handlebar Spacer (47) and the Left Handlebar onto the
left axle on the Upright (2) as shown. Make sure that the
Handlebar Spacer is turned so the curved side is facing the Upright. Tap an Axle Cap (14) onto the axle.
Repeat this step to assemble the Right Handlebar (8)
and the other Handlebar Arm (5).
7. Identify the Left Pedal Arm (11). Attach a Pedal (13) to
the Left Pedal Arm with two M6 x 54mm Flat Head
Bolts (36), two M6 Washers (25), and two M6 Nylon
Locknuts (27) as shown.
6
49
14
50
5
7
Grease
47
38
5
Hexagonal
Holes
36
13
Attach the other Pedal to the Right Pedal Arm (not
shown) in the same way.
11
25
27
7
Page 8

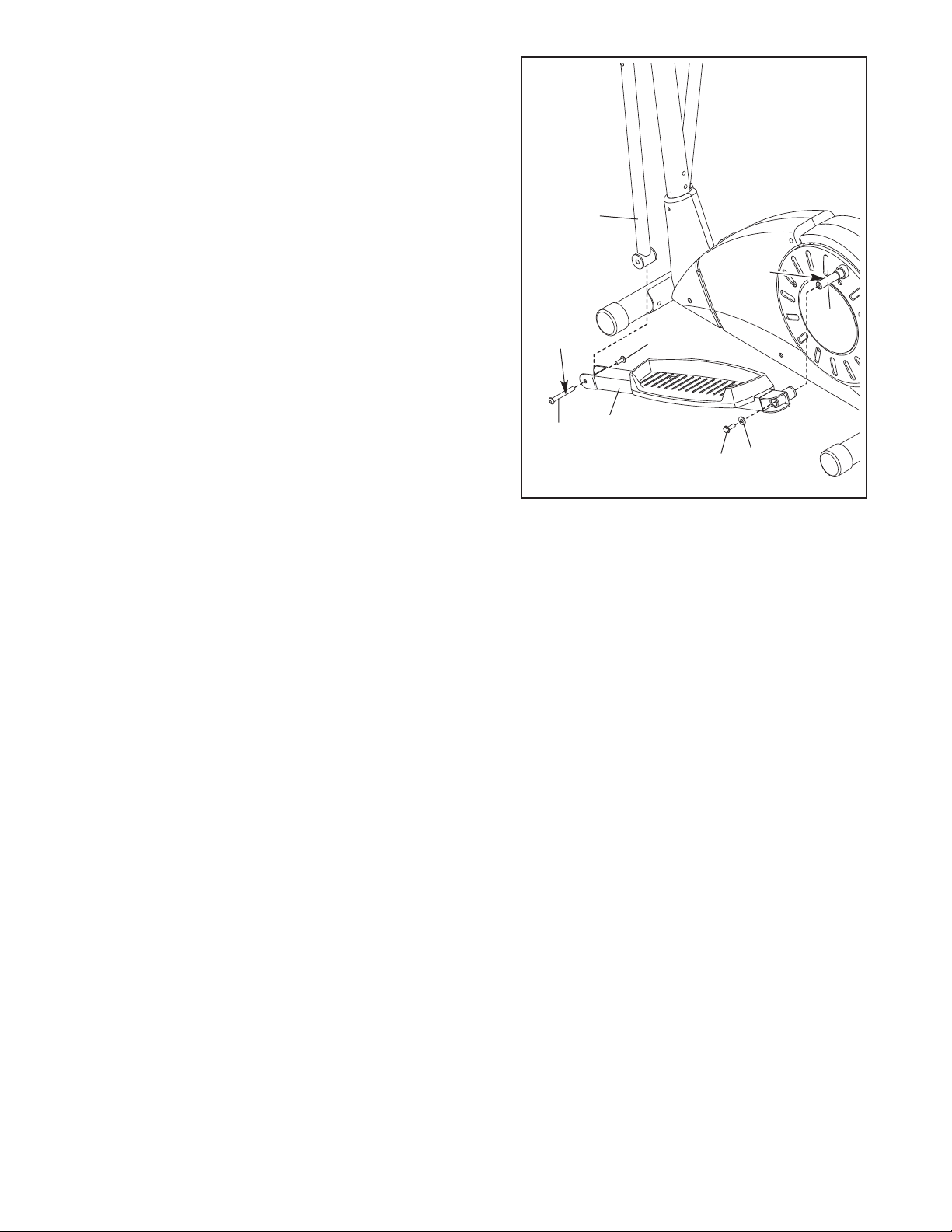

8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide the Left Pedal Arm (11) onto
the axle. Slide an M10 Washer (35) onto an M10 x
5mm Patch Screw (22), and tighten the Patch Screw
2
into the axle.
Next, hold the lower end of the left Handlebar Arm (5)
inside of the bracket on the Left Pedal Arm (11). Apply
grease to a Pedal Arm Bolt Set (40). Attach the Left
Pedal Arm to the left Handlebar Arm with the Bolt Set.
Do not overtighten the Bolt Set; the Handlebar Arm
must pivot freely.
8
5
Grease
Attach the Right Pedal Arm (not shown) to the right
side of the elliptical crosstrainer in the same way.
Grease
Refer to step 5. Tighten the M10 x 66mm Button Bolts
(48) in the Upright (2).
Refer to step 6. Tighten the M8 x 38mm Button Bolts
(50) in the Handlebar Arms (5).
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
40
11
40
22
35
16
8
Page 9

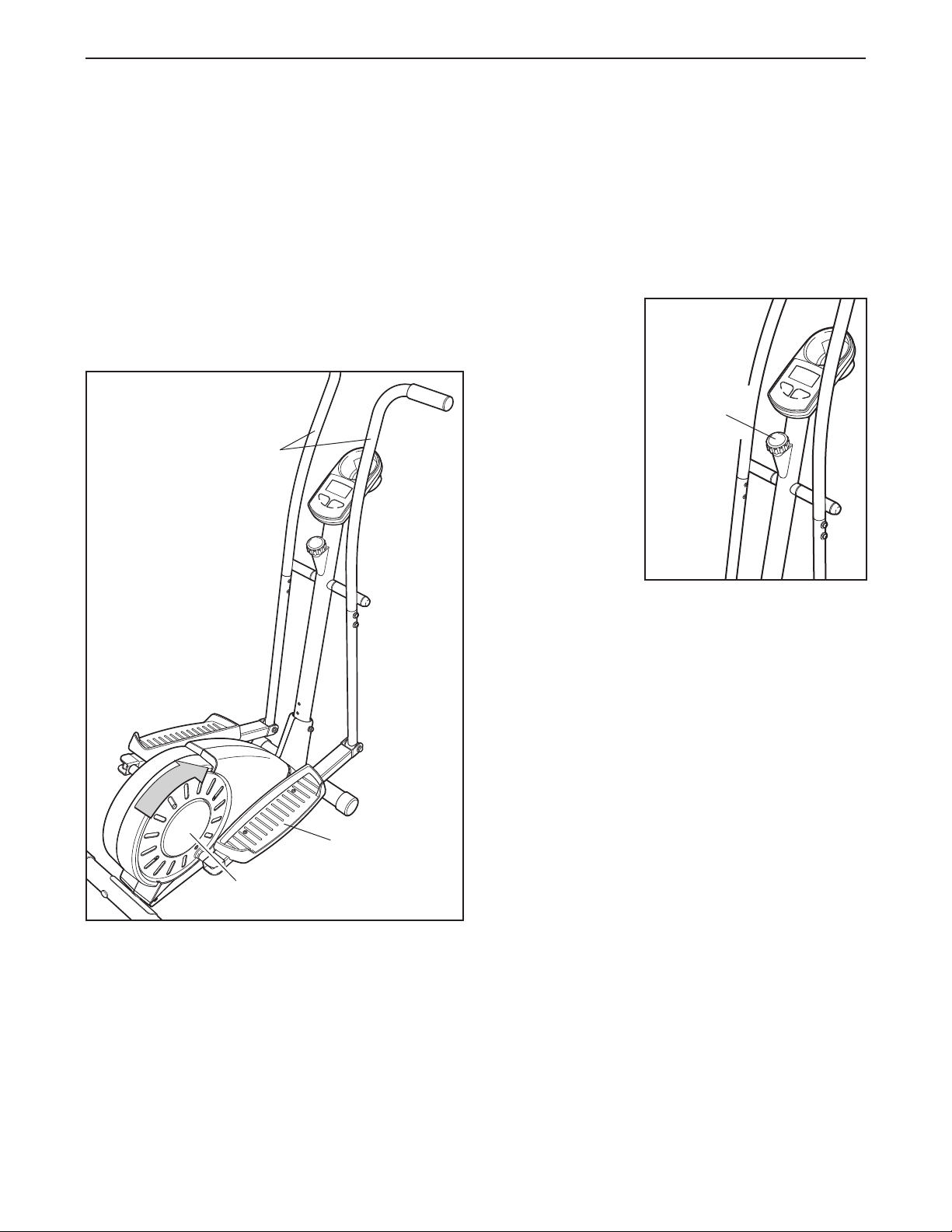

HOW TO USE THE ELLIPTICAL CROSSTRAINER
HOW TO EXERCISE ON THE ELLIPTICAL
CROSSTRAINER
To mount the elliptical crosstrainer, hold the handlebars
and step onto the pedal that is in the lowest position.
Then, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion. Note:
The pedal disks can turn in either direction. It is
recommended that you move the pedal disks in
the direction shown by the arrow; however, for
variety, you may turn the pedal disks in the opposite direction.
Handlebars
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the pedals will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO ADJUST THE PEDALING RESISTANCE
As you exercise,
you can adjust the
resistance of the
pedals with the
resistance knob on
the upright. To
increase the resistance, turn the
knob clockwise; to
decrease the resistance, turn the
knob counterclockwise.
Resistance
Knob
Pedal Disk
Pedal
9
Page 10

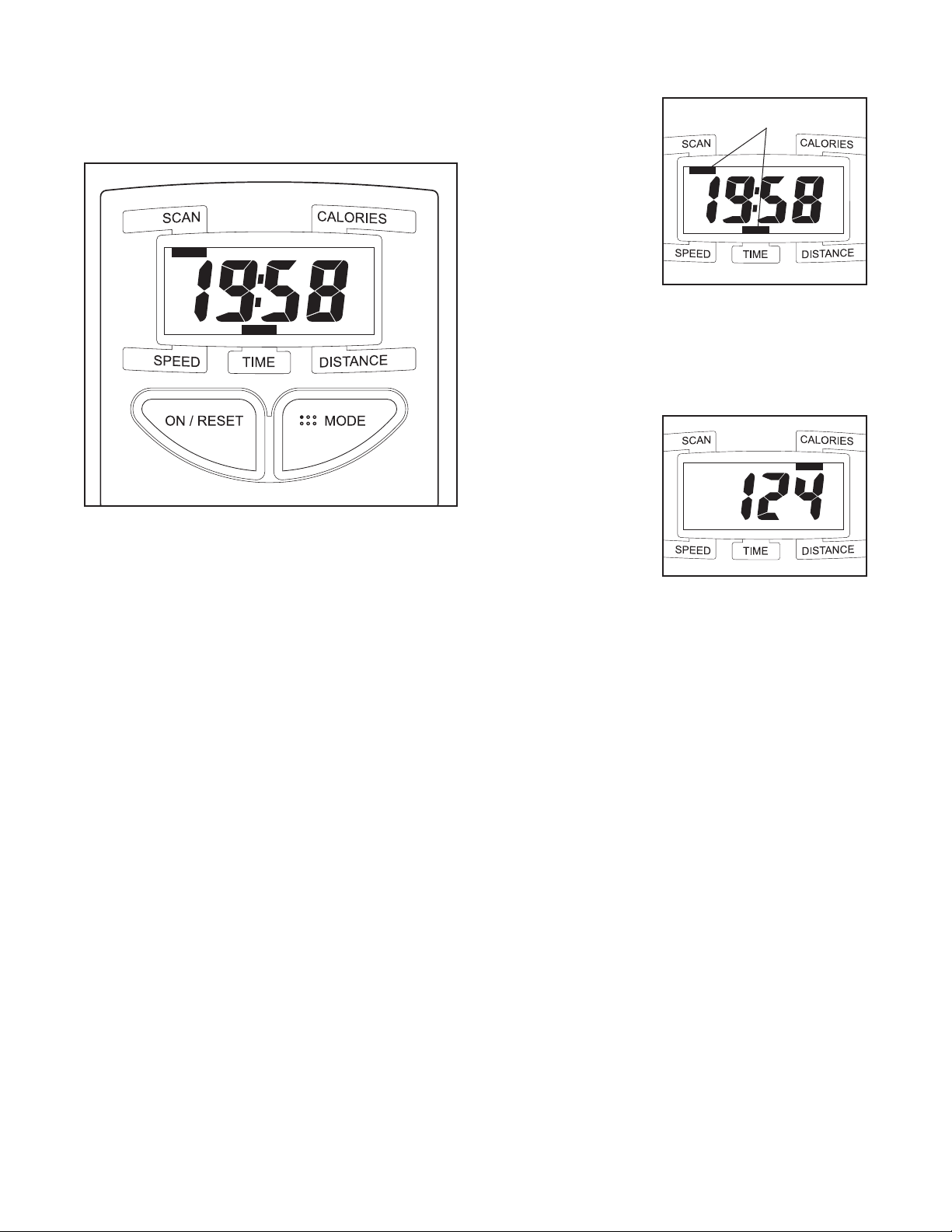

FEATURES OF THE CONSOLE
2. Select one of the modes:
The easy-to-use console features five modes that pro-
ide instant exercise feedback during your workouts.
v
The modes are described below.
Speed—This mode displays your pedaling speed, in
miles per hour or kilometers per hour.
Time—This mode displays the elapsed time. Note: If
you stop pedaling for a few seconds, the time mode
will pause.
Scan mode—
hen the power
W
is turned on, the
can mode will be
s
selected automatically. A mode indicator will appear
below the word
“SCAN” to show
that the scan
mode is selected,
and a second
mode indicator will show which mode is currently
displayed. Note: If you have selected a different
mode, repeatedly press the Mode button to reselect the scan mode.
Speed, time, distance, or calorie
mode—To select
one of these
modes for continuous display,
repeatedly press
the Mode button.
The mode indicators will show
which mode is selected. Make sure there is not a
mode indicator below the word “SCAN.”
Mode Indicators
Distance—This mode displays the distance you have
pedaled, in miles or kilometers.
Calorie—This mode displays the approximate number
of calories you have burned.
Scan—This mode displays the speed, time, distance,
and calorie modes, for a few seconds each, in a
repeating cycle.
HOW TO OPERATE THE CONSOLE
Make sure there are batteries in the console (see
BATTERY REPLACEMENT on page 11). If there is a
thin sheet of clear plastic on the console, remove it.
Follow the steps below to operate the console.
1. To turn on the power, press the On/Reset button or
begin pedaling. The entire display will briefly
appear; the console will then be ready for use.
Note: The console can display speed and distance in either miles or kilometers. To change
the unit of measurement, press the On/Reset
button for about five seconds. The letters mph or
km/h will appear in the display to show which unit of
measurement is selected. When the batteries are
replaced, it may be necessary to reselect the
desired unit of measurement.
3. To reset the display at any time, press the
On/Reset button.
4. To turn off the power, simply wait for a few minutes.
The console has an “auto-off” feature. If the
pedals are not moved and the console buttons
are not pressed for a few minutes, the power
will turn off automatically to save the batteries.
10
Page 11
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical crosstrainer
egularly. Replace any worn parts immediately.
r
To clean the elliptical crosstrainer, use a damp cloth
and a small amount of mild soap. Important: Keep
iquids away from the console, place only a sealed
l
water bottle in the water bottle holder, and keep
the console out of direct sunlight. During storage,
remove the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, refer
to step 4 on page 6 and remove the console from the
upright. Next, refer to step 3 on page 6 and insert
three batteries into the console. Reattach the console
to the upright, being careful not to pinch the wires.

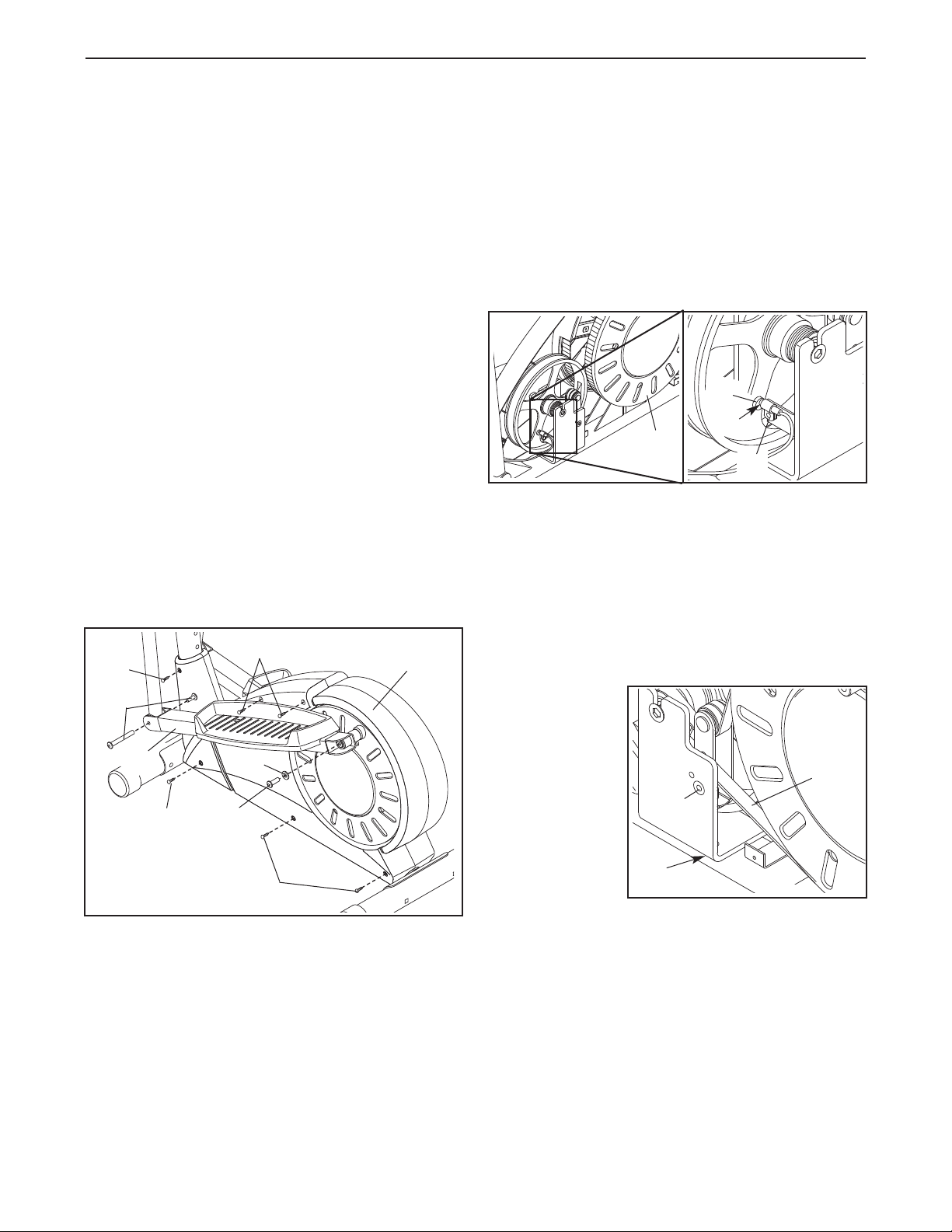

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must remove the Left Pedal Arm (11) and
the Left Side Shield (3).
56
42
40
11
42
Remove the Pedal Arm Bolt Set (40), the M10 x
25mm Patch Screw (22), and the M10 Washer (35)
from the Left Pedal Arm (11). Remove the Left Pedal
Arm. Next, remove the two M4 x 25mm Screws (56)
and the four M4 x 16mm Screws (42) from the Left
Side Shield (3).
35
22
42
3
Refer to the drawing below and locate the Reed Switch
53). Loosen, but do not remove, the indicated M4 x
(
16mm Screw (42). Slide the Reed Switch slightly
toward or away from the Magnet (58) on the flywheel.
Retighten the Screw. Turn the left Pedal Disc (15) for a
oment. Repeat until the console displays correct
m
feedback. When the Reed Switch is correctly adjusted,
reattach the Left Side Shield (3) and the Left Pedal
Arm (11).
58
53
15
42
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even when
the resistance is adjusted to the highest setting, the
Drive Belt (19) may need to be adjusted. To adjust the
Drive Belt, you must first remove the left side shield.
Refer to HOW TO ADJUST THE REED SWITCH at
the left and remove the left side shield.
Next, loosen the
M8 x 22mm Flat
Head Screw
(41) and turn
the Idler
Adjustment Bolt
(62) until the
Drive Belt (19)
is tight. When
the Drive Belt is
tight, tighten the
Flat Head
Screw. Reattach
the left side shield.
41
62
19
11
Page 12

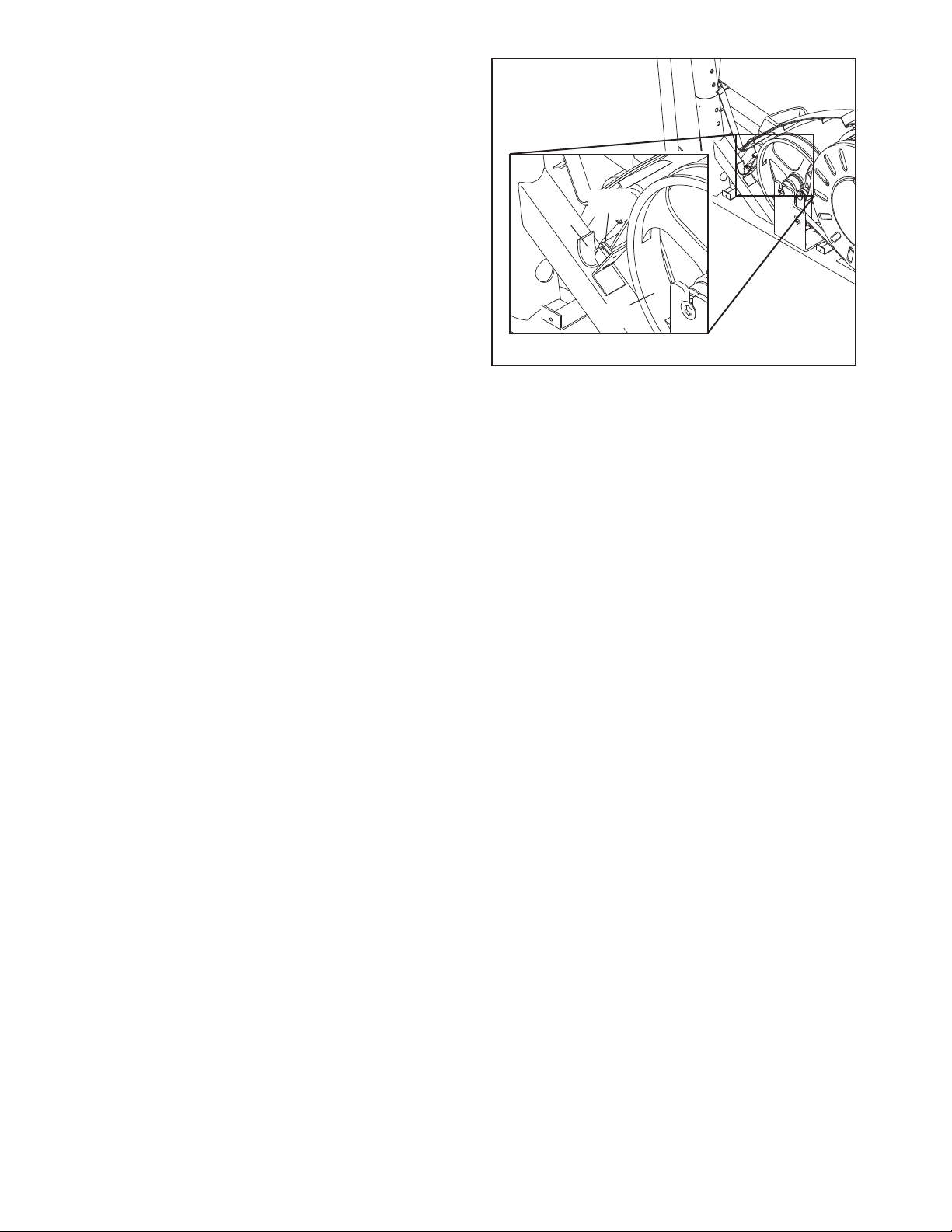

HOW TO ADJUST THE RESISTANCE STRAP
If the resistance knob is turned to the highest setting
nd there is not enough pedaling resistance, the
a
resistance strap can be adjusted. To adjust the resis-
ance strap, first remove the left side shield (see HOW
t
TO ADJUST THE REED SWITCH on page 11).
Next, turn the resistance knob to the lowest setting.
Open the Strap Clamp (26) and pull the end of the
Resistance Strap (18) downward slightly. Close the
Strap Clamp and turn the Flywheel (17) to make sure
that there is not too much resistance.
When the resistance strap is properly adjusted, reattach the left side shield and the left pedal arm.
18
6
2
17
12
Page 13
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
em, your exercise must be “aerobic.” Aerobic exer-
t
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.

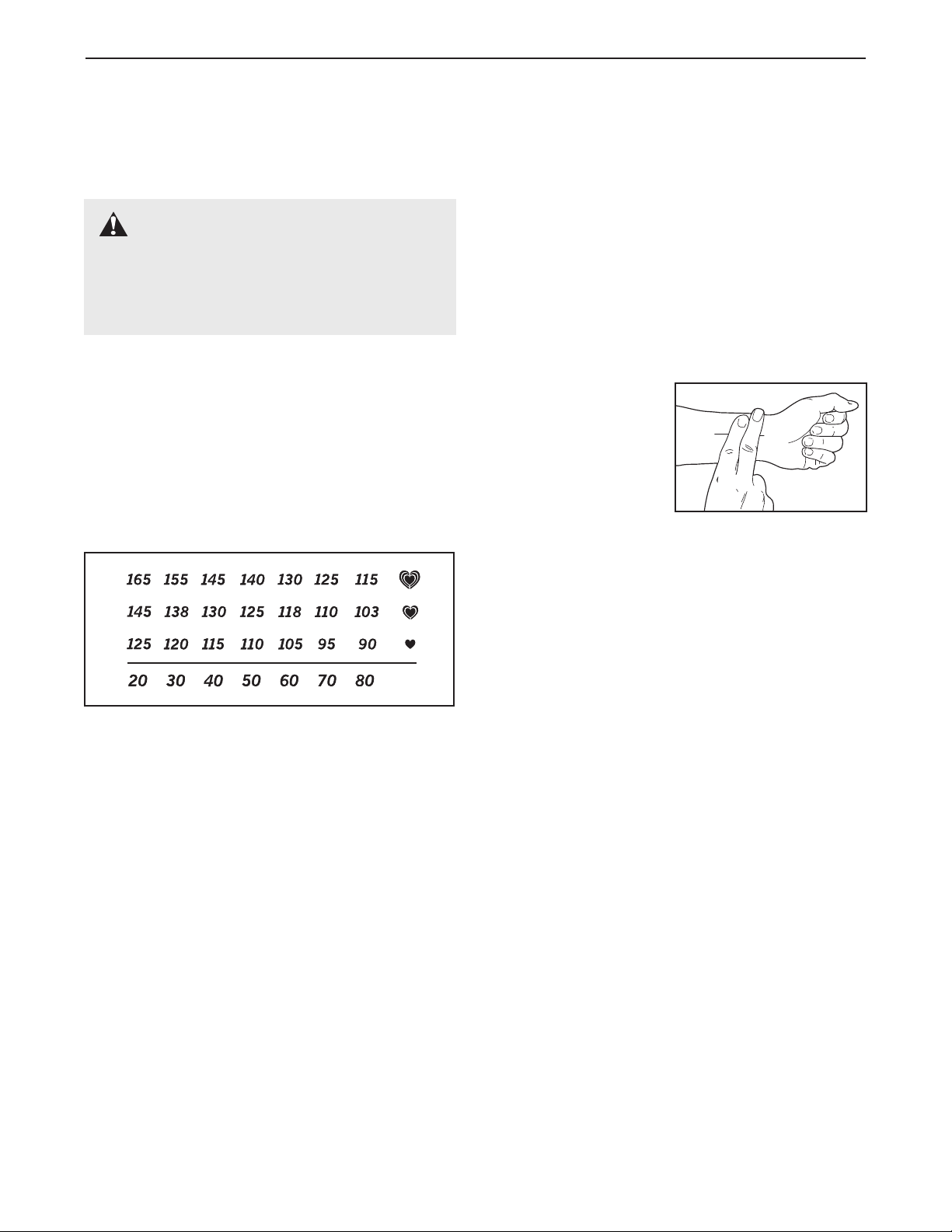

HOW TO MEASURE YOUR HEART RATE
Exercise for at least
four minutes. Then,
stop exercising and
place two fingers on
your wrist as shown.
Take a six-second
heartbeat count, and
multiply the result by
10 to find your heart
rate. For example, if your six-second heartbeat count
is 14, your heart rate is 140 beats per minute. (A sixsecond count is used because your heart rate will
drop rapidly when you stop exercising.)
To find the proper heart rate for you, first find your age
at the bottom line of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lowest number is the recommended heart
rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; the highest number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
To burn fat, adjust the intensity of your exercise until
your heart rate is between the lower two numbers in
your training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. The key to success is make exercise a regular and enjoyable part of your everyday life.
13
Page 14
PART LIST—Model No. 831.283500 R
Key No. Qty. Description Key No. Qty. Description
0802A
11Frame
21Upright
31Left Side Shield
41Right Side Shield
52Handlebar Arm
61Left Handlebar
71Idler Assembly
81Right Handlebar
91Hook
10 1 Front Stabilizer
11 1 Left Pedal Arm
12 1 Right Pedal Arm
13 2 Pedal
14 2 Axle Cap
15 2 Pedal Disc
16 2 Disc Crossbar
17 1 Flywheel
18 1 Resistance Strap
19 1 Drive Belt
20 1 Cable Clamp
21 4 Endcap
22 2 M10 x 25mm Patch Screw
23 1 Console
24 2 Handgrip
25 4 M6 Washer
26 1 Strap Clamp
27 4 M6 Nylon Locknut
28 1 Rear Stabilizer
29 2 Flywheel Bearing
30 2 Large Snap Ring
31 2 Large Bearing
32 1 Pedal Axle
33 7 M10 Nylon Locknut
34 4 M10 x 75mm Carriage Bolt
35 2 M10 Washer
36 4 M6 x 54mm Flat Head Bolt
37 4 Pedal Arm Bushing
38 5 M8 Nylon Locknut
39 2 M10 Washer
40 2 Pedal Arm Bolt Set
41 1 M8 x 22mm Flat Head Screw
42 15 M4 x 16mm Screw
44 1 Upper Wire
45 1 Resistance Control/Cable
46 2 Handlebar Cap
47 2 Handlebar Spacer
48 2 M10 x 66mm Button Bolt
49 4 Small Handlebar Bushing
50 4 M8 x 38mm Button Bolt
51 8 M6 x 35mm Screw
52 1 M4 x 16mm Flat Head Screw
53 1 Reed Switch/Wire
54 1 Cable Clamp
55 1 Lower Cable
56 2 M4 x 25mm Screw
57 1 M10 Flat Head Bolt
58 1 Magnet
59 2 M10 Split Washer
60 4 Large Handlebar Bushing
61 2 5/16” x 25.4mm Hex Bolt
62 1 Idler Adjustment Bolt
63 1 Resistance Knob/Cable
#1Allen Wrench
#1Grease
#1Userʼs Manual
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
14
Page 15
EXPLODED DRAWING—Model No. 831.283500 R
2
4
8
4
3
42
42
5
47
42
23
44
45
24
6
47
5
60
48
33
17
21
34
57
10
39
12
35
37
51
15
19
16
61
61
16
62
1
30
31
32
38
33
51
51
15
13
37
35
11
40
40
63
42
33
7
52
59
59
58
38
50
50
38
60
60
2
49
49
49
49
42
42
42
42
42
21
60
51
51
41
54
42
53
33
37
37
40
40
13
28
21
21
33
33
34
30
31
55
42
46
4
6
14
14
36
36
29
29
9
18
20
26
22
22
56
27
25
25
27
39
27
25
0802A
15
Page 16
Model No. 831.283500
QUESTIONS?
If you find that:
• you need help assembling or
operating the WESLO®MOMENTUM 750 elliptical crosstrainer
• a part is missing
The model number and serial number of your WESLO
MOMENTUM 750 elliptical crosstrainer are listed on a decal
ttached to the frame. See the front cover of this manual to find
a
the location of the decal.
All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service
Center. To request service or to order parts by telephone, call
the toll-free numbers listed at the left.
When requesting help or service, or ordering parts, please be
prepared to provide the following information:
®
• or you need to schedule repair
service
call our toll-free HELPLINE
1-800-736-6879
Monday–Saturday, 7 am–7 pm
Central Time (excluding holidays)
REPLACEMENT
PARTS
If parts become worn and need
to be replaced, call the following
toll-free number
1-800-FON-PART
(1-800-366-7278)
• The NAME of the product (WESLO
elliptical crosstrainer)
• The MODEL NUMBER of the product (831.283500)
• The KEY NUMBER OF THE PART (see page 15)
• The DESCRIPTION OF THE PART (see page 14)
®
MOMENTUM 750
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS ELLIPTICAL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the ELLIPTICAL EXERCISER, free of charge.
This warranty does not apply when the ELLIPTICAL EXERCISER is used commercially or for rental purposes.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
Part No. 189689 R0802A Printed in China © 2002 Sears, Roebuck and Co.
Loading...
