Page 1
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number Decal
Sears Model No. 831.21600.0
Kmart Model No. WLEX1076.0
Serial No.
Write the serial number in the
space above for future reference.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, PLEASE CONTACT
OUR CUSTOMER SERVICE
DEPARTMENT DIRECTLY.
SEARS CUSTOMERS:
1-800-4-MY-HOME
®
(1-800-469-4663)
KMART CUSTOMERS:
1-866-699-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Page 2
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

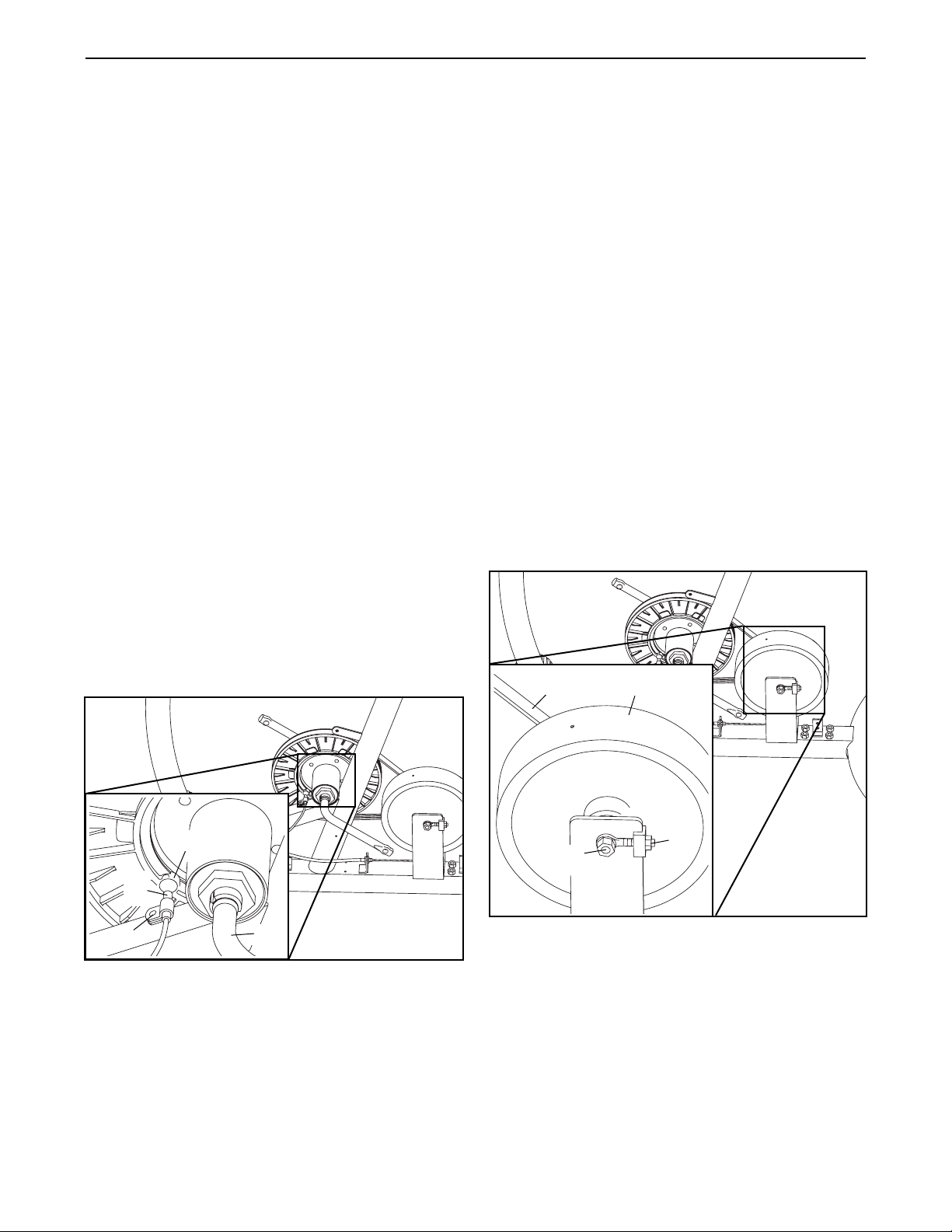

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

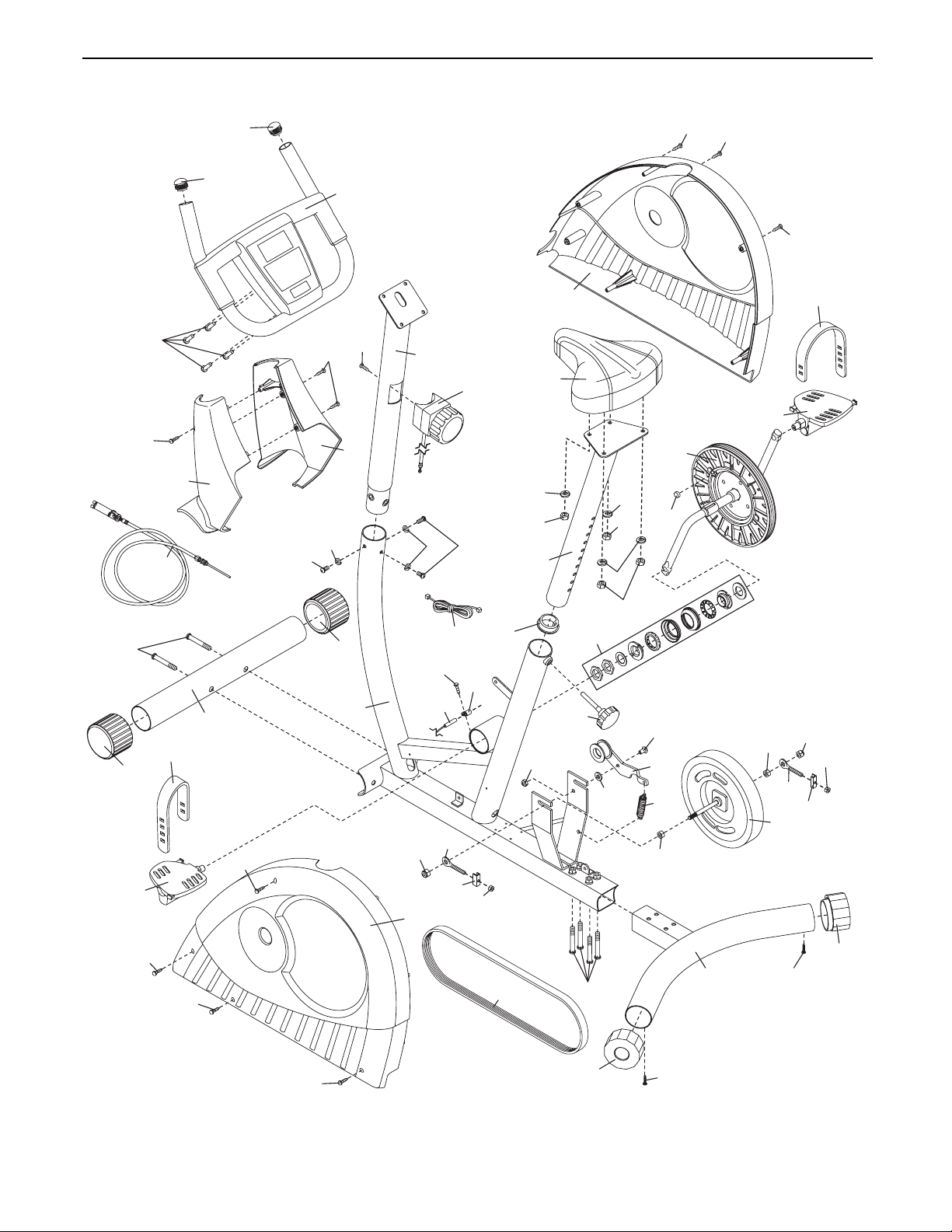

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle only
as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
4. Use the exercise cycle indoors on a level surface. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor. Make sure
that there is enough clearance around the
exercise cycle to mount, dismount, and use
the exercise cycle.
5. Inspect and properly tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. Wear appropriate clothes when exercising; do
not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
8. The exercise cycle should not be used by
persons weighing more than 250 pounds.
9. Always keep your back straight while using
the exercise cycle; do not arch your back.
10. If you feel pain or dizziness while exercising,
stop immediately and cool down.
11. The exercise cycle does not have a free
wheel; the pedals will continue to move until
the flywheel stops.
12. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13. The warning decal shown on page 3 has been
placed on the exercise cycle. If the decal is
missing or illegible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply
the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
Page 3
3
Congratulations for selecting the new WESLO
®
PURSUIT 350 exercise cycle. Cycling is one of the
most effective exercises for increasing cardiovascular
fitness, building endurance, and toning the body. The
PURSUIT 350 exercise cycle offers a selection of features designed to let you enjoy this healthful exercise
in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number is found on the front cover of
this manual. The serial number is found on a decal
attached to the exercise cycle (see the front cover of
this manual for the location of the decal).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Resistance Knob
REAR
FRONT
Seat
Seat Knob
Pedal/Strap
Console
Thumb Pulse Sensor
Handlebar
RIGHT SIDE
BEFORE YOU BEGIN
Page 4
4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included tools and your own adjustable wrench , Phillips screwdriver , and
pliers .
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 14. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in
the parts bag, check to see if it has been preassembled.
1. Insert the Rear Stabilizer (6) into the Frame (1).
Attach the Rear Stabilizer with four M8 x 60mm
Button Screws (30).
6
30
1
2. Orient the Front Stabilizer (2) with the large holes
facing the Frame (1). Attach the Front Stabilizer to
the Frame with two M8 x 73mm Button Screws (33).
1
1
2
33
2
Large
Holes
M4 x 25mm Round
Head Screw (41)–3
M8 x 60mm Button
Screw (30)–4
M8 Split
Washer (42)–7
Locknut (10)–4
M8 Nylon
M6 x 15mm Button
Screw (46)–4
M8 x 15mm Button
Screw (34)–3
M8 x 73mm Button
Screw (33)–2
Page 5
5
3
3. Attach the Left and Right Upright Covers (14, 15)
around the Frame (1) with three M4 x 25mm Round
Head Screws (41) as shown.
14
15
41
41
1
5. Turn the Seat Knob (9) counterclockwise and remove
it from the Frame (1). Next, insert the Seat Post (5)
into the Frame. Adjust the Seat Post to the desired
height and insert the Seat Knob (9) through the indicated hole in the Frame into one of the adjustment
holes in the Seat Post. Then, turn the Seat Knob
clockwise until it is tight. Make sure the Seat Knob
is firmly engaged in one of the adjustment holes
in the Seat Post.
5
4. Attach the Seat (12) to the Seat Post (5) with four
M8 Split Washers (42) and four M8 Nylon
Locknuts (10). Note: The Split Washers and the
Nylon Locknuts may be pre-attached to the
underside of the Seat.
4
12
5
5
42
42
10
10
1
9
Hole
Adjustment
Holes
Page 6
6

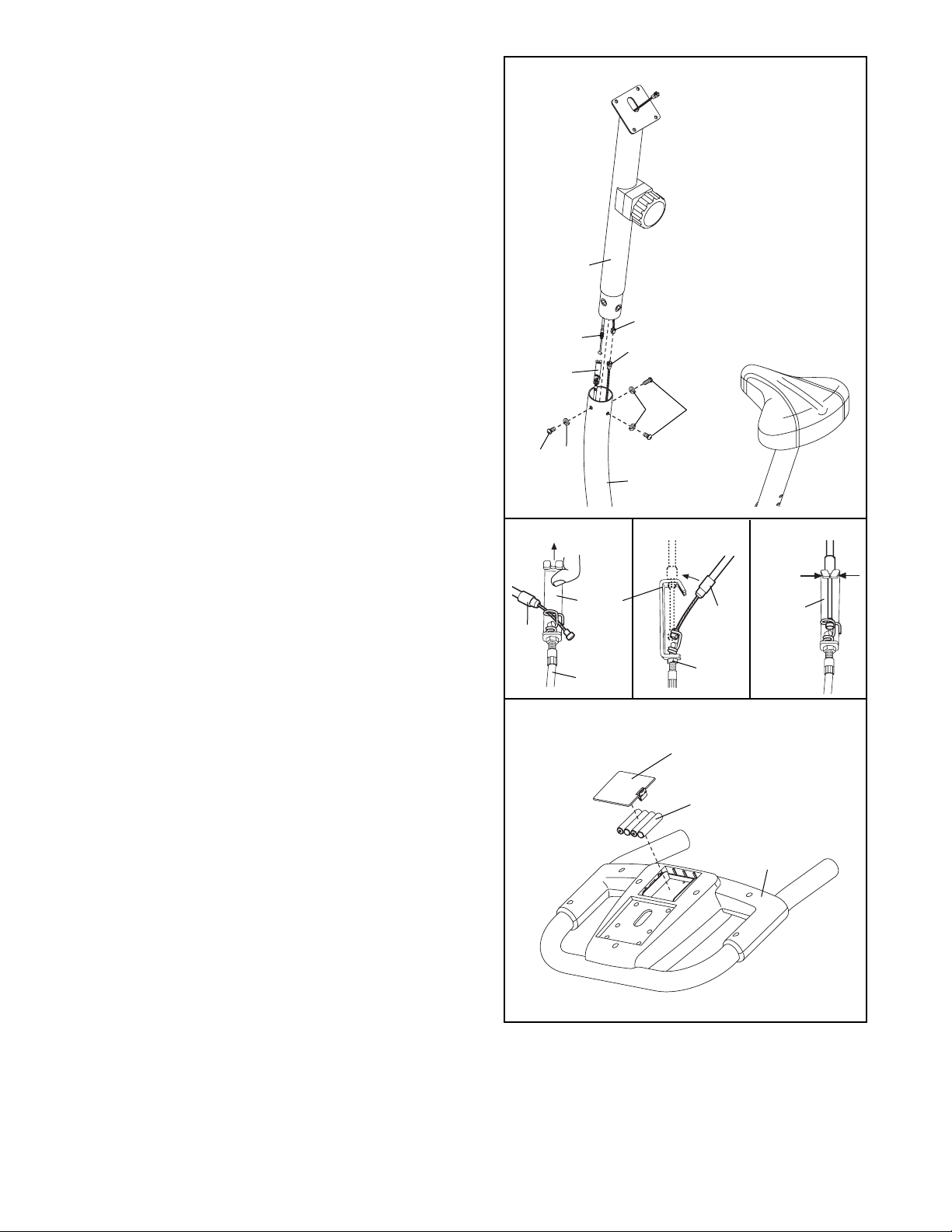

7. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
Press the tab on the battery cover and remove it.
Insert four batteries into the Console as shown.
Make sure that the batteries are oriented as
shown by the diagram on the battery cover.
Then, reattach the battery cover.
7
6
6. While another person holds the Upright (13) near
the Frame (1) as shown, connect the Extension Wire
(23) to the Reed Switch Wire (39). Next, connect the
Resistance Cable (19) to the Lower Cable (29) in the
following way:
• See drawing A. Pull up on the metal bracket on
the Lower Cable (29), and insert the tip of the
Resistance Cable (19) into the wire clip inside of
the metal bracket as shown.
• See drawing B. Firmly pull the Resistance
Cable (19) upward and slide it into the top of the
metal bracket as shown.
• See drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the Wires (23, 39) and the Cables (19, 29)
downward into the Frame (1).
Next, insert the Upright (13) into the Frame (1). Be
careful to avoid pinching the wires and cables.
Attach the Upright with three M8 x 15mm Button
Screws (34) and three M8 Split Washers (42).
A
B
C
29
19
19
Metal
Bracket
Metal
Bracket
29
16
Be careful to
avoid pinching
the wires and
cables.
Batteries
Battery
Cover
34
39
19
29
42
34
23
13
1
42
Page 7
7

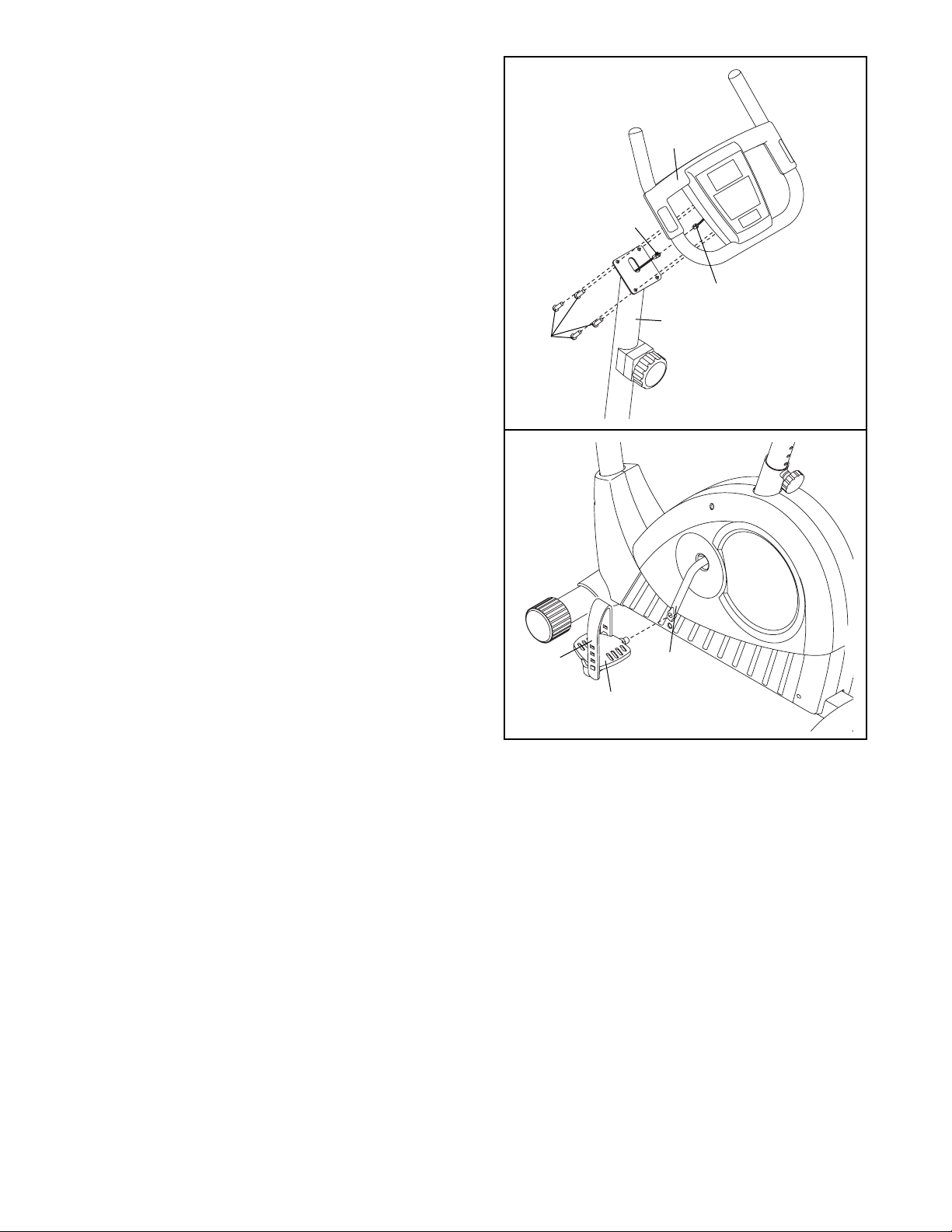

10.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
9. Identify the Left Pedal (24), which is marked with a
“Left” sticker. Using an adjustable wrench, firmly
tighten the Left Pedal
counterclockwise
into the left
arm of the Crank (21). Tighten the Right Pedal (not
shown)
clockwise
into the right arm of the Crank.
Important: Tighten both Pedals as firmly as possible. After using the exercise cycle for one
week, retighten the Pedals. For best performance,
keep the Pedals tightened.
Adjust a Pedal Strap (3) to the desired position, and
press the end of the Pedal Strap onto the tab on the
side of the Left Pedal (24). Adjust the other Pedal
Strap (not shown) in the same way.
9
8. While a second person holds the Console (16) near
the Upright (13), connect the console wire to the
Extension Wire (23). Then, insert the wires downward into the Upright.
Attach the Console (16) to the Upright (13) with four
M6 x 15mm Button Screws (46). Be careful to
avoid pinching the wires.
8
Be careful to
avoid pinching
the wires.
23
46
13
24
3
21
Console
Wire
16
Page 8
8

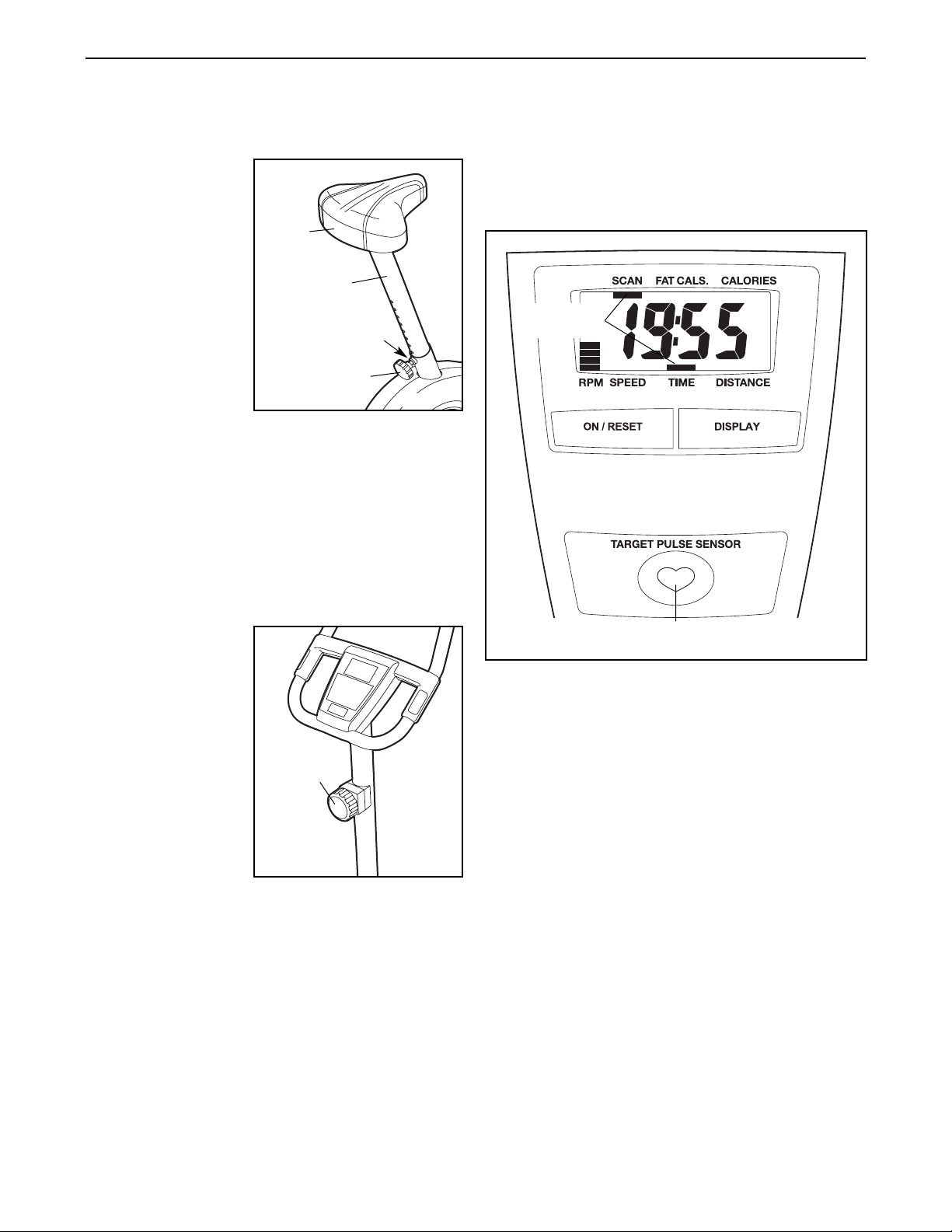

HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT POST
For effective exercise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the height of the
seat, first turn the
seat knob counterclockwise and
remove it. Next,
slide the seat post upward or downward and align one
of the adjustment holes in the seat post with the indicated hole in the Frame. Insert the seat knob into the
frame and the seat post, and turn the seat knob clockwise until it is tight. Make sure that the seat knob is
inserted through one of the adjustment holes in
the seat post.
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resistance, turn the
knob counterclockwise. Important:
Stop turning the
knob when turning becomes difficult, or damage
may result.
FEATURES OF THE CONSOLE
The easy-to-use console features seven displays that
provide instant exercise feedback during your workouts. The displays are described below:
Speed—This display shows your pedaling speed, in
miles or kilometers per hour.
Time—This display shows the elapsed time.
Distance—This display shows the distance you have
pedaled, in miles or kilometers per hour.
Calories—This display shows the approximate number
of calories you have burned.
Fat Calories—This display shows the approximate
number of fat calories you have burned (see Burning
Fat on page 11).
Pulse—This display shows your heart rate when you
use the thumb pulse sensor.
Scan—This display shows the speed, time, distance,
calories, fat calories, and pulse displays, for a few seconds each, in a repeating cycle. Note: The pulse display will appear only when you use the thumb pulse
sensor.
Seat Post
Seat Knob
Hole
Seat
Indicators
Thumb Pulse Sensor
Resistance
Knob
Page 9
9

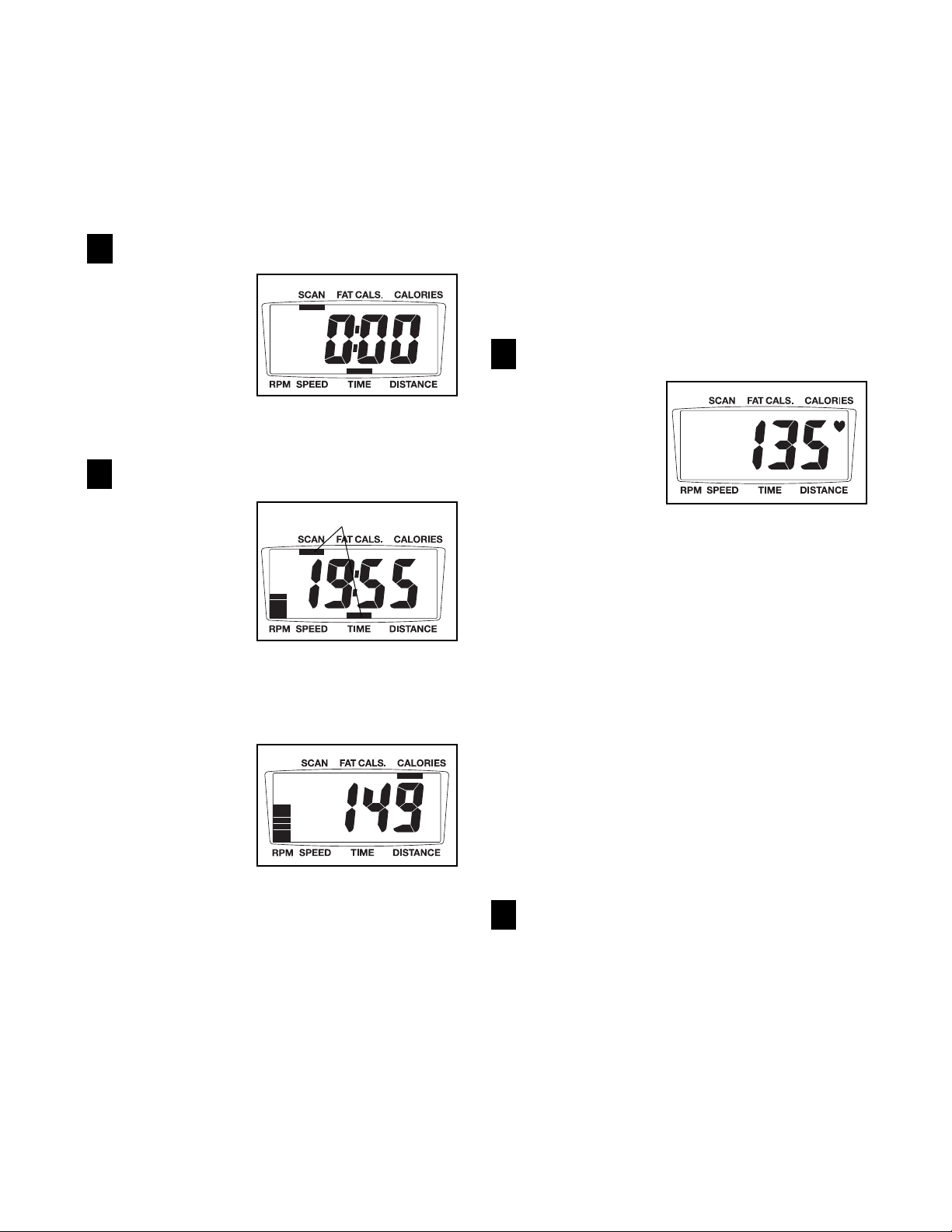

HOW TO USE THE CONSOLE
Before using the console, make sure that batteries
are installed (see assembly step 7 on page 6). If there
is a sheet of clear plastic on the display, remove the
plastic.
Follow the steps below to operate the console.
Turn on the console.
To turn on the
console, press
the On/Reset
button or begin
pedaling. The
entire display
will light for a
moment; the
console will then be ready for use.
Select one of the modes.
When you turn
the power on,
the scan display will be
selected automatically. One
indicator will
appear below
the word Scan
to show that the scan display is selected, and a
second indicator will show which information is
currently displayed.
To select
speed, time,
distance, calories, or fat calories information
for continuous
display, press
the Display button repeatedly. The indicators will show which
display is selected. Make sure there is not an
indicator below the word Scan.
As you pedal, the RPM meter on the left side of
the display will indicate your approximate pedaling pace in revolutions per minute (rpm). The
lowest bar on the RPM meter indicates a pedaling pace of 30 rpm. Additional bars will appear or
disappear in increments of 10 rpm as you change
your pedaling pace.
Note: The console can show speed and distance in either miles or kilometers. The letters
“mph” or “km/h” will appear in the display to show
which unit of measurement is selected. To change
the unit of measurement, hold down the On/Reset
button for several seconds until the desired unit of
measurement appears in the display.
To reset the display, press the On/Reset button.
To pause the console, stop pedaling. When the
console is paused, the time will flash in the display. To continue your workout, simply resume
pedaling.
Measure your heart rate if desired.
To measure your
heart rate, stop
pedaling and
place your
thumb on the
pulse sensor. Do
not press too
hard, or the circulation in your thumb will be restricted and
your pulse will not be detected. After a few sec-
onds, the heart-shaped indicator in the display will
flash steadily, two dashes will appear, and then
your heart rate will be shown. Hold your thumb on
the pulse sensor for about 15 seconds for the
most accurate reading.
If the displayed heart rate appears to be too high
or too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor
as described above.
Make sure you are applying the proper amount of
pressure to the pulse sensor. Try the pulse sensor
several times until you become familiar with it.
Remember to sit still while measuring your heart
rate.
When you are finished exercising, the console will turn off automatically.
If the pedals do not move for a few seconds, the
time will flash in the display and the console will
pause. If the pedals do not move for a few minutes, the console will turn off and the display will
be reset.
4
3
2
1
Indicators
Page 10
10
Inspect and tighten all parts of the exercise cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 7 on page 6.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal, the upright covers, and the left
side shield must be removed.
Using an adjustable wrench, turn the left pedal clockwise and remove it. Next, remove the screws from the
upright covers and the left side shield. Note: One
screw from the side shield is shorter than the other
screws. Make sure to note the correct location of the
short screw. Then, carefully remove the upright covers
and the left side shield.
Next, turn the resistance knob to the lowest setting.
With the left side shield removed, locate the Reed
Switch (39). Turn the Crank (21) until the Magnet (38)
is aligned with the Reed Switch. Loosen, but do not
remove, the M4 x 15mm Screw (47). Slide the Reed
Switch slightly closer to or away from the Magnet, and
then retighten the Screw. Turn the Crank for a
moment. Repeat until the console displays correct
feedback. When the Reed Switch is correctly adjusted, reattach the left side shield, the upright covers,
and the left pedal.
HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is at the highest level, the
belt may need to be adjusted. See HOW TO ADJUST
THE REED SWITCH at the left and remove the left
pedal, the upright covers, and the left side shield.
To adjust the belt, you must also remove the right
pedal and the right side shield. Using an adjustable
wrench, turn the right pedal counterclockwise and
remove it. Then, remove the screws from the right
side shield. Note: One screw from the side shield is
shorter than the other screws. Make sure to note the
correct location of the short screw. Then, carefully
remove the right side shield.
Next, loosen the two 3/8” Nuts (27), one on each side
of the Flywheel (37). Then, tighten the M6 Nylon
Locknuts (32), one on each side of the Flywheel, until
the Belt (35) is properly tightened. Finally, tighten the
Adjustment Nuts and reattach the side shields, the
upright covers, and the pedals.
MAINTENANCE AND TROUBLESHOOTING
21
47
39
38
35
37
32
27
Page 11
11
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

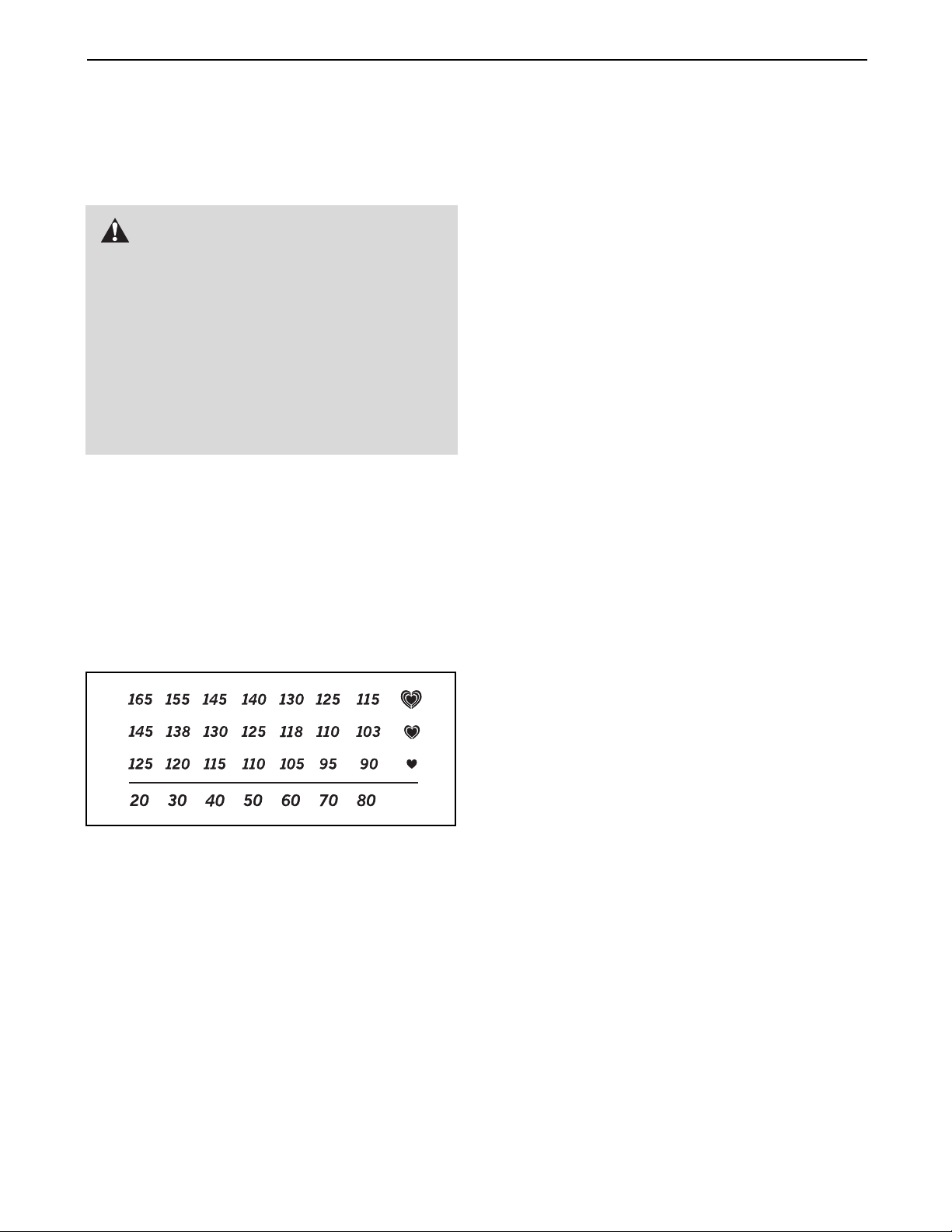

heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning, the middle number is the recommended
heart rate for maximum fat burning, and the highest
number is the recommended heart rate for aerobic
exercise.
Burning Fat
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible
carbohydrate
calories for energy. Only after the first few minutes of exercise does
your body begin to use stored
fat
calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise. For maximum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching (see
page 12). This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
Page 12
12
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5
Page 13
13
NOTES
Page 14
14
1 1 Frame
2 1 Front Stabilizer
3 2 Pedal Strap
4 2 Front Stabilizer Endcap
5 1 Seat Post
6 1 Rear Stabilizer
7 2 Handlebar Endcap
8 2 Rear Stabilizer Endcap
9 1 Seat Knob
10 4 M8 Nylon Locknut
11 1 Idler
12 1 Seat
13 1 Upright
14 1 Left Upright Cover
15 1 Right Upright Cover
16 1 Console
17 1 Left Side Shield
18 1 Right Side Shield
19 1 Resistance Control/Cable
20 1 Seat Post Bushing
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 1 Extension Wire
24 1 Left Pedal
25 1 Spring
26 1 Right Pedal
27 2 3/8” Nut
28 2 U-bracket
29 1 Lower Cable
30 4 M8 x 60mm Button Screw
31 2 Eyebolt
32 2 M6 Nylon Locknut
33 2 M8 x 73mm Button Screw
34 3 M8 x 15mm Button Screw
35 1 Belt
36 1 Crank Bearing Set
37 1 Flywheel
38 1 Magnet
39 1 Reed Switch/Wire
40 1 M8 x 20mm Bolt
41 10 M4 x 25mm Round Head Screw
42 7 M8 Split Washer
43 2 Flywheel Nut
44 1 M5 x 50mm Button Screw
45 1 M8 Washer
46 4 M6 x 15mm Button Screw
47 1 M5 x 15mm Screw
48 2 M4 x 15mm Screw
49 1 M8 Nut
# 1 User’s Manual
# 1 Hex Key
# 1 Assembly Tool
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
PART LIST SEARS MODEL NO. 831.21600.0; KMART MODEL NO. WLEX1076.0 R0806A
Key No. Qty. Description Key No. Qty. Description
Page 15
15
EXPLODED DRAWING SEARS MODEL NO. 831.21600.0; KMART MODEL NO. WLEX1076.0
R0806A
41
46
29
14
38
21
41
41
41
3
26
7
7
34
41
42
16
15
44
13
42
19
34
42
10
18
12
42
10
5
42
33
4
24
41
10
20
27
17
23
47
22
39
49
31
28
32
35
4
2
3
41
41
1
9
30
36
45
40
11
43
25
27
43
6
32
31
28
37
8
48
41
8
48
Page 16
Part No. 243435 R0806A Printed in China © 2006 ICON IP, Inc.
WESLO is a registered trademark of ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the MODEL NUMBER of the product (Sears Model No. 831.21600.0; Kmart Model No. WLEX1076.0)
• the NAME of the product (WESLO PURSUIT 350 exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 14)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
