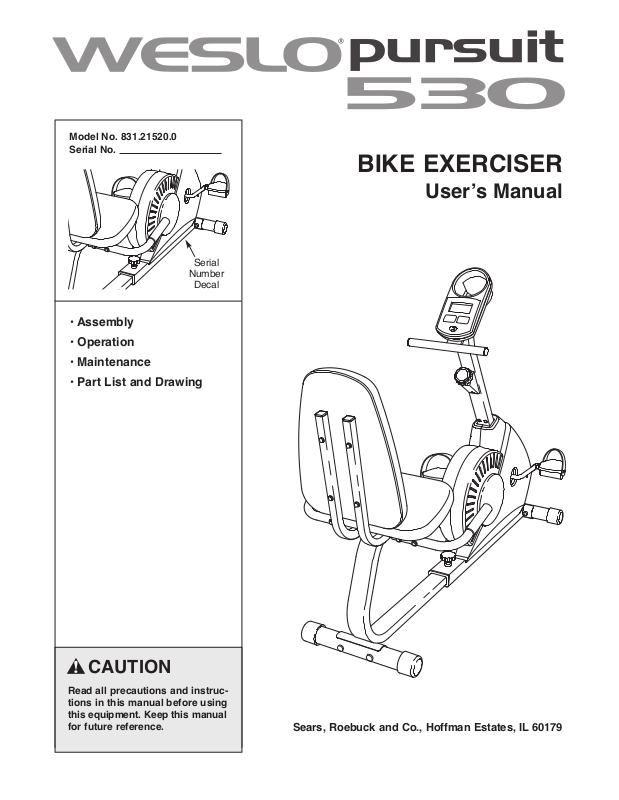

Model No. 831.21520.0
Serial No.
Serial
Number
Decal
• Assembly
• Operation
• Maintenance
• Part List and Drawing
BIKE EXERCISER
User’s Manual
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Sears, Roebuck and Co., Hoffman Estates, IL
60179
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
AINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
M
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING:
tions before using the exercise cycle.
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
4. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor
enough clearance around the exercise cycle
to mount, dismount, and use the exercise
cycle.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. The exercise cycle should not be used by
persons weighing more than 250 pounds.
To reduce the risk of serious injury, read the following important precau-
. Make sure that there is
8. Wear appropriate clothes when exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
9. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
10. Always keep your back straight when using
the exercise cycle; do not arch your back.
11. If you feel pain or dizziness while exercising,
stop immediately and cool down.
12. The exercise cycle does not have a freewheel; the pedals will continue to move until
the flywheel stops.
13. The decal shown on page 3 has been placed
on the exercise cycle in the location shown.
If the decal is missing, or if it is not legible,
please call toll-free 1-866-699-3756 and order
a free replacement decal. Apply the decal in
the location shown.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. Sears assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
2
Page 3
BEFORE YOU BEGIN
Congratulations for selecting the new WESLO
URSUIT 530 exercise cycle. Cycling is one of the
P
ost effective exercises for increasing cardiovascular
m
fitness, building endurance, and toning the body. The
PURSUIT 530 exercise cycle offers a selection of features designed to let you enjoy this healthful exercise
in the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Pulse Sensor
®
after reading this manual, please call 1-800-4-MY-
®
OME
H
lease note the product model number and serial
p
number before calling. The model number is
831.21520.0. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
1-800-469-4663). To help us assist you,
(
Water Bottle Holder*
Console
Handlebar
Resistance Knob
FRONT
Backrest
Seat Frame
REAR
Pedal/Strap
Seat
Seat Handle
Adjustment Knob
RIGHT SIDE
*No water bottle is included
3
Page 4
ASSEMBLY
M8 x 15mm
Screw (34)–4
M10 x 65mm Carriage Bolt (30)–4
M10 Nylon
Locknut (33)–4
M8 Nylon
Locknut (10)–2
M8 Split
Washer (42)–4
M8 Washer
(14)–4
M
M6 Washer
(61)–8
M6 Nylon
Locknut (63)–4
M4 x 5mm
Screw (65)–2
M4 x 8mm
Screw (64)–2
M4 x 16mm
Screw (49)–4
M4 x 12mm
Screw (25)–1
M8 x 115mm Bolt (57)–2
M6 x 30mm Screw
(60)–8
M6 x 26mm Bolt
(62)–4
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
aterials. Do not dispose of the packing materials until assembly is completed.
m
In addition to the included tools, assembly requires a Phillips screwdriver , two adjustable
wrenches , and pliers .
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 14. The number following the key number is
the quantity needed for assembly.
the parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-866-699-3756.
Note: Some small parts may have been pre-assembled. If a part is not in
4
Page 5
1. While another person lifts the front of the Frame (1)
slightly, attach a Stabilizer (2) with two M10 x 65mm
arriage Bolts (30) and two M10 Nylon Locknuts (33).
C
1
0
3
2
1
33
2. Attach the other Stabilizer (2) to the Seat Frame (5)
with two M10 x 65mm Carriage Bolts (30) and two
M10 Nylon Locknuts (33).
3. Insert the Seat Frame (5) into the Frame (1). Next,
firmly press the Seat Frame Bushing (20) into the
Frame. Attach the Seat Frame Bushing with two M4 x
5mm Screws (65).
Tighten the Adjustment Knob (9) into the Frame (1).
Carefully tip the exercise cycle onto its side. Attach the
two Bumpers (66) to the Frame (1) with two M4 x
8mm Screws (64). Then, tip the exercise cycle back
onto the Stabilizers (2).
2
5
33
2
33
30
3
9
65
20
1
65
64
66
5
2

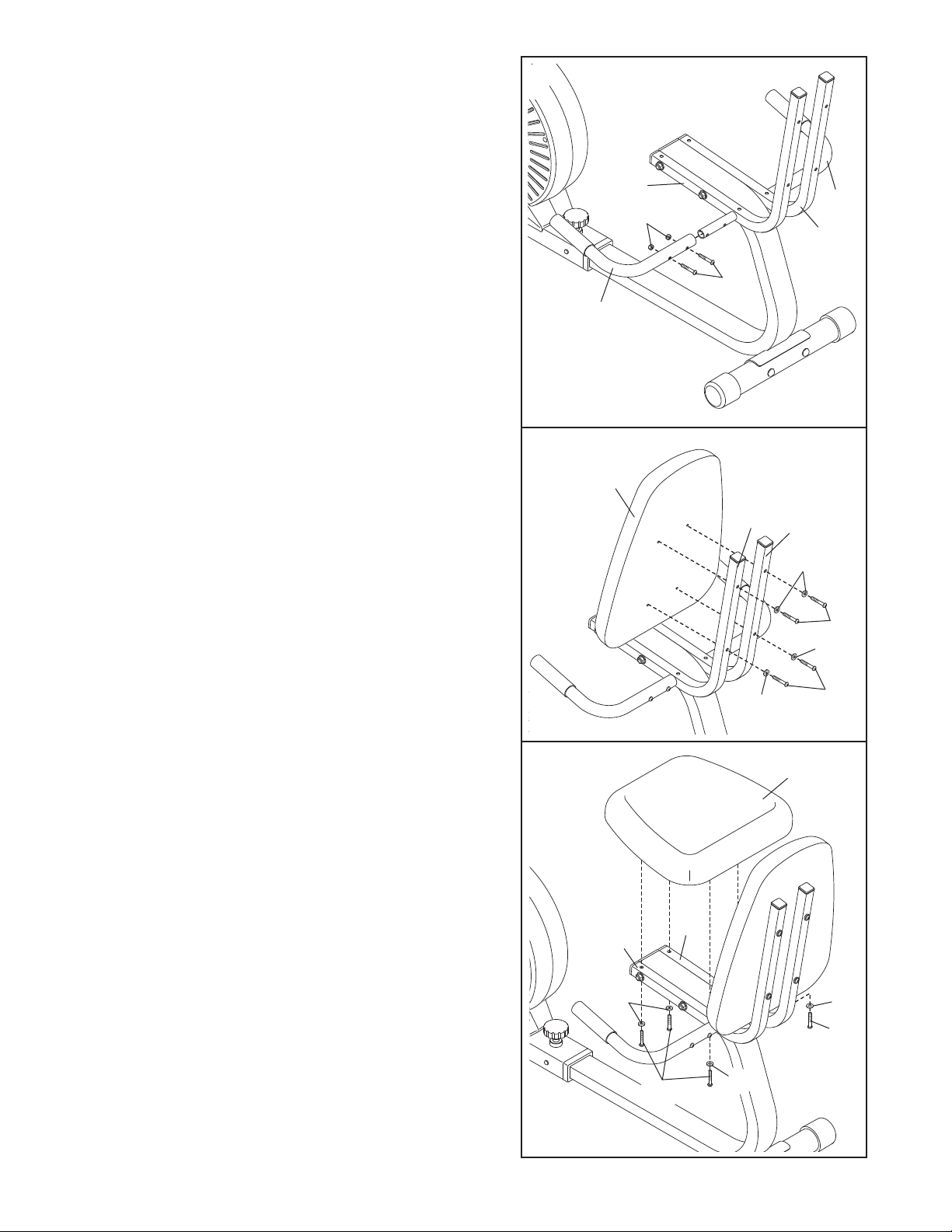

4. Attach the Left and Right Seat Brackets (52, 53) to the
Seat Frame (5) with two M8 x 1
M8 Washers (14), and two M8 Nylon Locknuts (10) as
shown. Do not tighten the Nylon Locknuts yet.
15mm Bolts (57), four
5
4
14
5
14
10
14
52
57
14
53
Page 6
5. Attach a Seat Handle (50) to the round tube on the
Left Seat Bracket (52) with two M6 x 26mm Bolts (62)
nd two M6 Nylon Locknuts (63).
a
ttach the other Seat Handle (50) to the Right Seat
A
Frame (53) in the same way.
5
6. Attach the Backrest (54) to the Seat Brackets (52, 53)
with four M6 x 30mm Screws (60) and four M6
Washers (61).
See step 4. Tighten the two M8 Nylon Locknuts (10).
52
63
62
50
6
54
52
50
53
53
61
60
61
7. Attach the Seat (12) to the Seat Brackets (52, 53) with
four M6 x 30mm Screws (60) and four M6 W
(61).
ashers
61
7
60
53
61
52
61
60
12
61
60
6
Page 7

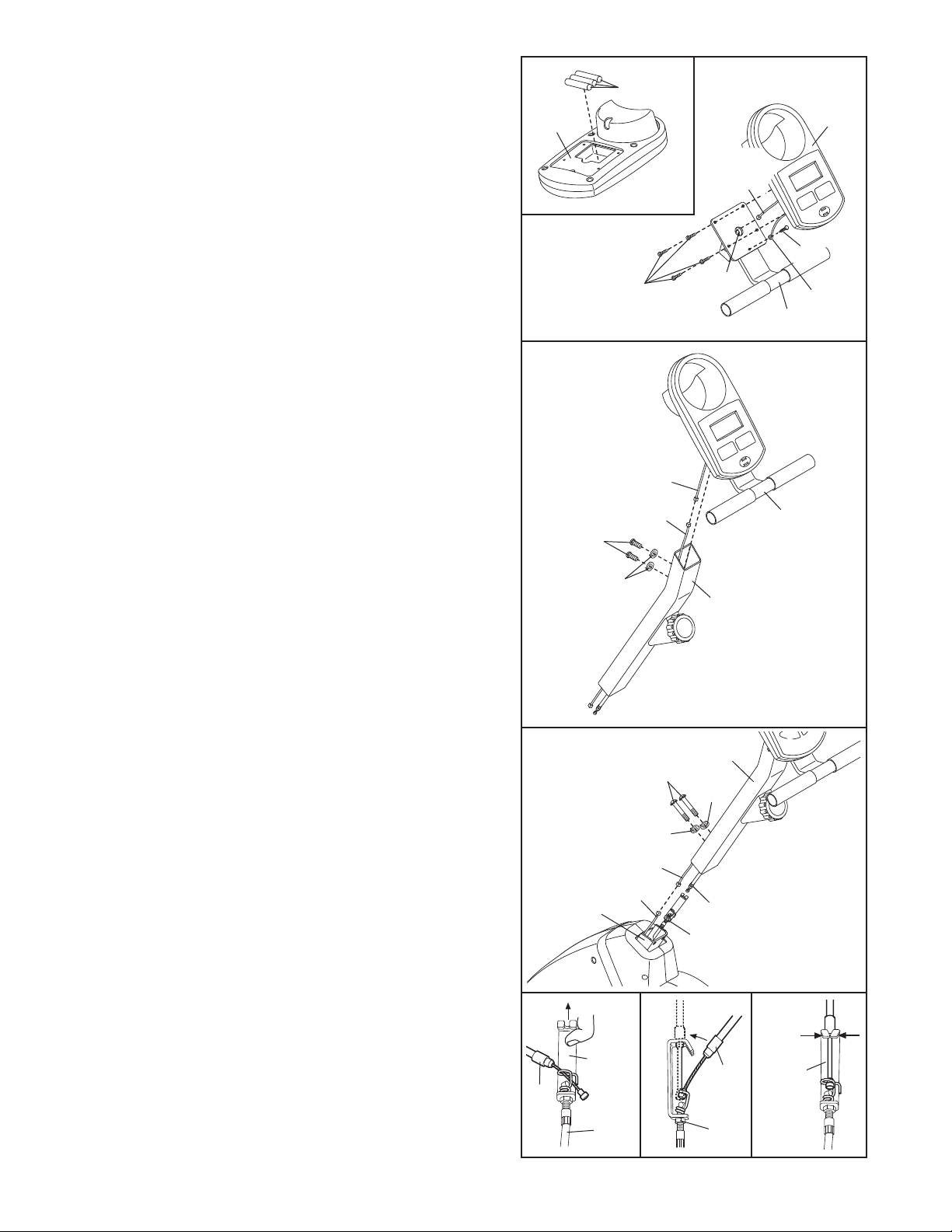

8. The Console (16) requires three AA batteries (not
included); alkaline batteries are recommended. Insert
hree batteries into the Console as shown in the inset
t
drawing.
s shown by the markings inside the Console.
a
Make sure that the batteries are oriented
8
Batteries
6
16
1
While another person holds the Console (16), attach
the ground wire to the Handlebar (15) with an M4 x
12mm Screw (25). Next, insert the excess ground wire
into the Console, and insert the console wire down
through the indicated hole in the Handlebar.
Attach the Console (16) to the Handlebar (15) with
four M4 x 16mm Screws (49).
pinching the ground wire and the console wire.
9. While another person holds the Handlebar (15) near
the Upright (13), connect the console wire to the
Extension Wire (36). Next, attach the Handlebar to the
Upright with two M8 x 15mm Screws (34) and two M8
Split Washers (42).
console wire and the Extension Wire.
Be careful to avoid pinching the
Be careful to avoid
Console
Wire
25
49
9
Console
Wire
36
34
42
Hole
13
15
15
Ground
Wire
10.While another person holds the Upright (13) in the
position shown, connect the Extension Wire (36) to
the Reed Switch Wire (43). Next, connect the
Resistance Cable (19) to the Lower Cable (45) in the
following way:
• See drawing A. Pull up on the metal bracket on the
Lower Cable (45), and insert the tip of the
Resistance Cable (19) into the wire clip inside the
metal bracket as shown.
• See drawing B. Firmly pull up the Resistance Cable
(19) and slide it into the top of the metal bracket as
shown.
• See drawing C. Using pliers, squeeze the prongs on
the upper end of the metal bracket together.
Push the excess wire and cable down into the Frame
(1), and slide the Upright (13) onto the Frame.
ful to avoid pinching the wires and cables. Attach
the Upright with two M8 x 15mm Screws (34) and two
M8 Split W
ashers (42).
Be care-
10
A
19
34
42
36
43
1
B
Metal
Bracket
45
45
42
19
45
13
19
C
Metal
Bracket
7
Page 8

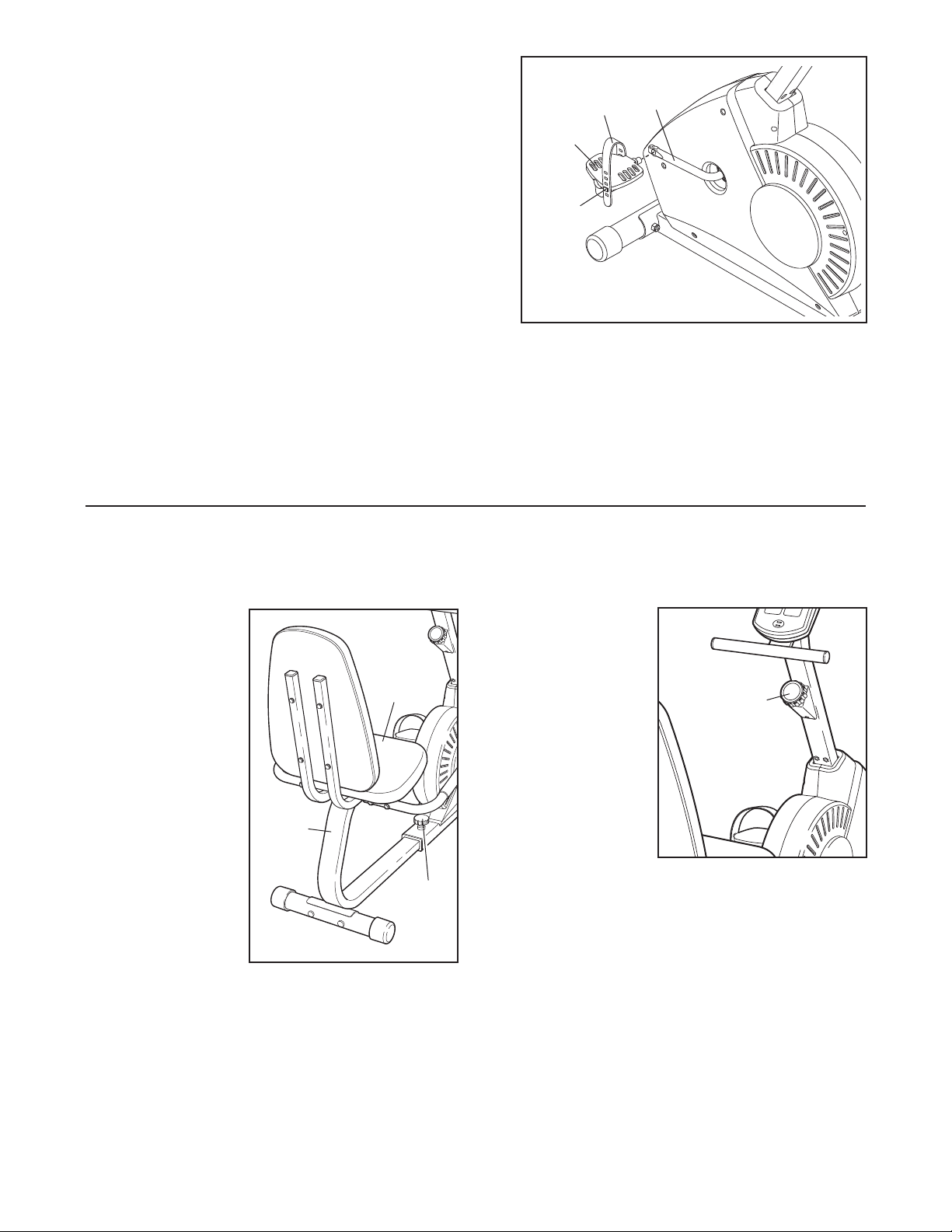

1. Identify the Left Pedal (24), which is marked with an
1
“L.” Using an adjustable wrench, firmly tighten the Left
edal counterclockwiseinto the left arm of the
P
Crank (21). Tighten the Right Pedal (not shown)
clockwise into the right arm of the Crank. Important:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the left Pedal Strap (58) to the desired position,
and press the end of the Pedal Strap onto the tab on
the Left Pedal (24). Adjust the right Pedal Strap (not
shown) in the same way.
12.Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11
24
Ta b
58
21
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT FRAME
For effective exercise, the seat
should be in the
proper position. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the farthest
forward position.
To adjust the seat,
loosen the adjust
ment knob, slide
the seat frame forward or backward,
and then retighten
the adjustment
knob.
-
Seat
Frame
Seat
Knob
HOW TO ADJUST THE PEDALING RESISTANCE
To increase the
resistance of the
pedals, turn the
resistance knob
clockwise; to
decrease the resistance, turn the knob
counterclockwise.
Important: Stop
turning the knob
when turning
becomes difficult,
or the exercise
cycle may become
damaged.
Resistance
Knob
8
Page 9

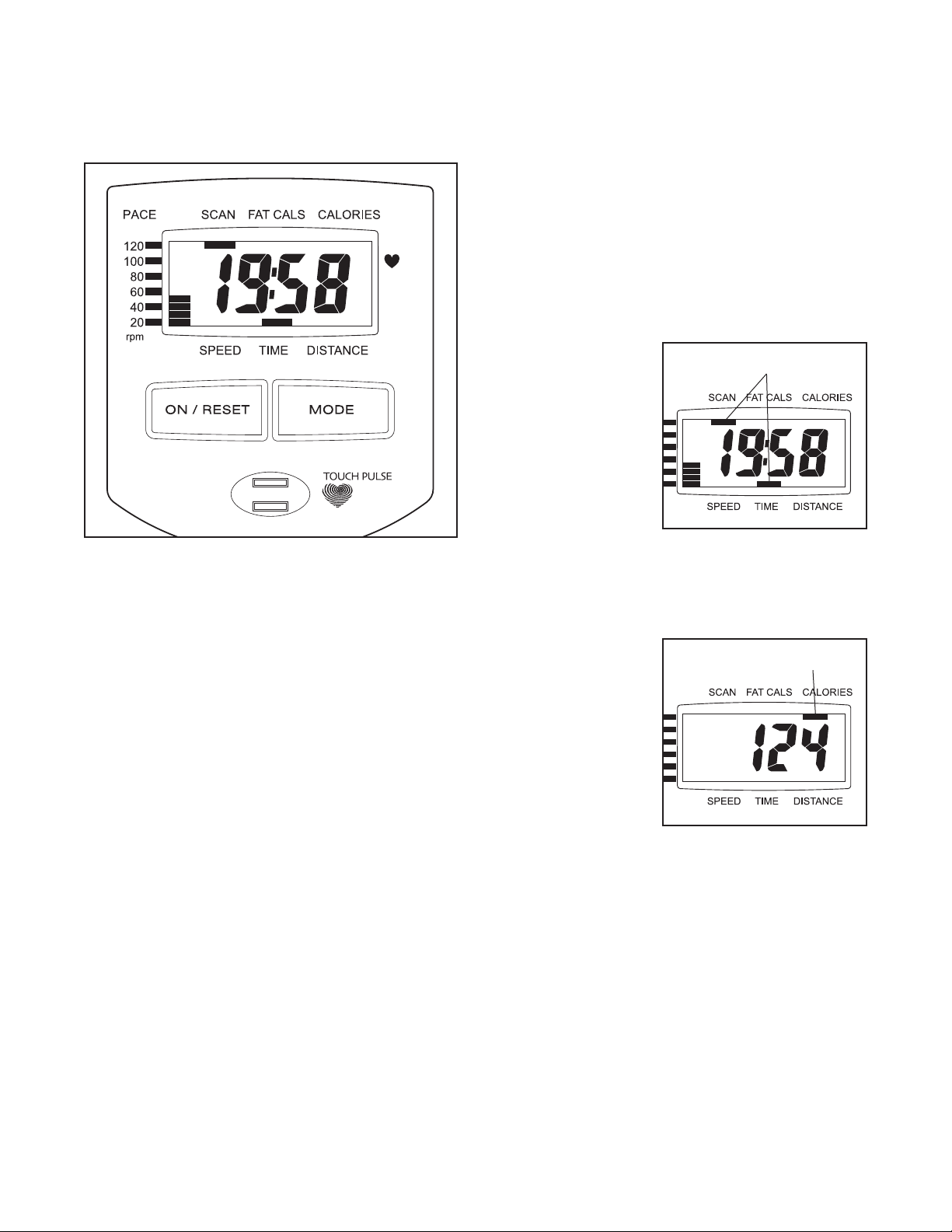

FEATURES OF THE CONSOLE
he console features a selection of modes that pro-
T
vide instant exercise feedback during your workouts.
The modes are described below:
• Speed—This mode displays your pedaling speed, in
miles per hour or kilometers per hour.
• Time—This mode displays the elapsed time. Note:
If you stop pedaling for a few seconds, the time
mode will pause.
• Distance—This mode displays the distance you
have pedaled, in miles or kilometers.
Calories—This mode displays the approximate
•
number of calories you have burned.
• Fat Calories—This mode displays the approximate
number of fat calories you have burned (see FAT
BURNING on page 12).
•
Pulse—This mode displays your heart rate when
you use the pulse sensor.
Scan—This mode displays the speed, time, dis
•
tance, calories, fat calories, and pulse modes, for a
few seconds each, in a repeating cycle. Note: The
pulse mode will be displayed only while the pulse
sensor is being used.
Pace—The pace bar on the left side of the display
•
shows your pedaling pace, in revolutions per minute
(RPM). Note:
played while you are pedaling.
The pace mode will always be dis-
-
HOW TO OPERATE THE CONSOLE
ake sure that there are batteries in the console (see
M
BATTERY REPLACEMENT on page 11). If there is a
heet of clear plastic on the console, remove it.
s
Follow the steps below to operate the console.
1. To turn on the console, press the ON/RESET button or begin pedaling. All numbers in the display
will appear briefly; the console will then be ready
for use.
2. Select one of the modes:
Scan mode—
When the power
is turned on, the
scan mode will be
selected automatically. One mode
indicator will
appear below the
word SCAN, and
a second mode
indicator will show
which mode is
currently displayed. Note: If you have selected a
different mode, press the MODE button repeatedly
to reselect the scan mode.
Speed, time, distance, calories,
or fat calories
mode—To select
one of these
modes for continuous display,
press the MODE
button repeatedly
The mode indicators will show
which mode is
selected. Make sure that there is not a mode indi
cator below the word SCAN.
o reset the display
T
Note: The console can display speed and distance in either miles or kilometers. To change
the unit of measurement, press the ON/RESET
button for about five seconds. The letters mph or
km/h will appear in the display to show which unit of
measurement is selected. When the batteries are
replaced, it may be necessary to reselect the
desired unit of measurement.
.
, press the ON/RESET
Mode Indicators
Mode Indicator
button.
-
9
Page 10
3. Measure your heart rate if desired.

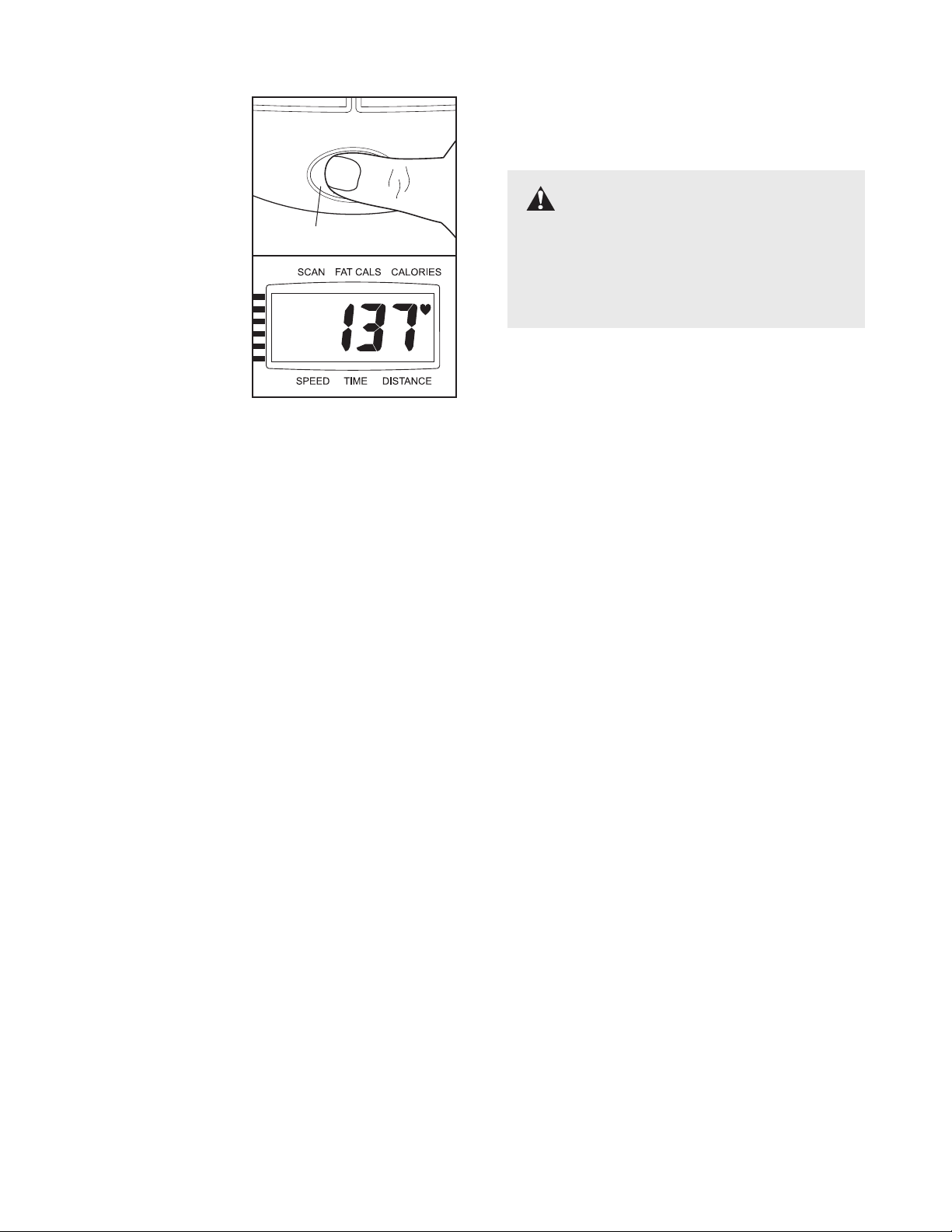

o measure your
T
heart rate,
edalingand
p
place your thumb
on the pulse sensor as shown.
not press too
hard, or the circulation in your
thumb will be
restricted and
your pulse will
not be detected.
After a few seconds, the heartshaped indicator
in the display will
flash steadily, two
dashes will appear, and then your heart rate will be
shown. Hold your thumb on the pulse sensor for
about 15 seconds for the most accurate reading.
If the displayed heart rate appears to be too high or
too low, or if your heart rate is not displayed, lift
your thumb off the pulse sensor for a few seconds.
Then, place your thumb on the pulse sensor as
described above.
stop
Do
Pulse Sensor
Make sure that you are applying the proper amount
of pressure to the pulse sensor. Try the pulse sensor
everal times until you become familiar with it.
s
Remember to sit still while measuring your heart
ate.
r
WARNING: The pulse sensor
is not a medical device. Various factors
may affect the accuracy of heart rate readings. The pulse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
4. To turn off the console, simply wait for a few min-
The console has an “auto-off” feature. If
utes.
the pedals are not moved and the console buttons are not pressed for a few minutes, the
power will turn off automatically to save the
batteries.
10
Page 11
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dish soap.
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, first
see assembly step 8 on page 7 and remove the console from the handlebar. Next, insert three batteries
into the console. Reattach the console to the handlebar, being careful not to pinch the wires.

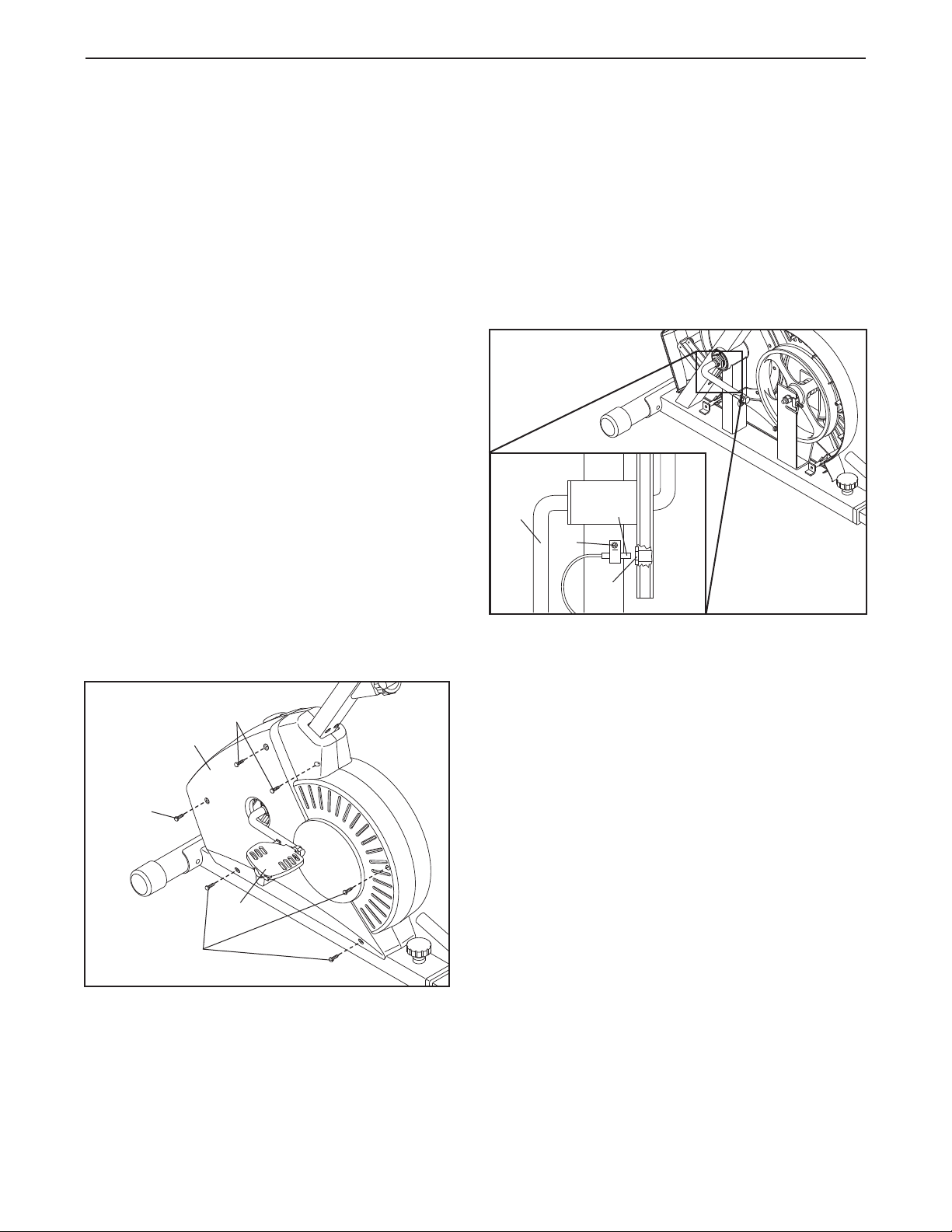

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Left Side Shield
(17). Using an adjustable wrench, turn the Left Pedal
(24) clockwise and remove it. Next, remove the five
M4 x 25mm Screws (41) and the M4 x 16mm Screw
(49) from the Left Side Shield. Then, carefully remove
the Left Side Shield.
Important: To
With the left side shield removed, locate the Reed
Switch (43). Turn the Crank (21) until the Magnet (38)
is aligned with the Reed Switch. Next, loosen, but do
not remove, the indicated M4 x 16mm Screw (49).
Slide the Reed Switch slightly closer to or away from
the Magnet, and then retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly adjusted, reattach the left side shield and the
left pedal.
21
49
43
38
49
41
17
24
41
11
Page 12
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin
ing heart rate trends in general.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
-
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle of
your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
carbohydrate
fat
calories for energy.
calories for ener-

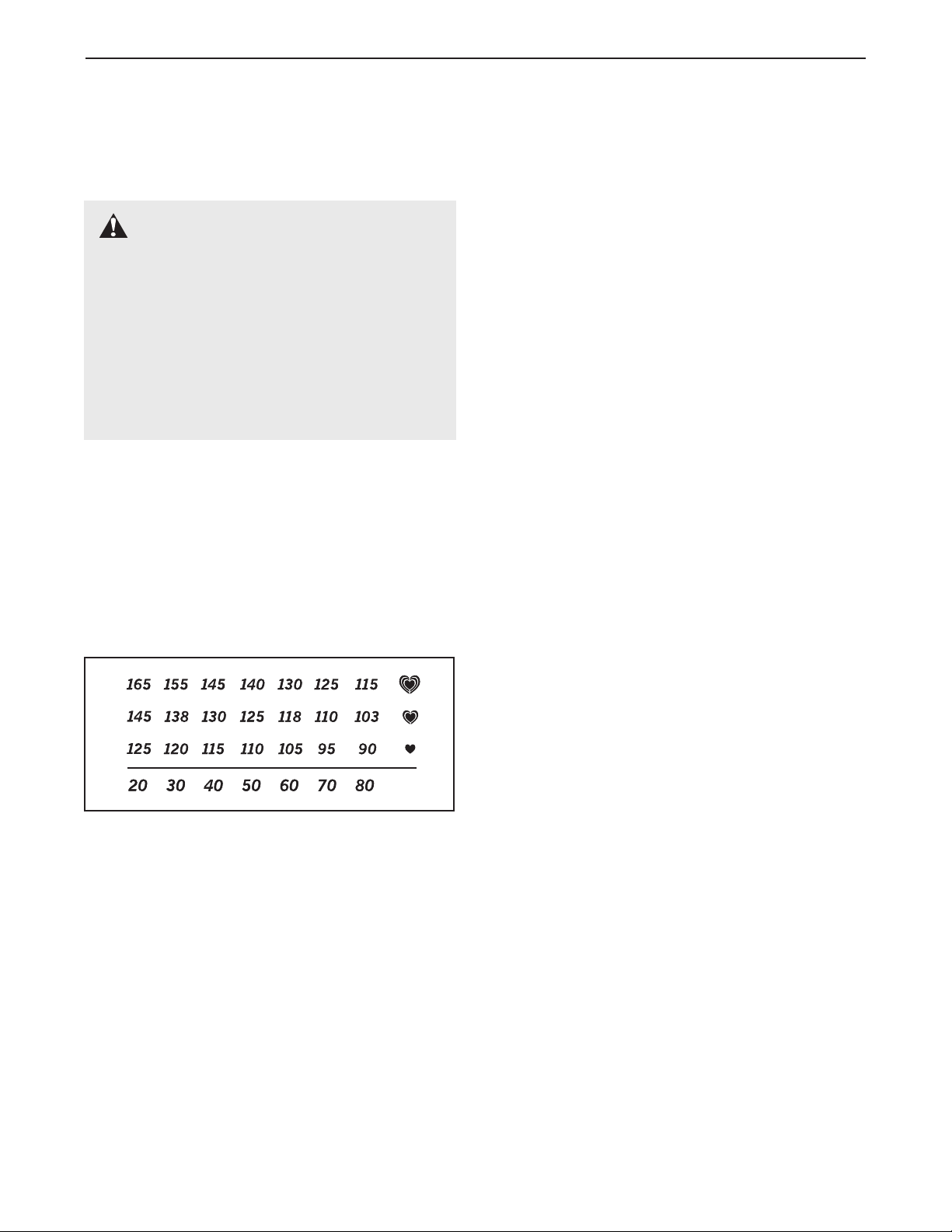

To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers above
your age. The three numbers are your “training zone.”
The lowest number is the recommended heart rate for
fat burning, the middle number is the recommended
heart rate for maximum fat burning, and the highest
number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts.
may complete up to five workouts each week, if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
After a few months of regular exercise, you
12
Page 13

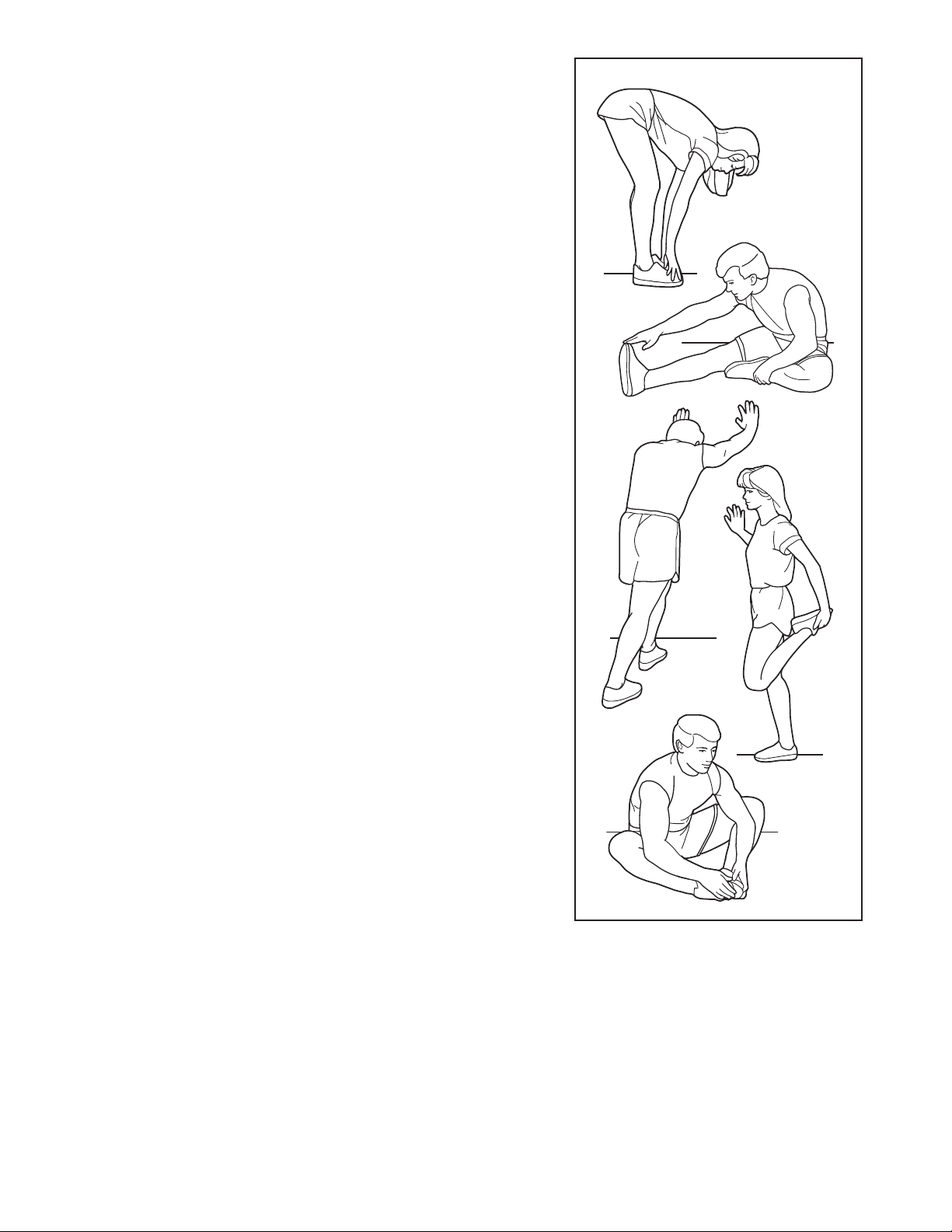

SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right.
T
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, backs of
knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward, and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
13
Page 14

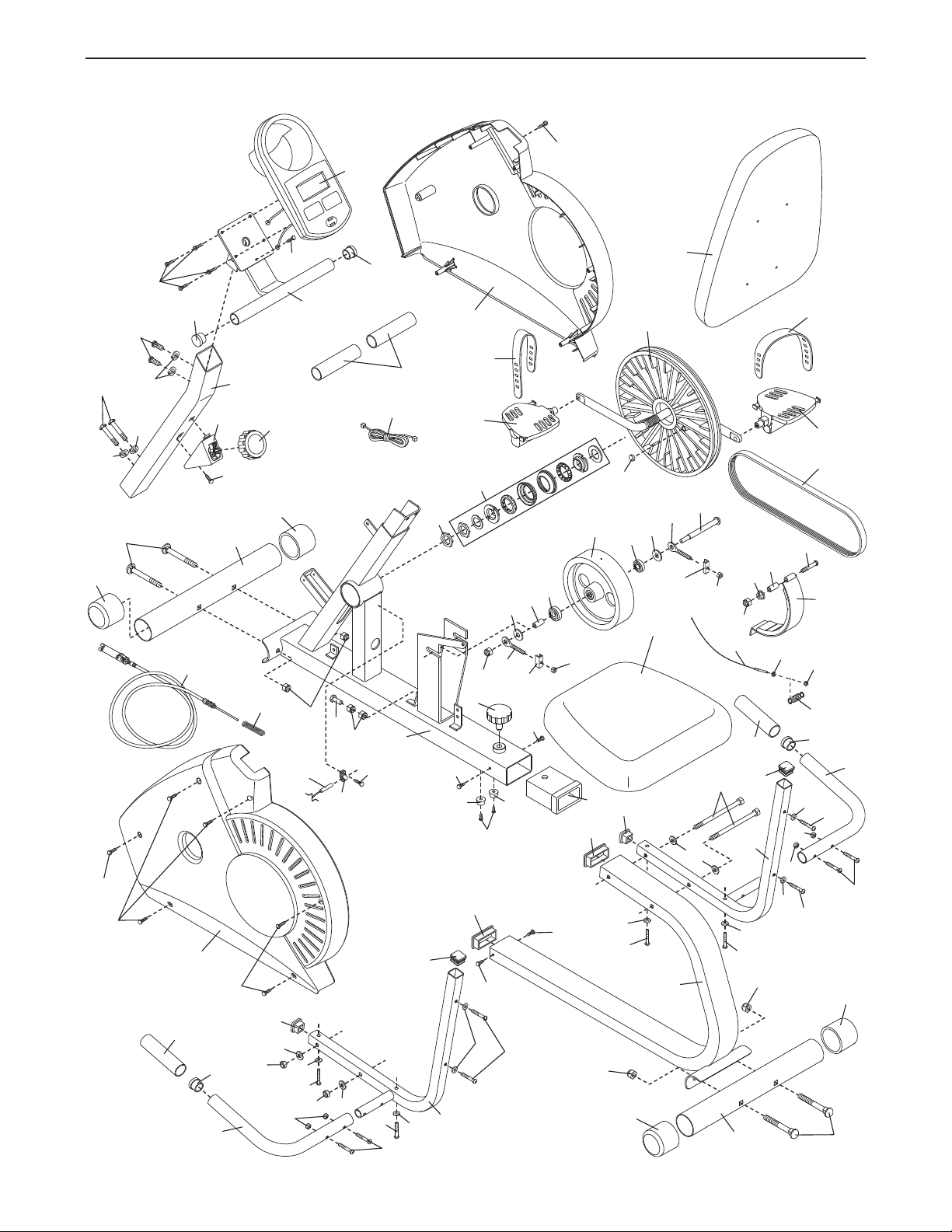

PART LIST—Model No. 831.21520.0 R0405A
ey No. Qty. Description Key No. Qty. Description
K
1 1 Frame
2
3 1 Flange Nut
4
5 1 Seat Frame
6 1 11.5mm Spacer
7 4 Handlebar Endcap
8 4 Foam Grip
9 1 Adjustment Knob
10 4 M8 Nylon Locknut
11 1 C-magnet
12 1 Seat
13 1 Upright
14 4 M8 Washer
15 1 Handlebar
16 1 Console
17 1 Left Side Shield
18 1 Right Side Shield
19 1 Resistance Control/Cable
20 1 Seat Frame Bushing
21 1 Crank/Pulley
22 1 Reed Switch Clamp
23 2 M10 Washer
24 1 Left Pedal
25 1 M4 x 12mm Screw
26 1 Right Pedal
27 1 Resistance Knob
28 2 U-bracket
29 1 Crank Nut
30 4 M10 x 65mm Carriage Bolt
31 2 Eyebolt
32 4 M6 Nut
33 4 M10 Nylon Locknut
34 4 M8 x 15mm Screw
35 1 Belt
36 1 Extension Wire
2 Stabilizer
4 Stabilizer Endcap
37 1 Flywheel
8 1 Magnet
3
39 1 Flywheel Axle
0 2 Bearing
4
41 5 M4 x 25mm Screw
42 4 M8 Split Washer
43 1 Reed Switch/Wire
44 1 Crank Bearing Set
45 1 Lower Cable
46 1 Resistance Cable
47 1 Return Spring
48 1 Spring
49 8 M4 x 16mm Screw
50 2 Seat Handle
51 1 Inner Frame Bushing
52 1 Left Seat Bracket
53 1 Right Seat Bracket
54 1 Backrest
55 4 Seat Bracket Endcap
56 1 Seat Frame Endcap
57 2 M8 x 115mm Bolt
58 2 Pedal Strap
59 1 13mm Spacer
60 8 M6 x 30mm Screw
61 8 M6 Washer
62 4 M6 x 26mm Bolt
63 4 M6 Nylon Locknut
64 2 M4 x 8mm Screw
65 2 M4 x 5mm Screw
66 2 Bumper
67 2 M6 Zinc Nut
68 1 M6 x 40mm Bolt
69 1 M8 x 61mm Shoulder Bolt
70 2 M4 x 16mm Flat Head Screw
# 1 User’s Manual
# 2 Allen Wrench
Note: # indicates a non-illustrated part. Specifications are subject to change without notice. If a part is missing,
call toll-free
parts.
1-866-699-3756.
See the back cover of this manual for information about ordering replacement
14
Page 15
7
8
15
16
49
13
27
19
18
4
9
35
2
4
4
45
9
30
4
4
2
33
33
1
47
22
43
49
20
5
12
42
30
33
31
32
37
39
28
10
31
32
28
40
23
38
21
24
26
44
29
17
41
41
49
49
7
7
7
34
55
55
50
52
53
50
55
55
56
51
54
8
8
10
61
60
10
63
60
61
62
60
57
60
63
62
60
61
60
42
42
65
65
66
66
64
14
14
14
63
61
60
61
61
61
70
70
58
58
46
48
11
32
68
67
67
25
34
36
40
23
6
10
59
3
69
EXPLODED DRAWING—Model No. 831.21520.0 R0405A
15
Page 16
FULL 90 DAY WARRANTY
For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
Sears Bike Exerciser, contact the nearest Sears Service Center throughout the United States and
Sears will repair or replace the Bike Exerciser, free of charge.
This warranty does not apply when the
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears, Roebuck and Co., Dept. 817W
Part No. 222915 R0405A Printed in China © 2005 ICON IP, Inc.
Bike Exerciser is used commercially or for rental purposes.
A, Hoffman Estates, IL
60179
Loading...
