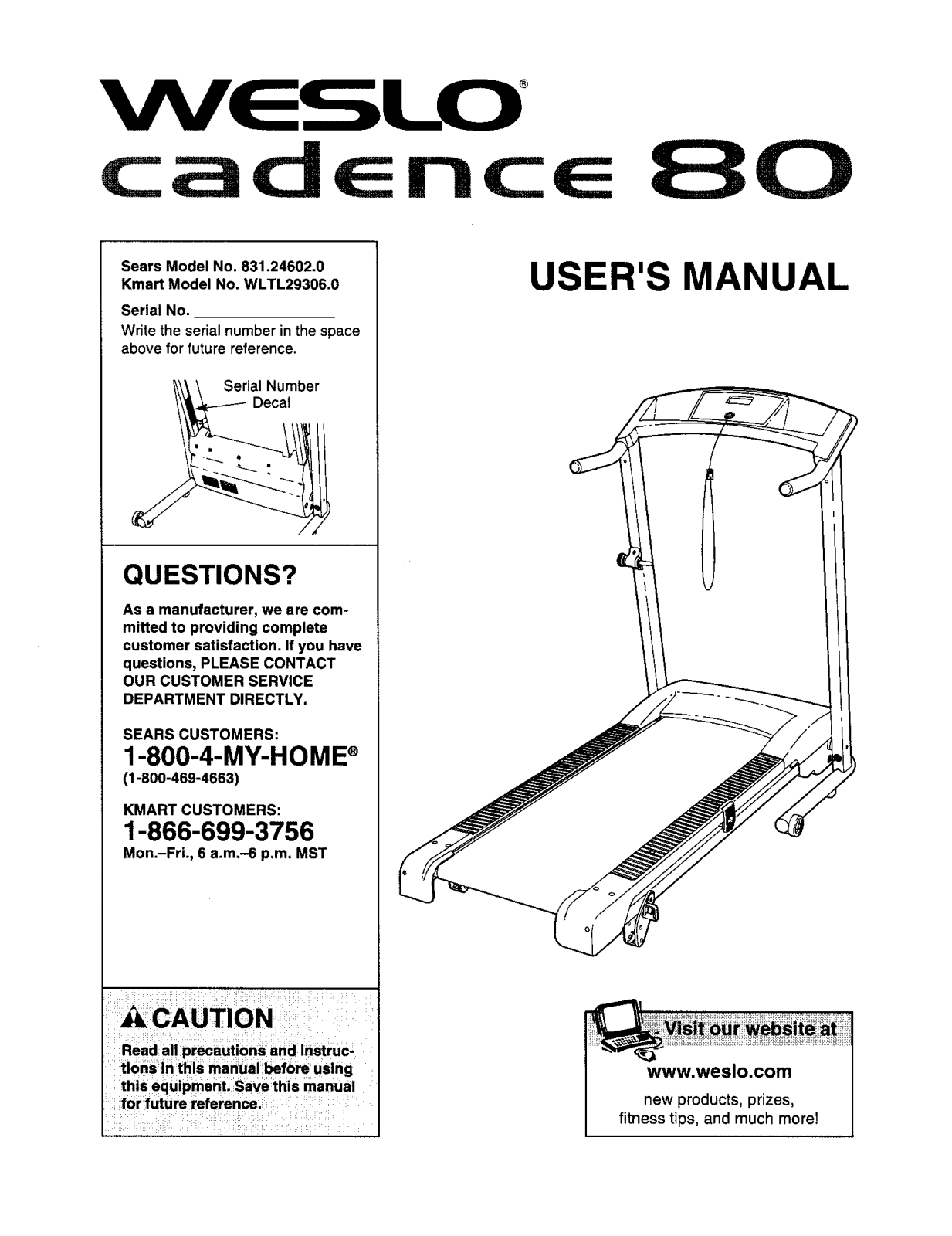

Weslo 831246020 Owner’s Manual

WESLO

c d nce BO

Sears Model No. 831.24602.0
Kmart Model No. WLTL29306.0

Serial No.

Write the serialnumber inthe space

above for future reference.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete
customer satisfaction. If you have

questions, PLEASE CONTACT
OUR CUSTOMER SERVICE

DEPARTMENT DIRECTLY.

USER'S MANUAL

SEARS CUSTOMERS:

1-800-4-MY-HOME ®

(1-800-469-4663)
KMART CUSTOMERS:

1-866-699-3756

Mon.-Fri., 6 a.m.-6 p,m. MST

CAUTION

Read all precautions and Instruc-

tions in this manual before using
this equipment. Save this manual

for future reference,

www.weslo.com

new products, prizes,

fitness tips, and much more!

WESLO °

80

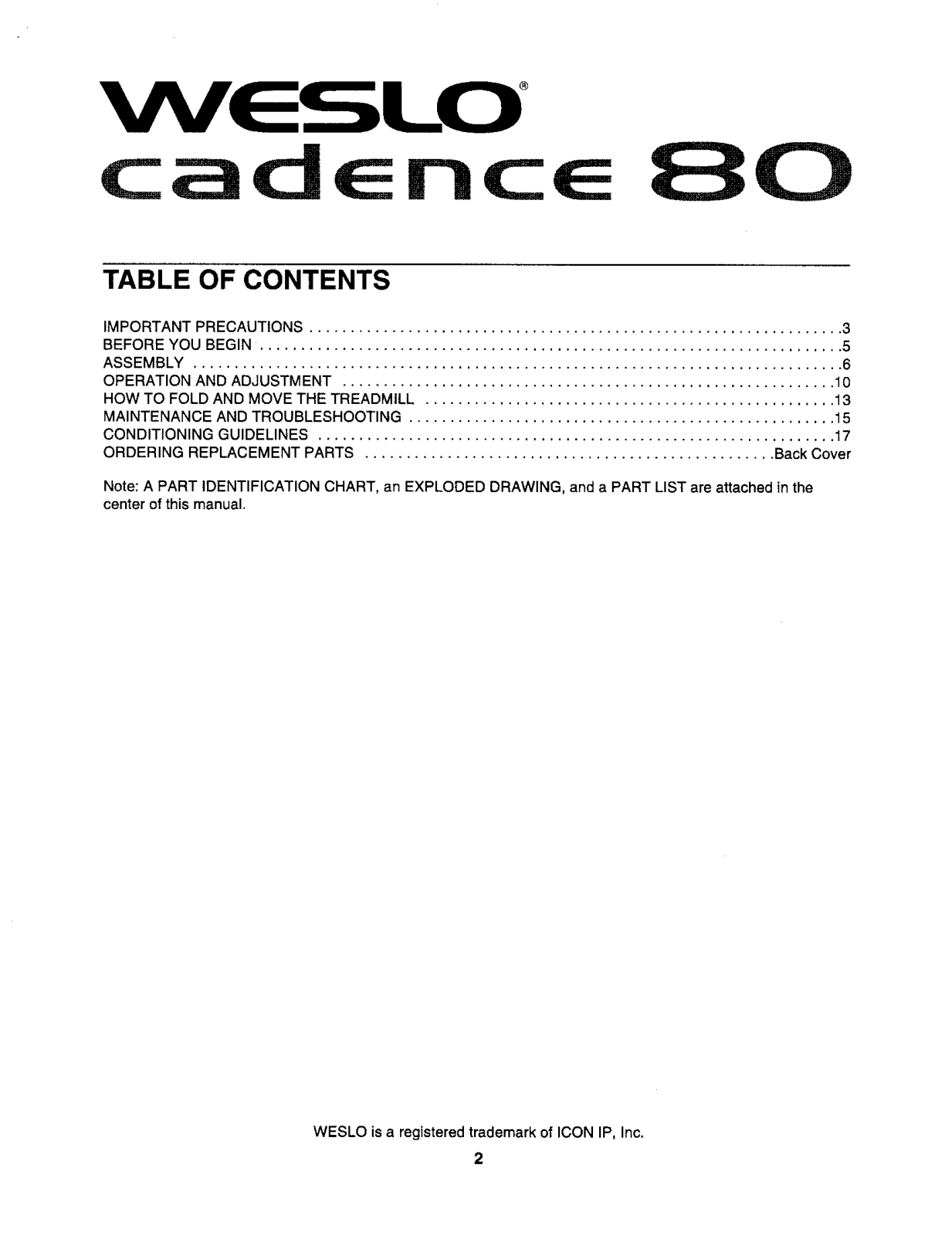

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 3

BEFORE YOU BEGIN ....................................................................... 5

ASSEMBLY ............................................................................... 6

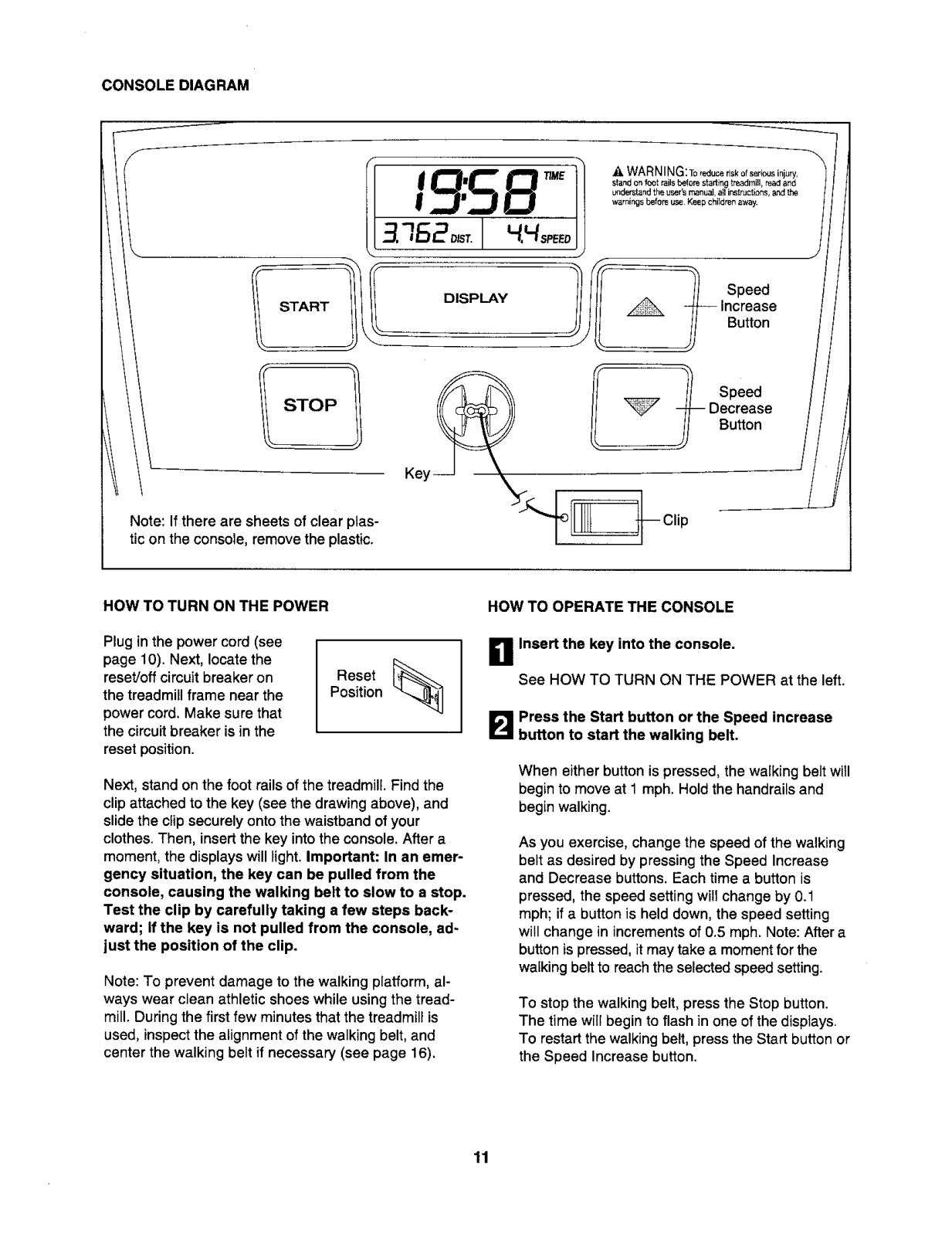

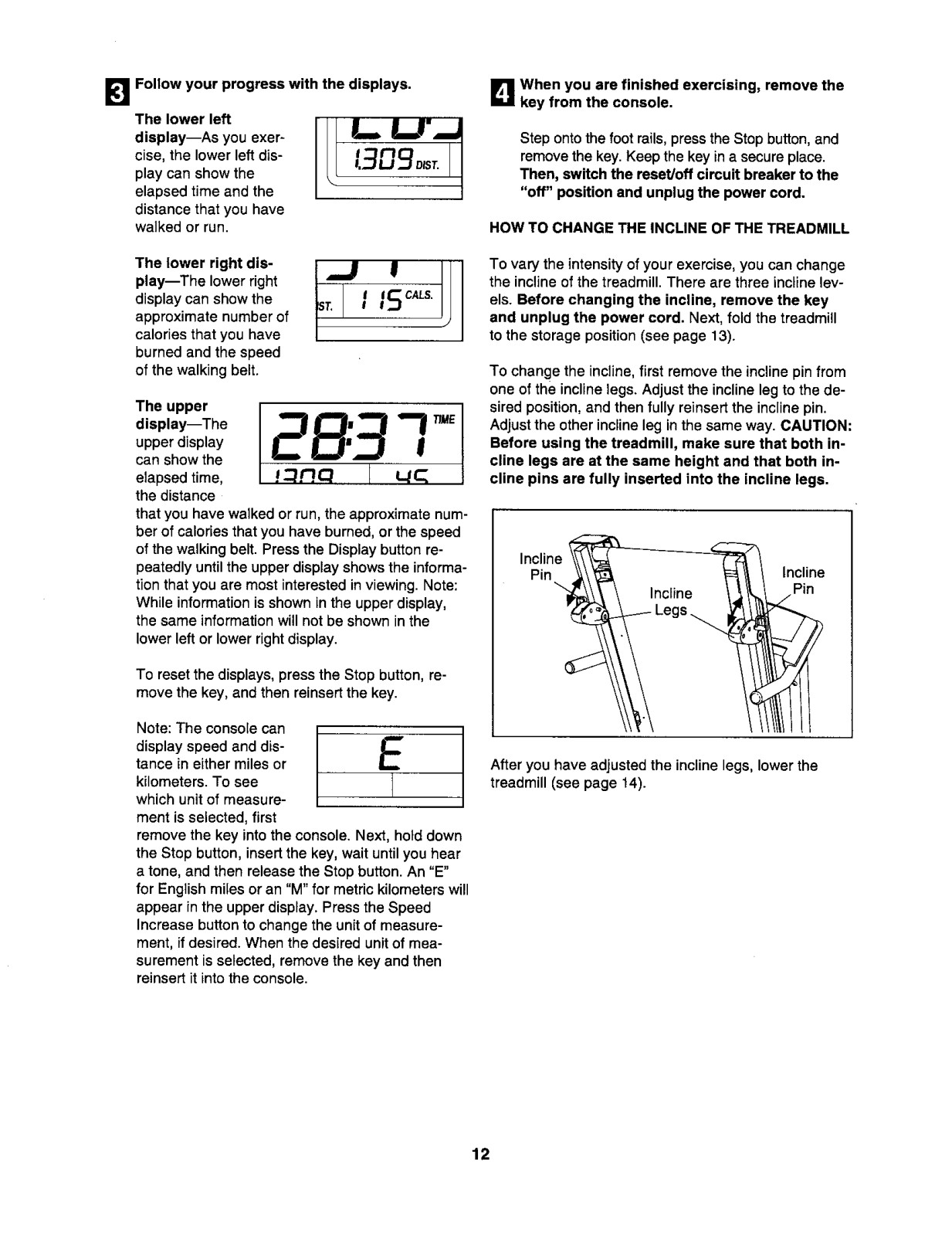

OPERATION AND ADJUSTMENT ............................................................ 10

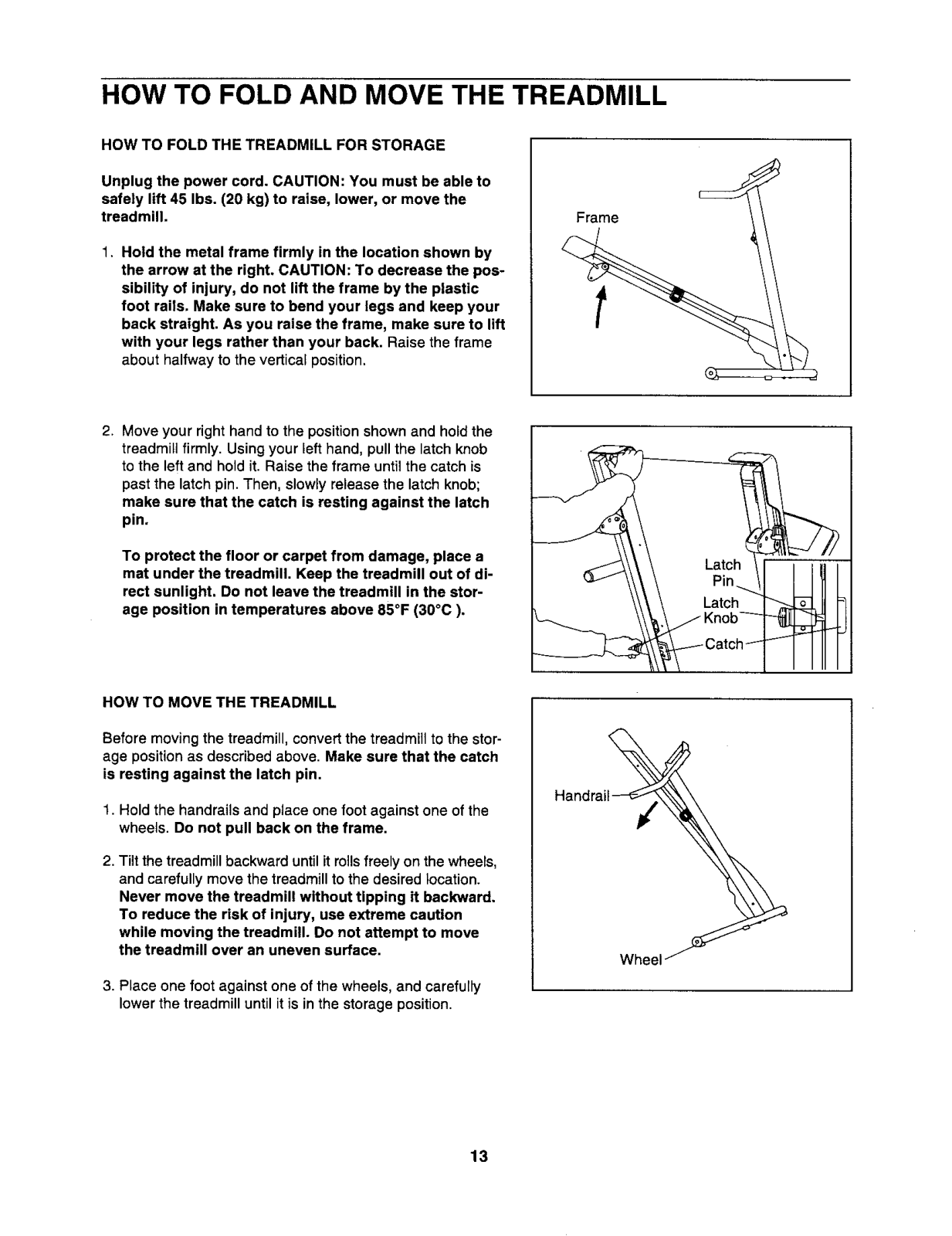

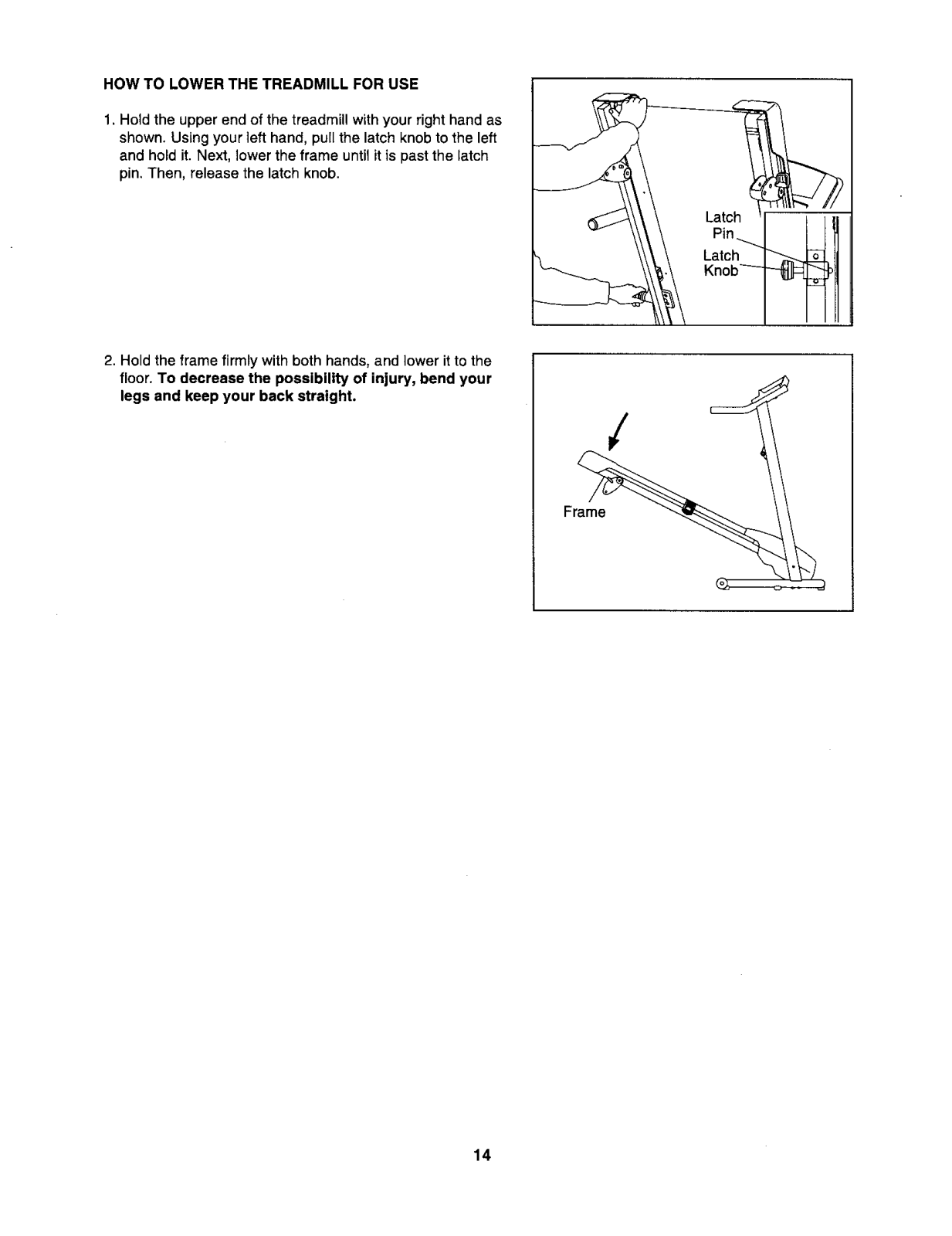

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 13

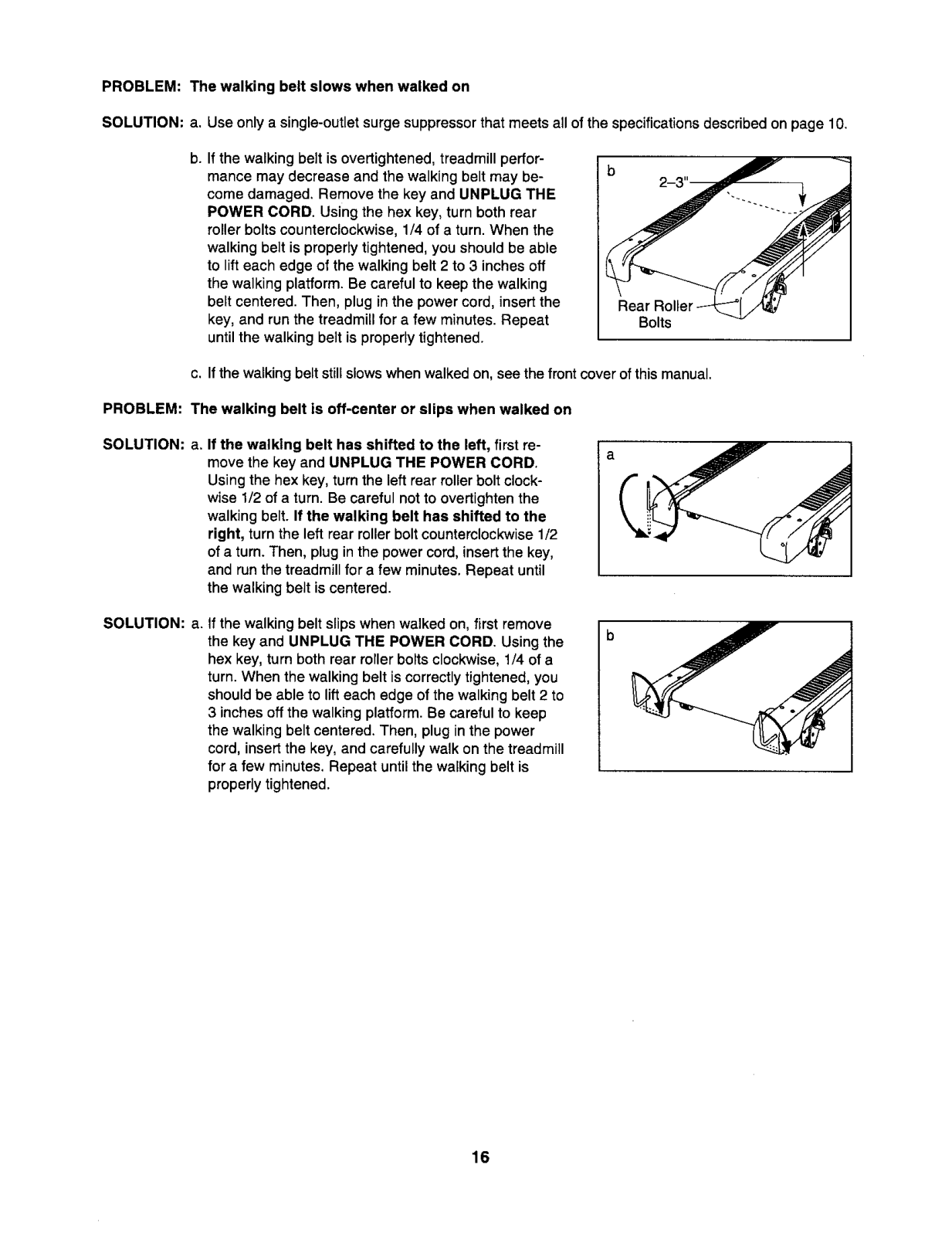

MAINTENANCE AND TROUBLESHOOTING .................................................... 15

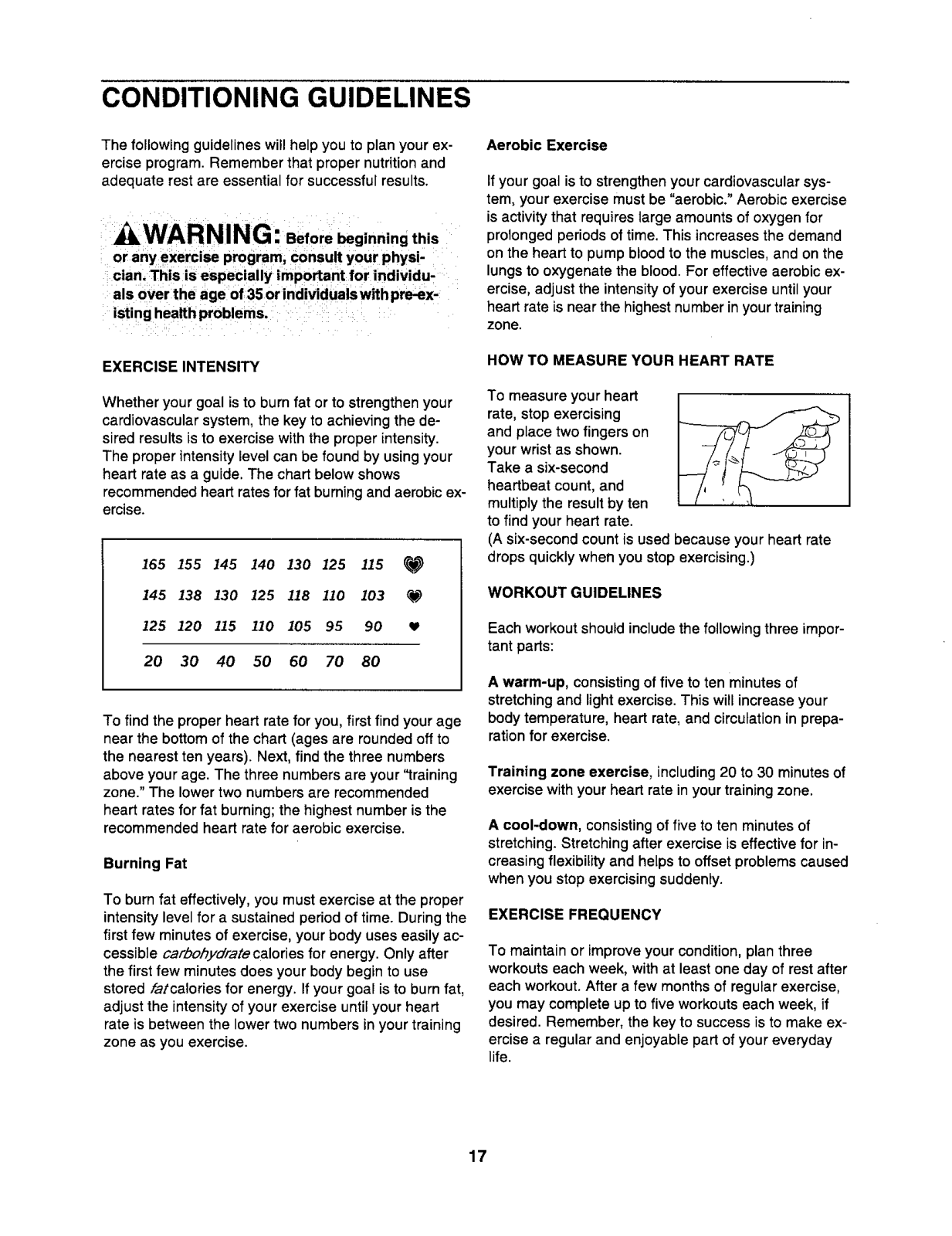

CONDITIONING GUIDELINES ............................................................... 17

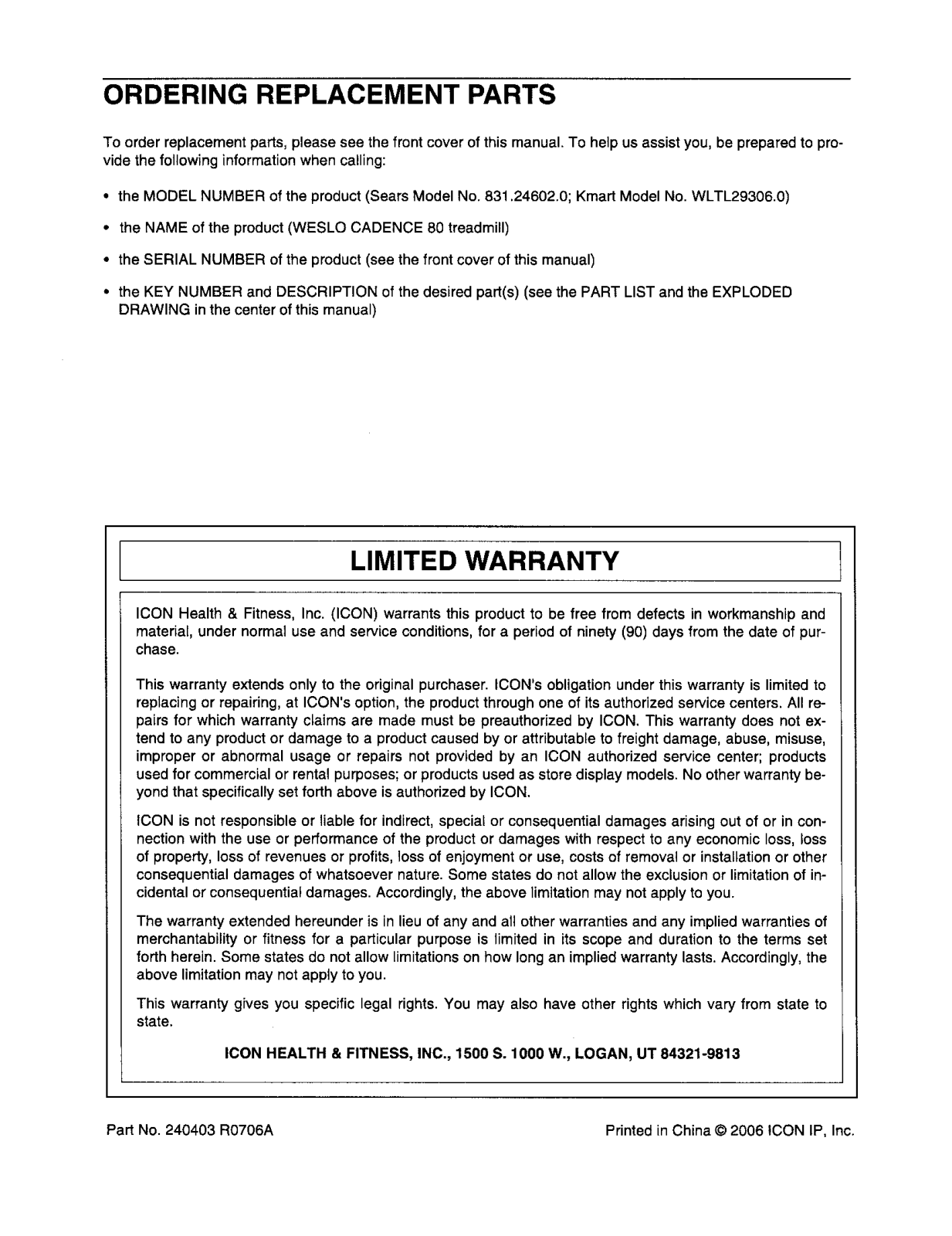

ORDERING REPLACEMENT PARTS .................................................. Back Cover

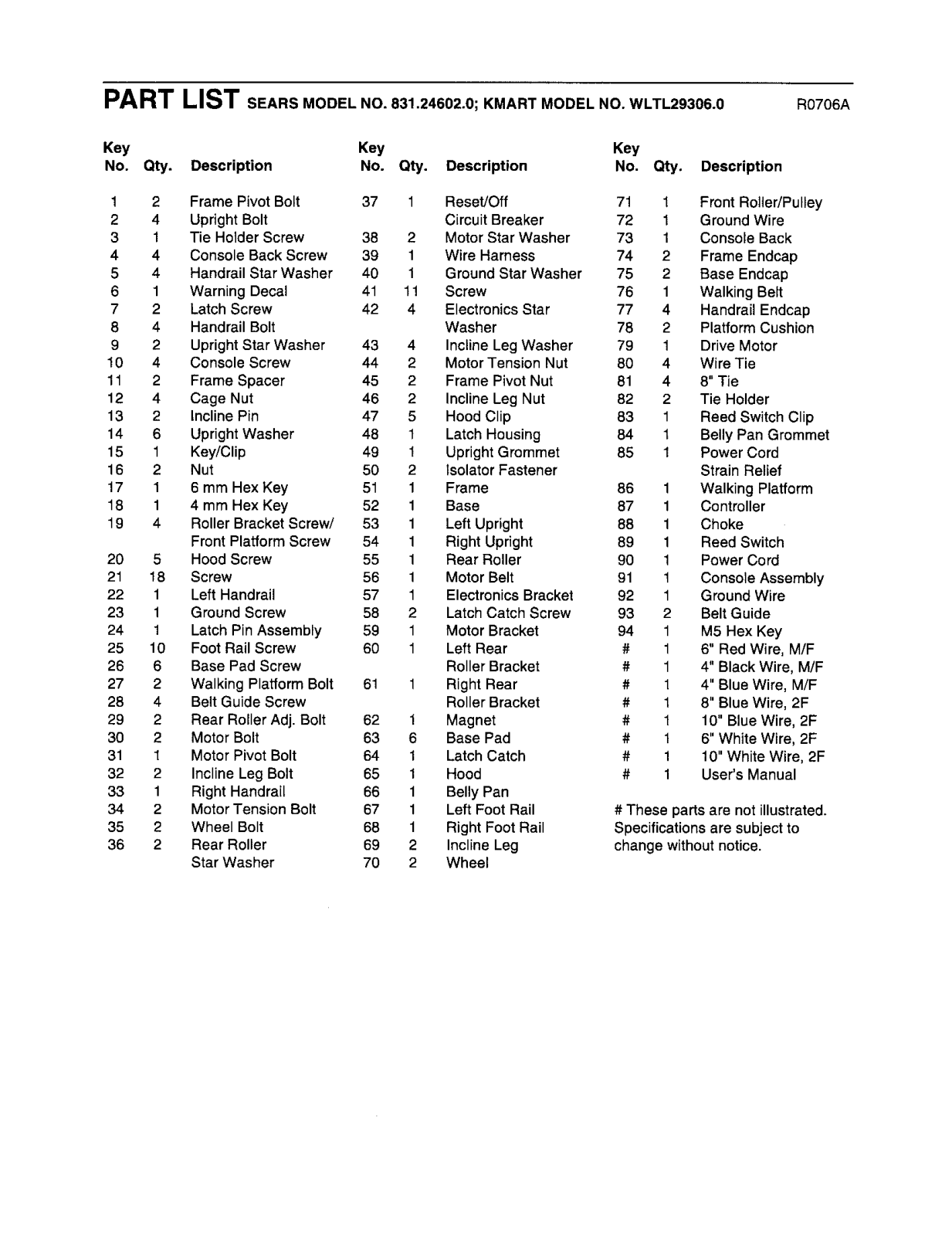

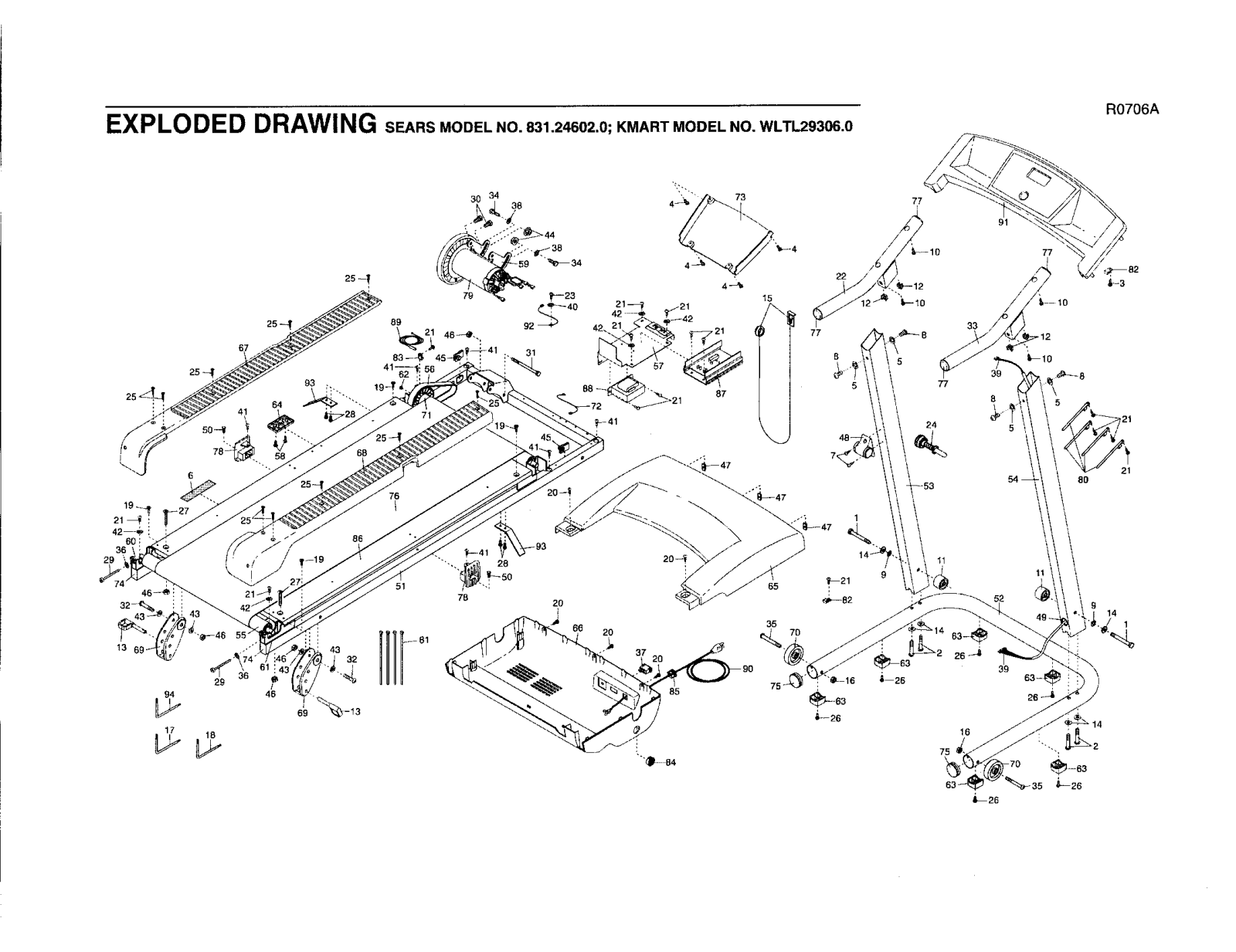

Note: A PART IDENTIFICATION CHART, an EXPLODED DRAWING, and a PART LIST are attached in the
center of this manual.

WESLO is a registered trademark of ICON IP, Inc.

2

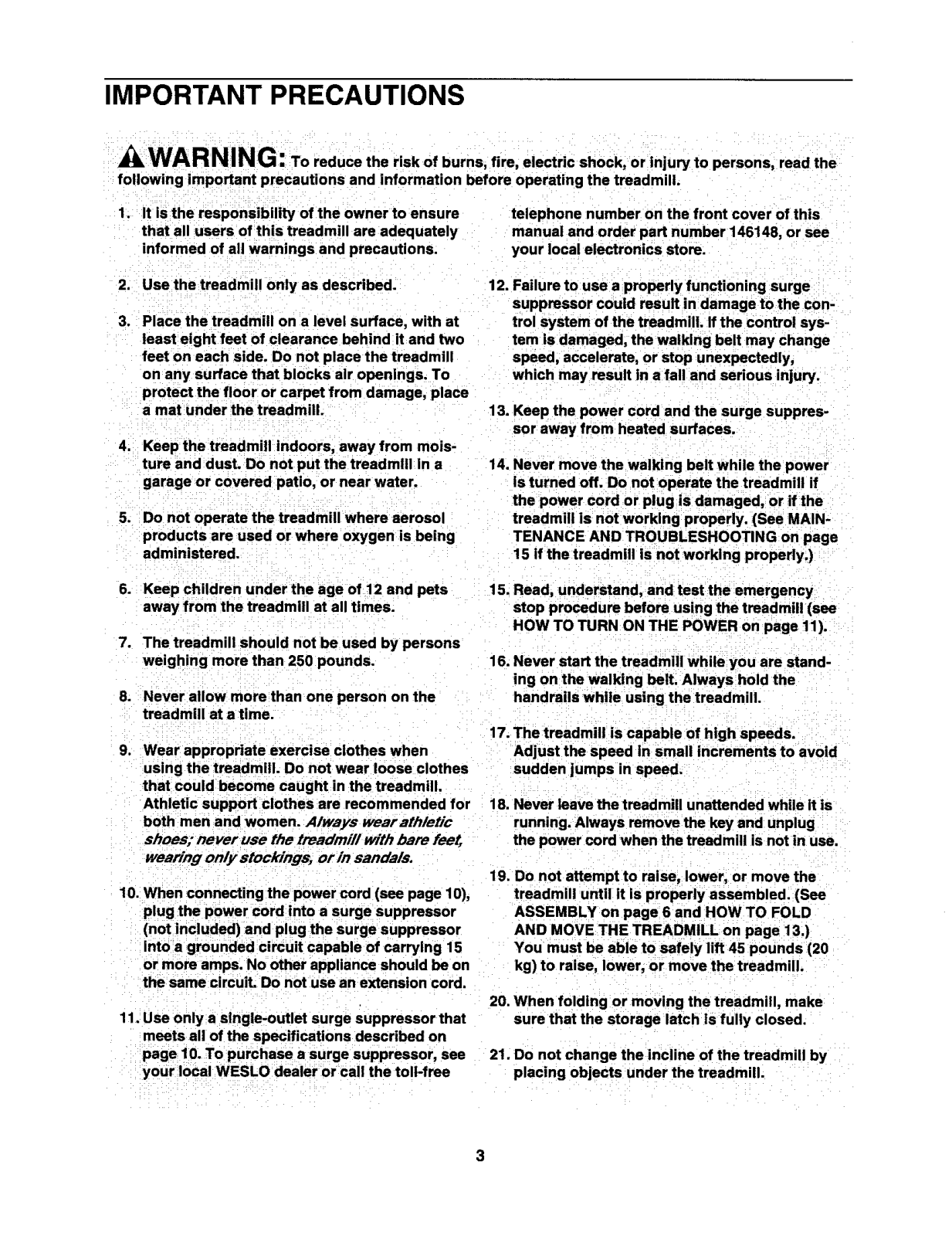

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electdc shock, orinjury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately

informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To

protect the floor or carpet from damage, place
a mat under the treadmill.

4. Keep the treadmill indoors, away from mois-

ture and dual Do not put the treadmill In a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol

products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets

away from the treadmill at all times.

7. The treadmill should not be used by persons
weighing more than 250 pounds.

8. Never allow more than one person on the

treadmill at a time.

9, Wear appropdate exercise clothes when

using the treadmill. Do not wear loose clothes

that could become caught in the treadmill.

Athletic support clothes are recommended for
both men and women. Always wear athletic

shoes; never use the treadmill with bare feet,

wearing only stockings, or in sandals.

10. When connecting the power cord (see page 10),
plug the power cord into a surge suppreSsor

(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15

or more ampe. No other appliance should be on

the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that

meets all of the specifications described on

page 10. To purchase a surge suppressor, see
your local WESLO dealer or call the toll-free

telephone number on the front cover of this
manual and order part number 146148, or see

your local electronics store....

12. Failure to use a properly functioning surge
suppressor could result in damage to the con-

trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change

speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres-
sor away from heated surfaces.

14. Never move the walking belt while the power
Is turned off. Do not operate the treadmill if

the power cord or plug is damaged, or if the

treadmill is not working properly. (See MAIN-
TENANCE AND TROUBLESHOOTING on page

15 if the treadmill is not working properly.)

15. Read, understand, and test the emergency
stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 11).

16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.

17. The treadmill is capable of high speeds.
Adjust the speed In small increments to avoid

sudden jumps in speed.

18. Never leave the treadmill unattended while it is
running. Always remove the key and unplug

the power cord when the treadmill is not in use.

19. Do not attempt to raise, lower, or move the
treadmill until it is propedy assembled. (See

ASSEMBLY on page 6 and HOW TO FOLD
AND MOVE THE TREADMILL on page 13.)

You must be able to safely lift 45 pounds (20

kg) to raise, lower, or move the treadmill.

20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.

21. Do not change the incline of the treadmill by
placing objects under the treadmill.

22.Inspectandproperlytightenallpartsofthe scribedinthismanual.Neverremovethe
treadmillregularly, motorhoodunlessinstructedtodosobyan

authorizedservicerepresentative.Servicing

23.Neverdroporinsertanyobjectintoany otherthantheproceduresinthismanual

openingonthetreadmill, shouldbeperformedbyanauthorizedservice

representativeonly.

24DANG ER: Alwaysunplugthepower

cord immediately after use, before cleaning 25. This treadmill is intended for In-home use

the treadmill, and before performing the main- only. Do not use th s treadm I in any commer-
tenance and adjustment procedures de- clsl, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all Instructions before using. ICON assumes no responsibility for persona Injury or property

damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

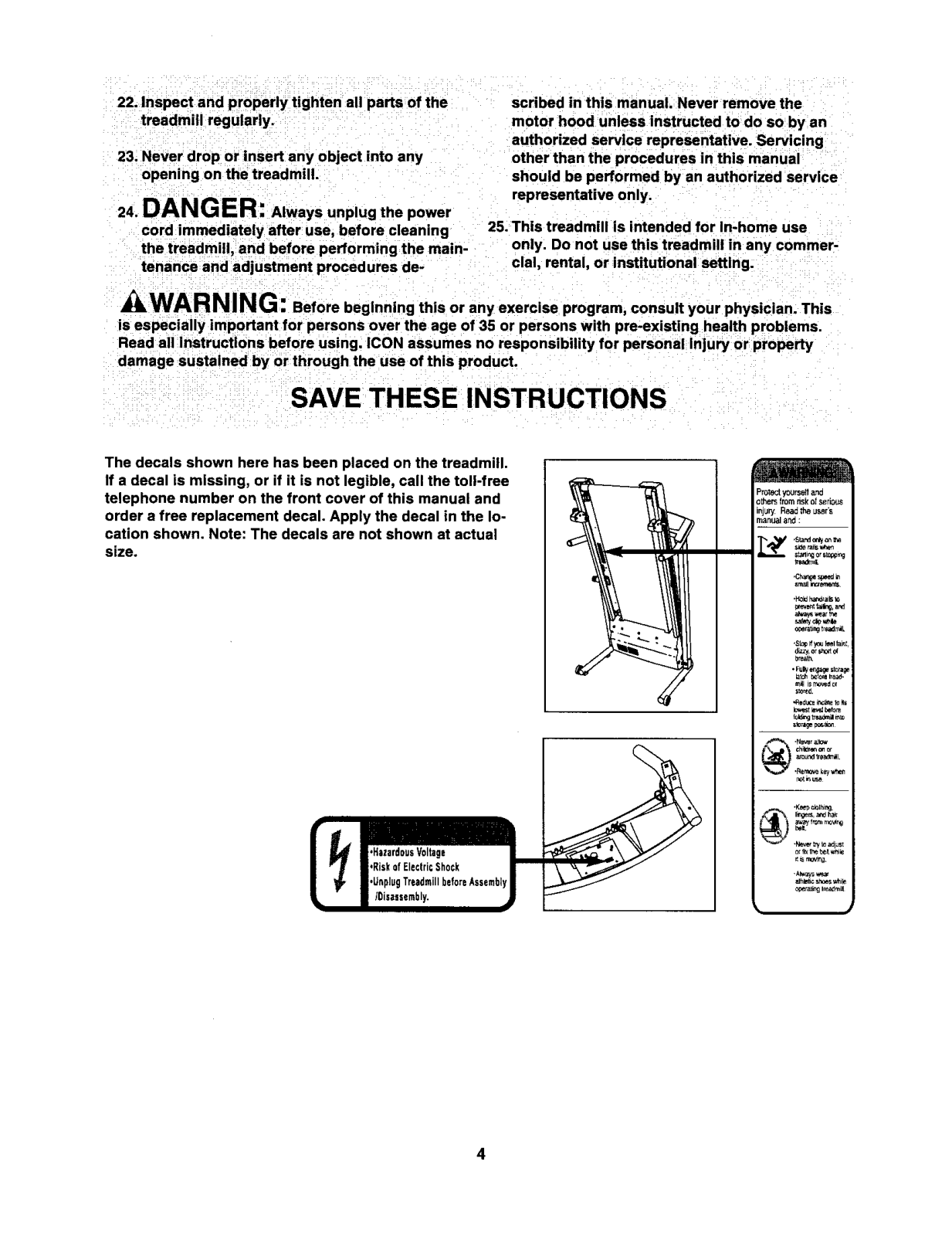

The decals shown here has been placed on the treadmill.
If a decal is missing, or if it is not legible, call the toll-free

telephone number on the front cover of this manual and
order a free replacement decal. Apply the decal in the lo-

cation shown. Note: The decals are not shown at actual
size.

Protect y0_rsell and
o_Ps lrom nskofserious

injury R_adthe user's
manualar_ :

so_ raSt*h_
s'_i_J or ste_p_g

_dfnlL

_r_Ji roer_nts_

.H0_ ha_aib _

OOeta_l_ tread_L

.S_ _ youleel_Jnt

d_z_,or shut 0_

*FUI_ d0ra_

_ is rr_d _

i .K_ cl_lhi_ ¸

4

BEFORE YOU BEGIN

Thank you for selecting the WESLO _CADENCE 80
treadmill. The CADENCE 80 treadmill combines ad-

vanced technology with innovative design to let you

enjoy an excellent form of cardiovascular exercise in

the convenience and privacy of your home. And when
you're not exercising, the unique CADENCE 80 tread-

mill can be folded up, requiring less than half the floor
space of other treadmills.

For your benefit, read this manual carefully before

you use the treadmill. If you have questions after

Accessory Tray

Handrail

Storage Latch

reading this manual, please see the front cover of this
manual. To help us assist you, note the product model

number and serial number before contacting us. The
model number is found on the front cover of this man-

ual. The serial number is found on a decal attached to
the treadmill (see the front cover of this manual for the
location of the decal).

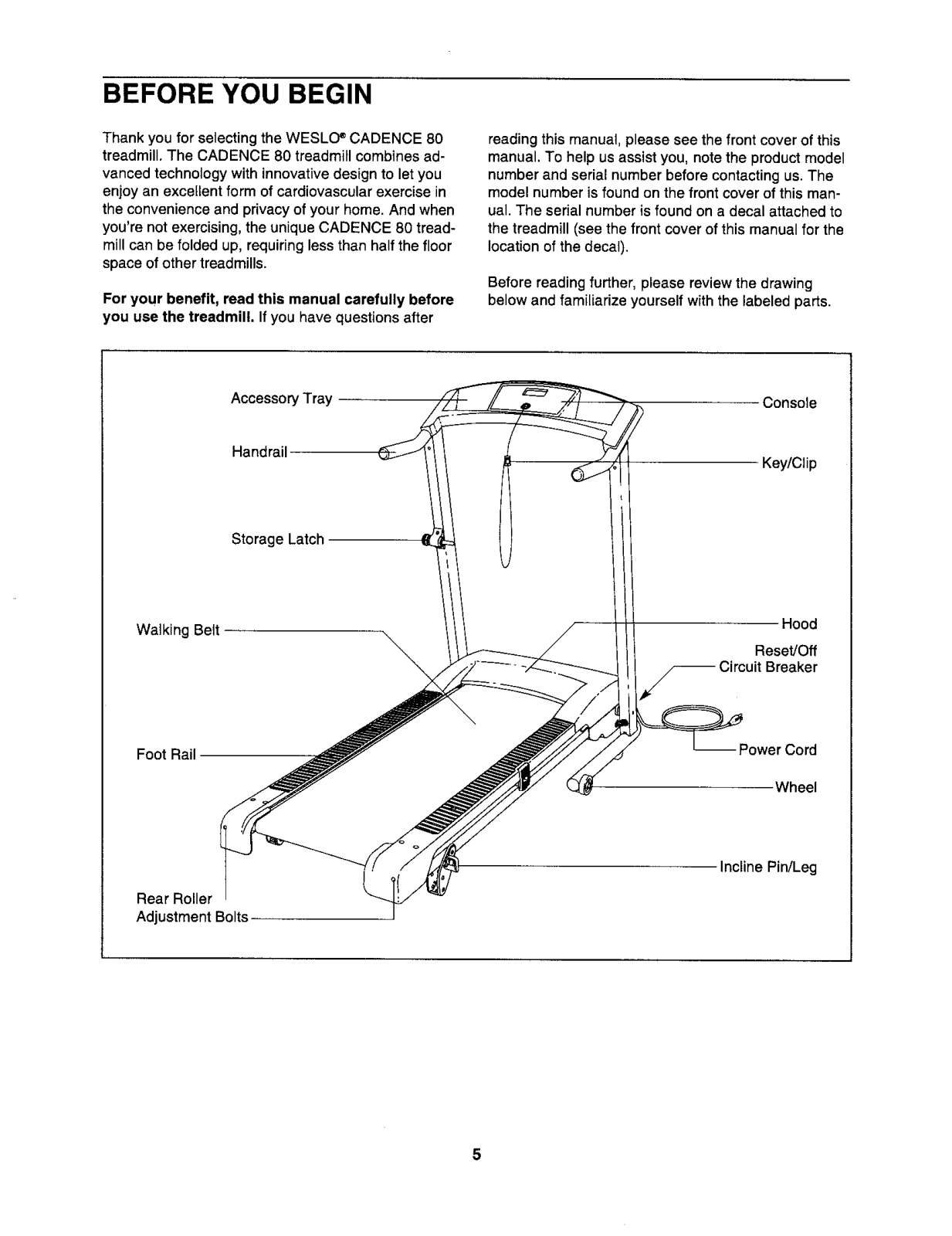

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

Consote

Key/Clip

Walking Belt

Foot Rail

Rear Roller

Adjustment Bolts

Hood

Reset/Off

eaker

-- Power Cord

.Wheel

Incline Pin/Leg

5

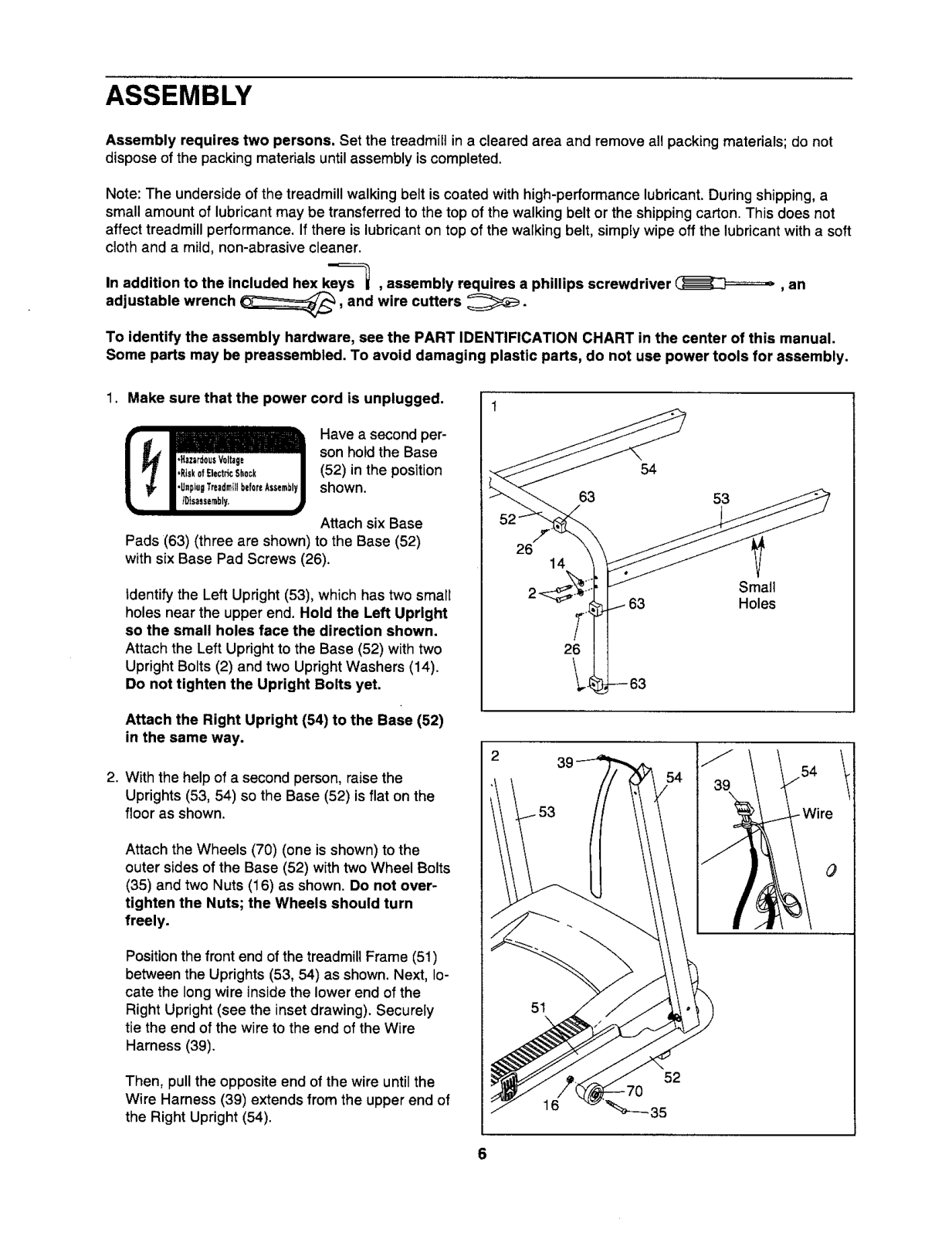

ASSEMBLY

Assembly requires two persons. Set the treadmill ina cleared area and remove all packing materials;do not
disposeof the packingmaterials untilassembly is completed.

Note: The undersideof the treadmill walking belt is coated with high-performance lubricant. During shipping, a

small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This does not
affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft

cloth and a mild, non-abrasive cleaner.

In addition to the included hex key-_s , assembly requires a phillips screwdriver (_, an
adjustable wrench _, and wire cutters _.

To identify the assembly hardware, see the PART IDENTIFICATION CHART in the center of this manual.
Some parts may be preassembled. To avoid damaging plastic parts, do not use power tools for assembly.

1. Make sure that the power cord is unplugged.

Have a second per-
son hold the Base

(52) in the position
shown.

Attach six Base

Pads (63) (three are shown) to the Base (52)

with six Base Pad Screws (26).

Identify the Left Upright (53), which has two small
holes near the upper end. Hold the Left Upright

so the small holes face the direction shown.
Attach the Left Uprightto the Base (52) withtwo

UprightBolts (2) and two UprightWashers (14),
Do not tighten the Upright Bolts yet.

26

14

26

54

53

Small

Holes

Attach the Right Upright (54) to the Base (52)

in the same way.

2. With the help of a second person, raise the
Uprights (53, 54) so the Base (52) is flat on the

floor as shown.

Attach the Wheels (70) (one is shown) to the
outer sides of the Base (52) with two Wheel Bolts

(35) and two Nuts (16) as shown. Do not over-

tighten the Nuts; the Wheels should turn

freely.

Position the front end of the treadmill Frame (51)
between the Uprights (53, 54) as shown. Next, lo-

cate the long wire inside the lower end of the

Right Upright (see the inset drawing). Securely

tie the end of the wire to the end of the Wire

Harness (39).

Then, pull the opposite end of the wire until the
Wire Harness (39) extends from the upper end of

the Right Upright (54).

2

51

6

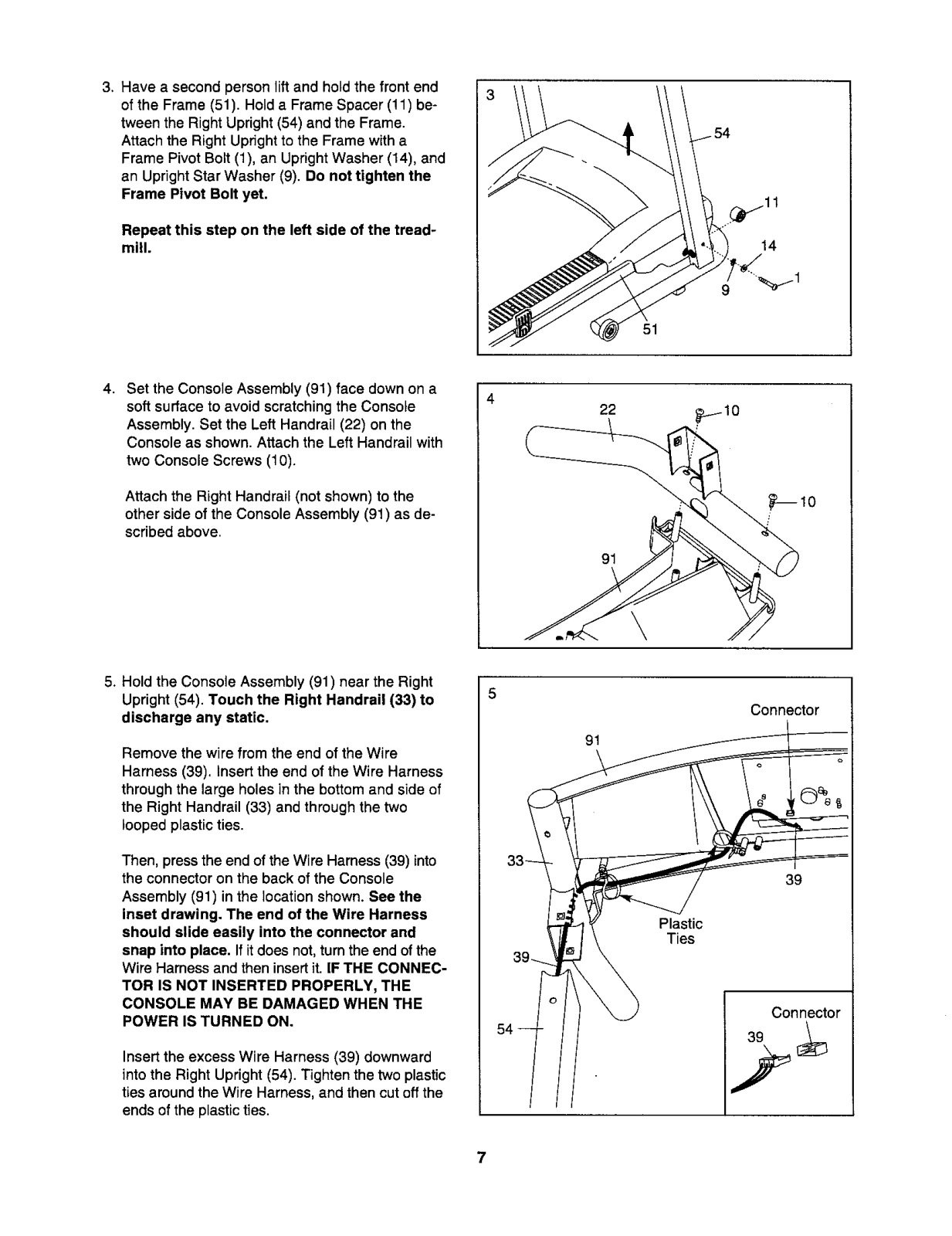

3. Have a second person lift and hold the front end
of the Frame (51). Hold a Frame Spacer (11) be-

tween the Right Upright (54) and the Frame.

Attach the Right Upright to the Frame with a
Frame Pivot Bolt (1), an Upright Washer (14), and
an Upright Star Washer (9). Do not tighten the

Frame Pivot Bolt yet.

Repeat this step on the left side of the tread-
mill.

51

4. Set the Console Assembly (91) face down on a
soft surface to avoid scratching the Console
Assembly. Set the Left Handrail (22) on the

Console as shown. Attach the Left Handrail with
two Console Screws (10).

Attach the Right Handrail (not shown) to the
other side of the Console Assembly (91) as de-

scribed above.

5. Hold the Console Assembly (91) near the Right
Upright (54). Touch the Right Handrail (33) to

discharge any static.

Remove the wire from the end of the Wire
Harness (39). Insert the end of the Wire Harness

through the large holes in the bottom and side of
the Right Handrail (33) and through the two

looped plastic ties.

4

22

91

5

Connector

91

o

0%

Then, press the end of the Wire Harness (39) into
the connector on the back of the Console

Assembly (91) in the location shown. See the

inset drawing. The end of the Wire Harness
should slide easily into the connector and

snap into place, If it does not, turnthe end ofthe

Wire Harness and then insert it. IF THE CONNEC-
TOR IS NOT INSERTED PROPERLY, THE

CONSOLE MAY BE DAMAGED WHEN THE

POWER IS TURNED ON.

Insert the excess Wire Harness (39) downward
into the Right Upright (54). Tighten the two plastic
ties around the Wire Harness, and then cut off the

ends of the plastic ties.

33

39

Plastic

Ties

Connector

7
