Volvo XC70 2004 Owner Manual

2004 VOLVO XC70

2 0 0 4
VOLVO
XC70
This manual deals with the operation and care of your Volvo.
Welcome to the worldwide family of Volvo owners. We trust that you will enjoy many years of safe
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (1 of 6)12/30/2006 4:32:53 PM
2004 VOLVO XC70
For further information please contact your retailer, or: In the USA: In Canada:
Volvo Cars of North America Volvo Cars of Canada Ltd. Customer Relations 175 Gordon Baker Road P.O. Box 914 North York, Ontario M2H 2N7 Rockleigh, New Jersey 07647-0914 800-663-8255 800-458-1552
We also invite you to visit our Home Page on the Internet at:
http://www.volvocars.com

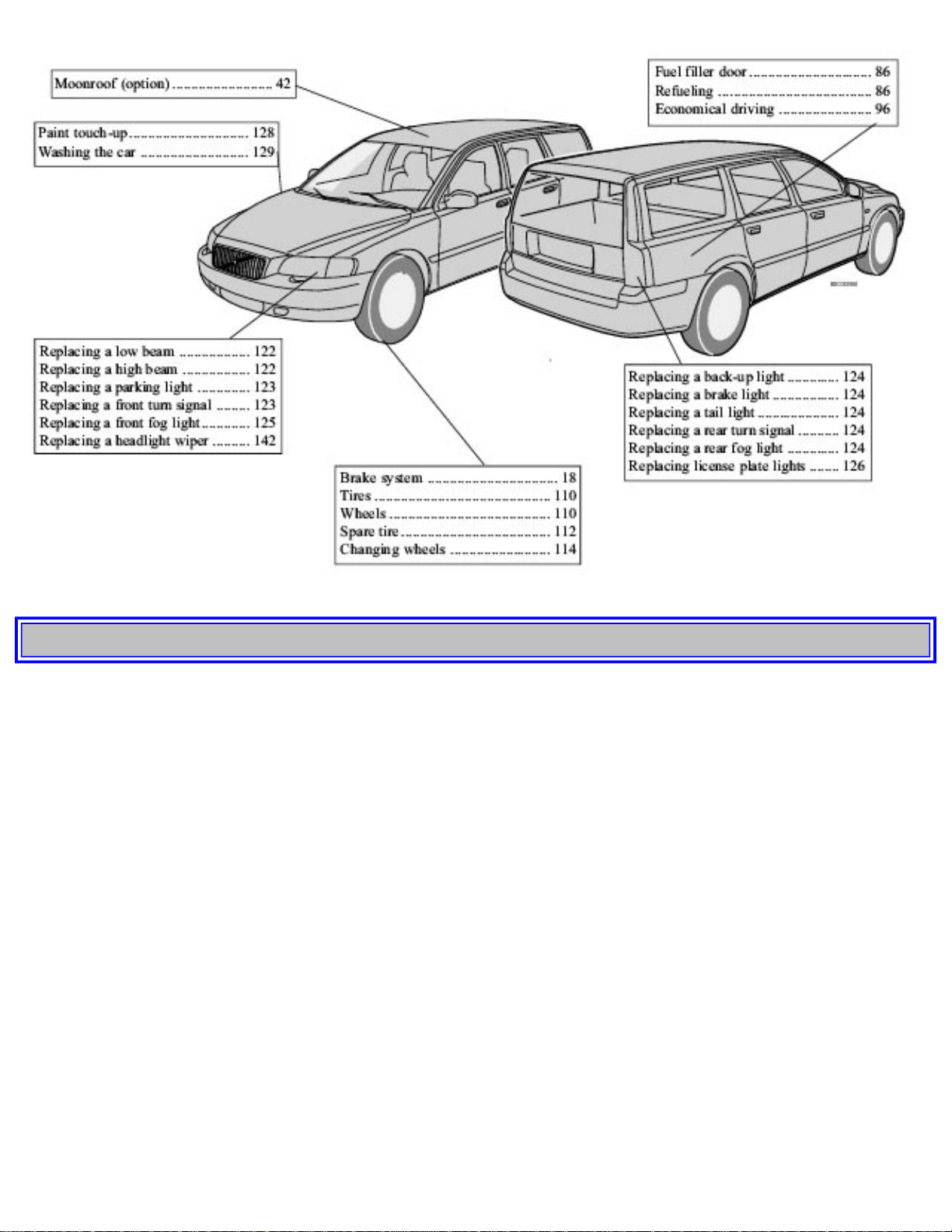

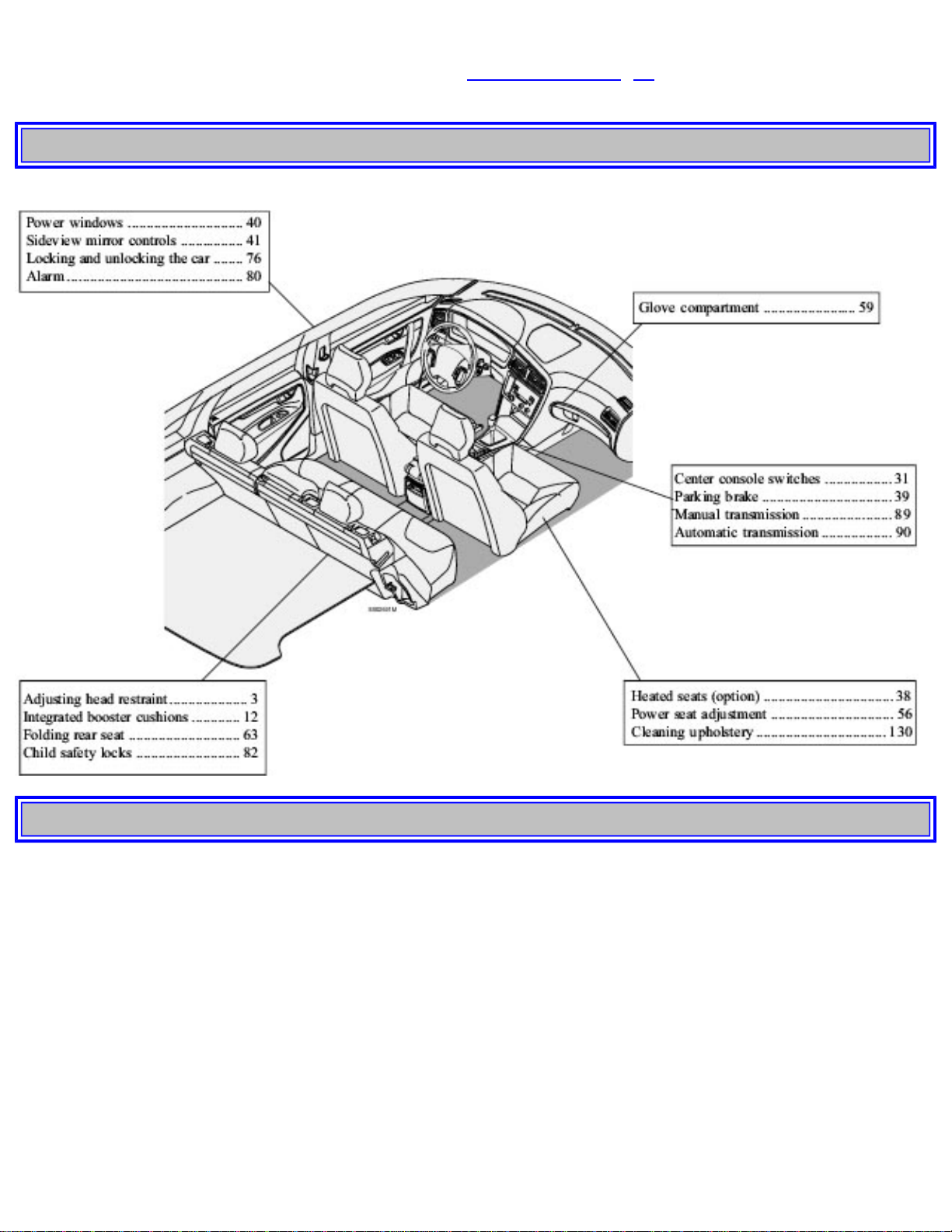

Contents
Contents
Chapter 1 - Safety Chapter 2 - Instruments, switches and controls Chapter 3 - Climate control system Chapter 4 - Interior Chapter 5 - Keys, Locks, Alarm Chapter 6 - Starting and driving Chapter 7 - Wheels and tires
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (2 of 6)12/30/2006 4:32:53 PM
2004 VOLVO XC70
Chapter 8 - Maintenance/Servicing Chapter 9 - Specifications Chapter 10 - Audio systems HomeLink® Universal Transceiver (option) Index Back Cover
General information
Shiftlock
When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front of the gear selector knob and move the selector from (P)ark.
Keylock
This means that when you switch off the ignition, the gear selector must be in the (P)ark position before the key can be removed from the ignition switch.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self-diagnostic test when the vehicle first reaches the speed of approximately 12 mph (20 km/h). The brake pedal will pulsate several times and a sound may be audible from the ABS control module. This is normal.
Fuel filler door

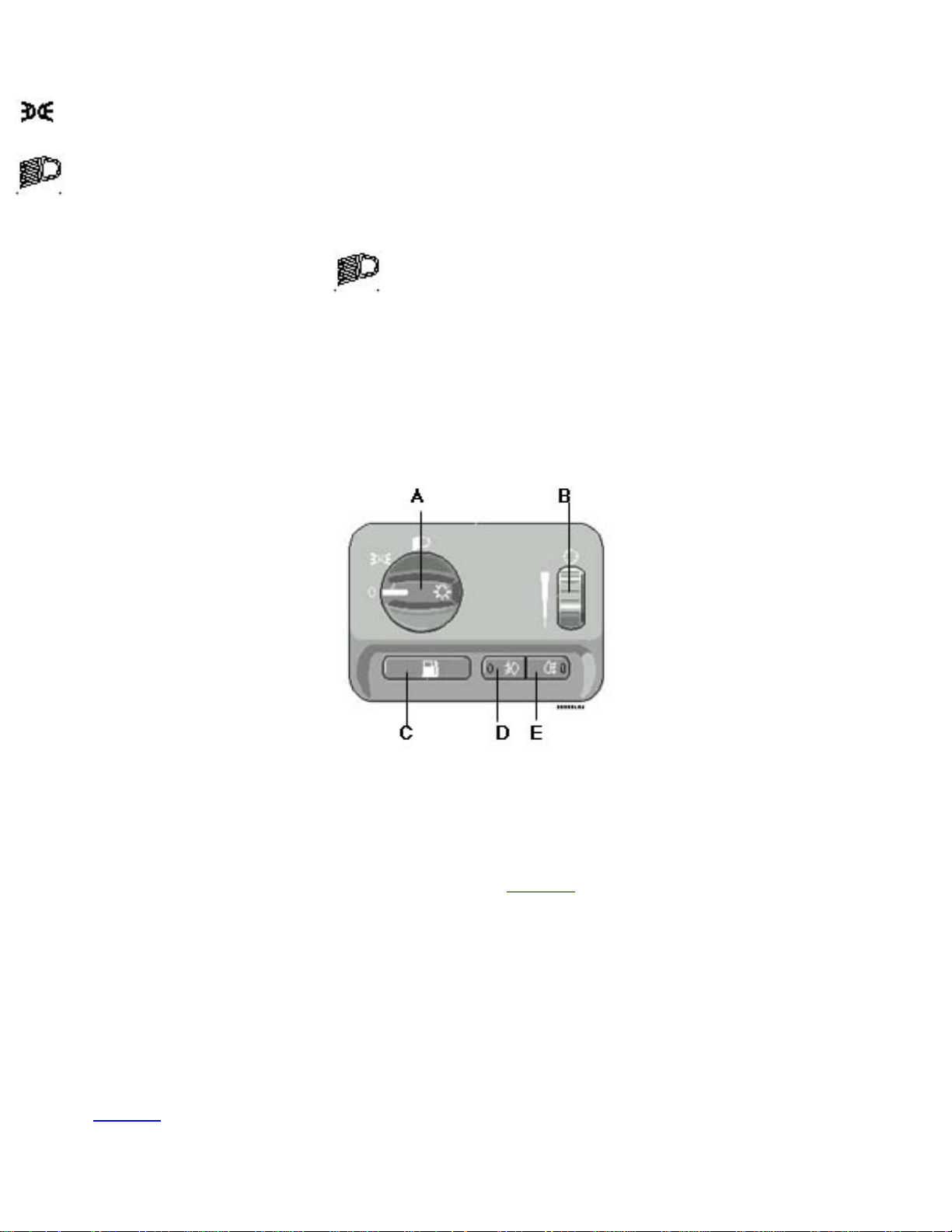

Press the button on the light switch panel (see
page 34) when the car is at a standstill to unlock the fuel
filler door. Please note that the fuel filler door will remain unlocked until the car begins to move forward. An audible click will be heard when the fuel filler door relocks.
Fuel filler cap
After refueling, close the fuel filler cap by turning it clockwise until it clicks into place. If this cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (3 of 6)12/30/2006 4:32:53 PM
2004 VOLVO XC70
("Check Engine" light) may indicate a fault.
WARNING! If your vehicle is involved in an accident, unseen damage may affect your vehicle's driveability and safety.
Important
Before you operate your car for the first time, please familiarize yourself with the new-engine oil consumption information on page 137. You should also be familiar with the information in the
chapters one, two and four of this manual.
Information contained in the balance of the manual is extremely useful and should be read after operating the vehicle for the first time.
The manual is structured so that it can be used for reference. For this reason, it should be kept in the car for ready access.
Do not export your Volvo to another country before investigating that country's applicable safety and exhaust emission requirements. In some cases it may be difficult or impossible to comply with these requirements. Modifications to the emission control system(s) may render your Volvo not certifiable for legal operation in the U.S., Canada and other countries.
All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Please note that some vehicles may be equipped differently, depending on special legal requirements and that optional equipment described in this manual may not be available in all markets.
Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.
CALIFORNIA Proposition 65 Warning
WARNING! Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Volvo and the environment
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (4 of 6)12/30/2006 4:32:53 PM
2004 VOLVO XC70
Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Volvo's environmental activities are based on a holistic view, which means we consider the overall environmental impact of a product throughout its complete life cycle. In this context, design, production, product use, and recycling are all important considerations.
In production, Volvo has partly or completely phased out several chemicals including freons, lead chromates, naphtanates, asbestos, mercury and cadmium; and reduced the amount of chemicals used in our plants 50% since 1991.
In use, Volvo was the first in the world to introduce into production a three-way catalytic converter with a Lambda sond, now called oxygen sensor, in 1976. The current version of this highly efficient system reduces emissions of harmful substances (CO, HC, NOx) from the exhaust pipe by approximately 95% and the search to eliminate the remaining emissions continues. Volvo is the only automobile manufacturer to offer CFC-free retrofit kits for the air conditioning system for all models as far back as the M/Y 1975 240. Advanced electronic engine controls, refined purification systems and cleaner fuels are bringing us closer to our goal.
After Volvo cars and parts have fulfilled their use, recycling is the next critical step in completing the life cycle. The metal content is about 75% of the total weight of a car, which makes the car among the most recycled industrial products. In order to have efficient and well controlled recycling, many Volvo variants have printed dismantling manuals, indicating the weight and material of individual components. For Volvo, all homogeneous plastic parts weighing more than 1.7 oz. (50 grams) are marked with international symbols that indicate how the component is to be sorted for recycling.
In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment.
To reduce your vehicle's environmental impact, you can:
● Maintain proper air pressure in your tires. Tests have shown decreased fuel economy with improperly
inflated tires
● Follow the recommended maintenance schedule in your Warranty and Service Records Information
booklet.
● Drive at a constant speed
● See an authorized Volvo retailer as soon as possible for inspection if the check engine (malfunction
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (5 of 6)12/30/2006 4:32:53 PM
2004 VOLVO XC70
indicator) lamp illuminates, or stays on after the vehicle has started
● Properly dispose of any vehicle related waste such as used motor oil, used batteries, brake pads, etc.
● When cleaning your car, use Volvo's own car care products, all of which have systematically been
adapted to the environment
PremAir®
On the surface of the radiator in the engine compartment, there is a special coating called PremAir®. PremAir® works as a catalytic converter, converting most of the ozone passing through the radiator into oxygen, thereby reducing harmful ground-level ozone.
For additional information regarding the environmental activities in which Volvo Cars of North America, LLC. and Volvo Cars of Canada, Ltd. are involved, visit our Internet Home Page at:
http://www.volvocars.com
Top of Page
file:///K|/ownersdocs/2004/2004_XC70/04xc70_00.htm (6 of 6)12/30/2006 4:32:53 PM

2004 VOLVO XC70

2 0 0 4
VOLVO
XC70
Chapter 1 - Safety
pg. 1 Safety
Not wearing a seat belt is like believing "It'll never happen to me!" Volvo, the inventor of the three-point seat belt, urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height. Volvo also believes no child should sit in the front seat of a car.
Fact: In every state and province, some type of child-restraint legislation has been passed. Additionally, most states and provinces have already made it mandatory for occupants of a car to use seat belts.
So, urging you to "buckle up" is not just our recommendation - legislation in your state or province may mandate seat belt usage. The few seconds it takes to buckle up may one day allow you to say, "It's a good thing I was wearing my seat belt."
Seat belts 2
Center head restraint 3
Front airbags (SRS) 4
Side impact airbags (SIPS) 8
Volvo Inflatable Curtain (VIC) 9
Whiplash Protection System (WHIPS) 10
Child safety 11
Occupant safety 17
Brake system 18
Anti-lock Brake System (ABS) 19
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (1 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
Stability Traction Control (STC) 20
Dynamic Stability Traction Control
(DSTC)
20
pg. 2 Seat belts
Seat belts
Always fasten the seat belts before you drive or ride. A chime will sound several times if the driver's seat belt is not fastened.
To buckle:
Pull the belt out far enough to insert the latch plate into the receptacle until a distinct click is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far. The retractor will lock up as follows:
● if the belt is pulled out rapidly
● during braking and acceleration
● if the vehicle is leaning excessively
● when driving in turns
For the seat belt to provide maximum protection in the event of an accident, it must be worn correctly. When wearing the seat belt remember:
● The belt should not be twisted or turned.
● The lap belt must be positioned low on the hips (not pressing against the abdomen).
Make sure that the shoulder belt is rolled up into its retractor and that the shoulder and lap belts are taut.
The seat belts are equipped with tensioners that reduce slack in the seat belts. These tensioners are triggered in situations where the airbags deploy. The front seat belts also include a tension reducing device which, in the event of a collision, limits the peak forces exerted by the seat belt on the occupant.
Before exiting the car, check that the seat belt retracts fully after being unbuckled. If necessary, guide the belt back into the retractor slot.
NOTE: Legislation in your state or province may mandate seat belt usage.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (2 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
Adjusting shoulder belt
Lap portion of the belt should sit low
Child seats: Please refer to
page 14 for information on securing child seats with the seat belts.
During pregnancy
Pregnant women should always wear seat belts. Remember that the belt should always be positioned in such a way as to avoid any possible pressure on the abdomen. The lap portion of the belt should be located low, as shown in the above illustration.
pg. 3 Seat belts, Center head restraint
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (3 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING!
● Never use a seat belt for more than one occupant.
● Never wear the shoulder portion of the belt under the arm, behind the back or otherwise out of
position. Such use could cause injury in the event of an accident.
● As the seat belts lose much of their strength when exposed to violent stretching, they should be
replaced after any collision, even if they appear to be undamaged.
● Never repair the belt on your own; have this work done by an authorized Volvo retailer only.
● Any device used to induce slack into the shoulder belt portion of the three-point belt system will
have a detrimental effect on the amount of protection available to you in the event of a collision.
● The seat back should not be tilted too far back. The shoulder belt must be taut in order to function
properly.
● Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We
also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.

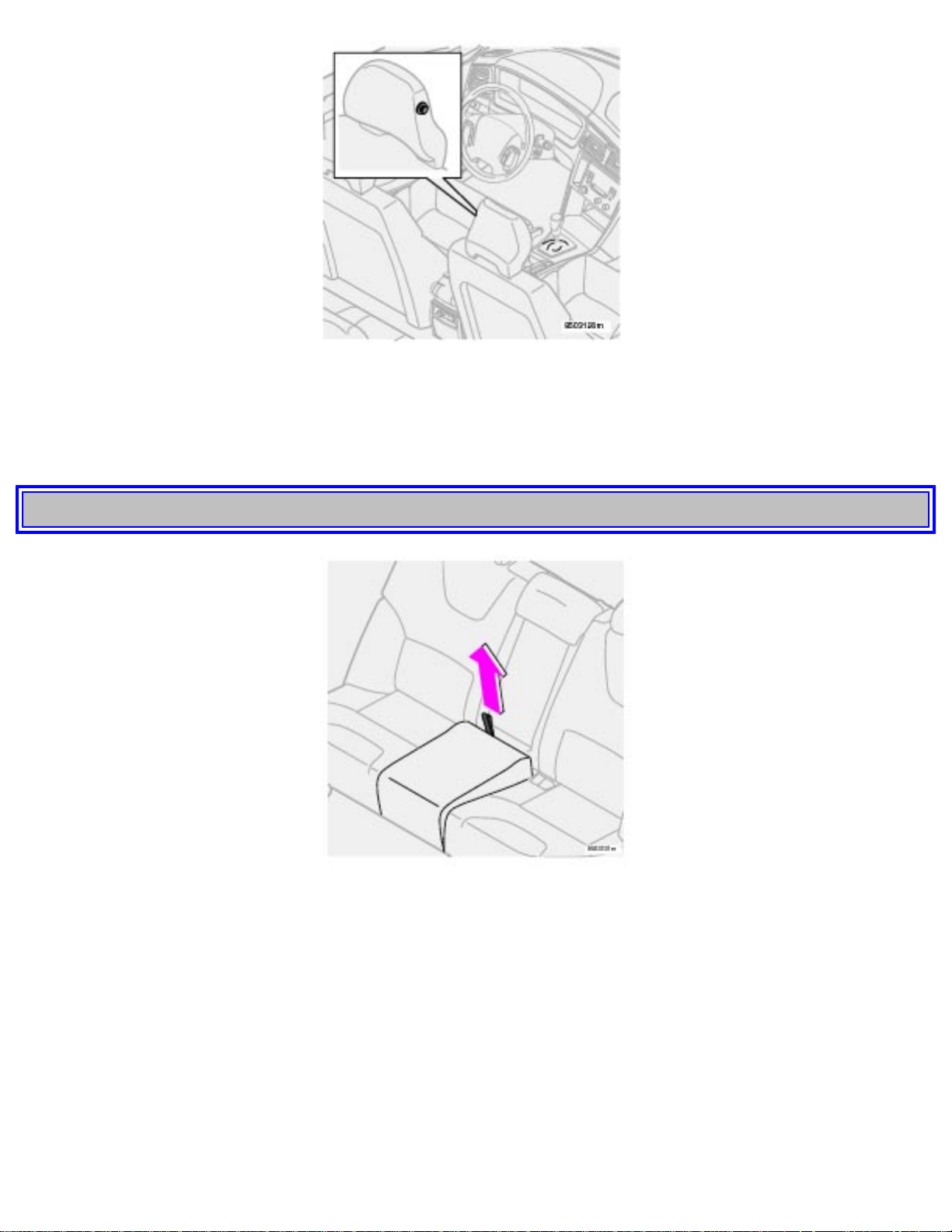

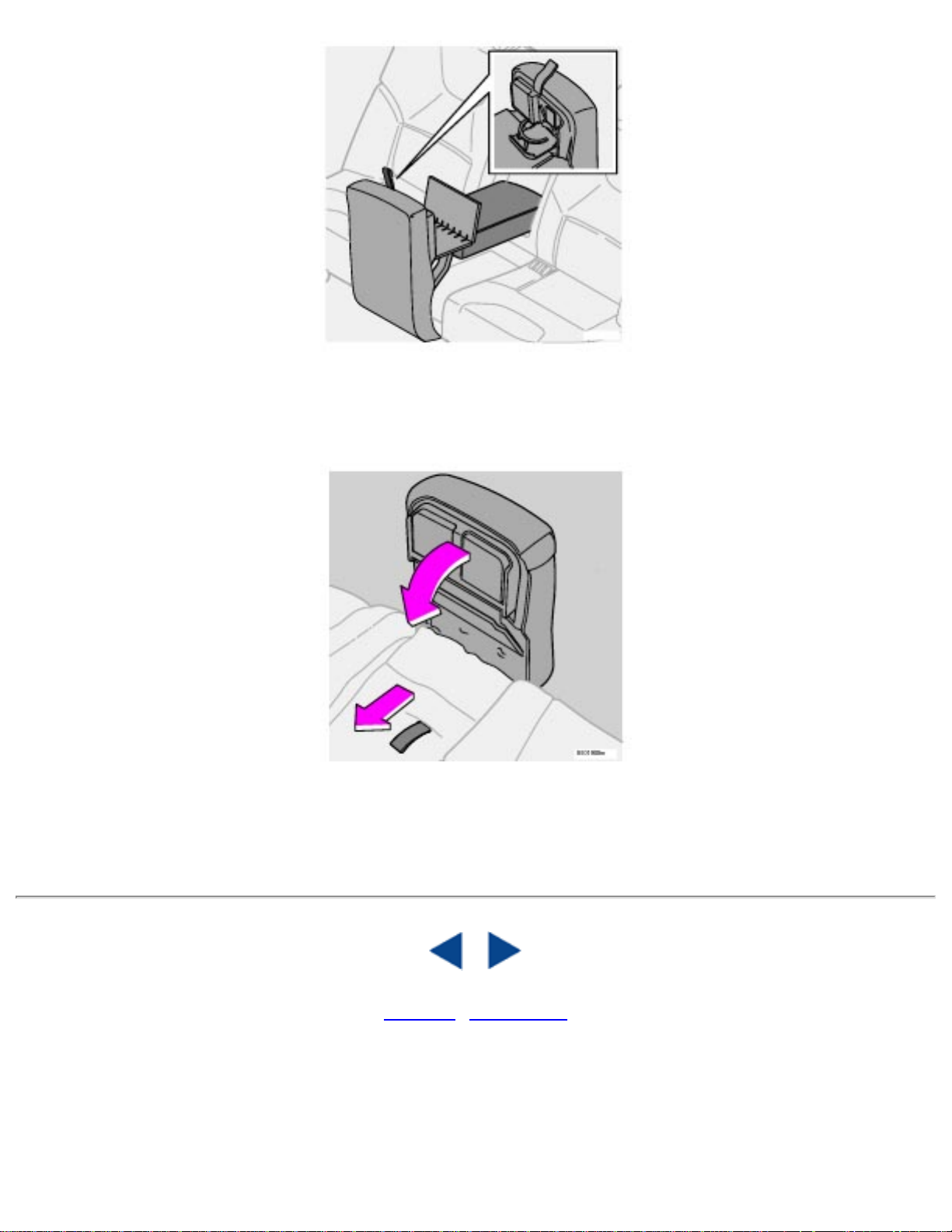

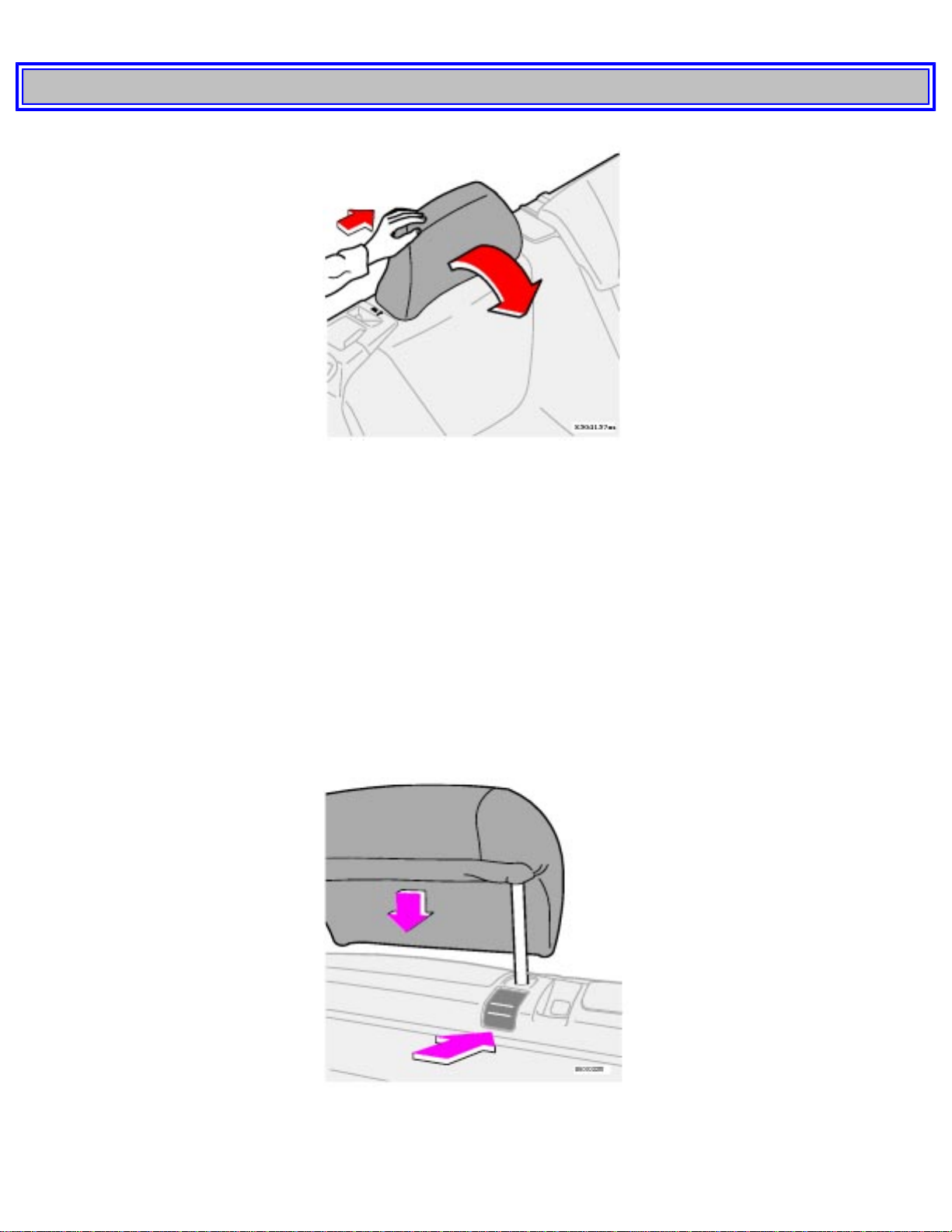

Adjust head restraint height

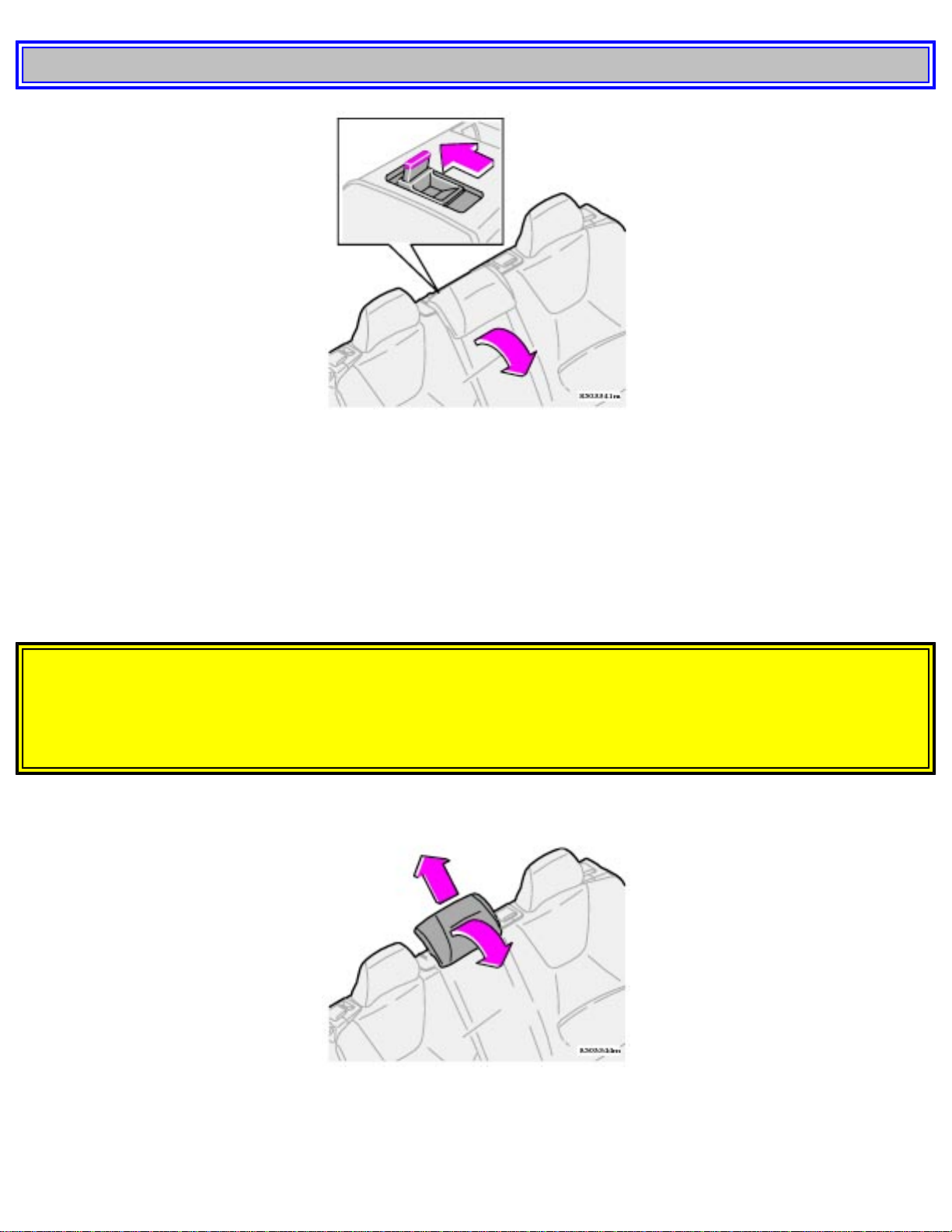

Center head restraint (rear)
The center head restraint can be adjusted according to the passenger's height. The restraint should be carefully adjusted to support the occupant's head.
To raise, lift up to desired position. To lower the center head restraint, press the release button behind the right-hand support while pressing down the head restraint to the desired position.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (4 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING!
● Please note that the lowest head restraint position is only intended for use when the backrest is to
be folded down, or when the seat is not occupied.
● The head restraint is intended to help protect the head/neck in a collision. Ensure that it is properly
adjusted for the occupant of the seat.
pg. 4 Front airbags - SRS
Driver's side airbag -
in
steering wheel hub
Passenger's side airbag -
above
glove compartment
As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system. All three rear seat belts are also equipped with tensioners.
The SRS system is indicated by the "SRS" embossed on the steering wheel pad and above the glove compartment, and by decals on both sun visors and on the front and far right side of the dash.
The airbags are folded and located in the steering wheel hub and above the glove compartment. They are designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The airbags may also deploy in certain non-frontal collisions where rapid deceleration occurs.
The airbag system includes gas generators (1) surrounded by the airbags (2) and front seat belt tensioners for both of the front seats (4). To deploy the system, the sensor (3) activates the gas generators causing the airbags to be inflated with nitrogen gas. As the movement of the seats' occupants compresses the airbags, some of the gas is expelled at a controlled rate to provide better cushioning. Both seat belt tensioners also deploy, minimizing any seat belt slack.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (5 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
The entire process, including inflation and deflation of the airbags, takes approximately two-tenths of a second.
WARNING!
● As its name implies, SRS is designed to be a SUPPLEMENT to -not a replacement for - the three-
point belt system. For maximum protection, wear seat belts at all times. Be aware that no system can prevent all possible injuries that may occur in an accident.
● When installing any optional equipment, make sure that the SRS system is not damaged. Do not
attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible.
pg. 5 Front airbags - SRS
A self-diagnostic system incorporated in the sensor monitors the SRS. This system does not, however, monitor the Side Impact Protection System (SIPS) airbags. If a fault is detected, the warning light will illuminate. The light is included in the warning/indicator light cluster in the instrument panel. Normally,
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (6 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
the SRS warning lamp should light up when the ignition key is turned to positions I, II or III and should go out after 7 seconds or when the engine is started. Check that this light is functioning properly every time the car is started.
The following items are monitored by the self-diagnostic system:
● Sensor unit
● Cable harness
● Gas generator igniters
WARNING!
● Never drive an SRS equipped car with your hands on the steering wheel pad / airbag housing.
● No objects, accessory equipment or stickers may be placed on, attached to or installed near the
SRS cover in the center of the steering wheel, the SRS cover above the glove compartment or the area affected by airbag deployment.
● If the SRS warning light stays on after the engine has started or if it comes on while you are
driving, drive the car to the nearest authorized Volvo retailer for inspection as soon as possible.
There is no maintenance to perform on the SRS yourself. The month and year shown on the decal on the door pillar indicate when you should contact your Volvo retailer for specific servicing or replacement of airbags and seat belt tensioners. This service must be performed by an authorized Volvo retailer.
Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo Customer Support:
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (7 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
In the USA: In Canada: Volvo Cars of North America Volvo Cars of Canada Ltd. Customer Relations 175 Gordon Baker Road P.O. Box 914 North York, Ontario M2H 2N7 Rockleigh, New Jersey 07647-0914 800-663-8255 800-458-1552
pg. 6 Front airbags - SRS
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (8 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING! Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that occupants under 4 feet 7 inches (140 cm) in height who have outgrown these devices sit in the rear seat with the seat belt fastened.
NOTE: Deployment of SRS components occurs only one time during an accident. In a collision where deployment occurs, the airbags and seat belt tensioners activate. Some noise occurs and a small amount of powder is released. The release of the powder may appear as smoke-like matter. This is a normal characteristic and does not indicate fire.
NOTE: Volvo's dual-threshold airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision. Collisions can occur where only one of the airbags deploys.
NOTE: Volvo's dual-stage airbags: If the impact is less severe, but severe enough to present a clear injury risk, the dual-stage airbags are triggered at just 70% of its total capacity. If the impact is more severe, the dual-stage airbags are triggered with full capacity.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (9 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING!
● Children must never be allowed in the front passenger seat. Volvo recommends that ALL
occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the back seat of any vehicle with a passenger-side front airbag. See page 14 for guidelines.
● Occupants in the front passenger's seat must never sit on the edge of the seat, sit leaning toward the
instrument panel or otherwise sit out of position. The occupant's back must be as upright as comfort allows and be against the seat back with the seat belt properly fastened.
● Feet must be on the floor, e.g. not on the dash, seat or out of the window.
● No objects or accessory equipment, e.g. dash covers, may be placed on, attached to or installed
near the SRS hatch (the area above the glove compartment) or the area affected by airbag deployment (see illustration on page 4 ).
● There should be no loose articles, e.g. coffee cups, on the floor, seat or dash area.
● Never try to open the SRS cover on the steering wheel or the passenger side dash. This should only
be done by an authorized Volvo service technician.
● Failure to follow these instructions can result in injury to the vehicle occupants.
pg. 7 Front airbags - SRS
NOTE: The information on this page does not pertain to the Side Impact Protection System airbags.
When are the airbags deployed?
The SRS system is designed to deploy during certain frontal or front-angular collisions, impacts, or decelerations, depending on the crash severity, angle, speed and object impacted. The SRS sensor is designed to react to both the impact of the collision and the inertial forces generated by it and to determine if the intensity of the collision is sufficient for the airbags to be deployed.
WARNING! The SRS is designed to help prevent serious injury. Deployment occurs very quickly and with considerable force. During normal deployment and depending on variables such as seating position, one may experience abrasions, bruises, swellings, or other injuries as a result of airbag(s) deployment.
If the airbags have been deployed, we recommend the following:
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (10 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
● Have the car towed to an authorized Volvo retailer. Never drive with the airbags deployed.
● Have an authorized Volvo retailer replace the SRS system components.
● Use only new, Genuine Volvo Parts when replacing SRS components (airbags, seat belts, tensioners,
etc.).
When are the airbags NOT deployed?
Not all frontal collisions activate the SRS system. If the collision involves a nonrigid object (e.g., a snow drift or bush), or a rigid, fixed object at a low speed, the SRS system will not necessarily deploy. Front airbags do not normally deploy in a side impact collision, in a collision from the rear or in a rollover situation. The amount of damage to the bodywork does not reliably indicate if the airbags should have deployed or not.
Seat belts - the heart of the Volvo safety system
The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car. The SRS system is a supplement to the seat belts.
WARNING! If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery (see below). This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs.
Automatic transmission:
Before attempting to tow the car, use the following procedure to override the shiftlock system to move the gear selector to the neutral position.
● Switch off the ignition for at least 10 minutes and disconnect the battery
● Wait at least one minute

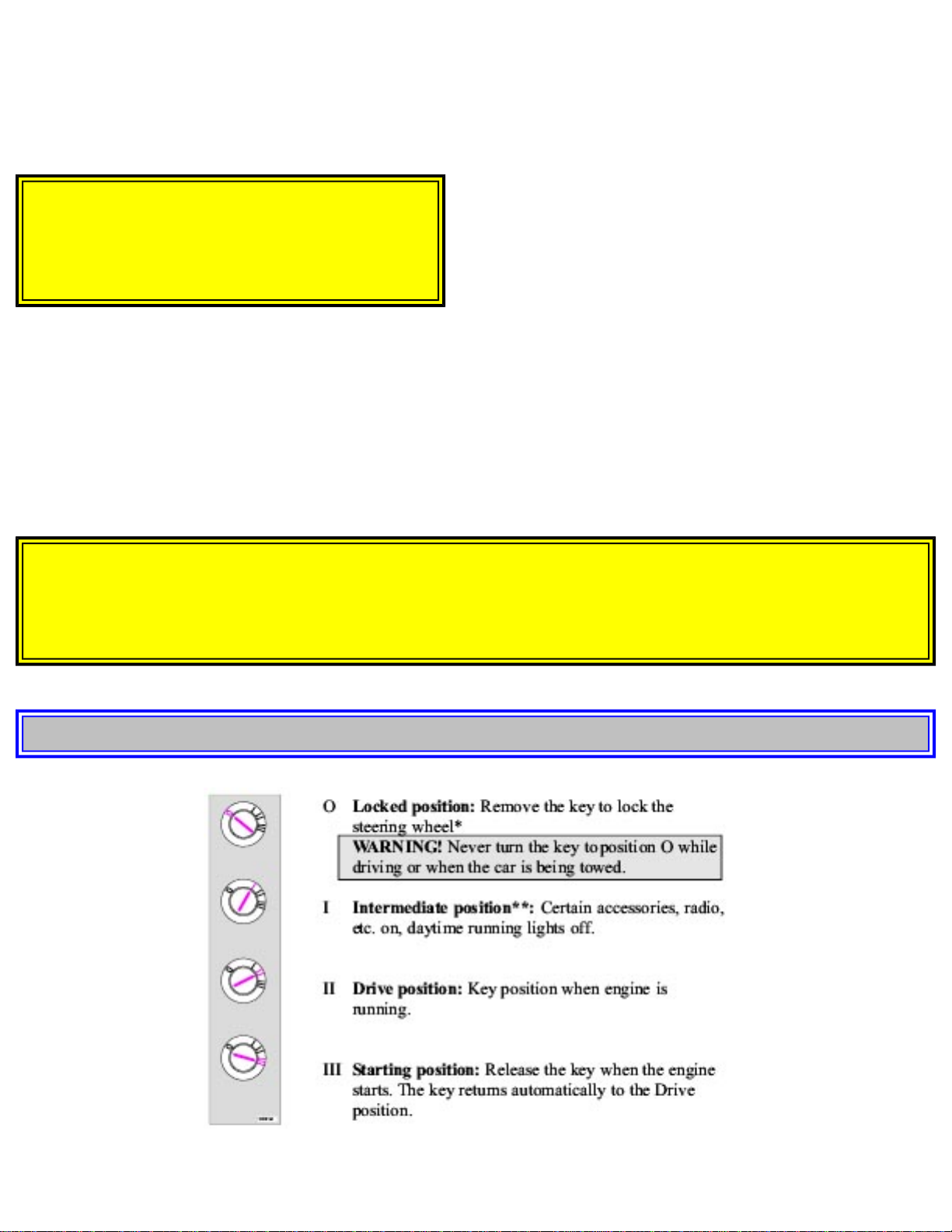

● Insert the key in the ignition and turn it to position II
● Press firmly on the brake pedal.
● Move the gear selector from (P)ark to the (N)eutral position.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (11 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING! Never drive with the airbags deployed. The fact that they hang out can impair the steering of your car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.
pg. 8 Side impact airbags (SIPS)
SIPS airbag *
SIPS airbag (front seats only)
As an enhancement to the structural Side Impact Protection System built into your car, the car is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides of both front seat backrests (1), wires (2) and gas generators/sensor units (3). The SIPS airbag system is designed to help increase occupant protection in the event of certain side impact collisions. The SIPS airbags are designed to deploy only during certain side-impact collisions, depending on the crash severity, angle, speed and point of impact. The airbags are not designed to deploy in all side impact situations.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (12 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING!
● The SIPS airbag system is a supplement to the Side Impact Protection System and the three-point
seat belt system. It is not designed to deploy during collisions from the front or rear of the car or in rollover situations.
● The use of seat covers on the front seats may impede SIPS airbag deployment.
● No objects, accessory equipment or stickers may be placed on, attached to or installed near, the
SIPS airbag system or in the area affected by SIPS airbag deployment (see illustration below).
● Never try to open or repair any components of the SIPS airbag system. This should be done only
by an authorized Volvo service technician.
● In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an
upright position with the seat belt properly fastened.
NOTE: SIPS airbag deployment (one airbag) occurs only on the side of the vehicle affected by the impact.
*A SIPS airbag warning decal is also located at the end of the instrument panel on the driver's side of the car.
1 - Airbag, 2 - wire, 3 - gas generator/sensor unit
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (13 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WARNING!
● Never drive with the airbags deployed. The fact that they hang out can impair the steering of your
car. Other safety systems can also be damaged. The smoke and dust formed when the airbags are deployed can cause skin and eye irritation in the event of prolonged exposure.
● If your car has been subjected to flood conditions (e.g. soaked carpeting/standing water on the floor
of the vehicle) or if your car has become flood-damaged in any way, do not attempt to start the vehicle or put the key in the ignition before disconnecting the battery. This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs.
pg. 9 Volvo Inflatable Curtain (VIC)
Volvo Inflatable Curtain (VIC)
This system consists of inflatable curtains located along the sides of the roof liners, stretching from the center of both front side windows to the rear edge of the rear side door windows. It is designed to help protect the heads of the occupant of the front seat and the occupant of the outboard rear seat position in certain side impact collisions.
NOTE: IC system deployment occurs only on the side of the vehicle affected by the impact.
In certain side impacts, BOTH the Inflatable Curtain (IC) and the Side Impact Airbag System (SIPS­bag) will deploy, whereas, in some cases, ONLY the Inflatable Curtain (IC) will deploy. In cases where BOTH the IC and the SIPS-bag deploy, deployment will occur simultaneously.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (14 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
If the inflatable curtain deploys, it remains inflated for approximately 3 seconds.
WARNING!
● The IC system is a supplement to the Side Impact Protection System. It is not designed to deploy
during collisions from the front or rear of the car or in rollover situations.
● Never try to open or repair any components of the IC system. This should be done only by an
authorized Volvo service technician.
● The inflatable curtains are designed to deploy only during certain side-impact collisions, depending
on the crash severity, angle, speed and impact. The inflatable curtains are not designed to deploy in all side impact situations.
● In order for the IC to provide its best protection, both front seat occupants and both outboard rear
seat occupants should sit in an upright position with the seat belt properly fastened; adults using the seat belt and children using the proper child restraint system. Only adults should sit in the front seats. Children must never be allowed in the front passenger seat. See page 14 for guidelines. Failure to
follow these instructions can result in injury to the vehicle occupants.
● When the rear seat backrest(s) are folded down, the car should not be loaded to a level higher than
2 in. (5 cm) below the upper edge of the rear passenger door windows. Objects placed higher than this level could impede the function of the inflatable curtain.
pg. 10 Whiplash Protection System (WHIPS)
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (15 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
Whiplash Protection System (WHIPS) - front seats only
The WHIPS system consists of specially designed hinges and brackets on the front seat backrests and head restraints designed to help absorb some of the energy generated in a collision from the rear ("rear­ended").
In the event of a collision of this type, the hinges and brackets of the front seat backrests are designed to change position slightly to allow the backrest/head restraint to help support the occupant's head before moving slightly rearward. This movement helps absorb some of the forces that could result in the whiplash effect.
Do not wedge boxes, suitcases, etc. behind front seats
WARNING!
● Any contact between the front seat backrests and the folded rear seat could impede the function of
the WHIPS system. If the rear seat is folded down, the occupied front seats must be adjusted forward so that they do not touch the folded rear seat.
● Boxes, suitcases, etc. wedged behind the front seats (see illustration above) could impede the
function of the WHIPS system.
● The WHIPS system is designed to supplement the other safety systems in your car. For this system
to function properly, the three-point seat belt must be worn. Please be aware that no system can prevent all possible injuries that may occur in an accident.
● If your car has been involved in a collision, the front seat backrests must be inspected by an
authorized Volvo retailer even if the seats appear to be undamaged. Certain components in the
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (16 of 17)12/30/2006 4:32:54 PM
2004 VOLVO XC70
WHIPS system may need to be replaced. Do not attempt to service any component in the WHIPS system yourself.
● If the rear seat backrests are folded down, cargo must be secured to prevent it from sliding forward
against the front seat backrests in the event of a collision from the rear. This could interfere with the action of the WHIPS system.
● The WHIPS system is designed to function in certain collisions from the rear, depending on the
crash severity, angle and speed.
● Occupants in the front seats must never sit out of position. The occupant's back must be as upright
as comfort allows and be against the seat back with the seat belt properly fastened.
Contents | Top of Page
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01a.htm (17 of 17)12/30/2006 4:32:54 PM

2004 VOLVO XC70

pg. 11 Child safety
If all the seats are occupied, a rear-facing auxiliary seat in the cargo area can be used. This seat is designed for two children, each weighing between 50 - 88 lbs. (23 - 40 kg) with a total seat capacity of 176 lbs. (80 kg) and up to 55 inches (140 cm) in height.
Raising
Remove the cargo area cover, if installed, from the car. Raise the backrest section forward until it locks in place.
Flip the seat cushion over.
Lowering
Flip the seat cushion back into storage position.
Pull the release handle and lower the backrest to storage position.
WARNING! Both rear seat backrests must be up when the auxiliary seat is being used. Do not use a booster cushion or child seat in conjunction with the auxiliary seat. The luggage net should be retracted and the child safety lock in the tailgate should be open to allow access to the cargo area.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (1 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70
WARNING! The exhaust pipe will still be hot when the engine is turned off. Take care that children do not burn themselves when they get into or out of the car.
pg. 12 Child safety
Integrated booster cushions, outboard positions (optional)
Volvo's own integrated booster cushions have been specially designed to help safeguard a child seated in the rear seat. When using an integrated booster cushion, the child must be secured with the vehicle's three-point seat belt. This child seat is designed for use only by children who weigh between 33 and 80 lbs (15 and 36 kg) and whose height is between 38 and 54 in. (97 and 137 cm).
Integrated booster cushion - outboard positions
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (2 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70
Outboard integrated booster cushions - Raising
1. Pull the handle at the front of the cushion forward.
2. With both hands push the cushion rearward.
3. Push the cushion until it locks in place.
Integrated booster cushion - outboard positions
Outboard integrated booster cushions - Lowering
1. Pull the handle at the front of the cushion forward.
2. Push the cushion forward/downward.
NOTE: The booster cushion must be completely lowered before the rear seat backrest can be folded down.
pg. 13 Child safety
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (3 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70
The child should be properly seated on the booster cushion. The hip section of the three-point seat belt must fit snugly across the child's hips, not across the stomach. The shoulder section of the three-point seat belt should be positioned across the chest and shoulder (see illustration). The shoulder belt must never be placed behind the child's back or under the arm.
WARNING!
● Failure to follow the manufacturer's instructions on the use of this child restraint system can result
in your child striking the vehicle's interior during a sudden stop or crash.
● In the event of a collision while the integrated booster cushion was occupied, the entire booster
cushion and seat belt must be replaced. The booster cushion should also be replaced if it is badly worn or damaged in any way. This work should be performed by an authorized Volvo retailer only. The booster cushion should be cleaned while in place in the vehicle if possible. If not, please consult your Volvo retailer.
pg. 14 Child safety
Keeping child seats in place (ALR/ELR*)
To make child seat installation easier, each seat belt (except for the driver's belt) is equipped with a locking mechanism to help keep the seat belt taut.
When attaching the seat belt to a child seat:
● Attach the seat belt to the child seat according to the child seat manufacturer's instructions.
● Pull the seat belt out as far as possible.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (4 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70
● Insert the seat belt latch plate into the buckle (lock) in the usual way.
● Release the seat belt and pull it taut around the child seat.
A sound from the seat belt retractor will be audible at this time and is normal.
The belt will now be locked in place.
This function is automatically disabled when the seat belt is unlocked and the belt is fully retracted.
WARNING!
Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend that children who have outgrown these devices sit in the rear seat with the seat belt properly fastened.
* Automatic Locking Retractor/Emergency Locking Retractor
Important!
Why Volvo believes no child should sit in the front seat of a car. It's quite simple really. A front air bag is a very powerful device designed, by law, to help protect an adult. Because of the size of the airbag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over fifty years, and we'll continue to do our part. But we need your help. Please remember to put your children in the back seat, and buckle them up.
Volvo has some very specific recommendations:
● Always wear your seat belt.
● Air bags are a SUPPLEMENTAL safety device which, when used with a three-point seat belt can
help reduce serious injuries during certain types of accidents. Volvo recommends that you do not disconnect the air bag system in your vehicle.
● Volvo strongly recommends that ALL children sit in the rear seat of any vehicle and that they be
properly restrained.
● A child should NEVER sit in the front passenger seat of any vehicle equipped with a passenger-side
front airbag.
● Volvo recommends that ALL occupants (adults and children) shorter than four feet seven inches (140
cm) be seated in the back seat of any vehicle with a front passenger side airbag.
Drive safely!
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (5 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70
pg. 15 Child safety
Child Restraint Anchorages
Volvo cars are fitted with child restraint top tether anchorages in the rear seat.
Refer to the child seat manufacturer's instruction for information on securing the child seat.
WARNING!
Child Restraint Anchorages are designed to withstand only those loads imposed by correctly fitted Child Restraints. Under no circumstances are they to be used for adult seat belts or harnesses. The anchorages are not able to withstand excessive forces on them in the event of collision if full harness seat belts or adult seat belts are installed to them. An adult who uses a belt anchored in a Child Restraint Anchorage runs a great risk of suffering severe injuries should a collision occur. Do not install rear speakers which would require the removal of the top tether anchors or interfere with the proper use of the top tether strap.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (6 of 15)12/30/2006 4:32:55 PM
2004 VOLVO XC70

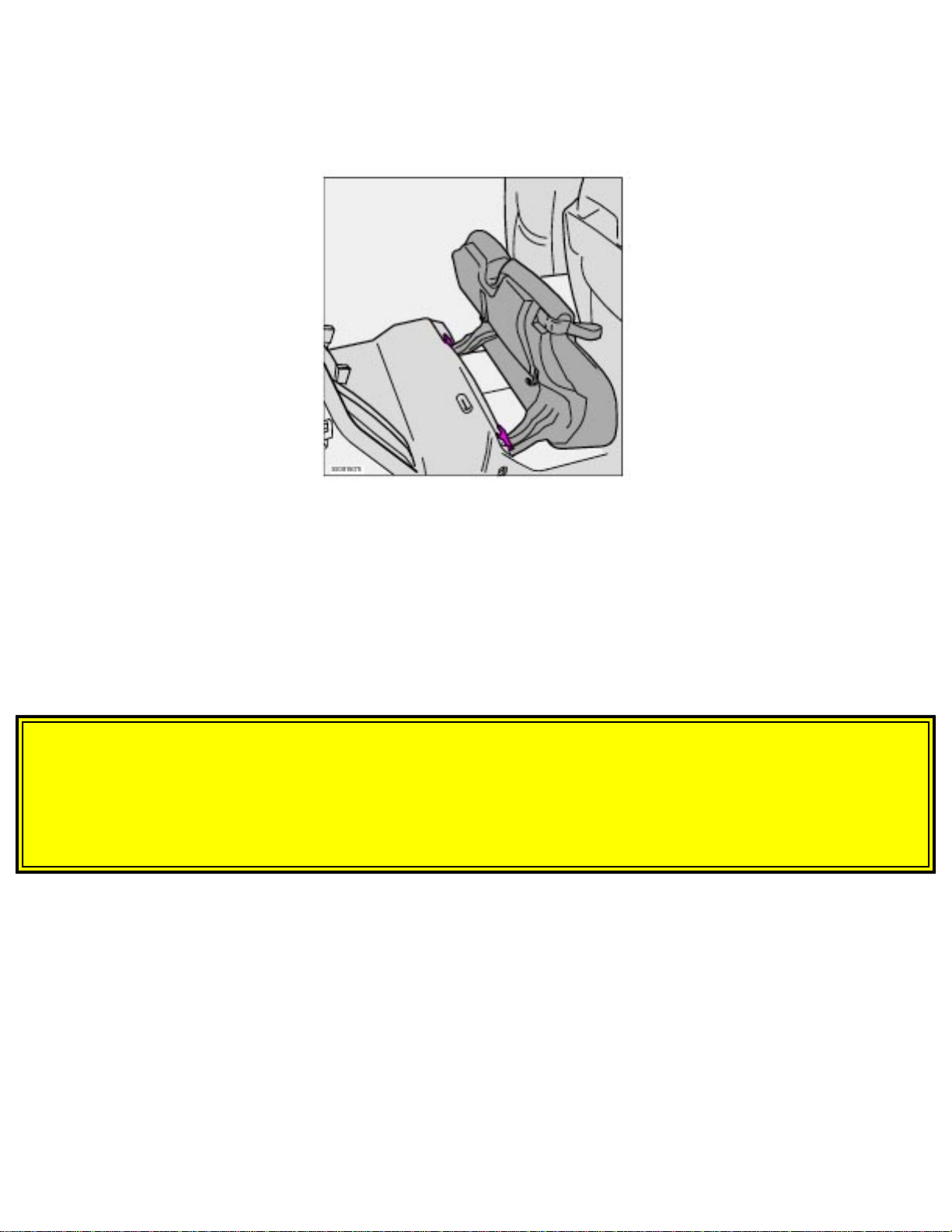

ISOFIX fasteners and Seat guides
ISOFIX fasteners are installed in the rear seat on the outboard positions. One set of ISOFIX guides is also provided. Consult your Volvo retailer for more information on child safety accessories.
pg. 16 Child safety
Child safety
Volvo recommends the proper use of restraint systems for all occupants including children. Remember that, regardless of age and size, a child should always be properly restrained in a car.
Your car is also equipped with ISOFIX attachments, which make it more convenient to install child seats (see
page 15).
Restraint systems for children are designed to be secured in the vehicle by lap belts or the lap portion of a lap-shoulder belt. Such child restraint systems can help protect children in cars in the event of an accident only if they are used properly. However, children could be endangered in a crash if the child restraints are not properly secured in the vehicle. Failure to follow the installation instructions for your child restraint can result in your child striking the vehicle's interior in a sudden stop.
Holding a child in your arms is NOT a suitable substitute for a child restraint system. In an accident, a child held in a person's arms can be crushed between the vehicle's interior and an unrestrained person. The child could also be injured by striking the interior, or by being ejected from the vehicle during a sudden maneuver or impact. The same can also happen if the infant or child rides unrestrained on the seat. Other occupants should also be properly restrained to help reduce the chance of injuring or increasing the injury of a child.
file:///K|/ownersdocs/2004/2004_XC70/04xc70_01b.htm (7 of 15)12/30/2006 4:32:55 PM
Loading...
+ 211 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
