Volvo XC60 2011, V70 2011, XC70 2011, S80 2011 User Manual
VOLVO XC60, V70, XC70 & S80
VOLVO NAVIGATION SYSTEM (VNS) Web Edition
OPERATING MANUAL
Types of roads Color
Freeways Green
Main roads Red
Secondary main roads Brown
Normal roads Dark gray
Local roads Dark green
Text and symbols on the screen
Distance to the next guidance point
Direction to take at next guidance point
Next guidance point
Final destination
Name of next street or road
Road sign information for next street or road
Route
Time restricted road/street
Symbol for a Point of Interest – POI (Hotel)
Remaining distance and time to destination
Map scale
Current road
Selected area to be avoided
Stored location
Starting point
Completed section of the route
The vehicle’s current location
Intermediate destination
Extent of street/road with traffic problem (not available in all markets)
Traffic information (not available in all markets)
Direction to destination
Compass
VOLVO NAVIGATION SYSTEM (VNS) WITH RTT
VNS is a navigation system developed by Volvo, which is
designed to help guide you to the destination of your choice
and provide information along the way.
RTT1 (Real Time Traffic) is an information system developed by
Volvo, which can detect roads/streets with traffic disruptions
and make it possible to select an alternative route past the
problem area.
The system includes features that enable you to set itineraries,
search for certain types of points of interest along your route,
store special destinations, obtain traffic informaton en route,
etc.
The system indicates the vehicle’s current location, and shows
part or all of the route to your destination, depending on the
settings you have made. If at any time you should decide to
deviate from the route originally set by the system, a new route
to the destination will automatically be calculated.
By enabling you to reach your destination quickly and by the
most direct route, Volvo's navigation system also helps contribute to improving the environment.
NAVTEQ DATABASE End-User License Agreement
See the information on page 74.
1
Option. Not available in all markets.
Contents
01 Quick guide
Getting started.......................................... 10
01
02 Getting to know your
navigation system
This manual............................................... 16
Before you begin....................................... 17
DVDs and the screen................................ 19
XC60 system overview ............................. 22
V70/XC70 system overview...................... 24
S80 navigation system overview.............. 26
Navigation system controls...................... 28
On-screen keyboard................................. 29
Maps, types of roads, and the compass. . 30
Main menu, Scroll menu........................... 32
Shortcut menu.......................................... 34
Menu selections........................................ 36
02
03 Planning your trip
Setting a destination................................. 40
Stored locations, Last ten......................... 43
Return trip, Intersection............................ 44
Map search, Search by lat/long................ 45
Itinerary..................................................... 46
Storing a location...................................... 48
Next destination........................................ 50
Current position........................................ 51
Settings..................................................... 52
Avoiding an area....................................... 53
Map and Guidance options...................... 55
System options......................................... 57
Demo........................................................ 58
03
4
Contents
04 Traffic information
Introduction............................................... 62
Selecting information................................ 64
Reading information.................................. 65
04
05 Symbols on the map
Points of interest....................................... 70
05
06 Questions & Answers
Frequently asked questions...................... 74
EULA – License agreement....................... 76
06
5
Contents
07 Index
Index......................................................... 80
07
6
Contents
7
Getting started........................................................................................ 10
G028767
8
QUICK GUIDE
01 Quick guide
01
Getting started
Navigation control/remote control
The navigation control is located on the right
rear side of the steering wheel, see page 28.
The buttons on the remote control have the
same function as the navigation control on the
steering wheel.
Navigation control – Use this (or the arrow
•
keys on the remote control) to navigate up,
down, left, or right among the various
menu selections and alternatives, and to
move the cross hairs on the map.
ENTER – Confirms or activates a selection.
•
BACK – Press this key to go to the previous
•
menu or to undo a selection.
NOTE
For reasons of traffic safety, only the menu
alternatives
position
while the vehicle is in motion.
Certain functions in the Shortcut menu are
also available while the vehicle is in motion,
see page 36.
Next destination, Current
and Shut down are available
Activating the system
The remote key must be inserted in the ignition
1
(see the vehicle’s Owner’s Manual).
slot
1. Press the remote key into the ignition slot.
2.
Press briefly on the START/STOP
ENGINE button.
3. If the screen does not deploy, press
BACK or ENTER.
Starting the system
The system initially displays a text on the
screen that must be confirmed by pressing
ENTER.
It may take the system several seconds to
determine the vehicle’s location after the key
has been inserted into the ignition slot. When
this has been done, the vehicle's position will
be indicated by a blue triangle.
NOTE
The system can be used even when the
engine is not running. To help avoid battery
drain, the system should be turned off when
it is not in use.
Guidance to a street address
Set destination
Address Go to Address and
Press BACK to display the main menu.
Use the navigation
control to go to
destination
Press ENTER.
press ENTER.
Set
.
1
On models with the optional Keyless Drive, press the START/STOP ENGINE button one time, so that the ignition system is at least in "Accessory" mode (mode I).
10
01 Quick guide
State/City Go to State or City
and press ENTER.
Select letters in the
list to specify the
state and city in
which the street
address is located.
Press ENTER.
Street Go to Street and
press ENTER.
Street numbers Go to Numbers and
press ENTER
Set Go to Set and press
ENTER.
Start guidance Go to Start guid-
ance and
ENTER.
The system will now calculate the route and
distance to the specified destination. You will
be provided with guidance and instructions
regarding intersections, etc.
If you leave the planned route during the trip,
the system will automatically calculate a new
route to the destination.
press
Navigation system options
The navigation system contains options for
adjusting map, guidance, and system settings.
see page 55 for detailed information.
Demo mode (simulated guidance)
The system has a Demonstration Mode that
can be used as a learning tool. see page 58.

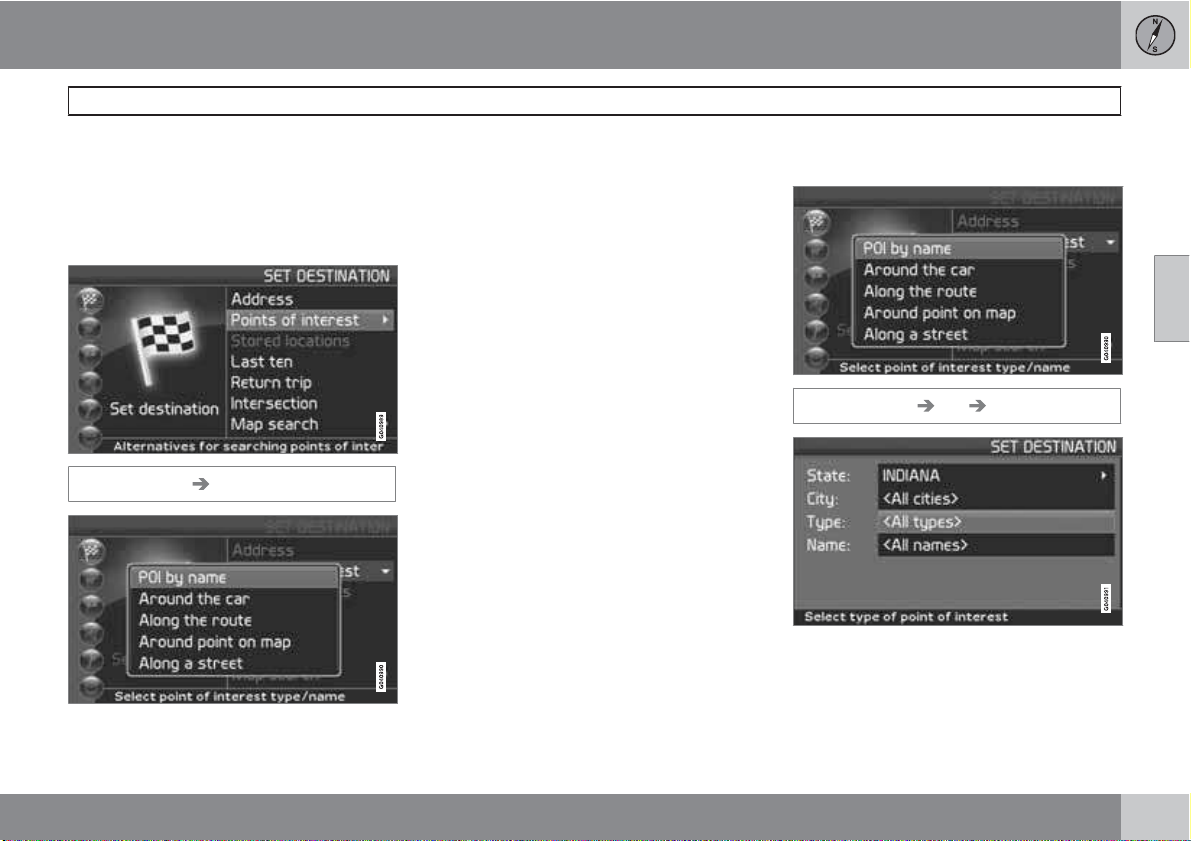

Guidance to Points of Interest (POI)
Set destination
POI Go to POI and press
POI by name Select POI by
Press BACK to display the main menu.
Use the navigation
control to go to
destination
press ENTER.
ENTER.
name
and press
ENTER.
Set
and
Getting started
State/City Go to State or City
Type Go to Type.
Name Go to Name.
Set Go to Set and press
Start guidance Go to Start guid-
The system will now calculate the route and
distance to the specified destination. You will
and press ENTER.
Select letters in the
list to specify the
State or City where
the point of interest
is located.
Press ENTER.
Select the type of
POI (service station,
restaurant, Volvo
retailer, etc.).
Press ENTER.
Select POI and
press ENTER.
ENTER.
and press
ance
ENTER.
01
``
11
01 Quick guide
01
Getting started
be provided with guidance and instructions
regarding intersections, etc.
If you leave the planned route during the trip,
the system will automatically calculate a new
route to the destination.
12
01 Quick guide
01
13
14
This manual............................................................................................. 16
Before you begin..................................................................................... 17
DVDs and the screen.............................................................................. 19
XC60 system overview ........................................................................... 22
V70/XC70 system overview.................................................................... 24
S80 navigation system overview............................................................. 26
Navigation system controls..................................................................... 28
On-screen keyboard............................................................................... 29
Maps, types of roads, and the compass................................................ 30
Main menu, Scroll menu......................................................................... 32
Shortcut menu........................................................................................ 34
Menu selections...................................................................................... 36
G028780
GETTING TO KNOW YOUR NAVIGATION SYSTEM
02 Getting to know your navigation system
This manual
Using this manual
The manual is divided into chapters describing
02
the various features and functions of the navigation system.
See Planning your trip on page 40 for more
detailed descriptions and selections of settings
for specifying a destination.
Menu selections/Paths
Menu selections in this manual are listed in
gray text, for example:
Set destination Address Street
Quick guide
A quick guide is available to help you get
started with the basic functions as quickly as
possible, see page 10.
Changes in the manual
The specifications, design features, and illustrations in this manual are not binding. We
reserve the right to make modifications without
prior notice.
© Volvo Car Corporation
16
02 Getting to know your navigation system
Before you begin
General information
The VNS system can be used even if a destination has not be specified.
The map, with the vehicle’s current location,
will be displayed on the screen, with the vehicle
marked as a blue triangle.
WARNING
Always use good judgment when fol-
•
lowing navigation system guidance,
and do not follow guidance that seems
contrary to your own best judgment.
Never use the navigation system or any
•
other feature in your vehicle in a way
that distracts you from the task of driving safely. Distraction can lead to a serious accident.
Set and make changes in your naviga-
•
tion system only with the vehicle
parked.
Be aware of the current traffic situation.
•
Always comply with relevant traffic reg-
•
ulations.
Map mode
When the system starts, text is displayed on
the screen that must be confirmed by pressing
ENTER.
The system then enters Map mode and the
current map view is displayed.
Press ENTER to access the Shortcut
•
menu, see page 34.
Press BACK to access the Main menu, see
•
page 32.
1.
Use the navigation control to activate
Map scroll mode, for example, to see sections of the map that are outside of the
screen.
2.
Press ENTER to activate the Map scroll
menu. See also Scroll menu see
page 32.
Settings
The system contains default settings, but it
starts with the settings that were most recently
made.
If a setting has been changed and then
returned to the factory setting, only the setting
in question is affected.
There is no global function to return all settings
to the factory defaults.
On/Off
On
1. The remote key must be inserted in the
ignition slot
the vehicle’s Owner’s Manual).
2.
Press ENTER or BACK to activate the system.
3. The screen is activated automatically.
It may take several seconds for the system to
determine the vehicle’s location and direction.
1
in order to use the system (see
Off
The system is automatically shut off when the
key is removed from the ignition slot (or when
the driver’s door is opened on vehicles with the
optional keyless drive).
The system can also be turned off manually so
that it does not start automatically the next time
the remote key is inserted in the ignition slot.
1.
Press BACK to go to the Main menu.
2.
3.
4. The screen will retract automatically.
Shut down with the navigation
Go to
control.
Press ENTER.
02
1
On models with the optional Keyless Drive, press the START button one time, so that the ignition system is at least in "Accessory" mode (mode I).
``
17
02 Getting to know your navigation system
Before you begin
NOTE
02
The system can be used even when the
engine is not running. To help avoid battery
drain, the system should be turned off when
it is not in use.
Demo (simulated guidance)
For an overview of how guidance functions,
specify a destination.
If the vehicle is at a standstill, guidance can be
simulated to the specified destination, see
Start demo on page 58.
18
02 Getting to know your navigation system
DVDs and the screen
Contents of DVDs
Each set of DVDs contains at least two discs.
Each disc contains information covering a
greater part of the North American network of
roads. However, each disc contains detailed
information about addresses, points of interest, etc., in a specific geographic area.
During a trip, a message will be displayed when
it is time to switch DVDs. If the DVD containing
detailed information about the area in which
you are currently driving is not inserted, only
general information about the road network will
be available.
The maps and data on the DVDs are static.
They will not automatically update to reflect
real-life changes to road and traffic patterns.
Updated DVDs are produced periodically.
Please contact your Volvo retailer for more
information about availability.
Volvo cannot be responsible for the accuracy
or completeness of data, maps, or routing
guidance presented by your navigation system. Please contact the map developer, NavTeq at www.navteq.com.
NOTE
Following applies to map information on different DVDs
Road information for all major roads can
•
be found on each DVD.
For detailed information about smaller
•
roads, the DVD for the current area must
be used.
Changing DVDs
When changing DVDs, the ignition must be on
during the entire procedure (see the vehicle’s
Owner’s Manual).
1. Turn on the navigation system.
2. Remove the upholstered panel that conceals the main unit under the floor on the
left side of the trunk or cargo compartment.
3. Hook a thumb behind the upper edge and
pull it out (see the overview illustrations on
page 22 and onwards).
4. Release the catch on front of the main unit.
5.
Press the EJECT button and remove the
DVD.
6. Insert the new map DVD.
7. Lock the catch.
In certain cases, new functions may be added
to the system when the new DVD is inserted. If
the DVD also contains new system software,
you will be prompted to accept a system
update.
Confirm by selecting YES.
The text
Software. Please wait…
played.
The update takes approximately 15 minutes.
The VNS start screen will be displayed when
updating is completed and the navigation system is ready for use.
Preparing to load System
will then be dis-
NOTE
The screen may retract or go blank while an
update is underway.
DVD care
When changing discs, make sure that they
•
are kept free of oil, grease and other impurities.
The discs must not be exposed to mois-
•
ture.
The discs must be kept in their packaging
•
when not in use.
Avoid storing discs in excessive heat,
•
direct sunlight, or in a dusty environment.
02
``
19
02 Getting to know your navigation system
DVDs and the screen
Screen care
Clean the display screen with a soft, non-static
02
cloth or a moist paper towel and a mild window
cleaning agent.
Never use petroleum based solvents or abrasive substances when cleaning the screen.
CAUTION
Do not place any objects in front of the navigation system's screen. This could scratch
its surface. Cell phones could also interfere
with the screen's function.
20
02 Getting to know your navigation system
DVDs and the screen
02
21
02
02 Getting to know your navigation system
XC60 system overview
22
G031099
02 Getting to know your navigation system
XC60 system overview
Main VNS unit and DVD drive
The main unit and DVD drive is located on the
left side of the cargo area, and includes the following functions:
Determining the vehicle’s location.
•
Calculating a route to the selected desti-
•
nation.
Voice guidance.
•
Processes traffic information.
•
NOTE
The EJECT button is located to the left
•
and the locking catch is on the right side
of the main unit.
The DVD drive is intended for playing
•
Volvo’s map DVDs only.
Traffic information – TMC (option)
TMC is a standardized code system for transmitting traffic information. The receiver automatically tunes to the correct frequency and
reception is handled by the audio system’s FM
antenna.
NOTE
TMC is not available in all areas/countries.
The area covered by the system is being
steadily expanded, which makes occasional updates necessary, see page 19
Global Positioning System (GPS)
antenna
The antenna is integrated into the roof module.
NOTE
The GPS receiver is integrated into the main
unit. Using signals from the Global Positioning System, the vehicle’s speedometer, and
a gyroscopic sensor, it calculates the vehicle’s current location and direction.
This also helps the system calculate direction and location if the GPS signal is temporarily interrupted, such as when driving
through a tunnel.
Speakers
Sound from the navigation system comes from
the vehicle’s audio system front speakers.
Screen
The screen displays the maps and provides
detailed information about intersections, distances, etc.
For information about caring for the screen,
see page 19.
Navigation control
The navigation control is located in the right
rear side of the steering wheel. Use it to move
among menu alternatives, to confirm selections or to go back in the menu system.
For additional information, see page 28.
Volume control and infrared (IR)
receiver
Use the vehicle’s audio system volume control
during voice guidance to raise or lower the volume. The volume can also be adjusted in the
menu system.
The IR receiver for the VNS remote control is
located above the numeric keypad on the center instrument panel.
02
23
02
02 Getting to know your navigation system
V70/XC70 system overview
24
02 Getting to know your navigation system
V70/XC70 system overview
Main VNS unit and DVD drive
The main unit and DVD drive is located on the
left side of the cargo area, and includes the following functions:
Determining the vehicle’s location.
•
Calculating a route to the selected desti-
•
nation.
Voice guidance.
•
Processes traffic information.
•
NOTE
The EJECT button is located to the left
•
and the locking catch is on the right side
of the main unit.
The DVD drive is intended for playing
•
Volvo’s map DVDs only.
Traffic information – TMC (option)
TMC is a standardized code system for transmitting traffic information. The receiver automatically tunes to the correct frequency and
reception is handled by the audio system’s FM
antenna.
NOTE
TMC is not available in all areas/countries.
The area covered by the system is being
steadily expanded, which makes occasional updates necessary, see page 19
Global Positioning System (GPS)
antenna
The antenna is integrated into the roof module.
NOTE
The GPS receiver is integrated into the main
unit. Using signals from the Global Positioning System, the vehicle’s speedometer, and
a gyroscopic sensor, it calculates the vehicle’s current location and direction.
This also helps the system calculate direction and location if the GPS signal is temporarily interrupted, such as when driving
through a tunnel.
Speakers
Sound from the navigation system comes from
the vehicle’s audio system front speakers.
Screen
The screen displays the maps and provides
detailed information about intersections, distances, etc.
For information about caring for the screen,
see page 19.
Navigation control
The navigation control is located in the right
rear side of the steering wheel. Use it to move
among menu alternatives, to confirm selections or to go back in the menu system.
For additional information, see page 28.
Volume control and infrared (IR)
receiver
Use the vehicle’s audio system volume control
during voice guidance to raise or lower the volume. The volume can also be adjusted in the
menu system.
The IR receiver for the VNS remote control is
located above the numeric keypad on the center instrument panel.
02
25
02 Getting to know your navigation system
S80 navigation system overview
02
2
1
3
6
4
5
G021310
26
Loading...
