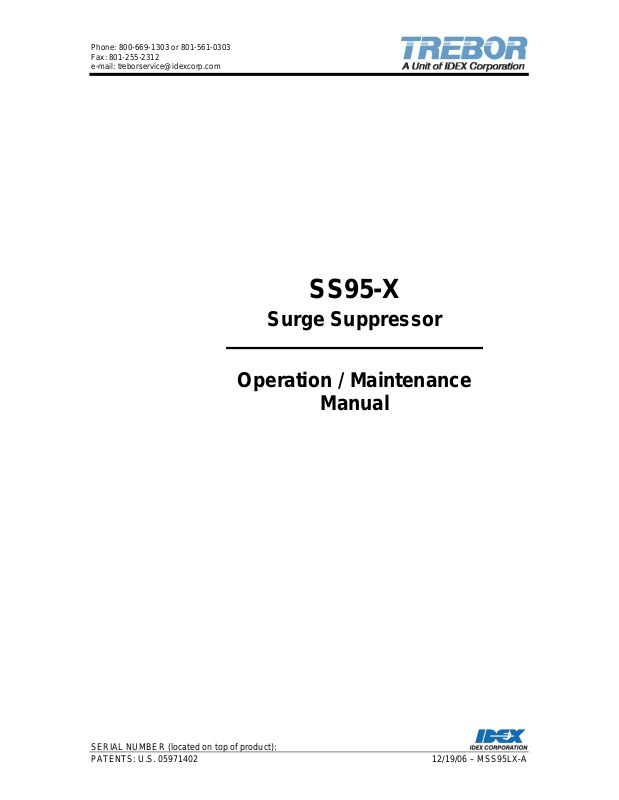

Trebor SS95-X User Manual

Phone: [phone] or 801-561-0303
Fax: [phone]
e-mail: [e-mail]

SS95-X

Surge Suppressor

Operation / Maintenance

Manual

SERIAL NUMBER (located on top of product):
PATENTS: U.S. 05971402 12/19/06 – MSS95LX-A

CONTENTS

1 INSTALLATION............................................................................................................3

1.1 UNPACKING ......................................................................................................3

1.2 LOCATING / MOUNTING SURGE.....................................................................3

2 MAINTENANCE ...........................................................................................................5

2.1 PREVENTIVE MAINTENANCE SCHEDULE.....................................................5

2.2 RECOMMENDED SPARE PARTS ....................................................................5

2.3 TOOLS................................................................................................................5

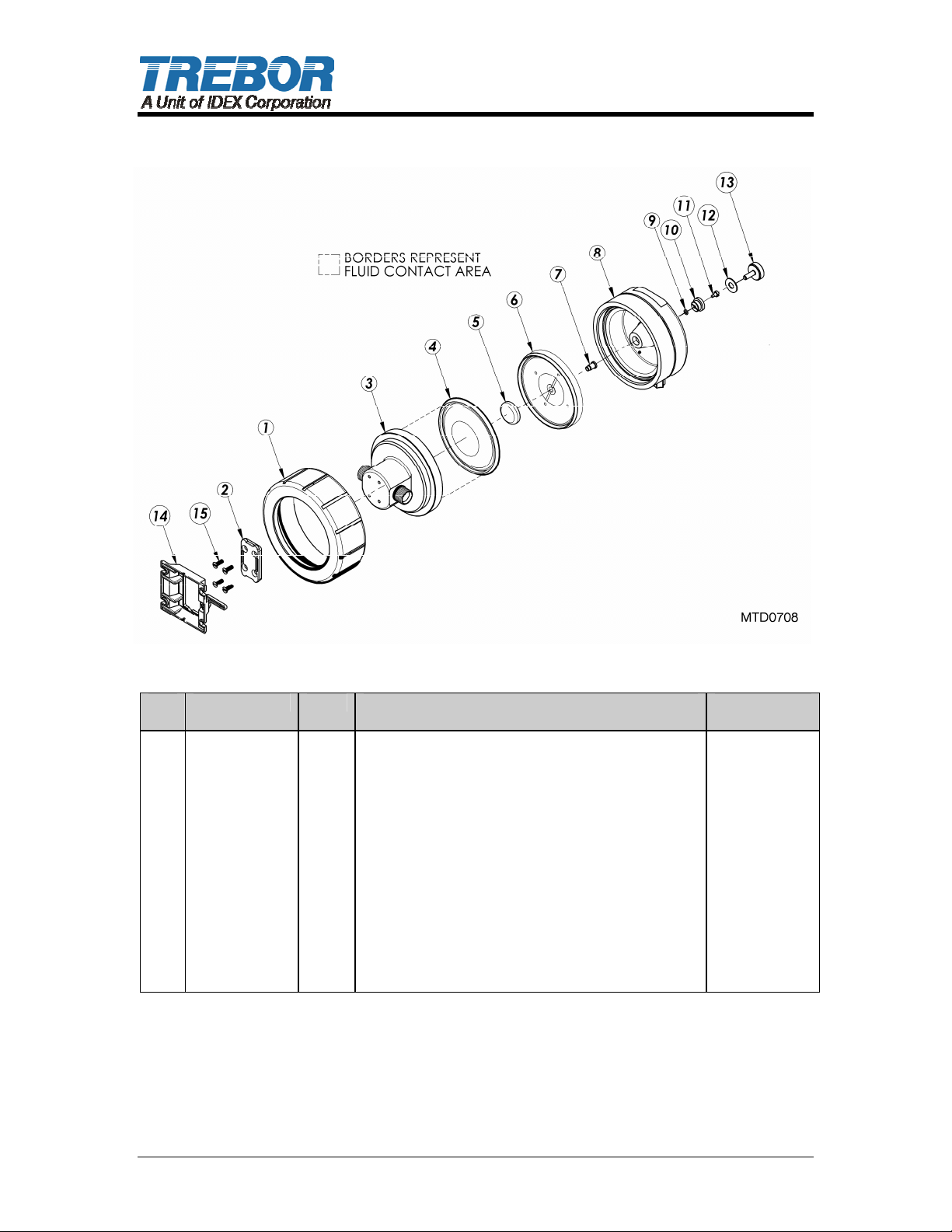

2.4 PARTS ILLUSTRATION.....................................................................................6

2.5 PARTS LIST.......................................................................................................6

2.6 CLEAN-UP..........................................................................................................6

2.7 DISASSEMBLY ..................................................................................................7

2.8 CLEANING .........................................................................................................7

2.9 ASSEMBLY ........................................................................................................7

2.9.a Head Assembly .....................................................................................8

2.9.b Final Assembly ......................................................................................8

3 WARRANTY .........................................................................................................9

SS95 SURGE OPERATION / MAINTENANCE MANUAL CONTENTS

1 INSTALLATION

1.1 UNPACKING

After unpacking, the Surge Suppressor should be checked for any damage that
may have occurred during shipment. Damage should be reported to the carrier
immediately.

The following items should be included within the shipping container:

Qty Item Description

1 SS95-X SS95 Surge Suppressor
1 MSS95-X Operation/Maintenance Manual

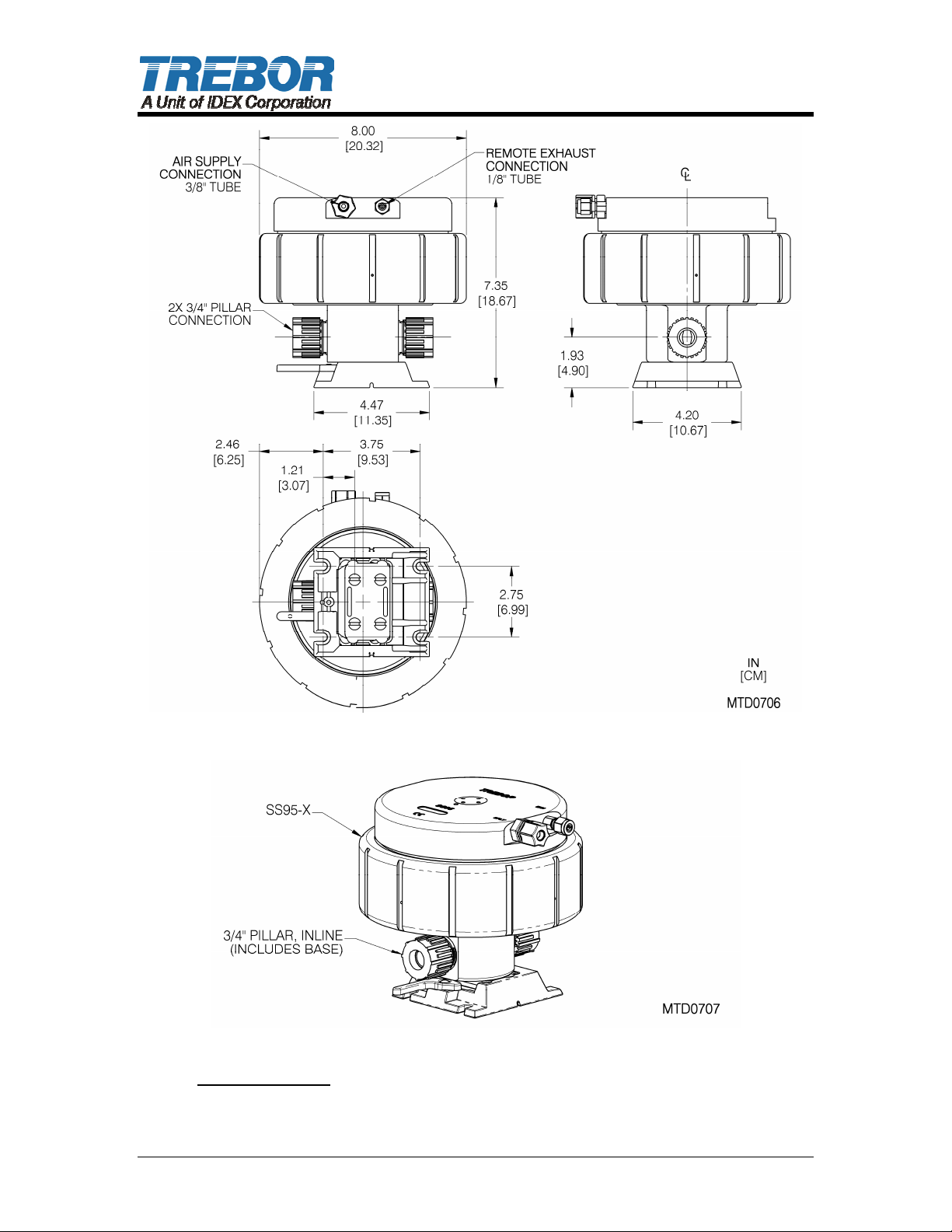

1.2 LOCATING / MOUNTING SURGE

• Run 1/8 bleed line to drain. In the event of a diaphragm failure fluid may flow
through tube to drain.

• Connect air supply using 3/8” or larger air line. Air supply to Surge
Suppressor must be equal to or greater than pump supply pressure.

NOTE: When connecting the SS95-X to an externally controlled pump, do not
connect the SS95-X air supply via a tee from the pump. Connect to a separate
continuous supply.

SS95 SURGE OPERATION / MAINTENANCE MANUAL PAGE 3
