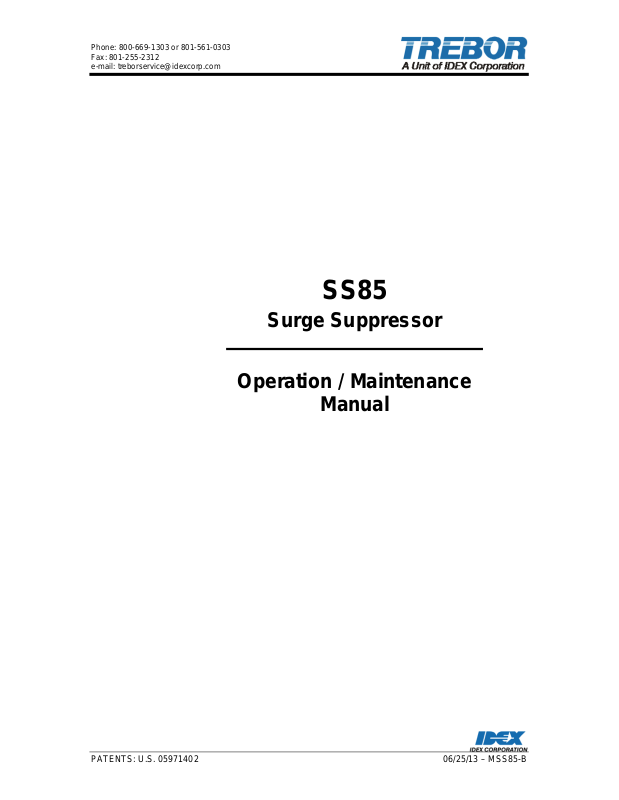

Page 1
Phone: 800-669-1303 or 801-561-0303
Fax: 801-255-2312
e-mail: [email protected]
SS85
Surge Suppressor
Operation / Maintenance
Manual
PATENTS: U.S. 05971402 06/25/13 – MSS85-B
Page 2
CONTENTS
1 INSTALLATION ............................................................................................................ 3
1.1 UNPACKING ...................................................................................................... 3
1.2 LOCATING / MOUNTING SURGE ..................................................................... 3
1.2.a Mounted ................................................................................................. 3
1.2.b Inline ...................................................................................................... 4
1.3 SPECIFICATIONS .............................................................................................. 5
2 SPARE PARTS ............................................................................................................. 6
2.1 PARTS ILLUSTRATION ..................................................................................... 6
2.2 PARTS LIST ....................................................................................................... 6
3 WARRANTY ................................................................................................................. 7
SS85 SURGE OPERATION / MAINTENANCE MANUAL CONTENTS
Page 3
1 INSTALLATION
1.1 UNPACKING
After unpacking, the surge suppressor should be checked for any damage that
may have occurred during shipment. Damage should be reported to the carrier
immediately.
The following items should be included within the shipping container:
Qty
**Dependent upon type of pump option selected.
Item Description
1 SS85 SS85 Surge Suppressor
(assembly including seal and reducer)
1 MSS85 Operation/Maintenance Manual
1 ** Seal, Port
1.2 LOCATING / MOUNTING SURGE
Remove port plug from pump.
Install new port seal.
Hand tighten surge suppressor into port. Do not over tighten.
ATTENTION: Over-tightening adapter into pump will result in pump damage.
When using the Surge Suppressor in a mounting tee, the suppressor chamber
should be oriented with the threads down. (See Section 2.1.)

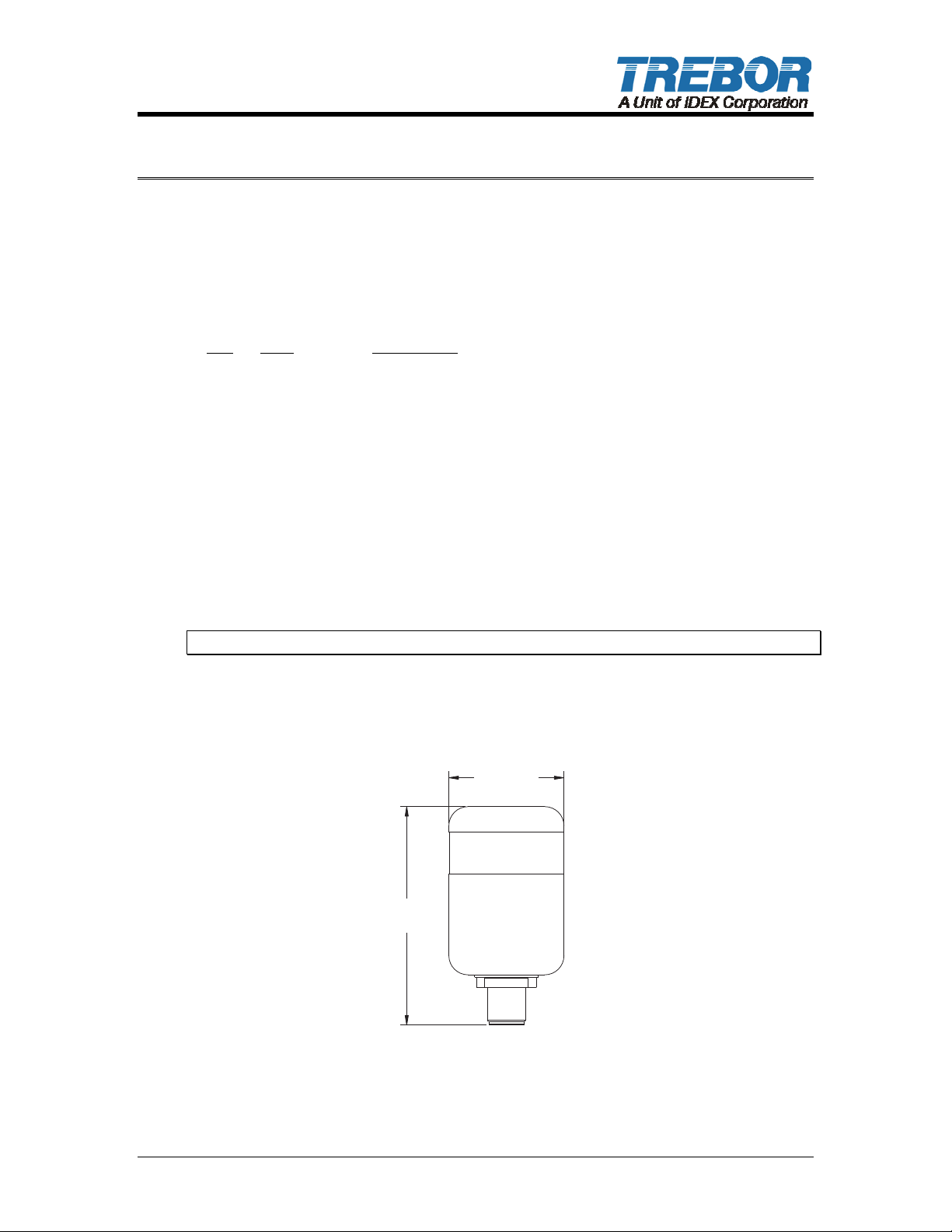

1.2.a Mounted
Ø4.50
(Ø11.43)
8.57
(21.77)
IN
(CM)
MTD0397
Figure 1-1
SS85 SURGE OPERATION / MAINTENANCE MANUAL PAGE 3
Page 4
Pump Assembled Height: IN (CM)
MAGNUM 610 14.82 (37.65)
MEGA 960 17.12 (43.49)
MAXIM 25 15.32 (38.91)
MAXIM 50 17.12 (43.49)
MAGNUM 620 14.97 (38.02)

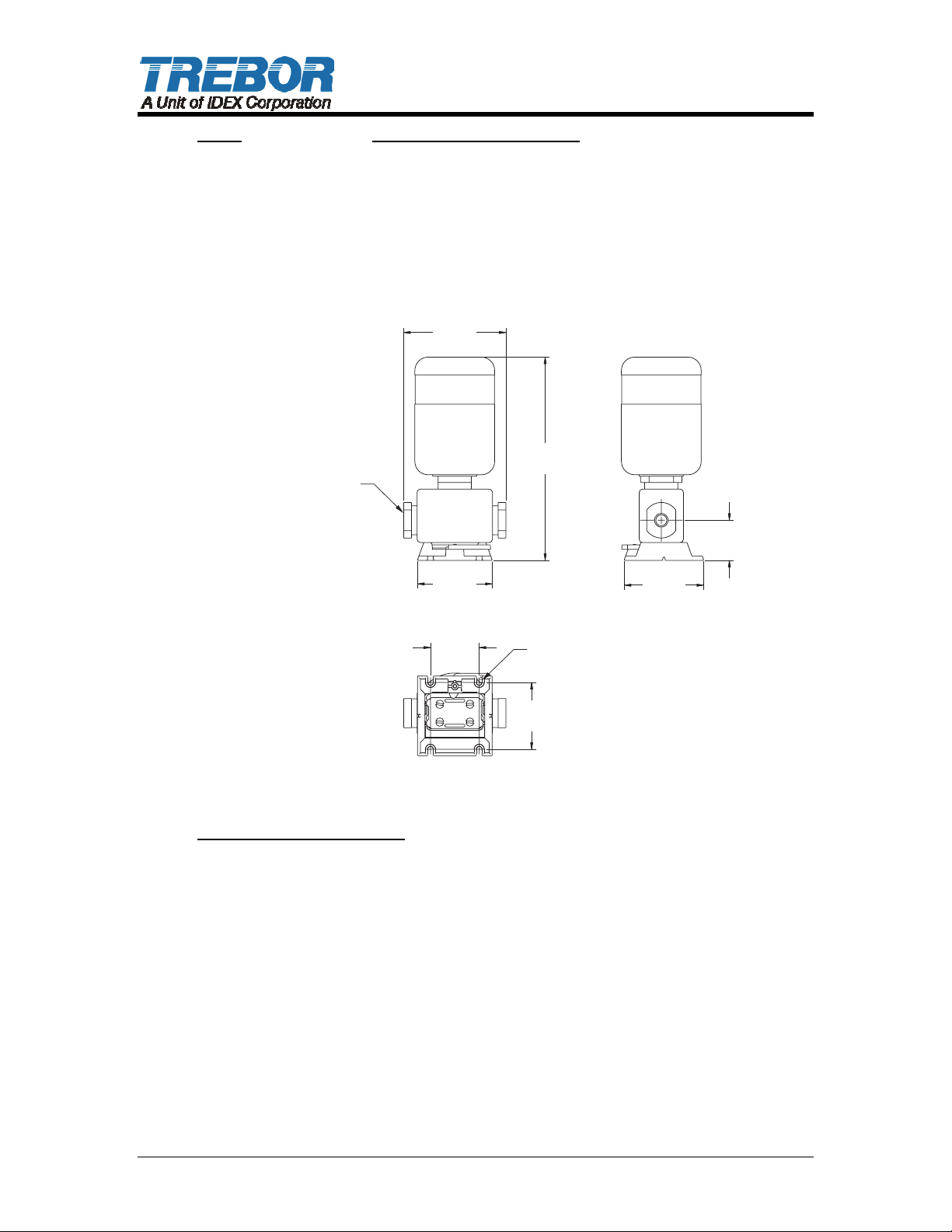

1.2.b Inline
5.76
(14.63)
FLUID PORTFLUID PORT
FITTINGS (INCLUDEDFITTINGS (INCLUDED
WITH TEE OPTION)WITH TEE OPTION)
Assembled Height: IN (CM)
11.41 (28.99)
4.20
(10.67)
2.75
(6.99)
Figure 1-2
11.40
(28.96)
BASE MOUNTINGBASE MOUNTING
SLOTS .28 (.71) WIDESLOTS .28 (.71) WIDE
3.75
(9.53)
4.47
(11.35)
2.25
(5.72)
IN
(CM)
MTD0398
PAGE 4 SS85 SURGE OPERATION / MAINTENANCE MANUAL
Page 5

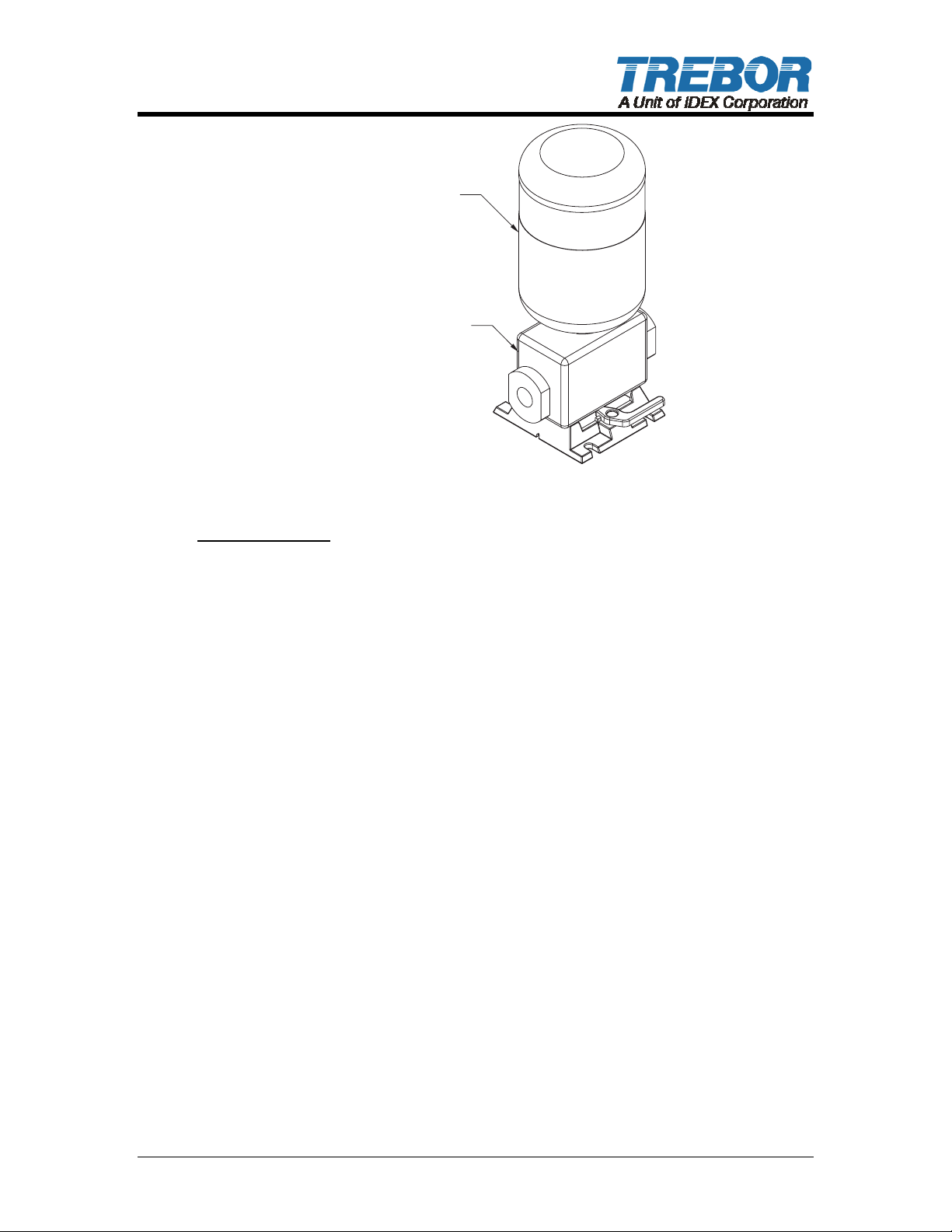

85 SURGE85 SURGE
SUPPRESSOR
TEE ASSEMBLYTEE ASSEMBLY
(INCLUDES FLUID(INCLUDES FLUID
PORT FITTINGS & BASE)PORT FITTINGS & BASE)
Available Options
Group,Tee,3/4” Flare
Group,Tee,1” NPT
Group,Tee,1” Flare
1.3 SPECIFICATIONS
Volume: 50 in3
Limits: Recommended Maximum Operating Air Supply Levels
80 psig up to 100C, 45 psig above 100C
Dimensions: 4.5” x 8” assembled height (12.8 cm x 20.32 cm)
Figure 1-3
MTD0372
SS85 SURGE OPERATION / MAINTENANCE MANUAL PAGE 5
Page 6
2 SPARE PARTS

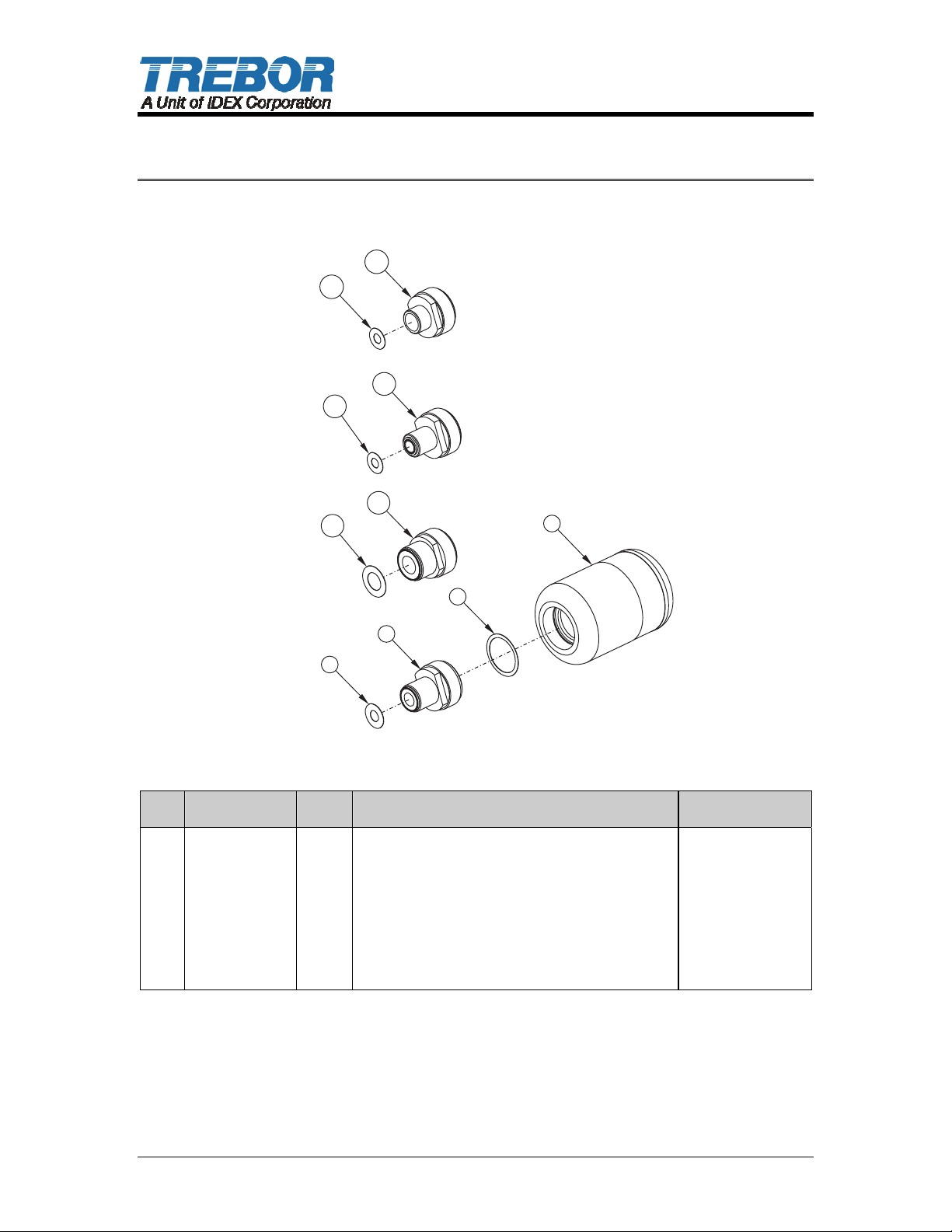

2.1 PARTS ILLUSTRATION
3C
4C
3B
4B
3A
4A
1
2
3
4
MTD0339
2.2 PARTS LIST
ILL
NO
1 1085C0001 1 Chamber, SS85 PTFE
2 U0021 1 Seal, Adapter PTFE
3 U0022 1 Reducer, Maxim/610 to SS85 PTFE
3a U0023 1 Reducer, 960 to SS85 PTFE
3b U0020 1 Reducer, 620 to SS85 PTFE
3c U0028 1 Reducer, 1” NPT to SS85 PTFE
4 AM084 1 Seal,1.380x.63x.02 PTFE
4a L0163 1 Seal,1.75x1.00x.02 PTFE
4b AW017 1 Seal,1.180x.55x.02 PTFE
4c See 4b 1 Seal,1.180x.55x.02 PTFE
PART NO QTY DESCRIPTION MATERIAL
PAGE 6 SS85 SURGE OPERATION / MAINTENANCE MANUAL
Page 7
3 WARRANTY
SS85 SURGE SUPPRESSOR
TREBOR International, Inc. warrants to the purchaser of new equipment
manufactured by TREBOR to be free from defects in material and workmanship
when used for its intended purpose under normal operating conditions, and
maintained according to the Operation/Maintenance Manual.
TREBOR’s obligation under this warranty is limited to repairing or replacing, at
TREBOR’s option and at the TREBOR factory, any part or parts thereof which
shall, within 2 years after delivery thereof to the original purchaser, be
demonstrated to TREBOR’s satisfaction to have been defective. This warranty
may be transferred to subsequent owners. The warranty period is based on the
original ship date from the factory. All warranty related freight costs shall be
borne by the customer.
Excessive wear to pump components caused by pumping abrasive solutions or
chemicals, as well as damage caused by ingesting foreign objects shall not be
covered by this warranty.
This warranty shall not apply to any equipment which, in the judgment of
TREBOR, shall have been repaired or altered outside TREBOR’s factory in any
way, so as to affect its performance or reliability; subjected to misuse, negligence
or accident; or used other than in accordance with TREBOR’s printed
instructions.
There are no terms, conditions or warranties, expressed, implied or
statutory, of merchantability, fitness, capacity, or otherwise, of the goods
ordered, other than, or different from, the warranty set forth above. This
warranty takes precedence over any other warranty, expressed or implied.
TREBOR neither assumes, nor authorizes any other party to assume for it, any
liability in connection with said equipment except as set forth above.
SS85 SURGE OPERATION / MAINTENANCE MANUAL PAGE 7
