TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P
JetStream L2 Managed Switch
REV2.1.0
1910011082
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a registered trademark of
TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or
registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2014 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
I
CONTENTS
Preface ............................................................................................................................ 1
Chapter 1 Using the C LI .................................................................................................... 4
1.1 Accessing the CLI ........................................................................................................ 4
1.1.1 Logon by a console port ..................................................................................... 4
1.1.2 Configuring the Privileged EXEC Mode Password.............................................. 6
1.1.3 Logon by Telnet.................................................................................................. 7
1.1.4 Logon by SSH ...................................................................................................11
1.2 CLI Command Modes ................................................................................................ 16
1.3 Security Levels ........................................................................................................... 18
1.4 Conventions ............................................................................................................... 18
1.4.1 Format Conventions ......................................................................................... 18
1.4.2 Special Characters ........................................................................................... 19
1.4.3 Parameter Format ............................................................................................ 19
Chapter 2 User Interface ................................................................................................. 20
enable ................................................................................................................................ 20
service password-encryption............................................................................................... 20
enable password ................................................................................................................ 21
enable secret ...................................................................................................................... 22
disable ................................................................................................................................ 23
configure ............................................................................................................................ 23
exit ..................................................................................................................................... 24
end ..................................................................................................................................... 24
history................................................................................................................................. 24
history clear ........................................................................................................................ 25
Chapter 3 IEEE 802.1Q VLAN Commands.................................................................. 26
vlan .................................................................................................................................... 26
interface vlan ...................................................................................................................... 26
name .................................................................................................................................. 27
switchport mode ................................................................................................................. 27
switchport access vlan ........................................................................................................ 28
switchport trunk allowed vlan .............................................................................................. 28
switchport general allowed vlan .......................................................................................... 29
switchport pvid.................................................................................................................... 30
II
show vlan summary ............................................................................................................ 30
show vlan brief.................................................................................................................... 31
show vlan ........................................................................................................................... 31
Chapter 4 MAC-based VLAN Commands .................................................................... 32
mac-vlan mac-address ....................................................................................................... 32
show mac-vlan.................................................................................................................... 32
Chapter 5 Protocol-based VLAN Commands .............................................................. 34
protocol-vlan template ........................................................................................................ 34
protocol-vlan vlan ............................................................................................................... 35
protocol-vlan group ............................................................................................................. 35
show protocol-vlan template ............................................................................................... 36
show protocol-vlan vlan ...................................................................................................... 36
Chapter 6 Voice VLAN Commands ............................................................................... 37
voice vlan ........................................................................................................................... 37
voice vlan aging time .......................................................................................................... 37
voice vlan priority ................................................................................................................ 38
voice vlan mac-address ...................................................................................................... 38
switchport voice vlan mode ................................................................................................. 39
switchport voice vlan security.............................................................................................. 40
show voice vlan .................................................................................................................. 40
show voice vlan oui............................................................................................................. 41
show voice vlan switchport ................................................................................................. 41
Chapter 7 GVRP Commands ......................................................................................... 42
gvrp(global) ........................................................................................................................ 42
gvrp(interface) .................................................................................................................... 42
gvrp registration .................................................................................................................. 43
gvrp timer ........................................................................................................................... 43
show gvrp global................................................................................................................. 44
show gvrp interface............................................................................................................. 45
Chapter 8 Etherchannel Commands ............................................................................. 46
channel-group .................................................................................................................... 46
port-channel load-balance .................................................................................................. 47
lacp system-priority............................................................................................................. 47
lacp port-priority .................................................................................................................. 48
III
show etherchannel ............................................................................................................. 49
show etherchannel load-balance ........................................................................................ 49
show lacp ........................................................................................................................... 50
show lacp sys-id ................................................................................................................. 50
Chapter 9 User Manage Commands............................................................................. 51
user name (password) ........................................................................................................ 51
user name (secret) ............................................................................................................. 52
user access-control ip-based .............................................................................................. 53
user access-control mac-based .......................................................................................... 54
user access-control port-based ........................................................................................... 54
user max-number ............................................................................................................... 55
user idle-timeout ................................................................................................................. 56
line ..................................................................................................................................... 56
password ............................................................................................................................ 57
login ................................................................................................................................... 58
login local ........................................................................................................................... 59
show user account-list ........................................................................................................ 59
show user configuration ...................................................................................................... 60
Chapter 10 Binding Table Commands............................................................................. 61
ip source binding ................................................................................................................ 61
ip source binding index ....................................................................................................... 62
ip dhcp snooping ................................................................................................................ 63
ip dhcp snooping global ...................................................................................................... 63
ip dhcp snooping information option.................................................................................... 64
ip dhcp snooping information strategy................................................................................. 65
ip dhcp snooping information remote-id .............................................................................. 65
ip dhcp snooping information circuit-id ................................................................................ 66
ip dhcp snooping trust......................................................................................................... 67
ip dhcp snooping mac-verif y ............................................................................................... 67
ip dhcp snooping limit rate .................................................................................................. 68
ip dhcp snooping decline .................................................................................................... 68
show ip source binding ....................................................................................................... 69
show ip dhcp snooping ....................................................................................................... 69
show ip dhcp snooping information ..................................................................................... 70
show ip dhcp snooping interface gigabitEthernet ................................................................ 70
Chapter 11 ARP Inspection Commands ......................................................................... 72
IV
ip arp inspection(global)...................................................................................................... 72
ip arp inspection trust.......................................................................................................... 72
ip arp inspection(interface).................................................................................................. 73
ip arp inspection limit-rate ................................................................................................... 74
ip arp inspection recover..................................................................................................... 74
show ip arp inspection ........................................................................................................ 75
show ip arp inspection interface .......................................................................................... 75
show ip arp inspection statistics .......................................................................................... 76
clear ip arp inspection statistics .......................................................................................... 76
Chapter 12 DoS Defend Command ................................................................................. 77
ip dos-prevent..................................................................................................................... 77
ip dos-prevent type ............................................................................................................. 77
show ip dos-prevent............................................................................................................ 78
Chapter 13 IEEE 802.1X Commands.............................................................................. 79
dot1x system-auth-control................................................................................................... 79
dot1x auth-method.............................................................................................................. 79
dot1x guest-vlan(global)...................................................................................................... 80
dot1x quiet-period ............................................................................................................... 81
dot1x timeout ...................................................................................................................... 81
dot1x max-reauth-req ......................................................................................................... 82
dot1x .................................................................................................................................. 82
dot1x guest-vlan(interface) ................................................................................................. 83
dot1x port-control................................................................................................................ 83
dot1x port-method .............................................................................................................. 84
radius ................................................................................................................................. 85
radius server-account ......................................................................................................... 86
show dot1x global ............................................................................................................... 87
show dot1x interface ........................................................................................................... 87
show radius accounting ...................................................................................................... 88
show radius authentication ................................................................................................. 88
Chapter 14 System Log Commands ............................................................................... 89
logging buffer...................................................................................................................... 89
logging file flash .................................................................................................................. 90
logging file flash frequency ................................................................................................. 90
logging file flash level.......................................................................................................... 91
clear logging ....................................................................................................................... 91
V
logging host index............................................................................................................... 92
show logging local-config.................................................................................................... 93
show logging loghost .......................................................................................................... 93
show logging buffer............................................................................................................. 94
show logging flash .............................................................................................................. 94
Chapter 15 SSH Commands ............................................................................................ 96
ip ssh server ....................................................................................................................... 96
ip ssh version ..................................................................................................................... 96
ip ssh timeout ..................................................................................................................... 97
ip ssh max-client ................................................................................................................. 97
ip ssh download .................................................................................................................. 98
show ip ssh......................................................................................................................... 99
Chapter 16 SSL Commands ...........................................................................................100
ip http secure-server ......................................................................................................... 100
ip http secure-server download certificate ......................................................................... 100
ip http secure-server download key................................................................................... 101
show ip http secure-server ................................................................................................ 102
Chapter 17 MAC Address Commands ..........................................................................103
mac address-table static ................................................................................................... 103
mac address-table aging-time ........................................................................................... 104
mac address-table filtering ................................................................................................ 104
mac address-table max-mac-count ................................................................................... 105
show mac address-table ................................................................................................... 106
show mac address-table aging-time.................................................................................. 107
show mac address-table max-mac-count interface gigabitEthernet ................................... 107
show mac address-table interface gigabitEthernet ............................................................ 108
show mac address-table count ......................................................................................... 108
show mac address-table address...................................................................................... 109
show mac address-table vlan............................................................................................ 109
Chapter 18 System Configuration Commands ............................................................ 110
system-time manual...........................................................................................................110
system-time ntp .................................................................................................................110
system-time dst predefined ................................................................................................112
system-time dst date..........................................................................................................113
system-time dst recurring...................................................................................................114
VI
hostname ..........................................................................................................................115
location ..............................................................................................................................115
contact-info ........................................................................................................................116
ip management-vlan ..........................................................................................................116
ip address..........................................................................................................................117
ip address-alloc dhcp .........................................................................................................118
ip address-alloc bootp........................................................................................................118
reset ..................................................................................................................................119
reboot ................................................................................................................................119
copy running-config startup-config .....................................................................................119
copy startup-config tftp...................................................................................................... 120
copy tftp startup-config...................................................................................................... 121
firmware upgrade.............................................................................................................. 121
ping .................................................................................................................................. 122
tracert ............................................................................................................................... 123
show system-time ............................................................................................................. 124
show system-time dst ....................................................................................................... 124
show system-time ntp ....................................................................................................... 125
show system-info .............................................................................................................. 125
show running-config.......................................................................................................... 125
show cable-diagnostics interface ...................................................................................... 126
Chapter 19 IPv6 Address Configuration Commands ..................................................127
ipv6 enable ....................................................................................................................... 127
ipv6 address autoconfig .................................................................................................... 127
ipv6 address link-local ...................................................................................................... 128
ipv6 address dhcp ............................................................................................................ 128
ipv6 address ra ................................................................................................................. 129
ipv6 address eui-64 .......................................................................................................... 130
ipv6 address ..................................................................................................................... 130
show ipv6 interface vlan.................................................................................................... 131
Chapter 20 Ethernet Configuration Commands...........................................................132
interface gigabitEthernet ................................................................................................... 132
interface range gigabitEthernet ......................................................................................... 132
description ........................................................................................................................ 133
shutdown .......................................................................................................................... 134
flow-control ....................................................................................................................... 134
VII
media-type........................................................................................................................ 135
duplex............................................................................................................................... 135
speed ............................................................................................................................... 136
storm-control broadcast .................................................................................................... 136
storm-control multicast...................................................................................................... 137
storm-control unicast ........................................................................................................ 138
bandwidth ......................................................................................................................... 139
clear counters ................................................................................................................... 140
show interface status ........................................................................................................ 140
show interface counters .................................................................................................... 141
show interface description ................................................................................................ 141
show interface flowcontrol................................................................................................. 142
show interface configuration ............................................................................................. 142
show storm-control ........................................................................................................... 143
show bandwidth ................................................................................................................ 143
Chapter 21 QoS Commands...........................................................................................145
qos ................................................................................................................................... 145
qos dscp ........................................................................................................................... 146
qos queue cos-map .......................................................................................................... 146
qos queue dscp-map ........................................................................................................ 147
qos queue mode ............................................................................................................... 148
show qos interface............................................................................................................ 149
show qos cos-map............................................................................................................ 150
show qos dscp-map.......................................................................................................... 150
show qos queue mode...................................................................................................... 151
show qos status ................................................................................................................ 151
Chapter 22 Port Mirro r Commands................................................................................152
monitor session destination interface ................................................................................ 152
monitor session source interface ...................................................................................... 153
show monitor session ....................................................................................................... 154
Chapter 23 Po rt Iso la tion Commands ...........................................................................155
port isolation ..................................................................................................................... 155
show port isolation interface ............................................................................................. 156
Chapter 24 Loopback Detection Commands ...............................................................157
loopback-detection(global) ................................................................................................ 157
VIII
loopback-detection interval ............................................................................................... 157
loopback-detection recovery-time ..................................................................................... 158
loopback-detection(interface)............................................................................................ 158
loopback-detection config ................................................................................................. 159
loopback-detection recover ............................................................................................... 160
show loopback-detection global ........................................................................................ 160
show loopback-detection interface .................................................................................... 161
Chapter 25 PoE Commands ...........................................................................................162
power inline consumption (global)..................................................................................... 162
power inline disconnect-method........................................................................................ 162
power profile ..................................................................................................................... 163
power time-range.............................................................................................................. 164
power holiday ................................................................................................................... 165
absolute............................................................................................................................ 165
periodic............................................................................................................................. 166
holiday .............................................................................................................................. 167
power inline consumption(interface).................................................................................. 168
power inline priority........................................................................................................... 168
power inline supply ........................................................................................................... 169
power inline profile............................................................................................................ 170
power inline time-range .................................................................................................... 170
show power inline ............................................................................................................. 171
show power inline configuration interface.......................................................................... 171
show power inline information interface ............................................................................ 172
show power profile............................................................................................................ 172
show power holiday .......................................................................................................... 173
show power time-range .................................................................................................... 173
Chapter 26 ACL Commands ...........................................................................................174
time-range ........................................................................................................................ 174
absolute............................................................................................................................ 174
periodic............................................................................................................................. 175
holiday .............................................................................................................................. 176
holiday(global) .................................................................................................................. 176
access-list create .............................................................................................................. 177
mac access-list ................................................................................................................. 178
access-list standard .......................................................................................................... 178
IX
access-list extended ......................................................................................................... 179
rule ................................................................................................................................... 181
access-list policy name ..................................................................................................... 182
access-list policy action .................................................................................................... 182
redirect interface ............................................................................................................... 183
redirect vlan ...................................................................................................................... 184
s-condition ........................................................................................................................ 184
s-mirror ............................................................................................................................. 185
qos-remark ....................................................................................................................... 185
access-list bind(interface) ................................................................................................. 186
access-list bind(vlan) ........................................................................................................ 187
show time-range ............................................................................................................... 187
show holiday..................................................................................................................... 188
show access-list ............................................................................................................... 188
show access-list policy ..................................................................................................... 188
show access-list bind ........................................................................................................ 189
Chapter 27 MSTP Commands........................................................................................190
spanning-tree(global) ........................................................................................................ 190
spanning-tree(interface).................................................................................................... 190
spanning-tree common-config........................................................................................... 191
spanning-tree mode .......................................................................................................... 192
spanning-tree mst configuration ........................................................................................ 193
instance ............................................................................................................................ 193
name ................................................................................................................................ 194
revision ............................................................................................................................. 194
spanning-tree mst instance ............................................................................................... 195
spanning-tr ee mst ............................................................................................................. 196
spanning-tree priority ........................................................................................................ 196
spanning-tree tc-defend .................................................................................................... 197
spanning-tree timer ........................................................................................................... 198
spanning-tree hold-count .................................................................................................. 199
spanning-tree max-hops ................................................................................................... 199
spanning-tree bpdufilter .................................................................................................... 200
spanning-tree bpduguard .................................................................................................. 200
spanning-tree guard loop .................................................................................................. 201
spanning-tree guard root................................................................................................... 202
spanning-tree guard tc ...................................................................................................... 202
X
spanning-tree mcheck ...................................................................................................... 203
show spanning-tree active ................................................................................................ 203
show spanning-tree bridge................................................................................................ 204
show spanning-tree interface ............................................................................................ 204
show spanning-tree interface-security............................................................................... 205
show spanning-tree mst.................................................................................................... 206
Chapter 28 IGMP Snooping Commands ......................................................................207
ip igmp snooping(global)................................................................................................... 207
ip igmp snooping(interface)............................................................................................... 207
ip igmp snooping immediate-leave.................................................................................... 208
ip igmp snooping drop-unknown ....................................................................................... 208
ip igmp snooping vlan-config ............................................................................................ 209
ip igmp snooping multi-vlan-config .................................................................................... 210
ip igmp snooping filter add-id .............................................................................................211
ip igmp snooping filter(global) ........................................................................................... 212
ip igmp snooping filter(interface) ....................................................................................... 213
ip igmp snooping filter maxgroup ...................................................................................... 213
ip igmp snooping filter mode ............................................................................................. 214
show ip igmp snooping ..................................................................................................... 214
show ip igmp snooping interface ....................................................................................... 215
show ip igmp snooping vlan .............................................................................................. 216
show ip igmp snooping multi-vlan ..................................................................................... 216
show ip igmp snooping groups.......................................................................................... 217
show ip igmp snooping filter.............................................................................................. 218
Chapter 29 MLD Snooping Commands ........................................................................219
ipv6 mld snooping............................................................................................................. 219
ipv6 mld snooping router-aging-time ................................................................................. 219
ipv6 mld snooping member-aging-time ............................................................................. 220
ipv6 mld snooping report-suppression .............................................................................. 220
ipv6 mld snooping unknown-filter ...................................................................................... 221
ipv6 mld snooping last-listener query-inteval ..................................................................... 221
ipv6 mld snooping last-listener query-count ...................................................................... 222
ipv6 mld snooping multicast-vlan ...................................................................................... 222
ipv6 mld snooping multicast-vlan vlan-id ........................................................................... 223
ipv6 mld snooping vlan ..................................................................................................... 223
ipv6 mld snooping vlan router-aging-time.......................................................................... 224
XI
ipv6 mld snooping vlan member-aging-time ...................................................................... 224
ipv6 mld snooping vlan immediate-leave........................................................................... 225
ipv6 mld snooping vlan mrouter ........................................................................................ 225
ipv6 mld snooping vlan static ............................................................................................ 226
ipv6 mld snooping querier vlan ......................................................................................... 226
ipv6 mld snooping querier vlan max-response-time .......................................................... 227
ipv6 mld snooping querier vlan query-interval ................................................................... 228
ipv6 mld snooping querier vlan query-source .................................................................... 228
ipv6 mld snooping filter(global) ......................................................................................... 229
ipv6 mld snooping filter(interface) ..................................................................................... 229
ipv6 mld snooping filter-mode ........................................................................................... 230
ipv6 mld snooping filter-id ................................................................................................. 230
ipv6 mld snooping max-group ........................................................................................... 231
clear ipv6 mld snooping statistics...................................................................................... 231
show ipv6 mld snooping.................................................................................................... 232
show ipv6 mld snooping vlan ............................................................................................ 232
show ipv6 mld snooping static-mcast ................................................................................ 233
show ipv6 mld snooping group.......................................................................................... 233
show ipv6 mld snooping filter ............................................................................................ 233
show ipv6 mld snooping interface ..................................................................................... 234
show ipv6 mld snooping interface filter.............................................................................. 234
show ipv6 mld snooping querier........................................................................................ 235
show ipv6 mld snooping statistics ..................................................................................... 235
Chapter 30 SNMP Commands .......................................................................................236
snmp-server ..................................................................................................................... 236
snmp-server view ............................................................................................................. 236
snmp-server group ........................................................................................................... 237
snmp-server user.............................................................................................................. 238
snmp-server community.................................................................................................... 240
snmp-server host .............................................................................................................. 241
snmp-server engineID ...................................................................................................... 242
snmp-server traps snmp ................................................................................................... 243
snmp-server traps link-status ............................................................................................ 244
snmp-server traps............................................................................................................. 244
snmp-server traps mac ..................................................................................................... 245
snmp-server traps vlan ..................................................................................................... 246
rmon history...................................................................................................................... 247
XII
rmon event ....................................................................................................................... 248
rmon alarm ....................................................................................................................... 249
show snmp-server ............................................................................................................ 250
show snmp-server view .................................................................................................... 251
show snmp-server group .................................................................................................. 251
show snmp-server user .................................................................................................... 252
show snmp-server community .......................................................................................... 252
show snmp-server host..................................................................................................... 252
show snmp-server engineID ............................................................................................. 253
show rmon history ............................................................................................................ 253
show rmon event .............................................................................................................. 254
show rmon alarm .............................................................................................................. 254
Chapter 31 LLDP Commands.........................................................................................256
lldp ................................................................................................................................... 256
lldp hold-multiplier............................................................................................................. 256
lldp timer........................................................................................................................... 257
lldp med-fast-count ........................................................................................................... 258
lldp receive ....................................................................................................................... 259
lldp transmit ...................................................................................................................... 259
lldp snmp-trap................................................................................................................... 260
lldp tlv-select..................................................................................................................... 260
lldp med-location .............................................................................................................. 261
lldp med-status ................................................................................................................. 262
lldp med-tlv-select............................................................................................................. 262
show lldp .......................................................................................................................... 263
show lldp interface ............................................................................................................ 263
show lldp local-information interface ................................................................................. 264
show lldp neighbor-information interface ........................................................................... 264
show lldp traffic interface .................................................................................................. 265
Chapter 32 Cluster Comma nds ......................................................................................266
cluster ndp ........................................................................................................................ 266
cluster ntdp ....................................................................................................................... 267
cluster explore .................................................................................................................. 268
cluster............................................................................................................................... 269
cluster candidate .............................................................................................................. 269
cluster individual ............................................................................................................... 270
XIII
show cluster ndp............................................................................................................... 270
show cluster ntdp.............................................................................................................. 271
show cluster neighbour ..................................................................................................... 271
show cluster manage role ................................................................................................. 272
XIV
Preface
This Guide is intended for network administrator to provide referenced information about CLI
(Command Line Interface). The switch mentioned in this Guide stands for
TL-SG3210/TL-SG3216/TL-SG3424/TL-SG3424P without any explanation. The commands in this
guilde apply to these four models if not specially noted, and TL-SG3424 is taken as an example
model in the example commands.
Overview of this Guide
Chapter 1: Using the CLI
Provide information about how to use the CLI, CLI Command Modes, Security Levels and some
Conventions.
Chapter 2: User Interface
Provide information about the commands used to switch between five CLI Command Modes.
Chapter 3: IEEE 802.1Q VLAN Commands
Provide information about the commands used for configuring IEEE 802.1Q VLAN.
Chapter 4: M AC-Based VLAN Commands
Provide information about the commands used for configuring MAC-Based VLAN.
Chapter 5: Protocol-Based VLAN Commands
Provide information about the commands used for configuring Protocol-Based VLAN.
Chapter 6: Voice VLAN Commands
Provide information about the commands used for configuring Voice VLAN.
Chapter 7: GVRP Commands
Provide information about the commands used for configuring GVRP (GARP VLAN registration
protocol).
Chapter 8: Etherchannel Commands
Provide information about the commands used for configuring LAG (Link Aggregation Group) and
LACP (Link Aggregation Control Protocol).
Chapter 9: User Manage Commands
Provide information about the commands used for user management.
Chapter 10: Binding Table Commands
Provide information about the commands used for binding the IP address, MAC address, VLAN
and the connected Port number of the Host together. Besides it also provide information about the
commands used for monitoring the process of the Host obtaining the IP address from DHCP server,
1
and record the IP address, MAC address, VLAN and the connected Port number of the Host for
automatic binding.
Chapter 11: ARP Inspection Commands
Provide information about the commands used for protecting the switch from the ARP cheating or
ARP Attack.
Chapter 12: DoS Defend Command
Provide information about the commands used for DoS defend and detecting the DoS attack.
Chapter 13: IEEE 802.1X Commands
Provide information about the commands used for configuring IEEE 802.1X function.
Chapter 14: Syste m Log Commands
Provide information about the commands used for configuring system log.
Chapter 15: SSH Commands
Provide information about the commands used for configuring and managing SSH (Security Shell).
Chapter 16: SSL Commands
Provide information about the commands used for configuring and managing SSL (Secure Sockets
Layer).
Chapter 17: M AC Address Commands
Provide information about the commands used for Address configuration.
Chapter 18: Sys t e m Configuration Commands
Provide information about the commands used for configuring the System information and System
IP, reboot and reset the switch, upgrade the switch system and commands used for cable test.
Chapter 19: IPv6 Address Configuration Commands
Provide information about the commands used for configuring the System IPv6 addresses.
Chapter 20: Eth e rnet Configuration Commands
Provide information about the commands used for configuring the Bandwidth Control, Negotiation
Mode, and Storm Control for Ethernet ports.
Chapter 21: QoS Commands
Provide information about the commands used for configuring the QoS function.
Chapter 22: Por t M irro r Commands
Provide information about the commands used for configuring the Port Mirror function.
Chapter 23: Port Isolation Commands
Provide information about the commands used for configuring the Port Isolation function.
Chapter 24: Loopback Detection Commands
Provide information about the commands used for configuring the Loopback Detection function.
2
Chapter 25: PoE Commands
Provide information about the commands used for configuring PoE function.
Chapter 26: ACL Commands
Provide information about the commands used for configuring the ACL (Access Control List).
Chapter 27: MSTP Commands
Provide information about the commands used for configuring the MSTP (Multiple Spanning Tree
Protocol).
Chapter 28: IGMP Snooping Commands
Provide information about the commands used for configuring the IGMP Snooping (Internet Group
Management Protocol Snooping).
Chapter 29: MLD Snooping Commands
Provide information about the commands used for configuring the MLD Snooping (Multicast
Listener Discovery Snooping).
Chapter 30: SNM P Commands
Provide information about the commands used for configuring the SNMP (Simple Network
Management Protocol) functions.
Chapter 31: LLDP Commands
Provide information about the commands used for configuring LLDP function.
Chapter 32: Cluster Commands
Provide information about the commands used for configuring the Cluster Management function.
3
Chapter 1 Using the CLI
1.1 Accessing the CLI
You can log on to the switch and access the CLI by the following two methods:
1. Log on to the switch by the console port on the switch.
2. Log on to the switch remotely by a Telnet or SSH connection through an Ethernet port.
1.1.1 Logon by a console port
To log on to the switch by the console port on the switch, please take the following steps:
1. Connect the PCs or Terminals to the console port on the switch by a provided cable.
2. Click Start →
open the Hyper Terminal as the Figure 1-1 shown.
All Programs → Accessories→ Communications → Hyper Te rminal to
Figure 1-1 Open
Hyper Terminal
4
3. The Connection Description Window will prompt as Figure 1-2 shown. Enter a name into
the Name field and click OK.
Figure 1-2 Connection Description
4. Select the port to connect in Figure 1-3, and click OK.
Figure 1-3 Select the port to connect
5
5. Configure the port selected in the step above as the following Figure 1-4 shown.
Configure Bits per se co nd as 38400, Data bits as 8, Par it y as None, Stop bits as 1,
Flow control as None, and then click OK.
Figure 1-4 Port Settings
6. The DOS prompt” TL-SG3424>” will appear after pressing the Enter button as Figure 1-5
shown. It indicates that you can use the CLI now.
Figure 1-5 Log in the Switch
1.1.2 Configuring the Privileged EXEC Mode Password
To configure the switch remotely by a Telnet or SSH connection, please set a password for entering
the Privileged EXEC Mode through the console connection first. Follow the steps in
by a console port to log on to the switch, and then follow the steps shown in Figu r e 1-6 to
configure the Privileged EXEC Mode password.
6
1.1.1 Logon
Figure 1-6 Configure the Privileged EXEC Mode Password
1.1.3 Logon by Telnet
To successfully create Telnet connection, firstly CLI commands about configuring Telnet login
mode, login authentication information and Privileged EXEC Mode password should be configured
through Console connection.
Telnet login has the following two modes, you can choose one according to your needs:
Login local Mode: It requires username and password, which are both admin by default.
Login M ode: It requires no username and password, but a connection password is required.
Note:
Before Telnet login, you are required to configure Telnet login mode and login authentication
information through console connection.
Login Local Mode
Firstly, enter the Privileged EXEC Mode password set in 1.1.2 Configuring the Priviledged EXEC
Mode Password and configure the Telnet login mode as “login local” in the prompted DOS screen
shown in Figure 1-7.
Figure 1-7 Configure login local mode
7
Now, you can logon by Telnet in login local mode.
1. Make sure the switch and the PC are in the same LAN. Click Start → Run to open the Run
window, and type cmd in the prompt Run window as Figure 1-8 and click OK.
Figure 1-8 Run Window
2. Open Telnet and type telnet 192.168.0.1 in the command prompt shown as Figure 1-9, and
press the Enter button.
Figure 1-9 Connecting to the Switch
3. Type the default user name and password admi n/admin, then press the Ente r button so as to
enter User EXEC Mode.
Figure 1-10 Enter into the User EXEC Mode
Now you can manage your switch with CLI commands through Telnet connection.
8
4. Type enable command to enter Privileged EXEC Mode. A password that you have set through
Console port connection is required. Here the password is set as 123.
Figure 1-11 Enter into the Privileged EXEC Mode
Login Mode
Firstly enter the Privileged EXEC Mode password set in
1.1.2 Configuring the Priviledged EXEC
Mode Password and configure the Telnet login mode as “log in ” and the connection password and
456 in the prompted DOS screen shown in Figure 1-12.
Figure 1-12 Configure login mode
9
Now, you can logon by Telnet in login mode:
1. Open Telnet and type telnet 192.168.0.1 in the command prompt shown as Figure 1-13, and
press the Enter button.
Figure 1-13 Connecting to the Switch
2. You are prompted to enter the connection password 456 you have set through Console port
connection, and then you are in User EXEC Mode.
Figure 1-14 Enter into the User EXEC Mode
10
3. When entering enable command to access Privileged EXEC Mode, you are required to give
the password 123 you have set through Console port connection.
Figure 1-15 Enter into the Privileged EXEC Mode
Now you can manage your switch with CLI commands through Telnet connection.
Note:
You can refer to Chapter 9 User Manage Commands
Telnet connection configuration.
for detailed commands information of the
1.1.4 Logon by SSH
To log on by SSH, a Putty client software is recommended. There are two authentication modes to
set up an SSH connection:
Password Authentication Mode: It requires username and password, which are both admi n by
default.
Key Authentication Mo de: It requires a public key for the switch and a private key for the SSH
client software. You can generate the public key and the private key through Putty Key Generator.
11
Note:
Before SSH login, please follow the steps shown in Figure 1-16 to enable the SSH function through
console connection.
Figure 1-16 Enable SSH function
Password Authentication Mode
1. Open the software to log on to the interface of PuTTY. Enter the IP address of the switch into
Host Name field; keep the default value 22 in the Port field; select SSH as the Connection
type.
Figure 1-17 SSH Connection Config
12
2. Click the Open button in the above figure to log on to the switch. Enter the login user name
and password to log on the switch, and then enter the Privileged EXEC Mode password, so
you can continue to configure the switch.
Figure 1-18 Log on the Switch
Ke y Authentication Mode
1. Select the key type and key length, and generate SSH key.
Figure 1-19 Generate SSH Key
Note:
1. The key length is in the range of 256 to 3072 bits.
2. During the key generation, randomly moving the mouse quickly can accelerate the key
generation.
13
2. After the key is successfully generated, please save the public key and private key to a TFTP
server.
Figure 1-20 Save the Generated Key
3. Log on to the switch by the console port, and download the public key file from the TFTP
server to the switch, as the following figure shows:
Figure 1-21 Download the Public Key
Note:
1. The key type should accord with the type of the key file.
2. The SSH key downloading can not be interrupted.
14
4. After the public key is loaded, please log on to the interface of PuTTY and enter the IP address
for login.
Figure 1-22 SSH Connection Config
5. Click Browse to load the private key file to SSH client software and click Ope n.
Figure 1-23 Load the Private Key
15
Logout or Access the next mode
User E XEC
Primary mode once it
is connected with the
command to disconnect the
switch (except that the switch is
command to access
ommand to enter this
command to access
onfiguration
User EXEC Mode
……
VLAN Configuration Mode
After successful authentication, please enter the login user name. If you log on to the switch
without entering password, it indicates that the key has been successfully loaded.

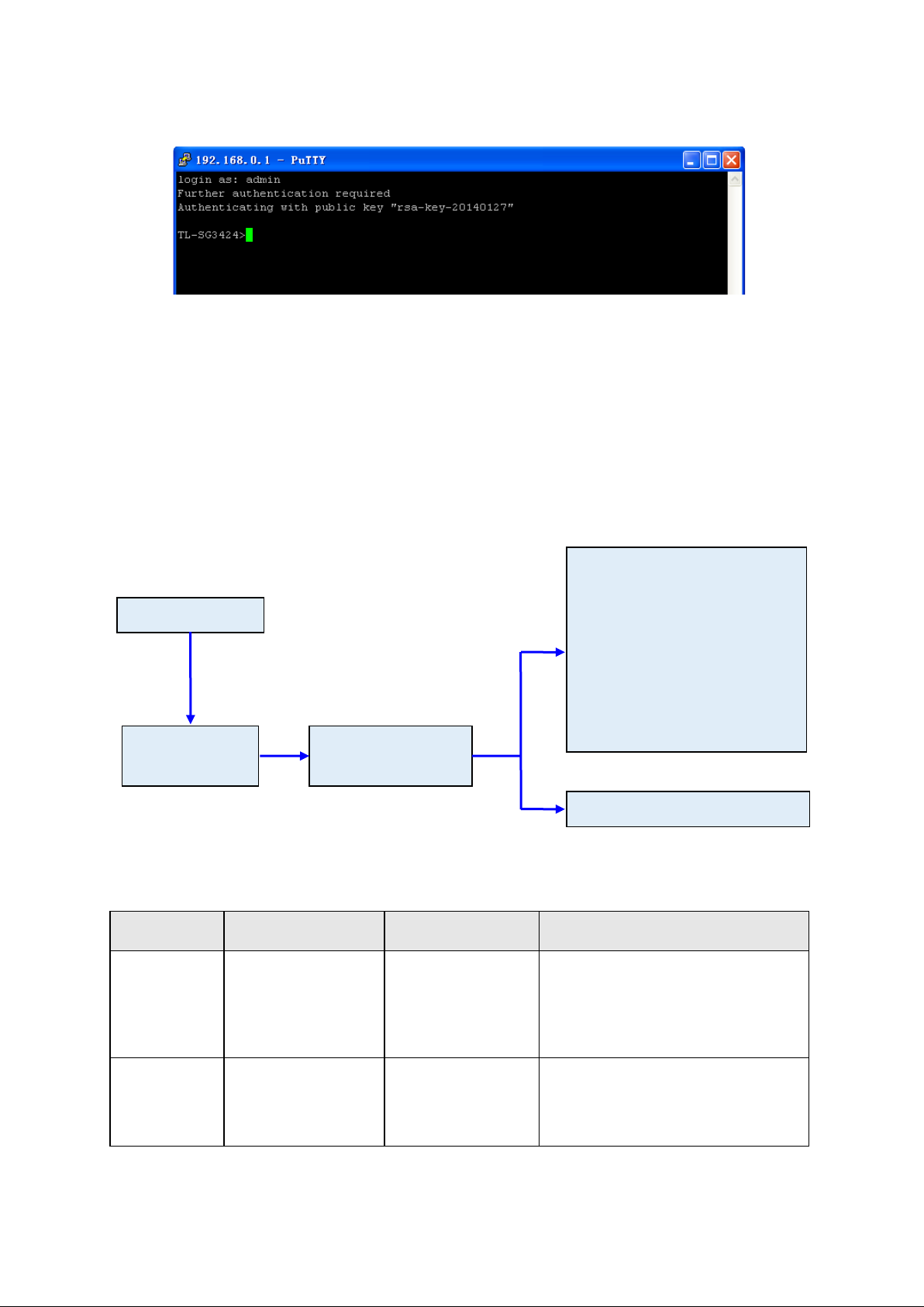

Figure 1-24 Log on the Switch
1.2 CLI Command Modes
The CLI is divided into different command modes: User EXEC Mode, Privileged EXEC Mode,
Global Configuration Mode, Interface Configuration Mode and VLAN Configuration Mode. Interface
Configuration Mode can also be divided into Interface gigabitEthernet, Interface link-aggregation
and some other modes, which is shown as the following diagram.
Interface Configuration Mode
Interface gigabitEthernet
Interface link-aggregation
Interface range gigabitEthernet
password
Interface range link-aggregation
Interface vlan
Privileged EXEC
Mode
Global C
Mode
The following table gives detailed information about the Accessing path, Prompt of each mode and
how to e xit the current mode and access the next mode.
Mode Acce ssing Path Prompt
Mode
switch.
TL-SG3424>
Use the exit
connected through the Console port).
Use the enable
Privileged EXEC mode.
Use the enable
Privileged
EXEC Mode
c
mode from User EXEC
mode.
TL-SG3424#
16
Enter the disa ble or the exit command
to return to User EXEC mode.
Enter c onfig ure
Global Configuration mode.
Logout or Access the next mode
command to enter this
Privileged
command or
e gigabit Ether net
command to access interface
to access VLAN
enter this mode from
Global Configuration
command to
A port number must be specified in the
command to enter this
command to
Mode Acce ssing Path Prompt
Global
Configuration
Mode
Interface
Configuration
Mode
VL AN
Configuration
Mode
Use the configure
m od e from
EXEC mode.
Use the interface
gigabit Et hernet port
or interface range
gigabit Et hernet
port-list command to
mode.
Use the vlan vlan-list
m od e from Global
Configuration mode.
TL-SG3424 (config)#
TL-SG3424
(config-if)# or
TL-SG3424
(config-if-range )#
TL-SG3424
(config-vla n) #
Use the exit or the e nd
press Ctr l+Z to return to Pri vil e g ed
EXEC mode.
Use the interface gigabit Ether net port
or interface rang
port-list
Configuration mode.
Use the vlan vlan-list
Configuration mode.
Use the end command or press Ctrl+Z
to return to Privileged EXEC mode.
Enter the exit or the #
return to Global Configuration mode.
interface command.
Use the end command or p ress Ctrl+Z
to return to Privileged EXEC mode.
Enter the exit or the #
return to Global configuration mode.
Note:
1. The user is automatically in User EXEC Mode after the connection between the PC and
the switch is established by a console port or by a telnet connection.
2. Each command mode has its own set of specific commands. To configure some
commands, you should access the corresponding command mode firstly.
Global Configuration Mode: In this mode, global commands are provided, such as
the Spanning Tree, Schedule Mode and so on.
Interface Configuration Mode: In this mode, users can configure one or several
ports, different ports corresponds to different commands
a). Interface gigabitEthernet: Configure parameters for an Ethernet port, such as
Duplex-mode, flow control status.
b). Interface range gigabitEthernet: The commands contained are the same as that
of the Interface gigabiteEthernet. Configure parameters for several Ethernet
ports.
c). Interface link-aggregation: Configure parameters for a link-aggregation, such as
broadcast storm.
d). Interface range link-aggregation: Configure parameters for multi-trunks.
e). Interface vlan: Configure parameters for the vlan-port.
17
VL AN Config ur a tion M ode: In this mode, users can create a VLAN and add a
specified port to the VLAN.
3. Some commands are global, that means they can be performed in all modes:
show: Displays all information of switch, for example: statistic information, port
information, VLAN information.
history: Displays the commands history.
1.3 Security Levels
This switch’s security is divided into two levels: User level and Admin level.
User level only allows users to do some simple operations in User EXEC Mode; Admin level allows
you to monitor, configure and manage the switch in Privileged EXEC Mode, Global Configuration
Mode, Interface Configuration Mode and VLAN Configuration Mode.
For logging on remotely by Telnet or SSH, you need a username and password (both admin by
default) to get the privilege to the User level. Guest users are restricted to access the CLI. Users
can enter Privileged EXEC mode fr om User EXEC mode by using the enable command and
entering a Privileged EXEC mode password. Please connect to the switch by console port to
configure the Privileged EXEC mode password.
For logging on by console port, you can enter the User EXEC mode directly. Users can enter
Privileged EXEC mode from User EXEC mode by using the enable command. In default case, no
password is needed. In Global Configuration Mode, you can configure password for Admin level by
enable password command. Once password is configured, you are required to enter it to access
Privileged EXEC mode.
1.4 Conventions
1.4.1 Format Conventions
The following conventions are used in this Guide:
Items in square brackets [ ] are optional
Items in braces { } are required
Alternative items are grouped in braces and separated by vertical bars. For example: speed
{10 | 100 | 1000 }
Bold indicates an unalterable keyword. For example: show logging
18
Normal Font indicates a constant (several options are enumerated and only one can be
selected). For example: switchport type { access | trunk | general }
Italic Font indicates a variable (an actual value must be assigned). For example: bridge
aging-time aging-time
1.4.2 Special Characters
You should pay attentions to the description below if the variable is a character string:
These six characters ” < > , \ & cannot be input.
If a blank is contained in a character string, single or double quotation marks should be used,
for example ’hello world’, ”hello world”, and the words in the quotation marks will be identified
as a string. Otherwise, the words will be identified as several strings.
1.4.3 Parameter Format
Some parameters must be entered in special formats which are shown as follows:
MAC Address must be entered in the format of xx:xx: xx: xx: xx:xx.
One or several values can be typed for a port-list or a vlan-list using comma to separate. Use a
hyphen to designate a range of values, for instance,1/0/1,1/0/3-5,1/0/7 indicates choosing port
1/0/1,1/0/3,1/0/4,1/0/5,1/0/7.
The port number should format as 1/0/3, meaning unit/slot/port. The unit number is always 1,
and slot number is always 0 and the port number is a variable (an actual value must be
assigned).
19
Chapter 2 User Interface
enable
Description
The e nab le command is used to access Privileged EXEC Mode from User
EXEC Mode.
Syntax
enable
Command Mode
User EXEC Mode
Example
If you have set the password to access Privileged EXEC Mode from User EXEC
Mode:
TL-SG3424> enable
Enter password：
TL-SG3424#
service password-encryption
Description
The serv ice password-encryption command is used to encrypt the password
when the password is defined or when the configuration is written, using the
symmetric encryption algorithm. Encryption prevents the password from being
readable in the configuration file. To disable the global encryption function,
please use no service password-encryption command.
Syntax
service password-encryption
no service password-encryption
Command Mode
Global Configuration Mode
20
Example
Enable the global encryption function:
TL-SG3424(config)# se rvice password-encr yption
enable password
Description
The enable password command is used to set or change the password for
users to access Privileged EXEC Mode from User EXEC Mode. To remove the
password, please use no enable password command. This command uses the
symmetr ic encryption.
Syntax
enable password { [ 0 ] password | 7 encrypted-password }
no enable password
Parameter
0 —— Specify the encryption type . 0 indicates that an unencrypted password will
follow. By default, the encryption type is 0.
password —— Super password, a string from 1 to 31 alphanumeric characters
or symbols. The password is case sensitive, allows digits, English letters (case
sensitive), underlines and sixteen special characters ( !$%'()*,-./[]{|} ). By default,
it is empty.
7 —— Indicates a symmetric encrypted password with fixed length will follow.
encrypted-password —— A symmetric encrypted password with fixed length,
which you can copy from another switch’s configuration file. After the encrypted
password is configured, you should use the corresponding unencrypted
password if you re-enter this mode.
Command Mode
Global Configuration Mode
User Guidelines
If the password you configured here is unencrypted and the global encryption
function is enabled in service password-encrypt ion
configuration file will be displayed in the symmetric encrypted form.
, the password in the
21
Example
Set the super password as “admin” and unencrypted to access Privileged EXEC
Mode from User EXEC Mode:
TL-SG3424(config)#enable password 0 admin
enable secret
Description
The enab le secre t command is used to set a secret password, which is using an
MD5 encryption algorithm, for users to access Privileged EXEC Mode from User
E XEC Mode. To return to the default configuration, please use no enable secret
command. This command uses the MD5 encryption.
Syntax
enable secret { [ 0 ] password | 5 encrypted-password }
no enable secret
Parameter
0 —— Specify the encryption type . 0 indicates that an unencrypted password will
follow. By default, the encryption type is 0.
password —— Super password, a string from 1 to 31 alphanumeric characters
or symbols. The password is case sensitive, allows digits, English letters (case
sensitive), underlines and sixteen special characters ( !$%'()*,-./[]{|} ). By default,
it is empty. The password in the configuration file will be displayed in the MD5
encrypted form.
5 —— Indicates an MD5 encrypted password with fixed length will follow.
encrypted-password —— An MD5 encrypted password with fixed length, which
you can copy from another switch’s configuration file. After the encryp ted
password is configured, you should use the corresponding unencrypted
password if you re-enter this mode.
Command Mode
Global Configuration Mode
User Guidelines
If both the enable password and enable secret are defined, you must enter the
password set in enable secret.
22
Example
disable
Description
Syntax
Command Mode
Set the secret password as “admin” and unencrypted to access Privileged EXEC
Mode from Use r E XEC Mode. The password will be displayed in the encrypted
form.
TL-SG3424(config)#enable secret 0 admin
The disable command is used to return to User EXEC Mode from Privileged
EXEC Mode.
disable
Example
configure
Description
Syntax
Command Mode
Privileged EXEC Mode
Return to User EXEC Mode fr om Privileged EXEC Mode:
TL-SG3424# disable
TL-SG3424>
The conf igure command is used to access Global Configuration Mode f r o m
Privileged EXEC Mode.
configure
Privileged EXEC Mode
Example
Access Global Configuration Mode from Privileged EXEC Mode:
TL-SG3424# configure
TL-SG3424 (config)#
23
exit
Description
The exit command is used to return to the previous Mode from the current
Mode.
Syntax
exit
Command Mode
Any Configuration Mode
Example
Return to Global Configuration Mode from Interface Configuration Mode, and
then return to Privileged EXEC Mode:
TL-SG3424(config-if)# exit
TL-SG3424(config)# e xit
end
TL-SG3424#
Description
The end command is used to return to Privileged EXEC Mode.
Syntax
end
Command Mode
Any Configuration Mode
Example
Return to Privileged EXEC Mode from Interface Configuration Mode:
TL-SG3424(config-if)# end
TL-SG3424#
history
Description
The history command is used to show the latest 20 commands you entered in
the current mode since the switch is powered.
24
Syntax
history
Command Mode
Privileged EXEC Mode and any Configuration Mode
Example
Show the commands you have entered in the current mode:
TL-SG3424 (config)# history
history clear
Description
1 history
The histo r y cle ar command is used to clear the commands you have entered in
the current mode, therefore these commands will not be shown next time you
use the history command.
Syntax
history clear
Command Mode
Privileged EXEC Mode and any Configuration Mode
Example
Clear the commands you have entered in the current mode:
TL-SG3424 (config)#history clear
25
Chapter 3 IEEE 802.1Q VLAN Commands
VLAN (Virtual Local Area Network) technology is developed for the switch to divide the LAN into
multiple logical LANs flexibly. Hosts in the same VLAN can communicate with each other,
regardless of their physical locations. VLAN can enhance performance by conserving bandwidth,
and improve security by limiting traffic to specific domains.
vlan
Description
The v lan command is used to create IEEE 802.1Q VLAN and enter VLAN
Configuration Mode. To delete the IEEE 802.1Q VLAN, please use n o v l an
command.
Syntax
vlan vla n -list
no vlan vla n -list
Parameter
vla n-list —— Specify IEEE 802.1Q VLAN ID list, ranging from 2 to 4094, in the
format of 2-3, 5. It is multi-optional.
Command Mode
Global Configuration Mode
Example
Create VLAN 2-10 and VLAN 100:
TL-SG3424(config)# v lan 2-10,100
Delete VLAN 2:
TL-SG3424(config)# no vlan 2
interface vlan
Description
The interface vlan command is used to create VLAN Interface and enter
Interface VLAN Mode. To delete VLAN Interface, please use no interface vlan
command.
Syntax
interface vlan vla n-id
no inte rface vlan vlan-id
26
Parameter
Command Mode
Example
name
Description
Syntax
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 1 to 4094.
Global Configuration Mode
Create VLAN Interface 2:
TL-SG3424(config)# interface vlan 2
The name command is used to assign a description to a VLAN. To clear the
description, please use no name command.
name descript
no name
Parameter
descript ——String to describe the VLAN, which contains 16 characters at most.
Command Mode
VLAN Configuration Mode（VLAN）
Example
Specify the name of VLAN 2 as “group1”:
TL-SG3424(config)# v lan 2
TL-SG3424(config-vlan)# name group1
switchport mode
Description
The switchport mode command is used to configure the Link Type for the ports.
Syntax
switchport mode { access | trunk | general }
Parameter
access | trunk | general —— Link Types. There are three Link Types for the
ports.
27
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Specify the Link Type of port 3 as trunk:
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# switchport mode trunk
switchport access vlan
Description
The switchport access vlan command is used to add the desired Access port
to IEEE 802.1Q VLAN. To remove the specified port/ports from the
corresponding VLAN, please use no switchport access vlan command.
Syntax
switchport access vlan vlan-id
no switchport access vlan
Parameter
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 2 to 4094.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Specify the Link Type of port 3 as access and add it to VLAN 2:
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# switchport mode access
TL-SG3424(config-if)# switchport access v lan 2
switchport trunk allowed vlan
Description
The switchport trunk allowed vlan command is used to add the desired Tr u nk
port to IEEE 802.1Q VLAN. To delete the corresponding VLAN(s), please use no
switchport trunk allowed vlan command.
Syntax
switchport trunk allowed vlan vlan -list
28
no switchport trunk allowed vlan vlan -list
Parameter
vla n-list —— Specify IEEE 802.1Q VLAN ID list, ranging from 2 to 4094, in the
format of 2-3, 5. It is multi-optional.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Specify the Link Type of port 2 as trunk and add it to VLAN 2:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# switchport mode trunk
TL-SG3424(config-if)# switchport trunk allowed v lan 2
switchport general allowed vlan
Description
The switchport general allowed v lan command is used to add the desired
General port to IEEE 802.1Q VLAN and specify the egress rule. To delete the
corresponding VLAN(s), please use no switchport ge neral allowe d v lan
command.
Syntax
switchport general allowed vlan vlan-list { tagged | untagged }
no switchport general allowed vlan vla n -list
Parameter
vla n-list —— Specify IEEE 802.1Q VLAN ID list, ranging from 2 to 4094, in the
format of 2-3, 5. It is multi-optional.
tagged | untagged —— Egress rule，untagged or tagged. Tagged: All packets
forwarded by the port are tagged. The packets contain VLAN information.
Untagged: Packets forwarded by the port are untagged.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Specify the Link Type of port 4 as general, then add it to VLAN 2 and configure
the egress rule of port 4 as tagged:
TL-SG3424(config)# interface gigabitEthernet 1/0/4
TL-SG3424(config-if)# switchport mode general
29
TL-SG3424(config-if)# switchport general allowed v lan 2 tagged
switchport pvid
Description
The switchp or t pv id command is used to configure the PVID for the switch
ports.
Syntax
switchport pvid vlan-id
Parameter
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 1 to 4094.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Specify the PVID of port 3 as 1:
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# switchport pvid 1
show vlan summary
Description
The show vlan summary command is used to display the summarized
information of IEEE 802.1Q VLAN.
Syntax
show vlan summary
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the summarized information of IEEE 802.1Q VLAN:
TL-SG3424(config)# show vlan summary
30
show vlan brief
Description
The show vlan brie f command is used to display the brief information of IEEE
802.1Q VLAN.
Syntax
show vlan brief
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the brief information of IEEE 802.1Q VLAN:
TL-SG3424(config)# show vlan brief
show vlan
Description
The show vlan command is used to display the detailed information of the
specified IEEE 802.1Q VLAN.
Syntax
show v lan [ id vla n-list ]
Parameter
vla n-list —— Specify IEEE 802.1Q VLAN ID, ranging from 1 to 4094. It is
multi-optional. By default, the detailed information of all VLANs will be displayed.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the detailed information of all VLANs:
TL-SG3424(config)# show vlan
Display the detailed information of VLAN 2:
TL-SG3424(config)# show vlan id 2
Display the detailed information of VLAN 3-10:
TL-SG3424(config)# show vlan id 3-10
31
Chapter 4 MAC-based VLAN Commands
MAC-based VLAN (Virtual Local Area Network) is the way to classify the VLANs based on MAC
Address. A MAC address corresponds to a VLAN ID. The untagged packets and the priority-tagged
packets sourced from the MAC address will be tagged with this VLAN ID.
mac-vlan mac-address
Description
The mac-v l an mac-address command is used to create a MAC-based VLAN
entry. To delete MAC-based VLAN entry, please use the no mac-v l an
mac-address command.
Syntax
mac-vlan mac-address mac-addr vlan vla n -id [ description descript ]
no mac-vlan mac-address mac-addr
Parameter
mac-addr —— MAC address, in the format of XX: XX: XX: XX: X X: X X.
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 1 to 4094.
descript —— Give a description of the MAC-based VLAN entry for identification,
which contains 8 characters at most.
Command Mode
Global Configuration Mode
Example
Add an entry whose MAC address is 00:11:11:01:01:12 to VLAN 2, then name
the MAC-base entry as “TP”:
TL-SG3424(config)# mac-vlan ma c -address 00:11:11:01:01:12 vlan 2
description TP
show mac-vlan
Description
The show mac-vlan command is used to display the information of the
MAC-based VLAN. MAC address and VLAN ID can be used to filter the
displayed information.
Syntax
show mac-vlan { all | mac-addre ss mac-addr | vlan vla n -id }
32
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Parameter
mac-addr —— MAC address, in the format of XX: XX: XX: XX: X X: X X.
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 1 to 4094.
Example
Display the MAC-based VLAN table:
TL-SG3424(config)# show mac-vlan all
Display the MAC-based VLAN information of the entry whose MAC address is
00:11:11:01:01:12:
TL-SG3424(config)# show mac-vlan mac-address 00:11:11:01:01:12
Display the MAC-based VLAN information of the entry whose VLAN ID is 4:
TL-SG3424(config)# show mac-vlan vlan 4
33
Chapter 5 Protocol-based VLAN Commands
Protocol-based VLAN (Virtual Local Area Network) is the way to classify VLANs based on
Protocols. A Protocol corresponds to a VLAN ID. The untagged packets and the priority-tagged
packets matching the protocol template will be tagged with this VLAN ID.
protocol-vlan template
Description
The protocol-vlan template command is used to create Protocol-based VLAN
template. To delete Protocol-based VLAN template, please use no
protocol-vlan template command.
Syntax
protocol-vlan template name protocol-name e ther-t yp e type frame { 802_3 |
ether_2 | snap | llc }
no protocol-vlan template template-idx
Parameter
protocol-name —— Give a name to the Protocol-based VLAN Template, which
contains 8 characters at most.
type —— The Ethernet protocol type in the protocol template, composed of 4
Hex integers.
802_3 | ether_2 | snap | llc —— The frame type with 802_3, ether_2, snap, and
llc options.
template-idx —— The number of the Protocol-based VLAN Template. You can
get the template corresponding to the number by the
template command.
Command Mode
Global Configuration Mode
Example
Create a Protocol-based VLAN template named “TP” whose Ethernet protocol
type is 0x2024 and frame type is EthernetII:
TL-SG3424(config)# proto col-vlan te mplate name TP ether-type 2024 fr a me
show protocol-vlan
ether_2
34
protocol-vlan vlan
Description
The protocol-vlan vlan command is used to create a Protocol-based VLAN. To
delete a Protocol-based VLAN, please use no protocol-vlan command.
Syntax
protocol-vlan vlan vlan-id { template template-idx }
no protocol-vlan vlan group-idx
Parameter
vla n-vid —— Specify IEEE 802.1Q VLAN ID, ranging from 1-4094.
template-idx ——The number of the Protocol-based VLAN Template. You can
get the template corresponding to the number by the
template command.
group-idx ——The number of the Protocol-based VLAN entry. You can get the
Protocol-based VLAN entry corresponding to the number by the
protocol-vlan vlan command.
show protocol-vlan
show
Command Mode
Global Configuration Mode
Example
Create Protocol-based VLAN 2 and bind it with Protocol-based VLAN Template
3:
TL-SG3424(config)# protocol-vlan vlan 2 te mpla te 3
protocol-vlan group
Description
The protocol-v lan group command is used to create a Protocol-based VLAN
group. To delete a Protocol-based VLAN group, please use no protocol-vlan
group command.
Syntax
protocol-vlan group group-id
no protocol-vlan group group-id
Parameter
group-id ——The number of the Protocol-based VLAN entry. You can get the
Protocol-based VLAN entry corresponding to the number by the show
protocol-vlan vlan command.
35
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Create Protocol-based VLAN group 2 which is binding with port 3:
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# protocol-vlan group 2
show protocol-vlan template
Description
The show protocol-v lan te mplate command is used to display the information
of the Protocol-based VLAN templates.
Syntax
show protocol-vlan template
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the information of the Protocol-based VLAN templates:
TL-SG3424(config)# show protocol-vlan template
show protocol-vlan vlan
Description
The show pr ot ocol-vlan v lan command is used to display the information about
Protocol-based VLAN entry.
Syntax
show protocol-vlan vlan
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display information of the Protocol-based VLAN entry:
TL-SG3424(config)# show protocol-vlan vlan
36
Chapter 6 Voice VLAN Commands
Voice VLANs are configured specially for voice data stream. By configuring Voice VLANs and
adding the ports with voice devices attached to voice VLANs, you can perform QoS-related
configuration for voice data, ensuring the transmission priority of voice data stream and voice
quality.
voice vlan
Description
The voice vlan command is used to enable Voice VLAN function. To disable
Voice VLAN function, please use no voice vlan command.
Syntax
voice vlan vlan-id
no voice vlan
Parameter
vla n-id —— Specify IEEE 802.1Q VLAN ID, ranging from 2 to 4094.
Command Mode
Global Configuration Mode
Example
Enable the Voice VLAN function for VLAN 10:
TL-SG3424(config)# voice vlan 10
voice vlan aging time
Description
Syntax
The voice vlan aging time command is used to set the aging time for a voice
VLAN. To restore to the default aging time for the Voice VLAN, please use no
voice vlan aging time command. By default, the aging time is 1440 minutes.
voice vlan aging time time
no voice vlan aging time
37
Parameter
time ——Aging time (in minutes) to be set for the Voice VLAN. It ranges from 1
to 43200.
Command Mode
Global Configuration Mode
Example
Set the aging time for the Voice VLAN as 1 minute:
TL-SG3424(config)# voice vlan aging time 1
voice vlan priority
Description
The voice vlan priority command is used to configure the priority for the Voice
VLAN. To restore to the default priority, please use no voice vlan priority
command. By default, the priority value is 6.
Syntax
voice vlan priority pri
no voice vlan priority
Parameter
pri —— Priority, ranging from 0 to 7.
Command Mode
Global Configuration Mode
Example
Configure the priority of the Voice VLAN as 5:
TL-SG3424(config)# voice vlan priority 5
voice vlan mac-address
Description
The voice vlan mac-address command is used to create Voice VLAN OUI. To
delete the specified Voice VLAN OUI, please use no voice vlan mac-addre ss
command.
38
Syntax
voice vlan mac-address mac-addr mask mask [ description descript ]
no voice vlan mac-address mac-addr
Parameter
mac-addr —— The OUI address of the voice device, in the format of
XX:XX: XX: XX: X X: XX.
mask —— The OUI address mask of the voice device, in the format of
XX:XX: XX: XX: X X: XX.
descript ——Give a description to the OUI for identification which contains 16
characters at most.
Command Mode
Global Configuration Mode
Example
Create a Voice VLAN OUI described as TP-Phone with the OUI address
00:11:11:11:11:11 and the mask address FF:FF:FF:00:00:00:
TL-SG3424(config)# voice vlan mac-address 00:11:11: 11:11:11 ma sk
FF:FF:FF:00:00:00 des cription TP-Phone
switchport voice vlan mode
Description
The switchport voice v lan mode command is used to configure the Voice
VLAN mode for the Ethernet port.
Syntax
switchport voice vlan mode { manual | auto }
Parameter
manual | auto —— Port mode.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the port 3 to operate in the auto voice VLAN mode:
39
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# switchport voice vlan mode auto
switchport voice vlan security
Description
The switchport voice v lan security command is used to enable the Voice
VLAN security feature. To disable the Voice VLAN security feature, please use
no switchport voice vlan security command.
Syntax
switchport voice vlan security
no switchport voice vlan security
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Enable port 3 for the Voice VLAN security feature:
TL-SG3424(config)# interface gigabitEthernet 1/0/3
TL-SG3424(config-if)# switchport voice vlan security
show voice vlan
Description
The show voice vlan command is used to display the global configuration
information of Voice VLAN.
Syntax
show voice vlan
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the configuration information of Voice VLAN globally:
TL-SG3424(config)# show voice vlan
40
show voice vlan oui
Description
The sho w v oice vlan oui command is used to display the configuration
information of Voice VLAN OUI.
Syntax
show voice vlan oui
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the configuration information of Voice VLAN OUI:
TL-SG3424(config)# show voice vlan oui
show voice vlan switchport
Description
The show voice vlan switchport command is used to display the Voice VLAN
configuration information of all ports or a specified port.
Syntax
show voice vlan switchport [ gigabitEthernet port ]
Parameter
port —— The Ethernet port number.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the Voice VLAN configuration information of all ports:
TL-SG3424(config)# show voice vlan switchport
Display the Voice VLAN configuration information of port 2:
TL-SG3424(config)# show voice vlan switchport gigabitEthernet 1/0/2
41
Chapter 7 GVRP Commands
GVRP (GARP VLAN registration protocol) is an implementation of GARP (generic attribute
registration protocol). GVRP allows the switch to automatically add or remove the VLANs via the
dynamic VLAN registration information and propagate the local VLAN registration information to
other switches, without having to individually configure each VLAN.
gvrp(global)
Description
The gvrp command is used to enable the GVRP function globally. To disable the
GVRP function, please use no gvrp command.
Syntax
gvrp
no gvrp
Command Mode
Global Configuration Mode
Example
Enable the GVRP function globally:
TL-SG3424(config)# gvrp
gvrp(interface)
Description
The gvrp command is used to enable the GVRP function for the desired port. To
disable the GVRP function of this port, please use no gvrp command. T he
GVRP feature can only be enabled for the trunk-type ports.
Syntax
gvrp
no gvrp
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
42
Example
Enable the GVRP function for ports 2-6:
TL-SG3424(config)# interface range gigabitEthernet 1/0/2-6
TL-SG3424(config-if-range)# gvrp
gvrp registration
Description
The gvrp registration command is used to configure the GVRP registration type
on the desired port. To restore to the default value, please use no gvrp
registration command.
Syntax
gvrp registration { normal | fixed | forbidden }
no gvrp registration
Parameter
normal | fixed | forbidden —— Registration mode. By default, the registration
mode is “normal”.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the GVRP registration mode on ports 2-6 to fixed:
TL-SG3424(config)# interface range gigabitEthernet 1/0/2-6
TL-SG3424(config-if-range)# gv rp registration fixe d
gvrp timer
Description
The gvrp timer command is used to set a GVRP timer for the desired port. To
restore to the default setting of a GARP timer, please use no gvrp timer
command.
Syntax
gvrp time r { leaveall | join | leave } value
43
no gvrp timer [ leaveall | join | leave ]
Parameter
leaveall | join | leave —— They are the three timers: leaveall, join and leave.
Once the LeaveAll Timer is set, the port with GVRP enabled can send a LeaveAll
message after the timer times out, so that other GARP ports can re-register all
the attribute information. After that, the LeaveAll timer will start to begin a new
cycle. To guarantee the transmission of the Join messages, a GARP port sends
each Join message two times. The Join Timer is used to define the interval
between the two sending operations of each Join message. Once the Leave
Timer is set, the GARP port receiving a Leave message will start its Leave timer,
and deregister the attribute information if it does not receive a Join message
again before the timer times out.
value ——The value of the timer. The LeaveAll Timer ranges from 1000 to 30000
centiseconds and the default value is 1000. The Join Timer ranges from 20 to
1000 centiseconds and the default value is 20. The Leave Timer ranges from 60
to 3000 centiseconds and the default value is 60.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Set the GARP leaveall timer of port 6 to 2000 centiseconds and restore to the
join timer of it to the default value:
TL-SG3424(config)# interface gigabitEthernet 1/0/6
TL-SG3424(config-if)# gvrp timer leaveall 2000
TL-SG3424(config-if)# no gvrp timer join
show gvrp global
Description
The show gvrp global command is used to display the global GVRP status.
Syntax
show gvrp global
Command Mode
Privileged EXEC Mode and Any Configuration Mode
44
Example
Display the global GVRP status:
TL-SG3424(config)# show gvrp global
show gvrp interface
Description
The show gvrp inte rf ace command is used to display the GVRP configuration
information of all ports or a specified Ethernet port.
Syntax
show gvrp interface [ gigabitEthernet port ]
Parameter
port ——The Ethernet port number.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the GVRP configuration information of all Ethernet ports:
TL-SG3424(config)# show gvrp interface
Display the GVRP configuration information of port 2:
TL-SG3424(config)# show gvrp interface gigabitEthernet 1/0/2
45
Chapter 8 Etherchannel Commands
Etherchannel Commands are used to configure LAG and LACP function.
LAG (Link Aggregation Group) is to combine a number of ports together to make a single
high-bandwidth data path, which can highly extend the bandwidth. The bandwidth of the LAG is the
sum of bandwidth of its member port.
LACP (Link Aggregation Control Protocol) is defined in IEEE802.3ad and enables the dynamic link
aggregation and disaggregation by exchanging LACP packets with its partner. The switch can
dynamically group similarly configured ports into a single logical link, which will highly extend the
bandwidth and flexibly balance the load.
channel-group
Description
The channel-group command is used to add a port to the EtherChannel Group
and configure its mode. To delete the port from the EtherChannel Group, please
use no channel-group command.
Syntax
channel-group num mode { on | active | passive }
no channel-group
Parameter
num —— The number of the EtherChannel Group, ranging from 1 to 8.
on —— Enable the static LAG.
active —— Enable the active LACP mode.
passive —— Enable the passive LACP mode.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Add ports 2-4 to EtherChannel Group 1 and enable the static LAG:
TL-SG3424(config)# interface range gigabitEthernet 1/0/2-4
TL-SG3424(config-if-range)# channel-group 1 mode on
46
port-channel load-balance
Description
The port-channe l load-balance command is used to configure the Aggregate
Arithmetic for LAG. To return to the default configurations, please use no
port-channel load-balance command.
Syntax
port-channel load-balance { src-dst-mac | src-dst-ip }
no port-c
Parameter
src-dst-mac —— The source and destination MAC address. When this option is
selected, the Aggregate Arithmetic will be based on the source and destination
MAC addresses of the packets. The Aggregate Arithmetic for LAG is
“src-dst-mac” by default.
src-dst-ip—— The source and destination IP address. When this option is
selected, the Aggregate Arithmetic will be based on the source and destination
IP addresses of the packets.
Command Mode
Global Configuration Mode
Example
Configure the Aggregate Arithmetic for LAG as “src-dst-mac”:
TL-SG3424(config)# port-channel load-balance src-dst-mac
hannel load-balance
lacp system-priority
Description
The lacp system-pr iority command is used to configure the LACP system
priority globally. To return to the default configurations, please use no lacp
system-priority command.
Syntax
lacp system-priority pri
no lacp system-priority
47
Parameter
pri —— The system priority, ranging from 0 to 65535. It is 32768 by default.
Command Mode
Global Configuration Mode
Example
Configure the LACP system priority as 1024 globally:
TL-SG3424(config)# lacp system-priority 1024
lacp port-priority
Description
The lacp port-pr iority command is used to configure the LACP port priority for
specified ports. To return to the default configurations, please use no lacp
port-priority command.
Syntax
lacp port-priority pri
no lacp port-priority
Parameter
pri —— The port priority, ranging from 0 to 65535. It is 32768 by default.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the LACP port priority as 1024 for ports 1-3:
TL-SG3424(config)# interface range gigabitEthernet 1/0/1-3
TL-SG3424(config-if-range)# lacp port-priority 1024
Configure the LACP port priority as 2048 for port 4:
TL-SG3424(config)# interface gigabitEthernet 1/0/4
TL-SG3424(config-if)# lacp port-priority 2048
48
show etherchannel
Description
The show etherchannel command is used to display the EtherChannel
information.
Syntax
show etherchannel [ channel-group-num ] { detail | summary }
Parameter
channel-group-num —— The EtherChannel Group number, ranging from 1 to 8.
By default, it is empty, and will display the information of all EtherChannel
Groups.
detail —— The detailed information of EtherChannel.
summary —— The EtherChannel information in summary.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the detailed information of EtherChannel Group 1:
TL-SG3424(config)# show etherchannel 1 detail
show etherchannel load-balance
Description
The show etherchannel load-balance command is used to display the
Aggregate Arithmetic of LAG.
Syntax
show etherchannel load-balance
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the Aggregate Arithmetic of LAG:
TL-SG3424(config)# show etherchannel load-balance
49
show lacp
Description
The show lacp command is used to display the LACP information for a specified
EtherChannel Group.
Syntax
show lacp [ channel-group-num ] { internal | neighbor }
Parameter
channel-group-num —— The EtherChannel Group number, ranging from 1 to 8.
By default, it is empty, and will display the information of all LACP groups.
internal —— The internal LACP information.
neighbor —— The neighbor LACP information.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the internal LACP information of EtherChannel Group 1:
TL-SG3424(config)# show lacp 1 internal
show lacp sys-id
Description
The show lacp sys-id command is used to display the LACP system prior ity
globally.
Syntax
show lacp sys-id
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the LACP system priority:
TL-SG3424(config)# show lacp sys-id
50
Chapter 9 User Manage Commands
User Manage Commands are used to manage the user’s logging information by Web, Telnet or
SSH, so as to protect the settings of the switch from being randomly changed.
user name (password)
Description
The use r name command is used to add a new user or modify the existed users’
information. To delete the existed users, please use no user n a me command.
This command uses the symmetric encryption.
Syntax
user name name [ pr iv ilege admin | guest ] password { [ 0 ] password | 7
encrypted-password }
no user name name
Parameter
name ——Type a name for users' login, which contains 16 characters at most,
composed of digits, English letters and under dashes only.
admin | guest —— Access level. “Admin” means that you can edit, modify and
view all the settings of different functions. “Guest” means that you can only view
the settings without the right to edit and modify. It is “admin” by default.
0 —— Specify the encryption type . 0 indicates that an unencrypted password will
follow. By default, the encryption type is 0.
password —— Use rs’ login password, a string from 1 to 31 alphanumeric
characters or symbols. The password is case sensitive, allows digits, English
letters (case sensitive), underlines and sixteen special characters
( ! $%'()*,-./[]{|} ). By default, it is empty.
7 —— Indicates a symmetric encrypted password with fixed length will follow.
encrypted-password —— A symmetric encrypted password with fixed length,
which you can copy from another switch’s configuration file. After the encrypted
password is configured, you should use the corresponding unencrypted
password if you re-enter this mode.
Command Mode
Global Configuration Mode
51
User Guidelines
1. If the password you configured here is unencrypted and the global
encryption function is enabled in serv i ce p as s wor d-encr yption
password in the configuration file will be displayed in the symmetric
encrypted form.
2. If you change the password of the current user in a telnet or console
connection, the connection will be cut off and the newly configured
password is required for the re-login.
Example
Add and enable a new admin user named “tplink”, of which the password is
“admin” and unencrypted:
TL-SG3424(config)#user name tplink priv ilege admin password 0 admin
user name (secret)
Description
, the
The use r name command is used to add a new user or modify the existed users’
information. To delete the existed users, please use no user n a me command.
This command uses the MD5 encryption.
Syntax
user name name [ priv ilege admin | guest ] secret { [ 0 ] password | 5
encrypted-password }
no user name name
Parameter
name ——Type a name for users' login, which contains 16 characters at most,
composed of digits, English letters and under dashes only.
admin | guest —— Access level. “Admin” means that you can edit, modify and
view all the settings of different functions. “Guest” means that you can only view
the settings without the right to edit and modify. It is “admin” by default.
0 —— Specify the encryption type . 0 indicates that an unencrypted password will
follow. By default, the encryption type is 0.
password ——Use r s’ login password, a string from 1 to 31 alphanumeric
characters or symbols. The password is case sensitive, allows digits, English
letters (case sensitive), underlines and sixteen special characters
52
( ! $%'()*,-./[]{|} ). By default, it is empty. The password will be saved to the
configuration file using the MD5 encrypted algorithm.
5 —— Indicates an MD5 encrypted password with fixed length will follow.
encrypted-password —— An MD5 encrypted password with fixed length, which
you can copy from another switch’s configuration file.
Command Mode
Global Configuration Mode
User Guidelines
1. If both the user name (password) and user name (secret) are defined,
you must enter the password set in user name (secret).
2. If you change the password of the current user in a telnet or console
connection, the connection will be cut off and the newly configured
password is required for the re-login.
Example
Add and enable a new admin user named “tplink”, of which the password is
“admin”. The password will be displayed in the encrypted form.
TL-SG3424(config)#user name tplink priv ilege admin secret 0 admin
user access-control ip-based
Description
The user a cce ss-control ip-based command is used to limit the IP-range of the
users for login. Only the users within the IP-range you set here are allowed to
login. To cancel the user access limit, please use no user a c ce ss-control
command.
Syntax
user access-con trol ip-based ip-addr ip-mask
no use r access-control
Parameter
ip-addr —— The source IP address. Only the users within the IP-range you set
here are allowed for login.
ip-mask ——The subnet mask of the IP address.
53
Command Mode
Global Configuration Mode
Example
Enable the access-control of the user whose IP address is 192.168.0.148:
TL-SG3424(config)# user access-control ip-base d 192.168.0.148
255.255.255.255
user access-control mac-based
Description
The u se r acce ss-control mac-based command is used to limit the MAC
Address of the users for login. Only the user with this MAC Address you set here
is allowed to login. To cancel the user access limit, please use no user
access-control command.
Syntax
user access-con trol mac-based mac-addr
no use r access-control
Parameter
mac-addr —— The source MAC address. Only the user with this MAC Address
is allowed to login.
Command Mode
Global Configuration Mode
Example
Configure that only the user whose MAC address is 00:00:13:0A:00:01 is
allowed to login:
TL-SG3424(config)# user access-contro l mac-based 00:00:13:0A:00:01
user access-control port-based
Description
The use r acce ss-control port-based command is used to limit the ports for
Only the users connected to these ports you set here are allowed to login.
login.
To cancel the user access limit, please use no user acce ss-control command.
54
Syntax
user access-control port-based inte rface { gigabitEthernet po rt | range
gigabitEthernet port-list }
no use r access-control
Parameter
port —— The Ethernet port number.
port-list ——The list group of Ethernet ports, in the format of 1/0/1-4. You can
appoint 5 ports at most.
Command Mode
Global Configuration Mode
Example
Configure that only the users connected to ports 2-6 are allowed to login:
TL-SG3424(config)# user access-control port-based interface range
gigabitEthernet 1/0/2-6
user max-number
Description
The user max-number command is used to configure the maximum login user
numbers at the same time. To cancel the limit on login numbers, please use no
user max-number command.
Syntax
user max-number admin-num guest-num
no user max-number
Parameter
admin-num ——The maximum number of the users allowed to log on as Admin,
ranging from 1 to 16. The total number of Admin and Guest should be less than
16.
guest-num ——The maximum number of the users allowed to log on as Guest,
ranging from 0 to 15. The total number of Admin and Guest should be less than
16.
Command Mode
Global Configuration Mode
55
Example
Configure the maximum number of users’ login as Admin and Guest as 5 and 3:
TL-SG3424(config)# user max-num 5 3
user idle-timeout
Description
The user idle-timeout command is used to configure the timeout time of the
switch. To restore to the default timeout time, please use no user idle -timeo ut
command.
Syntax
user idle-timeout minutes
no user idle-timeout
line
Parameter
minutes ——The timeout time, ranging from 5 to 30 in minutes. The value is 10
by default.
Command Mode
Global Configuration Mode
Example
Configure the timeout time of the switch as 15 minutes:
TL-SG3424(config)# user idle-timeout 15
Description
The line command is used to enter the Line Configuration Mode and make
related configuration for the desired user(s), including the login mode and
Syntax
password configurations.
line [ console linenum | v ty startlinenum endlinenum ]
56
Parameter
linenum —— The number of users allowed to login through console port. Its
value is 0 in general as there is only one console port on a switch.
startlinenum ——The start serial number of the login user selected to configure
the login mode and password, ranging from 0 to 15. 0 means the first login user
number, 1 means the second, and the rest can be done in the same manner.
endlinenum ——The end serial number of the login user selected to configure
the login mode and password, ranging from 0 to 15. 0 means the first login user
number, 1 means the second, and the rest can be done in the same manner.
Command Mode
Global Configuration Mode
Example
Enter the Console port configuration mode and configure the console port 0:
password
Description
Syntax
Parameter
TL-SG3424(config)# line console 0
Enter the Virtual Terminal configuration mode so as to prepare further
configurations such as password and login mode for virtual terminal 0 to 5:
TL-SG3424(config)# line vty 0 5
The password command is used to configure the connection password. To clear
the password, please use no password command.
password { [ 0 ] password | 7 encrypted-password }
no password
0 —— Specify the encryption type . 0 indicates that an unencrypted password will
follow. By default, the encryption type is 0.
password —— Connection password, a string from 1 to 31 alphanumeric
characters or symbols. The password is case sensitive, allows digits, English
letters (case sensitive), underlines and sixteen special characters
( ! $%'()*,-./[]{|} ). By default, it is empty.
7 —— Indicates a symmetric encrypted password with fixed length will follow.
57
encrypted-password —— A symmetric encrypted password with fixed length,
which you can copy from another switch’s configuration file. After the encrypted
password is configured, you should use the corresponding unencrypted
password if you re-enter this mode.
Command Mode
Line Configuration Mode
User Guidelines
If the password you configured here is unencrypted and the global encryption
login
function is enabled in service password-encrypt ion
configuration file will be displayed in the symmetric encrypted form.
Example
Configure the connection password of Console port connection 0 as “tplink” and
unencrypted:
TL-SG3424(config)#line console 0
TL-SG3424(config-line)#password 0 tplink
Configure the connection password of virtual terminal connection 0-5 as “tplink”
and unencrypted:
TL-SG3424(config)#line vty 0 5
TL-SG3424(config-line)#password 0 tplink
, the password in the
Description
The lo g in command is used to configure the login of a switch without using the
default user name and password. At this situation, a connection password must
be set for virtual terminal connection.
Syntax
login
Command Mode
Line Configuration Mode
Example
Configure the login of Console port connection 0 as login mode:
TL-SG3424(config)# line console 0
58
TL-SG3424(config-line)# login
Configure the login of virtual terminal connection 0-5 as login mode:
TL-SG3424(config)# line vty 0 5
TL-SG3424(config-line)# login
login local
Description
The login local command is used to configure the login of a switch with the user
name and password.
Syntax
login local
Command Mode
Line Configuration Mode
Example
Configure the login of virtual terminal connection 0-5 as login local mode:
TL-SG3424(config)# line vty 0 5
TL-SG3424(config-line)# login local
Configure the login of Console port connection 0 as login local mode:
TL-SG3424(config)# line console 0
TL-SG3424(config-line)# login local
show user account-list
Description
The show user account-list command is used to display the information of the
current users.
Syntax
show user account-list
Command Mode
Privileged EXEC Mode and Any Configuration Mode
59
Example
Display the information of the current users:
TL-SG3424(config)# show user account-list
show user configuration
Description
The use r configurat ion command is used to display the security configuration
information of the users, including access-control, max-number and the
idle-timeout, etc.
Syntax
show user configuration
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the security configuration information of the users:
TL-SG3424(config)# show user configuration
60
Chapter 10 Binding Table Commands
You can bind the IP address, MAC address, VLAN and the connected Port number of the Host
together, which can be the condition for the ARP Inspection to filter the packets.
ip source binding
Description
The ip source binding command is used to bind the IP address, MAC address,
VLAN ID and the Port number together manually.
address, MAC address, VLAN ID and the Port number together in the condition
that you have got the related information of the Hosts in the LAN. To delete the
IP- MAC–VID-PORT entry from the binding table, please use no ip source
binding index command.
Syntax
ip source binding hostname ip-addr mac-addr vlan vid inter face
gigabitEthernet por t { none | arp-detection } [ for ce d -sour ce { arp-scanning |
dhcp-snooping }]
no ip source binding index idx
Parameter
hostname ——The Host Name, which contains 20 characters at most.
ip-addr —— The IP Address of the Host.
mac-addr —— The MAC Address of the Host.
You can manually bind the IP
vid ——The VLAN ID needed to be bound, ranging from 1 to 4094.
port ——The number of Ethernet port connected to the Host.
none | arp-detection——The protect type for the entry. ar p-detection indicates
ARP detection; none indicates applying none.
forced-source —— The source of the binding entry can be specified as
arp-scanning or dhcp-snooping. It is multi-optional.
idx —— The entry number needed to be deleted, ranging from 1 to 200. You can
use the show ip source binding
the entry number is the actual number in the binding table not arranged in an
order.
command to get the idx. Pay attention to that,
61
Command Mode
Global Configuration Mode
Example
Bind an entry with the IP 192.168.0.1, MAC 00:00:00:00:00:01, VLAN ID 2 and
Port number 5 manually. And then enable the entry for the ARP detection:
TL-SG3424(config)# ip source binding host1 192.168.0.1 00:00:00:00:00:01
vlan 2 interface gigabitEthernet 1/0/5 arp-detection
Delete the IP-MAC –VID-PORT entry with the index 5:
TL-SG3424(config)# no ip source binding index 5
ip source binding index
Description
The ip so urce binding in dex command is used to modify the existing entry of ip
source binding.
Syntax
ip source bind ing inde x idx {hostna me hostname | mac mac-addr | vlan
vla n-id | interface gigabitEther net port | none | arp-detection }
Parameter
idx ——The entry number needed to be modified. You can use the show ip
source binding command to get the idx. Pay attention that the entry number is
the actual number in the binding table which is not displayed in an arranged
order.
hostname ——The modified Host Na me, which contains 20 characters at most.
mac-addr —— The modified MAC address of the Host.
vla n-id ——The modified VLAN ID, ranging from 1 to 4094.
port —— The modified number of port connected to the Host.
none | arp-detection ——The modified protect type for the entry. “none” indicates
applying none; “arp-detection” indicates ARP detection.
Command Mode
Global Configuration Mode
Example
Modify the hostname as “tp-link” of the entry with the index 1:
62
TL-SG3424(config)#ip source binding index 1 hostname tp-link
ip dhcp snooping
Description
The ip dhcp snooping command is used to enable DHCP-Snooping function
globally. To disable DHCP-Snooping function globally, please use no ip dhcp
snooping command. DHCP Snooping functions to monitor the process of the
Host obtaining the IP address from DHCP server, and record the IP address,
MAC address, VLAN and the connected Port number of the Host for automatic
binding. The switch can also propagate the control information and the network
parameters via the Option 82 field to provide more information for the Host.
Syntax
ip dhcp snooping
no ip dhcp snooping
Command Mode
Global Configuration Mode
Example
Enable the DHCP-Snooping function globally:
TL-SG3424(config)# ip dhcp snooping
ip dhcp snooping global
Description
The ip dhcp snooping global command is configure DHCP-Snooping globally.
To restore to the default value, please use no ip dhcp snooping global
command.
Syntax
ip dhcp snooping global [ global-rate global-rate ] [ de c-thre sho ld
dec-threshold ] [ dec-rate dec-rate ]
no ip dhcp snooping global
Parameter
global-rat e —— The value to specify the maximum amount of DHCP messages
that can be forwarded by the switch per second. The excessive messages will be
63
discarded. The options are 0/10/20/30/40/50 (packet/second).By default, it is 0
standing for disable.
dec-threshold ——The value to specify the minimum transmission rate of the
Decline packets to trigger the Decline protection for the specific port. The options
are 0/5/10/15/20/25/30 (packet/second).By default, it is 0 standing for disable.
dec-rate ——The value to specify the Decline Flow Control. The traffic flow of
the corresponding port will be limited to be this value if the transmission rate of
the Decline packets exceeds the Decline Threshold. The options are
5/10/15/20/25/30 (packet/second). By default, it is 5.
Command Mode
Global Configuration Mode
Example
Configure the Global Flow Control as 30pps, the Decline Threshold as 20 pps,
and decline Flow Control as 20 pps for DHCP Snooping:
TL-SG3424(config)# ip dhcp snooping global global-rate 30 dec-threshold 20
dec-rate 20
ip dhcp snooping information option
Description
The ip dhcp snooping information option command is used to enable the
Option 82 function of DHCP Snooping. To disable the Option 82 function, please
use no ip dhcp snooping information option command.
Syntax
ip dhcp snooping information option
no ip dhcp snooping information option
Command Mode
Global Configuration Mode
Example
Enable the Option 82 function of DHCP Snooping:
TL-SG3424(config)# ip dhcp snooping information option
64
ip dhcp snooping information strategy
Description
The ip dhcp snooping information strategy command is used to select the
operation for the Option 82 field of the DHCP request packets from the Host. To
restore to the default option, please use no ip dhcp snoo ping in fo r mation
strategy command.
Syntax
ip dhcp snooping information strategy strategy
no ip dhcp snooping information strategy
Parameter
strategy —— The operations for Option 82 field of the DHCP request packets
from the Host, including three types:
keep: Indicates to keep the Option 82 field of the packets. It is the default option;
replace: Indicates to replace the Option 82 field of the packets with the switch
defined one;
drop: Indicates to discard the packets including the Option 82 field
Command Mode
Global Configuration Mode
Example
Replace the Option 82 field of the packets with the switch defined one and then
send out:
TL-SG3424(config)# ip dhcp snooping information strategy replace
ip dhcp snooping information remote-id
Description
Syntax
The ip dhcp snooping information remote-id command is used to enable and
configure the customized sub-option Remote ID for the Option 82. To return to
default Remote ID for the Option 82, please use no ip dhcp snooping
information remote-id command.
ip dhcp snooping information remote-id string
65
no ip dhcp snooping information remote-id
Parameter
string ——Enter the sub-option Remote ID, which contains 32 characters at
most.
Command Mode
Global Configuration Mode
Example
Enable and configure the customized sub-option Remote ID for the Option 82 as
tplink:
TL-SG3424(config)# ip dhcp snooping information remote-id tplink
ip dhcp snooping information circuit-id
Description
The ip dhcp snooping information circuit-id command is used to enable and
configure the customized sub-option Circuit ID for the Option 82. To return to the
default Circuit ID for the Option 82, please use no ip dhcp sno o ping
information circuit-id command.
Syntax
ip dhcp snooping information circuit-id string
no ip dhcp snooping information circuit-id
Parameter
string ——Enter the sub-option Circuit ID, which contains 32 characters at most.
Command Mode
Global Configuration Mode
Example
Enable and configure the customized sub-option Circuit ID for the Option 82 as
tplink:
TL-SG3424(config)# ip dhcp snooping information circuit-id tplink
66
ip dhcp snooping trust
Description
The ip dhcp snooping trust command is used to configure a port to be a
Trusted Port. Only the Trusted Port can receive the DHCP packets from DHCP
servers. To turn the port back to a distrusted port, please use no ip dhcp
snooping trust command.
Syntax
ip dhcp snooping trust
no ip dhcp snooping trust
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure port 2 to be a Trusted Port:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# ip dhcp snooping trust
ip dhcp snooping mac-verify
Description
The ip dhcp snooping mac-verify command is used to enable the MAC Verify
feature. To disable the MAC Verify feature, please use no ip dhcp snooping
mac-ve r ify command. There are two fields of the DHCP packet containing the
MAC address of the Host. The MAC Verify feature is to compare the two fields
and discard the packet if the two fields are different.
Syntax
ip dhcp snooping mac-verify
no ip dhcp snooping mac-verify
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
67
Example
Enable the MAC Verify feature for port 2:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# ip dhcp snooping mac-verify
ip dhcp snooping limit rate
Description
The ip dhcp snooping limit rate command is used to enable the Flow Control
feature for the DHCP packets. The excessive DHCP packets will be discarded.
To restore to the default configuration, please use no ip dhcp snooping limit
rate command.
Syntax
ip dhcp snooping limit rate value
no ip dhcp snooping limit rate
Parameter
value —— The value of Flow Control. The options are
0/5/10/15/20/25/30(packet/second). The default value is 0, which stand s for
disable.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Set the Flow Control of port 2 as 20 pps:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# ip dhcp snooping limit rate 20
ip dhcp snooping decline
Description
The ip dhcp snooping decline command is used to enable the Decline Protect
feature. To disable the Decline Protect feature, please use no ip dhcp
snooping decline command.
68
Syntax
ip dhcp snooping decline
no ip dhcp snooping decline
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Enable the Decline Protect feature of port 2:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# ip dhcp snooping decline
show ip source binding
Description
The show ip source binding command is used to display the
IP-MAC-VID-PORT binding table.
Syntax
show ip source binding
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the IP-MAC-VID-PORT binding table:
TL-SG3424(config)# show ip source binding
show ip dhcp snooping
Description
The show ip dhcp snooping command is used to display the running status of
DHCP-Snooping.
Syntax
show ip dhcp snooping
69
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the running status of DHCP-Snooping:
TL-SG3424# show ip dhcp snooping
show ip dhcp snooping information
Description
The show ip dhcp snooping information command is used to display the
Option 82 configuration status of DHCP-Snooping.
Syntax
show ip dhcp snooping information
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the Option 82 configuration status of DHCP-Snooping:
TL-SG3424# show ip dhcp snooping information
show ip dhcp snooping interface gigabitEthernet
Description
The show ip dhcp snooping interface gigabitEthernet command is used to
display the DHCP-Snooping configuration of desired Gigabit Ethernet ports.
Syntax
show ip dhcp snooping interface gigabitEthernet [ port ]
Parameters
port ——The Ethernet port number.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
70
Example
Display the DHCP-Snooping configuration of port 2:
TL-SG3424# show ip dhcp snooping interface gigabitEthernet 1/0/2
71
Chapter 11 ARP Inspection Commands
ARP (Address Resolution Protocol) Detect function is to protect the switch from the ARP cheating,
such as the Network Gateway Spoofing and Man-In-The-Middle Attack, etc.
ip arp inspection(global)
Description
The ip ar p inspe ction command is used to enable the ARP Detection function
globally. To disable the ARP Detection function, please use no ip arp detection
command.
Syntax
ip arp inspection
no ip arp inspection
Command Mode
Global Configuration Mode
Example
Enable the ARP Detection function globally:
TL-SG3424(config)# ip arp inspection
ip arp inspection trust
Description
The ip ar p inspe ction trust command is used to configure the port for which the
ARP Detect function is unnecessary as the Trusted Port. To clear the Trusted
Port list, please use no ip arp detection trust command. The specific ports,
such as up-linked port, routing port and LAG port, should be set as Trusted Port.
Syntax
To ensure the normal communication of the switch, please configure the ARP
Trusted Port before enabling the ARP Detect function.
ip arp inspection trust
no ip arp inspection trust
72
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the ports 2-5 as the Trusted Port:
TL-SG3424(config)# interface range gigabitEthernet 1/0/2-5
TL-SG3424(config-if-range)# ip arp inspection trust
ip arp inspection(interface)
Description
The ip arp inspection command is used to enable the ARP Defend function. To
disable the ARP detection function, please use no ip arp inspection command.
ARP Attack flood produces lots of ARP Packets, which will occupy the bandwidth
and slow the network speed extremely. With the ARP Defend enabled, the
switch can terminate receiving the ARP packets for 300 seconds when the
transmission speed of the legal ARP packet on the port exceeds the defined
value so as to avoid ARP Attack flood.
Syntax
ip arp inspection
no ip arp inspection
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Enable the arp defend function for ports 2-6:
TL-SG3424(config)# interface range gigabitEthernet 1/0/2-6
TL-SG3424(config-if-range)# ip arp inspection
73
ip arp inspection limit-rate
Description
The ip arp inspection limit-rate command is used to configure the ARP speed
of a specified port. To restore to the default speed, please use no ip arp
inspe ction limit-rate command.
Syntax
ip arp inspection limit-rate value
no ip arp inspection limit-r ate
Parameter
value ——The value to specify the maximum amount of the received ARP
packets per second, ranging from 10 to 100 in pps(packet/second). By default,
the value is 15.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the maximum amount of the received ARP packets per second as 50
pps for port 5:
TL-SG3424(config)# interface gigabitEthernet 1/0/5
TL-SG3424(config-if)# ip arp inspection limit-rate 50
ip arp inspection recover
Description
The ip arp inspe ction re cover command is used to restore to the port to the
ARP transmit status from the ARP filter status.
Syntax
ip arp inspection recover
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
74
Example
Restore port 5 to the ARP transmit status:
TL-SG3424(config)# interface gigabitEthernet 1/0/5
TL-SG3424(config-if)# ip arp inspection recover
show ip arp inspection
Description
The show ip arp inspection command is used to display the ARP detection
global configuration including the enable/disable status and the Trusted Port list.
Syntax
show ip arp inspection
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the ARP detection configuration globally:
TL-SG3424(config)# show ip arp inspection
show ip arp inspection interface
Description
The show ip arp inspection interface command is used to display the interface
configuration of ARP detection.
Syntax
show ip arp inspection interface [ gigabitEthernet port ]
Parameter
port ——The Ethernet port number.
Command Mode
Privileged EXEC Mode and Any Configuration Mode
75
Example
Display the configuration of all the ports:
TL-SG3424(config)# show ip arp inspection interface
Display the configuration of port 2:
TL-SG3424(config)# show ip arp inspection interface gigabitEthernet 1/0/2
show ip arp inspection statistics
Description
The show ip arp inspection statistics command is used to display the number
of the illegal ARP packets received.
Syntax
show ip arp inspection statistics
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the number of the illegal ARP packets received:
TL-SG3424(config)# show ip arp inspection statistics
clear ip arp inspection statistics
Description
The clear ip arp inspe ction statistics command is used to clear the statistic of
the illegal ARP packets received.
Syntax
clear ip arp inspection statistics
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Clear the statistic of the illegal ARP packets received:
TL-SG3424(config)# clear ip arp inspection statistics
76
Chapter 12 DoS Defend Command
DoS (Denial of Service) Attack is to occupy the network bandwidth maliciously by the network
attackers or the evil programs sending a lot of service requests to the Host. With the DoS Defend
enabled, the switch can analyze the specific field of the received packets and provide the defend
measures to ensure the normal working of the local network.
ip dos-prevent
Description
The ip dos-prevent command is used to enable the DoS defend function
globally. To disable the DoS defend function, please use no ip do s-prevent
command.
Syntax
ip dos-prevent
no ip dos-prevent
Command Mode
Global Configuration Mode
Example
Enable the DoS defend function globally:
TL-SG3424(config)# ip dos-prevent
ip dos-prevent type
Description
The ip dos-prevent type command is used to select the DoS Defend Type. To
Syntax
disable the corresponding Defend Type, please use no ip dos-prevent type
command.
ip dos-prevent type { land | scan-synfin | xma-scan | null-scan | port-less-1024 |
blat | ping-flood | syn-flood }
no ip dos-prevent type { land | scan-synfin | xma-scan | null-scan |
port-less-1024 | blat | ping-flood | syn-flood }
77
Parameter
land —— Land attack.
scan-synfin —— Scan SYNFIN attack.
xma-scan —— Xma Scan attack.
null-scan —— NULL Scan attack.
port-less-1024 ——The SYN packets whose Source Port less than 1024.
blat —— Blat attack.
ping-flood —— Ping flooding attack. With the ping flood attack enabled, the
switch will limit automatically the forwarding speed of ping packets to 512K when
attacked by ping flood.
syn-flood —— SYN/SYN-ACK flooding attack. With the syn-flood attack enabled,
the switch will limit automatically the forwarding speed of ping packets to 512K
when attacked by syn-flood.
Command Mode
Global Configuration Mode
Example
Enable the DoS Defend Type named Land attack:
TL-SG3424(config)# ip dos-prevent type land
show ip dos-prevent
Description
The show ip dos-prevent command is used to display the DoS information of
the detected DoS attack, including enable/disable status, the DoS Defend Type.
Syntax
show ip dos-prevent
Command Mode
Privileged EXEC Mode and Any Configuration Mode
Example
Display the DoS information of the detected DoS attack globally:
TL-SG3424(config)# show ip dos-prevent
78
Chapter 13 IEEE 802.1X Commands
IEEE 802.1X function is to provide an access control for LAN ports via the authentication. Only the
supplicant passing the authentication can access the LAN.
dot1x system-auth-control
Description
The do t 1x system-auth-control command is used to enable the IEEE 802.1X
function globally. To disable the IEEE 802.1X function, please use no dot1x
system-auth-control command.
Syntax
dot1x system-auth-control
no dot1x system-auth-control
Command Mode
Global Configuration Mode
Example
Enable the IEEE 802.1X function:
TL-SG3424(config)# dot1x system-au th -control
dot1x auth-method
Description
The dot1x auth-method command is used to configure the Authentication
Method of IEEE 802.1X and the default 802.1x authentication method is
“eap-md5”. To restore to the default 802.1x authentication method, please use
no dot1x auth-me th od command.
Syntax
dot1x auth-method { pap | eap-md5 }
no dot1x auth-method
Parameter
pap | eap-md5 ——Authentication Methods.
79
pap: IEEE 802.1X authentication system uses extensible authentication protocol
(EAP) to exchange information between the switch and the client. The
transmission of EAP packets is terminated at the switch and the EAP packets
are converted to the other protocol (such as RADIUS) packets for transmission
eap-md5: IEEE 802.1X authentication system uses extensible authentication
protocol (EAP) to exchange information between the switch and the client. The
EAP protocol packets with authentication data can be encapsulated in the
advanced protocol (such as RADIUS) packets to be transmitted to the
authentication server.
Command Mode
Global Configuration Mode
Example
Configure the Authentication Method of IEEE 802.1X as pap:
TL-SG3424(config)# dot1x auth-metho d pap
dot1x guest-vlan(global)
Description
The dot1x guest-vlan command is used to enable the Guest VLAN function
globally. To disable the Guest VLAN function, please use no dot1x guest-vlan
command.
Syntax
dot1x guest-vlan vid
no dot1x guest-vlan
Parameter
vid ——The VLAN ID needed to enable the Guest VLAN function, ranging from 1
to 4094.
The supplicants in the Guest VLAN can access the specified network
source.
Command Mode
Global Configuration Mode
Example
Enable the Guest VLAN function for VLAN 5:
TL-SG3424(config)# dot1x guest-vlan 5
80
dot1x quiet-period
Description
The dot1x quiet-per io d command is used to enable the quiet-period function.
To disable the function, please use no dot1x quiet-period command.
Syntax
dot1x quiet-period
no dot1x quiet-period
Command Mode
Global Configuration Mode
Example
Enable the quiet-period function:
TL-SG3424(config)# dot1x quiet-period
dot1x timeout
Description
The dot1x timeout command is used to configure the quiet period and the
supplicant timeout. To restore to the default, please use no dot1x timeout
command.
Syntax
dot1x timeout { quiet-period time | reauth-period time }
no dot1x timeout { quiet-period | reauth-period }
Parameter
quiet-perio d time ——The value for Quiet Period, ranging from 1 to 999 in
seconds. By default, it is 10. Once the supplicant failed to the 802.1X
Authentication, then the switch will not respond to the authentication request
from the same supplicant during the Quiet Period.
re auth-period time ——The maximum time for the switch to wait for the
response from supplicant before resending a request to the supplicant., ranging
from 1 to 9 in second. By default, it is 3.
Command Mode
Global Configuration Mode
81
Example
Configure the quiet period as 100 seconds:
TL-SG3424(config)# dot1x timeout quiet-period 100
dot1x max-reauth-req
Description
The dot1x max-reauth-req command is used to configure the maximu m
transfer times of the repeated authentication request when the server cannot be
connected. To restore to the default value, please use no dot1x max-reauth-req
command.
Syntax
dot1x max-re auth-req time s
Parameter
Command Mode
Example
dot1x
Description
no dot1x max-re auth-req
times ——The maximum transfer times of the repeated authentication request,
ranging from 1 to 9 in times. By default, the value is 3.
Global Configuration Mode
Configure the maximum transfer times of the repeated authentication request as
5:
TL-SG3424(config)# dot1x max-reauth-req 5
Syntax
The dot1x command is used to enable the IEEE 802.1X function for a specified
port. To disable the IEEE 802.1X function for a specified port, please use no
dot1x command.
dot1x
no dot1x
82
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Enable the IEEE 802.1X function for port 1:
TL-SG3424(config)# interface gigabitEthernet 1/0/1
TL-SG3424(config-if)# dot1x
dot1x guest-vlan(interface)
Description
The dot1x guest-vlan command is used to enable the guest VLAN function for a
specified port. To disable the Guest VLAN function for a specified port, please
use no dot1x gue st-v lan command. Please ensure that the Control Type of the
corresponding port is port-based before enabling the guest VLAN function for it.
Syntax
dot1x guest-vlan
no dot1x guest-vlan
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Enable the Guest VLAN function for port 2:
TL-SG3424(config)# interface gigabitEthernet 1/0/2
TL-SG3424(config-if)# dot1x guest-vlan
dot1x port-control
Description
The dot1x port-control command is used to configure the control mode of IEEE
802.1X for the specified port. By default, the control mode is “auto”. To restore to
the default configuration, please use no dot1x port-control command.
83
Syntax
dot1x port-control { auto | authorized-force | unauthorized-force }
no dot1x port-control
Parameter
auto | authorized-force | unauthorized-force —— The Control Mode for the port.
auto: In this mode, the port will normally work only after passing the 802.1X
Authentication.
authorized-force: In this mode, the port can work normally without passing the
802.1X Authentication.
unauthorized-force: In this mode, the port is forbidden working for its fixed
unauthorized status.
Command Mode
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Example
Configure the Control Mode for port 1 as authorized-force:
TL-SG3424(config)# interface gigabitEthernet 1/0/1
TL-SG3424(config-if)# dot1x port-cont r ol authorized-force
dot1x port-method
Description
The dot1x por t-me th od command is used to configure the control type of IEEE
802.1X for the specified port. By default, the control type is “mac-based”. To
restore to the default configuration, please use no dot1x po rt -me th od
command.
Syntax
dot1x port-method { mac-based | port-based }
no dot1x port-method
Parameter
mac-based | port-based ——The control type for the port.
mac-based: Any client connected to the port should pass the 802.1X
authentication for access.
84
Command Mode
Example
radius
Description
port-based: All the clients connected to the port can access the network on the
condition that any one of the clients has passed the 802.1X Authentication.
Interface Configuration Mode (interface gigabitEthernet / interface range
gigabitEthernet)
Configure the Control Type for port 1 as port-based:
TL-SG3424(config)# interface gigabitEthernet 1/0/1
TL-SG3424(config-if)# dot1x port-method port-based
The radius command is used to configure the parameters of radius.
Syntax
radius { [auth-pri ip] [au t h-se c ip] [auth-port port] [acct-pri ip] [acct-se c ip]
[acct-por t port] [auth-ke y { [ 0 ] password | 7 encr ypted-password } ] [acct-ke y
{ [ 0 ] password | 7 encrypted-password] } }
no radius { auth-por t | auth -key | auth-pri | auth-sec | acct-port | acct-key |
acct-pri | acct-sec }
Parameter
auth-pri ip —— The IP address of the authentication server.
auth-sec ip —— The IP address of the alternative authentication server.
auth-port port ——The UDP port of authentication server(s) ranging from 1 to
65535. The default value is 1812.
acct-pri ip —— The IP address of the accounting server.
acct-sec ip —— The IP address of the alternative accounting server.
acct-por t port —— The UDP port of accounting server(s) ranging from 1 to
65535. The default value is 1813.
auth-ke y { [ 0 ] password | 7 encrypted-password } —— 0 and 7 are the
encryption type. 0 indicates that an unencrypted password will follow. 7 indicates
that a symmetric encrypted password with a fixed length will follow. By default,
the encryption type is 0. “password“ is the shared password for the switch and
the authentication servers to exchange messages which contains 31 characters
85
