TP-LINK TECHNOLOGIES CO., LTD.
E-mail: support@tp-link.com
Website: http://www.tp-link.com
Add: 3/F., Building R1-B, Hi-tech Industrial Park, Shennan Rd., Shenzhen, P.R.China
Rev: 1.0
Installation Guide
TL-SG3109
9-port Gigabit Managed Switch
TL-SL3428
24+4G Gigabit Managed Switch
TL-SL3452
48+4G Gigabit Managed Switch
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a
registered trademark of TP-LINK Technologies Co., Ltd. Other brands and
product names are trademarks or registered trademarks of their respective
holders.
No part of the specifications may be reproduced in any form or by any
means or used to make any derivative such as translation, transformation, or
adaptation without permission from TP-LINK Technologies Co., Ltd. Copyright
© 2006 TP-LINK Technologies Co., Ltd. All rights reserved.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a
class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference
that may cause undesired operation.
EC DECLARATION OF CONFORMITY
In compliance with the EMC Directive 89/336/EEC, Low Voltage Directive
73/23/EEC, this product meets the requirements of the following standards:
EN55022
EN55024
EN60950
(EUROPE)
SAFETY NOTICES
Cautions
Do not use this product near water, for example, in a wet basement or near a
swimming pool.
Avoid using this product during an electrical storm. There may be a remote
risk of electric shock from lightning.
TABLE OF CONTENTS
Package contents .................................................................................1
Section 1: Introduction ........................................................................2
1.1 Intended Audience ........................................................................................2
1.2 Agreement .....................................................................................................2
1.3 Guide Overview .............................................................................................2
Section 2. Device Description ............................................................3
2.1 Features.........................................................................................................3
2.2 TP-Link TL-SG3109 Description ..................................................................4
2.3 TP-Link TL-SL3428 Description ...................................................................6

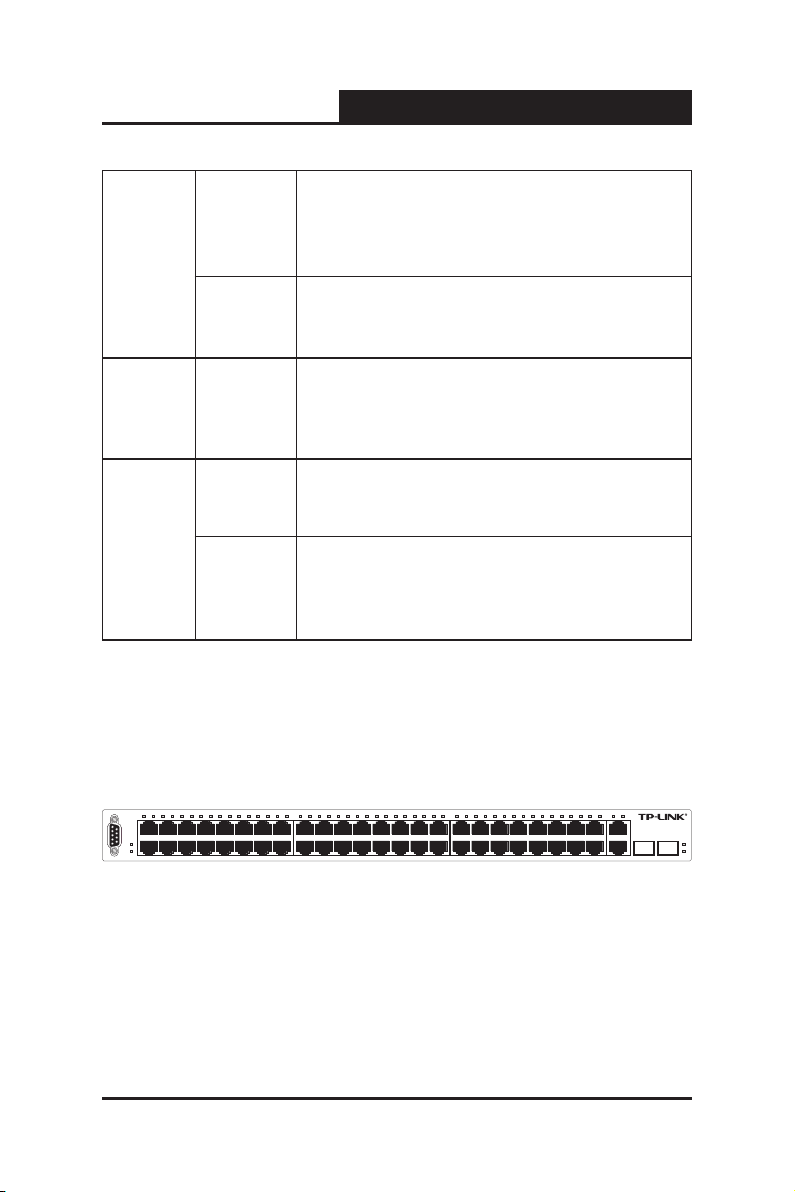

2.4 TP-Link TL-SL3452 Description ...................................................................8
2.5 Back Panel ..................................................................................................10
2.6 Device Hardware Interfaces .......................................................................10
2.6.1 RJ-45 Base-T Fast Ethernet Ports ..........................................................10
2.6.2 SFP Port ...................................................................................................11
2.6.3 RS-232 DB-9 Console Port .....................................................................12
2.7 Cable, Port, and Pinout Information ...........................................................12
2.7.1 Pin Explain For RJ-45 Connector ...........................................................12
2.7.2 SFP Connector .........................................................................................14
2.8 Physical Dimensions ...................................................................................14
Section 3. Mounting Device ..............................................................15
3.1 Preparing for Installation .............................................................................15
3.1.1 Installation Precautions ............................................................................15
3.1.2 Site Requirements ...................................................................................16
3.1.3 Unpacking ................................................................................................16
3.1.3.1 Package Contents ................................................................................16
3.1.3.2 Unpacking Essentials ...........................................................................17
3.2 Installing the Device ....................................................................................17
3.2.1 Desktop or Shelf Installation ....................................................................18
3.2.2 Rack Installation .......................................................................................18
3.3 Connecting the Device ................................................................................20
3.3.1 Connecting the Switch to a Terminal .......................................................20
3.3.2 AC Power Connection .............................................................................21
Section 4. Starting and Configuring the Device ............................22
4.1 Conguring the Terminal .............................................................................22
4.2 Installation Procedure .................................................................................23
4.2.1 Device Port Default Settings ....................................................................24
4.3 Booting the Device ......................................................................................24
4.4 Conguration Overview ..............................................................................26
4.4.1 Initial Conguration ..................................................................................27
4.4.1.1 Static IP Address and Subnet Mask ....................................................28
4.4.1.2 Assigning Static IP Addresses on a default VLAN ..............................29
4.4.1.3 User Name .............................................................................................30
4.4.1.4 SNMP Community Strings ...................................................................31
4.5 Advanced Conguration .............................................................................33
4.5.1 Receiving an IP Address from a DHCP Server ......................................34
4.5.2 Receiving an IP Address from a BOOTP Server ....................................35
4.5.3 Security Management and Password Conguration .............................36
4.5.3.1 Conguring Security Passwords Introduction .....................................37
4.5.3.2 Conguring an Initial Console Password .............................................37
4.5.3.3 Conguring an Initial Telnet Password .................................................38
4.5.3.4 Conguring an Initial SSH password ...................................................38
4.5.3.5 Conguring an Initial HTTP Password .................................................39
4.5.3.6 Conguring an initial HTTPS Password ..............................................39
4.6 Startup Procedures .....................................................................................39
4.6.1 Software Download [Option 1] ................................................................41
4.6.1.1 Software Download through TFTP Server ..........................................42
4.6.2 Erasing the Flash File [Option 2] .............................................................46
4.6.3 Password Recovery [Option 3] ................................................................46
4.6.4 Enter Diagnostic Mode [Option4] ............................................................47
4.6.5 Set Terminal Baud-Rate [Option5] ..........................................................47
TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch Family Installation Guide
Package contents
The following contents should be found in your box:
The device
An AC power cable
Console cable with DB-9 connector
This "Installation Guide", the "Embedded Web System User Guide" and
documentation CD
Two mounting brackets and other ttings
Note:
If any of the listed contents are damaged or missing, please contact the
retailer from whom you purchased the TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch for assistance.
1
TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch Family Installation Guide
Section 1: Introduction
Thanks for choosing the TL-SG3109/TL-SL3428/TL-SL3452 Gigabit Managed
Switch Family! The switch family provides a friendly management interface
and excellent performance.
1.1 Intended Audience
This guide is intended for network administrators familiar with IT concepts and
network terminology.
1.2 Agreement
Due to the similarity in function of the TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch Family, this installation guide will illustrate the general
usage of this switch family. The “switch” referred in this guide indicates the TL-
SG3109/TL-SL3428/TL-SL3452 Gigabit Managed Switch Family.
1.3 Guide Overview
This installation guide is divided into the following sections to provide concise
information for conguring, and managing the TP-Link device:
Section 1: Introduction.
Section 2: Device Description -- Provides an overview about the switch family.
Section 3: Mounting Device -- Describes the mounting procedure of the switch.
Section 4: Starting and Conguring the Device -- Describes the initial device
conguration.
2
TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch Family Installation Guide
Section 2. Device Description
The TP-Link devices offer switching systems that combine versatility with ease
of management. Management can be performed through an Embedded Web
System (EWS) or for the more advanced users, a Command Line Interface
(CLI) system. The device configuration is performed via a DB-9 RS-232
interface.
There are a range of devices which offer variable solutions for specific
requirements. The offering includes the following devices:
10/100/1000 devices (GE devices)
TP-Link TL-SG3109 — 8 10/100/1000Base-TX ports and 1 SFP
10/100 devices (FE devices)
TP-Link TL-SL3428 — 24 10/100Base-TX ports and 4 Giga ports(2 x
Copper and 2 x SFP)
TP-Link TL-SL3452 — 48 10/100Base-TX ports and 4 Giga ports (2 x
Copper and 2 x SFP)
2.1 Features
Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3z
Standards.
IEEE 802.3x ow control for full-duplex
Back pressure ow control for half-duplex
Store-and-Forward switching method
(0/24/48) 10/100BASE-TX Fast Ethernet ports (Auto MDI/MDI-X support)
(8/2/2) 1000BASE-T Gigabit Ethernet ports (Auto MDI/MDI-X support)
(1/2/2) SFP ports
Support N-Way adaptive mode
3
TL-SG3109/TL-SL3428/TL-SL3452
Support up 200 meters of Cat. 5 cables at the transmission speed of 10M
Support MAC address table of 8K entries
Support MAC address learning and aging time
Support management through Embedded Web System (EWS) which can
be accessed via WEB browser
Support management through Command Line Interface (CLI) which can
be
Accessed via a DB-9 RS-232 interface.
Support GARP VLAN Registration Protocol (GVRP)
Support 802.1Q VLAN
Support strom control
Su p p o r t managemen t ACL , system IP address ma n a g ement,
management access control, management interface ltering, port security
by number of MACs, guest VLAN and single/multiple host.
Support port monitor
Support STP, RSTP, MSTP
Support Link Aggregation Group (LAG)
Support QoS
Support static multicast groups and IGMP snooping.
Support RMON
Support DNS, RADIUS, TACACS+, multilingual, logging le, SNTP, SNMP
v1, v2 and v3
Support manual port control
Support Virtual Cable Test (VCT) diagnostics
Gigabit Managed Switch Family Installation Guide
2.2 TP-Link TL-SG3109 Description
The following gure illustrates the TL-SG3109 front panel.
4
TL-SG3109/TL-SL3428/TL-SL3452
1 3
5 7
2 4
6 8
SFP
1 234
5 6 7 8
TL-SG3109
10/100/10 00Mbps
1000Mbps
Power
System
Link
Act
1000M
Link/Act
9-por t Gig abit Manage d Sw itch
Gigabit Managed Switch Family Installation Guide
Figure 2-1: TL-SG3109 Front Panel
The TL-SG3109 device front panel is congured as follows:
8 1000Base-T Copper port — Copper RJ-45 Gigabit port designated on
the device as ports 1-8.
1 1000Base-FX SFP port — Fiber Gigabit ports designated on the device
as ports SFP.
RS-232 DB-9 Console port — An asynchronous serial console port
supporting the RS-232 electrical specication. The port is used to connect
the device to the console managing the device.
The front panel also contains the following:
System LEDs — Indicates system hardware status.
10/100/1000 Base-T Port LEDs — Indicates the 10/100/1000 Base-T port
status. Each port has two LEDs.
SFP Port LED — Indicates the SFP port status. The port has one LED on
the right side of the port.
TL-SG3109 LEDs
The LED indications are described in the following table:
5
TL-SG3109/TL-SL3428/TL-SL3452
10
12 14
16
2
4 6 8
91113 15
1
3 5 7
171921
23
GIGA1
GIGA2
18 20
22 24
SFP 1 SFP 2
Power
1000Mbps
2 4
6 8 10
12 14
16 18 20
22 24
1 3 5 7911 13 15 17 19 21 23
Link/Ac t
Link/Act Link/Ac t
System
Link
Act
100Mbps
24+4G Gig abit SwitchManaged
TL-SL342 8
GIGA1 GIGA2
Gigabit Managed Switch Family Installation Guide
Port
8 Giga Port
LEDs
SFP Port
System
LEDs
LED Indication
Description
• Off — No 10/100/1000Mbps link is established on the port.
Top LED
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Off — No link or a valid 10/100Mbps link is established
Bottom LED
on the port.
• Solid Green — A valid 1000Mbps link is established on
the port.
• Off — No link is established on the port.
SFP Link/
ACT LED
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Solid Red — Power is supplied to the switch and is
Power
operating normally.
• Off — Power is disconnected.
•
Flashing Green — Power On Self Test (POST) has passed
System
successfully and the device is operating normally.
• Solid Green — POST failure. A problem has been
discovered during the POST.
Table 1: TL-SG3109 Port LED Indications
2.3 TP-Link TL-SL3428 Description
The following gure illustrates the TL-SL3428 front panel.
Figure 2-2: TL-SL3428 Front Panel
The TL-SL3428 device front panel is congured as follows:
24 Fast Ethernet ports — RJ-45 ports designated as 10/100Base-T. The
RJ-45 ports are designated as ports Ports1-24.
6
TL-SG3109/TL-SL3428/TL-SL3452
2 1000Base-T Copper port — Copper RJ-45 Gigabit port designated on
Gigabit Managed Switch Family Installation Guide
the device as ports GIGA1 and GIGA2.
2 1000Base-FX SFP port — Fiber Gigabit ports designated on the device
as ports SFP1 and SFP2.
RS-232 DB-9 Console port — An asynchronous serial console port
supporting the RS-232 electrical specication. The port is used to connect
the device to the console managing the device.
The front panel also contains the following:
System LEDs — Indicates system hardware status.
10/100 Base-T Port LEDs — Indicates the 10/100 Base-T port status.
Each port has two LEDs all grouped together on the left side of the device.
Giga Port LEDs — Indicates the Giga port status. Each port has two LEDs
on the left side of the device.
SFP Port LEDs — Indicates the SFP port status. Each port has one LED
on the right side of the port.
TL-SL3428 LEDs
The LED indications are described in the following table:
Port
24 10/100M
Ports
LED Indication
Top LED
Bottom LED
Description
• Off — No link is established on the port.
• Solid Green — A link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Off — No 100Mbps link is established on the port.
• Solid Green — A valid 100Mbps link is established on
the port.
7
TL-SG3109/TL-SL3428/TL-SL3452
Console
TL-SL 3452
SFP1
SFP2
29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 444546 47 482 4 6 8 10 12 14 16 18 20 22 24 25 26 27 281 357 9 11 13 15 17 19 21 23
GIGA1 GIGA2
2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48
47
33 35 37 394143 45
1
3 5 7 91113 15
17 27
29 3125192123
GIGA1
GIGA2
SFP1 S FP2
Link/Act
48+4GGigabit Managed Switch
Power
System
Top LED
Giga Port
LEDs
Bottom LED
2-SFP Port
System
LEDs
SFP Link/
ACT LED
Power
System
Table 2: TL-SL3428 Port LED Indications
Gigabit Managed Switch Family Installation Guide
•
Off — No 10/100/1000Mbps link is established on the port.
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Off — No 1000Mbps link is established on the port.
• Solid Green — A valid 1000Mbps link is established on
the port.
• Off — No link is established on the port.
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Solid Red — Power is supplied to the switch and is
operating normally.
• Off — Power is disconnected.
•
Flashing Green — Power On Self Test (POST) has passed
successfully and the device is operating normally
.
• Solid Green — POST failure. A problem has been
discovered during the POST.
2.4 TP-Link TL-SL3452 Description
The following gure illustrates the TL-SL3452 front panel.
Figure 2-3: TL-SL3452 Front Panel
The TL-SL3452 device front panel is congured as follows:
48 Fast Ethernet ports — RJ-45 ports designated as 10/100Base-T.
The RJ-45 ports are designated as ports Ports1-48. The top row of ports
are designated odd numbers, and the bottom row are designated even
8
TL-SG3109/TL-SL3428/TL-SL3452
Gigabit Managed Switch Family Installation Guide
numbers.
2 1000Base-T Copper port — Copper RJ-45 Gigabit port designated on
the device as ports GIGA1 and GIGA2.
2 1000Base-FX SFP port — Fiber Gigabit ports designated on the device
as ports SFP1 and SFP2.
RS-232 DB-9 Console port — An asynchronous serial console port
supporting the RS-232 electrical specication. The port is used to connect
the device to the console managing the device.
The front panel also contains the following:
System LEDs — Indicates system hardware status.
10/100 Base-T Port LEDs — Indicates the 10/100 Base-T port status.
Each port has one LED above the port.
Giga Port LEDs — Indicates the Giga port status. Each port has one LED
above the port.
SFP Port LEDs — Indicates the SFP port status. Each port has one LED
on the right side of the port.
TL-SL3452 LEDs
The LED indications are described in the following table:
Port
48 10/100M
Ports
Giga Port
LEDs
LED Indication
Top LED
Top LED
Description
• Off — No link is established on the port.
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port .
•
Off — No 10/100/1000Mbps link is established on the port.
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
9
TL-SG3109/TL-SL3428/TL-SL3452
2-SFP Port
System
LEDs
SFP Link/
ACT LED
Power
System
Gigabit Managed Switch Family Installation Guide
• Off — No link is established on the port.
• Solid Green — A valid link is established on the port.
• Flashing Green — Packet transmission or reception is
occurring on the port.
• Solid Red — Power is supplied to the switch and is
operating normally.
• Off — Power is disconnected.
•
Flashing Green — Power On Self Test (POST) has passed
successfully and the device is
• Solid Green — POST failure. A problem has been
discovered during the POST.
Table 3: TL-SL3452 Port LED Indications
2.5 Back Panel
The following gure illustrates the devices back panel.
operating normally
.
Figure 2-4: TL-SG3109 Back Panel
Figure 2-5: TL-SL3428/TL-SL3452 Back Panel
The device back panel is congured as follows:
Power Connector — AC power supply interface.
2.6 Device Hardware Interfaces
2.6.1 RJ-45 Base-T Fast Ethernet Ports
RJ-45 ports are auto-sensing ports. When inserting a cable into an RJ-45 port,
10
Loading...
