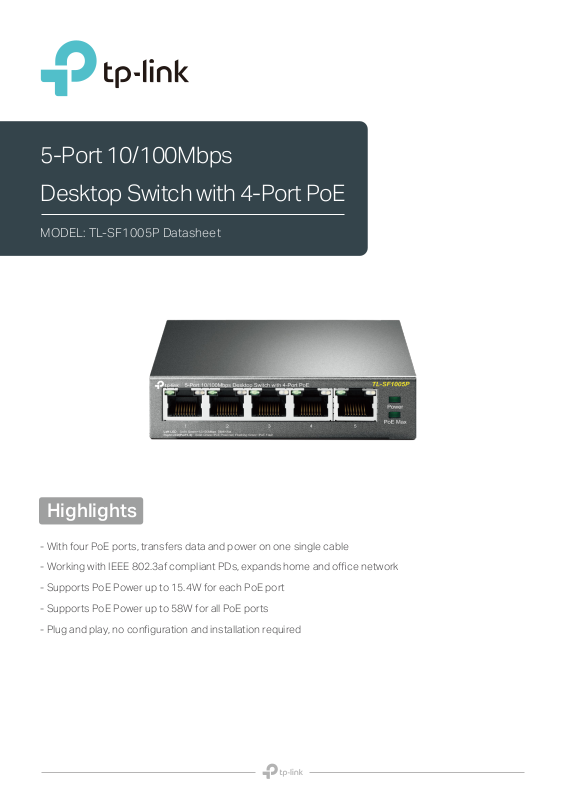

5-Port 10/100Mbps
Desktop Switch with 4-Port PoE
MODEL: TL-SF1005P Datasheet
Highlights
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and oce network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Plug and play, no conguration and installation required
Overview
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no conguration and provides
4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af
compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in
one single cable allowing you to expand your network to where there are no power lines or outlets,
where you wish to x devices such as APs, IP Cameras or IP Phones, etc.
Power Over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet
(PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af
compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is
overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE
ports, then the system will cut o the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the
system, it means Port 4 will be cut o when all total PoE PDs power consumption exceed 58W. For an
example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is
46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut o
the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3
will use 12W, no power will be supplied to Port 4.
Easy of Use
TL-SF1005P is easy to install and use. It requires no conguration and installation. With desktop
design, outstanding performance and quality, the TP-Link’s TL-SF1005P 5-Port 10/100Mbps Desktop
Switch with 4-Port PoE is an ideal choice for expanding your home or oce network.
Specications
Interface & Performance
Product Picture
Model TL-SF1005P
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af
Interface
Network Media
Power Consumption
PoE Ports (RJ45)
Transmission Method Store-And-Forward
Switching Capacity 1Gbps
Mac Address Table 2K
Fan Quantity Fanless
Max Power Consumption
Max Heat Dissipation
External Power Supply External Power Adapter (Output: 48VDC / 1.25A)
LED Power, Link/Act, PoE Status, PoE Max
Dimensions ( W x D x H ) 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
Package Contents TL-SF1005P, Power Adapter, User Guide
Environment
5*10/100Mbps RJ45 Ports with 4 PoE Ports(Port 1 to Port 4)
AUTO Negotiation/AUTO MDI/MDIX
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
63.51W (max. with 58w PD connected)
1.70W (max. no PD connected)
Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 58W
1.678W (220V/50Hz. no PD connected)
64.82W (220V/50Hz. with 58W PD connected)
5.73 BTU/h (no PD connected)
221.17 BTU/h (with 56W PD connected)
FCC, CE, RoHS
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90%RH, non-condensing
Storage Humidity: 5%~90%RH, non-condensing
www.tp-link.com
Specications are subject to change without notice. TP-Link is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or
registered trademarks of their respective holders. Copyright ©2017 TP-Link Technologies Co., Ltd. All rights reserved.
