Congratulations and Thank You from Thermador!

Thank you for selecting a Thermador dishwasher. You have joined the many consumers who demand quiet and superior performance from their dishwashers.

This manual was written with your safety and convenience in mind, and the information contained herein is very important. We highly recommend that you read this manual before you use your dishwasher for the first time.

To learn even more about your dishwasher and available accessories, as well as many other top-quality Thermador appliances, visit our website at www.thermador.com.

Please contact us if you have any questions or comments. You can call us at 1-800-735-4328, or you can write us at:

Thermador

5551 McFadden Avenue

Huntington Beach, CA 92649

Enjoy!

IMPORTANT SAFETY INSTRUCTIONS.	..................................4-5
Dishwasher Components.........................................................	5
Dishwasher Features and Options............................................	6
Dishware Materials..................................................................	7
Preparing and Loading the Dishware.....................................	7-9
Dishware Preparation .......................................................	7
Loading the Dishwasher...............................................	7-10
Adding Detergent and Rinse Agent.........................................	11
Operating the Dishwasher................................................	12-14
Cycles.............................................................................	12
Options.....................................................................	12-13
Starting the Dishwasher..................................................	13
Care and Maintenance......................................................	14-16
Wash Cycle Information/Sanitized...........................................	17
Self Help................................................................................	18
Statement of Warranties........................................................	19
Customer Service...................................................................	20

Important Safety Instructions - Save This Information

ATTENTION

Never use steam cleaning products to clean your dishwasher. The manufacturer will not be liable for possible damages or consequences.

ATTENTION

Never use harsh chemicals to clean your dishwasher. Some chloride-containing cleaning products can damage your dishwasher and may present health hazards!

ATTENTION

It is highly recommended for the end use consumer to become familiar with the procedure to shut off the incoming water supply and the procedure to shut off the incoming power supply. See the Installation Instructions or speak with your installer for more information.

WARNING

Misuse of the dishwasher can result in serious injury or death. Do not use the dishwasher in any way not covered in this manual or for any purpose other than those explained on the following pages.

WARNING

Severe product damage and/or injury could result from the use of unqualified service technicians or non-original replacement parts. All repairs must be performed by a qualified service technician using only original equipment factory replacement parts.

WARNING

Electrical shock or fire could result if the electrical supply for the dishwasher covered in this manual is incorrectly installed or if the dishwasher has been improperly grounded. Do not use the dishwasher covered in this manual if you are not certain the electrical supply has been correctly installed or the dishwasher has been properly grounded.

4

Important Safety Instructions - Save This Information

•This appliance must be grounded to a metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dishwasher. See the Installation Instructions included with this dishwasher for more information on electrical requirements.

•Use this dishwasher only for its intended function, which is the washing of household dishware and kitchenware.

•This dishwasher is provided with Installation Instructions and this Use and Care Manual. Read and understand all instructions before using the dishwasher.

•Use only detergents or rinsing agents recommended for use in a dishwasher, and keep them out of the reach of children.

•When loading items to be washed:

-Locate sharp items so that they are not likely to damage the door seal.

-Load knives and other sharp utensilswith their HANDLES UP to reduce the risk of cut-type injuries.

•Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.

•Do not operate your dishwasher unless all enclosure panels are in place.

•Do not tamper with or override controls and interlocks.

•Do not abuse, sit on, or stand on the door or dish racks of the dishwasher.

•To reduce the risk of injury, do not allow children to play in or on the dishwasher.

•When children become old enough to operate the appliance, it is the legal responsibility of the parents or legal guardians to ensure that they are instructed in safe practices by qualifed persons.

•Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more.

Hydrogen gas is explosive. Before using a dishwasher that is connected to a hot water system that has been unused for two weeks or longer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is explosive, do not smoke or use an open flame during this time.

•Remove the door to the washing compartment when removing an old dishwasher from service or discarding.

•To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

•Protect your dishwasher from the elements. Protect against freezing to avoid possible damage to the fll valve. Damage caused by freezing is not covered by the warranty.

Dishwasher Components

	Door Gasket	Vent
		Extra Tall
	Top Rack	Item Sprinkler
	Top Rack
	Spray Arm
		Filter System
	Bottom Rack	(in dishwasher
		floor)
	Spray Arm
	Bottom Rack	Models DWHD64C
		and DWHD64E
		Silverware Basket
	Rinse Agent
	Dispenser
	Detergent	Model/Serial Number Label
	Dispenser

5

Dishwasher Features and Options

Noise Reduction System: A two-pump motor system, the Suspension Motor™, and triple insulation make this dishwasher one of the quietest in North America.

Stainless Steel Tall Tub: A rust-free, hygienic interior surface with a lifetime warranty. See warranty statement for details.

Nylon Coated Racks: Eliminate cuts and nicks, and feature a

five-year warranty.

In Line Flow Through Water Heater™: Heats water to a temperature of up to 161°F.

Condensation Drying: A high temperature final rinse, a low temperature stainless steel tub, and the sheeting action of a rinse agent result in drying that is hygienic, energy efficient, and economical.

Filter System: Ensures distribution of clean water and protect the main pump and the drain pump from foreign material.

Water Shut-Off: A safety feature that stops the fllow of incoming water, if water is detected in the base of the dishwasher.

Fully Integrated Unit (Models DWHD64CF, DWHD64EF

DWHD44EF and DWHD43CF): A unit that fully integrates with your kitchen cabinetry, allowing for a custom front door.

Tall Items Sprinkler: Allows you to remove the upper rack and wash extra tall items.

Model Number

Control Panel

Design

Audible Cycle

Completion Signal

Clean Light

Countdown Display

Refill Rinse Agent

Indicator Light

Sanitized Indicator

Light

Delay Start

Filter System

Alternating Spray

Arms

Power Beam Status

Indicator Light

Hygiene Dry Automatic

Rinse Aid Compensator

PowerBoost Cycle

Time Optimizer

Additonal Drying Heat

Height Adjustable

Upper Rack

Upper Rack Flip Tines

Upper Rack Cup Shelves

Knife Rack

Lower Rack Flip Tines

Rack Attachment

Silverware Basket

DWHD64C	DWHD64E	DWHD43C	DWHD44E
Hidden	Hidden	Hidden	Hidden
Top	Top	Top	Top
Control	Control	Control	Control
yes	yes	yes	yes
no	no	yes	yes
yes	yes	no	no
Shown on Shown on		yes
Display as Display as			yes
Shown on Shown on
Display as Display as		yes	yes
yes	yes	no	no
4 parts	4 parts	3 parts	3 parts
yes	yes	no	no
yes	yes	no	no
yes	yes	no	no
yes	yes	no	no
yes	yes	no	no
Automatic Automatic		Manual	Manual
yes	yes	yes	yes
yes	yes	no	no
yes	yes	no	no
yes	yes	no	no
yes	yes	no	no
Premium Premium		Standard	Standard
Flexible	Flexible

6

Dishware Materials

NOTE: Before using your dishwasher for the frst time, check the information in this section. Some items are not dishwasher safe and should be hand-washed; others require special loading. Contact the item’s manufacturer if you are unsure about the item’s dishwasher suitability.

Recommended

Aluminum: Colored anodized aluminum may fade over time. Minerals in your water may cause the aluminum to darken or spot. This can usually be removed by using a soapy steel wool pad.

China, Crystal, Stoneware: Some hand-painted pieces may discolor, fade, or spot. Hand-wash these pieces. Position fragile glassware so that it will not topple over or contact other pieces during the wash cycle.

Glass: Milk glass may yellow.

Non-Stick Coatings: Apply a light coating of vegetable oil to non-stick surfaces after drying. Plastics: Make sure the piece is dishwasher safe.

Stainless Steel, Sterling Silver, and Silver Plate: Place these pieces so that they do not contact dissimilar metals.

Not Recommended

Acrylic: Crazing (small cracks throughout the acrylic) may occur.

Adhesive-Joined Pieces: Adhesives that join materials such as plastic, wood, bone, steel copper, tin, etc. may loosen.

Bone-Handled Utensils: Handles may separate.

Iron: Iron will rust. Hand-wash and dry immediately.

Non-Dishware Items: Your dishwasher is intended for use in cleaning ONLY standard household dishware and kitchenware.

Pewter, Brass, Bronze: Pewter will tarnish. Hand-wash and dry immediately. Tin: Tin will rust. Hand-wash and dry immediately.

Wood: Wooden bowls, wooden utensils, and wood-handled utensils can crack, warp, and lose their fnish.

Preparing and Loading the Dishware

Dishware Preparation

Do not pre-wash items having loosely-attached soiling. Remove large food particles, bones, seeds, toothpicks, and excessive grease. Items having burned-on, baked-on or starchy soils may require pre-treatment.

Loading the Dishwasher

Check the Materials section of this manual if you are unsure about an item’s dishwasher suitability.

Load only dishwasher-safe items into the dishwasher. Load dishes in the dishwasher racks so that the insides of bowls, pots, and pans are facing the spray arms. Avoid nesting and contact points between dishes. Separate items of dissimilar metals.

Loading the Top Rack

Figures 1 and 2 show typical 10 and 12 place load patterns for the top rack.

NOTE: Make sure items do not protrude through the bottom of the racks and block the spray arms.

ATTENTION

To avoid dishwasher damage, do not load the dishwasher with objects such as paper products, plastic bags, packing materials, or anything other than normal dishware and kitchenware. Do not load the dishwasher with anything other than dishwasher-safe dishware and kitchenware.

Figure 1

10 place setting top rack

Figure 2

12 place setting top rack

7

Figure 3

10 place setting bottom rack

Figure 4

12 place setting bottom rack

Figure 5

Figure 6

Do not block vent.

Loading the Bottom Rack

Place large items in the bottom rack. Load pots, pans and bowls upside-down. Figures 3 and 4 show typical mixed loads for the bottom rack.

Loading Extra Tall Items

If an item is too tall to be placed into the bottom rack even with the top rack in the raised position, remove the empty top rack by pulling it out of the dishwasher until it stops rolling. Pull the front of the rack upward and outward until the rollers are completely free of the roller guides. Set the top rack aside. Push the roller guides back into the dishwasher. Insert the Extra Tall Item Sprinkler into the top rack spray outlet and turn the sprinkler clockwise to lock it into position as shown in Figure 5. Place your extra tall item(s) in the bottom rack as shown in Figure 6.

NOTE: Keep the vent on the tub’s right side clear by placing tall items such as plastic cutting boards and tall baking sheets on the bottom rack’s left side, center, or back.

ATTENTION

To avoid dishwasher damage, do not reinstall the top rack without removing the extra tall item sprinkler. Do not reinstall the top rack with the sprinkler installed.

To remove the sprinkler and return the dishwasher to its normal condition:

1.Turn the sprinkler counterclockwise and remove it.

2.Retrieve the top rack.

3.Tilt the top rack upwards and position the top rack rollers onto the roller guides.

4.Continue pushing the top rack until the rollers are on the guide.

Rack Accessories

Flip Tines

Flip Tines fold down to make loading the racks easier in some instances. Grasp the tines and release from notch to reposition as shown in Figure 7.

Automatic Top Rack Height Adjustment (Models DWHD64C, DWHD64E)

The top rack can be lowered to accommodate large items in the top rack, and raised to make room for large items in the bottom rack.

To raise the top rack:

1.Pull the top rack out of the dishwasher until it stops rolling.

2.Grasp the top of the rack above the Automatic Height-Adjustable Top Rack handles and pull it upward as shown in Figure 8 A until the Automatic Height-Adjustable Top Rack handles lock the rack into position (you do not need to press the Automatic Height-Adjustable Top Rack handles in order raise the rack).

NOTE: Before you push the top rack back into the dishwasher, ensure that the rack height is the same on both sides. Otherwise, the dishwasher door will not shut and the top rack spray arm will not connect to the water circuit.

To lower the top rack:

1.Pull the top rack out of the dishwasher until it stops rolling.

2.Press the Automatic HeightAdjustable Top Rack handles inward as shown in Figure 8 B and let the rack drop.

Manual Top Rack Height Adjustment (Models DWHD43E DWHD44E)

Remove the empty upper rack by pulling it out of the dishwasher to the point that it can be lifted upward, as shown in Figure 9 A. Pull the rack outward and up until the rollers are completely free of the roller guides. Re-insert the rack with the other set of rollers on the roller guides, as shown in Figure 9 B.

8

Cup Shelves (Models DWHD64C, DWHD64E)	Figure 7
In addition to cups, the shelves can also hold large utensils. Grasp the cup shelves and
fold them down as shown in Figure 10. Place cups upside-down on the cup shelves.
Knife Rack (Models DWHD64C, DWHD64E)
The knife rack is an extra shelf for knives and other large utensils. It is assembled onto an
edge of the upper rack. Place knives with sharp sides down as shown in Figure 11,
Glass Rack Attachment (Models DWHD64C, DWHD64E)
The rack attachment has two additional cup shelves upon which to place cups and large
kitchen utensils. The rack attachment is assembled on the rear edge of the lower rack.
Before placing the glass rack in the bottom rack, first fold down the two rear rows
of fllip tines.
To assemble:	Figure 8
Slide the Rack Attachment in as shown in Figure 12, keeping the longest tines on the
inside of the top basket wire and on the outside of the lower basket wire. The short tines
will snap into place.
Rack Attachment Use
To use the rack attachment, fold down the cup shelves and place items to be washed.
Figure 9

A B

Figure 10

Figure 12

Figure 11

A

B

9

Figure 14

Flexible Basket

	5	4	3	2	1	1	2	3	4	5
	5	4	3	2	1	1	2	3	4	5
				2	1	1	2
	5	4	3					3	4	5
				6
	5	4	3	6	1	1	7	3	4	5
	5	4	3	2			2	3	4	5
				2	1	1	2
	5	4	3					3	4	5
				2	1	1	2

Standard Basket

4	4	4	4	4	4
5	7	3	3	3	2
5	3	3	3	6	2
5	1	1			2
5	1	1			2
5		1			2
5		1			2
2			1	1	5
2			1	1	5
2			1		5
2			1		5
2	6	3		3	5
2	3	3	3	3	5
4	4	4	4	4	4

1

2

3

4

5

6

7

12 place setting

Loading the Silverware Basket

NOTE: The silverware basket tops can be folded up to accommodate large or oddly-shaped items.

With the silverware basket tops down, load the silverware basket following the pattern suggested in Figure 14. Place knives with their handles up, and forks and spoons with their handles down.

If large or oddly-shaped items are to be loaded into the silverware basket with the tops up, load the items so that they do not nest together. Load knives and sharp utensils with their handles up.

CAUTION

The sharp points and edges of knives and other sharp utensils can cause serious injuries. Load knives and other sharp utensils with sharp points and edges down. Do not allow children to handle or play near knives and sharp utensils.

The Flexible Silverware Basket (Models DWHD64C, DWHD64E)

This basket is designed for maximum versatility. The basket splits along its length, resulting in two halves that may be placed in a variety of positions in the lower rack, greatly increasing the lower rack’s loading versatility.

To split the Flexible Silverware Basket:

1.Grasp the basket as shown in Figure 15A, and slide the two halves in opposite directions, as shown in Figure 15A.

2.Pull the two halves apart, as shown in Figure 15B.

Some suggestions for placing the two halves in the lower rack are shown in Figure 16.

The Standard Silverware Basket (Models DWHD43C, DWHD44E)

This basket fts in the front-middle of the lower rack.

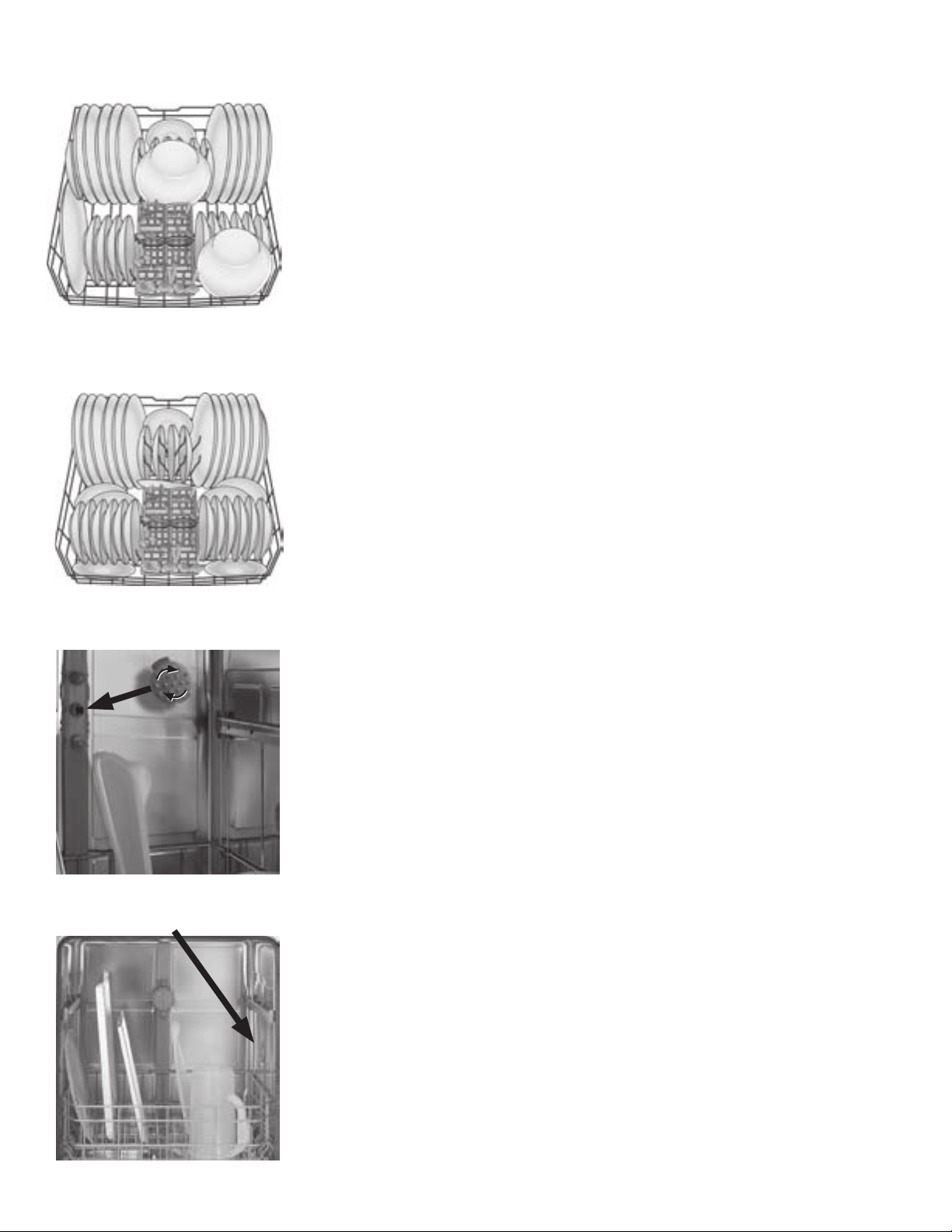

Figure 15

A B

Figure 16

10

Adding Detergent and Rinse Agent								Figure 17
									•Use fresh powdered detergent
Detergent									for best results
									•1 tablespoon will clean most
Use only detergent specifcally designed for dishwashers. For best results, use fresh									loads
powdered dishwashing detergent.									•3 tablespoons Max, do not
									overfll
									•When using detergent tabs, lay
ATTENTION	Add Detergent
									them flat to avoid contact with
To avoid dishwasher damage, do not use hand dishwashing products.									the cover
This dishwasher uses less water so you need to use less detergent. With soft water, 1
tablespoon (15ml) of detergent will clean most loads. The detergent dispenser cup has
lines that measure detergent to 1 tablespoon (15ml) and 1.75 tablespoons (25ml). 3
tablespoons (45ml) of detergent will completely fll the detergent dispenser cup.								Figure 18

ATTENTION

To avoid dishware damage, do not use too much detergent if your water supply is soft. Using too much detergent in soft water may cause etching in glassware.

	1	Slide cover fully left
	2	Push rear of cover down
	2
1		frmly until you hear the
		CLICK

NOTE: If you do not know the hardness of your water supply, use 15ml of detergent. Increase the amount of detergent, if necessary, to the least amount required to get your dishware and kitchenware clean. Use the measuring lines in the detergent dispenser cup as a guide to measure the amount of detergent recommended in Table 1.

Table 1 - Recommended Detergent Amount
			Water Type
Wash	Unit	Hard	Medium		Soft
Cycle
Heavy	ml	45	45		25-45
Wash	Tbsp	3	3		1.75 to 3
Sens-a-	ml	25-45	25		15-25
Wash*	Tbsp	1.75 to 3	1.75		1 to 1.75
						DWHD64E)
Normal	ml	25-45	25		15-25
Wash
	Tbsp	1.75 to 3	1.75		1 to 1.75
Light	ml	25	15-25		15	DWHD64C,
Wash*	Tbsp	1.75	1 to 1.75		1
Quick	ml	25	15-25		15
Wash	Tbsp	1.75	1 to 1.75		1	*(Models
Rinse		None	None		None
Only

Filling the Detergent Dispenser

Fill the dispenser cup as recommend in Table 1. (See Figure 17 for additional information.) To close, slide the detergent dispenser cover in the direction shown in Figure 18 and press it down frmly so the cover snaps shut.

To open the detergent dispenser cover, press the blue release tab in the direction shown in Figure 19. Pressing down on the release tab will not open the cover.

Rinse Agents

To achieve proper drying, always use a liquid rinse agent, even if your detergent contains a rinse agent or drying additive.

Rinse Agent Dispenser

To close

Figure 19

•Push the blue button in (NOT DOWN)

To open the cover

Figure 20

Always use Rinse Agent			• Add Rinse Agent when
even if your detergent con-			the control panel
tains Rinse Agent			message indicates
			“Refll Rinse Agent”
	Rinse Agent
	Level

Lift tab to open

Figure 21

•To add Rinse Agent pour on the arrow

•Turn arrow to adjust the amount of rinse agent dispensed

Open the rinse agent dispenser by lifting the tab with your thumb as shown in Figure 20.

NOTE: The dishwasher indicates low rinse agent with the “Refll Rinse Agent” message at the control panel.

Add liquid rinse agent to the dispenser as shown in Figure 21 until the rinse agent reservoir is full. Wipe up any excess rinse agent that puddles when the dispenser reservoir is full.

Turn

Arrow

To	To
Decrease	Decrease
Streaks on	Spots on
glasses	glasses

11

Operating the Dishwasher

Selecting the Proper Wash Cycle

Always make sure your dishware is dishwasher safe. Refer to the Dishware Materials section of this manual for guidance.

ATTENTION

To avoid damage to delicate or heirloom items, do not wash them in your dishwasher.

Wash Cycles

Wash cycles accessible from this menu include:

Heavy Wash

Cleans items having baked-on or hard dried-on food soils. These items may require soaking or hand scouring.

Sens-a-Wash (Models DWHD64C, DWHD64E)

Takes the guesswork out of cycle selection. The sensors in the dishwasher automatically adjust the cycle length, temperature and water changes based on the soil load.

Normal Wash

Cleans large loads with loosely attached food soils.

Light Wash (Models DWHD64C, DWHD64E)

Cleans delicate or heirloom dishware and silverware, or other special items. Hand washing may be the best for such items.

Quick Wash

Cleans lightly soiled dishes and reduces overall wash time. Use this cycle to clean glasses and desert dishes that may need to be re-used at the same event.

Rinse Only

Allows you to rinse the food soil off of a partial load and hold them in the dishwasher until there is a full load.

More information on dishwasher cycles is located in the Wash Cycle Information section of this manual.

Wash Cycle Options

PowerBoost Cycle Time Optimizer (Models DWHD64C, DWHD64E)

Reduces the time to complete a wash cycle by preheating. To activate, select the PowerBoost button in addition to the desired cycle.

Additional Drying Heat (Models DWHD64C, DWHD64E)

With this option you can raise the temperature of the rinse water and increase the drying time which will result in improved drying.

To activate:

·Press and hold the left “Cancel Drain” button, then press and hold the On/Off button.

·When the LED display shows a “00” or a “01” release both buttons.

·To enable the Additional Drying Heat, press the left “Cancel Drain” button until the LED display shows a “01”.

·To disable the Additional Drying Heat, press the left “Cancel Drain” button until the LED display shows a “00”.

·Press the On/Off button to save the setting.

Delay Start (Models DWHD64C, DWHD64E)

This option allows you to delay the start time of your dishwasher.

To activate:

·Turn the dishwasher on.

·Select the desired wash cycle.

·Press and hold the Delay Start button. Release when the desired delay time is shown in the display window.

12

The Cycle Completion Signal	Table 2
This Cycle Completion Signal is a tone that sounds to alert you when your dishwasher
finishes washing and drying your dishes. You can either disable the tone or set the volume.

To activate:

•Press and hold the right “Cancel Drain” button then press and hold the On/Off button.

•When the light on the “Cancel Drain” button you are pressing illuminates and the tone begins to sound, release both buttons.

•Press the right-most “Cancel Drain” button until the tone is either at the desired volume or is silent.

•Press the On/Off Button. The Cycle Completion Signal is now set.

Hygiene Dry Low Rinse Agent Compensator (Models DWHD64C, DWHD64E)

This feature senses when the unit is low on rinse agent and automatically increases the drying time. For best performance, always use a liquid rinse agent even if your detergent contains a drying additive.

Starting the Dishwasher

To start the dishwasher, follow the instructions in Table 2.

PowerBeam Status Indicator (Models DWHD64C, DWHD64E)

Red LED illuminates the flloor to indicate the unit is running. When the cycle is complete the light will go out.

Interrupting a Cycle

NOTE: Should you need to interrupt a cycle (to add or remove an item, to add detergent, etc.), it is best to do so within the frst 30 minutes of the cycle.

WARNING

You could be seriously scalded if you allow hot water to splash out of the dishwasher. OPEN THE DOOR CAREFULLY during any wash or rinse cycle. Do not fully open the door until water noises have stopped.

Hidden Top Controls

1.Open the dishwasher door just far enough to expose the control panel.

2.Press the ON/Off button to turn the unit off.

3.Wait at least ten seconds or until the water noises stop before opening the dishwasher door.

4.To resume the cycle, press the On/Off button and close the dishwasher door.

Canceling or Changing a Cycle

To cancel or change a cycle, press and hold for three seconds the two butons labeled

“Cancel Drain” as shown in Table 3.

Wait approximately one minute, then press the On/Off button. You may now begin a new cycle.

Dishware Drying

At the end of the cycle the dishwasher will stop and a period of condensation drying will follow. After drying, the cycle is complete and:

•the “Clean” light will illuminate (Models DWHD64C, DWHD64E).

•the completion signal will sound.

•the “Sanitized” light may appear. See section on Sanitization for more information.

•the PowerBeam light will go out (Models DWHD64C, DWHD64E).

•the countdown display will show “0” (DWHD64C only).

NOTE: To accelerate and enhance drying, open the dishwasher door, pull the top rack a

1. Open the door. 2. Turn on. 3. Select a cycle.

4.Close the door to start.

Table 3

Cancel Drain

13

few inches out of the dishwasher, and prop the dishwasher door against the top rack.

“Sanitized” Light

When the “Sanitized” light appears on the control panel, it means that the dishware and kitchenware that were just washed have been sanitized according to the requirements of the National Sanitation Foundation (NSF). For more information on NSF certification, go to the Wash Cycle Information section of this manual.

NOTE: If your household water supply is too hot, your dishwasher’s heating time may be reduced and the “Sanitized” light may not illuminate. Your Dishwasher Installation Manual has information on the recommended temperature for your household hot water supply.

Unloading the Dishwasher

Unload the bottom rack frst.

Unload the silverware basket(s). They are easily removed for unloading. Unload the top rack.

If the Extra Tall Item Sprinkler was installed, return the dishwasher to its normal condition

(see the Loading Extra Tall Items instructions in the “Loading the Dishwasher” section of this manual).

Care and Maintenance

Maintenance Tasks

Certain areas of your dishwasher require occasional maintenance. The maintenance tasks are easy to do and will ensure continued superior performance from your dishwasher. These tasks are:

•Winterizing Your Dishwasher

•Wiping up Spills and Splash-out

•Clean the Stainless Steel Inner Door and Tub

•Check/Clean the Spray Arm Nozzles

•Check/Clean the Filter System

•Clean the Exterior Door Panel

•Clean the Door Gasket

Winterizing Your Dishwasher

If your dishwasher will be unused for an extended period of time in a location that experiences freezing temperatures (e.g., in a holiday home or through a vacation period), have your dishwasher winterized by an authorized service center.

ATTENTION

To avoid dishwasher damage, do not allow water to remain in your dishwasher systems through extended periods of freezing temperatures. Freezing temperatures can damage your dishwasher.

Wiping Up Spills and Splash-out

Water may occasionally splash out of your dishwasher, especially if you interrupt a cycle or open the dishwasher door during a cycle. To avoid floor damage and possible mold growth, do not allow wet areas to remain around or under the dishwasher.

Check/Clean the Stainless Steel Inner Door and Tub

Clean the outer edges of the inside door panel regularly to remove debris that might collect there from normal loading.

If spots begin to appear on the stainless steel tub or inner door, make sure the rinse agent reservoir is full.

14

Check/Clean the Spray Arm Nozzles

Occasionally check the spray arms to ensure that the spray arm nozzles (holes) are unobstructed. You must remove the spray arms to check them for obstruction.

To remove the top spray arm:

1.Remove the empty top rack from the dishwasher.

2.Turn the rack upside-down. The top spray arm is held in position by a locking nut as shown in Figure 22A. Turn the locking nut counter-clockwise 1/8 turn and remove it, as shown in Figure 22B to release the spray arm.

3.Remove the spray arm as shown in Figure 23.

4.Look for obstruction in the spray nozzles.

5.If the spray nozzles need cleaning, flush them under running water.

To reinstall the top spray arm:

1.Return the top spray arm to its installed position.

2.Return the locking nut to its installed position and turn it 1/8 turn clockwise.

3.Return the top rack to the top rack roller guides.

To remove the bottom spray arm:

1.Remove the empty bottom rack from the dishwasher tub.

2.Grasp and lift the bottom spray arm as shown in Figure 24.

3.Look for obstruction in the spray nozzles.

4.If the spray nozzles need cleaning, flush them under running water.

To reinstall the bottom spray arm:

1.Return the bottom spray arm to its installed position and press it so that it snaps into place.

2.Return the bottom rack to its installed position.

Check/Clean the Filter System

This dishwasher has a flter system that consists of a Large Object Trap/Cylinder Filter assembly and a Fine Filter. Select models have an additional Micro Filter. The flter system is located on the inside of your dishwasher under the lower rack and is easily accessible.

During normal use, the flter system is self-cleaning. You should occasionally inspect it for foreign objects and clean it when necessary.

CAUTION

To avoid injury, do not reach into the large object trap with your fingers. The large object trap could contain sharp objects.

This dishwasher has a flter system that consists of a Large Object Trap/Cylinder Filter assembly and a Fine Filter. The flter system is located on the inside of your dishwasher under the lower rack and is easily accessible.

During normal use, the flter system is self-cleaning. You should occasionally inspect it for foreign objects and clean it when necessary.

To Remove the Large Object Trap/Cylinder Filter Assembly:

1.Remove the bottom rack.

2.Grasp the assembly as shown in Figure 25 and turn it counterclockwise 1/4 turn.

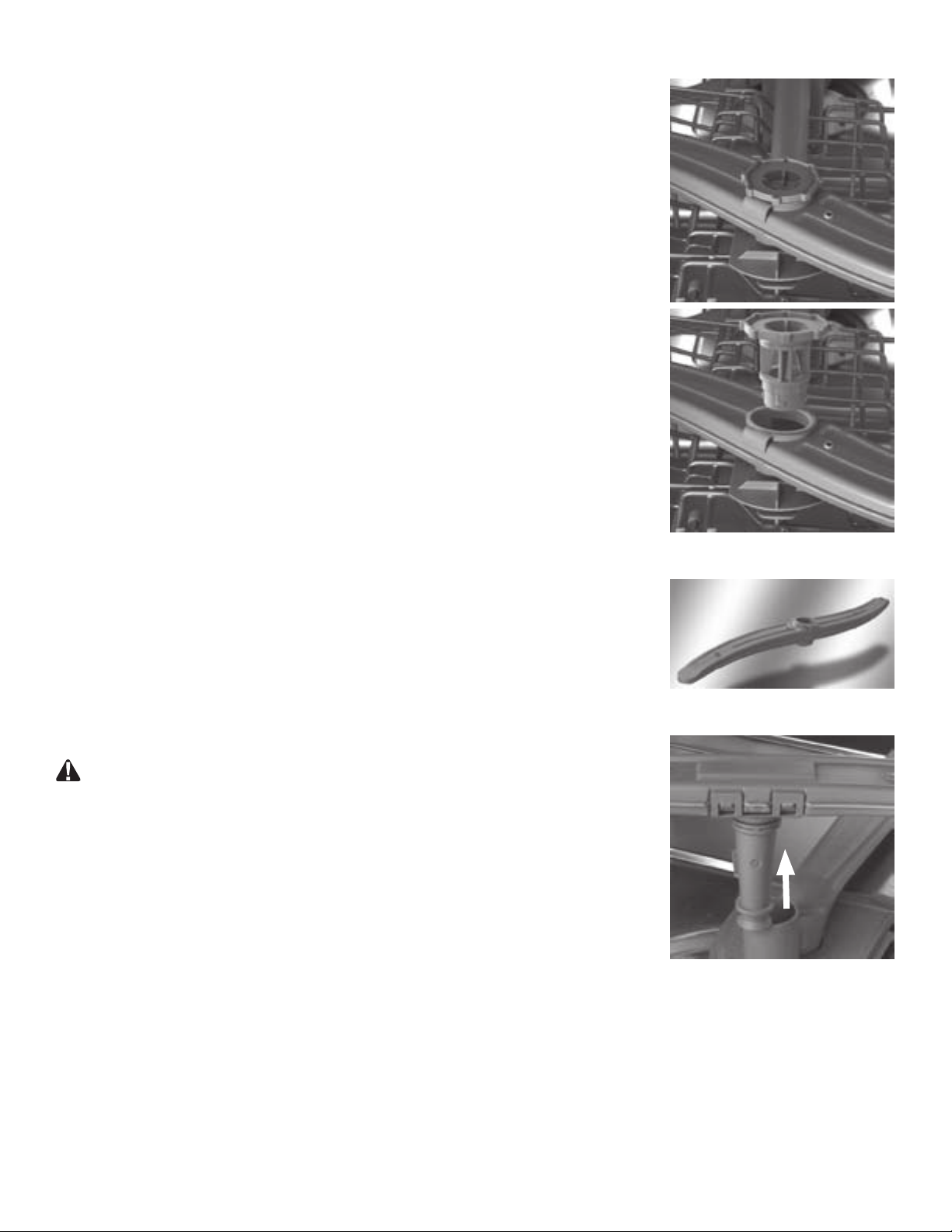

Figure 22

A

B

Figure 23

Figure 24

15

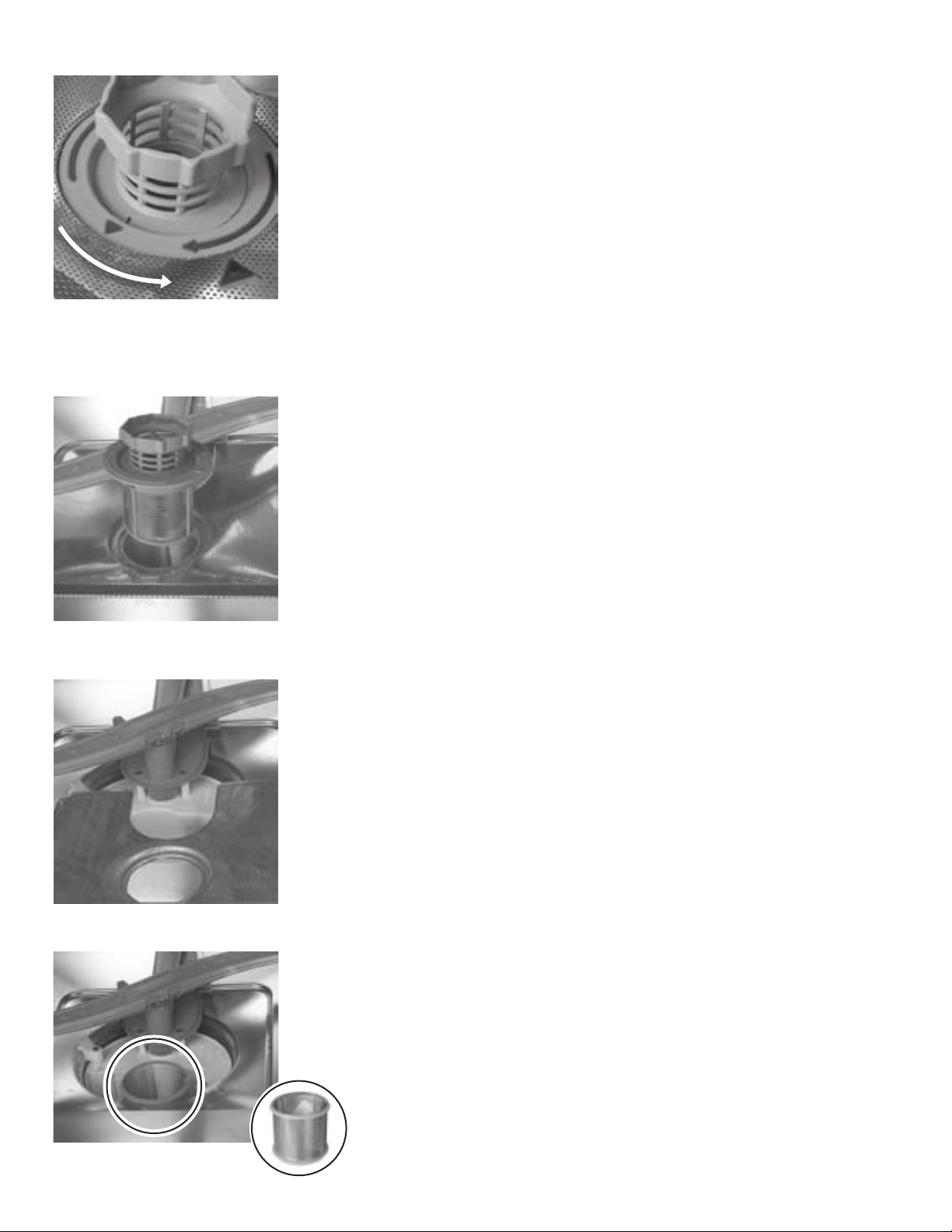

Figure 25

To open - turn counterclockwise.

Figure 26

Large Object Trap/Cylinder Filter

Figure 27

Fine

Filter

Figure 28

Micro

Filter

(Models DWHD64C, DWHD64E)

16

3.Lift out the assembly as shown in Figure 26.

4.Carefully examine the assembly. If you fnd debris in the Large Object Trap, turn it upside-down and gently tap it on a surface such as a countertop to dislodge and remove the debris. Flush the Cylinder Filter clean by holding it under running water.

To Remove the Fine Filter:

1.Lift the Fine Filter from the dishwasher floor as shown in Figure 27 and flush it clean by holding it under running water.

2.Remove the Micro Filter (Models DWHD64C, DWHD64E) as shown in Figure 28 and flush it clean by holdin git under running water.

To reinstall the filter system:

1.Return the Fine Filter to its installed position.

2.Place the Large Object Trap/Cylinder Filter Assembly into its installed position in the dishwasher floor.

3.Turn the ring handle clockwise 1/4 turn until it is locked. The arrow

on the ring handle and the arrow on the Fine Filter should point to each other, as shown by the circle in Figure 29.

4.Gently pull the ring handle to ensure that the assembly is locked into place.

ATTENTION

To avoid possible dishwasher damage, do not use harsh chemicals, abrasive cleaners, scouring pads (metal or plastic), or abrasive cloths/paper towels to clean your dishwasher’s exterior door panel. Your dishwasher’s exterior door panel can be damaged by doing so.

Clean the Exterior Door Panel

Colored Doors

Use only a soft cloth that is lightly dampened with soapy water.

Stainless Steel Doors

Use a soft cloth with a non-abrasive cleaner (preferably a liquid spray) made for cleaning stainless steel. For the best results, apply the stainless steel cleaner to the cloth, then wipe the surface.

Clean the Door Gasket and Door Seal

Regularly clean the door gasket with a damp cloth to remove food particles and other debris. Also clean the door seal, located inside the dishwasher at the bottom of the door.

Figure 29

To close - turn clockwise.

Wash Cycle Information

NOTE: To save energy, this dishwasher has a “Smart Control” that automatically adjust the cycle based on soil loads and incoming water temperature. The “Smart Control” makes decisions that can cause the cycle time and water usage to adjust intermittently. The cycle times listed in the Use and Care manual are based on normal soil loads and 120°F incoming water and will vary based on your actual conditions.

NOTE: If the unit is out of rinse agent the Hygiene Dry featue will automatically extend the cycle time by approximately 10 minutes (Models DWHD64C, DWHD64E).

NOTE: If Additional Drying Heat is selected the cycle will be extended by approximately 20 minutes. (Models DWHD64C, DWHD64E).

(DWHD64C,	(DWHD64C,
DWHD64E)	DWHD64E)
(DWHD64C, DWHD64E)

The NSF Symbol

A dishwasher or a dishwasher cycle that has the NSF symbol has been certifed by the NSF International to meet very strict requirements of wash time and water temperature to ensure dishware and kitchenware sanitization. These requirements are explained in the document NSF/ANSI 184, Residential Dishwashers. More information on NSF Certifcation is available at the

NSF website, http://www.nsfconsumer.org/home/appliances.asp.

Your dishwasher is NSF certifed. The dishwasher cycles that are NSF certifed are shown in the chart above. When these cycles are complete, the “Sanitized” indicator on your dishwasher control panel will illuminate.

NOTE: If your household water supply is too hot, your dishwasher’s heating time may be reduced and the “Sanitized” light or symbol may not illuminate. Your Dishwasher Installation Manual has information on the recommended temperature for your household hot water supply.

17

Self Help

Dishwashers may occasionally exhibit problems that are unrelated to a malfunction of the dishwasher itself. The following information may help you with a dishwasher problem without your having to call a repair person.

Dishes do not dry

The rinse agent dispenser may be empty. Check the rinse-aid dispenser and refll it if necessary. Dishware drying can be accelerated and enhanced by opening the dishwasher door slightly and propping it open with the top rack.

Indicator light(s) do not come on

A fuse may have blown or a circuit breaker tripped. Check the fuse or circuit breaker at your fuse box/breaker box and replace the fuse or reset the breaker if necessary.

Dishwasher does not start

The dishwasher door may not be properly shut. Make certain the dishwasher door is shut and latched.

Dishwasher runs a long time

If the dishwasher completes the cycle, but the run time seems exceptionally long, it may be due to cold incoming water. Before starting the dishwasher, open the hot water faucet at the sink nearest the dishwasher. Run the water until it runs hot, then turn off the water and start the dishwasher.

Machine cycle does not advance to rinse

NOTE: The Installation Manual that came with your dishwasher will help you with the following instructions. The water supply line may be shut off. Check the water supply valve and open it if it’s shut.

White spots left on dishes

More rinse agent is needed. Go to the Adding Detergent and Rinse Agent section of this manual for instructions on increasing the amount of rinse agent dispensed.

Water not pumped from dishwasher

Make certain the drain hose isn’t kinked, clogged, or improperly installed. Make certain a portion of the drain hose is at least 20 inches above the dishwasher’s enclosure floor (see the Installation Manual). Filters may be clogged. Make certain the flter system isn’t clogged

(see the Care and Maintenance section of this manual). The kitchen sink drain may be clogged; you may need a plumber rather than a serviceman for the dishwasher. If an air gap is installed at sink, it may be clogged.

Detergent dispenser cover will not shut

You may not be correctly shutting the detergent dispenser cover, or a cycle was not fnished and should be cancelled. Go to the Adding

Detergent and Rinse Agent section of this manual for instructions on shutting the detergent dispenser cover. Go to the Operating the Dishwasher section of this manual for instructions on canceling a cycle.

Streaks on glassware

Too much rinse agent is being dispensed. Go to the Adding Detergent and Rinse Agent section of this manual for instructions on decreasing the amount of rinse agent dispensed.

Rattling noises

Utensils may not be properly arranged.

Suds in dishwasher

You may have used the wrong type of dishwashing detergent. Use only automatic dishwasher detergents.

Unsatisfactory washing results

•Incorrect amount of detergent.

•Utensils incorrectly arranged or rack overloaded.

•Spray arm rotation blocked by utensils.

•Spray arm nozzles need cleaning.

•Filters not properly ftted into position.

•Unsuitable cycle selected.

18

Statement of Limited Product Warranty

Thermador Dishwashers

What this Warranty Covers & Who it Applies to: The limited warranty provided BSH Home Appliances (“Thermador”) in this Statement of

Limited Product Warranty applies only to Thermador dishwashers

(“Product”) sold to you, the frst using purchaser, provided that the Product was purchased: (1) for your normal, household (non-

commercial) use, and has in fact at all times only been used for normal household purposes; (2) new at retail (not a display, “as is”, or previously returned model), and not for resale, or commercial use; and (3) within the United States or Canada, and has at all times remained within the country of original purchase. The warranties stated herein apply only to the frst purchaser of the Product and are not transferable.

•Please make sure to return your registration card; while not necessary to effectuate warranty coverage, it is the best way for Thermador to notify you in the unlikely event of a safety notice or product recall.

How Long the Warranty Lasts: Thermador warrants that the Product is free from defects in materials and workmanship for a period of three hundred sixty fve (365) days (i.e., 1 year) from the date of purchase.

The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. Labor and shipping costs are included in this basic coverage.

Extended Limited Warranty: Thermador also provides these additional limited warranties:

•2 Year Limited Warranty: Thermador will repair or replace any component that proves to be defective in materials or workmanship (excludes labor charges).

•5 Year Limited Warranty on Electronics: Thermador will repair or replace any Thermador microprocessor or printed circuit board if it proves to be defective in materials or workmanship (excludes labor charges).

•5 Year Limited Warranty on Dish Racks: Thermador will replace the upper or lower dish rack (excluding rack components), if the rack proves defective in materials or workmanship (excludes labor charges).

•Lifetime Warranty against Stainless Steel Rust Through:

Thermador will replace your dishwasher with the same model or a current model that is substantially equivalent or better in functionality, if the inner liner should rust through (excludes labor charges). Thermador will replace the stainless steel door if the door should rust through (excludes labor charges).

The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever.

Repair/Replace as Your Exclusive Remedy: During this warranty period, Thermador or one of its authorized service providers will repair your Product without charge to you (subject to certain limitations stated herein) if your Product proves to have been manufactured with a defect in materials or workmanship. If reasonable attempts to repair the Product have been made without success, then Thermador will replace your Product (upgraded models may be available to you, in Thermador’s sole discretion, for an additional charge). All removed parts and components shall become the property of Thermador at its sole option. All replaced and/or repaired parts shall assume the identity of the original part for purposes of this warranty and this warranty shall not be extended with respect to such parts. Thermador’s sole liability and responsibility hereunder is to repair manufacturer-defective

Product only, using a Thermador-authorized service provider during normal business hours. For safety and property damage concerns, Thermador highly recommends that you do not attempt to repair the Product yourself, or use an unauthorized servicer; Thermador will have no responsibility or liability for repairs or work performed by a non-authorized servicer. If you choose to have someone other than an

authorized service provider work on your Product, THIS WARRANTY WILL

AUTOMATICALLY BECOME NULL AND VOID. Authorized service providers are those persons or companies that have been specially trained on

Thermador products, and who possess, in Thermador’s opinion, a superior reputation for customer service and technical ability (note that they are independent entities and are not agents, partners, affliates or representatives of Thermador). Notwithstanding the foregoing,

Thermador will not incur any liability, or have responsibility, for the Product if it is located in a remote area (more than 100 miles from an authorized service provider) or is reasonably

inaccessible, hazardous, threatening, or treacherous locale, surroundings, or environment; in any such event, if you request, Thermador would still pay for labor and parts and ship the parts to the nearest authorized service provider, but you would still be fully liable and responsible for any travel time or other special charges by the service company, assuming they agree to make the service call.

Out of Warranty Product: Thermador is under no obligation, at law or otherwise, to provide you with any concessions, including repairs, pro-rates, or Product replacement, once this warranty has expired. Warranty Exclusions: The warranty coverage described herein excludes all defects or damage that are not the direct fault of Thermador, including without limitation, one or more of the following:

(1) use of the Product in anything other than its normal, customary and intended manner (including without limitation, any form of commercial use, use or storage of an indoor product outdoors, use of the Product in conjunction with air or water-going vessels); (2) any party’s willful misconduct, negligence, misuse, abuse, accidents, neglect, improper operation, failure to maintain, improper or negligent installation, tampering, failure to follow operating instructions, mishandling, unauthorized service (including self-performed “fxing” or exploration of the appliance’s internal workings); (3) adjustment, alteration or modifcation of any kind; (4) a failure to comply with any applicable state, local, city, or county electrical, plumbing and/or building codes, regulations, or laws, including failure to install the product in strict conformity with local fre and building codes and regulations; (5) ordinary wear and tear, spills of food, liquid, grease accumulations, or other substances that accumulate on, in, or around the Product; and

(6) any external, elemental and/or environmental forces and factors, including without limitation, rain, wind, sand, floods, fres, mud slides, freezing temperatures, excessive moisture or extended exposure to humidity, lightning, power surges, structural failures surrounding

the appliance, and acts of God. In no event shall Thermador have any liability or responsibility whatsoever for damage to surrounding property, including cabinetry, floors, ceilings, and other structures or objects around the Product. Also excluded from this warranty are scratches, nicks, minor dents, and cosmetic damages on external surfaces and exposed parts; Products on which the serial numbers have been altered, defaced, or removed; service visits to teach you

how to use the Product, or visits where there is nothing wrong with the

Product; correction of installation problems (you are solely responsible for any structure and setting for the Product, including all electrical, plumbing or other connecting facilities, for proper foundation/flooring, and for any alterations including without limitation cabinetry, walls, floors, shelving, etc.); and resetting of breakers or fuses. TO THE

EXTENT ALLOWED BY LAW, THIS WARRANTY SETS OUT YOUR EXCLUSIVE REMEDIES WITH RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY,

OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY IS IN LIEU OF

ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY LAW, WHETHER FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OR OTHERWISE, SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN NO EVENT WILL THE MANUFACTURER BE LIABLE FOR CONSEQUENTIAL, SPECIAL, INCIDENTAL, INDIRECT, “BUSINESS LOSS”, AND/OR PUNITIVE DAMAGES, LOSSES, OR EXPENSES, INCLUDING WITHOUT LIMITATION TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELLING

EXPENSES IN EXCESS OF DIRECT DAMAGES WHICH ARE DEFINITIVELY CAUSED EXCLUSIVELY BY Thermador, OR OTHERWISE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, AND SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE. No attempt to alter, modify or amend this warranty shall be effective unless authorized in writing by an offcer of BSH.

How to Obtain Warranty Service: TO OBTAIN WARRANTY SERVICE FOR

YOUR PRODUCT, YOU SHOULD CONTACT THE NEAREST THERMADOR

AUTHORIZED SERVICE CENTER, OR CALL 800-735-4328, or write

Thermador at: BSH Home Appliances - 5551 McFadden Avenue,

Huntington Beach, CA 92649 /

19

Customer Service

Your Thermador dishwasher requires no special care other than that described in the Care and Maintenance section. If you are having a problem with your dishwasher, before calling for service please refer to the Self Help section. If service is necessary, contact your dealer or installer or an authorized service center. Do not attempt to repair the appliance yourself. Any work performed by unauthorized personnel may void the warranty.

If you are having a problem with your Thermador dishwasher and are not pleased with the service you have received, please take the following steps (in the order listed below) until the problem is corrected to your satisfaction:

1.Contact your installer or the Thermador Authorized Service Contractor in your area.

2.E-mail us from the customer service section of our website, www.thermador.com.

3.Write us at the address below:

BSH Home Appliances, Corporation 5551 McFadden Avenue Huntington Beach, CA 92649

4.Call us at 1-800-735-4328.

Please be sure to include your model information listed below as well as an explanation of the problem and the date it originated.

You will fnd the model and serial number information on the label located on the right edge of the dishwasher door as shown in

Figure 30.

Also, if you are writing, please include a daytime phone number where you can be reached.

Please make a copy of your invoice and keep it with this manual. The customer must show proof of purchase to obtain warranty service.

Your Model Information:

•Model Number

•Serial Number

•Date Purchased

•Date Installed

CAUTION

Removing any cover or pulling the dishwasher from the cabinet can expose hot water connections, electrical power and sharp edges or points.

Figure 30

Model and Serial Number Label

Serial Number

Model Number

20
