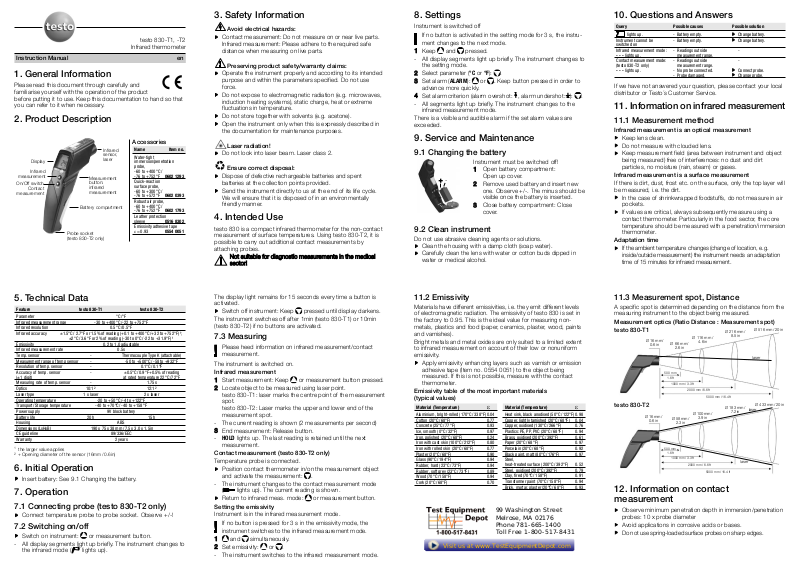

Testo Testo 830-T2 Manual
11.3 Measurement spot, Distance
A specific spot is determined depending on the distance from the
measuring instrument to the object being measured.
Measurement optics (Ratio Distance : Measurement spot)
12. Information on contact
measurement
Observe minimum penetration depth in immersion/penetration
probes: 10 x probe diameter
Avoid applications in corrosive acids or bases.
Do not use spring-loaded surface probes on sharp edges.
8. Settings
Instrument is switched off
If no button is activated in the setting mode for 3 s, the instrument changes to the next mode.
1
Keep and pressed.
- All display segments light up briefly. The instrument changes to
the setting mode.
2
Select parameter (°C or °F): .
3
Set alarm (ALARM): or . Keep button pressed in order to
advance more quickly.
4
Set alarm criterion (alarm overshot: , alarm undershot: ): .
- All segments light up briefly. The instrument changes to the
infrared measurement mode.
There is a visible and audible alarm if the set alarm values are
exceeded.
9. Service and Maintenance
9.1 Changing the battery
Instrument must be switched off!
1
Open battery compartment:
Open up cover.
2
Remove used battery and insert new
one. Observe +/-. The minus should be
visible once the battery is inserted.
3
Close battery compartment: Close
cover.
9.2 Clean instrument
Do not use abrasive cleaning agents or solutions.
Clean the housing with a damp cloth (soap water).
Carefully clean the lens with water or cotton buds dipped in
water or medical alcohol.
1. General Information
Please read this document through carefully and
familiarise yourself with the operation of the product
before putting it to use. Keep this documentation to hand so that
you can refer to it when necessary.
2. Product Description
Instruction Manual en
testo 830-T1, -T2
Infrared thermometer
3. Safety Information
Avoid electrical hazards:
Contact measurement: Do not measure on or near live parts.
Infrared measurement: Please adhere to the required safe
distance when measuring on live parts.
Preserving product safety/warranty claims:
Operate the instrument properly and according to its intended
purpose and within the parameters specified. Do not use
force.
Do not expose to electromagnetic radiation (e.g. microwaves,
induction heating systems), static charge, heat or extreme
fluctuations in temperature.
Do not store together with solvents (e.g. acetone).
Open the instrument only when this is expressly described in
the documentation for maintenance purposes.
Laser radiation!
Do not look into laser beam. Laser class 2.
Ensure correct disposal:
Dispose of defective rechargeable batteries and spent
batteries at the collection points provided.
Send the instrument directly to us at the end of its life cycle.
We will ensure that it is disposed of in an environmentally
friendly manner.
4. Intended Use
testo 830 is a compact infrared thermometer for the non-contact
measurement of surface temperatures. Using testo 830-T2, it is
possible to carry out additional contact measurements by
attaching probes.
Not ssuitable ffor ddiagnostic mmeasurements iin tthe mmedical
sector!
5. Technical Data
Feature testo 830-T1 testo 830-T2
Parameter °C/°F
Infrared measurement range -30 to +400°C/-22 to +752°F
Infrared resolution 0.5°C/0.5°F
Infrared accuracy ±1.5°C/ 2.7°F or 1.5% of reading (+0.1 to +400°C/+32 to +752°F)
1
;
±2°C/ 3.6°F or 2% of reading (-30 to 0°C/-22 to +31.9°F)
1
Emissivity 0.2 to 1.0 adjustable
Infrared measurement rate 0.5s
Temp. sensor - Thermocouple Type K (attachable)
Measurement range of temp sensor - -50 to +500°C/-58 to +932°F
Resolution of temp. sensor - 0.1°C/0.1°F
Accuracy of temp. sensor - ±0.5°C/0.9°F+0.5% of reading
(±1 digit) at rated temperature 22°C/72°F
Measuring rate of temp. sensor - 1.75s
Optics 10:1
2
12:1
2
Laser type 1 x laser 2 x laser
Operating temperature -20 to +50°C/-4 to +122°F
Transport/Storage temperature -40 to +70°C/-40 to +158°F
Power supply 9V block battery
Battery life 20 h 15 h
Housing ABS
Dimensions (LxHxB) 190 x 75 x 38mm/7.5 x 3.0 x 1.5in
CE guideline 89/336/EEC
Warranty 2 years
1
the larger value applies
2
+ Opening diameter of the sensor (16mm / 0.6 in)
6. Initial Operation
Insert battery: See 9.1 Changing the battery.
7. Operation
7.1 Connecting probe (testo 830-T2 only)
Connect temperature probe to probe socket. Observe +/-!
7.2 Switching on/off
Switch on instrument: or measurement button.
- All display segments light up briefly. The instrument changes to
the infrared mode ( lights up).
The display light remains for 15 seconds every time a button is
activated.
Switch off instrument: Keep pressed until display darkens.
The instrument switches off after 1min (testo 830-T1) or 10min
(testo 830-T2) if no buttons are activated.
7.3 Measuring
Please heed information on infrared measurement/contact
measurement.
The instrument is switched on.
Infrared measurement
1
Start measurement: Keep or measurement button pressed.
2
Locate object to be measured using laser point.
testo 830-T1: laser marks the centre point of the measurement
spot.
testo 830-T2: Laser marks the upper and lower end of the
measurement spot.
- The current reading is shown (2 measurements per second)
3
End measurement: Release button.
- HOLD lights up. The last reading is retained until the next
measurement.
Contact measurement (testo 830-T2 only)
Temperature probe is connected.
Position contact thermometer in/on the measurement object
and activate the measurement: .
- The instrument changes to the contact measurement mode
( lights up). The current reading is shown.
Return to infrared meas. mode: or measurement button.
Setting the emissivity
Instrument is in the infrared measurement mode.
If no button is pressed for 3 s in the emissivity mode, the
instrument switches to the infrared measurement mode.
1
and simultaneously.
2
Set emissivity: or .
- The instrument switches to the infrared measurement mode.
10. Questions and Answers
Query Possible causes Possible solution
lights up. - Battery empty. Change battery.
Instrument cannot be - Battery empty. Change battery.
switched on
Infrared measurement mode: - Readings outside -
- - - lights up. measurement range.
Contact measurement mode: - Readings outside -
(testo 830-T2 only) measurement range.
- - - lights up. - No probe connected. Connect probe.
- Probe damaged. Change probe.
If we have not answered your question, please contact your local
distributor or Testo´s Customer Service.
11. Information on infrared measurement
11.1 Measurement method
Infrared measurement is an optical measurement
Keep lens clean.
Do not measure with clouded lens.
Keep measurement field (area between instrument and object
being measured) free of interferences: no dust and dirt
particles, no moisture (rain, steam) or gases.
Infrared measurement is a surface measurement
If there is dirt, dust, frost etc. on the surface, only the top layer will
be measured, i.e. the dirt.
In the case of shrinkwrapped foodstuffs, do not measure in air
pockets.
If values are critical, always subsequently measure using a
contact thermometer. Particularly in the food sector, the core
temperature should be measured with a penetration/immersion
thermometer.
Adaptation time
If the ambient temperature changes (change of location, e.g.
inside/outside measurement) the instrument needs an adaptation
time of 15 minutes for infrared measurement.
11.2 Emissivity
Materials have different emissivities, i.e. they emit different levels
of electromagnetic radiation. The emissivity of testo 830 is set in
the factory to 0.95. This is the ideal value for measuring nonmetals, plastics and food (paper, ceramics, plaster, wood, paints
and varnishes).
Bright metals and metal oxides are only suited to a limited extent
to infrared measurement on account of their low or nonuniform
emissivity.
Apply emissivity enhancing layers such as varnish or emission
adhesive tape (Item no. 0554 0051) to the object being
measured. If this is not possible, measure with the contact
thermometer.
Emissivity table of the most important materials
(typical values)
Material (Temperature) ε
Heat sink, black anodised (50°C/122°F)0.98
Copper, lightly tarnished (20°C/68°F) 0.04
Copper, oxidised (130°C/266°F) 0.76
Plastics: PE, PP, PVC (20°C/ 68°F) 0.94
Brass, oxidised (200°C/392°F) 0.61
Paper (20°C/68°F) 0.97
Porcelain (20°C/68°F) 0.92
Black paint, matt (80°C/176°F) 0.97
Steel,
heat-treated surface (200°C/392°F) 0.52
Steel, oxidised (200°C/392°F) 0.79
Clay, fired (70°C/158°F) 0.91
Transformer paint (70°C/158°F) 0.94
Brick, mortar, plaster (20°C/68°F) 0.93
Material (Temperature) ε
Aluminium, bright-rolled (170°C/338°F) 0.04
Cotton (20°C/68°F) 0.77
Concrete (25°C/77°F) 0.93
Ice, smooth (0°C/32°F) 0.97
Iron, polished (20°C/68°F) 0.24
Iron with cast skin (100°C/212°F) 0.80
Iron with rolled skin (20°C/68°F) 0.77
Plaster (20°C/68°F) 0.90
Glass (90°C/194°F) 0.94
Rubber, hard (23°C/73°F) 0.94
Rubber, soft grey (23°C/73°F) 0.89
Wood (70°C/158°F) 0.94
Cork (20°C/68°F) 0.70
Accessories
Name Item no.
Water-tight
immersion/penetration
probe,
-60 to +400°C/
-76 to +752°F 0602 1293
Quick-reaction
surface probe,
-60 to +300°C/
-76 to +572°F 0602 0393
Robust air probe,
-60 to +400°C/
-76 to +752°F 0602 1793
Leather protection
sleeve 0516 8302
Emissivity adhesive tape
ε =0.93 0554 0051
Infrared
sensor,
laser
Battery compartment
Display
On/Off switch
Contact
measurement
Measurement
button:
infrared
measurement
Infrared
measurement
Probe socket
(testo 830-T2 only)
-+
500 mm
1.6 ft
1000 mm /3.3 ft
2000 mm /6.6 ft
5000 mm /16.4ft
Ø 433 mm/20in
Ø 183 mm/
7.2 in
Ø 100 mm/
3.9 in
Ø 58 mm/
2.3 in
Ø 16 mm/
0.6 in
testo 830-T2
500 mm
1.6 ft
1000 mm /3.3 ft
2000 mm /6.6 ft
5000 mm /16.4 ft
Ø 516 mm /20in
Ø 216 mm /
8.5 in
Ø 116 mm /
4.6 in
Ø 66 mm /
2.6 in
Ø 16 mm /
0.6 in
testo 830-T1
laser
laser
laser
