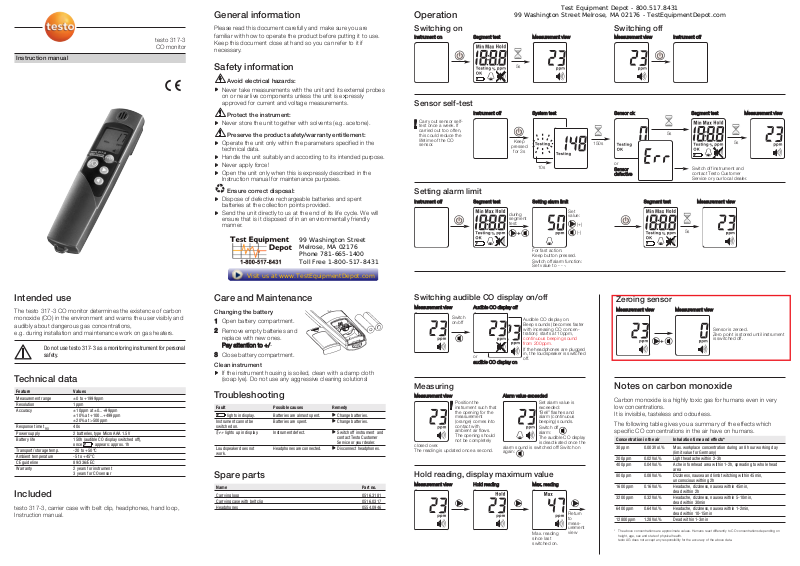

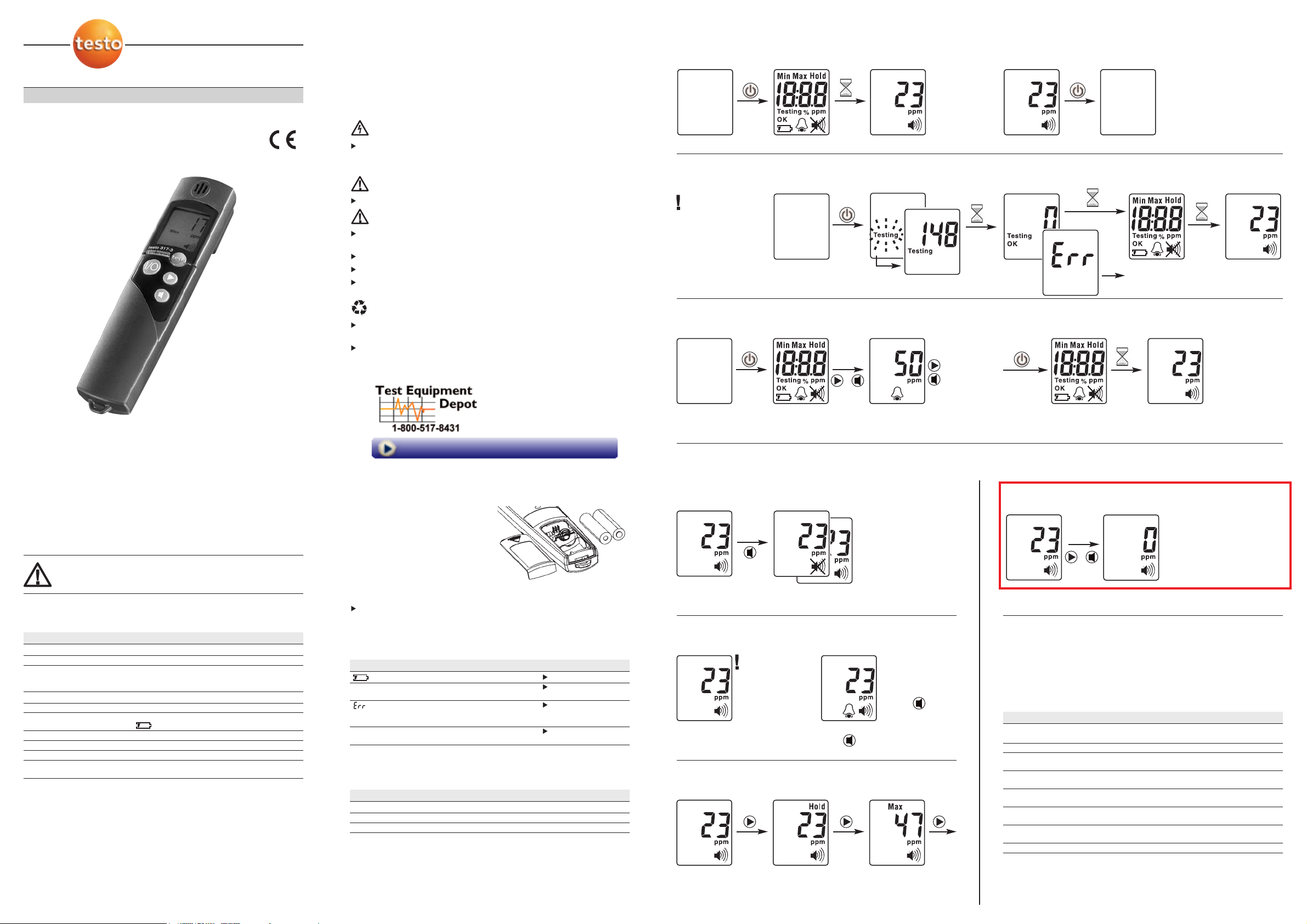

Page 1
Position the
instrument such that
the opening for the
measurement
(orange) comes into
contact with
ambient air flows.
The opening should
not be completely
closed over.
The reading is updated once a second.
Set alarm value is
exceeded:
“Bell” flashes and
alarm (continuous
beeping) sounds.
Switch off
alarm:
The audible CO display
is deactivated once the
alarm sound is switched off! Switch on
again:
Audible CO display on:
Beep sounds (becomes faster
with increasing CO concentration): starts at 10ppm,
continuous beeping sound
from 200ppm.
If the headphones are plugged
in, the loudspeaker is switched
off.
Set
value:
(+)
(-)
For fast action:
Keep button pressed.
Switch off alarm function:
Set value to
- - -
.
testo 317-3
CO monitor
General information
Please read this document carefully and make sure you are
familiar with how to operate the product before putting it to use.
Keep this document close at hand so you can refer to it if
necessary.
Safety information
Avoid electrical hazards:
Never take measurements with the unit and its external probes
on or near live components unless the unit is expressly
approved for current and voltage measurements.
Protect the instrument:
Never store the unit together with solvents (e.g. acetone).
Preserve the product safety/warranty entitlement:
Operate the unit only within the parameters specified in the
technical data.
Handle the unit suitably and according to its intended purpose.
Never apply force!
Open the unit only when this is expressly described in the
Instruction manual for maintenance purposes.
Ensure correct disposal:
Dispose of defective rechargeable batteries and spent
batteries at the collection points provided.
Send the unit directly to us at the end of its life cycle. We will
ensure that is it disposed of in an environmentally friendly
manner.
Operation
Care and Maintenance
Changing the battery
1
Open battery compartment.
2
Remove empty batteries and
replace with new ones.
Pay aattention tto ++/-
3
Close battery compartment.
Clean instrument
If the instrument housing is soiled, clean with a damp cloth
(soap lye). Do not use any aggressive cleaning solutions!
Troubleshooting
Fault Possible causes Remedy
lights in display. Batteries are almost spent. Change batteries.
Instrument cannot be Batteries are spent. Change batteries.
switched on.
lights up in display. Instrument defect. Switch off instrument and
contact Testo Customer
Service or your dealer.
Loudspeaker does not Headphones are connected. Disconnect headphones.
work.
Spare parts
Name Part no.
Carrying loop 0516.3181
Carrying case with belt clip 0516.0317
Headphones 0554.0946
Switching on
Sensor self-test
Setting alarm limit
Hold reading, display maximum value
Measuring
SSeeggmmeenntt tteessttIInnssttrruummeenntt oonn MMeeaassuurreemmeenntt vviieeww
5s
IInnssttrruummeenntt ooffffMMeeaassuurreemmeenntt vviieeww
SSyysstteemm tteessttIInnssttrruummeenntt ooffff SSeeggmmeenntt tteesstt
Keep
pressed
for 3s
MMeeaassuurreemmeenntt vviieeww
5s
SSeeggmmeenntt tteessttIInnssttrruummeenntt ooffff SSeettttiinngg aallaarrmm lliimmiitt
MMeeaassuurreemmeenntt vviieeww
AAuuddiibbllee CCOO ddiissppllaayy ooffff
MMeeaassuurreemmeenntt vviieeww
HHoolldd rreeaaddiinngg MMaaxx.. rreeaaddiinngg
AAllaarrmm vvaalluuee eexxcceeeeddeedd
+
MMeeaassuurreemmeenntt vviieeww
SSeeggmmeenntt tteesstt MMeeaassuurreemmeenntt vviieeww
150s
5s
Max. reading
since last
switched on.
Switching off
Switching audible CO display on/off
during
segment
test:
Carry out sensor selftest once a week. If
carried out too often,
this could reduce the
lifetime of the CO
sensor.
SSeennssoorr ookk
or
SSeennssoorr
ddeeffeeccttiivvee
5s
Switch off instrument and
contact Testo Customer
Service or your local dealer.
or
aauuddiibbllee CCOO ddiissppllaayy oonn
Switch
on/off
Return
to
measurement
view
Notes on carbon monoxide
Carbon monoxide is a highly toxic gas for humans even in very
low concentrations.
It is invisible, tasteless and odourless.
The following table gives you a summary of the effects which
specific CO concentrations in the air have on humans.
Concentration in the air Inhalation time and effects*
30ppm 0.003Vol.% Max. workplace concentration during an 8 hour working day
(limit value for Germany)
200ppm 0.02Vol.% Light headache within 2-3h
400ppm 0.04Vol.% Ache in forehead area within 1-2h, spreading to whole head
area
800ppm 0.08Vol.% Dizziness, nausea and limb twitching within 45min,
unconscious withing 2h
1600ppm 0.16Vol.% Headache, dizziness, nausea within 45min,
dead within 2h
3200ppm 0.32Vol.% Headache, dizziness, nausea within 5-10min,
dead within 30min
6400ppm 0.64Vol.% Headache, dizziness, nausea within 1-2min,
dead within 10-15min
12800ppm 1.28Vol.% Dead within 1-3min
* The above concentrations are approximate values. Humans react differently to CO concentrations depending on
height, age, sex and state of physical health.
testo AG does not accept any responsibility for the accuracy of the above data.
Instruction manual
Intended use
The testo 317-3 CO monitor determines the existence of carbon
monoxide (CO) in the environment and warns the user visibly and
audibly about dangerous gas concentrations,
e.g. during installation and maintenance work on gas heaters.
Do not use testo 317-3 as a monitoring instrument for personal
safety.
Technical data
Feature Values
Measurement range ±0 to +1999ppm
Resolution 1ppm
Accuracy ±10ppm at ±0...+99ppm
±10% at +100...+499ppm
±20% at >500ppm
Response time t
90
40s
Power supply 2 batteries, type Micro AAA 1.5V
Battery life 150h (audible CO display switched off),
once appears: approx. 1h
Transport/ storage temp. -20 to +50°C
Ambient temperature -5 to +45°C
CE guideline 89/336/EEC
Warranty 2 years for instrument
3 years for CO sensor
Included
testo 317-3, carrier case with belt clip, headphones, hand loop,
Instruction manual.
10s
+
Zeroing sensor
MMeeaassuurreemmeenntt vviieeww
MMeeaassuurreemmeenntt vviieeww
Sensor is zeroed.
Zero point is stored until instrument
is switched off.
