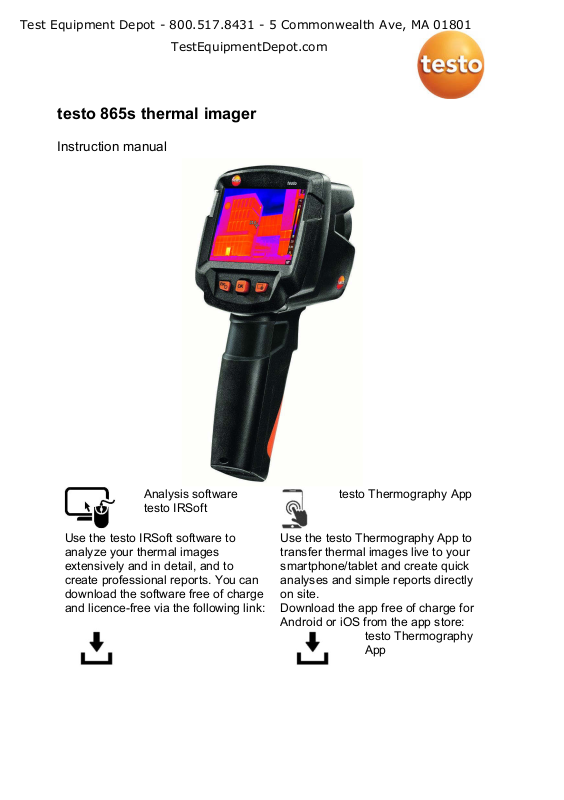

Page 1
Analysis software
testo Thermography App
Use the testo IRSoft software to
Use the testo Thermography App to
Android or iOS from the app store:
testo Thermography
Test Equipment Depot - 800.517.8431
TestEquipmentD
testo 865s thermal imager
Instruction manual
- 5 Commonwealth Ave, MA 01801
epot.com
testo IRSoft
analyze your thermal images
extensively and in detail, and to
create professional reports. You can
download the software free of charge
and licence-free via the following link:
transfer thermal images live to your
smartphone/tablet and create quick
analyses and simple reports directly
on site.
Download the app free of charge for
App
Page 2
Page 3
Contents
Contents
1 Safety and disposal .............................................................................. 3
1.1 About this document ............................................................................... 3
1.2 Security .................................................................................................. 3
1.3 Disposal ................................................................................................. 4
2 Technical data ...................................................................................... 5
2.1 General technical data ........................................................................... 5
3 Description of the instrument ............................................................. 8
3.1 Use ......................................................................................................... 8
3.1 Instrument / operating elements overview .............................................. 9
3.1 Displays overview ................................................................................. 10
3.2 Power supply ........................................................................................ 11
4 Operation ............................................................................................ 12
4.1 Commissioning ..................................................................................... 12
4.2 Switching instrument on and off ........................................................... 12
4.3 Getting to know the menu .................................................................... 13
4.4 Quick select button ............................................................................... 14
5 Performing the measurement............................................................ 16
5.1 Setting measuring functions ................................................................. 16
5.1.1 Activating/disabling Pixel mark ............................................................. 17
5.1.2 Activating the differential temperature .................................................. 17
5.2 Saving an image................................................................................... 18
5.3 Image gallery ........................................................................................ 19
5.4 Setting the scale ................................................................................... 21
5.5 Setting emissivity and reflected temperature ........................................ 23
5.5.1 Selecting the emissivity ........................................................................ 25
5.5.2 Customizing the emissivity ................................................................... 25
5.5.3 Setting RTC .......................................................................................... 25
5.6 Selecting the colour palette .................................................................. 25
5.7 Configuration ........................................................................................ 25
5.7.1 Settings ................................................................................................ 25
5.7.2 SuperResolution ................................................................................... 26
5.7.3 Save JPEG ........................................................................................... 27
5.7.4 Configure key ....................................................................................... 27
5.7.5 Ambient conditions ............................................................................... 27
Page 4
Contents
5.7.6 Info ....................................................................................................... 28
5.7.7 Certificates ........................................................................................... 28
5.7.8 Fullscreen mode .................................................................................. 28
5.7.9 Reset options ....................................................................................... 28
6 Maintenance ....................................................................................... 30
6.1 Charging the rechargeable battery ...................................................... 30
6.2 Changing the rechargeable battery ...................................................... 30
6.3 Cleaning the instrument ....................................................................... 32
6.4 Firmware update .................................................................................. 32
6.4.1 Performing an update using IRSoft ...................................................... 33
6.4.1.1 Preparing the camera .......................................................................... 33
6.4.1.2 Performing an update .......................................................................... 33
6.4.2 Performing an update with the camera ................................................ 34
6.4.2.1 Preparing the camera .......................................................................... 34
6.4.2.2 Performing an update .......................................................................... 34
7 Tips and assistance ........................................................................... 35
7.1 Questions and answers ....................................................................... 35
7.2 Accessories and spare parts................................................................ 35
8 Authorisations and certification ....................................................... 36
Page 5
1 Safety and disposal
1 Safety and disposal
1.1 About this document
• The instruction manual is an integral part of the instrument.
• Keep this documentation to hand so that you can refer to it when necessary.
• Always use the complete original instruction manual.
• Please read this instruction manual through carefully and familiarize yourself
with the product before putting it to use.
• Hand this instruction manual on to any subsequent users of the product.
• Pay particular attention to the safety instructions and warning advice in order
to prevent injury and damage to the product.
1.2 Security
General safety instructions
• Only operate the product properly, for its intended purpose, and within the
parameters specified in the technical data.
• Do not apply any force.
• Do not operate the instrument if there are signs of damage on the housing,
mains unit or connected cables.
• Dangers may also arise from objects to be measured or the measuring
environment. Always comply with the locally valid safety regulations when
carrying out measurements.
• Do not store the product together with solvents.
• Do not use any desiccants.
• Only perform maintenance and repair work on this instrument that is
described in this documentation. Follow the prescribed steps exactly when
doing the work.
• Use only original spare parts from Testo.
• Only use the original mains unit from Testo.
• During operation, this instrument must not be pointed at the sun or other
intensive sources of radiation (e.g. objects with temperatures exceeding
650 °C). This can cause serious damage to the detector. The manufacturer
does not provide any warranty for any such damage to the microbolometer
detector.
Batteries
• Improper use of batteries may cause the batteries to be destroyed, or lead to
injury due to current surges, fire or escaping chemicals.
3
Page 6
1 Safety and disposal
WARNING
Indicates possible serious injury.
CAUTION
Indicates possible minor injury.
ATTENTION
Indicates possible damage to equipment.
• Only use the batteries supplied in accordance with the instructions in the
instruction manual.
• Do not short-circuit the batteries.
• Do not take the batteries apart and do not modify them.
• Do not expose the batteries to heavy impacts, water, fire or temperatures in
excess of 60 °C.
• Do not store the batteries in the proximity of metal objects.
• In the event of contact with battery acid: rinse affected areas thoroughly with
water, and if necessary consult a doctor.
• Do not use any leaky or damaged batteries.
• Only charge the rechargeable battery in the instrument or in the
recommended charging station.
• Immediately stop the charging process if this is not completed in the given
time.
• Take the rechargeable battery out of the instrument immediately if it is not
functioning properly or if it shows signs of superheating. Rechargeable
battery may be hot!
• When not in use for a long period of time, take the rechargeable battery out
of the instrument to prevent exhaustive discharge.
Warnings
Always pay attention to any information denoted by the following warnings.
Implement the precautionary measures specified!
Display Explanation
1.3 Disposal
• Dispose of faulty rechargeable batteries and spent batteries in accordance
with the valid legal specifications.
• At the end of its useful life, deliver the product to the separate collection
point for electric and electronic devices (observe local regulations) or return
the product to Testo for disposal.
4
Page 7
2 Technical data
Infrared resolution
160 x 120
Thermal sensitivity (NETD)
< 100 mK
Field of view (FOV) / min.
focusing distance
31° x 23° / <0.5 m
Geometric resolution (IFOV)
3.4 mrad
SuperResolution
320 x 240 pixels / 2.1 mrad
IR image refresh rate
9 Hz
Spectral range
7.5 - 14 µm
Display
8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)
Display options
- Infrared image
Colour palettes
4 options:
- Rainbow HC
Measuring range
--20 to +280°C
Accuracy
--30 to -20 °C: ±3 °C, otherwise ±2 °C, ±2 % of
measured value
Emissivity/reflected
temperature adjustment
0.01 to 1/manual
Analysis functions
- Center spot
- Delta T
IFOV warner
Included in the scope of delivery
testo ScaleAssist
Included in the scope of delivery
2.1 General technical data
Infrared image output
Feature Values
Image presentation
Feature Values
- Grey
- Cold-hot
- Iron
2 Technical data
Measurement
Feature Values
- Hot/cold spot detection
5
Page 8
2 Technical data
Fullscreen mode
Included in the scope of delivery
Save JPEG
Included in the scope of delivery
Video streaming
via USB
Interfaces
USB 2.0 micro B
File format
- .jpg
.xls
Memory capacity
Internal mass storage
> 1000 images (without SuperResolution)
Battery type
Li-Ion rechargeable battery 2600 mAh / 3.63 V
Operating time
4.0 h @ 20 °C
Mains operation
Yes
Charging option
In instrument/in charging station (optional)
Charging time in the
instrument
Approx. 3 h with 2A mains unit supplied
Charging time in charging
station
Approx. 5 h via mains unit
USB interface
5V 1.8 A*
Operating temperature
-15 to +50°C
Storage temperature
-30 to +60°C
Humidity
20 - 80 %RH, not condensing
Housing protection class
IP54* according to IEC 60529
Vibration
2 g
Max. Operating height
2000 m
Imager features
Feature Values
Image storage
Feature Values
- .bmt
- Can export as
.bmp
.jpg
.png
.csv
Power supply
Feature Values
* Direct current
Ambient conditions
Feature Values
6
Page 9
2 Technical data
EMC
2014/30/EU
RED
2014/53/EU
* The product offers IP54 protection, but is not suitable for permanent outdoor
use.
Standards, tests
Feature Values
7
Page 10
3 Description of the instrument
3 Description of the instrument
3.1 Use
The instrument is a handy, robust thermal imager. You can use it to undertake
the non-contact measurement and display of surface temperature distribution.
Areas of application
• Building inspection: Energy efficiency rating of buildings (heating, ventilation,
air-conditioning trade, building engineers, engineering firms, experts)
• Production monitoring / quality assurance: monitoring of production
processes
• Preventive maintenance / servicing: Electrical and mechanical inspection of
systems and machines
8
Page 11
3 Description of the instrument
1
Display
Displays infrared images, menus and functions
2
Interface terminal
Contains micro USB interface for power supply
and connection to the computer
3
- key
- Esc key
- Switch camera on and off
- Cancel action
4
- OK key
- Joystick
- Open menu, select function, confirm setting
select colour palette
5
Quick select button
Opens the function assigned to the quick select
displayed bottom right
6
Infrared camera lens;
protective cap
Takes infrared images; protects the lens
7
Trigger
Saves the displayed image
8
Battery compartment
Contains the rechargeable battery
3.1 Instrument / operating elements
overview
Element Function
- Navigate within the menu, highlight function,
button; the icon for the selected function is
9
Page 12
3 Description of the instrument
1
Status bar
In the status bar, values are displayed depending
on the setting.
2
Battery capacity / charge status:
: Mains operation, battery is charging
3
Image display
IR image display.
4
°C or °F
Unit set for reading and scale displays
5
Scale
- Temperature unit
manual scale adjustment)
6
E ...
Emissivity set
7
A, M or S
A - automatic scale adjustment
S - ScaleAssist is enabled
3.2 Displays overview
Element Function
: Battery operation, capacity 75-100%
: Battery operation, capacity 50-75%
: Battery operation, capacity 25-50%
: Battery operation, capacity 10-25%
: Battery operation, capacity 0-10%
- temperature margin of the image displayed,
showing the minimum/maximum reading (with
automatic scale adjustment) or the selected
10
minimum/maximum display value (with
M - manual scale adjustment
Page 13
3 Description of the instrument
3.3 Power supply
The power is supplied to the instrument via a replaceable rechargeable battery
or the mains unit provided (battery must be inserted).
With an attached mains unit, power is supplied automatically via the mains unit
and the rechargeable battery is charged (only at ambient temperatures from 0 to
40°C). Operation is possible with the mains unit connected.
It is also possible to charge the battery using a charging station (accessory).
The instrument is equipped with a buffer battery to maintain the system data
during an interruption in the power supply (e.g. when the battery is changed).
11
Page 14
4 Operation
1
- Remove protective cap from the lens.
2
- Press .
To ensure measuring accuracy, the camera performs automatic zeroing
4 Operation
4.1 Commissioning
Please refer to the commissioning instructions supplied for testo 865s, 868s,
871s, 872s (0973 8723).
4.2 Switching instrument on and off
Switching on the camera
The camera starts.
The start screen appears on the
display.
approx. every 60 s. A “click” is heard when this happens. The image
freezes briefly when this occurs. Zeroing is carried out more frequently
during the camera warm-up period (takes approx. 90 seconds).
During the warm-up period no measuring accuracy is guaranteed. The
image can already be used for indication purposes and saved.
12
Page 15
Switching off the camera
1
1
- Press OK to open the Menu.
2
- Move the joystick to highlight a
3
- Press OK to select the function.
- Press and hold down until the
progress bar is complete.
The display goes off.
The camera is switched off.
4.3 Getting to know the menu
4 Operation
function (orange border).
13
Page 16
4 Operation
3.1
- Return to the main menu: Select Menu and move the joystick to the
Image gallery
Opens an overview of saved images.
infrared
Set scale limits.
infrared
Set emissivity (E) and reflected temperature
Palette
Toggles the palette selection.
infrared
Carries out manual zeroing.
1
- Move the joystick to the right.
2
- Move the joystick up/down until the
left or press Esc.
4.4 Quick select button
The quick select button is another navigation option that you can use to call up
certain functions simply at the touch of a button.
Quick select menu items
Menu item Function
Scale
This function is only available if
the Image type is set to
Emissivity
(RTC).
This function is only available if
the Image type is set to
Adjustment
This function is only available if
the Image type is set to
Changing assignment of quick select button
The Configure key selection menu
appears.
The activated function is marked with
a dot ( ).
orange box appears around the
required menu item.
- Press OK.
14
Page 17
The quick select button is assigned
1
- Press .
to the selected menu item.
The icon for the selected function is
displayed bottom right.
Using the quick select button
The function assigned to the quick
select button is carried out.
4 Operation
15
Page 18
5 Performing the measurement
CAUTION
1
- Open the Measurement settings submenu.
5 Performing the measurement
High thermal radiation (e.g. due to sun, fire, furnaces)
Detector may be damaged!
- Do not point the camera at objects with temperatures > 650 °C.
Ideal framework conditions
• Building thermography, investigating the building shell:
Considerable temperature difference between inside and outside required
(ideal: ≥ 15 °C / ≥ 27 °F).
• Consistent weather conditions, no intensive sunlight, no precipitation, no
strong wind.
• To ensure maximum accuracy, the camera requires an adjustment time of
10 minutes after it is switched on.
Important camera settings
• Emissivity and reflected temperature must be set correctly in order to
precisely determine the temperature. Subsequent adjustment is possible via
the PC software, if required.
• When auto-scaling is activated, the colour scale is continuously adjusted to
the min./max. values of the current measurement image. This means that
the colour assigned to a specific temperature is changing constantly! To be
able to compare multiple images based on the assigned colour, scaling must
be set manually to fixed values, or must be subsequently adjusted to uniform
values using the PC software.
5.1 Setting measuring functions
The submenu with the measurement settings opens:
• Pixel mark:
o Center spot: the temperature measuring point in the
centre of the image is marked with white crosshairs and
the value is displayed.
o Coldspot, Hotspot: the lowest or highest temperature
measuring point is marked with blue or red crosshairs and
the value is displayed.
o Show all: All measuring points are displayed.
• Differential temperature: identifies the difference between two
temperatures.
• IFOV: the IFOV warner shows what can be measured
accurately from a specific distance.
16
Page 19
5 Performing the measurement
2
- Move the joystick up/down to select the required function and
1
- Open Menu.
2
- Select Measurement settings.
3
- Select Pixel mark.
4
- Select Center spot and press OK to enable (✔) or disable the
1
- Open Menu.
2
- Select Measurement settings.
3
- Select Differential temperature and press OK.
4
- Select Active and press OK.
5
- Select which differential temperature is to be calculated (P A vs. P B,
5.1
- P A vs. P B selection:
the joystick → press OK.
then press OK.
5.1.1 Activating/disabling Pixel mark
The Measurement settings menu opens.
function.
- Select Hotspot / Coldspot and press OK to enable (✔) or disable the
function.
- Select Show all and press OK to activate all ranges.
5.1.2 Activating the differential temperature
Differential temperature enables the temperatures between two measuring
points to be calculated.
The Measurement settings menu opens.
P A vs. Probe, P A vs. Value, P A vs. RTC).
o Move the joystick to the right → select measuring point 1 →
press OK → move the measuring point to the live image using
the joystick → press OK.
o Move the joystick to the right → select measuring point 2 →
press OK → move the measuring point to the live image using
17
Page 20
5 Performing the measurement
5.2
- P A vs. Probe selection:
the joystick → press OK.
5.3
- P A vs. Value selection:
o Move the joystick to the right, set the value manually.
5.4
- P A vs. RTC selection:
Emissivity menu, see the section "Setting RTC".
6
- End measurement: Select Active and press OK (no check mark).
1
- Press Trigger.
o Move the joystick to the right → select measuring point 1 →
press OK → move the measuring point to the live image using
o Move the joystick to the right → select measuring point 1 →
press OK → move the measuring point to the live image using
the joystick → press OK.
o Move the joystick to the right → select measuring point 1 →
press OK → move the measuring point to the live image using
the joystick → press OK.
o Move the joystick to the right, set the RTC value in the
5.2 Saving an image
The differential temperature is shown in the top centre of the display.
The image is automatically saved.
An infrared image is saved.
If a higher resolution is required: in the menu, select Configuration →
SuperResolution for four times as many readings.
18
Page 21
5 Performing the measurement
1 - Infrared image preview
2
IR
SR
Infrared image
Images captured with SuperResolution
When SuperResolution is enabled, 2 images are saved in the image
1
- Select Image gallery function.
5.3 Image gallery
Saved images can be displayed, analysed or deleted.
File names
Designation Explanation
000000
Consecutive number
File names can be changed via the PC, e.g. in Windows Explorer.
Displaying a saved image
Saved images can be viewed and analyzed in the image gallery.
gallery (an IR image, and an SR image). The high-resolution
SuperResolution image is saved in the background. In the status bar,
the number of SuperResolution images to be saved is displayed (for
example: SR(1) ). A maximum 5 SuperResolution images can be
processed simultaneously.
19
Page 22
5 Performing the measurement
2
- Move joystick to select an image.
3
- Press OK to open the selected image.
All saved images are displayed in the
form of an infrared image preview.
Analyzing an image
If an image is saved with SuperResolution, the image gallery contains
The image is displayed.
an (IR) image and a high-resolution image (SR). The images show the
same image section. They can be displayed and analyzed in the image
gallery.
The measurement functions Center spot, Hotspot, Coldspot and Differential
temperature can be used to analyze saved images. In saved images the
crosshairs, which mark the measuring point, can be moved using the joystick.
For a description of the individual functions, please read the information in the
relevant sections.
20
Page 23
Delete image
1
- Select Image gallery function.
2
- Move joystick to select an image.
3
- Press .
4
- Press OK to delete the image.
4.1
- Press Esc to cancel the process.
Auto-scaling continuously adjusts the scale to the readings presented,
In manual scaling fixed limit values are defined, and the colour
All saved images are displayed in the
form of an infrared image preview.
Delete image? is displayed.
5 Performing the measurement
5.4 Setting the scale
Manual scaling can be activated instead of automatic scaling (continuous
automatic adjustment to the current min./max. values). The scale limits can be
set within the measurement range.
The activated mode is displayed bottom right: A automatic scaling, M manual
and the colour assigned to a temperature value changes.
scaling and S OptiScale (ScaleAssist).
21
Page 24
5 Performing the measurement
assigned to a temperature value is fixed (important for visual image
and outside temperature.
1
- Select the Scale function.
2
- Move the joystick up/down until Auto is selected.
3
- Select ✔ and press OK.
1
- Select the Scale function.
2
- Press OK.
3
- In the mode menu, move the joystick up/down until Manual is
4
- Move the joystick to the right, select Min. Temp. (lower limit value).
5
- Move the joystick to the right, select Max. Temp. (upper limit value).
5.1
- If necessary, Select X and press OK to go back to the mode menu.
6
- Select ✔ and press OK.
comparisons).
Scaling influences the way the infrared image is shown on the display
but does not affect the recorded measuring values.
With ScaleAssist, a standardized scale is set depending on the inside
Setting automatic scaling
Setting manual scaling
The lower limit value, the temperature range (upper and lower limit value
simultaneously) and the upper limit value can be set.
Automatic scaling is activated. A is displayed bottom right.
selected.
- Move the joystick up/down to set the values.
- Move the joystick up/down to set the value.
Manual scaling is activated. M is displayed bottom right.
Setting ScaleAssist
The ScaleAssist function calculates a display-neutral scale depending on the
inside and outside temperature. This scale graduation can be used to detect
structural defects in buildings.
22
Page 25
5 Performing the measurement
1
- Select the Scale function.
2
- Press OK.
3
- In the mode menu, move the joystick up/down until ScaleAssist is
4
- Move the joystick to the right, select Temp. In (indoor temperature).
5
- Move the joystick to the right, select Temp. Out (outdoor
5
- If necessary, Select X, press OK to go back to the mode menu.
7
- Activate ScaleAssist: Select ✔ and press OK.
g list
selected.
- Move the joystick up/down to set the value.
temperature).
- Move the joystick up/down to set the value.
Manual scaling is activated. S is displayed at bottom right.
5.5 Setting emissivity and reflected
temperature
You can choose between user-defined emissivity and 8 materials with
permanently set emissivity. The reflected temperature (RTC) can be set
individually.
Other materials can be imported into the instrument from an existin
using the PC software.
Emissivity information:
The emissivity describes the capability of a body to emit electromagnetic
radiation. This is material-specific and must be adapted for correct
measurement results.
Non-metals (paper, ceramic, gypsum, wood, paints and coatings), plastics and
food have high emissivity, which means that the surface temperature can be
easily measured using infrared.
Because of their low or non-uniform emissivity, bright metals and metal oxides
only have limited suitability for infrared measurement. Highly inaccurate
measurements should be expected. A remedy for this is coatings that increase
emissivity, e.g. paint or emission adhesive (accessory: 0554 0051), which must
be applied to the object to be measured.
23
Page 26
5 Performing the measurement
Aluminium, bright rolled (170 °C)
0.04
Cotton (20 °C)
0.77
Concrete (25 °C)
0.93
Ice, smooth (0 °C)
0.97
Iron, emery-ground (20 °C)
0.24
Iron with casting skin (100 °C)
0.80
Iron with rolling skin (20 °C)
0.77
Gypsum (20 °C)
0.90
Glass (90 °C)
0.94
Rubber, hard (23 °C)
0.94
Rubber, soft grey (23 °C)
0.89
Wood (70 °C)
0.94
Cork (20 °C)
0.70
Radiator, black anodised (50 °C)
0.98
Copper, slightly tarnished (20 °C)
0.04
Copper, oxidised (130 °C)
0.76
Plastics: PE, PP, PVC (20 °C)
0.94
Brass, oxidised (200 °C)
0.61
Paper (20 °C)
0.97
Porcelain (20 °C)
0.92
Black paint, matt (80 °C)
0.97
Steel, heat-treated surface (200 °C)
0.52
Steel, oxidised (200 °C)
0.79
Clay, burnt (70 °C)
0.91
Transformer paint (70 °C)
0.94
Brick, mortar, plaster (20 °C)
0.93
The following table gives typical emissivities of important materials. These
values can be used as a guide for user-defined settings.
Material (material temperature) Emissivity
Reflected temperature information:
Using this offset factor, the reflection is calculated out based on the low
emissivity, and the accuracy of the temperature measurement with infrared
measuring instruments is improved. In most cases, the reflected temperature is
identical to the ambient air temperature. Only when objects with strong
emissions at much lower temperatures (such as cloudless skies during outdoor
readings) or much higher temperatures (such as ovens or machines) are in
proximity to the object being measured should the radiation temperature of
these sources be determined and used. The reflected temperature has little
effect on objects with high emissivity.
@ Further information can be found in the Pocket Guide.
24
Page 27
5 Performing the measurement
1
- Select the Emissivity function.
2
- Move the joystick up/down to select the required substance or
3
1
- Select the Emissivity function.
2
- Move the joystick up/down until User defined is selected.
3
1
- Select the Emissivity function.
2
- Move the joystick to the right until RTC is selected.
3
- Select ✔ and press OK.
1
- Select the Palette function.
2
- Move the joystick up/down to select the required colour palette and
5.5.1 Selecting the emissivity
material (with fixed emissivity).
- Select ✔ and press OK.
5.5.2 Customizing the emissivity
- Move the joystick to the right until E is selected.
- Manually set value.
- Select ✔ and press OK.
5.5.3 Setting RTC
- Manually set value.
5.6 Selecting the colour palette
This function is only available if the Image type is set to infrared image.
then press OK.
5.7 Configuration
5.7.1 Settings
Country settings
The user interface language can be set.
25
Page 28
5 Performing the measurement
1
- Select Configuration → Settings → Country settings.
2
- Move the joystick up/down to select the required language and
1
- Select Configuration → Settings → Set time/date.
2
- Move the joystick to the right/left to select the required setting option.
3
- Move the joystick up/down to set the value.
4
- After setting all values, select ✔ and press OK.
1
- Select Configuration → Settings → Temperature unit.
2
- Move the joystick up/down to select the required unit and then
1
- Select Configuration → Settings → Power-save options.
2
- Move the joystick up/down to select the required intensity level
then press OK.
Set time/date
Time and date can be set. The time and date format are set automatically based
on the selected user interface language.
Temperature unit
The temperature unit can be set.
press OK.
Power-save options
The illumination intensity of the display can be set. A lower intensity increases
the battery life.
The time until automatic switch-off can be set.
and then press OK.
5.7.2 SuperResolution
SuperResolution is a technology to improve image quality. For each shot a
sequence of images is saved in the thermal imager. Using the camera, App, or
PC software, an image is recorded with four times more measurement values
(no interpolation). The geometric resolution (IFOV) is improved by a factor of
1.6.
To use the function, the following conditions must be fulfilled:
• The camera is hand-held.
26
Page 29
5 Performing the measurement
1
- Select Menu → Configuration → SuperResolution.
2
- Press OK to enable or disable the function.
1
- Select Menu → Configuration → Save JPEG.
2
- Press OK.
3
- Move the joystick up/down until On/Off is selected.
4
- Add a date/time stamp to a JPEG file if required. Turn function on or
5
1
Select Menu → Configuration → Configure key.
2
See the section “Quick select button”.
1
- Select Menu → Configuration → Ambient conditions.
• The objects to be imaged do not move.
5.7.3 Save JPEG
Infrared images are saved in BMT (image with all temperature data) format. The
image can also be saved in JPEG format (without temperature data) at the
same time. The image content corresponds to the infrared image shown on the
display, including scale display and image marks for the selected measuring
functions. The JPEG file is saved under the same file name as the associated
BMT file and can be opened on the PC, even without using the IRSoft PC
software.
off for this.
- Select ✔ and press OK.
5.7.4 Configure key
5.7.5 Ambient conditions
Measurement deviations arising due to high humidity or large distances to the
object to be measured can be corrected. Correction parameters must be
entered for this.
If the camera is connected to an optional humidity radio probe, the ambient
temperature and humidity are transferred automatically.
Values for ambient temperature (Temperature) and ambient humidity (Humidity)
can be set manually.
27
Page 30
5 Performing the measurement
2
- Move the joystick up/down to set the temperature value.
3
- Move the joystick to the right.
4
- Move the joystick up/down to set the humidity value.
5
Select ✔
1
- Select Menu → Configuration → Info.
The following instrument information is displayed:
1
Select Menu → Configuration → Certificates.
- Displays the radio certificates for the instrument.
1
- Select Menu → Configuration → Fullscreen mode.
-
and press OK.
5.7.6 Info
• Device data (e.g. serial number, device name, firmware version)
• Options
• Measurement settings
• Connectivity
5.7.7 Certificates
5.7.8 Fullscreen mode
The scale and the quick select button function indicator can be hidden.
When Fullscreen Mode is activated, the scale and icon for the quick
select button are hidden. When a key is pressed, these elements are
displayed briefly.
5.7.9 Reset options
Reset image counter
After a reset, the consecutive numbering of images starts again from
the beginning. When saving images, already saved images with the
28
same number are overwritten!
Page 31
5 Performing the measurement
Back up all saved images before resetting the counter to prevent
1
- Select Menu → Configuration → Reset options.
2
- Select the Reset image counter function.
3
- Select ✔ and press OK to reset the image counter.
3.1
- Press Esc or select X and press OK to cancel the process.
1
- Menu → Configuration → Reset options.
2
- Select the Factory settings function.
3
3.1
- Press Esc or select X and press OK to cancel the process.
1
- Menu → Configuration → Reset options.
2
- Select the Format function.
3
- Select ✔ and press OK to format the memory.
3.1
- Press Esc or select X and press OK to cancel the process.
Reset image counter? is displayed.
possible overwriting.
Factory settings
The instrument settings can be reset to the factory settings.
Time/date, country settings and image counter are not reset.
Apply factory settings? is displayed.
- Select ✔ and press OK to reset to factory settings.
Formatting
The image memory can be formatted.
When formatting, all data saved in the memory is lost.
Back up all saved images before formatting to prevent loss of data.
Formatting does not reset the image counter.
Format memory? is displayed.
29
Page 32
6 Maintenance
1
- Open the cover of the interface
2
- Connect the recharger cable to the Micro-USB interface.
3
- Connect the mains unit to a mains socket.
Serious risk of injury to the user and/or destruction of the instrument
> There is a risk of explosion if the battery is replaced with one that is the wrong
type.
>
specifications.
6 Maintenance
6.1 Charging the rechargeable battery
terminal.
The charging process starts.
If the battery has been completely drained, the charging time is
6.2 Changing the rechargeable battery
approx. 5 hours.
Whether the battery is full or charging is indicated.
WARNING
Dispose of spent/faulty batteries in accordance with the relevant legal
30
Page 33
6 Maintenance
1
- Switch the instrument off.
2
- Open battery compartment.
3
- Release the battery and remove.
31
Page 34
6 Maintenance
4
- Insert new battery and slide upwards
5
- Close the battery compartment.
- The interface terminal is closed.
1
- Rub down the surface of the instrument with a damp cloth. Use mild
1
- If the lens is dirty, clean it with a cotton bud.
2
- If the display is dirty, clean it with a cleaning cloth (e.g. microfibre
until it clicks into place.
6.3 Cleaning the instrument
Cleaning the instrument housing
- The battery compartment is closed.
household cleaning agents or soapy water for this.
Cleaning the lens and display
cloth).
6.4 Firmware update
The current firmware version
32
Page 35
6 Maintenance
1
- Download firmware: Firmware-testo-865-872.exe
2
- Unzip file: double-click on the exe. file
- The rechargeable battery is fully charged or the camera is connected
1
- Connect the computer to the camera with the USB cable.
2
- Switch on the camera.
IRSoft is activated.
1
- Select Camera → Configuration.
2
- Click on Configure thermal imager.
3
- Select Instrument settings → Firmware Update → OK.
4
- Select Open.
In certain circumstances, the camera reports: Firmware update
Action:
There are two options available:
• Performing an update using IRSoft or
• Performing an update with the thermal imager
Downloading firmware
FW_T87x_Vx.xx.bin is stored in the selected folder.
6.4.1 Performing an update using IRSoft
6.4.1.1 Preparing the camera
to the mains adapter.
6.4.1.2 Performing an update
The Camera settings window opens.
FW_T87x_Vx.xx.bin is displayed.
Firmware update is performed.
Thermal imager is automatically restarted. Update complete.
finished. Please restart the device. A restart is not performed.
33
Page 36
6 Maintenance
- After 10 seconds, switch off the camera; switch back on again after 3
The current firmware version is displayed.
- The rechargeable battery is fully charged or the camera is connected
1
- Switch on the camera.
2
- Open the cover of the interface.
3
- Connect the computer to the camera with the USB cable.
in Window
1
- Copy the FW_T87x_Vx.xx.bin- file to the camera directory using drag
2
- Wait until the firmware has been copied.
3
- Observe the progress bar.
seconds.
6.4.2 Performing an update with the camera
6.4.2.1 Preparing the camera
to the mains adapter.
The camera is displayed as MTP Device - testo_8xx
Explorer.
6.4.2.2 Performing an update
& drop.
Firmware update is performed.
Thermal imager is automatically restarted. Update complete.
34
Page 37
7 Tips and assistance
Error! Memory full! is
displayed.
Insufficient memory available: Transfer images
to the PC or delete.
Error! Permissible
exceeded! is displayed.
Switch off the camera, allow the instrument to
ambient temperature.
~ is displayed before a value.
Value is outside the measuring range:
accuracy.
--- or +++ is displayed
instead of a value.
Value is outside the measuring range and the
extended display range.
xxx is displayed instead of a
value.
Value cannot be calculated: check parameter
settings for plausibility.
Automatic zeroing (audible
"click" and brief image freeze)
is carried out very frequently.
Camera is still in its warm-up period (takes
period has passed.
Battery charging station 5 V, 2 A
0554 1103
Spare rechargeable battery
0554 8721
Additional markers for ε-Assist function (10 off)
0554 0872
Emission tape
0554 0051
ISO calibration certificate: calibration points at 0°C,
25°C, 50°C
0520 0489
ISO calibration certificate: calibration points at 0°C,
100°C, 200°C
0520 0490
ISO calibration certificate: Freely selectable calibration
points in the range -18 °C to 250 °C
0520 0495
7.1 Questions and answers
Question Possible cause / solution
7 Tips and assistance
instrument temperature
cool down and observe the permissible
extended display range with no guarantee of
approx. 90 seconds): Wait until the warm-up
7.2 Accessories and spare parts
Description Order no.
35
Page 38
8 Authorisations and certification
8 Authorisations and certification
Please refer to the commissioning instructions supplied for testo 865s, 868s,
871s, 872s (0973 8723).
36
Page 39
Page 40
0970 8655 en 01 – 04.2022
Loading...
