testo 760 · Digital multimeter

Instruction manual

Page 2

1 Contents

1 Contents ........................................................................ 2

2 Observe prior to use! ................................................... 4

3 Safety instructions ....................................................... 4

4 Intended use ................................................................. 5

5 Overview ....................................................................... 6

5.1. Display and control elements ........................... 6

5.2. LC display ........................................................ 7

5.3. Control key functions ........................................ 8

5.4. Further functions .............................................. 9

5.5. Explanation of icons ......................................... 9

6 Operating the instrument .......................................... 10

6.1. Switching the instrument on ........................... 10

6.2. Switching the background illumination on/off . 10

6.3. Switching the instrument off

(automatically/manually) ....................................... 11

7 Carrying out a measurement ..................................... 11

7.1. Preparing for measurement ........................... 11

7.2. Voltage measurement .................................... 12

7.3. Current measurement .................................... 12

7.3.1. testo 760-1 .............................................................. 12

7.3.2. testo 760-2/-3 .......................................................... 13

7.3.2.1. 10 A jack ................................................. 13

7.3.2.2. µA/mA jack ............................................. 14

7.3.3. Clamp meter adapter option (0590 0003)

(testo 760-2/-3) .................................................... 14

7.4. Measuring resistance, capacitance,

continuity and diode test ....................................... 15

7.4.1. testo 760-1 .............................................................. 15

7.4.2. testo 760-2/-3 .......................................................... 15

7.5. Frequency measurement (testo 760-1) .......... 16

7.6. Frequency measurement/duty cycle

(testo 760-2/-3) ..................................................... 16

7.7. Temperature measurement (optional)

(testo 760-2/-3) ..................................................... 16

Page 3

1 Contents

8 Service and maintenance .......................................... 17

8.1. View of the back of the instrument ................. 17

8.2. Replacing the batteries .................................. 17

8.3. Changing the fuses ........................................ 17

8.4. Maintenance .................................................. 18

8.5. Calibration ..................................................... 18

8.6. Storage .......................................................... 18

8.7. Cleaning ........................................................ 18

9 Technical data ............................................................ 19

9.1. General technical data ................................... 19

9.2. More technical data ....................................... 20

9.2.1. testo 760-1 overload protection (10 A fuse)........... 20

9.2.2. testo 760-2/-3 Overload protecti o n (10 A fus e) ..... 21

10 Tips and assistance ................................................. 23

10.1. Questions and answers ............................... 23

10.2. Accessories and spare parts ....................... 24

11 Protecting the environment .................................... 24

Page 4

3 Safety instructions

2 Observe prior to use!

• The instruction manual contains information and instructions which are necessary for operating and using the instrument safely. Before using the instrument, read the instruction manual carefully and comply with all aspects of it. Keep this document to hand so that you can refer to it when necessary. Forward this documentation to an y subsequent users of the instrument.

• If the manual is not followed, or if you fail to observe the warnings and instructions, there is a risk of fatal injury to the user and damage to the instrument.

3 Safety instructions

• The instrument may only be used by trained personnel. During all operations, please observe the Employers' Liability Insurance Association provisi ons f or healt h and safety at work.

• In order to prevent electric shock, take safety precautions when working with voltages greater than 120 V (60 V) DC or 50 V (25 V) rms. AC. These values are the limit for contact voltages in accordance with DIN VDE (values in brackets apply to restricted areas, for example agricultural sectors).

• The measuring instrument may only be used in 16 A fused electrical circuits up to a nominal voltage of 600 V (testo 760-1 and -2) / 1000 V (testo 760-3). The nominal cross-section of the connection cable must be taken into account in order to ensure safe connection (e.g. via crocodile clips).

• Measurements that are dangerously close to electrical installations must only be carried out under the direction of a qualified electrician, not by oneself.

• The instrument may only be touched at the designated grip areas, the display elements must not be covered.

• If the safety of the operator and his surroundings can no longer be guaranteed, the instrument must be taken out of service and prevented from being used inadvertently. This is the case if the instrument:

• Is obviously damaged. e.g.

- Housing breakag es

- Defective test leads

- Leaking batteries

• Does not carry out the required measurements

• Has been stored too long in unfavourable conditions

• Has been exposed to mechanical stresses during transit.

• Prevent the instrument from being heated due to exposure to direct

sunlight. This is the only way to guarantee the instrument will function perfectly and have a long service life.

• If the instrument needs to be opened, e.g. to change a fuse, this may only be carried out by a qualified specialist. Prior to opening, the instrument is to be switched off and disconnected from all electrical circuits.

• Maintenance work that is not described in this documentation must only be carried out by trained service technicians.

• If the instrument is modified in any way, operational safety can no longer be guaranteed.

• Only use test leads and terminals listed in the Accessories and spare parts section in this documentation.

Page 5

4 Intended use

• Modifications or alterations to the instrument will result in the complete invalidation of any warranty or guara nt e e claim s against the manufacturer.

• It is not permitted to use the instrument in an explosive environment.

• Before and after use, always check that the instrument is in peak

working order. Test the ins trum e nt at a known voltage source.

• The instrument must not be used while its battery compartment is open.

• Batteries must be checked before use and changed if necessary.

• Storage areas must be dry.

• If there is any battery leakage, the instrument must no longer be used

until it has been checked by our Customer Service.

• The battery acid (electrolyte) is highly alkaline and electrically conductive. Risk of acid burn! If the battery acid comes into contact with your skin or clothing, thoroughly rinse the areas affected immediately with plenty of water. If battery acid gets into yo u r e yes, rinse them immediately with plenty of water and seek medical advice.

4 Intended use

The instrument may only be used under the conditions and for the purpose for which it was designed:

• testo 760-1 conforms to measurement category CAT III with a rated voltage of 600 V to earth. Measurement category CAT III is for use in electrical circuits in building installation, e.g. distributors, circuit breakers, cabling, sockets, switches, instruments for industrial use, permanently installed motors.

• testo 760-2 and testo 760-3 conform to measurement category CAT IV with a rated voltage of 600 V to earth. The CAT IV measurement category is used at the source of low voltage installations, e.g. building connection, main fuse, and meter.

The instrument may only be used in the fields of application defined in the instruction manual. Any application deviating from this is considered to be improper and unchecked use and may result in accidents or instrument damage. Any improper use will completely void any right to claims under Testo’s guarantee an d warr ant y. The manufacturer is not responsible for damage to property or personal injury caused by the following:

• Failure to observe the instruction manual

• Instrument modifications not approved by the manufacturer

• The use of spare parts not approved by the manufacturer

• Use under the influence of alcohol, drugs or medication

The instrument must not be used for the following purposes:

• In potentially explosive atmospheres: the instrument is not explosionproof!

• When there is rain or other precipitation: risk of electric shock!

Test Equipment Depot - 800.517.8431 99 Washington Street

, Melrose, MA 02176

TestEquipmentDepot.com

Page 6

5 Overview

5.1. Display and control el ements

1 Control keys 2 LC display 3 Grip area 4 On the rear: battery compartment and bracket for the probe tips 5 On the rear: stand 6 Input jack

• testo 760-1: voltage, resistance, continuity, diode, capacitance and frequency measurements

• testo 760-2/-3: voltage, resistance, continuity, diode, capacitance, frequency, duty cycle and temperature measurements

7 Ground/COM jack for all measurements 8 Input jack for AC and DC mA/µA current measurement (up to 600 mA)

(testo 760-2/-3 only)

9 Input jack for AC and DC current measurement up to 10 A

Page 7

5.2. LC display

5 Overview

1 Direct current/voltage 2 Alternating current/voltage 3 Diode test and diode continuity 4 Low-pass filter 5 AUTO mode is the default setting in all measuring modes 6 Dangerous voltage, AC ≥ 50 V, DC ≥ 120 V 7 Maximum, minimum, average measurement 8 Hold is activated, LC displ a y hol ds the curr en t rea ding 9 Battery capacity display

Display Feature No Symbol Battery capacity 100 – 30%

Battery capacity 30 - 15%

Battery capacity 15 - 2%

Battery capacity 2 – 0%, instrument switches off

flashes and acoustic signal emitted

10 Automatic power-off function is activated 11 Measuring units 12 Analog display (testo 760-2/-3 only) 13 Indication of polarity in bar chart (testo 760-2/-3 only)

automatically

Page 8

5 Overview

5.3. Control key functions

Key Brief keypress function

On/off

Voltage

Current

testo 760-1

RCDC control testo 760-2/-3

RCDC control

(<1 s)

Switch the instrument on LC display illumination

on/off Manual mode, switches

between AC and DC measurements and mV and V ranges. Switch to AUTO voltage mode when the instrument is in RCDC measuring mode.

Activates manual mode, switch between AC and DC measuring mode and between mA and µA ranges (testo 760-2/-3 only).

Switch between resistance, capacitance, diode and continuity

Activates manual mode, switch between resistance, capacitance, diode and continuity

Enable/disable the HOLD function (refresh LC display on/off)

testo 760-2/-3 only

- in AC voltage measurement mode:

LPF (low-pass filter)

on/off

- switches between frequency measurement and duty cyc le

- in AC current measurement mode:

LPF (low-pass filter)

on/off

Switches between MAX, MIN and AVG functions

Long keypress function (>2 s)

Switch the instrument off

Back to AUTO mode

Back to AUTO mode Temperature measurement (with thermocouple ada pter connected)

In voltage measurement mode: enables/disables the frequency

measurement/dut y c ycle

Switch off recording mode

Page 9

5 Overview

5.4. Further functions

MAX/MIN/AVG

[ ] enables switching between maximum, minimum and the periodic

display of AVG values. This function is disabled in the default setting.

> Activate function: press [ ] <1 s.

- Max value is displayed. > Display min value and periodic display of AVG values:

press [ ] <1 s each time.

> Exit function: pr ess [ ] >2 s or [ ].

s function can be activated in all measuring modes (this

Thi

function is not avail abl e for frequency and capacitance measurement with testo 760-1).

When pr

essing [ ] in AUTO AC/DC voltage mode or AUTO

AC/DC current measurement mode, the instrument retains the

last-selected AC/DC setting. In all other operating mod es , you can select what you need by briefly pressing the relevant k e ys themselves:

• Voltage measurement: press

• Current measurement: press

• Resistance, continuity, diode and capacitance measurement:

press

• Frequency and duty cycle: press

HOLD

> Activate function: press [ ] <1 s.

- the current reading is recorded and HOLD is shown on the LC display. > Exit function: pr ess [ ] <1 s.

- the current measurement is displayed. s function is available in all measuring modes.

Thi

LPF (low-pass filter) function (testo 760-2/3)

The LPF function activates the low-pass filter (1 kHz). The low-pass filter can be activated during the AC voltage measurement mode and also during AC current measurement mode. It is switched off in the default setting.

> Activate LPF (low-pass filter): press [ ] <1 s.

- The corresponding value is shown on the LC display.

5.5. Explanation of icons

Icon Meaning

Attention! Warning about a danger spot, refer to instruction

manual Caution! Dangerous voltage, risk of electric shock

Appl

ication around and removal from HAZARDOUS LIVE

conductors is permitted.

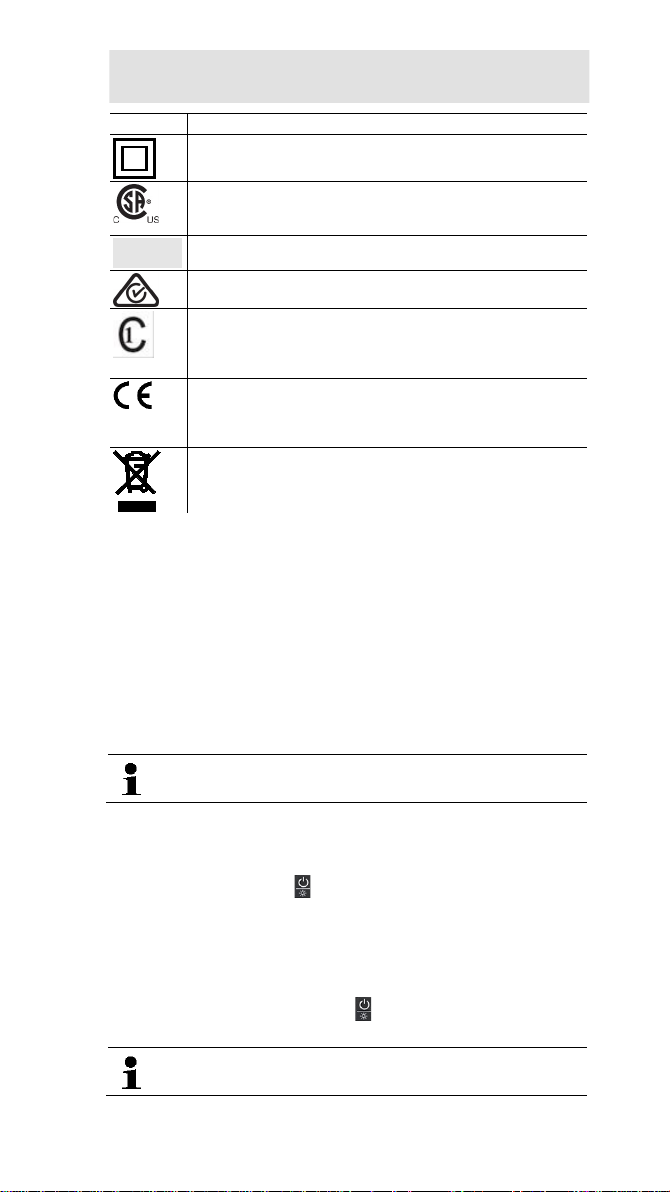

Page 10

6 Operating the instrument

Icon Meaning

Continuous double or reinforced insulation in accordance with category II DIN EN 6114 0/IEC 536

The product is certified for the US and Canadian markets, in accordance with the applicable American and Canadian standards.

Tested for safety (tested by TÜV Rheinland)

Compliance mark for ACMA (Australian Communications and Media Authority) guidelines.

This product has been tested to th e req uirem e nts of CAN /C SA C22.2 No. 61010-1, second edition, including Amendment 1, or a later version of the same standard incorporating the same level of testing requirem ent s .

Conformity mark, verifies compliance with the valid EU Directives: EMC Directive (2014/30/EU) with the standard EN 61326-1, Low Voltage Directive (2014/35/EU) with the standard EN 61010 -2-33

The instrument complies with the WEEE Directive (2012/16/EU)

6 Operating the instrument

The instrument features technology that detects the plug position of the test leads and selects the measuring function based on that:

- in voltage mode, the instrume nt aut om ati cal l y detec t s the rel e van t measuring range and measurement type AC or DC.

- in RCDC mode, the instrument automatically detects whether resistance, capacitance, diode test and continuity need to be measured and adjusts the measuring range accordingly.

- in current mode, the instrument automatically detects the relevant measuring range as well as AC/DC, and differentiates between A and mA / µA measuring modes (automatic jack detection).

All the available measuring modes can also be selected manually.

6.1. Switching the instrument on

> To switch on: press the [ ] key for <1 s.

- The instrument switches on.

6.2. Switching the background il l um i nation

on/off

> To switch on/off: briefly press the [ ] key. The background illumination switches off automatically within 1 minute.

It is possible to switch the background illumination on/off in all measuring modes.

Page 11

7 Carrying out a measurement

6.3. Switching the instrument off (automatically/manually)

Automatically

The automatic power-off function (APO) is always enabled as a default setting and is shown on the LC display as APO. If no control key is pressed within 15 min, the instrument switches off automatically. If necessary, the automatic power-off function (APO) can be turned off.

> Disable power-off function: Before switching on the instrument, press

and hold down [ ] and then briefly press [ ]. Release the keys simultaneously.

- Power-off function is disabled.

Once the instrument has switched off, the power-off function is reset to the default setting.

Manually

> Switch the instrument off: press [ ] >2 s.

7 Carrying out a measurement

7.1. Preparing for measurement

Prior to every test, please ensure that the instrument is in perfect condition:

• For example, keep an eye out for broken housing or leaking batteries.

• Always carry out a function test before using the instrument, see below.

• Check that the instrument is functioning perfectly (for example at a

known voltage source) before and after every test.

• If the safety of the user cannot be guaranteed, the instrument must be

switched off and secured to preve nt unintentional usage.

When connecting the test leads to the test object, always connect the common test lead (COM) to the test object first of all . When disconnecting the test leads, always disconnect the test lead from the 10 A, V or mA jack (testo 760-2/-3) first of all.

Installing th e pr o be tip protector

The probe tip protector can be removed/installed as required. Attention: Use of the probe tip protector may be required depending on the national regulations or pr ovis io ns! > Probe tip protector: push onto probe tips or pull off.

Page 12

7 Carrying out a measurement

WARNING

7.2. Voltage measurement

✓ Instrument is switched on.

When measuring AC voltage, the frequency is measured at the same time and shown in the relevant row on the LC display. .

Automatic measuring mode

1. Connect test leads: black test lead to the COM jack; red test lead to the

V/Ω/diode/capacitance jack.

The instrument features a built-in zero cross i ng de tec t or. When the measured signal (voltage or current) indicates zero crossings, the instrument automatically switches to AC measuring mode. If no continuity is indicated, the instrument switches to DC measuring mode.

2. Connect test lead to the test object.

- The measured value is shown on the LC display.

Manual measuring mode

✓ Instrument is in AUTO V measuring mode.

1. Exit automatic measuring mode: press [ ] <1 s.

- The instrument is in V AC mode.

2. Switch between V AC, V DC, mV AC and mV DC: press [ ] <1 s.

- The measured value is shown on the LC display.

3. Switch to automatic measuring mode: press [ ] >1 s.

- The instrument is in automatic measuring mode when AUTO appears on the LC display.

7.3. Current measurement

7.3.1. testo 760-1

Serious risk of injury to the user and/or destruction of the instrument while measuring current.

> Measuring circuit must be de-energized.

If fuses blow, please eliminate the cause of this before changing the fuse.

The measuring instrument may only be used in 16A fused electrical circuits up to a nominal voltage of 600V. The nominal cross-section of the connection cable must be taken into account in order to ensure safe connection (e.g. via crocodile clips).

Strong interferences in the vicinity result in an unstable display and measurement errors.

✓ Instrument is switched on.

Page 13

7 Carrying out a measurement

WARNING

Automatic measuring mode

1. Connect test leads: black test lead to COM jack, red test lead to A jack.

- The instrument is in AUT O A mode.

2. Connect test leads to the test object.

- The measured value is shown on the LC display.

Manual measuring mode

✓ Instrument is in AUTO A measuring mode.

1. Switch off automatic measuring mode: press [ ] <1 s.

2. Switch between A AC and A D C : p re ss [ ] <1 s.

- The measured value is shown on the LC display. Switch to automatic measuring mode: press [ ] >1 s.

- The instrument is in automatic measuring mode when AUTO is illuminated on the LC displ a y.

7.3.2. testo 760-2/-3

Serious risk of injury to the user and/or destruction of the instrument while measuring current.

> Measuring circuit must be de-energized.

If fuses blow, please eliminate the cause of this before changing the fuse.

The measuring instrument may only be used in 16 A fused electrical circuits up to a nominal voltage of 600 V (760-2) / 1000 V (760-3). The nominal cross-section of the connection cable must be taken into account in order to ensure safe connection (e.g. via crocodile clips).

Strong interferences in the vicinity result in an unstable display and measurement errors.

7.3.2.1. 10 A jack

✓ Instrument is switched on.

Automatic measuring mode

1. Connect test leads: black test lead to COM jack, red test lead to 10A jack.

- The instrument is in AUTO 10A mode.

2. Connect test leads to the test object.

- The measured value is shown on the LC display.

Manual measuring mode

✓ Instrument is in AUTO 10 A measuring mode.

1. Switch off automatic measuring mode: press [ ] <1 s.

2. Switch between A AC and A DC: press [ ] <1 s.

- The measured value is shown on the LC display.

Page 14

7 Carrying out a measurement

Switch to automatic measuring mode: press [ ] >1 s.

- The instrument is in automatic measuring mode when AUTO is

illuminated on the LC displ a y.

7.3.2.2. µA/mA jack

✓ Instrument is switched on.

Automatic measuring mode

1. Connect test leads: black test lead to COM jack, red test lead to

µA/mA jack.

- The instrument is in AUTO µA/mA mode.

2. Connect test leads to the test object.

- The measured value is shown on the LC display.

Manual measuring mode

✓ Instrument is in AUTO µA/ mA measuring mode.

1. Switch off automatic measuring mode: press [ ] <1 s.

2. Switch between mA AC, mA DC, µA AC, µA DC: press [ ] <1 s.

- The measured value is shown on the LC display. Switch to automatic measuring mode: press [ ] >1 s.

- The instrument is in automatic measuring mode when AUTO is

illuminated on the LC displ a y.

7.3.3. Clamp meter adapter option (0590 0003)

(testo 760-2/-3)

A clamp meter adapter is optionally available for current measurement. Before using the clamp meter adapter, please carefully read through the relevant section relating to the clamp meter adapter in the documentation. Familiarize yourself with the product before using it. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the product. In this section, it is assumed that you are familiar with the contents of the documentation relating to the clamp meter adapt er.

Measuring direct currents (DC)

1. Connect the testo 760 and clamp meter adapter to the test leads: black

test lead to the COM jack; red test lead to the V/Ω/diode/capacitance jack.

2. Switch on the testo 760.

3. Activate mV DC measuring mode for voltage measurement: press [ ]

4 times.

4. Switch on the clamp meter adapter.

- LED indicates readiness for operation.

5. Close the clamp jaws of the clamp meter adapter. Make sure that no

conductor is enclosed.

> Zero the clamp meter adapter: press [ZERO] <1 s.

6. Place the cables being measured centrally within the clamp.

- The measured value is shown on the LC display.

Measuring alternating currents (AC)

1. Connect the testo 760 and clamp meter adapter to the test leads: black

test lead to the COM jack; red test lead to the V/Ω/diode/capacitance jack.

2. Switch on the testo 760.

Page 15

7 Carrying out a measurement

WARNING

3. Activate mV AC measuring mode for continuity test: press [ ] 3 times.

4. Switch on the clamp meter adapter.

- LED indicates readiness for operation.

5. Place the cables being measured centrally within the clamp.

- The measured value is shown on the LC display.

7.4. Measuring resistance, capacitance,

continuity and diode test

Serious risk of injury to the user and/or destruction of the instrument during resistance testing.

> Test object must be de-energized.

ternal voltages will distort the measurement result.

Res

istors and semiconductors in parallel with the diode will

distort the measurement result.

> Prior to the measurement, make sure that capacitors are discharged. ✓ Instrument is switched on.

7.4.1. testo 760-1

Manual measuring mode

1. Connect test leads: black test lead to the COM jack; red test lead to the

V/Ω/diode/capacitance jack.

- The instrument is in

2. Switch between resistance, capacitance, continuity and diode test: press [ ] <1 s.

- The measured value is shown on the LC display.

Ω mode.

7.4.2. testo 760-2/-3

Automatic measuring mode

Aut

omatic detection for resistance/capacitance in the following

range:

• 0.0 ohms to 6.000 mohms

• 0.500 nF to 600.0 µF

Change to manual measuring mode for the remaining measuring range.

1. Connect test leads: black test lead to the COM jack; red test lead to the

V/Ω/diode/capacitance jack.

- The instrument is in AUTO V mode.

2. Disable AUTO RCDC measuring mode: press [ ] <1 s.

3. Connect test leads to the test object.

- The instrument detects resistance, continuity, diode and capacitance, and automatically adjusts the measuring range.

- The measured value is shown on the LC display.

Page 16

7 Carrying out a measurement

Manual measuring mode (testo 760-2/-3)

1. Disable AUTO RCDC measuring mode: press [ ] <1 s.

2. Switch between resistance, capacitance, continuity and diode test:

press [ ] <1 s.

- The measured value is shown on the LC display. > Switch back to AUTO RCDC mode: press [ ] >2 s.

7.5. Frequency measu rement (testo 760-1)

✓ Instrument is switched on.

1. Connect test leads: black test lead to the COM jack; red test lead to the

V/Ω/diode/capacitance jack.

- The instrument is in AUTO V mode.

2. Activate measuring mode for frequency measurement: press [Hz] <1 s.

3. Connect test leads to the test object.

- The measured value is shown on the LC display. > Switch back to AUTO V mod e: pr ess [Hz] <1 s.

7.6. Frequency measu rement/duty cycle

(testo 760-2/-3)

✓ Instrument is switched on.

1. Connect test leads: black test lead to COM jack, red test lead to

V/Ω/diode/capacitance jack.

- The instrument is in AUTO V mode

2. Activate measuring mode for frequency measurement: press [LPF

Hz/%] >2 s.

3. Activate the mode for duty cycle: press [LPF Hz/%] <1 s.

4. Connect test leads to the test object.

- The measured value is shown on the LC display. > Switch back to AUTO V mod e: pr ess [LPF Hz/%] >2 s.

7.7. Temperature measurem e n t (optional)

(testo 760-2/-3)

A thermocouple adapter (0590 0002) is optionally available for measuring temperature. Before using the thermocouple adapter, please carefully read through the relevant section relating to the thermocouple adapter in the documentation. Familiarize yourself with the product before using it. Pay particular attention to the safety instructions and warning advice in order to prevent injuries and damage to the product. In this section, it is assumed that you are familiar with the contents of the documentation relating to the thermocouple adapter.

Taking temperature measurements

✓ A thermocouple is attached to the thermocouple adapter. ✓ Instrument is switched on.

1. Connect the thermocouple adapter to the ins tr um ent : Ins e rt the ad apt er

into the COM jack and into the V/Ω/diode/capacitance. jack. Ensure correct polarity!

- The thermocouple ad apter switches on automati cally.

- The instrument is in AUTO V mode.

Page 17

8 Service and maintenance

2. Activate AUTO RCDC measuring mode for temperature measurements: pres s [ ] >2 s.

- The measured values are indicated in °C and °F on the LC display.

8 Service and maintenance

8.1. View of the back of the instrument

ews 1 - 6: housing

Scr Screws 7 and 8: open the battery compartment

8.2. Replacing the batteries

The batteries need to be replaced when the battery icon appears on the LC display. ✓ Instrument is switched off and de-energized.

1. Fully disconnect the instrument from the test leads.

2. Using a screwdriver, unscrew the two metal screws (7, 8) on the battery compartment until the battery compartment cover can be removed. Do not unscrew the screws completely.

3. Remove the spent batteries.

4. Insert new batteries, type AAA / IEC LR03 (1.5 V), ensuring correct polarity.

5. Put the battery compartment cover back on and screw down.

8.3. Changing the fuses

✓ Instrument is switched off and de-energized.

When openi any of the removed screws. Placin g a c loth on the work space is recommended.

1. Fully disconnect the instrument from the test leads.

2. Fold out the stand.

3. Undo and remove the screws (1 to 6) using a cross-head screw driver.

ng/assembling the instrument, take care not to lose

Page 18

8 Service and maintenance

WARNING

4. Remove the lower section of the housing.

5. Remove the defective fuse from the fuse holder using an appropriate

fuse puller.

Serious risk of in jury and destruc tion of the instrume nt d ue to makeshift fuses and shor t-circuiting of fuse holders.

> Only use fuses with the voltage and current values listed under "Technical data".

6. Insert the new fuse into the fuse holder using the fuse puller.

7. Put the lower section of the housing on and screw on using the screws.

8. Fold in the stand.

8.4. Maintenance

When operated in accordance with the instruction manual, the instrument does not require any particular maintenance. If a malfunction occurs during operation, the ongoing measurem ent sho uld be stopped immediately. Send the instrument to Testo Service for checking.

8.5. Calibration

In order to maintain the specified accuracy of the measurement results, Testo recommends calib ra t ing the ins tr um ent once a year. Send the instrument to Testo Service for calibration.

8.6. Storage

- Store the instrument in dry, closed rooms. > If the instrument is not in use for a significant period of time: remove

the batteries in order to prevent any danger or damage due to any potential leaking of the batteries.

8.7. Cleaning

Before cleaning, the instrument must be switched off and disconnected from external voltages or from other connected instruments (test specimen, control units, etc.). > Wipe the instrument with a damp cloth and a small amount of mild

household detergent. Never use any harsh cleaning agents or solvents to clean the instrument! After being cleaned, the instrument must not be used until it has completely dried.

Page 19

9 Technical data

9.1. General technical data

Feature Values

Operating temperat ur e 0 °C to 40 °C Storage temperature -15 °C to 50 °C Humidity 0 to 80% RH Operating altitude Up to 2000 m Measurement category testo 760-1: CAT III / 600 V

Level of contamination 2 Protection class IP 64 only valid when using the silicone caps Power supply 3 × 1.5V (AAA/IEC LR03) Battery status display Batt. icon appears from <3.9 V Display 3 3/4 digit, LC display Display range testo 760-1: 4000 digits)

Polarity indicator Automatic Overload protection

(fuse)

Dimensions (H x W x D)

Weight Approx. 330 g Safety standards EMV 2014/30/EU, EN 61326-1, Low Voltage

Certifications TÜV, CSA, CE Warranty Duration: 2 years

testo 760-2: CAT IV/600 V testo 760-3: CAT IV/600 V

testo 760-2/-3: 6000 digit s

testo 760-1:

- F 10 A/600 V, ceramic, 6.3×32 mm, min. cutoff current 20 kA

testo 760-2:

- F 10 A/600 V, ceramic, 6.3×32 mm, min. cutoff current 30 kA

- F 630 mA/600 V, ceramic, 6.3×32 mm, min. cut-off current 30 kA

testo 760-3:

- F 10 A/1000 V, ceramic, 10×38 mm, min. cutoff current 30 kA

- F 630 mA/1000 V, ceramic, 6.3×32 mm, min. cut-off current 30 kA

Approx. 170 × 85 × 45 mm

Directive 2014/35/EU with the standard EN 610102-033, and insulation complying with class II IEC 536/DIN EN 61140

Page 20

9 Technical data

9.2. More technical data

9.2.1. testo 760-1 overload protection (10 A fuse)1

Feature Measuring

DC voltage 400 mV

AC voltage2,3,4 400 mV

DC current 4 A

AC current2,3,4 4 A

Resistance 400.0 Ohm

Continuity alarm

Diode test

Capacitance measurement

range

4.000 V

40.00 V

400.0 V 600 V

4.000 V

40.00 V

400.0 V 600 V

10 A

4.000 kOhm

40.00 kOhm

400.0 kOhm

4.000 MOhm

40.00 MOhm 0 to 30 Ohm

2.5 V

51.20 nF

512.

0 nF

5.1

20 µF

51.20

µF

Resolution Accuracy

0.1 mV 1 mV 10 mV 100 mV 1 V

1 mA 10 mA

0.1 Ohm 1 Ohm 10 Ohm 100 Ohm 1 kOhm 10 kOhm

0.01 nF ± 10% typically

0.01 nF ± (1.5% of meas. val. +

0.001 µF ± (1.5% of meas. val. +

0.01 µF ± 10% typically

± (0.8% of meas. val. + 3 digits)

± (1.0% of meas. val. + 3 digits)

± (1.5% of meas. val. + 5 digits)

± (1.5% of meas. val. + 3 digits)

5 digits)

The lower measuring ranges are only specified from 5%

Signal bandwidth 40 Hz to 1 kHz

In the case of a mixed signal (AC + DC), only the purely AC component is

taken into account

As the frequency increases (over 400 Hz), the accuracy deteriorates +/- (1.5% of m.v. + 3 digits) for 400Hz to 750Hz / +/- (2.0% of m.v. + 3digits) for 750Hz to 1kHz

Accuracy valid for capacitance values >10 nF

Page 21

9 Technical data

Feature Measuring

Resolution Accuracy

range

0 µF

0.1 µF ± 10% typically

0.001 Hz

0.01 Hz

0.1 Hz 1 Hz 10 Hz 100 Hz

0.01 Hz

0.1 Hz 1 Hz

± (0.1% + 1 digit)

Frequency measurement

Frequency with voltage/current

7,8

100.

5.120 Hz

51.20 Hz

512.0 Hz

5.120 kHz

51.20 kHz

512.0 kHz

99.99 Hz

999.9 Hz

9.999 kHz

Figures correspond to +23 °C ± 5 °C at <80% rel. humidity. Temperature coefficient: 0.15 x speci fied acc ur ac y p er 1 °C (<18 °C and >28 °C)

9.2.2. testo 760-2/-3 Overload protection (10 A fuse)

Feature Measuring

range

DC voltage 600 mV

6.000 V

60.00 V

600.0 V 1000 V (760-

AC voltage11,12,13 600 mV

6.000 V

60.00 V

600.0 V 1000 V (760-

Resolution Accuracy

0.1 mV 1 mV 10 mV 100 mV 1 V (760-3)

± (0.8% of meas. val. + 3 digits)

± (1.0% of meas. val. + 3 digits)

Maximum measurement duration is 15 s

Frequency measurement as separate function

Below 2 Hz the display shows 0 Hz

Frequency measurement is not specified for alternating currents or

voltages below 3% of the smallest respective measuring range

The lower measuring ranges are only specified from 5%

Signal bandwidth 40 Hz to 1 kHz

In the case of a mixed signal (AC + DC), only the purely AC component is

taken into account

As the frequency increases (over 400 Hz), the accuracy deteriorates +/- (1.5% of m.v. + 3 digits) for 400Hz to 750Hz / +/- (2.0% of m.v. + 3digits) for 750Hz to 1kHz

Page 22

9 Technical data

Feature Measuring

Resolution Accuracy

range

DC current 600 μA

6000 μA

60.00 mA

600.0 mA 6 A 10 A

AC current11,12,13 600 μA

6000 μA

60.00 mA

600.0 mA 6 A 10 A

Resistance 60.00 Ohm

600.0 Ohm

6.000 kOhm

60.00 kOhm

600.0 kOhm

6.000 MOhm

60.00 MOhm

Continuity alarm

Diode test

Low-pass filter

0 to 30 Ohm

2.5 V

yes (1 kHz)

0.1 μA 1 μA 10 μA 100 μA 1 mA 10 mA

0.01 Ohm

0.1 Ohm 1 Ohm 10 Ohm 100 Ohm 1 kOhm 10 kOhm

Duty cycle14 20 Hz to 1 kHz ± 1% + 3 digits

1 kHz to 10 kHz ± 5% + 3 digits

Capacitance

6.000 nF

0.001 nF ± (10 % of meas. val. +

measurement

60.00

600.

6.0

60.00

600.

6.0

60.00

0 nF

00 µF

µF

0 µF

00 mF

0.01 nF ± (2% of meas. val. + 10

0.1 nF ± (1.5% of meas. val. +

0.001 µF ± (1.5% of meas. val. +

0.01 µF ± (1.5% of meas. val. +

0.1 µF ± (2% of meas. val. + 10

1 µF ± 10% typically

10 µF ± 10% typically

± (1.5% of meas. val. + 5 digits)

± (1.5% of meas. val. + 3 digits)

25 digits)

digits)

5 digits)

digits)

Pulse width is measured in the range 5% to 95% (f<10 kHz@3Vpp)

Accuracy valid for capacitance values > 2 nF

Page 23

10 Tips and assistance

Feature Measuring

Resolution Accuracy

range

Frequency measurement

Frequency with voltage/current

Temperature with adapter

17,18

600.0 Hz

6.000 kHz

60.00 kHz

600.0 kHz

6.000 MHz

60.00 MHz

99.99 Hz

999.9 Hz

9.999 kHz

-20 to 500 °C

0.1 Hz 1 Hz 10 Hz 100 Hz 1 kHz 10 kHz

0.01 Hz

0.1 Hz 1 Hz

0.2 °C -20 to 0 °C ± 2 °C

± (0.1% + 1 digits)

0 to 99.99 °C ± 1 °C 100 to 249.99 °C ± 1.5% >250 °C ± 2%

Current with

adapter

400 A

0.1 A ± (2% of meas. val.+ 5 digits)

Figures correspond to +23 °C ± 5 °C at <80% rel. humidity. Temperature coefficient: 0.15 x specifie d ac cu rac y p er 1 °C (<18 °C and >28 °C)

10 Tips and assistance

10.1. Questions and answers

Question Possible causes/solu tio n

LEAd

dISC

OPEn

The reading exceeds the measuring range upper limit > Check input value and change if necessary.

No probe tip in the jack or invalid arrangement with warning to the user

> Connect missing probe tip.

heck arrangement and correct if necessary.

> C The capacitor to be tested still contains charge.

> Discharge capacitor properly and carry out the test again.

No connection to the probe tips during the RCDC measuring mode. > Establish a connection to the measurement object.

Maximum measurement duration is 13.2 s

Frequency measurement as separate function

Below 2 Hz the display shows 0 Hz

Frequency measurement is not specified for alternating currents or

voltages below 3% of the smallest respective measuring range

Does not include the measurement error of the temperature probe. The specified accuracy is the sum total of the measurement errors of the thermocouple adapter and the instrument.

The specified accuracy does not include the measurement error of the instrument

Page 24

11 Protecting the environment

Question Possible causes/sol u tio n

Defective fuse indication

If we have not been able to answer your question, please contact your dealer or Testo Customer Service.

If a fuse for the A (testo 760-1, mA and/or 10A (testo 760-2/-3) jack is defective, the instrument will no longer detect the corresponding jack. Instrument will not switch to A-mode. > Replace defective fuse.

10.2. Accessories and spare parts

Probe and other assemblies are appropriately rated for measurement category III or IV and have a suitable voltage rating for the circuit to be measured.

11 Protecting the environment

> Dispose of faulty rechargeable batteries/spent batteries in accordance

with the valid legal specifications.

> At the end of its useful life, send the product to the separate collection

for electric and electronic devices (observe local regulations) or return the product to Testo for disposal.

Page 25

Test Equipment Depot - 800.517.8431 99 Washington Street, Melrose, MA 02176 TestEquipmentDepot.com

0970 7600 en 02 V01.00
