TEAC AG-H380DAB User Manual

Z

CQX1A1456Z

AG-H38 0

AM/FM Stereo Receiver

iPod

DIGITAL
DIRECT

OWNER’S MANUAL

MODE D’EMPLOI

MANUAL DEL USUARIO

ENGLISH

FRANÇAIS ESPAÑOL

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.

9) Do not defeat the safety purpose of the polarized or grounding­type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the
obsolete outlet.

10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

11) Only use attachments/accessories specified by the
manufacturer.

12) Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer,
or sold with the apparatus. When a cart is
used, use caution when moving the cart/
apparatus combination to avoid injury from
tip-over.

13) Unplug this apparatus during lightning storms or when unused
for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.

2

< Do not expose this apparatus to drips or splashes.

< Do not place any objects filled with liquids, such as vases, on the

apparatus.

< Do not install this apparatus in a confined space such as a

bookcase or similar unit.

< The apparatus draws nominal non-operating power from the

AC outlet with its POWER or STANDBY/ON switch not in the ON
position.

< The apparatus should be located close enough to the AC outlet

so that you can easily grasp the power cord plug at any time.

< The mains plug is used as the disconnect device, the disconnect

device shall remain readily operable.

< Products with Class I construction are equipped with a power

supply cord that has a 3-prong grounding plug. The cord of
such a product must be plugged into an AC outlet that has a
protective grounding connection.

< If the product uses batteries (including a battery pack or installed

batteries), they should not be exposed to sunshine, fire or
excessive heat.

< CAUTION for products that use replaceable lithium batteries:

there is danger of explosion if a battery is replaced with an
incorrect type of battery. Replace only with the same or
equivalent type.

< Caution should be taken when using earphones or headphones

with the product because excessive sound pressure (volume)
from earphones or headphones can cause hearing loss.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.

CAUTION

< DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE

THE ELECTRONICS. NO USER SERVICEABLE PARTS ARE WITHIN!

< IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,

CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE
PRODUCT UNTIL IT HAS BEEN REPAIRED.

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS
and Thomson.

This product is protected by certain intellectual property rights
of Microsoft Corporation. Use or distribution of such technology
outside of this product is prohibited without a license from
Microsoft.

“Made for iPod” means that an electronic accessory has been
designed to connect specifically to iPod and has been certified by
the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other
countries.

3

Contents

Before Use

Thank you for choosing TEAC. Read this manual carefully to
get the best performance from this unit.

Before Use ....................................................4

MP3 and WMA ................................................4

Connecting Antennas (AM/FM) ................................5

Connections .................................................. 6

Speaker Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

System Connection ........................................... 9

Name of Each Control ........................................10

Remote Control Unit .........................................12

Basic Operation ..............................................13

Listening to iPod .............................................14

Listening to an USB Device ...................................16

Repeat Playback (USB) ........................................18

Shuffle Playback (USB) ........................................18

Programmed Playback (USB) ..................................19

Display (USB) .................................................21

Before Recording ............................................21

Recording to USB ............................................22

Deleting a file from USB ......................................22

Listening to FM/AM ..........................................23

Preset Tuning ................................................24

Read this before operations.

< When the unit is turned on, switching on the TV may cause lines

to appear on the TV screen, depending on the condition of the
electric waves of the TV broadcast. This is not malfunction in the
unit or the TV. In this case, turn off the unit.

< As the unit may become warm during operation, always leave

sufficient space around the unit for ventilation.

< The voltage supplied to the unit should match the voltage as

printed on the rear panel. If you are in any doubt regarding this
matter, consult an electrician.

< Choose the installation location of your unit carefully. Avoid

placing it in direct sunlight or close to a source of heat. Also avoid
locations subject to vibrations and excessive dust, heat, cold or
moisture.

< Do not place the unit on an amplifier/receiver.

< Do not open the cabinet as this might result in damage to the

circuitry or electrical shock. If a foreign object should get into the
set, contact your dealer or service agency.

< When removing the power plug from the wall outlet, always pull

directly on the plug, never yank the cord.

< Do not attempt to clean the unit with chemical solvents as this

might damage the finish. Use a clean, dry cloth.

< Keep this manual in a safe place for future reference.

RDS .........................................................25

RDS (PTY) ....................................................26

Setting the Clock ............................................27

Setting the Timer ............................................28

Timer Operation .............................................28

Sleep Timer ..................................................29

Restoring factory settings ....................................30

Troubleshooting .............................................30

Specifications ................................................31

4

MP3 and WMA

< This unit can play MP3 files recorded in various external USB

storage devices such as USB flash memory, MP3 player or HDD.

The HDD must be formatted FAT 16 or FAT 32, but not NTFS.

< When more than 2000 files are recorded on the USB memory, the

unit might not be able to play them correctly.

< File names of MP3 or WMA should be alphanumeric characters.

This unit cannot display symbols and full-size or double-byte
characters (such as Japanese, Chinese, etc.) correctly. Also, be
sure to use the file extension. (“.mp3” for MP3 files, “.wma” for
WMA files.)

< MP3 files are mono or stereo MPEG-1 Audio Layer 3 format. This

unit can play MP3 files with sampling frequency 44.1 kHz or 48
kHz, bit-rate 320 kbps or less.

< This unit can play WMA files with sampling frequency 44.1 kHz,

bit-rate 192 kbps or less.

WMA means Windows Media Audio.

< Audio encoded at 128 kbps should sound close to regular audio

CD quality. Although this player will play lower bit-rate MP3
songs, the sound quality becomes noticeably worse at lower bit­rates.

Connecting Antennas (AM/FM)

AM Indoor Loop Antenna

The high-performance AM loop antenna provided with this unit is
sufficient for good reception in most areas.
To stand the loop antenna on a surface, fix the claw to the slot in the
antenna base.

Connect the loop antenna’s wires to the AM antenna terminals.
Place the antenna on a shelf or hang it on a window frame, etc., in
the direction which gives the best reception. Keep all other wires
such as power cords, speaker wires or interconnect wires as far away
as possible from the antenna.

AM Outdoor
Antenna

Make sure to connect
the black wire to the
GND terminal.

FM Indoor Antenna

Connect the lead-type FM antenna to the FM 75Ω socket, extend
the lead and tune in your favourite station (see page 23). Adjust the
antenna in a suitable location like a window frame or wall until the
reception is best and then affix the antenna in that position using
thumb tacks, push pins or any other suitable means.

ENGLISH

FM Outdoor Antenna

In an area where FM signals are weak, it may be necessary to use an
FM outdoor antenna.
Generally, a 3-element antenna will be sufficient; if you live in an
area where the FM signals are particularly weak, it may be necessary
to use one with 5 or more elements.

< If the AM loop antenna provided does not deliver sufficient

reception (often due to being too far from the transmitter or
in a concrete building, etc.), it may be necessary to use an AM
outdoor antenna.

Use either a high quality commercially available AM antenna or,

if not available, an insulated wire more than 5 m long, strip one
end, and connect this to the terminal as shown.

The antenna wire should be strung outdoors or indoors near a

window. For better reception, connect the GND terminal to a
reliable ground.

Note:

Even when using an AM outdoor antenna, do not disconnect the
AM loop antenna.

< Disconnect the FM indoor antenna when using an outdoor

antenna.

5

Connections

Tur nt abl e

Cassette deck,

CD recorder, etc.

LINE

LINE

OUT

IN

LRLR

BC

AA

D

E

AA

LINE
OUT

DVD player, etc. PD-H380

RLRL

LINE
OUT

F

6

AUX 1/AUX 2/CD jacks

A

These jacks transmit an analog 2-channel audio signal. Connect
the components using RCA cables.

Make sure to connect the cables as follows:

white plug w white jack (L: left channel)
red plug w red jack (R:right channel)

AC OUTLET (SWITCHED)

E

You can connect the AC power cord of your component.
This outlet is active only when the unit is on or standby. When
the unit is off, the outlet is inactive.

CAUTION

Make sure that the total power consumption of all equipment
connected to this outlet does not exceed 100 watts (or 500mA).

White (L)

Red (R)

If you want to use a recorder (ex. a cassette deck or a CD
recorder, etc.) with the AG-H380, connect the output jacks of
the recorder to the AUX 1 IN jacks of the AG-H380, connect
the input jacks of the recorder to the AUX 1 OUT jacks of the
AG-H380.

< Be sure to insert each plug securely. To prevent hum and noise,

avoid bundling the signal interconnection cables together with
the AC power cord or speaker cables.

PHONO jacks

B

Connect the turntable’s RCA pin cord to the PHONO jacks.

Make sure to connect the cables as follows:

white plug w white jack (L: left channel)
red plug w red jack (R:right channel)

< Be sure to insert each plug securely. To prevent hum and noise,

avoid bundling the signal interconnection cables together with
the AC power cord or speaker cables.

White (L)

Red (R)

AC Power Cord

F

Plug this cord into an AC wall socket.

< Unplug the power cord when you are not going to use the unit

for long periods of time.

ENGLISH

< Moving Magnet (MM) cartridges can be used for this unit.

SIGNAL GND

C

Connect the ground lead of the turntable to this terminal.

< This is not a safety earth.

< If the turntable’s ground lead is not connected to this terminal,

hum noise may be heard.

USB port

D

Connect the iPod or external USB storage device to this port.

< To connect the iPod, use the USB cable supplied with iPod.

< It cannot be played if you connect an iPod shuffle to this port.

Compatible iPod Software

In case your iPod will not work with the AG-H380 or with the
remote control unit, software update may solve the problem.
Visit the Apple website and download the latest iPod software.

7

Speaker Connections

SPEAKER

G

H

SUBWOOFER

CAUTION

< Turn off the power of all the equipment before making

connections.

< Read instructions of each component you intend to use with this

unit.

< Be sure to insert each plug securely. To prevent hum and noise, do

not bundle the connection cords with the power cord or speaker
cord.

LINE

IN

8

System Connection

Speaker Connections

G

AG-H380’s red speaker terminals are the + (positive) terminals
and the black terminals are the _ (negative) terminals.
The + side of the speaker cable is marked to make it
distinguishable from the negative side of the cable. Connect
this marked side to the red + terminal and the unmarked side
to the black _ terminal of AG-H380 and speakers.

CAUTION

< To avoid damaging the speakers by a sudden high-level signal,

be sure to switch the power off before connecting the speakers.

< Check the impedance of your speakers. Connect speaker with

an impedance of 6 ohms or more.

< Prepare the speaker cords for connection by stripping off

approximately 10 mm or less (no more as this could cause a
short-circuit) of the outer insulation. Twist the wires tightly
together to avoid tangles:

If you have TEAC Reference 380 series, convenient system control
operations and AI direct play functions are possible.

< By pressing the POWER switch of AG-H380, you can switch ON/

standby all the unit connected by remote control cords.

(Set the REMOTE CONTROL SELECTOR on the rear panel of the

PD-H380 to “SYSTEM”.)

< When you press the PLAY button of PD-H380, the source of

AG-H380 is set to “CD” automatically.

< When you select “CD” by pressing the SOURCE button of

AG-H380, PD-H380 starts playback automatically.

< When you turn on the system, the source that was selected last

time will start playback automatically.

< You can use the system remote control unit to operate all the

unit connected by remote control cords.

Connect the REMOTE CONTROL jack of each component by
remote control connection cords.

ENGLISH

How to connect

1. Turn the terminal cap counter-clockwise to loosen it. The
speaker terminal caps cannot be fully removed from the base.

2. Insert the wire into the terminal fully and turn the terminal
cap clockwise to securely connect it:

3. Make sure it is fastened firmly by pulling the cable lightly.

For European customers

In accordance with European safety regulations, it is not
possible to connect banana plugs into the speaker terminals on
European models.
The holes into which banana plugs are inserted have been
covered with black caps. Connect the speakers using spades or
bare wires.
If the black caps become separated from the terminals, return
them to their original position.

REMOTE

CONTROL

SUBWOOFER OUT jack

H

Connect a commercially available powered subwoofer.

9

Name of Each Control

CA B

N L K

A

SOURCE

Use this button to select a source.

B

BAND

Use this button to select FM or AM.

C

RDS

In FM mode, use this button to select an RDS mode.

D

MEMORY

In TUNER mode, use this button to preset stations.

E

MENU/FM MODE

Use this button to go back to previous menu of iPod. This button
is equivalent to the MENU button on your iPod.
In FM mode, use this button to select stereo or monaural.

F

TUNING MODE, ENTER

In FM or AM mode, use this button to select the tuning mode.
Use this button to set the time while setting the timer or the
clock.
In iPod mode, use this button to confirm selection in menus.

G

TUNING/SELECT

In TUNER mode, use this knob to tune in stations or select the
preset stations.
In iPod mode, use this knob to scroll up and down the menu.

H

VOLUME

Turn this knob to adjust the volume.

E

D

M

HGF

J

I

play/pause (y/J)

In USB/iPod mode, use this button to start or pause playback of
the iPod or USB.

J

skip (.m/,/)

In USB/iPod mode, use these buttons to skip files/songs during
playback of the iPod or USB.
During playback, hold down these buttons to search for a track/
file/song.

K

PHONES

For private listening, insert the headphones plug into this jack,
and adjust the volume by turning the VOLUME knob.

L

Remote sensor

When operating the remote control unit, point it towards the
remote sensor.

M

Display

N

POWER

Press this switch to turn the unit on or off.
If you use the system control function, set this switch on, and
turn on/standby the system using the remote control unit.
The standby indicator turns red when the unit is in the standby
mode. When the unit is turned on, the indicator turns blue.

< The clock setting will not be saved when the POWER turns

off.

I

< The volume level is memorized even if the unit turns off.

10

i

stop (H)

a

p

b

q

c

d

e

f

g

r

s

t

h

i

j

k

l

u

v

m

w

n

o

In USB mode, use this button to stop playback of the USB.
In CD mode, use this button to stop playback of the PD-H380.

j

PROGRAM

In USB/iPod mode, use this button to enter the programme
mode of the USB.
In CD mode, use this button to enter the programme mode of
the PD-H380.
In programme mode, use this button to enter the selection.
In TUNER mode, use this button to preset stations.

k

play/pause (y/J)

In USB/iPod mode, use this button to start or pause playback of
the iPod or USB.
In CD mode, use this button to start or pause playback of the
PD-H380.

l

MUTING

Use this button to mute the sound.

m

MENU

Use this button to go back to previous menu of iPod. This button
is equivalent to the MENU button on your iPod.

n

ENTER

Use this button to set the time while setting the timer or the
clock.

ENGLISH

a

STANDBY/ON

Press this button to turn the unit on or standby.

b

TUNER, CD, iPod/USB, AUX 1/2, PHONO

Use these buttons to select a source.

c

TIME SET

Use this button to adjust the clock and to set a timer.

d

TONE

Use this button to adjust bass and treble together with the ˙ or
¥ button.

e

TIMER

Use this button to turn on or off the timer function.

f

FM MODE

In FM mode, use this button to select stereo or monaural.

g

REPEAT 1/ALL

In USB/iPod mode, use this button to set the repeat playback of
the iPod or USB.
In CD mode, use this button to set the repeat playback of the
PD-H380.

h

SHUFFLE

In USB/iPod mode, use this button to start shuffle playback of the
iPod or USB.
In CD mode, use this button to start shuffle playback of the
PD-H380.

o

skip (.//)

In USB/iPod mode, use these buttons to skip files/songs during
playback of the iPod or USB.
In CD mode, use these buttons to skip tracks/files during
playback of the PD-H380.

p

RECORD

Use this button to start recording to an USB device.

q

DIMMER

Use this button to dim the display.

r

SLEEP

Use this button to set sleep timer.

s

INFO/RDS

In FM mode, use this button to select an RDS mode.
INFO function do not work on the AG-H380.

t

DISPLAY

Use this button to change what information is displayed during
USB/iPod playback.

u

CLEAR

Use this button to clear files in programme mode.

v

VOLUME

Use these buttons to adjust the volume level.

w

scroll (˙, ¥)

In USB/iPod mode, use these buttons to select a folder or file of
USB.
Or use these buttons to scroll menu of the iPod.
After pressing the TONE button these buttons are used to adjust
treble and bass.

11

Remote Control Unit

The provided remote control unit allows the unit to be operated
from a distance.
When operating the remote control unit, point it towards the remote
sensor on the front panel of the unit.

< Even if the remote control unit is operated within the effective

range, remote control operation may be impossible if there are
any obstacles between the unit and the remote control unit.

< If the remote control unit is operated near other appliances which

generate infrared rays, or if other remote control devices using
infrared rays are used near the unit, it may operate incorrectly.

Conversely, the other appliances may operate incorrectly.

Battery Installation

1. Remove the battery compartment cover.

2. Insert two “AAA” dry batteries. Make sure that the batteries

are inserted with their positive “+” and negative “_” poles
positioned correctly.

3. Close the cover.

Precautions Concerning Batteries

< Be sure to insert the batteries with correct positive “+” and

negative “_” polarities.

< Use batteries of the same type. Never use different types of

batteries together.

< Rechargeable and non-rechargeable batteries can be used. Refer

to the precautions on their labels.

< When the remote control unit is not to be used for a long time

(more than a month), remove the batteries from the remote
control unit to prevent them from leaking.

< If the batteries leak, wipe away the liquid inside the battery

compartment and replace the batteries with new ones.

< Do not use any other batteries not specified. Do not mix new

batteries with old ones or use different types of batteries
together.

< Do not heat or disassemble batteries and never throw them in

the fire or water.

< Do not carry or store batteries with other metallic objects. The

battery may short circuit, leak or explode.

Battery Replacement

If the distance required between the remote control unit and main
unit decreases, the batteries are exhausted. In this case replace the
batteries with new ones.

< For more information about collection of batteries, please

contact your local municipality, your waste disposal service or
the point of sale where you purchased the items.

< Never recharge a battery unless it is a verified rechargeable type.

12

Basic Operation (1)

B C

A

A

How to turn the unit on or off

Press the POWER switch to turn the unit on or off.
When you use the system control function, set this switch on,
and turn the system on/standby using the remote control unit.

Standby/On indicator

C

Adjust the volume

To protect speakers from a sudden high-level signal, gradually
turn up the volume to the required level with the VOLUME knob.

D

Muting

To cut the sound temporarily, press the MUTING button. To
cancel muting, press the MUTING button again or change the
volume setting.

ENGLISH

The Standby/On indicator turns blue when the unit is turned on.

< When you turn on the system, the source that was selected last

time will start playback automatically.

< The clock setting will not be saved whern the POWER turns off.

B

How to select source

Every time the SOURCE button is pressed, the mode is changed
as follows:

TUNER USB/iPod PHONO

CD AUX2 AUX1

Or press the TUNER, USB/iPod, PHONO, AUX 1/2 or CD button on
the remote control unit to select the source directly.

E

Dimmer

Press the DIMMER button to dim the display.
Press the button again to cancel the dimmer function.

< This function will be cancelled when the unit is turned off.

F

Listening through headphones

Insert the headphone plug into the PHONES jack, and adjust the
volume. The sound from speakers and subwoofer will be cut off.

13

Basic Operation (2) Listening to iPod (1)

How to adjust the bass and treble sound

You can change the bass and treble sound between “-10” to “+10”.
Press the TONE button repeatedly to select BASS or TREBLE. And
then press the ˙ or ¥ button to adjust the sound level within 5
seconds.

1

Press the SOURCE button repeatedly to select “USB/iPod”.

iPod

DIGITAL
DIRECT

2

Connect your iPod using the USB cable supplied with

iPod.

The iPod automatically turns on and starts playback from the
iPod’s music list.
When the iPod is connected while the AG-H380 is set to other
source, the iPod will turn on and enter the pause mode.

< The iPod battery will be fully recharged when the iPod is docked

and the AG-H380 is on.

< When headphones are plugged into the iPod, sound comes

from both the speakers connected to the AG-H380 and the
headphones.

To pause playback

During playback, press the play/pause button (G/J) to pause
playback. Playback stops at the current position.
To resume playback, press the play/pause button (G/J) again.

14

To skip to the next or a previous song

During playback, press the skip button (.m/,/)
repeatedly until the desired song is found.

< When the .m button is pressed during playback, the song

being played will be played from the beginning. If you want to
play the previous songs, press the .m button twice or
more.

Search for a part of a song

Select the menu item

Press the scroll button (˙/¥) of the remote control unit to scroll
to the menu item you want, and then press the ENTER button.

Repeat playback

Every time the REPEAT 1/ALL button is pressed, the mode is
changed as follows:

ENGLISH

During playback, hold down the skip button(.m/,/)
and release it when the part you want to listen to is found.

To go back to the previous menu

Press the MENU button to go back to the previous menu.
This button is equivalent to the MENU button on your iPod.

Play (normal playback)

RPT 1 (repeat 1 song)

RPT ALL (repeat all the songs in the list)

Shuffle playback

During playback, press the SHUFFLE button to change the shuffle
mode.







When you select “RDM Songs”, the iPod shuffles songs within the
list you choose to play.
When you select “RDM Album”, the iPod plays all the songs on an
album in order, and then randomly selects another album in the
list and plays through it in order.

15

Listening to iPod (2)

Listening to an USB Device

Changing the display mode

When the iPod is connected, hold down the MENU button for
more than 4 seconds to select which display to be used.

Direct Mode (default)

Select this to use the screen of the iPod.
Menu appears on the screen of the iPod.
The display of the AG-H380 constantly shows “Direct Mode”.

Extended mode

Select this to use the display of the AG-H380.
Information on the audio files is displayed on the display of the
AG-H380.
The screen of the iPod shows TEAC logo.

< Song/Album/Artist names of audio files should be alphanumeric

characters. This unit cannot display symbols and full-size or
double-byte characters (such as Japanese, Chinese, etc.) correctly.

1

3

You can play MP3/WMA files by connecting various external USB
storage devices such as USB flash memory.

1

Press the SOURCE button repeatedly to select “USB/iPod”.

“Not connected” will be displayed if no USB device is connected.

2

Connect the external USB storage device to the unit.

When an HDD device is connected to this unit, it may take several
minutes to display the number of files.

16

3

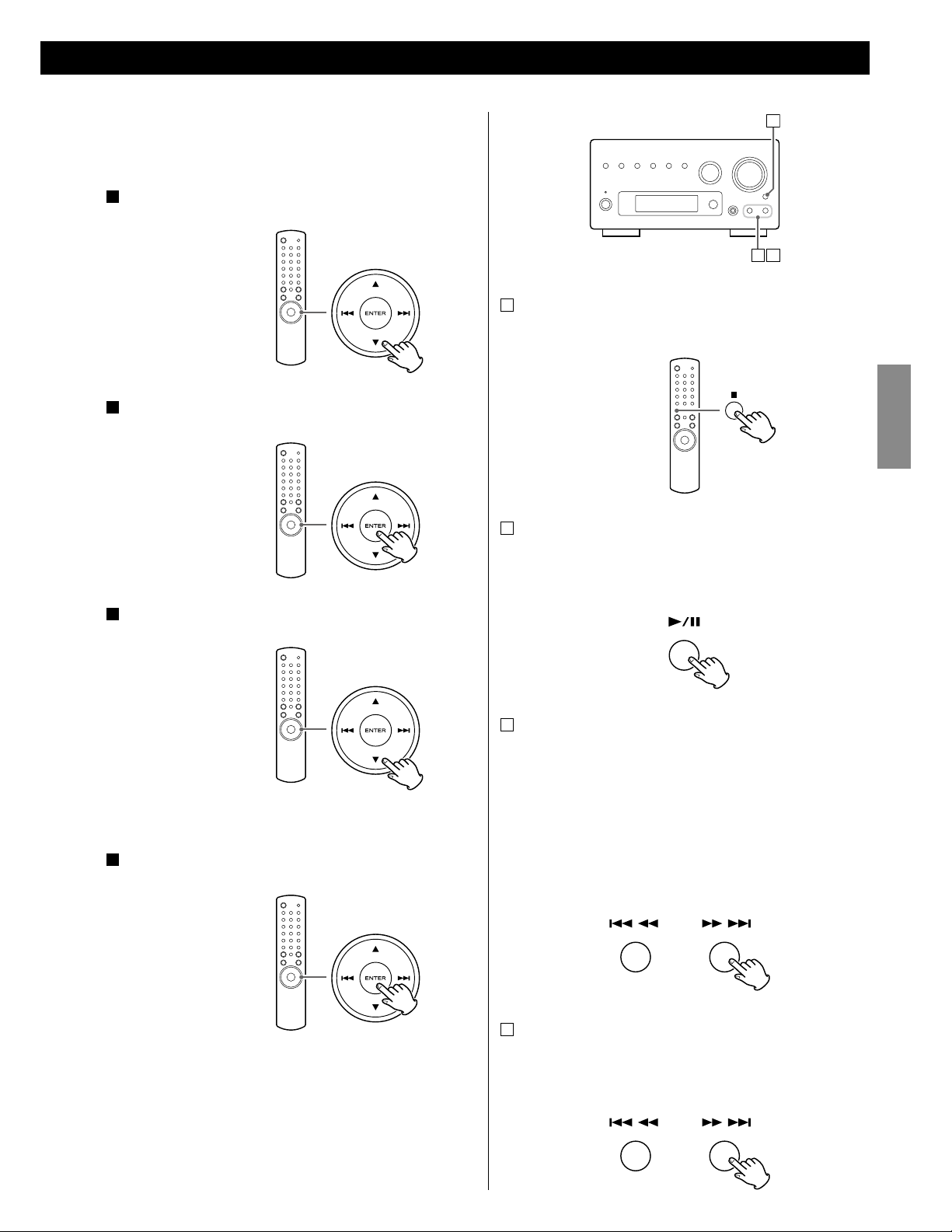

Press the play/pause button (y/J).

Search

You can select a desired directory and song during playback or
when stopped.

1

Press the ˙ or ¥ button to select a directory.

2

Press the ENTER button.

B

C D

A

To stop playback

Press the stop button (H) to stop playback.

B

To pause playback (pause mode)

Press the play/pause button (G/J) during playback. Playback
stops at the current position. To resume playback, press the play/
pause button (G/J) again.

ENGLISH

3

If you want to select a song, press the ˙ or ¥ button.

< The selection moves within the directory.

4

Press the ENTER button.

Playback starts from the selected song.

C

To skip to the next or a previous song

Press the .m or ,/ button repeatedly until the
desired song is found. The selected song will be played from the
beginning.
On the remote control, press the . or / button.

< When the .m button is pressed once during playback, the

song being played will be played from the beginning.

If you want to play the previous song, press the .m
button twice or more.

D

Search for a part of a song

During playback, hold down the .m or ,/ button
and release it when the part you want to listen to is found.
On the remote control, press the . or / button.

17

Repeat Playback (USB)

Shuffle Playback (USB)

Each time the REPEAT 1/ALL button is pressed, the mode is changed
as follows:

RPT 1

RPT Folder

RPT ALL

Play (normal playback)

< If one of the following buttons is pressed, repeat mode will be

cancelled:

stop (H), SOURCE (TUNER, CD, AUX1/2, PHONO), POWER

Repeat one file (RPT 1)

The file being played will be played repeatedly. If you press the
skip button (.m or ,/) and select another file, the
file you selected will be played repeatedly.

It is also possible to select a file to be repeated in the stop mode.
Press the REPEAT 1/ALL button and select a file using the skip
button (.m or ,/).

Repeat all the files in the folder (RPT Folder)

All the files in the folder will be played repeatedly.

Press the SHUFFLE button in the stop or play mode.

“Random” appears on the display, and the files will be played
randomly.

< If you press the ,/ button during shuffle playback,

next file will be randomly selected and played. If you press the
.m button, the currently played file will be played from the
beginning.

A file cannot be replayed during shuffle playback.

< To stop shuffle playback, press the SHUFFLE button or the stop

button (H).

< When the USB has no folder, this mode will be skipped.

Repeat all the songs (RPT All)

All the files will be played repeatedly.
During programmed playback, programmed files will be played
repeatedly.

18

Programmed Playback (USB) (1)

Up to 32 files can be programmed in the desired order.

1

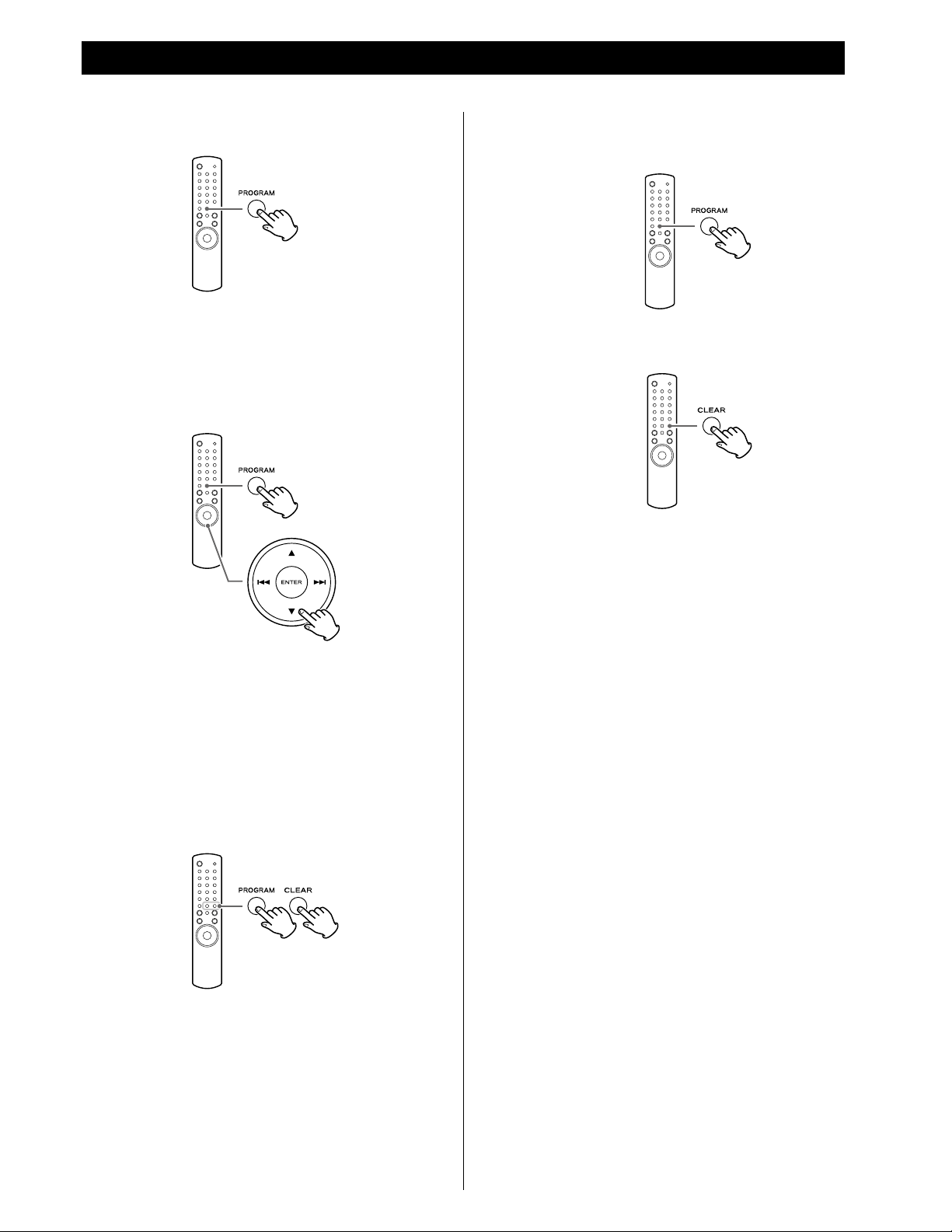

Press the PROGRAM button in the stop mode.

P-00 T-0000
Total File: 0130

2

Press the ˙ or ¥ button to select a file.

4

When programming has been finished, press the play/

pause button (y/J) to start programmed playback.

When the playback of all the programmed songs has finished,
or if the stop button (H) or the POWER button is pressed, the
programme mode will be cancelled.

< If the unit is disconnected from the power supply, the

programmed contents will be erased.

ENGLISH

P-01 T-0012
Total File: 0130

3

Within 5 seconds, press the PROGRAM button.

P-02 T-0012
Total File: 0130

< Repeat steps 2 and 3 to programme more songs.
< If you made a mistake, press the CLEAR button.

The last programmed number will be deleted.

< Up to 32 files can be programmed. If you attempt to programme

more than 32 files, “P-FULL (Programme is full)” is displayed and
no more files can be programmed.

19

Programmed Playback (USB) (2)

To check the programmed order

In the stop mode, press the PROGRAM button repeatedly. The
song number and programme number will be shown on the
display.

To add a file to the programme

To clear the programme

1. In the stop mode, press the PROGRAM button.

2. Hold down the CLEAR button for more than 4 seconds.

< If one of the following buttons is pressed, the programmed

contents will also be cleared:

SOURCE (TUNER, CD, AUX1/2, PHONO), POWER

In the stop mode, press the PROGRAM button repeatedly until
the programme number you want to insert a file appears on the
display. If you want to add a file to the end of the programme,
press the PROGRAM button repeatedly until “P-END” briefly
appears on the display.
Then select a file using the ˙ or ¥ button. The file is added to
the programme.

To delete a file from the programme

In the stop mode, press the PROGRAM button repeatedly until
the programme number to be deleted appears on the display,
then press the CLEAR button. The selected file is deleted from
the programme.

< If the unit is disconnected from the power supply, the

programmed contents will be cleared.

20

Display (USB) Before Recording

Each time you press the DISPLAY button of the remote
control unit during playback of MP3 or WMA, the display
changes as follows:

This unit can record music from CDs, records, cassette tapes and
radio, on USB memory devices, as MP3 files.

CAUTION

< Do not disconnect the USB storage device during recording.

Do not disconnect the power cord during recording.
It may cause damage to the products.

< Adjust the volume of the external audio source to suitable level

before recording. If not, the recording quality becomes poor.

Note

< The recorded files are saved in the AUDIO folder.

Default display (Title, artist and album scroll.)

song number

le name

title

artist

album

date

comment

< The FILE NAME is fixed up automatically in regular sequence like

“Audio001.MP3”, “Audio002.MP3”, …….
For Example:
If there are “Audio004.MP3” and “Audio009.MP3” files in the
AUDIO folder, and you make a recording, a new file will be
“Audio010.MP3”.

< Before recording check the remaining capacity of the USB storage

device using your PC.

You cannot check the remaining memory capacity with this unit.

< This unit can record up to 2000 files to the USB device.

< The maximum time of the recorded file is 90 minutes and new

file is created when the time exceeds 90 minutes.

ENGLISH

21

Recording to USB

Deleting a file from USB

You can record a source of radio broadcast and external device to
the external USB storage device as MP3 files.

1

Connect the external USB storage device to the USB port

of the AG-H380.

2

Press the RECORD button and recording starts.

3

If you want to stop recording, press the stop button (H).

1

In the stop mode, press the ˙ or ¥ button to select a

directory.

2

Press the ENTER button.

3

Press the ˙ or ¥ button to select the desired song.

You cannot record to an external USB storage device if there
is no free space or the device is locked.

4

Hold down the CLEAR button for more than 4 seconds.

“Delete?” is displayed.

5

Within 3 seconds, press the CLEAR button.

22

< The delete mode will be cancelled if you do not press the CLEAR

button within 3 seconds.

Listening to FM/AM

1 2 3 4

1

Press the SOURCE button repeatedly to select TUNER

mode.

2

Select FM or AM by pressing the BAND button repeatedly.

3

Select the desired tuning mode.

Manual tuning mode

Turn the TUNING/SELECT knob until the station you want to listen
to is found.
On the remote control, press ˙ or ¥ repeatedly.
The frequency changes by a fixed step (FM: 50 kHz steps, AM: 9
kHz steps).

ENGLISH

Auto tuning mode

Turn the TUNING/SELECT knob to begin auto tuning.
When a station is found, the unit tunes in the station
automatically. Repeat this step until the station you want to listen
to is found.

< Press the ENTER button to stop the auto tuning.

Preset tuning mode

Turn the TUNING/SELECT knob to select a preset channel.
On the remote control, press .m or ,/ repeatedly.
The selected preset channel is tuned in.

FM Mode

Pressing the FM MODE button alternates between Stereo mode
and Mono mode.

Each time the TUNING MODE button is pressed, the tuning mode
changes as follows:

Manual tune

Auto tune

Preset tune

4

Select the station you want to listen to.

Stereo:

FM stereo broadcasts are received in stereo and “ST” is displayed.

FM/ST 10:00

108.00MHz

Mono:

Select this mode when the signal is weak. Reception will be
forced monaural, reducing unwanted noise.

23

Preset Tuning

Manual Preset (AM/FM)

You can store up to 30 FM and 30 AM stations.

3 41 1 5 2

1

Select AM or FM by pressing the BAND button repeatedly.

2

Tune in the station you want to store.

See the previous page for the procedure of tuning.

5

Within 4 seconds, press the MEMORY button.

The station is stored.

< To store more stations, repeat steps

< If you do not press the MEMORY button within 4 seconds after

selecting the preset number, presetting will be cancelled.

2

to 5 .

Presetting Automatically

1

Select FM or AM by pressing the BAND button repeatedly.

3

Press the MEMORY button.

FM

10:00

CH__ 108.00MHz

4

Within 4 seconds, select the preset number for this

station.

Turn the TUNING/SELECT knob.

2

Hold down the MEMORY button for more than 3 seconds.

Up to 30 of the best received stations in your area will be stored
automatically.

24

FM

10:00

CH12 108.00MHz

RDS

The Radio Data System (RDS) is a broadcasting service which allows
stations to send additional information along with the regular radio
programme signal.
RDS works on the FM waveband in Europe only.

1

Tune in an FM station (see page 23).

2

Press the RDS button.

Each time the RDS button is pressed, the RDS mode is changed
as follows:

PROGRAM SERVICE

When you select PROGRAM SERVICE, “PROGRAM SERVICE” will
blink for about 3 seconds and then the programme service name
or a station’s name will be displayed. If there is no programme
service data, the frequency will be displayed.

PTY Search

1 42 3

You can search for stations by programme type.

1

Select FM by pressing the BAND button repeatedly.

2

Hold down the RDS button for more than 3 seconds.

3

Select the desired programme type (PTY).

Turn the TUNING/SELECT knob to select an item.

ENGLISH

PROGRAM TYPE

When you select PROGRAM TYPE, “PROGRAM TYPE” will blink for
about 3 seconds and then the programme type will be displayed.

CLOCK TIME

Displays the information about times provided from the station.
When you select CLOCK TIME, “RDS CLOCK TIME” will blink for
about 3 seconds and then the clock time will be displayed.

RADIO TEXT

When you select RADIO TEXT, “RDS RADIO TEXT” will blink for
about 3 seconds and then the news of stations composed of up
to 64 symbols will be displayed.
If there is no radio text data, RDS mode will be automatically
switched to PROGRAM SERVICE mode.

TRAFFIC ANNOUNCE

When you select TRAFFIC ANNOUNCE, “TRAFFIC ANNOUNCE”
will blink for 3 seconds and then the unit searches for a traffic
announcement.

< When a traffic programme is found, the TRAFFIC ANNOUNCE

mode is switched to PROGRAM SERVICE mode.

If the station currently selected is transmitting a traffic

programme signal, the RDS mode will be switched to PROGRAM
SERVICE mode without searching for a traffic programme.

Select your desired one from among 31 kinds of PTY
programmes.
The programme type will blink.

4

Press the ENTER button.

Searching starts.

< When the broadcast whose programme type you have selected

is found, searching stops and the programme type will be
displayed.

< If the broadcast of selected programme type is not found during

PTY Search, it will stop at the beginning frequency.

< To stop searching, press the RDS button.

25

RDS (PTY)

News:

brief announcements, events, public opinion, reports, actual
situations.

Current Affairs:

a kind of suggestion including practical announcements other
than news, documents, discussion, analysis and so on.

Information:

daily information or reference such as weather forecast, consumer
guide, medical assistance and so on.

Sport:

sports related programmes.

Education:

educational and cultural information.

Drama:

all kinds of radio concert and serial drama.

Cultures:

all aspects of national or local culture including religious events,
philosophy, social science, language, theatre, and so on.

Science:

programmes on natural science and technology.

Varied Speech:

popular programmes such as quiz, entertainment, private
interview, comedy, satire and so on.

Pop Music:

programme on commercial, practical and popular songs, and
sale volume of discs, etc.

Rock Music:

practical modern music generally composed and played by
young musicians.

Easy Listening:

popular music usually lasting for less than 5 minutes.

Light Classics M:

classical music, instrumental music, chorus, and light music
favoured by non-professionals.

Serious Classics:

orchestra including great operas, symphony, chamber music and
so on.

Other Music:

other music styles (Rhythm & Blues, Reggae, etc.).

Weather & Meter:

weather reports, forecast.

Finance:

financial reports, commerce, trading.

Children’s Progs:

children’s programmes.

Social Affairs:

social affairs.

Religion:

religious programmes.

Phone In:

programme in which the public expresses its view by phone.

Travel & Touring:

travel reports.

Leisure & Hobby:

programmes concerning recreational activities.

Jazz Music:

jazz music.

Country Music:

country music.

National Music:

national music.

Oldies Music:

music from the so-called golden of popular music.

Folk Music:

folk music.

Documentary:

documentaries.

Alarm Test

Alarm-Alarm!:

a programme notifying an emergency or a natural disaster.

The clock setting of this unit is automatically adjusted according
to the CLOCK TIME (CT) data.
If you tune in an RDS station broadcasting incorrect CT data, the
clock might be wrongly adjusted, and that may eventually affect
the timer operation.
When you do not want the clock of this unit to be set according
to the CT data, turn off the auto clock adjustment.

< No matter which RDS mode is selected, the unit receives CT

data and adjusts the clock.

To turn off the auto clock adjustment, hold down the RDS
button for more than 8 seconds.

< To turn on the auto clock adjustment again, hold down the

RDS button for more than 8 seconds.

< When the auto clock adjustment is turned off, CLOCK TIME is

not displayed.

26

Setting the Clock

The clock setting of this unit is automatically adjusted according to
the CLOCK TIME data of an RDS broadcasting.
If you adjust the clock manually, follow the following steps.

1

Press the TIME SET button.

Each time the TIME SET button is pressed, the mode is changed
as follows.

Current Time

On Time

O Time

Source select

4

Press the ˙ or ¥ button to set the current minute.

5

Press the ENTER button.

The clock starts from 00 seconds.

ENGLISH

< The unit uses the 24-hour “military” clock.

< When no action is taken for 1 minute, the time adjust mode will

be cancelled.

< Press the stop button (H) to cancel the time setting.

2

Press the ˙ or ¥ button to set the current hour.

3

Press the ENTER button.

< The clock setting will not be saved when the POWER turns off.

The “minute” value blinks.

27

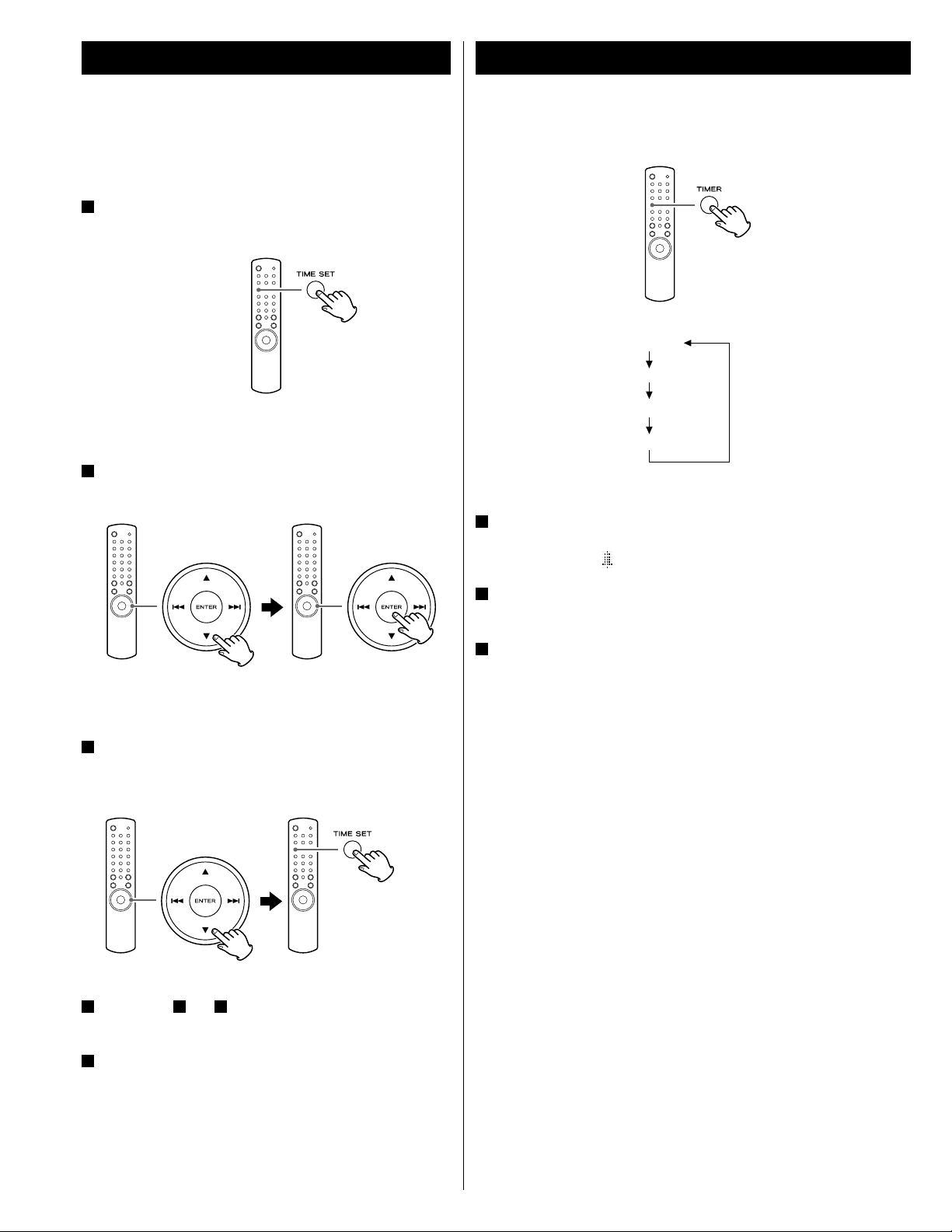

Setting the Timer

Timer Operation

< Adjust the clock before setting the timer.

< When no action is taken for 1 minute, the timer setting mode will

be cancelled.

1

Press the TIME SET button repeatedly until “On time” is

displayed.

“On time” appears on the display, and the “hour” value blinks.

2

Press the ˙ or ¥ button to set the hour value, and press

the ENTER button.

Every time you press the TIMER button on the remote control
unit, the timer mode changes as follows.









Timer Playback

1

Select “Timer daily” by pressing the TIMER button on the

remote control unit.

The timer indicator “

” lights on the display.

The “minute” value blinks.

3

Press the ˙ or ¥ button to set the minute value, and press

the TIME SET button.

“Off time” appears on the display, and the “hour” value blinks.

4

Repeat step 2 and 3 to set the Off time.

“Source select” appears on the display.

2

Prepare for the timer playback.

Adjust the volume, tune in a station, etc.

3

Press the STANDBY/ON button on the remote control unit

to place the unit in standby.

Everyday when the On time is reached, the unit will turn on and
start playback, and when the Off time is reached the unit will
return to standby.

< Do not turn off the unit by pressing the POWER button on the

main unit. The timer does not work when the On time is reached.

5

Press the ˙ or ¥ button to select the source, and press

the ENTER button.

Now the timer setting is stored in memory.

28

Timer Recording

You are able to set the various external USB storage devices such as
USB flash memory to record programme at the desired time.
Connect the external USB storage device to the unit beforehand.

1

Select “Timer REC once” or “Timer REC daily” by pressing

the TIMER button on the remote control unit.

The timer indicator “

” and “ ” light on the display.

Sleep Timer

2

Prepare for the timer recording.

Tune in a station, etc.

3

Press the STANDBY/ON button on the remote control unit

to place the unit in standby.

One minute before the set On time, the unit turns on and starts
recording at the On time.
When the Off time is reached the unit will return to standby.

< Do not turn off the unit by pressing the POWER button on the

main unit. The timer does not work when the On time is reached.

Timer off

When not using the timer, press the TIMER button on the
remote control unit to select “Timer off”.

The timer indicator “

” disappears from the display.

The power can be switched off after a specified amount of time.
Press the SLEEP button repeatedly until desired time appears on the
display.

SLEEP-90 (80, 70 ... 10)

The power will be switched off 90 (80, 70 ... 10) minutes later.

ENGLISH

SLEEP OFF

The sleep timer is off.

< The display is dimmed when you set the sleep timer.

< If you want to check the remaining time, press the SLEEP button

once. The remaining time will be displayed for 3 seconds, and
return to the normal display.

29

Restoring factory settings

Troubleshooting

If the power supply is interrupted for 14 days or longer, all the
settings kept in memory (such as preset stations and timer settings)
will be erased.

It will take more than 3 days after plugging the power cord into
the outlet to charge enough electricity for the memory backup
function.

If you want to manually initialize the settings, hold down
the SOURCE button and play/pause (y/J) for more than 4
seconds in standby mode.

The unit will be turned on, and all the settings are reset to the
default settings.

In case of trouble with the unit, please take the time to look through
this chart and see if you can solve the problem yourself before you
call your dealer or TEAC service center.

Amplifier

No power.

e Check the connection to the AC power supply.

No sound from speakers.

e Check the connection to the speakers.
e Adjust the volume.
e Select proper source.
e Pull out the headphones plug from PHONES jack.
e If muting is on, press the MUTING button.

The sound is noisy.

e The unit is too close to a TV set or similar appliances. Install the

unit apart from them, or turn them off.

Clock goes wrong.

e The clock setting will not be saved when the POWER turns off.

Do not turn off the POWER switch on the front panel.

Remote Control Unit

Remote control unit does not work.

e If the batteries are exhausted, change the batteries.
e Use remote control unit within the range (5 m) and point at the

front panel.

e Clear obstacles between the remote control unit and the main

unit.

e If a fluorescent light is near the unit, turn it off.

Tune r

Cannot listen to any station, or signal is too weak.

e Tune in the station properly.
e If a TV set is near the unit, turn it off.
e Install the antenna again after locating the best reception

position.

e An external antenna is recommended.

Though the broadcast is stereo, it sounds monaural.

e Press the FM MODE button.

iPod Player

Will not play.

e Remove the iPod from the USB jack, wait a few seconds, and

insert it again.

e Software update may solve the problem. Visit the Apple website

and download the latest iPod software.

Cannot operate the iPod.

e Make sure the HOLD switch of the iPod is not set to HOLD.

MP3/WMA

There is no sound even if the play/pause button (y/J) is
pressed.

e Check if there are MP3 or WMA files on the USB.
e Non-playable file formats (e.g MPEG 1 LAYER 2 file) cannot be

played.

30

Specifications

“No song title No artist No album” appears on the display.

e There is no ID3 tag information for the music file.

Edit the song title, artist, and album information of the song on
a PC using the MP3 or WMA making application.

Some unknown characters are displayed on the display
panel.

e This unit cannot display symbols and full-size or double-byte

characters (such as Japanese, Chinese, etc.) correctly. File name
of MP3 or WMA should be alphanumeric characters.

If normal operation cannot be recovered, unplug the power
cord from the outlet and plug it again.

Maintenance

If the surface of the unit gets dirty, wipe with a soft cloth or
use diluted neutral cleaning liquid. Be sure to remove any f luid
completely. Do not use thinner, benzine or alcohol as they may
damage the surface of the unit.

AMPLIFIER Section

Output Power .....................40 W/ch (6 ohms, 0.5 %,1 kHz)

Input Sensitivity ........................... PHONO: 2.5 mV 47 kΩ

AUX, CD, TUNER: 200 mV 47 kΩ

Frequency Response ...............20 Hz to 60,000 Hz (+1/–3 dB)

TUNER Section
FM Section

Tuning Range ..........................87.50 MHz to 108.00 MHz

Signal-to-Noise Ratio ..............................65 dB (Mono)

60 dB (Stereo)

AM Section

Tuning Range ...............................522 kHz to 1,629 kHz

Signal-to-Noise Ratio ...................................... 35 dB

ENGLISH

USB Section
Playback

Frequency Response ..................20 Hz to 20,000 Hz (±2 dB)

Signal-to-Noise Ratio ............................more than 85 dB

Recording

Frequency Response ..................20 Hz to 15,000 Hz (±2 dB)

Signal-to-Noise Ratio ............................more than 85 dB

GENERAL

Power Requirements .............................230 V AC, 50 Hz

Power Consumption .......................................85 W

0.5 W (standby)

Dimension (W x H x D) .......................215 x 110 x 315 mm

Weight ................................................... 4.4 kg

Standard Accessories

Remote Control Unit (RC-1225) x 1
Batteries (AAA) x 2
AM Loop Antenna x 1
FM Lead-type Antenna x 1
Owner’s Manual x 1
Warranty Card x 1

< Design and specifications are subject to change without notice.

< Weight and dimensions are approximate.

< Illustrations may differ slightly from production models.

31

Z

TEAC CORPORATION

TEAC AMERICA, INC. 7733 Telegraph Road, Montebello, California 90640, U.S.A. Phone: [phone]

TEAC CANADA LTD. 5939 Wallace Street, Mississauga, Ontario L4Z 1Z8, Canada Phone: [phone]

TEAC MEXICO, S. A. de C.V. Río Churubusco 364, Colonia Del Carmen, Delegación Coyoacàn, CP 04100, México DF, México Phone: [phone]

TEAC UK LIMITED Unit 19 & 20, The Courtyards, Hatters Lane, Watford, Hertfordshire, WD18 8TE, U.K. Phone: [phone]

TEAC EUROPE GmbH Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, G ermany Phone: [phone]

This appliance has a serial number located on the rear panel. Please record the
model number and serial number and retain them for your records.

Model number Serial number

1-47 Ochiai, Tama-shi, Tokyo 206-8530, Japan Phone: [phone]

0709.MA-1495A
