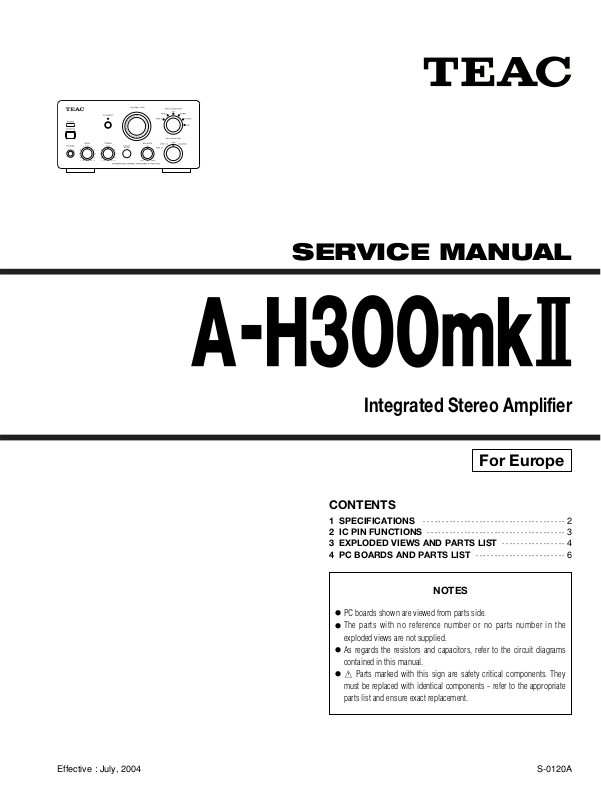

TEAC AH-300 Mk2 Service manual

SERVICE MANUAL

A-H300mk#

Integrated Stereo Amplifier

For Europe

CONTENTS

1SPECIFICATIONS 2

2IC PIN FUNCTIONS 3

3EXPLODED VIEWS AND PARTS LIST 4

4PC BOARDS AND PARTS LIST 6

NOTES

●PC boards shown are viewed from parts side.

●The parts with no reference number or no parts number in the exploded views are not supplied.

●As regards the resistors and capacitors, refer to the circuit diagrams contained in this manual.

●£ Parts marked with this sign are safety critical components. They must be replaced with identical components - refer to the appropriate parts list and ensure exact replacement.

Effective : July, 2004

S-0120A

	1 SPECIFICATIONS
Amplifier Section
Power output ..............................	45 W + 45 W (6 Ω, 1 kHz, 0.5%)
Total Harmonic Distortion........................	0.5% (1 kHz, 6 Ω, 45 W)
S/N Ratio ....................................................	PHONO: 70 dB (IHF-A)
AUX, CD, TAPE, TUNER: 95 dB (IHF-A)
	CD direct: 95 dB (IHF-A)
Input Sensitivity/Impedance ......................	PHONO: 2.6 mV/10 kΩ
AUX, CD, TAPE, TUNER: 180 mV/10 kΩ
Frequency Response..................................................	5 Hz - 80 kHz
Tone Control ............................................	BASS : ±10 dB (100 Hz)
	TREBLE : ±10 dB (10 kHz)
General
Power Requirement ..............................................	AC 230 V, 50 Hz
Power Consumption ..............................................................	85 W
AC Outlet (total 100 W max.) ..................................	unswitched x 1
Dimensions (W x H x D) ................................	215 x 312 x 110 mm
Weight (Net)..........................................................................	4.2 kg
Operating temperature ................................................	+5˚C - +35˚C
Operating humidity..........................	5% to 85% (no condensation)
Storage temperature ................................................	–20˚C - +55˚C
Standard Accessory........................................	Remote Control Unit
	Battery (AAA, R03, UM-4) x 2

•Design and specifications are subject to change without notice.

•Weight and dimensions are approximate.

2

2 IC PIN FUNCTIONS

HVIANAM1224A

Pin No.	PIN NAME					I/O	DESCRIPTION
1	FUNC MUTE					O	Function, Mute ON/OFF Output
2	-20dB MUTE					O	-20dB Mute ON/OFF Output
3	POWER MUTE					O	Power Mute Output
4	SOURCE REC, OUT					O	Source recoding Output
5	OPTION					I	Option port "HIGH" LEVEL
6	OPTION
7	PROTECT IN					I	Protect Input
8	STAND BY					O	Stand by LED ON/OFF Output
9	POWER ON/OFF					O	Power ON/OFF Output
10	AUX					O	Function, LED ON/OFF Output
11	PHONO					O	Function, LED ON/OFF Output
12	N/C				-		Non connection
13	TUNER
14	CD					O	Function, LED ON/OFF Output
15	TAPE 1
16	TAPE 2
17	Vss					I	GROUND
18,19	N/C				-		Non connection
20	RESET					I	Divice reset pluse input
21	XL 1					O	Crystal Output
22	XL 2					I	Crystal Input
23	TAPE 2			1		O	TAPE 2 Recording Output
24	TAPE 1			2		O	TAPE 1 Recording Output
25,26	KEY OUT					O	Key matrix signal Output
27,28	KEY IN					I	Key matrix signal Input
29	TAPE 2 REC IN					I	TAPE 2 Recording Input
30	TAPE 1 REC IN					I	TAPE 1 Recording Input
31	SOURCE REC, IN					I	Source recoding Input
32,34	N/C				-		Non connection
33	FUNCTION DOWN					I	Function Down Input
35	FUNCTION UP					I	Function Up Input
36	BUS IN					I	System control Input
37	REMOTE IN					I	Remote control Input
38	N/C				-		Non connection
39	Vdd					I	+5V
40	BUS OUT					O	System control Output
41	N/C				-		Non connection
42	VOLUME DOWN					O	Volume DOWN Output
43	VOLUME UP					O	Volume UP Output
44	CD DIRECT					O	CD Direct led ON/OFF Output

3

3 EXPLODED VIEWS AND PARTS LIST

37

36

29

35

30

39

24

23

34

31 x3

38

12
11		25	x3			32
40
14				26
13				22
16
15				27		x4
						33
17
				28	x4
18
7				21
	20	x3
19	x7
8

5

9

10

2

1 x3

3

6

4

4

EXPLODED VIEW LIST

REF.NO.	PARTS NO.	DESCRIPTION	REMARKS
1	HGK1A103ZA	ROTARY KNOB ASSY
2	HGK1A101ZA	VOLUME KNOB ASSY
3	HGK1A102ZA	INPUT KNOB ASSY
4	HGK1A102YA	REC KNOB ASSY
5	KGB1A047Z	BADGE,TEAC
6	CKM1A152ZC35	PANEL,AL
7	CGL1A133	INDICATOR,STAND BY
8	CGL1A228	INDICATOR,VOLUME
9	CGR1A348MBC22	RING,VOLUME
10	CGW1A384M7G5	PANEL,SUB
11	CBC1A098M7G5	KNOB,POWER
12	COP11711B	FRONT PCB ASSY
13	CBT1A495M7G5	CAP,STAND BY
14	CBT1A483	KNOB,STAND BY
15	COP11711B	FRONT PCB ASSY
16	COP11711B	FRONT PCB ASSY
17	CBT1A484M7G5	KNOB,DIRECT
18	CGU1A261A8	WINDOW,SENSOR
19	CGL1A219	INDICATER,STAND-BY
20	CGW1A384M7-2	HOLDER,LED
21	COP11711B	FRONT PCB ASSY
22	COP11711B	FRONT PCB ASSY
23	CKC1B088S35	CABINET,TOP
24	£ CLT5P039ZE	TRANS,POWER
25	CHG1A113	RUBBER
26	CUA2A157	CHASSIS,BOTTOM
27	CKL2A055H45	FOOT
28	KHG1A050Y	CUSHION,FOOT
29	COP11712B	INPUT PCB ASSY
30	CMD1A356	BRACKET,PCB
31	CHE170	HOLDER,PCB
32	COP11713B	AMP PCB ASSY
33	CMY2A126	HEATSINK
34	CKF1A152R	PANEL,REAR
35	KMA2A001	TERMINAL,GROUND
36	£ KHR1A028	BUSHING,AC CORD
37	£ CJA2B043ZA	CORD,POWER
38	CMX1A167	INSULATOR
39	CHE1A012	WASHER,FIBER
40	CMD1A376	SUPPORT,LED
F901	£ KBA2C2000TLEZ	FUSE
F902	£ KBA2C1000TLEZ	FUSE

INCLUDED ACCESSORIES

REF.NO.	PARTS NO.	DESCRIPTION		REMARKS
	9A10000400	OWNER'S MANUAL,E/F/S
	9A10000500	OWNER'S	MANUAL,G/I/D
	CARTAH300S	REMOCON	TRANSMITTER ASSY

5

4 PC BOARDS AND PARTS LIST

INPUT PCB

6

FRONT PCB

VR CONTROL PCB

POWER SWITCH PCB

HEADPHONE PCB

7

AMP PCB

8

INPUT PCB ASSY

REF.NO.	PARTS NO.	DESCRIPTION
	COP11712B	INPUT PCB ASSY
	CUP11712Z	INPUT PCB
CN14	KJP04GA19ZM	WAFER
CN52	KJP04GA01ZM	WAFER
CN71	KJP11GA19ZM	WAFER
CN74	KJP06GA19ZM	WAFER
IC11	HVINJM2068MDTE1	IC,NJM2068
IC12	BVILC4966	IC,LC4966
IC13	BVILC4966	IC,LC4966
IC14	BVILC4966	IC,LC4966
IC15	BVILC4966	IC,LC4966
IC16	BVILC4966	IC,LC4966
IC17	BVILC4966	IC,LC4966
IC18	BVILC4966	IC,LC4966
IC19	HVINJM2068MDTE1	IC,NJM2068
IC20	HVINJM2068MDTE1	IC,NJM2068
IC21	HVINJM2068MDTE1	IC,NJM2068
JK10	CJJ4R014Z	JACK,BOARD
JK11	CJJ4R017Z	TERMINAL,IN/OUT(G)
JK12	CJJ4P019Z	JACK,BOARD
Q101	HVTKTC2874BT	TR,KTC2874B
Q102	HVTKTC2874BT	TR,KTC2874B
Q103	HVTKTC2874BT	TR,KTC2874B
Q104	HVTKTC2874BT	TR,KTC2874B
Q107	HVTKRC107MT	TR,KRC107M
Q108	HVTKRA107MT	TR,KRA107M
Q109	HVTKRC107MT	TR,KRC107M
Q111	HVTKRC107MT	TR,KRC107M
Q112	HVTKRA107MT	TR,KRA107M
Q113	HVTKRC107MT	TR,KRC107M
Q114	HVTKRA107MT	TR,KRA107M
Q115	HVTKRC107MT	TR,KRC107M
Q116	HVTKRA107MT	TR,KRA107M
Q211	HVTKRC107MT	TR,KRC107M
Q212	HVTKRA107MT	TR,KRA107M
Q213	HVTKRC107MT	TR,KRC107M
Q214	HVTKRA107MT	TR,KRA107M
Q215	HVTKRC107MT	TR,KRC107M
Q216	HVTKRA107MT	TR,KRA107M
Q217	HVTKRC107MT	TR,KRC107M
Q218	HVTKRA107MT	TR,KRA107M
Q219	HVTKRC107MT	TR,KRC107M
Q220	HVTKRA107MT	TR,KRA107M
Q221	HVTKRC107MT	TR,KRC107M
Q222	HVTKRA107MT	TR,KRA107M

FRONT PCB ASSY (GATHER)

REF.NO.	PARTS NO.	DESCRIPTION
	COP11711B	FRONT PCB ASSY
	CUP11711Z	FRONT PCB
	CMD1A376	SUPPORT,LED
C901	£ BCKWKH472ME	C,CERAMIC(KH TYPE)
CN11	KJP06GA19ZM	WAFER
CN73	KJP06GA19ZM	WAFER
D701	CVDLEBBL33T0	LED,BLUE
D702	CVDLEBBL33T0	LED,BLUE
D703	CVDLEBBL33T0	LED,BLUE
D704	CVDLEBBL33T0	LED,BLUE
D705	CVDLEBBL33T0	LED,BLUE
D706	CVDLEBBL33T0	LED,BLUE
D707	CVDLEBBL33T0	LED,BLUE
D708	CVDLEBBL33T0	LED,BLUE
D711	HVD342YCTB7T089	LED,YELLOW
D721	HVD1SS133MT	DIODE,1SS133
D722	HVD1SS133MT	DIODE,1SS133
IC41	HVINJM2068MDTE1	IC,NJM2068
IC71	HVIANAM1224A	IC,ANAM1224A
IC72	KRVHIM602H32	SENSOR,REMOCON
IC73	HVINJM2068MDTE1	IC,NJM2068
JK71	HJJ2E027Z	JACK,HEADPHONE
Q701	HVTKRA107MT	TR,KRA107M
Q702	HVTKRA107MT	TR,KRA107M
Q703	HVTKRA107MT	TR,KRA107M
Q704	HVTKRA107MT	TR,KRA107M
Q705	HVTKRA107MT	TR,KRA107M
Q706	HVTKRA107MT	TR,KRA107M
Q719	HVTKRC107MT	TR,KRC107M
Q721	HVTKRC107MT	TR,KRC107M
Q722	HVTKRA107MT	TR,KRA107M
Q723	HVTKRA107MT	TR,KRA107M
Q724	HVTKRC107MT	TR,KRC107M
Q731	HVTKRA107MT	TR,KRA107M
Q732	HVTKRA107MT	TR,KRA107M
Q733	HVTKRA107MT	TR,KRA107M
Q735	HVTKRA107MT	TR,KRA107M
Q736	HVTKRA107MT	TR,KRA107M
Q737	HVTKRA107MT	TR,KRA107M
Q738	HVTKRC107MT	TR,KRC107M
Q741	HVTKRA107MT	TR,KRA107M
Q751	HVTKRC107MT	TR,KRC107M
Q771	HVTKSB811YT	TR,KSB811Y
Q772	HVTKSB811YT	TR,KSB811Y
Q773	HVTKSD1021YT	TR,KSD1021Y
Q774	HVTKSD1021YT	TR,KSD1021Y
S701	CST1A012ZT	SW,TACT
S702	CST1A012ZT	SW,TACT
SW71	HSR4A003Z	SW,ROTARY
SW72	HSR2A006Z	VR,ENCODER
SW91	£ KSH1A001ZV	SW,PUSH
VR31	BVV2X01C104Y	R,VARIABLE
VR32	BVV2X01C104Y	R,VARIABLE
VR33	BVV2X03B104Y	R,VARIABLE
VR74	CVV9Y09A104Z	VOLUME,MOTOR
X701	HOX04194E120C	CRYSTAL

9

AMP PCB ASSY

REF.NO.	PARTS NO.	DESCRIPTION
	COP11713B	AMP PCB ASSY
	CUP11713Z	AMP PCB
	CMY2A126	HEATSINK
C906	£ HCETSMK63V472	C,ELECT 4700UF 63V
C907	£ HCETSMK63V472	C,ELECT 4700UF 63V
C927	£ HCEA1EH102E	C,ELECT 1000UF 25V
C928	£ HCEA1EH102E	C,ELECT 1000UF 25V
CN51	KJP05GA01ZM	WAFER
CN72	CJP09GA19ZY	WAFER,9PIN
D505	HVDMTZJ15BT	DIODE,ZENER MTZJ15BT
D506	HVDMTZJ15BT	DIODE,ZENER MTZJ15BT
D543	HVD1SS133MT	DIODE,1SS133
D544	HVD1SS133MT	DIODE,1SS133
D545	HVD1SS133MT	DIODE,1SS133
D546	HVD1SS133MT	DIODE,1SS133
D901	£ HVDPBPC604F	DIODE,BRIDGE PBPC604F
D902	£ HVDW02GF	DIODE,BRIDGE W02GF
D903	£ KVD1N4003ST	DIODE,1N4003
D904	£ KVD1N4003ST	DIODE,1N4003
D931	HVDMTZJ13BT	DIODE,ZENER MTZJ13BT
D951	HVDMTZJ13BT	DIODE,ZENER MTZJ13BT
D961	HVD1SS133MT	DIODE,1SS133
ET01	CNE75	PLATE,EARTH
F901	KJCFC5S	HOLDER,FUSE
F902	KJCFC5S	HOLDER,FUSE
IC61	£ HVIMC7805C	IC,MC7805
JK51	CJJ5P011Z	TERMINAL,SPEAKER
JK52	CJJ4N033Z	JACK,BOARD
L537	CLEYK1R8KA	COIL
L538	CLEYK1R8KA	COIL
OL66	£ KJJ7A021Z	AC OUTLET,230V 1P
PW91	KJP03GA90ZM	WAFER
PW92	KJP03GA01ZM	WAFER
PW93	KJP02GA89ZM	WAFER
PW94	KJP02KA060ZY	WAFER
Q491	HVTKTC2874BT	TR,KTC2874B
Q492	HVTKTC2874BT	TR,KTC2874B
Q501	HVTKSA992FT	TR,KSA992F
Q502	HVTKSA992FT	TR,KSA992F
Q503	HVTKSA992FT	TR,KSA992F
Q504	HVTKSA992FT	TR,KSA992F
Q513	KVTKSC2785YT	TR,KSC2785Y
Q514	KVTKSC2785YT	TR,KSC2785Y
Q515	KVTKSC2785YT	TR,KSC2785Y
Q516	KVTKSC2785YT	TR,KSC2785Y
Q517	£ HVTKTC2026Y	TR,KTC2026Y
Q518	£ HVTKTC2026Y	TR,KTC2026Y
Q529	£ HVTKSC2316YT	TR,KSC2316Y
Q530	£ HVTKSC2316YT	TR,KSC2316Y
Q531	£ HVTKSA916YT	TR,KSA916Y
Q532	£ HVTKSA916YT	TR,KSA916Y
Q533	£ HVTKTD998O	TR,KTD998O
Q534	£ HVTKTD998O	TR,KTD998O
Q535	£ HVTKTB778O	TR,KTB778O
Q536	£ HVTKTB778O	TR,KTB778O

AMP PCB ASSY

REF.NO. PARTS NO. DESCRIPTION

Q541	KVTKSA1175YT	TR,KSA1175Y
Q542	KVTKSA1175YT	TR,KSA1175Y
Q545	HVTKRA107MT	TR,KRA107M
Q903	KVTKSC2785YT	TR,KSC2785Y
Q904	KVTKSA1175YT	TR,KSA1175Y
Q905	KVTKSA1175YT	TR,KSA1175Y
Q906	KVTKSC2785YT	TR,KSC2785Y
Q907	£ HVTKSA916YT	TR,KSA916Y
Q908	£ HVTKSC2316YT	TR,KSC2316Y
Q931	HVTKRA107MT	TR,KRA107M
Q932	£ HVTKSC2316YT	TR,KSC2316Y
Q933	HVTKRC107MT	TR,KRC107M
Q941	HVTKRC107MT	TR,KRC107M
Q942	£ HVTKSA916YT	TR,KSA916Y
Q943	HVTKRA107MT	TR,KRA107M
Q961	HVTKRA107MT	TR,KRA107M
Q962	HVTKRC107MT	TR,KRC107M
R531	£ CRG1ANJ181H	R,METAL 180	1W
R532	£ CRG1ANJ181H	R,METAL 180	1W
R533	£ CRF5EKR22	R,CEMENT 0.22 5W
R534	£ CRF5EKR22	R,CEMENT 0.22 5W
R535	£ CRF5EKR22	R,CEMENT 0.22 5W
R536	£ CRF5EKR22	R,CEMENT 0.22 5W
R761	£ CRG1ANJ391H	R,METAL 390	1W
R762	£ CRG1ANJ391H	R,METAL 390	1W
R921	£ KRQ1AJR47H	R,FUSE 0.47	1W
R922	£ KRQ1AJR47H	R,FUSE 0.47	1W
R961	£ KRD50FJ100T	R,CARBON 10	1/2W
RY51	HSL4A004ZU	RELAY
TW91	KJP02KA060ZY	WAFER

10

BLOCK DIAGRAM			A-H300mk#
1			2			3		4		5		6		7		8

A

B

C

D

E

A-H300mk#

Integrated Stereo Amplifier

1 st Issue; May 2004

WIRING DIAGRAM			A-H300mk#
1			2			3		4		5		6		7		8

A

B

C

D

E

A-H300mk#

Integrated Stereo Amplifier

1 st Issue; May 2004

A

B

C

D

E

						SCHEMATIC DIAGRAM																																		A-H300mk# INPUT PCB
1																			2																																			3																						4																																5																									6																						7																																									8

NOTES:

1. Resistor values are in ohms (k=kilo-ohms, M=megohms). 2. Capacitor values are in microfarads (p=picofarads).

3. £Parts marked with this sign are safety critical components. They must always be replaced with identical components-refer to the appropriate parts list and ensure exact replacement.

A-H300mk#

Integrated Stereo Amplifier

1 st Issue; May 2004

A

B

C

D

E

	SCHEMATIC DIAGRAM	A-H300mk# FRONT PCB, VR CONTROL PCB, POWER SWITCH PCB, HEADPHONE PCB
1	2	3	4	5	6	7	8
					NOTES:
					1.	Resistor values are in ohms (k=kilo-ohms, M=megohms).
					2.	Capacitor values are in microfarads (p=picofarads).
					3.	£Parts marked with this sign are safety critical components.
						They must always be replaced with identical components-refer
						to the appropriate parts list and ensure exact replacement.

A-H300mk#

Integrated Stereo Amplifier

1 st Issue; May 2004

A

B

C

D

E

	SCHEMATIC DIAGRAM	A-H300mk# AMP PCB
1	2	3	4	5	6	7	8

NOTES:

1.Resistor values are in ohms (k=kilo-ohms, M=megohms).

2.Capacitor values are in microfarads (p=picofarads).

3.£Parts marked with this sign are safety critical components. They must always be replaced with identical components-refer to the appropriate parts list and ensure exact replacement.

A-H300mk#

Integrated Stereo Amplifier

1 st Issue; May 2004

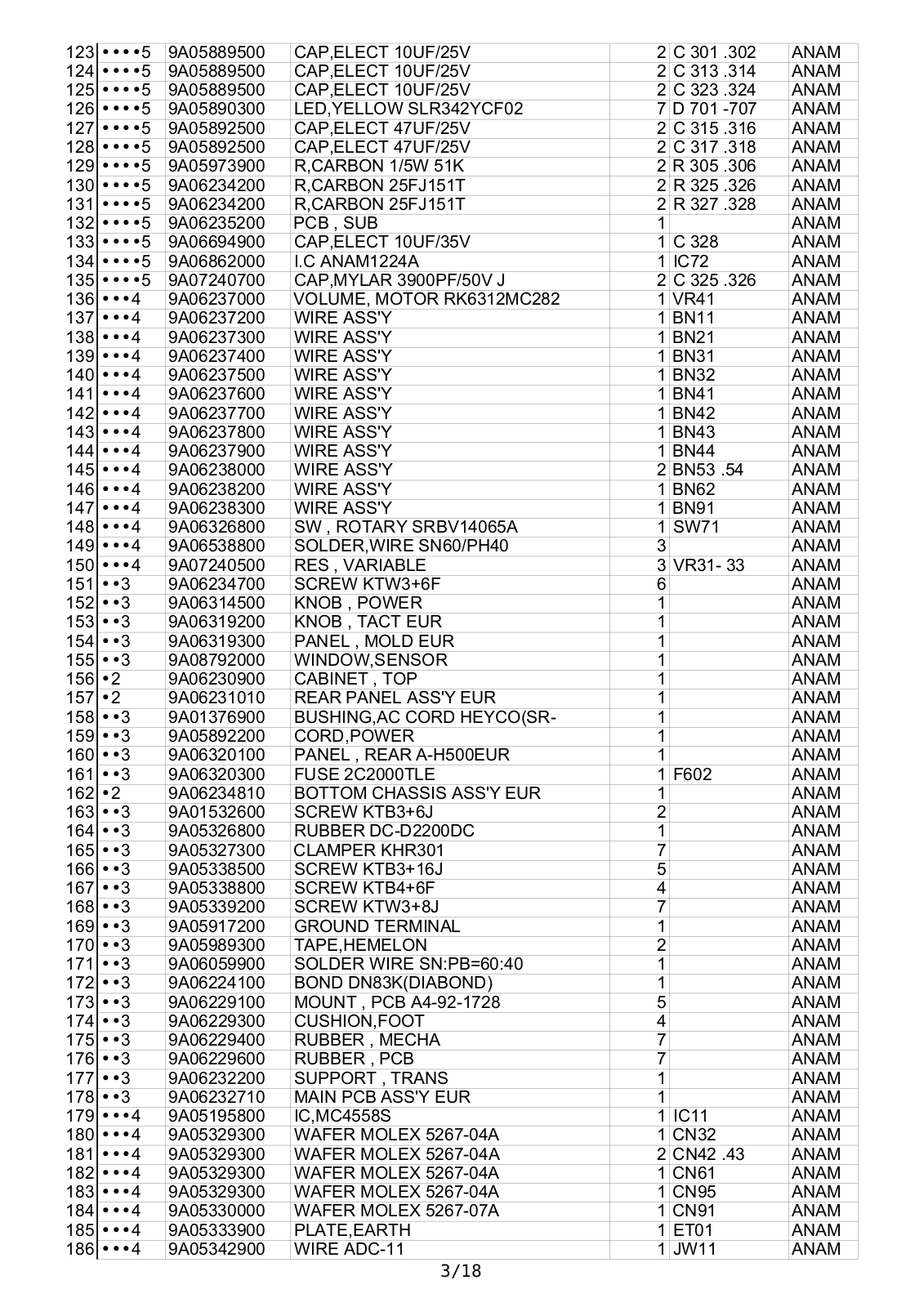

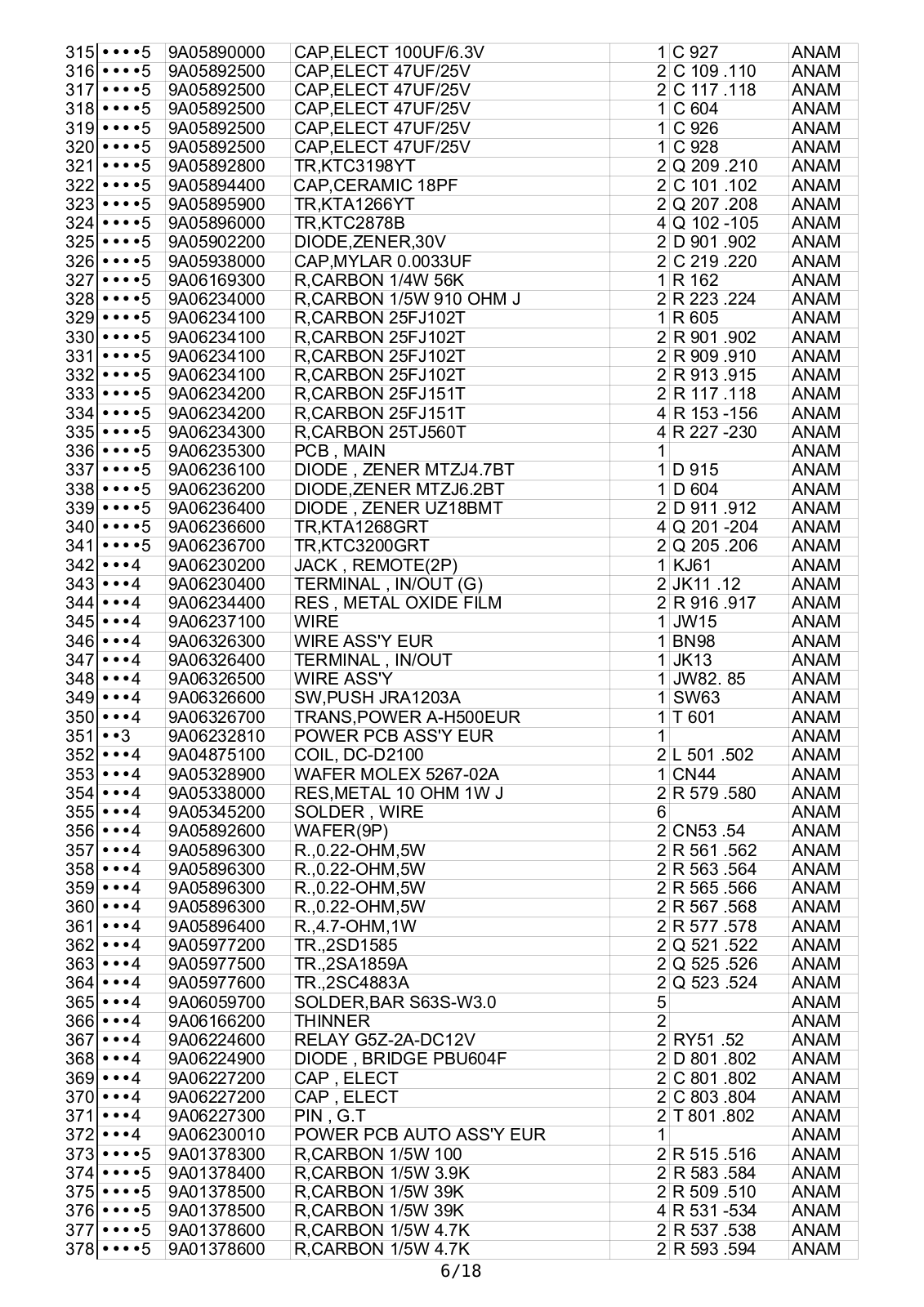

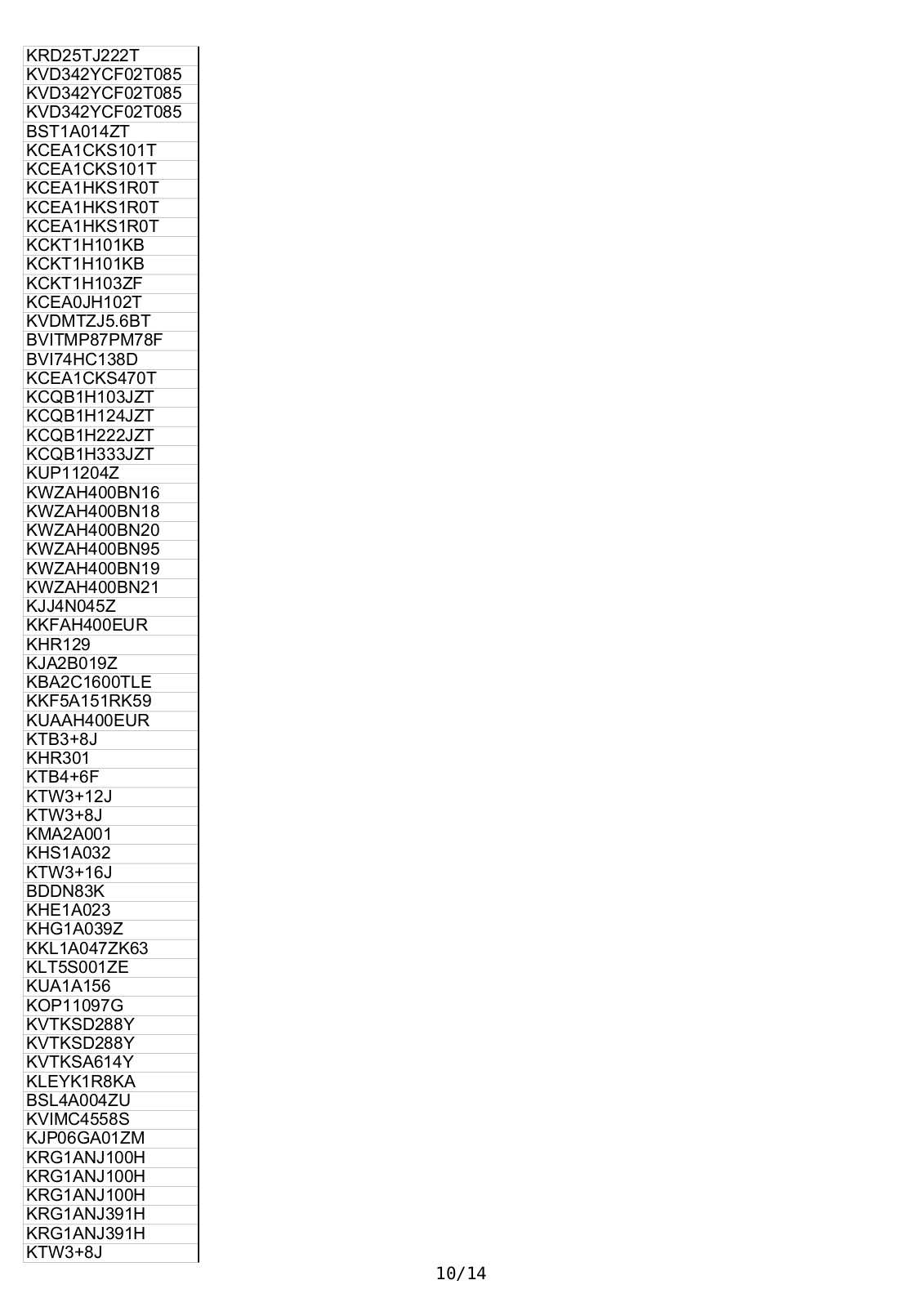

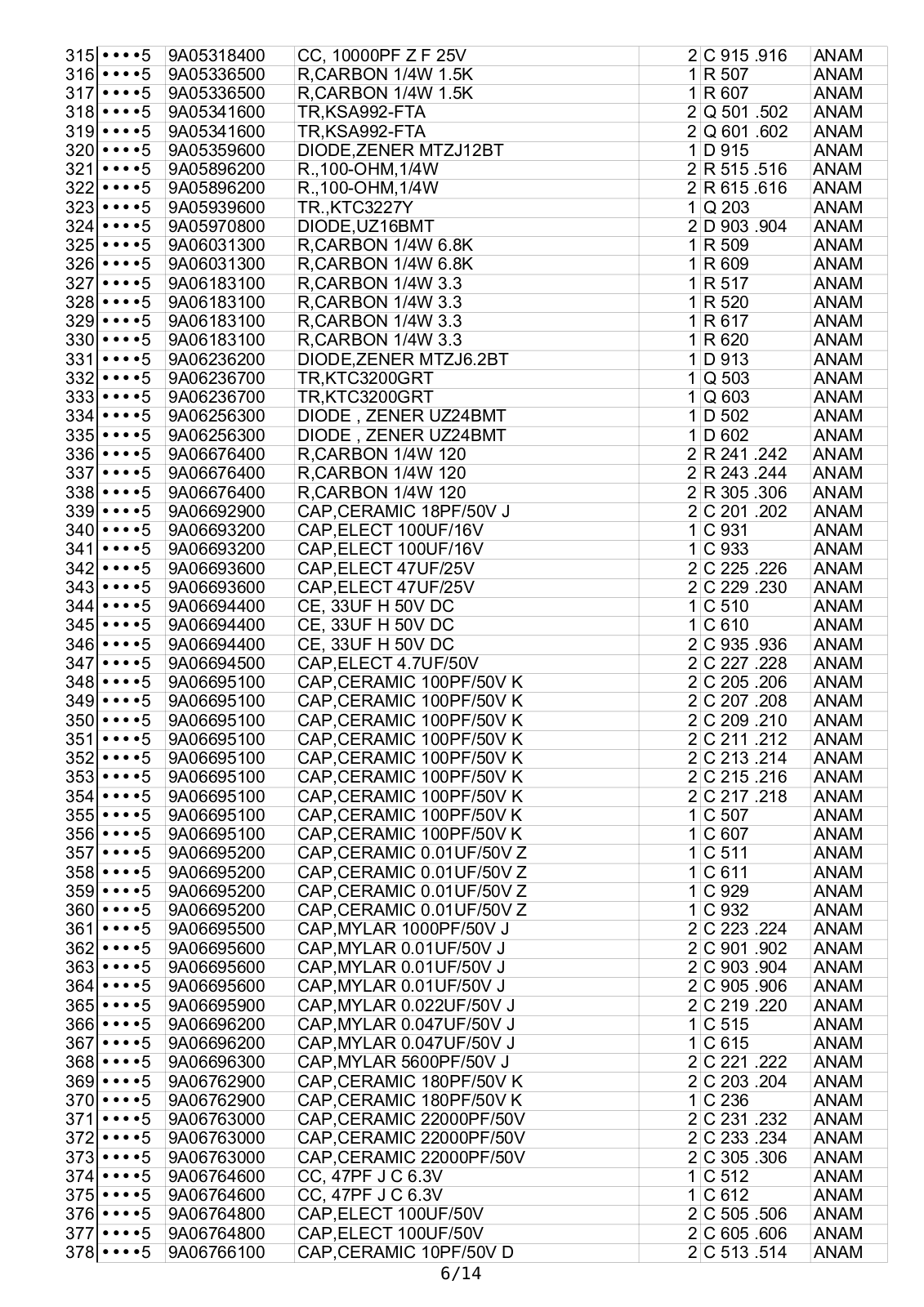

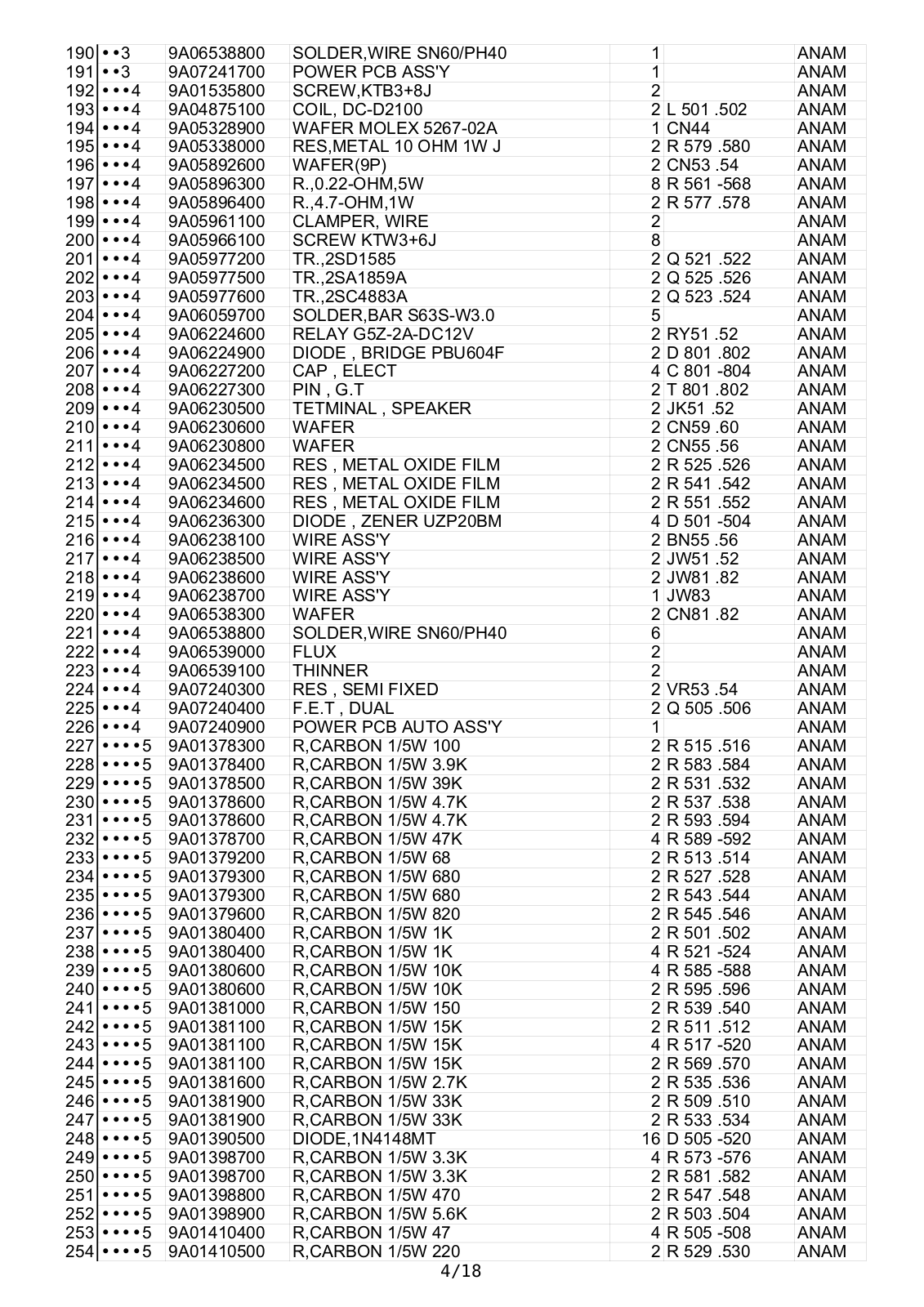

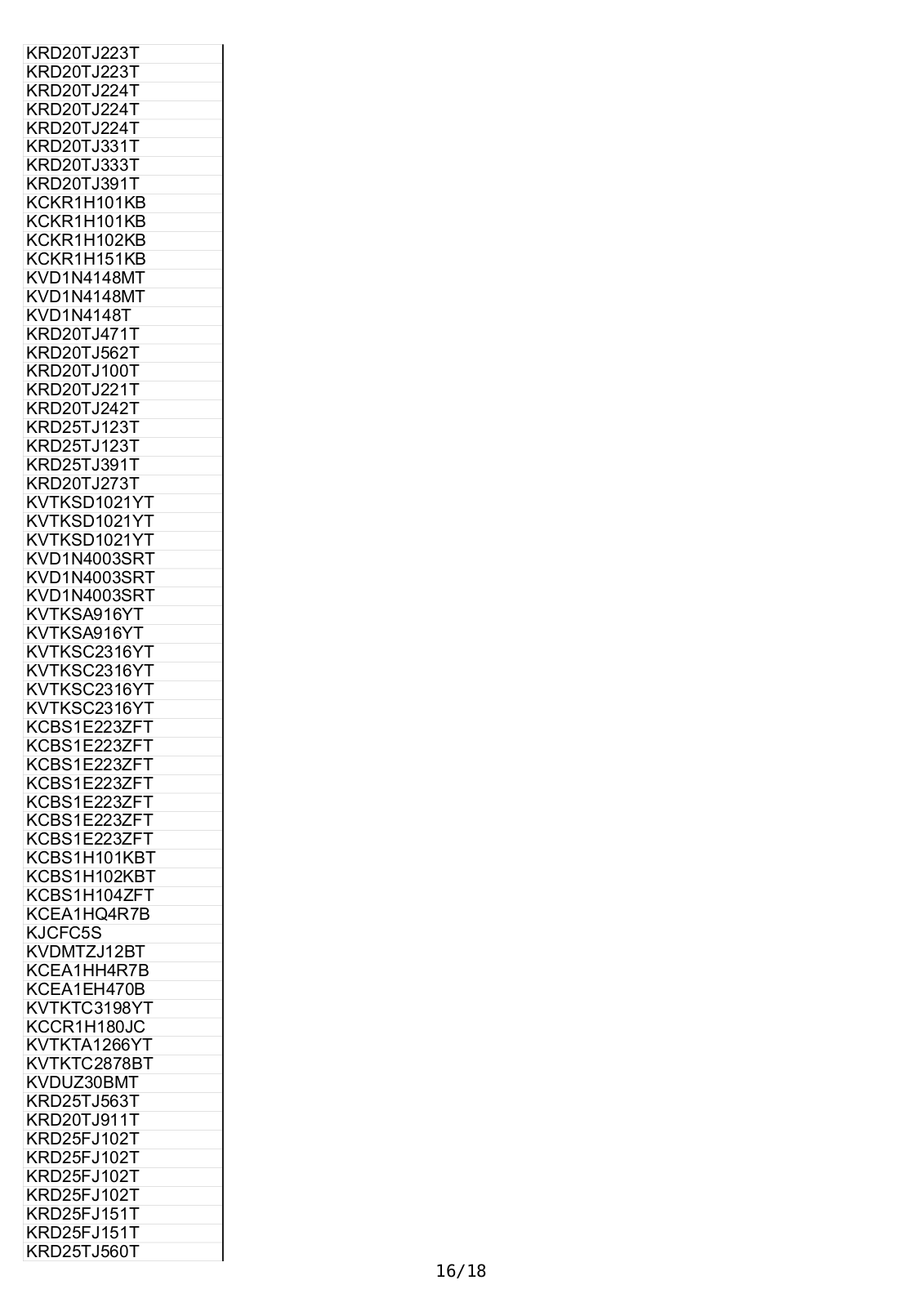

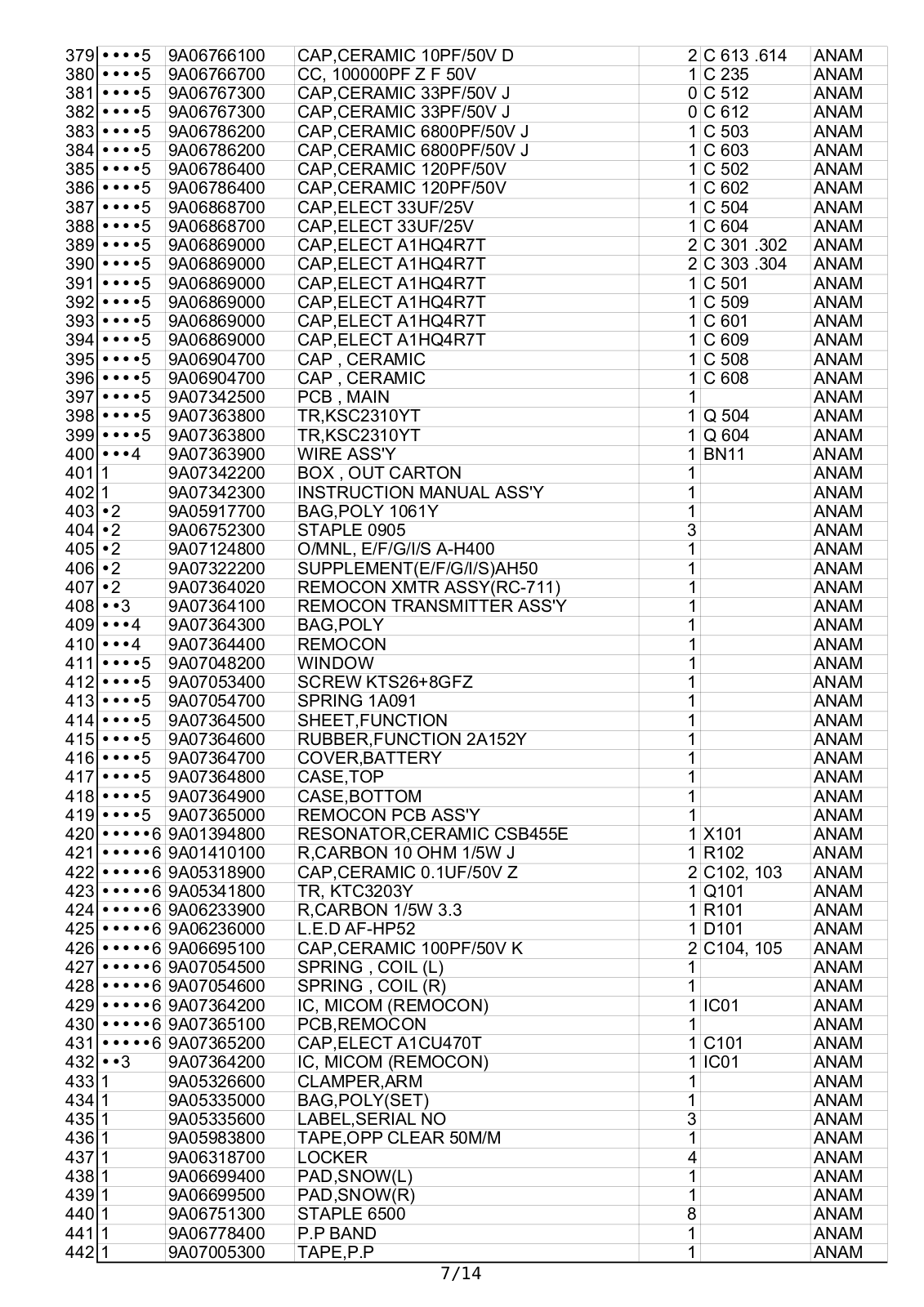

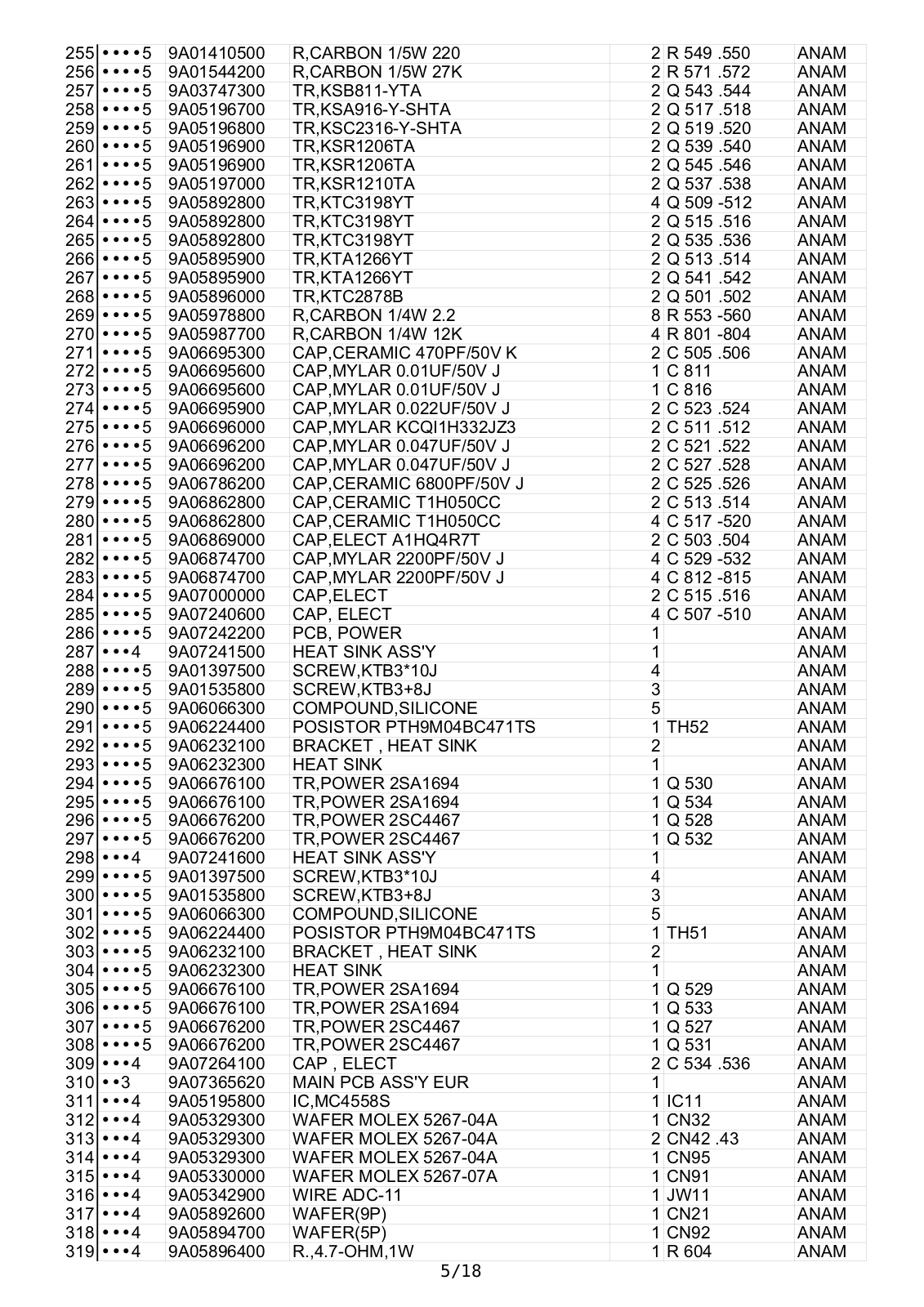

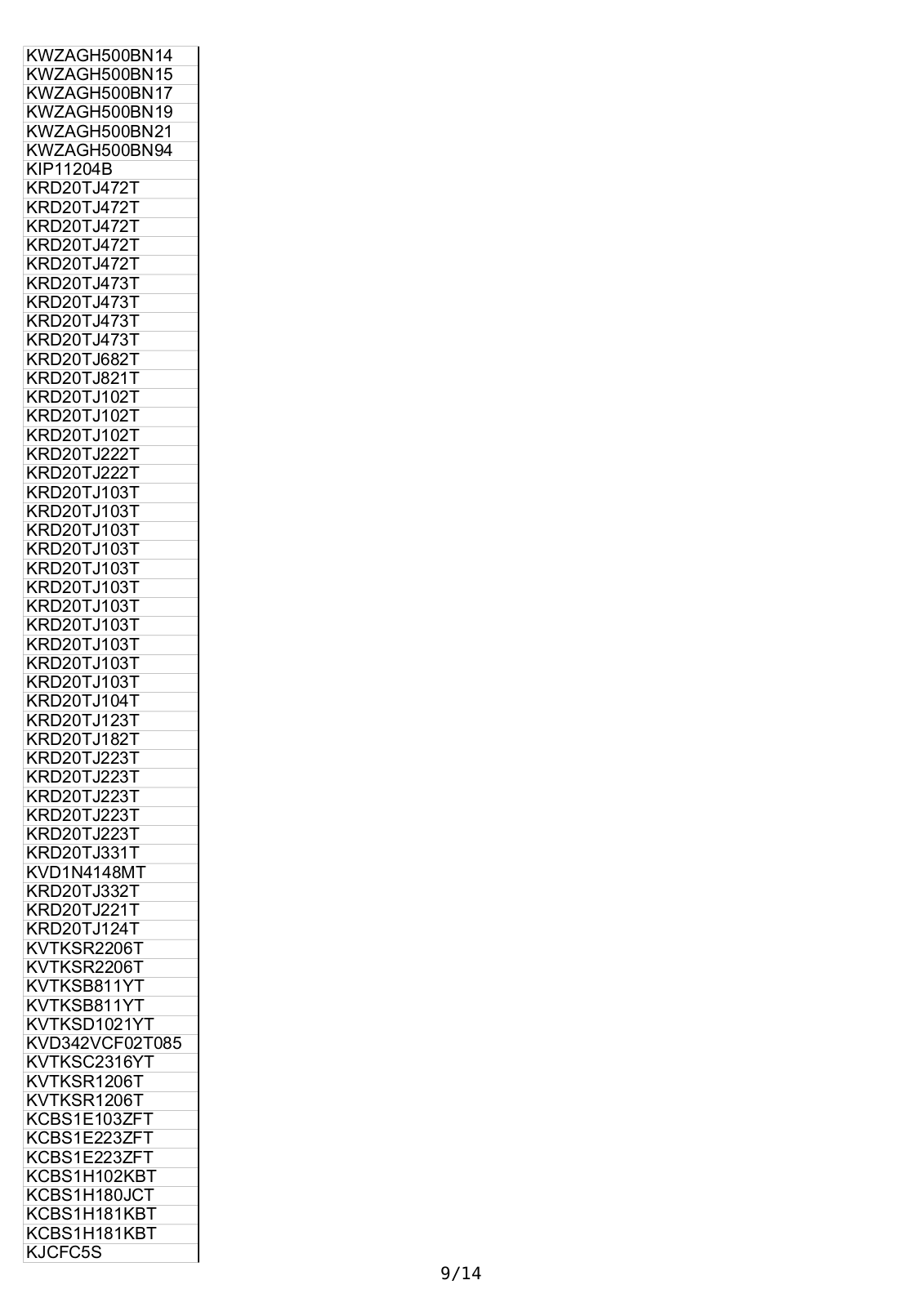

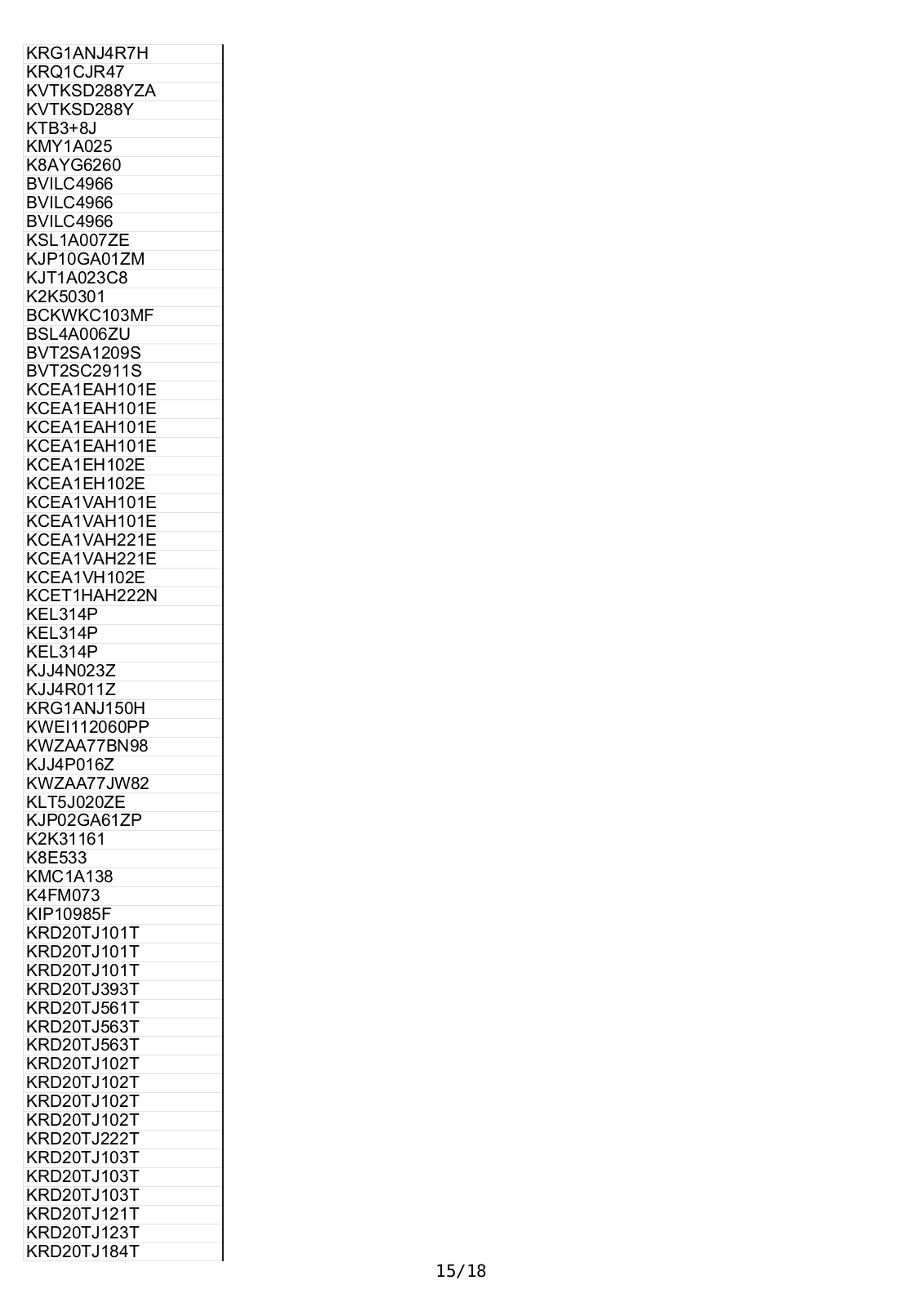

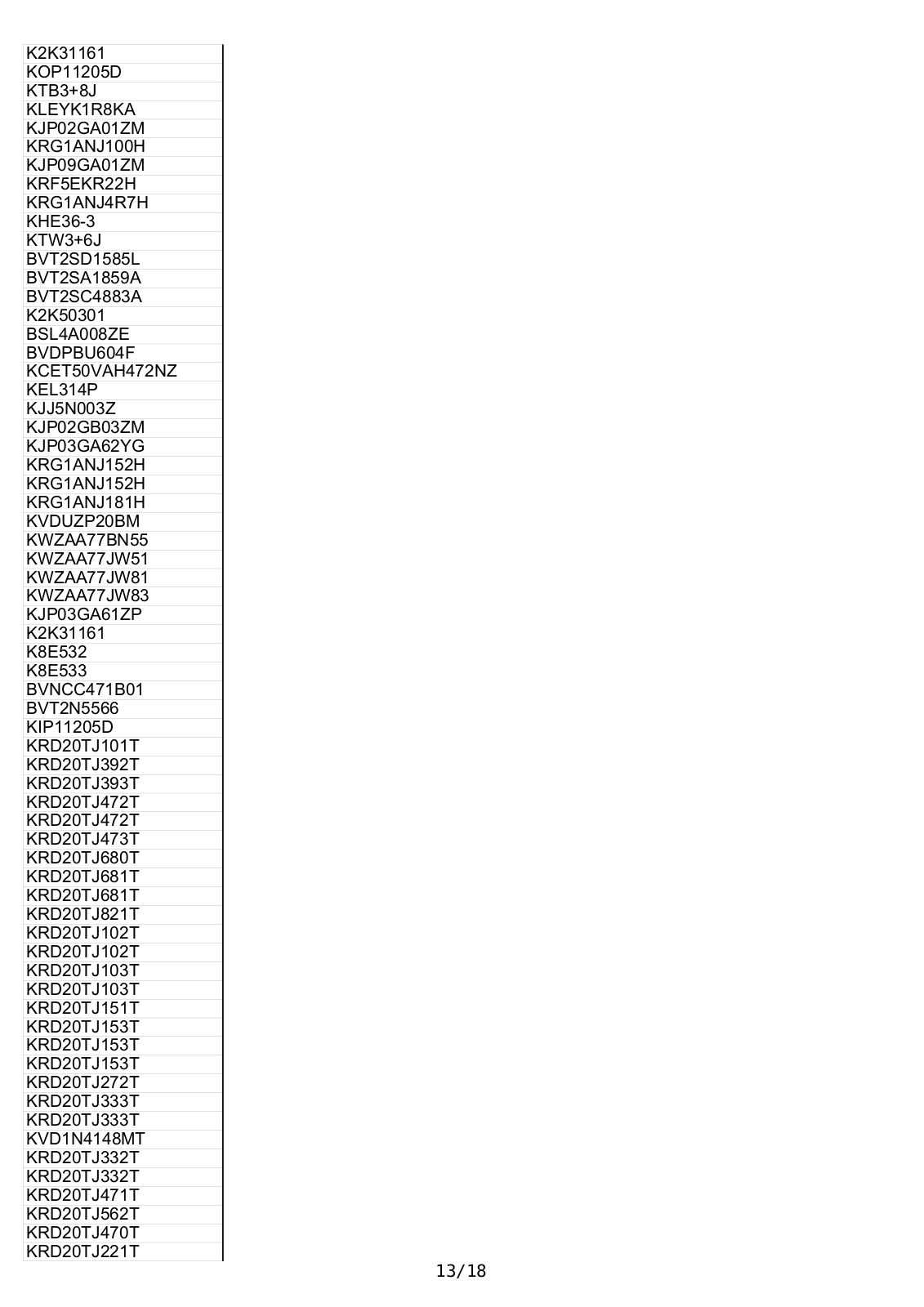

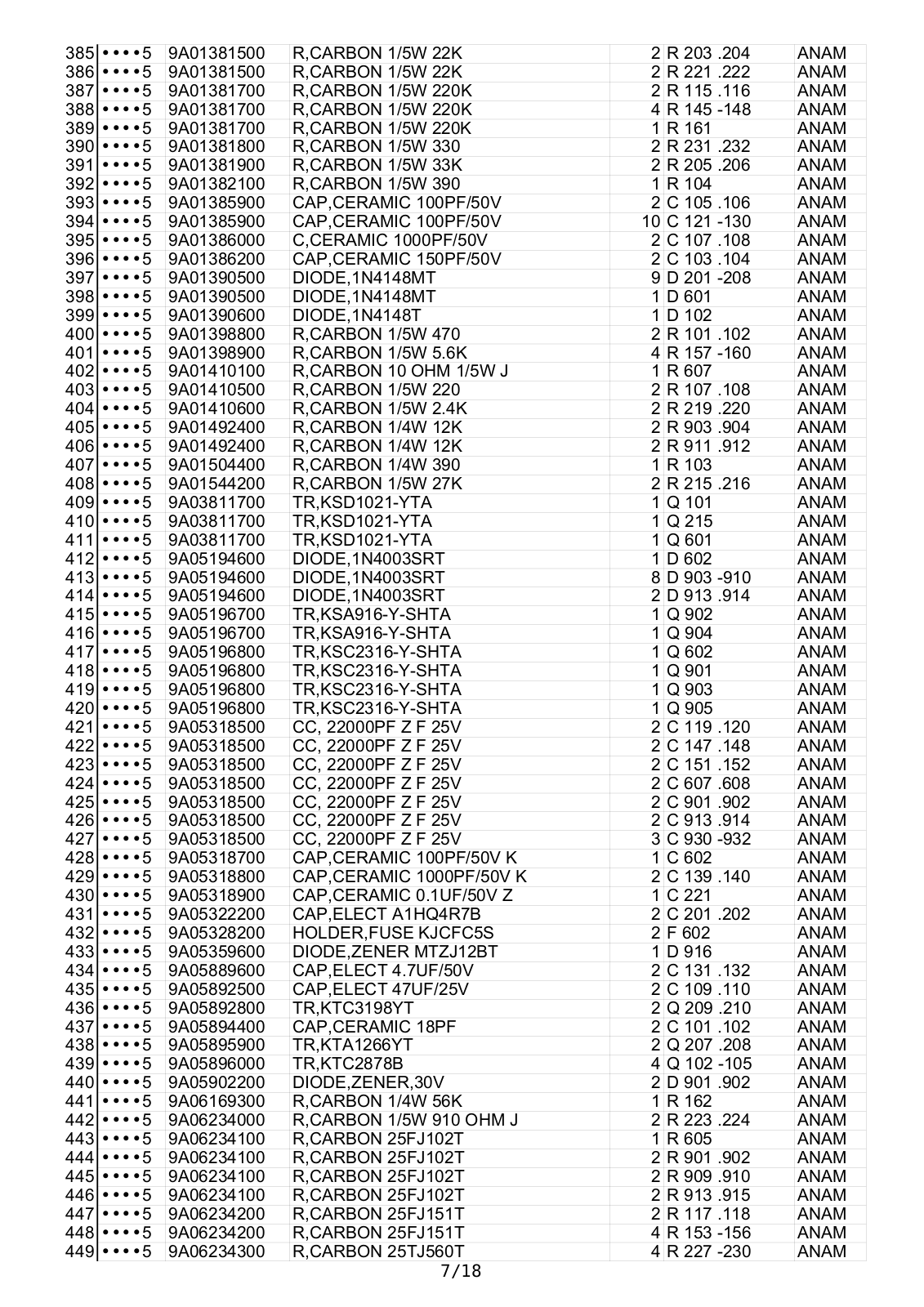

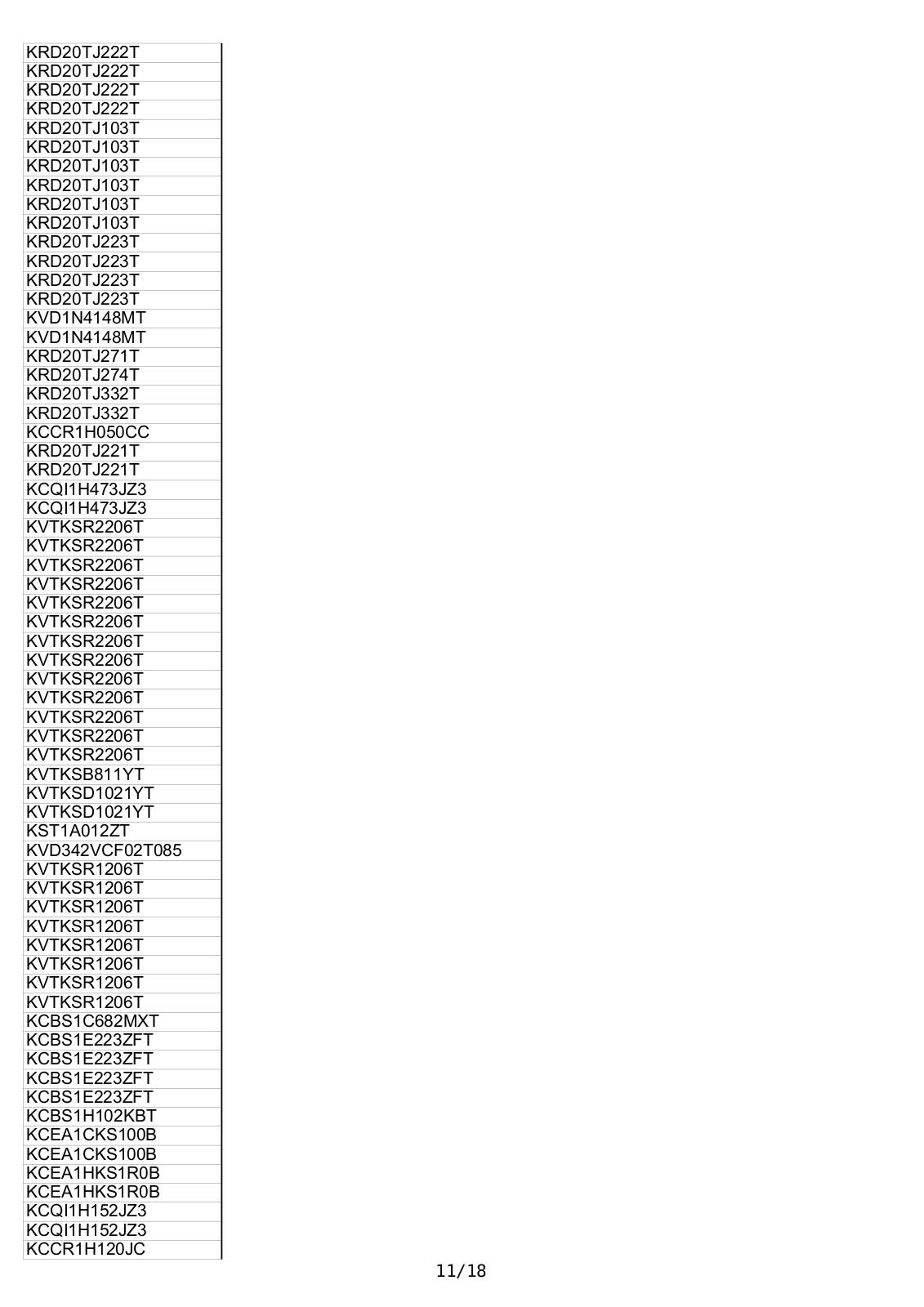

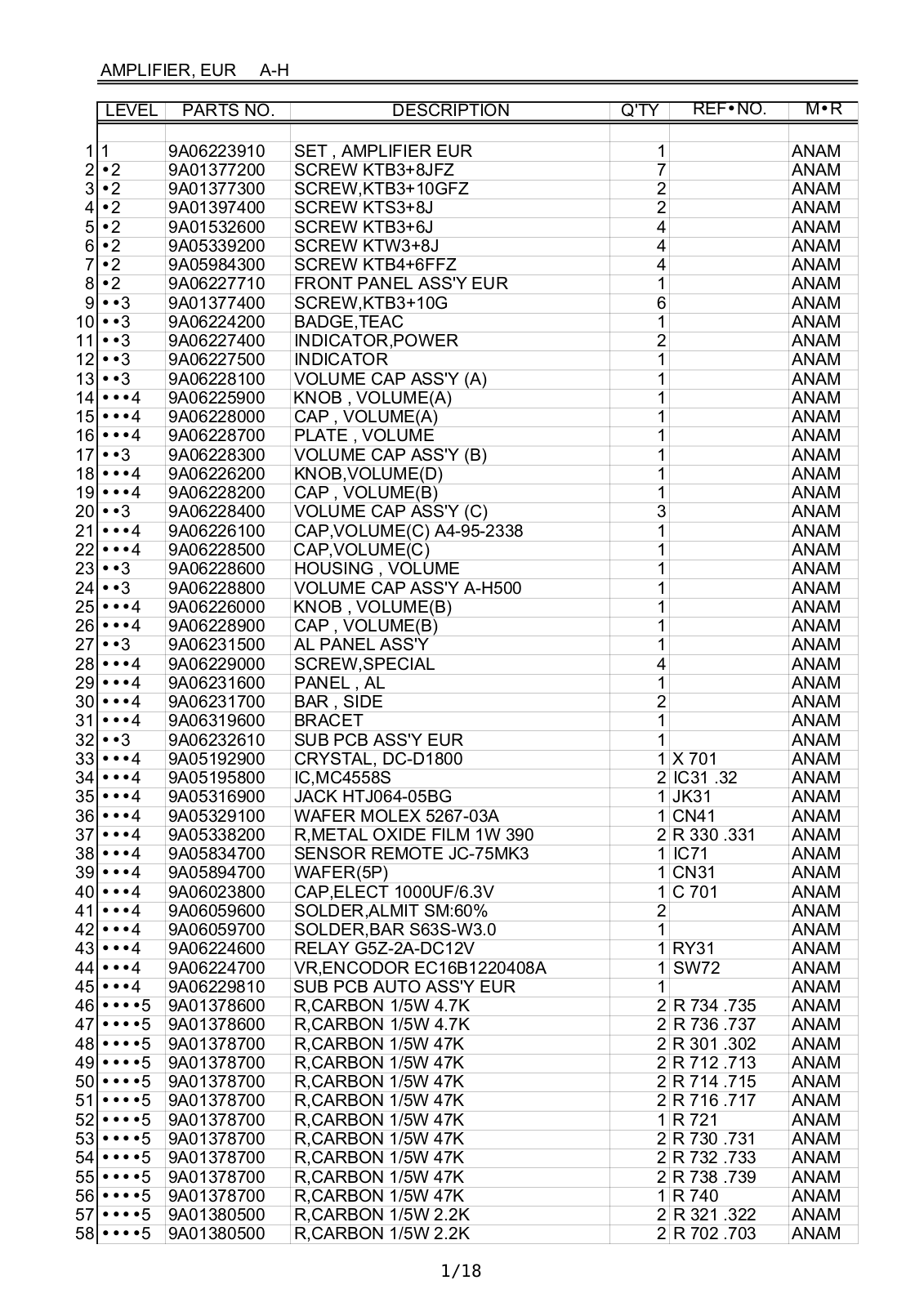

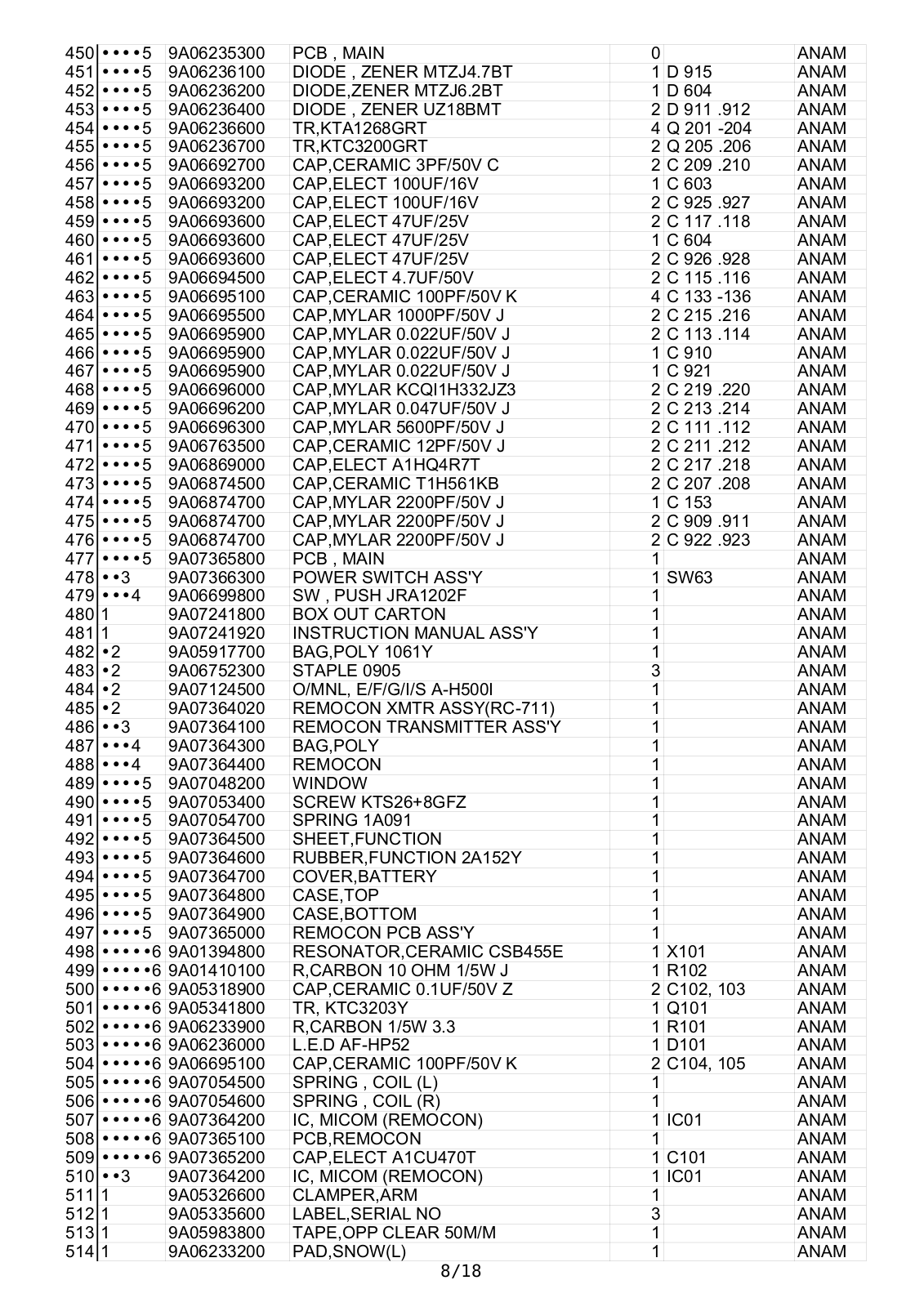

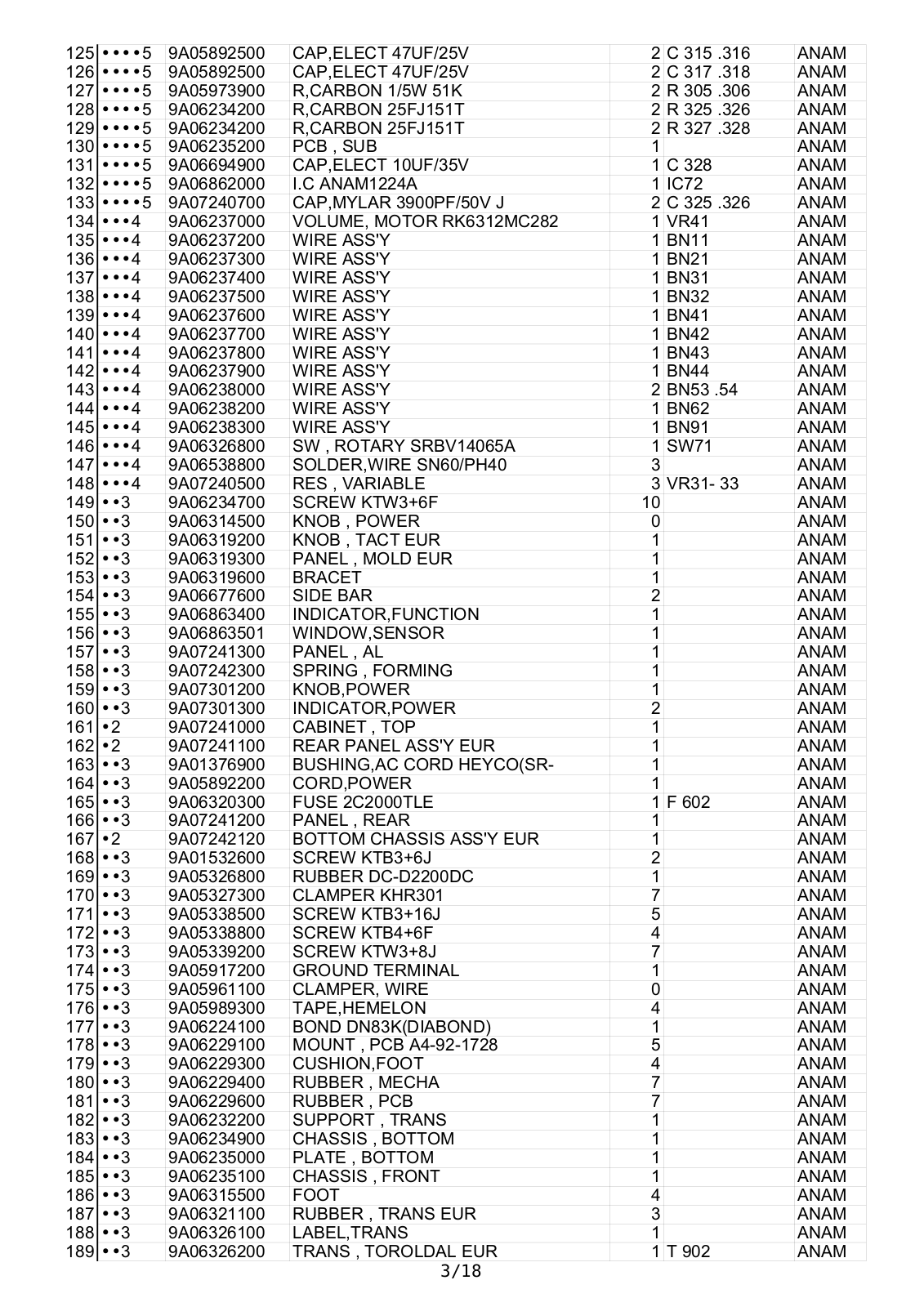

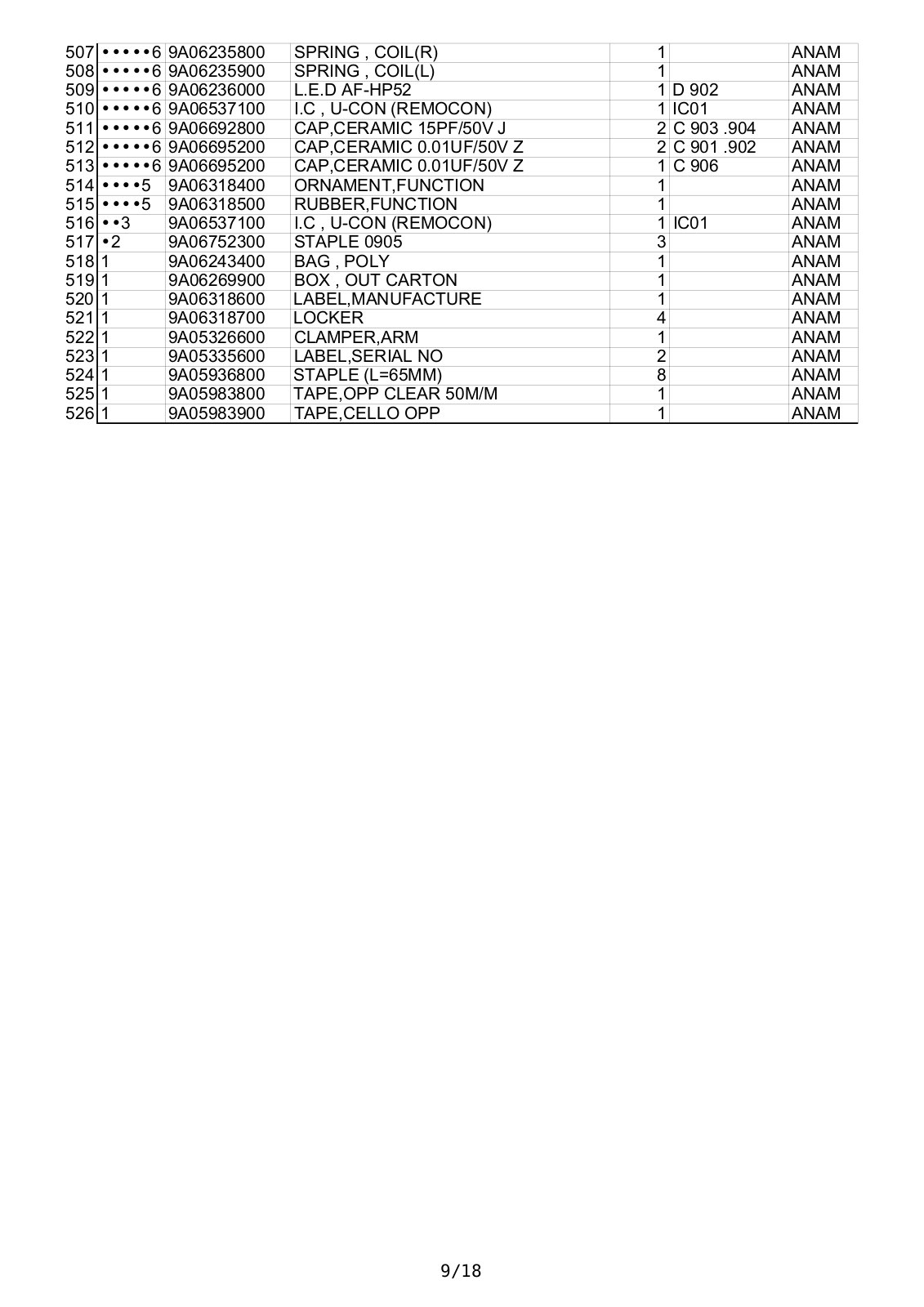

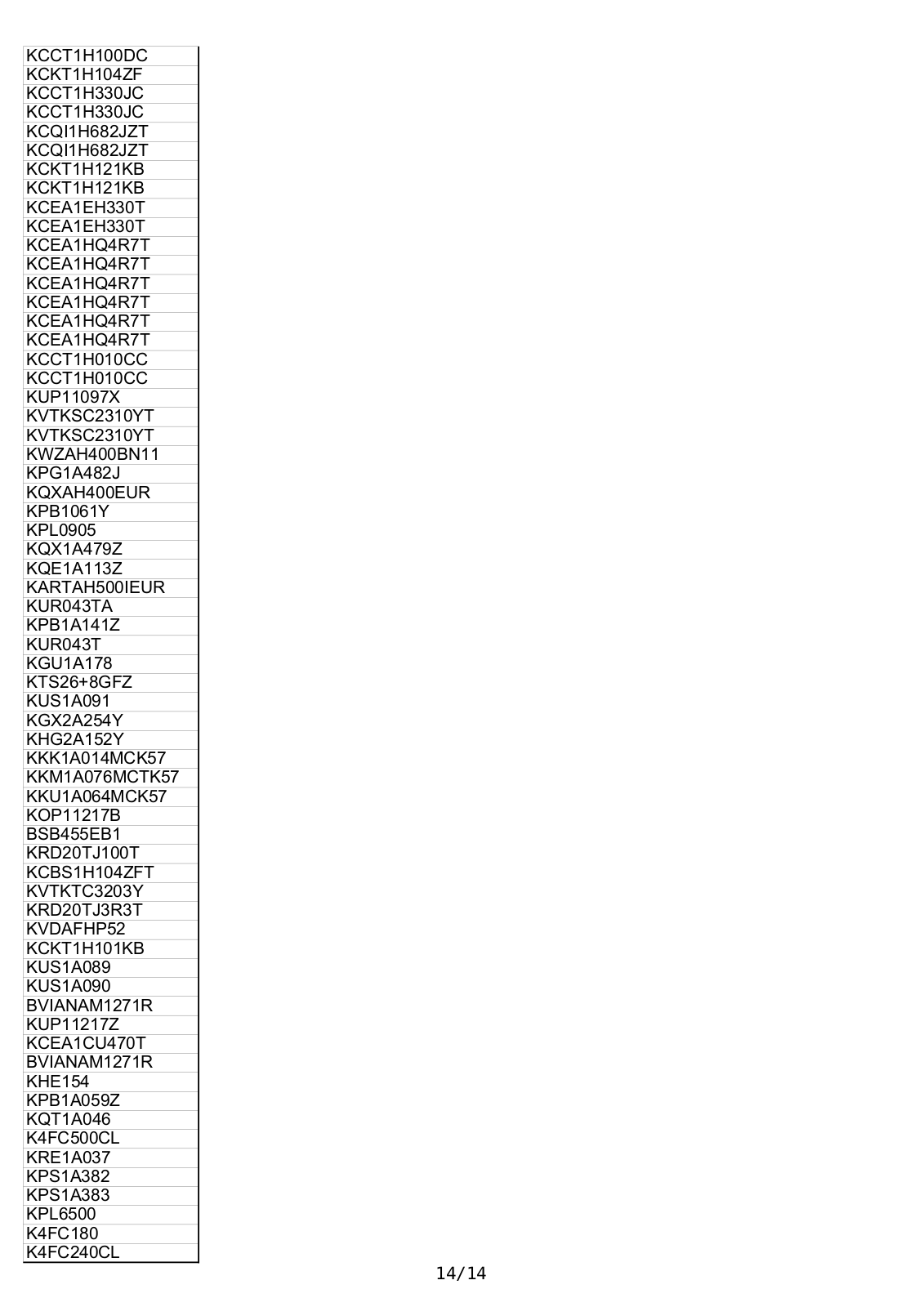

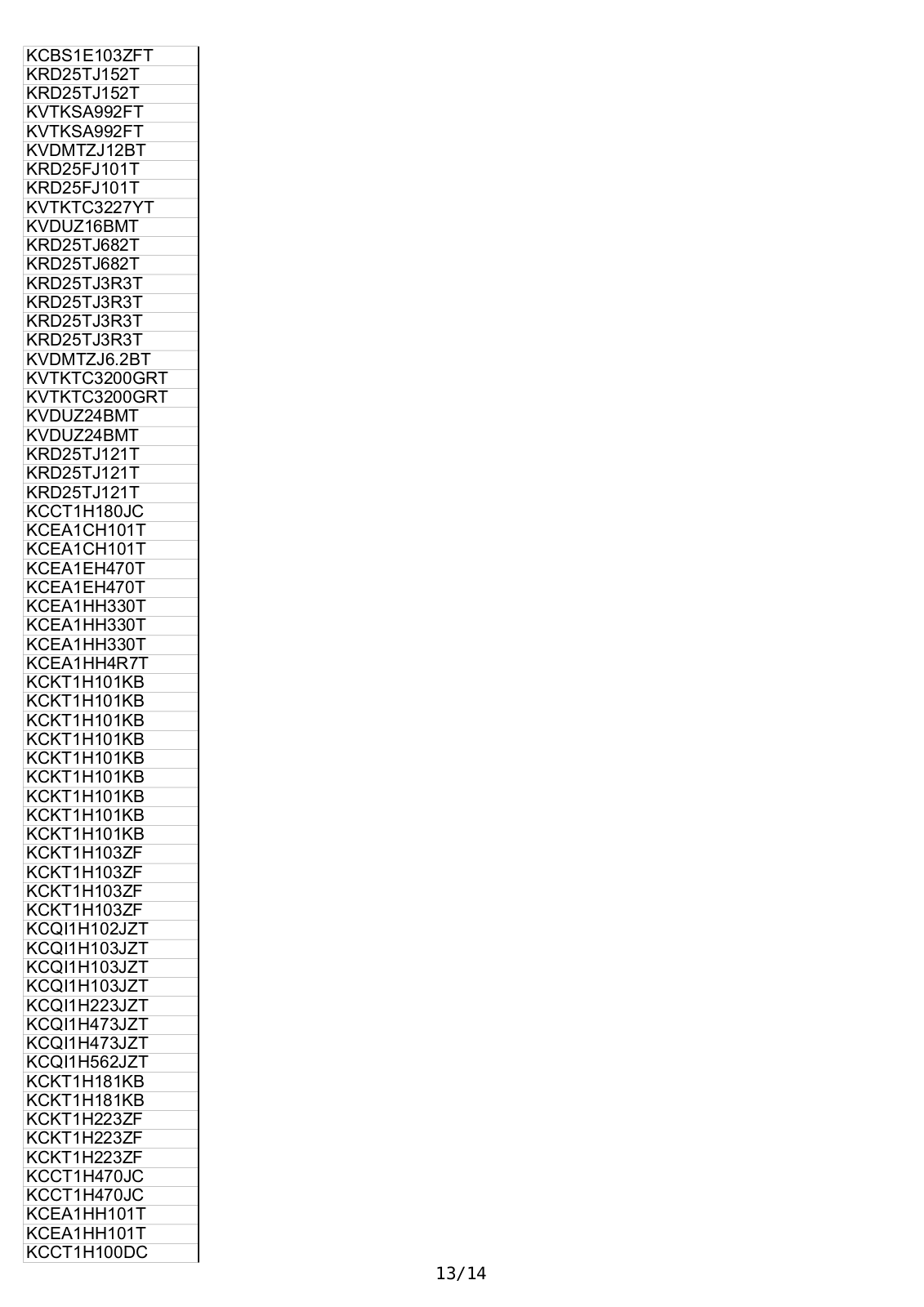

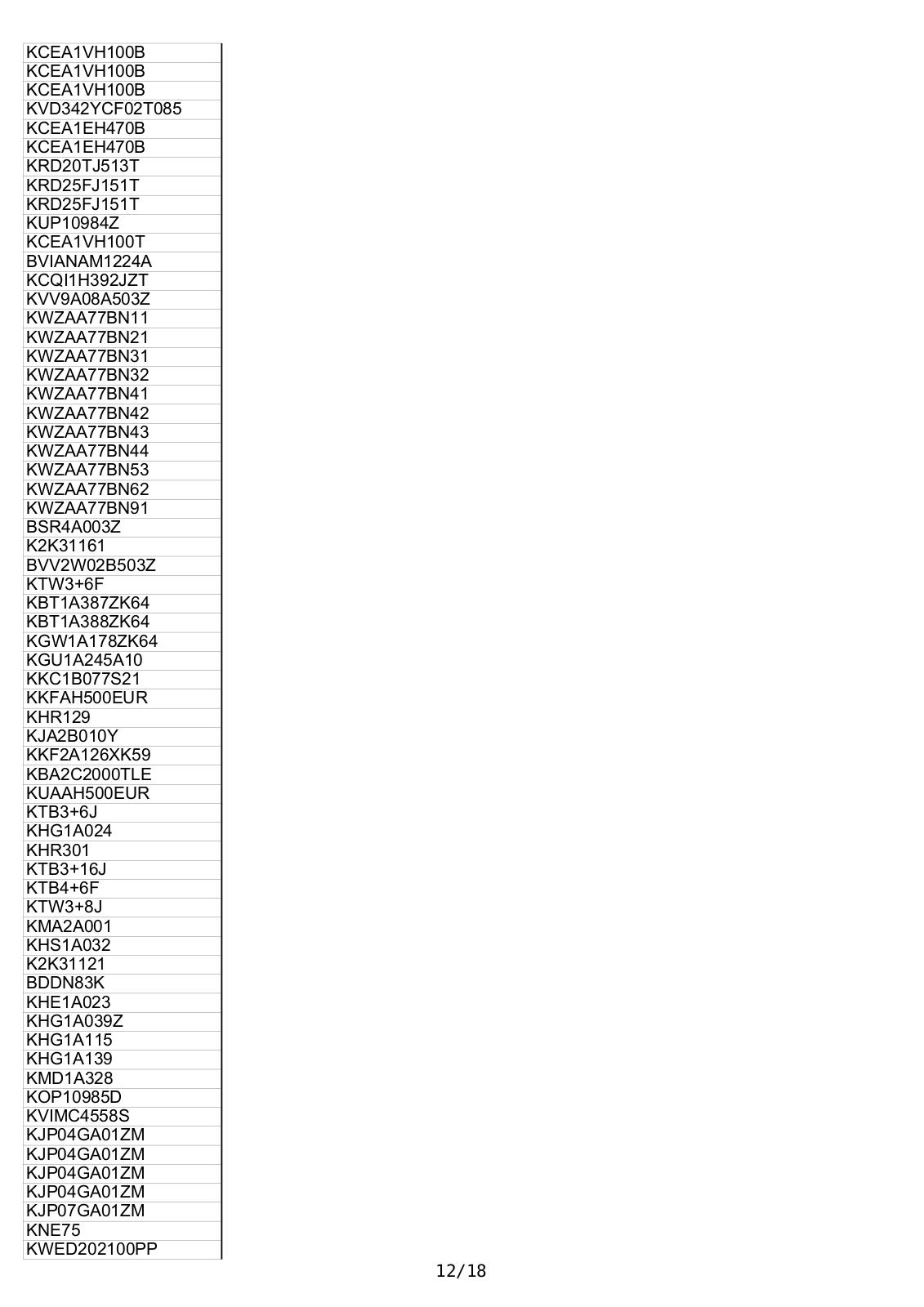

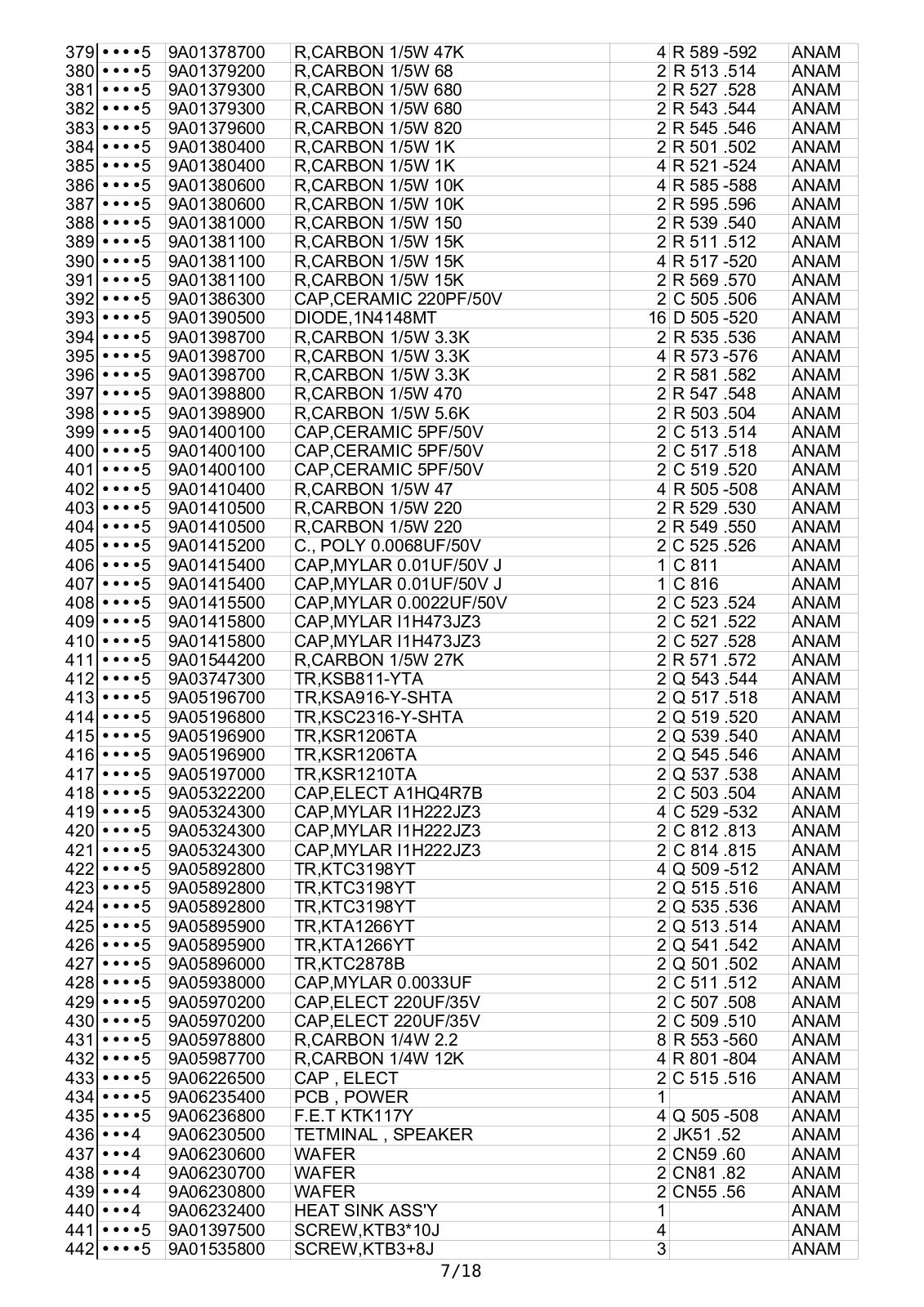

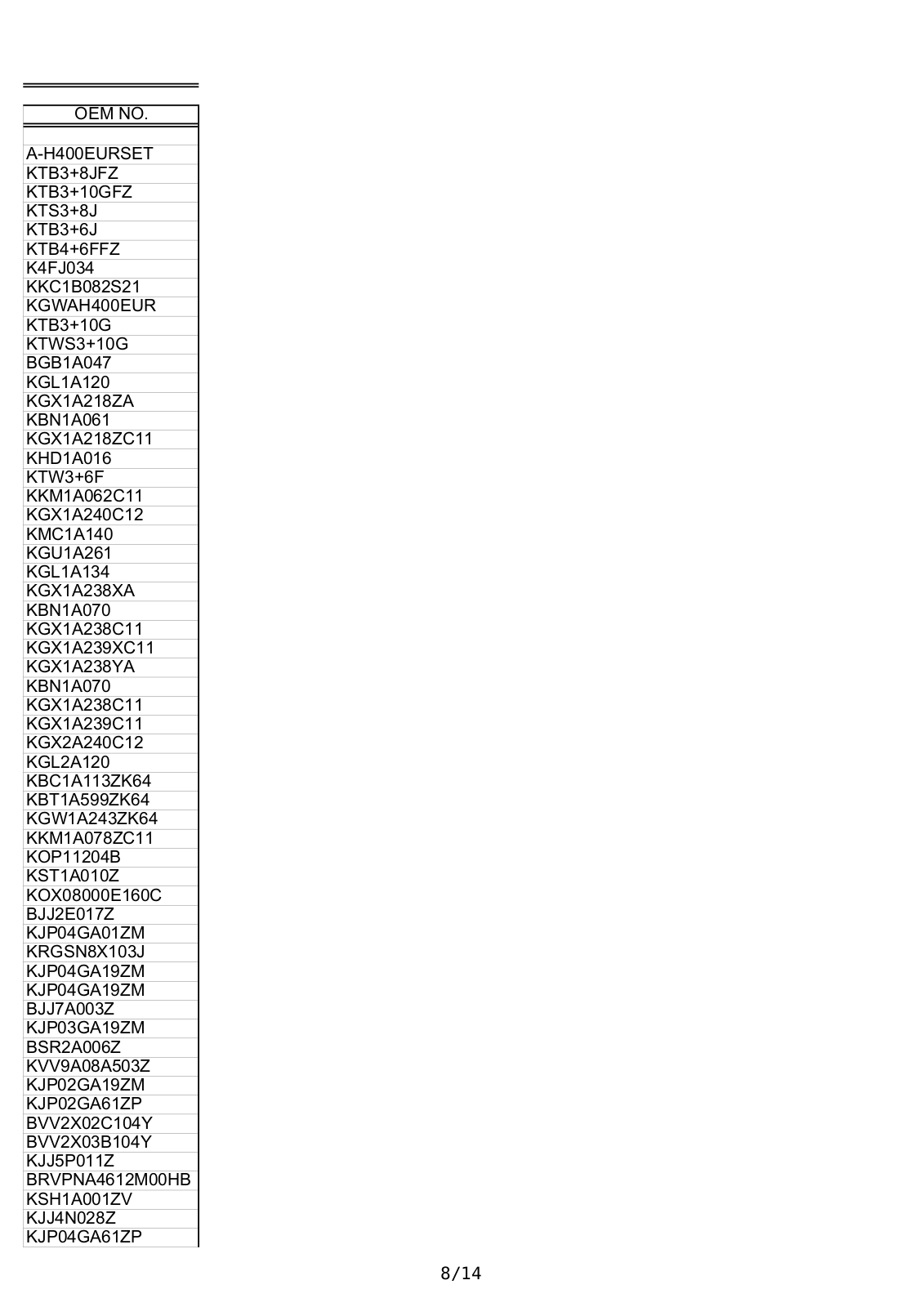

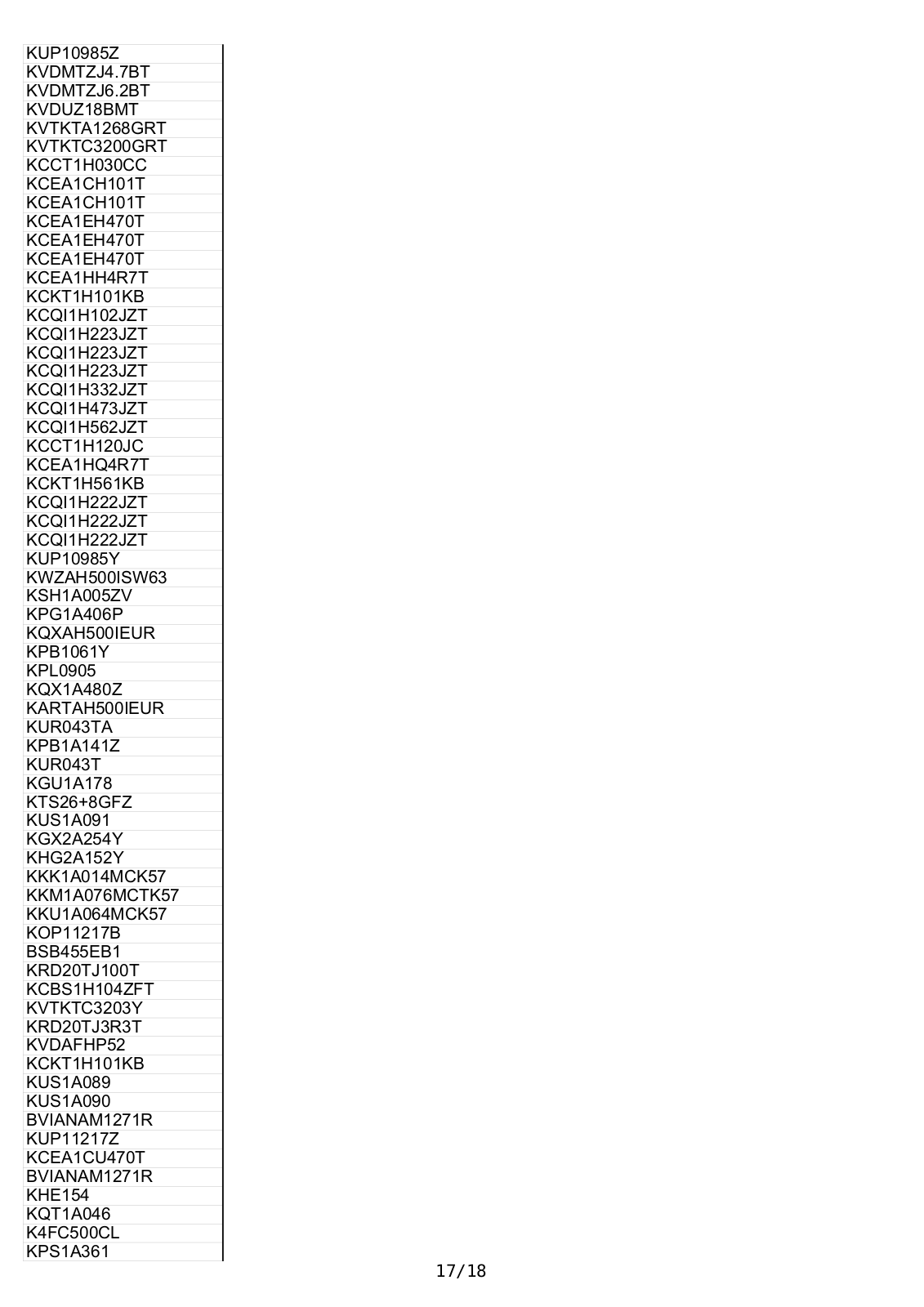

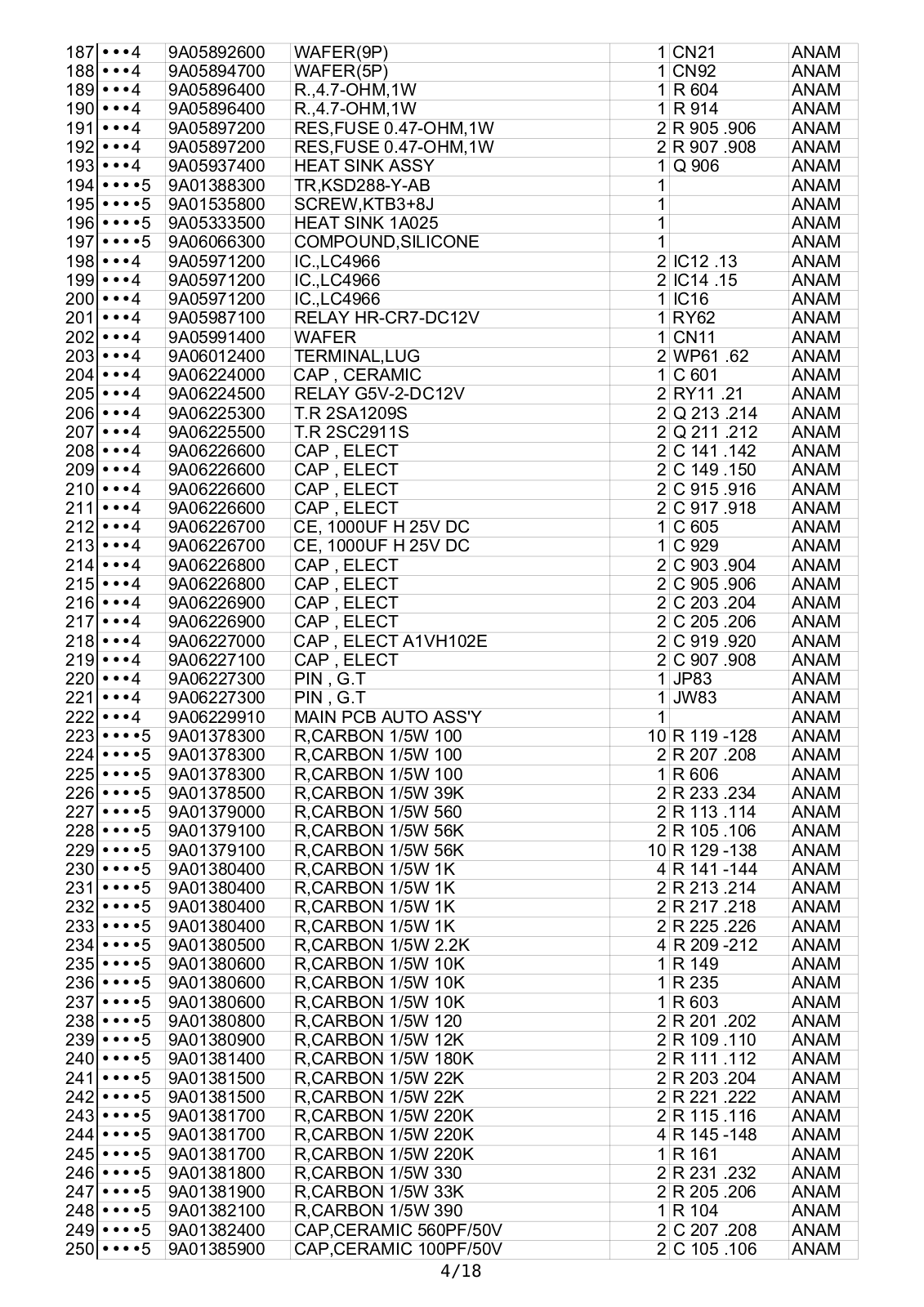

	STEREO AMP A-H400 E
	LEVEL	PARTS NO.	DESCRIPTION	Q'TY	REF•NO.	M•R
1
	1	9A07341000	SET , AMPLIFIER	1		ANAM
2	•2	9A01377200	SCREW KTB3+8JFZ	6		ANAM
3	•2	9A01377300	SCREW,KTB3+10GFZ	12		ANAM
4	•2	9A01397400	SCREW KTS3+8J	8		ANAM
5	•2	9A01532600	SCREW KTB3+6J	7		ANAM
6	•2	9A05984300	SCREW KTB4+6FFZ	4		ANAM
7	•2	9A06053600	TAPE,BOTH SIDE T-#4970	1		ANAM
8	•2	9A06678600	TOP CABINET	1		ANAM
9	•2	9A07341300	FRONT PANEL ASS'Y	1		ANAM
10	••3	9A01377400	SCREW,KTB3+10G	10		ANAM
11	••3	9A01377600	SCREW,KTWS3+10G	1		ANAM
12	••3	9A06224200	BADGE,TEAC	1		ANAM
13	••3	9A06227400	INDICATOR,POWER	0		ANAM
14	••3	9A06228400	VOLUME CAP ASS'Y (C)	3		ANAM
15	•••4	9A06226100	CAP,VOLUME(C) A4-95-2338	1		ANAM
16	•••4	9A06228500	CAP,VOLUME(C)	1		ANAM
17	••3	9A06229000	SCREW,SPECIAL	4		ANAM
18	••3	9A06234700	SCREW KTW3+6F	9		ANAM
19	••3	9A06677600	SIDE BAR	2		ANAM
20	••3	9A06697200	HOUSING,VOLUME A4-96-2578	1		ANAM
21	••3	9A06698400	RING,SHAFT	2		ANAM
22	••3	9A06863501	WINDOW,SENSOR	1		ANAM
23	••3	9A06905500	INDICATOR	2		ANAM
24	••3	9A06905800	VOLUME CAP ASS'Y	1		ANAM
25	•••4	9A06692500	KNOB , VOLUME	1		ANAM
26	•••4	9A06697000	CAP , VOLUME	1		ANAM
27	•••4	9A06906100	PLATE , VOLUME	1		ANAM
28	••3	9A06905900	VOLUME CAP ASS'Y	1		ANAM
29	•••4	9A06692500	KNOB , VOLUME	1		ANAM
30	•••4	9A06697000	CAP , VOLUME	1		ANAM
31	•••4	9A06906000	PLATE , VOLUME	1		ANAM
32	••3	9A06906200	HOUSING,VOLUME	1		ANAM
33	••3	9A07301300	INDICATOR,POWER	1		ANAM
34	••3	9A07341100	KNOB , POWER	1		ANAM
35	••3	9A07341200	KNOB , TACT	1		ANAM
36	••3	9A07341400	PANEL , MOLD	1		ANAM
37	••3	9A07341900	PANEL , AL	1		ANAM
38	••3	9A07342100	SUB PCB ASS'Y	1		ANAM
39	•••4	9A04882400	SW,TACT DC-D2100	1	S 101	ANAM
40	•••4	9A05193000	CRYSTAL, 08000E160C	1	X 801	ANAM
41	•••4	9A05316900	JACK HTJ064-05BG	1	JK01	ANAM
42	•••4	9A05329300	WAFER MOLEX 5267-04A	1	CN12	ANAM
43	•••4	9A05337900	R,NETWORK SN8X103J	1	Z 101	ANAM
44	•••4	9A05356300	WAFER 04GA19ZM	1	CN11	ANAM
45	•••4	9A05356300	WAFER 04GA19ZM	1	CN13	ANAM
46	•••4	9A05895700	OUTLET,AC	1	OL11	ANAM
47	•••4	9A05938500	WAFER,3P	2	CN19 .21	ANAM
48	•••4	9A06224700	VR,ENCODOR EC16B1220408A	1	VR95	ANAM
49	•••4	9A06237000	VOLUME, MOTOR RK6312MC282	1	VR96	ANAM
50	•••4	9A06250600	WAFER 02GA19ZM	2	CN16 .18	ANAM
51	•••4	9A06538200	WAFER SYFW800-02P	1	CN99	ANAM
52	•••4	9A06673000	RES,VARIABLE 02C104Y	2	VR92 .93	ANAM
53	•••4	9A06673100	RES,VARIABLE 03B104Y	1	VR94	ANAM
54	•••4	9A06677000	TERMINAL SP	1	JK02	ANAM
55	•••4	9A06757900	SENSOR,REMOCON	1	IC82	ANAM
56	•••4	9A06784700	SW,PUSH (MOMS)	1	SW95	ANAM
57	•••4	9A06906500	JACK , INPUT	0	JK11	ANAM
58	•••4	9A06906700	WAFER	1	CN23	ANAM

1/14

59	•••4	9A06909200	WIRE ASS'Y	1	BN14	ANAM
60	•••4	9A06909300	WIRE ASS'Y	1	BN15	ANAM
61	•••4	9A06909500	WIRE ASS'Y	1	BN17	ANAM
62	•••4	9A06909700	WIRE ASS'Y	0	BN19	ANAM
63	•••4	9A06909900	WIRE ASS'Y	0	BN21	ANAM
64	•••4	9A06910400	WIRE ASS'Y	1	BN94	ANAM
65	•••4	9A07341600	SUB PCB AUTO ASS'Y	1		ANAM
66	••••5	9A01378600	R,CARBON 1/5W 4.7K	2	R 313 .314	ANAM
67	••••5	9A01378600	R,CARBON 1/5W 4.7K	2	R 809 .810	ANAM
68	••••5	9A01378600	R,CARBON 1/5W 4.7K	2	R 811 .812	ANAM
69	••••5	9A01378600	R,CARBON 1/5W 4.7K	1	R 815	ANAM
70	••••5	9A01378600	R,CARBON 1/5W 4.7K	1	R 880	ANAM
71	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 103 .104	ANAM
72	••••5	9A01378700	R,CARBON 1/5W 47K	1	R 878	ANAM
73	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 988 .989	ANAM
74	••••5	9A01378700	R,CARBON 1/5W 47K	1	R 990	ANAM
75	••••5	9A01379400	R,CARBON 1/5W 6.8K	2	R 309 .310	ANAM
76	••••5	9A01379600	R,CARBON 1/5W 820	1	R 879	ANAM
77	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 101 .102	ANAM
78	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 901 .902	ANAM
79	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 973 .974	ANAM
80	••••5	9A01380500	R,CARBON 1/5W 2.2K	1	R 861	ANAM
81	••••5	9A01380500	R,CARBON 1/5W 2.2K	1	R 951	ANAM
82	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 805 .806	ANAM
83	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 807 .808	ANAM
84	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 816	ANAM
85	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 820 .821	ANAM
86	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 834 .835	ANAM
87	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 838 .839	ANAM
88	••••5	9A01380600	R,CARBON 1/5W 10K	2	R 840 .841	ANAM
89	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 842	ANAM
90	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 977	ANAM
91	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 983	ANAM
92	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 986	ANAM
93	••••5	9A01380700	R,CARBON 1/5W 100K	1	R 837	ANAM
94	••••5	9A01380900	R,CARBON 1/5W 12K	2	R 311 .312	ANAM
95	••••5	9A01381300	R,CARBON 1/5W 1.8K	2	R 317 .318	ANAM
96	••••5	9A01381500	R,CARBON 1/5W 22K	2	R 307 .308	ANAM
97	••••5	9A01381500	R,CARBON 1/5W 22K	2	R 813 .814	ANAM
98	••••5	9A01381500	R,CARBON 1/5W 22K	1	R 845	ANAM
99	••••5	9A01381500	R,CARBON 1/5W 22K	2	R 979 .980	ANAM
100	••••5	9A01381500	R,CARBON 1/5W 22K	1	R 984	ANAM
101	••••5	9A01381800	R,CARBON 1/5W 330	1	R 819	ANAM
102	••••5	9A01390500	DIODE,1N4148MT	2	D 805 .807	ANAM
103	••••5	9A01398700	R,CARBON 1/5W 3.3K	2	R 321 .322	ANAM
104	••••5	9A01410500	R,CARBON 1/5W 220	1	R 981	ANAM
105	••••5	9A01551700	R,CARBON 1/5W 120K	2	R 319 .320	ANAM
106	••••5	9A03745200	TR,KSR2206TA	2	Q 803 .804	ANAM
107	••••5	9A03745200	TR,KSR2206TA	1	Q 809	ANAM
108	••••5	9A03747300	TR,KSB811-YTA	2	Q 805 .806	ANAM
109	••••5	9A03747300	TR,KSB811-YTA	1	Q 811	ANAM
110	••••5	9A03811700	TR,KSD1021-YTA	2	Q 807 .808	ANAM
111	••••5	9A05195000	LED,RED SLR342VCF02	1	D 804	ANAM
112	••••5	9A05196800	TR,KSC2316-Y-SHTA	1	Q 814	ANAM
113	••••5	9A05196900	TR,KSR1206TA	1	Q 810	ANAM
114	••••5	9A05196900	TR,KSR1206TA	2	Q 812 .813	ANAM
115	••••5	9A05318400	CC, 10000PF Z F 25V	2	C 965 .966	ANAM
116	••••5	9A05318500	CC, 22000PF Z F 25V	2	C 814 .815	ANAM
117	••••5	9A05318500	CC, 22000PF Z F 25V	1	C 816	ANAM
118	••••5	9A05318800	CAP,CERAMIC 1000PF/50V K	1	C 805	ANAM
119	••••5	9A05319200	CAP,CERAMIC 18PF/50V J	2	C 807 .808	ANAM
120	••••5	9A05319300	CAP,CERAMIC 180PF/50V K	2	C 803 .804	ANAM
121	••••5	9A05319300	CAP,CERAMIC 180PF/50V K	1	C 811	ANAM
122	••••5	9A05328200	HOLDER,FUSE KJCFC5S	2	F 901	ANAM

2/14

123	••••5	9A05336700	R,CARBON 1/4W 2.2K	2	R 315 .316	ANAM
124	••••5	9A05890300	LED,YELLOW SLR342YCF02	2	D 810 .811	ANAM
125	••••5	9A05890300	LED,YELLOW SLR342YCF02	2	D 812 .813	ANAM
126	••••5	9A05890300	LED,YELLOW SLR342YCF02	2	D 814 .815	ANAM
127	••••5	9A06671200	SW.TACT EVQ21505R	1	S 824	ANAM
128	••••5	9A06693400	CAP,ELECT 100/16V	1	C 819	ANAM
129	••••5	9A06693400	CAP,ELECT 100/16V	2	C 821 .824	ANAM
130	••••5	9A06694700	CAP,ELECT 1UF/50V	1	C 806	ANAM
131	••••5	9A06694700	CAP,ELECT 1UF/50V	2	C 817 .818	ANAM
132	••••5	9A06694700	CAP,ELECT 1UF/50V	1	C 964	ANAM
133	••••5	9A06695100	CAP,CERAMIC 100PF/50V K	2	C 101 .102	ANAM
134	••••5	9A06695100	CAP,CERAMIC 100PF/50V K	2	C 901 .902	ANAM
135	••••5	9A06695200	CAP,CERAMIC 0.01UF/50V Z	2	C 903 .957	ANAM
136	••••5	9A06763200	CAP,ELECT 1000UF/6.3V	1	C 820	ANAM
137	••••5	9A06765300	DIODE,MTZJ5.6BT	1	D 816	ANAM
138	••••5	9A06786000	IC, TMP87PM78F	1	IC81	ANAM
139	••••5	9A06904500	IC, 74HC138D	1	IC84	ANAM
140	••••5	9A06904800	CAP,ELECT 47UF/16V	2	C 307 .308	ANAM
141	••••5	9A06905100	CAP,MYLAR SMALL B1H103JZT	2	C 315 .316	ANAM
142	••••5	9A06905200	CAP,MYLAR SMALL B1H124JZT	2	C 313 .314	ANAM
143	••••5	9A06905300	CAP,MYLAR SMALL B1H222JZT	2	C 311 .312	ANAM
144	••••5	9A06905400	CAP,MYLAR SMALL B1H333JZT	2	C 309 .310	ANAM
145	••••5	9A07342600	PCB , SUB	1		ANAM
146	•••4	9A07342700	WIRE ASS'Y	1	BN16	ANAM
147	•••4	9A07342800	WIRE ASS'Y	1	BN18	ANAM
148	•••4	9A07342900	WIRE ASS'Y	1	BN20	ANAM
149	•••4	9A07343000	WIRE ASS'Y	1	BN95	ANAM
150	•••4	9A07363500	WIRE ASS'Y	1	BN19	ANAM
151	•••4	9A07363600	WIRE ASS'Y	1	BN21	ANAM
152	•••4	9A07363700	JACK,BOARD	1	JK11	ANAM
153	•2	9A07341700	REAR PANEL ASS'Y	1		ANAM
154	••3	9A01376900	BUSHING,AC CORD HEYCO(SR-	1		ANAM
155	••3	9A05328100	CORD,POWER	1		ANAM
156	••3	9A05353400	FUSE F1.6A	1	F 901	ANAM
157	••3	9A07341800	PANEL , REAR	1		ANAM
158	•2	9A07342400	BOTTOM CHASSIS ASS'Y	1		ANAM
159	••3	9A01535800	SCREW,KTB3+8J	2		ANAM
160	••3	9A05327300	CLAMPER KHR301	4		ANAM
161	••3	9A05338800	SCREW KTB4+6F	4		ANAM
162	••3	9A05339100	SCREW KTW3+12J	6		ANAM
163	••3	9A05339200	SCREW KTW3+8J	4		ANAM
164	••3	9A05917200	GROUND TERMINAL	1		ANAM
165	••3	9A05989300	TAPE,HEMELON	4		ANAM
166	••3	9A06028100	SCREW KTW3+16J	4		ANAM
167	••3	9A06224100	BOND DN83K(DIABOND)	1		ANAM
168	••3	9A06229100	MOUNT , PCB A4-92-1728	4		ANAM
169	••3	9A06229300	CUSHION,FOOT	4		ANAM
170	••3	9A06315500	FOOT	4		ANAM
171	••3	9A06907200	TRANS , POWER	1	PWR1	ANAM
172	••3	9A06908600	CHASSIS , BOTTOM	1		ANAM
173	••3	9A07342000	MAIN PCB ASS'Y	1		ANAM
174	•••4	9A01388300	TR,KSD288-Y-AB	1	Q 901	ANAM
175	•••4	9A01388300	TR,KSD288-Y-AB	1	Q 905	ANAM
176	•••4	9A01388400	TR,KSA614-Y	1	Q 902	ANAM
177	•••4	9A04875100	COIL, DC-D2100	2	L 501 .601	ANAM
178	•••4	9A04879000	RELAY,OSA-SS-212DM3	1	RY11	ANAM
179	•••4	9A05195800	IC,MC4558S	2	IC22 .23	ANAM
180	•••4	9A05329600	WAFER MOLEX 5267-06A	1	CN92	ANAM
181	•••4	9A05338000	RES,METAL 10 OHM 1W J	1	R 524	ANAM
182	•••4	9A05338000	RES,METAL 10 OHM 1W J	1	R 624	ANAM
183	•••4	9A05338000	RES,METAL 10 OHM 1W J	1	R 915	ANAM
184	•••4	9A05338200	R,METAL OXIDE FILM 1W 390	1	R 527	ANAM
185	•••4	9A05338200	R,METAL OXIDE FILM 1W 390	1	R 627	ANAM
186	•••4	9A05339200	SCREW KTW3+8J	2		ANAM

3/14

187	•••4	9A05353100	DIODE , BRIDGE PBPC604F	1	D 901	ANAM
188	•••4	9A05356300	WAFER 04GA19ZM	2	CN25 .26	ANAM
189	•••4	9A05356500	WAFER MOLEX53014-0710	1	CN15	ANAM
190	•••4	9A05894700	WAFER(5P)	1	CN14	ANAM
191	•••4	9A05896300	R.,0.22-OHM,5W	2	R 521 .522	ANAM
192	•••4	9A05896300	R.,0.22-OHM,5W	2	R 621 .622	ANAM
193	•••4	9A05896400	R.,4.7-OHM,1W	1	R 523	ANAM
194	•••4	9A05896400	R.,4.7-OHM,1W	1	R 623	ANAM
195	•••4	9A05897200	RES,FUSE 0.47-OHM,1W	2	R 903 .904	ANAM
196	•••4	9A05987000	DIODE,BRIDGE W02GF	1	D 902	ANAM
197	•••4	9A05987100	RELAY HR-CR7-DC12V	1	RY10	ANAM
198	•••4	9A06226600	CAP , ELECT	2	C 911 .912	ANAM
199	•••4	9A06226600	CAP , ELECT	2	C 913 .914	ANAM
200	•••4	9A06226700	CE, 1000UF H 25V DC	1	C 930	ANAM
201	•••4	9A06230800	WAFER	1	CN95	ANAM
202	•••4	9A06250800	WAFER MOLEX 5267-08A	1	CN17	ANAM
203	•••4	9A06252900	BRACKET , PCB	2	ET01 .02	ANAM
204	•••4	9A06252900	BRACKET , PCB	1	ET03	ANAM
205	•••4	9A06674900	JACK,BOARD 4R014Z	2	JK22 .23	ANAM
206	•••4	9A06675500	TRANS SUB	1	PW2	ANAM
207	•••4	9A06757700	WAFER	1	CN94	ANAM
208	•••4	9A06759300	WAFER	1	CN93	ANAM
209	•••4	9A06761700	IC, NJU7313L	1	IC21	ANAM
210	•••4	9A06785000	WAFER,MOLEX35328-02	1	CN91	ANAM
211	•••4	9A06904900	ELECT,CAP(1000UF/35V AHS)	2	C 909 .910	ANAM
212	•••4	9A06905000	CAP , ELECT	2	C 907 .908	ANAM
213	•••4	9A06906500	JACK , INPUT	1	JK21	ANAM
214	•••4	9A06906600	JACK , REMOTER	1	JK24	ANAM
215	•••4	9A06907600	HEAT SINK ASS'Y	1		ANAM
216	••••5	9A01377500	SCREW	6	48	ANAM
217	••••5	9A05359700	TR, KTB778O	1	Q 509	ANAM
218	••••5	9A05359700	TR, KTB778O	1	Q 609	ANAM
219	••••5	9A05359800	TR, KTD998O	1	Q 508	ANAM
220	••••5	9A05359800	TR, KTD998O	1	Q 608	ANAM
221	••••5	9A05977200	TR.,2SD1585	1	Q 505	ANAM
222	••••5	9A05977200	TR.,2SD1585	1	Q 605	ANAM
223	••••5	9A06066300	COMPOUND,SILICONE	5		ANAM
224	••••5	9A06907500	SINK , HEAT	1	20	ANAM
225	•••4	9A06908200	RES , METAL OXIDE FILM	1	R 508	ANAM
226	•••4	9A06908200	RES , METAL OXIDE FILM	1	R 608	ANAM
227	•••4	9A06908300	RES , METAL OXIDE FILM	2	R 907 .908	ANAM
228	•••4	9A06908900	WIRE ASS'Y	0	BN11	ANAM
229	•••4	9A06909000	WIRE ASS'Y	1	BN12	ANAM
230	•••4	9A06909100	WIRE ASS'Y	1	BN13	ANAM
231	•••4	9A06910000	WIRE ASS'Y	1	BN23	ANAM
232	•••4	9A06910100	WIRE ASS'Y	1	BN91	ANAM
233	•••4	9A06910200	WIRE ASS'Y	1	BN92	ANAM
234	•••4	9A06910300	WIRE ASS'Y	1	BN93	ANAM
235	•••4	9A07341500	MAIN PCB AUTO ASS'Y	1		ANAM
236	••••5	9A01378600	R,CARBON 1/5W 4.7K	2	R 911 .912	ANAM
237	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 205 .206	ANAM
238	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 219 .220	ANAM
239	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 221 .222	ANAM
240	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 223 .224	ANAM
241	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 225 .226	ANAM
242	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 227 .228	ANAM
243	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 229 .230	ANAM
244	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 237 .238	ANAM
245	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 301 .302	ANAM
246	••••5	9A01378700	R,CARBON 1/5W 47K	2	R 303 .304	ANAM
247	••••5	9A01379000	R,CARBON 1/5W 560	2	R 235 .236	ANAM
248	••••5	9A01379100	R,CARBON 1/5W 56K	1	R 512	ANAM
249	••••5	9A01379100	R,CARBON 1/5W 56K	1	R 612	ANAM
250	••••5	9A01379200	R,CARBON 1/5W 68	1	R 528	ANAM

4/14

251	••••5	9A01379200	R,CARBON 1/5W 68	1	R 628	ANAM
252	••••5	9A01379800	R,CARBON 1/4W 10	1	R 514	ANAM
253	••••5	9A01379800	R,CARBON 1/4W 10	1	R 614	ANAM
254	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 207 .208	ANAM
255	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 209 .210	ANAM
256	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 211 .212	ANAM
257	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 213 .214	ANAM
258	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 215 .216	ANAM
259	••••5	9A01380400	R,CARBON 1/5W 1K	2	R 217 .218	ANAM
260	••••5	9A01380400	R,CARBON 1/5W 1K	1	R 501	ANAM
261	••••5	9A01380400	R,CARBON 1/5W 1K	1	R 513	ANAM
262	••••5	9A01380400	R,CARBON 1/5W 1K	1	R 601	ANAM
263	••••5	9A01380400	R,CARBON 1/5W 1K	1	R 613	ANAM
264	••••5	9A01380500	R,CARBON 1/5W 2.2K	1	R 916	ANAM
265	••••5	9A01380600	R,CARBON 1/5W 10K	1	R 917	ANAM
266	••••5	9A01380700	R,CARBON 1/5W 100K	1	R 502	ANAM
267	••••5	9A01380700	R,CARBON 1/5W 100K	1	R 511	ANAM
268	••••5	9A01380700	R,CARBON 1/5W 100K	1	R 602	ANAM
269	••••5	9A01380700	R,CARBON 1/5W 100K	1	R 611	ANAM
270	••••5	9A01380800	R,CARBON 1/5W 120	1	R 504	ANAM
271	••••5	9A01380800	R,CARBON 1/5W 120	1	R 604	ANAM
272	••••5	9A01380900	R,CARBON 1/5W 12K	2	R 233 .234	ANAM
273	••••5	9A01381000	R,CARBON 1/5W 150	1	R 505	ANAM
274	••••5	9A01381000	R,CARBON 1/5W 150	1	R 605	ANAM
275	••••5	9A01381100	R,CARBON 1/5W 15K	1	R 503	ANAM
276	••••5	9A01381100	R,CARBON 1/5W 15K	1	R 526	ANAM
277	••••5	9A01381100	R,CARBON 1/5W 15K	1	R 603	ANAM
278	••••5	9A01381100	R,CARBON 1/5W 15K	1	R 626	ANAM
279	••••5	9A01381400	R,CARBON 1/5W 180K	2	R 231 .232	ANAM
280	••••5	9A01381500	R,CARBON 1/5W 22K	2	R 327 .328	ANAM
281	••••5	9A01382100	R,CARBON 1/5W 390	2	R 203 .204	ANAM
282	••••5	9A01387400	TR,KSA733CYT	1	Q 510	ANAM
283	••••5	9A01387400	TR,KSA733CYT	1	Q 610	ANAM
284	••••5	9A01390500	DIODE,1N4148MT	2	D 202 .501	ANAM
285	••••5	9A01390500	DIODE,1N4148MT	2	D 503 .504	ANAM
286	••••5	9A01390500	DIODE,1N4148MT	1	D 601	ANAM
287	••••5	9A01390500	DIODE,1N4148MT	1	D 603	ANAM
288	••••5	9A01390500	DIODE,1N4148MT	1	D 911	ANAM
289	••••5	9A01390600	DIODE,1N4148T	1	D 604	ANAM
290	••••5	9A01398700	R,CARBON 1/5W 3.3K	1	R 525	ANAM
291	••••5	9A01398700	R,CARBON 1/5W 3.3K	1	R 625	ANAM
292	••••5	9A01398800	R,CARBON 1/5W 470	2	R 201 .202	ANAM
293	••••5	9A01398800	R,CARBON 1/5W 470	2	R 329 .330	ANAM
294	••••5	9A01398800	R,CARBON 1/5W 470	1	R 506	ANAM
295	••••5	9A01398800	R,CARBON 1/5W 470	1	R 606	ANAM
296	••••5	9A01398900	R,CARBON 1/5W 5.6K	2	R 247 .248	ANAM
297	••••5	9A01399600	R,CARBON 1/4W 2.7K	1	R 510	ANAM
298	••••5	9A01399600	R,CARBON 1/4W 2.7K	1	R 610	ANAM
299	••••5	9A01410500	R,CARBON 1/5W 220	2	R 239 .240	ANAM
300	••••5	9A01412900	R,CARBON 1/4W 68	2	R 518 .519	ANAM
301	••••5	9A01412900	R,CARBON 1/4W 68	2	R 618 .619	ANAM
302	••••5	9A01544200	R,CARBON 1/5W 27K	2	R 325 .326	ANAM
303	••••5	9A05194700	DIODE,1N4003ST	1	D 912	ANAM
304	••••5	9A05194700	DIODE,1N4003ST	1	D 914	ANAM
305	••••5	9A05196700	TR,KSA916-Y-SHTA	1	Q 507	ANAM
306	••••5	9A05196700	TR,KSA916-Y-SHTA	1	Q 607	ANAM
307	••••5	9A05196800	TR,KSC2316-Y-SHTA	1	Q 506	ANAM
308	••••5	9A05196800	TR,KSC2316-Y-SHTA	1	Q 606	ANAM
309	••••5	9A05196800	TR,KSC2316-Y-SHTA	1	Q 917	ANAM
310	••••5	9A05196900	TR,KSR1206TA	0	Q 203	ANAM
311	••••5	9A05196900	TR,KSR1206TA	1	Q 904	ANAM
312	••••5	9A05197500	TR,KTD1302T	2	Q 201 .202	ANAM
313	••••5	9A05318400	CC, 10000PF Z F 25V	1	C 516	ANAM
314	••••5	9A05318400	CC, 10000PF Z F 25V	1	C 616	ANAM

5/14
