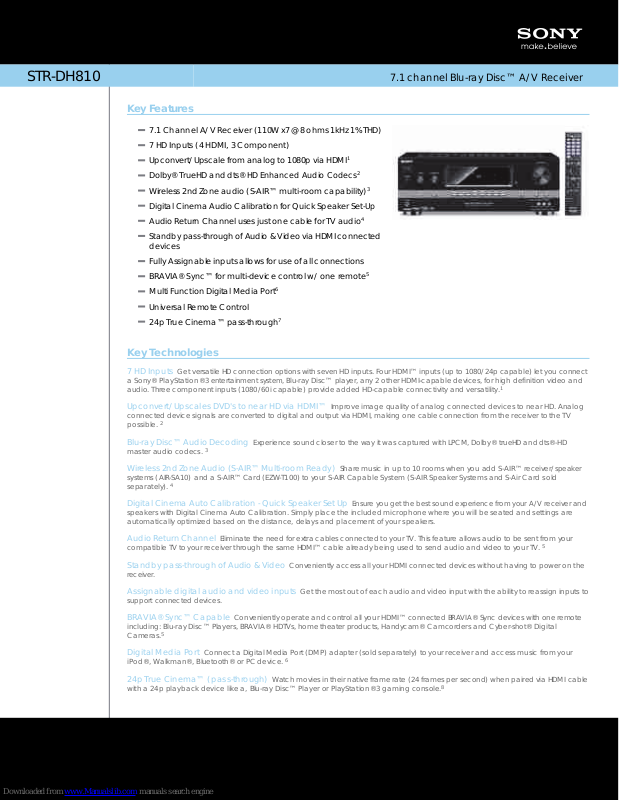

Sony STR-DH810 - Audio Video Receiver Specifications

STR-DH810

7.1 channel Blu-ray Disc

™

A/V Receiver

Key Features

7.1 Channel A/V Receiver (110W x7 @ 8 ohms 1kHz 1% THD)

7 HD Inputs (4 HDMI, 3 Component)

Upconvert/Upscale from analog to 1080p via HDMI

1

Dolby® TrueHD and dts® HD Enhanced Audio Codecs

2

Wireless 2nd Zone audio (S-AIR™ multi-room capability)

3

Digital Cinema Audio Calibration for Quick Speaker Set-Up

Audio Return Channel uses just one cable for TV audio

4

Standby pass-through of Audio & Video via HDMI connected
devices

Fully Assignable inputs allows for use of all connections

BRAVIA® Sync

™ for multi-device control w/ one remote

5

Multi Function Digital Media Port

6

Universal Remote Control

24p True Cinema™ pass-through

7

Key Technologies

7 HD Inputs Get versatile HD connection options with seven HD inputs. Four HDMI™ inputs (up to 1080/24p capable) let you connect

a Sony® PlayStation®

3 entertainment system, Blu

-ray Disc™ player, any 2 other HDMI-capable devices, for high definition video and

audio. Three component inputs (1080/60i capable) provide added HD-capable connectivity and versatility.

1

Upconvert/Upscales DVD's to near HD via HDMI™ Improve image quality of analog connected devices to near HD. Analog

connected device signals are converted to digital and output via HDMI, making one cable connection from the receiver to the TV
possible.

2

Blu-ray Disc™ Audio Decoding Experience sound closer to the way it was captured with LPCM, Dolby®

trueHD and dts

®-HD

master audio codecs.

3

Wireless 2nd Zone Audio (S-AIR™ Multi-room Ready) Share music in up to 10 rooms when you add S-AIR™

receiver/speaker
systems (AIR-SA10) and a S-AIR™ Card (EZW-T100) to your S-AIR Capable System (S-AIR Speaker Systems and S-Air Card sold
separately).

4

Digital Cinema Auto Calibration - Quick Speaker Set Up

Ensure you get the best sound experience from your A/V receiver and
speakers with Digital Cinema Auto Calibration. Simply place the included microphone where you will be seated and settings are
automatically optimized based on the distance, delays and placement of your speakers.

Audio Return Channel Eliminate the need for extra cables connected to your TV. This feature allows audio to be sent from your

compatible TV to your receiver through the same HDMI™ cable already being used to send audio and video to your TV.

5

Standby pass-through of Audio & Video Conveniently access all your HDMI connected devices without having to power on the

receiver.

Assignable digital audio and video inputs Get the most out of each audio and video input with the ability to reassign inputs to

support connected devices.

BRAVIA® Sync

™ Capable Conveniently operate and control all your HDMI™

connected BRAVIA

® Sync devices with one remote

including: Blu-ray Disc™ Players, BRAVIA® HDTVs, home theater products, Handycam® Camcorders and Cyber-

shot

® Digital

Cameras.

5

Digital Media Port Connect a Digital Media Port (DMP) adapter (sold separately) to your receiver and access music from your

iPod®, Walkman®, Bluetooth® or PC device.

6

24p True Cinema™ (pass-through) Watch movies in their native frame rate (24 frames per second) when paired via HDMI cable

with a 24p playback device like a, Blu-ray Disc™ Player or PlayStation®3 gaming console.

8

Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com

Last Updated: 02/18/2010

STR-DH810

7.1 channel Blu-ray Disc

™

A/V Receiver

Please visit the Dealer Network for current

information at www.sony.com/dn

Features

Audio

dts® Decoding: Yes (dts® HD Master

Audio)

Dolby® TrueHD Decoding: Yes
Dolby® Digital Decoding: Yes
Dolby® Digital EX Decoding: Yes
dts®-

ES Decoding:

Yes (MATRIX 6.1,

DISCRETE 6.1)

dts® 96/24 Decoding: Yes
dts® NEO:6 Decoding: Yes
Dolby® Pro Logic® Decoding: Yes
Dolby® Pro Logic® II Decoding: Yes
Dolby® Pro Logic® IIX Decoding:

Yes

Dolby® Digital Dual Mono: Yes
Digital Cinema Sound™

Technology:

Yes

96k/24Bit PCM: Yes
Cinema Studio EX. A/B/C mode: Yes
LPCM:

Yes

Dolby Digital +: Yes
2nd Zone: Yes (S-AIR™ Wireless Ready)

Convenience

Digital Cinema Auto Calibration: 6 Band

(auto) w/ included mic

Specifications

Audio

Impedance: 8 Ohms
Channel Power Rating: 7.1 Channel Power

Rating: 110W x 7 Amp Power (8 ohms,
1KhzTHD 1.0%)

Sound Fields: Cinema - 8; Music - 10; Auto

Format Decoding - 2; 2 Channel - 2;
Headphone - 2

Tuner Type: Auto Tuning, Direct Tuning,

Station Name

A/V Sync:

Yes (Variable)-300msec/96kHz

Equalizer:

BASS and Treble control

Sub Woofer Crossover: 17 Point (40-200Hz)
Bi-AMP: Yes
Bravia® Sync™:

Yes

Convenience

Preset Memory: 60 (30 FM, 30 AM)
AM/FM Memory Presets: 30 AM, 30 FM
Auto Tuning: Yes
Direct Tuning: Yes (Remote)
Sleep Timer: Yes
Station Name Display: Yes

Inputs and Outputs

Digital Media Port: 1 (Rear)
HDMI™ Connection Output(s): 1 (Rear)
HDMI™ Connection Input(s): 4 (Rear)
Optical Audio Input(s): 3 (Rear)
Coaxial Audio Digital Input(s): 1 (Rear)
HD Component Video Input(s): 3 (Rear -

Y/Pb/Pr)

HD Component Video Output(s): 1 (Rear -

Y/Pb/Pr)

Composite Video Input(s): 4 (1 Front/3

Rear)

Composite Video Output(s): 1 (Rear)
RCA Audio Input(s): 5 (Rear)
RCA Audio Output(s): 2 (Rear)
Subwoofer Output(s): 1 (Rear)
Antenna Terminal (AM Loop): 1 (Rear)
Antenna Terminal (FM 75 Ohm): 1 (Rear)
Headphone Output(s): Yes (Gold)
HDMI™ Pass-through: Yes

Power

Power Requirements: 120V 60Hz
Power Consumption (in Operation): 240W
Power Consumption (in Standby): 0.3W

Hardware

Remote Control: Universal (programmable)

Speaker

Speaker Terminal Type: Screw

Weights and Measurements

Weight (Approx.): 18.3 lbs. (8.3kg)
Dimensions (Approx.): 16.9 x 6.2 x 12.6 in

(430 x 157.5 x 322mm)

Color:

Black

UPC Code:

027242779969

1. Requires connection via HDMI

™

cable (sold separately) to equivalent
HDTV. Upscaled/upconverted image and sound quality will vary
depending on source.

2. Dolby®

True-HD and dts®-

HD Master Audio decoding require HDMI

™

cable and capable source device (both sold separately).

3. Transmits up to 164 feet. Signal and sound quality may vary.

4. Requires compatible HDTV connected by HDMI cable (both sold
separately). Sound quality will vary depending on source.

5. Works with other BRAVIA® Sync or Theatre Sync™

labeled home

audio/video products when connected via HDMI

™

interface.

6. iPod® support is limited to the following players with the optional dock:
iPod® touch, iPod® classic, iPod® Nano 1st, 2nd & 3rd generation,
iPod

® 4th& 5th generation & iPod® Mini. The TDM-IP50 dock will

support iPhone® as well.

7. 24p playback capable device required, sold separately.
