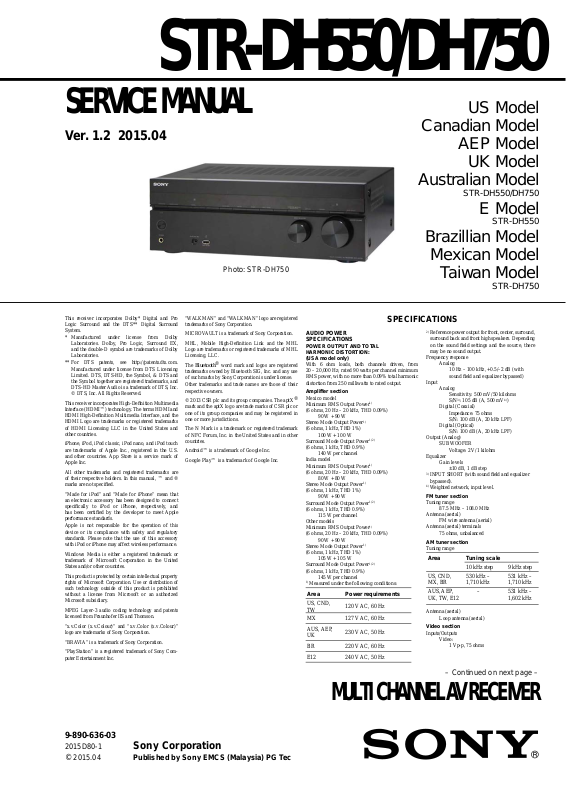

Sony STR-DH550, STR-DH570 Service manual

STR-DH550/DH750

SERVICE MANUAL

Ver. 1.2 2015.04

Photo: STR-DH750

This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, Surround EX,
and the double-D symbol are trademarks of Dolby
Laboratories.

** For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS Licensing
Limited. DTS, DTS-HD, the Symbol, & DTS and
the Symbol together are registered trademarks, and
DTS-HD Master Audio is a trademark of DTS, Inc.
© DTS, Inc. All Rights Reserved.

This receiver incorporates High-Definition Multimedia
Interface (HDMI™) technology. The terms HDMI and
HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks
of HDMI Licensing LLC in the United States and
other countries.

iPhone, iPod, iPod classic, iPod nano, and iPod touch
are trademarks of Apple Inc., registered in the U.S.
and other countries. App Store is a service mark of
Apple Inc.

All other trademarks and registered trademarks are
of their respective holders. In this manual, ™ and ®
marks are not specified.

“Made for iPod” and “Made for iPhone” mean that
an electronic accessory has been designed to connect
specifically to iPod or iPhone, respectively, and
has been certified by the developer to meet Apple
performance standards.
Apple is not responsible for the operation of this
device or its compliance with safety and regulatory
standards. Please note that the use of this accessory
with iPod or iPhone may affect wireless performance.

Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.

This product is protected by certain intellectual property
rights of Microsoft Corporation. Use or distribution of
such technology outside of this product is prohibited
without a license from Microsoft or an authorized
Microsoft subsidiary.

MPEG Layer-3 audio coding technology and patents
licensed from Fraunhofer IIS and Thomson.

“x.v.Color (x.v.Colour)” and “x.v.Color (x.v.Colour)”
logo are trademarks of Sony Corporation.

“BRAVIA” is a trademark of Sony Corporation.
“PlayStation” is a registered trademark of Sony Com-

puter Entertainment Inc.

“WALKMAN” and “WALKMAN” logo are registered
trademarks of Sony Corporation.

MICROVAULT is a trademark of Sony Corporation.
MHL, Mobile High-Definition Link and the MHL

Logo are trademarks or registered trademarks of MHL
Licensing, LLC.

The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Sony Corporation is under license.
Other trademarks and trade names are those of their
respective owners.

© 2013 CSR plc and its group companies. The aptX®
mark and the aptX logo are trade marks of CSR plc or
one of its group companies and may be registered in
one or more jurisdictions.

The N Mark is a trademark or registered trademark
of NFC Forum, Inc. in the United States and in other
countries.

Android™ is a trademark of Google Inc.
Google Play™ is a trademark of Google Inc.

SPECIFICATIONS

AUDIO POWER
SPECIFICATIONS

POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(USA model only)

With 6 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 90 watts per channel minimum
RMS power, with no more than 0.09% total harmonic
distortion from 250 milliwatts to rated output.

Amplifier section

Mexico model
Minimum RMS Output Power
(6 ohms, 20 Hz – 20 kHz, THD 0.09%)
90 W + 90 W
Stereo Mode Output Power
(6 ohms, 1 kHz, THD 1%)
100 W + 100 W
Surround Mode Output Power
(6 ohms, 1 kHz, THD 0.9%)
140 W per channel
India model
Minimum RMS Output Power
(6 ohms, 20 Hz – 20 kHz, THD 0.09%)

80 W + 80 W
Stereo Mode Output Power
(6 ohms, 1 kHz, THD 1%)

90 W + 90 W
Surround Mode Output Power
(6 ohms, 1 kHz, THD 0.9%)

115 W per channel
Other models
Minimum RMS Output Power
(6 ohms, 20 Hz – 20 kHz, THD 0.09%)

90 W + 90 W
Stereo Mode Output Power
(6 ohms, 1 kHz, THD 1%)

105 W + 105 W
Surround Mode Output Power
(6 ohms, 1 kHz, THD 0.9%)

145 W per channel

1)

Measured under the following conditions:

Area Power requirements

US, CND,
TW

MX 127 V AC, 60 Hz
AUS, AEP,

UK
BR 220 V AC, 60 Hz
E12 240 V AC, 50 Hz

1)

1)

1) 2)

1)

1)

1) 2)

1)

1)

1) 2)

120 V AC, 60 Hz

230 V AC, 50 Hz

US Model

Canadian Model

AEP Model

UK Model

Australian Model

STR-DH550/DH750

E Model

STR-DH550

Brazillian Model

Mexican Model

Taiwan Model

STR-DH750

2)

Reference power output for front, center, surround,

surround back and front high speakers. Depending
on the sound fi eld settings and the source, there

may be no sound output.
Frequency response
Analog
10 Hz – 100 kHz, +0.5/–2 dB (with
sound fi eld and equalizer bypassed)
Input
Analog
Sensitivity: 500 mV/50 kilohms
S/N
Digital (Coaxial)
Impedance: 75 ohms
S/N: 100 dB (A, 20 kHz LPF)
Digital (Optical)
S/N: 100 dB (A, 20 kHz LPF)
Output (Analog)
SUBWOOFER
Voltage: 2 V/1 kilohm
Equalizer
Gain levels
±10 dB, 1 dB step

3)

4)

FM tuner section

Tuning range

87.5 MHz – 108.0 MHz
Antenna (aerial)
FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced

AM tuner section

Tuning range

Area Tuning scale

US, CND,
MX, BR

AUS, AEP,
UK, TW, E12

Antenna (aerial)
Loop antenna (aerial)

Video section

Inputs/Outputs
Video:
1 Vp-p, 75 ohms

3)

: 105 dB (A, 500 mV4))

INPUT SHORT (with sound fi eld and equalizer

bypassed).

Weighted network, input level.

10 kHz step 9 kHz step
530 kHz – 531 kHz –

1,710 kHz 1,710 kHz
– 531 kHz –

1,602 kHz

– Continued on next page –

9-890-636-03

2015D80-1

2015.04

©

MULTI CHANNEL AV RECEIVER

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

STR-DH550/DH750

Ver. 1.1

HDMI Video

Input/Output (HDMI Repeater block)

Format 2D

4096 × 2160p @ 59.94/60 Hz

4096 × 2160p @ 50 Hz

3840 × 2160p @ 59.94/60 Hz

3840 × 2160p @ 50 Hz

4096 × 2160p @ 23.98/24 Hz

3840 × 2160p @ 29.97/30 Hz

3840 × 2160p @ 25 Hz

3840 × 2160p @ 23.98/24 Hz

1920 × 1080p @ 59.94/60 Hz

1920 × 1080p @ 50 Hz

1920 × 1080p @ 29.97/30 Hz

1920 × 1080p @ 25 Hz

1920 × 1080p @ 23.98/24 Hz

1920 × 1080i @ 59.94/60 Hz

1920 × 1080i @ 50 Hz

1280 × 720p @ 59.94/60 Hz

1280 × 720p @ 50 Hz

1280 × 720p @ 29.97/30 Hz

1280 × 720p @ 23.98/24 Hz

720 × 480p @ 59.94/60 Hz

720 × 576p @ 50 Hz

640 × 480p @ 59.94/60 Hz

1)

Supports YUV 4:2:0 / 8 bit format only.

2)

Supports 8 bit format only.

3)

These formats are also supported by an MHL connection.

MHL section

Supported MHL version
Incorporates MHL 2
Maximum current
900 mA

iPhone/iPod section

DC 5V 1.0 A MAX
USB works with iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s,

iPhone 4, iPhone 3GS, iPhone 3G, iPod touch (2nd through
5th generation), iPod classic, and iPod nano (3rd through 7th
generation).

Bluetooth technology works with iPhone 5s, iPhone 5c, iPhone
5, iPhone 4s, iPhone 4, iPhone 3GS, and iPod touch (4th and 5th
generation).

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

a

Frame packing

1)

1)

1)

1)

2)

2)

2)

2)

3)

3)

3)

3)

3)

3)

3)

3)

3)

3)

3)

3)

You can use “SongPal” app with this receiver via Bluetooth.

USB section

Supported format*
MP3 (MPEG 1 Audio Layer-3):
32 kbps – 320 kbps, VBR
WMA:
48 kbps – 192 kbps
AAC:
48 kbps – 320 kbps
WAV:
8 kHz – 48 kHz, 16 bit PCM
* Compatibility with all encoding/writing software, recording
devices and recording media cannot be guaranteed.

Transfer speed
Full-speed
Supported USB device
Mass Storage Class
Maximum current
500 mA

Bluetooth section

Communication system
Bluetooth Specification version 3.0
Output
Bluetooth Specification Power Class 2
Maximum communication range
Line of sight approx. 10 m (33 feet)
Frequency band

2.4 GHz band (2.4000 GHz – 2.4835 GHz)
Modulation method
FHSS (Freq Hopping Spread Spectrum)

1)

3D

Side-by-Side

(Half)

Over-Under

(Top-and-Bottom)

–– –

–– –

–– –

–– –

–– –

–– –

–– –

–– –

–

–

aa3)a

aa3)a

aa3)a

aa3)a

aa3)a

aa3)a

aa3)a

aa3)a

aa3)a

aa

aa

3)

3)

3)

3)

3)

3)

3)

3)

3)

–– –

–– –

–– –

Compatible Bluetooth profiles
A2DP (Advanced Audio Distribution Profile)
AVRCP 1.3 (Audio Video Remote Control Profile)
Supported Codecs
SBC4), AAC, aptX
Transmission range (A2DP)
20 Hz – 20,000 Hz (Sampling frequency 44.1 kHz)

1)

The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a microwave
oven, static electricity, cordless phone, reception sensitivity,
antenna’s performance, operating system, software application,
etc.

2)

Bluetooth standard profiles indicate the purpose of Bluetooth
communication between devices.

3)

Codec: Audio signal compression and conversion format

4)

Subband Codec

General

Power requirements

2)

3)

Area Power requirements

US, CND, TW 120 V AC, 60 Hz
MX 127 V AC, 60 Hz
AUS 230 V AC, 50 Hz
AEP, UK, E12 230 V AC, 50/60 Hz
BR 127/220 V AC, 60 Hz
E12 220 V – 240 V AC, 50/60 Hz

Power consumption
240 W (Except DH550 : AEP, UK, US, CND, AUS, E12)
200 W (DH550 : AEP, UK, US, CND, AUS, E12)
Power consumption (during standby mode)

0.3 W (When “Control for HDMI”, “Pass Through” and
“Bluetooth Standby” are set to “Off”.)

0.5 W (When “Control for HDMI” is set to “On”, “Pass
Through” and “Bluetooth Standby” are set to “Off”.)
Dimensions (width/height/depth) (Approx.)
430 mm × 156 mm × 329.4 mm
(17 in × 6 1/4 in × 13 in) including projecting parts and
controls
Mass (Approx.)
E12 model:

8.0kg (17 lb 11 oz)
Other models:

7.6kg (16 lb 13 oz)
Design and specifications are subject to change without notice.

Supplied accessories

• Quick Setup Guide (1)

• Reference Guide (1)

• Remote control (RM-AAU190) (1)

• R6 (size AAA) batteries (2)

• FM wire antenna (aerial) (1)

• AM loop antenna (aerial) (1)

• Optimizer microphone (ECM-AC2) (1)

Design and specifications are subject to change
without notice.

• Halogenated flame retardants are not used
in the certain printed wiring boards.

Abbreviation
AUS : Australian model
BR : Brazilian model
CND : Canadian model
E12 : 220 – 240V AC area in E model
MX : Mexican model
TW : Taiwan model

2

STR-DH550/DH750

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage.
Check leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes.).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter . The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2 V AC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

AC

1.5 kΩ0.15 μF

Earth Ground

voltmeter
(0.75 V)

Fig. A. Using an AC voltmeter to check AC leakage.

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be
damaged by heat.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

ATTENTION AU COMPOSANT AYANT RAPPORT

À LA SÉCURITÉ!

TABLE OF CONTENTS

1. SERVICING NOTES ............................................. 4

2. DISASSEMBLY

2-1. Case (Entry) .................................................................... 5

2-2. Front Panel Section ......................................................... 6

2-3. Back Panel Section ......................................................... 7

2-4. MAIN Board Section ...................................................... 8

2-5. MAIN Board ................................................................... 9

3. TEST MODE ............................................................ 10

4. FM TUNER CHECK ............................................. 13

5. DIAGRAMS

5-1. Block Diagram - ANALOG AUDIO Section - ............... 15

5-2. Block Diagram - DIGITAL Section - ............................. 16

5-3. Block Diagram - AMP Section - ..................................... 17

5-4. Block Diagram - ANALOG VIDEO/USB Section - ...... 18

5-5. Block Diagram - DIGITAL VIDEO Section - ................ 19

5-6. Block Diagram - DISPLAY/POWER Section - .............. 20

5-7. Printed Wiring Board

- MAIN Board (Component Side) - ................................ 22

5-8. Printed Wiring Board

- MAIN Board (Conductor Side) - .................................. 23

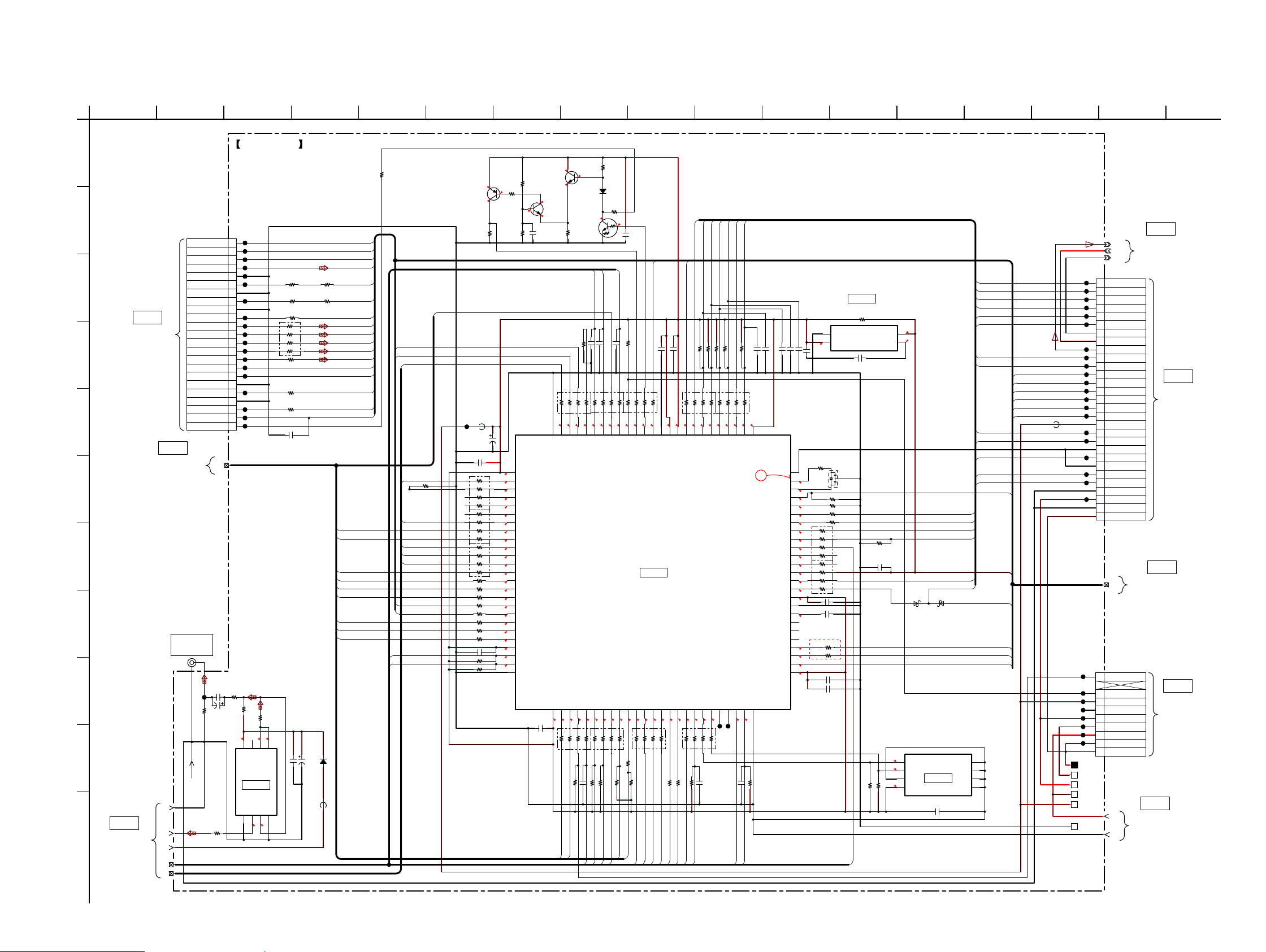

5-9. Schematic Diagram - MAIN Board (1/7) - ..................... 24

5-10. Schematic Diagram - MAIN Board (2/7) - ..................... 25

5-11. Schematic Diagram - MAIN Board (3/7) - ..................... 26

5-12. Schematic Diagram - MAIN Board (4/7) - ..................... 27

5-13. Schematic Diagram - MAIN Board (5/7) - ..................... 28

5-14. Schematic Diagram - MAIN Board (6/7) - ..................... 29

5-15. Schematic Diagram - MAIN Board (7/7) - ..................... 30

5-16. Printed Wiring Board

- HDMI Board (Component Side) - ................................ 31

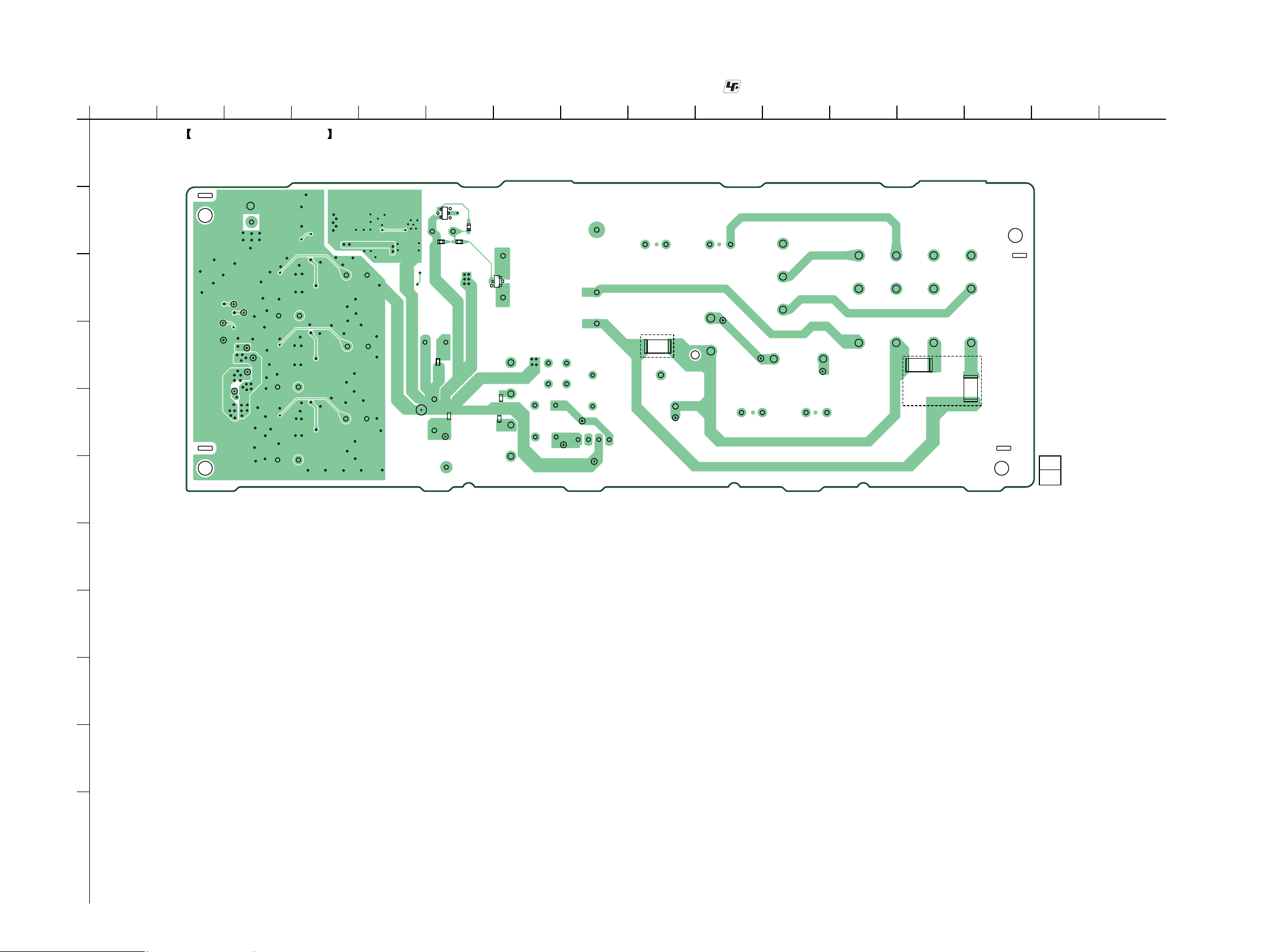

5-17. Printed Wiring Board

- HDMI Board (Conductor Side) - .................................. 32

5-18. Schematic Diagram - HDMI Board - .............................. 33

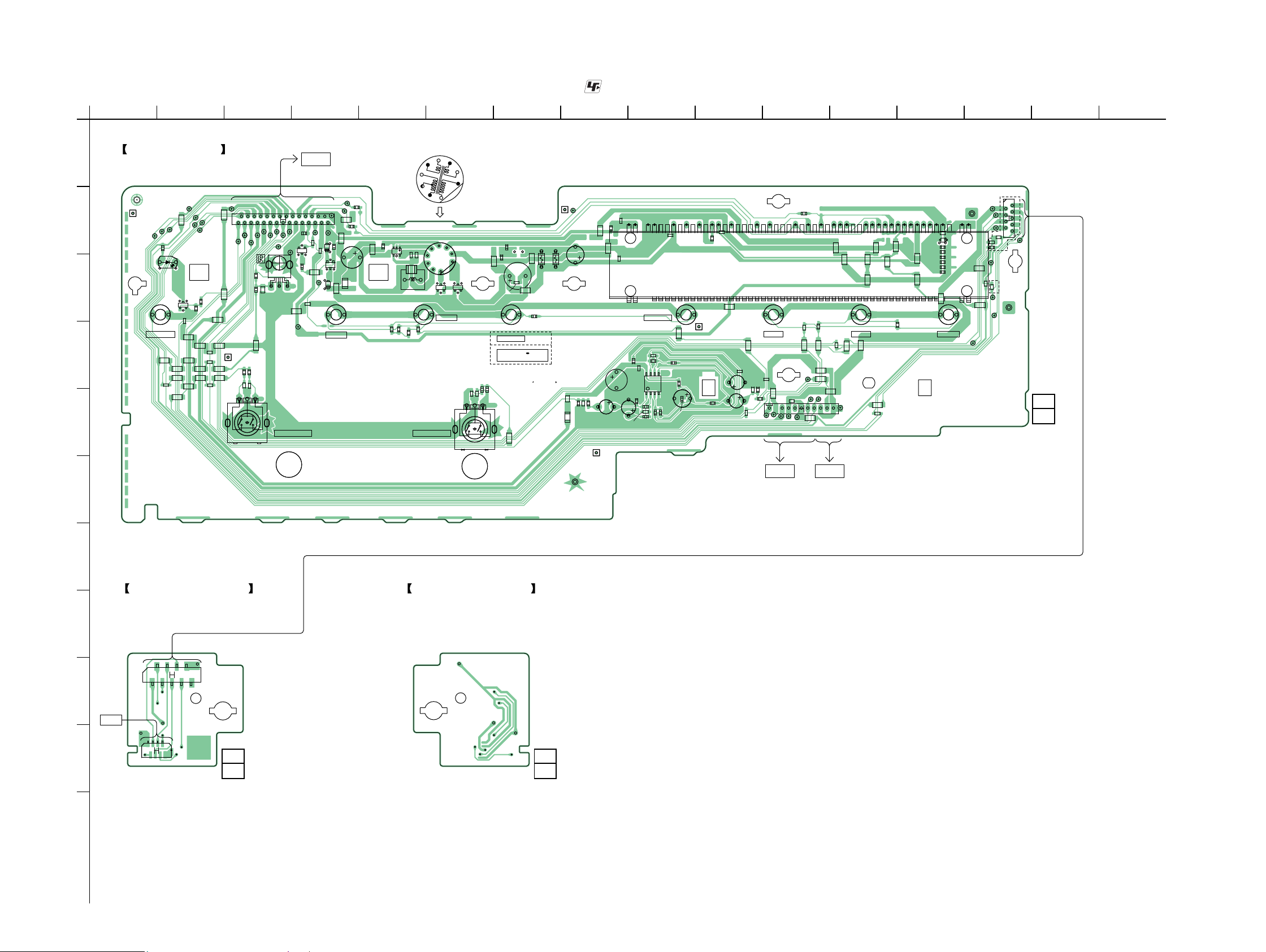

5-19. Printed Wiring Board

- STANDBY DCDC Board (Component Side) - ............ 34

5-20. Printed Wiring Board

- STANDBY DCDC Board (Conductor Side) - .............. 35

5-21. Schematic Diagram - STANDBY DCDC Board - .......... 36

5-22. Printed Wiring Board - PANEL Section - ....................... 37

5-23. Schematic Diagram - PANEL Section - .......................... 38

5-24. Printed Wiring Board - FRONT JACK Board - .............. 39

5-25. Schematic Diagram - FRONT JACK Board - ................ 39

5-26. Printed Wiring Board - TUNER1 Board - ...................... 39

5-27. Schematic Diagram - TUNER1 Board - ......................... 40

5-28. Printed Wiring Board - POWER KEY Board -............... 41

5-29. Schematic Diagram - POWER KEY Board - ................. 41

5-30. Printed Wiring Board - HEADPHONE Board - ............. 42

5-31. Schematic Diagram - HEADPHONE Board - ................ 42

6. EXPLODED VIEWS

6-1. Case (Entry) Section ....................................................... 57

6-2. Front Panel Section ......................................................... 58

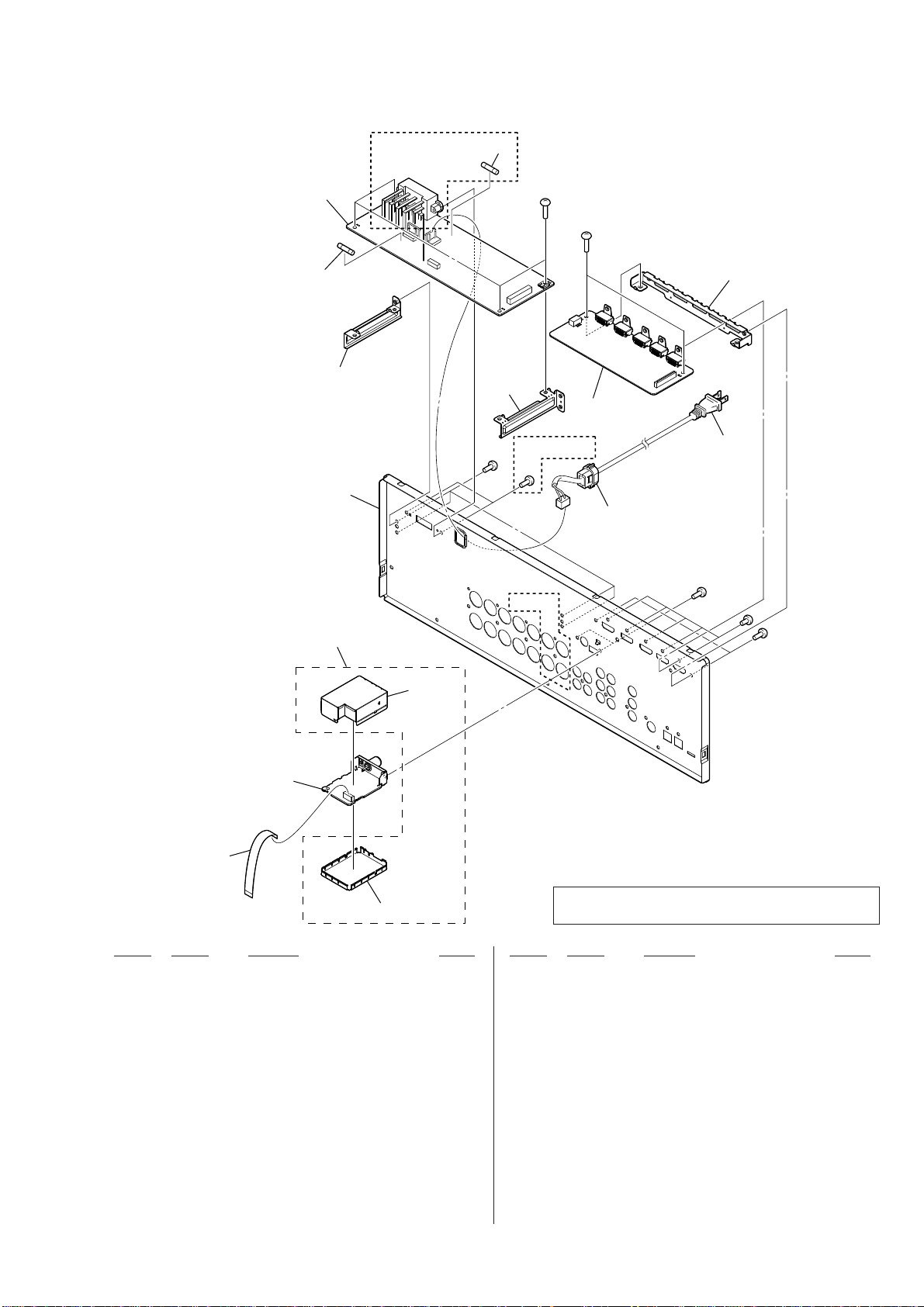

6-3. Back Panel Section ......................................................... 59

6-4. Chassis Section ............................................................... 60

LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR
LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES
PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC­TIONNEMENT. NE REMPLACER CES COMPOSANTS QUE
PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON­NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS
PUBLIÉS PAR SONY.

7. ELECTRICAL PARTS LIST .............................. 61

3

STR-DH550/DH750

–

Ver. 1.1

SECTION 1

SERVICING NOTES

MODEL IDENTIFICATION
–BACK PANEL–

Part No.

Model Part No.

DH550: US, Canadian
DH550: AEP , UK
DH550: Australian
DH550: 220 – 240 V AC area in E model
DH750: US, Canadian
DH750: AEP , UK
DH750: Australian
DH750: Taiwan
DH750: Mexican
DH750: Brazillian

4-487-917-0[]
4-487-917-1[]
4-487-917-2[]
4-487-917-3[]
4-448-923-0[]
4-448-923-1[]
4-448-923-2[]
4-448-923-3[]
4-448-923-4[]
4-448-923-6[]

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the lead­free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with

the lead free mark due to their particular size)

NOTE OF REPLACING THE IC2402 AND IC2900 ON
THE MAIN BOARD

IC2402 and IC2900 on the MAIN board cannot exchange with
single. When these parts on the MAIN board are damaged,
exchange the entire mounted board.

NOTE OF REPLACING THE IC3514 ON THE HDMI
BOARD

IC3514 on the HDMI board cannot exchange with single. When
this part on the HDMI board is damaged, exchange the entire
mounted board.

NOTE OF REPLACING THE IC902 (DH750) ON THE
STANDBY DCDC BOARD

IC902 (DH750) on the STANDBY DCDC board cannot exchange
with single. When this part on the STANDBY DCDC board is
damaged, exchange the entire mounted board.

CAPACITOR ELECTRICAL DISCHARGE PROCESSING

When checking the board, the electrical discharge is necessary for
the electric shock prevention.
Connect the resistor to both ends of respective capacitors.

• Main Board
C930, C931

MAIN BOARD (Conductor side) –

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher than
ordinary solder.

Ordinary soldering irons can be used but the iron tip has to be

applied to the solder joint for a slightly longer time.

Soldering irons using a temperature regulator should be set to

about 350 °C.
Caution: The printed pattern (copper foil) may peel away if the

heated tip is applied for too long, so be careful!

• Strong viscosity

Unleaded solder is more viscous (sticky, less prone to fl ow) than

ordinary solder so use caution not to let solder bridges occur
such as on IC pins, etc.

• Usable with ordinary solder

It is best to use only unleaded solder but unleaded solder may

also be added to ordinary solder.

SPECIAL COMPONENT NOTICE

The components identified by mark 9 contain confidential
information.
Strictly follow the instructions whenever the components are
repaired and/or replaced.

NOTICE POUR COMPOSANTS SPÉCIAUX

Les composants identifiés par la marque 9 contiennent des
informations confidentielles.
Suivre scrupuleusement les instructions chaque fois qu’un compo-

sant est remplacé et / ou réparé.

(To both ends of each capacitor)

800 :/2 W

C931

C930

4

This set can be disassemble according to the following sequence.

Note:

SET

2-1. CASE (ENTRY)
(Page 5)

SECTION 2

DISASSEMBLY

STR-DH550/DH750

Ver. 1.1

2-2. FRONT PANEL SECTION
(Page 6)

Follow the disassembly procedure in the numerical order given.

Note:

2-3. BACK PANEL SECTION
(Page 7)

2-4. MAIN BOARD SECTION
(Page 8)

2-5. MAIN BOARD
(Page 9)

2-1. CASE (ENTRY)

3 three screws
(+BVTP 3 u 8)

1 three screws
(B-TYPE 4 u 8)

4

5 case (entry)

4

2 three screws

(B-TYPE 4 u 8)

5

STR-DH550/DH750

Ver. 1.1

2-2. FRONT PANEL SECTION

:LUHVHWWLQJ

pin, lead

USB INSULATION
MT PC BOARD

front side

MAIN board

heat sink

1 Wire is removed
from the pin, lead.

(DH750)

5 Wire is removed
from the pin, lead.

3 Wire is removed
from the pin, lead.

9 front panel section

7 CN391

(4P)

8 five screws
(+BVTP 3 u 8)

2 CN2900
(5P)

6 wire (flat type)
(14 core) (CN2600)

(DH750)

4 wire (flat type)
(29 core) (CN2004)

:LUHVHWWLQJ

pin, lead

(DH750)

front side

INSULATION board (DH750)

6

2-3. BACK PANEL SECTION

:LUHVHWWLQJ

STR-DH550/DH750

Ver. 1.1

rear side

pin, lead

STANDBY DCDC board

1 CNP902 (4P)

4 CN1901 (12P)

3 CN941 (4P)

(DH750)

2 Wire is removed
from the pin, lead.

5 CN3513
(3P)

7 wire (flat type)
(23 core) (CN3514)

8 three screws
(+BVTP 3 u 8)

(DH750)

8 one screw
(+BVTP 3 u 8)

8 six screws
(+BVTP 3 u 8)

9 five screws
(+BVTP 3 u 8)

0 back panel section

6 wire (flat type)

(9 core) (CN2003)

7

STR-DH550/DH750

Ver. 1.1

2-4. MAIN BOARD SECTION

(DH750)(DH550)

5 USB INSULATION
MT PC board

6 two screws
(+BVTP 3 u 8)

D

C

4 one screw

(+BVTP 3 u 8)

1 Wire is removed
from the pin, lead.

B

E

7 two screws

(+BVTP 3 u 8)

8 MAIN board
section

5 USB INSULATION
MT PC board

8 two screws
(+BVTP 3 u 8)

4 one screw
(+BVTP 3 u 8)

7 INSULATION board

B

C

2 CN951 (5P)

6 two screws

(+BVTP 3 u 8)

1 Wire is removed
from the pin, lead.

9 two screws
(+BVTP 3 u 8)

qa MAIN board
section

:LUHVHWWLQJ

rear side

pin, lead

MAIN board

chassis

D

3 CN950 (5P)

B

C

E

0 one screw

(+BVTP 3 u 8)

(DH750)

8

2-5. MAIN BOARD

Note: This illustration sees the MAIN board from back side.

(DH750) (DH550)

STR-DH550/DH750

3 heat sink section

1 Remove the thirty solders.

(DH550)
Remove the forty-two solders.
(DH750)

3 heat sink section

FF

F

4 MAIN board

(DH750)

(DH750)

2 one screw
(+BVTP 3 u 8)

(DH750)

2 one screw
(+BVTP 3 u 8)

(DH550)

2 one screw
(+BVTP 3 u 8)

9

STR-DH550/DH750

SECTION 3

TEST MODE

TUNER AM STEP CHANGE MODE
(US and Canadian models only)

Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.

Procedure:

1. Press the [

2.

Turn the [INPUT SELECTOR] knob to select the “AM TUNER”.

] button to turn on the main power.

?/1

3. Press the [?/1] button to turn off the main power.

4. While pressing the [TUNING MODE] button, press the [?/1]
button to turn on the main power.

5. Either the message “10K Step” or “9K Step” appears.

6. Repeat step (4) to select desired step.

VACUUM FLOURESCENT DISPLAY TEST MODE

All fl ourescent segments are tested.
When this test is activated, all segments light on at the same time,
then each segment lights on one after another.

Procedure:

While pressing [SPEAKERS] and [DIMMER] buttons simultane­ously, press the [

] button to turn on the main power.

?/1

1. ALL segments light on.

USB ARC MEM D.R.C. True HD PL EQ DTS-HD ST D.C.A.C. SLEEP
OPT BT
COAX
HDMI
SP A B

2. Press the [DISPLAY] button to confi rm display as below.

USB ARC MEM D.R.C. True HD PL EQ DTS-HD ST D.C.A.C. SLEEP
OPT BT
COAX

HDMI

SP A B

k

3. Press the [DISPLAY] button to confi rm display as below.

USB ARC MEM D.R.C. True HD PL EQ DTS-HD ST D.C.A.C. SLEEP
OPT BT
COAX

HDMI

SP A B

dB
MHz
k Hz

4. Press the [DISPLAY] button, all segments light off.

SOUND FIELD CLEAR MODE

The preset sound fi eld is cleared when this mode is activated.
Use this mode before returning the product to clients upon com­pletion of repair.

Procedure:

1. While pressing [MUSIC] button, press the [

] button to

?/1

turn on the main power.

2.

The message “S.F. CLEAR” appears for a moment and
initialization is performed.

SOFTWARE VERSION DISPLAY MODE

The software version is displayed.

Procedure:

1. While pressing [A.F.D./2CH] and [PURE DIRECT] buttons
simultaneously, press the [

] button to turn on the main

?/1

power.

2. The message “H55 XXX” or “H75 XXX” appears.

XXX: Area display
Each time the [DISPLAY] button is pressed, “SYS. vX.XX”,
“MAIN vX.XX”, “VIDEO vX.XX”, “OSD vX.XX” and

“SFLASHvX.XX” appear in this order, and returns to the
“H55 XXX” or “H75 XXX” display.

X.XX: Software version

KEY CHECK MODE

Each button can be checked.

Procedure:

1. While pressing [SPEAKERS] and [PURE DIRECT] buttons
simultaneously, press the [

] button to turn on the main

?/1

power.

2. The message “REST 12” appears.

Every pressing of any button other than the [

?/1

] counts

down the buttons.

3. The buttons which are already counted once are not counted
again.

4. When all buttons are pressed, “REST 00” appears.

SWAP ALL MODE

The signal will be swap to all channels so that all speakers will
have sound output.

Procedure:

1. While pressing [PURE DIRECT] and [MOVIE] buttons
simultaneously, press the [

] button to turn on the main

?/1

power.

2. “SWAP MODE” appears.

INITIALIZE MODE

All preset contents are cleared when this mode is activated. Use
this mode before returning the product to clients upon completion
of repair.

(a) SHIPMENT MODE

Procedure:

1. While pressing [A.F.D./2CH] and [DIMMER] buttons
simultaneously, press the [

] button to turn on the main

?/1

power.

2. The message “CLEARING” appears and the memories are
reset to the default values.

3. When done, the message “CLEARED *” appears, the set will
power off.

(b) ALL CLEAR INITIALIZE

Procedure:

1. While pressing [A.F.D./2CH] and [DISPLAY] buttons, press
the [?/1] button to turn on the main power.

2. The message “CLEARING” appears and the memories are
reset to the default values.

3. When done, the message “CLEARED *” appears, the set will
power on.

(c) USER INITIALIZE

Procedure:

1. Hold the [

] button for 5 seconds.

?/1

2. The message “CLEARING” appears on the display.

3. After few seconds, “CLEARED *” appears.

PROTECTOR AUTO OFF

To disable auto off after protector occur.

Procedure:

1. While pressing [DISPLAY] and [MOVIE] buttons simultane­ously, press the [

] button to turn on the main power.

?/1

2. “PROTEVER” appears and switch on the set.

DCAC TEST MODE

To test audio output from mic input and speakers.

Procedure:

1. While pressing [MUSIC] and [DIMMER] buttons simultane­ously, press the [

] button to turn on the main power.

?/1

2. The message “MIC” appears.

MIC: mode that output audio from mic input

10

STR-DH550/DH750

HISTORY MODE

The state that the set is used is memorized.

Procedure:

1. While pressing [TUNING MODE] and [DISPLAY] buttons si­multaneously, press the [

] button to turn on the power and

?/1

“HISTORY” is displayed.

2. Each time the [ M ] [ m ] key of remote commander is pressed,

the item is switched in order as follows.

Items Display

Protector Count C O U N T x x x
Total Power ON time T x x x x x H x x M
Main Power On M x x x x x H x x M
Protector type P R O T x x x x
Sound Field S N D F I E L D
Function F U N C T I O N
Input Mode I N P M O D E
Digital Select D I G S E L E C T
Stream S T R E A M I N F O
Channel Config C O N F x x x x x
Headphone H E A D P H x x x
Volume V O L _ x x
Muting M U T I N G _ x x
Bass B A S S x x x
Treble T R E B x x x
Front Level F x x x / x x x
Center Level C x x x / x x x
Surround Level S x x x / x x x

Surround Back Level

(Only for STR-DH750)

Front Height Level

(Only for STR-DH750)
Temperature T E M P _
Total Power On T x x x x x H x x M
Main Power On M x x x x x H x x M
Power On Count R E B O X _ x x

B x x x / x x x

H x x x / x x x

USB UPDATE TEST MODE

To update micontroller software through USB.

Procedure:

1. Plug in USB device in power off condition.

2. While pressing [TUNING MODE] and [PURE DIRECT]
buttons simultaneously, press the [?/1] button to turn on the
main power.

3. The message “UPDATING” appears.

4. If the updating progress succeeds, the message “COMPLETE”
appears.

5. If the updating progress fails, the message “ERROR” appears.

USB UPDATE VERSION MODE

Function that displays the version number of all firmware to
check whether USB Update Test is necessary or not.

Procedure:

1. While pressing [TUNING MODE] and [DIMMER] buttons,
press the [?/1] button to turn on the main power.

2. The message “VER X.XXX” is displayed. “X.XXX” is
calculated by adding all fi rmware version.

Example:
(MCU ver. + VIDEO ver. + DSP ver. + OSD ver. + 6)/10 =
USB Update version
MCU = 1.01, VIDEO = 1.04, DSP = 1.02, OSD = 1.03
↓
(1.01 + 1.04 + 1.02 + 1.03 + 6)/10 = 1.010

1.010 = X.XXX

11

STR-DH550/DH750

Ver. 1.1

FIX MODEL AND DESTINATION MODE

This mode is to fix the set for model & destination.
When turning on the set, the message below appears if the setting
is not fixed with its model or destination or both (model & destina­tion).

Items Display

MODEL & AREA NOT
FIX

MODEL NOT FIX M O D E L. U N F I X
AREA/DESTINATION

NOT FIX

M D. D S T. U N F I X

D E S T. U N F I X

Procedure:

1. Press the [?/1] button to turn on the main power.

2. While pressing [DISPLAY] button, press and release the
[A.F.D./2CH], [MOVIE], [MUSIC] button in order, the
message “SPECIALIZE” appears.

3. Press the [ M ] or [ m ] key of the remote commander, the
message “<SPECIAL>” appears.

4. Press the [

] key of the remote commander to enter the

Special Menu List.

5. Each time the [ M ] or [ m ] key of the remote commander is
pressed, the item is switched in order as follows.

Items Display

MODEL setting M O D E L
DESTINATION setting D E S T I N Y

MODEL &
DESTINATION check

SYSTEM VERSION S Y S v X. X X X
MAIN VERSION M A I N v X. X X
VIDEO VERSION V I D E O v X. X X
OSD VERSION O S D v X. X X
DSP SFLASH1 VER S F L A S H v X. X X

M O D E L + D E S T

6. Go to MODEL setting and press the [ ] key of remote
commander.

7. Either one of the message as below appears.

Items Display

Model not fix yet M O D E L. U N F I X
Model STR-H55 fix H 5 5 f i x
Model STR-H75 fix H 7 5 f i x

8. Press the [ M ] or [ m ] key of remote commander to set model
info as “H55 fi x” or “H75 fi x” if message “MODEL UNFIX”
appears.

9. Press the [

] key of remote commander to select the model.

10. The message “MODEL” appears.

11. Go to DESTINATION setting and press the [

] key of

remote commander.

12. Either one of the display below appears according to the
destination of the set.

Items Display

Destination D E S T U N F I X
Destination UCA fix U C A f i x
Destination J fix J f i x

TW/SA2

Destination
Destination SP/CN fix C N f i x
Destination KR fix K R f i x
Destination E2/E3 fix C H 3 f i x

Destination CEL fix C E L f i x
Destination AU fix A U f i x
Destination E12 fix E 1 2 f i x
Destination E51 fix E 5 1 f i x
Destination BR fix B R f i x
Destination AR fix A R f i x
Destination MX fix M X f i x

fix T W f i x

13. Press the [ M ] or [ m ] key of remote commander to set
destination info if message “DEST UNFIX” appears.

14. Press the [ ] key of remote commander to select the
destination.

15. The message “DESTINY” appear.

16. Go to MODEL & DESTINATION check and press the [ ]
key of remote commander.

17. Either one of the message as below appears.

Items Display

MODEL & AREA NOT FIX M D. D S T. U N F I X
MODEL NOT FIX M O D E L. U N F I X
DESTINATION NOT FIX D E S T. U N F I X
STR-H55 H 5 5 x x x

STR-H75 H 7 5 x x x

xxx: Area display

18. Repeat step (6) onwards if message “MD.DST.UNFIX”
appears.

19. Repeat step (6) until step (10) and continue with step (16)
onwards if message “MODEL.UNFIX” appears.

20. Repeat step (13) onwards if message “DEST. UNFIX”
appears.

21. Set need to be reset and updated again if the message
appeared incorrectly.

22. Press the [ M ] or [ m ] key of remote commander goes to “MD.
DST.UNFIX”.

23. Press the [

] key of remote commander.

24. The set will power off and then power on by itself.

25. Start the setting again from step (1) onwards.

26. Perform SHIPMENT MODE if the message appears correctly.

27. The set will be power off itself and can be used as normal by
pressing [?/1] button.

12

STR-DH550/DH750

SECTION 4

FM TUNER CHECK

MHL VBUS TEST MODE

To display MHL VBUS status

Procedure:

1. Press the [

2. While pressing [DISPLAY] button, press and release the
[MUSIC], [MOVIE], [A.F.D./2CH] button in order, the
message “VBUS STAT” appears.

3. Press the [ ] key of the remote commander to check the
items.

No Error N O E R O R
Current Limited C U R L I M I T D
Current Stopped C U R S T O P P D

] button to turn on the main power.

?/1

Items Display

FM AUTO STOP CHECK

generator

set

OUT (75 Ω)

Procedure:

1. Turn on the set.

2. Input the following signal from Signal Generator to FM
antenna input directly.

* Carrier Frequency: A=87.5 MHz, B=98 MHz, C=108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)

Note: Use 75 ohm “coaxial cable” to connect SG and the set.
You cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.

3. Set to FM tuner function and scan the input FM signal with
automatic scanning.

4. Confi rm that input Frequency of A, B and C are detected and
automatic scanning stops.

The stop of automatic scanning means “The station signal is
received in good condition.”

13

STR-DH550/DH750

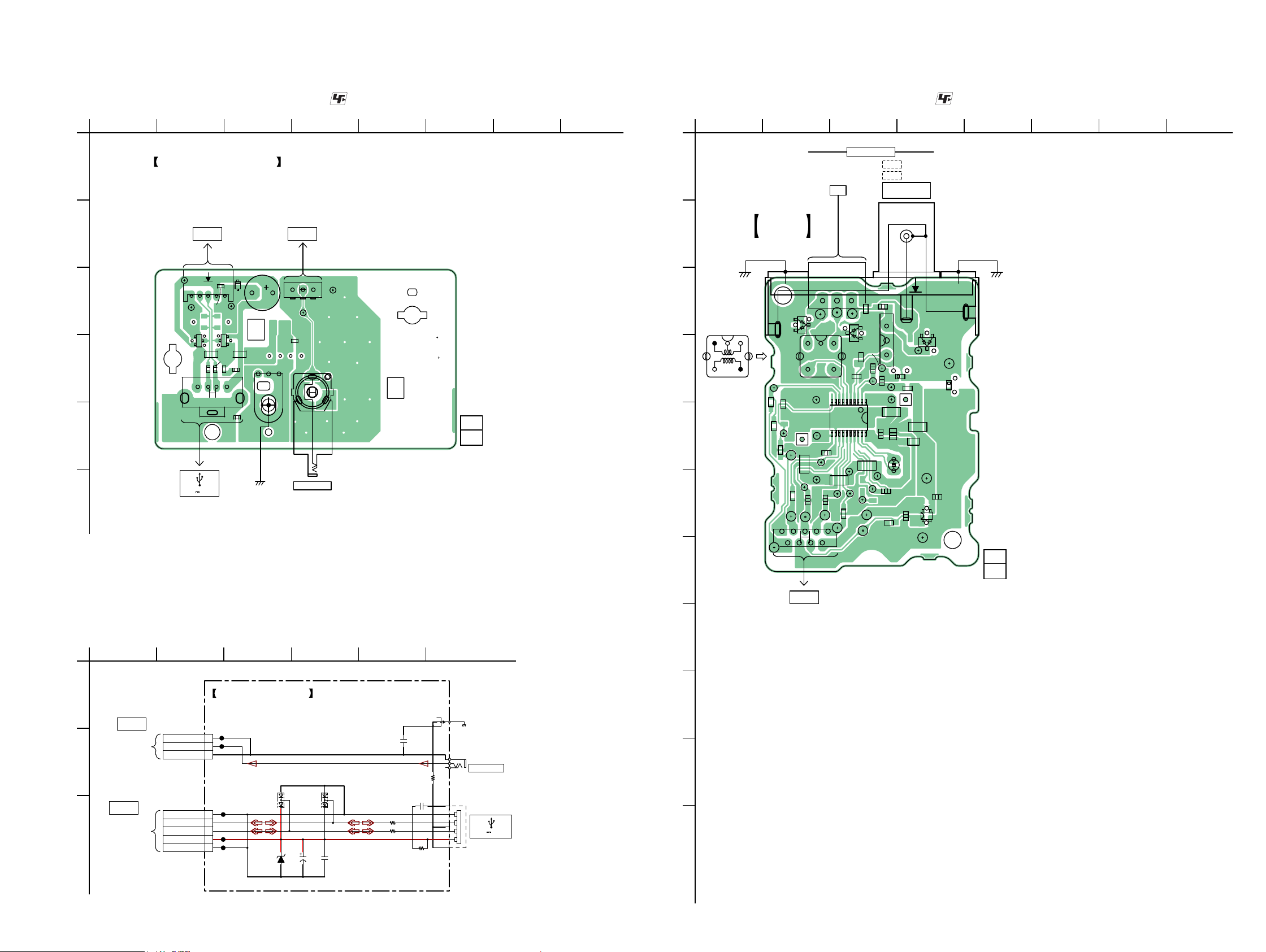

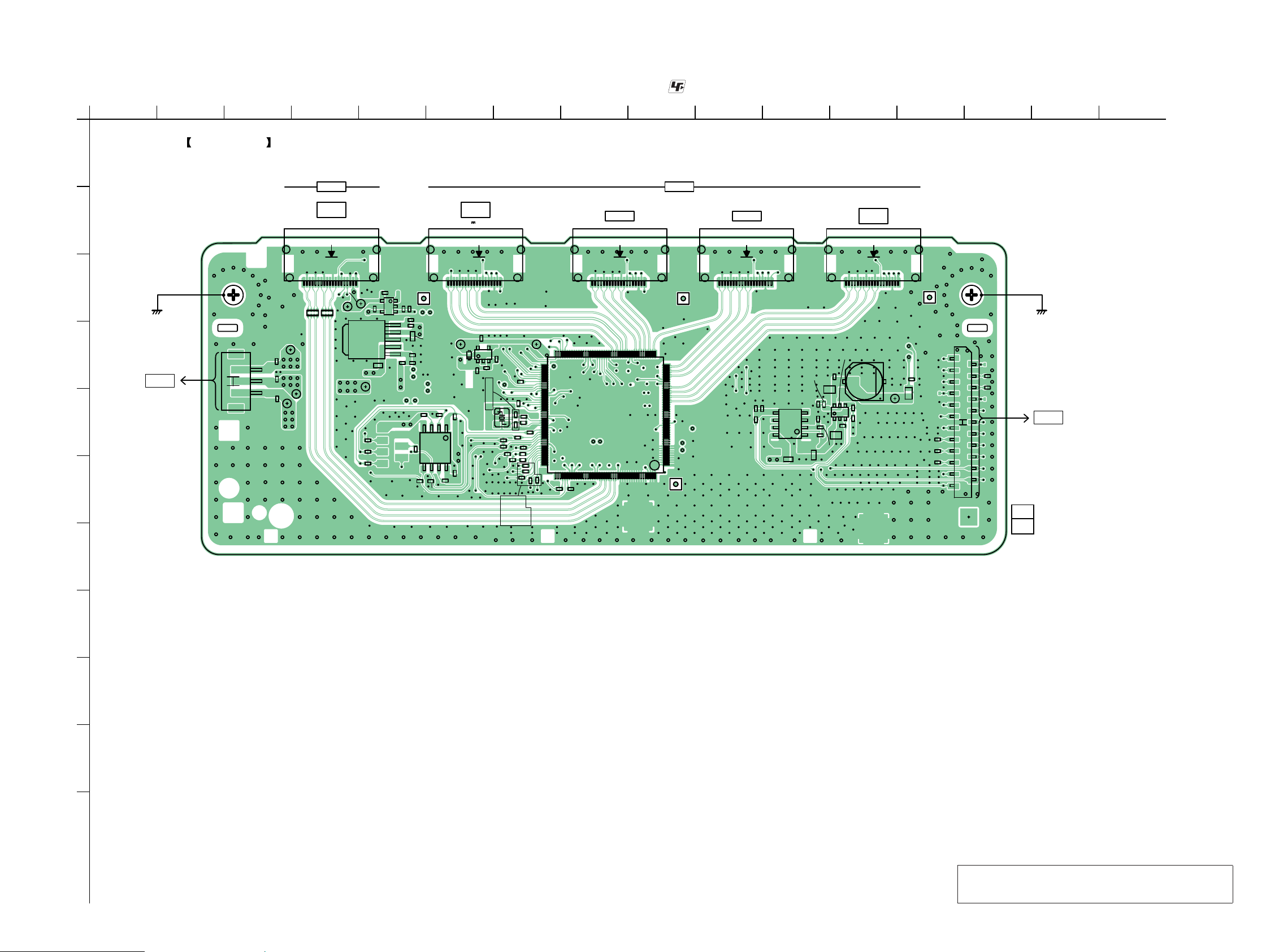

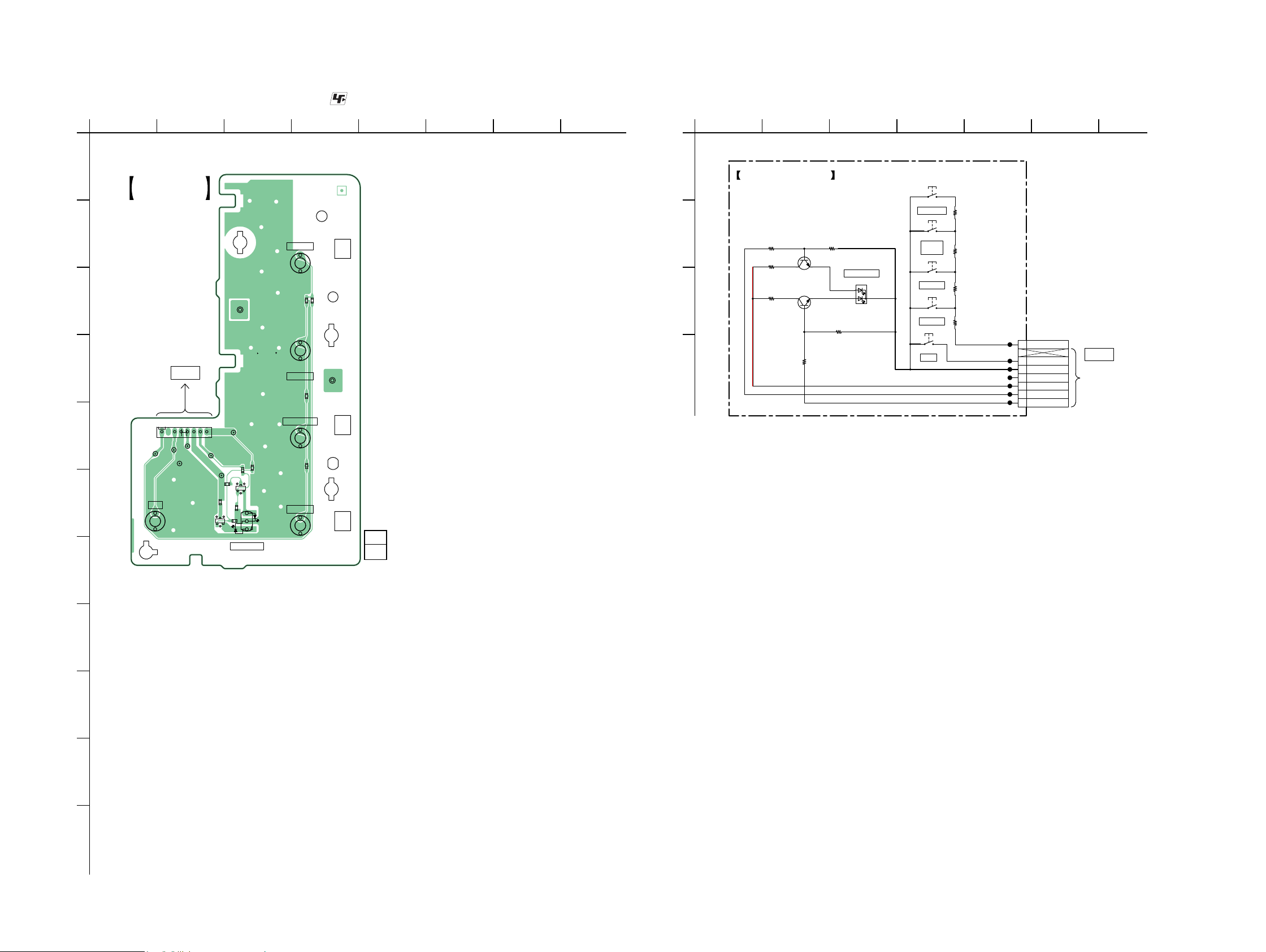

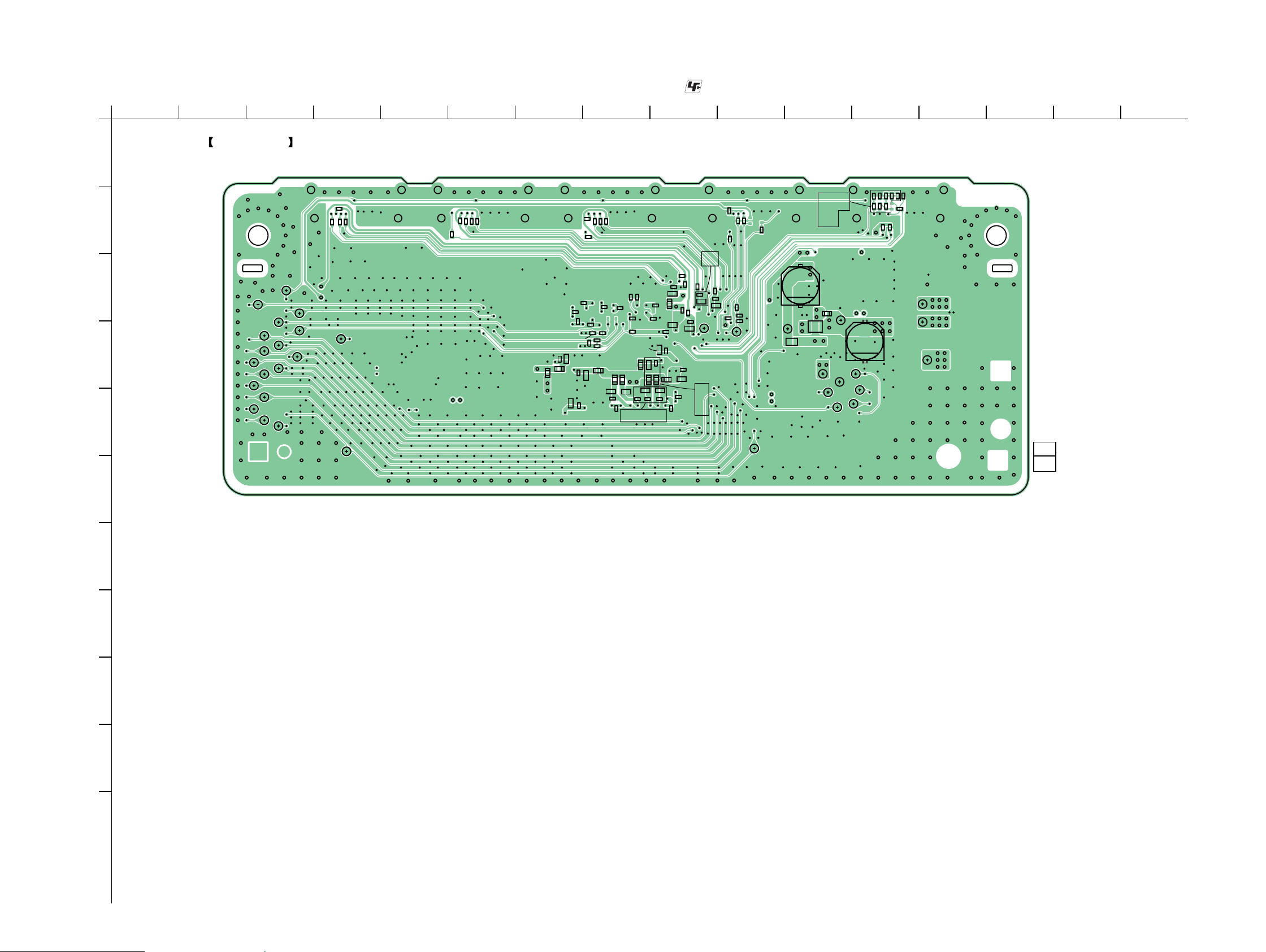

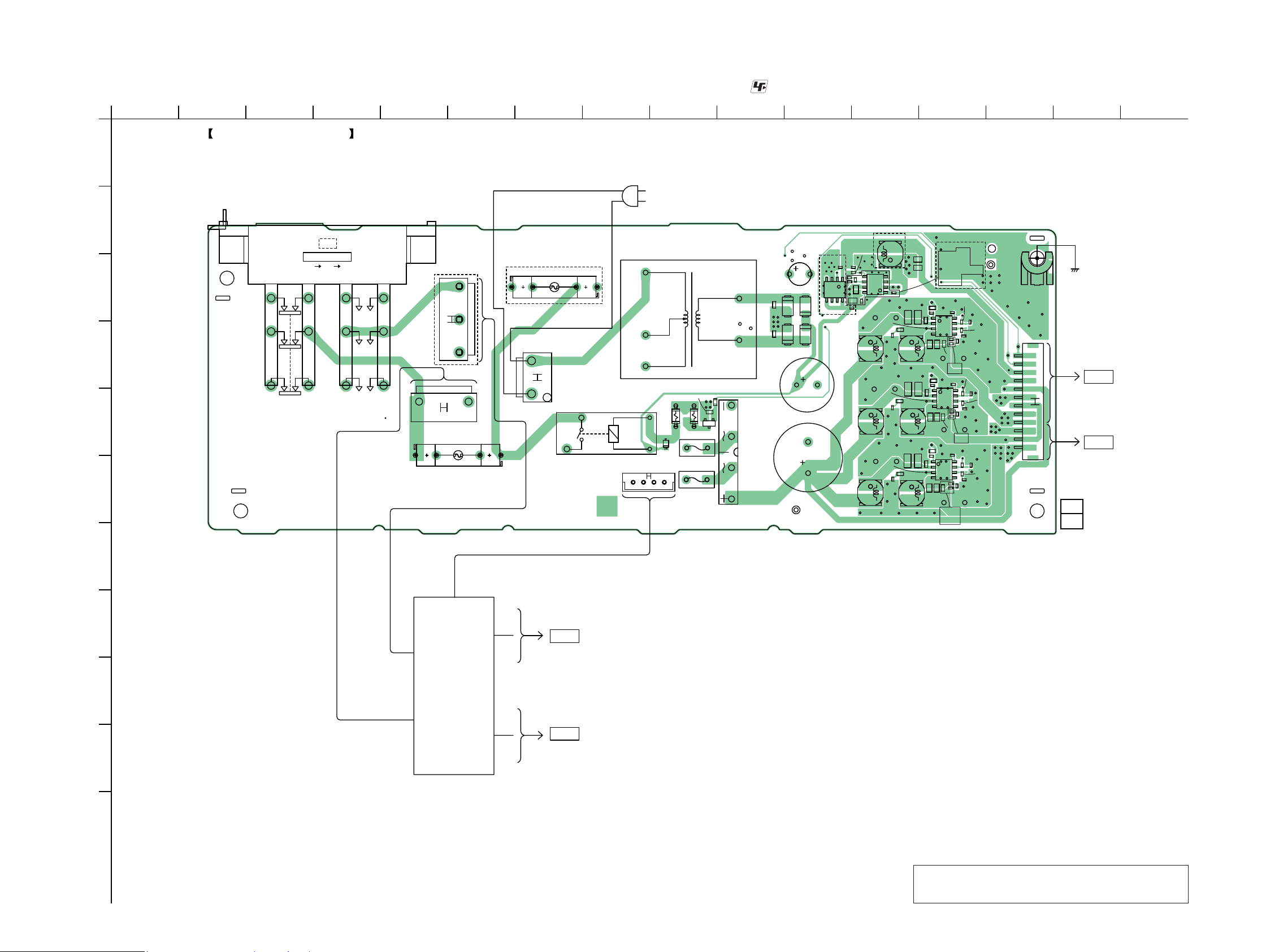

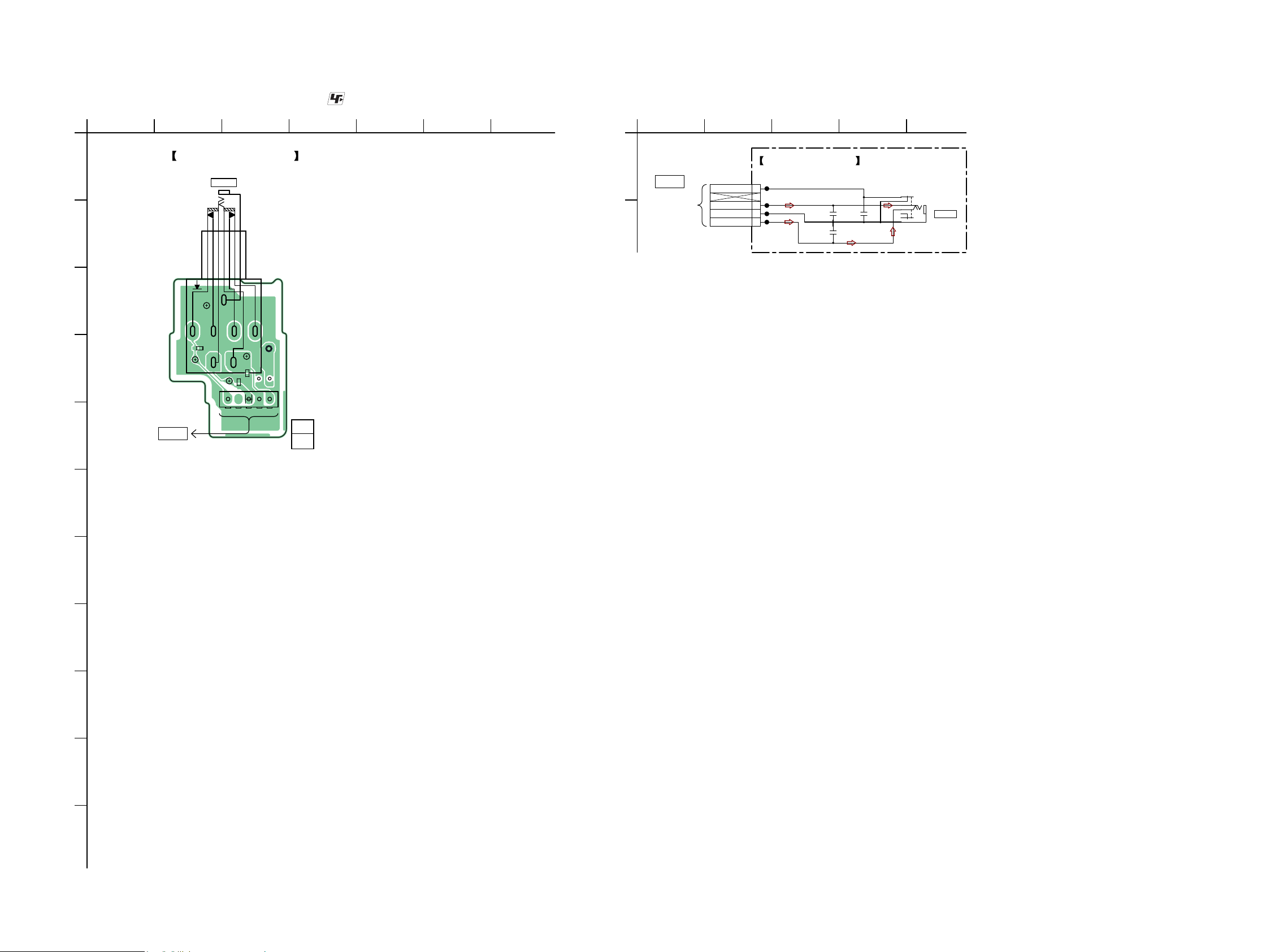

• Circuit Boards Location

SECTION 5

DIAGRAMS

STANDBY DCDC board

NFC ICON PC board (DH750)

RC-S801/A5 (WW)
(DH750)

POWER KEY board

HEADPHONE board

TUNER1 board

HDMI board

FRONT JACK board

MAIN board

BLUETOOTH MODULE
(DH750)

DISPLAY board

14

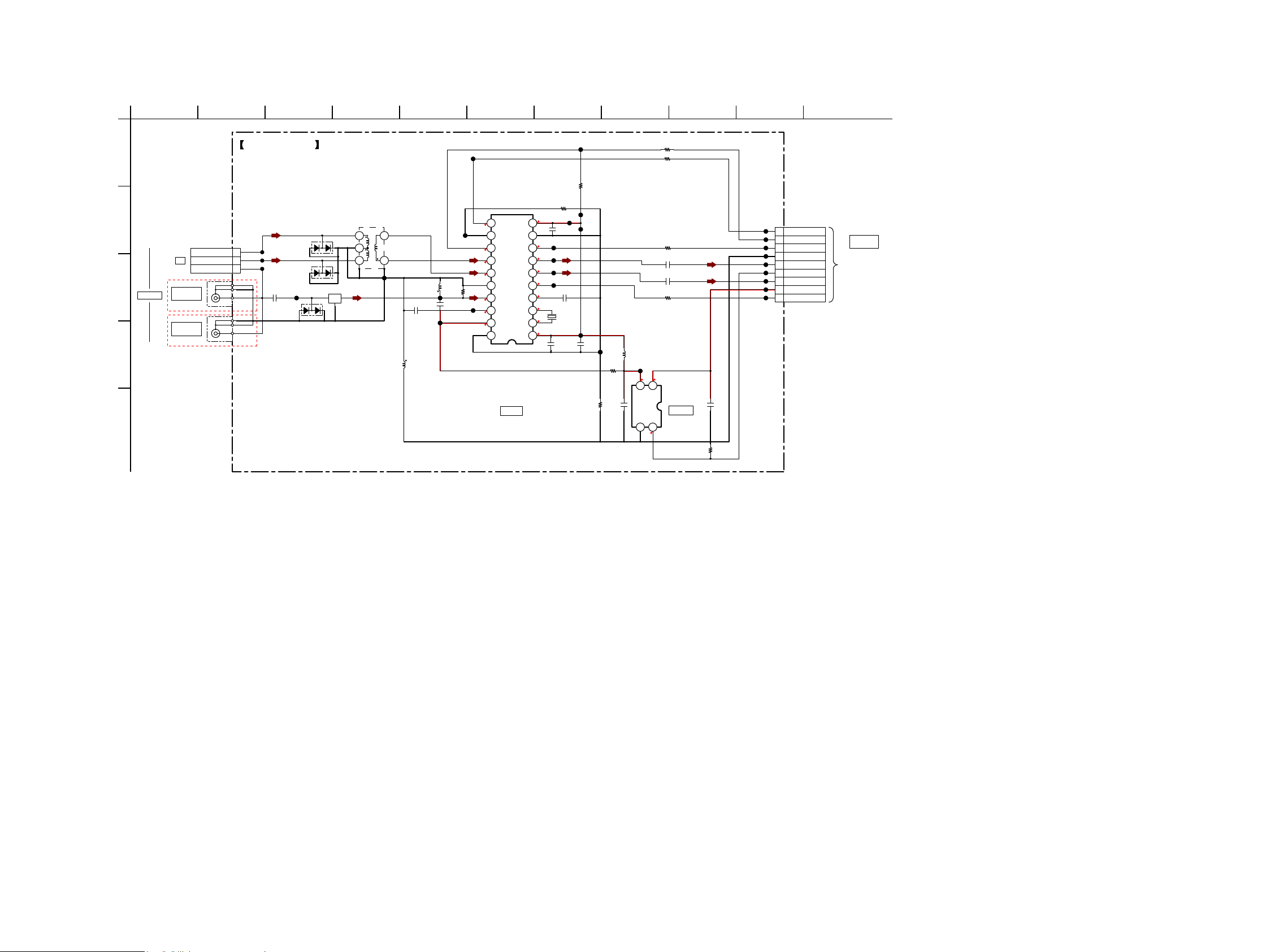

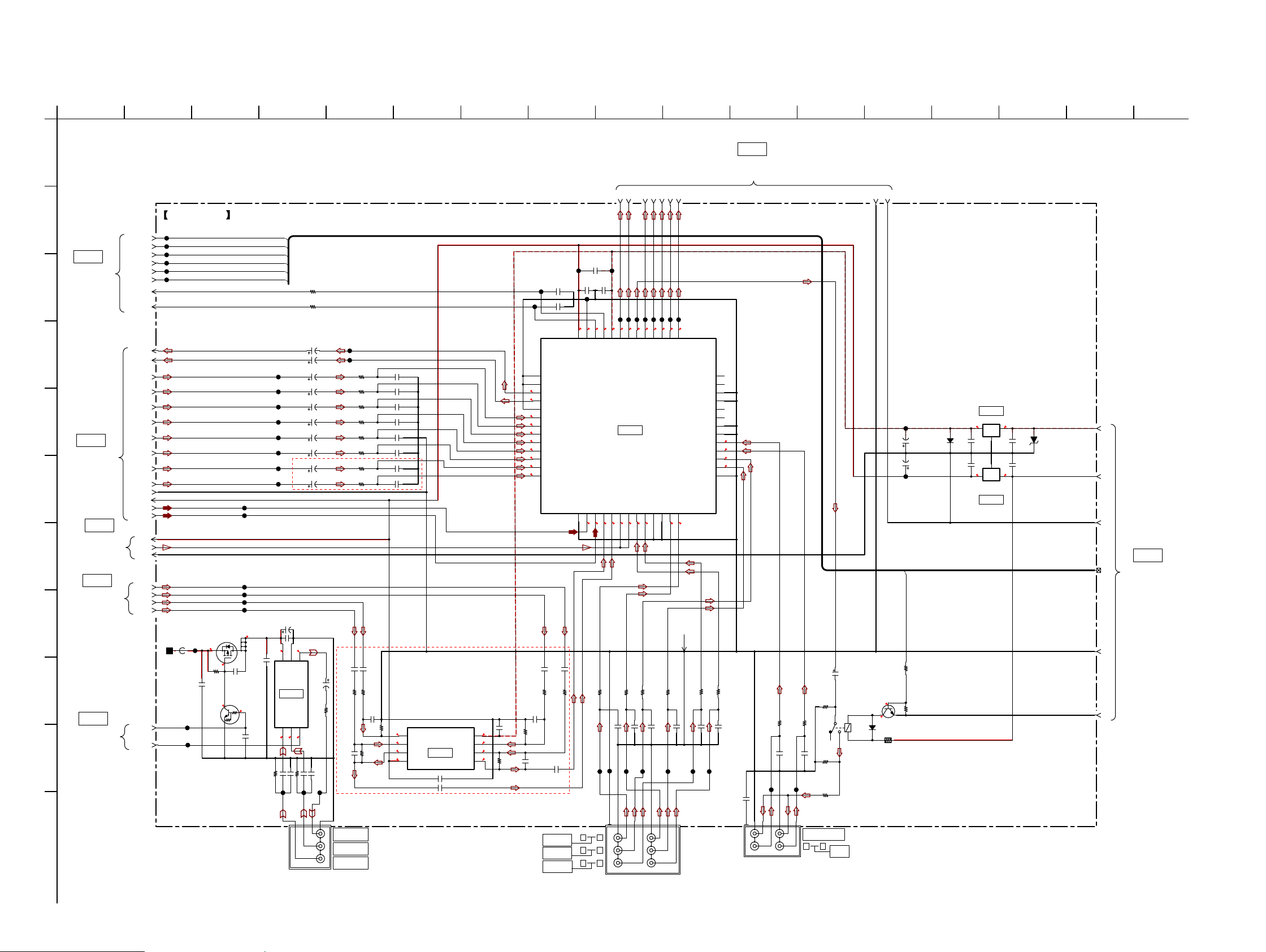

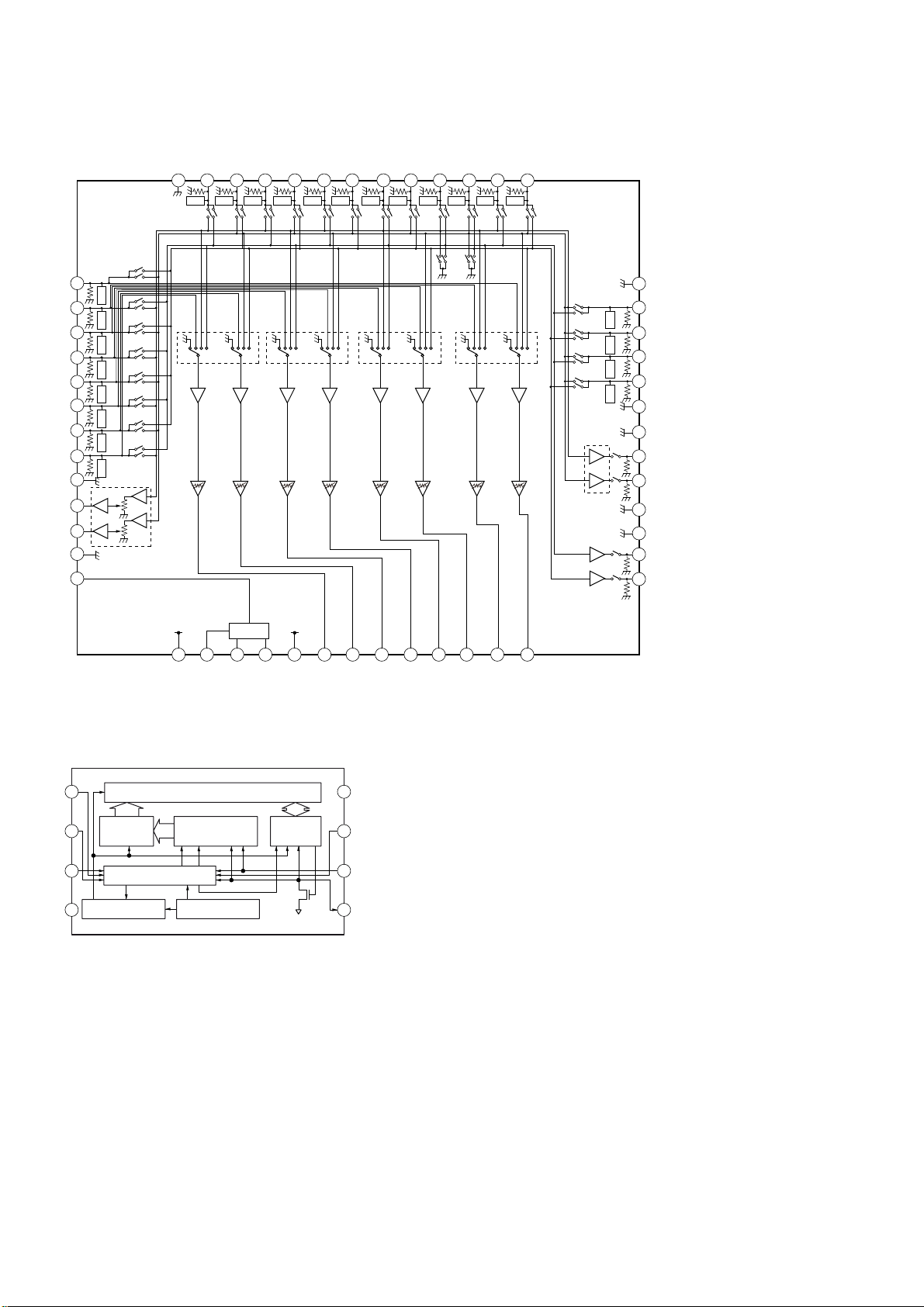

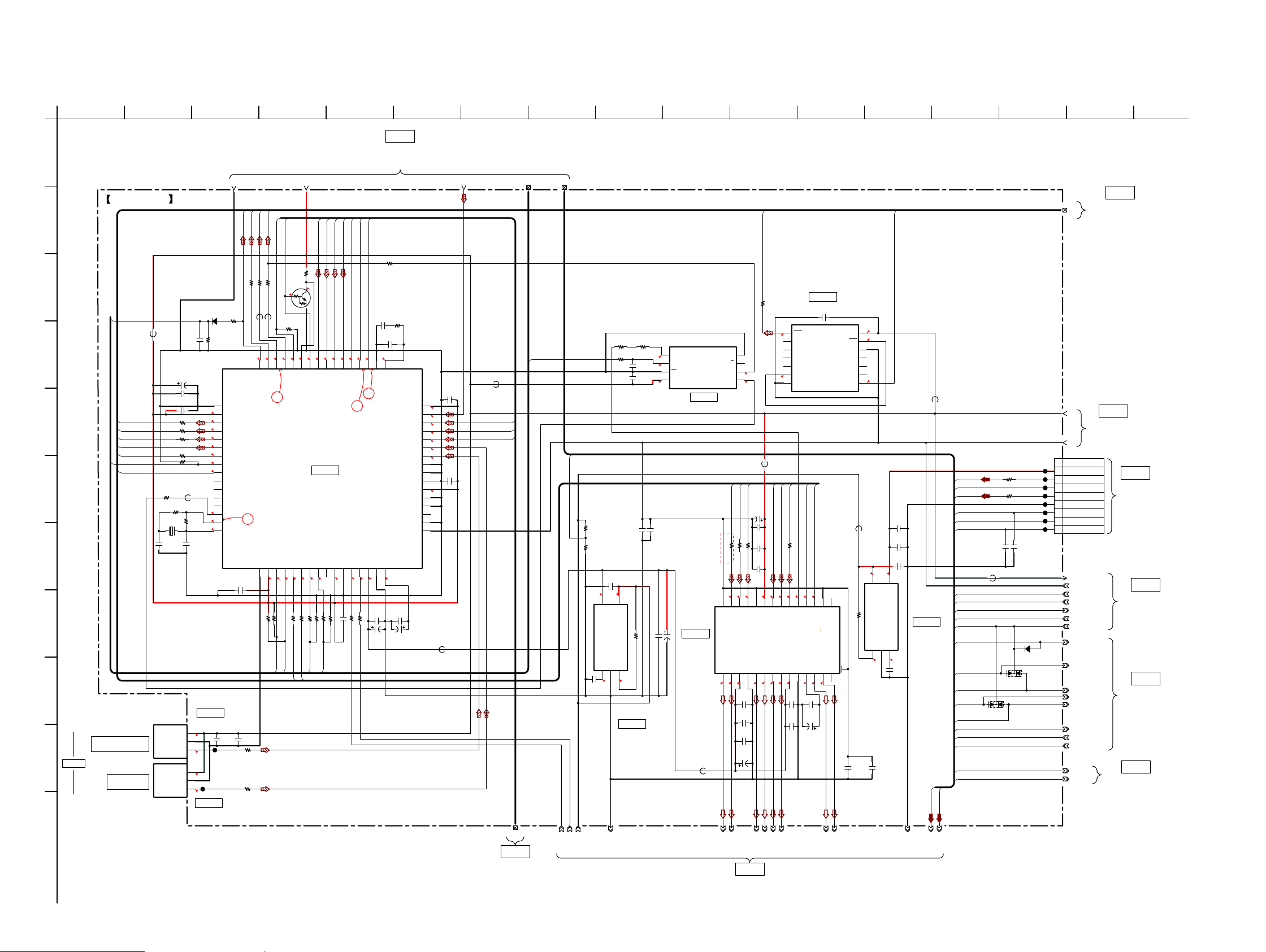

5-1. BLOCK DIAGRAM – ANALOG AUDIO Section –

J402 (1/2)

AUDIO

TV IN

AUDIO

SA-CD/CD IN

AUDIO

VIDEO IN

AUDIO

SAT/CATV IN

L

R

J401

L

R
L

R
L

R

R-ch

R-ch

R-ch

R-ch

>001B

ANALOG

VIDEO/USB

SECTION
(Page 18)

>002B

DIGITAL
SECTION
(Page 16)

SW OUT

RCH-N
RCH-P

LCH-P

LCH-N

FL OUT

SL OUT

C OUT

DH750

STR-DH550/DH750

Ver. 1.1

DIR FUNCTION SELECT

IC400

INL8

22

R-ch

R-ch

R-ch

R-ch

1-IN

2

1+IN

3

2-IN

5

INR8

6

LINE AMP

IC402

1OUT

2OUT

7

R-ch

1

R-ch

R-ch

R-ch

INR8

23

ADCL

50

ADCR

27

INL6

INR6

28

24

INL7
INR7

25

31

INL4
INR4

32

INL2

35

INR2

36

FLIN

46

FRIN

47

SLIN

42

SRIN

43

CIN

44

SWIN

45

FLOUT

FROUT

SBLOUT

SBROUT

SLOUT

SROUT

COUT

R-ch

49

7

R-ch

6

13

R-ch

12

11

R-ch

10

9

L-IN

FL

DH750

SBL

SL

C

>003B

DIGITAL
SECTION
(Page 16)

>004B

AMP
SECTION
(Page 17)

ANTENNA

J100

AUTO CAL

MIC

FM

75ȍCOAXIAL

AM

US, CND,

MX, BR
CN104

CN102

AEP, UK, AUS,

E12, TW

CN103

FRF1

4

ARF2

7

ARF1

6

FM RECEIVER

IC101

LOUT

ROUT

IIC/RDSI

X1

19

18

X101

32.768kHz

DA 13

CK

X2

15
14

10

8

AUDIO AMP

IC101

75

R-ch

SBL OUT

13

6

5

7

TUNER_SCL

TUNER_SDA

TUN_RDS_SIGNAL

SYSTEM

CONTROL

IC2001 (1/6)

R-ch

R-ch

SBLIN

40

SBRIN

41

J402 (2/2)

INL3

33

INR3

34

INL1

37

INR1

38

DA

CL

4

3

17

16

EVOL_CLK

EVOL_DATA

SWOUT

8

RY301

RELAY

DRIVER

Q301

13

SW_RY

L

R

AUDIO

SUBWOOFER OUT

6LJQDOSDWK

: AUDIO
: TUNER
: MIC

5FKLVRPLWWHGGXHWR
VDPHDV/FK

STR-DH550/DH750

1515

STR-DH550/DH750

5-2. BLOCK DIAGRAM – DIGITAL Section –

OPTICAL

ANALOG AUDIO SECTION

(Page 15)

ANALOG VIDEO/USB

COAXIAL

SA-CD/CD

(ASSIGNABLE) IN

DIGITAL OPTICAL

IN 2

(TV ASSIGNABLE)

DIGITAL OPTICAL

IN 1

(SAT/CATV

ASSIGNABLE)

>003B

>005B

SECTION
(Page 18)

J2200

RECEIVER

IC2201

OUT

RECEIVER

IC2200

OUT

DIGITAL AUDIO

INTERFACE RECEIVER

IC2203

63

L-IN

R-ch

USB

WAVE SHAPER

IC2202

6

1

1

5

23

ADINL

45

44

ADINR

62

RXIN2 USB SPDIF

63

RXIN1 COAXIAL

59 RXIN5 OPTICAL GAME

RXIN6 OPTICAL SAT/ CATV

58

DATAOUT

MPOUT4
MPOUT1
MPOUT2
MPOUT3

MCKOUT

LRCKOUT

BCKOUT

16
22
19
20
21

13
15
14

L/R_IN
DIR_IN

65

A/D_2CH

57

SL/SR_IN

40

C/SW_IN

58

SBL/SBR_IN

62

MCLK_IN

54

LRCLK_IN

59

BCLK_IN

42

DSP

IC2400

SBL/SBR_OUT

SL/SR_OUT

C/SW1_OUT

L/R_OUT

CLKIN

XTAL

BCLK_OUT

LRCLK_OUT

MOSI

SPICLK

MISO

DSP_CS

50

41
56

48

12

X2400

25MHz

13

60
61

SERIAL FLASH

IC2401

19
21
20
24

5

SI

6

SCK

2

SO

1

CE#

13

12
11

6

7
8

D/A CONVERTER

DATA4

DATA3
DATA2

DATA1

BCK
LRCK

SCK

IC2301

MC/SCL/DEMP

MD/SDA/MUTE

3

45

VOUT1
VOUT2

VOUT7
VOUT8

VOUT5

VOUT6

VOUT3

VOUT4

27
26

R-CH

16
15

R-CH

FL OUT

SBL OUT

>002B

20

19

R-CH

22

21

SL OUT

C OUT

SW OUT

ANALOG AUDIO

SECTION
(Page 15)

>006B

DIGITAL VIDEO

SECTION
(Page 19)

SP_SERIES

MUTE

CEC

XOUT

X2200

24.576MHz

9

MUTE

PROTECTION

Q2200

31

32

XIN

3 - 960, 61

10

MPIN4

XMCK 30

MUTEB

A1
BY

24

1

1CK2QD

BINARY

COUNTER

IC2204

8

68

DIR FSRATE

D2200

74

DIR-SIGNAL

25

SELECT

6

MUTING

IC2205

CEC DATA

SWITCH

Q2000 ~ Q2003

77

DIR-XSTATE

65 64

HDMI_CEC_IN

HDMI_CEC_OUT

SYSTEM

CONTROL

IC2001(2/6)

16 38

15

DAC_IIC_SDL

DAC_IIC_SCA

INITX

E2P_DATA

E2P_SCL

RESET IC

IC2009

4

VOUT

EEPROM

IC2008

19

20

SDA

5

SCL

6

6LJQDOSDWK

: AUDIO
: AUDIO (DIGITAL)

5FKLVRPLWWHGGXHWR
VDPHDV/FK

STR-DH550/DH750

1616

5-3. BLOCK DIAGRAM – AMP Section –

STR-DH550/DH750

>004B

ANALOG AUDIO

SECTION
(Page 15)

FL

FR

DH750

SBL

SBR

POWER AMP

Q620
Q622
Q624
Q625

Q670
Q672
Q674
Q675

POWER AMP

Q820
Q822
Q824
Q825

Q870
Q872
Q874
Q875

LIMITER

Q602, Q603

LIMITER

Q652, Q653

LIMITER

Q802, Q803

LIMITER

Q852, Q853

BOOSTER

Q600

BOOSTER

Q601

BOOSTER

Q650

BOOSTER

Q651

BOOSTER

Q800

BOOSTER

Q801

BOOSTER

Q850

BOOSTER

Q851

CURRENT

DETECT

Q604

CURRENT

DETECT

Q654

CURRENT

DETECT

Q804

CURRENT

DETECT

Q854

CURRENT

DETECT

Q605

CURRENT

DETECT

Q655

CURRENT

DETECT

Q805

CURRENT

DETECT

Q855

D650

D800

D850

D600

RELAY

DRIVER

Q929

RELAY

DRIVER

Q350

RELAY

DRIVER

Q360

RY380

RY350

RY360

TB501 (1/2)

TB503

+

L

­+

R

-

+

L

-

+

R

-

J101

PHONES

FRONT A

SURROUND BACK/

BI-AMP/ FRONT HIGH/

FRONT B

SPEAKERS IMPEDANCE USE 6-16

POWER AMP

SL

SR

C

Q720
Q722
Q724
Q725

Q770
Q772
Q774
Q775

POWER AMP

Q570
Q572
Q574
Q575

LIMITER

Q702, Q703

LIMITER

Q752, Q753

LIMITER

Q552, Q553

BOOSTER

Q700

BOOSTER

Q701

BOOSTER

Q750

BOOSTER

Q751

BOOSTER

Q550

BOOSTER

Q551

TH251

TH252

CURRENT

DETECT

Q704

CURRENT

DETECT

Q754

CURRENT

DETECT

Q554

CURRENT

DETECT

Q705

CURRENT

DETECT

Q755

CURRENT

DETECT

Q555

PROTECTOR
Q320 ~ Q321,
Q323 ~ Q325

D700

D750

D550

RELAY

DRIVER

Q355

RELAY

DRIVER

Q365

RY355

RY365

D2304

D2302

D2303

TB502

+

L

-

+

R

-

TB501 (2/2)

+

-

BRIDGEABLE RELAY

SURROUND

CENTER

>007B

DISPLAY/POWER

SECTION
(Page 20)

69 70 18 67 23 14 12 15

13 4

11

STR-DH550/DH750

TEMP_SENSOR_2

TEMP_SENSOR_1

SYSTEM CONTROL

IC2001 (3/6)

PROTECT

HP-RY

LIMITER

SW_RY

C/SL_SR_RY

SBL_SBR_RY

FRONT_SPK_RY

BRIDGEABLE_RY

HP_DET

6LJQDOSDWK

: AUDIO

5FKLVRPLWWHGGXHWR
VDPHDV/FK

1717

STR-DH550/DH750

5-4. BLOCK DIAGRAM – ANALOG VIDEO/USB Section –

VIDEO

VIDEO IN

VIDEO

SAT/CATV IN

DC5V 1A MAX

PROGRAMMING JIG

(HDMI KSV)

J200 (1/2)

CN106

CN2601

+D

5
4
3
1

-D

Prog_VURX
SCK
Prog_VUTX
MD0

POWER CONTROL

IC2901

EN

FAULTEN

OVER VOLTAGE CONTROL

IC2902

VIN1

4

5

VIN2

VIDEO DRIVER

IC200

DECODER

IC2900

USB_DP

22

USB_DM

21

KEY_ROW3/SDA

KEY_ROW2/SCL

USB_SCL

KEY_ROW1/BUSY

USB_BUSY

9 8 7 6 4 2

959894 90 96 93 91

USB_SDA

5

USB_PCONT

9943

USB_OVC

Prog_VURX

73

Prog_VU_SCK

71

Prog_VUTX

72
47 MD0

LED_PLAY/LRCK/SPDIF

KEY_COL3/MCHNG

KEY_COL1/IRPTO

USB_IRPTO

USB_MCHNG

HDMI CONTROLLER

IC2602 (1/2)

XOUT_PLL

XIN_PLL

RESETX

USB_RESET

OUT

VSW

1

SYSTEM CONTROL

IC2001 (4/6)

MUTE

PROTECTION

Q200 ~ Q201

6

25

15
14

X2900

16.9344MHz

BT_VURX
BT_VUTX

BT-PCONT

APPLE_SDA

APPLE_SCL

APPLE_RST

DH750

66
65

3.3V VOLTAGE

64

11

10

9

CONTROL

Q2604

VMUTE

99

VSEL-SW

98

RCH_N

RCH_P
LCH_P
LCH_N

BTRX
BTTX

3.3V

APPLE AUTHENTICATION

COPROCESSOR

IC2603

APPLE_SDA

2

APPLE_SCL

6

APPLE_RST

7

CN2600

2
3
4
5
9
8
12

29P-CONT

DH750

BT MODULE

VOLTAGE

CONTROL

Q2600

LCH-N
LCH-P

RCH-P
RCH-N

USB

J200 (2/2)

STBY3.3V

DIGITAL SECTION

(Page 16)

>001B

ANALOG AUDIO

SECTION
(Page 15)

6LJQDOSDWK

: AUDIO (DIGITAL)
: VIDEO
: USB

>005B

VIDEO

MONITOR OUT

STR-DH550/DH750

1818

5-5. BLOCK DIAGRAM – DIGITAL VIDEO Section –

HDMI RECEIVER

IC3514

STR-DH550/DH750

Ver. 1.1

HDMI IN

SAT/CATV

GAME

(for AUDIO)

BD/DVD

CN3504

1
3
4
6
7

9
10
12
15
16
19
13
18

CN3503

1

3

4

6

7

9
10
12
15
16
19
13
18

CN3502

1

3

4

6

7

9
10
12
15
16
19
13
18

DATA2+
DATA2–
DATA1+
DATA1–
DATA0+
DATA0–
CLOCK+
CLOCK–
SCL (5V)
SDA (5V)
HOT PLUG DET
CEC
+5V POWER

DATA2+
DATA2–
DATA1+
DATA1–
DATA0+
DATA0–
CLOCK+
CLOCK–
SCL (5V)
SDA (5V)
HOT PLUG DET
CEC
+5V POWER

DATA2+
DATA2–
DATA1+
DATA1–
DATA0+
DATA0–
CLOCK+
CLOCK–
SCL (5V)
SDA (5V)
HOT PLUG DET
CEC
+5V POWER

35

R2X2+

34

R2X2-

33

R2X1+

32

R2X1-

31

R2X0+

30

R2X0­R2XC+

29

R2XC-

28

DSCL2

85

DSDA2

84

CBUS_HPD2

86

R2PWR5V87

46

R3X2+

45

R3X2-

44

R3X1+

43

R3X1-

42

R3X0+

41

R3X0-

40

R3XC+

39

R3XC-

89

DSCL3

88

DSDA3

90

CBUS_HPD3

R3PWR5V91

54

R4X2+

53

R4X2-

52

R4X1+

51

R4X1-

50

R4X0+

49

R4X0-

48

R4XC+

47

R4XC-

93

DSCL4

92

DSDA4

94

CBUS_HPD4

R4PWR5V95

T0X2+

T0X2-

T0X1+

T0X1-

T0X0+

T0X0-

T0XC+

T0XC­TXDSCL0
TXDSDA0
TX_HPD0

MUTEOUT/GPIO9

RESET 69

159
158
157
156
155
154
153
152
107
106
105

121-122, 124-128, 130, 136

129

+5V

HOT PLUG DET

D2604

RESET
IC2601

RESET SW

Q2601

RESET SW

Q2602

DATA2+
DATA2–
DATA1+
DATA1–
DATA0+

DATA0–
CLOCK+
CLOCK–
SCL (5V)

SDA (5V)

CEC

+5V POWER

38

4

CN3200

1
3
4
6
7
9
10
12
15
16
19
13
18

9

SYSTEM CONTROL

IC2001 (5/6)

INITX

D2601

TV OUT

ARC

VU_RST

93

D2602

HDMI OUT

D2603

HDMI CONTROLLER

IC2602 (2/2)

HDMI_MUTE

37

INITX

38

MU_RST

43

SPARTA_RST

36

PE2/X0

PE3/X1

CEC

SP_SERIES

MUTE

48

49

DIGITAL
SECTION
(Page 16)

X2600

4MHz

>006B

DC5V 1A MAX

STR-DH550/DH750

VIDEO

(MHL)

CN3501

1
3
4
6
7

9
10
12
15
16
19
13
18

DATA2+
DATA2–
DATA1+
DATA1–
DATA0+
DATA0–
CLOCK+
CLOCK–
SCL (5V)
SDA (5V)
HOT PLUG DET
CEC
+5V POWER

64

RX52+

63

RX52-

62

RX51+

61

RX51-

60

RX50+

59

RX50-

58

RX5C+

57

RX5C-

98

DSCL5

97

DSDA5

99

CBUS_HPD5

R5PWR5V

100

SS/GPIO2

SCLK/GPIO3

SD0/GPIO4
SD1/GPIO5

XTALIN

XTALOUT

117
118
119
120

113

114

X3001

27MHz

EEPROM

IC3512

/CS

1

SCK

6

DO

2

DI

5

6LJQDOSDWK

: AUDIO (DIGITAL)
: VIDEO

1919

STR-DH550/DH750

5-6. BLOCK DIAGRAM – DISPLAY/POWER Section –

VACUUM FLOURESCENT

DISPLAY

ND101

312927

REMOTE CONTROL

SIGNAL RECEVER

IC100

MASTER
VOLUME

INPUT

SELECTOR

ROTARY

ENCODER

EN101

ROTARY

ENCODER

EN100

F1
F2

45 FL_LAT
43 FL_CLK
44 FL_DATA

53 SIRC-IN

54 VOLUME_JOG

52 INPUT_JOG

SYSTEM CONTROL

IC2001 (6/6)

F1
F2

+5V

+5V

+5V

+6V (DCDC)

DC CONVERTER

TRANSFORMER

>007B

AMP SECTION

(Page 17)

+5V REG.

IC3518

T100

BRIDGEABLE RELAY

+5V REG.

+5V REG.

+5V REG.

SWITCHING

TRANSISTOR

Q101

+3.3V

IC3519

IC3513

IC3511

TO

AUDIO AMP

SECTION

+3.3V REG.

SWITCHING

TRANSISTOR

CONTROL

Q103 ~ Q104

IC102

+5V

+HV

(VCC)

-HV

(VCC)

+5V

+7V

-7V

+6V REG.

IC1905

+5V REG.

IC2300

+5V REG.

IC2000

RELAY DRIVER

Q920

RECT

D921

+7V REG.

-7V REG.

IC350

IC352

RY920

RECT

D910-913

F912

F913

F910

F911

POWER

TRANSFORMER

(MAIN)

T901

S115

S108 ~ S110,
S111 ~ S114

S101 ~ S105

X2001
4MHz

56 POWER DET

55 AD_KEY1

57 AD_KEY2

48 X0

49 X1

FL-EN

PUREDIRECT

LED-ON

LED-STBY

PWR-RLY

STOP

42

58

36

37

+2V (DCDC)

+1.2V

+1.2V

4

66

+1.2V REG.

IC3517

+1.2V REG.

IC2402

+3.3V (DCDC)

LED DRIVER

Q102

LED DRIVER

Q110

LED DRIVER

Q111

+2V REG.

IC1907

+3.3V REG.

IC1906

LED

(PURE DIRECT)

D108

LED

(ON/STBY)

D110

STBY +3.3V

STBY +3.3V

DH750

+3.3V REG. (STBY)

IC902

+3.3V REG. (STBY)

IC901

DH550

AC OFF DETECT

Q952

RELAY DRIVER

Q951

RECT
D923

+12V

RECT

D901 ~ D904

D905

F940

F941

POWER

TRANSFORMER

(SUB)

T902

BR

VOLTAGE

SELECTOR

F902

S901

F901

RY951

AC IN

STR-DH550/DH750

2020

STR-DH550/DH750

Ver. 1.1

THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)

For Printed Wiring Boards.

Note:

• X : Parts extracted from the component side.

• f : internal component.

• : Pattern from the side which enables seeing.

Caution:

Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)

• Abbreviation
AUS : Australian model
BR : Brazillian model
CND : Canadian model
E12 : 220 – 240V AC area in E model
MX : Mexican model
TW : Taiwan model

Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.

For Schematic Diagrams.

Note:

• All capacitors are in μF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics

and tantalums.

• All resistors are in  and 1/4 W or less unless otherwise
specifi ed.

• f : internal component.

•

•

• C : panel designation.

• A : B+ Line.

• B : B– Line.

• Voltages and waveforms are dc with respect to ground

• Voltages are taken with VOM (Input impedance 10 M).

Voltage variations may be noted due to normal production

• Waveforms are taken with a oscilloscope.

Voltage variations may be noted due to normal production

• Circled numbers refer to waveforms.

• Signal path.

F : AUDIO
f : TUNER
L : USB
E : VIDEO
J : AUDIO (DIGITAL)
N : MIC

• Abbreviation

AUS : Australian model
BR : Brazillian model
CND : Canadian model
E12 : 220 – 240V AC area in E model
MX : Mexican model
TW : Taiwan model

: nonfl ammable resistor.

2

: fusible resistor.

5

Note:

The components identi­fi ed by mark 0 or dotted
line with mark 0 are criti­cal for safety.
Replace only with part
number specifi ed.

under no-signal (detuned) conditions.
no mark

: FM

tolerances.

tolerances.

Note:

Les composants identifi és
par une marque 0 sont
critiques pour la sécurité.
Ne les remplacer que par
une piéce portant le nu­méro spécifi é.

• Waveforms
– HDMI Board –

1 IC3514 <zzv (XTALIN)

27.0 MHz

50 mV/DIV, 10 ns/DIV

– MAIN Board –

2 IC2001 rl (X1)

4.0 MHz

500 mV/DIV, 100 ns/DIV

3 IC2203 3 (MCKIN)

60 ns

100 mV/DIV, 25 ns/DIV

104 mVp-p

3.0 Vp-p

544 mVp-p

5 IC2203 qf (BCKOUT)

3.84 Vp-p

3.06 MHz

1 V/DIV, 100 ns/DIV

6 IC2203 ea (XOUT)

24.5 MHz

500 mV/DIV, 10 ns/DIV

7 IC2400 rs (BCLK_IN)

320 ns

500 mV/DIV, 100 ns/DIV

8 IC2602 rk (PE2/X0)

4.0 MHz

500 mV/DIV, 100 ns/DIV

1.5 Vp-p

2.2 Vp-p

2.8 Vp-p

STR-DH550/DH750

4 IC2203 4 (BCKIN)

60 ns

10 mV/DIV, 50 ns/DIV

2121

13.2 mVp-p

9 IC2900 qg (XOUT_PLL)

16.9 MHz

200 mV/DIV, 25 ns/DIV

1.0 Vp-p

STR-DH550/DH750

Ver. 1.2

5-7. PRINTED WIRING BOARD – MAIN Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

A

B

C

D

TRANSFORMER

(Page 34)

E

F

TRANSFORMER

G

(Page 34)

HEADPHONE

H

(Page 42)

I

J

1

X2001, X2600

>001P

POWER

(MAIN)

T901

>002P

POWER

(MAIN)

T901

>003P

BOARD

CN107

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN BOARD
(COMPONENT SIDE)

ÚDH550
¾DH750

(CHASSIS)

LP401

CN951

CN950

(CHASSIS)

F912

F913

15

A921

F911

15

F910

RY380

CN391

14

ET301

SPEAKERS

C912

C913

R708

Q701

R014

C931

63($.(56,03('$1&(86(

+

–

C014

RY365

D365

W003

W001

R701

R700

R717

Q702

R387

E

E

Q703

R L

SURROUND

+

–

C015

R015

KA

R716

R705

C018

RY355

R365

KA

D355

D356 KA

R542

C570
R577

D571

L700

C708

R706

R704

Q700

¾

R018

R356

C563

C582

R562

E

C987

Q574

C586

R578

Q570

C585

R576

R543

R575

C988

R570

R601

R603

R608

Q601

L

+

–

RY920

D921

C930

R553

R558

BCEBCEBCEBCEBCEBCEBCEBCEBCEBCEBCEBCEBCEBCE

TB501 TB502

R L

FRONT A CENTER

+

–

C012

C013

R012

R567

Q553

R013

K

D920

R926

KA

E

D937

R927

R928

Q929

R551

R550

R566

R555

R556

R381

Q552

E

Q550Q551

E

+

(CHASSIS) (CHASSIS) (CHASSIS)

–

RY350

R920

KA

D350

R351

A

D911AK

D910
AK

D913

AK

AK

D912

L550

R703

C558

R554

Q575

D572

+

–

C017

R563

C581

E

AK

R572

R617

SURROUND BACK/ BI-AMP/

FRONT HIGH/ FRONT B

R017

RY360

C353

R560

C564
R561

R579

AK

R571

R600

R386

E

Q603

¾

TB503

C351

D352AK

C560

R574

E

Q572

KA

R573

D570

R616

R606

Q602

E

R

J402

L R

AUDIO

+

–

TV IN

AUDIO

SUBWOOFER

OUT

AUDIO
TV IN

AUDIO

SUBWOOFER

OUT

J401

L R

AUDIO

SAT/

CATV IN

AUDIO

VIDEO IN

AUDIO
SA-CD/

CD IN

AUDIO

CATV IN

AUDIO

VIDEO IN

AUDIO
SA-CD/

SAT/

CD IN

IC200

R679

R671

R676
R675

1528

29

FB2301

C2914

C660

C681

R670

R651

R667

R2304

¾

R2303

IC2301

114

C2308

C2303

C2916

R674

E

Q672

KA

R673

D670

Q653

C211

C201

Q200

Q201

R201

C200

C203

FB200

R2305

C2315

C2316

C2314

C2317

R2306

C2306

R2302
R471

C2915

R2919

IC2901

R2918

C813

R813

C832

R812

E

Q824

C836

R828

C820
R827

R650

R666

R384

E

E

E

C202

C210

10 13

IC2300

R472

R470

Q825

D822

C835

D821

R655

R656

Q652

(CHASSIS)

C016

R016

AK

D2304

AA
K

D2302

AA

K

D2303

C713

R710

R713

R711

C732

C712

R712

E

E

Q724

Q725

D722

C736

KA

R728

R722

C731
Q720

C735

R726

C720
R727

R725
R720

D721

L600

C618

R252

R605

R604

TH252

Q600

R304

R302

R301

Q301

E

R361

RY301

AK

D360

C301

C487

C710

R729

R724

E

Q722

R613

C613

C632

R721

R612

R723

D720

E

Q624

Q625

D622

C636

R628

R753

C250

R758

R251

TH251

Q751

AK

C546

C547

FB2004

R2025

R610

C610

R611

R629

R624

C612

C631

E

E

Q622

KA

AAKKAK

R621

R622

R623

D620

Q620

C635

C620

R626

R627

R625

D621

R620

R751

R750

R767

R385

E

Q753

D301

IC2000

C2027

C2024

Q752

E

C763

C782

E

Q774

C786

R778

R766

R755

¾

R831
R881
R731
R781
R581
R531
R631
R681

C2026

CN2003

CN2003

19

19

R763

R762

Q775

D772

R756

Q750

CN2003

19

(CHASSIS)

W002

C703

R2915

C2918

C553

R2920

C2917

R2921

IC2902

R2924

R2923

R2925

C2919

CN2900

CN2900

C2033

15

15

C663

R663

C682

R662

Q772

E

Q674

C686

R773

R678

R653

R658

CN2900
15

C2312

C2311

C2310

C2313

C2320

C2318

C2319

R2916

C2321

R2922

R2914

D2902

R660

R661

C662

E

Q675

AK

D672

AK

R672

Q670

C685
C670
R677

D671

Q651

C803

C853

C753

C503

C603

C653

R2926

C2025

2

8

2

8

R2041

C2029

R2043

R760

C760

R761

R779

R774

C762

C781

E

E

KA

AK

R771

R772

D770

Q770

C785

C770

R776
R775

R777

D771

R770

L750

C758

R754

2

8

C481

Q820

R473

E

AK

R826
R825

C204

C2302

R2301

C483

R810

C812

R822

R820

C658

¾

CN2005

C2453

IC2402

R2300

C491

C482

C484

C480

1213

CN2600

R811

AK

L650

R654

Q650

1213

CN2600

J200

VIDEO

SAT/

CATV IN

VIDEO

VIDEO IN

MONITOR

VIDEO

OUT

J2200

COAXIAL

SA-CD/CD

(ASSIGNABLE) IN

IN 2

(TV ASSIGNABLE)

OPTICAL

IC2201

R2213

IC2202

R2217

C2203

C2214

R2214

(CHASSIS)

R2439

R2438

R2458

C2454

C2451

C2452

R2457

R2456

C2450

R2455

C2429

C2425
R2447

R2434

JL2405

¾

C441

C433

IC402

C432

R421

R422

R423

R420

C430

C434

R2603

C2604

C2605

14

FB2600

C863

C810

C882

R829

R824

R862

C831

E

Q822

Q874

C886

KA

R821

R878

R823

D820

14

R2216

C2206

C2215

K

A

D2201

FB2204

R2445

C2434
C2433
R2440

R2444

R2443
R2437

C2417

C431

R863

E

Q875

D872

JL2404

R2420

R2431

FB2402

C2445

C2444

C2426

C2427

C2424

R2421

C2428

C2430

C2441

75

76

IC2400

C2432

101

101

C2440

C2438

C2439

100

C2437

1

C2435

R2425

R2408
R2409

C885

R2432

JL2412

IC2008

R860
R879

AK

Q870

R876
R875

R870

R808

Q801

R2423

X2400

C2415

C2419

R2430

JL2406

IC2401

R2015

C2041

R2061

R2058
R2064

R2068

R2066

R874

C881

E

Q872

KA

R871

D870

R873

R801

R817

Q803

C2431

C2411

R2412

R2416

R2414

R2441R2442

C860

C862

R861

E

AK

R872

C870
R877

D871

R803

W2200

R2212

C2228

FB2206

R2238

R2236

R2200

JL2407

R2422

R2429

R2424

R2426

FB2400

51

JL2403

R2016

R2014

R2012

RB2005

R2063

R2309

R383

E

C2227

R2228

R2237

R2229

C2405

R2232

C2403

R2231

R2402

R2418

R2419

C2408
C2407

R2417

C2406

R2415

R2410

R2404

R2405

50

JL2402

R2403

R2401

FB2403FB2401

C2402

26

R2406

C2401

25

JL2401

R2449
R2448
R2452

R2435

R2436

R2450

R2451

R2454

RB2003

R2013

C2016

C2069

29

R800

RB2001

R2017

R2018

R2010

100
1

RB2007

RB2009

RB2011

25

C2323

¾

28

R816

E

76

IC2001

51

26

50

C2068

RB2014

R2081

RB2015

R2003

R2083

R2086

D2011

D2012

CN2004

FB2011

L800

C808

R806

R805

R804

Q802

Q800

C2220

R2227

JL2409
JL2408

RB2002

75

R2080

X2001

C2078

R2100

IC2009

213

R2202

X2200

R2221

IC2205

R2224

R2233

C2222

JL2411
JL2410
R2407

R2400

RB2006

RB2010

C2043

RB2013

R2090

C2088

R853

R2211

C2200

C2205

R2209

C2213

R2201

R2220

R2226

33

IC2203

R2234

48

C2219

49

C2224

C2225

FB2303

C2229

C2442

C2008

R2619
R2621

R2623

C2034

C2039

R2040

C2040

Q2000

Q2003

RB2008

E

E

C2042

E

R2019

RB2012

Q2001

C2012

C2044

C2038

R2037

R2021
R2022

1

2

Q321

Q324

E

E

R851

R858

(SAT/CATV

ASSIGNABLE)

IC2200

C2612
C2611
R2929
R2620
R2622

R2612
R2609

JL2601

D2003

E

Q2002

R2026

¾

R2927

IN 1

213

FB2201

R2206

R2205

R2203

C2207
17132

16

64

C2226

C2221

¾

JL2605

JL2602

JL2604

JL2603

C2920

C2922

D327

K

AA

R850

R867

R2204
R2218

FB2202

C2204

FB2203

C2223

R2235

R2239

IC2204

D2602

R2614

R2615
R2630
R2616

R2610

JL2600

R2901

X2900

R2900

C2921

Q2604

R323

C2210

FB2200

C2202

R2624

R2671

R2672

FB2900

IC2900

C2900

C2901

E

R382

E

Q853

D2200

R2219

R2222

R2223

R2004

R2007

C2609

C2610

C2904

FB2300

R866

PROGRAMMING JIG

(HDMI KSV)

CN2601

17

C2208
R2215

R2230

KA

R2225

RB2000

R2006

R2002

FB2000

IC2601

C2618

D2601

R2653

E

C2623
D2604
D2603

R2639

X2600

R2632

R2633

R2640

50

51

IC2602

75

76
C2614

¾

C2613

R2613

RB2800

R2605

R2904

R2931R2604

C2908

C2903

RB2803
10

C2902

11

20

C2905

21

D2900

D2901

C320

E

AA

K

Q320

Q323

L850

C858

R855

R856

E

Q852

R2611

E

22

2

Q2601

D2600

R2646

C2620

RB2802

R2906

41

FB2901

R327

D326

R325

R854

Q850Q851

1-889-543-

Q2200

R2008
R2005
R2000

R2001

CN2000

123

C2322

Q2602

R2642

R2654

R2651

R2652

E

R2655

R2666

R2645

R2644

R2934

JL2635

JL2628

C2624

C2625

JL2629

26

JL2630

25

JL2631

R2657

JL2634

R2659

R2660

JL2632

R2661

JL2633

R2658

JL2607

JL2606

C2627

1

R2665

R2664

100

R2669

C2628

R2667

R2617

R2656

C2631

R2668

C2634

IC2603

FB2601

R2607

R2932

C2635

R2606

FB2602

¾

Q2600

Ú

R2601

C2602

JC2670

C2606

C2607

R2634

R2910

C2911

R2911

R2908

R2912

1

40

JL2905
R2913

31

JL2906

C2913

30

JL2907

C2910

JL2904

JL2903

C2909

C2912

JL2900

R2902

JL2902

JL2901

R548
R544

C323

KA

D536

C548

R549

R547

C545

C325

E

Q325

R328

>008P

HDMI BOARD

CN3514

(Page 22)

STANDBY DCDC

10 13

CN2005

>006P

DISPLAY

BOARD

CN102

(Page 37)

21

(21)

>007P

BOARD
CN1901

(Page 34)

K

STR-DH550/DH750

BT

>004P

TUNER1

BOARD

CN101

(Page 39)

>005P

FRONT JACK

BOARD

CN104

(Page 39)

MODULE

Note: IC2402 and IC2900 on the MAIN board cannot exchange

with single. When these parts on the MAIN board are
damaged, exchange the entire mounted board.

2222

5-8. PRINTED WIRING BOARD – MAIN Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH550/DH750

Ver. 1.2

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN BOARD

A

B

C

D

E

F

G

H

(CONDUCTOR SIDE)

¾DH750

CL2625

CL2623

CL2620

CL2018

CL2017

CL2015

CL2014

CL2011

CL2009

CL2005

CL2002

CL2001

CL2003

CL2627

C2622

R2933

R2673

CL381

R326

¾

C892

CL2621

CL2626

CL2622

CL2624

CL2019

CL2016

CL2013

CL2012

CL2010
CL2008

CL2007

CL2006

CL2004

CL2073

C2617

R2647

C2619

C2615

C2621

R2638

R2631

R2629

R2636

R2670

C2907

C2906

R2907

R320

CL2021

R2637

C2616

CL2020

¾

CL2024

R2625

R2626

CL2601
CL2022

CL2904

C878

Q855

E

C851

R852

C891

CL850

CL852

CL851

CL2202

C2209

CL2201

R2210

C2218

JL2027

CL2076

CL2077

CL2074

FB2003

CL2023

CL379

C2047

CL2628

CL2055

CL2051

CL2050

CL2025

R857

R868

R865

CL2075

R2009

C2009

R2042
R2011

R2094

R2084

R2085

C2045

C2046

C2065

R2075

R2077

CL2072

R2076

R2079

R2310

CL2026

CL2054

CL2058

CL2066

CL2056

CL2067

CL2068

CL2065

CL2060

CL2052

CL2053

CL2057

CL2059

CL2064

CL2061

CL2062

CL933

CL2063

KA

D850

C854

R869

R859
D851

Q854

E

KA

R864

CL2408

CL2200

FB2205

C2412

C2418

C2410

C2409

C2422

C2404

C2400

C2443

CL2407

CL2411

CL2410

CL2409

C2011

R2307

R2308

R2046

R2050
R2031
R2032

C2066

JL2001

JL2000

C2067

C2073

CL2069

Q805

C801

R802

C2421

C2416

C2413

C2414

C2420

R2427

C2423

CL2413

CL2412

C2037

R2093

CL2604

CL2606

C2327

CL382

CL2070

C804
Q804

E

R807

R818

C828

E

R815

C841C842

CL800

CL802

CL801

CL205

C208

R205

C207

R204

CL204

CL203

R203
C206
C205

CL2405

CL202

CL2040

CL2041

CL2042

CL2044

CL2406

CL2043

FB2404

CL2419

C2436

R2411

CL2417

CL2416

R2446

CL2415

CL2039

CL454

CL2605

CL2603

CL438

D800

R809

R819

KA

D801

R814

CL2045

C2448

CL2418

CL2414

R2413

C2331

C2329

CL453

CL2609

CL2608

CL2607

CL2071

KA

CL2610

CL452

CL2602

CL451

CL860

CL378

C692

CL337

CL200

CL201

CL374

C007

R407

CL2903

CL2046

C2309

FB2302

C2307

CL932

CL2611

C678

Q655

R668

E

C651
R652

CL650

CL652

CL651

CL338

CL341

CL340

C001

C003

R401

CL2901

CL2600

CL859

C654

R657

Q654

E

R665

C691

C051

C053

CL375

C057

R451

R403

CL442

CL2900

CL2902

D650

R669

KA

R659

KA

D651

R664

R453

R457

CL448

CL447

CL446

CL444

CL449

CL2038

¾

CL445

C805

C855

CL443

C705
C755
C555

CL441

C505
C605
C655

CL2030

CL2028

CL2037

CL2036

CL2029

CL450

CL2031

CL858

C751

C792

R752

CL339

C984

C002

CL861

R935

CL2032

Q755

E

CL752

CL751

C052

R309

R936

R308

2627

IC400

39
40

1

52

C499

CL392

C489

C450

CL391

C449

CL440

R450

R449

CL433

D750

C754

R769

R757

C778

R768

Q754

E

D751

R765

R764

C791

CL750

¾

C066

CL365

CL862

R307

¾

E

R363

Q360

R360

CL386

CL387

3

14
13

CL439

KA

R759

KA

IC350

CL434

C350

C354

CL431

CL437

CL380

C642

C067

CL430

CL355

CL390

CL931

21

C355

CL432

CL435

C601

R602

23

IC352

C628

R618

Q605

E

C641

CL602

CL600

CL601

C068

CL356

R358

E

Q355

CL855

C352

1

D600

KA

C604

R609

R607

R619

Q604

KA

E

D601

R614

R615

C065

CL357

R355

R366

E

Q365

C701

C742

R702

CL702

C064

CL358

R350

R367

CL857

C704

C728

R718

R707

Q705

E

CL700

CL701

R353

E

Q350

R939

R937

D700

R719

KA

R709

Q704

KA

D701

E

R714

R715

C741

C063

CL359

CL389

R925

Q920

E

CL856

R940

R938

CL384

Q555

C551

C592

R552

C062

CL360

CL385

R921

C935

C934

CL383

D550

AAKK

C578

R559

C554

R569

R557

Q554

R568

E

D551

E

R565

R564

C591

CL551

CL552

CL550

CL369

CL370

CL371

CL373

CL372

CL368

C911

CL367

C910

CL366

CL361

CL363

C322

CL364

CL362

21

1-889-543-

(21)

I

J

K

STR-DH550/DH750

2323

STR-DH550/DH750

Ver. 1.1

5-9. SCHEMATIC DIAGRAM – MAIN Board (1/7) –

A

B

C

D

E

F

G

H

I

J

K

1

>001S

MAIN

BOARD

(5/7)

(Page 28)

3.3V_TH

D-GND

TEMP-SENSOR-2
TEMP-SENSOR-1

LIMITER

PROTECT

HP-DETECT

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MAIN BOARD (1/7)

R544

0

C548

0.1u

C545

47u 35V

R548

22k

2.2kR252

CURRENT DETECT

58

2SA1162-G

LIMITER

0.6

C581

4p

0.1uC250

TH251

10k

CL378
CL379
CL380
CL381
CL382
CL383

D536

DZ2J051M0L

R547

6.8k

R549

22k

TH252

10k

2.2kR251

L550

R550 4.7

C578

0.022u

Q555

MSB92T1G

0

C551
220p

R558

R552

6.2k

4.7k

Q550

MN2488-OPY-MK

BOOSTER

E

C

B

1.1

C592

R554

100

Q552

R579

56k

0.1

Q570

B

E

CC

0.1

C570

R576

3300p

470

R575

R577

2.2k

2.2k

D571

DA2J10100L

D572

DA2J10100L

R551

10

C554

0.01u

R557

47k

-0.70

R565

1.5k

0

C +VE

47p

R555

22k

R556

2.2k

R381

6.8k

1.1

C558

47u 35V

D570

DA2J10100L

-57

B

-57

-56.4

DH750

L800

C828

0.022u

Q805

MSB92T1G

CURRENT DETECT

-0.70

0

C801
220p

R808

R802

6.2k

4.7k

Q800

MN2488-OPY-MK

BOOSTER

58

E

C

B

1.1

C842

47p

R804

R805

100

22k

R806

2.2k

R383

6.8k

Q802

LIMITER

[SBL]

R801

10

C804

0.01u

R807

R815

1.5k

0

SBL +VE

1.1

47k

R818

47k

D800

DA2J10100L

R809

100k

D801

DA2J10100L

R814

R803

0.22

15k

Q801

MP1620-OPY-MK

BOOSTER

-58

C

-1.1

-59-0.7

MSB92T1G

0

CURRENT

DETECT

0

E

SBL -VE

B

C841

R817

R816

560

-0.6

CL800 CL650 CL750 CL600 CL700

2SD2114K

-1.1

0.4

0.4

CL801

-1.1

C808

47u 35V

R819

68k

Q804

47p

100

Q803

LIMITER

R650

4.7

2SA1162-G

R568

47k

D550

DA2J10100L

R559

100k

D551

DA2J10100L

R564

15k

R553

0.22

Q551

MP1620-OPY-MK

BOOSTER

-58

E

C

B

-1.1

R566

560

-0.6

CL550 CL850

0.4

0.4

CL551

CL552

-1.1

-1.1

-59-0.7

0

MSB92T1G

CURRENT

DETECT

0

C -VE

R569

68k

Q554

C591

47p

R567

100

Q553

2SD2114K

LIMITER

R850

4.7

MSB92T1G

CURRENT DETECT

C851
220p

R852

4.7k

MN2488-OPY-MK

BOOSTER

58

C

R854

100

Q852

2SA1162-G

LIMITER

L850

C878

0.022u

Q855

Q850

1.1

[SBR][C]

R851

C854

0.01u

-0.70

R865

1.5k

0

R858

6.2k

0

E

SBR +VE

B

C892

47p

R855

22k

R856

2.2k

R382

6.8k

1.1

C858

47u 35V

10

R857

47k

R868

47k

D850

DA2J10100L

R859

100k

D851

DA2J10100L

R864

15k

0

R853

0.22

Q851

MP1620-OPY-MK

BOOSTER

-58

E

C

B

-1.1

R866

560

-0.6

-1.1

0.4

0.4

CL851

CL852 CL802 CL652 CL752 CL602 CL702

-1.1

-59-0.7

MSB92T1G

CURRENT

DETECT

0

SBR -VE

C891

R867

2SD2114K

R869

68k

Q854

47p

100

Q853

LIMITER

R800

4.7

2SA1162-G

Q570, Q620, Q670, Q720, Q770, Q820, Q870

D820

-56.4

-57

B

C820

3300p

R827

2.2k

DA2J10100L

DA2J10100L

R829

56k

Q820

0.1

0.6

B

E

CC

C831

-57

0.1

4p

R826

470

R825

2.2k

D821

D822

C881

Q870

0.6

4p

R879

56k

B

0.1

R876

470

R875

2.2k

D871

DA2J10100L

D872

DA2J10100L

E

CC

3300p

0.1

C870

R877

-57

2.2k

D870

DA2J10100L

-57

R870

B

C886

47p

-56.4

R878

4.7k

270

C862

100p

R861

68k

C860

10u 50V

R873

220

59

R871

4.7k

R872

4.7k

16.3

KTC3206-Y
PWR AMP.

-57

KTC3206-Y

PWR AMP.

-57

R860

1k

Q874

Q875

Q872

KTA1024-Y

PWR AMP.

-1.1

-56.4

R863

R874

220

59

1.1

C885

47p

C882

4p

R862

68k

2.2k
C863

220u 10V

R823

R824

220

220

59

1.1

Q822
KTA1024-Y
PWR AMP.

Q824

KTC3206-Y

PWR AMP.

Q825

KTC3206-Y

PWR AMP.

-1.1

59

R821

4.7k

R822

4.7k

-56.4

16.3

-57

-57

DA2J10100L

R820

4.7k

C836

47p

R828

270

C835 47p

C812

C832

100p
R811

R810

1k
C810

10u 50V

4p

R812

68k

68k

R813

2.2k

C813

220u 10V

[SBL][SBR]

R573

R574

220

220

59

59

C564

R561

C560

100p

68k

R560

R571

4.7k

R572

4.7k

16.3

Q574
KTC3206-Y
PWR AMP.

-57

KTC3206-Y

PWR AMP.

-57

1k

KTA1024-Y
PWR AMP.

Q575

-56.4

Q572

-1.1

1.1

C585

47p

C582

4p

R562

68k

R563

2.2k
C563

220u 10V

C586

R570

47p

R578

4.7k

270

10u 50V

[C] [FR] [FL]

L650

C678

0.022u

Q655

MSB92T1G

CURRENT DETECT

0

C651
220p

R658

R652

6.2k

4.7k

Q650

MN2488-OPY-MK

BOOSTER

58

E

C

B

1.1

C692

47p

R654

R655

100

R656

R384

Q652

LIMITER

HN4A06J-GRBL (TE85R)

PWR AMP.

R679

56k

Q670

0.6

B

E

C681

0.1

4p

R676

470

R675

2.2k

D671

DA2J10100L

D672

DA2J10100L

-0.70

22k

2.2k

6.8k

1.1

0.1

CC

[FR]

R651

10

C654

0.01u

R657

R665

1.5k

0

FR +VE

C658

47u 35V

-57

C670

3300p

R677

2.2k

47k

R653

0.22

0.4

-1.1

D670

DA2J10100L

-57

B

-56.4

R663

2.2k

C663

220u 10V

D650

DA2J10100L

R659

100k

R664

15k

MP1620-OPY-MK

-58

-0.6

0.4

CL651

R670

4.7k

C686

47p

R678

270

R668

47k

D651

Q651

BOOSTER

C

-1.1

R673

220

59

R671

4.7k

R672

4.7k

16.3

KTC3206-Y
PWR AMP.

-57

KTC3206-Y
PWR AMP.

-57

C682

4p

R662

68k

C660

10u 50V

DA2J10100L

E

B

R666

560

-1.1

Q674

Q675

R660

R669

-59-0.7

Q654

MSB92T1G

0

CURRENT

DETECT

0

FR -VE

C691

47p

R667

100

2SD2114K

LIMITER

R674

220

59

1.1

Q672
KTA1024-Y
PWR AMP.

-1.1

-56.4

C685 47p

1k

68k

R661

Q653

C662
100p

68k

SR_OUT

R750

4.7

MSB92T1G

CURRENT DETECT

C751
220p

R752

4.7k

MN2488-OPY-MK

BOOSTER

58

C

R754

100

Q752

2SA1162-G

LIMITER

C635 47p

C612

100p

R611

68k

L750

C778

0.022u

Q755

0

Q750

E

B

1.1

C792

R624

220

59

1.1

Q622
KTA1024-Y
PWR AMP.

R610

1k

C610

10u 50V

[SR]

R751

10

C754

0.01u

R757

-0.70

R765

1.5k

R758

6.2k

0

SR +VE

47p

R755

22k

R756

2.2k

R385

6.8k

1.1

Q624

KTC3206-Y

PWR AMP.

Q625

KTC3206-Y

PWR AMP.

-1.1

C632

4p

R612

68k

47k

R623

220

59

R621

R622

4.7k

-56.4

0.4

-1.1

4.7k

16.3

R759
100k

R764

R753

0.22

-57

-57

R613

2.2k

220u 10V

D750

15k

-58

CL751

DA2J10100L

R620

4.7k

R628

270

C613

R768

47k

DA2J10100L

D751

DA2J10100L

Q751

MP1620-OPY-MK

BOOSTER

E

C

B

-1.1

R766

560

-0.6

-1.1

0.4

C758

47u 35V

D620

-57

BCCB

C636

47p

C620

3300p

-56.4

R627

2.2k

DA2J10100L

DA2J10100L

-59-0.7

0

0.1

-57

D621

D622

R769

68k

Q754

MSB92T1G

CURRENT

DETECT

0

SR -VE

C791

47p

R767

100

Q753

2SD2114K

LIMITER

R629

56k

E

0.1

R626

470

R625

2.2k

R600

4.7

CURRENT DETECT

MN2488-OPY-MK

58

Q602

2SA1162-G

LIMITER

Q620

0.6

C631

4p

C628

0.022u

Q605

MSB92T1G

C601
220p

R602

4.7k

Q600

BOOSTER

C

R604

100

R543

0.47

L600

1.1

L700

C728

0.022u

Q705

MSB92T1G

CURRENT DETECT

-0.70

0

C701

220p

R708

R702

6.2k

4.7k

Q700

MN2488-OPY-MK

BOOSTER

58

E

C

B

1.1

C742

47p

R704

R705

100

R706

R387

Q702

LIMITER

R774

220

59

1.1

Q772

KTA1024-Y

XX

-1.1

-56.4

C785

47p

C782

4p

R762

68k

R763

2.2k
C763

220u 10V

22k

2.2k

6.8k

1.1

[SL]

R701

10

C704

0.01u

R707

R715

1.5k

0

SL +VE

47k

R710

D700

R709
100k

R714

15k

R703

0.22

-58

0.4

CL701

-1.1

R724

220

59

1.1

Q722
KTA1024-Y
PWR AMP.

C735 47p

C712
100p

R711

68k

1k

C710

10u 50V

R718

47k

DA2J10100L

D701

DA2J10100L

0

Q701

MP1620-OPY-MK

BOOSTER

E

C

B

-1.1

R716

560

-0.6

-1.1

0.4

C708

47u 35V

R723

220

59

R721

4.7k

R722

4.7k

16.3

Q724
KTC3206-Y
PWR AMP.

-57

Q725

KTC3206-Y

PWR AMP.

-57

-1.1

-56.4

C732

4p

R712

68k
R713

2.2k

C713

220u 10V

-59-0.7

MSB92T1G

CURRENT

DETECT

0

SL -VE

C741

R717

100

2SD2114K

LIMITER

DA2J10100L

R720

4.7k

C736

47p

R728

270

R719

47p

[FL]

R601

C604

0.01u

-0.70

R615

1.5k

0

R608

6.2k

0

E

FL +VE

B

C642

47p

R605

22k

R606

2.2k

R386

6.8k

1.1

C988

22u

100V

10

R607

C781

47k

4p

Q770

0.6

C987
100V

22u

R609
100k

R614

R603

0.22

0.4

-1.1

R779

56k

B

0.1

R776

R775

2.2k

DA2J10100L

DA2J10100L

15k

R618

47k

D600

DA2J10100L

MP1620-OPY-MK

BOOSTER

-58

C

-0.6

0.4

CL601

C618

47u 35V

0.1

E

CC

-57

C770
3300p

470

R777

2.2k

D771

D772

R542

0.47

D601

DA2J10100L

0

Q601

E

B

-1.1

R616

560

-1.1

D770

DA2J10100L

-57

B

-56.4

R619

68k

-59-0.7

Q604
MSB92T1G
CURRENT

DETECT

0

FL -VE

C641

47p

R617

100

Q603

2SD2114K

LIMITER

R770

4.7k

C786

47p

R778

270

C762
100p

R761

C760

10u 50V

R700

R773

220

R771

4.7k
R772

4.7k

16.3

KTC3206-Y
PWR AMP.

-57

KTC3206-Y

PWR AMP.

-57

68k

R760

1k

4.7

2SA1162-G

59

Q774

Q775

[SL][SR]

68k

Q704

Q703

D720

-56.4

-57

BCCB

-57

C720
3300p

R727

2.2k

DA2J10100L

DA2J10100L

0.1

D721

D722

E

R726

R725

1
2
3
4
5
6
7
8
9

10
11
12
13
14

R729

56k

0.1

470

2.2k

>002S

MAIN

BOARD

(2/7)

(Page 25)

Q720

0.6

C731

4p

STR-DH550/DH750

15 16

17 19 2018 21

MAIN BOARD (3/7)

>003S

(Page 26)

2424

22

23

MAIN BOARD (2/7)

>004S

24 25

(Page 25)

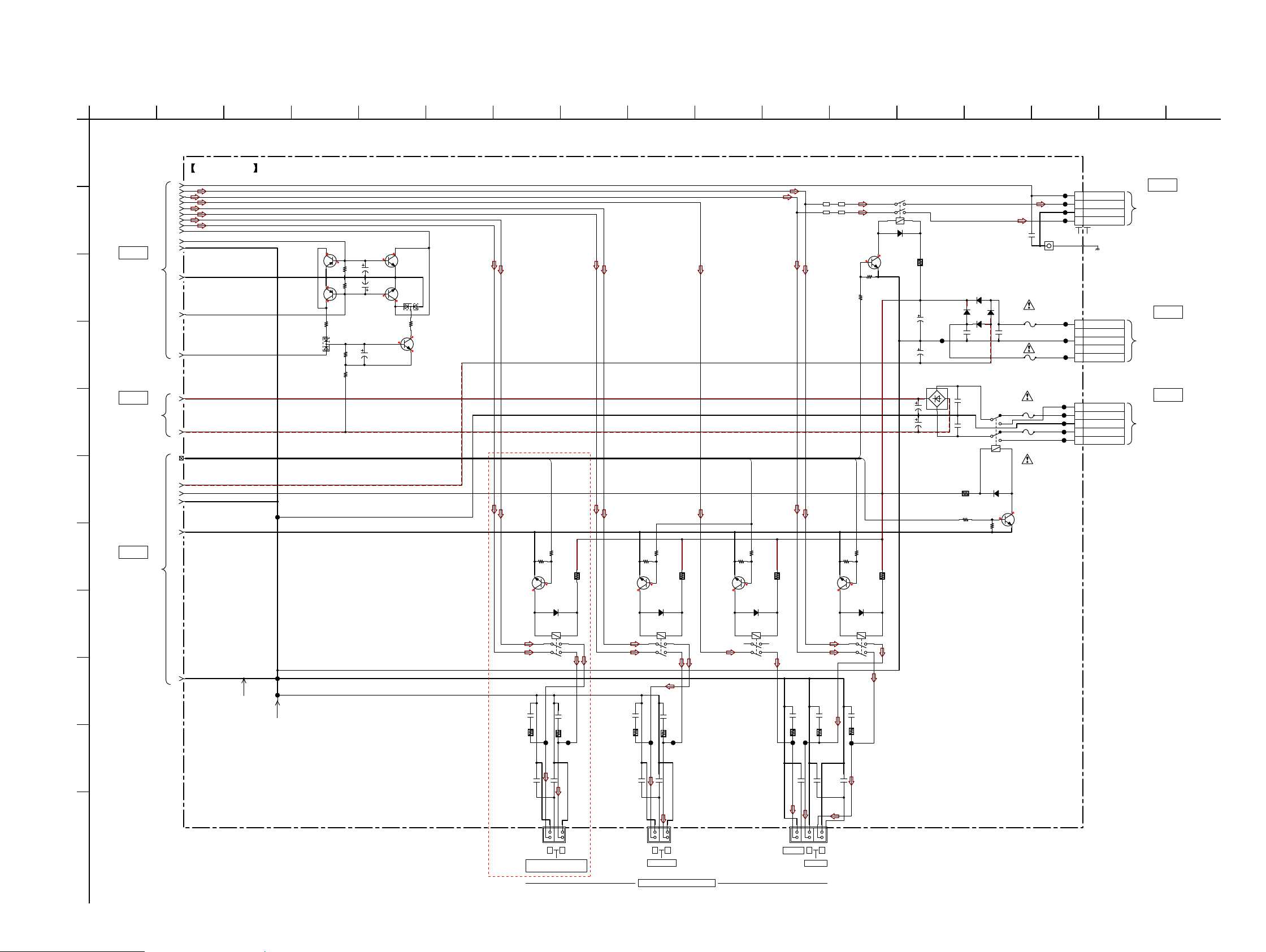

5-10. SCHEMATIC DIAGRAM – MAIN Board (2/7) –

STR-DH550/DH750

Ver. 1.2

A

B

C

D

E

F

G

H

I

1

>002S

MAIN BOARD

(1/7)

(Page 24)

>004S

MAIN BOARD

(1/7)

(Page 24)

>005S

MAIN BOARD

(3/7)

(Page 26)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MAIN BOARD (2/7)

ET301

CL364
CL362
CL363
CL361

CL366

CL367

CL368

CL369
CL370
CL371
CL373
CL372

CN391

4P

1 HP-Detect
2 R-CH
3GND
4L-CH

(CHASSIS)

CN950

5P

1R2 AC
2NC
3 CENTER TAP
4NC
5R2 AC

CN951

5P

5 R1 (UPPER TAP)
4 R1 (LOWER TAP)
3R1 GND
2 R1 (LOWER TAP)
1 R1 (UPPER TAP)

>006S

HEADPHONE

BOARD

CN107

(Page 42)

>007S

POWER

TRANSFORMER

(MAIN)

T901

(Page 36)

>008S

POWER

TRANSFORMER

(MAIN)

T901

(Page 36)

2
6
8
3
7
9
4
5
1

12
10

11

13

14

25

24

26

27
28
29

30

31

W001

CL857

CL855

CL856

W003

Q320

MSB92T1G

PROTECTOR

Q323

MSB92T1G

PROTECTOR

AGND

D326

BAV70

R327

-59

0

R320

22k

R323

0

22k

-59

10k

R326

39k

R328

1k

0

C320

220u
10V

C323

220u
10V

0

Q324

2PD601ART

PROTECTOR

C325

10u
50V

3.3

-59

Q321

2PD601ART

PROTECTOR

D327

BAV70

3.3

R325

3.3

-59

6.8k
Q325

2SC2713-G

PROTECTOR

Q360

2PD601ART

RELAY

DRIVER

C016

0.01u
R016

10

DH750

R363

47k

0.2

SB-LR-RY

R360

2.2k

R361

33

0.8

D360

DA2J10100L

RY360

12V

1

6
23

45

C017

0.01u
R017

10

Q355

2PD601ART

RELAY

DRIVER

C018

0.01u
R018

10

R358

47k

0.2

R355

1k

R356

33

0.8

D355

DA2J10100L

RY355

12V

1

6
23

45

C015

0.01u
R015

10

Q365

2PD601ART

RELAY

DRIVER

R366

47k

0.2

C-SURR-RY

R367

1k

R365

33

0.8

D365

DA2J10100L

RY365

12V

1

6
23

45

R014

C014

0.01u

10

R937

330

R939

330

Q350

2PD601ART

RELAY

DRIVER

C013

0.01u
R013

2PD601ART

0.2

10

R938

330

R940

330

Q929

RELAY

DRIVER

R928

2.2k

LR-RY

R353

47k

0.8

DA2J10100L

RY350
6
23

C012

0.01u

R012

HP-RY

R350

D350

12V

10

0

R927

47k

BRIDGE-RY

2.2k

R351

33

1

45

DA2J10100L

14

RY380

12V

D937

C930

6800u

C931

6800u

C912

2200u

25V

C913

1000u

25V

R926

33

CL931

D921

D5SBA60-F

+

C322

0.01u

D910 ~ D913

GS1G

D910

D912

D911

C911

D913

0.1u

~

-

C934

~

0.1u

C935

0.1u

RY920

R920

DA2J10100L

33

R921

2.2k
R925

47k

D920

F910

2.5A 250V

C910

0.1u

F911

2.5A 250V

F912

6.3A 250V

F913

6.3A 250V

0.1

Q920

0.8

2PD601ART

RELAY

DRIVER

J

K

STR-DH550/DH750

CL365

CL355

C067 220p

C066 220p

SBR_SP

SBL_SP

TB503

4P

R L

SURROUND BACK/ BI-AMP/

FRONT HIGH/ FRONT B

CL356

CL357

C065 220p

C068 220p

SR_SP

SL_SP

TB502

4P

R L

SURROUND

SPEAKERS IMPEDANCE USE 6-16

2525

TB501

6P

C_SP

CENTER

CL358

C064 220p

CL359

R L

FRONT A

C063 220p

FR_SP

CL360

C062 220p

FL_SP

STR-DH550/DH750

Ver. 1.2

5-11. SCHEMATIC DIAGRAM – MAIN Board (3/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

MAIN BOARD

C

D

E

MAIN BOARD

F

G

H

I

J

K

>009S

(5/7)

(Page 28)

>010S

(5/7)

(Page 28)

>011S

MAIN BOARD

(4/7)

(Page 27)

>012S

MAIN BOARD

(7/7)

(Page 30)

>013S

MAIN BOARD

(5/7)

(Page 28)

BRIDGE-RY

SB-LR-RY

C-SURR-RY

EVOL-CLK

EVOL-DATA

TUNER-R

TUNER-L

VMUTE

VSEL-SW

MAIN BOARD (3/7)

CL384

HP-RY

CL385
CL386
CL387

SW-RY

CL389

LR-RY

CL390

L-IN
R-IN

FR-IN

FL-IN

SW-IN

C-IN

SR-IN

SL-IN

SBR-IN

SBL-IN

AGND

+7V

+7V

DCAC

AGND

RCH-N
RCH-P

LCH-P
LCH-N

FB200

+6V

CL202

CL200

HP-RY

BRIDGE-RY

SB-LR-RY

SW-RY

LR-RY

C-SURR-RY

C546 10u 50V
C547 10u 50V

DH750

C211

47u 35V

3

NJM41010F1

IC200

DRIVER

4

2 2 0

C205 0.1u

R203 75

J200

3P

C653 10u 50V

C603 10u 50V

C503 10u 50V

C553 10u 50V

C753 10u 50V

C703 10u 50V

C853 10u 50V

C803 10u 50V

C204

0.1u

1.56

1

2

VCC

GND

IC200

VIDEO

VIN2

VIN1

5

6

C206 47p

R204 75

CL203

12 3 4

OUT

VSW

C207 0.1u

CL441

CL442

CL443

CL444

CL445

CL446

CL447

CL448

CL449
CL450

CL451
CL452
CL453
CL454

Q201

PMG85XP

MUTE

0

C201

0.01u

0

C202

0.01u

Q200
MUTE

PROTECTION

6

C203

0.1u

0

CL201

C200 0.1u

PROTECTION

6

R201

10k

LTC014EUBFS8TL

0uH

• See page 43 for IC Block Diagrams.

220R449

220R450

CL392
CL391

1kR681

C655 3300p

1kR631

C605

3300p

1kR531

C505

3300p

1kR581

C555

3300p

1kR781

C755

3300p

1kR731

C705

3300p

1kR881

C855

3300p

1kR831

C805

3300p

DH750

C430

C431

1u

1u

C210

1000u

C208 47p

CL204

YEL
YEL
YEL

6.3V

R205

75

CL205

R421

22k

C432

47p

VIDEO

MONITOR OUT

VIDEO

VIDEO IN

VIDEO

SAT/CATV IN

R422
100k

R420

22k

C434

47p

R423
100k

0
0

5

NJM4565M (TE2)

2-IN

0

6

2OUT

7

IC402

7

VCC

8

C441 0.1u
C433 10u

IC402

LINE AMP

1+IN

1OUT

VSS2+IN

4
3

1-IN

2
1

>003S

MAIN BOARD (1/7)

(Page 24)

1920

21

IC352

KIA7907F-RTF/P

IC352

C353
100u

C351
100u

CL932

D352

16V

16V

CL933

GS1G

C355
470p

C354
470p

-7V REG.

-7

OUT

IN

GND

GND

7

OUT

IN

IC350

KIA7807AF-RTF/P

IC350

+7V REG.

-15

D356

C352

P6SMB30AT3G

1u

C350

1u

15

27

28

29

CL439

0
0

0
0
0
0
0
0
0
0

CL440

52
51
50
49
48
47
46
45
44
43
42
41
40

C450 100p

C449 100p

CHIP
GND
ADCL
ADCR
GND
FRIN
FLIN
SWIN
CIN
SRIN
SLIN
SBRIN
SBLIN

1

CL431

2200p

7 0

VCC

C489

C487

0.1u

2200p

CL430

2

3

DGND

37

C499

0 0

4

5

CL

DA

DIR FUNCTION SELECT

INL138INR139GND

35

00 00

22

15 16 1718

23

CL432

CL433

CL859

-7 0 0 0 0 0 0 0 0

7

8

6

VEE

FLOUT

FROUT

IC400

BD34701KS2

CL434

CL435

9

SWOUT

10

COUT

CL858

CL437

11

SROUT

CL438

12

SLOUT

IC400

INR531INL432INR433INL334INR3

INL236INR2

00 0 0 0 0

INL5

30

29

CL860

13

SBLOUT

SBROUT

INL628INR6

27

SUBL

SUBR

RECL
RECR

INR8

INR7

GND
GND

GND
GND
INL8

INL7

GND

14
15
16
17
18
19
20

0

21

0

22
23

0
0

24
25
26

>005S

26

MAIN BOARD

SW-RY

W002

C481

C480

1u

1u

R470

R471

22k

22k

C484

47p

C491

R473

0.1u

-7
0
0
0

R472
100k

100k

C482

47p

C483

10u

AUDIO

SA-CD/CD IN

AUDIO

VIDEO IN

AUDIO

SAT/CATV IN

R4511kR4011kR4531kR403

1k

C051 100p

C001 100p

CL339

CL337

WHT RED
WHT RED
WHT RED

CL341

CL338

L R

L R

L R

C053 100p

CL340

C003 100p

R4571kR407

1k

CL375

J401

6P

C057 100p

CL374

C007 100p

C984

0.0022u

AGND

Q301

2PD601ART

0.7

0

D301

DA2J10100L

R302

100

R301

R304

47k

1k

C301

10u

50V

R307

100k

45

R308

47k

C002 100p

R309

1k

AUDIO

SUBWOOFER OUT
L R

123

AUDIO

TV IN

R936

R935

1k

1k

C052 100p

CL862

CL861

J402

4P

BLK

BLK
WHT RED

RY301

12V

RELAY DRIVER

31

30

(2/7)

(Page 25)

STR-DH550/DH750

2626

STR-DH550/DH750

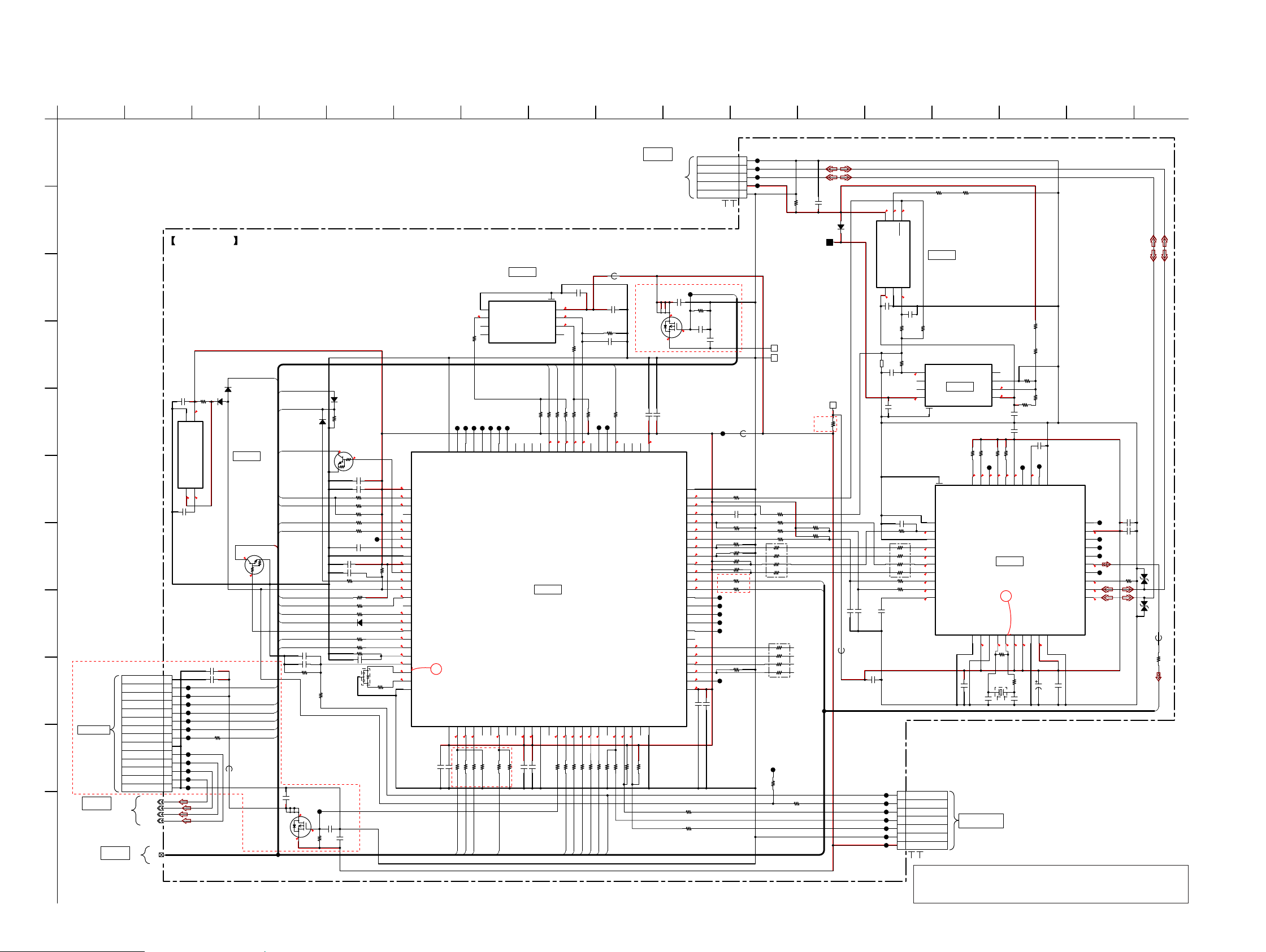

5-12. SCHEMATIC DIAGRAM – MAIN Board (4/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

MAIN BOARD (4/7)

A

B

HDMIOUT_5VPWR

C

>014S

HDMI BOARD

CN3514

D

(Page 33)

E

>015S

MAIN BOARD

(5/7), (6/7)

F

(Page 28), (Page 29)

MHL_OVC

MHL_PCONT

ARC_SPDIF

DGND

HDMI_MCK

DGND

HDMI_BCK

DGND

HDMI_LRCK

HDMI_SD3
HDMI_SD2
HDMI_SD1
HDMI_SD0

HDMI_SPDIF

HDMI_MUTE

HDMI_INT

DGND

HDMI_SCL

DGND
HDMI_SDA
HDMI_RST

CN2000

23P

CL2001

1

CL2002

2

CL2003

3

CL2004

4

CL2005

5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22

CEC

23

32

CL2006

CL2007

CL2008
CL2009
CL2010
CL2011
CL2012
CL2013
CL2014
CL2015

CL2016

CL2017
CL2018
CL2019

FB2000 0

R2002 680

RB2000

1k

330R2001

47R2000

47R2005

C2322 220p

2.2kR2004

MHL-PCONT

HDMIOUT-5VPWR

ARC-SPDIF

330R2007

470R2006

HDMI-LRCK

HDMI-SPDIF

HDMI-MB-MUTE

SPARTA-INT

SPARTA-RST

COM-DATA
COM-CLK

G

DSP-SFLASH-HOLD
DSP-NPCM
DSP-ERROR
DSP-SPICS

D2201

DA2J10100L

FB2204 0uH

DSP-SPICLK
DSP-MOSI
DSP-MISO

H

I

J

K

>016S

MAIN BOARD

(5/7)

(Page 28)

(ASSIGNABLE) IN

33

34

35

36
37

J2200

1P

COAXIAL

SA-CD/CD

CL2200

W2200

75R2200

C2203

C2206

R2216

R2213

0.1u

470

R2214

470k

1.2 1.23.3

7

8

1Y

VCC

IC2202

TC7WHU04FK

IC2202

WAVE SHAPER

1A

1

23Y3

2.5 1.3

R2217

53A6

2A4GND 2Y

47k

C2214 0.1u

C2215 100u 10V

22u
25V

100

• See page 21 for Waveforms. • See page 43 for IC Block Diagrams. • See page 50 for IC Pin Function Descriptions.

3

D2003

Q2003

CEC DATA

SWITCH

10k

R2042 10k

100

71

72

70

SI

SO

FLASH_CLK

DSP-RST4PWR-RLY

TUN_RDS_SIGNAL

5

100

0.1uC2037

10kR2093

TUNER-I2C/RDSI

R2037

27k

R2040

220

3.3

0.1

C2038

0.1u

LIMITER

TEMP-SENSOR-1

TEMP-SENSOR-2

C2040 0.1u

C2034 0.1u

C2039 0.1u

100

RB2008

0 3.3 3.3 3.30 0 0 3.3 0 3.3 3.3 3.3 3.3 3.33.2 0 0.8 0.8 1.72.9 0 3.3 3.3

67

68

69

DIR FSRATE

TEMP_SENSOR_2

TEMP_SENSOR_1

TUNER_CE

TUNER_SDA7TUNER_SCL

6

8

9

100

RB2007

2.2kR2046

2.2kR2050

2.2kR2031

TUNER-CE

TUNER-SDA

TUNER-SCL

VCOM-SDA

R2094 10k

100

RB2010

66

64

65

63

62

STOP

LIMITER

HDMI_CEC_IN

HDMI_CEC_OUT

VCOM_SDA (OUT)

IC2001

MB9AF156NPMC-G-JNK1E2

IC2001

SYSTEM CONTROL

SW_RY

DAC-IIC-SDA

BRIDGEABLE_RY

DAC-IIC-SCL

SBL_SBR_RY

11

10

12

14

13

2.2k

RB2009

100R2058

2.2kR2032

DAC-IIC-SDA

DAC-IIC-SCL

BRIDGE-RY

SB-LR-RY

SW-RY

C2042 0.1u

C2043 0.1u

60

AVSS

C/SL_SR_RY

FRONT_SPK_RY
15

16

100R2066

2.2kR2064

EVOL-DATA

LR-RY

C-SURR-RY

59

AVCC61AVRH

EVOL_DATA17EVOL_CLK

PUREDIRECT

MU-UART-IN

RB2012

57

58

MU UART IN

PUREDIRECT

PROTECT

18

19

RB2011

10kR2068

EVOL-CLK

PROTECT

AD_KEY2

R2075 10k

100

56

AD_KEY2

E2P_SDA
20

100

0.1uC2327

AD_KEY1

POWER_DET

R2076 10k

R2077 10k

55

54

AD KEY1

POWER DET

E2P_SCL
21 22 23

JL2000

SIRC

VOLUME

R2079 10k

100

RB2013

53

VOLUME_JOG

JL2001

HP-RY

INPUT

R2080 10k

C2044 0.001u

52

51

VCC

SIRC-IN

INPUT_JOG

2

VSS

HP-RY24HP-DETECT

25

10kR2309

0.1uC2323

HP-DETECT

C2045 0.1u

MD0
MD1

FL_LAT

FL_DATA

FL_CLK

FL-EN

FUSE_DET

INITX

LED-STBY

LED-ON

VCC

P-CONT

NFC-RF-DET

BT_MUTE

VCC

IC2009

RESET IC

10kR2100

3.3kR2061

3.3kR2063

VOUT

10kR2310

4
3

CT

3.3

5

3.3

6
7

3.3

8

1

GND

IC2009

2

BU4229F-TR

VDD

3.3

R2090

1k

X2001

4MHz

RB2014

100

RB2015

100

C2068 0.1u
C2066

DH750

R2003 100

C2069
C2067

10kR2084
10kR2085

100R2081
100R2086

4.7u

100R2083

0.1u

4.7u

C2088 0.1u

C2073 0.1u

FUSE-DET

C2078

C2046 0.1u

C2047 0.1u

C2065 0.001u

0.1u

50

VSS

49

X1

1.5

48

X0

1.4

47

0

46

0

45

3.3

44

3.3

43

3.3

42

3.3

41

2.8

40

0

39

0

38

3.3

37

0

36

3.3

35

3.3

34

VSS

33

C

1.2

32
31
30
29

0

28

3.3

27

0

26

3.3

MHL-OVC

HDMI-MCK

HDMI-BCK

HDMI_SD3
HDMI_SD2
HDMI_SD1
HDMI_SD0

HDMI-SCL

HDMI-SDA

R2008

100

PROG-MUTX
PROG-MURX

DIR_SIGNAL

DIR_XSTATE

DIR_MISO

DIR_CE
DIR_INT
DIR_RST

PROG-VU-MD0
PROG-VU-RST

VSEL-SW
VMUTE

10kR2009

FSRATE

Q2000

2PB709BSL

CEC DATA

SWITCH

R2011

FB2003

JL2027

C2008

C2009 4.7u

RB2001

100

RB2002

100

RB2003

100

R2010 100
R2013 100
R2014 100
R2016 4.7k
R2012 680
R2015 100
R2017 100
R2018 100
C2011 0.1u
R2307 10k
R2308 10k

3.3

Q2002

2PD601ART

CEC DATA

R2021

R2019

3.3
3

1k

Q2001

0.1

2PD601ART
CEC DATA

SWITCH

R2022

10k

0uH

47u
35V

3.3

3.3
1

3.3

3.3
0
0

3.3

3.3

0.6

3.3

3.3
0
0

3.3

3.3
0

3.3

3.3

3.3

33

3.3
0
0

100

22k

1.7

22k

76

VCC

77

DIR-XSTATE

78

TCK

79

TDI

80

TMS

81

TD0

82

DIR-MISO

83

DIR-MOSI

84

DIR-SPICLK

85

DIR-CE

86

DIR-INT

87

DIR-RST

88

DSP-SFLASH-HOLD

89

DSP-NLPCM

90

DSP-ERROR

91

DSP-SPICS

92

PROG_VU_MD0

93

VU_RST

94

DSP_SPICLK

95

DSP_MOSI

96

DSP_MISO

97

VCC

98

VSEL-SW

99

VMUTE
VSS

SWITCH

2.7

RB751V40,115

3

PDTC114ET

2.7

C2012

C2016

0.1u

R2026

0.1u

RB2006

73

74

75

VSS

DIR-SIGNAL

VCC

DSP-INT

1

2

3

3.3 0 3.3 3.33.33.33.3 3.3 3.3 3.3 3.33.33.33.3 3.3 0 0 3.33.33.3 00

RB2005

DSP-INT

DSP-RST

3.3

3.3

D2011

CES521

SDA

IC BR24T64FJ-WE2

SCL
WP
VCC

C2041 0.1u

D2012

CES521

IC2008

IC2008

EEPROM

FL_LAT

FL_DATA

FL_CLK

FL-EN

LED-STBY

LED-ON

GND

A2
A1
A0

PUREDIRECT
AD_KEY2
AD_KEY1
POWER_DET
LED-ON
LED-STBY

VOLUME
INPUT

SIRC
FL_LAT

FL_CLK

FL_DATA
FL-EN

PROG-MU-MD0

UPDATE-LED

VU_PCONT

NFC-RF-DET

BT-MUTE

4
3
2
1

MU-RST

NFC-RF-DET
NFC-SW
NFC-IRQ
NFC-SEL
NFC-DATA
NFC-SPICLK

FB2011 0uH

CL2050
CL2051
CL2052
CL2053
CL2054
CL2055

CL2056
CL2057
CL2058
CL2059
CL2060
CL2061
CL2062
CL2063
CL2064

CL2065
CL2066

CL2067

CL2068
CL2069

CL2070

CL2039

CL2040
CL2041
CL2042
CL2043
CL2044
CL2045
CL2046

CN2004

CN2005

+6V
+2V

+12V

3.3V
STBY3.3V

D-GND

29P

10P

DCAC
+7V
AGND

1 PUREDIRECT
2AD2
3AD1
4 POWER-KEY
5 LED-ON
6 LED-STBY
7AGND
8 +7V
9

DCAC-SIGNAL
10 VOL-JOG
11 INPUT-JOG
12 NFC-RF-DET
13 NFC-SW
14 NFC-IRQ
15 NFC-SEL
16 NFC-DATA
17 NFC-SPICLK
18 STBY-3.3
19 SIRCS-IN
20 FL-STB/LATCH
21 DGND
22 FL-CLK
23 DGND
24 FL-DATA
25 FL-EN
26 FL-GND
27 FL-BK/+15V
28 FL-GND
29 DCDC-6V

38

(Page 28), (Page 30)

1 PWR-RLY

3 STOP
4 STBY3.3V
5 STBY-GND
6 R3+12V
7 +2V
8 +3.3V
9 +6V

10 +6V

39

MAIN BOARD

40

>011S

MAIN BOARD

(3/7)

(Page 26)

>017S

DISPLAY

BOARD

CN102

(Page 38)

>018S

MAIN BOARD

(5/7), (7/7)

>019S

STANDBY

DCDC
BOARD
CN1901

(Page 36)

>020S

(5/7)

(Page 28)

STR-DH550/DH750

2727

STR-DH550/DH750

5-13. SCHEMATIC DIAGRAM – MAIN Board (5/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

33 35

MAIN BOARD (5/7)

B

C

C2208

470p

DA2J10100L

DIR_SIGNAL

FB2200

0uH

D

C2202

100u 10V

C2204 0.1u

C2207 0.1u

E

SL/SR-IN
C/SW-IN
SBL/SBR-IN
DSD-IN
DSP-ERROR
DIR_XSTATE
DSP-NPCM

F

22R2203
22R2204
22R2205

100R2206
10kR2210

FB2201

R2202

0uH

220

220R2201

X2200

R2209

24.576MHz

C22007pC2205

1M

7p

G

D2200

3.3

3.3

1.7

1.6

R2215

0
0
0
0
0
0

0

1M

DGND

17

DVDD

18

MPOUT1

19

MPOUT2

20

MPOUT3

21

MPOUT4

22

ERRF

23

MUTEB

24

NPCMF

25

MPIO1

26

MPIO2

27

MPIO3

28

MPIO4

29

XMCK

30

XOUT

31

XIN

32

C2213 0.1u

R2218

1k

DIR-IN

BCLK-IN

MCLK-IN

LRCLK-IN

HDMI-NLPCM

Q2200

3

R2223 220

R2222 220

R2219 330

R2225

10k

FB2202 0uH

FB2203 0uH

0 0 3.1 01.2 1.7 1.7 1.8 0 0 0 0 0 0

14

15

16

13

BCKOUT

MCKOUT

LRCKOUT

DATAOUT

5

6

DGND34DVDD35XMODE36CSB37SCK

33

3.3 3.3 3.3 2.5 5 2.50 3.31.800 2.5

10kR2220

10kR2221

HDMI_SD3

HDMI-MUTE

R2230

10k

0.1

LC89075WA-H

IC2203

DIGITAL AUDIO

INTERFACE RECEIVER

SI39SO

38

40

0R2224

0R2226

0R2227

10kR2229

H

COM-DATA

COM-CLK

DIR_MISO

DIR_RST

DIR_CE

I

GND

VOUT

GND

VOUT

VCC

VCC

IC2200

DIGITAL OPTICAL

RECEIVER

3.3

3
2

3.3

1

3.3

3
2

CL2202

3.3

1

IC2201

DIGITAL OPTICAL

RECEIVER

C2209

CL2201

C2210

0.1u

10u

R2211

100

R2212

100

IC2200

JSR1124

IN 1

(SAT/CATV ASSIGNABLE)

J

OPTICAL

IN 2

(TV ASSIGNABLE)

IC2201

JSR1124

K

• See page 21 for Waveforms. • See page 43 for IC Block Diagrams.

>016S

MAIN BOARD (4/7)

(Page 27)

0uH

>018S

(4/7), (7/7)

37 36

38

DIR_XSTATE

FUSE-DET

R-IN

R2236

470

R2237

100

R2300

33k

R2301

22k

C2302

0.1u

+7V

L-IN

C2303

1u

4

VOUT

0 7

AGND

75

C2307

0.1u

5
VIN

CONT2GND3NC
1

IC2300

MM1839A50NRE

IC2300

+5V REG.

HDMI_SD2

HDMI_SD1

HDMI_SD0

6

7

MPIN18MPIN29MPIN310MPIN411MPIN512MPIN6

DATAIN

IC2203

INTB41DSTATE42DVDD43DGND

0.1uC2218

0R2231

10kR2232

DIR_INT

HDMI-BCK

HDMI-MCK

HDMI-LRCK

1.6

5

4

3

BCKIN

LRCKIN

3

4

RXIN6 OPTICAL SAT/ CATV

ADINR45ADINL46AVDD47AGND

44

1kR2233

1kR2234

R2228

47

Q2200

LTC014EUBFS8TL

MUTE

PROTECTION
C2221

R2235

0.068u

100

C2223

0.001u

2

1

LPF

PGND

MCKIN

RXIN1 COAXIAL

RXIN2 USB SPDIF

RXIN3 HDMI SPDIF

RXIN4 ARC SPDIF

RXIN5 OPTICAL GAME

RXIN1A COAXIAL

VREF

48

C2219

C2224

0.1u

0.1u

C2220

C2222

100u

100u

16V

16V

PVDD

RXIN7
RXIN8
DGND

DVDD

RXOUT

DGND

RXIN2A
RXIN3A

34

C2225

0.1u

3.3

64

2.5

63

3.3

62

0

61

3.3

60

0

59

3.3

58
57

C2226

0.1u

56
55

3.3

54
53
52
51
50
49

FB2205

0uH

FB2206

USB-SPDIF

HDMI-SPDIF

ARC-SPDIF

MAIN BOARD

(Page 27), (Page 30)

R2238

C2227

0.001u
C2228

10kR2302

>015S

MAIN BOARD

32

(4/7), (6/7)

LRCLK-IN

R2239

100

0

IC2205

TC7WH157FK

IC2205

MUTING

GND

4

Y

3

B

1.8

2

A

1.7

1

Y

5

1.7

SELECT

6

3.3

ST

7

VCC

0.1u
8

3.3

IC2204

BINARY COUNTER

C2229 0.1u

1

1CK

1.7

2

1CLR

3

1QA

4

1QB

TC74VHC393FT (ELK)

5

1QC

6

1QD

1.7

7

GND 2QD

IC2204

2CLR

VCC
2CK

2QA
2QB
2QC

FSRATE

3.3

14

1.7

13
12
11
10
9

1.7

8

FB2303

0uH

(Page 27), (Page 29)

39

>020S

MAIN BOARD

(4/7)

(Page 27)

>021S

TUNER1

BOARD

CN101

(Page 40)

>001S

MAIN BOARD

(1/7)

(Page 24)

>009S

MAIN BOARD

(3/7)

(Page 26)

>013S

MAIN BOARD (3/7)

C2309

0.01u

C2306 4.7u

C2308 100u 10V

IC2301

D/A

CONVERTER

FB2301

0uH

FB2302

0uH

BCLK-OUT

LRCLK-OUT

16V

C2316

0.001u

0.01u

C2314

0.1u

C2317

7

8

10

9

BCK

VDD

LRCK

DGND

IC2301

PCM1681PWPR

VOUT619VOUT520VOUT421VOUT322VCC2

L/R-OUT

R2306 100

6

DATA1

23

C2318

C2319

C2315

C/SW-OUT

SL/SR-OUT

100u

SBL/SBR-OUT

100

R2304 100

R2305 100

R2303

DH750

1.2 1.3 1.7 3.3 1.7 1.7 1.2 1.7 3.3 3.3

11

14

MSELVOUT8

DATA212DATA313DATA4

AGND1

VOUT716VCC1

15

18

17

C2310

0.1u

C2311

0.01u

C2313

0.001u

C2312

100u

16V

DAC-IIC-SDA

5

4

SCK

MD/SDA/MUTE

AGND2

VCOM25VOUT226VOUT127ZR2

24

2.52.552.52.52.52.552.52.5

C2320

0.1u

0.1u

C2321

100u

0.01u

16V

DAC-IIC-SCL

3

2

MS/ADR/FMT1

MC/SCL/DEMP

2.5

FB2004

0uH

1

ZR1/ZR1/FMT0

29

28

10kR2025

C2329

0.0022u

5

VIN

CONT2GND3NC

1

6.6 0

0.0022u

C2331

40

CN2003

9P

1 IISD

CL2028
TUNER-L
TUNER-CE
TUNER-R

C2026

4.7u

C2025

0.1u

C2027

1u

57

4

VOUT

IC2000

MM1839A50NRE

IC2000

+5V REG.

C2024

0.1u

TUNER-SDA
TUNER-I2C/RDSI
TUNER-SCL

FB2300 0uH

TEMP-SENSOR-1
TEMP-SENSOR-2
HP-DETECT
LIMITER
PROTECT

C-SURR-RY

BRIDGE-RY

SB-LR-RY

LR-RY

SW-RY
HP-RY
EVOL-DATA
EVOL-CLK

VSEL-SW
VMUTE

D2304
BAV70

C2033 100p

D2303
BAV70

1kR2043

1kR2041

C2029 100p

D2302

DA2J10100L

CL2029

CL2030

CL2031

CL2032

CL2036

CL2037

CL2038

2VDD
3 AUDIO L/LRCK
4CE
5 AUDIO R/BCK
6GND
7DA
8 IIC/RDSI
9CK

3.3V_TH
D-GND
TEMP-SENSOR-1
TEMP-SENSOR-2

HP-DETECT

LIMITER
PROTECT

C-SURR-RY

BRIDGE-RY

SB-LR-RY
LR-RY

SW-RY

HP-RY

EVOL-DATA
EVOL-CLK

VSEL-SW
VMUTE

(Page 26)

TUNER-L

TUNER-R

SBR-IN

SBL-IN

SR-IN

SL-IN

SW-IN

C-IN

FR-IN

FL-IN

AGND

TUNER-L

TUNER-R

>010S

MAIN BOARD (3/7)

(Page 26)

STR-DH550/DH750

2828

STR-DH550/DH750

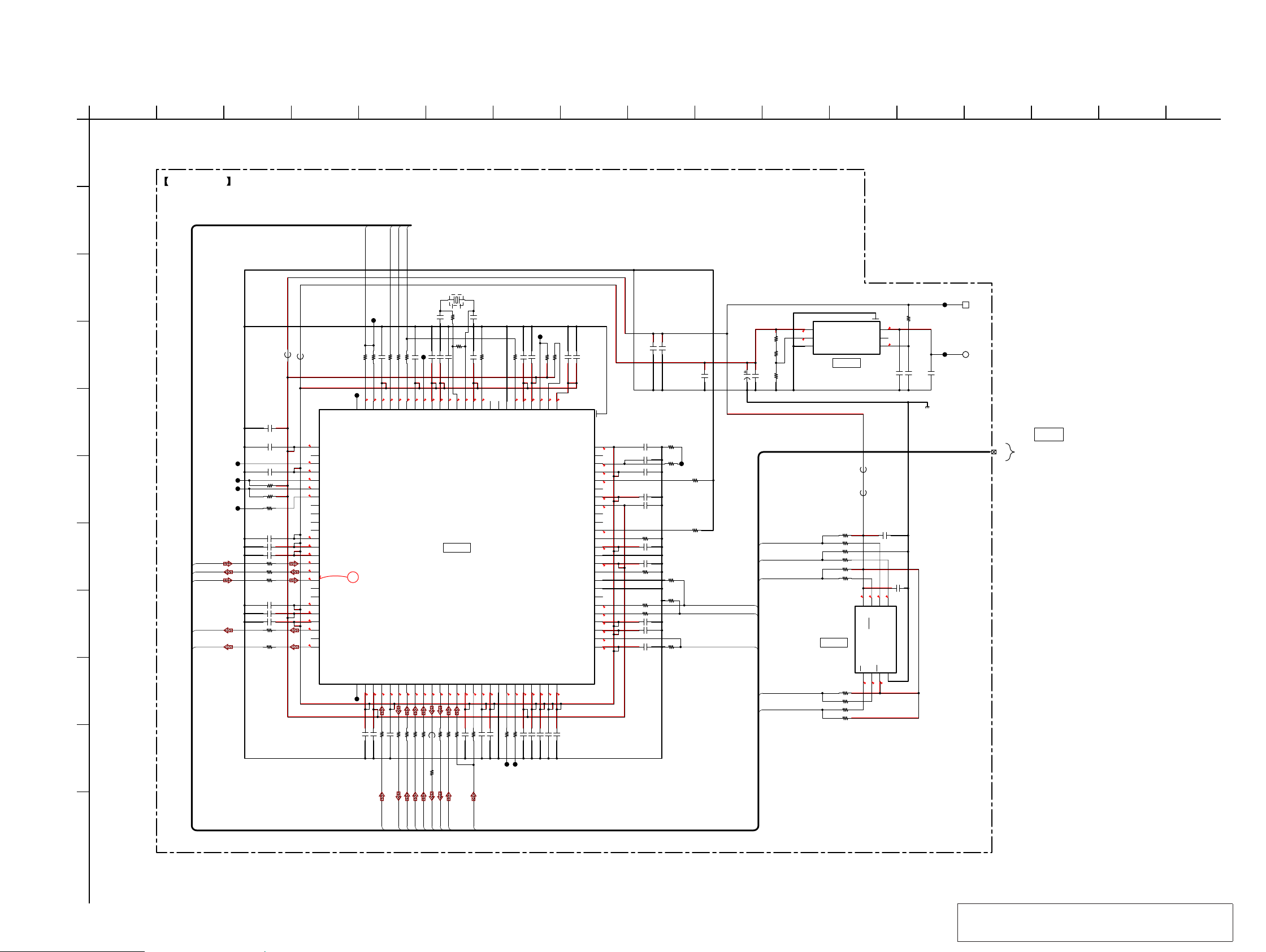

5-14. SCHEMATIC DIAGRAM – MAIN Board (6/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

MAIN BOARD (6/7)

B

C

D

E

JL2408

JL2409

SL/SR-IN

SL/SR-OUT
BCLK-IN

L/R-OUT

SBL/SBR-OUT

JL2410

JL2411

F

G

H

FB2402

C2400 10u

C2401 0.1u

C2402 0.1u

C2406 0.1u
C2407 0.1u
C2408 0.1u
R2401 22
R2402 220
R2403 22

C2403 0.1u
C2404 0.1u
C2405 0.1u
R2404 220

R2405 220

I

FB2404

0uH

10kR2406
10kR2407

100R2400

0uH

3.3

VDD_EXT

26

DPI_P08

4

27

RESET_MAIN

28

1.2

VDD_INT

29

3.3

UART_OUT

30

3.3

UART_IN

31

3.3

LED

32

DPI_P12

33

DPI_P13

34

DAI_P03

35

DPI_P14

1.2

36

VDD_INT

1.2

37

VDD_INT

38

1.2

VDD_INT

39

0

SL/SR_IN

40

0

SL/SR_OUT

41

0

BCLK_IN

42

OPTION_L/OPTION_R_OUT

43

FRONTHI_L/R_OUT

44

1.2

VDD_INT

45

3.3

VDD_EXT

46

1.2

VDD_INT

47

0

L/R_OUT

48

MID/SW2_OUT

0

49

SBL/SBR_OUT

50

JL2412

JL2402

• See page 21 for Waveforms.

DSP-MISO

DSP-SPICS

JL2401

22R2408

22R2409

3.3

25

24

MD

DSP_CS

7

VDD_INT53VDD_EXT54MCLK_IN55VDD_INT56C/SW1_OUT

ZONE_L/R

51

52

1.2 3.3 1.7 1.2 0 1.2 0 1.6 1.6 1.6 0 1.2 1.2 1.2 1.2 1.2 1.5 1.4 3.3 1.2 1.2 1.2 1.2

DSP-MOSI

DSP-SPICLK

X2400

25MHz

C2415

10p

22R2412

0.1uC2411

0.1uC2413

0.1uC2414

22R2414

3.3 1.2 3.3 3.2 3 1.2 3.2 1.2 1.2 3.3 1.6 1.6 1.2 0 3 1.2 3.3 3.2 0 1.2

23

21

22

SPICLK

DPI_P05

VDD_INT

0.1uC2416

22R2416

JL2403

17

18

19

16

MOSI20MISO

VDD_INT

VDD_INT

RESETOUT/RUNRSTIN

A/D_2CH

C/SW_IN59LRCLK_IN60BCLK_OUT61LRCLK_OUT62SBL/SBR_IN63L/R_IN

57

58

0uH

VDD_INT

ADSST-AVR-3045

R2423

1k

0.1uC2417
R2425

14

15

XTAL

VDD_EXT

IC2400

IC2400

DSP

1M

13

CLKIN

VDD_INT65DIR_IN

64

C2419

0.1uC2420

12

VDD_INT

22p

10kR2427

8

11

10

NC9NC

GND

CLK_CFG0

VDD_INT67VDD_INT68GND69THD_M70THD_P

66

22R2430

7

BOOT_CFG1

JL2405

10kR2432

10kR2434

0.1uC2423

0.1uC2425

3

6

2

4

5

VDD_INT

VDD_INT

VDD_EXT

CLK_CFG1

BOOT_CFG0

VDD_THD72VDD_INT73VDD_INT74VDD_INT75VDD_INT

71

1

0.1uC2429

10uC2431

VDD_INT

TMS

RESET

VDD_INT

VDD_INT

VDD_EXT

TDO
EMU

TRST

MLBSO

VDD_INT

MLBSIG

VDD_EXT

MLBDO
MLBDAT
MLBCLK

FLAG3
FLAG2

FLAG1
VDD_INT
VDD_INT

FLAG0
VDD_INT

CL2405

CL2406

10u

3.3V

+2V

>015S

MAIN BOARD

32

(4/7), (5/7)

(Page 27), (Page 28)

R2458

0uH

0uH

10kR2454
22R2452

2.2kR2451
22R2450
10kR2449
22R2448

3.3 0.1 3.3 3.3

1CS2

10kR2442
22R2441
22R2436
10kR2435

VCC

7

8

VCC

7

NC
EN

C2443

6

HOLD(IO3)

DO(IO1)3WP(IO2)4GND DI(IO0)

1

VO

2

FB

3

GND

W25Q80BVSSIG

SERIAL FLASH

IC2402

BD00IC0WHFV-GTR

IC2402

+1.2V REG.

FB2403

FB2401

IC2401

IC2401

R2457

1.2

0.8

10k

R2455

C2450

220u

10V

DSP-NPCM

DSP-INT

3.9k

R2456

220

C2451

0.1u

DSP-SPICLK

DSP-MOSI

DSP-SFLASH-HOLD

DSP-MISO

DSP-SPICS

C2445

C2444

0.1u

10u

C2448

10u

101

R2446

C2435 0.1u

1.2

100

C2436 0.1u

99

3.8

98

C2437 0.1u

1.2

97

TCK

0

96

TDI

95

C2438 0.1u

1.2

94

C2439 0.1u

3.3

93
92
91

0.7

90

R2437 0

89

C2440 0.1u

1.2

88
87

C2432 0.1u

3.3

86

R2438 0
85
84
83
82

R2439 22

0

81

R2440 22

3.1

80

C2433 0.1u

1.2

79

C2434 0.1u

1.2

78

0

77

C2441 0.1u

1.2

76

100k

R2447

R2443

10k

R2444

10k

R2445

2.2k

JL2406

1k

R2411

10k

R2413

10k

DSP-ERROR

6
5
4

C2452

10u

CLK

3.33.33.3

10k

2

3.3

C2454

C2453

0.1u

0.1u

D-GND

C2442

0.1u

5

J

K

STR-DH550/DH750

C2409 0.1u

C2410 0.1u

R2410 22

R2417 22

R2418 22

R2422 22

R2424 22

R2419 22

C2412 0.1u

MCLK-IN

R2415 220

DSD-IN

C/SW-OUT

C/SW-IN

LRCLK-IN

R2421 330

FB2400

330R2420

BCLK-OUT

LRCLK-OUT

SBL/SBR-IN

C2418 0.1u

R2426 22

C2421 0.1u

C2422 0.1u

C2424 0.1u

C2426 0.1u

C2427 0.1u

C2428 0.1u

C2430 0.1u

DIR-IN

R2429 100

R2431 100

JL2407

JL2404

Note: IC2402 on the MAIN board cannot exchange with single.

2929

When this part on the MAIN board is damaged, exchange
the entire mounted board.

STR-DH550/DH750

Ver. 1.1

5-15. SCHEMATIC DIAGRAM – MAIN Board (7/7) –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

B

MAIN BOARD (7/7)

C

D

PROG-VU-RST

E

F

G

H

I

BT MODULE

J

>012S

MAIN BOARD (3/7)

K

(Page 26)

(Page 27), (Page 28)

>018S

MAIN BOARD

(4/7), (5/7)

RCH-N
RCH-P

LCH-P
LCH-N

R2603

100

D2602

CES521

D2601

CES521

IC2601

BU4229F-TR

IC2601

RESET

Q2601

LTC014EUBFS8TL

RESET SW

3.3

VURTSOUT_BTCTS

VUCTSIN_BTRTS

FB2600

0uH

3.3V VOLTAGE

C2623

R2653

0.1u

10k

1.7

1

2

VDD

GND

VOUT

3CT4

3.33.3

C2618

0.001u

DH750

CN2600

C2604 0.1u

14P

C2605 4.7u

14GND

CL2601

13RESET

CL2602

123.3V
CL2603

11BTCTS

CL2604

10BTRTS

CL2605

9BTRX

CL2606

8BTTX

CL2607

7MUTE
6GND

CL2608

5LCH_N

CL2609

4LCH_P

CL2610

3RCH_P

CL2611

2RCH_N

CL2600

1GND

38

MU-RST

0

BT_RST

BT_VURX

BT_VUTX
BT-MUTE

Q2604

PMG85XP
CONTROL

HDMI-MB-MUTE

HDMI-MUTE

D2603

CES521

SPARTA-RST

PROG-MUTX
PROG-MURX

MHL-PCONT
HDMIOUT-5VPWR

HDMI-SDA
SPARTA-INT
HDMI-SCL
PROG-MU-MD0

MU-UART-IN
VCOM-SDA

C2617 0.001u
C2616 0.1u
R2637 10k

R2633

C2922

1u

3.3

S

3.3

1k

CL2904

0

• See page 21 for Waveforms. • See page 43 for IC Block Diagrams. • See page 50 for IC Pin Function Descriptions.

CN2900

C2602

1u

CL2627

R2656 2.2k

C2622 0.1u

R2673 10k

R2671 10k
R2672 10k
R2933 10k
R2670 10k

R2617 100
R2613 100

JL2605
JL2604
JL2603
JL2602
JL2601

R2636 10k

JL2600

FB2601

0uH

DH750

5P

CL2903

1GND

CL2902

2D+

CL2901

3D-

CL2900

4VBUS
5GND

STBY3.3V

D-GND

100R2607
100R2606
330R2605
330R2604

RB2802

100

RB2800

100

R2634

100

R2611

R2926

10k

R2932
R2931

NFC-SPICLK

NFC-RF-DET

100

+6V

DH550

JC2670

C2919

10u

D2902

CES521

0

3.3k

3.3k

R2918

10k

3.3V

0.1u

C2908

C2906 68p

C2907 68p

FB2900

0uH

C2903

10u

CL2626
CL2625
CL2624
CL2623
CL2622
CL2621
CL2620

C2921

0.1u

R2927

10k

D2604

CES521

R2666

10k

Q2602

LTC014EUBFS8TL

RESET SW

3.3

C2625
C2624
R2655
R2654

R2934
R2652
R2651

C2621

C2620
C2619
R2646

R2644
R2645
R2642

D2600

R2640
R2639

R2638
C2615

X2600

4MHz

C2920

1u

0

0.1u

0.001u
100

4.7u

0.1u
1k
1k
10k
100
100

JL2635

4.7u

47
100
47

100
100

2.2k

0.001u

R2647

10k

CES521

R2632

>022S

FRONT JACK

BOARD

CN104

(Page 39)

IC2603

MFI337S3959

IC2603

APPLE AUTHENTICATION

COPROCESSOR

1

GND

0.2

2

APPLE_SDA

3

NC

4

NC

R2669

10

JL2628

JL2629

JL2631

JL2632

JL2633

R2625 100k

20

TEST-4

56

DH750

JL2634

18

19

NC

TEST-1

TEST-2

TEST-3

NC

NFC_SEL58NC59NC

57

60

3.3 3.30 0.2 0 0 3.3 0 0 0 3.3 3.30 0 0

R2626 100k

R2616 100

NFC-SEL

JL2630

23

21

22

24

25

VSS

TEST-5

TEST-6

TEST-7

3.3

26

VCC

0.1

27

PROG_MUTX

0

28

PROG_MURX

29

NC

0

30

MHL-PCONT

3.3

31

HDMIOUT_5VPWR

3.3

32

HDMI_PCONT

1.2

33

C

34

VSS

3.3

35

VCC

0

36

SPARTA_RST

3.3

37

HDMI_MUTE

3.3

38

INITX

3.3

39

SPARTA_INT

40

HDMI_SDA

1.6

41

HDMI_SCL

0

42

PROG_MU_MD0

0

43

MU_RST

3.3

44

MU_UART_IN

3.3

45

VCOM_SDA (OUT)

0

46

MD1

0

47

MD0

1.4

48

8

PE2/X0

1.5

49

1k

PE3/X1

50

VSS

NFC_IRQ

NFC_SW

NFC_DATA55NC

VCC

54

51

52

53

C2609 4.7u

C2610 0.1u

R2630 100

R2615 100

R2614 100

NFC-SW

NFC-IRQ

NFC-DATA

9GND

8

VCC

7

APPLE_RST

6

APPLE_SCL

5

NC

R2667

UPDATE-LED

HDMI-NLPCM

100

100

2.2kR2664

R2659

R2658

11

12

15NC16NC17

14

13
NC

UPDATE-LED

HDMI-NLPCM

IC2602

MB9AF156NPMC-G-JNK1E2

IC2602

HDMI CONTROLLER

AVCC61AVRH62AVSS

NC

BT-PCONT65BT_VUTX

63

64

C2611 0.1u

C2612 0.1u

R2929 100

C2634

3.3
0

0.1

10

47R2661

47R2660

10

APPLE_SDA

66

100R2619

100R2620

BT_VURX

BT_VUTX

0.1u

9

APPLE_SCL

APPLE_RST

BT_RST

BT_VURX

BT_RST
68

67

100R2621

BT_RST

2.2kR2665

8

FB2602 0uH

C2635 47p

R2668 10k
C2631 0.01u

MHL-OVC

JL2607

JL2606

6

5

7

NC

MHL-OVC

TEST_SCL

TEST_SDA

VURTSOUT_BTCTS

Prog_VU_SCK72Prog_VUTX73Prog_VURX74NC75VSS

VUCTSIN_BTRTS

NC

70

69

71

22R2612

10kR2631

100R2623

100R2622

PROG-VU-MD0

VURTSOUT_BTCTS

VUCTSIN_BTRTS

100R2657

DH750

Q2600
PMG85XP
VOLTAGE

CONTROL

0.1uC2627

3.33.300.10.100

1

2NC3NC4

NC

VCC

TRXTS (No Use)

10kR2629

10k

R2624

C2607

3.3

S

3.3

0.1uC2628

USB_OVC

USB_PCONT

USB_MCHNG

USB_SDA
USB_SCL

USB_IRPTO

USB_SEARCH

USB_RESET

USB_BUSY

NFC-SPICLK

NFC-RFDET

CL2628

VU_PCONT

1u

R2601

10k

0

C2606

0.1u

100

VSS

3.3

99

3.3

98

3.3

97

VCC

0

96

3.3

95

3.3

94

0

93

0

92

3.3

91

0.1

90

3.3

89

3.3

88
87

NC

86

NC

85

NC

84

NC

83

NC

82

NC

3.3

81

TDO

3.3

80

TMS

3.3

79

TDI

1

78

TCK

3.3

77

3.3

76

VCC

C2614 4.7u

C2613 0.1u

22R2609

22R2610

5

0.4 3.1

4

5

6

ILIM

OUT

GND3EN FAULT

1IN2

5

C2918

10u

R2922

1k

C2916

0.1u

C2915

2.2u

C2911 0.1u
R2908 100

RB2803

100

R2906 330
R2904 330

CN2601

7P

R2924

R2925

10k

10k

IC2902

TPS2553DBVR

IC2902

OVER VOLTAGE

CONTROL

3.1

C2917

R2919

1
2
3
4
5
6
7

0.1u

0

3.1

6

MD0
RESET
Prog_VUTX
SCK
Prog_VURX
GND

3.3V

R2921

100k

5

EN

6

NC_6

7

NC_7

8

VCC

9

1
2

3.1

3
4

0

5

0

6

0

7

0

8

3.1

9

3.3

10

1.6

IC2901

BD00HC5WEFJ-E2

IC2901

POWER CONTROL

41

DVSSIO_1
RESETX
TMODE
KEY_COL1/IRPTO
KEY_COL2/SEARCH
KEY_COL3/MCHNG
KEY_ROW1/BUSY
KEY_ROW2/SCL
KEY_ROW3/SDA
DVDD_M

11

C2902 0.1u

PROGRAMMING JIG

4

NC_4

3

GND

1

2

FB

5

1

VO

C2914

2.2u

C2913

0.1u

10kR2910

10kR2911

10kR2912

JL2905

3.3 3.3 3.3 3.3 3.3 3.3 1.6

37

38

39

40

SD_DI

SD_CS

SD_DO

SD_CLK

IC2900

BU94502AMUV

IC2900

DECODER

9

DVSSIO_1112DVDDIO_1213TEST114XIN_PLL15XOUT_PLL16SEL_APLAY/TEST2

3.3 1.41.4 3.3 3.3 3.3

R2901

X2900

16.9344MHz

C2900

9p

(HDMI KSV)

10kR2913

36

SD_CON

1M

12k

R2916

R2914

68k

JL2906

33

34

35

LDACO

DAVDD

VCDACO

LED_PLAY/LRCK/SPDIF

SEL_COD/TEST3

SEL_SLAVE

17

18

19

R2900

1.5k

C2901

9p

R2923

560k

R2920

150k

R2915

4.7k

C2912

10u

JL2907

31

32

DAVSS

RDACO

AMUTE

DVDDIO_29

LED_REPEAT/MCLK

LED_PUSB/DATA

LED_PSD/BCK

LED_ERROR/CLK24MI

REXTI
USB_DP
USB_DM

AVDDC20AVSSC

C2904

220u

10V

C2905 0.1u

C2910

0.1u

JL2904

30

3.3

29
28
27
26
25
24
23
22
21

C2909

JL2903

0.001u

JL2902
JL2901

0

R2907

JL2900

12k

0
0
0

Note: IC2900 on the MAIN board cannot exchange with single.

When this part on the MAIN board is damaged, exchange
the entire mounted board.

D2901

D2900

FB2901

0uH

R2902

470

USB-SPDIF

STR-DH550/DH750

3030

5-16. PRINTED WIRING BOARD – HDMI Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH550/DH750

Ver. 1.1

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

HDMI BOARD

A

B

C

(CHASSIS) (CHASSIS)

D

>009P

STANDBY DCDC

BOARD
CN1901

E

(Page 34)

F

(COMPONENT SIDE)

JL3547

C3598

31

CN3513

C3596

C3597

CN3200

HDMI OUT

TV OUT

ARC

1 19 1 19 1 19 1 19 1 19

JL3225

RB3204 RB3205

JL3548

JL3549

JL3228

R3569

6

C3556

JL3551

R3567

R3570

C3359

IC3511

C3361

R3365

IC3517

15

R3817

C3578

C3570

R3556

R3648
R3647

R3549

C3561

R3816

R3551

R3568

IC3512

R3560

R3555

CN3501

VIDEO

(MHL)

DC5V 1A MAX

JL3531

KA

D3501

R3552

C3513

C3530

R3593

C3531

R3613
R3615

IC3513

R3594

C3550

X3001

C3549

R3618

R3621

R3627

R3623
R3626

R3599

R3828

R3611

R3612

R3628

JL3530

R3625
R3624

R3616
R3620

R3630

R3629

88

89

132

133

R3636R3637

CN3502

(for AUDIO)

IC3514

177

HDMI IN

C3607

C3602

C3608

R3831

R3832

CN3504

SAT/

CATV

CN3503

GAMEBD/DVD

45

44

IC3519

R3836

C3605

R3837

C3606

1

176

R3845

R3846

R3834

R3835

C3604

IC3518

C3609

C3603

R3833

JL3555

R3843

R3844

R3850
R3826

R3827

123

2

R3849
R3848

CN3514

22

1-889-546-

>008P

MAIN BOARD

CN2000

(Page 22)

11

(11)

G

H

I

J

K

Note: IC3514 on the HDMI board cannot exchange with single.

When this part on the HDMI board is damaged, exchange
the entire mounted board.

STR-DH550/DH750

3131

STR-DH550/DH750

5-17. PRINTED WIRING BOARD – HDMI Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

HDMI BOARD

A

B

C

D

E

(CONDUCTOR SIDE)

CL3519

CL3520

CL3525

CL3529

CL3521

CL3523

CL3527

CL3528

CL3524

CL3526

CL3522

CL3531

CL3533

CL3530

CL3532

CL3534

CL3535

R3503

R3502

CL3551

CL3549

R3513

R3514

R3504

R3505

R3515

R3510

R3520

R3640

C3542

R3622

C3526

R3506

R3576

C3543

C3560

R3507

C3518

C3544

C3552

C3529

C3545

C3528

R3578
R3619

C3562

C3554

R3516

R3590
R3573

C3519

R3589

R3523

R3517

R3643

C3559

R3583

C3520

C3523

R3591

R3606

R3644

C3563

C3555 C3557

R3582

R3584

C3517

R3579

R3585

C3534

C3541

C3564 C3565

C3558

FB3501

C3533

R3632

R3521

C3532

C3540

C3548

C3546

C3553

R3602

C3551

R3588

R3601

R3600

R3595
C3525

R3596

JL3553

C3538

R3645

R3842

C3536

R3646

R3598

R3597

C3527

R3509

R3508

CL3550

R3518

JL3554

R3804
C3599

R3829

R3519

R3840

FB3504

CL3518

C3566

JL3538

L3500

JL3541

R3377

R3380

FB3505

JL3543

R3373

C3363

JL3539

R3372

R3374

R3370

C3364

JL3550

JL3540

JL3544

C3567

JL3542

R3386

R3387

CL3546

CL3547

R3376

C3358

CL3548

1-889-546-

11

(11)

F

G

H

I

J

K

STR-DH550/DH750

3232

STR-DH550/DH750

Ver. 1.1

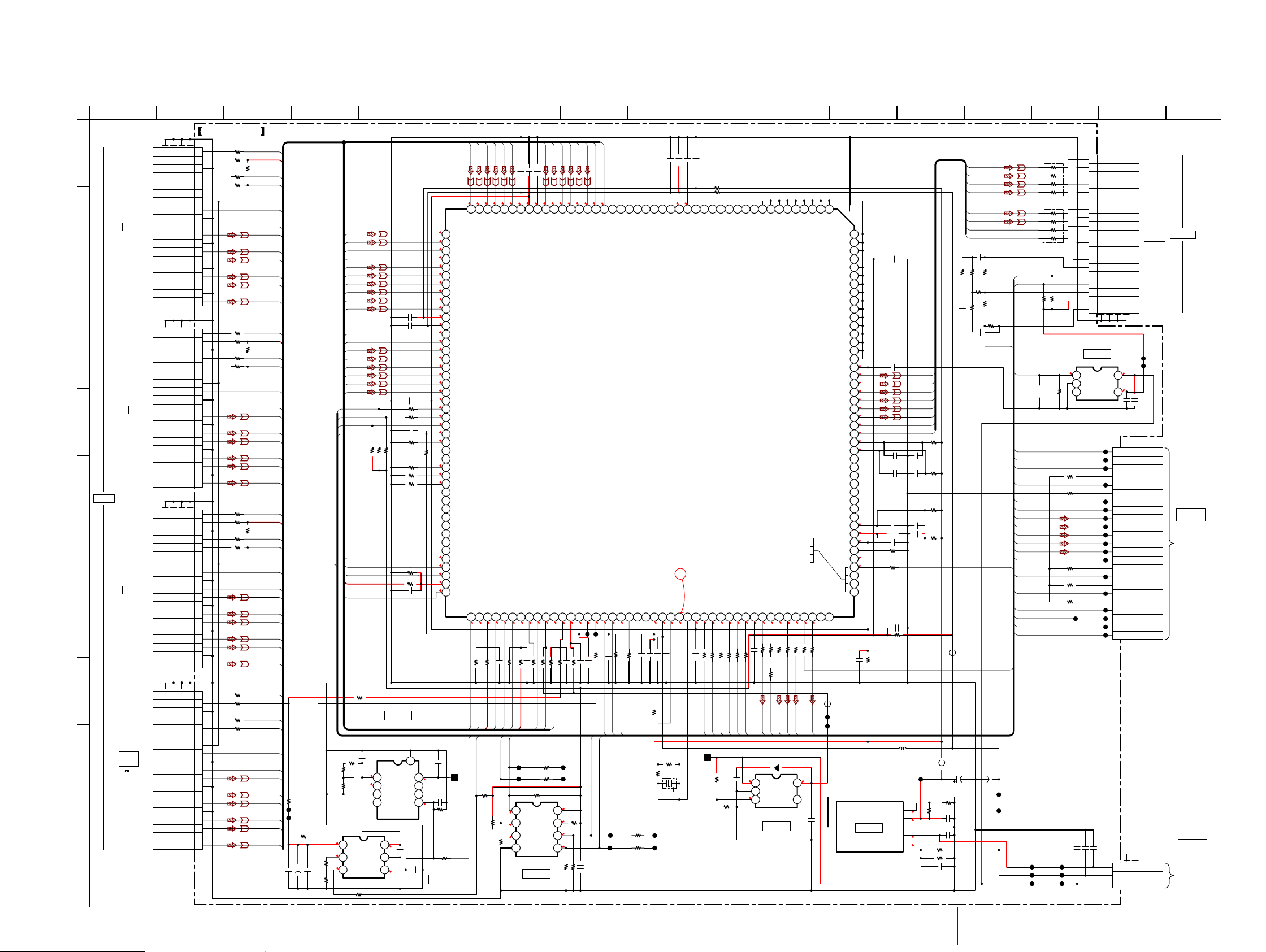

5-18. SCHEMATIC DIAGRAM – HDMI Board –

1

A

B

C

D

E

F

HDMI IN

G

(for AUDIO)

H

I

J

VIDEO

(MHL)

DC5V 1A MAX

K

STR-DH550/DH750

SAT/CATV

GAME

BD/DVD

• See page 21 for Waveforms. • See page 43 for IC Block Diagrams. • See page 50 for IC Pin Function Descriptions.

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

HDMI BOARD

RB3204

0.05

RB3205

0.05

10k

R3387

1.8k

3.1

CN3200

19P

10 CLOCK+
11 CLOCK SHIELD
12 CLOCK­13 CEC
14 RESERVE(NC)
15 SCL(5V)
16 SDA(5V)
17 DDC/CEC GND
18 +5V POWER
19 HOT PLUG DET

IC3511

MM1839A50NRE

IC3511

+5V REG.

1

CONT

2

GND

3

NC4VOUT

CL3519
CL3520
CL3521

0R3849

CL3522

0R3848

CL3523
CL3524
CL3525
CL3526
CL3527
CL3528
CL3529
CL3530

0R3850

CL3531

0R3826

CL3532

0R3827

CL3533
CL3550CL3551
CL3534
CL3535

C3597 0.1u

C3596 0.1u

1DATA2+
2 DATA2 SHIELD
3DATA2­4DATA1+
5 DATA1 SHIELD
6DATA1­7DATA0+
8 DATA0 SHIELD
9DATA0-

VIN

5

1CEC
2 HDMI_RST
3 HDMI_SDA
4DGND
5 HDMI_SCL
6DGND
7 HDMI_INT
8 HDMI_MUTE

9 HDMI_SPDIF
10 HDMI_SD0
11 HDMI_SD1
12 HDMI_SD2
13 HDMI_SD3
14 HDMI_LRCK
15 DGND
16
17 DGND
18 HDMI_MCK
19 DGND
20 ARC_SPDIF
21 HDMIOUT_5VPWR
22 MHL_PCONT
23 MHL_OVC

CN3514

23P

C3598 0.1u

32V

2 3.3V

16V

CN3513

3P

JL3228
JL3225

6

5

C3359

1u

HDMI_BCK

C3361

1u

TV OUT

DATA2 SHIELD

DATA2 SHIELD

TA1+

DATA2 SHIELD

MHL_CD0

19HOT PLUG DET
18+5V POWER
17DDC/CEC GND
16SDA(5V)
15SCL(5V)
14RESERVE(NC)
13CEC
12CLOCK­11CLOCK SHIELD
10CLOCK+

9DATA0­8DATA0 SHIELD
7DATA0+
6DATA1­5DATA1 SHIELD
4DATA1+
3DATA2­2
1DATA2+

CN3504

19P

19HOT PLUG DET
18+5V POWER
17DDC/CEC GND
16SDA(5V)
15SCL(5V)
14RESERVE(NC)
13CEC
12CLOCK­11CLOCK SHIELD
10CLOCK+

9DATA0­8DATA0 SHIELD
7DATA0+
6DATA1­5DATA1 SHIELD
4DATA1+
3DATA2­2
1DATA2+

CN3503

19P

19HOT PLUG DET
18+5V POWER
17DDC/CEC GND
16SDA(5V)
15SCL(5V)
14RESERVE(NC)
13CEC
12CLOCK­11CLOCK SHIELD
10CLOCK+

9DATA0­8DATA0 SHIELD
7DATA0+
6DATA1­5DATA1 SHIELD
4DA
3DATA2­2
1DATA2+

CN3502

19P

19HOT PLUG DET
18+5V POWER
17DDC/CEC GND
16SDA(5V)
15SCL(5V)
14RESERVE(NC)
13CEC
12CLOCK­11CLOCK SHIELD
10CLOCK+

9DATA0­8DATA0 SHIELD
7DATA0+
6DATA1­5DATA1 SHIELD
4DATA1+
3DATA2­2
1DATA2+

CN3501

19P

R3513

R3514

R3515

R3510

R3516

R3517

R3518

R3519

IN4_HPD

0R3502

IN4_5VP

0R3503

R3521

47k

22

IN4_SDA
IN4_SCL

22

IN4_CK-

IN4_CK+

IN4_D0-

IN4_D0+

IN4_D1-

IN4_D1+

IN4_D2-

IN4_D2+

IN3_HPD

0R3504

IN3_5VP

0R3505

R3520

47k

22

IN3_SDA
IN3_SCL

22

IN3_CK-

IN3_CK+

IN3_D0-

IN3_D0+

IN3_D1-

IN3_D1+

IN3_D2-

IN3_D2+

IN2_HPD

0R3506

IN2_5VP

0R3507

R3523

47k

22

IN2_SDA
IN2_SCL

22

IN2_CK-

IN2_CK+

IN2_D0-

IN2_D0+

IN2_D1-

IN2_D1+

IN2_D2-

IN3_D2+

IN1_HPD

0R3508
0R3509

22

IN1_SDA
IN1_SCL

22

IN1_CK-

IN1_CK+

IN1_D0-

IN1_D0+

R3844

IN1_D1-

0

JL3555

IN1_D1+

CL3549

IN1_D2-

R3840

0.1uC3607

220u 6.3VC3608

0

R3845

10uC3609

10k

R3846

10k

IN1_D2+

IN3_D2­IN3_D2+
IN2_CK­IN2_CK+
IN2_D0­IN2_D0+
IN2_D1­IN2_D1+
IN2_D2­IN2_D2+

IN1_CK­IN1_CK+
IN1_D0­IN1_D0+
IN1_D1­IN1_D1+
IN1_D2­IN1_D2+

HDMI_SCL
HDMI_SDA
HDMI_INT
HDMI_RST

IN4_SDA

CEC

IN4_SCL
IN4_HPD
IN4_5VP

IN3_SDA

R3843

0

C3604

2.2u

R3835

R3833

22k

33k

R3834

10k

5

6

Vout

0.8

5

ILIM

1.3

FAULT

4

C3518 0.1u
C3519 0.1u

3.3kR3573

2.2kR3576

2.2kR3578

IC3519

+5V REG.

IC3519

BD00HC5WEFJ-E2

5

VOUT

1

0.8

FB

2

GND

3

NC

45

1

n

Vi

5

2

GND

3

EN

3

100R3831

FIN
VIN

C3602

10u

9

NC
NC
EN

C3603

0.1u

0.1uC3520
47R3589
47R3590

0.1uC3523

4.7kR3583

R3591

10k
10kR3584
10kR3585
0R3579

4.7kR3582
10R3588

4.7uC3517

C3606

2.2u

8

6

7
6

3

TPS2553DBVR

1.2

45 R3X2-

1.2

46 R3X2+

1.2

47 R4XC-

1.2

48 R4XC+

1.2

49 R4X0-

1.2

50 R4X0+

1.2

51 R4X1-

1.2

52 R4X1+

1.2

53 R4X2-

1.2

54 R4X2+

1.2

55 AVDD12

3.3

56 AVDD33

1.2

57 RX5C-

1.2

58 RX5C+

1.2

59 RX50-

1.2

60 RX50+

1.2

61 RX51-

1.2

62 RX51+

1.2

63 RX52-

1.2

64 RX52+

1.2

65 CVCC12

1.2

66 CSCL

1.6

67 CSDA

1.6

68 INT

3.3

69 RESET

3.3

70 TPWR_CI2CA
71 CEC_A1
72 CEC_A0WAKEUP

3.3

73 DSDA6

0

74 DSCL6

0

75 LPSVCC33
76 DSDA0
77 DSCL0
78 CBUS_HPD0
79 R0PWR5V
80 DSDA1
81 DSCL1
82 CBUS_HPD1
83 R1PWR5V

0.5

84 DSDA2

2.2

85 DSCL2

0

86 CBUS_HPD2

0

87 R2PWR5V

2

88 DSDA3

C3605

0.1u

R3836

10k

R3837

100

IC3518

IC3518

+5V REG.

+6V

IN3_D0-

IN3_D1-

IN3_CK-

IN3_D0+

IN3_D1+

IN3_CK+

1.2 1.2 1.2 1.2 1.2 1.2 3.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.2 3.3 1.2

43

44

R3X1+

DSCL390CBUS_HPD3

89

0 0 0 1.7 0 0 0 1.7 03.3 1.2 1.53.3 1.50 00 500555 1.2 3 0 0 0 0 0 00000003.3

4.7kR3595

IN3_SCL

MHL_OVC

MHL_PCONT

42

R3X1-

91

10R3596

IN3_HPD

IN3_5VP

R3832

10k

R3549

10k

R3551

41

R3X0-

R3X0+

DSDA493DSCL4

R3PWR5V

92

IN2_SDA

SF_SO

10k

40

R3XC+

4.7kR3597

4.7uC3525

IN2_SCL

SF_CS

3.3

0

3.3

39

94

IN2_HPD

R3XC-

CBUS_HPD495R4PWR5V

JL3544
JL3542

1

2

3

4

C3526 0.1u

C3528 0.1u

C3529 0.1u

35

36

37

38

AVDD33

AVDD12

CVCC12

RSVDL

DSDA598DSCL599CBUS_HPD5

97

96

10R3598

4.7kR3599

47kR3842

4.7uC3527

IN2_5VP

IN1_SDA

IN1_SCL

10kR3552

VCC

/CS

/HOLD

DO

SCK

/WP
GND

IC3512

W25Q16CVSSIG-R

IC3512

EEPROM

R2X2+

4.7kR3600

DI

IN4_D2+

34

R2X2-

100

IN1_HPD

47R3570
47R3569

8

7
6
5

IN4_D2-

33

R2X1+

R5PWR5V

10R3601

4.7uC3532

3.3

3.3

0

0

IN4_D1+

32

101

R3555

1k

IN4_D1-

31

R2X1-

R2X0+

SBVCC5V

VCC33OUT

102

0R3602

10uC3533

10kR3556

10kR3560

IN4_D0-

IN4_D0+

IN4_CK+

28

29

30

R2X0-

R2XC+

MHL_CD0/GPIO0

MHL_CD1/GPIO1

103

104

105

JL3554

JL3553
1uC3534

R3804 47

OUT0_HPD

SF_SI

SF_SCK

JL3540

0.1uC3513

IN4_CK-

27

R2XC-

TX_HPD0

106

C3599 0.047u

OUT0_SDA

JL3541

26

R1X2-

R1X2+

TXDSDA0

TXDSCL0

107

R3829 300K

OUT0_SCL

24

25

R1X1-

R1X1+

SII9573CTUC

IC3514

HDMI RECEIVER

TX_HPD1

TXDSDA1

108

109

C3536 0.1u

R3828 10k

R3606

23

IC3514

110

0

R3625

100

C3550

3p

47R3568
47R3567

22

R1X0-

R1X0+

APLL12

TXDSCL1

111

C3538 10u

OUT0_D2+

FB3505

C3566

220u

6.3V

R3648

C3561

C3556

3.3k

10u

10u

300R3370

1uC3358

0uH

OUT0_D2­OUT0_D1+
OUT0_D1-

OUT0_D0+
OUT0_D0­OUT0_CK+
OUT0_CK-

C3364

1u

62R3372

R3373

62R3374

C3363

1u

47kR3376

0

R3377

47k

R3380

1k

OUT0_HPD

ARC_SPDIF

HDMI_MUTE

C3567

220u

6.3V

JL3551

JL3550

OUT0_SCL
OUT0_SDA

R3386

1.8k

5VPWR_A

C3578

0.001u

CEC
HDMI_RST
HDMI_SDA

HDMI_SCL

HDMI_INT
HDMI_MUTE
HDMI_SPDIF
HDMI_SD0
HDMI_SD1
HDMI_SD2
HDMI_SD3
HDMI_WS

HDMI_SCK

HDMI_MCK

ARC_SPDIF
5VPWR_A
MHL_PCONT
MHL_OVC

JL3547
JL3548
JL3549

R3365

CL3546
CL3547
CL3548

C3542 0.1u

C3543 10u

C3544 0.1u

C3545 10u

R3619 0
R3622 0

1

3

4

7DE8

9

10

11

12

13

14

15

16

17

18

19

20

21

D16

D142D15

VSYNC

MCLK

SD0_1/DR1/GPIO6

SD0_2/DL1/GPIO7

126

127

R3623 100

R3626 100

HDMI_SD1

HDMI_SD2

VOUT

D175D186D19

MUTEOUT/GPIO9

SD0_3/DR2/GPIO8

128

129

130

R3627 100

R3628 10

R3629 100

HDMI_SD3

HDMI_SPDIF

5

5

WS0_IN/GPIO11

SPDIF0_OUT/DL2

SCK0_IN/GPIO10

131

132

FB3501

0uH

JL3531
JL3530

6

6

C3530 1u

176D13
175D12
174D11
173IOVCC33
172IDCK
171D10
170D9
169D8
168D7
167D6
166D5
165D4
164D3
163D2
162D1
161D0
160CVCC12
159T0X2+
158T0X2­157T0X1+
156T0X1­155T0X0+
154T0X0­153T0XC+
152T0XC­151TDVDD12
150TPVDD12
149T1X2+
148T1X2­147T1X1+
146T1X1­145T1X0+
144T1X0­143T1XC+
142T1XC­141TDVDD12
140TPVDD12
139CVCC12
138ARC1
137ARC0
136
135
134
133

C3551

10u

RP108J081D-FE

1.2

1.5

1.5

1.6

1.6

1.6

1.5

0.6

0.6

1.2

1.2

1.2

1.2

1.2

0
0

R3632

IC3517

IC3517

+1.2V REG.

C3552

C3553

C3558

C3559
R3636
R3637

0

C3554

C3555

C3557

0.1u

0.1u

0.1u

C3560

10u

R3640

VFB

VOUT

GND
VDD

0.1u

0.1u

0.1u

0.1u
0
47

0

L3500

CE

10uH

CL3518

5
4
3
2
1

OUT0_D2+

OUT0_D2-

OUT0_D1+

OUT0_D1-

OUT0_D0+

OUT0_D0-

OUT0_CK+

OUT0_CK-

C3562

10u

C3563

10u

C3564

10u

C3565

10u

0.8

1.2

2

3.3

R3643

0

R3644

0

R3645

0

R3646

0

FB3504

0uH

R3647

2.2k

R3817 100
R3816 10k

C3570

0.01u

AVDD33

AVDD12

R0X2-

R0X0+

R0X1+

R0X2+

SD1_IN/SD1_OUT/SPDIF1_IN/SPDIF1_OUT

R0XC+

R0XC-

HSYNC

WS1_IN/WS1_OUT

SCK1_IN/SCK1_OUT

SD0_IN/SPDIFO_IN

R1XC+

R1XC-

R0X0-

R0X1-

1

XTALOUT

XTALIN

CVCC12

SCLK/GPIO3

WS0_OUT/DR0

XTALVCC33

XTALGND

112

113

C3541 10u

C3540 0.1u

R3624

130k

X3001
27MHz

C3549

SS/GPIO2

114

115

116

117

118

R3611 220

C3546 0.1u

R3612 220

SF_CS

SF_SCK

+6V

R3593

1k

3p

SD0/GPIO4

119

R3613 220

SF_SO

C3531

1u

R3594

10k

SD1/GPIO5

120

R3615 220

SF_SI

121

R3616 47

HDMI_WS

SCK0/DDCK

122

123

C3548 0.1u

R3618 220

HDMI_SCK

6

5.5

IOVCC33

SD0_0/DL0

125

124

R3620 100

R3630 0

100

R3621

HDMI_SD0

HDMI_MCK

D3501 CES521

VDD

1

GND

2

CE4NC

3

IC3513

MM3411A50NRE

IC3513

+5V REG.

Note: IC3514 on the HDMI board cannot exchange with single.

3333

When this part on the HDMI board is damaged, exchange
the entire mounted board.

ARC

HDMI OUT

>014S

MAIN

BOARD

(4/7)

CN2000

(Page 27)

>023S

STANDBY

DCDC
BOARD
CN1901

(Page 36)

STR-DH550/DH750

Ver. 1.2

5-19. PRINTED WIRING BOARD – STANDBY DCDC Board (Component Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

STANDBY DCDC BOARD

A

B

C

D

E

F

(COMPONENT SIDE)

ÚDH550
¾DH750
BR

VOLTAGE SELECTOR

220V 127VOFF

~ AC IN

C970

R979

R981

L1901

L1903

L1905

¾

L910

IC1905

C1910

IC1906

R1915

C1930

IC1907

C1950

R1905

L1902

L1904

R1925

L1906

C1903

C1923

C1943

C1902

C1922

C1942

C981
C982

C1904

C1924

C1944

C1952

C1905
R1901

C1912

C1925

C1932

R1921

¾

R1911

C1945

R978

C980

C1913

C1933

C1953

C975

C1954

C1909

R1906
R1907

C1929

R1926
R1927

C1914

C1934

C978
C976

R1916
R1917

C1949

C979

R1908

R1928

R1909

C1907

C1927

R1918

C1947

IC902

C977

R1930

R1903

R1919

R1931

R1932

R1929

R1913

R1923

LP1902

1-889-544-

ET1900

191012

(CHASSIS)

MAIN BOARD

CN2005

(Page 22)

>007P

CN1901

>009P

HDMI BOARD

CN3513

(Page 31)

21

(21)



S901

D904

D902

LP1901

C969

C963

D901

D903

AK

KA

C1976

Ú

IC901

C971



15

CNP903

CNP902

14

F901



FH901FH902

F902

FH903 FH904

CNP901

13

RY951

T902

POWER TRANSFORMER

(SUB)

CN941

R971

D906

KA

14

R972

R973

F941

F940

E
Q951

KA

AK

C960 C961

R974

D923

G

H

>002P

MAIN BOARD

CN950

T901

POWER

I

TRANSFORMER

(MAIN)

(Page 22)

>001P

MAIN BOARD

J

CN951

(Page 22)

K

Note: IC902 (DH750) on the STANDBY DCDC board cannot ex-

change with single. When this part on the STANDBY DCDC
board is damaged, exchange the entire mounted board.

STR-DH550/DH750

3434

5-20. PRINTED WIRING BOARD – STANDBY DCDC Board (Conductor Side) – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH550/DH750

Ver. 1.2

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

STANDBY DCDC BOARD

A

B

C

D

E

(CONDUCTOR SIDE)

BR

CL906

CL903

CL904

CL905

CL902

CL907

CL901

CL908

CL996

C962

Q952E

R963

R960R961

D905
E

CL915



C902

C907

JS901

C908

CL985

CL914

CL913



JS906

CL912

JS904

CL986

CL984

CL942

21

F

1-889-544-

(21)

G

H

I

J

K

STR-DH550/DH750

3535

STR-DH550/DH750

Ver. 1.2

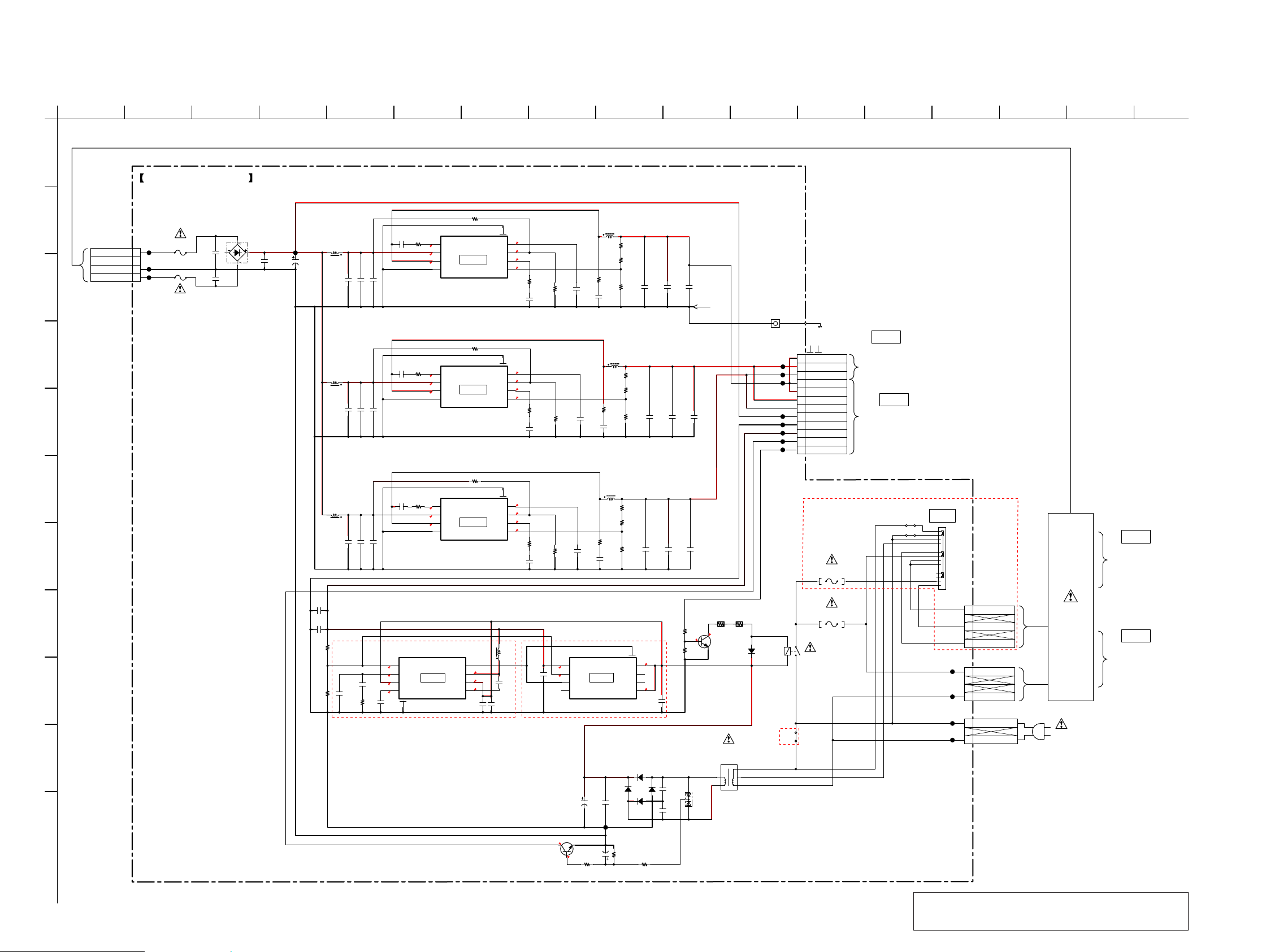

5-21. SCHEMATIC DIAGRAM – STANDBY DCDC Board –

1

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

A

STANDBY DCDC BOARD

IC1905

RT8293ALZSP

IC1905

+6V REG.

IC1906

RT8293ALZSP

IC1906

+3.3V REG.

100kR1909

9

3.6

8

SS

7

7

EN

1

6

COMP

0.8

5

R1903

10k

R1930

56k

C1907

0.0022u

100kR1919

9

3.6

8

SS

7

7

EN

1

6

COMP

0.8

5

R1913

4.7k

R1931

56k

C1927

0.0022u

C1909

0.1u

C1929

0.1u

L1902
10uH

R1905

4.7

C1910

0.001u

L1904

R1915

C1930

0.001u

10uH

4.7

R1907

33k

R1908

33k

R1906

10k

R1917

22k

R1918

10k

R1916

10k

C1912

22u

C1932

22u

C1913

22u

C1933

22u

C1914

0.1u

C1934

0.1u

W1900

ET1900

CL902
CL901
CL908

CL907
CL905
CL904
CL903
CL906

CN1901

12P

12

11

10

9
8
7
6
5
4
3
2
1

(CHASSIS)

+6V
+3.3V
+2V
+6V
+6V
+3.3V
+2V
R3 12V
STBY GND
STBY +3.3V
STOP
PWR RLY

>023S

HDMI BOARD

CN3513

(Page 33)

>019S

MAIN BOARD (4/7)

CN2005

(Page 27)

B

CN941

4P
1R3 AC (YEL)
2NC
3CENTER TAB
4R3 AC (GRN)

C

CL984

CL942
CL985

F940

3.15A 250V

F941

3.15A 250V

0.047u

0.047u

D

E

C907

C908

D923

D3SBA60-7101

C902

0.1u

CL986

C1976

3300u 25V

L1901

10uH

L1903

10uH

C1905

R1901

0.1u

22

1

BOOT

10.5

2

VIN

13.1

3

SW

6.1

4

R1911

22

7.8

13.1

3.4

GND FB

1

BOOT

2

VIN

3

SW

4

GND FB

10u

C1904 0.1u

C1902 10u

C1903

C1925

0.1u

10u

C1924 0.1u

C1922 10u

C1923

100kR1929

F

L1905

10uH

10u

C1942 10u

0.0033u

0.0033u

C980

C978

R978

C1943

15k

G

C982

22u

C981

R979

22u

75k

R981

24k

H

I

C979

C1945

R1921

0.1u

22

1

BOOT

6.7

2

RT8293ALZSP

VIN

13.1

3

SW

IC1907

2

4

+2V REG.

GND FB

C1944 0.1u

IC902

0.8

8.7

0.8

0.1u

RT7237ALGSP

5

COMP

6

EN

1

7

SS

8

9

IC902

+3.3V REG.

(STBY)

GNDFB

BOOT

SW
VIN

IC1907

4
3
2
1

C975

10u

9

3.6

8

SS

7

7

EN

1

6

COMP

0.8

5

R1923

4.7k

R1932

56k

C1947

0.01u

L910

10uH

3.3

8.4
8

C976

C971

0.1u

C977

0.1u

10u

DH550DH750

1

3.3

2

0.8

3
4

J

C963

3300u

16V

K

0

Q952

2PD601ART

AC OFF DETECT

0.7

L1906
10uH

R1925

4.7

IC901

IC901

+3.3V REG.

(STBY)

C962

0.1u

C1950

0.001u

CL996

D903

R961

R1926

NC_7
NC_6

10k

C1949

0.1u

VO

BD00GC0WEFJ-SE2

FB
GND
NC_4 EN

C969

1u 50V

R963

10k

R1927

0

R1928

18k

12k

9

8

VCC

7
6
5

D901 ~ D904

GS1G

D901

D902

D904

R960

BR

JS904 0
JS906 0

C960

0.1u

C961

0.1u

C1953

R974

2.2k

R973

47k

22u

C1954

0.1u

R972

12

0

0.8

2PD601ART

DRIVER

POWER TRANSFORMER

D905

BAV70

Q951

RELAY

T902

(SUB)

R971

F902

T6.3AL 250V

FH904

15

D906

DA2J10100L

BR

JS901

FH901

RY951

0

220/240V

120/127v

FH903

F901

*1

FH902

*1

T3.15L 250V

(AEP, AUS, UK)

8A 125V

(US, CND)

T4AL 250V

(BR)

T6.3AL 250V

(MX, TW)

C1952

22u

8.4

8.4

C970

0.1u

4.7k

S901

VOLTAGE

SELECTOR

12
11
10

9
8

7
6
5

4
3
2
1

CL912

CL913

CL914

CL915

220V

r

OFF

r

127V

CNP903

3P

1 220V(E51)/NC(BR)

3 120V(E51)/127V(BR)

5 240V(E51)/220V(BR)

CNP902

4P

1 LIVE

4 NEUTRAL

CNP901

3P

1 LIVE

3 NEUTRAL

T901

POWER

TRANSFORMER

(MAIN)

~ AC IN

>007S

MAIN BOARD

(2/7)

CN950

(Page 25)

>008S

MAIN BOARD

(2/7)

CN951

(Page 25)

STR-DH550/DH750

Note: IC902 (DH750) on the STANDBY DCDC board cannot ex-

change with single. When this part on the STANDBY DCDC

3636

board is damaged, exchange the entire mounted board.

5-22. PRINTED WIRING BOARD – PANEL Section – • See page 14 for Circuit Boards Location. • : Uses unleaded solder.

STR-DH550/DH750

Ver. 1.2

1

A

B

DISPLAY BOARD

ÚDH550
¾DH750

CL123

CL121

C

PURE DIRECT

D

JR111

E

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

MAIN BOARD

>006P

CN2004

(Page 22)

CL113

JR177

JR

JR

JR105

JR108

28

JR

29

CL110

AK

D109

E

Q104

KA
D103

S102

DIMMER

CL117

R159

CL112

CL114

JR JR141

R160

JR

R150

JR163

JR

JR138

C131

R140

JR187

Q101

JR

R120

R134

R165

CL119

JR174

JR

CL125

CL106

CL135

R143

D108

Q102

E

JR

JR102

S101

JR133

JRJR
JR147
JR165

JR134

JRJR

JRJR

JRJR

JR137

JR192
JR172

JR153

JR

JR

JR

JR190

JR156

JR

CL127

R144

JRJR

JRJR
JRJR

CL129

JR

2

JR158

1

CL133

CL134

CL136

JR194
JR

R142

JR182

JR

JR162

JR

JR

JR109

JR

JR110

JR JR142

JR176

JR

JR

JR113

C134

CL132

IC100

R148

R147

CN102

CL124

CL120

CL128

CL130

R114

R113

C114

JR171

JR

C135

CL126

CL118

EN101

JR143

CL122

CL115

JR

CL111

E
Q103

R162

R149

CL147

JR106

JR

T100

¾

9

CL137

CL139
CL143

C143

C148
R156

CL144

JR189

JR

¾

JR

JR103

C149

CL142

JR

JR184

CL140

1-889-539-

8

CN103

2

1

CL138

LP001

12

(12)

CL116

Ú

¾

R145

R146

C132

R137

R136

JR139
JR

C127

JR

C128

JR195

S104

INPUT MODE

CONNECTION PAIRING

BLUETOOTH

JR

JR135

C129

C130

T100

L101

D106

D107

AK

S103

DISPLAY

EN100

K/AAKK/A

C133

L102

R135

R133

INPUT SELECTORMASTER VOLUME

R151

R139

JR150
JR

R132

FB100

R141

C137

R129

C125

C140

1 542 5338 50

R157

JR

JR166

JR

JR157

R128

C123

4 8 21 23 29 31 332712 17 3414 15 35105

C141

C138

S105

NIGHT MODE

JR159

C119

R117

R123

C122

R124

IC101

C124

R127

R126

C120

R125

C121

C117

R119

R122

ND101

VACUUM FLUORESCENT DISPLAY

C113

R153

JR188

JR

R115

R118

R116

AK

R167
R168
R169
R170
R112
R171

JR146
JR

S108

LP002

D104

CL141

R158

C112

JR

CL145

JR

JR191

JR164

JRJR

JR

JR193

JR173

JR136

JR178

S109S110

JR

JR

JR144

JR183

JR160

JR

JR

JR145

JRJR

JR

JR152

JR154

R130

JR

JR140

JR

R131

JR101

JR

CL146

JR186

CL105

JR

JR

JR

JR

JR148

JR180

JR100

JR

JR181

CL148

JR170

JR

JR151

JR

CL107

C142

CL109

CL108

JR149

CL131

CN100

JR

MUSIC MOVIE A.F.D./2CH

JR185
JR

JR112

JR

JR104

JR

C118

C115

R121

R154

C116

1113

JR

JR107

CL104

>010P

F

LP003

POWER

KEY

BOARD

CN108

(Page 41)

>011P

FRONT

JACK

BOARD

CN105

(Page 39)

G

NFC ICON PC BOARD
(DH750)

H

(COMPONENT SIDE)

2

8

CN2550

19

NFC ICON PC BOARD
(DH750)
(CONDUCTOR SIDE)

I

NFC

MODULE

8

J

CN2551

127

1-889-703-

21

(21)

1-889-703-

21

(21)

K

STR-DH550/DH750

3737

STR-DH550/DH750

Ver. 1.1

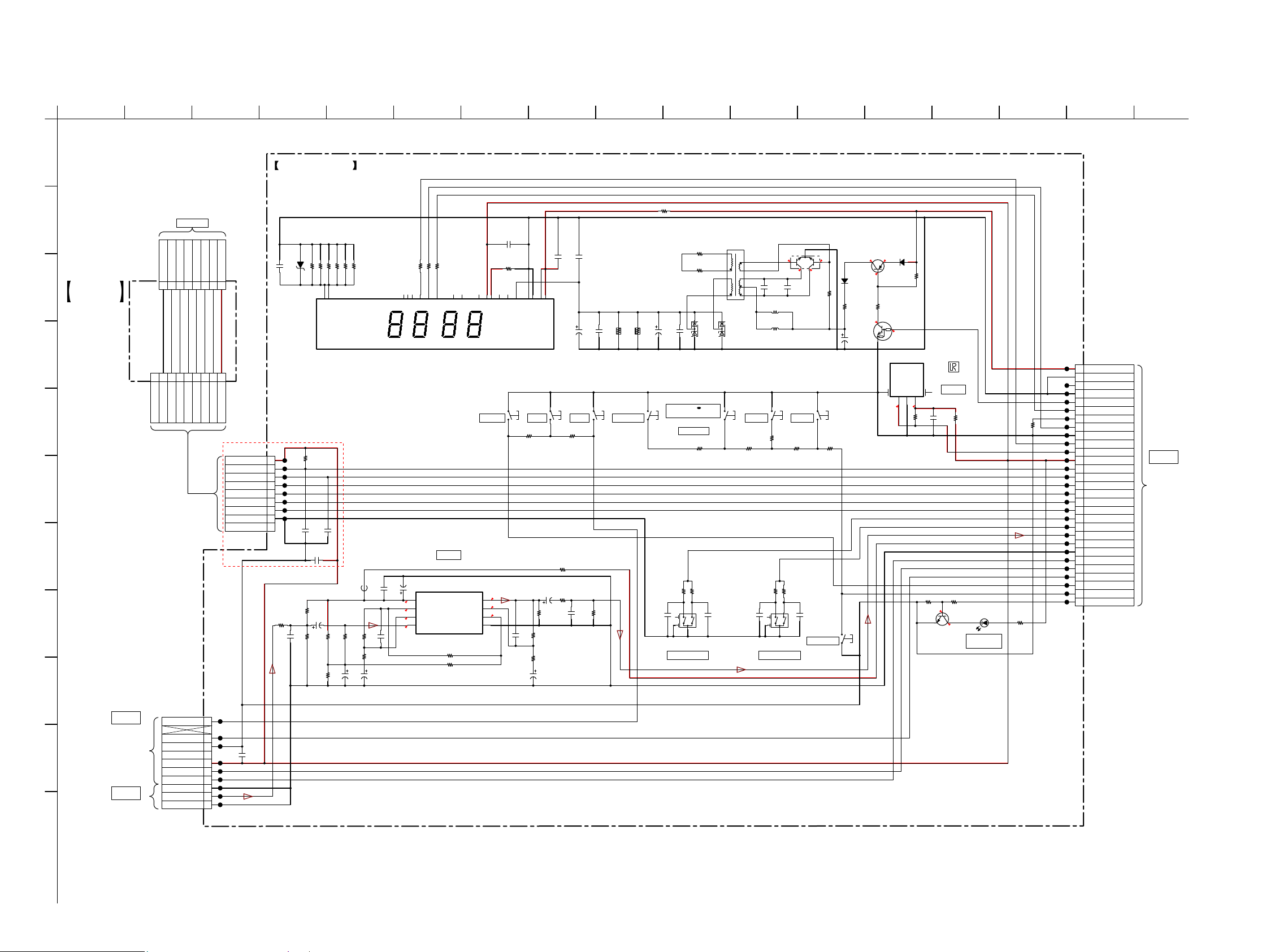

5-23. SCHEMATIC DIAGRAM – PANEL Section –

A

B

C

D

E

F

G

H

I

J

K

1

NFC ICON
PC BOARD

(DH750)

CN2550

9P

>024S

POWER KEY

BOARD

CN108

(Page 41)

>025S

FRONT JACK

BOARD

CN105

(Page 39)

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

DISPLAY BOARD

R157 0

CN2551

8P

NFC MODULE

75R167

75R168

75R169

75R170

75R112

1uC112

D104

1STBY_3.3V
2NFC_SPICLK
3NFC_DATA
4NFC_SEL
5NFC_IRQ
6NFC_SW
7NFC_RFDET
8DGND
9NC

CN103

9P

R154

C115
100p

PIN 1 - F+
PIN 2 - F+
PIN 4 - LGND
PIN 5 - PGND
PIN 8 - VH
PIN 10 - SW
PIN 12 - VIN
PIN 14 - OSC
PIN 15 - VDD
PIN 17 - K2
PIN 21 - K1
PIN 23 - DOUT
PIN 27 - DIN
PIN 29 - CLK
PIN 31 - STB
PIN 33 - KS1
PIN 34 - KS2
PIN 53 - F­PIN 54 - F-

CL144
CL143
CL142
CL141
CL140
CL139
CL138
CL137

C148
220p

100

UDZVTE-172.0B

R156

100k

C149

220p

C143

0.1u

R117

C116

1u

4.7k
50V

R115

R121

4.7k

R116

4.7k

4.7k

1 VDD_3.3V

2 SPICLK(CLOCK)

3DATA

4 SEL

5IRQ

6SW

7RFDET

8GND

1STBY_3.3V

2

3NFC_DATA

4

5

6NFC_SW

7NFC-RFDET

8

9NC

DGND

NFC_IRQ

NFC_SEL

NFC_SPICLK

CN100

11P

CL104

1AD1

CL105

3POWER_BUTTON

CL109

MIC_JACK

4DGND
5NC
6+3.3V_STBY
7LED_ON
8LED_STBY

9AGND
10
11AGND

CL108
CL107
CL106
CL146
CL148
CL145

C142

0.1u

75R171

R160 100

R159 100

R158 100

F-

ND101

VACUUM FLUORESCENT DISPLAY

DH750

IC101

AUDIO AMP

8
7
6
5

V+
B_OUTPUT
B-INPUT
B+INPUT

IC101

NJM2904M

A_OUTPUT

A+INPUT

1kR122
47kR119

A-INPUT

C117

R118

10u
50V

47k

AGND

FB100

0uH

C118

R124

R123

16V

C124

C122

100u

0.1u

16V

7

3.5

3.5

C119

47k

10k

22u

3.5

33p

GND

S108

A.F.D/2CH

1
2
3
4

C113

0.1u

C141

S109

MOVIE

R126

R125

6.2k
C120

C140

0.1u

0.1u

12451214151721232729313334 810355354

F+

C137

C138

S110

MUSIC

C125

0.0022u

R151

0.1u

8.2k

R129
100k

10u
50V

R131

2.2k

R141

100

C123

1u

R128

50V

1k

R127

6.8k

56k

22u

16V

R139

8.2k

S105

NIGHT MODE

C127

50V

47u

0.0033u

C132

R153

68k

R130

1k

3.5

3.5

3.5

C121

33p

R136 100

R137 100

C128

0.01u

S104

CONNECTION PAIRING

BLUETOOTH

(DH750)

INPUT MODE

(DH550)

R132

4.7k

R145

R146

10k

23

5
4

1

EN100

INPUT SELECTOR

22k

D106

BAV99-215

DC CONVERTER
TRANSFORMER

8

1

9

C133

0.0033u

T100

D107

BAV99-215

R133

C135

0.0033u

5
67
4
3
2

DISPLAY

2.2k

S103

R147

10k

MASTER VOLUME

QS5W2TR

SWITCHING TRANSISTOR

-0.2

BB

5

C130

C129

0.022u

0.0047u
L101

47uH
L102

47uH

S102

DIMMER

R165

0

R134

2.2k

R148

22k

23

5
4

1

EN101

Q101

E

CC

C134

0.0033u

PURE DIRECT

Q104

2SB1710TL

SWITCHING

TRANSISTOR

D109

CONTROL

-0.2

5

R140

680

S101

R135

D103

SA10QA04

R120

0

C131

220u

6.3V

1k

SA10QA04

5.6

5.5

R150

4.8

0.1

R149

680

4

470

Q103
PDTC114ET
SWITCHING

TRANSISTOR

CONTROL

3.2

VO1GND2VCC

3.33.3

3

R114

33k

PNA4823M03S0

5

IC100

REMOTE CONTROL

SIGNAL RECEIVER

C114

4.7u

R144

0

100k

Q102

2PD601ART

LED DRIVER

IC100

R142

10k

2

R113

10

SLI-325DCT31W

(PURE DIRECT)

D108

LED

R143

CN102

29P

CL110

29

DCDC_6V

28

CL111
CL112
CL113
CL114
CL147

R162

CL117

0

CL115
CL116
CL118
CL119
CL120
CL121
CL122
CL123
CL124
CL125
CL126
CL127
CL128
CL129
CL130
CL131
CL132
CL133
CL134
CL135
CL136

220

FL GND

27

FL_BK/R3_15V

26

FL GND

25

EN

FL

24

FL_DATA

23

DGND/ZONE POWER

22

FL_CLK

21

DGND

20

FL_STB/LATCH

19

SIRC_IN

18

STBY_3.3V

17

NFC_SPICLK

16

NFC_DATA

15

NFC_SEL

14

NFC_IRQ

13

NFC_SW

12

NFC_RFDET

11

INPUT_JOG

10

VOL_JOG

9

DCAC_SIGNAL

8

+7V

7

AGND

6

LED_STBY

5

LED_ON

4

POWERKEY

3

AD1

2

AD2

1

PUREDIRECT

>017S

MAIN

BOARD

(4/7)

CN2004

(Page 27)

STR-DH550/DH750

3838

STR-DH550/DH750

Ver. 1.1

5-24. PRINTED WIRING BOARD – FRONT JACK Board –

CN100

>011P

CL173

C150

•

: Uses unleaded solder.

CL175

• See page 14 for Circuit Boards Location.

1

A

2 3 4 5 6 78

FRONT JACK BOARD

MAIN BOARD

CN2900

(Page 22)

B

C

D

>005P

CL171

15

C152

CL170

D130

A/K

KA

JR200

R191

7

6

JRJR

CN104

CL172

D129

A/K

KA

R192

C154

14

R193

5
R190

KA

D126

JRJR

JR201

DISPLAY BOARD

(Page 37)

CN105

13

C151

ET101

E

DC5V 1A MAX

F

CN106

(CHASSIS)

AUTO CAL MIC

J100

1-889-540-

12

(12)

5-26. PRINTED WIRING BOARD – TUNER1 Board –

• See page 14 for Circuit Boards Location.

1

2 3 4 5 6 7 8

A

CN103

AM

ANTENNA

CN102
CN104

ȍ&2$;,$/

•

$(38.$86(7:

86&1'0;%5

FM

TUNER1

B

C

D

E

F

G

1S123

64

BOARD

A001

(CHASSIS) (CHASSIS)

L101

13

D101

S2

R113

R103

9

JL132

R101

JL130

JL104

8
JL103

JL125

R105

R104

JL102

JL122

JL106

JR

JL131

JL121

L101

C101

JR109

JL126

C102

JL108

CN101

JR112

C103

JL116

JL124

1

2

JL117

IC101

JL123

JR

R106

JL118

JL110

JR101

JL127

R107

JR

JL134

JL129

JL107

JR102

JR

JR

D102

JL133

C106

JL128

JR106

JL114

JL109

C109

FL101

C108

C107

JL111

C105

R110

IGO

D103

JL112

JL135

L103

R109

R108

L105

JL115

43

12

JL105

L104

C111

IC102

JL113

JR105

JR

C110

X101

C112

1-885-134-

: Uses unleaded solder.

11

(11)

5-25. SCHEMATIC DIAGRAM – FRONT JACK Board –

1

A

>025S

DISPLAY

BOARD

B

CN100

(Page 38)

>022S

MAIN BOARD

C

(7/7)

CN2900

(Page 30)

STR-DH550/DH750

2 3 4 56

FRONT JACK BOARD

ET101

1

C154

0.22u

R193

100

R190

2
3

(CHASSIS)

J100

AUTO CAL MIC

0

GND

4

D+

3

D-

2
1

DC5V 1A MAX

VBUS

CN106

4P

AGND

MIC_JACK

AGND

CN105

3
2
1

CN104

1GND
2DP
3DM
4VBUS
5SHIELD BUS

3P

CL175
CL173

D129

CL170

CL171
CL172

BAV99-215

D126

DZ2J062M0L

5P

C151
220u

10V

D130

BAV99-215

C152

0.1u

C150

0.1u

0R191
0R192

>004P

MAIN BOARD

CN2003

H

(Page 22)

I

J

K

3939

STR-DH550/DH750

Ver. 1.1

5-27. SCHEMATIC DIAGRAM – TUNER1 Board –

1

A

B

AM

AEP, UK, AUS, E12, TW

C

ANTENNA

D

FM

&2$;,$/

FM

&2$;,$/

US, CND, MX, BR

2 3 4 5 6 7 8 9 10 11

TUNER1 BOARD

L101

D101

D102

MC2837

JL135

D103

MC2837

MC2837

FL101

BPF

CN103

3P

JL116

1

AM

JL117

2

AM

JL118

3

FM

CN102

C109

3P

0.1u

CN104

3P

600uH
1
2
3 4

E

• See page 43 for IC Block Diagrams.

JL130

IC101

GND

ROUT

LOUT

3.3

VDD

11

12

3.3

DA

13

1.6

14

1.6

15

0

IISD

16

0

17

CP1

0

18

X1

0

19

X2

3.3

20

VDD

10

CK

ARF1

6

ARF2

JL112

220nH

L104

C106

0.047u

47nH
C108

L103

2.2u

JL133

JL113

JL131

R107

0

9

LA

8

IIC/RDSI

0

7

ARF2

0

6

ARF1

0

5

100

JL134

GNDRF

4

FRF1

0

3

CP2

0

2

VDDRF

3.3

1

GND

RZ5B801-0001E2

(US, CND, MX, BR)

RZ5B801-0002E2

(AEP, UK, AUS, E12, TW)

IC101

FM RECEIVER

C101

470p

JL124
JL125

JL126
JL127

C105 1u

32.768kHz

C107

0.047u

X101

JL123

JL132

R113

10k

0R104

JL121

JL122

JL111

C110

10u

R108

0

JL114

R109

C111

L105

4.7uH
JL115

0

1u

3

2

3.3 5

Vout

GND

3.3

4

Vdd

CE

1

100R101
22R103

22R105

1uC102

1uC103

100R106

IC102

MM3404A33URE

IC102

+3.3V REG.

R110

CN101

9P

JL102
JL103
JL104
JL105
JL106
JL107
JL108
JL109
JL110

C112

1u

10k

CK (for IIC)

9

IIC/RDSI

8

DA (for IIC)

7

GND

6

AUDIO R/BCK

5

CE (p con)

4

AUDIO L/LRCK

3

VDD

2

IISD (data audio)

1

>021S

MAIN BOARD

(5/7)

CN2003

(Page 28)

STR-DH550/DH750

4040

STR-DH550/DH750

5-28. PRINTED WIRING BOARD – POWER KEY Board –

• See page 14 for Circuit Boards Location.

1

2 3 4 5 6 78

•

: Uses unleaded solder.

A

POWER KEY
BOARD

B

C

DISPLAY

BOARD

CN100

(Page 37)

D

E

CL160

F

S115

&/1

183

CL161

>010P

CN108

CL163

CL162

CL164

Q111

CL165

R176

R175

R178

E

LP110

CL166

R174

Q110

E

R179

D110

LED ON/STBY)

R173

G

S111

TUNING +

R182

S112

TUNING –

R180

S113

TUNING MODE

R183

S114

SPEAKERS

R181

LP111

1-889-542-

(12)

12

5-29. SCHEMATIC DIAGRAM – POWER KEY Board –

1

A

POWER KEY BOARD

B

C

D

LED_ON

2 3 4 5 67

S114

R174

R176

R175

2.2k

47

100

Q111

2PD601ART

LED DRIVER

Q110

2PD601ART

LED DRIVER

R173

10k

R179

100k

R178

SML78423C-TP15

LED (ON/STBY)

100k

SPEAKERS

TUNING

D110

GRN

2

3

1

ORG

TUNING –

TUNING +

S115

"/1

S113

MODE

S112

S111

R183

22k

R180

10k

R182

4.7k

R181

2.2k

CL160

CL161
CL162
CL163
CL164
CL165
CL166

CN108

8P

1

AD1

3

POWER_BUTTON

4

DGND

5

NC

6

+3.3V_STBY
LED_ON

7

LED_STBY

8

>024S

DISPLAY

BOARD

CN100

(Page 38)

H

I

J

K

STR-DH550/DH750

4141

STR-DH550/DH750

5-30. PRINTED WIRING BOARD – HEADPHONE Board –

• See page 14 for Circuit Boards Location.

1

2 3 4 5 67

•

: Uses unleaded solder.

HEADPHONE BOARD

A

B

C

D

MAIN

E

BOARD

(Page 22)

CN391

>003P

CL185

C162

PHONES

CL187

CL186

J101

153

CN107

LP106

CL188

C161

C160

1-889-541-

12

(12)

5-31. SCHEMATIC DIAGRAM – HEADPHONE Board –

A

MAIN BOARD

B

1

>006S

(2/7)

CN391

(Page 25)

2 3 45

HEADPHONE BOARD

CN107

5P

CL185

1HP_DETECT

CL186

3HP_R

CL187

4HP_GND

CL188

5HP_L

C160

0.001u

C161

0.001u

C162

0.001u

6
7
2
1
5
4
3

J101

PHONES

F

G

H

I

J

K

STR-DH550/DH750

4242

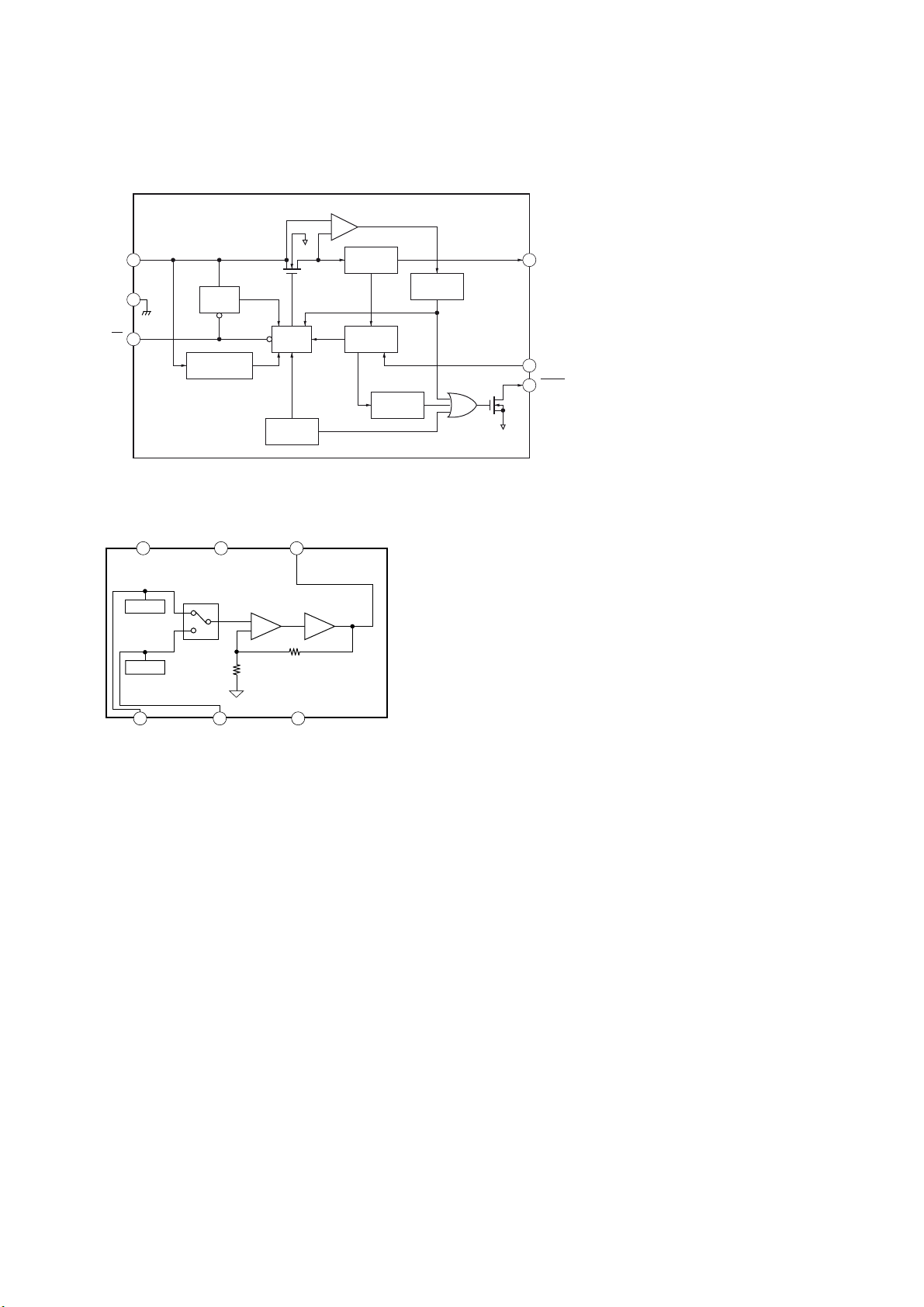

• IC Block Diagrams
IC3518 TPS2553DBVR (HDMI BOARD)

IC2902 TPS2553DBVR (MAIN BOARD (7/7))

REVERSE VOLTAGE

COMPARATOR

–

+

CURRENT

SENSE

GND

IN

1

2

CHARGE

PUMP

4-ms

DEGLITCH

STR-DH550/DH750

6OUT

EN

3

UNDERVOLTAGE

LOCKOUT

DRIVER

THERMAL

SENSE

CURRENT

IC200 NJM41010F1 (MAIN BOARD (3/7))

VCC

3

CLAMP

CLAMP

456

VIN1 VIN2 VSW

GND OUT

21

6dB 75: Driver

+
–

LIMIT

8-ms

DEGLITCH

5 ILLM
4FAULT

43

STR-DH550/DH750

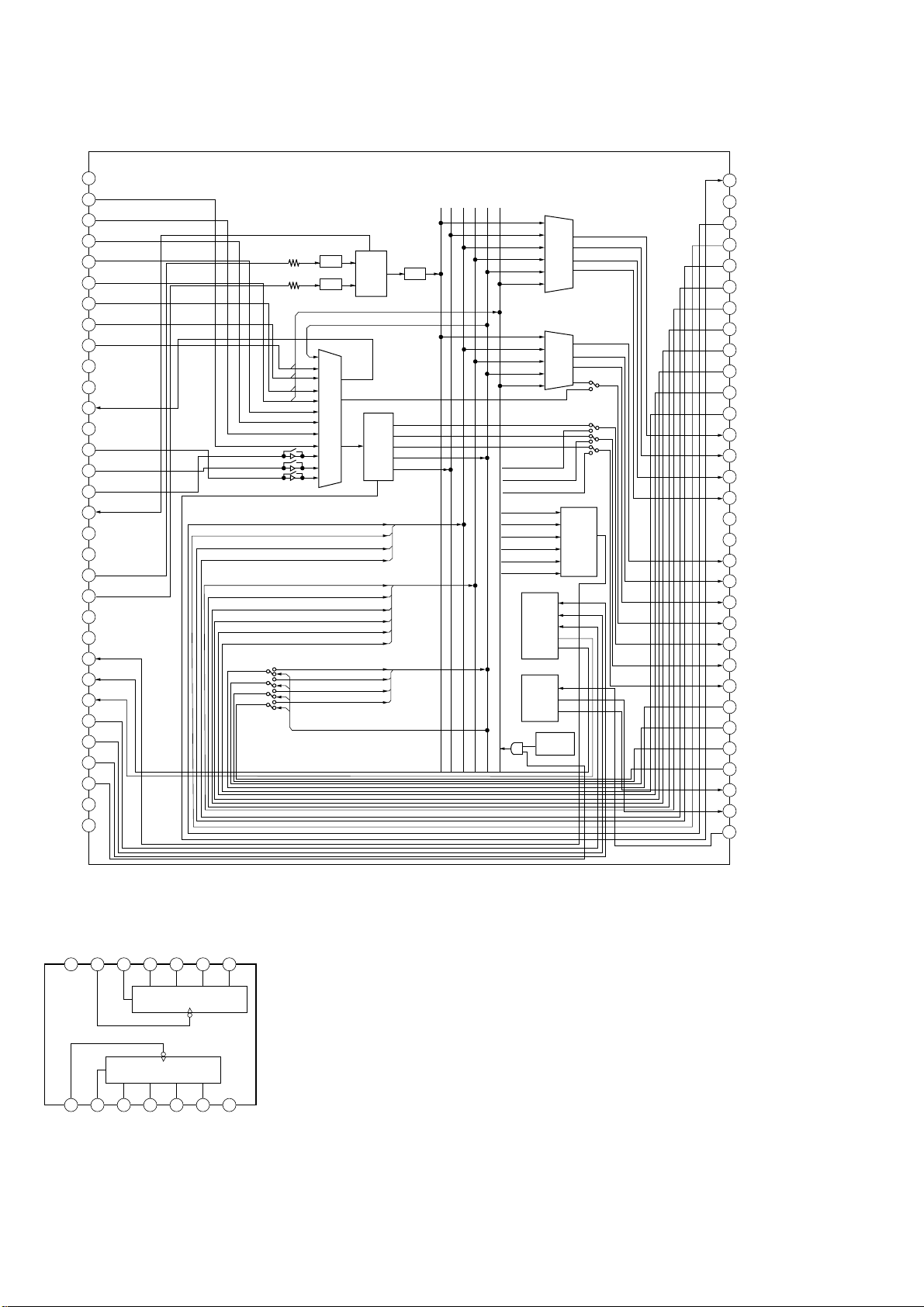

IC400 BD34701KS2 (MAIN BOARD (3/7))

INR138INL137INR236INL235INR334INL333INR432INL431INR530INL529INR628INL6

GND

39

GSM GSM GSM GSM GSM GSM GSM GSM GSM GSM GSM GSM

Main

Sub

SBLIN

40

GSM GSM GSM GSM GSM GSM GSM GSM

41

SBRIN

42

SLIN

SRIN

CIN

SWIN

FLIN

FRIN

GND

ADCR

ADCL

GND

CHIP

Mode

43

44

45

46

47

48

ADC

49

50
51

52

selector

FR

VolumeFLVolumeSWVolumeCVolumeSRVolumeSLVolume

Mode

selector

Mode

selector

SBR

Volume

Mode

selector

SBL

Volume

27

GND

26

INR7

25

INL7

24

INR8

23

GSMGSM

INL8

22

GSMGSM

GND

21

GND

20

Rec

RECR

19

RECL

18

GND

17

GND

16

SUBR

15

SUBL

14

Logic

1

VCC

2DA3CL4

DGND

5

6

VEE

OUTFR

IC2008 BR24T64FJ-WE2 (MAIN BOARD (4/7))

A0

1

A1

A2

GND

ADDRESS

2

DECODER

3

HIGH VOLTAGE GEN Vcc LEVEL DETECT

4

64Kbit EEPROM ARRAY

13bit

ADDRESS REGISTER

START

CONTROL LOGIC

WORD

STOP

ACK

8bit

DATA

REGISTER

7

8

9

10

11

12

13

OUTSW

OUTC

OUTSR

OUTSL

OUTSBR

OUTSBL

OUTFL

Vcc

8

WP

7

SCL

6

SDA

5

44

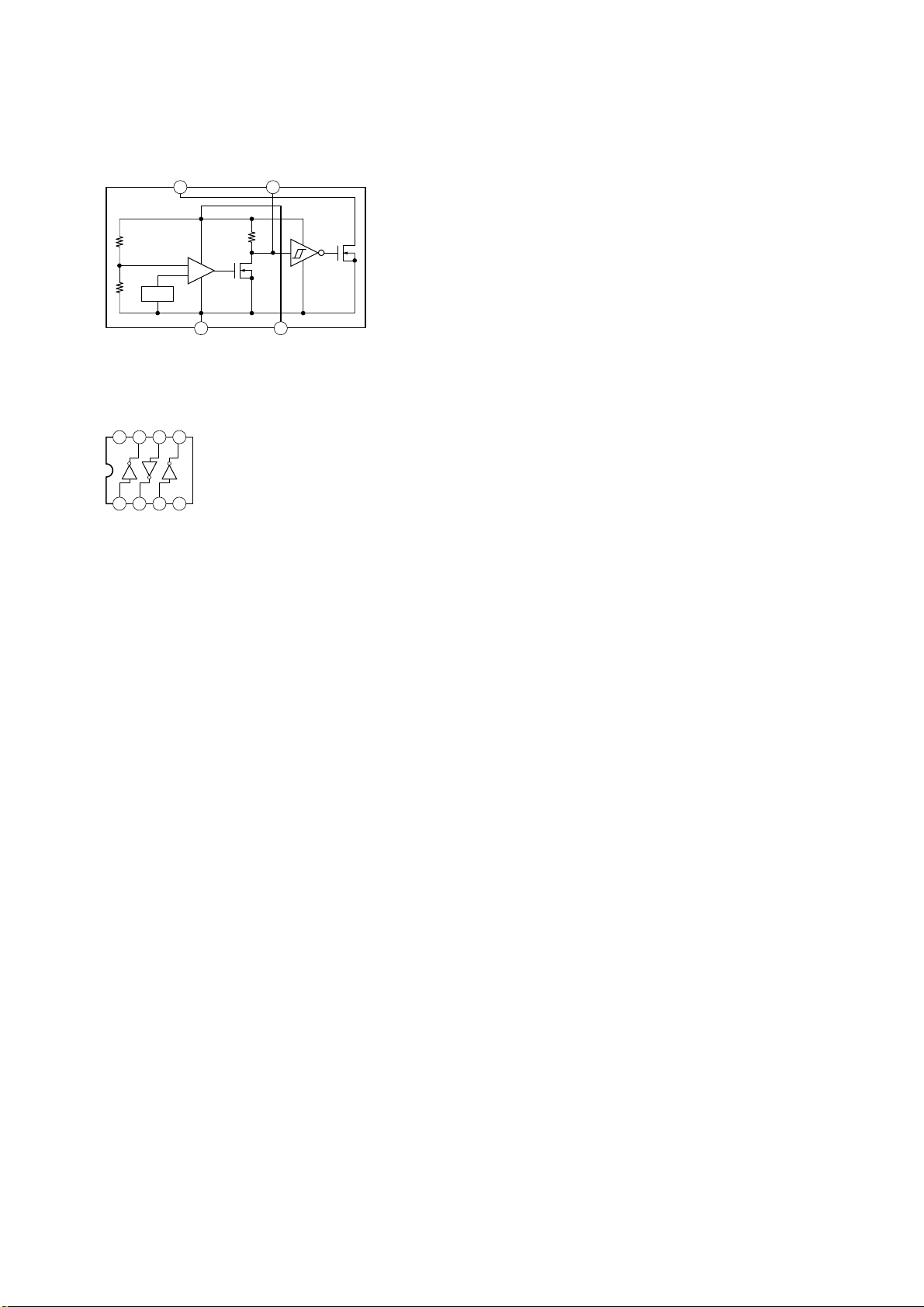

IC2009 BU4229F-TR (MAIN BOARD (4/7))
IC2601 BU4229F-TR (MAIN BOARD (7/7))

Vout CT

4

–
+

Vref

12

GND VDD

3

IC2202 TC7WHU04FK (MAIN BOARD (4/7))

VCC OUT1 IN3 OUT2

8 7

5

6

STR-DH550/DH750

1 2

3

IN1 OUT3 IN2 GND

4

45

STR-DH550/DH750

IC2203 LC89075WA-H (MAIN BOARD (5/7))

PVDD

64
63

RXIN1

62

RXIN2

61

RXIN3
RXIN4

60
59

RXIN5

58

RXIN6

57

RXIN7

56

RXIN8

55

DGND

54

DVDD

53

RXOUT

52

DGND

51

RXIN1A

50

RXIN2A

49

RXIN3A

48

VREF

AGND

AVDD

ADINL

ADINR

DGND
DVDD

DSTATE

INTB

SCK
CSB

XMODE

DVDD
DGND

47
46
45
44
43
42
41
40
39

SO

38

SI

37
36
35
34
33

Master clock
Bit clock
LR clock II DSD
2ch data II DSD

Master clock
Bit clock
LR clock II DSD
1,2/6ch data II DSD
3,4/6ch data
5,6/6ch data

Master clock
Bit clock
LR clock II DSD II S/PDIF
2ch data II DSD II S/PDIF

ADC data II C bit info

PGA
PGA

S/PDIF
S/PDIF

MUX

15.3

II 1,2/8ch data

II 3,4/8ch data
II 5,6/8ch data
II 7,8/8ch data
II Error
II Data mute
II Non-PCM

Stereo

ADC

Group: D (Input)
Group: C (Input)

DIR

Group: A (Input)

Group: B (Input)

Group: C (Input)

II S/PDIF
II S/PDIF

Group: C (output)

ATT

Error
Data mute

.

Non

PCM
C bit info
Clock & data

ADC

DIR

Group: A

Group: B

ADC
DIR

Group: A
Group: B
Group: C
Group: D

ADC
Group: A
Group: B
Group: C
Group: D

MPIN4 (Error)
MPIN5 (Data mute)
MPIN6 (Non-PCM)

ADC data
DIR data
Group: A data
Group: B data
Group: C data
Group: D data

Group: D

Group: C

Micro

Controller

interface

Oscillation

Amplifier

Power-on

Reset

MUX

(4x6):4

MUX

(4x5):4

Output

Data
Level

Detector

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

LPF
PGND
MCKIN
BCKIN
LRCKIN
DATAIN

MPIN1
MPIN2
MPIN3
MPIN4
MPIN5

MPIN6
MCKOUT

BCKOUT
LRCKOUT
DATAOUT
DGND
DVDD

MPOUT1
MPOUT2
MPOUT3
MPOUT4
ERRF
MUTEB
NPCMF
MPIO1
MPIO2
MPIO3
MPIO4
XMCK
XOUT
XIN

IC2204 TC74VHC393FT (ELK) (MAIN BOARD (5/7))

Q3B

RDB

CKB

VCC

14 13 12 11 10 9 8

CLEAR

QA QB QC QD

1 2 3 4 5 6 7

RDA

Q1A

CKA

Q2B

Q1B

QA QB QC QD

Q2A

A

A

Q3A

CLEAR

Q4A

GND Q4B

46

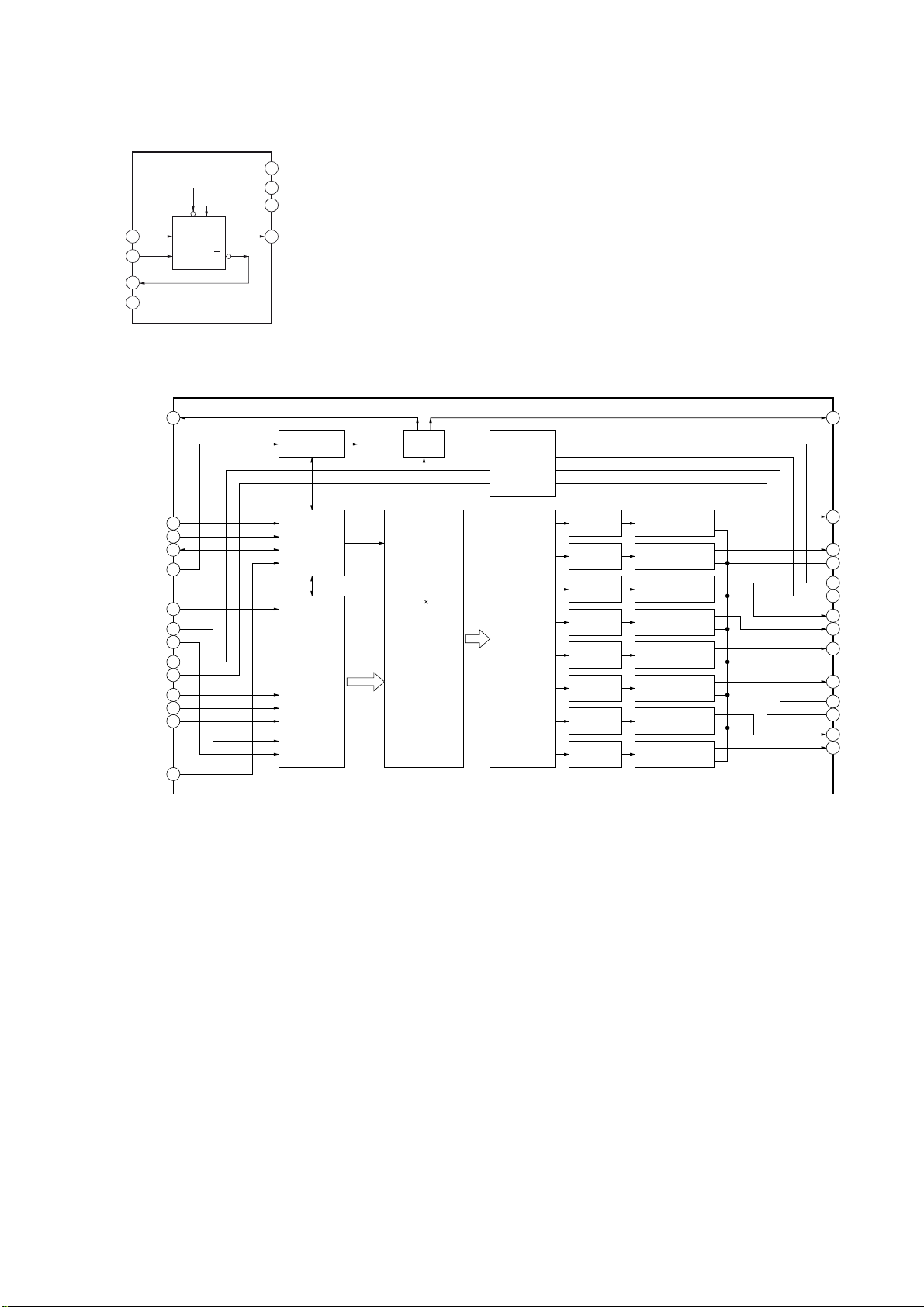

IC2205 TC7WH157FK (MAIN BOARD (5/7))

8

VCC

117

STROBE

116

SELECT

EN G

Y

A
B

Y

5

Y

GND

1

A

2

B

3

Y

4

IC2301 PCM1681PWPR (MAIN BOARD (5/7))

STR-DH550/DH750

ZR1/FMT0 1

MS/ADR/FMT1 2
MC/SCL/DEMP 3
MD/SDA/MUTE 4

SCK 5

DATA1

BCK 7

LRCK 8

VDD

DGND
DATA2 11

DATA3 12
DATA4 13

MSEL

ZR228

SYSTEM CLOCK

MANAGER

FUNCTION

CONTROL

INTERFACE

6

9

10

14

SERIAL

INPUT

INTERFACE

SYSTEM

CLOCK

ZERO

DETECT

8

OVERSAMPLING

DIGITAL FILTER

WITH

FUNCTION

CONTROLLER

POWER
SUPPLY

ENHANCED

MULTILEVEL

DELTA-SIGMA

MODULATOR

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

D/A

CONVERTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

OUTPUT AMP AND
LOW-PASS FILTER

VOUT127

VOUT226
VCOM25

AGND224
VCC223

VOUT322
VOUT421

VOUT520

VOUT619
AGND118

17

VCC1
VOUT716

VOUT815

47

STR-DH550/DH750

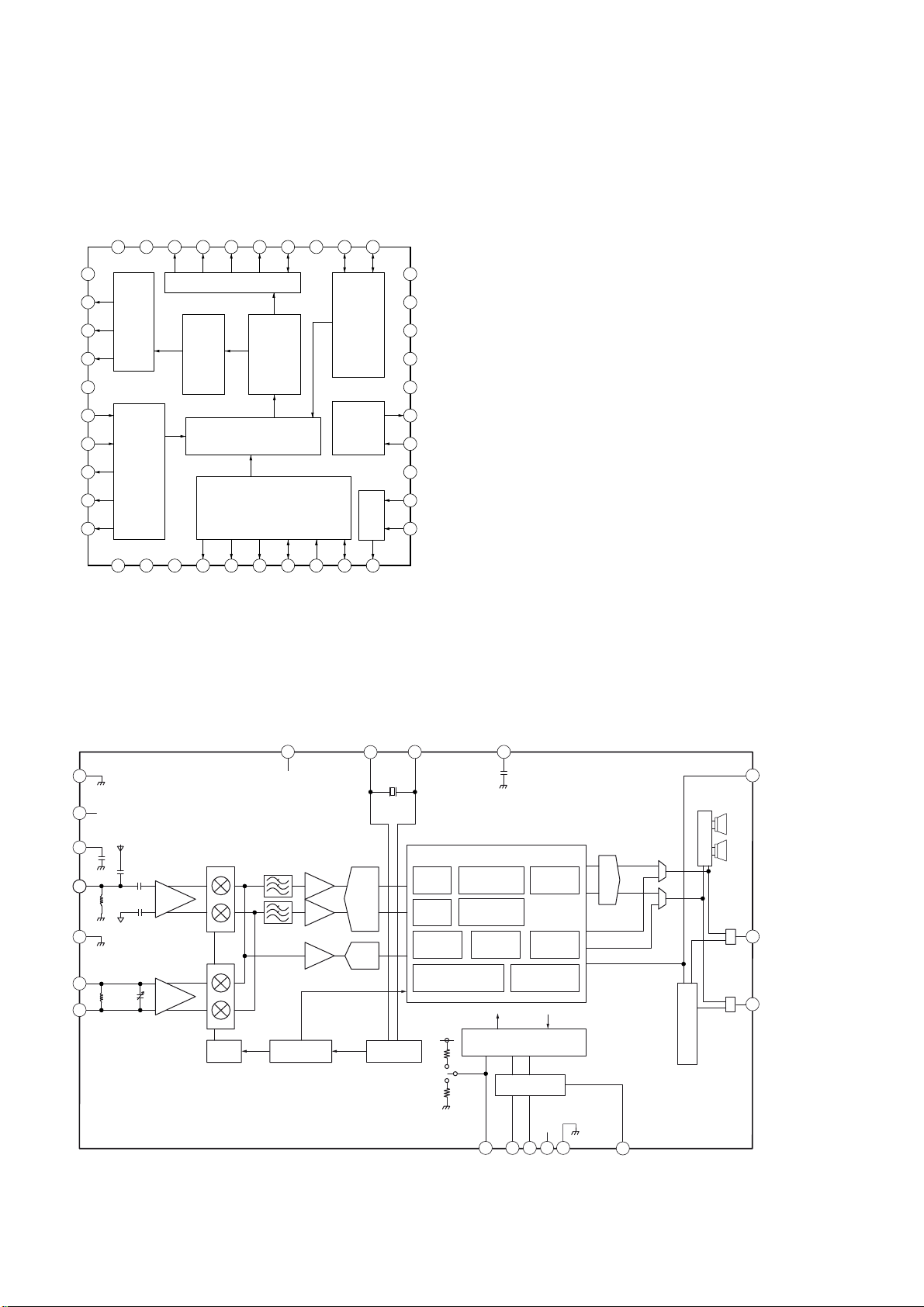

IC2900 BU94502AMUV (MAIN BOARD (7/7))

DAVSS

RDACO

VCDACO

LDACO

DAVDD

SD_CON

SD_DO

SD_CLK

SD_DI

SD_CS

AMUTE29DVDDIO28LED_REPEAT/MCLK

30

31

32

Audio

DAC

33

34

35

36

37

SD Card

38

Controller

39

40

1

2

DVSSIO

RESETX

3

TMODE

Sound

Effecter

LED_PUSB/DATA

LED_PSD/BCK25LED_PLAY/LRCK/SPDIF

27

26

LED Driver

MP3/WMA

Decoder

FAT

File system

System

Controller

4

5

6

KEY_COL1/IRPTO

KEY_COL3/MCHNG

KEY_COL2/SEARCH

LED_ERROR/CLK24MI

24

/AAC

7

KEY_ROW1/BUSY

REXTI22USBDP21USBDM

23

USB

Controller

PLL

(Oscillator)

LDO

8

9

10

KEY_ROW2/SCL

KEY_ROW3/SDA

DVDD_M

20

AVSSC

19

AVDDC

18

SEL_SLAVE

17

SEL_COD/TEST3

16

TEST2

15

XOUT_PLL

14

XIN_PLL

13

TEST1

12

DVDDIO

11

DVSSIO

IC101 RZ5B801-0001E2 (TUNER1 BOARD) (US, Canadian, Mexican and Brazillian models)

1

GND

1

VDDRF VDD

2

2

3

CP2

3

FRF1

4

4

GNDRF

5

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

AM

TUNE

FM LNA

AM LNA

LOSC

Filter

VDD

20

VDD

AGC
AMP

AGC
AMP

AMP

Clock

Generator

ADC

ADC

X2

X1

18

19

Digital Signal Process

Digital

MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

Calculation

HOST Controller

LA

CK

DSI

Generator

RSSI

VDD

Stereo

IIS

VDD

LOUT

DAC

ROUT

LRCK
BCLK
IISD

12111098

GND

13

DA

Amplifier

LRCK

BCLK

IIS Controller

IISD

Lch

Rch

SW

SW

IISD

16

LRCK / LOUT

15

BCLK / ROUT

14

48

STR-DH550/DH750

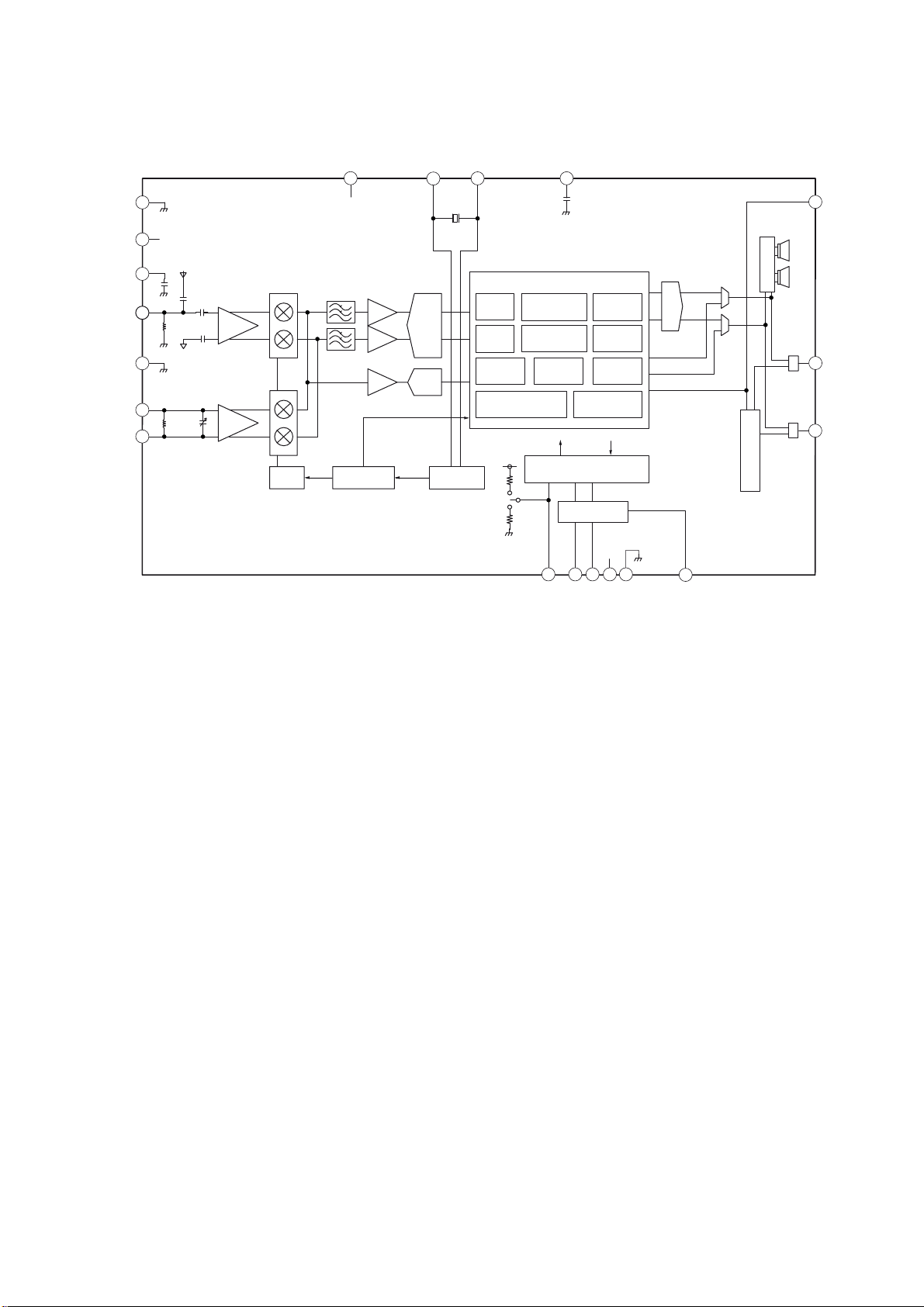

IC101 RZ5B801-0002E2 (TUNER1 BOARD) (AEP, UK, Australian, Taiwan and 220 – 240V AC area in E models)

Ver. 1.1

1

GND

1

VDDRF VDD

2

2

3

CP2

3

FRF1

4

4

GNDRF

5

5

ARF1

6

ARF2

7

FM Antenna

AM Antenna

TUNE

VDD

20

VDD

Filter

AGC

FM LNA

AM LNA

AM

LOSC

AMP
AGC

AMP

Clock

Generator

AMP

ADC

ADC

X2

X1

18

19

Digital Signal Process

Digital

MixerFMDemodulator

Digital

AGC


Control

Digital Filters

XOSC

12C

SPI

CP1

17

Decoder

AM

Demodulator

Station

Detector

Serial Interface / Registers

IIC / R

Calculation

HOST Controller

LA

CK

DSI

Decoder

Generator

RSSI

VDD

Stereo

RDS

IIS

VDD

IISD

IISD

16

Lch

Amplifier

LRCK

BCLK

IIS Controller

Rch

SW

SW

LRCK / LOUT

15

BCLK / ROUT

14

LOUT

DAC

ROUT

LRCK
BCLK
IISD

12111098

GND

13

DA

49

STR-DH550/DH750

• IC Pin Function Descriptions
HDMI BOARD IC3514 SII9573CTUC (HDMI RECEIVER)

Pin No. Pin Name I/O Description

1 to 6 D14 to D19 I Digital video signal input from the video deinterlacing

7 DE I Data enable signal input from the video deinterlacing
8 VSYNC O Vertical sync signal input from the video deinterlacing

9 HSYNC O Horizontal sync signal input from the video deinterlacing
10 R0XC– I TMDS clock (negative) signal input from the HDMI IN connector Not used
11 R0XC+ I TMDS clock (positive) signal input from the HDMI IN connector Not used
12 R0X0– I TMDS data (negative) input from the HDMI IN connector Not used
13 R0X0+ I TMDS data (positive) input from the HDMI IN connector Not used
14 R0X1– I TMDS data (negative) input from the HDMI IN connector Not used
15 R0X1+ I TMDS data (positive) input from the HDMI IN connector Not used
16 R0X2– I TMDS data (negative) input from the HDMI IN connector Not used
17 R0X2+ I TMDS data (positive) input from the HDMI IN connector Not used
18 AVDD12 - Power supply terminal (+1.2V)
19 AVDD33 - Power supply terminal (+3.3V)
20 R1XC– I TMDS clock (negative) signal input from the HDMI IN connector Not used
21 R1XC+ I TMDS clock (positive) signal input from the HDMI IN connector Not used
22 R1X0– I TMDS data (negative) input from the HDMI IN connector Not used
23 R1X0+ I TMDS data (positive) input from the HDMI IN connector Not used
24 R1X1– I TMDS data (negative) input from the HDMI IN connector Not used
25 R1X1+ I TMDS data (positive) input from the HDMI IN connector Not used
26 R1X2– I TMDS data (negative) input from the HDMI IN connector Not used
27 R1X2+ I TMDS data (positive) input from the HDMI IN connector Not used
28 R2XC– I TMDS clock (negative) signal input from the HDMI IN (BD) connector
29 R2XC+ I TMDS clock (positive) signal input from the HDMI IN (BD) connector
30 R2X0– I TMDS data (negative) input from the HDMI IN (BD) connector
31 R2X0+ I TMDS data (positive) input from the HDMI IN (BD) connector
32 R2X1– I TMDS data (negative) input from the HDMI IN (BD) connector
33 R2X1+ I TMDS data (positive) input from the HDMI IN (BD) connector
34 R2X2– I TMDS data (negative) input from the HDMI IN (BD) connector
35 R2X2+ I TMDS data (positive) input from the HDMI IN (BD) connector
36 AVDD12 - Power supply terminal (+1.2V)
37 CVDD12 - Power supply terminal (+1.2V)
38 AVDD33 - Power supply terminal (+3.3V)
39 R3XC– I TMDS clock (negative) signal input from the HDMI IN (DVD) connector
40 R3XC+ I TMDS clock (positive) signal input from the HDMI IN (DVD) connector
41 R3X0– I TMDS data (negative) input from the HDMI IN (DVD) connector
42 R3X0+ I TMDS data (positive) input from the HDMI IN (DVD) connector
43 R3X1– I TMDS data (negative) input from the HDMI IN (DVD) connector
44 R3X1+ I TMDS data (positive) input from the HDMI IN (DVD) connector
45 R3X2– I TMDS data (negative) input from the HDMI IN (DVD) connector
46 R3X2+ I TMDS data (positive) input from the HDMI IN (DVD) connector
47 R4XC– I TMDS clock (negative) signal input from the HDMI IN (GAME) connector
48 R4XC+ I TMDS clock (positive) signal input from the HDMI IN (GAME) connector
49 R4X0– I TMDS data (negative) input from the HDMI IN (GAME) connector
50 R4X0+ I TMDS data (positive) input from the HDMI IN (GAME) connector
51 R4X1– I TMDS data (negative) input from the HDMI IN (GAME) connector
52 R4X1+ I TMDS data (positive) input from the HDMI IN (GAME) connector
53 R4X2– I TMDS data (negative) input from the HDMI IN (GAME) connector
54 R4X2+ I TMDS data (positive) input from the HDMI IN (GAME) connector
55 CVDD12 - Power supply terminal (+1.2V)
56 AVDD33 - Power supply terminal (+3.3V)
57 R5XC– I TMDS clock (negative) signal input from the HDMI IN (SAT/CATV) connector
58 R5XC+ I TMDS clock (positive) signal input from the HDMI IN (SAT/CATV) connector
59 R5X0– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector

50

STR-DH550/DH750

Pin No. Pin Name I/O Description

60 R5X0+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector
61 R5X1– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector
62 R5X1+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector
63 R5X2– I TMDS data (negative) input from the HDMI IN (SAT/CATV) connector
64 R5X2+ I TMDS data (positive) input from the HDMI IN (SAT/CATV) connector
65 CVCC12 - Power supply terminal (+1.2V)
66 CSCL I/O Two-way I2C clock bus with the video system controller
67 CSDA I/O Two-way I2C data bus with the video system controller
68 INT O Interrupt signal output to the video system controller
69 RESET I Reset signal input from the video system controller “L”: reset
70 TPWR_CI2CS I Not used
71 CEC_A1 O Not used
72 CEC_A0WAKEUP O Not used
73 DSDA6 I/O Two-way I2C serial data bus terminal Not used
74 DSCL6 I I2C serial data transfer clock signal input terminal Not used
75 LPSVCC33 I Not used
76 DSDA0 I/O Two-way I2C serial data bus with the HDMI IN connector Not used
77 DSCL0 I I2C serial data transfer clock signal input from the HDMI IN connector Not used
78 CBUS_HPD0 O Hot plug detection control signal output to the HDMI IN connector Not used
79 R0PWR5V I Power supply voltage (+5V) input terminal
80 DSDA1 I/O Two-way I2C serial data bus with the HDMI IN connector Not used
81 DSCL1 I I2C serial data transfer clock signal input from the HDMI IN connector Not used
82 CBUS_HPD1 O Hot plug detection control signal output to the HDMI IN connector Not used
83 R1PWR5V I Power supply voltage (+5V) input terminal
84 DSDA2 I/O Two-way I2C serial data bus with the HDMI IN (BD) connector
85 DSCL2 I I2C serial data transfer clock signal input from the HDMI IN (BD) connector
86 CBUS_HPD2 O Hot plug detection control signal output to the HDMI IN (BD) connector
87 R2PWR5V I Power supply voltage (+5V) input terminal
88 DSDA3 I/O Two-way I2C serial data bus with the HDMI IN (DVD) connector
89 DSCL3 I I2C serial data transfer clock signal input from the HDMI IN (DVD) connector
90 CBUS_HPD3 O Hot plug detection control signal output to the HDMI IN (DVD) connector
91 R3PWR5V I Power supply voltage (+5V) input terminal
92 DSDA4 I/O Two-way I2C serial data bus with the HDMI IN (GAME) connector
93 DSCL4 I I2C serial data transfer clock signal input from the HDMI IN (GAME) connector
94 CBUS_HPD4 O Hot plug detection control signal output to the HDMI IN (GAME) connector
95 R4PWR5V I Power supply voltage (+5V) input terminal
96 RSVDL I Not used
97 DSDA5 I/O Two-way I2C serial data bus with the HDMI IN (SAT/CATV) connector
98 DSCL5 I I2C serial data transfer clock signal input from the HDMI IN (SAT/CATV) connector

99 CBUS_HPD5 O Hot plug detection control signal output to the HDMI IN (SAT/CATV) connector
100 R4PWR5V I Power supply voltage (+5V) input terminal
101 SBVCC5V - Power supply terminal (+1.2V)
102 VCC33OUT O Power supply (+3.3V) output terminal

103, 104 GPIO0, GPIO1 I/O Not used

105 TX_HPD0 I Hot plug detection signal input from the HDMI OUT A ARC connector
106 TXDSDA0 I/O Two-way I2C serial data bus with the HDMI OUT A ARC connector
107 TXDSCL0 O I2C serial data transfer clock signal output to the HDMI OUT A ARC connector
108 TX_HPD1 I Hot plug detection signal input from the HDMI OUT B connector Not used
109 TXDSDA1 I/O Two-way I2C serial data bus with the HDMI OUT B connector Not used

110 TXDSCL1 O I2C serial data transfer clock signal output to the HDMI OUT B connector Not used
111 APLL12 - Power supply terminal (+1.2V)
112 XTALVCC33 - Power supply terminal (+3.3V)
113 XTALIN I System clock signal input terminal (27 MHz)
114 XTALOUT O System clock signal output terminal Not used
115 XTALGND - Ground terminal
116 CVCC12 - Power supply terminal (+1.2V)

51

STR-DH550/DH750

Pin No. Pin Name I/O Description

117 to 120 GPIO2 to GPIO5 I/O Not used

121 WS0_OUT O Word select signal output to the digital audio interface receiver
122 SCK0 O Serial data transfer clock signal output to the digital audio interface receiver
123 IOVCC33 - Power supply terminal (+3.3V)
124 SD0_0 I Serial data output to the digital audio interface receiver
125 MCLK I Master clock signal output to the digital audio interface receiver

126 to 128 SD0_1 to SD0_3 I Serial data output to the digital audio interface receiver

129 MUTEOUT O HDMI muting control signal output terminal
130 SPDIF0_OUT I S/PDIF audio signal output to the digital audio interface receiver

131, 132 GPIO11, GPIO10 I/O Not used

133 SPDIFO_IN I S/PDIF audio signal input terminal Not used
134 SCK1_OUT O Serial data transfer clock signal output terminal Not used
135 WS1_OUT O Word select signal output terminal Not used
136 SPDIF1_OUT I S/PDIF audio signal output terminal Not used
137 ARC0 I Audio signal input from the HDMI OUT A ARC connector
138 ARC1 I Audio signal input terminal Not used
139 CVCC12 - Power supply terminal (+1.2V)

140, 141 TPVDD12 - Power supply terminal (+1.2V)

142 T1XC– O TMDS clock (negative) output to the HDMI OUT B connector Not used
143 T1XC+ O TMDS clock (positive) output to the HDMI OUT B connector Not used
144 T1X0– O TMDS data (negative) output to the HDMI OUT B connector Not used
145 T1X0+ O TMDS data (positive) output to the HDMI OUT B connector Not used
146 T1X1– O TMDS data (negative) output to the HDMI OUT B connector Not used
147 T1X1+ O TMDS data (positive) output to the HDMI OUT B connector Not used
148 T1X2– O TMDS data (negative) output to the HDMI OUT B connector Not used
149 T1X2+ O TMDS data (positive) output to the HDMI OUT B connector Not used

150, 151 TPVDD12 - Power supply terminal (+1.2V)

152 T0XC– O TMDS clock (negative) output to the HDMI OUT A ARC connector
153 T0XC+ O TMDS clock (positive) output to the HDMI OUT A ARC connector
154 T0X0– O TMDS data (negative) output to the HDMI OUT A ARC connector
155 T0X0+ O TMDS data (positive) output to the HDMI OUT A ARC connector
156 T0X1– O TMDS data (negative) output to the HDMI OUT A ARC connector
157 T0X1+ O TMDS data (positive) output to the HDMI OUT A ARC connector
158 T0X2– O TMDS data (negative) output to the HDMI OUT A ARC connector
159 T0X2+ O TMDS data (positive) output to the HDMI OUT A ARC connector
160 CVCC12 - Power supply terminal (+1.2V)

161, 162 D0, D1 O Digital video signal output terminal Not used

163 to 170 D2 to D9 I Digital video signal input from the video deinterlacing

171 D10 O Digital video signal output terminal Not used
172 IDCK I Output data clock signal input from the video deinterlacing
173 IOVCC33 - Power supply terminal (+3.3V)
174 D11 O Digital video signal output terminal Not used

175, 176 D12, D13 I Digital video signal input from the video deinterlacing

52

MAIN BOARD (4/7) IC2001 MB9AF156NPMC-G-JNK1E2 (SYSTEM CONTROL)

Pin No. Pin Name I/O Description

1 VCC - Power supply pin (+3.3V)
2 DSP_INT I Interrupt status signal input from DSP
3 DSP_RST O System reset signal output to the DSP “L” reset
4 POWER_RY O Relay drive signal (for main power) output terminal “H”: relay on
5 TUN_RDS_SIGNAL I RDS data signal input (for destination that support RDS only)
6 TUNER_SDA I/O Serial data output for tuner
7 TUNER_SCL O Clock signal output for tuner
8 TUNER_CE O Serial data latch pulse signal output to the tuner (FM/AM)

9 DAC-IIC-SDA I/O IIC data input/output from the D/A converter
10 DAC-IIC-SCL O IIC clock signal output to the D/A converter
11 BRIDGEABLE_RY O
12 SBL_SBR_RY O Relay drive signal (for surround back) output terminal “H”: relay on
13 SW_RY O Relay drive signal (subwoofer) output terminal “H”: relay on
14 FRONT_SPK_RY O Relay drive signal (for front) output terminal “H”: relay on
15 C/SL_SR_RY O Relay drive signal (for center and surround) output terminal “H”: relay on
16 EVOL_DATA O Serial data output to electrical volume
17 EVOL_CLK O Serial data transfer clock signal output to the electrical volume
18 PROTECT I Protect detection signal input terminal
19 E2P_SDA I/O Two-way data bus with the EEPROM
20 E2P_SCL O Serial data transfer clock signal output to the EEPROM
21 NO_USE - Not used
22 NO_USE - Not used
23 HP-RY O Relay drive signal (for headphone) output terminal “H”: relay on
24 HP-DETECT I Headphone detection signal input
25 VSS - Ground terminal
26 VCC - Power supply pin (+3.3V)
27 BT_MUTE I Bluetooth: Mute request from BT device to Video uCOM
28 NFC-RF-DET I NFC detection signal input (Only for STR-DH750)
29 P-CONT O Bluetooth Standby power control (Only for STR-DH750)
30 NO_USE - Not used
31 NO_USE - Not used
32 NO_USE - Not used
33 C - Regulator stabilization capacity connecting pin
34 VSS - Ground terminal
35 VCC - Power supply pin (+3.3V)
36 LED-ON O Power ON Green LED
37 LED-STBY O Standby LED
38 INITX - Main Micom Reset port
39 NO_USE - Not used
40 NO_USE - Not used
41 FUSE_DET I Fuse open detect signal input
42 FL-EN O Enable control for FL DISPLAY DRIVER IC
43 FL_CLK O Clock signal output for FL DISPLAY DRIVER IC
44 FL_DATA O Serial data output for FL DISPLAY DRIVER IC
45 FL_LAT O Latch signal output for FL DISPLAY DRIVER IC
46 MD1 - Selection of micon operation mode (Connect to VSS)
47 MD0 - Selection of micon operation mode (Connect to VSS)
48 X0
49 X1 - Main oscillator connecting pin
50 VSS - Ground terminal
51 VCC - Power supply pin (+3.3V)
52 INPUT_JOG I Function encoder signal input
53 SIRCS_IN I SIRCS signal input
54 VOLUME_JOG I MASTER VOLUME encoder signal input
55 AD_KEY1 I Key signal input (A/D port)

Relay drive signal (for power supply) output terminal “H”: relay on

Main oscillator connecting pin

-

STR-DH550/DH750

53

STR-DH550/DH750

Pin No. Pin Name I/O Description

56 POWER_KEY I Power switch input terminal
57 AD_KEY2 I Key signal input (A/D port)
58 PUREDIRECT I Disable FL display
59 MU UART IN I IIC data input from the video micom
60 AVCC - Analog power supply pin for A/D converter
61 AVRH - Standard power supply pin for A/D converter
62 AVSS - Analog ground for A/D converter
63 VCOM_SDA (OUT) O IIC data output to the video micom
64 HDMI_CEC_OUT O CEC serial data output to the HDMI connector
65 HDMI_CEC_IN I CEC serial data input from the HDMI connector
66 STOP I AC off detection signal input
67 LIMITER I Limiter signal input
68 DIR FSRATE I Sampling rate frequency from the digital audio interface receiver
69 TEMP_SENSOR_2 I Thermal detection signal input from the thermal sensor
70 TEMP_SENSOR_1 I Thermal detection signal input from the thermal sensor
71 FLASH_CLK O In Line programming clock data line
72 SO O Serial data output terminal (use for Firmware Flash Program)
73 SI I Serial data input terminal (use for Firmware Flash Program)
74 DIR_SIGNAL I Audio serial data input from the digital audio interface receiver
75 VSS - Ground terminal
76 VCC - Power supply pin (+3.3V)
77 DIR_XSTATE I Clock selection signal input from the digital audio interface receiver
78 TCK - Test clock signal input terminal (for JTAG)
79 TDI - Test data input terminal (for JTAG)
80 TMS - Test mode selection signal input terminal (for JTAG)
81 TD0 - Test data output terminal (for JTAG) Not used
82 DIR_MISO I Serial data input from digital audio interface receiver
83 DIR_MOSI O Serial data output to digital audio interface receiver
84 DIR _SPICLK O Serial clock output to digital audio interface receiver
85 DIR_CE O Chip enable signal output to the digital audio interface receiver
86 DIR_SIGNAL I Audio serial data input from the digital audio interface receiver
87 DIR_RST O Reset signal output to the digital audio interface receiver
88 DSP_SFLASH_HOLD O Hold signal output to the serial fl ash
89 DSP_NLPCM I SPDIF / IIS NLPCM signal input from digital audio interface receiver / HDMI receiver
90 DSP_ERROR I SPDIF / IIS Error signal input from digital audio interface receiver / HDMI receiver
91 DSP_SPICS O Chip select signal output to DSP
92 PROG_VU_MD0 O Programming (video micom)
93 VU_RST O Video micom reset signal output terminal
94 DSP_SPICLK O Serial data transfer clock signal output to the serial fl ash and DSP
95 DSP_MOSI O Serial data output to the serial fl ash and DSP
96 DSP_MISO I Serial data input from the serial fl ash and DSP
97 VCC - Power supply pin (+3.3V)
98 VSEL-SW O Composite video output signal switch
99 VMUTE O Video muting control signal output to the video amplifi er

100 VSS - Ground terminal

54

STR-DH550/DH750

MAIN BOARD (7/7) IC2602 MB9AF156NPMC-G-JNK1E2 (HDMI CONTROLLER)

Pin No. Pin Name I/O Description

1 VCC - Power supply pin (+3.3V)

2 NO_USE - Not used

3 NO_USE - Not used

4 NO_USE - Not used

5 MHL-OVC I MHL over current detection

6 TEST_SCK O Not used

7 TEST_SDA O Not used

8 NO_USE - Not used

9 APPLE_RST O Reset pin for Apple certifi cation.
10 APPLE_SCL O I2C SCL for Apple certifi cation IC
11 APPLE_SDA I/O I2C SDA for Apple certifi cation IC
12 UPDATE-LED I USB Update: USB Update LED Control
13 HDMI-NLPCM I HDMI: Non LPCM Stream Info Line Notifi cation
14 NO_USE - Not used
15 NO_USE - Not used
16 NO_USE - Not used
17 NO_USE - Not used
18 TEST-1 O Test Pad 1 (for designer evaluation only)
19 TEST-2 O Test Pad 2 (for designer evaluation only)
20 TEST-3 O Test Pad 3 (for designer evaluation only)
21 TEST-4 O Test Pad 4 (for designer evaluation only)
22 TEST-5 O Test Pad 5 (for designer evaluation only)
23 TEST-6 O Test Pad 6 (for designer evaluation only)
24 TEST-7 O Test Pad 7 (for designer evaluation only)
25 VSS - Ground terminal
26 VCC - Power supply pin (+3.3V)
27 PROG_MUTX I Programming pin (Uart TX pin)
28 PROG_MURX O Programming pin (Uart RX pin)
29 NO_USE - Not used
30 MHL-PCONT O MHL Power control
31 HDMIOUT-5VPWR O HDMI 5V detect pin
32 HDMI_PCONT O HDMI power control pin
33 C - Regulator stabilization capacity connecting pin
34 VSS - Ground terminal
35 VCC - Power supply pin (+3.3V)
36 SPARTA_RST O HDMI device reset control port
37 HDMI_MUTE O HDMI: Audio Mute Request
38 INITX - Video Micom Reset port
39 SPARTA_INT I HDMI device interrupt port
40 HDMI_SDA I/O HDMI: Communication Line - I2C SDA for HDMI-Rx, HDMI-Tx, EDID device
41 HDMI_SCL O HDMI I2C clock pin.
42 PROG_MU_MD0 O Programming USB Update MD0 select
43 MU_RST O USB Update: USB Update Main Micom Reset
44 MU UART IN O Communication between Main and Video line.(Uart RX)
45 VCOM_SDA (OUT) I Communication between Main and Video line. (Uart Tx)
46 MD1 - UCOM Mode setting terminal
47 MD0 - UCOM Mode setting terminal
48 X0 - Main oscillator connecting pin
49 X1 - Main oscillator connecting pin
50 VSS - Ground terminal
51 VCC - Power supply pin (+3.3V)
52 NFC_SW O NFC switch (Only for STR-DH750)
53 NFC_IRQ I NFC interrupt pin (Only for STR-DH750)
54 NFC_DATA I/O NFC data line (Only for STR-DH750)
55 NO_USE - Not used

55

STR-DH550/DH750

Pin No. Pin Name I/O Description

56 NO_USE - Not used
57 NFC_SEL O NFC select pin (Only for STR-DH750)
58 NO_USE - Not used
59 NO_USE - Not used
60 AVCC - A/D converter power supply terminal / Analog power supply pin for A/D converter
61 AVRH - ADC analog reference voltage input / Standard power supply pin for A/D converter
62 AVSS - A/D converter terminal GND / Analog ground for A/D converter
63 No_Use - Not used
64 BT_PCONT O Bluetooth: Power control for BT device
65 BT_VUTX_BTRX O Bluetooth: UART Rx on Video uCOM from BT device
66 BT_VURX_BTTX I Bluetooth: UART Tx on Video uCOM to BT device
67 BT_RST O Bluetooth: RESET for BT device
68 VURTSOUT_BTCTS O Bluetooth: RTS on Video uCOM
69 VUCTSIN_BTRTS O Bluetooth: CTS on Video uCOM
70 NO_USE - Not used
71 Prog_VU_SCK O Programming Clock (video micom)
72 Prog_VUTX O Programming UART TX (video micom)
73 Prog_VURX I Programming UART RX (video micom)
74 NO_USE I Not used
75 VSS - Ground terminal
76 VCC - Power supply pin (+3.3V)
77 TRXTS (No Use) - Not used
78 TCK - Test clock signal input terminal (for JTAG)
79 TDI - Test data input terminal (for JTAG)
80 TMS - Test mode selection signal input terminal (for JTAG)
81 TD0 - Test data output terminal (for JTAG) Not used
82 NO_USE - Not used
83 NO_USE - Not used
84 NO_USE - Not used
85 NO_USE - Not used
86 NO_USE - Not used
87 NO_USE - Not used
88 NFC_RFDET I NFC DRF detect pin (Only for STR-DH750)
89 NFC_SPICLK O Serial data transfer clock signal output to the NFC
90 USB BUSY O BUSY signal communication between USB board
91 USB_RESET O USB: RESET for USB Device BU94604BKV
92 USB SEARCH I USB: SEARCH signal communication between USB board

93 USB_IRPTO I
94 USB_SCL O USB: Communication Line I2C SDL

95 USB SDA I/O USB: Communication Line I2C SDA
96 USB_MCHNG O USB: MCHNG (change of music fi le being playback) to USB Device BU94604BKV
97 VCC - Power supply pin (+3.3V)
98 USB_PCONT I USB: Power control for USB device
99 USB_OVC I USB: Overcurrent Detection

100 VSS - Ground terminal

USB: IRPTO (notifi cation that two USB confi guration descriptor or more is connected) from
USB Device BU94604BKV

56

Note:

• -XX and -X mean standardized parts, so
they may have some difference from the
original one.

• Items marked “*” are not stocked since
they are seldom required for routine ser­vice.

Some delay should be anticipated when

ordering these items.

• Abbreviation

AUS : Australian model
BR : Brazillian model
CND : Canadian model
E12 : 220 – 240 V AC area in E model
MX : Mexican model
TW : Taiwan model

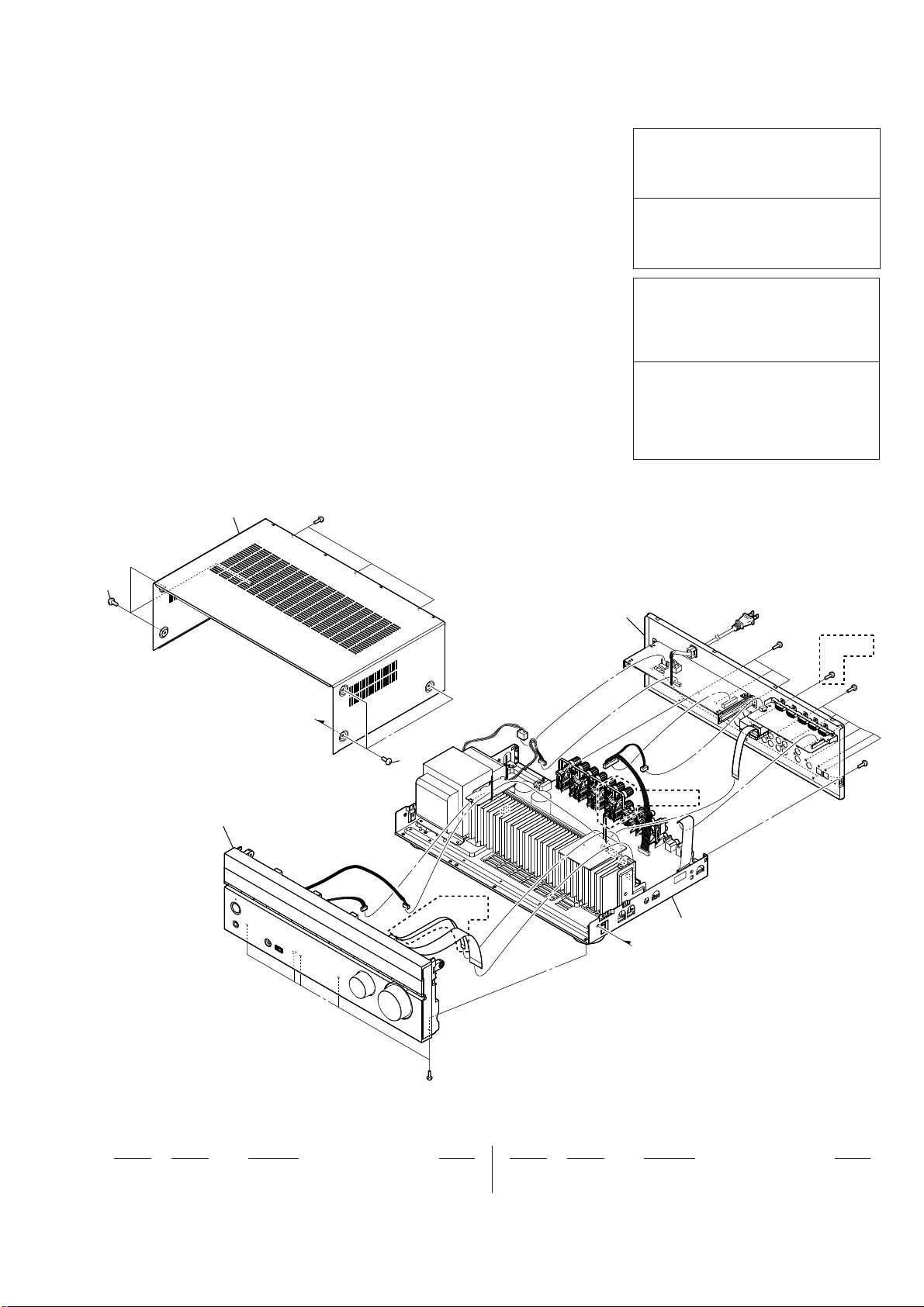

6-1. CASE (ENTRY) SECTION

SECTION 6

EXPLODED VIEWS

• The mechanical parts with no reference
number in the exploded views are not sup­plied.

• Color Indication of Appearance Parts Ex­ample:

KNOB, BALANCE (WHITE) . . . (RED)
R R

• Accessories are given in the last of the
electrical parts list.

Parts Color Cabinet’s Color

STR-DH550/DH750

Ver. 1.1

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.

The components identifi ed by mark 9 con­tain confi dential information.
Strictly follow the instructions whenever
the components are repaired and/or re­placed.

Les composants identifi és par la marque

contiennent des informations confi denti-

9

elles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est rem­placé et / ou réparé.

2

#1

1

back panel section

#1

A

1

(DH750)

front panel section

(DH750)

chassis section

A

(DH750)

#1

#1

#1

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 4-448-295-01 SCREW B-TYPE 4X8

2 4-442-873-32 CASE (ENTRY) (DH550)

2 4-442-873-52 CASE (ENTRY) (DH750)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

57

STR-DH550/DH750

Ver. 1.1

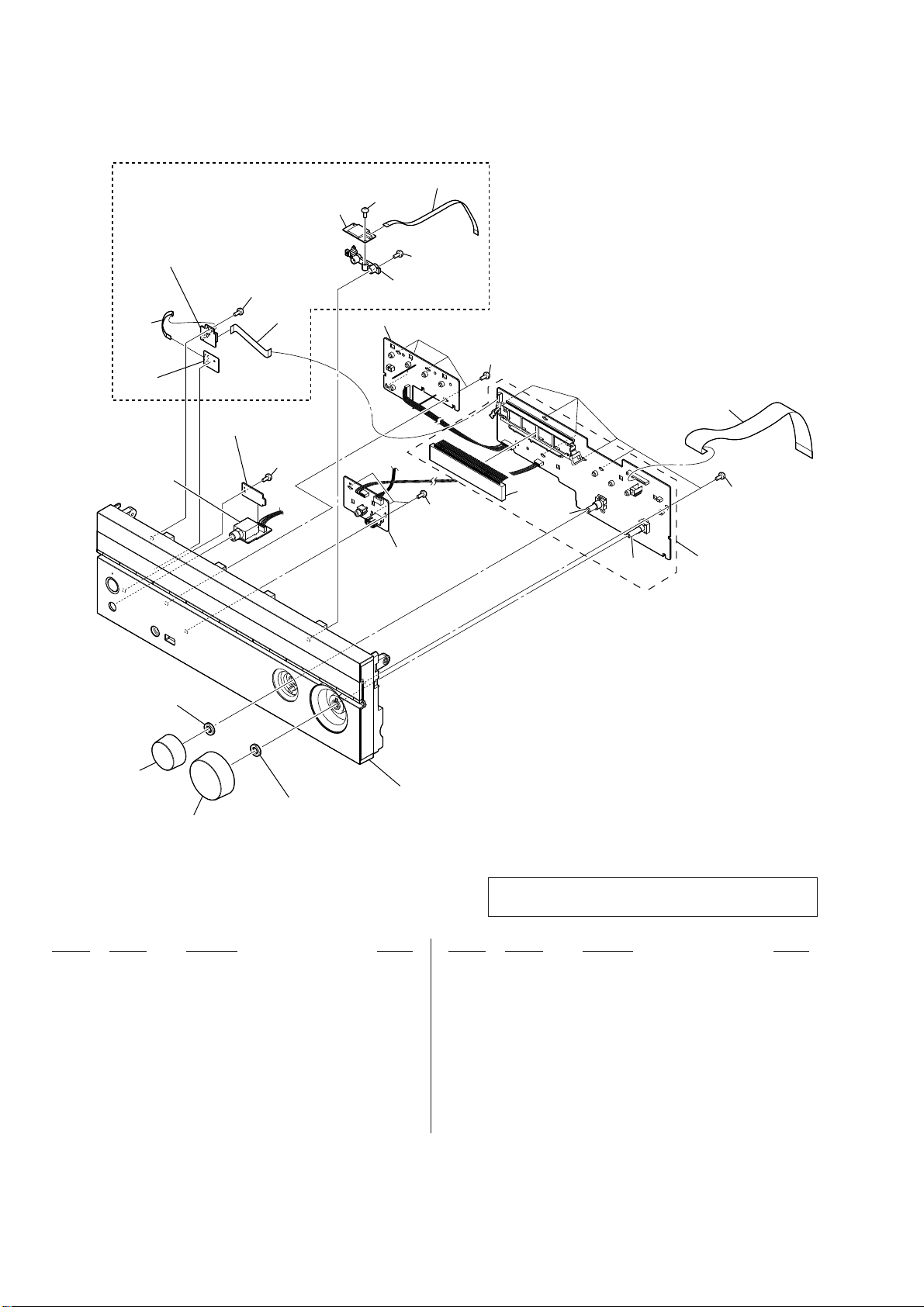

6-2. FRONT PANEL SECTION

(DH750)

not supplied
(NFC ICON PC board)

59

61

not supplied
(HEADPHONE board)

54

60

not supplied
(HP SUPPORT board)

54

62

54

not supplied

55

58

54

54

63

54

ND101

EN100

EN101

57

54

56

supplied with
EN100

52

supplied with

53

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-2588-835-1 FRONT PANEL ASSY (DH750: US, CND)

51 X-2588-837-1 FRONT PANEL ASSY (DH750: AEP, UK, AUS, MX,
51 X-2588-840-1 FRONT PANEL ASSY (DH550: US, CND)

51 X-2588-841-1 FRONT PANEL ASSY (DH550: AEP, UK, AUS, E12)
52 4-442-859-01 KNOB, MENU

53 4-442-860-01 KNOB, VOLUME
54 3-087-053-01 +BVTP2.6 (3CR)
55 A-1989-183-A POWER KEY BOARD, COMPLETE
56 A-1989-480-A DISPLAY BOARD, COMPLETE (DH750)
56 A-1989-626-A DISPLAY BOARD, COMPLETE (DH550)

EN101

51

BR, TW)

Note: If wire (fl at type) is replaced, install it after bending

it in the same form as that before replacement.

57 1-828-412-61 WIRE (FLAT TYPE) (29 CORE)
58 A-1989-184-A FRONT JACK BOARD, COMPLETE
59 1-828-167-61 WIRE (FLAT TYPE) (8 CORE) (DH750)
60 1-828-308-61 WIRE (FLAT TYPE) (9 CORE) (DH750)
61 8-989-470-05 RC-S801/A5 (WW) (DH750)

62 1-490-558-72 BLUETOOTH MODULE (DH750)
63 1-828-202-61 WIRE (FLAT TYPE) (14 CORE) (DH750)
EN100 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR)
EN101 1-418-725-41 ENCODER, ROTARY (12 TYPE)

(MASTER VOLUME)

ND101 1-483-517-11 VACUUM FLUORESCENT DISPLAY

58

6-3. BACK PANEL SECTION

(BR)

STR-DH550/DH750

Ver. 1.2

F902

103

F901

not supplied

not supplied

104

not
supplied

(BR)

#1

(DH750)

#1

#1

not supplied

106

102

#1

101

#1

#2

#1

not
supplied

not supplied
(TUNER1 board)

105

not supplied

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

101 4-966-267-12 BUSHING (FBS001), CORD

102 1-834-966-41 POWER-SUPPLY CORD (AEP)

0

102 1-834-967-21 CORD, POWER (AUS)

0

102 1-835-706-22 CORD, POWER-SUPPLY (BR)

0

102 1-837-308-11 CORD, POWER-SUPPLY (US, CND)

0

102 1-837-344-11 CORD, POWER-SUPPLY (MX)

0

102 1-837-345-11 CORD, POWER-SUPPLY (TW)

0

102 1-839-012-11 CORD, POWER-SUPPLY (E12)

0

102 1-839-999-21 POWER-SUPPLY CORD (UK)

0

103 A-1988-684-A STANDBY DCDC BOARD, COMPLETE

103 A-1989-572-A STANDBY DCDC BOARD, COMPLETE
103 A-1989-616-A STANDBY DCDC BOARD, COMPLETE (BR)

103 A-1989-624-A STANDBY DCDC BOARD, COMPLETE

(DH750: US, CND, MX, TW)

(DH750: AEP , UK, AUS)

(DH550: US, CND)

103 A-1989-634-A STANDBY DCDC BOARD, COMPLETE
104 A-1846-561-A TUNER1AMPR ASSY (AEP, UK, AUS, E12, TW)
104 A-1846-564-A TUNER1AMF ASSY (US, CND, MX, BR)

105 1-828-308-61 WIRE (FLAT TYPE) (9 CORE)
106 A-1989-867-A HDMI BOARD, COMPLETE (for SERVICE)

F901 1-532-464-33 FUSE (T2.5AL/250V) (E12)

0

F901 1-532-465-33 FUSE (T3.15AL/250V) (AEP, AUS, UK)

0

F901 1-532-504-33 FUSE, (T4AL/250V) (BR)

0

F901 1-532-506-33 FUSE, (T6.3AL/250V) (MX, TW)

0

F901 1-533-311-12 FUSE, GLASS (DIA.5) (8A/125V) (US, CND)

0

F902 1-532-506-33 FUSE, (T6.3AL/250V) (BR)

0

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-682-546-09 SCREW +B 3X5

Note: If wire (fl at type) is replaced, install it after bending

it in the same form as that before replacement.

(DH550: AEP , UK, AUS, E12)

59

STR-DH550/DH750

Ver. 1.2

6-4. CHASSIS SECTION

(DH750)

not
supplied

(DH550)

#1

not
supplied

D

not
supplied

(DH750)

not supplied
(USB INSULATION
MT PC board)

#1

not
supplied

151

#1

F

#1

F

not
supplied

not supplied

not supplied

#1

not supplied
(USB INSULATION
MT PC board)

G

supplied with Q550, Q551,
Q600, Q601, Q650, Q651,
Q700, Q701, Q750, Q751

not supplied

supplied with Q550, Q551,
Q600, Q601, Q650, Q651,
Q700, Q701, Q750, Q751,

#1

Q800, Q801, Q850, Q851

G

#1

E

#1

not supplied
(INSULATION
board)

#1

not supplied

#1

#1

#1

Q550

Q551

G

Q701

Q700

C

F

#1

152

B

(DH750)

(DH550)

Q601

Q600

#1

Q751

Q750

Q651

Q650

(DH750)

(DH750)

#1

(DH750)

Q801

Q800

Q851

Q850

154

153

#1

not supplied

156

#1

(DH750)

Q701 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q750 6-702-390-01 TRANSISTOR MN2488-OPY-MK

Q751 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q800 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DH750)
Q801 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DH750)
Q850 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DH750)

Q851 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DH750)

T901 1-697-237-21 POWER TRANSFORMER (MAIN) (MX)

0

T901 1-697-238-21 POWER TRANSFORMER (MAIN) (BR)

0

T901 1-697-367-11 POWER TRANSFORMER (MAIN) (AEP, UK, AUS)

0

T901 1-697-425-11 POWER TRANSFORMER (MAIN) (US, CND, TW)

0

T901 1-697-414-11 POWER TRANSFORMER (MAIN) (E12)

0

#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3

not supplied

Note: If wire (fl at type) is replaced, install it after bending

it in the same form as that before replacement.

T901

not
supplied

(DH750: BR)

not
supplied

not
supplied

D

155

156

#1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
151 4-249-675-02 +BV SUMITITE S 4X6 ROUND

152 3-905-609-31 SCREW (TRANSISTOR)
153 1-828-379-61 WIRE (FLAT TYPE) (23 CORE)
154 A-1988-674-A MAIN BOARD, COMPLETE (DH750)
154 A-1989-623-A MAIN BOARD, COMPLETE (DH550)

155 4-447-491-01 CUSHION, FOOT
156 X-2583-799-2 ASSY, FOOT
Q550 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q551 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q600 6-702-390-01 TRANSISTOR MN2488-OPY-MK

Q601 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q650 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q651 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q700 6-702-390-01 TRANSISTOR MN2488-OPY-MK

B

C

E

not supplied

not
supplied

not
supplied

60

STR-DH550/DH750

SECTION 7

ELECTRICAL PARTS LIST

Note:

• Due to standardization, replacements in
the parts list may be different from the
parts specifi ed in the diagrams or the com-
ponents used on the set.

• Items marked “*” are not stocked since
they are seldom required for routine ser­vice.

Some delay should be anticipated when

ordering these items.

• RESISTORS

All resistors are in ohms.
METAL: Metal-fi lm resistor.
METAL OXIDE: Metal oxide-fi lm resistor.
F: nonfl ammable

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

• CAPACITORS
uF: μF

• COILS
uH: μH

• SEMICONDUCTORS
In each case, u: μ, for example:
uA. . : μA. . , uPA. . , μPA. . ,
uPB. . : μPB. . , uPC. . , μPC. . ,
uPD. . : μPD. .

• Abbreviation
AUS : Australian model
BR : Brazillian model
CND : Canadian model
E12 : 220 – 240V AC area in E model
MX : Mexican model
TW : Taiwan model

When indicating parts by reference num­ber, please include the board name.

The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifi é.

The components identifi ed by mark 9 con­tain confi dential information.
Strictly follow the instructions whenever
the components are repaired and/or re­placed.

Les composants identifi és par la marque

contiennent des informations confi denti-

9

elles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est rem­placé et / ou réparé.

Ver. 1.1

DISPLAY

A-1989-480-A DISPLAY BOARD, COMPLETE (DH750)
A-1989-626-A DISPLAY BOARD, COMPLETE (DH550)
***********************

< CAPACITOR >
C112 1-116-734-11 CERAMIC CHIP 1uF 20% 16V

C113 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
* C114 1-116-723-11 CERAMIC CHIP 4.7uF 10% 10V
C115 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C116 1-115-871-11 ELECT 1uF 20% 50V

C117 1-126-795-11 ELECT 10uF 20% 50V
C118 1-126-514-11 ELECT 22uF 20% 16V
C119 1-162-921-11 CERAMIC CHIP 33PF 5% 50V
C120 1-126-514-11 ELECT 22uF 20% 16V
C121 1-162-921-11 CERAMIC CHIP 33PF 5% 50V

C122 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C123 1-115-871-11 ELECT 1uF 20% 50V
C124 1-126-382-11 ELECT 100uF 20% 16V
C125 1-162-966-91 CERAMIC CHIP 0.0022uF 10% 50V
C127 1-119-943-91 ELECT 47uF 20% 50V

C128 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V
C129 1-162-968-91 CERAMIC CHIP 0.0047uF 10% 50V
C130 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V
C131 1-124-635-00 ELECT 220uF 20% 6.3V
C132 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V

C133 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V
C134 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V
C135 1-114-811-11 CERAMIC CHIP 0.0033uF 10% 50V
C137 1-126-795-11 ELECT 10uF 20% 50V
C138 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C140 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C141 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C142 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C143 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

(DH750)

C148 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

(DH750)

< CONNECTOR >
CN102 1-843-898-11 CONNECTOR, FFC (LIF (NON-ZIF)) 29P

CN103 1-843-896-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P (DH750)
< DIODE >
D103 6-502-398-01 DI SA10QA04

D104 6-503-605-01 DI UDZVTE-172.0B
D106 6-500-400-01 DIODE BAV99-215
D107 6-500-400-01 DIODE BAV99-215
D108 6-500-424-01 DIODE SLI-325DCT31W

D109 6-502-398-01 DI SA10QA04
< ROTARY ENCODER >
EN100 1-418-817-21 ENCODER, ROTARY (INPUT SELECTOR)

EN101 1-418-725-41 ENCODER, ROTARY (12 TYPE)

(MASTER VOLUME)
< FERRITE BEAD >
FB100 1-469-152-11 FERRITE, EMI (SMD) (2012)
< IC >
IC100 6-600-768-01 IC PNA4823M03S0

IC101 8-759-701-01 IC NJM2904M
< JUMPER RESISTOR >
JR100 1-216-864-11 SHORT CHIP 0

JR101 1-216-864-11 SHORT CHIP 0
JR102 1-216-864-11 SHORT CHIP 0
JR103 1-216-864-11 SHORT CHIP 0
JR104 1-216-864-11 SHORT CHIP 0

JR105 1-216-864-11 SHORT CHIP 0
JR106 1-216-864-11 SHORT CHIP 0
JR107 1-216-864-11 SHORT CHIP 0
JR108 1-216-864-11 SHORT CHIP 0
JR109 1-216-864-11 SHORT CHIP 0

C149 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

(DH750)

JR110 1-216-864-11 SHORT CHIP 0
JR111 1-216-864-11 SHORT CHIP 0
JR112 1-216-864-11 SHORT CHIP 0

61

STR-DH550/DH750

Ver. 1.1

DISPLAY

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
JR113 1-216-864-11 SHORT CHIP 0

JR133 1-216-296-11 SHORT CHIP 0
JR134 1-216-296-11 SHORT CHIP 0

JR135 1-216-296-11 SHORT CHIP 0
JR136 1-216-296-11 SHORT CHIP 0
JR137 1-216-296-11 SHORT CHIP 0
JR138 1-216-296-11 SHORT CHIP 0

JR139 1-216-296-11 SHORT CHIP 0
JR140 1-216-296-11 SHORT CHIP 0
JR141 1-216-296-11 SHORT CHIP 0
JR142 1-216-296-11 SHORT CHIP 0
JR143 1-216-296-11 SHORT CHIP 0

JR144 1-216-296-11 SHORT CHIP 0
JR145 1-216-864-11 SHORT CHIP 0
JR146 1-216-296-11 SHORT CHIP 0
JR147 1-216-296-11 SHORT CHIP 0
JR148 1-216-296-11 SHORT CHIP 0

JR149 1-216-296-11 SHORT CHIP 0
JR150 1-216-296-11 SHORT CHIP 0
JR151 1-216-296-11 SHORT CHIP 0
JR152 1-216-296-11 SHORT CHIP 0
JR153 1-216-296-11 SHORT CHIP 0

JR154 1-216-296-11 SHORT CHIP 0
JR156 1-216-296-11 SHORT CHIP 0
JR157 1-216-296-11 SHORT CHIP 0
JR158 1-216-296-11 SHORT CHIP 0
JR159 1-216-296-11 SHORT CHIP 0

JR160 1-216-296-11 SHORT CHIP 0
JR162 1-216-296-11 SHORT CHIP 0
JR163 1-216-296-11 SHORT CHIP 0
JR164 1-216-296-11 SHORT CHIP 0
JR165 1-216-296-11 SHORT CHIP 0

JR166 1-216-296-11 SHORT CHIP 0
JR170 1-216-296-11 SHORT CHIP 0
JR171 1-216-296-11 SHORT CHIP 0
JR172 1-216-296-11 SHORT CHIP 0
JR173 1-216-296-11 SHORT CHIP 0

JR174 1-216-296-11 SHORT CHIP 0
JR176 1-216-296-11 SHORT CHIP 0
JR177 1-216-296-11 SHORT CHIP 0
JR178 1-216-296-11 SHORT CHIP 0
JR180 1-216-296-11 SHORT CHIP 0

JR181 1-216-296-11 SHORT CHIP 0
JR182 1-216-296-11 SHORT CHIP 0
JR183 1-216-296-11 SHORT CHIP 0
JR184 1-216-296-11 SHORT CHIP 0
JR185 1-216-296-11 SHORT CHIP 0

JR186 1-216-296-11 SHORT CHIP 0
JR187 1-216-296-11 SHORT CHIP 0
JR188 1-216-296-11 SHORT CHIP 0
JR189 1-216-296-11 SHORT CHIP 0
JR190 1-216-296-11 SHORT CHIP 0

JR191 1-216-296-11 SHORT CHIP 0
JR192 1-216-296-11 SHORT CHIP 0
JR193 1-216-296-11 SHORT CHIP 0
JR194 1-216-296-11 SHORT CHIP 0
JR195 1-216-296-11 SHORT CHIP 0

< COIL >
L102 1-410-671-31 INDUCTOR 47uH

< FLUORESCENT INDICATOR TUBE >
ND101 1-483-517-11 VACUUM FLUORESCENT DISPLAY
< TRANSISTOR >
Q101 6-552-713-01 TR QS5W2TR

Q102 6-553-266-01 TR 2PD601ART
Q103 6-553-268-01 TR PDTC114ET
Q104 6-551-728-01 TRANSISTOR 2SB1710TL

< RESISTOR >
R112 1-218-285-11 METAL CHIP 75 5% 1/10W

R113 1-216-797-11 METAL CHIP 10 5% 1/10W
R114 1-216-839-11 METAL CHIP 33K 5% 1/10W
R115 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R116 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R117 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R118 1-216-841-11 METAL CHIP 47K 5% 1/10W
R119 1-216-841-11 METAL CHIP 47K 5% 1/10W
R120 1-216-296-11 SHORT CHIP 0
R121 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R122 1-216-821-11 METAL CHIP 1K 5% 1/10W
R123 1-216-833-11 METAL CHIP 10K 5% 1/10W
R124 1-216-841-11 METAL CHIP 47K 5% 1/10W
R125 1-218-866-11 METAL CHIP 6.2K 0.5% 1/10W
R126 1-216-842-11 METAL CHIP 56K 5% 1/10W

R127 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R128 1-216-821-11 METAL CHIP 1K 5% 1/10W
R129 1-216-845-11 METAL CHIP 100K 5% 1/10W
R130 1-250-616-11 METAL CHIP 1K 1% 1/10W
R131 1-250-624-11 METAL CHIP 2.2K 1% 1/10W

R132 1-250-632-11 METAL CHIP 4.7K 1% 1/10W
R133 1-250-624-11 METAL CHIP 2.2K 1% 1/10W
R134 1-250-624-11 METAL CHIP 2.2K 1% 1/10W
R135 1-250-616-11 METAL CHIP 1K 1% 1/10W
R136 1-250-592-11 METAL CHIP 100 1% 1/10W

R137 1-250-592-11 METAL CHIP 100 1% 1/10W
R139 1-249-428-11 CARBON 8.2K 5% 1/4W
R140 1-250-612-11 METAL CHIP 680 1% 1/10W
R141 1-257-172-91 METAL CHIP 100 5% 1/3W
R142 1-250-640-11 METAL CHIP 10K 1% 1/10W

R143 1-250-600-11 METAL CHIP 220 1% 1/10W
R144 1-250-664-11 METAL CHIP 100K 1% 1/10W
R145 1-250-640-11 METAL CHIP 10K 1% 1/10W
R146 1-250-648-11 METAL CHIP 22K 1% 1/10W
R147 1-250-640-11 METAL CHIP 10K 1% 1/10W

R148 1-250-648-11 METAL CHIP 22K 1% 1/10W
R149 1-250-612-11 METAL CHIP 680 1% 1/10W
R150 1-250-608-11 METAL CHIP 470 1% 1/10W
R151 1-249-428-11 CARBON 8.2K 5% 1/4W
R153 1-216-843-11 METAL CHIP 68K 5% 1/10W

R154 1-216-809-11 METAL CHIP 100 5% 1/10W
R156 1-250-664-11 METAL CHIP 100K 1% 1/10W

(DH750)
R157 1-216-864-11 SHORT CHIP 0
R158 1-216-809-11 METAL CHIP 100 5% 1/10W
R159 1-216-809-11 METAL CHIP 100 5% 1/10W

R160 1-216-809-11 METAL CHIP 100 5% 1/10W
R162 1-216-864-11 SHORT CHIP 0
R165 1-216-864-11 SHORT CHIP 0
R167 1-218-285-11 METAL CHIP 75 5% 1/10W

62

STR-DH550/DH750

Ver. 1.1

DISPLAY FRONT JACK HDMI

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R168 1-218-285-11 METAL CHIP 75 5% 1/10W

R169 1-218-285-11 METAL CHIP 75 5% 1/10W
R170 1-218-285-11 METAL CHIP 75 5% 1/10W
R171 1-218-285-11 METAL CHIP 75 5% 1/10W

* C3513 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C3517 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

* C3518 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3519 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3520 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

< SWITCH >
S101 1-762-875-21 SWITCH, TACTILE (PURE DIRECT)

S102 1-762-875-21 SWITCH, TACTILE (DIMMER)
S103 1-762-875-21 SWITCH, TACTILE (DISPLAY)
S104 1-762-875-21 SWITCH, TACTILE

(CONNECTION
S105 1-762-875-21 SWITCH, TACTILE (NIGHT MODE)
S108 1-762-875-21 SWITCH, TACTILE (A.F.D./2CH)

S109 1-762-875-21 SWITCH, TACTILE (MOVIE)
S110 1-762-875-21 SWITCH, TACTILE (MUSIC)

< TRANSFORMER >
T100 1-443-645-11 TRANSFORMER, DC CONVERTER

*************************************************************

A-1989-184-A FRONT JACK BOARD, COMPLETE
***************************

< CAPACITOR >
C150 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V

C151 1-126-176-11 ELECT 220uF 20% 10V
C152 1-114-325-11 CERAMIC CHIP 0.1uF 10% 25V
C154 1-116-743-11 CERAMIC CHIP 0.22uF 10% 16V

< CONNECTOR >
CN104 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P

CN106 1-819-866-11 USB CONNECTOR (A) ( DC5V 1A MAX)
< DIODE >

PAIRING BLUETOOTH) (DH750),

(INPUT MODE) (DH550)

* C3523 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C3525 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
* C3526 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C3527 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

* C3528 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3529 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C3530 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3531 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3532 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
* C3533 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

C3534 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

* C3536 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3538 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3540 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3541 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

* C3542 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3543 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3544 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3545 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3546 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C3548 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C3549 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V
C3550 1-164-843-11 CERAMIC CHIP 3PF 0.25PF 50V

* C3551 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3552 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C3553 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3554 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3555 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3556 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3557 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

D126 6-502-968-01 DI DZ2J062M0L
D129 6-500-400-01 DIODE BAV99-215
D130 6-500-400-01 DIODE BAV99-215

< JACK >
J100 1-822-453-11 SMALL TYPE JACK (3.5MM) (AUTO CAL MIC)
< JUMPER RESISTOR >
JR200 1-216-296-11 SHORT CHIP 0

JR201 1-216-296-11 SHORT CHIP 0
< RESISTOR >
R190 1-216-864-11 SHORT CHIP 0

R191 1-216-864-11 SHORT CHIP 0
R192 1-216-864-11 SHORT CHIP 0
R193 1-216-809-11 METAL CHIP 100 5% 1/10W

*************************************************************

A-1989-867-A HDMI BOARD, COMPLETE (for SERVICE)
********************

C3358 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3359 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3361 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3363 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3364 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

* C3558 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3559 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3560 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3561 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3562 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

* C3563 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3564 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
* C3565 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

C3566 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
C3567 1-100-354-21 ELECT CHIP 220uF 20% 6.3V

C3570 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C3578 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

* C3596 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3597 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C3598 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C3599 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C3602 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
* C3603 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C3604 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
* C3605 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C3606 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
* C3607 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C3608 1-100-354-21 ELECT CHIP 220uF 20% 6.3V
* C3609 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

63

STR-DH550/DH750

Ver. 1.2

HDMI

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< CONNECTOR >

CN3200 1-821-398-41 HDMI CONNECTOR (HDMI OUT TV OUT ARC)
CN3501 1-821-398-41 HDMI CONNECTOR

(HDMI IN VIDEO (MHL) DC5V

CN3502 1-821-398-41 HDMI CONNECTOR

(HDMI IN BD/DVD (for AUDIO))
CN3503 1-821-398-41 HDMI CONNECTOR (HDMI IN GAME)
CN3504 1-821-398-41 HDMI CONNECTOR (HDMI IN SAT/CATV)

1A MAX)

R3521 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3523 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3549 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3551 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3552 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3555 1-218-953-11 METAL CHIP 1K 5% 1/16W
R3556 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3560 1-218-965-11 METAL CHIP 10K 5% 1/16W

CN3513 1-844-059-11 PIN, CONNECTOR (PC BOARD) (3P)
CN3514 1-820-121-51 CONNECTOR, FFC/FPC 23P

< DIODE >
D3501 6-503-738-01 DI CES521
< FERRITE BEAD >
FB3501 1-481-348-21 EMI FERRITE (SMD) (1608)

FB3504 1-414-772-11 FERRITE. EMI (SMD) (2012)
FB3505 1-481-348-21 EMI FERRITE (SMD) (1608)

< IC >
IC3511 6-718-999-01 IC MM1839A50NRE

IC3512 A-1989-869-A IC W25Q16CVSSIG-R (for SERVICE)
IC3513 6-719-139-01 IC MM3411A50NRE
9 IC3514 (Not supplied) IC SII9573CTUC
IC3517 6-718-379-01 IC RP108J081D-FE

IC3518 6-715-164-01 IC TPS2553DBVR
IC3519 6-717-006-01 IC BD00HC5WEFJ-E2

< COIL >
L3500 1-469-525-91 INDUCTOR 10uH
< RESISTOR >
R3365 1-218-965-11 METAL CHIP 10K 5% 1/16W

R3370 1-208-874-81 METAL CHIP 300 0.5% 1/16W
R3372 1-220-168-81 METAL CHIP 62 5% 1/16W
R3373 1-218-990-81 SHORT CHIP 0
R3374 1-220-168-81 METAL CHIP 62 5% 1/16W

R3567 1-218-937-11 METAL CHIP 47 5% 1/16W
R3568 1-218-937-11 METAL CHIP 47 5% 1/16W
R3569 1-218-937-11 METAL CHIP 47 5% 1/16W
R3570 1-218-937-11 METAL CHIP 47 5% 1/16W
R3573 1-218-959-11 METAL CHIP 3.3K 5% 1/16W

R3576 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R3578 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R3579 1-218-990-81 SHORT CHIP 0
R3582 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3583 1-218-961-11 METAL CHIP 4.7K 5% 1/16W

R3584 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3585 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3588 1-218-929-11 METAL CHIP 10 5% 1/16W
R3589 1-218-937-11 METAL CHIP 47 5% 1/16W
R3590 1-218-937-11 METAL CHIP 47 5% 1/16W

R3591 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3593 1-218-953-11 METAL CHIP 1K 5% 1/16W
R3594 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3595 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3596 1-218-929-11 METAL CHIP 10 5% 1/16W

R3597 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3598 1-218-929-11 METAL CHIP 10 5% 1/16W
R3599 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3600 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3601 1-218-929-11 METAL CHIP 10 5% 1/16W

R3602 1-218-990-81 SHORT CHIP 0
R3606 1-216-864-11 SHORT CHIP 0
R3611 1-218-945-11 METAL CHIP 220 5% 1/16W
R3612 1-218-945-11 METAL CHIP 220 5% 1/16W
R3613 1-218-945-11 METAL CHIP 220 5% 1/16W

R3376 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3377 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3380 1-218-953-11 METAL CHIP 1K 5% 1/16W
R3386 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
R3387 1-218-956-11 METAL CHIP 1.8K 5% 1/16W

R3502 1-218-990-81 SHORT CHIP 0
R3503 1-218-990-81 SHORT CHIP 0
R3504 1-218-990-81 SHORT CHIP 0
R3505 1-218-990-81 SHORT CHIP 0
R3506 1-218-990-81 SHORT CHIP 0

R3507 1-218-990-81 SHORT CHIP 0
R3508 1-218-990-81 SHORT CHIP 0
R3509 1-218-990-81 SHORT CHIP 0
R3510 1-218-933-11 METAL CHIP 22 5% 1/16W
R3513 1-218-933-11 METAL CHIP 22 5% 1/16W

R3514 1-218-933-11 METAL CHIP 22 5% 1/16W
R3515 1-218-933-11 METAL CHIP 22 5% 1/16W
R3516 1-218-933-11 METAL CHIP 22 5% 1/16W
R3517 1-218-933-11 METAL CHIP 22 5% 1/16W
R3518 1-218-933-11 METAL CHIP 22 5% 1/16W

R3519 1-218-933-11 METAL CHIP 22 5% 1/16W
R3520 1-218-973-11 METAL CHIP 47K 5% 1/16W

Note: IC3514 on the HDMI board cannot exchange with single.

When this part on the HDMI board is damaged, exchange
the entire mounted board.

64

R3615 1-218-945-11 METAL CHIP 220 5% 1/16W
R3616 1-218-937-11 METAL CHIP 47 5% 1/16W
R3618 1-218-945-11 METAL CHIP 220 5% 1/16W
R3619 1-216-864-11 SHORT CHIP 0
R3620 1-218-941-81 METAL CHIP 100 5% 1/16W

R3621 1-218-941-81 METAL CHIP 100 5% 1/16W
R3622 1-216-864-11 SHORT CHIP 0
R3623 1-218-941-81 METAL CHIP 100 5% 1/16W
R3624 1-220-208-81 METAL CHIP 130K 5% 1/16W
R3625 1-218-941-81 METAL CHIP 100 5% 1/16W

R3626 1-218-941-81 METAL CHIP 100 5% 1/16W
R3627 1-218-941-81 METAL CHIP 100 5% 1/16W
R3628 1-218-929-11 METAL CHIP 10 5% 1/16W
R3629 1-218-941-81 METAL CHIP 100 5% 1/16W
R3630 1-218-990-81 SHORT CHIP 0

R3632 1-216-864-11 SHORT CHIP 0
R3636 1-218-990-81 SHORT CHIP 0
R3637 1-218-937-11 METAL CHIP 47 5% 1/16W
R3640 1-216-864-11 SHORT CHIP 0
R3643 1-216-864-11 SHORT CHIP 0

R3644 1-216-864-11 SHORT CHIP 0
R3645 1-216-864-11 SHORT CHIP 0

STR-DH550/DH750

Ver. 1.1

HDMI HEADPHONE MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R3646 1-216-864-11 SHORT CHIP 0

R3647 1-208-895-81 METAL CHIP 2.2K 0.5% 1/16W
R3648 1-208-695-11 METAL CHIP 3.3K 0.5% 1/16W

R3804 1-218-937-11 METAL CHIP 47 5% 1/16W
R3816 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3817 1-218-941-81 METAL CHIP 100 5% 1/16W
R3826 1-218-990-81 SHORT CHIP 0
R3827 1-218-990-81 SHORT CHIP 0

R3828 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3829 1-220-212-11 METAL CHIP 300K 5% 1/16W
R3831 1-218-941-81 METAL CHIP 100 5% 1/16W
R3832 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3833 1-208-923-11 METAL CHIP 33K 0.5% 1/16W

R3834 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R3835 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R3836 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3837 1-218-941-81 METAL CHIP 100 5% 1/16W
R3840 1-218-990-81 SHORT CHIP 0

R3842 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3843 1-218-990-81 SHORT CHIP 0
R3844 1-216-295-91 SHORT CHIP 0
R3845 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R3846 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R3848 1-218-990-81 SHORT CHIP 0
R3849 1-218-990-81 SHORT CHIP 0
R3850 1-218-990-81 SHORT CHIP 0

C015 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C016 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

(DH750)

C017 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

(DH750)

C018 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C051 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C052 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C053 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C057 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

C062 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C063 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C064 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C065 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C066 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

(DH750)

C067 1-100-153-91 CERAMIC CHIP 220PF 5% 100V

(DH750)
C068 1-100-153-91 CERAMIC CHIP 220PF 5% 100V
C200 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C201 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V
C202 1-116-405-11 CERAMIC CHIP 0.01uF 10% 100V

C203 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C204 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C205 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C206 1-118-435-11 CERAMIC CHIP 47PF 5% 50V
C207 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

< COMPOSITION CIRCUIT BLOCK >
RB3204 1-234-400-21 CONDUCTOR, NETWORK (1005X4)

RB3205 1-234-400-21 CONDUCTOR, NETWORK (1005X4)
< VIBRATOR >
X3001 1-814-595-11 QUARTS CRYSTAL UNIT (27MHz)

*************************************************************

HEADPHONE BOARD
*****************

< CAPACITOR >
C160 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C161 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C162 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

< JACK >
J101 1-822-967-12 JACK (PHONES)

*************************************************************

A-1988-674-A MAIN BOARD, COMPLETE (DH750)
A-1989-623-A MAIN BOARD, COMPLETE (DH550)
*********************

7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
< CAPACITOR >
C001 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

C002 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C003 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C007 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C012 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

C208 1-118-435-11 CERAMIC CHIP 47PF 5% 50V
C210 1-126-916-11 ELECT 1000uF 20% 6.3V
C211 1-126-947-11 ELECT 47uF 20% 35V
C250 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C301 1-126-964-11 ELECT 10uF 20% 50V

C320 1-126-923-91 ELECT 220uF 20% 10V
C322 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C323 1-126-923-91 ELECT 220uF 20% 10V
C325 1-126-964-11 ELECT 10uF 20% 50V
C350 1-118-044-11 CERAMIC CHIP 1uF 10% 50V

C351 1-126-933-11 ELECT 100uF 20% 16V
C352 1-118-044-11 CERAMIC CHIP 1uF 10% 50V
C353 1-126-933-11 ELECT 100uF 20% 16V
C354 1-100-155-91 CERAMIC CHIP 470PF 5% 100V
C355 1-100-155-91 CERAMIC CHIP 470PF 5% 100V

C430 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(DH750)
C431 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(DH750)
C432 1-118-435-11 CERAMIC CHIP 47PF 5% 50V

(DH750)
* C433 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

(DH750)
C434 1-118-435-11 CERAMIC CHIP 47PF 5% 50V

(DH750)
C441 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

(DH750)
C449 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C450 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C480 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(DH750)
C481 1-165-908-11 CERAMIC CHIP 1uF 10% 10V

(DH750)

C013 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C014 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

C482 1-118-435-11 CERAMIC CHIP 47PF 5% 50V

(DH750)

65

STR-DH550/DH750

Ver. 1.1

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* C483 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V

(DH750)

C484 1-118-435-11 CERAMIC CHIP 47PF 5% 50V

(DH750)
C487 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C489 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

C491 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

(DH750)
C499 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C503 1-126-964-11 ELECT 10uF 20% 50V
C505 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C545 1-126-947-11 ELECT 47uF 20% 35V

C691 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C692 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C701 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C703 1-126-964-11 ELECT 10uF 20% 50V
C704 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C705 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

C708 1-126-947-11 ELECT 47uF 20% 35V
C710 1-126-964-11 ELECT 10uF 20% 50V
C712 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C713 1-126-923-91 ELECT 220uF 20% 10V
C720 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

C546 1-126-964-11 ELECT 10uF 20% 50V
C547 1-126-964-11 ELECT 10uF 20% 50V
C548 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C551 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C553 1-126-964-11 ELECT 10uF 20% 50V

C554 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C555 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C558 1-126-947-11 ELECT 47uF 20% 35V
C560 1-126-964-11 ELECT 10uF 20% 50V
C563 1-126-923-91 ELECT 220uF 20% 10V

C564 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C570 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C578 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V
C581 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C582 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

C585 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C586 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C591 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C592 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C601 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

C603 1-126-964-11 ELECT 10uF 20% 50V
C604 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C605 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C610 1-126-964-11 ELECT 10uF 20% 50V
C612 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

C613 1-126-923-91 ELECT 220uF 20% 10V
C618 1-126-947-11 ELECT 47uF 20% 35V
C620 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C628 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V
C631 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

C632 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C635 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C636 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C641 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C642 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C651 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C653 1-126-964-11 ELECT 10uF 20% 50V
C654 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
C655 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C658 1-126-947-11 ELECT 47uF 20% 35V

C660 1-126-964-11 ELECT 10uF 20% 50V
C662 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C663 1-126-923-91 ELECT 220uF 20% 10V
C670 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C678 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

C728 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V
C731 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C732 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C735 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C736 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C741 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C742 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C751 1-164-230-11 CERAMIC CHIP 220PF 5% 50V
C753 1-126-964-11 ELECT 10uF 20% 50V
C754 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

C755 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C758 1-126-947-11 ELECT 47uF 20% 35V
C760 1-126-964-11 ELECT 10uF 20% 50V
C762 1-118-291-11 CERAMIC CHIP 100PF 5% 50V
C763 1-126-923-91 ELECT 220uF 20% 10V

C770 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V
C778 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V
C781 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C782 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C785 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

C786 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C791 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C792 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C801 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

(DH750)

C803 1-126-964-11 ELECT 10uF 20% 50V

(DH750)

C804 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

(DH750)

C805 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

(DH750)

C808 1-126-947-11 ELECT 47uF 20% 35V

(DH750)

C810 1-126-964-11 ELECT 10uF 20% 50V

(DH750)

C812 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

(DH750)

C813 1-126-923-91 ELECT 220uF 20% 10V

(DH750)

C820 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

(DH750)

C828 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

(DH750)

C831 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

(DH750)

C832 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

(DH750)

C681 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C682 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V
C685 1-114-128-91 CERAMIC CHIP 47PF 5% 100V
C686 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

66

C835 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C836 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

STR-DH550/DH750

Ver. 1.1

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C841 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C842 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C851 1-164-230-11 CERAMIC CHIP 220PF 5% 50V

(DH750)

C853 1-126-964-11 ELECT 10uF 20% 50V

(DH750)

C854 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V

(DH750)

C855 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

(DH750)

C858 1-126-947-11 ELECT 47uF 20% 35V

(DH750)

C860 1-126-964-11 ELECT 10uF 20% 50V

(DH750)

C862 1-118-291-11 CERAMIC CHIP 100PF 5% 50V

(DH750)

C863 1-126-923-91 ELECT 220uF 20% 10V

(DH750)

C870 1-114-339-91 CERAMIC CHIP 3300PF 5% 50V

(DH750)

C878 1-114-324-11 CERAMIC CHIP 0.022uF 10% 50V

(DH750)

C881 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

(DH750)

C882 1-116-138-11 CERAMIC CHIP 4PF 0.25PF 100V

(DH750)

C885 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C886 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C891 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C892 1-114-128-91 CERAMIC CHIP 47PF 5% 100V

(DH750)

C2041 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2042 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C2043 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C2044 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V
C2045 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2046 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2047 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2065 1-118-290-11 CERAMIC CHIP 0.001uF 10% 50V

C2066 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

* C2067 1-116-723-11 CERAMIC CHIP 4.7uF 10% 10V
* C2068 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2069 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2073 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C2078 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2088 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2200 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 50V
C2202 1-104-658-91 ELECT 100uF 20% 10V
C2203 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

C2204 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2205 1-164-847-11 CERAMIC CHIP 7PF 0.5PF 50V
C2206 1-104-662-91 ELECT 22uF 20% 25V
C2207 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2208 1-100-155-91 CERAMIC CHIP 470PF 5% 100V

* C2209 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C2210 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2213 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2214 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2215 1-104-658-91 ELECT 100uF 20% 10V

C2218 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V
C2219 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2220 1-126-933-11 ELECT 100uF 20% 16V
C2221 1-137-987-81 CERAMIC CHIP 0.068uF 10% 10V
C2222 1-126-933-11 ELECT 100uF 20% 16V

C910 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C911 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C912 1-126-943-11 ELECT 2200uF 20% 25V
C913 1-126-942-61 ELECT 1000uF 20% 25V
C930 1-165-946-11 ELECT (BLOCK) 6800uF 20% 71V

C931 1-165-946-11 ELECT (BLOCK) 6800uF 20% 71V
C934 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V
C935 1-100-623-91 CERAMIC CHIP 0.1uF 10% 100V
C984 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C987 1-128-560-11 ELECT 22uF 20% 100V

C988 1-128-560-11 ELECT 22uF 20% 100V
C2008 1-126-947-11 ELECT 47uF 20% 35V
* C2009 1-116-723-11 CERAMIC CHIP 4.7uF 10% 10V
C2011 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
* C2012 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2016 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2024 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2025 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
* C2026 1-116-723-11 CERAMIC CHIP 4.7uF 10% 10V
C2027 1-118-044-11 CERAMIC CHIP 1uF 10% 50V

C2029 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C2033 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C2034 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C2037 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
* C2038 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2039 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C2040 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

C2223 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C2224 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2225 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2226 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2227 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

* C2228 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2229 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2302 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V
C2303 1-118-044-11 CERAMIC CHIP 1uF 10% 50V
* C2306 1-116-723-11 CERAMIC CHIP 4.7uF 10% 10V

C2307 1-118-036-11 CERAMIC CHIP 0.1uF 10% 50V
C2308 1-104-658-91 ELECT 100uF 20% 10V
C2309 1-118-695-91 CERAMIC CHIP 0.01uF 5% 50V
* C2310 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2311 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V

C2312 1-126-933-11 ELECT 100uF 20% 16V
C2313 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C2314 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C2315 1-126-933-11 ELECT 100uF 20% 16V
C2316 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V

* C2317 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2318 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2319 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
* C2320 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2321 1-126-933-11 ELECT 100uF 20% 16V

C2322 1-164-933-11 CERAMIC CHIP 220PF 10% 50V
C2323 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V

67

STR-DH550/DH750

Ver. 1.1

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C2327 1-118-347-11 CERAMIC CHIP 0.1uF 10% 25V

C2329 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V
C2331 1-116-173-91 CERAMIC CHIP 0.0022uF 5% 50V

* C2400 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2401 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2402 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2403 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2404 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2405 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2406 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2407 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2408 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2409 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2410 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2411 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2412 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2413 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2414 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C2415 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V
C2416 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
* C2417 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2418 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2419 1-164-858-11 CERAMIC CHIP 22PF 5% 50V

C2420 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2421 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2422 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2423 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2424 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2425 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2426 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2427 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2428 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2429 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2430 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2431 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2432 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2433 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2434 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2435 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2436 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2437 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2438 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2439 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2440 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2441 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2442 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2443 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2444 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2445 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2448 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2450 1-126-923-91 ELECT 220uF 20% 10V

* C2451 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2452 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2606 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2607 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2609 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

* C2610 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2611 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

* C2612 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2613 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2614 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C2615 1-100-831-91 CERAMIC
C2616 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C2617 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
C2618 1-116-151-11 CERAMIC CHIP 0.001uF 2% 50V
C2619 1-100-831-91 CERAMIC CHIP 0.001uF 2% 50V
* C2620 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2621 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

C2622 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2623 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2624 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2625 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
* C2627 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2628 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C2631 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
* C2634 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2635 1-164-866-11 CERAMIC CHIP 47PF 5% 50V
C2900 1-164-849-11 CERAMIC CHIP 9PF 0.5PF 50V

C2901 1-164-849-11 CERAMIC CHIP 9PF 0.5PF 50V

* C2902 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2903 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2904 1-126-923-91 ELECT 220uF 20% 10V
* C2905 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2906 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
C2907 1-162-925-11 CERAMIC CHIP 68PF 5% 50V
* C2908 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2909 1-116-151-11 CERAMIC CHIP 0.001uF 2% 50V
* C2910 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2911 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2912 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2913 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V

C2914 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V
C2915 1-118-040-11 CERAMIC CHIP 2.2uF 10% 16V

C2916 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C2917 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

* C2918 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V
* C2919 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2920 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

* C2921 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2922 1-116-737-11 CERAMIC CHIP 1uF 20% 10V

< CONNECTOR >

CHIP 0.001uF 2% 50V

(DH750)
(DH750)

(DH750)

(DH750)
(DH750)

* C2453 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
* C2454 1-116-719-11 CERAMIC CHIP 10uF 10% 6.3V

C2602 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
* C2604 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2605 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V

68

(DH750)

(DH750)

(DH750)

CN391 1-779-993-11 PIN, CONNECTOR (PC BOARD) 4P
* CN950 1-564-508-11 PLUG, CONNECTOR 5P
CN951 1-843-902-11 PIN, CONNECTOR (3.96mm PITCH) 5P
CN2000 1-820-121-51 CONNECTOR, FFC/FPC 23P
CN2003 1-820-112-51 CONNECTOR, FFC/FPC 9P

CN2004 1-820-125-51 CONNECTOR, FFC/FPC 29P
CN2600 1-815-762-31 CONNECTOR, FFC/FPC (LIF) 14P (DH750)

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
CN2601 1-784-859-51 CONNECTOR, FFC (LIF (NON-ZIF)) 7P

CN2900 1-843-886-11 PIN, CONNECTOR (PWB) 5P
< DIODE >

D2201 6-502-961-01 DI DA2J10100L
D2302 6-502-961-01 DI DA2J10100L
D2303 6-500-514-01 DIODE BAV70
D2304 6-500-514-01 DIODE BAV70

D301 6-502-961-01 DI DA2J10100L
D326 6-500-514-01 DIODE BAV70
D327 6-500-514-01 DIODE BAV70
D350 6-502-961-01 DI DA2J10100L
D352 6-503-670-01 DI GS1G

D355 6-502-961-01 DI DA2J10100L
D356 6-504-052-01 DI P6SMB30AT3G
D360 6-502-961-01 DI DA2J10100L (DH750)
D365 6-502-961-01 DI DA2J10100L
D536 6-503-015-01 DI DZ2J051M0L

D550 6-502-961-01 DI DA2J10100L
D551 6-502-961-01 DI DA2J10100L
D570 6-502-961-01 DI DA2J10100L
D571 6-502-961-01 DI DA2J10100L
D572 6-502-961-01 DI DA2J10100L

D600 6-502-961-01 DI DA2J10100L
D601 6-502-961-01 DI DA2J10100L
D620 6-502-961-01 DI DA2J10100L
D621 6-502-961-01 DI DA2J10100L
D622 6-502-961-01 DI DA2J10100L

D650 6-502-961-01 DI DA2J10100L
D651 6-502-961-01 DI DA2J10100L
D670 6-502-961-01 DI DA2J10100L
D671 6-502-961-01 DI DA2J10100L
D672 6-502-961-01 DI DA2J10100L

D700 6-502-961-01 DI DA2J10100L
D701 6-502-961-01 DI DA2J10100L
D720 6-502-961-01 DI DA2J10100L
D721 6-502-961-01 DI DA2J10100L
D722 6-502-961-01 DI DA2J10100L

D750 6-502-961-01 DI DA2J10100L
D751 6-502-961-01 DI DA2J10100L
D770 6-502-961-01 DI DA2J10100L
D771 6-502-961-01 DI DA2J10100L
D772 6-502-961-01 DI DA2J10100L

D800 6-502-961-01 DI DA2J10100L (DH750)
D801 6-502-961-01 DI DA2J10100L (DH750)
D820 6-502-961-01 DI DA2J10100L (DH750)
D821 6-502-961-01 DI DA2J10100L (DH750)
D822 6-502-961-01 DI DA2J10100L (DH750)

D850 6-502-961-01 DI DA2J10100L (DH750)
D851 6-502-961-01 DI DA2J10100L (DH750)
D870 6-502-961-01 DI DA2J10100L (DH750)
D871 6-502-961-01 DI DA2J10100L (DH750)
D872 6-502-961-01 DI DA2J10100L (DH750)

D910 6-503-670-01 DI GS1G
D911 6-503-670-01 DI GS1G
D912 6-503-670-01 DI GS1G
D913 6-503-670-01 DI GS1G
D920 6-502-961-01 DI DA2J10100L

D921 8-719-061-07 DIODE D5SBA60-F
D937 6-502-961-01 DI DA2J10100L
D2003 6-503-759-01 DI RB751V40, 115
D2011 6-503-738-01 DI CES521
D2012 6-503-738-01 DI CES521

D2600 6-503-738-01 DI CES521
D2601 6-503-738-01 DI CES521
D2602 6-503-738-01 DI CES521
D2603 6-503-738-01 DI CES521
D2604 6-503-738-01 DI CES521

D2900 1-811-155-11 ELEMENT, ESD PROTECT
D2901 1-811-155-11 ELEMENT, ESD PROTECT
D2902 6-503-738-01 DI CES521

< FUSE >

0 F910 1-523-085-11 FUSE (2.5A/250V)
0 F911 1-523-085-11 FUSE (2.5A/250V)
0 F912 1-523-080-11 FUSE (6.3A/250V)
0 F913 1-523-080-11 FUSE (6.3A/250V)

< FERRITE BEAD >
FB200 1-400-862-11 BEAD, FERRITE

FB2000 1-216-864-11 SHORT CHIP 0
FB2003 1-400-862-11 BEAD, FERRITE
FB2004 1-400-862-11 BEAD, FERRITE
FB2011 1-400-862-11 BEAD, FERRITE

FB2200 1-500-445-21 FERRITE, EMI (SMD) (2012)
FB2201 1-500-445-21 FERRITE, EMI (SMD) (2012)
FB2202 1-469-139-21 FERRITE, EMI (SMD) (2012)
FB2203 1-469-125-21 FERRITE, EMI (SMD) (1608)
FB2204 1-400-862-11 BEAD, FERRITE

FB2205 1-500-445-21 FERRITE, EMI (SMD) (2012)
FB2206 1-400-862-11 BEAD, FERRITE
FB2300 1-400-862-11 BEAD, FERRITE
FB2301 1-400-862-11 BEAD, FERRITE
FB2302 1-400-862-11 BEAD, FERRITE

FB2303 1-400-862-11 BEAD, FERRITE
FB2400 1-469-139-21 FERRITE, EMI (SMD) (2012)
FB2401 1-400-862-11 BEAD, FERRITE
FB2402 1-400-862-11 BEAD, FERRITE
FB2403 1-400-862-11 BEAD, FERRITE

FB2404 1-400-862-11 BEAD, FERRITE
FB2600 1-400-862-11 BEAD, FERRITE (DH750)
FB2601 1-400-862-11 BEAD, FERRITE
FB2602 1-400-862-11 BEAD, FERRITE
FB2900 1-400-862-11 BEAD, FERRITE

FB2901 1-481-218-21 FERRITE, EMI (SMD) (1608)
< IC >
IC200 6-720-355-01 IC NJM41010F1

IC350 6-718-129-01 IC KIA7807AF-RTF/P
IC352 6-718-108-01 IC KIA7907F-RTF/P
IC400 6-720-737-01 IC BD34701KS2
IC402 8-759-274-71 IC NJM4565M (TE2) (DH750)

IC2000 6-718-999-01 IC MM1839A50NRE
IC2001 A-1989-870-A IC MB9AF156NPMC-G-JNK1E2 (for SERVICE)
IC2008 6-720-177-01 IC BR24T64FJ-WE2
IC2009 6-719-856-01 IC BU4229F-TR
IC2200 6-600-827-01 IC JSR1124

(OPTICAL (SAT/CATV) (ASSIGNABLE) IN 1)

D2200 6-502-961-01 DI DA2J10100L

IC2201 6-600-827-01 IC JSR1124 (OPTICAL (TV) (ASSIGNABLE) IN 2)

69

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
IC2202 6-709-888-01 IC TC7WHU04FK

IC2203 6-717-987-11 IC LC89075WA-H
IC2204 6-718-383-01 IC TC74VHC393FT (ELK)
IC2205 8-759-680-48 IC TC7WH157FK

IC2300 6-718-999-01 IC MM1839A50NRE
IC2301 6-720-530-01 IC PCM1681PWPR
IC2400 6-718-924-01 IC ADSST-AVR-3045
IC2401 A-1989-871-A IC W25Q80BVSSIG (for SERVICE)
IC2402 (Not supplied) IC BD00IC0WHFV-GTR

IC2601 6-719-856-01 IC BU4229F-TR
IC2602 A-1989-868-A IC MB9AF156NPMC-G-JNK1E2 (for SERVICE)
IC2603 6-718-324-12 IC MFI337S3959
IC2900 (Not supplied) IC BU94502AMUV
IC2901 6-717-006-01 IC BD00HC5WEFJ-E2

IC2902 6-715-164-01 IC TPS2553DBVR
< JACK >
J200 1-843-567-11 JACK, PIN 3P

(VIDEO SAT/CATV IN/VIDEO IN/MONITOR OUT)

J401 1-843-547-11 JACK, PIN 6P

(AUDIO SAT/CATV IN L/R /VIDEO IN L/R /

SA-CD/CD IN L/R)

J402 1-843-546-11 JACK, PIN 4P

(AUDIO TV IN L/R /SUBWOOFER OUT)

J2200 1-784-431-11 JACK, PIN 1P

(COAXIAL SA-CD/CD (ASSIGNABLE) IN)
< JUMPER >
JC2670 1-216-295-91 SHORT CHIP 0 (DH550)
< COIL >
L550 1-420-872-52 COIL, AIR-CORE

L600 1-420-872-52 COIL, AIR-CORE
L650 1-420-872-52 COIL, AIR-CORE
L700 1-420-872-52 COIL, AIR-CORE
L750 1-420-872-52 COIL, AIR-CORE

L800 1-420-872-52 COIL, AIR-CORE (DH750)
L850 1-420-872-52 COIL, AIR-CORE (DH750)

< TRANSISTOR >
Q200 6-552-936-01 TR LTC014EUBFS8TL

Q201 6-553-007-01 TR PMG85XP
Q301 6-553-266-01 TR 2PD601ART
Q320 6-553-400-01 TR MSB92T1G
Q321 6-553-266-01 TR 2PD601ART

Q323 6-553-400-01 TR MSB92T1G
Q324 6-553-266-01 TR 2PD601ART
Q325 8-729-271-31 TRANSISTOR 2SC2713-G
Q350 6-553-266-01 TR 2PD601ART
Q355 6-553-266-01 TR 2PD601ART

Q360 6-553-266-01 TR 2PD601ART (DH750)
Q365 6-553-266-01 TR 2PD601ART
Q552 8-729-216-22 TRANSISTOR 2SA1162-G
Q553 8-729-023-22 TRANSISTOR 2SD2114K
Q554 6-553-400-01 TR MSB92T1G

Q555 6-553-400-01 TR MSB92T1G
Q570 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)
Q572 6-553-334-01 TR KTA1024-Y
Q574 6-553-335-01 TR KTC3206-Y
Q575 6-553-335-01 TR KTC3206-Y

Note: IC2402 and IC2900 on the MAIN board cannot exchange

with single. When these parts on the MAIN board are
damaged, exchange the entire mounted board.

70

Q602 8-729-216-22 TRANSISTOR 2SA1162-G
Q603 8-729-023-22 TRANSISTOR 2SD2114K
Q604 6-553-400-01 TR MSB92T1G
Q605 6-553-400-01 TR MSB92T1G
Q620 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)

Q622 6-553-334-01 TR KTA1024-Y
Q624 6-553-335-01 TR KTC3206-Y
Q625 6-553-335-01 TR KTC3206-Y
Q652 8-729-216-22 TRANSISTOR 2SA1162-G
Q653 8-729-023-22 TRANSISTOR 2SD2114K

Q654 6-553-400-01 TR MSB92T1G
Q655 6-553-400-01 TR MSB92T1G
Q670 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)
Q672 6-553-334-01 TR KTA1024-Y
Q674 6-553-335-01 TR KTC3206-Y

Q675 6-553-335-01 TR KTC3206-Y
Q702 8-729-216-22 TRANSISTOR 2SA1162-G
Q703 8-729-023-22 TRANSISTOR 2SD2114K
Q704 6-553-400-01 TR MSB92T1G
Q705 6-553-400-01 TR MSB92T1G

Q720 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)
Q722 6-553-334-01 TR KTA1024-Y
Q724 6-553-335-01 TR KTC3206-Y
Q725 6-553-335-01 TR KTC3206-Y
Q752 8-729-216-22 TRANSISTOR 2SA1162-G

Q753 8-729-023-22 TRANSISTOR 2SD2114K
Q754 6-553-400-01 TR MSB92T1G
Q755 6-553-400-01 TR MSB92T1G
Q770 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)
Q772 6-553-334-01 TR KTA1024-Y

Q774 6-553-335-01 TR KTC3206-Y
Q775 6-553-335-01 TR KTC3206-Y
Q802 8-729-216-22 TRANSISTOR 2SA1162-G (DH750)
Q803 8-729-023-22 TRANSISTOR 2SD2114K (DH750)
Q804 6-553-400-01 TR MSB92T1G (DH750)

Q805 6-553-400-01 TR MSB92T1G (DH750)
Q820 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)

(DH750)
Q822 6-553-334-01 TR KTA1024-Y (DH750)
Q824 6-553-335-01 TR KTC3206-Y (DH750)
Q825 6-553-335-01 TR KTC3206-Y (DH750)

Q852 8-729-216-22 TRANSISTOR 2SA1162-G (DH750)
Q853 8-729-023-22 TRANSISTOR 2SD2114K (DH750)
Q854 6-553-400-01 TR MSB92T1G (DH750)
Q855 6-553-400-01 TR MSB92T1G (DH750)
Q870 6-550-032-01 TRANSISTOR HN4A06J-GRBL (TE85R)

(DH750)
Q872 6-553-334-01 TR KTA1024-Y (DH750)

Q874 6-553-335-01 TR KTC3206-Y (DH750)
Q875 6-553-335-01 TR KTC3206-Y (DH750)
Q920 6-553-266-01 TR 2PD601ART
Q929 6-553-266-01 TR 2PD601ART

Q2000 6-553-358-01 TR 2PB709BSL
Q2001 6-553-266-01 TR 2PD601ART
Q2002 6-553-266-01 TR 2PD601ART
Q2003 6-553-268-01 TR PDTC114ET
Q2200 6-552-936-01 TR LTC014EUBFS8TL

Q2600 6-553-007-01 TR PMG85XP (DH750)
Q2601 6-552-936-01 TR LTC014EUBFS8TL
Q2602 6-552-936-01 TR LTC014EUBFS8TL
Q2604 6-553-007-01 TR PMG85XP (DH750)

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< RESISTOR >

R012 1-249-393-11 CARBON 10 5% 1/4W
R013 1-249-393-11 CARBON 10 5% 1/4W
R014 1-249-393-11 CARBON 10 5% 1/4W
R015 1-249-393-11 CARBON 10 5% 1/4W
R016 1-249-393-11 CARBON 10 5% 1/4W

(DH750)

R017 1-249-393-11 CARBON 10 5% 1/4W

(DH750)
R018 1-249-393-11 CARBON 10 5% 1/4W
R201 1-216-833-11 METAL CHIP 10K 5% 1/10W
R203 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R204 1-211-990-11 METAL CHIP 75 0.5% 1/10W

R205 1-211-990-11 METAL CHIP 75 0.5% 1/10W
R251 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R252 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R301 1-216-821-11 METAL CHIP 1K 5% 1/10W
R302 1-249-405-11 CARBON 100 5% 1/4W

R304 1-216-841-11 METAL CHIP 47K 5% 1/10W
R307 1-216-845-11 METAL CHIP 100K 5% 1/10W
R308 1-216-841-11 METAL CHIP 47K 5% 1/10W
R309 1-216-821-11 METAL CHIP 1K 5% 1/10W
R320 1-216-837-11 METAL CHIP 22K 5% 1/10W

R323 1-216-837-11 METAL CHIP 22K 5% 1/10W
R325 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R326 1-216-840-11 METAL CHIP 39K 5% 1/10W
R327 1-216-833-11 METAL CHIP 10K 5% 1/10W
R328 1-216-821-11 METAL CHIP 1K 5% 1/10W

R350 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R351 1-249-399-11 CARBON 33 5% 1/4W
R353 1-216-841-11 METAL CHIP 47K 5% 1/10W
R355 1-216-821-11 METAL CHIP 1K 5% 1/10W
R356 1-249-399-11 CARBON 33 5% 1/4W

R358 1-216-841-11 METAL CHIP 47K 5% 1/10W
R360 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(DH750)
R361 1-249-399-11 CARBON 33 5% 1/4W

(DH750)
R363 1-216-841-11 METAL CHIP 47K 5% 1/10W

(DH750)
R365 1-249-399-11 CARBON 33 5% 1/4W

R366 1-216-841-11 METAL CHIP 47K 5% 1/10W
R367 1-216-821-11 METAL CHIP 1K 5% 1/10W
R381 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R382 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R383 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R384 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R385 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R386 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R387 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W
R401 1-208-437-41 RES-CHIP 1K 2% 1/10W

R403 1-208-437-41 RES-CHIP 1K 2% 1/10W
R407 1-208-437-41 RES-CHIP 1K 2% 1/10W
R420 1-216-837-11 METAL CHIP 22K 5% 1/10W

(DH750)
R421 1-216-837-11 METAL CHIP 22K 5% 1/10W

(DH750)
R422 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)
R423 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)

R449 1-216-813-11 METAL CHIP 220 5% 1/10W
R450 1-216-813-11 METAL CHIP 220 5% 1/10W
R451 1-208-437-41 RES-CHIP 1K 2% 1/10W
R453 1-208-437-41 RES-CHIP 1K 2% 1/10W

R457 1-208-437-41 RES-CHIP 1K 2% 1/10W
R470 1-216-837-11 METAL CHIP 22K 5% 1/10W

(DH750)

R471 1-216-837-11 METAL CHIP 22K 5% 1/10W

(DH750)

R472 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)

R473 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)

R531 1-208-437-41 RES-CHIP 1K 2% 1/10W
R542 1-249-377-11 CARBON 0.47 5% 1/4W
R543 1-249-377-11 CARBON 0.47 5% 1/4W
R544 1-216-864-11 SHORT CHIP 0
R547 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W

R548 1-216-837-11 METAL CHIP 22K 5% 1/10W
R549 1-216-837-11 METAL CHIP 22K 5% 1/10W
R550 1-249-389-11 CARBON 4.7 5% 1/4W
R551 1-249-393-11 CARBON 10 5% 1/4W
R552 1-216-214-00 RES-CHIP 4.7K 2% 1/8W

R553 1-200-193-11 RESISTOR 0.22 3W
R554 1-249-405-11 CARBON 100 5% 1/4W
R555 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R556 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R557 1-216-841-11 METAL CHIP 47K 5% 1/10W

R558 1-240-855-91 CARBON 6.2K 5% 1/4W
R559 1-216-845-11 METAL CHIP 100K 5% 1/10W
R560 1-208-437-41 RES-CHIP 1K 2% 1/10W
R561 1-216-843-11 METAL CHIP 68K 5% 1/10W
R562 1-208-826-11 METAL CHIP 68K 0.5% 1/10W

R563 1-208-445-41 RES-CHIP 2.2K 2% 1/10W
R564 1-216-835-11 METAL CHIP 15K 5% 1/10W
R565 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R566 1-218-841-11 METAL CHIP 560 0.5% 1/10W
R567 1-249-405-11 CARBON 100 5% 1/4W

R568 1-216-841-11 METAL CHIP 47K 5% 1/10W
R569 1-216-843-11 METAL CHIP 68K 5% 1/10W
R570 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R571 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R572 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R573 1-216-813-11 METAL CHIP 220 5% 1/10W
R574 1-216-813-11 METAL CHIP 220 5% 1/10W
R575 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R576 1-216-817-11 METAL CHIP 470 5% 1/10W
R577 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R578 1-216-814-11 METAL CHIP 270 5% 1/10W
R579 1-216-842-11 METAL CHIP 56K 5% 1/10W
R581 1-208-437-41 RES-CHIP 1K 2% 1/10W
R600 1-249-389-11 CARBON 4.7 5% 1/4W
R601 1-249-393-11 CARBON 10 5% 1/4W

R602 1-216-214-00 RES-CHIP 4.7K 2% 1/8W
R603 1-200-193-11 RESISTOR 0.22 3W
R604 1-249-405-11 CARBON 100 5% 1/4W
R605 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R606 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R607 1-216-841-11 METAL CHIP 47K 5% 1/10W
R608 1-240-855-91 CARBON 6.2K 5% 1/4W
R609 1-216-845-11 METAL CHIP 100K 5% 1/10W

71

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R610 1-208-437-41 RES-CHIP 1K 2% 1/10W

R611 1-216-843-11 METAL CHIP 68K 5% 1/10W

R708 1-240-855-91 CARBON 6.2K 5% 1/4W
R709 1-216-845-11 METAL CHIP 100K 5% 1/10W

R612 1-208-826-11 METAL CHIP 68K 0.5% 1/10W
R613 1-208-445-41 RES-CHIP 2.2K 2% 1/10W
R614 1-216-835-11 METAL CHIP 15K 5% 1/10W
R615 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R616 1-218-841-11 METAL CHIP 560 0.5% 1/10W

R617 1-249-405-11 CARBON 100 5% 1/4W
R618 1-216-841-11 METAL CHIP 47K 5% 1/10W
R619 1-216-843-11 METAL CHIP 68K 5% 1/10W
R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R621 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R622 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R623 1-216-813-11 METAL CHIP 220 5% 1/10W
R624 1-216-813-11 METAL CHIP 220 5% 1/10W
R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R626 1-216-817-11 METAL CHIP 470 5% 1/10W

R627 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R628 1-216-814-11 METAL CHIP 270 5% 1/10W
R629 1-216-842-11 METAL CHIP 56K 5% 1/10W
R631 1-208-437-41 RES-CHIP 1K 2% 1/10W
R650 1-249-389-11 CARBON 4.7 5% 1/4W

R651 1-249-393-11 CARBON 10 5% 1/4W
R652 1-216-214-00 RES-CHIP 4.7K 2% 1/8W
R653 1-200-193-11 RESISTOR 0.22 3W
R654 1-249-405-11 CARBON 100 5% 1/4W
R655 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

R656 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R657 1-216-841-11 METAL CHIP 47K 5% 1/10W
R658 1-240-855-91 CARBON 6.2K 5% 1/4W
R659 1-216-845-11 METAL CHIP 100K 5% 1/10W
R660 1-208-437-41 RES-CHIP 1K 2% 1/10W

R710 1-208-437-41 RES-CHIP 1K 2% 1/10W
R711 1-216-843-11 METAL CHIP 68K 5% 1/10W
R712 1-208-826-11 METAL CHIP 68K 0.5% 1/10W
R713 1-208-445-41 RES-CHIP 2.2K 2% 1/10W
R714 1-216-835-11 METAL CHIP 15K 5% 1/10W

R715 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R716 1-218-841-11 METAL CHIP 560 0.5% 1/10W
R717 1-249-405-11 CARBON 100 5% 1/4W
R718 1-216-841-11 METAL CHIP 47K 5% 1/10W
R719 1-216-843-11 METAL CHIP 68K 5% 1/10W

R720 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R721 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R722 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R723 1-216-813-11 METAL CHIP 220 5% 1/10W
R724 1-216-813-11 METAL CHIP 220 5% 1/10W

R725 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R726 1-216-817-11 METAL CHIP 470 5% 1/10W
R727 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R728 1-216-814-11 METAL CHIP 270 5% 1/10W
R729 1-216-842-11 METAL CHIP 56K 5% 1/10W

R731 1-208-437-41 RES-CHIP 1K 2% 1/10W
R750 1-249-389-11 CARBON 4.7 5% 1/4W
R751 1-249-393-11 CARBON 10 5% 1/4W
R752 1-216-214-00 RES-CHIP 4.7K 2% 1/8W
R753 1-200-193-11 RESISTOR 0.22 3W

R754 1-249-405-11 CARBON 100 5% 1/4W
R755 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R756 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R757 1-216-841-11 METAL CHIP 47K 5% 1/10W
R758 1-240-855-91 CARBON 6.2K 5% 1/4W

R661 1-216-843-11 METAL CHIP 68K 5% 1/10W
R662 1-208-826-11 METAL CHIP 68K 0.5% 1/10W
R663 1-208-445-41 RES-CHIP 2.2K 2% 1/10W
R664 1-216-835-11 METAL CHIP 15K 5% 1/10W
R665 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

R666 1-218-841-11 METAL CHIP 560 0.5% 1/10W
R667 1-249-405-11 CARBON 100 5% 1/4W
R668 1-216-841-11 METAL CHIP 47K 5% 1/10W
R669 1-216-843-11 METAL CHIP 68K 5% 1/10W
R670 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R671 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R672 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R673 1-216-813-11 METAL CHIP 220 5% 1/10W
R674 1-216-813-11 METAL CHIP 220 5% 1/10W
R675 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R676 1-216-817-11 METAL CHIP 470 5% 1/10W
R677 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R678 1-216-814-11 METAL CHIP 270 5% 1/10W
R679 1-216-842-11 METAL CHIP 56K 5% 1/10W
R681 1-208-437-41 RES-CHIP 1K 2% 1/10W

R700 1-249-389-11 CARBON 4.7 5% 1/4W
R701 1-249-393-11 CARBON 10 5% 1/4W
R702 1-216-214-00 RES-CHIP 4.7K 2% 1/8W
R703 1-200-193-11 RESISTOR 0.22 3W
R704 1-249-405-11 CARBON 100 5% 1/4W

R705 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R706 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W
R707 1-216-841-11 METAL CHIP 47K 5% 1/10W

R759 1-216-845-11 METAL CHIP 100K 5% 1/10W
R760 1-208-437-41 RES-CHIP 1K 2% 1/10W
R761 1-216-843-11 METAL CHIP 68K 5% 1/10W
R762 1-208-826-11 METAL CHIP 68K 0.5% 1/10W
R763 1-208-445-41 RES-CHIP 2.2K 2% 1/10W

R764 1-216-835-11 METAL CHIP 15K 5% 1/10W
R765 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R766 1-218-841-11 METAL CHIP 560 0.5% 1/10W
R767 1-249-405-11 CARBON 100 5% 1/4W
R768 1-216-841-11 METAL CHIP 47K 5% 1/10W

R769 1-216-843-11 METAL CHIP 68K 5% 1/10W
R770 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R771 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R772 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R773 1-216-813-11 METAL CHIP 220 5% 1/10W

R774 1-216-813-11 METAL CHIP 220 5% 1/10W
R775 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R776 1-216-817-11 METAL CHIP 470 5% 1/10W
R777 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R778 1-216-814-11 METAL CHIP 270 5% 1/10W

R779 1-216-842-11 METAL CHIP 56K 5% 1/10W
R781 1-208-437-41 RES-CHIP 1K 2% 1/10W
R800 1-249-389-11 CARBON 4.7 5% 1/4W

(DH750)

R801 1-249-393-11 CARBON 10 5% 1/4W

(DH750)

R802 1-216-214-00 RES-CHIP 4.7K 2% 1/8W

(DH750)

72

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R803 1-200-193-11 RESISTOR 0.22 3W

(DH750)
R804 1-249-405-11 CARBON 100 5% 1/4W

(DH750)
R805 1-218-879-11 METAL CHIP 22K 0.5% 1/10W

(DH750)
R806 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

(DH750)
R807 1-216-841-11 METAL CHIP 47K 5% 1/10W

(DH750)
R808 1-240-855-91 CARBON 6.2K 5% 1/4W

(DH750)
R809 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)
R810 1-208-437-41 RES-CHIP 1K 2% 1/10W

(DH750)
R811 1-216-843-11 METAL CHIP 68K 5% 1/10W

(DH750)
R812 1-208-826-11 METAL CHIP 68K 0.5% 1/10W

(DH750)
R813 1-208-445-41 RES-CHIP 2.2K 2% 1/10W

(DH750)
R814 1-216-835-11 METAL CHIP 15K 5% 1/10W

(DH750)
R815 1-216-823-11 METAL CHIP 1.5K 5% 1/10W

(DH750)
R816 1-218-841-11 METAL CHIP 560 0.5% 1/10W

(DH750)
R817 1-249-405-11 CARBON 100 5% 1/4W

(DH750)
R818 1-216-841-11 METAL CHIP 47K 5% 1/10W

(DH750)
R819 1-216-843-11 METAL CHIP 68K 5% 1/10W

(DH750)
R820 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(DH750)
R821 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(DH750)
R822 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

(DH750)
R823 1-216-813-11 METAL CHIP 220 5% 1/10W

(DH750)
R824 1-216-813-11 METAL CHIP 220 5% 1/10W

(DH750)
R825 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(DH750)
R826 1-216-817-11 METAL CHIP 470 5% 1/10W

(DH750)
R827 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

(DH750)
R828 1-216-814-11 METAL CHIP 270 5% 1/10W

(DH750)
R829 1-216-842-11 METAL CHIP 56K 5% 1/10W

(DH750)
R831 1-208-437-41 RES-CHIP 1K 2% 1/10W

(DH750)
R850 1-249-389-11 CARBON 4.7 5% 1/4W

(DH750)
R851 1-249-393-11 CARBON 10 5% 1/4W

(DH750)
R852 1-216-214-00 RES-CHIP 4.7K 2% 1/8W

(DH750)
R853 1-200-193-11 RESISTOR 0.22 3W

(DH750)
R854 1-249-405-11 CARBON 100 5% 1/4W

(DH750)

R855 1-218-879-11 METAL CHIP 22K 0.5% 1/10W
R856 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W

R857 1-216-841-11 METAL CHIP 47K 5% 1/10W
R858 1-240-855-91 CARBON 6.2K 5% 1/4W
R859 1-216-845-11 METAL CHIP 100K 5% 1/10W
R860 1-208-437-41 RES-CHIP 1K 2% 1/10W
R861 1-216-843-11 METAL CHIP 68K 5% 1/10W

R862 1-208-826-11 METAL CHIP 68K 0.5% 1/10W
R863 1-208-445-41 RES-CHIP 2.2K 2% 1/10W
R864 1-216-835-11 METAL CHIP 15K 5% 1/10W
R865 1-216-823-11 METAL CHIP 1.5K 5% 1/10W
R866 1-218-841-11 METAL CHIP 560 0.5% 1/10W

R867 1-249-405-11 CARBON 100 5% 1/4W
R868 1-216-841-11 METAL CHIP 47K 5% 1/10W
R869 1-216-843-11 METAL CHIP 68K 5% 1/10W
R870 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R871 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R872 1-216-829-11 METAL CHIP 4.7K 5% 1/10W
R873 1-216-813-11
R874 1-216-813-11 METAL CHIP 220 5% 1/10W
R875 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R876 1-216-817-11 METAL CHIP 470 5% 1/10W

R877 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R878 1-216-814-11 METAL CHIP 270 5% 1/10W
R879 1-216-842-11 METAL CHIP 56K 5% 1/10W
R881 1-208-437-41 RES-CHIP 1K 2% 1/10W
R920 1-249-399-11 CARBON 33 5% 1/4W
R921 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R925 1-216-841-11 METAL CHIP 47K 5% 1/10W
R926 1-249-399-11 CARBON 33 5% 1/4W
R927 1-216-841-11 METAL CHIP 47K 5% 1/10W
R928 1-216-825-11 METAL CHIP 2.2K 5% 1/10W

R935 1-208-437-41 RES-CHIP 1K 2% 1/10W
R936 1-208-437-41 RES-CHIP 1K 2% 1/10W
R937 1-218-632-11 METAL CHIP 330 5% 1W
R938 1-218-632-11 METAL CHIP 330 5% 1W
R939 1-218-632-11 METAL CHIP 330 5% 1W

R940 1-218-632-11 METAL CHIP 330 5% 1W

METAL CHIP 220 5% 1/10W

(DH750)
(DH750)

(DH750)
(DH750)
(DH750)
(DH750)
(DH750)

(DH750)
(DH750)
(DH750)
(DH750)
(DH750)

(DH750)
(DH750)
(DH750)
(DH750)
(DH750)

(DH750)
(DH750)
(DH750)
(DH750)
(DH750)

(DH750)
(DH750)
(DH750)
(DH750)

73

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R2000 1-218-937-11 METAL CHIP 47 5% 1/16W

R2001 1-218-947-11 METAL CHIP 330 5% 1/16W
R2002 1-218-951-11 METAL CHIP 680 5% 1/16W
R2003 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2206 1-218-941-81 METAL CHIP 100 5% 1/16W
R2209 1-218-989-11 METAL CHIP 1M 5% 1/16W
R2210 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2211 1-218-941-81 METAL CHIP 100 5% 1/16W
R2212 1-218-941-81 METAL CHIP 100 5% 1/16W

R2004 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2005 1-218-937-11 METAL CHIP 47 5% 1/16W
R2006 1-218-949-11 METAL CHIP 470 5% 1/16W
R2007 1-218-947-11 METAL CHIP 330 5% 1/16W
R2008 1-218-941-81 METAL CHIP 100 5% 1/16W

R2009 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2010 1-218-941-81 METAL CHIP 100 5% 1/16W
R2011 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2012 1-218-951-11 METAL CHIP 680 5% 1/16W
R2013 1-218-941-81 METAL CHIP 100 5% 1/16W

R2014 1-218-941-81 METAL CHIP 100 5% 1/16W
R2015 1-218-941-81 METAL CHIP 100 5% 1/16W
R2016 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R2017 1-218-941-81 METAL CHIP 100 5% 1/16W
R2018 1-218-941-81 METAL CHIP 100 5% 1/16W

R2019 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2021 1-218-969-11 METAL CHIP 22K 5% 1/16W
R2022 1-218-969-11 METAL CHIP 22K 5% 1/16W
R2025 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2026 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2031 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2032 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2037 1-218-970-81 METAL CHIP 27K 5% 1/16W
R2040 1-218-945-11 METAL CHIP 220 5% 1/16W
R2041 1-218-953-11 METAL CHIP 1K 5% 1/16W

R2042 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2043 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2046 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2050 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2058 1-218-941-81 METAL CHIP 100 5% 1/16W

R2213 1-218-949-11 METAL CHIP 470 5% 1/16W
R2214 1-218-985-11 METAL CHIP 470K 5% 1/16W
R2215 1-216-857-11 METAL CHIP 1M 5% 1/10W
R2216 1-218-941-81 METAL CHIP 100 5% 1/16W
R2217 1-218-973-11 METAL CHIP 47K 5% 1/16W

R2218 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2219 1-218-947-11 METAL CHIP 330 5% 1/16W
R2220 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2221 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2222 1-218-945-11 METAL CHIP 220 5% 1/16W

R2223 1-218-945-11 METAL CHIP 220 5% 1/16W
R2224 1-218-990-81 SHORT CHIP 0
R2225 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2226 1-218-990-81 SHORT CHIP 0
R2227 1-218-990-81 SHORT CHIP 0

R2228 1-218-937-11 METAL CHIP 47 5% 1/16W
R2229 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2230 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2231 1-218-990-81 SHORT CHIP 0
R2232 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2233 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2234 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2235 1-250-471-11 METAL CHIP 100 1% 1/16W
R2236 1-218-949-11 METAL CHIP 470 5% 1/16W
R2237 1-218-941-81 METAL CHIP 100 5% 1/16W

R2238 1-216-864-11 SHORT CHIP 0
R2239 1-218-941-81 METAL CHIP 100 5% 1/16W
R2300 1-218-971-81 METAL CHIP 33K 5% 1/16W
R2301 1-218-969-11 METAL CHIP 22K 5% 1/16W
R2302 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2061 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2063 1-216-827-11 METAL CHIP 3.3K 5% 1/10W
R2064 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2066 1-218-941-81 METAL CHIP 100 5% 1/16W
R2068 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2075 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2076 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2077 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2079 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2080 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2081 1-218-941-81 METAL CHIP 100 5% 1/16W
R2083 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)
R2084 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2085 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2086 1-218-941-81 METAL CHIP 100 5% 1/16W

R2090 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2093 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2094 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2100 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2200 1-250-468-11 METAL CHIP 75 1% 1/16W

R2201 1-218-945-11 METAL CHIP 220 5% 1/16W
R2202 1-218-945-11 METAL CHIP 220 5% 1/16W
R2203 1-218-933-11 METAL CHIP 22 5% 1/16W
R2204 1-218-933-11 METAL CHIP 22 5% 1/16W
R2205 1-218-933-11 METAL CHIP 22 5% 1/16W

R2303 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)
R2304 1-218-941-81 METAL CHIP 100 5% 1/16W
R2305 1-218-941-81 METAL CHIP 100 5% 1/16W
R2306 1-218-941-81 METAL CHIP 100 5% 1/16W
R2307 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2308 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2309 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2310 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2400 1-218-941-81 METAL CHIP 100 5% 1/16W
R2401 1-218-933-11 METAL CHIP 22 5% 1/16W

R2402 1-218-945-11 METAL CHIP 220 5% 1/16W
R2403 1-218-933-11 METAL CHIP 22 5% 1/16W
R2404 1-218-945-11 METAL CHIP 220 5% 1/16W
R2405 1-218-945-11 METAL CHIP 220 5% 1/16W
R2406 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2407 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2408 1-218-933-11 METAL CHIP 22 5% 1/16W
R2409 1-218-933-11 METAL CHIP 22 5% 1/16W
R2410 1-218-933-11 METAL CHIP 22 5% 1/16W
R2411 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2412 1-218-933-11 METAL CHIP 22 5% 1/16W
R2413 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2414 1-218-933-11 METAL CHIP 22 5% 1/16W
R2415 1-218-945-11 METAL CHIP 220 5% 1/16W
R2416 1-218-933-11 METAL CHIP 22 5% 1/16W

74

STR-DH550/DH750

Ver. 1.2

MAIN

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R2417 1-218-933-11 METAL CHIP 22 5% 1/16W

R2418 1-218-933-11 METAL CHIP 22 5% 1/16W
R2419 1-218-933-11 METAL CHIP 22 5% 1/16W
R2420 1-218-947-11 METAL CHIP 330 5% 1/16W
R2421 1-218-947-11 METAL CHIP 330 5% 1/16W

R2620 1-218-941-81 METAL CHIP 100 5% 1/16W
R2621 1-218-941-81 METAL CHIP 100 5% 1/16W
R2622 1-218-941-81 METAL CHIP 100 5% 1/16W
R2623 1-218-941-81 METAL CHIP 100 5% 1/16W
R2624 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2422 1-218-933-11 METAL CHIP 22 5% 1/16W
R2423 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2424 1-218-933-11 METAL CHIP 22 5% 1/16W
R2425 1-218-989-11 METAL CHIP 1M 5% 1/16W
R2426 1-218-933-11 METAL CHIP 22 5% 1/16W

R2427 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2429 1-218-941-81 METAL CHIP 100 5% 1/16W
R2430 1-218-933-11 METAL CHIP 22 5% 1/16W
R2431 1-218-941-81 METAL CHIP 100 5% 1/16W
R2432 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2434 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2435 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2436 1-218-933-11 METAL CHIP 22 5% 1/16W
R2437 1-218-990-81 SHORT CHIP 0
R2438 1-218-990-81 SHORT CHIP 0

R2439 1-218-933-11 METAL CHIP 22 5% 1/16W
R2440 1-218-933-11 METAL CHIP 22 5% 1/16W
R2441 1-218-933-11 METAL CHIP 22 5% 1/16W
R2442 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2443 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2444 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2445 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2446 1-216-845-11 METAL CHIP 100K 5% 1/10W
R2447 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2448 1-218-933-11 METAL CHIP 22 5% 1/16W

R2449 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2450 1-218-933-11 METAL CHIP 22 5% 1/16W
R2451 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2452 1-218-933-11 METAL CHIP 22 5% 1/16W
R2454 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2455 1-208-697-11 METAL CHIP 3.9K 0.5% 1/16W
R2456 1-208-871-81 METAL CHIP 220 0.5% 1/16W
R2457 1-250-519-11 METAL CHIP 10K 1% 1/16W
R2458 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2601 1-218-965-11 METAL CHIP 10K 5% 1/16W

(DH750)

R2603 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)
R2604 1-218-947-11 METAL CHIP 330 5% 1/16W
R2605 1-218-947-11 METAL CHIP 330 5% 1/16W
R2606 1-218-941-81 METAL CHIP 100 5% 1/16W
R2607 1-218-941-81 METAL CHIP 100 5% 1/16W

R2609 1-218-933-11 METAL CHIP 22 5% 1/16W
R2610 1-218-933-11 METAL CHIP 22 5% 1/16W
R2611 1-218-941-81 METAL CHIP 100 5% 1/16W
R2612 1-218-933-11 METAL CHIP 22 5% 1/16W
R2613 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2625 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)

R2626 1-216-845-11 METAL CHIP 100K 5% 1/10W

(DH750)
R2629 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2630 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)
R2631 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2632 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2633 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2634 1-218-941-81 METAL CHIP 100 5% 1/16W
R2636 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2637 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2638 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R2639 1-218-941-81 METAL CHIP 100 5% 1/16W
R2640 1-218-941-81 METAL CHIP 100 5% 1/16W
R2642 1-218-937-11 METAL CHIP 47 5% 1/16W
R2644 1-218-937-11 METAL CHIP 47 5% 1/16W

R2645 1-218-941-81 METAL CHIP 100 5% 1/16W
R2646 1-218-941-81 METAL CHIP 100 5% 1/16W
R2647 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2651 1-218-941-81 METAL CHIP 100 5% 1/16W
R2652 1-218-941-81 METAL CHIP 100 5% 1/16W

R2653 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2654 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2655 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2656 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2657 1-218-941-81 METAL CHIP 100 5% 1/16W

R2658 1-218-941-81 METAL CHIP 100 5% 1/16W
R2659 1-218-941-81 METAL CHIP 100 5% 1/16W
R2660 1-218-937-11 METAL CHIP 47 5% 1/16W
R2661 1-218-937-11 METAL CHIP 47 5% 1/16W
R2664 1-218-957-11 METAL CHIP 2.2K 5% 1/16W

R2665 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2666 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2667 1-218-929-11 METAL CHIP 10 5% 1/16W
R2668 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2669 1-218-929-11 METAL CHIP 10 5% 1/16W

R2670 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2671 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2672 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2673 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2900 1-218-955-11 METAL CHIP 1.5K 5% 1/16W

R2901 1-218-989-11 METAL CHIP 1M 5% 1/16W
R2902 1-218-949-11 METAL CHIP 470 5% 1/16W
R2904 1-218-947-11 METAL CHIP 330 5% 1/16W
R2906 1-218-947-11 METAL CHIP 330 5% 1/16W
R2907 1-218-873-11 METAL CHIP 12K 0.5% 1/10W

R2614 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2615 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2616 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2617 1-218-941-81 METAL CHIP 100 5% 1/16W

(DH750)

R2619 1-218-941-81 METAL CHIP 100 5% 1/16W

R2908 1-218-941-81 METAL CHIP 100 5% 1/16W
R2910 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2911 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2912 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2913 1-218-965-11 METAL CHIP 10K 5% 1/16W

R2914 1-208-931-11 METAL CHIP 68K 0.5% 1/16W
R2915 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R2916 1-208-709-11 METAL CHIP 12K 0.5% 1/16W

75

STR-DH550/DH750

Ver. 1.2

MAIN POWER KEYNFC ICON PC STANDBY DCDC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R2918 1-216-833-11 METAL CHIP 10K 5% 1/10W

R2919 1-216-864-11 SHORT CHIP 0
R2920 1-208-939-11 METAL CHIP 150K 0.5% 1/16W

R2921 1-218-977-11 METAL CHIP 100K 5% 1/16W
R2922 1-218-953-11 METAL CHIP 1K 5% 1/16W
R2923 1-208-953-11 METAL CHIP 560K 0.5% 1/16W
R2924 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

< VIBRATOR >
X2001 1-781-646-21 VIBRATOR, CERAMIC (4MHz)

X2200 1-814-350-11 QUARTZ CRYSTAL UNITS (24.576MHz)
X2400 1-814-242-11 VIBRATOR, CRYSTAL (25MHz)
X2600 1-781-646-21 VIBRATOR, CERAMIC (4MHz)
X2900 1-814-482-11 QUARTZ CRYSTAL UNIT (16.9344MHz)

*************************************************************

R2925 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R2926 1-218-965-11 METAL CHIP 10K 5% 1/16W
R2927 1-218-965-11 METAL CHIP 10K 5% 1/16W

(DH750)
R2929 1-218-941-81 METAL CHIP 100 5% 1/16W
R2931 1-218-959-11 METAL CHIP 3.3K 5% 1/16W

R2932 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R2933 1-216-833-11 METAL CHIP 10K 5% 1/10W
R2934 1-216-833-11 METAL CHIP 10K 5% 1/10W

< COMPOSITION CIRCUIT BLOCK >
RB2000 1-234-375-21 RES, NETWORK 1K (1005X4)

RB2001 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2002 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2003 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2005 1-234-372-11 RES, NETWORK 100 (1005X4)

RB2006 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2007 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2008 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2009 1-234-376-11 RES, NETWORK 2.2K (1005X4)
RB2010 1-234-372-11 RES, NETWORK 100 (1005X4)

RB2011 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2012 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2013 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2014 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2015 1-234-372-11 RES, NETWORK 100 (1005X4)

RB2800 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2802 1-234-372-11 RES, NETWORK 100 (1005X4)
RB2803 1-234-372-11 RES, NETWORK 100 (1005X4)

NFC ICON PC BOARD (DH750)
*****************

< CONNECTOR >
CN2550 1-820-112-51 CONNECTOR, FFC/FPC 9P (DH750)

CN2551 1-820-384-31 CONNECTOR, FFC/FPC (LIF) 8P (DH750)

*************************************************************

A-1989-183-A POWER KEY BOARD, COMPLETE
**************************

< DIODE >
D110 8-719-057-29 DIODE SML78423C-TP15
< TRANSISTOR >
Q110 6-553-266-01 TR 2PD601ART

Q111 6-553-266-01 TR 2PD601ART
< RESISTOR >
R173 1-250-640-11 METAL CHIP 10K 1% 1/10W

R174 1-250-624-11 METAL CHIP 2.2K 1% 1/10W
R175 1-250-592-11 METAL CHIP 100 1% 1/10W
R176 1-250-584-11 METAL CHIP 47 1% 1/10W
R178 1-250-664-11 METAL CHIP 100K 1% 1/10W

R179 1-250-664-11 METAL CHIP 100K 1% 1/10W
R180 1-250-640-11 METAL CHIP 10K 1% 1/10W
R181 1-250-624-11 METAL CHIP 2.2K 1% 1/10W
R182 1-250-632-11 METAL CHIP 4.7K 1% 1/10W

R183 1-250-648-11 METAL CHIP 22K 1% 1/10W
< RELAY >
RY301 1-755-696-11 RELAY

RY350 1-755-307-21 RELAY
RY355 1-755-307-21 RELAY
RY360 1-755-307-21 RELAY (DH750)
RY365 1-755-307-21 RELAY

RY380 1-755-307-21 RELAY
RY920 1-755-593-11 RELAY

< TERMINAL >
TB501 1-854-007-11 TERMINAL BOARD, SPEAKER 6P

TB502 1-854-006-11 TERMINAL BOARD, SPEAKER 4P

TB503 1-854-006-11 TERMINAL BOARD, SPEAKER 4P (DH750)

< THERMISTOR >

0 TH251 1-804-045-11 THERMISTOR
0 TH252 1-804-045-11 THERMISTOR

(SPEAKERS IMPEDANCE USE 6-16Ω CENTER/

(SPEAKERS IMPEDANCE USE 6-16Ω

(SPEAKERS

IMPEDANCE USE 6-16Ω

BACK/ BI-AMP/ FRONT HIGH/ FRONT B L/R)

FRONT A L/R)

SURROUND L/R)

SURROUND

< SWITCH >

S111 1-762-875-21 SWITCH, TACTILE (TUNING +)

S112 1-762-875-21 SWITCH, TACTILE (TUNING -)

S113 1-762-875-21 SWITCH, TACTILE (TUNING MODE)

S114 1-762-875-21 SWITCH, TACTILE (SPEAKERS)

S115 1-762-875-21 SWITCH, TACTILE (]/1)

*************************************************************

A-1988-684-A STANDBY DCDC BOARD, COMPLETE

(DH750: US, CND, MX, TW)

A-1989-572-A STANDBY DCDC BOARD, COMPLETE

(DH750: AEP , UK, AUS)
A-1989-616-A STANDBY DCDC BOARD, COMPLETE (BR)
A-1989-624-A STANDBY DCDC BOARD, COMPLETE

(DH550: US, CND)

A-1989-634-A STANDBY DCDC BOARD, COMPLETE

(DH550: AEP , UK, AUS, E12)

*****************
< CAPACITOR >
C902 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C907 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C908 1-100-756-91 CERAMIC CHIP 0.047uF 10% 50V
C960 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C961 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

76

STR-DH550/DH750

Ver. 1.2

STANDBY DCDC

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
C962 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V

C963 1-126-936-11 ELECT 3300uF 20% 16V
C969 1-126-960-11 ELECT 1uF 20% 50V
C970 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(DH550)

C971 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(DH550)

C975 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

(DH750)

C976 1-116-716-11 CERAMIC CHIP 10uF 10% 16V

(DH750)

C977 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(DH750)

C978 1-114-802-11 CERAMIC CHIP 0.0033uF 10% 50V

(DH750)

C979 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V

(DH750)

C980 1-114-802-11 CERAMIC CHIP 0.0033uF 10% 50V

(DH750)
C981 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C982 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1902 1-116-865-11 CERAMIC CHIP 10uF 10% 25V
C1903 1-116-865-11 CERAMIC CHIP 10uF 10% 25V

C1904 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1905 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1907 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V
C1909 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C1910 1-116-151-11 CERAMIC CHIP 0.001uF 2% 50V

C1912 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1913 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1914 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1922 1-116-865-11 CERAMIC CHIP 10uF 10% 25V
C1923 1-116-865-11 CERAMIC CHIP 10uF 10% 25V

C1924 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1925 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1927 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V
C1929 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C1930 1-116-151-11 CERAMIC CHIP 0.001uF 2% 50V

C1932 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1933 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1934 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1942 1-116-865-11 CERAMIC CHIP 10uF 10% 25V
C1943 1-116-865-11 CERAMIC CHIP 10uF 10% 25V

D903 6-503-670-01 DI GS1G
D904 6-503-670-01 DI GS1G
D905 6-500-514-01 DIODE BAV70

D906 6-502-961-01 DI DA2J10100L
D923 6-503-401-01 DI D3SBA60-7101

< EARTH TERMINAL >
* ET1900 1-780-408-11 TERMINAL, LUG
< FUSE >

0 F940 1-523-086-11 FUSE (3.15A/250V)
0 F941 1-523-086-11 FUSE (3.15A/250V)

< FUSE HOLDER >
FH901 1-533-217-41 HOLDER, FUSE

FH902 1-533-217-41 HOLDER, FUSE
FH903 1-533-217-41 HOLDER, FUSE (BR)
FH904 1-533-217-41 HOLDER, FUSE (BR)

< IC >
IC901 6-716-739-01 IC BD00GC0WEFJ-SE2 (DH550)

IC902 (Not supplied) IC RT7237ALGSP (DH750)
IC1905 6-717-879-01 IC RT8293ALZSP
IC1906 6-717-879-01 IC RT8293ALZSP
IC1907 6-717-879-01 IC RT8293ALZSP

< JUMPER >
JS901 1-211-950-11 SHORT CHIP 0 (BR)

JS904 1-211-950-11 SHORT CHIP 0 (BR)
JS906 1-211-950-11 SHORT CHIP 0 (BR)

< COIL >
L910 1-457-995-11 INDUCTOR 10uH (DH750)

L1901 1-457-995-11 INDUCTOR 10uH
L1902 1-457-995-11 INDUCTOR 10uH
L1903 1-457-995-11 INDUCTOR 10uH
L1904 1-457-995-11 INDUCTOR 10uH

L1905 1-457-995-11 INDUCTOR 10uH
L1906 1-457-995-11 INDUCTOR 10uH

< TRANSISTOR >

C1944 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1945 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1947 1-118-459-11 CERAMIC CHIP 0.01uF 10% 25V
C1949 1-118-386-11 CERAMIC CHIP 0.1uF 10% 16V
C1950 1-116-151-11 CERAMIC CHIP 0.001uF 2% 50V

C1952 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1953 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C1954 1-118-361-11 CERAMIC CHIP 0.1uF 10% 50V
C1976 1-126-944-11 ELECT 3300uF 20% 25V

< CONNECTOR >

* CN941 1-564-507-11 PLUG, CONNECTOR 4P
* CNP901 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P
* CNP902 1-580-689-11 PIN, CONNECTOR (PC BOARD) 4P
* CNP903 1-564-687-11 PIN, CONNECTOR (3.96mm PITCH) 3P (BR)

< DIODE >
D901 6-503-670-01 DI GS1G

D902 6-503-670-01 DI GS1G

Q951 6-553-266-01 TR 2PD601ART
Q952 6-553-266-01 TR 2PD601ART

< RESISTOR >
R960 1-216-829-11 METAL CHIP 4.7K 5% 1/10W

R961 1-216-833-11 METAL CHIP 10K 5% 1/10W
R963 1-216-833-11 METAL CHIP 10K 5% 1/10W
R971 1-249-395-11 CARBON 15 5% 1/4W
R972 1-249-394-11 CARBON 12 5% 1/4W

R973 1-216-841-11 METAL CHIP 47K 5% 1/10W
R974 1-216-825-11 METAL CHIP 2.2K 5% 1/10W
R978 1-208-711-11 METAL CHIP 15K 0.5% 1/16W

(DH750)
R979 1-218-892-11 METAL CHIP 75K 0.5% 1/10W
R981 1-208-920-81 METAL CHIP 24K 0.5% 1/16W

R1901 1-218-933-11 METAL CHIP 22 5% 1/16W
R1903 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1905 1-216-793-11 METAL CHIP 4.7 5% 1/10W

Note: IC902 (DH750) on the STANDBY DCDC board cannot

exchange with single. When this part on the STANDBY
DCDC board is damaged, exchange the entire mounted
board.

77

STR-DH550/DH750

Ver. 1.2

STANDBY DCDC TUNER1

Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
R1906 1-208-911-11 METAL CHIP 10K 0.5% 1/16W

R1907 1-208-923-11 METAL CHIP 33K 0.5% 1/16W

CN104 1-780-920-11 TERMINAL (FMAMF) (US, CND, MX, BR)

(ANTENNA FM 75Ω COAXIAL)

R1908 1-208-923-11 METAL CHIP 33K 0.5% 1/16W
R1909 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1911 1-218-933-11 METAL CHIP 22 5% 1/16W
R1913 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R1915 1-216-793-11 METAL CHIP 4.7 5% 1/10W

R1916 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R1917 1-208-715-11 METAL CHIP 22K 0.5% 1/16W
R1918 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R1919 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1921 1-218-933-11 METAL CHIP 22 5% 1/16W

R1923 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R1925 1-216-793-11 METAL CHIP 4.7 5% 1/10W
R1926 1-208-709-11 METAL CHIP 12K 0.5% 1/16W
R1927 1-218-990-81 SHORT CHIP 0
R1928 1-208-713-11 METAL CHIP 18K 0.5% 1/16W

R1929 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1930 1-218-974-11 METAL CHIP 56K 5% 1/16W
R1931 1-218-974-11 METAL CHIP 56K 5% 1/16W
R1932 1-218-974-11 METAL CHIP 56K 5% 1/16W

< RELAY >
0 RY951 1-755-697-11 RELAY
< SWITCH >
S901 1-571-437-21 SWITCH, POWER VOLTAGE CHANGE (BR)
< TRANSFORMER >

< DIODE >
D101 6-501-579-01 DIODE MC2837

D102 6-501-579-01 DIODE MC2837
D103 6-501-579-01 DIODE MC2837

< FILTER >
FL101 1-236-711-21 FILTER, BAND PASS
< IC >
IC101 6-717-980-01 IC RZ5B801-0001E2 (US, CND, MX, BR)

IC101 6-717-981-01 IC RZ5B801-0002E2 (AEP, UK, AUS, E12, TW)
IC102 6-715-134-01 IC MM3404A33URE

< JUMPER RESISTOR >
JR101 1-216-864-11 SHORT CHIP 0

JR102 1-216-296-11 SHORT CHIP 0
JR105 1-216-296-11 SHORT CHIP 0
JR106 1-216-864-11 SHORT CHIP 0
JR109 1-216-296-11 SHORT CHIP 0

JR112 1-216-296-11 SHORT CHIP 0
< COIL >
L101 1-457-998-11 COIL, AM ANTENNA

L103 1-414-576-41 INDUCTOR 47nH
L104 1-481-330-21 INDUCTOR 220nH
L105 1-481-523-11 INDUCTOR 4.7uH

0 T902 1-697-151-11 POWER TRANSFORMER (SUB)

(DH550: US, CND)

0 T902 1-697-152-11 POWER TRANSFORMER (SUB)

(DH550: AEP , UK, AUS, E12)

0 T902 1-697-234-21 POWER TRANSFORMER (SUB)

(DH750: AEP , UK, AUS)

0 T902 1-697-267-21 POWER TRANSFORMER (SUB)

(DH750: US, CND, MX, TW)

0 T902 1-697-273-21 POWER TRANSFORMER (SUB) (BR)

*************************************************************

TUNER1AMF BOARD (US, CND, MX, BR)
TUNER1AMPR BOARD (AEP, UK, AUS, E12, TW)
******************

< CAPACITOR >
C101 1-100-155-91 CERAMIC CHIP 470PF 5% 100V

C102 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C103 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C105 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C106 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V

C107 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V
C108 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C109 1-118-289-11 CERAMIC CHIP 0.1uF 10% 16V
C110 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C111 1-116-734-11 CERAMIC CHIP 1uF 20% 16V

C112 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
< CONNECTOR >
CN101 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P

* CN103 1-506-680-11 PLUG, CONNECTOR (2.5MM) 3P (ANTENNA AM)

< RESISTOR >
R101 1-216-809-11 METAL CHIP 100 5% 1/10W

R103 1-216-801-11 METAL CHIP 22 5% 1/10W
R104 1-216-864-11 SHORT CHIP 0
R105 1-216-801-11 METAL CHIP 22 5% 1/10W
R106 1-216-809-11 METAL CHIP 100 5% 1/10W

R107 1-216-809-11 METAL CHIP 100 5% 1/10W
R108 1-216-296-11 SHORT CHIP 0
R109 1-216-864-11 SHORT CHIP 0
R110 1-216-833-11 METAL CHIP 10K 5% 1/10W
R113 1-216-833-11 METAL CHIP 10K 5% 1/10W

< VIBRATOR >
X101 1-767-317-11 VIBRATOR, CRYSTAL (32.768kHz)

*************************************************************

MISCELLANEOUS
**************

57 1-828-412-61 WIRE (FLAT TYPE) (29 CORE)
59 1-828-167-61 WIRE (FLAT TYPE) (8 CORE) (DH750)
60 1-828-308-61 WIRE (FLAT TYPE) (9 CORE) (DH750)
61 8-989-470-05 RC-S801/A5 (WW) (DH750)
62 1-490-558-72 BLUETOOTH MODULE (DH750)

63 1-828-202-61 WIRE (FLAT TYPE) (14 CORE) (DH750)

0 102 1-834-966-41 POWER-SUPPLY CORD (AEP)
0 102 1-834-967-21 CORD, POWER (AUS)
0 102 1-835-706-22 CORD, POWER-SUPPLY (BR)
0 102 1-837-308-11 CORD, POWER-SUPPLY (US, CND)

0 102 1-837-344-11 CORD, POWER-SUPPLY (MX)
0 102 1-837-345-11 CORD, POWER-SUPPLY (TW)

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

78

Ref. No. Part No. Description Remark

0 102 1-839-012-11 CORD, POWER-SUPPLY (E12)
0 102 1-839-999-21 POWER-SUPPLY CORD (UK)

104 A-1846-561-A TUNER1AMPR ASSY (AEP, UK, AUS, E12, TW)
104 A-1846-564-A TUNER1AMF ASSY (US, CND, MX, BR)

105 1-828-308-61 WIRE (FLAT TYPE) (9 CORE)
153 1-828-379-61 WIRE (FLAT TYPE) (23 CORE)

0 F901 1-532-464-33 FUSE (T2.5AL/250V) (E12)
0 F901 1-532-465-33 FUSE (T3.15AL/250V) (AEP, AUS, UK)

0 F901 1-532-504-33 FUSE, (T4AL/250V) (BR)
0 F901 1-532-506-33 FUSE, (T6.3AL/250V) (MX, TW)
0 F901 1-533-311-12 FUSE, GLASS (DIA.5) (8A/125V) (US, CND)
0 F902 1-532-506-33 FUSE, (T6.3AL/250V) (BR)

Q550 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q551 6-702-391-01 TRANSISTOR MP1620-OPY-MK

Q600 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q601 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q650 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q651 6-702-391-01 TRANSISTOR MP1620-OPY-MK

Q700 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q701 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q750 6-702-390-01 TRANSISTOR MN2488-OPY-MK
Q751 6-702-391-01 TRANSISTOR MP1620-OPY-MK
Q800 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DH750)

STR-DH550/DH750

Ver. 1.2

Q801 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DH750)
Q850 6-702-390-01 TRANSISTOR MN2488-OPY-MK (DH750)
Q851 6-702-391-01 TRANSISTOR MP1620-OPY-MK (DH750)

0 T901 1-697-237-21 POWER TRANSFORMER (MAIN) (MX)
0 T901 1-697-238-21 POWER TRANSFORMER (MAIN) (BR)

0 T901 1-697-367-11 POWER TRANSFORMER (MAIN) (AEP, UK, AUS)
0 T901 1-697-425-11 POWER TRANSFORMER (MAIN) (US, CND, TW)
0 T901 1-697-414-11 POWER TRANSFORMER (MAIN) (E12)

*************************************************************

ACCESSORIES
************

1-492-705-11 REMOTE COMMANDER (RM-AAU190)
1-542-830-11 MEASUREMENT MIC (MONO)
1-754-741-21 LOOP ANTENNA (AM loop antenna (aerial))

1-793-184-41
4-477-465-31 HI-RES LABEL

CONNECTOR (F TYPE ADAPTOR)

(including BATTERY LID)

(Optimizer microphone (ECM-AC2))

(FM wire antenna (aerial))

Note: If wire (fl at type) is replaced, install it after bending it in the

same form as that before replacement.

79

STR-DH550/DH750

REVISION HISTORY

Ver. Date Description of Revision

1.0 2014.01 New

1.1 2014.07 Addition of 220 – 240 V AC area in E model (STR-DH550).
Add R141 in DISPLAY board.
Add R193 for Electrical Part List in FRONT JACK board.
Add CUSHION (COVER) in page 5, 6, 7, 8, 57 and 60.
Add HI-RES Label in Accessories in page 79.
Add Servicing Notes for IC2900 in MAIN board (Service code changed).
Change description of CN2900, R553, R603, R653, R703, R753, R803 and R853 in MAIN board.
Change P/N of BLUETOOTH MODULE (DH750) in page 58 and 78.
Change P/N of C150 in FRONT JACK board.
Change P/N of CN103 in DISPLAY board.
Change P/N of CN391 and R2300 in MAIN board.
Change P/N and description of C124 in DISPLAY board.
Change P/N and description of Q320, Q323, Q554, Q555, Q604, Q605, Q654, Q655, Q704, Q705, Q754,
Q755, Q804, Q805, Q854 and Q855 in MAIN board.
Delete of R193 in DISPLAY board.
Delete of CN3511 in HDMI board.

1.2 2015.04 Change of MAIN, STANDBY DCDC and NFC ICON PC boards (suffi x-21).
Change P/N of CN3513 in HDMI board.
Change P/N of IC2603 in MAIN board.
Change P/N of Ref. No. T901 for US, Canadian and Taiwan models in page 60 and 79.
Change P/N and description for Ref. No.102 for AEP and Australian models in page 59 and 78.
Change P/N and description of D352, D910, D911, D912 and D913 in MAIN board.
Change P/N and description of D901, D902, D903 and D904 in STANDBY DCDC board.
Delete of CN1901 in page 77 for Electrical Part List section (Service code changed).
Delete of ET301 in page 69 for Electrical Part List section (Service code changed).

How to search for a contact point of signal lines or the like in DIAGRAMS SECTION

If a contact point of a BLOCK DIAGRAM, PRINTED WIRING BOARD or SCHEMATIC DIAGRAM is shown in a different page, use
the PDF fi le search function to fi nd one.

e.g.) If a contact point is shown as

Procedure:

1. Press the [F] key while pressing the [Ctrl] key.

2. Input “>001Z” in the search box and press the [Enter] key.

3. The relevant part (page), where the contact point is shown, appears.

Note: If you still see the original page, press the [Enter] key again.

, follow the procedure below.
