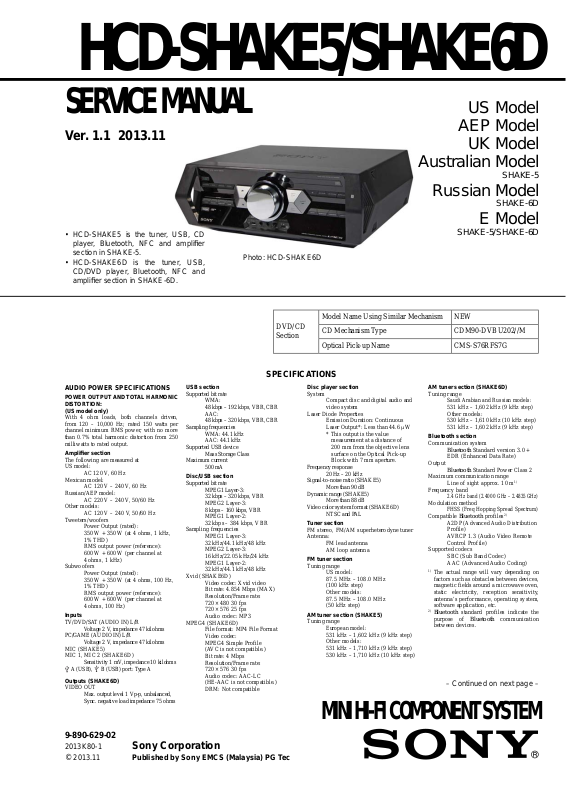

HCD-SHAKE5/SHAKE6D

SERVICE MANUAL

Ver. 1.1 2013.11

• HCD-SHAKE5 is the tuner, USB, CD
player, Bluetooth, NFC and amplifi er
section in SHAKE-5.

• HCD-SHAKE6D is the tuner, USB,
CD/DVD player, Bluetooth, NFC and
amplifi er section in SHAKE-6D.

AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL HARMONIC
DISTORTION:
(US model only)

With 4 ohm loads, both channels driven,
from 120 – 10,000 Hz; rated 150 watts per
channel minimum RMS power, with no more
than 0.7% total harmonic distortion from 250
milliwatts to rated output.

Amplifi er section

The following are measured at
US model:
AC 120 V, 60 Hz
Mexican model:
AC 120 V – 240 V, 60 Hz
Russian/AEP model:
AC 220 V – 240 V, 50/60 Hz
Other models:
AC 120 V – 240 V, 50/60 Hz
Tweeters/woofers
Power Output (rated):
350 W + 350 W (at 4 ohms, 1 kHz,
1% THD)
RMS output power (reference):
600 W + 600 W (per channel at
4 ohms, 1 kHz)
Subwoofers
Power Output (rated):
350 W + 350 W (at 4 ohms, 100 Hz,
1% THD)
RMS output power (reference):
600 W + 600 W (per channel at
4 ohms, 100 Hz)

Inputs

TV/DVD/SAT (AUDIO IN) L/R
Voltage 2 V, impedance 47 kilohms
PC/GAME (AUDIO IN) L/R
Voltage 2 V, impedance 47 kilohms
MIC (SHAKE5)
MIC 1, MIC 2 (SHAKE6D)
Sensitivity 1 mV, impedance 10 kilohms

A (USB), B (USB) port: Type A

Outputs (SHAKE6D)

VIDEO OUT
Max. output level 1 Vp-p, unbalanced,
Sync. negative load impedance 75 ohms

USB section

Supported bit rate
WMA:
48 kbps – 192 kbps, VBR, CBR
AAC:
48 kbps – 320 kbps, VBR, CBR
Sampling frequencies
WMA: 44.1 kHz
AAC: 44.1 kHz
Supported USB device
Mass Storage Class
Maximum current
500 mA

Disc/USB section

Supported bit rate
MPEG1 Layer-3:
32 kbps – 320 kbps, VBR
MPEG2 Layer-3:
8 kbps – 160 kbps, VBR
MPEG1 Layer-2:
32 kbps – 384 kbps, VBR
Sampling frequencies
MPEG1 Layer-3:
32 kHz/44.1 kHz/48 kHz
MPEG2 Layer-3:
16 kHz/22.05 kHz/24 kHz
MPEG1 Layer-2:
32 kHz/44.1 kHz/48 kHz
Xvid (SHAKE6D)
Video codec: Xvid video
Bit rate: 4.854 Mbps (MAX)
Resolution/Frame rate:
720 × 480 30 fps
720 × 576 25 fps
Audio codec: MP3
MPEG4 (SHAKE6D)
File format: MP4 File Format
Video codec:
MPEG4 Simple Profile
(AVC is not compatible.)
Bit rate: 4 Mbps
Resolution/Frame rate:
720 × 576 30 fps
Audio codec: AAC-LC
(HE-AAC is not compatible.)
DRM: Not compatible

Photo: HCD-SHAKE6D

DVD/CD
Section

SPECIFICATIONS

US Model

AEP Model

UK Model

Australian Model

Russian Model

E Model

SHAKE-5/SHAKE-6D

Model Name Using Similar Mechanism NEW
CD Mechanism Type CDM90-DVBU202//M
Optical Pick-up Name CMS-S76RFS7G

Disc player section

System
Compact disc and digital audio and
video system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This output is the value

measurement at a distance of
200 mm from the objective lens
surface on the Optical Pick-up

Block with 7 mm aperture.
Frequency response
20 Hz – 20 kHz
Signal-to-noise ratio (SHAKE5)
More than 90 dB
Dynamic range (SHAKE5)
More than 88 dB
Video color system format (SHAKE6D)
NTSC and PAL

Tuner section

FM stereo, FM/AM superheterodyne tuner
Antenna:
FM lead antenna
AM loop antenna

FM tuner section

Tuning range
US model:

87.5 MHz – 108.0 MHz
(100 kHz step)
Other models:

87.5 MHz – 108.0 MHz
(50 kHz step)

AM tuner section (SHAKE5)

Tuning range

European model:
531 kHz – 1,602 kHz (9 kHz step)
Other models:
531 kHz – 1,710 kHz (9 kHz step)
530 kHz – 1,710 kHz (10 kHz step)

AM tuner section (SHAKE6D)

Tuning range

Saudi Arabian and Russian models:
531 kHz – 1,602 kHz (9 kHz step)
Other models:
530 kHz – 1,610 kHz (10 kHz step)
531 kHz – 1,602 kHz (9 kHz step)

Bluetooth section

Communication system
Bluetooth Standard version 3.0 +
EDR (Enhanced Data Rate)
Output
Bluetooth Standard Power Class 2
Maximum communication range
Line of sight approx. 10 m
Frequency band

2.4 GHz band (2.4000 GHz – 2.4835 GHz)

Modulation method

FHSS (Freq Hopping Spread Spectrum)
Compatible Bluetooth profiles

A2DP (Advanced Audio Distribution
Profile)
AVRCP 1.3 (Audio Video Remote
Control Profile)
Supported codecs
SBC (Sub Band Codec)
AAC (Advanced Audio Coding)

1)

The actual range will vary depending on

factors such as obstacles between devices,
magnetic fields around a microwave oven,
static electricity, reception sensitivity,
antenna’s performance, operating system,
software application, etc.

2)

Bluetooth standard profiles indicate the

purpose of Bluetooth communication
between devices.

– Continued on next page –

SHAKE-5

SHAKE-6D

1)

2)

9-890-629-02

2013K80-1

2013.11

©

MINI HI-FI COMPONENT SYSTEM

Sony Corporation

Published by Sony EMCS (Malaysia) PG Tec

HCD-SHAKE5/SHAKE6D

License and Trademark Notice

•

is a trademark of DVD Format/Logo Licensing Corporation.

• “DVD+RW”, “DVD-RW”, “DVD+R”, “DVD-R”,
the “CD” logos are trademarks.

• MPEG Layer-3 audio coding technology and patents licensed from
Fraunhofer IIS and Thomson.

• Windows Media is either a registered trademark or trademark of
Microsoft Corporation in the United States and/or other countries.

• This product is protected by certain intellectual property rights of
Microsoft Corporation. Use or distribution of such technology outside
of this product is prohibited without a license from Microsoft or an
authorized Microsoft subsidiary.

• “WALKMAN” and “WALKMAN” logo are registered trademarks of
Sony Corporation.

• This system incorporates Dolby* Digital.

* Manufactured under license from Dolby Laboratories. Dolby and the

double-D symbol are trademarks of Dolby Laboratories.

• The Bluetooth
owned by Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other trademarks and trade names are
those of their respective owners.

• The N Mark is a trademark or registered trademark of NFC Forum,
Inc. in the United States and in other countries.

• Android is a trademark of Google Inc.

• THIS PRODUCT IS LICENSED UNDER THE MPEG-4 VISUAL
PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND
NON-COMMERCIAL USE OF A CONSUMER FOR

(i) ENCODING VIDEO IN COMPLIANCE WITH THE MPEG-4

VISUAL STANDARD (“MPEG-4 VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT WAS ENCODED BY

A CONSUMER ENGAGED IN A PERSONAL AND NON-

COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM

A VIDEO PROVIDER LICENSED TO PROVIDE MPEG-4

VIDEO.

NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR
ANY OTHER USE. ADDITIONAL INFORMATION INCLUDING
THAT RELATING TO PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING MAY BE OBTAINED
FROM MPEG LA, L.L.C.

HTTP://WWW.MPEGLA.COM

• All other trademarks and registered trademarks are of their respective

holders. In SHAKE-5 manual, ™ and ® marks are not specifi ed.

Abbreviation

•

®

word mark and logos are registered trademarks

“DVD VIDEO”, and

AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E12 : 220 – 240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
RU : Russian model
SAF : South African model
TH : Thai model

SAFETY CHECK-OUT

After correcting the original service problem, perform the following
safety check before releasing the set to the customer:
Check the antenna terminals, metal trim, “metallized” knobs,
screws, and all other exposed metal parts for AC leakage. Check
leakage as described below.

LEAKAGE TEST

The AC leakage from any exposed metal part to earth ground and
from all exposed metal parts to any exposed metal part having a
return to chassis, must not exceed 0.5 mA (500 microamperes).
Leakage current can be measured by any one of three methods.

1. A commercial leakage tester, such as the Simpson 229 or RCA
WT-540A. Follow the manufacturers’ instructions to use these
instruments.

2. A battery-operated AC milliammeter. The Data Precision 245
digital multimeter is suitable for this job.

3. Measuring the voltage drop across a resistor by means of a
VOM or battery-operated AC voltmeter . The “limit” indication
is 0.75 V, so analog meters must have an accurate low-voltage
scale. The Simpson 250 and Sanwa SH-63Trd are examples
of a passive VOM that is suitable. Nearly all battery operated
digital multimeters that have a 2V AC range are suitable. (See
Fig. A)

To Exposed Metal
Parts on Set

AC

1.5 kΩ0.15 μF

voltmeter
(0.75 V)

Earth Ground

Fig. A. Using an AC voltmeter to check AC leakage.

SAFETY-RELATED COMPONENT WARNING!

COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.

2

TABLE OF CONTENTS

HCD-SHAKE5/SHAKE6D

1. SERVICING NOTES ............................................. 4

2. DISASSEMBLY

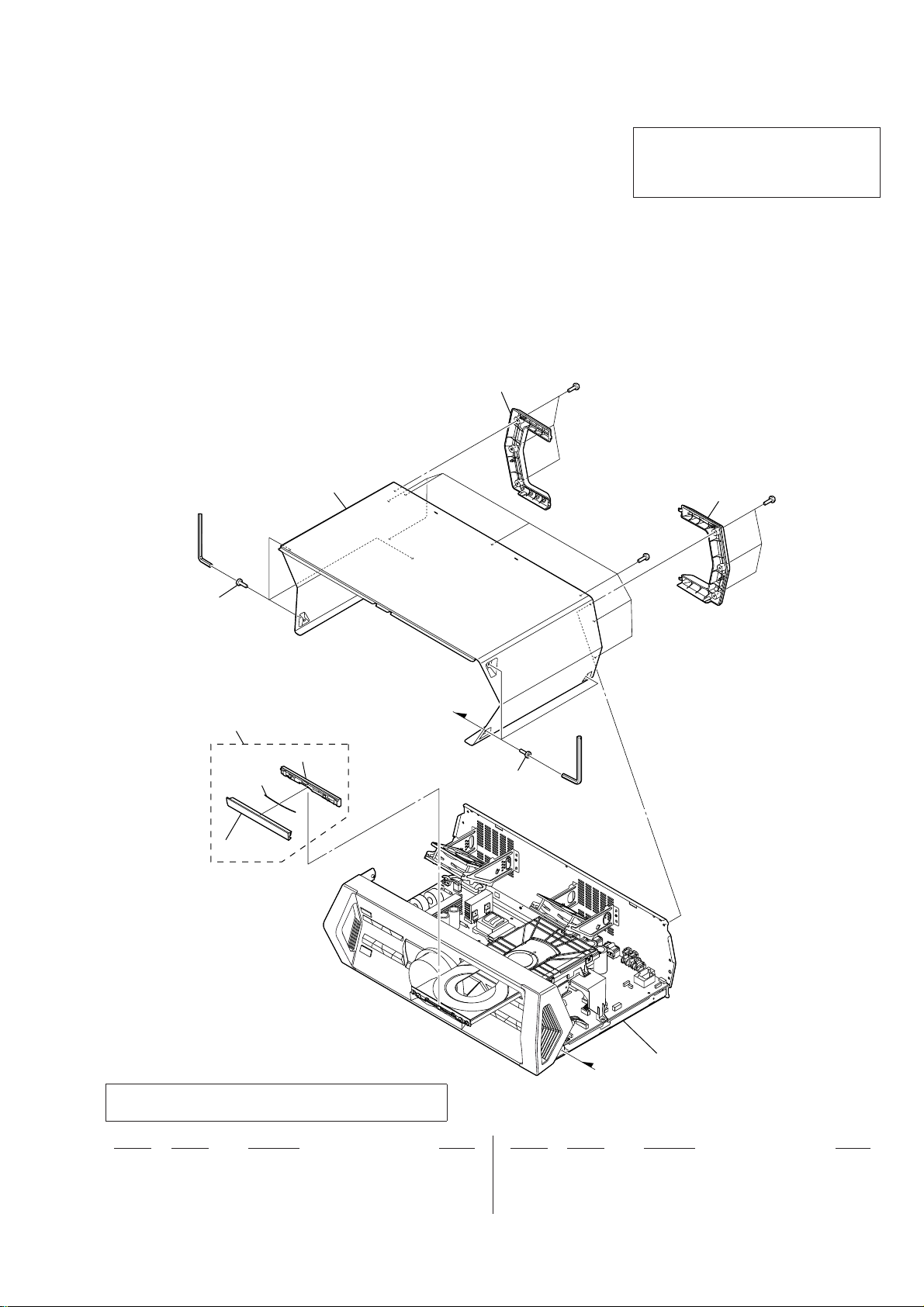

2-1. Overall Case .................................................................... 8

2-2. Back Panel Section ......................................................... 8

2-3. Loading Panel Assy ........................................................ 9

2-4. CDM90-DVBU202//M ................................................... 9

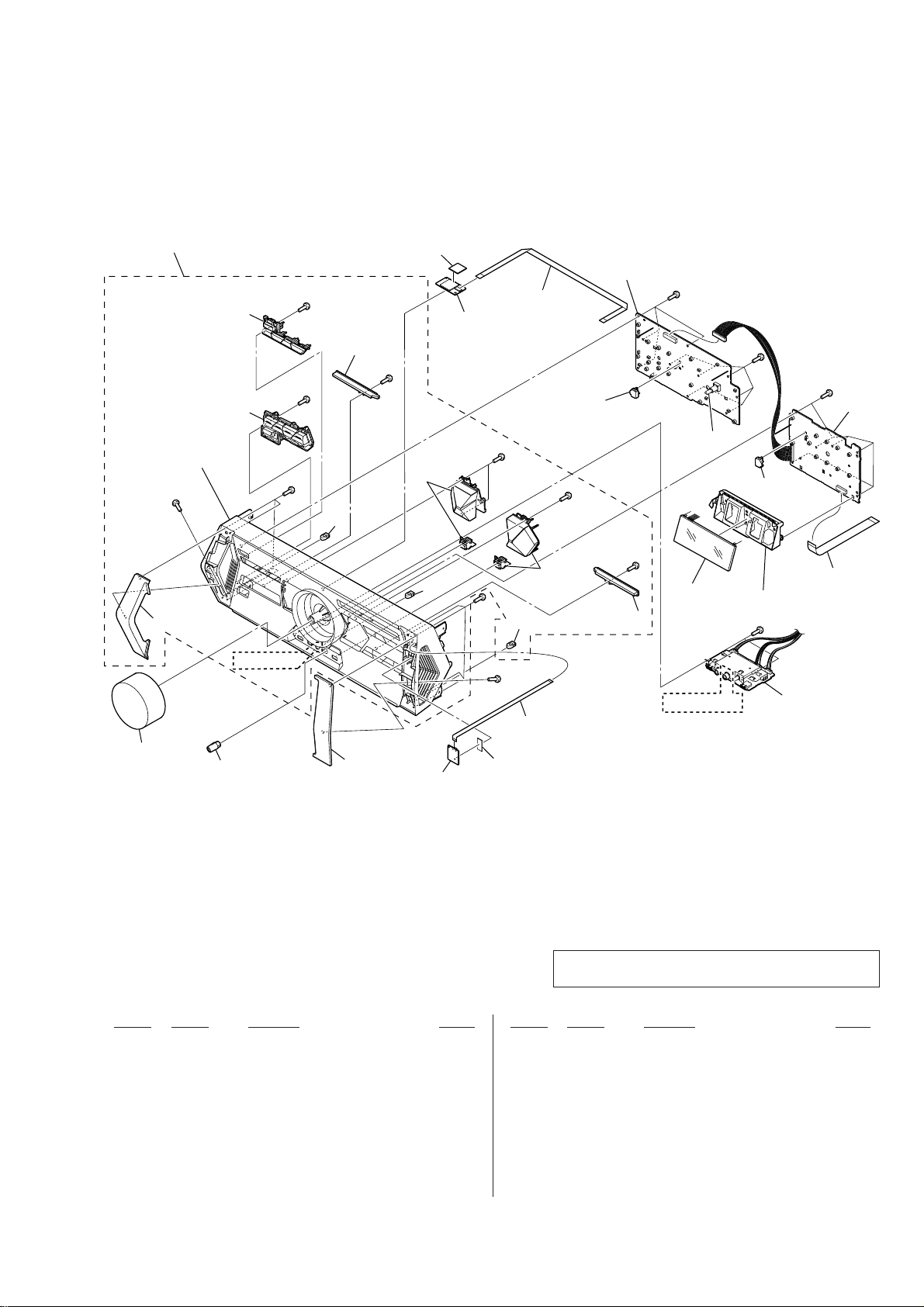

2-5. Front Panel Section ......................................................... 10

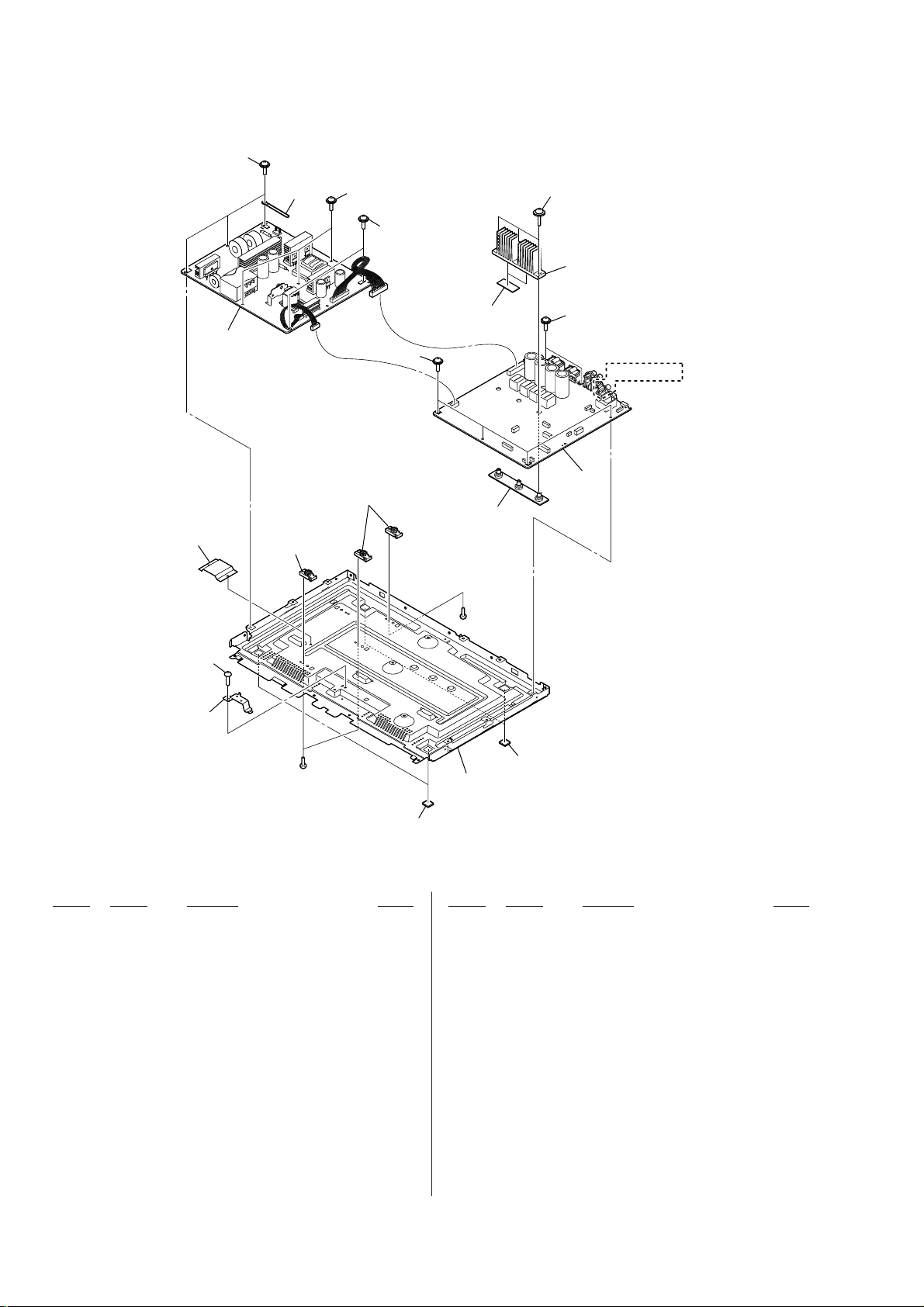

2-6. MOTHERBOARD Board,

SWITCHING REGULATOR ......................................... 10

2-7. Service Optical Device, Wire (Flat Type) ....................... 11

3. TEST MODE ............................................................ 12

4. ELECTRICAL CHECK ......................................... 18

5. TROUBLESHOOTING .......................................... 19

6. DIAGRAMS

6-1. Block Diagram - DVD/USB Section - ............................ 25

6-2. Block Diagram - MAIN Section - ................................... 26

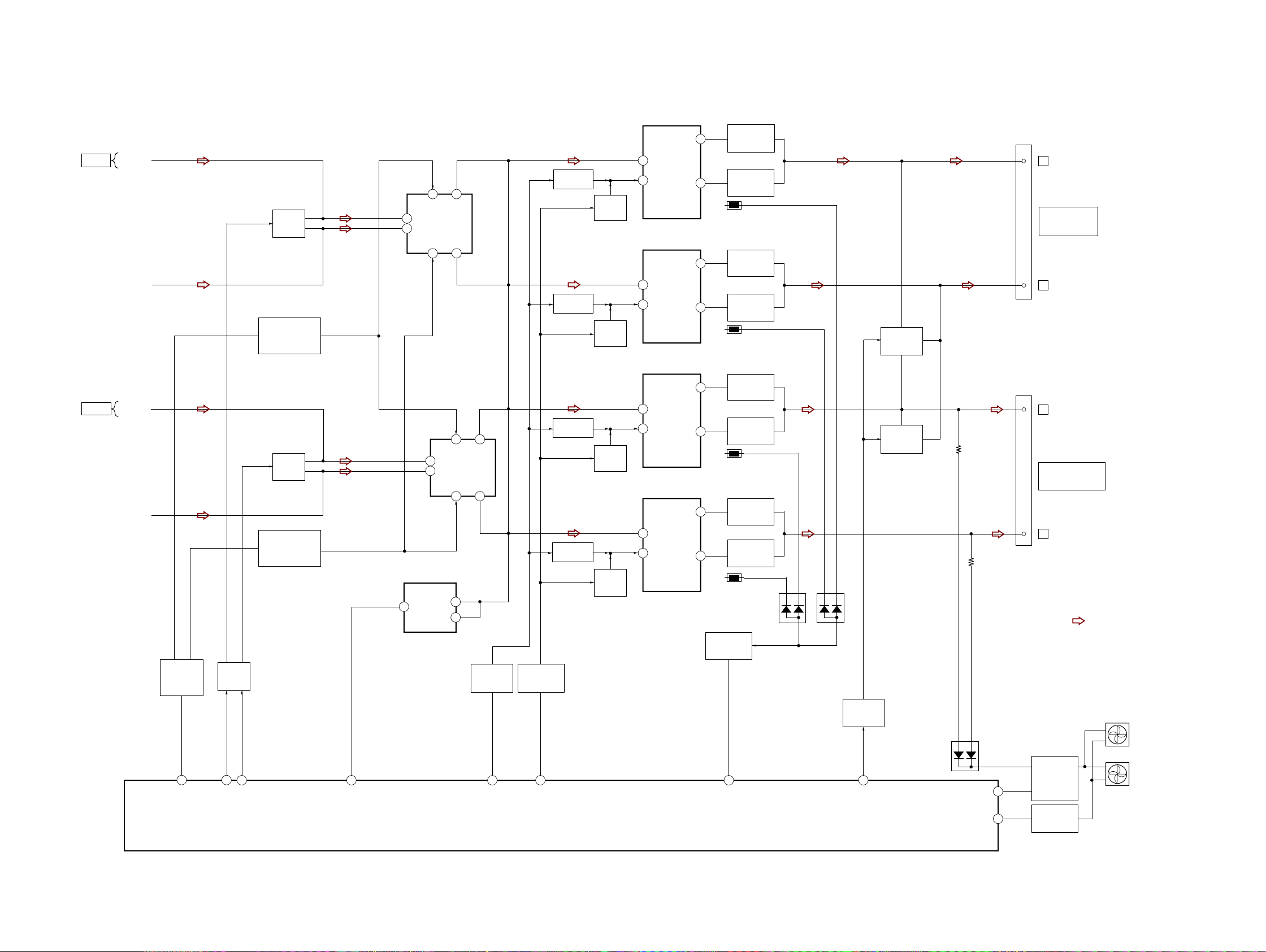

6-3. Block Diagram - AMP Section - ..................................... 27

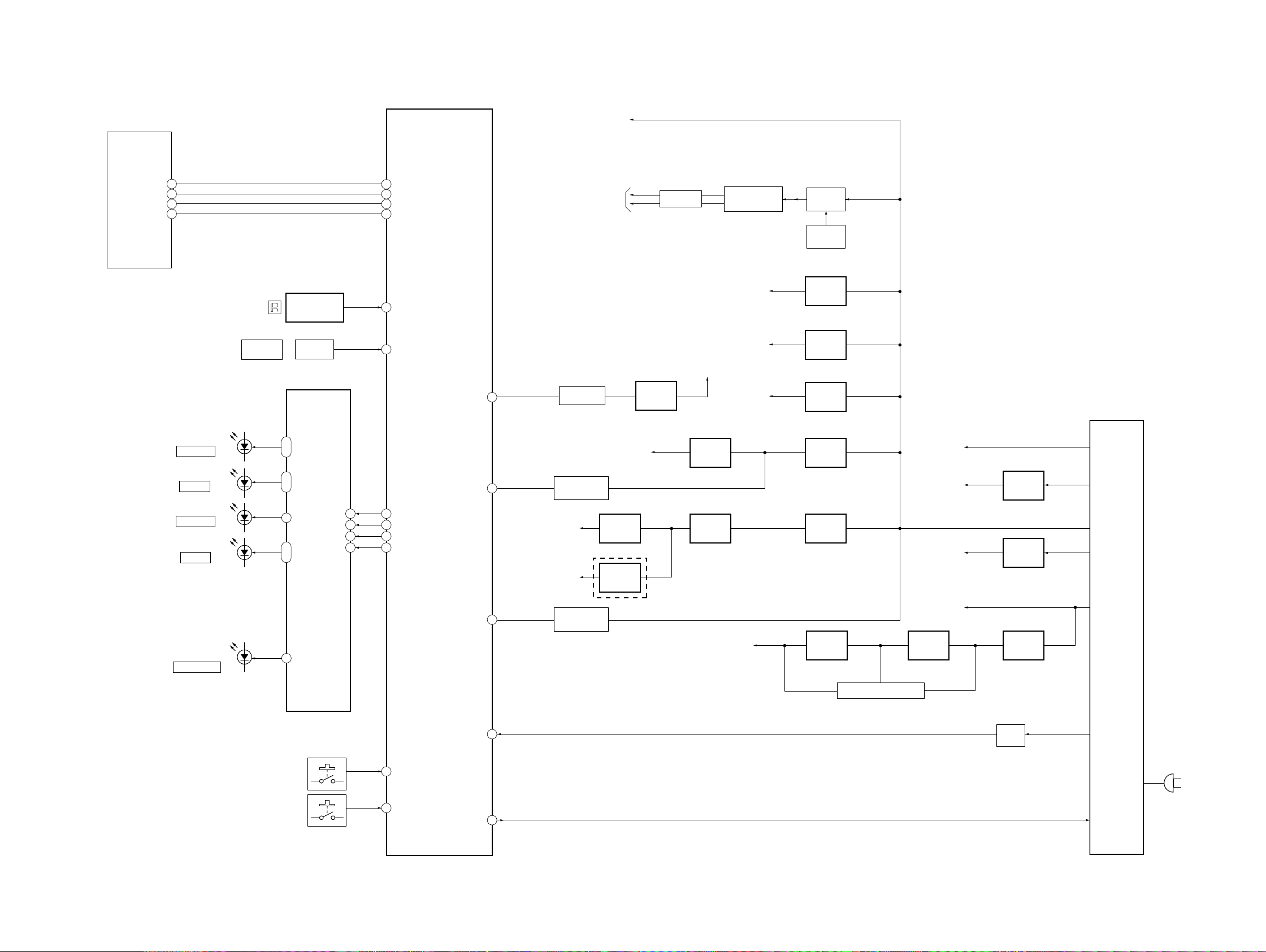

6-4. Block Diagram

- PANEL/POWER SUPPLY Section - ............................ 28

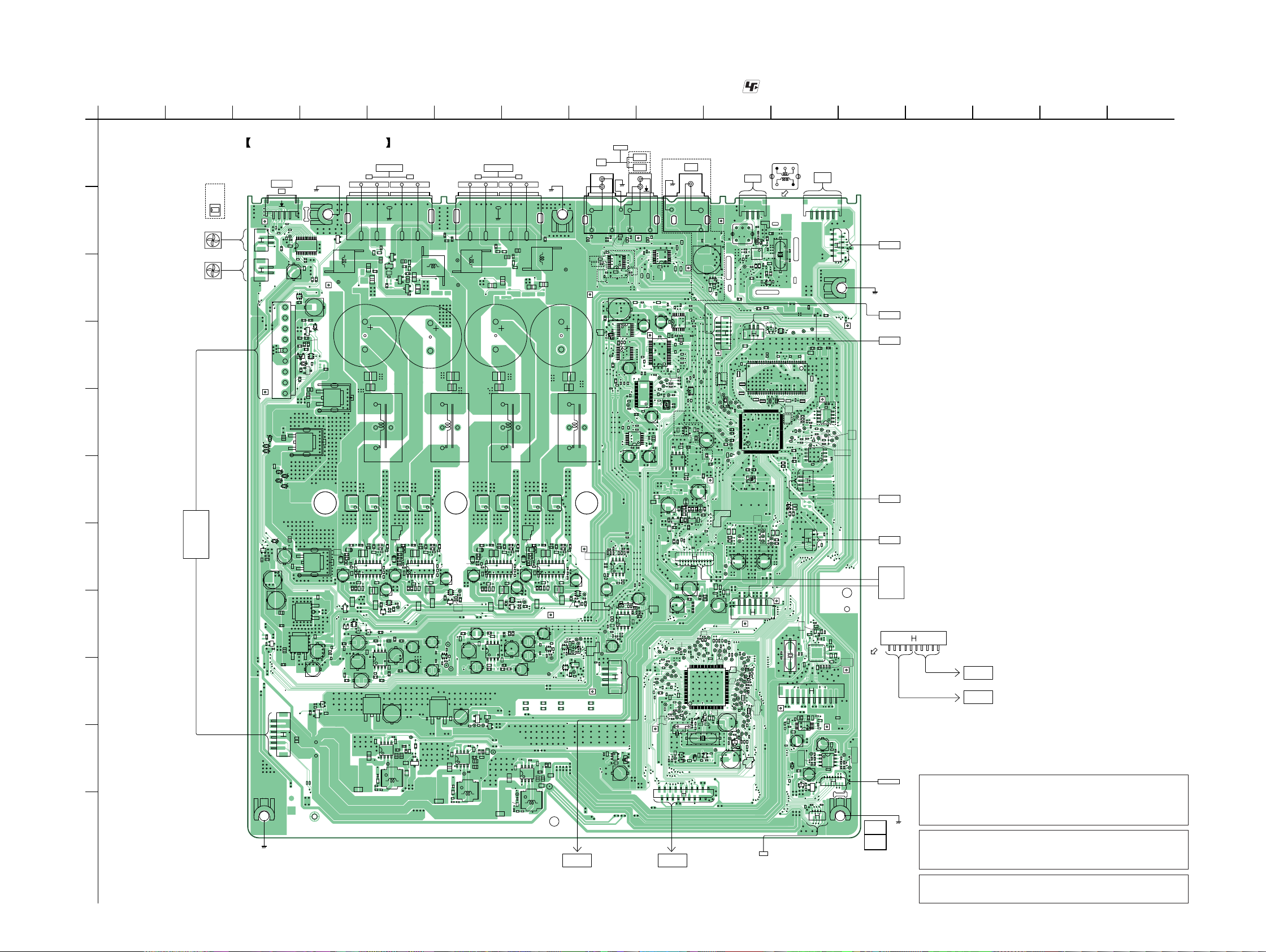

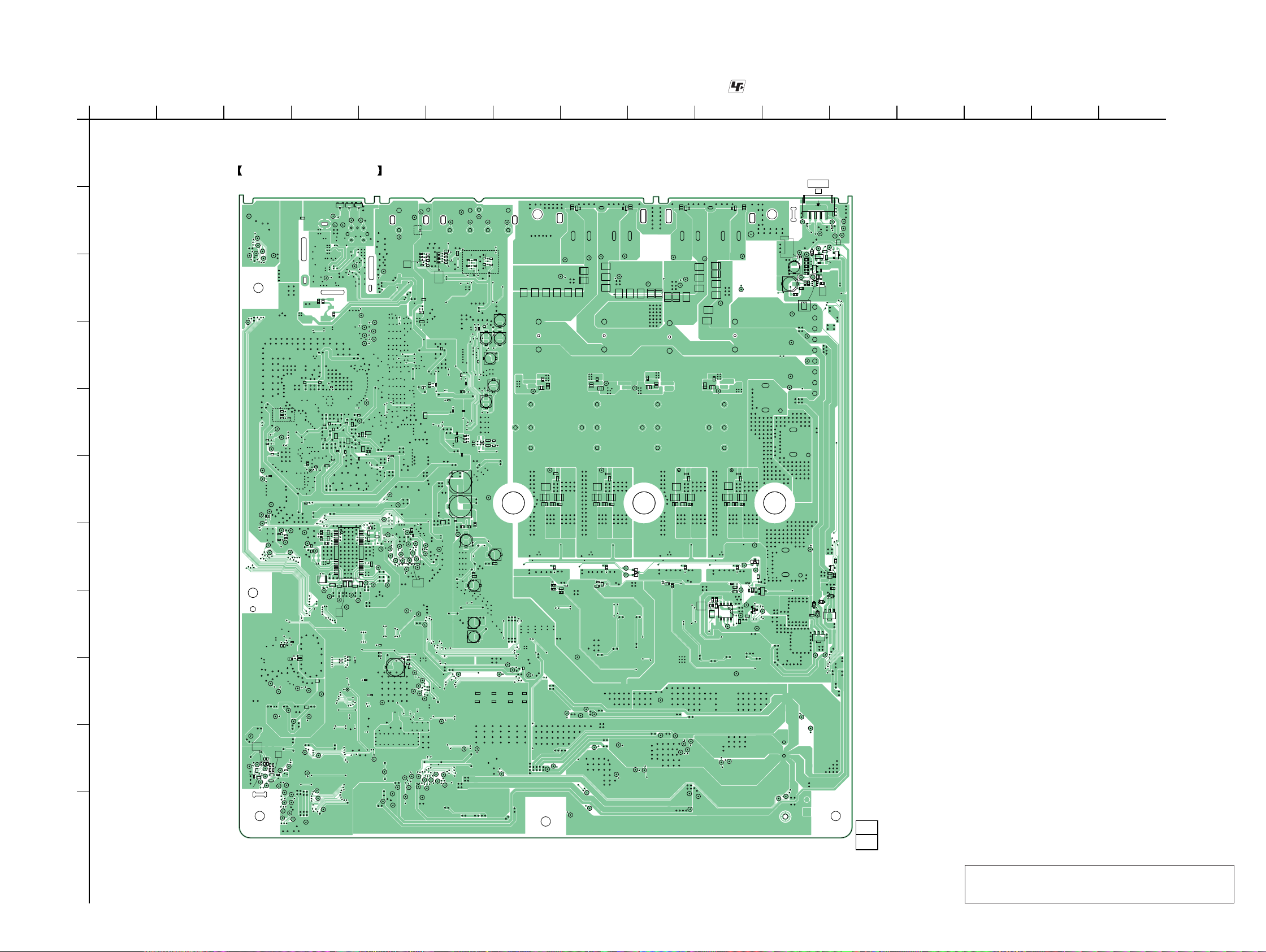

6-5. Printed Wiring Board

- MOTHERBOARD Board (Component Side) - ............ 30

6-6. Printed Wiring Board

- MOTHERBOARD Board (Conductor Side) - ............. 31

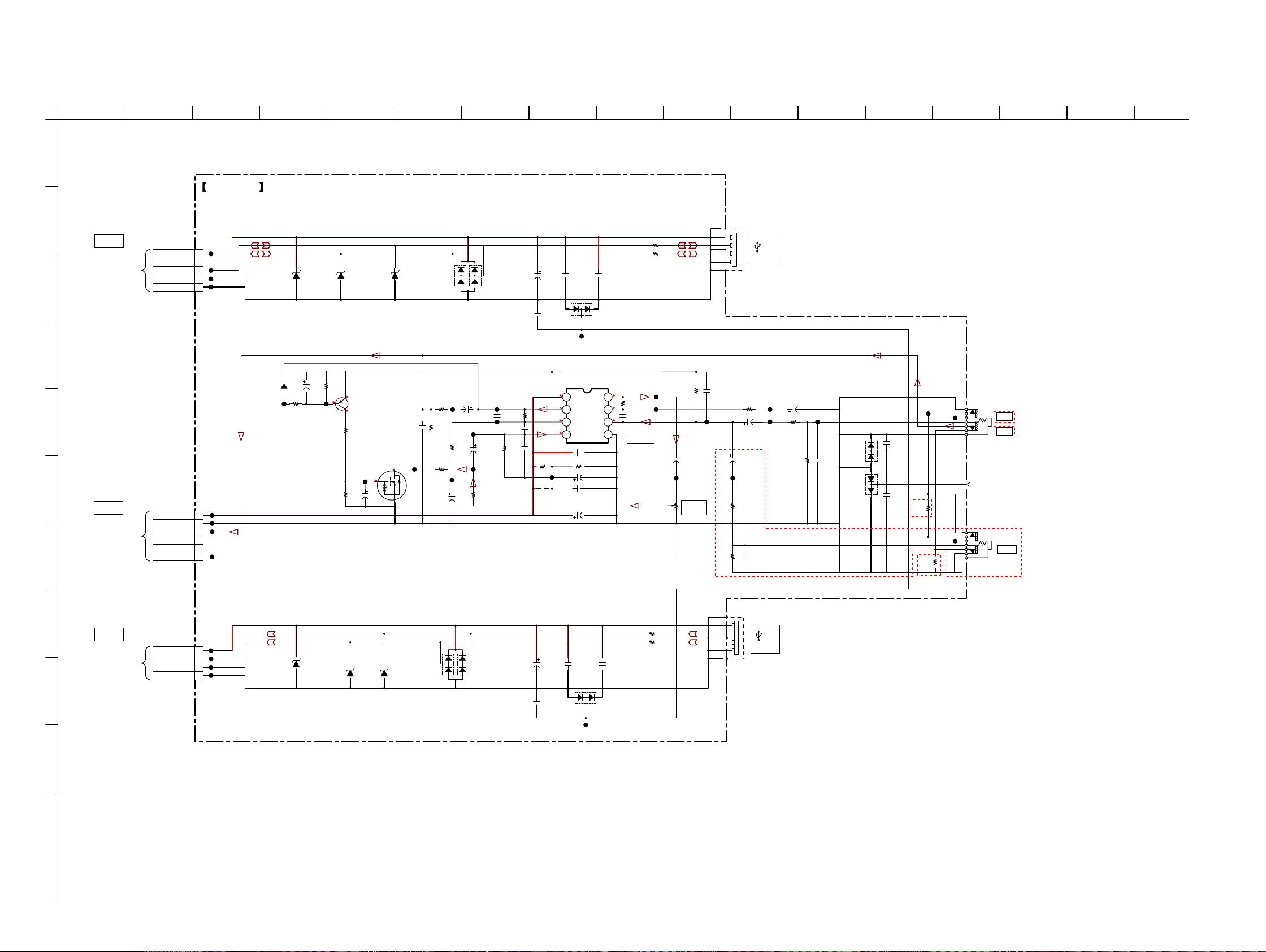

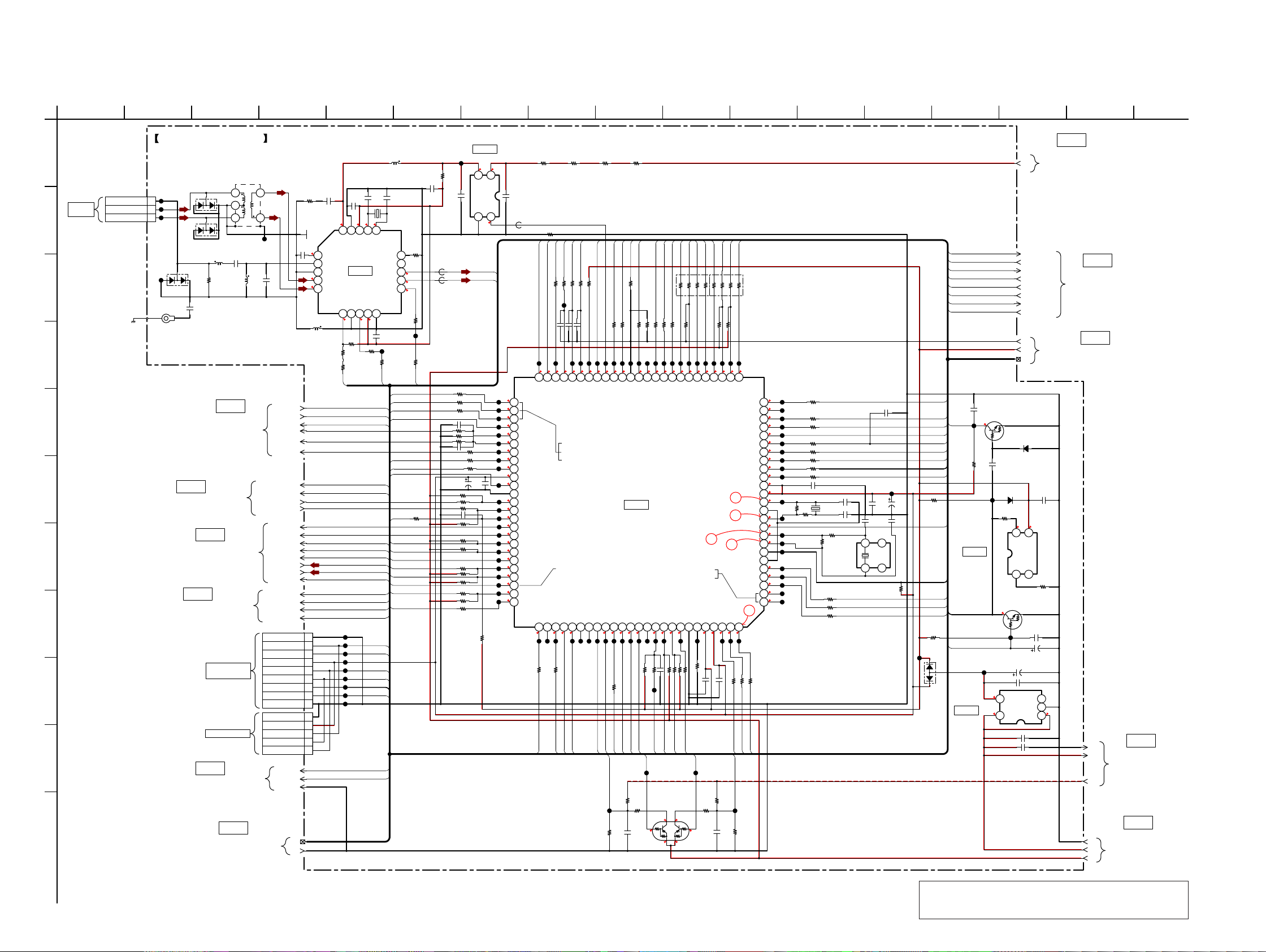

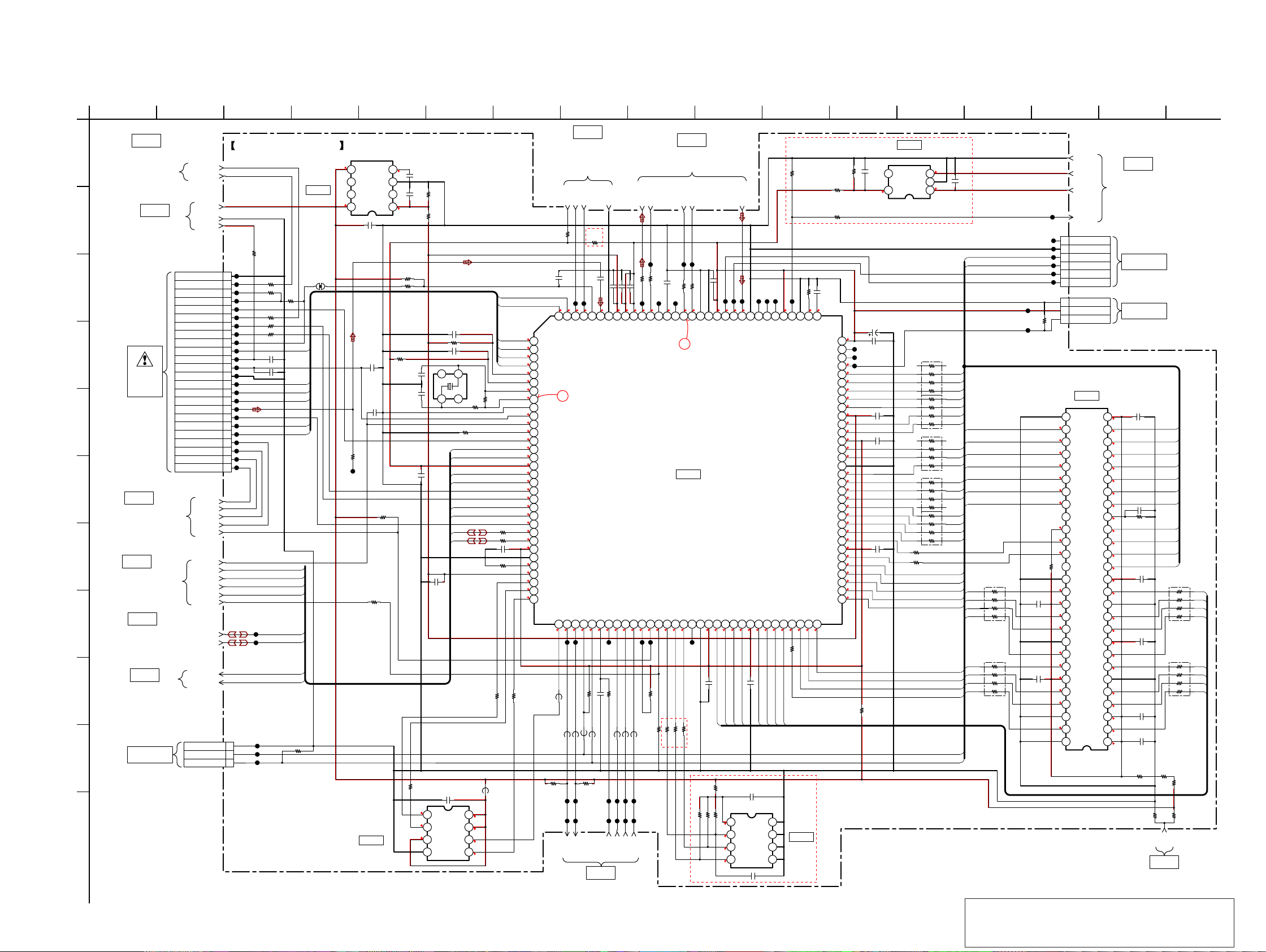

6-7. Schematic Diagram

- MOTHERBOARD Board (1/9) - ................................. 32

6-8. Schematic Diagram

- MOTHERBOARD Board (2/9) - ................................. 33

6-9. Schematic Diagram

- MOTHERBOARD Board (3/9) - ................................. 34

6-10. Schematic Diagram

- MOTHERBOARD Board (4/9) - ................................. 35

6-11. Schematic Diagram

- MOTHERBOARD Board (5/9) - ................................. 36

6-12. Schematic Diagram

- MOTHERBOARD Board (6/9) - ................................. 37

6-13. Schematic Diagram

- MOTHERBOARD Board (7/9) - ................................. 38

6-14. Schematic Diagram

- MOTHERBOARD Board (8/9) - ................................. 39

6-15. Schematic Diagram

- MOTHERBOARD Board (9/9) - ................................. 40

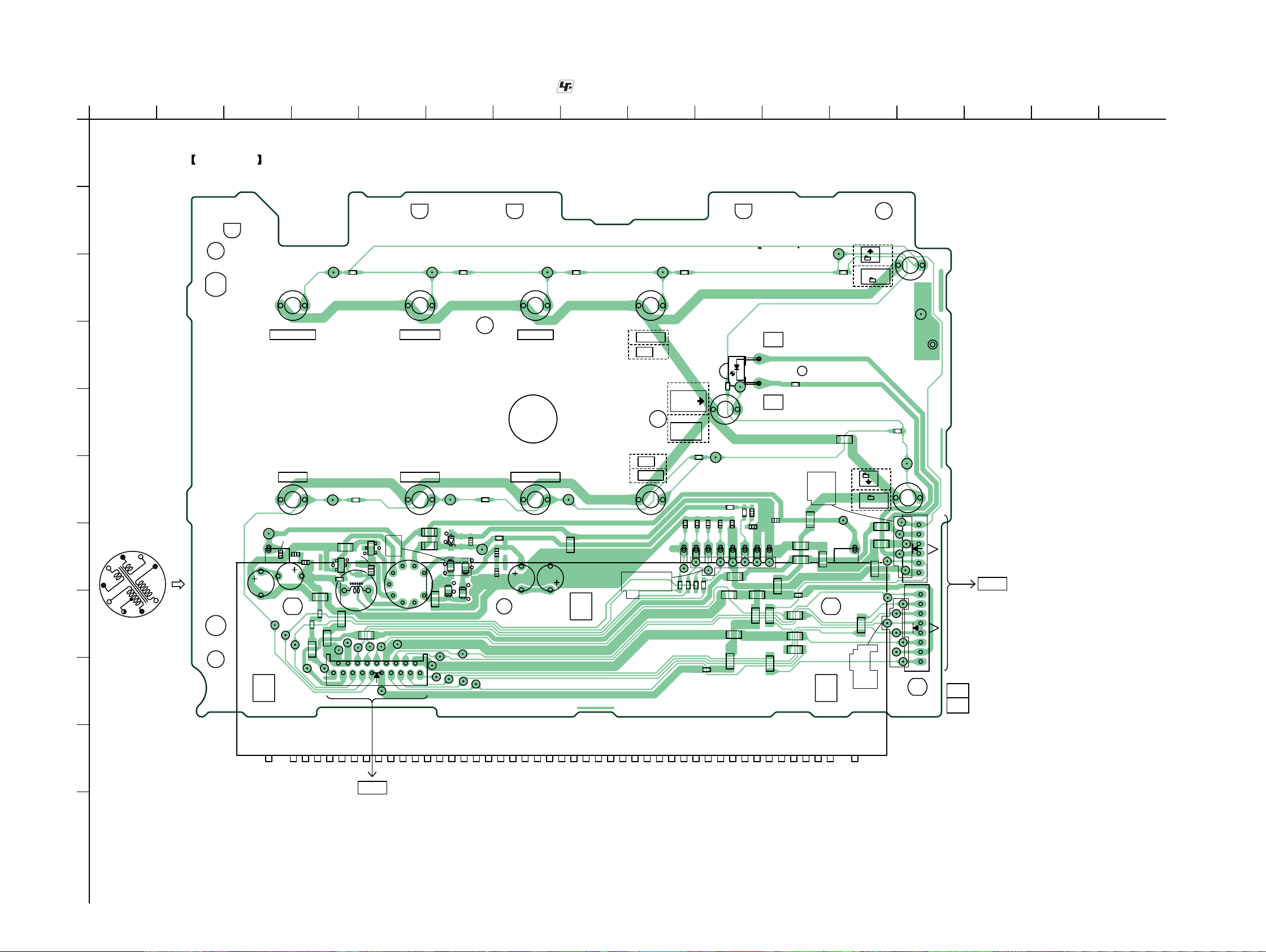

6-16. Printed Wiring Board - STR Board - .............................. 41

6-17. Schematic Diagram - STR Board - ................................. 42

6-18. Printed Wiring Board ­6-19. Schematic Diagram ­6-20. Printed Wiring Board ­6-21. Schematic Diagram -

FL Board - ................................. 43

FL Board - .................................... 44

MIC Board - .............................. 45

MIC Board - ................................. 46

7. EXPLODED VIEWS

7-1. Overall Case Section ....................................................... 63

7-2. Back Panel Section ......................................................... 64

7-3. Front Panel Section ......................................................... 65

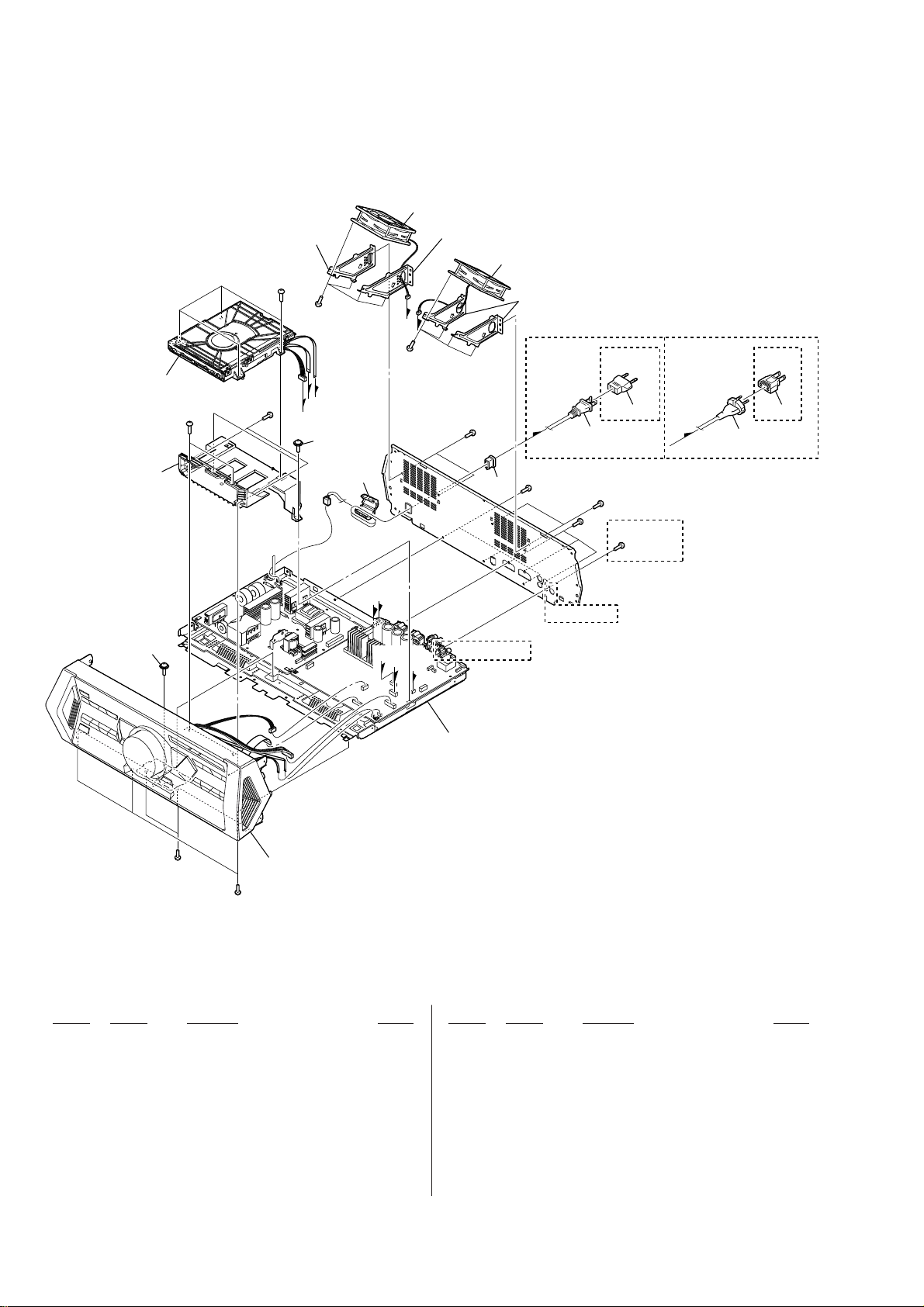

7-4. Chassis Section ............................................................... 66

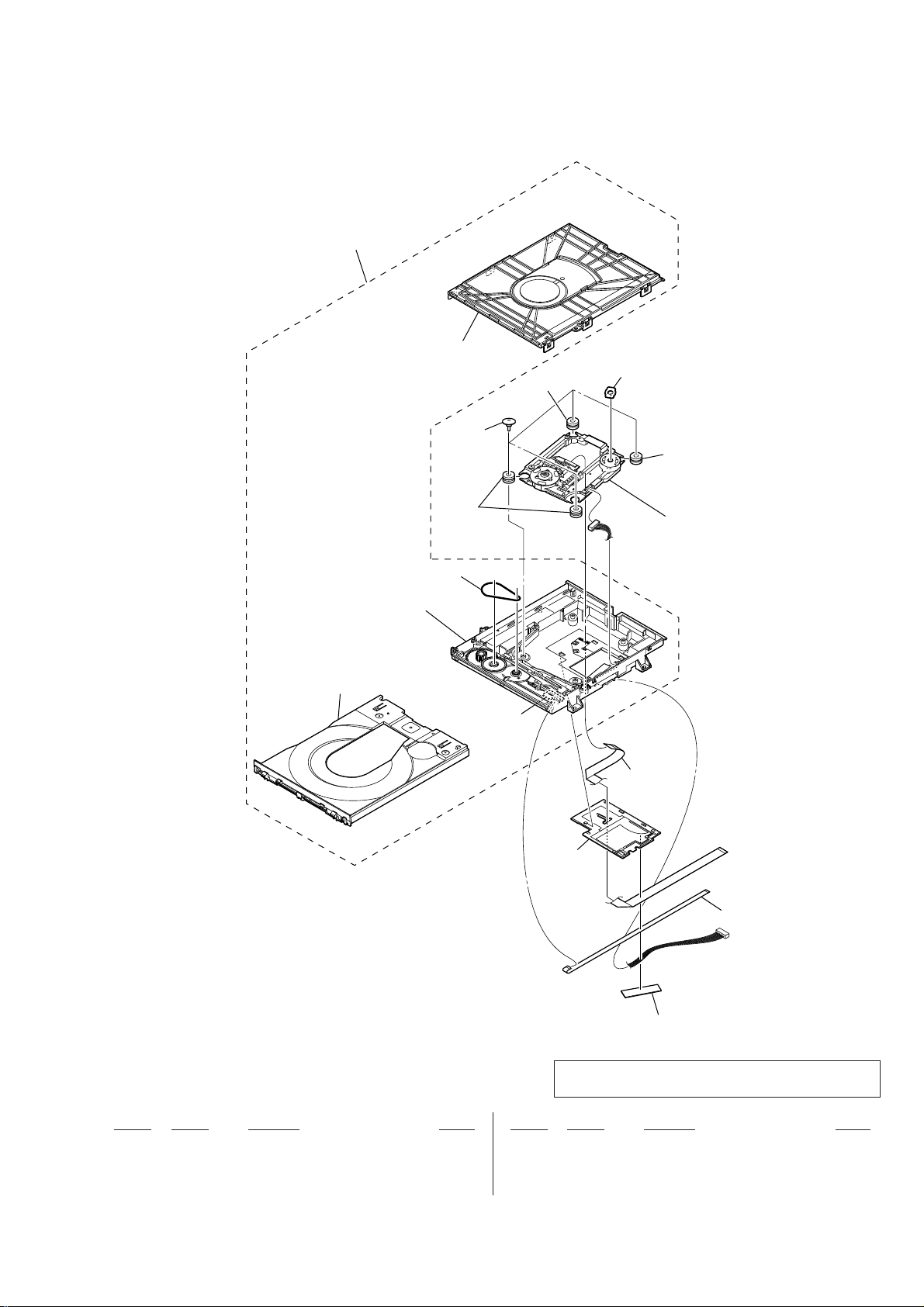

7-5. CD Mechanism Section (CDM90-DVBU202//M) ......... 67

8. ELECTRICAL PARTS LIST .............................. 68

3

HCD-SHAKE5/SHAKE6D

SECTION 1

SERVICING NOTES

Notes on chip component replacement

• Never reuse a disconnected chip component.

• Notice that the minus side of a tantalum capacitor may be
damaged by heat.

Flexible Circuit Board Repairing

• Keep the temperature of the soldering iron around 270 °C
during repairing.

• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).

• Be careful not to apply force on the conductor when soldering
or unsoldering.

UNLEADED SOLDER

Boards requiring use of unleaded solder are printed with the
leadfree mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)

: LEAD FREE MARK

Unleaded solder has the following characteristics.

• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.

Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!

• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.

• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.

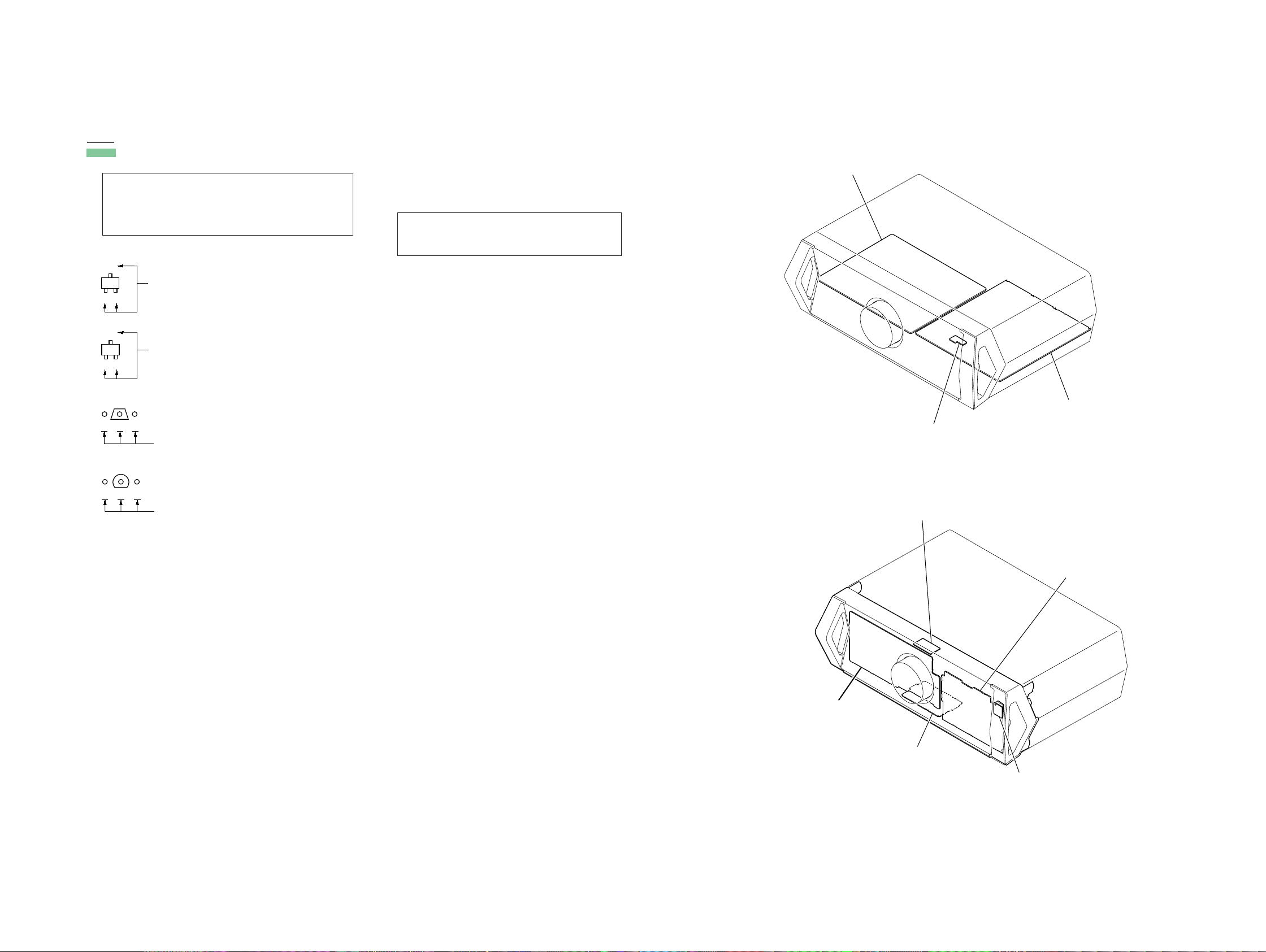

MODEL IDENTIFICATION

- BACK PANEL -

Model Part No.

HCD-SHAKE5 : AEP, AUS, E2, E51, UK
HCD-SHAKE5 : US
HCD-SHAKE6D: EA, E4, E12, MY, RU,

SAF
HCD-SHAKE5 : MX
HCD-SHAKE6D: TH

• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E12 : 220 – 240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
RU : Russian model
SAF : South African model
TH : Thai model

PART No.

4-462-248-0[]
4-462-248-1[]

4-462-248-2[]
4-462-248-3[]

4-462-248-4[]

CAUTION

Use of controls or adjustments or performance of procedures

other than those specifi ed herein may result in hazardous radiation

exposure.

NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT

The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The fl exible board is easily damaged and should be handled with
care.

NOTES ON LASER DIODE EMISSION CHECK

The laser beam on this model is concentrated so as to be focused
on the disc refl ective surface by the objective lens in the optical
pickup block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.

This appliance is
classifi ed as a CLASS 1
LASER product. This
label is located on the
rear exterior.

4

HCD-SHAKE5/SHAKE6D

NOTE OF REPLACING THE IC305 (SHAKE5), IC306
(SHAKE6D) AND IC902 ON THE MOTHERBOARD
BOARD

IC305 (SHAKE5), IC306 (SHAKE6D) and IC902 on the
MOTHERBOARD board cannot exchange with single. When these
parts on the MOTHERBOARD board are damaged, exchange the
entire mounted board.

NOTE OF REPLACING THE IC100 ON THE MOTHER­BOARD BOARD

Once IC100 on the MOTHERBOARD board is exchanged,
perform “MODEL & DEST WRITE MODE” (refer page 14)
before operating the set.

NOTE OF REPLACEMENT OF THE MS-476 BOARD

When the MS-476 board is defective, exchange the entire
LOADING ASSY (T).

RELEASING THE DISC TRAY LOCK

The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.

Releasing Procedure:

1. Press [

2. Press the [CD] (SHAKE5) / [DVD/CD] (SHAKE6D) button to

3. While pressing the [x] button, press the [OPTIONS]

4. The message “UNLOCKED” is displayed and the disc tray is

Note: When “LOCKED” is displayed, the slot lock is not released by

NOTE OF DISASSEMBLE THE CASE, OVERALL

To disassemble the CASE, OVERALL, hexagon key is required to
unscrew the SCREW, TAPPING (HEX).

\/1] button to turn the power on.

select DVD/CD function.

(SHAKE5) / [X] (SHAKE6D) button for more 5 seconds).

unlocked.

turning power on/off with the [\/1] button.

hexagon key

NOTE OF REPLACING MOTHERBOARD BOARD OR
BLUETOOTH MODULE OR RC-S801/A (WW) BOARD

When the MOTHERBOARD board or BLUETOOTH module or
RC-S801/A (WW) board are replaced, please execute the below
service mode.

Pairing this system with a

1. Press the [\/1] button to turn the power on.

2. Place the Bluetooth device within 1 meter (3 feet) from the
system.

3. Press BLUETOOTH on the unit to select Bluetooth function.
“BLUETOOTH” appears in the display panel.

4. Hold down BLUETOOTH on the unit for 2 seconds or more.

“PAIRING” fl ashes in the display panel.

5. Perform the pairing procedure on the Bluetooth device.

6. Select the model number of the unit on the display of the
Bluetooth device.

For example, select “SONY : SHAKE-5 / SHAKE-6D”. If

passkey is required on the Bluetooth device, enter “0000”.

7. Perform the Bluetooth connection on the Bluetooth device.

8. When pairing is completed and the Bluetooth connection is
established, the Bluetooth device name appears in the display
panel.

9. To cancel pairing operation, hold down BLUETOOTH on the
unit for 2 seconds or more until “BLUETOOTH” appears in
the display panel.

Bluetooth

device

Connecting with a smartphone by one touch (NFC)

Note: The operation in this mode must use a NFC-compatible smartphone

(Smartphones with a built-in NFC function [OS: Android 2.3.3 or
later, excluding Android 3.x])

1. Press the [\/1] button to turn the power on.

2. Download and install the app “NFC Easy Connect”.

Download the free Android app from Google Play by searching

for “NFC Easy Connect”.

3. Start the app “NFC Easy Connect” on the smartphone.

Make sure that the application screen is displayed.

4. Touch the smartphone to the N-Mark on the system until the
smartphone vibrates.

hexagon key

Complete the connection by following the instructions

displayed on the smartphone.

5. When pairing is completed and the Bluetooth connection is
established, the Bluetooth device name appears in the display
panel.

5

HCD-SHAKE5/SHAKE6D

Playing music from a

For a Bluetooth device

1. Press the [

2. Press BLUETOOTH on the unit to select Bluetooth function.
“BLUETOOTH” appears in the display panel.

3. Establish connection with the Bluetooth device.
The last connected Bluetooth device will be connected

automatically.

Perform the Bluetooth connection from the Bluetooth device if

the device is not connected.

Once the connection is established, the Bluetooth device name

appears in the display panel.

4. Press N.
Depending on the Bluetooth device,
– you may have to press N twice.
– you may need to start playback of an audio source on the

Bluetooth device.

For an NFC-compatible smartphone

1. Press the [\/1] button to turn the power on.
Touch the smartphone to the N-Mark on the system to establish

the Bluetooth connection.

Start playback of an audio source on the smartphone. For

details on playback, refer to the operating instructions of your
smartphone.

\/1] button to turn the power on.

Bluetooth

device

To disconnect the Bluetooth device
For a Bluetooth device

Press BLUETOOTH on the unit.
“BLUETOOTH” appears in the display panel.

For an NFC-compatible smartphone

Touch the smartphone to the N-Mark on the system again.

To erase all the pairing registration information perform
COLD RESET test mode (Refer page 12).

6

Note: Disassemble the unit in the order as shown below.

SET

2-1. OVERALL CASE
(Page 8)

2-2. BACK PANEL SECTION
(Page 8)

2-3. LOADING PANEL ASSY
(Page 9)

2-4. CDM90-DVBU202//M
(Page 9)

HCD-SHAKE5/SHAKE6D

SECTION 2

DISASSEMBLY

2-5. FRONT PANEL SECTION
(Page 10)

2-6. MOTHERBOARD BOARD, SWITCHING REGULATOR
(Page 10)

2-7. SERVICE OPTICAL DEVICE,
WIRE (FLAT TYPE)
(Page 11)

7

HCD-SHAKE5/SHAKE6D

Note: Follow the disassembly procedure in the numerical order given.

2-1. OVERALL CASE

2 protector, rear L

9 case, overall

8

1 three screws
(+BVTP 3 u 8) (BLACK)

3 three screws
(+BVTP 3 u 8) (BLACK)

5 seven screws
(+BVTP 3 u 8)

(BLACK)

6 three screws

(tapping (HEX))

2-2. BACK PANEL SECTION

8 back panel section

4 protector, rear R

7 three screws
(tapping (HEX))

Note: To disassemble the CASE, OVERALL, hexagon key
is required to unscrew the SCREW, T APPING (HEX).

4 three screws

3 CN101 (2P)

2 CN1002 (2P)

1 CN1000 (2P)

7

(SHAKE6D)

(+BVTP 3 u 8) (BLACK)

5 three screws
(+BVTP 3 u 8) (BLACK)

(SHAKE6D)

6 one screw
(+BVTP 3 u 8)

(BLACK)

(SHAKE6D)

8

2-3. LOADING PANEL ASSY

s

hole

– Side view –

Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.

8 cm or more

DVD/CD drive

HCD-SHAKE5/SHAKE6D

4 panel, loading assy

3 four claw

2

tray

Push after it inserts it in this hole well.

Note:

– Top view –

2-4. CDM90-DVBU202//M

7 CDM90-DVBU202//M

Note: When you install the CD

drive (CDM90-DVBU202//M),
please match the position of
the boss two places.

5 boss

9 two screws
(+BVTP 3 u 8)

8 two screws
(+BVTP 3 u 8)

1 Insert the clip etc.

6

4 four screws
(+BVTP 3 u 8)

1 wire (flat type) (24 core)

(CN305)

2 wire (flat type) (5 core)
(CN306)

3 CN901 (6P)

0 two screws

(+PWH 3 u 8 (SUMITITE))

qa bracket, CDM

9

HCD-SHAKE5/SHAKE6D

2-5. FRONT PANEL SECTION

3 one screw
(+PWH 3 u 8 (SUMITITE))

0 front panel section

8 CN150 (4P)

7 wire (flat type)

(19 core) (CN1508)

9

6 CN1509 (10P)

5 wire (flat type)

(14 core) (CN180)

2 two screws
(+BVTP 3 u 8)

2-6. MOTHERBOARD BOARD, SWITCHING REGULATOR

9 three screws
(+PWH 3 u 8 (SUMITITE))

qa REGULATOR, SWITCHING

2 CN200 (6P)

0 clamp (L35)

9 three screws
(+PWH 3 u 8 (SUMITITE))

9 two screws

(+PWH 3 u 8
(SUMITITE))

1 CN1001
(9P)

7 four screws
(+PWH 3 u 8

(SUMITITE))

4 wire (flat type)
(8 core) (CN1507)

1 three screws
(+BVTP 3 u 8) (BLACK)

4 sheet, thermal

3 three screws

(+PTPWH 2.6 u L (DIA8.0))

5 heat sink (GSX8)

7 two screws
(+PWH 3 u 8 (SUMITITE))

(SHAKE6D)

10

8 MOTHERBOARD
board

6 bracket,
heat sink

qs chassis assy

HCD-SHAKE5/SHAKE6D

2-7. SERVICE OPTICAL DEVICE, WIRE (FLAT TYPE)

Note 1 : Before disconnecting the wire (fl at type) (24 core) of optical pick-up block, solder the short-land.

8 four insulator screws

qs service,

optical device

3 Insert the thin
wire (clip etc.).

1 six claws

qa insulator

6 belt

2 chuck holder assy (T)

qa insulator

qg wire (flat type)

(5 core)

qa insulator

0

9

qj holder, FFC

2 Solder the short-land.

Note 2: When assembling the optical pick-up block,
remove the solder of short-land after
connecting the wire (flat type) (24 core).

qf tape

qk wire (flat type)

(24 core)

qh

7 connector

qd base, lo assy

4

5 tray

,QVWDOODWLRQRIZLUHIODWW\SHFRUHDQGZLUHIODWW\SHFRUH

This illustration sees the loading assy (T) from bottom side.

Note:

5 two claws

1 wire (flat type) (24 core)

loading assy (T)

3 Through the hole

terminal face

2 Through the hole

loading assy (T)

– Bottom view –

5 three claws

6 holder, FFC

4

7 wire (flat type)

(24 core)

9 tape

8 wire (flat type)

(5 core)

Under the guide
(Fold area)

Under the guide

11

HCD-SHAKE5/SHAKE6D

SECTION 3

TEST MODE

[PANEL TEST MODE]

This mode is used to check the fl uorescent indicator tube, LEDs,
keys, [VOLUME] jog, model, destination and software version.

Procedure:

1. Press [ENTER] button and [MUSIC] button simultaneously
and hold 3 seconds.

2. All LEDs and segments in fl uorescent indicator tube are lighted
up. All RGB LEDs are lighted up in white color.

3. When you want to enter to the software version display mode,
press [+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D)
button.

** If display shown information below, please proceed

with [MODEL & DEST WRITE MODE] to write model &
destination.

• “STORM-JR(T)” is shown for SHAKE-5.

• “STORM-JRD(T)” is shown for SHAKE-6D.

The model information appears on the fl uorescent indicator

tube.

• “STORM-JR” is shown for SHAKE-5.

• “STORM-JRD” is shown for SHAKE-6D.

Press [+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D)

button again to view the destination information.

4. During the destination information display, press [+ / ]
(SHAKE5) / [+/PRESET+] (SHAKE6D) button. Each time
[+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D) button
is pressed, the fl uorescent indicator tube shows the version of
each category software in the following sequence: SC, MTK,
OPU, UI, PF, SYS, CD, CDMA, CDMB, ST, TA, TAS, TM,
BTM, BT, NFC and return back to model information display.

5. When [] button is pressed while the version numbers are
being displayed except model and destination, the date of the
software creation appears. When [] button is pressed again,
the display returns to the software version display.

6. Press [‒ / ] (SHAKE5) / [‒/PRESET‒] (SHAKE6D)
button, the key check mode is activated.

7. In the key check mode, the fluorescent indicator tube displays
“K 0 V0”.

Each time a button is pressed, “K” value increases. However,

once a button has been pressed, it is no longer taken into
account.

“V” value increases in the manner of 0, 1, 2, 3... if [VOLUME]

knob is turned clockwise, or it decreases in the manner of 0, 9,
8, 7... if [VOLUME] knob is turned counterclockwise.

8. When [ENTER] button is pressed after all LEDs and segments
in fl uorescent indicator tube light up, alternate segments in
fl uorescent indicator tube and LEDs would light up, all RGB
LEDs would light up in red color. If you press [ENTER]
button again, another half of alternate segments in fl uorescent
indicator tube and LEDs would light up, all RGB LEDs
would light up in green color. Pressing [ENTER] button again
would cause all segments in fl uorescent indicator tube and
LEDs light up, all RGB LEDs would light up in blue color.
Pressing [ENTER] button again would turn off all segments in
fl uorescent indicator tube and all LEDs including RGB LEDs.

9. To release from this mode, press the buttons in the same
manner as step 1, or disconnect the power cord.

[USER RESET]

The user reset clears all data including preset data stored in the data
fl ash to initial conditions exclude history mode data.

Procedure:

1. Press [

2. Press [] button and [LED COLOR] button simultaneously

3. “RESET” appears on the fl uorescent indicator tube. After that,

\/1] button to turn on the system.

for 3 seconds.

the fl uorescent indicator tube becomes blank for a while, and
the system is reset.

[COLD RESET]

The cold reset clears all data including preset data stored in the
data fl ash to initial conditions included history mode data. Execute
this mode when returning the set to the customer.

Procedure:

1. Press [\/1] button to turn on the system.

2. Press [] button and [AUDIO IN] button simultaneously for 3
seconds.

3. “COLD RESET” appears on the fl uorescent indicator tube.
After that, the fl uorescent indicator tube becomes blank for a
while, and the system is reset.

[CD/DVD SHIP MODE (WITH MEMORY CLEAR)]

This mode moves the optical pick-up to the position durable to
vibration and clears all data including preset data stored in the data
fl ash to initial conditions during the next AC-In. Use this mode
when returning the set to the customer after repair.

Procedure:

1. Press [\/1] button to turn on the system.

2. Select CD (SHAKE5) / DVD/CD (SHAKE6D) function.

3. Press [CD] (SHAKE5) / [DVD/CD] (SHAKE6D) button and
[SOUND FLASH] button simultaneously for 3 seconds. The
system turns off automatically.

4. A message “MECHA LOCK” is displayed on the fl uorescent
indicator tube and the CD ship mode is set.

[CD/DVD TRAY LOCK MODE]

This mode let you lock the disc tray. When this mode is activated,
the disc tray will not open when [Z OPEN/CLOSE] button
is pressed. The message “LOCKED” will be displayed on the
fl uorescent indicator tube. This mode only applied when there is
disc(s) on the tray.

Procedure:

1. Press [\/1] button to turn on the system.

2. Select CD (SHAKE5) / DVD/CD (SHAKE6D) function.

3. Press [] button and [OPTIONS] (SHAKE5) / [X] (SHAKE6D)
button simultaneously and hold down until “LOCKED” or
“UNLOCKED” displayed on the fl uorescent indicator tube
(around 5 seconds).

[CDM AGING MODE]

This mode is used for CDM aging.

Procedure:

1. Press [\/1] button to turn on the system.

2. Select CD (SHAKE5) / DVD/CD (SHAKE6D) function.

3. Open the disc tray, insert a disc and close the tray .

4. Press [CD] (SHAKE5) / [DVD/CD] (SHAKE6D) button and
[MOVIE/GAME] button simultaneously for 3 seconds.

5. The fl uorescent indicator tube displays Aging Display “AG
xxxx/yyyy”.

“xxxx” represents the error counter
(Maximum Value of “xxxx” = 9999)
“yyyy” represents the cycle counter
(Maximum Value of “yyyy” = 9999)

6. Press [+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D) or
[‒ / ] (SHAKE5) / [‒/PRESET‒] (SHAKE6D) to search
for Aging History Error Display

The fl uorescent indicator tube displays “Mx E1E2E3E4”.
x: error history number
E1: Loading sequence JCP high
E2: Loading sequence JCP low
E3: Loading operation JCP
E4: Cam position operation JCP

7. Press [ENTER] to Aging Display

To release from CDM Aging Mode.
To release from this mode, press [\/1] button or perform COLD
RESET operation.

12

[HISTORY MODE]

This mode is used to check important data stored in the system
when PROTECTOR happen.

Procedure:

1. During demo mode, press [ENTER] button and [LED
PATTERN] for 5 seconds to mode in to history mode.
Press the [M > /TUNING+] (SHAKE5) / [TUNING +/

2.
>] (SHAKE6D) or [ .m/TUNING‒] (SHAKE5) /
[TUNING‒/.
stored.

Display on fl uorescent indicator tube Description

PROCOUNT

PROTYPE

] (SHAKE6D) button to check history data

※※

※※※※

No of time protector happen (0 ~ 99)
Indication protector type (refer protector kind test mode)

HCD-SHAKE5/SHAKE6D

Protector type Protector Error Code
AMPL E01
PWR2 E03
SPK E04
TEMP E05
FAN E06

T1

T2
FUNC

VOL

ATT
EQ LOW
EQ MI D
EQ HIGH

VACS

APVACS
SURR

DJ

BAZUCA

To release from History Mode.
To release from this mode, press [

※※※※※H※※

※※※※※H※※

※※※※※※※

※※※※※※ ※※

\/1] button.

M

M

※※※

※※※

※※※

※※※

※※※

※※

※※

※※※

※※※

Single Power On Time until protector happened
(0~99999 hours, 0~99Min)
Total Power On Time [ no consider protector happen ]
(0~99999 hours, 0~99Min)

Input Function during protector happened
Volume setting (MIN / 1 - 50 / MAX)
Actual attenuation (-87 … 0)
Low EQ level (-6 … 0 … +6)
Mid EQ level (-6 … 0 … +6)
High EQ level (-6 … 0 … +6)
VACS level (0 ... 5)
AP VACS level (0 … 7)
Surround setting (OFF / ON)

DJ Effect setting
DJ Mode: OFF/ISOLAT/FLANGE/PHASER/FLASH
DJ Setting Value: 1~ 40

Bass Bazuca setting (OFF / ON)

13

HCD-SHAKE5/SHAKE6D

[PROTECT KIND CHECK TEST MODE]

This mode is used to check types of protect occurred during
protector on.

Procedure:

1. During protection on, fl uorescent indicator tube shows blinking
message “PROTECT EXX” where “EXX” represent the error
code.

2. Press [] button and [‒ / ] (SHAKE5) / [‒/PRESET‒]
(SHAKE6D) button simultaneously.

3. Fluorescent indicator tube display will toggle between
“PROTECT” message and protector kind message display.

Below table explains on protector kind.

Error
Code

E01 “AMP OCP” The over current condition to

E03 “POWER

E04 “DC DETECT” DC appears in SP terminal by

E05 “THERMISTOR” Unusual heat up of MOSFET by

E06 “F AN BLOCK” Defect of DC FAN and DC F AN

To release from this mode:
Press [] button and [‒ / ] (SHAKE5) / [‒/PRESET‒]
(SHAKE6D) button simultaneously again or unplug & re-plug in
the power cord.

If speaker does not have output even if the set status is not in
PROTECT mode, the following defect might be possible:

Defects Possible cause

RESET defect Reset signal status from micom is not ‘H’.

If the PROTECT mode is “POWER SUPPLY”, there is possibility
of unusual power supply of any of the AMP IC or Pre-amplifi er.

Protector
Message

SUPPLY”

Description

MOSFET occurs by defect of
MOSFET or defect of PS output
line.

Defect of power supply circuit
to AMP

defect of AMP IC and MOS­FET.

improper assembly of heat sink,
destruction of MOSFET etc.

driver circuit

[MODEL & DEST WRITE MODE]

This mode is used to set software model & destination.
This mode is only available when no permanent model &
destination is stored.

Procedure:

1. Press [OPTIONS] (SHAKE5) / [X] (SHAKE6D) button and
[FOOTBALL] button simultaneously and hold for 5 seconds.

2. Fluorescent indicator tube display will show “M XXXXX”.

3. Press [+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D) /
[‒ / ] (SHAKE5) / [‒/PRESET‒] (SHAKE6D) button to
select the model based on the set’s model.

Product Code F. Tube display

STORM-JR-CD “M STORM-JR”
STORM-JR-DVD “M STORM-JRD”

4. Press [ENTER] button.

5. Fluorescent indicator tube display will show “D XXXXX”.

6. Press [+ / ] (SHAKE5) / [+/PRESET+] (SHAKE6D) /
[‒ / ] (SHAKE5) / [‒/PRESET‒] (SHAKE6D) button to
select the destination based on the set’s country.

Area Code Country F. Tube display

J1 Japan “D J”
JE1 Tourist “D JE”
U2/CA2 America, Canada “D NA”
CEL/CE1/

CE2
CEK U.K. “D CEK”
RU1/RU3 Russia “D RU”
AU1 Australia “D AU”
CN1 China “D CN”
E12 India, Pakistan, Morocco “D E12”
E3/E93/

SA2/E15
E4 Africa “D E12”
EA3 Saudi Arabia “D EA3”
HK1/

HK2/PL1/
SP1/SP2/
SP6/TH1

KR2 Korea “D KR”
TW2 Taiwan “D TW”
E2, E32,

E51, AR2
BR1 Brazil “D BR”
MX2,

MX4

Europe (general) “D CE2”

Middle East, Africa
(South Africa), Iran

Hong Kong, Philippines,
Singapore, Malaysia,
Thailand

Latin America (general),
Chile, Peru, Argentina

Mexico “D MX”

“D E3”

“D ASIA”

“D LATIN”

14

7. Press [ENTER] button to confi rm the selection.

8. “RESET” appears on the fl uorescent indicator tube. After that,
the fl uorescent indicator tube becomes blank for a while, and
the system is reset.

9. Mode in [PANEL TEST MODE] again to confi rm on the
model & destination.

HCD-SHAKE5/SHAKE6D

[DVD COLOR SYSTEM MODE] (SHAKE6D)

• This mode let you change the color system of the video output

from PAL to NTSC or vice-versa.

Procedure:

1. Press the [\/1] button to turn on the system.

2. Press the [DVD/CD] button.

3. Press the [ENTER] button and [LED COLOR] button
simultaneously and hold for 3 seconds.

4. The message “COLOR PAL” or “COLOR NTSC” appears on
the fl uorescent indicator tube.

• To release from DVD Color System Mode

1. O nce the color system ha s been selecte d, the mode is fi xe d
there after. If you wish to change the mode again, perform the
above item 3 again.

[DVD SERVICE MODE] (SHAKE6D)

• This mo de let you make dia gnosis an d adjust ment easily by

using the r emote comma nder and the T V. Th e instr uctions,
diagnostic results, etc. are given on the on-screen display.

• TEST DISC LIST

Be sure to use the DVD disc that matches the signal standards

of your region.

• CD

YEDS-18 (Part No.: 3-702-101-01)
PATD-012 (Part No.: 4-225-203-01)

• DVD SL (Single Layer)

NTSC : HLX-503 (Part No.: J-6090-069-A)
HLX-504 (Part No.: J-6090-088-A)
PAL : HLX-506 (Part No.: J-6090-077-A)

• DVD DL (Double Layer)

NTSC : HLX-501 (Part No.: J-6090-071-A)
HLX-505 (Part No.: J-6090-089-A)
PAL : HLX-507 (Part No.: J-6090-078-A)

• Procedure to enter DVD Service Mode:

1. Press the [\/1] button to turn on the system.

2. Press the [DVD/CD] button.

3. Press the [ENTER] button and [+/PRESET+] button
simultaneously and hold 3 seconds.

4. The message “SERVICE IN” appears on the fl uoresc ent
indicator tube and the Top Menu of Remocon Diagnosis
Menu appears on the on-screen display on the TV.

The display of the “Model Name” of the “Remocon Diagnosis

Menu” change with t he model and the de stination . Refer to
below on the model name.

STOMJRD : SHAKE-6D

Remocon Diagnosis Menu

0. External Chip Check

1. Servo Parameter Check

2. Drive Manual Operation

3. Emergency History

4. Version Information

5. USB Test Mode Setting
Model Name

IF-con
Syscon

: SHAKE6D_ XX
: Ver. XX.XX (XXXX)
: Ver. X.XXX

*1

*1: Changes depending on destination

5. To execute each fu n ct ion, p re ss it s nu mb er by u si ng nu me r ic
button on the remote commander.

6. To release from this mode, pre ss the [\/1] button t o turn of f
the system.

• Execute IOP Measurement

In or der to execute IOP measurement, the following standard

procedures must be followed.

1. From the Top Menu of Remocon Diagnosis Menu, select
“2. Dr ive Manual Oper ation” by pressing t he [2] button on
the r

emote com ma nder. The followi ng sc ree n app ea rs on t he

on-screen display.

Drive Manual Operation

1. Servo Control

2. Track/Layer Jump

3. Manual Adjustment

4. Mecha test mode

5. MIRR time Adjust

0. Return to Top Menu

2. Select “3. Manu al Adjus t ment ” by pr essi ng t he [3] button on
the remote commander. The following s cre en a ppe ar s on t he
on-screen display.

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eg Boost Adjust:

6. Iop:

7. TRV. Level:

8. S curve (FE) Level:

9. RFL (PI) Level:

0. MIRR Time:
O o Change Value

RETURN Return to previous menu

3. Select “6. Iop:” by pressing the [6] button on the remote
commander.

4. Wait until a hexade cimal number appea rs in the on-scre en
display as below:

Manual Adjust

1. Track Balance Adjust:

2. Track Gain Adjust:

3. Focus Balance Adjust:

4. Focus Gain Adjust:

5. Eg Boost Adjust:

6. Iop. ED

7. TRV. Level:

8. S curve (FE) Level:

9. RFL (PI) Level:

0. MIRR Time:
O o Change Value

RETURN Return to previous menu

5. Convert data from hexadecimal to decimal by using
conversion table.

6. Please fi nd the label on the rear of the BU (Base Unit).

The default IOP value is written in the label.

7. Subtract between these two values.

8. If the remainder is smaller than 93 (decimal), then it is OK.

However if the value is higher than 93, then the BU is defective

and need to be change.

9. Press the [ RETURN ] button on the remote commander to
return to previous menu.

10. Press the [0] button on the remote commander to return to the
Top Menu of Remocon Diagnosis Menu.

11. Press the [\/1] button to turn off the system.

15

HCD-SHAKE5/SHAKE6D

• Check Emergency History

To check the emer gency hi stor y, please follow the following

procedure.

1. From the Top Menu of Remocon Diagnosis Menu, select
“3. Emergency History” by pressing the [3] button on the
remote com mander. The following screen a pp ears on the on­screen display.

Emg. History Check

Laser Hours CD 999h 59min

1. 01 05 04 04
00 00 00 00

2. 02 02 01 01 00 A9 4B 00
00 00 00 00

Next Next Page Prev Prev Page

O Return to Top Menu

DVD 999h 59min

00 92 46 00
00 00 23 45

00 00 23 45

2. You can check the total time when the laser is turned on
duri ng playba ck of DVD and CD fr om the above menu. T he
maximum time, which can be displayed are 999h 59min.

3. You can check the error c ode of latest 10 emerge ncy hist or y
from the ab ove menu. To view the previou s or next page of
emergency h istory, press t he [.] button or [>] butt on
on the remote commander. The error code consists of

• Error Code

Example of Error code

• Parameter of error code

This is the detail of error code.

Example of Error code

1. 01 05 04 04 00 92 46 00
00 00 00 00 00 00 23 45

• Time of error code

This is the laser time when an error occurred.

Example of Error code

1. 01 05 04 04 00 92 46 00
00 00 00 00 00 00 23 45

To clear the Laser Hours

Press the [

DISPLAY] button and then press the [CLEAR]

button. The data for both CD and DVD data are reset.

Emg. History Check

Laser Hours CD 0h 0min

1. 01 05 04 04
00 00 00 00 00 00 23 45

2. 02 02 01 01 00 A9 4B 00
00 00 00 00 00 00 23 45

Next Next Page Prev Prev Page

O Return to Top Menu

DVD 0h 0min

00 92 46 00

1. 01 05 04 04 00 92 46 00
00 00 00 00 00 00 23 45

The meaning of error code is as below:
01: Communication error (No reply from syscon)
02: Syscon hung up
03: Power OFF request when syscon hung up
19: Thermal shutdown
24: MoveSledHome error
25: Mechanical move error (5 Changer)
26: Mechanical move stack error
30: DC motor adjustment error
31: DPD offset adjustment error
32: TE balance adjustment error
33: TE sensor adjustment error
34: TE loop gain adjustment error
35: FE loop gain adjustment error
36: Bad jitter after adjustment
40: Focus NG
42: Focus layer jump NG
51: Spindle stop error
52: Open kick spindle error
60: Focus on error
61: Seek fail error
62: Read Q data/ID error
70: Lead in data read fail
71: TOC read time out (CD)
80: Can’t buffering
81: Unknown media type

To clear the Emergency History

Press the [DVD TOP MENU] button and then press the [CLEAR]
button.
The error code for all emergency history would be reset.

Emg. History Check

Laser Hours CD 999h 59min

1. 00 00 00 00
00 00 00 00

2. 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00

Next Next Page Prev Prev Page

O Return to Top Menu

DVD 999h 59min

00 00 00 00
00 00 00 00

To clear the Initialize Setup Data

Press the [DVD/TUNER MENU] button and then press the
[CLEAR] button on the remote commander.

Emg. History Check

Laser Hours CD 999h 59min

Initialize setup data...

DVD 999h 59min

16

Next Next Page Prev Prev Page

O Return to Top Menu

To return to the Top Menu of Remocon Diagnosis Menu

Press the [0] button on the remote commander.

• Check Version Information

To check the version information, please follow the following

procedure.

1. From the Top Menu of Remocon Diagnosis Me nu, selec t “4.
Version information” by pressing the [4] button on the remote
comma nder. The following scree n appear s on the on-scre en
display.

Version information

Firm (Main) : Ver. xxxxx
Firm (Sub) : xxxxx
RISC : xxxxx
8032 : xxxxx
Audio DSP : xxxxx
Servo DSP : xxxxx

O Return to Top Menu

HCD-SHAKE5/SHAKE6D

To return to the Top Menu of Remocon Diagnosis Menu, press
the [0] button on the remote commander.

17

HCD-SHAKE5/SHAKE6D

SECTION 4

ELECTRICAL CHECK

TUNER SECTION

FM AUTO STOP CHECK

set

Procedure:

1. Turn the power on.

2. Input the following signal from Signal Generator to FM
antenna input directly.

Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)

Note: Please use 75 ohm “coaxial cable” to connect SG and the
set. You cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.

0 dB = 1 ȝV

signal

generator

+

75

–

3. Set to FM tuner function and scan the input FM signal with
automatic scanning.

4. Confi rm that input Frequency of A, B and C detected and
automatic scanning stops.

The stop of automatic scanning means “The station signal is
received in good condition”.

18

(2)

SECTION 5

TROUBLESHOOTING

Checks whether the state of a Cable and Outlet are normal.

If there are no problems, checks circumference circuit for

Main on/Sub on Output of Main mount side.

Replaces Switching regulator if it is not up to standard.

HCD-SHAKE5/SHAKE6D

No

Yes

AC IN

The Power Control signal to Switching regulator is checked.

Is following power voltage OK?

Main on/Sub on Standby Demo mode Power On

CN 201 :pin7 Low (0V) Hi (3.3V)   Hi (3.3V)

(6)

The Output from Switching regulator is checked.

(4)

No

pin4 0V -24V±2.5V

pin1 0V -61V±2.5V

Yes

END

13V±0.5V

0V 61V±2.5V

Standby Demo mode Power On

13V±0.5V

pin6 0V 24V±2.5V

CN 201 pin1

Is following power voltage up to standard?

CN 401 pin9

(3)

(5)

(1)

pin1-2: 13V

pin3-4: GND

pin5: AC-DET

pin7: MAIN-ON

(1) AC input

(2) Fuse

(3) Sub Power transformer

(4) CN 201 Connector

(5) MAIN Power transformer

(6) CN 401 Connector

pin1-3: V1- (DC-61V)

pin4: V2- (DC-24V)

pin5: GND

pin6: V2+ (DC+24V)

pin7-9: V1+ (DC+61V)

Switching Regulator Diagnosis Flow

19

HCD-SHAKE5/SHAKE6D

§9

C

§9

E



Check condition of transistor Q203, V

Check IC303 for 3.3V.

If there is no problem, check circumference circuit of IC260

(Switching regulator) for 3.3V.

Check IC302 (LDO IC) for 1.2V.

No

Yes

R652: 1.2V

Check voltage supply to MTK IC306

R653/R654: 3.3V

No

Checks circumference circuit for SL+/SL- of IC902.

Checks circumference circuit of IC306 FMO Signal.

No

Yes

Does it output the signal?

Checks CN901 SL+/SL- signal.

The Sled motor has a problem.

Replaces BU.

Checks circumference circuit for FCS+/FCS- of IC902.

Checks circumference circuit of IC306 DMO Signal.

Checks circumference circuit for SP+/SP of IC902.

No

Yes

The Spindle motor has a problem.

Does it output the signal?

Checks CN901 SP+/SP- signal.

No

Replaces BU.

Checks circumference circuit of IC306 FOO Signal.

No

Yes

Does it output the signal?

Checks CN901 FCS+/FCS- signal.

No

The Optical pickup has a problem.

Replaces BU.

REMOVE CDM TOP PANEL

TURN ON

REMOVE TOP P ANEL

REMOVE SIDE PANEL

Optical Block Diagnosis Flow (1/2)

TRAY IN

Does Optical pickup move to inner circumference?

(Visual check)

20

Yes

Yes

Does Spindle motor rotate?

(Visual check)

Yes

Does Optical pickup do focus search?

(Visual check)

A

HCD-SHAKE5/SHAKE6D

Checks circumference circuit of Q901 or Q902.

Checks circumference circuit of IC306 LDO1 and LDO2.

No

Yes

The Optical pickup has a problems.

Does it output 1.8V when laser become luminous ?

Check JL323 (LD780) signal.

Does it output 2.2V when laser become luminous ?

Check JL319 (LD650) signal.

No

Replaces BU.

No

Replaces BU if it is not up to standard.

No

Yes

RF Level = 1.0 ± 0.25 Vpp

If it is not up to standard,

Lens cleaning is performed.

Test CD:YEDS-18

Is output level of RF signal (CN302 6pin) up to standard?

Yes

No

The Optical pickup has a problems.

Replaces BU.

A

Optical Block Diagnosis Flow (2/2)

Yes

Does laser diode become luminous ?

(Visual check)

Yes

DISC IN

Yes

RF Level = 1.0 ± 0.25 Vpp

Test CD:YEDS-18

Is output level of RF signal (CN302 6pin) up to standard?

Yes

Is there no problem with Long term Aging Test (60min)?

Confirms that there is no sound skip.

END

21

HCD-SHAKE5/SHAKE6D

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Switching regulator board.

No

Yes

Checks 13.5V output of CN200 1pin.

Is the power voltage OK?

No

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Main on output of MOTHERBOARD Board side.

No

Checks 3V output of CN200 6pin(Main on)

Is the power voltage OK?

Yes

Reinserts the cable or Exchanges.

If there are no problems, checks output of

Switching regulator board.

No

Yes

Checks 61V output of CN1001 1pin(PVDD).

Is the power voltage OK?

Checks circumference circuit of REG IC1000.

If there are no problems, exchanges IC1000.

No

Checks OUT terminal-49V output of REG IC1000

Is it shorted out?

Or, Checks GND and OUT Terminal with Tester.

Yes

B

Yes

PLAY MUSIC

MOTHERBOARD Mount Diagnosis Flow (1/2)

Yes

Is there audio output from MOTHERBOARD Board?

22

A

HCD-SHAKE5/SHAKE6D

Checks circumference circuit of REG IC1009.

If there are no problems, exchanges IC1009.

No

B

Checks OUT Terminal 5V output of REG IC1009 or,

Checks GND and OUT Terminal with Tester.

Is it shorted out?

Checks circumference circuit of REG IC1010.

If there are no problems, exchanges IC1010.

No

Yes

Checks OUT Terminal -5V output of REG IC1010 or,

Yes

Checks GND and OUT Terminal with Tester.

Is it shorted out?

Replaces MOTHERBOARD Board

No

Leave MOTHERBOARD Mount to a state of it only and,

checks Power Audio Driver(MOS FET) with Tester.

No

Yes

Is it shorted out?（Refer to Page 24.)

Assembles into the unit again then, checks

Replaces MOTHERBOARD Board

Yes

whether there is the audio output from

MOTHERBOARD Board.

A

MOTHERBOARD Mount Diagnosis Flow (2/2)

END

23

HCD-SHAKE5/SHAKE6D

JL1517

JL1516

FB474

Q1047

E

JL1518

C1230

Q1046

C1229

FB205

JL5024

14

JL1515

L

LED

CN1505

SPEAKER

JL1514

FB206

JL1513

R1292

CL001

C1136

C1307

C1107

C1109

C1308
C1108

C1111

C1299

C1110

C1113

C1300
C1112

JL1601

JL1600

JL1655

JL1603

JL1656

JL1602

C1650

JL1654

¾

JL1653

JL1652

AK

JL462

A/K

D462

AK

JL460

A/K

AK

CL460

A/K

D460 D461

JL463

JL461

C480

JL111

JL110

Ú SHAKE5

¾ SHAKE6D

MOSFET Confi rmation for MOTHERBOARD Mount

R1365

JL1103

JL1039

D1019

JL1102

R1291

R1288

R1289

C1620

JL113

JL114

R1346

R1099

R1095

JL1087

R1097

E

Q1045

E

Q1037

R1100

JL1040

R1293

R1290

JL1105

JL1044

JL1050

JL1049

JL1045

JL1047

JL1051

JL1048

R1634

R1639

R1624

¾

R1616

C1617

R1628

R1629

R1620

R1613

R1614

R1612

JL118

JL115

JL116

Tester

R1630

R1621

JL112

B2E2C1

R1345

JL1010

B1C2E1

R1364

C1214

R1094

C1102

JL1074

JL1081

R1181

R1184

R1154

R1157

R1156

R1148

R1151

R1153

R1147

JL1080

JL1071

R1185

R1186

R1188
R1187

JL1078

R1348

Tester

R1347

R1090

JL1077

R1145

R1162

R1163

R1152

R1189

R1241

R1150

R1146

JL1070

R1149

R1355

R1354

R1636

R1641

R1626

Tester

R1618

R1631

R1646

R1643

R1644

R1645

R1623

C1615

R1615

R1622

JL1651

CL462

R492

JL128

FB462

JL1012

JL1009

JL1011

JL1013

R1155

C758

R757

R1672

R1673

R1671

CL327

CL329

CL328

JL1650

L466

JL117

R1401

R1399

JL1072

JL1076

R1388

R1397

C705

C768

C706

R756
R758

R754

R722

C740

R752

C711

CL331

CL330

CL332

C321

C322

R1370

R1406

R1183

D1028

E
Q1051

R1369

JL1094

Tester

JL1052

JL1086

D1009

JL1082

C1145

C1152

R1193

C1151

C1149

JL1068

R1195

R1337

JL1062

C1281

C1282

C1284

C1283

C1287

C1288

C1286

C1285

JL1073

C700

R720

C733

C715

R175

R363

R1654

R1656

C701

C1621

C1622

R1658

R1659

C1623

C1624

C743

R1660

R1663

C1636

C1631

R1661

C702

R1662

R705

FB701

Tester

JL545

¾

R569

R560

R305

C349

C365

C313

JL544

C348

C339

C311

R357

C308

C364

C351

R366

C338

C352

C337

C335

C309

C336

C332

C331

C334

C315

JL539

R356

R362

JL540

FB315

JL538

R352

R353

C1150

C1093

C1089

R1086

Tester

C1090

C1085

JL1067

R1089

R1336

C1087

C1092

C1161

R1234

C1162

Tester

JL1069

R1214

R1335

C1163 C1164

C1147

C1091

R1087

C1088

C1084

JL1066

R1088

R1334

C1086

JL944

C749

C745

CL913

JL322

CL912

R324

JL308

JL309

R383

CL911

R368

CL333

CL326

CL335

CL325

CL324

Tester

R948

R947
R946

C946

JL943

R950

R562

JL324

SL561

JL326

JL327

C921

C919

R916

282221152930

IC902

17814

C920

C922

R919

JL315

CL334

R349

R350

JL316

C304

C305

R378

CL336

C990

JL318

JL320

R563

JL328

JL334

JL336

JL330

C918

R908

R906

JL313

C302

JL312

JL314

JL543

JL542

JL541

JL1085

R1212

R1058

JL1083

Short = NG

R1232

R1059

C970

C972

JL321

JL319

JL325

JL332

JL329

JL333

JL337

JL338

C916

C915

C303

C326

Q1035

R1366

SG

D1026

D1027

Q1031

JL1025

E

R1386

R1405

D1047

R1253

R1252

R1254

JL1089

JL1061

JL1091

R1239

R1240

C1174

IC1008

R1164
R1137

R1349
C1123
C1122

R1050

C1068

R1055

D1008

JL1084

R1053

C1066

R1047

C1067

C1062

R1037

R1054

R1049

C975

R974

C976

JL323

JL335
JL331

JL941

JL942

JL339

JL341

JL340

SL904

C908

JL903

JL906

JL905

C907

JL902

SL901

JL901

JL904

R927

JL1090

D1025

Q1034

SG

JL1088

R1182

JL1100

C1290

C1289

JL1006

JL1101

L1004

JL1002

JL207

C206

JL356

JL208

JL152

C969

C973

JL151

JL89

JL940

SL903
SL902

JL81

R68

R69

R165

C2035

C160

C057

C056

R157

R39

C48

C45

C46

R045

R046

C2018

C2014

C2015

R2006

R2003
R2002
R2001

R2009

JL203

JL230

JL213

JL355

JL201

JL231

JL5021

JL241

JL153

JL260

JL233

JL154

JL350

JR

JR

JR JR

JR JR

JR

JR

JL273

JL240

JL90

R190

R192

JL95

JL93

JL92

JL91

JL5022

R132

JL414

JL136

JL281

JL2002

C286

JL2000

JL139

JL140

JL285

JL2003

JL2001

JL135

JL206

JL5044

JL210

JL211

JL1542

JL214

JL204

JL14

JL286

JL280

R116
R114

R115

R113
R109
R111

R110
R112

JL2009

R2023

JL2010

JL5023

JL353

JL242

JL243

JL244

JL265

JL263

JL261

JL2007

JL2008

JL264

JL234

JL422

JL5043

JL5034

JL5033

JL5039

JL5041

JL5036

JL5038

JL5040

JL5035

JL5037

JL5032

JL5031

JL5030

JL5029

JL5028

JL5027

JL5026

JL5042

JL5025

JL121

JL187

JL186

JL189

JL181

JL126

JL125

JL127

JL192

R2020

JL191

R2021

JL190

JL188

JL122

C2027

JL124

JL123

C2028

JL185
JL183

JL182
C2030

R2022

C2029

JL184

<Note>

Please check each channel’s resistance value for the Coil’s terminal and Capacitor’s + and – terminal.

These terminal is equal to resistance value for POWER AUDIO DRIVER terminal.

24

6-1. BLOCK DIAGRAM - DVD/USB Section -

RF

VOA/A

VOB/B
VOC/C
VOD/D

VC

PD

AUTO

POWER CTRL

Q902

AUTO

POWER CTRL

Q901

SERVICE,

OPTICAL DEVICE

X301

27MHz

(LO:DVD.HI:CD)MSW

VR (780)

VR (650)

5CH SYSTEM

MOTOR DRIVER

IC902

14

VOFC+
VOFC-

13

16

VOTK-

15

VOTK+

VOLD+
VOLD-

VOSL+
VOSL-

VOTR-

9

10

VOTR+

VINFC
VINTK

VINLD

VINSL+

BIAS

MUTE

1

26

23

4

CONNECT TO

MS-476 BOARD

CN306

1
2
3
5

FCS+
FCS–

TRK+
TRK–

SL+ 17
SL– 18

SP+ 11
SP– 12

LOAD­LOAD+
TRAY-IN
TRAY-OUT

CD RF AMP

FOCUS/TRACKING ERROR AMP

CD SYSTEM PROCESSOR

DIGITAL SERVO PROCESSOR

IC306

123

RFIP

RF_C1

128

RF_B

127

RF_A
RF_D2
RF_F4VOE/E+G
RF_E3VOF/F+H

10

V2O

MDI1

13

LDO114LD (780)

LDO215LD (650)

XTALI7

8

XTALO

MSW23

CD_VR19

DVD_VR20

FOO22
TRO21

FMO18

DMO17

V14/VREF01127

MUTE4528

ASDATA0

ADIN
ACLK

ALRCK

ABCK

USB_DP 25

USB_DM 24

SF_CS#

SF_DO

SF_DI

SF_CK

SDA

SCL

EEWP

IFSDI 40

IFSDO 35

IFSCK 34
IFCS# 42

IFBSY 41

HCD-SHAKE5/SHAKE6D

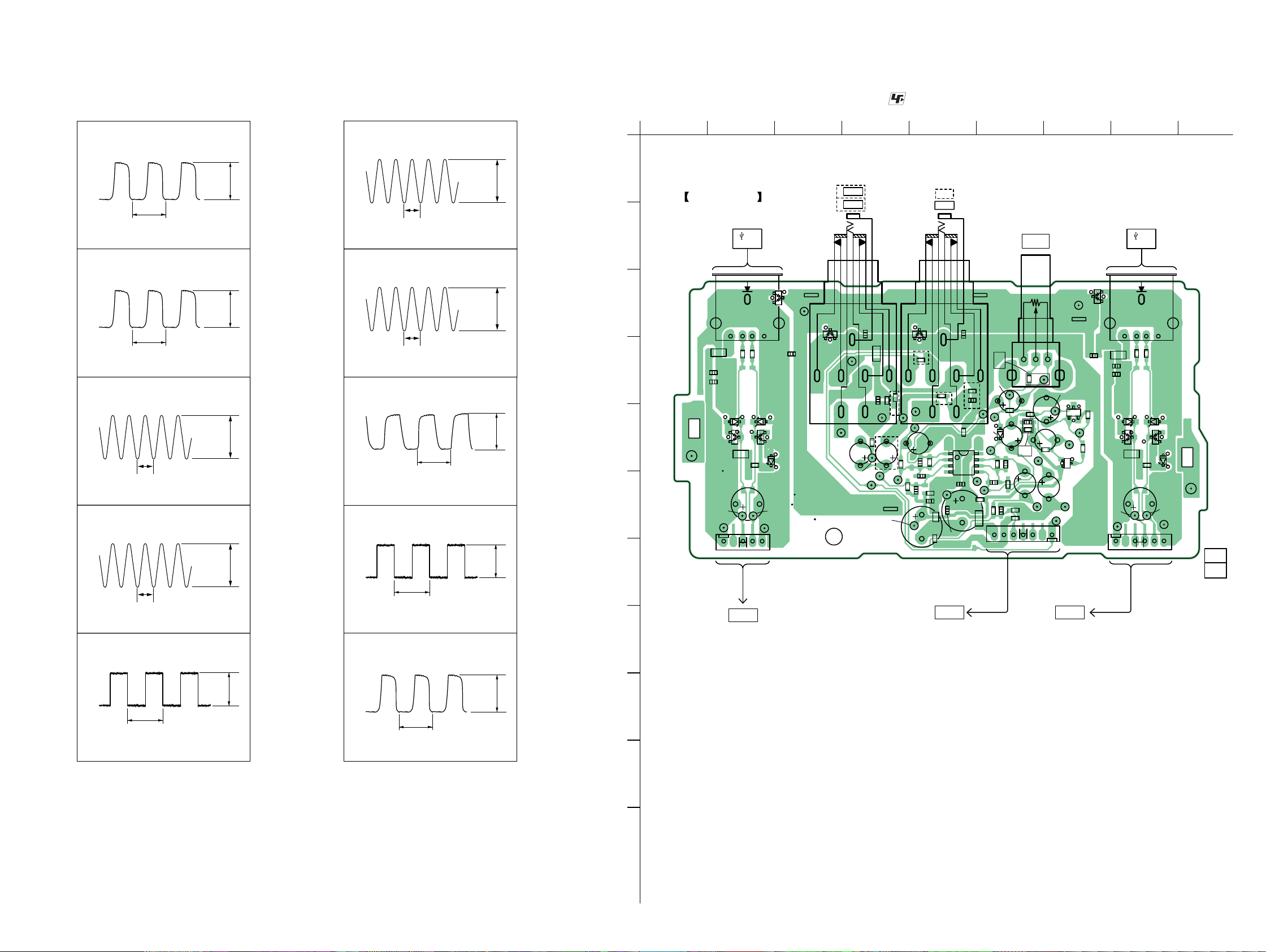

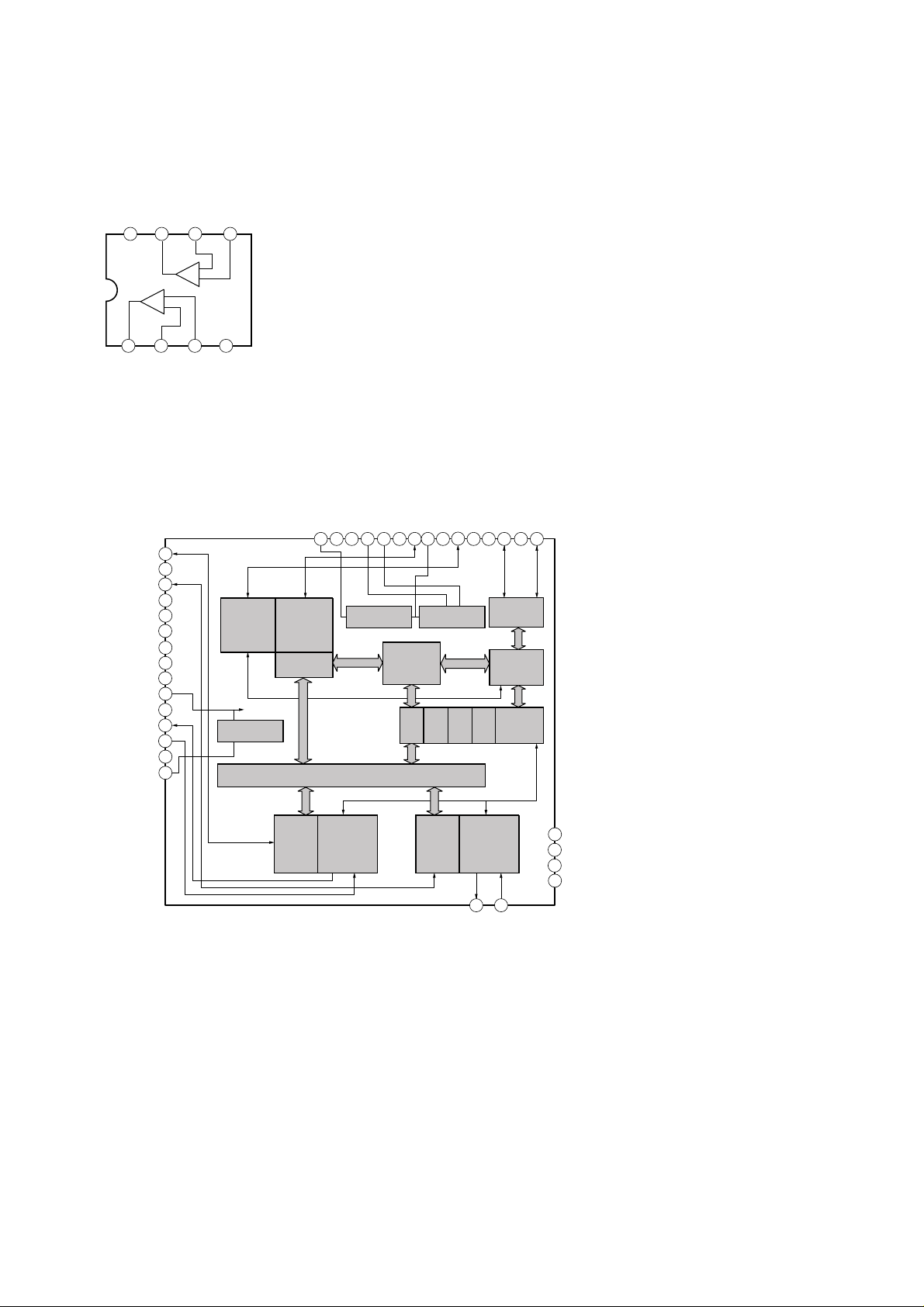

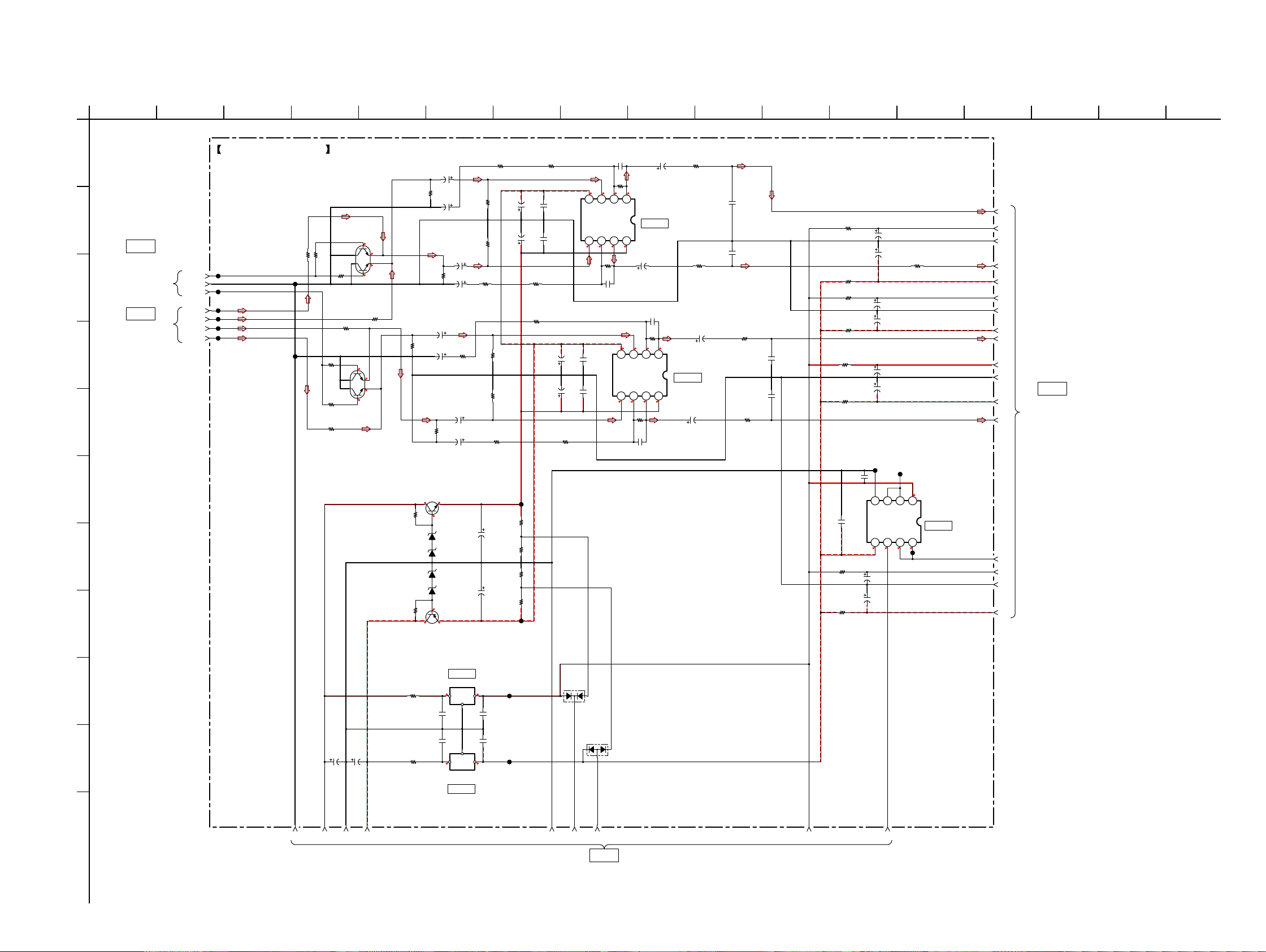

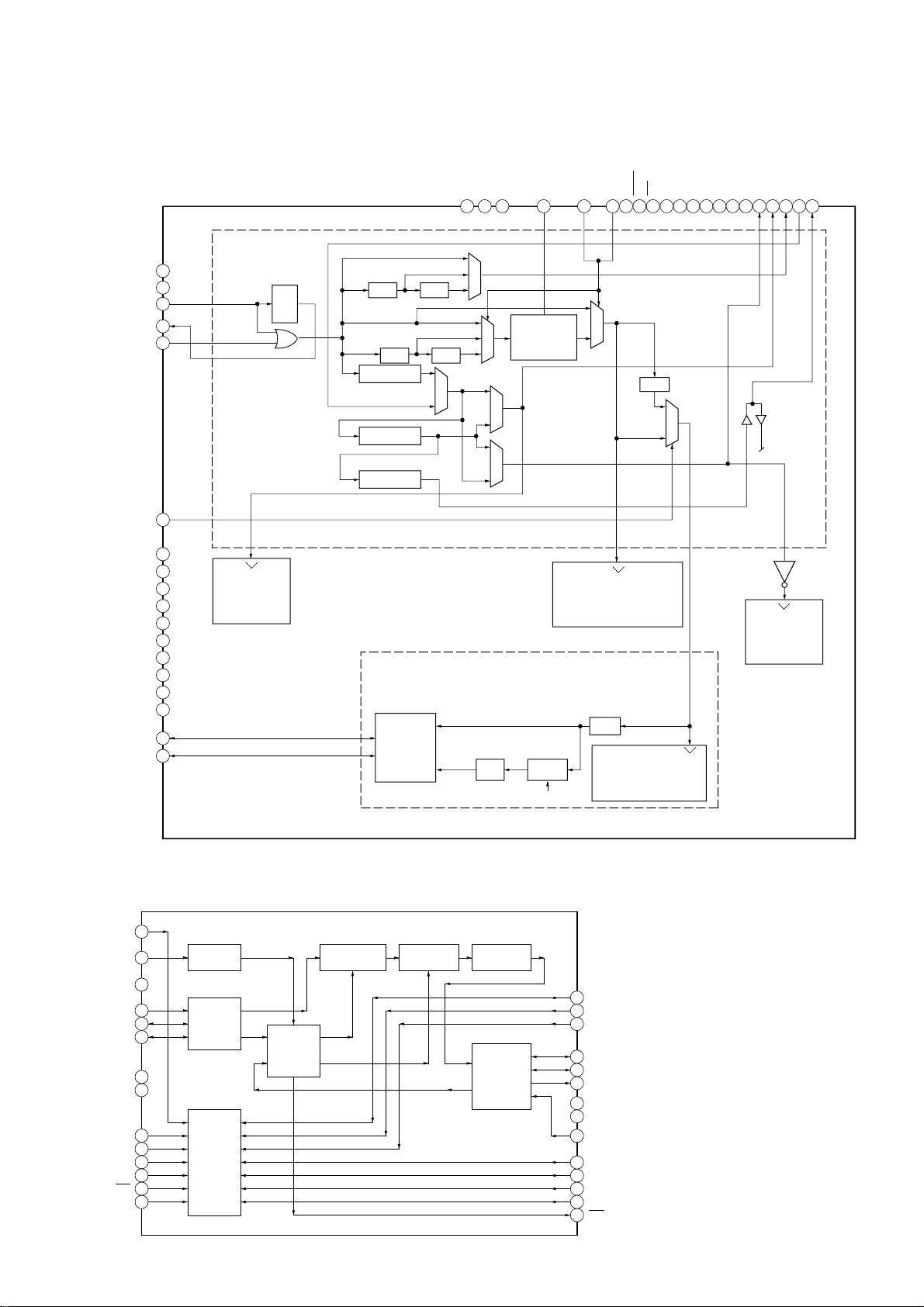

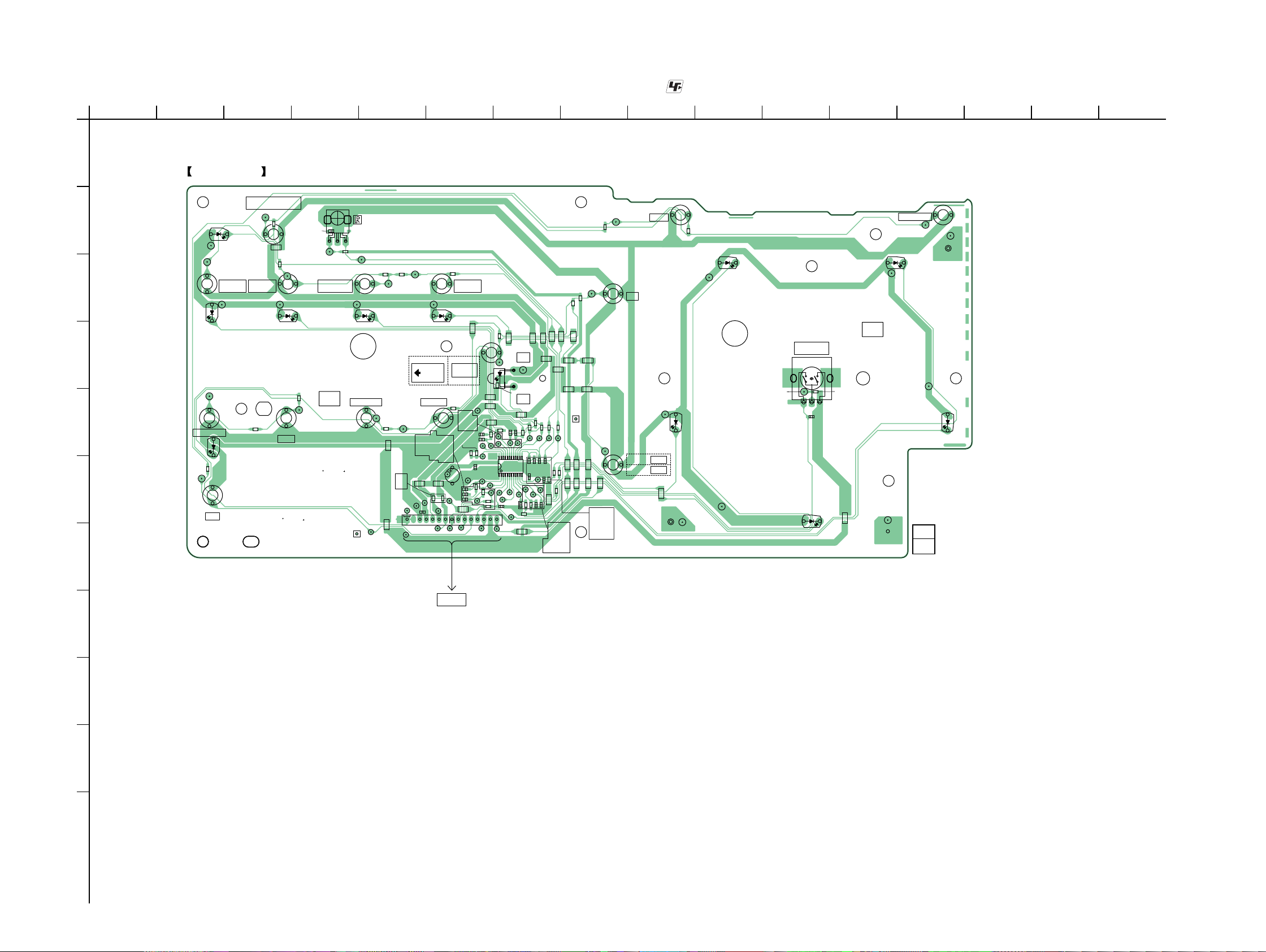

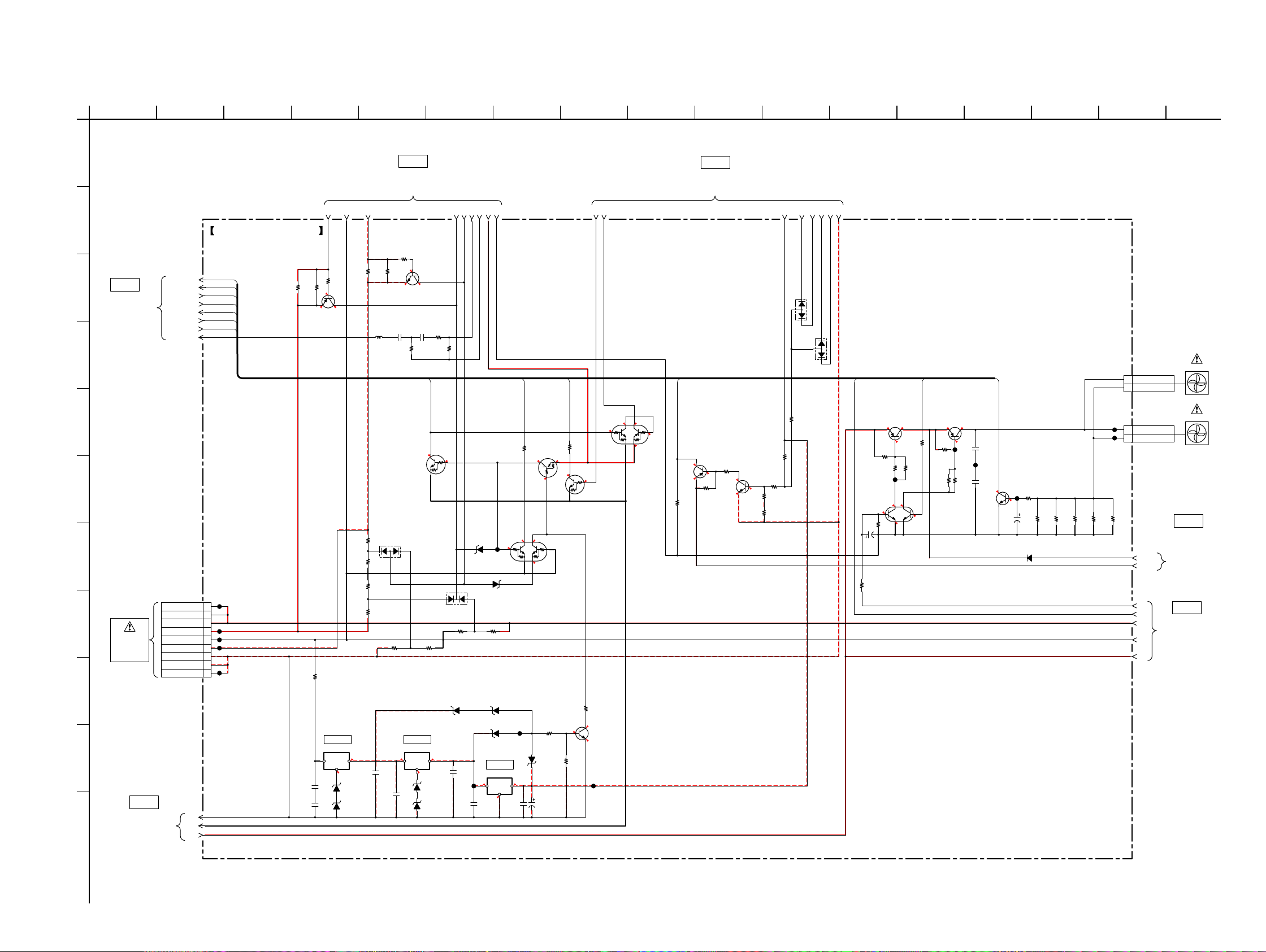

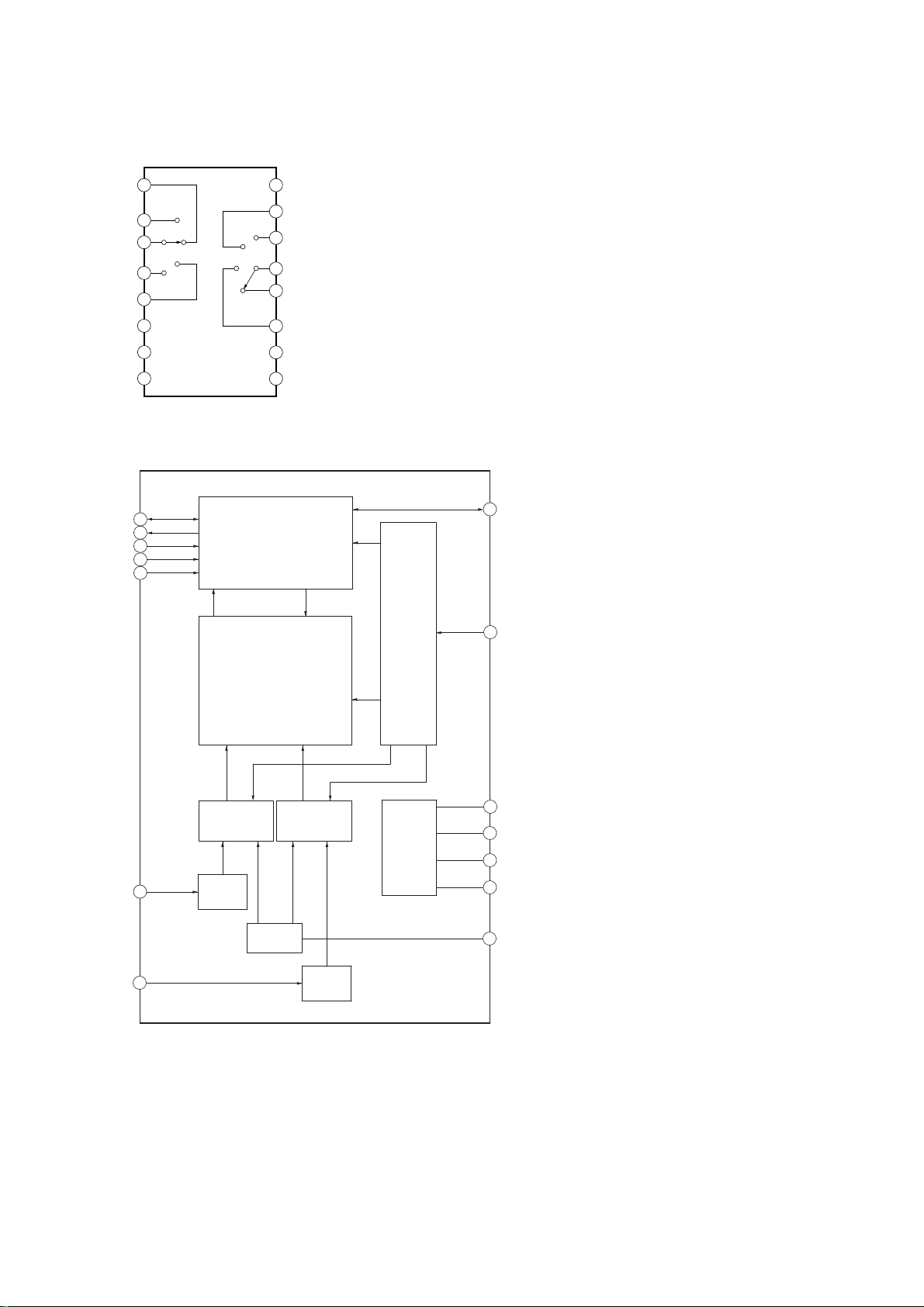

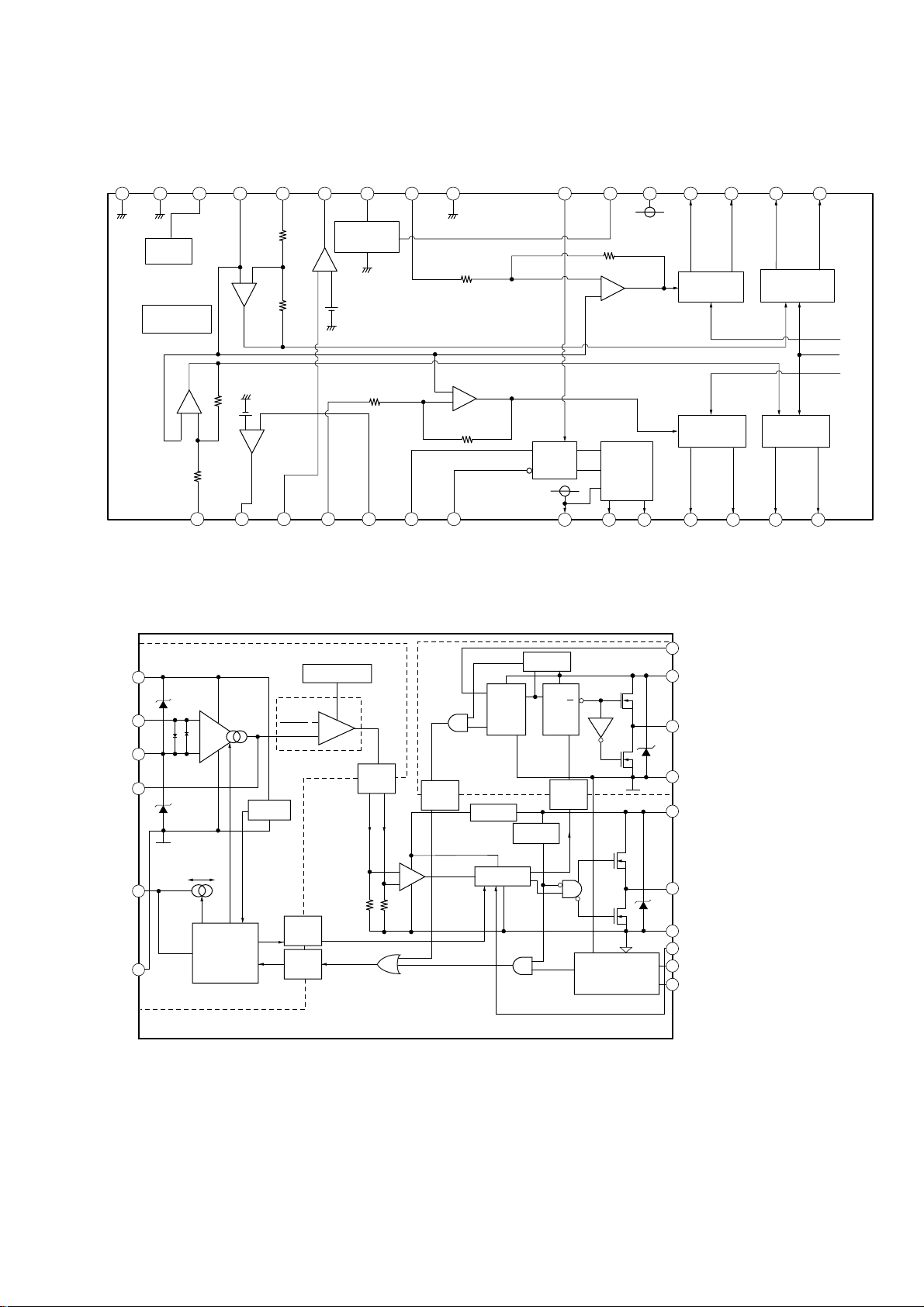

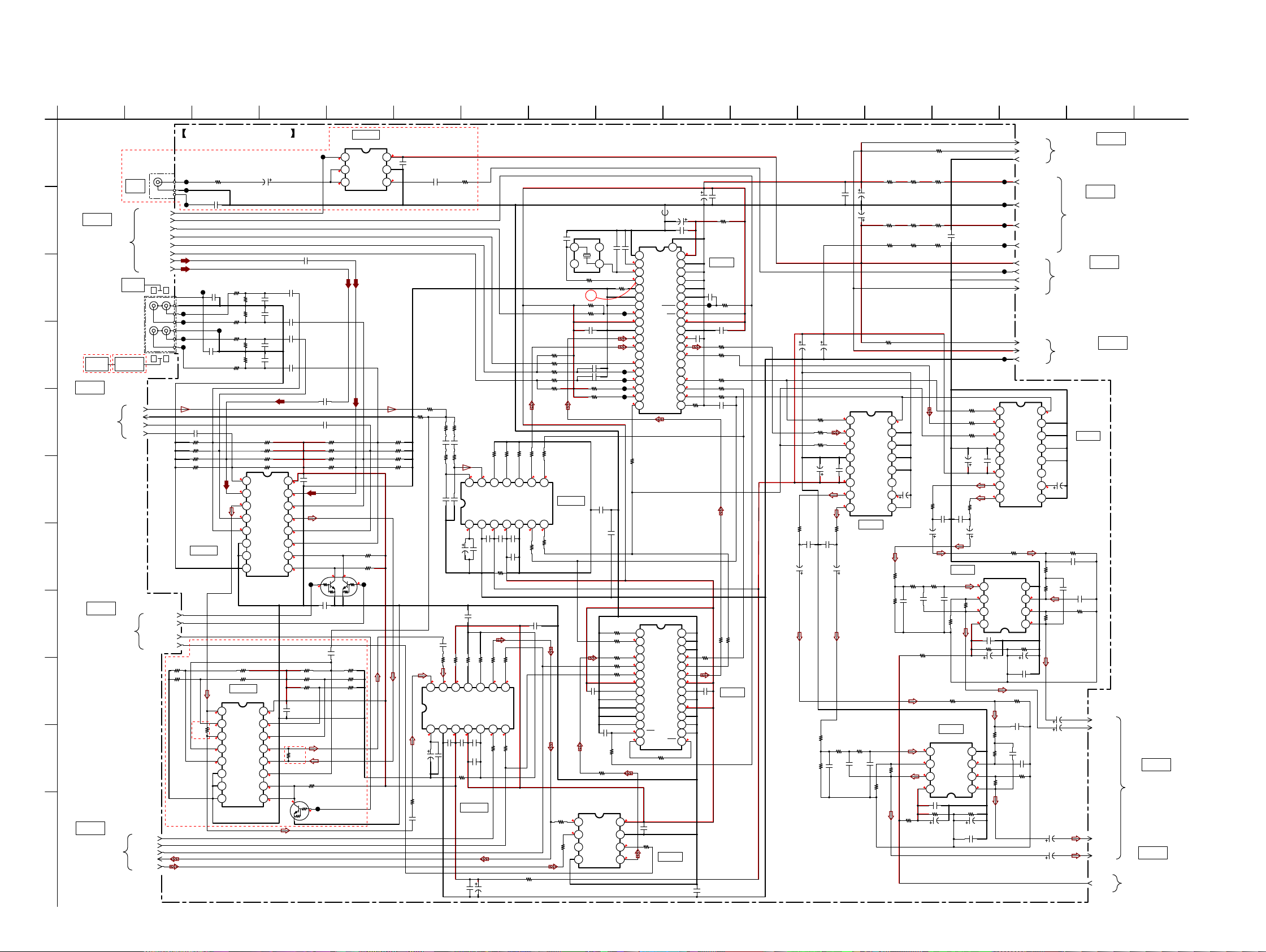

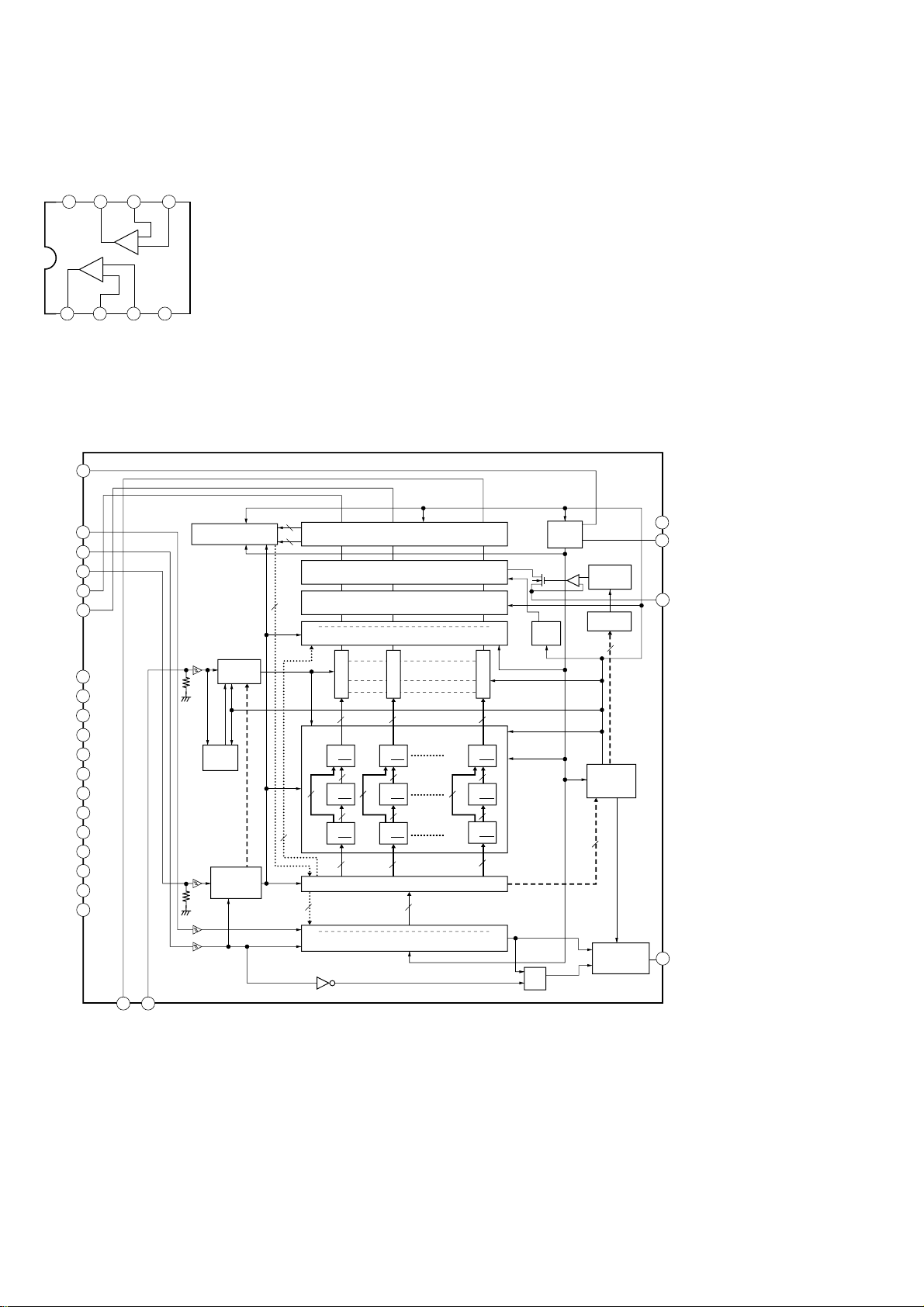

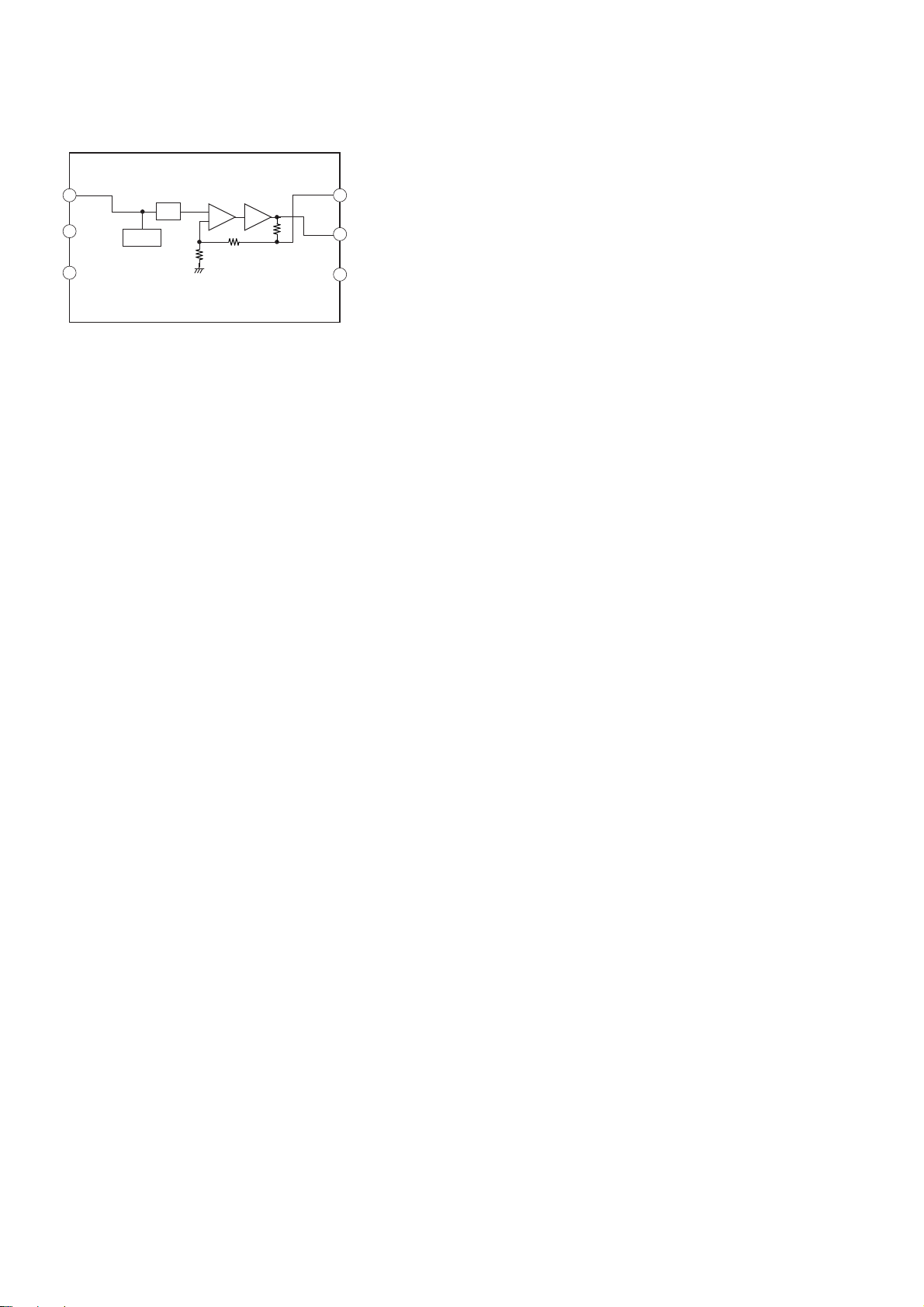

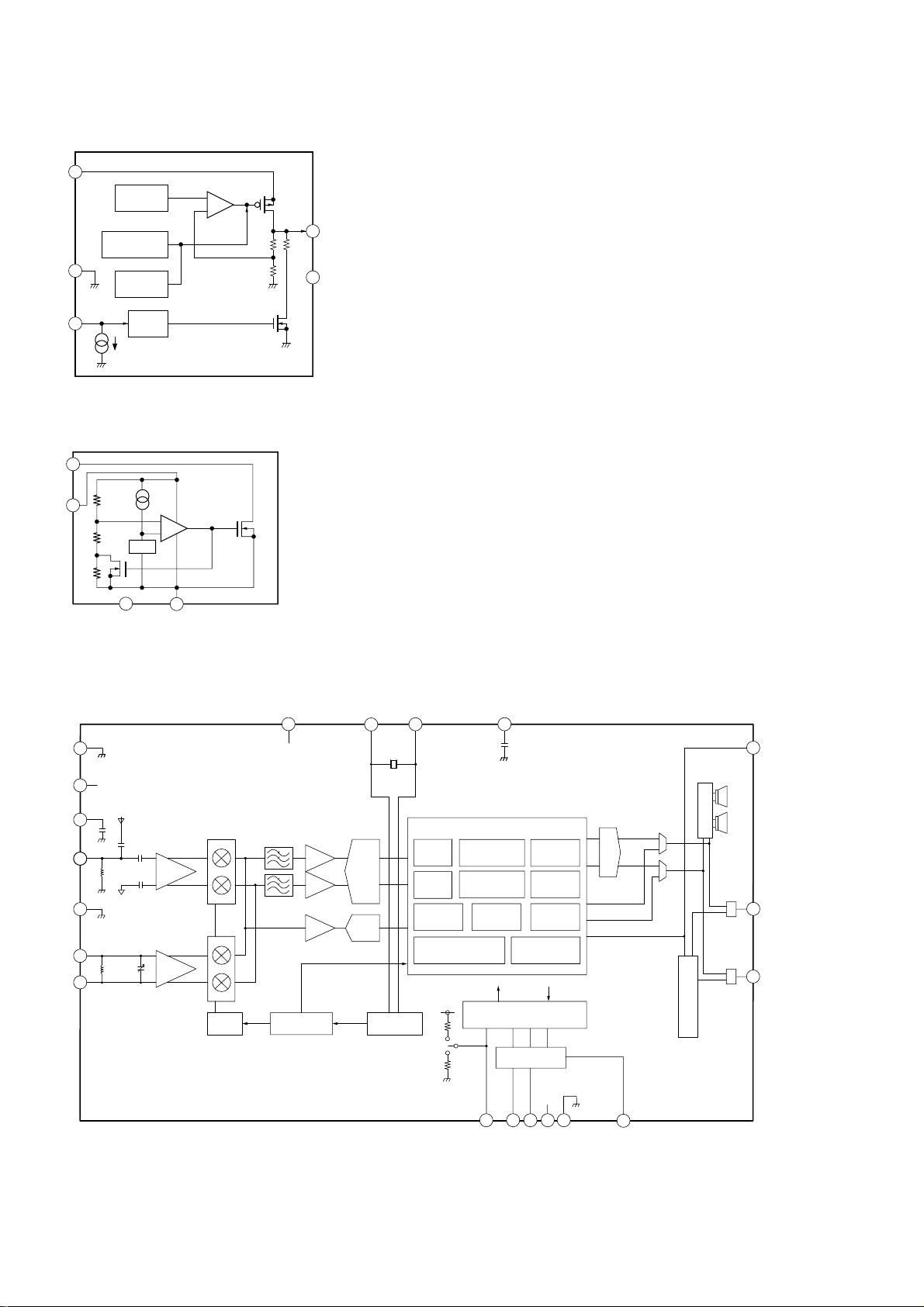

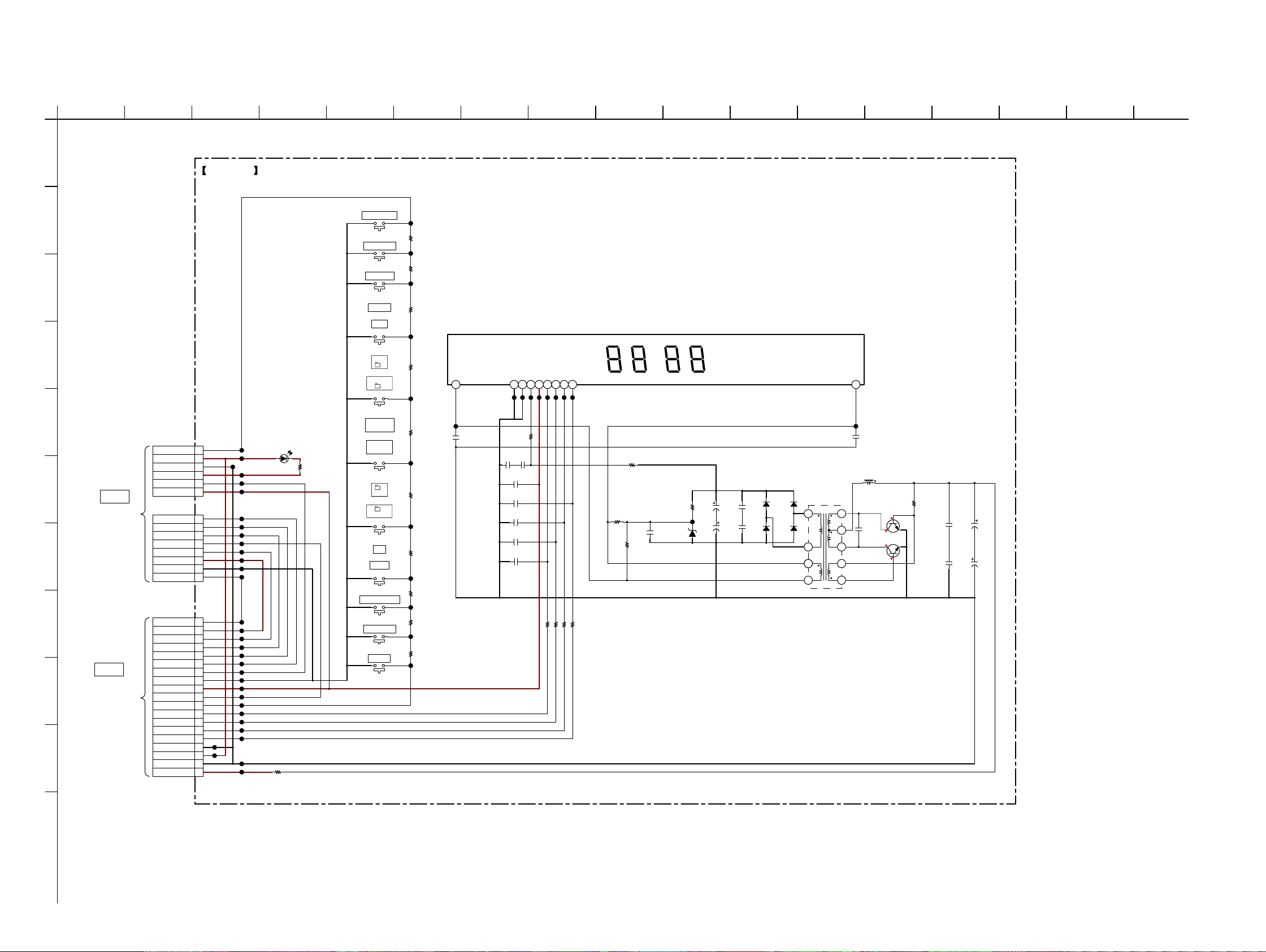

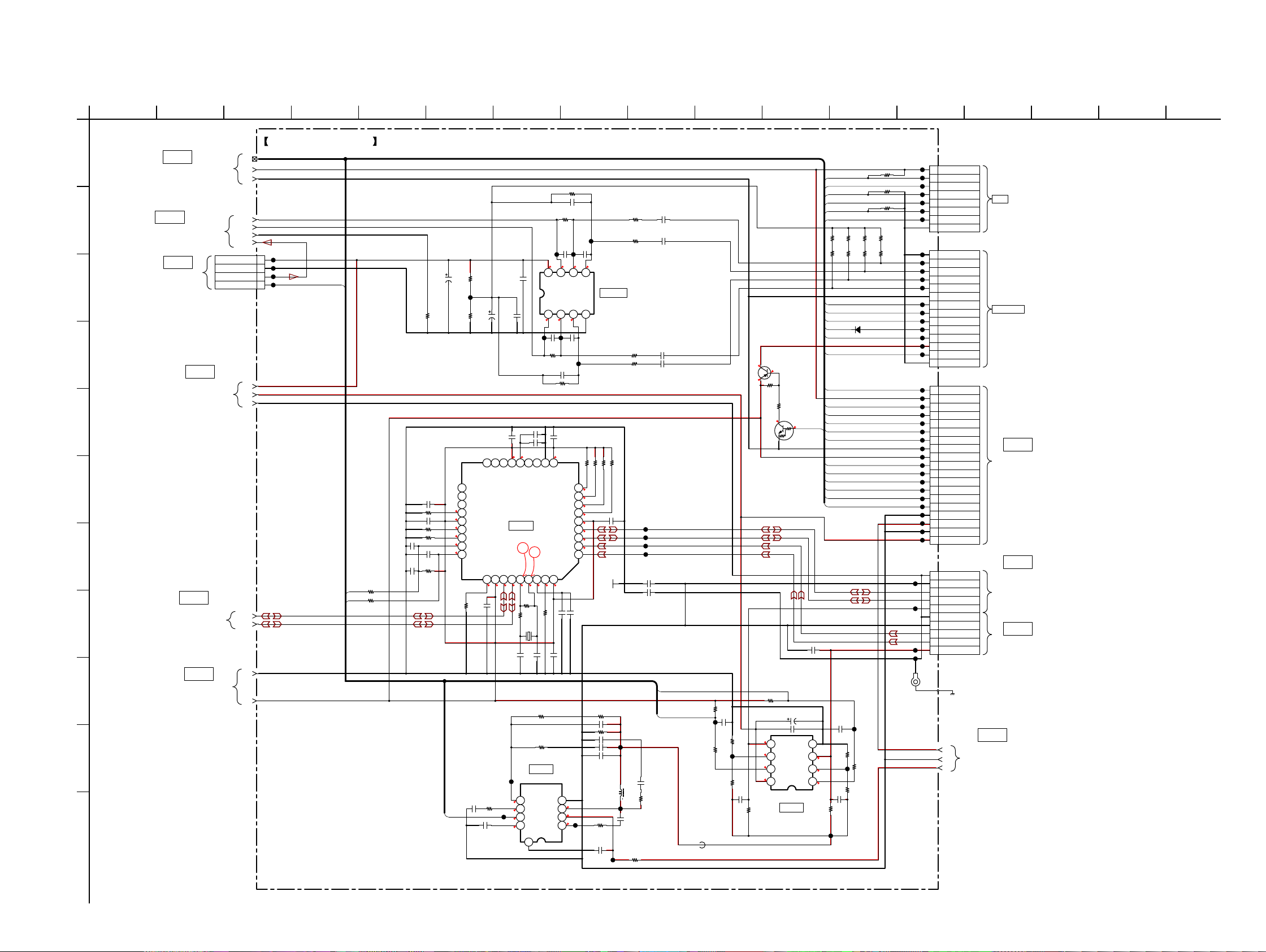

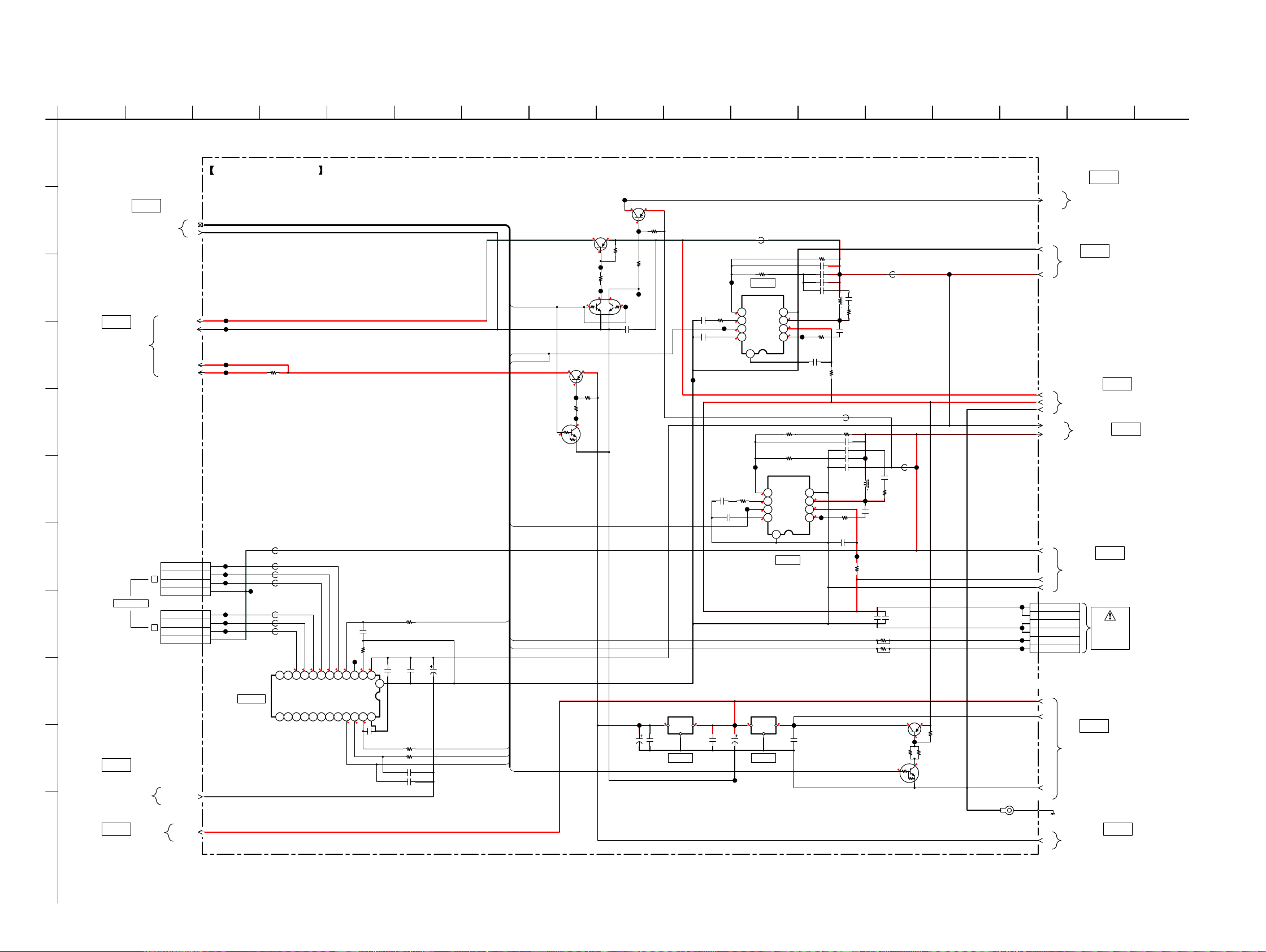

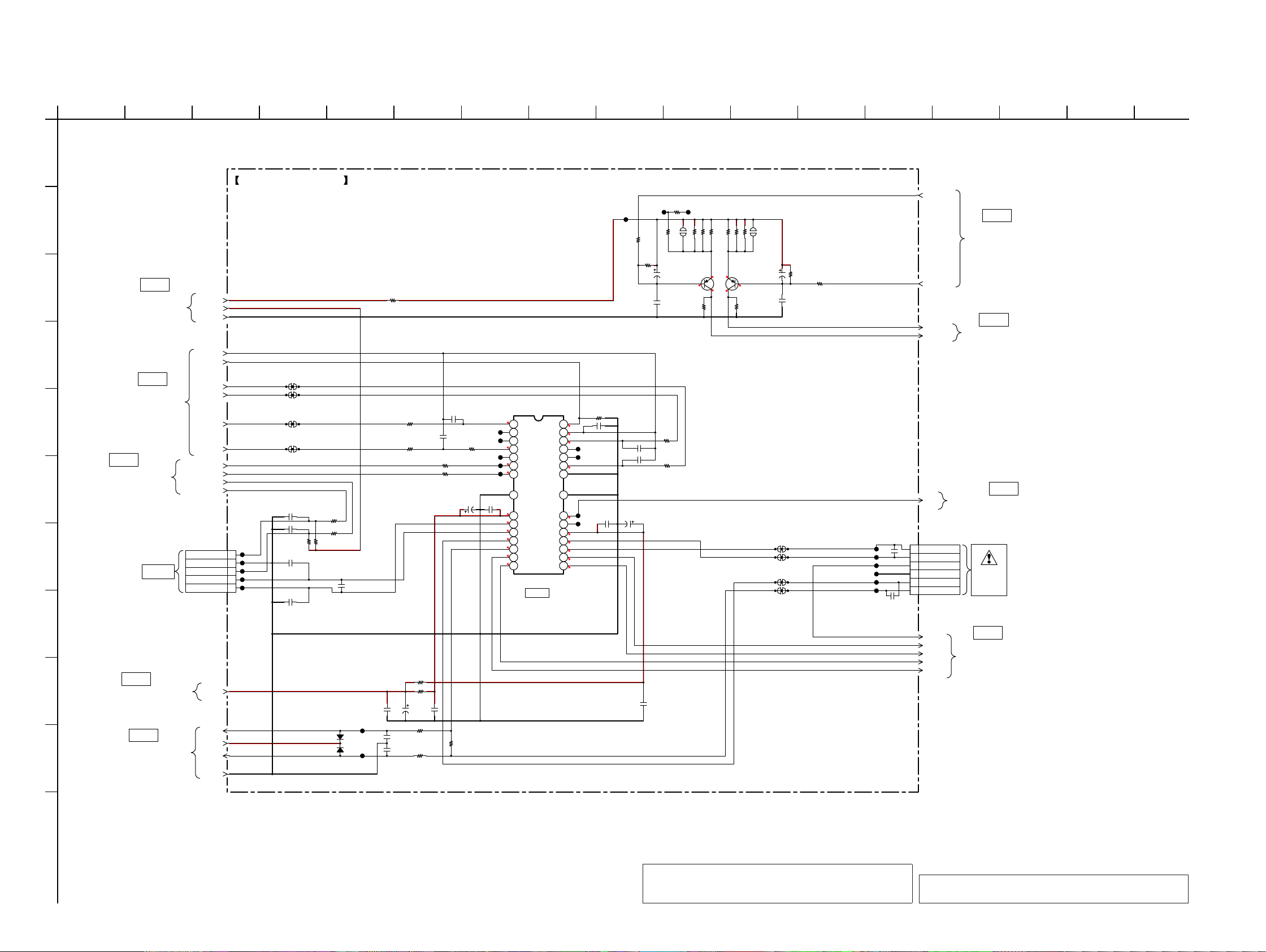

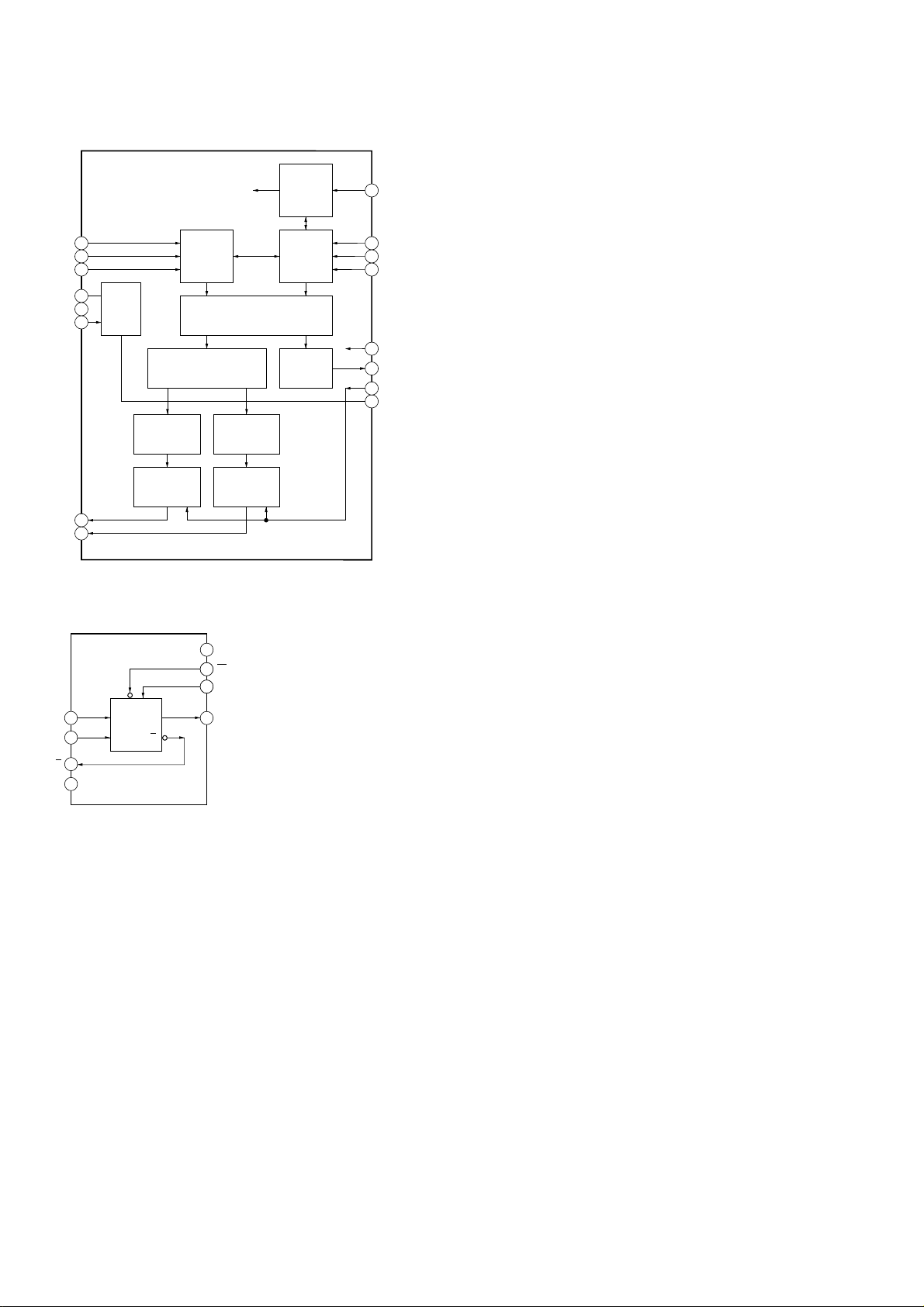

SECTION 6

DIAGRAMS

STEREO A/D CONVERTER

IC765

SCK

16

3

LRCK
DATA

2

AUDIO DSP

SDOUT2

26

SDIN1

11
22

SCLKOUT1
LRCK

19
21

MCLKO

IC701

SCLKOUT2

RESET

32 15 16 12

48 75 76

O-DSP-RESET

CONTROLLER

ASYNCHRONOUS SAMPLE

SIGNAL SELECTOR

IC780

EEPROM

IC305

1

_CS

2

SO

5

SI

6

SCK

EEPROM

IC301

SDA
SCL
WE

52 – 55, 57 – 60,

69 - 62

RD0 – RD15

2

B

1

A

SHAKE6D

5

Y

6

SEL

64M SDRAM

A0 – A11

23 – 26,

29 – 34, 22, 35

89 - 92, 79 - 74,

88, 73

RA0 – RA11

IC304

CVBS

100

118

106
112
117
113

30
31
32
33

47
48
46

DG0, DQ1 – DQ15

2, 4, 5, 7, 8, 10, 11, 13, 42,

44, 45, 47, 48, 50, 51, 53

RATE CONVERTER

SDIN

4

LRCKI

6

BCKI

5
2

RCKI

STEREO A/D CONVERTER

9

DOUT

6

SCKI

7

LRCK

8

BCK

USBDP_UP

31

USBDM_UP

30

USB CONTROLLER

VBUS_DET27
RESET_N26

XTALIN

33

20

21

38

15

85

86

72

61

BA0 BA0

BA1 BA1

RCLK CLK

IC740

IC1603

IC300

X2000

24MHz

39

70

DQM0 LDQM

SDOUT

BCKO

LRCKO

VINL

VINR

XTALOUT

18

83

RAS# RAS

DQM1 UDQM

23
25

24

RST

13

13

14

32

17

16

82

80

CAS# CAS

RWE# WE

PRST#

L-IN

>004B

MAIN

R-CH

2USBDP_DN1

1USBDM_DN1

4USBDP_DN2

3USBDM_DN2

38

SECTION
(Page 26)

88

O-HUB-RESET

87

O-HUB-VBUS-DETECT
O-DIGITAL-SEL

61
45

O-MTK-SDO

46

I-MTK-SDI

47

I-MTK-CLK

56

I-MTK-XIFCS

55

O-MTK-BUSY

O-MTK-RESET57

I-CDM-LOAD-SW63
I-CDM-UNLOAD-SW64

VOUTL

VOUTR

BCK

SDOUT1

XTALI

XTALO

SDA1

SCL1

I-DSP SCL

I-DSP SDA

SYSTEM

IC100 (1/4)

7
8
1

27
23

3

12.288MHz

4

SDIN2

/I-HUB-OC-USB A

R-CH

X762

L-OUT

STEREO A/D CONVERTER

16

STEREO A/D CONVERTER

86

84/I-HUB-OC-USB B

SHAKE6D

54O-VIDEO-MUTE

DATA

2

BCK

1

LRCK

3

SCK

SCKI

6

LRCK

7

BCK

8

DOUT

9

1

COMPARATOR

7

1

MUTE CONTROL

>001B

MAIN
SECTION
(Page 26)

IC750

VOUTL

VOUTR

VINL

IC1602

USB

IC280

VIDEO

IC1650

4

7

R-CH

8

13

SECTION
(Page 26)

3

5

3

6LJQDOSDWK

: DVD PLAY
: AUDIO
: USB

5FKLVRPLWWHGGXHWR
VDPHDV/FK

>003B

MAIN

L-OUT

VBUS

VBUS

D+

D-

D+

D-

J1650

SECTION
(Page 26)

CN3105

3

2

1

CN3106

3

2

1

>002B

MAIN

PLAY

REC/PLAY

USBA+5V

USBB+5V

VIDEO OUT

A

B

HCD-SHAKE5/SHAKE6D

2525

HCD-SHAKE5/SHAKE6D

6-2. BLOCK DIAGRAM - MAIN Section -

>001B

DVD/USB
SECTION
(Page 25)

L-OUT

OP AMP

IC951

OP AMP

IC950

13

SW OUT L

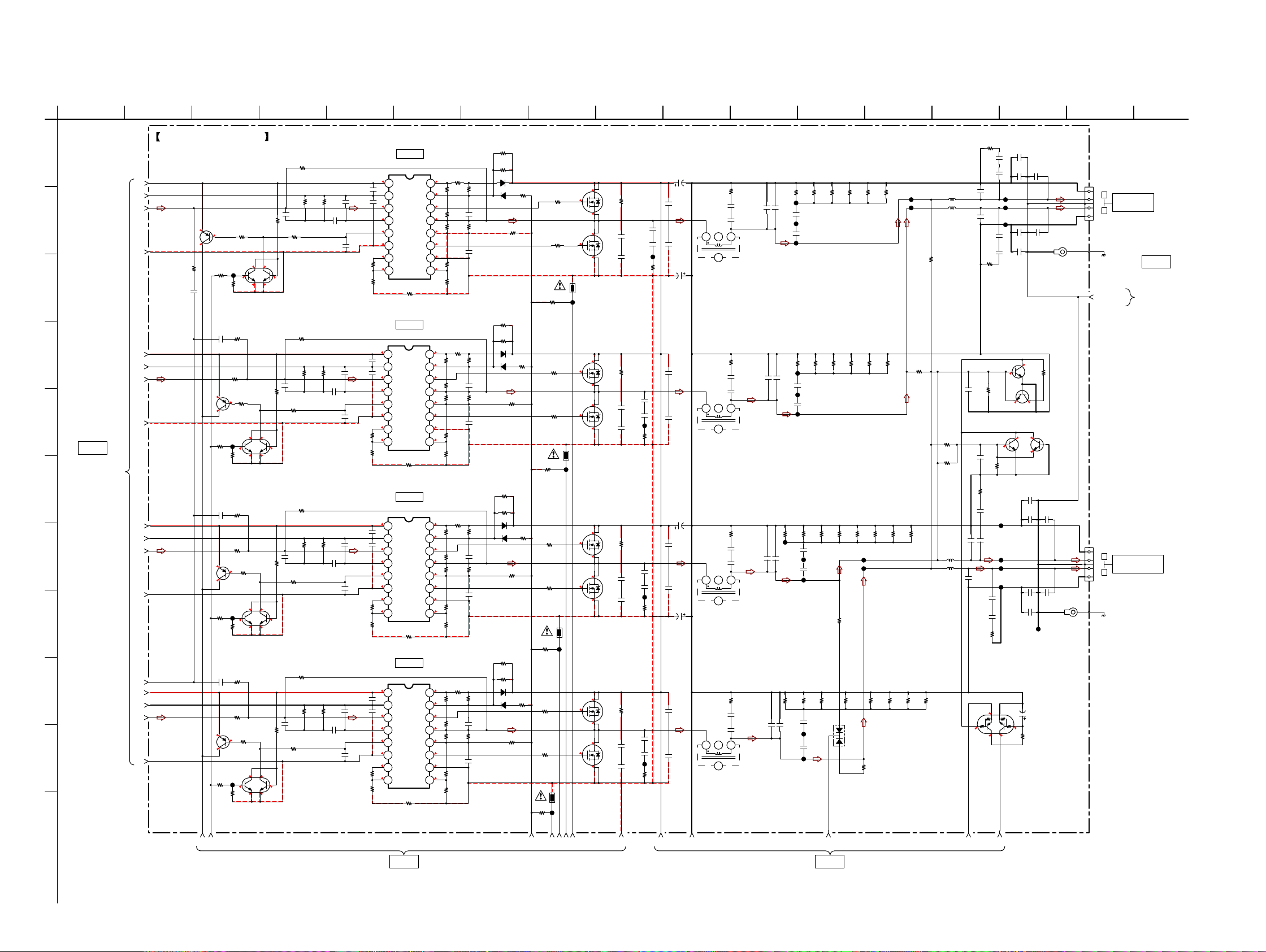

>005B

AMP
SECTION
(Page 27)

AUDIO IN

TV/SAT

J1600

AUDIO IN

PC/GAME

SHAKE5SHAKE6D

AUDIO IN

TV/DVD/SAT

J3100

SHAKE5

SHAKE6D

MIC 1

SHAKE6D

ANTENNA

FM/AM

MIC

J3101
MIC 2

>002B

DVD/USB
SECTION
(Page 25)

L

CN460

L-OUT

13

FRONT-L

>006B

AMP
SECTION

SIGNAL SELECTOR

R

R-CH

R-CH

MIC AMP

IC3100

RV3100

MIC LEVEL
MIN MAX

MIC DETECT
Q3100,Q3101

7513

>003B

DVD/USB
SECTION
(Page 25)

IC1600

9

X1

14

X3

11

B

10

A

X2

X0

15

12

SIGNAL SELECTOR

IC1601

B

9

A

10

13

X

SHAKE6D

L-IN

(Page 27)

>004B

DVD/USB
SECTION
(Page 25)

6LJQDOSDWK

: AUDIO
: TUNER (FM/AM)
: MIC

X460

12MHz

2

FRF1

4

ARF1

5

ARF2

16

X1

X2

17

FM DRIVER

(FM RECEIVER)

IC460

IIC/RDSI

L OUT

R OUT

13

R-CH

12

DA

11

8

CK

6

SWITCH SIGNAL

SELECTOR

Q1600

SWITCH SIGNAL

SELECTOR

Q1601

SHAKE6D

5FKLVRPLWWHGGXHWR
VDPHDV/FK

HCD-SHAKE5/SHAKE6D

BLUETOOTH

CN180

2
3
4
5
8
9

12

RCH_N
RCH_P

LCH_P
LCH_N
BT-RDX
BT-TDX

3.3V

BLUETOOTH AMP .

IC2000

61

-OUT
+

5

+

3

-

2

BLUETOOTH

POWER CONTROL

Q2000, Q2001

OUT

7

R-CH

34
33
21

43

I-ST-RDS

I-BT-RXD
O-BT-TXD
O-BT-ON

27

I-ST-CLK

28

I-ST-DATA

91

I-MIC-DETECT

SYSTEM CONTROLLER

IC100 (2/4)

2626

51

52

O-ANAL0G-ASEL

O-ANALOG-BSEL

53

O-ANALOG-CSEL

O-RGB-SCLK

O-RGB-SOUT

I-XIN

O-XC-OUT

I-XC-IN

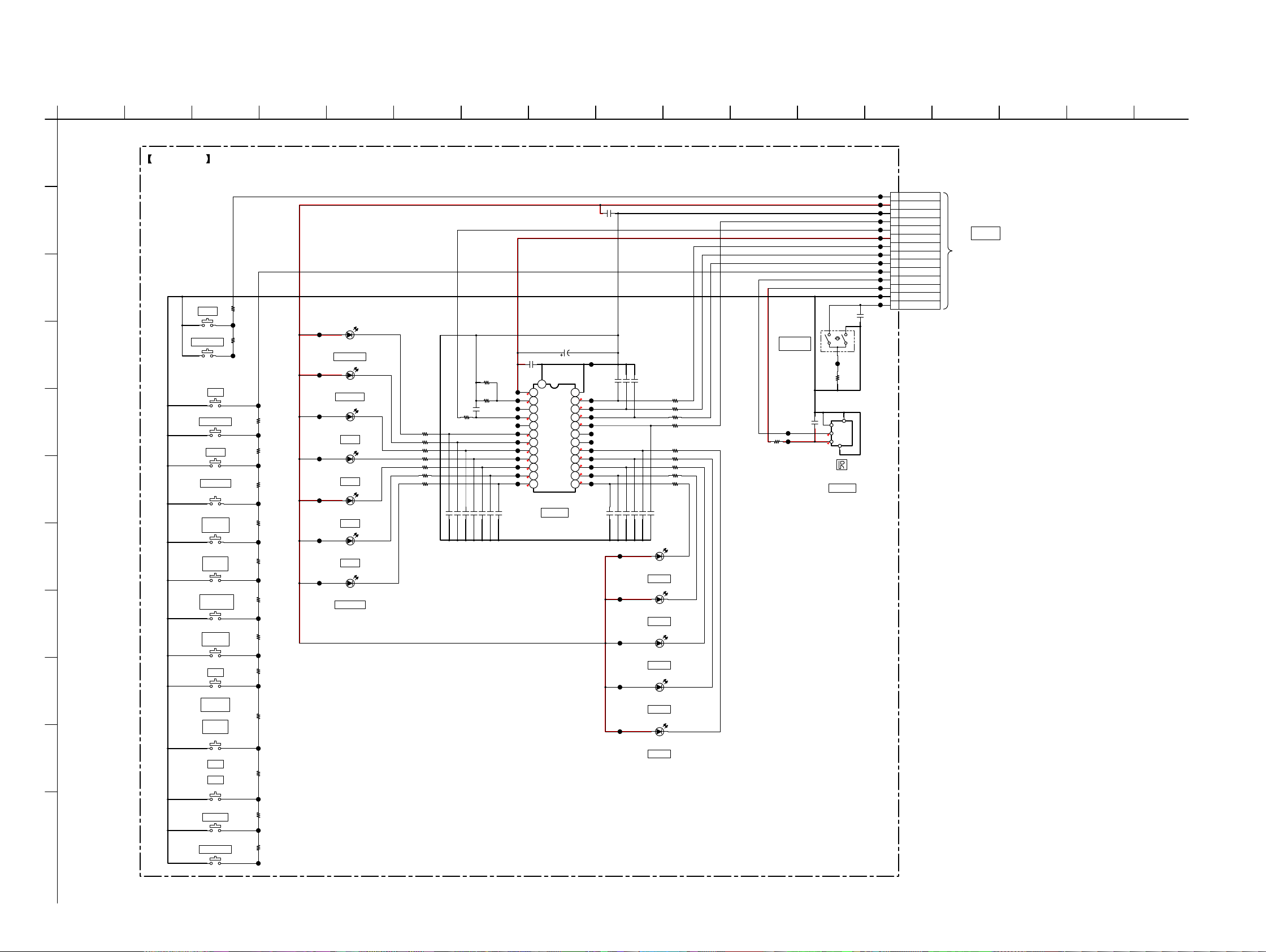

LED SELECTOR

IC1501

CN1505

4

CN1504

3
2

4
3
2

R

LED SPEAKER

L

R-CH

4

80O-RGB-TRANS-LED-SPK

5
3

11O-XOUT

13

9

8

X11

8MHz

X9

32.768kHz

3
2

TRANS
SCK

SIN

/OUT12
/OUT11
/OUT10

17
16
15

GREEN_LED

BLUE_LED

RED_LED
