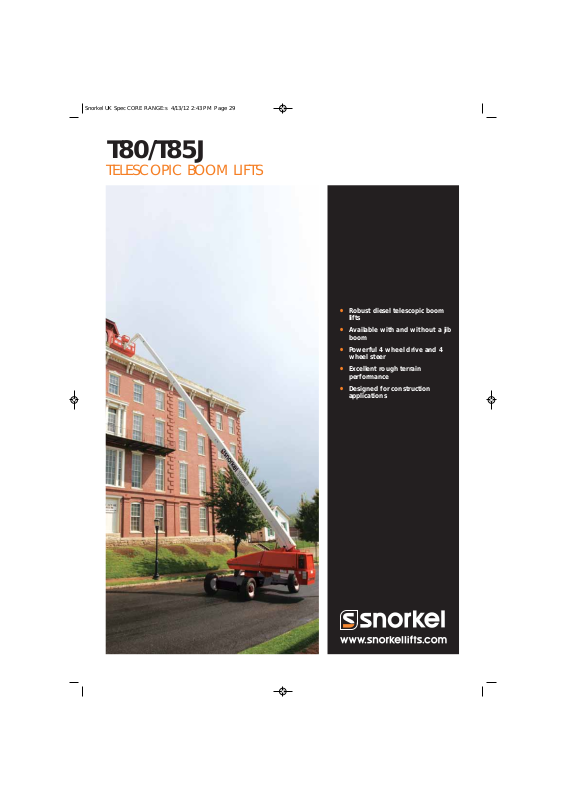

T80/T85J
TELESCOPIC BOOM LIFTS
Robust diesel telescopic boom
•
lifts
Available with and without a jib
•
boom
Powerful 4 wheel drive and 4
•
wheel steer
Excellent rough terrain
•
performance
Designed for construction
•
applications
Page 2
TELESCOPIC BOOM LIFTS
DIMENSIONS T80 T85J
Max. working height 26.4m 27.9m
Max. platform height 24.4m 25.9m
Max. working outreach 21.7m 23.4m
Platform size 0.76m x 2.44m 0.76m x 2.44m
Overall width (A) 2.6m 2.6m
Overall length (B) 11.8m 12.9m
Stowed height (C) 2.9m 2.9m
Ground clearance 330mm 330mm
PERFORMANCE
Platform capacity (SWL) 227kg 227kg
Max. drive height 24.4m 25.9m
Max. drive speed (stowed) 4.8km/h 4.8km/h
Max. drive speed (elevated) 1.0km/h 1.0km/h
Jib length n/a 1.5m
Jib working arc n/a 140º
Platform rotation 165º 170º
T urr et rotation (continuous) 360º 360º
Raise/lower time 195/175 seconds 230/210 seconds
Gradeability 30% 30%
Inside tu rni n g rad i u s 2 . 4m 2.4m
Tyres 15 x 625 loader lug poly filled
Controls proportional joystick
Drive system 4 wheel drive
T80/T85J
A
C
B
STANDARD FEATURES
1.8m, 140º jib (T85J only)
•
Hydraulic powered platform rotation
•
4 wheel drive and 4 wheel steer
•
Proportional control of drive, boom lift and slew
•
Poly filled lug tyres
•
Driveable at full height
•
Horn
•
Power line to platform (no sockets)
•
CE approved
•
OPTIONS
POWER
Power source Deutz F4L-2011 air cooled diesel 64hp
WEIGHT
Gross weight 16,480kg 17,100kg
WORKING ENVELOPE
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
0
2
4
meters
6
26
30
24
28
22
20
18
16
14
12
10
8
6
2
2
4
0
8
4
6
10
12
14
16
18
20
22
242628
Special paint colours
•
Airline to platform
•
Swing gate in lieu of drop bar
•
Cold weather start kit
•
Extreme cold weather package
•
Light package
•
Extreme environment package
•
Tow package
•
Glazier package
•
12k generator package
•
12k generator/welder package
•
