Siemens GIGASET S810A User Manual

Congratulations

By purchasing a Gigaset, you have chosen a brand that is fully committed to sustainability. This product’s packaging is eco-friendly!

To learn more, visit www.gigaset.com.

Accessories

There is a range of accessories available for your Gigaset phone:

Gigaset repeater

The Gigaset repeater can be used to increase the reception range between your Gigaset handset and the base.

www.gigaset.com/gigasetrepeater

Gigaset handsets - Upgrade your Gigaset to a cordless PABX

Gigaset S810H handset

u Illuminated graphic colour display (65k colours) u Polyphonic ringtones u Directory for approx. 500 entries u Caller picture u PC interface, e.g., for managing directory entries,

ringtones and screensavers

u ...................

www.gigaset.com/gigasets810h

Accessories

Gigaset C610H handset

u Illuminated graphic colour display (65k colours) u Polyphonic ringtones u Directory for approx. 150 entries u SMS (prerequisite: CLIP must be enabled) u Room monitor

u ...................

www.gigaset.com/gigasetc610h

Gigaset SL78H handset

u Illuminated graphic colour display (256k colours) u Polyphonic ringtones u Directory for approx. 500 entries u Caller picture u PC interface, e.g., for managing directory entries,

ringtones and screensavers

u ...................

www.gigaset.com/gigasetsl78h

For more accessories, see ¢page 88 of this manual.

Gigaset S810/S810A – more than just a telephone

Your telephone sets new standards for the way you communicate at home. The configuration and user interface of the cordless phone are excellent, providing

you with first-class voice quality in handsfree mode, while the various interfaces (Bluetooth, USB) offer you enormous flexibility.

The large TFT display, user-friendly keypad and clearly laid out menu are very simple to use.

Your phone can do a whole lot more:

u Communicate cordlessly via Bluetooth™ with other devices (e. g. headsets),

which also use this technology.

u You can synchronise your directories on your telephone, mobile phone and PC

via Bluetooth™ or the USB port using the Gigaset QuickSync software

¢ page 86).

(

u You can save appointments (¢page 60) and anniversaries, e.g., birthdays

¢ page 40), in your phone and it will remind you of them in advance.

(

u You can designate important people as VIPs to identify important calls from the

ringtone (

u You can assign a picture to entries in the directory – in future the picture will

appear every time you receive a call from this number (

u If you do not want to take calls where the caller has withheld their number, just

set your handset to only ring if Calling Line Identification has not been withheld

¢ page 73).

(

u If you do not wish to be disturbed, you can simply set up a time control so that

your phone will only ring when it is convenient ( connected.

u You can assign important numbers to the number keys on your phone.

The number is then dialled by simply pressing a key (

u Adapt your Gigaset to suit your handsfree requirements (¢ page 72). u View your personal pictures as a screensaver slide show (¢page 70). u You can set the display to large font to increase readability in particularly

important situations (e.g., the directory and lists) (

u You can adapt the menu display to suit your individual requirements so that

only the most important functions (standard mode) or all functions (expert mode available in expert mode are marked with the

u Gigaset Green Home – Be environmentally aware when using your phone.

Details about our ECO DECT products can be found at www.gigaset.com/service

You can find additional information about your phone at www.gigaset.com/gigasets

¢ page 37).

¢ page 73). VIP calls are still

¢ page 69).

¢ page 71).

) are displayed (¢ page 28). Menu options that are only

•

810.

•

icon.

Have fun using your new phone!

The handset at a glance

Ã V

07:15

INT 1 14 Oct

Calls SMS

The handset at a glance

1 Display in idle status 2 Battery charge status

¢page 19)

(

3 Side keys

¢page 72) or ringtone

Set call ( volume (¢ page 73)

4 Display keys ( 5 Message key (

Access to call and message lists; Flashes: new message or new call

6 End call key, On/Off key

End call, cancel function, go back one menu level (press briefly), back to idle status (press and hold), activate/deactivate handset (press and hold in idle status)

7 Hash key

Keypad lock on/off (press and hold in idle status); toggles between upper/lower case and digits

8 Mute key (

Mute the microphone

9 Microphone

10 Recall key

- Consultation call (flash)

- Insert a dialling pause (press and hold)

11 Star key

Ringtone on/off (press and hold); with an open connection: switch between pulse dialling/tone dialling (press briefly); text input: open table of special characters

12 Headset socket ( 13 Key 1

Dial answering machine (S810A only)/network mailbox (press and hold)

14 Tal k key

Flashes: incoming call; Accept a call; open redial list (press briefly); start dialling (press and hold); When writing an SMS: send SMS

15 Handsfree key

Switch between earpiece and handsfree mode

16 Control key ( 17 Signal strength (

Green: Eco Mode (

18 Answering machine symbol (S810A only)

Answering machine switched on; Flashes: answering machine is recording a message or is being operated by another internal party

¢page 23)

¢page 42)

¢page 34)

¢page 20)

¢page 22)

¢page 19)

¢page 59) activated

The handset at a glance

Signalling

External call (¢ page 32)

ØåÚ Ø

Internal call (¢page 63)

Answering machine is recording (

¢ page 52)

i Ã

Û 08:00

07:15

INT 1 14 Oct

™ ¾



02 10 09 08

Calls SMS

ØðÚ

Anniversary (¢ page 60)

ØìÚ

Alarm (¢ page 62)

Signal strength i(¢ page 59)

or ECO Mode+ icon ¼

(¢ page 59)

Answering machine switched on (S810A only,

¢ page 5)

Bluetooth activated (

¢ page 67)

or ô/ õ(Bluetooth headset/data device) connected Ringtone switched off (

¢ page 73)

or ñ alert tone activated (

¢ page 74)

Keypad lock switched on (

¢ page 25)

ØáÚ

Appointment (¢ page 60)

Batteries are charged (¢ page 19) Charge status of the batteries (

¢ page 19)

Alarm switched on and wake-up time set (

¢ page 62)

Current time (¢page 18) Current day and month (

¢ page 18)

Name of the handset (

¢ page 65)

Number of new messages:

u Ã on the answering machine (Gigaset S810A only)/

network mailbox (

¢ page 42)

u ™ in the list of missed calls (¢ page 42) u ¾in the SMS list (¢ page 46) u  in the list of missed appointments (¢ page 43)

Display symbols

The following symbols are displayed dependent on the settings and the operating status of your telephone:

The base at a glance

You can use the keys on the base to register handsets to the base, search for handsets (paging), grated answering machine (Gigaset S810A only).

Gigaset S810A base

(¢ page 63) and operate the inte-

During message playback:

4 Play/Stop key

Play back new messages from answering machine or cancel playback (press briefly). Play back new and old messages (press and hold).

5 Skip to next message (press once) or skip

ahead two messages (press twice).

6 Skip back five seconds (press briefly once),

skip back to the beginning of the message (press and hold) or skip back to the previous

message (press twice). 7 Delete current message. 8 Adjust volume during message playback:

= quieter;

While an external call is being signalled: adjust

ringtone volume.

ø = louder.

Please note:

If the answering machine is being operated from a handset or if it is recording a message (00 flashes), it cannot be operated from the base at the same time.

Gigaset S810 base

1 Registration/Paging key

Press briefly: search for handsets (paging)

¢page 63).

( Press and hold: register handsets and DECT devices (

2 On/Off key

Activating/deactivating the answering machine.

3 Display

Lights up: answering machine is activated. The number of saved messages is displayed. 00 flashes: the answering machine is recording a new message. Flashes slowly: there are new messages. The number of new messages is displayed. 99 flashes quickly: the answering machine is full.

¢page 62).

Registration/Paging key

– Press briefly: search for handsets (paging)

¢page 63.

– Press and hold: register handsets and DECT

devices (

¢page 62).

Contents

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Gigaset S810/S810A – more than just a telephone . . . . . . . . . . . . . . . . . . . 2

The handset at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Display symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

The base at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting up the base and charger (if included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the charger (if included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Setting up the handset for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Connecting the USB data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

What would you like to do next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Control key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Display keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Keys on the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Side keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Correcting incorrect entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Activating/deactivating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Activating/deactivating the keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Using this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Making an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

One Touch Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Accepting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Calling Line Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Notes on calling line display (CLIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Handsfree mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Switching to mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Contents

Making calls using network services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Calling Line Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Ringback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Call waiting during an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Call divert (CD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Consultation call, call swap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Using the directory and lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Redial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Incoming SMS message list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Answering machine list (Gigaset S810A only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Message key function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

List of missed alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Making cost-effective calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Automatic network provider code (preselection) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

SMS (text messages) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Writing/sending an SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Receiving an SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

SMS with vCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Notification via SMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

SMS mailboxes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Setting SMS centres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

SMS on a PABX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Activating/deactivating SMS function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

SMS troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Operating the Gigaset S810A base answering machine . . . . . . . . . . . . . 52

Operating via the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Activating/deactivating call screening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting the recording parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Resetting fast access for the answering machine using key 1 . . . . . . . . . . . . . . . . . . 56

Operating when on the move (remote operation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Using the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Configuring fast access for the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Viewing the network mailbox message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

ECO DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Setting an appointment (calendar) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Displaying missed appointments, anniversaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Setting the alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Contents

Using multiple handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

De-registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Locating a handset ("Paging") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Changing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Making internal calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Listening in to an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Changing the name of a handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Changing a handset's internal number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Using a handset as a room monitor (Babyphone) . . . . . . . . . . . . . . . . . . . 66

Using Bluetooth devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Quick access to numbers and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Setting the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Setting keypad illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Activating/deactivating auto answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Changing the speaker/earpiece volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Setting a handsfree profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Changing ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Resource Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Activating/deactivating advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Setting your own area code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Restoring the handset default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Setting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Changing the base Gigaset S810A ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Activating/deactivating music on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Repeater support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Protecting against unauthorised access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Resetting the base to the factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Connecting the base to the PABX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Dialling modes and recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Saving an access code (outside line code) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Setting pauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Switching temporarily to tone dialling (DTMF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Customer Service & Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Questions and answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Authorisation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Guarantee Certificate

United Kingdom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Protecting our environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Contents

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Caring for your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Writing and editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Additional functions via the PC interface . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

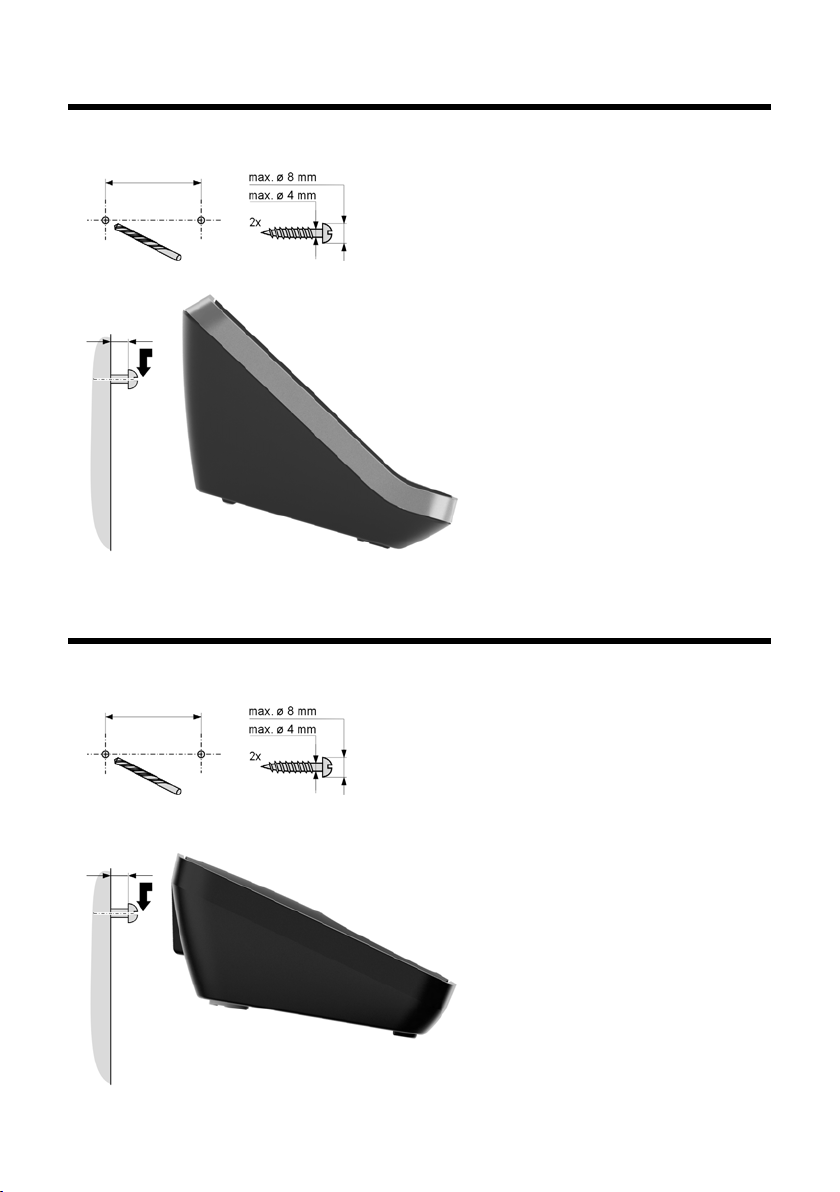

Mounting the base on the wall (Gigaset S810 only) . . . . . . . . . . . . . . . . . 91

Mounting the charger on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Safety precautions

Warning

Be sure to read this user guide and the safety precautions before using your telephone Explain their content and the potential hazards associated with using the telephone to your

children.

Use only the power adapter supplied, as indicated on the underside of the base.

Use only rechargeable batteries that correspond to the specification provided on page 84, as this could otherwise result in significant health risks and personal injury.

Using your telephone may affect nearby medical equipment. Be aware of the technical conditions in your particular environment e.g., doctor's surgery. If you use a medical device (e.g. a pacemaker), please contact the device manufacturer. They will be able to advise you regarding the susceptibility of the device to external sources of high-frequency energy. Please refer to the “Appendix” chapter for the specifications of this Gigaset product.

Do not hold the rear of the handset to your ear when it is ringing or when handsfree mode is activated. Otherwise you risk serious and permanent damage to your hearing.

Your Gigaset is compatible with the majority of digital hearing aids on the market. However, perfect function with all hearing aids cannot be guaranteed.

The handset may cause an unpleasant humming or whistling noise in hearing aids or cause them to overload. If you require assistance, please contact the hearing aid supplier.

Do not install the base or charger in bathrooms or shower rooms. The base and charger are not splashproof (

¢ page 84).

Do not use your phone in environments with a potential explosion hazard (e.g., paint shops).

If you give your Gigaset to a third party, make sure you also give them the user guide.

Remove faulty bases from use or have them repaired by our Service department, as they could interfere with other wireless services.

Please note

u Not all of the functions described in this user guide are available in all countries. u The device cannot be used in the event of a power failure. It is also not possible to trans-

mit emergency calls.

First steps

345

Checking the package contents

First steps

1 One Gigaset S810/S810A base 2 One power adapter 3 One Gigaset S810H handset 4 One phone cord 5 Two batteries 6 One battery cover 7 One belt clip 8 One plastic headset socket cover 9 One user guide

If you have purchased a

model with multiple handsets the package should

contain two batteries, a battery cover, a belt clip and a charger adapter tional handset.

9 with power J for each addi-

First steps

Setting up the base and charger (if included)

The base and charger are designed for use in dry rooms in a temperature range of +5°C to +45°C.

¤ Set up the base at a central point in the building on a level, non-slip surface or

mount the base (Gigaset S810 only) or charger on the wall (

Please note

Pay attention to the range of the base. This is up to 300 m in unobstructed outdoor areas and up to 50 m inside buildings. The range is reduced when Eco Mode (

The phone's feet do not usually leave any marks on surfaces. However, due to the multitude of different varnishes and polishes used on today's furnishings, the occurrence of marks on the surfaces cannot be completely ruled out.

Please note:

u Never expose the telephone to the influence of heat sources, direct sunlight or

other electrical devices.

u Protect your Gigaset from moisture, dust, corrosive liquids and fumes.

¢ page 59) is activated.

Connecting the base

¤ First connect the tel-

ephone jack 2 and insert the cables into the cable ducts.

¤ Then connect the

power adapter 1.

¢ page 91).

Please note:

u The power adapter must always be connected, as the phone will not operate

without a mains connection.

u Use only the power adapter and phone cord supplied. Pin connections on tele-

phone cables can vary (pin connections

¢ page 85).

Connecting the charger (if included)

¤ Plug the power adapter into the plug

socket 2.

¤ Connect the flat plug from the power

adapter 1.

To disconnect the plug from the charger, press the release button 3 and disconnect the plug 4.

First steps

¤ Insert the batteries with

the polarity in the correct direction. The polarity is indicated in/on the battery compartment.

¤ First insert the battery

cover at the top a.

¤ Then press the cover b

until it clicks into place.

To open the battery cover, for instance to replace the batteries, insert a coin into the cavity on the left-hand side of the casing, then pull the battery cover in an upward direction.

Setting up the handset for use

The display and keypad are protected by plastic films.

Remove the protective films!

Inserting the batteries and closing the battery cover

Use only rechargeable batteries recommended by Gigaset Communications GmbH ( as this could result in significant health risks and personal injury. For example, the outer casing of the batteries could be damaged or the batteries could explode. The phone could also malfunction or be damaged as a result of using batteries that are not of the recommended type.

Warning

¢ page 84), i.e., Never use conventional (non-rechargeable) batteries,

¤ Insert the plastic cover provided for the

headset socket to ensure optimum sound in handsfree mode.

Attaching the belt clip

The handset has notches on each side to attach the belt clip.

¤ To at tach – press the belt clip

onto the back of the handset so that the protrusions on the belt clip engage with the notches.

¤ To re move – press the centre of

the belt clip firmly with your right thumb, push the fingernail of your left index finger up between the clip and the housing and pull the clip in an upward direction.

First steps

8.5 h

Initial charging and discharging of the batteries

The correct charge status can only be displayed if the batteries are first fully charged and discharged.

¤ Charge the handset in the base for 8.5 hours.

Please note

The handset must only be placed in the designated Gigaset S810/S810A base or charging cradle.

¤ After charging, remove the handset from the base and only replace it when the

batteries are fully discharged.

Please note

u Each handset is registered with the base at the factory. You do not need to

register the handset again. If you wish to use your handset with a different base or use further handsets with your base, you will need to register the handset manually (

u After the initial battery charge and discharge, you may place your handset in

the base after every call.

u Always repeat the charging and discharging procedure if you remove the

batteries from the handset and reinsert them.

u The batteries may warm up during charging. This is not dangerous. u After a while, the charge capacity of the batteries will decrease for technical

reasons.

¢ page 62).

Changing the display language

O5

¤ Press right on the control key.

¤ Slowly press keys O and5one

after the other.

The display for setting languages appears. The current language (e.g. English) is selected.

¤ Press down on the control key

...

... until the language you wish to use is marked, e.g., French.

¤ Press the right key directly below the

display to select this language.

The selection is marked with Ø.

Deutsch

English

Fran cais

Deutsch

English

Fran cais

Italiano

Espanol

Back Select

Deutsch

English

Fran cais

Change the display language if you do not understand the language currently set.

First steps

¤ Press and hold the end call key a to return to idle status.

First steps

Date/Time

Date:

14.10.2011

Time: 00:00

Back Save

¤ Press the key below §Set Time§ on the dis-

play screen to open the input field. (If you have already set the time and

date, open the input field via the menu

¢ page 30.)

The Date/Time submenu is shown on the display.

¤ The active input position flashes.

Enter day, month and year as an 8-digit number via the keypad, e.g., 4Q 2Q for 14/10/2011.

Date/Time

Date:

31.01.2011

Time: 00:00

Back Save

Calls Set Time

Press the right or left control key to change the input position and correct an entry.

¤ Enter the hours and minutes in 4-digit

format via the keypad, e.g., QM5for 07:15 am. Change the input position with the control key if necessary.

¤ Press down on the control key to switch

to the time input field.

Setting the date and time

Set the date and time so that the correct date and time can be assigned to incoming calls, and so that the alarm can be used.

First steps

¤ Press the key below §Save§ on the dis-

play screen to confirm your entry.

The display shows Saved. You will hear a confirmation tone and the handset will automatically return to idle status.

Back Save

Date/Time

‰

Saved

i Ã V

07:15

INT 1 14 Oct

Calls SMS

Display in idle status

Once the phone is registered and the time is set, the idle display is shown as in this example. If the answering machine is activated, the answering machine icon displayed in the header.

is

Displays

u Reception between the base and the handset:

u Battery charge status:

– Poor to good: ÐiÑÒ –No reception: | Green: Eco Mode activated (

– { white: charged over 66% – { white: charged between 34% and 66% – y white: charged between 11% and 33% – y red: charged below 11% – y flashes red: battery almost empty

(less than 10 minutes talktime)

– xyxyx{x{ white: battery charging

Please note

If you have chosen a colour scheme with a white background, the white symbols are displayed in black.

¢ page 59)

First steps

u INT 1

Internal name of the handset (

If Eco Mode+ (¢ page 59) is activated, the ¼ icon is displayed in the top left corner of the display.

Your answering machine is set with a pre-recorded announcement.

Your phone is now ready for use!

Connecting the headset

After removing the plastic cover, you can connect a headset to the left-hand side of your telephone with the 2.5 mm jack connector. See the relevant product page at www.gigaset.com information on recommended headsets. The headset volume corresponds to the settings for the handset volume (

After using the headset, replace the plastic cover to enable optimum sound in handsfree mode.

Connecting the USB data cable

You can connect a standard USB data cable with a mini-B connector to the back of your handset to connect the handset to a PC (

¢ page 65)

for

¢ page 72).

¢ page 86).

¤ Remove the belt clip (if attached)

¢ page 15).

(

¤ Remove the battery cover (¢page 14). ¤ Connect the USB data cable to

USB socket

Please connect your handset directly to the PC; do not connect via a USB hub.

Please note

What would you like to do next?

Now you have successfully set up your Gigaset, you will certainly want to adapt it to your personal requirements. Use the following guide to quickly locate the most important topics.

If you are unfamiliar with menu-driven devices such as other Gigaset telephones, read the section entitled "Using the phone" (

Information on ... ... is located here.

Setting the ringtone and volume page 73

Setting the earpiece volume page 72

First steps

¢ page 22) first.

Recording your own announcement for the answering machine

Setting Eco Mode / Eco Mode+ page 59

Preparing the telephone for SMS reception page 45

Operating the telephone on a PABX page 78

Registering existing Gigaset handsets to a base page 62

Transferring directory entries from existing Gigaset handsets to new handset(s)

Using Bluetooth devices page 67

Connecting the phone to the PC page 86

If you have any questions about using your phone, please read the tips on troubleshooting ( (

¢ page 80).

¢ page 81) or contact our Customer Care team

page 52

page 39

Using the phone

Control key

Below, the side of the control key that you must press in the respective operating situation is marked in black (top, bottom, right, left, centre), e.g., v for "press right on the control key" or w for "press the centre of the control key".

The control key has a number of different functions:

When the handset is in idle status

s Open the directory. v Open the main menu. u Open the list of handsets. t Call up the menu for setting the handset's call volume (¢ page 72).

In the main menu

t, s, v or u

Navigate to the required function.

In submenus and lists

t / s Scroll up/down line by line.

In input fields

Use the control key to move the cursor up t, down s, right v or left u. Press and hold v or u to move the cursor word by word.

During an external call

s Open the directory. u Initiate an internal consultation call. t Adjust the loudspeaker volume for earpiece and handsfree mode.

Functions when pressing the middle of the control key

Depending on the operating situation, the key has different functions.

u In idle status the key opens the main menu. u In submenus, selection and input fields, the key takes on the function of the

display keys

§OK§, §Yes§, §Save§, §Select§ or §Change§.

Please note

These instructions demonstrate the main menu being opened by pressing the right of the control key and functions being actuated by pressing the appropriate display key. However, if you prefer, you can use the control key as described above.

Display keys

Back Save

Current display key functions.

Display keys

Options

Back

Save

The functions of the display keys change depending on the particular operating situation. Example:

Some important display keys:

Open a menu for further functions. Confirm selection. Delete key: delete character by character/word by word from right to

left. Go back one menu level or cancel operation. Store entry. Open the redial list. Forwarding a call to the answering machine.

Keys on the keypad

c/ Q/ * etc.

Press the matching key on the handset.

~ Enter digits or letters.

Using the phone

Side keys

Correcting incorrect entries

ø / ÷ Press the keys on the right of the handset to set the volume for the

handset, ringtone, speaker, alarm, signalling of appointments and the headset depending on the situation.

You can correct incorrect characters in the input fields by navigating to the incorrect entry using the control key. You can then:

u Delete the character to the left of the cursor with the display key Ñ (press and

hold to delete the word)

u Insert characters at the cursor position u Overwrite the highlighted (flashing) character, e.g., when entering time and

date.

Using the phone

Settings

á Â

Back OK

Settings

Date/Time

Audio Settings

Display

Language

Registration

Back OK

Using the menus

Your telephone's functions are accessed using a menu that has a number of levels. The menu display can be extended (expert mode •) or restricted (standard

mode). Expert mode is the active default setting. Settings or functions that are only available in expert mode are marked in these

instructions by the Switching between standard mode/expert mode and the menu overview

¢ page 28).

(

Main menu (first menu level)

¤ When the handset is in idle status press the right control key v to open the

main menu.

The main menu functions are shown in the display with icons. The icon for the selected function is highlighted in orange and the name of the associated function appears in the display header.

To access a function, i.e., to open the corresponding submenu (next menu level):

¤ Use the control key p to select the required func-

tion and press the display key

Briefly press the display key §Back§ or the end call key a to revert back to idle status.

•

icon.

§OK§.

Submenus

The functions in the submenus are displayed as lists (example on the right).

To access a function:

¤ Scroll to the function with the control key q and

Briefly press the display key §Back§ or the end call key a to return to the previous menu level/cancel the operation.

Reverting to idle status

You c an re vert to i dle stat us fr om an ywhere in t he menu

as follows:

¤ Press and hold the end call key a.

or:

¤ Do not press any key: after 2 minutes the display will automatically rev ert to i dle

Settings that have not been saved by selecting the display keys

§Change§ are lost.

An example of the display in idle status is shown on page 19.

press

status.

§OK§.

§OK§, §Yes§, §Save§ or

Activating/deactivating the handset

a With the phone in idle status, press and hold the end call key (confir-

mation tone) to switch off the handset. Press and hold the end call key again to switch the handset on.

Please note

When the handset is switched on, an animation showing the Gigaset logo is d is- played for several seconds.

Activating/deactivating the keypad lock

The keypad lock prevents any inadvertent use of the phone. # Press and hold the hash key in idle status to activate or deactivate the

keypad lock. You will hear the confirmation tone. If the keypad lock is activated, you will see a message when you press a key. The keypad lock deactivates automatically when you receive a call. It is reactivated

when the call is finished.

Please note

When the keypad lock is active, you cannot even call emergency numbers.

Using the phone

¤ Press right on the control key v

to open the main menu.

¤ Press right, left, down and up on

control key p to navigate to the Settings submenu.

¤ Press the display key §OK§ to confirm

your selection.

¤ Press down on the control key

until the Eco Mode menu option appears on the display.

¤ Press the display key §OK§ to confirm

your selection.

Settings

Display

Language

Registration

Menu View

Eco Mode

Back OK

Settings

á Â

Back OK

Using this guide

The operating steps are shown in abbreviated form.

Example:

The illustration: v ¢Ï ¢ Eco Mode ¢ Eco Mode+ (³ =on) means:

Using the phone

The change is effective immediately and does not need to be confirmed.

¤ Press down on the control key

until the Eco Mode+ menu option appears on the display.

¤ Press the display key §Change§ to

activate/deactivate the function.

Eco Mode

Eco Mode+

Back Change

Eco Mode

Eco Mode+

Back Change

¤ Press the key below §Back§ on the

display screen to jump back to the previous menu level.

Press and hold the end call key a to return to idle status.

Menu overview

Setting standard mode or expert mode

The menu display can be extended (expert mode •) or restricted (standard mode). Menu options that are only available in expert mode are marked with the

To change these settings: Select v ¢Ï ¢ Menu View ¢ Simplified (standard mode) or Complete (expert

¢ §Select§ (the active mode is marked with Ø)

mode)

Open the main menu: press v when the phone is in idle mode.

Select Services

Withhold Number ¢ page 35

All Calls Call Divert

Call Waiting

Ringback off

Bluetooth

Activation ¢page 67

Search for Headset

Search Data Device

Known Devices

Own Device

¢page 35

¢page 68 ¢page 68 ¢page 68 ¢page 69

icon.

•

¢page 36 ¢page 35

Additional Features

Room Monitor ¢page 66

One Touch Call

Resource Directory Screensavers ¢page 74

•

Call Lists

All Calls ¢page 41

Outgoing Calls

Accepted Calls

Missed Calls

¢page 31

Caller Pictures

Sounds

Capacity

¢page 41 ¢page 41 ¢page 41

¢page 74 ¢page 74 ¢page 74

SMS

You have activated an SMS mailbox (general or private) without a PIN

New SMS

Incoming

Draft

You have activated an SMS mailbox with a PIN or 2–3 mailboxes

Mailbox New SMS

¢page 45 ¢page 47 ¢page 46

Incoming

Draft

Menu overview

¢page 45 ¢page 47 ¢page 46

Mailbox 1 Mailbox 2 Mailbox 3

Settings Service Centres ¢page 49

•

Voice Mail

Play Messages Network Mailbox ¢page 58

Activation *

Announcements * Record Announcem. *

Recordings * ¢ page 55

•

Call Screening * ¢page 55

•

Network Mailbox ¢page 58

•

Set Key 1 * Network Mailbox ¢ page 58

•

* Base with answering machine only

New SMS

Incoming

Draft

SMS Mailboxes

Notification

Answer Machine *

¢page 52

Play Announcement *

Delete Announcem. *

Record Adv. Msg. * ¢page 52

•

Play Advisory Msg. * ¢page 53

•

Delete Adv. Msg. * ¢page 53

•

Answer Machine

¢page 45 ¢page 47 ¢page 46

¢page 48 ¢page 48

¢page 52

¢page 52 ¢page 52 ¢page 52

¢page 58

Organizer

Calendar ¢page 60

Alarm Clock

Missed Alarms

¢page 62 ¢page 61

Menu overview

Making calls

i Ã V

07:15

INT 1 22 Oct

”

OneTouchCall active

0891234567

Off

Making calls

If the backlight is deactivated (¢ page 71) it is switched on by pressing any key. Digit

keys appear on the display for pre-dialling; all other keys do not have any further func-

tions.

Making an external call

External calls are calls using the public telephone network.

~c Enter the number and press the

or: c~ Press and hold the talk key c

You can cancel the dialling operation with the end call key a.

You are shown the duration of the call while the call is in progress.

Please note

Dialling with the directory (¢page 37), call list ( ( ( keying in phone numbers.

Continuing a call on a Bluetooth headset

Precondition: Bluetooth is activated; a con-

nection has been established between the Bluetooth headset and the handset

¢ page 67).

( Press the talk key on the Bluetooth headset;

it may take up to 5 seconds to establish a connection to the handset.

During the call you can adjust the volume of the earpiece and microphone with the side keys.

For further details about your headset, see the user guide issued with it.

¢ page 41), redial list ¢ page 41) and automatic redial ¢ page 41) saves you from repeatedly

talk key.

and then enter the number.

One Touch Call

You can set up your phone in such a way that pressing any key dials a previously stored number. This allows children, for example, who cannot enter a number, to call a certain number.

¢ É ¢One Touch Call

¤ Change multiple line input:

Activation:

Select On to activate.

Call to:

Enter or change number.

¤ Press §Save§ to save the settings.

When the function is activated, the idle display appears as shown below:

By pressing any key the saved number is dialled. Press the end call key a, to cancel the dialling operation or to end the call.

Deactivating the One Touch Call

¤ In idle status, press the display key §Off§. ¤ Press and hold the hash key #, to

deactivate the One Touch Call.

Ending a call

a Press the end call key.

Making calls

Ø«Ú

1234567890

Accept Silence

Gigaset S810

Gigaset S810A

Ø«Ú

1234567890

Silence

Accepting a call

The handset indicates an incoming call in three ways: by ringing, by a display on the screen and by the flashing talk key c.

Accept the call by:

¤ Pressing the talk key c. ¤ Pressing the handsfree key d. ¤ Gigaset S810: press the display key

§Accept§.

¤ Gigaset S810A: press the display key

Ô to divert the call to the answering

machine (

If the handset is in the base/charger and the Auto Answer function is activated

¢ page 71), the handset automatically

( answers the call when you remove it from the base/charger.

To deactivate the ringtone, press the display key. You can accept the call as long as it is displayed on the screen.

Accepting a call on a Bluetooth headset

Precondition: Bluetooth is activated; a con-

nection has been established between the Bluetooth headset and the handset

¢ page 67).

(

Only press the talk key on the headset when the headset rings; it can take up to 5

seconds. During the call you can adjust the volume of

the earpiece and microphone with the side keys.

For further details about your headset, see the user guide issued with it.

¢ page 55).

§Silence§

– CLIP (Calling Line Identification Pres-

entation): the caller's number is displayed.

u You have requested CLIP from your net-

work provider.

u The caller has requested CLI from the net-

work provider.

Call display with CLIP/CLI

If the caller's number is saved in your directory, the number is replaced by the corresponding directory entry ( and name/number). If you have assigned a caller picture to that caller, this will also be displayed.

ä/ k/ l

symbol

Calling Line Identification

When you receive a call, the caller's number is displayed on the screen if the following conditions are met:

u Your network provider supports CLIP, CLI.

– CLI (Calling Line Identification): the

caller's number is transmitted.

1Ringtone icon 2 3Number or name of caller

ä/ k/

symbol from directory

Making calls

The following is displayed in place of the number:

u External, if no number is transmitted. u Withheld, if the caller has withheld Call-

ing Line Identification (

u Unavailable, if the caller has not

arranged Calling Line Identification.

¢ page 35).

Please note

The ringtone can be switched off for unknown calls (calls with Calling Line Identification withheld) (

¢ page 73).

Notes on calling line display (CLIP)

By default, the number of the caller is shown in the display of your Gigaset telephone. You do not have to make any other settings on your Gigaset telephone.

However, if the caller's number is not displayed, this can be due to the following:

u You have not ordered CLIP from your net-

work provider or

u Your telephone is connected via a PABX

or a router with an integrated PABX (gateway) that does not transmit all information.

If the caller number is still not displayed:

¤ Check the CLIP settings of your PABX and

activate this function if necessary. In the user guide for the device, search for the term "CLIP" (or an alternative term such as "calling line identification", "phone number transmission", "caller ID", ...). If necessary, contact the device manufacturer.

If this does not resolve the problem, it is possible that your network provider does not the CLIP service for this number.

Have you ordered the calling line display service from your network provider?

¤ Check whether your provider supports

calling line display (CLIP) and that the function has been activated for you. If necessary, contact your provider.

Additional information on this subject can be found on the Gigaset homepage at: www.gigaset.com/service

Is your telephone connected via a PA BX /g at ew ay ?

You can establish this by checking for an additional device connected between your telephone and house connection, e.g., a PABX, gateway etc. In most cases, simply resetting this device will remedy the situation:

¤ Briefly disconnect the mains plug of your

PABX. Re-insert the plug and wait for the device to restart.

Making calls

Handsfree mode

In handsfree mode, instead of holding the handset to your ear you can put it down, for example on the table in front of you. This allows others to participate in the call.

Activating/deactivating handsfree mode

Activating while dialling

~d Enter the number and press the

handsfree key.

¤ Inform your caller before you use the

handsfree function so that the caller knows a third party may be listening.

Switching between earpiece and handsfree mode

d Press the handsfree key. During a call and when listening to the

answering machine (Gigaset S810A only), activate or deactivate handsfree mode.

If you wish to place the handset in the base/ charger during a call:

¤ Press and hold the handsfree key d

while placing the handset in the base/ charger and for a further 2 seconds.

For instructions on adjusting the speaker volume (

¢ page 72).

Switching to mute

You can deactivate the microphone in your handset during an external call.

h Press key to mute the handset.

The display shows Microphone is off. Press the key again to reactivate the microphone.

Please note

u If the telephone is muted, all keys

except the mute key h and the end-call key a will not work.

u A connected headset will also be

muted.

Please note

If you have a headset connected, you can switch between the headset and handsfree mode.

Making calls using network services

Network services are functions that your network provider makes available to you. You have to request these services from your network provider.

¤ It is not possible to reprogram the net-

work services.

¤ If you require assistance, please contact

your network provider.

Calling Line Identification

Withhold Calling Line Identification once (CLIR):

If you make a call, your number is shown in the display of the call recipient if that person has activated CLIP (

If, in certain instances, you do not wish to have your number displayed, you can withhold your number for the next call (CLIR).

¢ Ç ¢Withhold Number

Enter phone number.

c Press the talk key. or

§Dial§ Press the display key.

Ringback

Initiating ringback

If the number you have called is engaged, you can initiate ringback. As soon as the line belonging to the person you called is free, your handset will ring.

You hear the busy tone.

§Options§ ¢Ringback

a Press the end call key.

¢ page 32).

Cancelling ringback

You can cancel a ringback that has already been initiated.

¢ Ç ¢ Ringback off

Call waiting during an external call

If the function is activated, during an external call you will hear a call waiting tone to

signal that another external caller is trying to get through. If you have CLIP ( the number of the waiting caller or the corresponding directory entry is shown in the display.

Activating/deactivating call waiting

v ¢ Ç ¢ All Calls ¢ Call Waiting Status Activate/deactivate.

§Send§ Press the display key.

Accepting a waiting call

You are making an external call and hear the call waiting tone.

You have the following options:

¢ page 32) is activated

If CLIP (

§Accept§ Press the display key.

If CLIP is not activated

§Options§ ¢Accept Waiting Call

Once you have accepted the waiting call you can switch between the two callers ("call swap"

¢ page 36).

¢ page 32),

Making calls using network services

Call divert (CD)

When diverting a call, the call is forwarded to another connection.

The following options are available:

u All Calls: Calls are diverted immediately.

No more calls are signalled on your phone.

u No Answer: Calls are diverted if no one

accepts the call within several rings.

u When Busy: Calls are forwarded when

your line is busy. Call is diverted without a call waiting tone.

¢ Ç ¢All Calls ¢ Call Divert

¤ You can enter data in the following fields:

When:

Select All Calls / When Busy / No Answer.

To Phone Number:

Enter the number to which the call is to be diverted.

Status:

Activate/deactivate call divert.

§Send§ Press the display key.

a After the announcement, press

the end call key.

Consultation call, call swap

These functions enable you to:

u Call a second external caller (consultation

call)

u Switch between two calls (call swap)

Consultation call

You can call a second external caller. The first call is placed on hold.

During an external call:

§Ext. Call§ Press the display key.

The previous call is placed on hold. The other participant hears an announcement.

~ Enter the second participant's

telephone number.

The phone number is dialled. You are connected to the second participant.

If the caller does not answer, select the display key

§End§ to return to the first participant.

Please note

You can also select the second participant's phone number from the directory

¢ page 38) or the call list (¢ page 40).

(

Ending a consultation call

§Options§ ¢End Active Call

You are reconnected to the first caller. You can also end the consultation call by

pressing the end call key. The connection is briefly interrupted and you will receive a call back. Once you have pressed the talk key, you are reconnected to the first caller.

Call swap

You can speak to both callers one at a time (call swap).

Prerequisite: You are conducting an external call and have called a second participant (consultation call) or have accepted a waiting call.

¤ Use q to swap between the participants.

The caller you are currently speaking to is marked with the

Ending the current call.

§Options§ ¢End Active Call

You are re-connected to the waiting caller.

æ icon.

Using the directory and lists

The options are:

u Directory u Redial list u Incoming SMS message list u Call lists u List of missed appointments u Answering machine list

(Gigaset S810A only)

You can create a personalised directory for your own handset. You can also send lists/ entries to other handsets (

Redial list

The redial list contains the twenty numbers last dialled with the handset (max. 32 digits). If one of the numbers is in the directory, the corresponding name is displayed.

Manual redial

c Press the key briefly. s Select entry. c Press the talk key again. The

number is dialled.

When a name is displayed, you can display the corresponding phone number by pressing the display key

Managing entries in the redial list

c Press the key briefly. s Select entry.

§Options§ Open menu.

The following functions can be selected with q:

Copy to Directory

Copy an entry to the directory (page 37).

Automatic Redial

The selected number is automatically dialled at fixed intervals (at least every 20 seconds). The handsfree key flashes and "open listening" is activated.

– Party answers:

Press the talk key c. The function is ended.

– Party does not answer:

The call is terminated after approx. 30 seconds. The function is ended after pressing any key or after ten unsuccessful attempts.

Display Number (as in the directory, page 38)

Delete Entry (as in the directory, page 38) Delete All (as in the directory, page 39)

§View§.

Incoming SMS message list

All received SMS messages are saved in the incoming message list (

¢ page 46).

Answering machine list (Gigaset S810A only)

You can use the answering machine list to listen to the messages that are on the answering machine.

Call lists

Prerequisite: Calling Line Identification

(CLIP, page 32) Your telephone stores various types of calls:

u Answered calls u Outgoing calls u Missed calls u Calls recorded by the answering machine

(Gigaset S810A only)

You can view each type of call separately or gain an overview of all calls. Each call record contains the last 20 numbers in its category.

When in idle status, open the call lists by selecting the menu:

§Calls§ display key or via the

Using the directory and lists

All Calls

™

Frank

14.10.11, 15:40

š 089563810

14.10.11, 15:32

™ ...0123727859362922

14.10.11, 15:07

View Options

œ ¾



02 10 09



List entry

New messages are displayed at the top. Example of list entries:

u List type (in header) u Status of entry

Bold: New entry

u Number or name of caller u Date and time of call (if set, page 18) u Type of entry:

– Accepted calls ( – Missed calls ( – Outgoing calls ( – Calls recorded by the answering

machine (Ã, Gigaset S810A only)

Press the talk key c to call the selected caller back.

Press the tional information, including for example the number linked to the name.

Select the following options:

Copy to Directory

Delete Entry

Delete All

When you quit the call lists, all entries are set to the status "old", i.e., the next time you call up the list, they will no longer be shown in bold.

§View§ display key to access addi-

§Options§ display key to select the

Copy the number to the directory.

Delete selected entry.

Delete all entries.

™ )

› )

š )

Message key function

Opening lists

Use the message key f to open the following list selection:

u Answering machine list (Gigaset S810A

only) or network mailbox, if your network provider supports this function and fast access is set for the network mailbox

¢ page 58).

(

u Incoming SMS message list (¢ page 46)

If multiple mailboxes are set up (¢ page 48), several lists are displayed.

u List of missed calls u List of missed alarms (¢ page 43)

An advisory tone sounds as soon as a new message arrives in a list.

In idle status, the display shows an icon for the new message:

Icon New message...

™



The number of new entries is displayed under the corresponding icon.

After pressing the message key f, you can see all lists containing messages and the network mailbox list.

... in the answering machine list (Gigaset S810A only) or on the network mailbox

... in the missed calls list

... in the SMS list

... in the Missed Alarms list:

Please note

If calls are saved in the network mailbox, you will receive a message if the appropriate settings have been made (see your network provider user guide).

Using the directory and lists

Messages & Calls

Calls: (3)

Missed Alarms (1)

SMS: (2)

Back OK

System

975 SET:

[ 0 ]

System

975 SET:

[ 1 ]

Lists containing new messages are at the top of the list and are marked in a bold font.

Select a list with q. To open, press

Disable/enable flashing of the message key

You can select whether the message key f flashes (default setting) or does not flash when new messages arrive. Please do the following:

¤ Press the key sequence:

¢ *#Q5#M

v The following is displayed:

¤ Press one of the following keys to select

the message type:

5 for missed calls or L for new SMS or M for messages on the answer-

ing machine (Gigaset S810A only)/network mailbox

Your selection is displayed (e.g. 5 for missed calls); the current setting flashes:

§OK§.

¤ Press key Q or , to set the behav-

ior for new messages:

Q message key flashes (it stops

when the key is pressed)

or  message key does not flash

Your selection is displayed (e.g. 1):

¤ Press the display key §OK§.

List of missed alarms

Missed (unacknowledged) appointments from the calendar (

¢ page 40) are saved in the Missed

saries ( Alarms list under the following circumstances:

u You do not accept an appointment/anni-

versary.

u The appointment/anniversary was sig-

nalled during a phone call.

u The handset is deactivated at the time of

the appointment/anniversary.

u Automatic redial was activated at the

time of an appointment/anniversary

¢ page 41).

(

u Open the list by pressing the message

key f (

Each entry is displayed with:

u Number or name u Date and time

The most recent entry is at the head of the list.

Press the display key selected entry.

If 10 entries are already stored in the list, the next appointment reminder will delete the oldest entry.

¢ page 60) and anniver-

¢ page 42).

§Delete§, to delete the

Making cost-effective calls

•

Making cost-effective calls

Make phone calls through a network provider who offers particularly low-cost call rates (call-by-call).

Automatic network provider code (preselection)

You can store a call-by-call number (preselection number), which is automatically placed in front of numbers when you dial them.

In the "With Preselection" list, specify the access codes or the first digits of the access codes that you wish to assign to the preselection number.

In the "Without Preselect." list, enter the exceptions to the "With Preselection" list.

Example:

Preselection No. 0999

With Preselection 08

Without Preselect. 081

084

All numbers that start with 08, except for 081 and 084, are dialled with the preselection number 0999.

Saving preselection numbers

v ¢Ï ¢ Tel e ph on y ¢Preselection

¢ Preselection No.

~ Enter or change the preselec-

tion number (call-by-call number).

§Save§ Press the display key.

Save or change entries in the preselection lists

Each of the two lists can contain 20 entries, each with 6 digits.

Numbers may be prefixed according to the country in the "With Preselection" list. This means, for example, that all national calls or calls to the mobile network are automati- cally linked to the preselection number you have saved previously.

¢ Tel e ph on y ¢Preselection

¢ With Preselection / Without Preselect.

s Select entry. ~ Enter or edit the first digits of

the number.

§Save§ Press the display key.

Temporarily cancelling preselection

c(press and hold) ¢§Options§ ¢ Preselection off ¢ ~ (dial number)

Phone number Dialled number

07112345678

08912345678

08412345678

¢ 07112345678 ¢ 0999 08912345678 ¢ 08412345678

Permanently deactivating preselection

v ¢Ï ¢ Tel e ph on y ¢Preselection

¢ Preselection No.

Ñ Press and hold the display key

until the preselection number is deleted.

§Save§ Press the display key.

SMS (text messages)

Your phone is delivered ready to send SMS messages immediately.

Prerequisites:

u Calling Line Identification is enabled for

your phone line.

u Your network provider supports SMS on

the fixed line network (information on this can be obtained from your network provider).

u You are registered with your service pro-

vider to send and receive SMS messages.

u To receive SMS messages, you must be

registered with your service provider. This occurs automatically when you send your first SMS.

Please note

If your phone is connected to a PABX,

¢ page 50.

press

and press

§OK§.

please read

Writing/sending an SMS

Writing an SMS

v ¢ Mailbox 2 Select mailbox if necessary and

~ Enter mailbox PIN if necessary

New SMS Select and press §OK§.

~ Write an SMS.

Please note

u For instructions on entering text and

special characters, please see page 86.

u An SMS may contain up to

612 characters. If there are more than 160 characters, the SMS is sent as a linked SMS (up to 4 SMS messages with 153 characters each). The top right of the display shows how many characters are still available and which part of a linked SMS is currently being written.

Sending an SMS

c Press the talk key or:

§Options§ Press the display key.

Send Select and press §OK§. SMS Select and press §OK§.

~ / s Select number with access code

(even if you are in that area) from the directory or enter directly. For sending SMS messages to an SMS mailbox: add the mailbox ID to the end of the number.

§Send§ Press the display key. The SMS is

sent.

Please note

u If you are interrupted by an external

call while writing an SMS, the text is automatically saved in the draft SMS list.

u If the memory is full, or if the SMS

function on the base is being used by another handset, the operation is cancelled. An appropriate message appears in the display. Delete SMS messages you no longer require or send the SMS later.

SMS (text messages)

Saved

14.10.11 15:07

Draft SMS list

You can save an SMS in the draft SMS list, and edit and send it later.

Saving an SMS in the draft SMS list

¤ You are writing an SMS (¢ page 45).

§Options§ Press the display key.

Save Entry Select and press §OK§.

Opening the draft message list

v ¢Ë ¢ , if necessary (mailbox, mailbox PIN),

The first entry in the list is displayed, e.g.:

If the entry has been saved with the phone number, i.e., when the SMS was saved from the incoming message list, the number is displayed in the first line.

¢ Draft

Reading or deleting SMS messages

¤ Open the draft message list and then:

q Select SMS.

§Read§ Press the display key. The text is

displayed. Scroll line by line using q

or delete the SMS with

§Options§ ¢ Delete Entry ¢ §OK§.

Writing/editing an SMS

¤ You are reading an SMS in the draft SMS

list.

§Options§ Open menu.

You have the following options:

Send

Send stored SMS.

Edit

Edit the text of the saved SMS and then

¢ page 45).

send it (

Character Set

Display text in the selected character set.

Deleting draft SMS list

¤ Open the draft message list and then:

§Options§ Open menu.

Delete All Select, press §OK§ and confirm

§Yes§. The list is deleted.

with

Receiving an SMS

All received SMS messages are saved in the incoming SMS list. Linked SMS messages are displayed as one message. If this is too long or is not transferred completely, it is split into individual messages. Since an SMS remains in the list even after it has been read, regu- larly delete SMS messages from the list.

The display tells you if the SMS memory is full.

Activating/deactivating first ringtone muting

Each incoming SMS is signalled by a single ring (ringtone as for external calls). If you accept such a "call", the SMS is lost. To prevent this ring, suppress the first ringtone for all external calls.

v Open the main menu. *#Q5#  O

Press keys.

§OK§ Make the first ringtone audible.

or:  §OK§ Mute the first ringtone.

Incoming message list

The incoming message list contains:

u All received SMS messages, starting with

the most recent.

u SMS messages that could not be sent due

to an error.

New SMS messages are signalled on all Gigaset S810H handsets by the the display, the flashing message key f and an advisory tone.

Ë icon on

SMS (text messages)

SMS: (2)

0123727859362922

14.10.11 09:07

Opening the incoming message list with the

f Press. The incoming message list is indicated by

the mailbox name and the number of entries (example):

Bold: new entries Normal font: old entries

If necessary select a mail box and open list by selecting and confirm by pressing

The number and date of receipt are displayed in the entry list.

f key

§OK§ (enter mailbox PIN if required

§OK§).

Opening the incoming message list via the SMS menu

v ¢Ë ¢ (If necessary, select mailbox, enter mailbox PIN)

¢ Incoming

Deleting the incoming message list

All new and old SMS messages in the list are deleted.

¤ Open the incoming message list.

§Options§ Open menu.

Delete All Select, press §OK§ and confirm

§Yes§. The list is deleted.

with

Reading or deleting SMS messages

¤ Open the incoming message list, then:

q Select SMS.

§Read§ Press the display key. The text is

displayed. Scroll line by line using q

or delete the SMS with

§Options§ ¢ Delete Entry ¢§OK§.

After you have read a new SMS, it is given the status "Old" (is no longer shown in bold).

Changing the character set

¤ Read the SMS

§Options§ Press the display key.

Character Set

Text is shown in the selected character set.

Replying to or forwarding SMS messages

¤ Read the SMS

§Options§ Press the display key.

You have the following options:

Write and send a new SMS in reply to the sender (¢ page 45).

Edit

Edit the text in the SMS and return it to the sender (

Forward

Forward the SMS to another number

¢ page 45).

(

¢ page 45).

Copying the number to the directory

Copying the sender's number

¤ Open the incoming message list and

select the SMS (

§Options§ ¢ Copy to Directory

¢ page 46).

¤ Complete the entry ¢ page 40.

Please note

An attached mailbox identifier is added to the directory.

Copying/dialling numbers from an SMS

¤ Read the SMS and scroll to the telephone

number.

The digits are highlighted.

Ó Press the display key.

Complete the entry (

or:

c Press the talk key to dial the

number.

¢ page 40).

SMS (text messages)

•

If you wish to use the number to send an SMS:

¤ Save the number with the local area code

(access code) in the directory.

SMS with vCard

The vCard is an electronic business card. It is displayed by the Å icon in the body of the SMS.

A vCard can include:

u Name u Private number u Business number u Mobile phone number u Birthday

Entries in a vCard can be saved to the directory individually.

Opening the vCard

¤ Read the SMS containing the vCard.

§View§ Press the display key.

To return to the body of the SMS, press

q Select number.

§Save§ Press the display key.

When you save a number, the directory is opened automatically. The number and name are copied. If a birthday is entered on the vCard, the date is copied to the directory as an anniversary.

§Back§.

¤ If necessary, edit the entry in the direc-

tory and save it. You will return to the vCard automatically.

Notification via SMS

You can be notified about missed calls or new answering machine messages (Gigaset S810A only) via SMS.

Prerequisite: For missed calls, the caller's number (CLI) must have been transmitted.

Notification is sent to your mobile phone or another phone with SMS functionality.

You only need to save the telephone number to which you wish the notification to be sent.

¢ Settings ¢ Notification

¤ You can enter data in the following fields:

To:

Enter the number to which the SMS should be sent.

On missed call

Select On if you require SMS notification.

On message on answer machine

(Gigaset S810A only)

Select On if you require SMS notification.

§Save§ Press the display key.

Warning

Do not enter your own fixed line network number for the notification of missed calls. This can lead to chargeable endless looping.

SMS mailboxes

The general mailbox is the default setting. Anyone can access this mailbox and it cannot be protected by a PIN. You can set up three additional personal mailboxes and protect these with a PIN. Each mailbox is identified by a name and a "mailbox ID" (a kind of extension number).

Please note:

u If you operate a number of devices

(bases) with SMS functionality on a single phone line, then each SMS mailbox ID may only occur once. In this case, you must also change the preset ID of the general mailbox ("0").

u Only use personal mailboxes if your serv-

ice provider supports this function. You can tell whether this is the case by the addition of a star (*) to the number of a (preset) SMS centre.

u If you have forgotten your mailbox PIN,

you can reset it by restoring the base's default settings. This will delete all SMS

messages from all mailboxes.

SMS (text messages)

•

Setting up and editing a

personal mailbox

Setting up a personal mailbox

v ¢Ë ¢ Settings ¢ SMS Mailboxes s Select mailbox, e.g., Mailbox 2

and press

§Edit§.

¤ You can enter data in the following fields:

Activation:

Activate or deactivate mailbox.

Name:

Enter name.

Box-ID:

Select mailbox ID (0–9). You can only select the available numbers.

Protection:

Activate/deactivate PIN protection.

SMS PIN

If necessary, enter 4-digit PIN.

§Save§ Press the display key.

Active mailboxes are marked with μ in the mailbox list. They are shown in the SMS list and can, if necessary, be displayed by pressing the message key f.

Deactivating a mailbox

¤ Set Activation to Off. Confirm message

§Yes§ if necessary.

with

All SMS messages saved in this mailbox are deleted.

Deactivating PIN protection

¤ Set Protection to Off.

The mailbox PIN is reset to "0000".

Changing the name of a mailbox

v ¢Ë ¢ Settings ¢ SMS Mailboxes

¢ s(Select mailbox)

§Edit§ Press the display key.

~ Enter new name.

§Save§ Press the display key.

Changing a mailbox's PIN and ID

v ¢Ë ¢ Settings ¢ SMS Mailboxes

¢ s(Select mailbox)

~ Enter mailbox PIN if necessary

and press

§OK§.

¤ Set Box-ID, Protection and SMS PIN

¢ page 49).

(

Sending an SMS to a personal mailbox

To send an SMS to a personal mailbox, the sender must know your ID and enter it after your number.

¤ You can send your SMS contact an SMS

via your personal mailbox.

Along with this SMS, your SMS contact will receive your SMS number with current ID and can save it in their directory. If the ID is invalid, the SMS will not be delivered.

Setting SMS centres

SMS messages are exchanged between SMS centres operated by service providers. You must enter the SMS centre through which you wish to send and receive SMS messages into your phone. You can receive SMS messages from every SMS centre that is entered, provided you have registered with your service provider.

Your SMS messages are sent via the SMS centre that is entered as the active send service

¢ page 49). Only one SMS centre

centre ( can be the active send service centre at any one time.

If no SMS service centre is entered, the SMS menu only contains the entry Settings. Enter an SMS Service Centre (

Entering/changing SMS

centres

¢ page 49).

¤ Find out about the services and special

functions offered by your service provider before you make a new applica- tion and/or before you delete pre-configured call numbers.

v s Select SMS centre (e.g., Service

¢ Settings ¢ Service Centres

Centre 1) and press

§Edit§.

SMS (text messages)

¤ You can enter data in the following fields:

Active Send:

§Yes§ if SM S mes sages are t o be s ent

Select via the SMS centre.

SMS Service Centre no.:

Enter the number of the SMS service and insert a star if your service provider supports personal mailboxes.

Number of e-mail access:

Enter the number of the e-mail service.

§Save§ Press the display key.

Please note

Ask your service provider for details on entering service numbers if you wish to use personal mailboxes (prerequisite: your service provider supports this function).

Sending an SMS via another SMS centre

¤ Activate the SMS centre (2 to 4) as the

active send service centre.

¤ Send the SMS.

SMS on a PABX

u You can only receive an SMS when the

Calling Line Identification is forwarded to the extension of the PABX (CLIP). The CLIP evaluation of the SMS centre number is completed in your Gigaset.

u Depending on your PABX, you may have

to add the access code (external line prefix) before the number of the SMS centre.

If in doubt, test your PABX, e.g., by sending an SMS to your own number: once with and once without the access code.

u When you send SMS messages, your

sender number may be sent without your extension number. In this case, the recipient cannot reply to you directly.

Sending and receiving SMS messages on ISDN PABXs is only possible via the MSN number assigned to your base.

Activating/deactivating SMS function

If you deactivate the SMS function, you cannot send or receive any SMS messages with your phone.

The settings you have made for sending and receiving SMS messages (e.g., the numbers of the SMS centres) and the entries in the incoming and draft message lists are saved even after deactivation.

v Open the main menu. *#Q5# 2 L

Enter the digits.

§OK§ Deactivate the SMS function.

or:  §OK§ Activate the SMS function

(default setting).

SMS (text messages)

SMS troubleshooting

Error codes when sending

E0 Calling Line Identification permanently with-

held (CLIR) or Calling Line Identification not activated.

FE Error occurred during SMS transfer.

FD Connection to SMS centre failed; see self-

help.

Self-help with errors

The following table lists problem situations and possible causes and provides advice on troubleshooting.

You cannot send messages.

1. You have not requested the CLIP service (Calling Line Identification Presentation).

¥ Ask your service provider to enable this

service.

2. SMS transmission has been interrupted (e.g., by a call).

¥ Re-send the SMS.

3. The network provider does not support this feature.

4. No number or an invalid number is entered for the SMS centre set as the active send service centre.

¥ Enter the number (¢page 49).

You receive an incomplete SMS.

1. Your phone's memory is full.

¥ Delete old SMS messages (¢page 46).

2. The service provider has not yet sent the rest of the SMS.

You have stopped receiving SMS messages.

1. You have changed the ID of your mailbox.

¥ Give your SMS contacts your new ID or

undo the change (

2. You have not activated your mailbox.

¢page 49).

¥ Activate your mailbox (¢ page 49).

3. Call divert (redirecting) is set to When: All Calls or All Calls is activated for the network

mailbox.

¥ Change the call divert settings

¢page 36).

(

The SMS is played back.

1. The "display call number" feature is not activated.

¥ Ask your service provider to activate this

function (chargeable).

2. No agreement is in place between your mobile phone operator and your fixed line network SMS service provider.

¥ Obtain information from your fixed line

network SMS service provider.

3. Your terminal has been recorded by your SMS provider as having no fixed line network SMS functionality, i.e., you are not registered with the provider.

¥ Send any SMS to automatically register

your telephone to receive SMS.

Messages are only received during the day.

The terminal is recorded in your SMS provider's database as having no fixed line network SMS functionality, i.e., you are not registered with the provider.

¥ Obtain information from your fixed line

network SMS service provider.

¥ Send any SMS to automatically register

your telephone to receive SMS.

Operating the Gigaset S810A base answering machine

•

Operating the Gigaset S810A base answering machine

You can access the answering machine via the handset, the buttons on the base

¢ page 5) or by remote operation (from

( another phone/mobile phone). You can record your own announcement mess age or advisory message via the handset.

Answering machine mode

You can use the answering machine in two different modes.

u In Answer & Record mode, the caller

hears the announcement and can then leave a message.

u In Answer only mode, the caller hears

your announcement but cannot leave a message.

Operating via the handset

The handset loudspeaker activates automatically if you receive an acoustic prompt

or message while operating. You can switch it off with the handsfree key d.

Activating/deactivating and setting the answering machine mode

You can choose between Answer & Record, Answer only and Alternating. By using the Alternating setting, you can activate answer

and record mode for a set period of time, outside this period the caller will only hear the announcement.

§Edit§ Press the display key.

¤ You can enter data in the following fields:

Activation:

¢ Activation (μ=on)

Select On or Off to activate/deactivate the answering machine.

Mode:

Select Answer & Record, Answer only or Alternating.

If Alternating mode is selected: Record from:

Enter hours/minutes for the start of the period in 4-digit format. (The time must be set on the phone beforehand.)

Record to:

Enter hours/minutes for the end of the period in 4-digit format.

If Answer & Record is not set, Answer only mode applies.

§Save§ Press the display key.

If the messages memory is full and Activation: On has been selected, saving is interrupted and you will receive an instruction to delete old messages.

When you switch the answering machine on, the remaining memory time is announced. If the time has not yet been set, an appropriate announcement is made (set

¢ page 18). The

time the display. The LED display on the base lights up (

The phone is supplied with pre-recorded announcements for Answer & Record mode and for Announce only mode. If a personal announcement has not been recorded, the relevant pre-recorded announcement is used.

¢ page 5).

icon appears in

Recording personal announcements/ advisory messages

v ¢

¢ Record Announcem. /

Record Adv. Msg.

§OK§ Press the display key to start the

You hear the ready tone (short tone).

¢ Announcements

recording.

Operating the Gigaset S810A base answering machine

•

¤ Now speak your announcement (at least

3 secs.). Just as if making a call via the receiver, place the telephone against your ear and speak into the microphone at a normal volume.

§End§ Press the display key to end the

recording.

Cancel recording with a or the recording with

After recording, the announcement is played back for you to check. You can rerecord the announcement with

§OK§.

Please note:

u Recording ends automatically if the max-

imum recording time of 100 seconds is exceeded or there is a break in speech for more than 2 seconds.

u If you cancel the recording, the pre-

recorded announcement is used again.

u If the answering machine's memory is

full, it will switch to Answer only mode.

¤ Delete old messages and the answer-

ing machine will automatically switch back to Answer & Record mode. Repeat recording if required.

Playing back personal announcements/ advisory messages

v ¢

¢ Play Announcement /

Play Advisory Msg.

If you have not recorded a personal announcement, the relevant pre-recorded announcement is played.

Record a new announcement while playing back the announcement:

§New§ Press the display key.

If the answering machine's memory is full, it will switch to Answer only mode.

¢ Announcements

¤ Delete old messages and the answering

machine will automatically switch back to Answer & Record mode. Repeat recording if required.

§Back§. Restart

§New§.

Deleting personal announcements/ advisory messages

v ¢

¢ Delete Announcem. / Delete Adv. Msg.

§Yes§ Press the display key to confirm

Once you have deleted your announcement, the relevant pre-recorded announcement is used again.

¢ Announcements

the prompt.

Please note

Deleting announcements can take some time.

Playing back messages

The date and time of each message is logged (provided this has been set, displayed during the playback. If Calling Line Identification is activated, the caller's number is displayed. If the caller's number is saved in the directory, their name is displayed.

Playing back new messages

New messages that have not yet been played back are indicated on the display with an icon and number:

The fkey on the handset and the display on the base will flash. The number of new messages is displayed on the base.

f Press the message key.

Answer. Mach.:

Select and press

If there are new messages, playback then begins with the first new message. After the last new message, you will hear the end tone and an announcement stating how much recording time remains.

If the message has been saved with the date and time, you will hear an appropriate announcement before playback begins.

¢ page 18) and

§OK§.

Operating the Gigaset S810A base answering machine

Playing back old messages

You can listen to old messages if there are no more new messages. Begin playback as described under "Playing back new messages".

After the entry time and date have been played back (after approx. 3 seconds) a new message assumes the status "old".

Stopping and controlling playback

During message playback: 2 Pause playback. Press 2

again to resume.

§Options§ Open menu.

Pause Select and press §OK§.

To continue s elect Continue and press

t or Go to the start of the current

message. Press twice to go back to the previous message.

s or 3 Skip to next message.

Press twice to skip ahead two messages.

4 Skip back 5 seconds in the cur-

rent message. (Skip back function prerequisite: more than five seconds of the current message have been played back).

If playback is interrupted for over a minute, the answering machine returns to idle status.

§OK§.

Marking a message as "new"

A previously played back "old" message is displayed as a "new" message again.

During message playback: * Press the star key.

or:

§Options§ Open menu.

Mark as New

Select and press

An announcement informs you of the message's new status.

§OK§.

Playback of the current message is cancelled. Playback of next message starts, if applicable.

The f key on the handset flashes.

Copying a phone number from a message to the directory

During playback or pause:

§Options§ ¢Copy to Directory

¤ Complete the entry (¢ page 40).

Deleting messages

You can either delete all old messages together or individually.

Deleting all old messages

During playback or pause:

§Options§ ¢Delete Old List

§OK§ Press the display key to confirm

the prompt.

§Yes§ Press the display key to confirm

the prompt.

Deleting individual old messages

During playback or pause:

§Delete§ Press the display key.

Picking up a call from the answering machine

You can pick up a call while the answering machine is recording or is being operated via remote operation:

§Accept§

c/

Press the talk or display key.

Recording stops and you can speak to the caller.

If two seconds of the call have already been recorded when you pick it up, the call is displayed as a new message. The f key on the handset flashes.

You can answer the call, even if it is not signalled on the handset.

Operating the Gigaset S810A base answering machine

•

Diverting an external call to the answering machine

You can divert an incoming external call to the answering machine, even if it is deactivated.

Prerequisite: Sufficient memory space is available on the answering machine.

An external call is signalled on the handset:

Ô Select display key.

The answering machine starts immediately in Answer & Record mode and records the call. The set time for ring delay ( is ignored.

¢ page 55)

Activating/deactivating two-way record

You can record an external call with the answering machine.

¤ Inform the caller that the call is being

recorded.

§Options§ Open menu.

Two-Way Record

Select and press

Two-way record is indicated on the display by an advisory text and is added to the answering machine list as a new message.

§End§ Press the display key to stop

two-way record.

The maximum recording time depends on the memory available on the answering machine. If the memory is full, you will hear an end tone, the recording is aborted, and the call recorded up to that point is listed in the answering machine list as a new message.

§OK§.

Activating/deactivating

call screening

While a message is recording, you can screen calls via the base loudspeaker and registered handsets.

Permanently activating/deactivating call screening

v ¢Ì ¢ Call Screening

¢ Handset / Base (³=on)

§Change§ Select display key to activate/

deactivate the function.

Call screening can be simultaneously activated on the base and handset.

Deactivating call screening for the current recording

You can deactivate the function for your own handset during the recording.

§Silence§ Press the display key.

Setting the recording

parameters

The answering machine has already been preset at the factory. Individual settings can be adjusted using the handset.

¢ Recordings

¤ You can enter data in the following fields:

Length:

Select maximum recording time 1 min., 2 min., 3 min. or Maximum.

Quality:

Select Long Play or Excellent recording quality. If the quality is higher, the maximum recording time is reduced.

Ring Delay:

Select when the answering machine should accept a call:

Immediately, after 10 sec., 18 sec., 30 sec. or Automatic.

§Save§ Press the display key.

Operating the Gigaset S810A base answering machine

•

Information about ring delay

In Automatic mode, the following applies for ring delay:

u If there are no new messages, the answer-

ing machine answers a call after 18 seconds.

u If there are new messages, the answering

machine answers a call after 10 seconds.

When operating remotely ( can tell after approx. 15 seconds that there are no new messages (otherwise the answering machine would have already accepted your call). There are no call charges if you hang up now.

¢ page 56), you

Please note:

You can configure your telephone so that the first ring is suppressed on all calls (¢ page 46). This means that the time selected for the ring delay predetermines how long the caller must wait before the answering machine accepts the call.

Resetting fast access for the answering machine using key 1

By default, key  has been assigned for fast access to the integrated answering machine. However, if you have set the network mailbox for fast access ( you can reset this setting.

Answer Machine

Once you have selected the answering machine, press and hold key . You are connected directly.

The setting for fast access applies to all registered handsets.

¢ Set Key 1

Select and press

¢ page 58),

§OK§.

Operating when on the move (remote operation)

You can check and activate your answering machine from any other telephone (hotel, pay phone etc.), or initiate ringback from the answering machine with an SMS.

Prerequisites:

u You have set a system PIN other than

¢ page 77).

0000 (

u The phone you are using for remote oper-

ation has tone dialling (DTMF), i.e., you hear different tones when you press the keys. Alternatively, you can use a code transmitter (available from your mobile phone retailer).

Calling the answering machine and playing back messages

~ Dial your own number. 9~ When you hear your announce-

ment, press 9 and enter the system PIN.

You are informed whether any new messages have been recorded. The messages are now played back. You can now operate the answering machine with the keypad.

The following keys are used for operation: A To return to the start of the cur-

rent message. Press twice to go back to the previous message.

B Pause playback. Press again to

resume.

3 Go to the next message. D Skip back 5 seconds in the cur-

rent message. (Skip back function prerequisite: more than five seconds of the current message have been played back).

: A previously played back "old"

message is displayed as a "new" message again.

0 Delete current message.

Operating the Gigaset S810A base answering machine

Activating the answering machine

¤ Phone home and let the phone ring until

you hear: "Please enter PIN".

Your answering machine is activated. It tells you how much memory time is left.

The messages are now played back. The answering machine cannot be deacti-

vated remotely.

Enter system PIN.

Initiating ringback from the answering machine with SMS and listening to messages

Prerequisite: You must have stored an SMS

notification number ( You can use the telephone (mobile phone or

any other device with SMS functionality) for which you have stored the SMS notification number in your phone to send an SMS to your answering machine when you are away from home. It will then call you back. The message playback begins when you accept the call and press any digit key.

The SMS must contain the following: *<System PIN>*<Ringback number>* The ringback number is optional. Examples: *4711* or *4711*089123456* If a ringback number is entered, it is dialled;

otherwise the SMS notification number is dialled.

You can now operate the answering machine via the keypad, as described in the previous sections.

¢ page 48).

Using the network mailbox

•

Using the network mailbox

The network mailbox is your network provider's answering machine within the network. You cannot use the network mailbox unless you have requested it from your network provider.

Configuring fast access for the network mailbox

With fast access, you can dial the network mailbox or the integrated answering machine (Gigaset S810A only) directly.

Gigaset S810: Fast access is preset for the network mailbox. You only need to enter the number of the network mailbox.

Gigaset S810A: The integrated answering machine is preset for fast access. You can configure the network mailbox instead. Ask your network provider about this.

Configuring fast access for the network mailbox and entering the network mailbox number

Gigaset S810A:

v ¢Ì ¢ Set Key 1 Network Mailbox

Select and press

Ø Select= selected).

(

Gigaset S810:

v ¢Ì ¢ Network Mailbox

To continue: ~ Enter the number for the net-

work mailbox.

§Save§ Press the display key.

The setting for fast access applies to all Gigaset S810H handsets.

§Network Mailbox§

Calling the network mailbox

 Press and hold. You are con-

nected straight to the network mailbox.

d Press handsfree key d if

required. You will hear the network mailbox announcement.

Viewing the network mailbox message

When a message is recorded, you receive a call from the network mailbox. If you have requested Calling Line Identification, the network mailbox number is displayed. If you accept the call, the new messages are played back. If you do not accept the call, the network mailbox number is saved in the missed call list and the message key flashes

¢ page 42).

(

Please note

Enter the network mailbox phone number into your directory along with the designation "Network mailbox"; the display and the call list will then show this designation.

ECO DECT

You are helping to protect the environment with your Gigaset S810/S810A.

Reducing energy consumption

By using a power-saving adapter plug, your telephone consumes less power.

Reducing radiation

The radiation from your telephone is reduced automatically:

u Handset: The closer the handset is to the

base, the lower the radiation.

u Base station: The radiation is reduced to

virtually zero when only one handset is registered and the handset is placed in the base.

You can reduce the radiation from the handset and base even more by using Eco Mode.

u Eco Mode

Reduces the radiation of the base station and handset by 80% - whether you are making a call or not. Eco Mode reduces the range of the base station by approx. 50%. Using Eco Mode always makes sense when a reduced range is sufficient.

Switching off radiation

u Eco Mode+

When you activate Eco Mode+, radiation (DECT transmission power) from the base and handset is switched off in the idle state. This is also true when multiple handsets are used, provided the handsets support

Eco Mode+.

Eco Mode / Eco Mode+ can be activated/

deactivated independently of one another and can also be used with multiple handsets. The handset must not be placed in the base.

Activate/deactivate Eco Mode /Eco Mode+:

v ¢Ï ¢ Eco Mode

¢ Eco Mode / Eco Mode+

§Change§ Press the display key (³=on).

Status displays

Display icon

Signal strength:

ÐiÑÒ |

Ð white Eco Mode deactivated Ð green Eco Mode activated

¼ white Eco Mode+ activated

¼ green Eco Mode and Eco

– good to poor – no signal

(displayed instead of the reception strength icon when in idle status)

Mode+ activated

Please note

u With Eco Mode+ activated, press and

hold the talk key c to check that the

base can be reached. You will hear the dial tone if the base can be reached.

u When Eco Mode+ is activated:

– Call setup is delayed by approx.

two seconds.

– Handset standby time is reduced

by approx. 50%.

u Registering handsets that do not sup-

port Eco Mode+ will cause the mode to be deactivated on the base and all other handsets.

u Activating Eco Mode reduces the

range of the base.

u Eco Mode / Eco Mode+ and repeater

support ( other out, i.e., if you use a repeater, you cannot use Eco Mode or Eco Mode+.

¢ page 76) cancel each

Setting an appointment (calendar)

Dec 2011

Back Options

Mo Tu We Th Fr Sa Su

01 02 03 04

05 06 07 08 09 10 11

12 13 14 15 16 17 18

19 20 21 22 23 24 25

26 27 28 29 30 31

ØáÚ

Meeting

03.11.11 15:38

Off SMS

Setting an appointment (calendar)

You can use your handset to remind yourself of up to 30 appointments. Anniversaries

¢ page 40) entered in the directory are

( automatically recorded in the calendar.

Saving an appointment.

Prerequisite: The date and time have

already been set (

v ¢Í ¢ Calendar

u The current day is selected (highlighted

in white).

u Days on which appointments have

already been saved are highlighted in white.

r/q Select the required day in the

The selected day is highlighted in white. The current day is no longer highlighted.

w Press the centre of the control

u If appointments have already been

entered, this will open the list of saved appointments on that day. Select <New Entry> data input window.

u If no appointments have been entered,

the data input window will open immediately to add the new appointment.

¢ page 18).

graphical calendar.

key.

¢ §OK§ to open the

¤ You can enter data in the following fields:

Activation:

Select On or Off.

Date:

Enter day/month/year in 8-digit format.

Time:

Enter hours/minutes in 4-digit format.

Tex t :

Enter text (max. of 16 characters). The text appears as the appointment name in the list and is displayed on the screen during the appointment reminder. If you do not enter any text, only the date and time of the appointment are displayed.

Signal:

Select the reminder type.

§Save§ Press the display key.

Please note

If you have already saved thirty appointments, you will have to first delete an existing appointment before adding a new one.

Signalling appointments and anniversaries

An appointment reminder is signalled in idle status for 60 seconds with the selected ringtone at the volume that has been set for internal calls ( reminder call, you can permanently change the volume by pressing the side keys ø (louder) or ÷ (quieter).

The name is displayed for anniversaries, while the entered text is displayed for appointments along with the date and time.

¢ page 73). During the

Setting an appointment (calendar)

You can either deactivate or answer an appointment reminder:

§§Off§§ Press the display key to deacti-

vate the appointment reminder.

or:

§SMS Press the display key to respond

to the appointment reminder with an SMS.

Please note

During a call, the appointment reminder is signalled by a short tone.

Managing appointments

v ¢Í ¢ Calendar

Editing individual appointments

r/q Select a day in the graphical cal-

endar and press the control key w. (Days on which appointments have already been saved are highlighted in white in the calendar).

q Select appointment for the day. You have the following options:

§§View§§ Press the display key and edit or

confirm the entry.

§Options§ Open the menu for editing,

deleting and activating/deactivating.

Deleting all appointments for one day

§Options ¢ Delete all Appoints. ¢§OK§

Confirm the security prompt with §Yes§. All appointments are deleted.

Displaying missed appointments, anniversaries

Missed appointments/anniversaries

¢ page 40) are displayed in the Missed

( Alarms list if:

u You do not accept an appointment/anni-

versary.

u The appointment/anniversary was sig-

nalled during a phone call.

u The handset is deactivated at the time of

the appointment/anniversary.

u Automatic redial was activated at the

time of an appointment/anniversary

¢ page 41).

(

The icon n and the number of new entries are shown in the display. The most recent entry is at the head of the list.

Open the list by pressing the message key

¢ page 42) or via the menu:

f( v ¢Í ¢ Missed Alarms

Select appointment/anniversary. Information about the appointment/anniversary is displayed. A missed appointment is displayed with the appointment name and a missed anniversary is displayed with the last name and first name. The date and time will also be given.

§Delete§ Delete appointment.

§SMS§ Write an SMS.

If 10 entries are already stored in the list, the next appointment reminder will delete the oldest entry.

Setting the alarm clock

Prerequisite: The date and time have

already been set (

Activating/deactivating and setting the alarm clock

v ¢á ¢ Alarm Clock

¤ You can enter data in the following fields:

Activation:

Select On or Off.

Time:

Enter the wake-up time in 4-digit format.

Occurrence:

Select Daily or Monday-Friday.

Volume:

Set the volume (1–6).

Signal:

Select melody.

§Save§ Press the display key.

In idle status, the ¼ icon and wake-up time are displayed.

A wake-up call is signalled on the display and with the selected ringtone ( The wake-up call sounds for 60 seconds. If no key is pressed, the wake-up call is repeated twice at five minute intervals and then switched off.

While the wake-up call sounds, you can permanently change the volume by pressing the side keys ø (louder) or ÷ (quieter).

During a call, the wake-up call is only signalled by a short tone.

Deactivating the wake-up call/ repeating after a pause (snooze mode)

Prerequisite: A wake-up call is sounding.

§Off§ Press the display key. The wake-

¢ page 18).

¢ page 4).

up call is deactivated.

§Snooze§ Press the display key or any key.

The wake-up call is deactivated and then repeated after 5 minutes. After the second repetition the wake-up call is deactivated completely.

Using multiple handsets

Registering handsets

You can register up to six handsets to your base.

A Gigaset S810H handset can be registered on up to four bases.

Manually registering a Gigaset S810H to a Gigaset S810/ S810A

You must activate manual registration of the handset on both the handset (1) and the base (2).

When the registration process has completed successfully, the handset returns to idle status. The handset's internal number is shown in the display e.g., INT 1. If not, repeat the procedure. .

1) On the handset

The handset is not registered to a base.

§Register§ Press the display key.

The handset is already registered to a base:

v ¢Ï ¢ Registration

¢ Register Handset

If the handset is already registered to four bases:

s Select base, e.g., Base 3 and

§OK§.

press

~ If required, enter the system

PIN for the base and press

A message appears stating that the handset is searching for a base that is ready for registration.

§OK§.

Using multiple handsets

2) On the base

Within 60 seconds press and hold the registration/paging key on the base

¢ page 5) (approx. 3 seconds).

(

Registering other handsets

You can register other Gigaset handsets and handsets for other devices with GAP functionality as follows. .

1) On the handset

Start to register the handset as described in its user guide.

2) On the base

Press and hold the registration/paging key on the base (

¢ page 5) (approx. 3 sec.).

De-registering handsets

You can de-register any other registered handset from any registered Gigaset S810H handset.

¢ De-reg. Handset

s Select the internal subscriber

~ Enter the current system PIN

§Yes§ Press the display key.

¢ Registration

you wish to de-register and

§OK§.

press (The handset you are currently using is highlighted with <).

and press

§Save§.

Locating a handset ("Paging")

You can locate your handset using the base.

¤ Briefly press the registration/paging key

on the base (

¢ page 5).

¤ All handsets will ring simultaneously

("paging"), even if the ringtones are deactivated.

Ending paging

¤ Briefly press the registration/paging key

on the base or press the talk key c on the handset.

Changing the base

If your handset is registered to more than one base, you can set it to a particular base or to the base that has the best reception (Best Base).

v s Select one of the registered

Making internal calls

Internal calls to other handsets registered on the same base are free.

Calling a specific handset

u Initiate internal call. ~ Enter the number of the hand-

or:

u Initiate internal call. s Select handset. c Press the talk key.

Calling all handsets ("group call")

u Press and hold. or:

u Initiate internal call. * Press the star key.

Call All Select

c Press the talk key. All handsets are called.

Ending a call

a Press the end call key.

¢ Registration ¢Select Base

bases or Best Base and press

§Select§.

set.

Using multiple handsets

Transferring a call to another handset

You can transfer an external call to another handset (connect).

u Open the list of handsets.

The external participant hears music on hold, if activated

¢ page 76).

(

s Select a handset or Call All and

§OK§.

press

When the internal participant answers:

¤ If necessary, announce the external call.

a Press the end call key. The external call is transferred to the other

handset. If the internal participant does not answer or

the line is busy, press the display key return to the external call.

When transferring a call, you can also press the end call key a before the internal participant answers.

Then, if the internal participant does not answer or the line is busy, the call will automatically return to you.

Internal consultation/conference calls

When you are conducting an external call, you can call an internal participant at the same time for consultation or hold a conference call between all 3 participants.

You are conducting an external call: u Open the list of handsets.

The external participant hears music on hold, if activated

¢ page 76).

(

s Select handset and press §OK§.

The internal participant is called.

If the participant picks up, you can either:

§End§ Press the display key.

You are reconnected with the external participant.

§End§ to

or:

§Conference§ Press the display key.

All 3 participants are connected with each other.

Please note

u If only two handsets are registered,

the other handset is called immediately by pressing the u key.

u Pressing and holding the u key calls

all handsets immediately.

Ending a conference call

a Press the end call key. If an internal participant presses the end call

key a, the other handset remains connected to the external participant.

Accepting/rejecting call waiting

If you receive an external call during an internal call, you will hear the call waiting

tone (short tone). With Calling Line Identification, the caller's number will appear in the display.

Ending an internal call, accepting an external call

§Accept§ Press the display key.

The internal call is ended. You are connected to the external caller.

Rejecting the external call

§Reject§ Press the display key.

The call waiting tone is turned off. You remain connected to the internal participant. The ringtone can still be heard on other registered handsets.

Using multiple handsets

•

Listening in to an external call

Prerequisite: The Listening In function must

be activated. You are conducting an external call. An inter-

nal participant can listen in on this call and take part in the conversation. All the participants are made aware of additional listeners by a signal tone.

Activating/deactivating

listening in

v ¢Ï ¢ Te le ph on y ¢ Listening In

Press §Change§ to activate/deactivate the function (³=on).

Internal listening in

The line is engaged with an external call. Your screen will display information to that effect. To listen in to the external call.

c Press and hold the talk key. You can listen in to the call. All participants

hear a signal tone. During this time, this handset displays the Conference message and it is not possible to dial another number from this handset.

Ending listening in

a Press the end call key. All participants hear a signal tone. If the first internal participant presses the

end call key a, the handset that has "listened in" remains connected to the external participant.

Changing the name of a handset

The names "INT 1", "INT 2" etc. are assigned automatically on registration. You can change these names. The name must be no more than 10 characters. The changed name is displayed in every handset's list.

u Open the list of handsets. Your

own handset is indicated by

s Select handset.

§Options§ Open menu.

Rename

~ Enter name.

§Save§ Press the display key.

Changing a handset's internal number

A handset is automatically assigned the lowest free number when it is registered. If all slots are occupied, number 6 is overwritten if this handset is in idle status. You can change the internal number of all registered handsets (1–6).

u Open the list of handsets. Your

own handset is indicated by

§Options§ Open menu.

Assign Handset No.

Select and press

r Select number. Only numbers

that have not been assigned are displayed.

§Save§ Press the display key to save the

input.

§OK§.

Using a handset as a room monitor (Babyphone)

If the room monitor is activated, a previously saved destination number is called as soon as a set noise level is reached. You can save an internal or external number in your handset as the destination number. All of the handset keys are deactivated, with the exception of the display keys.

The room monitor call to an external number is terminated after approximately 90 seconds. The room monitor call to an internal number (handset) is terminated after approximately 3 minutes (depending on the base). When the room monitor is activated, all keys are locked except the end call key. The handset's speaker can be switched on or off (Two Way Talk = On or Off). If Two Way Talk is switched on, you can answer the room monitor call.

When the room monitor is activated, incoming calls to the handset are indicated with- out a ringtone and are only shown on the screen. The display and keypad are not illuminated and advisory tones are also turned off.

If you accept an incoming call, the room monitor is suspended for the duration of the call, but the function remains activated.

If you deactivate then reactivate the handset, the room monitor remains activated.

Warning!

u Always check the operation of the

room monitor before use. For example, test its sensitivity. Check the connection if you are diverting the room monitor to an external number.

u When the function is switched on, the

handset's operating time is considerably reduced. If necessary, place the handset in the base/charger. This ensures that the battery does not run down.

u Ideally the handset should be posi-

tioned 1 to 2 metres away from the baby. The microphone must be directed towards the baby.

u The connection to which the room

monitor is diverted must not be blocked by an activated answering machine.

Activating the room monitor and entering the destination number

v ¢ É ¢ Room Monitor

¤ You can enter data in the following fields:

Activation:

Select On to activate.

Alarm to:

Select Internal or External. External number: Select the number

from the directory (press display key or enter it manually.

Internal number: Select display key

§Change§ ¢ . Select handset or Call All to

call all registered handsets In idle status, the destination number or

the internal destination number is displayed.

Two Way Talk:

Switch the handset's speaker on or off (select On or Off).

Sensitivity:

Select noise level sensitivity (Low or High).

¢ §OK§.

ö)

¤ Press §Save§ to save the settings.

Using Bluetooth devices

i Ã V

07:15

INT 1 22 Oct

Room monitor

0891234567

Off Options

When the room monitor function is activated, the idle display appears as shown below:

Changing the set destination number

v ¢ É ¢ Room Monitor

¤ Enter and save number as described in

"Activating the room monitor and entering the destination number"

¢ page 66).

(

Cancel/deactivate room monitor

Press the end call key a to cancel the call when the room monitor is activated.

In idle status, press the display key deactivate room monitor mode.

Deactivating the room monitor remotely

Prerequisites: The phone must support tone

dialling and the room monitor should be set for an external destination number.

¤ Accept the call from the room monitor

and press keys 9 ;.

The room monitor function will deactivate after the call ends. There are no further room monitor calls. The other room monitor settings on the handset (e.g., no ringtone) will remain activated until you press the display

§Off§ on the handset.

key To reactivate the room function with the

same phone number:

¤ Turn on the activation again and save

§Save§ (¢ page 66).

with

§Off§ to

Using Bluetooth devices

Your Gigaset handset can communicate wirelessly via Bluetooth™ with other devices using this technology.

Before you can use your Bluetooth devices, you must first activate Bluetooth and then register the devices to the handset.

You can register 1 Bluetooth headset to the handset. You can also register up to 5 data devices (PCs, PDAs and mobile phones) to send and receive directory entries as vCards or exchange data with the computer

¢ page 86).

( To use the phone numbers, dialling codes

(country and area code) must be stored in the directory (

You will find a description of how to operate your Bluetooth devices in the user guides for these devices.

Please note

u You can operate headsets on your

handset that have the headset or speaker profile. If both profiles are

available, the speaker profile will be used to communicate.

u It can take up to 5 seconds to create a

connection between your handset and a Bluetooth headset. This applies both when a call is accepted using the headset or transferred to the headset, and when a number is dialled from the headset.

Activating/deactivating Bluetooth mode

v ¢ ò ¢ Activation

Press§Change§ do activate or deactivate Bluetooth mode (³ = activated).

In idle status, the òicon on the handset shows that Bluetooth mode is activated)

¢ page 4).

(

¢ page 75).

Using Bluetooth devices

Registering Bluetooth devices

The distance between the handset in Bluetooth mode and the activated Bluetooth device (headset or data device) should be no more than 10 m.

Please note

u If you register a headset, any headset

that is already registered will be overwritten.

u If you would like to use a headset with

your handset that is already registered to another device (e.g. to a mobile phone), please deactivate this connection before you start the registration process.

¢ ò ¢Search for Headset / Search

v Data Device

The search can take up to 30 seconds. Once the device has been found, its name

will be shown on the display.

§Options§ Press the display key.

Trust Dev ice

Select and press

~ Enter the PIN for the Bluetooth

device you want to register and

§OK§.

press

The device is saved in the list of known devices.

Cancelling/repeating current search

To cancel search:

§Cancel§ Press the display key.

Repeat search if necessary:

§Options§ Press the display key.

Repeat Search

Select and press

§OK§ .

§OK§.

Editing the list of known (trusted) devices

Open list

v ¢ ò ¢ Known Devices

A corresponding icon appears next to each device name in the list displayed:

Icon Meaning

ô õ

If a device is connected, the corresponding symbol play.

Viewing entries

Open list ¢s(select entry)

§View§ Press the display key.

Deregistering Bluetooth devices

Open list ¢s(select entry)

§Options§ Press the display key.

Delete Entry

If you deregister an activated Bluetooth device, it may try to reconnect as an "unregistered device".

Changing the name of a Bluetooth device

Open list ¢s(select entry)

§Options§ Press the display key.

Edit Name Select and press §OK§.

~ Change the name.

§Save§ Press the display key.

Bluetooth headset

Bluetooth data devices

is shown in the header of the dis-

ò

Device name and address are displayed. Back with

Select and press

§OK§.

§OK§ .

Please note

Handset settings

Rejecting/accepting an unregistered Bluetooth device

If a Bluetooth device that is not registered in the list of known devices tries to connect with the handset, you will be prompted on the display to enter the PIN for the Bluetooth device (bonding).

u Reject

a Press the display key.

u Accept

~ Enter the PIN for the Bluetooth

device you want to accept and

press. If you have accepted the device, you can use it temporarily (i.e. as long as it is within receiving range or until you deactivate the handset) or save it to the list of known devices.

Once the device's PIN has been confirmed

– Save to the list of known devices: press

display key

– Use temporarily: press display key

§Yes§.

§No§.

Changing the Bluetooth name of the handset

You can change the handset name used to identify it on the display of another Bluetooth device.

¢ ò ¢Own Device

§Change§ Press the display key.

~ Change the name.

§Save§ Press the display key.

Handset settings

Your handset is preconfigured, but you can change the settings to suit your individual requirements.

Quick access to numbers and functions

You can assign a number from the directory to each of the digit keys Q and 2to O.

The left and right display keys have a default function. You can change the assignment

¢ page 70).

( The number is then dialled or the function

started by simply pressing a key.

Assigning digit keys

Prerequisite: You have not yet assigned a

number to the digit key.

¤ Press and hold the digit key

Press the digit key briefly and press the display key

The directory opens.

¤ Select an entry and press §OK§.

The entry is saved to the corresponding digit key.

Please note

If you delete or edit the entry in the directory at a later date, this will not affect the assignment to the number key.

§QuickDial§.

Handset settings

Selecting numbers/changing an assignment

Prerequisite: The digit key already has a

number assigned to it. When the handset is in idle status

¤ Press and hold the digit key:

The number is dialled immediately.

¤ Briefly press the digit key.

Press the display key with the number/ name (abbreviated if necessary) to select the number or press the display key the assignment or to delete the assignment.

§Change§ to change

Changing display key assignments

¤ Press and hold the left or right side of the

display key.

The list of possible key assignments is opened. The following can be selected:

Room Monitor

Assign menu for setting and activating the room monitor to a key (

Alarm Clock

Assign menu for setting and activating the alarm clock to a key (

Calendar

Display graphical calendar (

Bluetooth

Assign the Bluetooth menu to a key

¢ page 67).

(

Redial

Display the redial list.

More Functions...

More features are available:

Call Lists

Display call lists (

INT

Internal calls (

SMS

Assign menu for SMS functions to a

¢ page 45).

key (

¢ page 63).

¢ page 66).

¢ page 62).

¢ page 60).

¢ page 41).

Withhold Number

Withhold Calling Line Identification for the next call (

¢ page 35).

¤ Select an entry and press §OK§.

Changing the display language

You can view the display texts in different languages.

The current language is indicated by a Ø. s Select language and

If you accidentally choose a language you do not understand:

v ¢ O5 s Select the correct language and

¢ Language

§Select§.

press

press the right display key.

Setting the display

Setting the screensaver/slide show

When in idle state, a picture or a slide show (all the pictures are displayed one after the other) from the Screensaver folder of the Resource Directory ( time can be displayed as a screensaver. This will replace the idle state display.

The screensaver is not displayed in certain situations, e.g., during a call or if the handset is de-registered.

If a screensaver is activated, the Screensaver menu option is marked with μ.

¢ Display + Keypad

¢ page 74) or the

¢ Screensaver

The current setting is displayed.

¤ You can enter data in the following fields:

Activation:

Select On (screensaver is displayed) or Off (no screensaver).

Handset settings

•

Selection:

Select screensaver or

§View§ Press the display key. The active

screensaver is displayed. s Select screensaver and press

§OK§.

§Save§ Press the display key.

Briefly press the end call key a to return to the idle display.

Please note

If the analogue clock has been set as the screensaver, the second hand is shown only when the handset is in the base.

Setting large font

You can increase the font size of print and symbols in call lists and in the directory to improve readability. Only one entry is shown at a time on the display instead of several entries and names are abbreviated if necessary.

¢ Large Font

§Change§ Press display key (³=on).

¢ Display + Keypad

Setting the colour scheme

You can set the display to be shown in various colour combinations.

¢ Colour Schemes

Select Colour Scheme (1 to 5) and press §OK§.

¢ Display + Keypad

Setting the display Backlight

Depending on whether or not the handset is in the base/charger, you can activate or deactivate the backlight. If it is activated, the display is permanently dimmed. If the backlight is deactivated it is switched on by pressing any key. Digit keys appear on the display for pre-dialling; all other keys do not have any further functions.

¢ Display Backlight

The current setting is displayed.

¢ Display + Keypad

¤ You can enter data in the following fields:

In Charger

Select On or Off.

Out of Charger

Select On or Off.

Please note

With the On setting, the standby time of the handset can be significantly reduced.

§Save§ Press the display key.

Setting keypad illumination

The brightness of the keypad illumination can be set to one of five levels.

¢ Keypad Illumination

The current setting is displayed.

¢ Display + Keypad

¤ You can enter data in the following fields:

Intensity:

Select 1 (darkest) to 5 (brightest).

§Save§ Press the display key.

Activating/deactivating

auto answer

If you activate this function, when you receive a call you can simply lift the handset out of the base/charger without having to press the talk key c.

§Change§ Press display key (³=on).

¢ Tel e ph on y ¢Auto Answer

Handset settings

Changing the speaker/ earpiece volume

You can set the loudspeaker volume for handsfree mode and the earpiece volume to five different levels.

During a conversation via the earpiece or in handsfree mode:

ø/ ÷ Press the side key to call up the

Handset Volume menu.

Change the volume by pressing

ø (louder) or ÷ (quieter).

or t Press the control key to call up

the Handset Volume menu. Set

the earpiece or speaker volume

by pressing r.

The setting will automatically be saved after approximately 3 seconds, if not then press the display key

If t is assigned to another function, e.g., call

¢ page 36):

swap (

§Options§ Open menu.

Volume Select and press §OK§. Configure setting (see above).

Please note

u The settings for the earpiece also

apply to a connected headset.

u You can also set the call volume using

the menu (

§Save§.

¢ page 30).

Setting a handsfree profile

You can set different handsfree profiles to optimally adapt your phone to your environment.

Profile 1

The optimum setting for most connections and set as default.

Profile 2

Optimum volume in handsfree mode. However, this means that the participants cannot speak at the same time as the person speaking is given preferential transmission (making two-way conversations difficult).

Profile 3

Optimises two-way conversations, both callers can hear each other, even if they talk at the same time.

Profile 4

Optimised for special connections. If the default setting (profile 1) does not provide optimum sound, please give this a try.

In idle status:

¢ Handsfree Profiles

q Select handsfree profile (1 to 4).

§Select§ Press the display key to save the

During a conversation:

§Options§ Open menu.

Handsfree Profiles

q Select handsfree profile (1 to 4).

§Select§ Press the display key to save the

¢ Audio Settings

setting.

Select and press

setting.

§OK§ .

Handset settings

•

Changing ringtones

u Volume:

You can choose between 6 volumes (1–5; e.g., volume 3 = Š) and the "crescendo" ringtone (6; volume increases with each ring = ‡).

u Ringtones:

You can select a ringtone from a list of pre-loaded melodies.

You can select various ringtones, melodies or any sound from the Resource Directory (

You can set different ringtones for the following functions:

u Internal Calls u External Calls

Setting volume/melodies

In idle status:

v ¢Ï ¢ Audio Settings

¢ Ringtones (H/Set) ¢ Volume/Melodies

r Setting volume/melodies for

s Scroll to the next line. r Setting volumes/melodies for

§Save§ Press the display key to save the

While the phone is ringing, you can permanently change the volume by pressing the side keys ø (louder) or ÷ (quieter).

Additionally for external calls:

You can specify a time period when you do not want the telephone to ring, e.g., during the night.

¢ Ringtones (H/Set) ¢Time Control

For external calls:

Select On or Off.

¢ page 74).

internal calls and anniversaries.

external calls.

setting.

¢ Audio Settings

If the time control is activated:

Suspend ring. from:

Enter the start of the period in 4-digit format.

Suspend ring. until:

Enter the end of the period in 4-digit format.

Please note

During this period, you will continue to receive calls from numbers to which you have assigned a personalised melody in the directory (VIP).

Activating/deactivating the ringtone for unknown calls.

You can set your handset so that it doesn't ring for calls where Calling Line Identification has been withheld (not answering machine). The call will only be signalled on the display.

In idle status:

¢ Ringtones (H/Set) ¢ Anon. Call Silenc.

Press §Change§ to activate or deactivate the function (³= on).

¢ Audio Settings

Activating/deactivating the ringtone

You can deactivate the ringtone on your handset before you answer a call or when the handset is in idle status; the ringtone can be deactivated permanently or just for the current call. The ringtone cannot be re-activated while an external call is in progress.

Deactivating the ringtone permanently

* Press and hold the star key. The ó icon appears in the display.

Reactivating the ringtone

* Press and hold the star key.

Handset settings

Deactivating the ringtone for the current call

§Silence§ Press the display key.

Activating/deactivating the alert tone

In place of the ringtone, you can activate an alert tone. When you receive a call, you will hear a short tone ("Beep") instead of the ringtone.

* Press and hold the star key and

within 3 seconds:

§Beep§ Press the display key. A call will

now be signalled by one short

alert tone.

appears in the display.

Resource Directory

The resource directory on the handset manages sounds, which you can use as ringtones, and pictures, which you can use as caller pictures or as screensavers. Prerequisite: Calling Line Identification (CLIP). The resource directory can manage the following media types:

Typ e Format

Sound

Ringtones Internal

Monophonic Internal

Polyphonic Internal

Imported sounds WMA, MP3, WAV

Picture – Caller picture – Screensaver

Various mono and polyphonic sounds and pictures are preconfigured on your handset.

You can listen to the available sounds and view the pictures.

You can download pictures and sounds from

¢ page 86). If there is not enough

a PC ( memory available, you must first delete one or more pictures or sounds.

BMP, JPG, GIF 128 x 86 pixels 128 x 160 pixels

Playing back sounds/viewing caller pictures

v ¢ É ¢ Resource Directory

¢ Screensavers / Caller Pictures /

Sounds (select entry)

Pictures:

§View§ Press the display key. The

selected picture is displayed. Switch between pictures using the q key.

If you have saved a picture in an invalid file format, you will see an error message after selecting the entry.

Sounds:

The selected sound is played back immediately. Switch between the sounds using the q key.

You can set the volume during playback.

§Options§ Open menu.

Volu me Select and press §OK§.

r Set volume.

§Save§ Press the display key.

Deleting/renaming a picture/ sound

You have selected an entry.

§Options§ Open menu.

If a picture/sound cannot be deleted (¯), these options are not available. You can select the following functions:

Delete Entry

The selected entry is deleted.

Rename

Change the name (max. 16 characters) and press the new name.

§Save§. The entry is stored with

Checking the memory

You can check how much memory is available for screensavers and caller pictures.

¢ É ¢Resource Directory

¢ Capacity

Handset settings

•

Area Codes

International Code: 00 - 44 Local Area Code: 0 - [ ]

Save

•

Activating/deactivating

advisory tones

Your handset uses advisory tones to tell you about different activities and statuses. The following advisory tones can be activated/ deactivated independently of each other:

u Key tone: every key press is confirmed. u Acknowledge tones:

– Confirmation tone (ascending tone

sequence): at the end of an entry/setting and when an SMS or a new entry arrives in the answering machine list or call list

– Error tone (descending tone

sequence): when you make an incorrect entry

– Menu end tone: when scrolling to the

end of a menu

u Battery low beep: the battery needs

charging.

In idle status:

¢ Advisory Tones

¢ Audio Settings

¤ You can enter data in the following fields:

Key Tones:

Select On or Off.

Confirmation:

Select On or Off.

Battery:

Select On or Off.

§Save§ Press the display key.

Setting your own area

code

¤ You can enter data in the following fields:

q Select/change input field. r Navigate in the input field.

Ñ If necessary, delete number:

press the display key.

~ Enter number.

§Save§ Press the display key.

Example:

Restoring the handset

default settings

You can reset individual settings and changes that you have made.

The following settings are not affected by a reset:

u Registration to the base u Date and time u Entries in the calendar u Entries in the directory, the call lists, the

SMS lists and the content of the resource directory

§Yes§ Press the display key.

¢ System ¢ Handset Reset

To transfer phone numbers (e.g., in vCards), it is essential that your area code (international and local area code) is saved on the phone.

Some of these numbers are already preset.

Check that the (pre)set area code is correct.

¢ Te le ph on y ¢ Area Codes

Setting the base

•

Setting the base

The base settings are carried out using a registered Gigaset S810H handset.

Changing the base Gigaset S810A ringtones

u Volume:

You can choose between five volumes (0–6; e.g., volume 3 = Š) and the "crescendo" ringtone (6; volume increases with each ring = ‡).

u Ringtones:

You can select a ringtone from a list of pre-loaded melodies.

In idle status:

¢ Ringtones (Base)

¤ You can enter data in the following fields:

r Set volume. s Scroll to the next line. r Set melody.

§Save§ Press the display key to save the

¢ Audio Settings

setting.

Repeater support

With a repeater, you can increase the range and signal strength of your base. You will need to activate repeater mode. This will terminate any calls that are in progress at the time.

Prerequisite: A repeater is registered.

Press §Change§ to activate or deactivate repeater mode (³= on).

After activating or deactivating the repeater, switch your handset off and on again (

u Eco Mode / Eco Mode+ (¢ page 59)

u Encrypted transmission activated at

¢ System ¢ Repeater Mode

¢ page 25).

Please note

and repeater support cancel each other out, i.e., if you use a repeater, you cannot use Eco Mode or Eco Mode+.

the factory is deactivated when a repeater is registered.

Activating/deactivating

music on hold

v ¢Ï ¢ Audio Settings

¢ Music on Hold

Press §Change§ to activate or deactivate the music on hold (³ = on).

Setting the base

•

Protecting against

unauthorised access

Protect the system settings of the base with a PIN known only to yourself. The system PIN must be entered when, for example, registering/de-registering a handset to/from the base or when restoring the default settings.

Changing the system PIN

You can change the 4-digit system PIN set on the base (default setting: 0000) to a 4-digit PIN known only by you.

Gigaset S810A: Setting a system PIN facilitates remote operation of the answering machine (

v ¢Ï ¢ System ¢ System PIN ~ Enter the current system PIN

~ Enter your new system PIN and

Resetting the system PIN

If you have forgotten your system PIN, you can reset the base to the original code 0000:

Disconnect the power cable from the base. Hold down the registration/paging key on the base while reconnecting the power cable to the base. Hold down the key for at least 5 seconds.

The base has now been reset and the system PIN set to 0000.

¢ page 56).

and press

§OK§.

press

§OK§.

Resetting the base to the

factory settings

When the settings are restored:

u Date and time are retained u Handsets are still registered u Eco Mode is activated and Eco Mode+ is

deactivated,

u The system PIN is not reset.

v ¢Ï ¢ System ¢ Base Reset ~ Enter the system PIN and

§OK§.

press

§Yes§ Press the display key.

Please note

All handsets are de-registered and must be re-registered. All settings are reset to the factory settings.

Connecting the base to the PABX

•

Connecting the base to the PABX

The following settings are only necessary if your PABX requires them; see the PABX user guide.

You cannot send or receive SMS messages on PABXs that do not support Calling Line Identification.

Dialling modes and recall

The current setting is indicated by Ø.

Changing the dialling mode

The following dialling modes can be selected:

u Tone dialling (DTMF) u Pulse dialling (PD)

v ¢Ï ¢ Te le ph on y ¢ Dialling Mode s Select dialling mode and press

§Select§ (Ø = selected).

Setting recall

Your phone is preset at the factory for operation on the main connection. For operation on a PABX, you may have to change this value. Please refer to the user guide for your PA BX .

v s Select recall and press §Select§

¢ Te le ph on y ¢ Recall

(Ø = set value).

Possible values are:

80 ms, 100 ms, 120 ms, 180 ms,

250 ms, 300 ms, 400 ms, 600 ms,

800 ms.

Saving an access code

(outside line code)

Prerequisite: You may have to enter an

access code in front of the number for external calls in your PABX, e.g., "0".

v ~ Enter or change access code,

§Save§ Press the display key.

If an access code has been saved:

u The access code is prefixed automatically

u The access code must be entered when

u If you copy the recipient's number from

u An existing access code is deleted

¢ Tel e ph on y ¢Access Code

max. 3 digits.

when you dial a number from the following lists: SMS centre numbers, call lists or answering machine list.

dialling manually and when manually entering directory, emergency/quick dial numbers or SMS centre numbers.

the directory when sending an SMS, you have to delete the access code.

using Ñ.

Connecting the base to the PABX

Setting pauses

Changing the pause after line seizure

You can change the length of the pause that is inserted between pressing the talk key c and sending the number.

v Open the main menu. *#Q5#L

Press keys.

~ Enter number for the length of

the pause (1 = 1 sec.; 2 = 3 secs.;

3 = 7 secs.) and press

Change pause after recall key

You can change the length of the pause if your PABX requires this (refer to the user guide for your PABX).

v Open the main menu. *#Q5#2

Press keys.

~ Enter a number for the length of

the pause (1 = 800 ms;

2 = 1600 ms; 3 =3200ms)

and press

§OK§.

Switching temporarily to tone dialling (DTMF)

If your PABX still operates with pulse dialling (PD), but you need tone dialling for a connection (e.g., to listen to the network mailbox), you must switch to tone dialling for the call.

Prerequisite: You are conducting a call or have already dialled an external number.

* Press the star key. After the call ends, pulse dialling is automat-

ically activated again.

Changing a dialling pause (pause after access code)

Prerequisite: You have saved an access code

¢ page 78).

(

v Open the main menu. *#Q5#

Press keys.

~ Enter number for the length of

the pause (1 = 1 sec.; 2 = 2 secs.;

3 = 3 secs.; 4 =6secs.) and

§OK§.

press

To insert a dialling pause: press and hold S for 2 seconds. A P appears in the dis- play.

Customer Service & Assistance

You have questions? As a Gigaset customer, you can take advantage of our comprehensive service offerings. You can find help quickly in this User Manual and in the service pages of our Gigaset online portal.

Please register your phone right after purchase on www.gigaset.com/uk/service thus enabling us to provide you even with better service in case of questions or in case of a war-

ranty claim. Your personal user account enables you to directly contact our customer service by email.

In our constantly updated online service on www.gigaset.com/uk/service

u Extensive information about our products u FAQ compilations u Keyword search to help find topics quickly u Compatibility database: Find out which base stations and handsets can be combined. u Product comparison: Compare the features of several products with each other. u Downloads for user manuals and current software updates u E-mail contact form for customer service

Our service representatives are available on the telephone for more advanced questions or inperson consultation.

Here you can get competent advice on questions regarding installation, operation and configuration:

UK: 0845 367 0812

(local call cost charge) Please note that if the Gigaset product is not sold by authorised dealers in the national territory

the product may not be fully compatible with the national telephone network. It is clearly specified on the box near the CE mark as well as on the bottom of the base station for which country/ countries the equipment has been developed. If the equipment is used in a manner inconsistent with this advice or with the instructions of the manual and on the product itself, this may have implications on the conditions for warranty or guarantee claims (repair or exchange of product).

In order to make use of the warranty, the product purchaser is asked to submit a receipt which proves the date of purchase (date from which the warranty period starts) and the type of goods that have been purchased.

you can find:

Questions and answers

If you have any questions about the use of your phone, you can contact us 24/7 at www.gigaset.com/service The table below contains a list of common problems and possible solutions.

Registration or connection problems with a Bluetooth headset.

¥ Reset the Bluetooth headset (see the user

guide for your headset).

¥ Delete registration data from the handset

when deregistering the device (

¢page 68).

¥ Repeat the registration process (¢page 68).

The display is blank.

1. The handset is not switched on.

¥ Press and hold the end call key a.

2. The battery is empty.

¥ Charge the battery or replace it

¢page 14).

( Not all menu items are displayed. The menu display is restricted (standard mode).

¥ Activate extended menu display

(expert mode

No Base flashes on the display.

1. The handset is outside the range of the base.

) (¢page 28).

•

¥ Move the handset closer to the base.

2. The base's range is reduced because

Eco Mode is activated.

¥ Deactivate Eco Mode (¢ page 59) or

reduce the distance between the handset

and the base.

3. The base is not switched on.

¥ Check the base power adapter

¢page 12).

(

Please register handset flashes on the display.

Handset has not been registered with the base or has been deregistered.

¥ Register the handset (¢page 62).

Handset does not ring.

1. The ringtone is deactivated.

¥ Activate the ringtone (¢page 73).

2. Call divert set for "All Calls".

¥ Deactivate call divert (¢ page 36).

3. The phone only rings if the phone number has been transferred.

¥ Switch on the ringtone for unknown calls

¢page 73).

(

You cannot hear a ringtone/dialling tone from the fixed line network.

The phone cord supplied has not been used or has been replaced by a new cord with the wrong pin connections.

¥ Please always use the phone cord supplied or

ensure that the pin connections are correct when purchasing from a retailer

¢page 12).

(

The connection always terminates after approx. 30 seconds.

Repeater activated/deactivated (

¢page 76).

¥ Activate/deactivate the handset

¢page 25).

(

Error tone sounds after system PIN prompt.

You have entered the wrong system PIN.

¥ Reset the system PIN to 0000 (¢page 77).

Forgotten the system PIN.

¥ Reset the system PIN to 0000 (¢page 77).

The other party cannot hear you. You have pressed the mute button h. The

handset is "muted".

¥ Reactivate the microphone (¢ page 34).

The number of the caller is not displayed despite CLIP.

Calling Line Identification is not enabled.

¥ The caller should ask the network provider to

enable Calling Line Identification (CLI).

You hear an error tone when keying an input (a descending tone sequence).

Action has failed/invalid input.

¥ Repeat the operation.

Watch the display and refer to the user guide if necessary.

You cannot listen to messages on the network mailbox.

Your PABX is set for pulse dialling.

¥ Set your PABX to tone dialling.

Gigaset S810A only:

No time is specified for a message in the call list.

Date and time have not been set.

¥ Set the date and time (¢ page 18).

The answering machine announces "PIN is incorrect" during remote operation.

1. You have entered the wrong system PIN.

¥ Enter the system PIN again.

2. The system PIN is still set to 0000.

¥ Set the system PIN to something other

than 0000 (

The answering machine is not recording any messages/has switched over to answer only.

Its memory is full.

¢page 77).

¥ Delete old messages. ¥ Play back new messages and delete.

Exclusion of liability

Some displays may contain pixels (picture elements), which remain activated or deactivated. As a pixel is made up of three sub-pixels (red, green, blue), it is possible that pixel colours may vary.

This is completely normal and does not indicate an error.

Authorisation

This device is intended for analogue phone lines in the UK.

Country-specific requirements have been taken into consideration.

We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC.

A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address: www.gigaset.com/docs

Guarantee Certificate United Kingdom

Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the customer shall be granted a manufacturer's Guarantee under the conditions set out below:

u In the case of new devices and their com-

ponents exhibiting defects resulting from manufacturing and/or material faults within 24 months of purchase, Gigaset Communications shall, at its own option and free of charge, either replace the device with another device reflecting the current state of the art, or repair the said device. In respect of parts subject to wear and tear (including but not limited to, batteries, keypads, casing), this warranty shall be valid for six months from the date of purchase.

u This Guarantee shall be invalid if the

device defect is attributable to improper treatment and/or failure to comply with information contained in the user guides.

u This Guarantee shall not apply to or

extend to services performed by the authorised dealer or the customer themselves (e. g. installation, configuration, software downloads). User guides and any software supplied on a separate data medium shall be excluded from the Guarantee.

u The purchase receipt, together with the

date of purchase, shall be required as evidence for invoking the Guarantee. Claims under the Guarantee must be submitted within two months of the Guarantee default becoming evident.

u Ownership of devices or components

replaced by and returned to Gigaset Communications shall vest in Gigaset Communications.

Protecting our environment

u This Guarantee shall apply to new devices

purchased in the European Union. For Products sold in the United Kingdom the Guarantee is issued by: Gigaset Communications UK Limited, Faraday House, Quatro House, Lyon Way, Camberley, Surrey, GU16 7ER.

u Any other claims resulting out of or in

connection with the device shall be excluded from this Guarantee. Nothing in this Guarantee shall attempt to limit or exclude a Customers Statutory Rights, nor the manufacturer's liability for death or personal injury resulting from its negligence.

u The duration of the Guarantee shall not

be extended by services rendered under the terms of the Guarantee.

u Insofar as no Guarantee default exists,

Gigaset Communications reserves the right to charge the customer for replacement or repair.

u The above provisions does not imply a

change in the burden of proof to the detriment of the customer.

To invoke this Guarantee, please contact the Gigaset Communications telephone service. The relevant number is to be found in the accompanying user guide.

Protecting our environment

Our environmental mission statement

We, Gigaset Communications GmbH, bear social responsibility and are actively committed to a better world. Our ideas, technologies and actions serve people, society and the environment. The aim of our global activity is to secure sustainable life resources for humanity. We are committed to a responsibility for our products that comprises their entire life cycle. The environmental impact of products, including their manufacture, procurement, distribution, use, service and disposal, are already evaluated during product and process design.

Further information on environmentally friendly products and processes is available on the Internet at www.gigaset.com

Environmental management system

Gigaset Communications GmbH is certified pursuant to the international standards EN 14001 and ISO 9001.

ISO 14001 (Environment): certified since September 2007 by TüV SÜD Management Service GmbH.

ISO 9001 (Quality): certified since 17/02/ 1994 by TüV SÜD Management Service GmbH.

Ecological energy consumption

The use of ECO DECT (¢ page 59) saves energy and makes an active contribution towards protecting the environment.

Appendix

Disposal

Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

IThis crossed-out wheeled bin symbol on the product means the product is covered by the European Directive 2002/96/EC.

The correct disposal and separate collection of your old appliance will help prevent potential negative consequences for the environment and human health. It is a precondition for reuse and recycling of used electrical and electronic equipment.

For more detailed information about disposal of your old appliance, please contact your local council refuse centre or the original supplier of the product.

Appendix

Contact with liquid

If the device comes into contact with liquid:

1. Unplug the power supply and/or re-

move the battery from the handset immediately.

2. Allow the liquid to drain from the device.

3. Pat all parts dry. Place the device (handset with the battery compartment open and the keypad facing down) in a dry, warm place for at least 72 hours (not in a microwave, oven etc.).

4. Do not switch on the device again until it is completely dry.

When it has fully dried out, you will normally be able to use it again.

Specifications

Batteries

Tec hn ol og y :

Nickel-metal-hydride (NiMH)

Size: AAA (Micro, HR03) Voltage: 1.2 V

Capacity: 550 - 1000 mAh The device is supplied with two approved

batteries.

Caring for your telephone

Wipe the device with a damp cloth or an antistatic cloth. Do not use solvent or a

microfibre cloth. Impairments in the high-gloss finish can be

carefully removed using display polishes for mobile phones.

Never use a dry cloth as this can cause static.

Handset operating times/charging times

This Gigaset can charge batteries up to a capacity of 1000 mAh. The use of special high-performance batteries or batteries wi th hi gh cap ac it ie s is no t r eco mm en ded fo r cordless phones.

Appendix

1unused 2unused 3a 4b 5unused 6unused

3 2 1

4 5 6

The operating time of your Gigaset depends on the capacity and age of the batteries and the way they are used. (All times are maximum possible times).

Capacity (mAh) approx.

550 700 800 1000

Standby time (hours)*

Talktime (hours) 11121417

Operating time for

1.5 hrs of calls per day (hours)**

Charging time in base (hours)

Charging time in charger (hours)

* without/with display backlight ** without display backlight (Setting the display Backlight

140/ 50165/ 58185/ 67230/

85 95 110 135

7,5 8,5 10 12

6,5 7,5 8,5 10,5

¢page 71)

Due to the constant progression in battery development, the list of recommended batteries in the FAQ section of the Gigaset Customer Care pages is regularly updated:

www.gigaset.com/service

Base power consumption

In standby mode: Gigaset S810: approx. 1.1 watt Gigaset S810A: approx. 1.2 watt

During the conversation: Gigaset S810: approx. 1.0 watt Gigaset S810A: approx. 1.1 watt

General specifications

DECT

DECT standard Is supported

GAP standard Is supported

No. of channels 60 duplex channels

Radio frequency range 1880–1900 MHz

Duplex method Time multiplex,

Pulse repetition rate 100 Hz

Pulse transmission length

Channel grid 1728 kHz

Bit rate 1152 kbit/s

Modulation GFSK

Language code 32 kbit/s

Transmission power 10 mW average power

Range Up to 300 m outdoors,

Base power supply 230 V ~/50 Hz

Environmental conditions in operation

Dialling mode DTMF (tone dialling)/

10 ms frame length

370 μs

per channel, 250 mW pulse power

up to 50 m indoors

+5°C to +45°C, 20% to 75% relative humidity

PD (pulse dialling)

Bluetooth

Radio frequency range 2402–2480 MHz

Transmission power 4 mW pulse power

Pin connections on the telephone jack

Additional functions via the PC interface

Writing and editing text

The following rules apply when writing text:

u Each key between Q and O is

assigned several letters and characters.

u Control the cursor with uvts.

Press and hold u or v to move the cur- sor word by word.

u Characters are inserted at the cursor posi-

tion.

u Press the star key

table of special characters. Select the required character and press the display

§Insert§ to insert the character at the

key cursor position.

u Press and hold Q to O to enter dig-

its.

u Press display key Ñ to delete the char-

acter to the left of the cursor. Press and hold to delete the word to the left of the

cursor.

u The first letter of the name of directory

entries is automatically capitalised, followed by lower case letters.

to display the

Setting upper/lower case or digits

Repeatedly press the hash key # to change the text input mode.

123 Writing digits Abc Upper case * abc Lower case

* First letter in capitals, all others in lower case

The active mode is indicated at the bottom right of the screen.

Writing an SMS/names

¤ Enter the individual letters/characters by

pressing the corresponding key.

The characters assigned to the key are shown in a selection line at the bottom left of the screen. The selected character is highlighted.

¤ Briefly press the key several times in suc-

cession to select the required letter/character.

Standard characters

1x 2x 3x 4x 5x 6x 7x 8x 9x 10x



abc2дбавгз

def3ëéèê

gh i4ïíìî

jkl5

mno6цсутфх

pqr s 7ß

tuv8üúùû

wx y z9 яэжше

1) Space

2) Line break

.,?! 0

Additional functions via the PC interface

To enable your handset to communicate with the PC, the "Gigaset QuickSync" program must be installed on your PC (free to download at www.gigaset.com/gigasets810

After installing "Gigaset QuickSync", c o nnect the handset to your computer using Bluetooth ( cable (

¢ page 67) or via a USB data

¢ page 20).

Please note

Please connect your handset directly to the PC; do not connect via a USB hub.

If you want to use the Bluetooth connection, your computer must be equipped with a suitable dongle.

Please note

u If the USB data cable is plugged in, a

Bluetooth connection cannot be established.

u If a USB data cable is plugged in dur-

ing an existing Bluetooth connection, the Bluetooth connection is cancelled.

Additional functions via the PC interface

Transferring data

Start the "Gigaset QuickSync" program. You can now:

u Synchronise your handset directory with

Outlook

u Download caller pictures (.bmp) from the

computer to the handset,

u Download pictures (.bmp) as a screen-

saver from the computer to the handset.

u Download sounds (ringtones) from the

computer to the handset.

During the transfer of data between handset and PC, you will see Data transfer in progress on the display. During this time the keypad is disabled, and incoming calls will be ignored.

Completing a firmware update

¤ Connect you phone to your PC using a

USB data cable (

¢ page 20).

¤ Start the "Gigaset QuickSync" program

on your PC.

¤ Establish a connection to your handset. ¤ Select [Settings] ¢[Device properties]

to open the [Device] tab.

¤ Click on [Firmware update].

This launches the firmware update. The update process can take up to 10 min-

utes (not including the download time). Do

not interrupt the process or remove the USB data cable.

The data is initially loaded from the update server on the Internet. The amount of time this takes is dependent on the speed of your Internet connection.

The display on your phone is switched off and the message key f and the talk key c start flashing.

Once the update is complete, your phone will automatically restart.

Procedure in case of an error

If the update procedure fails or your phone does not work properly following the

update, repeat the update procedure as follows:

¤ Close the "Gigaset QuickSync" program

on the PC.

¤ Remove the USB data cable from the tel-

ephone.

¤ Remove the battery (¢ page 14). ¤ Replace the battery. ¤ Complete the firmware update as

described.

If the update procedure fails several times or you can no longer connect to the PC, proceed as follows (emergency update):

¤ Close the "Gigaset QuickSync" program

on the PC.

¤ Remove the USB data cable from the tel-

ephone.

¤ Remove the battery (¢ page 14). ¤ Press and hold keys 4 and L with

the index and middle finger.

¤ Replace the battery. ¤ Release keys 4 and L. The message

key f and the talk key c will flash alternately.

¤ Complete the firmware update as

described.

Please note

Personal pictures and sounds that you have loaded to your handset should always be saved on your PC as they will be deleted during an emergency

update.

Accessories

Gigaset handsets

Upgrade your Gigaset to a cordless PABX:

Gigaset S810H handset

u Brilliant sound quality in handsfree mode u High-quality genuine metal keypad with illumination u Plus/minus key for simple volume control u 1.8´´ TFT colour display u Bluetooth® and mini USB u Directory for up to 500 vCards u Talk/standby time of up to 13h/180h, standard batteries u Large font for call lists and directory u Brilliant sound quality in handsfree mode:

4 handsfree settings

u Caller pictures, screensaver (analogue and digital clock) u Download ringtones u ECO DECT u Alarm clock u Calendar with appointment scheduler u Night mode with time-controlled ringtone deactivation u No interruptions from unknown calls u Room monitor (Babyphone), One Touch Call mode u SMS with up to 640 characters

www.gigaset.com/gigasets810h

Gigaset C610H handset

u Social life management with room monitor and birthday

reminders

u Individual programming of ringtones with 6 VIP-groups u High-quality keypad with illumination u 1.8´´ TFT colour display u Directory for up to 150 vCards u Talk/standby time of up to 12h/180h, standard batteries u Large font for call lists and directory u Brilliant sound quality in handsfree mode u Screensaver (digital clock) u ECO DECT u Alarm clock u Night mode with time-controlled ringtone deactivation u No interruptions from unknown calls u Room monitor (Babyphone), One Touch Call mode u SMS with up to 640 characters

www.gigaset.com/gigasetc610h

Gigaset SL400 handset

u Genuine metal frame and keypad u High-quality keypad illumination u 1.8´´ TFT colour display u Bluetooth® and mini USB u Directory for up to 500 vCards u Talk/standby time of up to 14h/230h u Large font for call lists and directory u Brilliant sound quality in handsfree mode:

4 handsfree settings

u Caller pictures, slide show and screensaver

(analogue and digital clock)

u Silent alert, download ringtones u ECO DECT u Alarm clock u Calendar with appointment scheduler u Night mode with time-controlled ringtone deactivation u No interruptions from unknown calls u Room monitor (Babyphone), One Touch Call mode u SMS with up to 640 characters

www.gigaset.com/gigasetsl400

Gigaset SL78H handset

u Real metal frame u Modern keypad with high-quality illumination u 2.2´´ TFT QVGA colour display u Bluetooth® and mini USB u Directory for up to 500 vCards u Talk/standby time of up to 14h/200h u Brilliant sound quality in handsfree mode u Caller pictures, slide show and screensaver

(analogue and digital clock)

u Download ringtones u ECO DECT u Alarm clock u Calendar with appointment scheduler u Night mode with time-controlled ringtone deactivation u Room monitor (Babyphone) u SMS with up to 640 characters

www.gigaset.com/gigasetsl78h

Accessories

Gigaset E49H handset

u Resistant to shocks, dust and water splashes u Hardy illuminated keypad u Colour display u Directory for up to 150 entries u Talk/standby time of up to 12h/250h

Standard batteries

u Brilliant sound quality in handsfree mode u Screensaver u ECO DECT u Alarm clock u Room monitor (Babyphone) u SMS with up to 640 characters

www.gigaset.com/gigasete49h

L410 handsfree clip for cordless phones

u Move during a call without any restrictions u Handy clip belt u Brilliant sound quality in handsfree mode u Simple to transfer calls from the handset u Weight approx. 30 g u ECO-DECT u Five different volume levels u Status indication via LED u Talk/standby time of up to 5 h/120 h u Range of up to 50 m indoors and up to 300 m outdoors

www.gigaset.com/gigasetl410

Gigaset repeater

The Gigaset repeater can be used to increase the reception range between your Gigaset handset and the base.

www.gigaset.com/gigasetrepeater

Compatibility

For more information on handset functions in relation to Gigaset bases, please visit: www.gigaset.com/compatibility

All accessories and batteries are available from your phone retailer.

Use only original accessories. This will avoid possible health risks and personal injury, and also ensure that all the relevant regulations are complied with.

Mounting the base on the wall (Gigaset S810 only)

Approx.

5.5 mm

41 mm

Approx. 4 mm

21 mm

Mounting the base on the wall (Gigaset S810 only)

Mounting the charger on the wall

Index

Access code . . . . . . . . . . . . . . . . . . . . . . . . . . 78

for a PABX Access protection Accessories Acknowledge tones Activating

advisory tones

answering machine

appointment

handset

keypad lock

listening in

muting ringtone

room monitor

two-way record Advisory tones Alarm clock Alert tone Anniversary

deactivating

missed

saving in the directory Announcement (answering machine) Anonymous calling Answer only mode (answering

machine)

Answering machine

activating/deactivating

deleting messages

list

playing back messages

recording a personal

remote operation

scrolling back

scrolling forward

skip-back function Answering machine, see also

Network mailbox

. . . . . . . . . . . . . . . . . . . . . . . . . . 78

. . . . . . . . . . . . . . . . . . . . . 77

. . . . . . . . . . . . . . . . . . . . . . . . . . . 88

. . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . 52

(remote operation)

. . . . . . . . . . . . . . 57

. . . . . . . . . . . . . . . . . . . . . . . 60

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . 66

. . . . . . . . . . . . . . . . . . . . . 55

. . . . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . . . . . . 62

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

. . . . . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . 43, 61

. . . . . . . . . . . . . . . 40

. . . 53

. . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . . 52

. . . . . . . . . . . . . . . . . . . 52

. . . . . . . . . . . . . . 52

. . . . . . . . . . . . . . . . . . 54

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41, 42

. . . . . . . . . . . . . . 53

announcement/advisory message

. . . . . . . . . . . . . . . . . . . . . . . 52

. . . . . . . . . . . . . . . . . . . 56

. . . . . . . . . . . . . . . . . . . . . . . 54

. . . . . . . . . . . . . . . . . . . . 54

. . . . . . . . . . . . . . . 54, 56

Appointment Appointment/anniversary

display missed

Appointments

activating/deactivating deleting managing

Area code

setting own area code Assigning a number key Authorisation Auto answer Automatic

network provider preselection

redial

ring delay

. . . . . . . . . . . . . . . . . . . . . . . . . 60

. . . . . . . . . . . . . . . . . . . . . . 61

. . . . . . . . . . . . . . 61

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

. . . . . . . . . . . . . . . . . . . . . . . . . . 61

. . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . 69

. . . . . . . . . . . . . . . . . . . . . . . . . 82

. . . . . . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . 44

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . 32, 71

Babyphone . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Backlight

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

keypad Base

changing

connecting

connecting to PABX

restoring to factory settings

setting ringtone

setting up

settings

system PIN Battery

charging

display

icon

inserting

tone Best base Birthday, see Anniversary Bluetooth

accepting a call

activate

changing device name

deregistering devices

list of known devices

registering devices

transferring directory (vCard)

. . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . 78

. . . . . . . . . . 77

. . . . . . . . . . . . . . . . . . . . 76

. . . . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

. . . . . . . . . . . . . . . . . . . . . . . . . 77

. . . . . . . . . . . . . . . . . . . . . . . 3, 4, 16

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . 14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

. . . . . . . . . . . 68, 69

. . . . . . . . . . . . . . . . 68

. . . . . . . . . . . . . . . . . . 68

. . . . . . . . 39

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Call

accepting accepting (Bluetooth) connect participant ending external internal make anonymous call picking up from answering

transferring (connecting)

two-way record Call divert Call duration Call lists Call screening during recording Call swap Call waiting

accepting/rejecting

activating/deactivating

external call

internal call Call-by-call Caller Picture Calling

anonymously

external

internal Calling line display, notes Calling Line Identification

cancel once Cancelling

preselection CD, see Call divert Changing

destination number

device name (Bluetooth)

dialling mode

display language

earpiece volume

internal number of a handset

name of a handset

. . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . 35

machine

. . . . . . . . . . . . . . . . . . . . . . . 54

. . . . . . . . . 64, 65

. . . . . . . . . . . . . . . . . . . . . 55

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . 55

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . . . . . . . . . . . 44

. . . . . . . . . . . . . . . . . . . . . . 37, 74

. . . . . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . 33

. . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . 44

(room monitor)

. . . . . . . . . . . . . . . . . 67

. . . . . . . . . . 68, 69

. . . . . . . . . . . . . . . . . . . . . . . 78

. . . . . . . . . . . . . . . . . 17, 70

. . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . 65

. . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

pauses ringtone speaker volume

system PIN Character set Charge status display CLI, CLIP CLIR Colour scheme Conference

internal Confirmation tone Connecting

base to PABX

headset Consultation call

internal Control key Correcting incorrect entries Customer Care Customer Service & Assistance

. . . . . . . . . . . . . . . . . . . . . . . . 73, 76

. . . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . . . . . . . . . . . . . . . . . . 77

. . . . . . . . . . . . . . . . . . .46, 47, 86

. . . . . . . . . . . . . . . . . 3, 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

. . . . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . . 78

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

. . . . . . . . . . . . . . . . . . . . . . 36

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . . . . . . . . . 3, 22

. . . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . . . 80

. . . . . . . . . 80

Deactivating

advisory tones answering machine appointment handset keypad lock listening in muting ringtone room monitor

two-way record Delete key Deleting

announcement for answering

machine characters message

De-registering (handset) Deregistering devices (Bluetooth) Destination number (room monitor) Dialling

using quick dial using the directory

. . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . 52

. . . . . . . . . . . . . . . . . . . . . . . 60

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . 67

. . . . . . . . . . . . . . . . . . . . . 55

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . . 53

. . . . . . . . . . . . . . . . . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . . . . . . 54

. . . . . . . . . . . . . . . 63

. . . . . . 68

. . . . . . . . . . . . . . . . . . 39, 69

. . . . . . . . . . . . . . . . . . 38

Index

. . . . 66

Index

Dialling mode. . . . . . . . . . . . . . . . . . . . . . . . . 78

Dialling pause Directory

copying number from text managing entries opening order of entries saving anniversary saving entry saving sender’s (SMS) number sending entry/list to handset transferring a vCard (Bluetooth) using to enter numbers

Display

backlight changing display language colour scheme directory memory in idle status memory (resource directory) missed anniversaries missed appointments/

network mailbox message number (CLI/CLIP) screensaver setting slide show

Display keys

assigning Disposal Draft message list (SMS)

. . . . . . . . . . . . . . . . . . . . . . . . 79

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

. . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

. . . . . . . . . . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . 37

. . . . . . . . 47

. . . . . . . . . 39

. . . . . . 39

. . . . . . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . 17, 70

. . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . . . 39

. . . . . . . . . . . . . . . . . . . . . 19, 24

. . . . . . . . . 74

. . . . . . . . . . . . . . . . 43

anniversaries

. . . . . . . . . . . . . . . . . . . 61

. . . . . . . . . . . 58

. . . . . . . . . . . . . . . . . . . 32

. . . . . . . . . . . . . . . . . . . . . . . . . 70

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

. . . . . . . . . . . . . . . . . . . . . . . . . . 70

. . . . . . . . . . . . . . . . . . . . . . . . 3, 23

. . . . . . . . . . . . . . . . . . . . . . . . . . . 69

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

. . . . . . . . . . . . . . . 46

Earpiece volume . . . . . . . . . . . . . . . . . . . . . . 72

ECO DECT Eco mode Eco mode+ E-mail address

copying from the directory End call key Ending, call Entry

saving, changing (preselection)

selecting from directory Environment Error tone Expert mode

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

. . . . . . . . . . . . . . . . . . . . . . . . . . . 59

. . . . . . . . . . 40

. . . . . . . . . . . . . . . . . . . . . . . . . 3, 31

. . . . . . . . . . . . . . . . . . . . . . . . . . . 31

. . . . . . 44

. . . . . . . . . . . . . 38

. . . . . . . . . . . . . . . . . . . . . . . . . . 83

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . . 28, 81

External call

call waiting . . . . . . . . . . . . . . . . . . . . . . . . . 35

forwarding to ans. mach.

. . . . . . . . . . . . 55

Fast access

answering machine

network mailbox Firmware update Flashing of the message key

disable/enable

. . . . . . . . . . . . . . . . . 56

. . . . . . . . . . . . . . . . . . . . 58

. . . . . . . . . . . . . . . . . . . . . . 87

. . . . . . . . . . . . . . . . . . . . 43

General troubleshooting. . . . . . . . . . . . . . . 81

Group call Guarantee Certificate

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . 82

Handset

activating/deactivating

advisory tones

changing internal number

changing name

changing the number

changing to a different base

changing to best reception

colour scheme

contact with liquid

de-registering

display backlight

display language

earpiece volume

idle status

keypad backlight

large font

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

list

locating

muting

paging

registering

registering to a different base

restoring to factory settings

screensaver

set up for use

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

setting

speaker volume

transferring a call

using multiple

using room monitor

. . . . . . . . . . . . . . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . . . 62, 63

. . . . . . . . . . . . . . . . . . . . . . . . . . 24

. . . . . . . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . 62

. . . . . . . . . . . . . . . . . . . . . . . . . 70

. . . . . . . . . . . . . . . . . . . . . . . 14

. . . . . . . . . . . . . . . . . . . . . . 62

. . . . . . . . . . . . . . 25

. . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . 65

. . . . . . . . . 63

. . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . 84

. . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . 17, 70

. . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . . . . . . . . . . . . 71

. . . . . . . . 63

. . . . . . . . . . 75

. . . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . 66

Index

Handset mode . . . . . . . . . . . . . . . . . . . . . . . . 34

Handset operating time

in room monitor mode

Handsfree

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

key

set profile Handsfree mode Handsfree profile Hash key Headset (Bluetooth) Headset socket Hearing aids Help

. . . . . . . . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . . . . . . . . . . . . . . . 34

. . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 25

. . . . . . . . . . . . . . . . . . . . . . . . 20

. . . . . . . . . . . . . . . . . . . . . . . . . . 10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

. . . . . . . . . . . . . . 66

. . . . . . . . . . . . . . . . . . . . . . 72

. . . . . . . . . . . . . . . . . . . 67

Icon

alarm clock

answering machine

for new messages

keypad lock

new message

new SMS

ringtone Idle status (display) Idle status, returning to Incoming message list (SMS) Incorrect entries (correction) Installing, base Internal

conference

consulting

listening in

making calls Internal call

call waiting

. . . . . . . . . . . . . . . . . . . . . . . . . 62

. . . . . . . . . . . . . . 52, 55

. . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . 53

. . . . . . . . . . . . . . . . . . . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

. . . . . . . . . . . . . . . . . 19, 24

. . . . . . . . . . . . . . . . 24

. . . . . . . . . . . 46

. . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . . . 12

. . . . . . . . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . . . . . . . . . . 64

. . . . . . . . . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . . . 63

. . . . . . . . . . . . . . . . . . . . . . . . . 64

Key

assigning to a function or

number Key 1 (fast access) Keypad backlight Keypad lock Keys

control key delete key display keys end call key fast access handsfree key

. . . . . . . . . . . . . . . . . . . . . . . . 69

. . . . . . . . . . . . . . . . . . . 3, 56

. . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . . . . . . . . . . . . . 25

. . . . . . . . . . . . . . . . . . . . . . . 3, 22

. . . . . . . . . . . . . . . . . . . . . . . . . . 23

. . . . . . . . . . . . . . . . . . . . . . 3, 23

. . . . . . . . . . . . . . . . . . . . . . . 3, 31

. . . . . . . . . . . . . . . . . . . . . . . . 3, 56

. . . . . . . . . . . . . . . . . . . . . . . . .3

hash key message key mute key on/off key quick dial recall key side keys star key talk key

. . . . . . . . . . . . . . . . . . . . . . . . . 3, 25

. . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . . 39

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

. . . . . . . . . . . . . . . . . . . . . . . . . . 3, 31

Language, display. . . . . . . . . . . . . . . . . . 17, 70

Large font Linking, see SMS List

answering machine call lists handsets known devices (Bluetooth) missed calls network mailbox SMS draft message list SMS incoming message list

SMS list Listening in to a call Locating, handset Lock

activating/deactivating keypad lock

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

. . . . . . . . . . . . . . 41, 42

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . . . . . . . . 22

. . . . . . . . . . 68

. . . . . . . . . . . . . . . . . . . . . . . . 41

. . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . 46

. . . . . . . . . . 46

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

. . . . . . . . . . . . . . . . . . . 65

. . . . . . . . . . . . . . . . . . . . . 63

. . 25

Mailbox ID, see SMS Mailboxes, see SMS Making calls

accepting a call

cost-effective calls

external

internal Manual redial Medical equipment Memory

Siemens GIGASET S810A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Accessories

The handset at a glance

Display symbols

The base at a glance

Contents

Safety precautions

First steps

Checking the package contents

Setting up the base and charger (if included)

Connecting the base

Connecting the charger (if included)

Setting up the handset for use

Changing the display language

Setting the date and time

Connecting the headset

Connecting the USB data cable

What would you like to do next?

Using the phone

Control key

Display keys

Keys on the keypad

Side keys

Correcting incorrect entries

Using the menus

Activating/deactivating the handset

Activating/deactivating the keypad lock

Using this guide

Menu overview

Making calls

Making an external call

One Touch Call

Ending a call

Accepting a call

Calling Line Identification

Notes on calling line display (CLIP)

Handsfree mode

Switching to mute

Making calls using network services

Calling Line Identification

Ringback

Call waiting during an external call

Call divert (CD)

Consultation call, call swap

Using the directory and lists

Directory

Redial list

Incoming SMS message list

Answering machine list (Gigaset S810A only)

Call lists

Message key function

List of missed alarms

Making cost-effective calls

Automatic network provider code (preselection)

SMS (text messages)

Writing/sending an SMS

Receiving an SMS

SMS with vCard

Notification via SMS

SMS mailboxes

Setting SMS centres

SMS on a PABX

Activating/deactivating SMS function

SMS troubleshooting

Operating the Gigaset S810A base answering machine

Operating via the handset

Resetting fast access for the answering machine using key 1

Operating when on the move (remote operation)

Using the network mailbox

Configuring fast access for the network mailbox

Viewing the network mailbox message

ECO DECT

Setting an appointment (calendar)

Displaying missed appointments, anniversaries

Setting the alarm clock

Using multiple handsets

Registering handsets
