Human Machine Interfaces Product Line-up Guide
Harmony Panels and Industrial PCs
schneider-electric.com/HMI
EcoStruxure for Harmony HMI
EcoStruxure is Schneider Electric's innovative IoT-enabled, plug-and-play, open, interoperable architecture and platform addressing the needs of automation
applications for a wide range of industries. The EcoStruxure platform is the functional technology backbone, which enables embedded connectivity and intelligence
using standard-based communication protocols. This has three levels or layers, namely: Connected Products, Edge Control, and Apps, Analytics & Services, that
can be hosted in the cloud as well as on premise.
EcoStruxureTM Architecture
Apps,
Analytics &
Services
Edge
Control
EcoStruxure Industrial Software
Asset Performance
Control and Information
Harmony iPC and
Edge Box
EcoStruxure M achin e
Advisor
PacDrive Harmony Advanced HMI
The Harmony Industrial PCs and Edge Box oer meets IIoT challenges at the Edge Control level by enabling secure communication from connected products on
the shop oor to the required software and applications on the top oor. All Basic and Advanced Harmony HMI panels meets IIoT challenges at the Edge Control and
Connected Products level, by enabling secure communication to the required Software. This provides improved protability and new business opportunities,
through enhanced asset performance for more ecient operation and maintenance of capital assets.
EcoStruxure
Augmented Operator Advisor
Modicon
EcoStruxure
Machine Expert
EcoStruxure
Mobile Operator Advisor
EcoStruxure Operator
Terminal Expert
EcoStruxure
Secure Connect Advisor
EcoStruxure
Machine SCADA Expert
Cloud and/or On Premise
End-to-end Cybersecurity
Connected
Products
Harmo ny Basic H MI
Harmony
Harmony Families
Basic HMI panels for simple machines Basic HMI controller
Harmony ST6/STW6 /STM6
Harmony STO7
Harmony GTO
Advanced HMI panels for performance machines
Harmony GTU Harmony HMIGK
Harmony GTUX
Industrial PCs for line management
Harmony STU
Magelis XBTGH
Harmony SCU
Sensors
& RFID
Harmony
eXLhoist
Altistart &
TeS ys
AltivarPreventa Lexium
HMI software
EcoStruxure Operator
Terminal Expert
EcoStruxure Machine
SCADA Expert
Vijeo Designer
Recommended applications by HMI key products
Harmony
ST6/STW6
/STM6
Harmony
STO7
Harmony
GTU
Harmony
GTUX
Harmony
iPC and
Edge Box
Marine
*
Control
Panel
Builders
HVAC&R Pumping Packaging
Food &
Beverages
Oil &
Gas
Material
Handling
Material
Working
WWW MMM
Harmony P6 Modular Box
and Display
Harmony Edge Box
Harmony Modular
Display
Harmony S-Panel PC
Harmony iDisplay
Highly recommended * STM6 only
32
General content
b Product Panorama
b Quick Product Selection Tables
- Basic HMI panels for simple machines .................................. page 6
- Advanced HMI panels for performance machines ................ page 7
- Harmony Industrial PCs for line management ....................... page 8
- HMI software and services ................................................... page 10
- Harmony USB accessories .................................................. page 12
- Basic HMI panels for simple machine .................................. page 14
- Advanced HMI panels for performance machines .............. page 14
- Harmony Industrial PCs for line management ..................... page 15
- HMI software comparison table ........................................... page 16
- Harmony USB compatible accessories table ...................... page 16
4
Product Panorama
5
Basic HMI panels for simple machines
Harmony ST6 — High-resolution and cost-efficient basic HMI
- Cost-eective with good quality
- Fits into Schneider EcoStruxure
Architecture
- Superior high-resolution screen with 16M colors
Harmony STM6: W4", W 7"
Harmony ST6/STW6: W4", W 7", W10", W12", W15"
Modular Harmony STM6
Harmony STO7 — Compact color HMI
Harmony STO7: W4.3"
- Powered by new-generation software “EcoStruxure Operator Terminal
Expert” for high-quality graphics and stylish design
- Tool-free mounting with newly-designed mounting fastener, no need for
screwdriver
- 2x Ethernet with Dual IP, end-to-end Cybersecurity
- Modular HMI version with push button 22 mm/0.866 in. mounting system
- Web HMI version with embedded browser (instead of HMI software) for
visualizing HTML5 servers on industrial devices
-
- TFT color screen with 480 x 272 pixels
- Removable logo stickers
- Larger screen with full-size ratio in the 4.3" class
- 3 versions for various communication types
Supporting Software
EcoStruxure Operator
Terminal Expert
Supporting Software
EcoStruxure Operator
Terminal Expert
HTML 5
Harmony GTO — Standard HMI
Harmony GTO: 3.5", 5.7", W7", 7", 10", 12"
Harmony STU — Cut-out free HMI
Harmony STU: 3.5", 5 .7"
Harmony SCU — Cut-out free HMI controller
Harmony SCU: 3.5", 5.7"
Supporting Software
- Excellent brightness with TFT 65K colors
- Stainless steel panel for food and beverage applications
- Standard front and IP65 degree of protection
- Extended Temperature - up to 55 °C/131 °F
- Easy to install and sustainable oer
- Full range of international certications
- No logo and full conformal coating versions available
Supporting Software
- Compact for space saving
- Innovative tool-free mounting via 22.5 mm/0.885 in. hole
- Ethernet port RJ45 10BASE-T/100BASE-TX
- Separately mounted via 3 m or 5 m cable with mounting adapter
- Modular design for easy maintenance
Supporting Software
- Optimum all-in-one combination for HMI and
Control
- Innovative tool-free mounting via 22.5 mm/0.885 in. hole
- Reduce machine assembly time and cost
- Space saving
- Embedded CANopen port for eld networking
- Modular design for easy maintenance
Vijeo
Designer
Vijeo
Designer
EcoStruxure
Machine Expert
6
Advanced HMI panels for performance machines
Harmony GTU — High performance modular HMI
- 8 sizes of high-resolution displays ranging from 7" to 19", either with
modern 16:9 or standard 4:3 ratio
- 3 boxes, two with Real Time OS and one with fully open Windows based
Harmony GTU: W7", 10", W10" , 12, W12", 15", W15", W19"
Box
+
Display Tool-free
mounting
=
Complete
HMI
- Up to 2 separate Ethernet ports, serial communication ports, and eld bus
options suiting IoT
- Industrial multi-touch and fully coated oer
- All memory removable for PC-free box replacements
- Wireless LAN enabled display
- Easy to install with integrated mounting fastener and antidrop lock
- Multi-display capability with Open box using DVI interface or multi-display
adapter
Harmony GTUX — eXtreme HMI
- A wide temperature range from -30...+70 °C /-22 ...+158 °F
- Sunlight Readable: High brightness LCD (1000 cd/m²),
anti-glare surface
- Robustness: UV Protection, conformal coated (fully coated)
- Dust and water proof (IP66F, IP67F and UL50E Type 4X (Outdoor use))
Harmony GTUX: W7", W12", W15"
- Environmental standard: Class 1, Div. 2, ATEX/IECEx Zone 2/22
- Variety of interfaces including dual Ethernet ports
- Modular design with stainless front face
Supporting Software
EcoStruxure Operator
Terminal Expert
EcoStruxure Machine
SCADA Expert
Supporting Software
Vijeo
Designer
Vijeo
Designer
Harmony HMIGK — Keyboard HMI
Harmony HMIGK : 5.7", 10.4"
Magelis XBTGH — Hand-held panel
Magelis XBTGH: 5.7"
Supporting Software
- Fine control inputs even in severe environment
- Touch screen and keypad keys congurable simultaneously
or separately
- Highly robust with operating temperatures up to 55 °C /131 °F, reducing
maintenance problems and time
Designer
Supporting Software
- Excellent mobility
- Emergency switch
- Dead-man switch (3 safety positions for operator protection)
- 11 function keys with insert labels
- Can be carried in one hand, left or right-handed
Designer
Vijeo
Vijeo
7
Harmony Industrial PCs and Edge Box
for line management
Harmony P6 Industrial PCs - Drive efficiency
and productivity at the Edge of EcoStruxure
Supporting Software
Harmony P6 Modular Box
Harmony P6 Modular Dispaly: 12", 15", W15.6", W18.5"
Node-RED
b HMIP6 Modular Box PCs
v Advanced Modular Box PC
- Intel Core i5 up to 4.1 GHz or Intel Core i7 up to 4.4 GHz or
Intel Celeron up to 2.0 GHz, UHD Graphics accelerator
- 8 to 32 GB or 4 to 16 GB DDR4 RAM, 1x M.2 SSD SATA and
2x 2.5-inch SATA (HDD/SSD) storage slots
- USB Type A (2x USB 2.0 and 2x USB 3.0), USB Type C (1x USB 3.0),
1x COM RS-232C, 2x RJ45 Ethernet, 1x Display port
- 2x interface slots and optional extension module for 2x PCI/PCIe slots
- Default TPM module for encryption
v Standard Modular Box PC
- Intel Core i3 up to 3.9 GHz, UHD Graphics accelerator
- 8 to 32 GB DDR4 RAM, 1x M.2 SSD SATA and 1x 2.5-inch SATA (HDD/
SSD) storage slots
- USB Type A (2x USB 2.0 and 2x USB 3.0), USB Type C (1x USB3.0),
1x COM RS-232C, 2x RJ45 Ethernet, 1x Display port
- 2x interfaces slots
- Default TPM module for encryption
b HMIP6 Modular Display
- 4:3 12"/15" XGA color LCD resistive analog multi-touch (2 points) screen
with 1x USB 2.0 (Type A), and front USB cover
- 16:9 15.6"/18.5" projected capacitive multi-touch (2 points) screen,
7H hardness, anti-scratch, 3 touch mode conguration
- IP66, Nema 4X indoor front panel
- All models are certied for CE, RCM, UL 61010-2-201, CSA C22.2
No. 61010-2-201, UL121201 (1), and CSA C22.2 No. 213 (1)
- All DC models are certied for IECEx/ATEX for use in Zone 2 gas/Zone 22
dust (1), DetNorske Veritas - Germanischer Lloyd (DNV-GL) (1)
EcoStruxure Operator
Terminal Expert
EcoStruxure Machine
SCADA Expert
Harmony S-Panel PC — Slim All-in-one design
b HMIPSO Optimized
- Intel Atom E3827 dual-core 1.75 GHz, fanless
- 4 GB DDR3 RAM, None or 32 GB CFast or 128 GB SSD or 500 GB HDD
storage slots
Harmony S-Panel PC: W10.1", W18.5"
8
- Expansion kit allowing 1x SATA HDD/SSD slot and 1x mini PCIe slot
- W10" and W15" multi-touch projected capacitive technology screens
b HMIPEP Enclosed Panel PC Performance
- Intel i3-4010U dual-core 1.7 GHz, fanless
- 8 GB DDR3 RAM, None or 128 GB SSD storage slot
- 1x Mini PCIe full slot, M12 connectors
- W19" multi-touch projected capacitive technology screen
(1) Available in H2 2021.
(2) EcoStruxure Machine SCADA Expert Runtime will be available as preinstalled version
for Harmony HMIP6 in Q1 2021.
Supporting Software
EcoStruxure Operator
Terminal Expert
EcoStruxure Machine
SCADA Expert
Harmony Industrial PCs and Edge Box
for line management
Harmony Edge Box — Edge Control for
EcoStruxure Machine and EcoStruxure Plant
Supporting Software
HMIBSC
HMIBMI
HMIBMO
Node-RED
b HMIBSC (1)
- Qualcomm ARM Cortex-A53 Quad-core up to 1.2 GHz
- 1 or 2 GB RAM, 2x Ethernet, 1x COM RS-232/432/485, 2x USB, 1x HDMI
(for conguration only)
- 8 GB or 64 GB eMMC (soldered), 1x SD card slot, 1x mini PCIe slot and
1x M.2 slot for expansions (2), antenna connectors
- Runs Node-RED to wired devices on the Industrial Internet of Things
b HMIBMI
- Intel Atom “Apollo lake” E3930 Dual-core 1.8 GHz fanless
- 4 GB RAM, 2x Ethernet, 1x COM, 2x USB, 1x DP (working with modular
display HMIDM mounted)
- 64 GB or 128 GB eMMC (soldered), 1x mini PCIe (2) slot, antennas
connectors
- Runs Node-RED to wired devices on the Industrial Internet of Things
b HMIBMO
- Intel Atom “Apollo lake” E3930 Dual-core 1.8 GHz fanless
- 4 GB or 8 GB RAM, 2x Ethernet (supporting real time), 2x COM, 4x USB,
2x DP (both working with modular display HMIDM mounted)
- None or 64 GB or 250 GB M.2 SSD, 1x mini PCIe slot (without optional
interface) (2), antenna connectors
- Expandable model with HDD/SSD 2.5" slot and optional interface for Mini

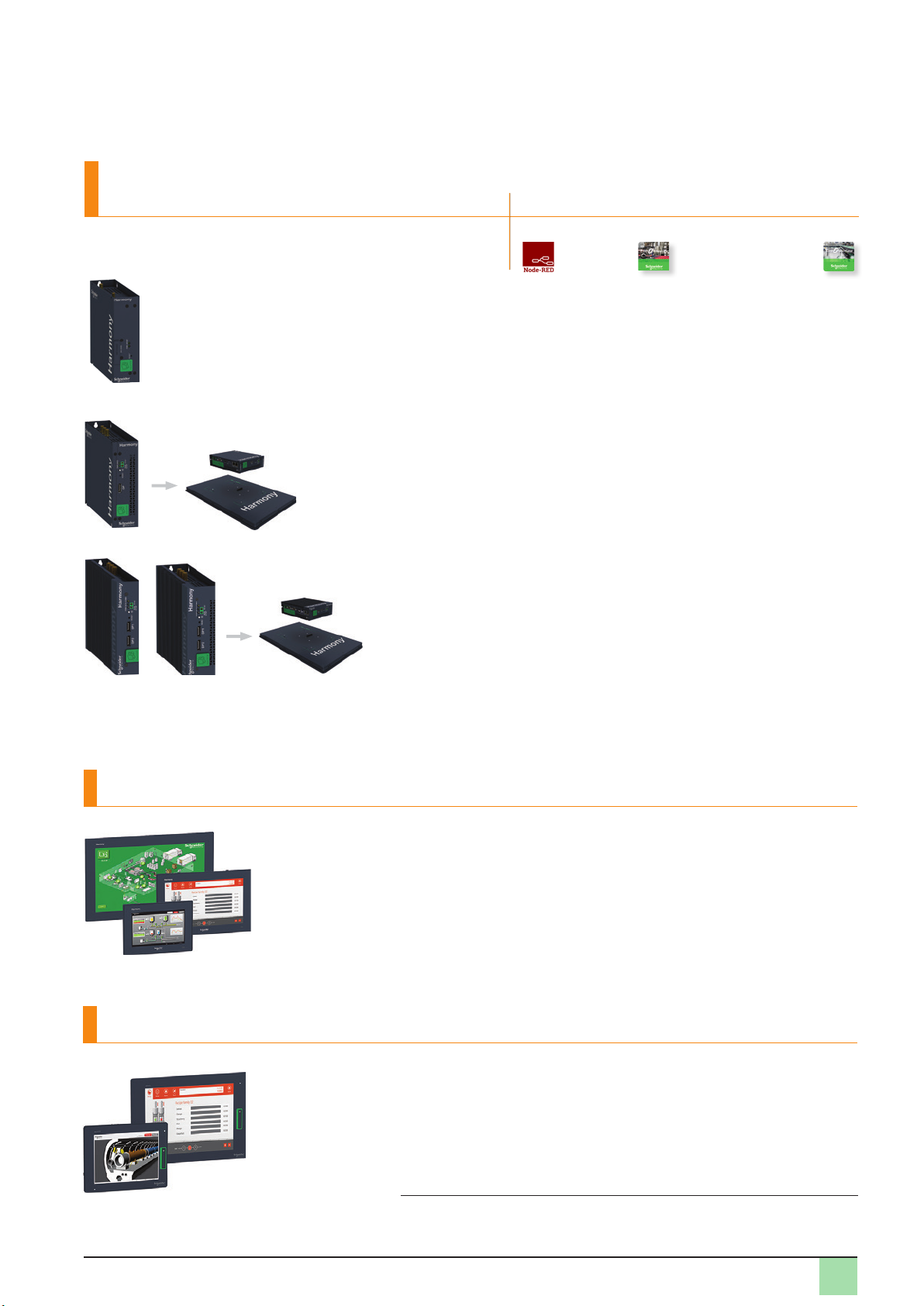

PCIe (2)
- Runs Node-RED to wired devices on the Industrial Internet of Things
EcoStruxure Operator
Terminal Expert
EcoStruxure Machine
SCADA Expert
Harmony Modular Display — Display for Edge Box family
b HMIDM Modular Display
- 4:3 12"/15" single-touch resistive screen with front USB
- 16:9 12"/15"/19"/22" multi-touch projected capacitive screen,
7H hardness, anti-scratch
- IP66, Nema 4X indoor front panel
Harmony Modular Display: 12" , W12", 15",
W15.6", W18.5", W21.5"
Harmony iDisplay — Industrial monitors
b HMIDID
- 1x USB on front panel, 1x DVI-D video, 1x USB, 1x RS-232C
- IP67/66 and Nema 4X front screen
- Industrial certications (Hazardous Location and Marine)
Harmony iDisplay: W12", W15
"
(1) EcoStruxure Operator Terminal Expert and EcoStruxure Machine SCADA Expert is not supported by
Harmony HMIBSC.
(2) Mini PCIe cards not requiring Optional interface (no external connector): Cellular, Wi, Saved RAM, etc.
Mini PCIe cards requiring Optional interface: COM, USB, Audio, Video, Fieldbus, I/O, etc.
9
HMI software and services
EcoStruxureTM Operator Terminal Expert — Touchscreen configuration software
b Operate intuitively
- Ability to go beyond the limitations of the physical screen size to improve
productivity
EcoStruxure Operator Terminal Expert
b Reduce time to market
- Ecient and intuitive engineering
- For faster customization and modication
b Improve eciency
- High usability and image quality for the operator (experience design)
EcoStruxure Machine SCADA Expert — Lite SCADA for line management
b Save time
- Quick and easy to install directly on our iPCs
- Save days of testing and commissioning thanks to a fully tested and validated
bundle
- Tailored information at a glance using BI-Dashboard template
EcoStruxure Machine SCADA Expert
b Save money
- Get peace of mind and save time and resources with our single point of
contact for HW/SW/OS support
- Access SCADA level software, with all its benets, at a competitive
cost/features ratio
b Connectivity and data management
- Includes 250+ native communication drivers
- Monitor and control remotely your application with Mobile Access, using a
tablet or smartphone
Note: EcoStruxure Machine SCADA Expert Runtime will be available as preinstalled version for Harmony
HMIP6 in Q1 2021.
Vijeo Designer — Classic HMI configuration software
- Multi-platform: from optimized panels to iPCs
- Multi-panel communication: automatic data sharing between up to 8 dierent
panels
- Multi-language: 15 languages in runtime and 38 alphabets
- Multi-protocol: on COM and Ethernet ports
Vijeo Designer
- Multi-access: local or remote display with WEB Gate, Vijeo Designer Air and
Vijeo Designer Air Plus
- Multi-media: video/sound record/replay capability
10
HMI software and services

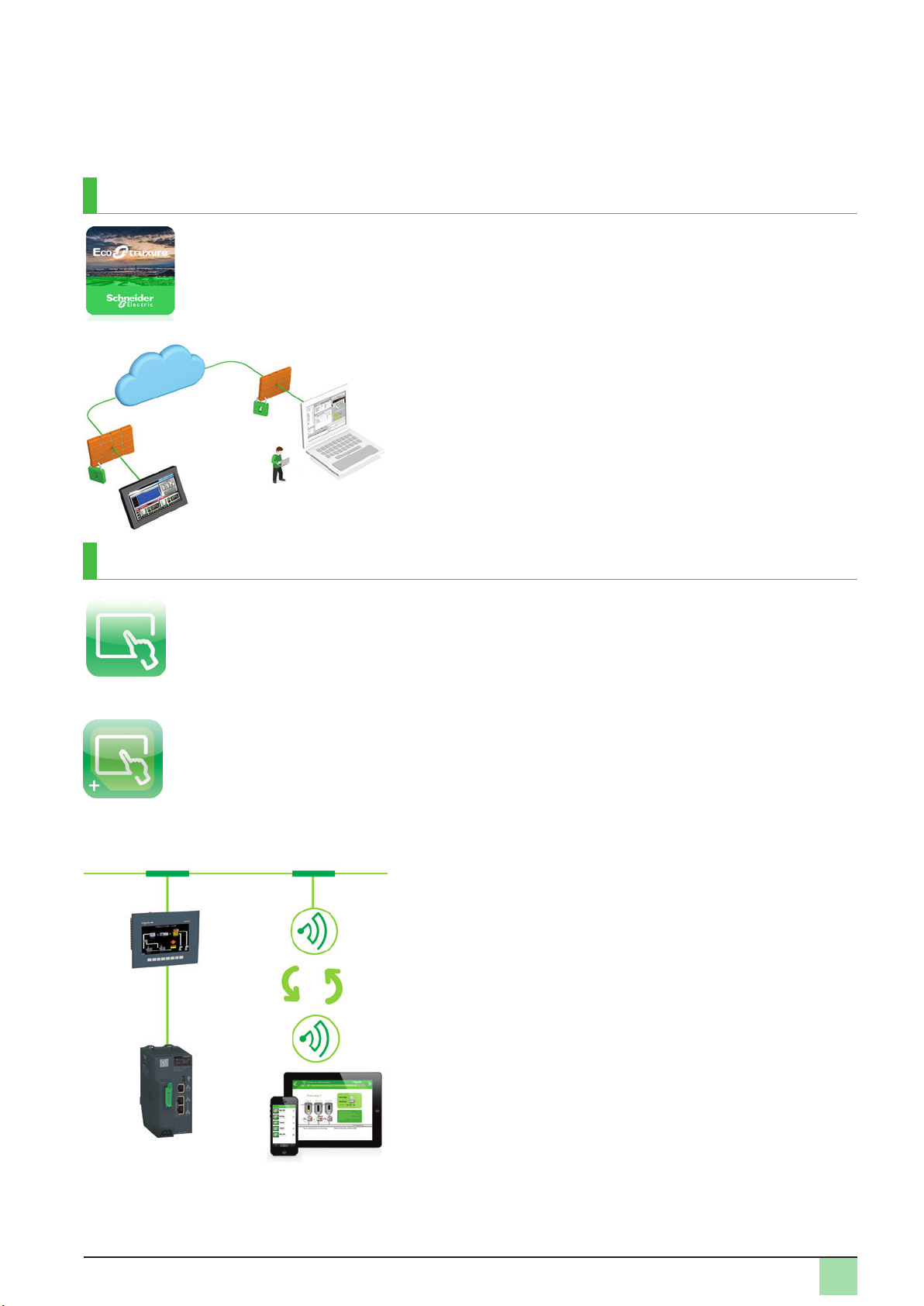

EcoStruxureTM Secure Connect Advisor
b Provide a secure connection between remote display units on the work site
(via SiteManager Embedded) and computers or smart devices in the oce
(via LinkManager) over a secure central server (GateManager).
b With EcoStruxure Secure Connect Advisor, maintenance personnel can access
Schneider Electric software and update it remotely and securely via the HMI, PLC, and
other connected devices as if they were on site.
EcoStr uxure Secure Connect Advisor
Eective communication
between One Tool and One device
Technician
b Troubleshooting and repairs can be performed remotely upon request.
Vijeo Design’Air and Vijeo Design’Air Plus mobility app
b Vijeo Design’Air
- Connect to your HMI remotely for an interactive mirror-view of your application
- HMI auto-detect: scans and detects available HMI terminals on a nearby
network
- Remote monitoring: connects tablets and smartphones to HMI terminals, and
Vijeo Design’Air
Vijeo Design’Air Plus
allows remote viewing and controlling of HMI projects at runtime
- Smartphone-like enhanced data display brought to the automation industry
- Available in iOS AppStore and Google Play
b Vijeo Design’Air Plus
- Get a fully operable view of your application from wherever you are
- HMI project design: enables an HMI designer to create a tablet/smartphone
project of the automation process using enhanced drawing tools
- Remote access and control: allows control of automation processes and
provides the ability to view and monitor data, change variable values, and
monitor and acknowledge alarms
- Smartphone-like enhanced data display brought to the automation industry
- Available in iOS AppStore and Google Play
Vijeo Design
er configuration
11
Harmony USB accessories
Modic on M258
Signal action
12
Harmony
Tou ch ac ti on
HMIs
Harmony HMIZRA
Harmony HMIZKB
USB hub
with an
external
power
supply
XVGU US B
tower light
HMIZ illuminated
USB switch
HMIZ US B
keyboard
The functionality of the Harmony HMI can be extended with USB connected
accessories. These innovative accessories can be easily installed and
operated with HMI terminals. Their conguration is part of the overall HMI
project and is stored in the terminal memory. The Illuminated switch panel and
the keyboard panel are mounted via a 22 mm/0.866 in. hole, simplifying
installation.
Supporting Software
b Illuminated switch
- 5 tactile switches with congurable LED (red/green/yellow/white/blue)
- Dynamic light changes and ashing to display the machine status
- Easy mounting with one-cable connection and 22.5 mm/0.885 in. hole
Supporting Software
Vijeo
Designer
Harmony® XVGU
b USB keyboard
- Keyboard with 12 tactile function keys
- Support for alphanumerical and numerical input
- Easy mounting with one-cable connection and 22.5 mm/0.885 in. hole
Supporting Software
b Tower light
- USB powered tower light with 3 LED light elements
- Multicolor with red, orange, green, or blue
- 85 dB buzzer with 4 congurable sound patterns
- Easy mounting with single USB cable
Vijeo
Designer
EcoStruxure Machine
Vijeo
Designer
SCADA Expert
12
Quick Product Selection Tables
13
Basic HMI panels for simple machines
Platform
HMIST6 HMISTM6
Modular − Yes − − − Yes Yes
Screen size W4", W7",
Screen
resolution
Application
memory
Backup memory 512 KB 128 KB 128 KB 128 KB to 512 KB 64 KB 128 KB
Expansion
memory
Mounting Standard
Ethernet port 1 or 2 LAN port(s) None or 1 LAN port None or 1 LAN port 1 LAN port 1 LAN port
Serial line None or RS-232C/485 (COM1)
Supply voltage 24 Vz 12...24 Vz 24 Vz 24 Vz 24 Vz
Operating
temperature
Software
W10", W12",
W15
"
480 x 272/
800 x 800/
1024 x 600/
1280 x 800/
1366 x 768
128 MB 512 MB 26 MB 64 MB or 96 MB 32 MB 128 MB
None None None or SD card None None
cut-out
only or RS-232C (COM1) and
RS-485 (COM2)
0…50 °C/32...122 °F 0…50 °C/32...122 °F 0…50 °C/32...122 °F
EcoStruxure Operator
Terminal Expert
Harmony ST6
-Basic HMI-
W4", W7
"
480 x 272/
800 x 480
22 mm/0.866 in.
hole
Harmony STO7
-Compact color
HMISTW6
W4", W7", W10",
W12", W15
480 x 272/
800 x 800/
1024 x 600/
1280 x 800/
1366 x 768
Standard cut-out Standard cut-out Standard cut-out 22 mm/0.866 in. hole 22 mm/0.866 in.
−
HTML5 Browser
(Graphic
Primitives &
Javascript)
"
HMI-
4.3
"
480 x 272 320 x 240/
None or RS-232C or
RS-232C/RS-485
EcoStruxure Operator
Terminal Expert
Harmony GTO
-Standard HMI-
3.5",5.7", W7", 7.5",
10.4",12.1"
640 x 480/
800 x 480/
800 x 600
RS-232C/485 (COM1)
only or
RS-232C (COM1) and
RS-485 (COM2)
or
0…55 °C/32...131 °F
Vijeo Designer Vijeo Designer EcoStruxure
Harmony STU
-Cut-out free HMI-
3.5", 5.7" 3.5", 5.7
320 x 240 320 x 240
RS-232C/RS-485 RS-485/RS-232
0…50 °C/32...122 °F 0…50 °C/32...122 °F
Harmony SCU
-HMI controller -
hole
Machine Expert with
Vijeo
Designer
"
Advanced HMI panels for performance machines
Platform Harmony GTU
-High performance HMI-
HMIG2U HMIG3U HMIG5U21(1),
Modular Yes Yes _ _
Screen size W7", 10.4", W10", 12.1", W12", 15", W15", W19" W7", W12", W15" 5.7", 10.4" 5.7"
Screen resolution 800 × 480/800 × 600/1024 × 768/1280 × 800 800 × 480/
CPU RISC, 600 MHz x86, 1.33 GHz _ _ −
Operating system Real time OS Windows 10 − _ −
Application memory 256 MB 4 GB 256 MB 128 MB 32 MB
Backup memory 512 KB 512 KB 512 KB 512 KB
Expansion memory SD card SD card and CFast card
Ethernet port 2 LAN ports 2 LAN ports 1 LAN port 1 LAN port
Serial line RS-232C (COM1),
Supply voltage 12…24 Vc 12…24 Vc 24 Vz 24 Vz
Operating
temperature
Software Vijeo Designer Vijeo Designer/
(1) No HMI Runtime licenses are delivered. The EcoStruxure Machine SCADA Expert Runtime license has to be bought and only version 8.1 is supported, version
2020 will be supported in Q4 2020.
(2) Available in Q1 2021 with Vijeo Designer and EcoStruxure Operator Terminal Expert Runtime unlimited version preinstalled.
RS-485 (COM2)
0…60 °C /32...140 °F -30...65 °C/-22...149 °F
RS-485 (COM1),
RS-232C/RS-485/RS-422 (COM2)
EcoStruxure
Operator Terminal Expert
HMIG5U22(2)
32 GB
Vijeo Designer/
EcoStruxure Machine
SCADA Expert
Harmony GTUX
-eXtreme outdoor
Harmony GK
-Keyboard HMI-
Magelis XBTGH
-Hand-held HMI-
HMI-
1280 × 800/
1366 x 768
SD card SD card CFast card
RS-485 (COM1),
RS-232C/RS-485
/RS-422 (COM2)
or
-30...70 °C/-22...158 °F
or
-20...60 °C/-4...140 °F
Vijeo Designer Vijeo Designer Vijeo Designer
320 × 240/640 × 480 640 x 480
RS-232C (COM1),
RS-485 (COM2)
0...55 °C /32...131 °F 0...40 °C/32...104 °F
RS-232C/RS-422/
RS-485 (COM1)
14
Harmony Industrial PCs and
Edge Box for line management
Platform Harmony P6 Industrial PCs
Advanced Modular Box Standard Modular Box
Screen size
Front protection (1) IP66F, IP67F, Type 1, Type 4X (NEMA indoor use only), Type 13
Certifications All models: e, RCM, UL 61010-2-201, CSA C22.2 No. 61010-2-201, UL 121201 (2), CSA C22.2 No. 213 (2)
RAM
CPU processor Intel Core™ i7-8665UE or Intel Core™ i5-8365UE or
OS
Storage slots 1x M.2 SSD SATA, 2x 2.5-inch SATA (HDD/SSD) 1x M.2 SSD SATA, 1x 2.5-inch SATA (HDD/SSD)
Expansion slots 2x interfaces slots and optional extension module for 2x PCI/PCIe slots 1x interfaces slots
IIoT and approved
Cybersecurity
Software EcoStruxure Machine SCADA Expert (3), EcoStruxture Secure Connect Advisor, EcoStruxure Augmented Operator Advisor
Platform Harmony Edge Box
Modular _ Yes
Screen size
Front protection _ IP66, NEMA 4X indoor, 7H hardness anti-scratch
Certifications e, cULus ITE (UL IT 60950, CSA IT 60950), RCM, EAC, CCC, FCC (part 15 EMC Class A)
RAM 1 GB or 2 GB (not user-expandable) 4 GB (not user-expandable) 4 GB or 8 GB (not user-expandable)
CPU processor Qualcomm ARM Cortex-A53 Quad-core
OS Linux Yocto None or Windows 10 IoT Enterprise LTSC (64-bit) or Configured-To-Order offer
Storage slots 8 GB or 64 GB eMMC (soldered) 64 GB or 128 GB eMMC (soldered) None or 64 GB or 250 GB M.2 SSD
Expansion slots 1x full-size slot with optional interface,
IIoT and approved
Cybersecurity
Software
12", 15", W15", W19"
DC models: IECEx/ATEX for use in Zone 2 gas/Zone 22 dust (2), DetNorske Veritas - Germanischer Lloyd (DNV-GL) (2)
4 to 16 GB DDR4 RAM (not user-expandable) or 8 to 32 GB DDR4 RAM
(not user-expandable)
Intel Celeron® 4305UE
Windows® 10 IoT Enterprise 2019 LTSC (64-bit)
Node-RED, TPM 2.0 module (preinstalled), McAfee Whitelisting
8 to 32 GB DDR4 RAM
(not user-expandable)
Intel Core™ i3-8145UE
HMIBSC HMIBMI HMIBMO
_ 12", W12", 15", W15", W19", W22"
(up to 1.2 GHz)
1x M.2 slot (not for storage)
Secure boot, password Node-RED
preinstalled, TPM for Cybersecurity
_ EcoStruxure Operator Terminal Expert/EcoStruxure Machine SCADA Expert/
Intel Atom Apollo Lake E3930 Dual-core (1.8 GHz)
1x mini PCIe full slot with optional interface 1x mini PCIe full slot with or without op-
tional interface
IIoT system monitor with Node-RED and approved Cybersecurity (TPM hardware encryption, McAfee white-listing, etc.)
EcoStruxure Secure Connect Advisor
Platform
Slim All-in-one Panel PC
HMIPSO HMIPEP
Screen size
Front protection IP66, NEMA 4X indoor, 7H hardness anti-scratch IP66 all over with VESA 100 mounting, NEMA 4X indoor, 7H hard-
Certifications e, cULus , RCM, EAC, CCC, FCC (part 15 EMC Class A)
RAM 4 GB 8 GB
CPU processor Intel® Atom E3827 Dual-core (1.75 GHz) Intel Core i3-4010U Dual-core 4th
OS
Storage slots None or 32 GB CFast or 128 GB SSD or 500 GB HDD None or 128 GB SSD
Expansion slots 1 Mini PCIe (requires optional expansion) 1 Mini PCIe
IIoT and approved
Cybersecurity
Software EcoStruxure Operator Terminal Expert/EcoStruxure Machine SCADA Expert
(1) On the front panel when properly installed in an enclosure and not using the front panel USB por t.
(2) Available in H2 2021.
(3) EcoStruxure Machine SCADA Expert Runtime will be available as preinstalled version for Harmony HMIP6 in Q1 2021.
W10" W19"
ness
anti-scratch front panels
None or Windows 10 IoT Enterprise (64-bit Multi-language)
_ _
generation (1.7 GHz)
None, Windows 10 IoT Enterprise (64-bit Multi-language) or
Configured-To-Order offer
15
HMI software comparison table
Platform
Modern/Stylish design
Ecient operation
Easy screen creation
Easy programming
Multitouch gestures
Security
Mobile access
Languages
IT/OT connectivity
Data management
Target equipment type
Typical target application
Optimum hardware
+++
Highly recommended
(1) EcoStruxure Machine SCADA Expert Runtime will be available as preinstalled version for Harmony HMIP6 in Q1 2021.
HVAC&R, Pumping, Packaging, Food
EcoStruxure
Operator Terminal Expert
+++ ++ +
+++
(multi-screen, slide to scroll,
stretch to zoom)
Simple/Compact Machine Performance/Complex Machine
Marine, Control Panel Builders,
Harmony ST6/STO7
+++ ++ ++
++ ++ +++
++ +++ -
++ +++ +
+
(Web API)
+ +++ +++
++ +++ +
+ +++ +
Material handling, Packaging, Food &
Beverages, Material working, SEMI/
& Beverages
EcoStruxure
Machine SCADA Expert
++ +
+++
(Web API)
Line Management
FPD, Automotive line
Harmony GTU (HMIG5U21,
HMIG5U22), Harmony iPCs (1)
Vijeo Designer
++
Simple/Compact Machine
Performance/Complex Machine
Marine, Control Panel Builders,
HVAC&R, Pumping, Packaging, Food
& Beverages, Oil & Gas, WWW
Harmony GTO/STU/SCU/GTU/GTUX/
HMIGK, Magelis XBTGH
Harmony USB compatible accessories table
Harmony HMIs
Harmony Panel PC No Yes No
Harmony Box PC No Yes No
HMIGK Yes Ye s No
HMIGTU Yes Ye s Ye s
HMIGTO Yes Ye s Ye s
HMISTU No No Ye s
HMISTO7 No No No
HMISCU Ye s Ye s Ye s
USB accessories for HMI terminals
USB tower light Illuminated USB switch USB keyboard
XVGU3S*** HMIZRA1 HMIZKB1
16
Learn more about our products
at www.schneider-electric.com/HMI
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the
products contained herein. This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability
of these products for specic user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk
analysis, evaluation and testing of the products with respect to the relevant specic application or use thereof. Neither Schneider Electric
nor any of its aliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Design: Schneider Electric
Photos: Schneider Electric
Schneider Electric Industries SAS
Head Oce
35, rue Joseph Monier
F-92500 Rueil-Malmaison
France
January 2021 - V4.0 DIA5ED1161001EN
Loading...
