Samsung SYNCMASTER 551V User Manual

SyncMaster 551v/551s

Index

User’s Manual

Main Page On-Screen Display

General

Safety Instructions Troubleshooting

Natational Check List

Power Q & A

Installation Self-Test Feature Check

Cleaning

Other

Introduction Specifications

Unpacking General Specifications

Front Preset Display Modes

Rear PowerSaver

Bottom

Setup Information

Connecting Your Monitor Service

Installing the Monitor Driver Terms

Automatic Regulatory

—

Manual Natural Color

—

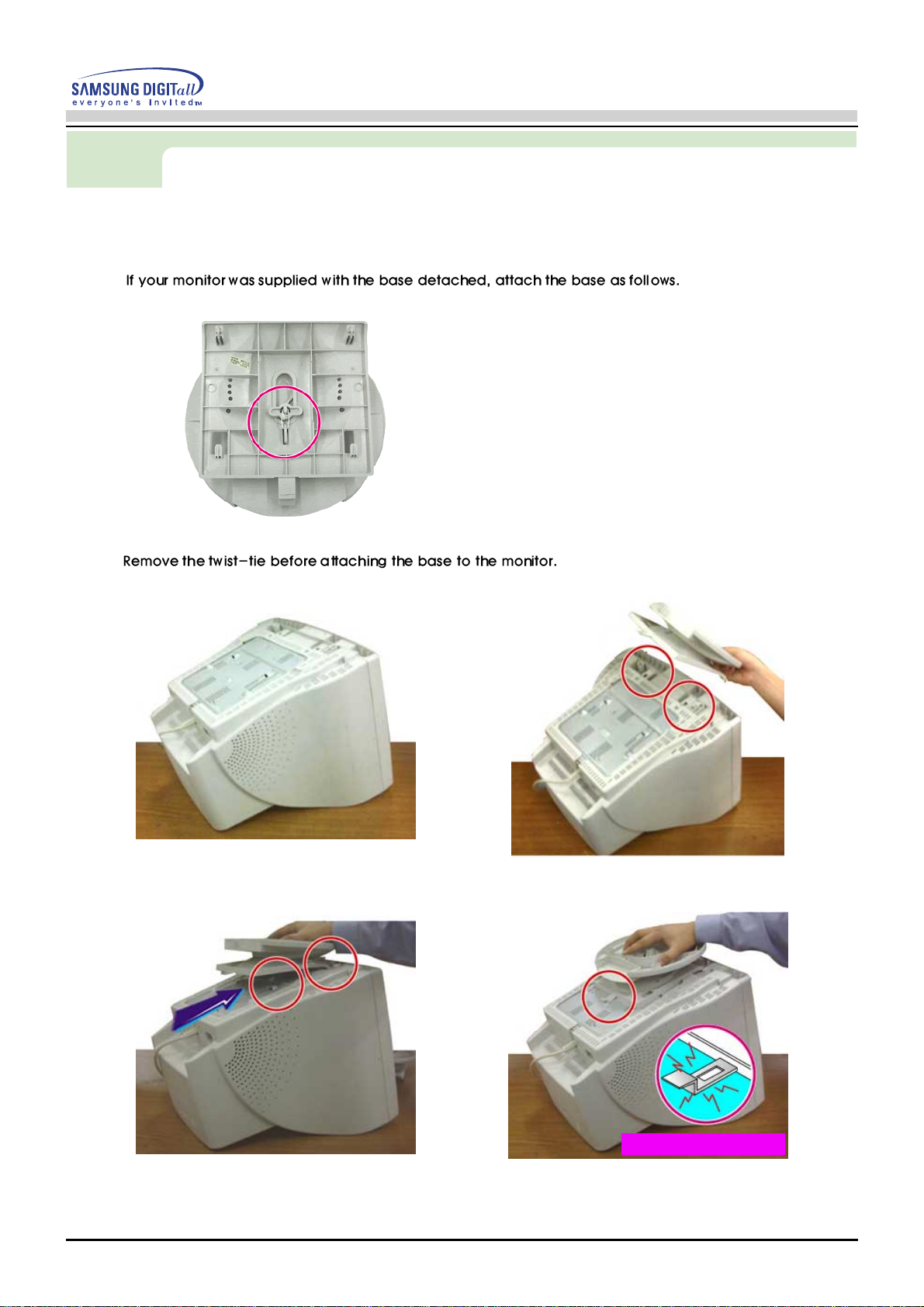

Base Installation Authority

Safety Instructions

User’s Manual

Warning / Caution

Notational Conventions

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

Prohibited

Do not disassemble

Do not touch

Important to read and understand at all times

Disconnect the plug from the outlet

Grounding to prevent an electric shock

Safety Instructions

User’s Manual

● Do not use a damaged or loose plug.

◆ This may cause an electric shock or fire.

When not used for extended periods of time, set your PC to DPMS. If using a screen saver, set it to the active screen mode.

If the size of your monitor is small, or if the same image is present for long periods of time, you may see afterimages due to damage to the flourescent substance on the inside of the CDT.

● Do not pull the plug out by the wire nor touch the plug with wet hands.

◆ This may cause an electric shock or fire.

● Use only a properly grounded plug and recepticle.

◆ An improper ground may cause electric shock or equipment damage.

● Do not excessively bend the plug and wire nor place heavy

objects upon them, which could cause damage.

◆ Failure to do so may cause an electric shock or fire.

Power

Safety Instructions

User’s Manual

● Disconnect the plug from the outlet during storms or lightening or if it is not used for a long period of time.

◆ Failure to do so may cause an electric shock or fire.

● Do not connect too many extension cords or plugs to an outlet.

◆ This may cause a fire.

Safety Instructions

User’s Manual

Put your monitor in a location with low humidity and a minimum of dust.

An electric shock or fire could result inside the monitor.

Do not drop the monitor when moving it.

This may cause damage to the product or human body.

Place the monitor on a flat and stable surface.

The monitor can cause injury by falling.

Set down the monitor carefully.

It could be damaged or broken.

Do not place the monitor face down.

The CRT surface may be damaged.

Do not use the monitor without the monitor stand.

It could break down or cause a fire due to bad ventilation. If the monitor must be used without the supplied stand, take steps to insure proper ventilation.

Do not cover the vents on the monitor cabinet.

Bad ventilation may cause a breakdown or fire.

Installation

Safety Instructions

User’s Manual

● Do not spray detergent directly on the monitor.

● Use the recommended detergent with a smooth cloth.

◆ You can prevent the coated CDT from being damaged or the monitor cabinet from

being dissolved, cracked or discolored.

◆ You can buy a recommended detergent at any Samsung Service Center.

● If the connector between the plug and the pin is dusty or dirty, clean it

properly with a dry cloth.

◆ A dirty connector can cause an electric shock or fire.

● Do not set a glass of water, chemicals or any small metal

objects on the monitor.

◆ This may cause damage, electric shock or a fire.

◆ If a foreign substance gets into the monitor, disconnect the plug

and then contact a service center.

When cleaning the monitor case or the surface of the CDT, wipe with a slightly moistened, soft fabric.

Do not clean Flat monitor with water. Use a water-diluted mild detergent.

(Some detergents contain significant amounts of alcohol-based solvents, which can damage (color change) or crack the monitor case. The antiglare/anti-static surface coating on the CDT may also be affected.)

Dilute the detergent (1:10 ratio) with water before using.

Caution : Use a recommended detergent only, as other

surfactants containing large amounts of alcohol, solvent or other strong substances, can discolor or crack the monitor or damage the coated CDT

Cleaning

Safety Instructions

User’s Manual

● Do not remove cover(or back). No user serviceable parts inside.

◆ This may cause an electric shock or a fire.

◆ Refer servicing to qualified service personnel.

● If your monitor does not operate normally - in particular,if there are any

unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service.

◆ This may cause an electric shock or a fire.

● Do not place any heavy objects on the monitor.

◆ This may cause an electric shock or a fire.

● For each hour of looking at the monitor, you should let

your eyes rest for 5 minutes.

◆ This will reduce eye fatigue.

● Do not use or store inflammable substances near the monitor.

◆ This may cause an explosion or fire.

● Do not try to move the monitor by pulling on the wire

or the signal cable.

◆ This may cause a breakdown, electric shock or a fire due to damage to the cable.

Other

Safety Instructions

User’s Manual

● Do not move the monitor right or left by pulling only the wire or the signal cable.

◆ This may cause a breakdown, electric shock or a fire due to damage to the cable.

● Never insert anything metallic into the monitor openings.

◆ This may cause an electric shock, fire or injury.

● Keep the monitor away from any magnetic substances.

◆ This may cause discoloring or distortion of the image.

Introduction

User’s Manual

Monitor and Stand

Please make sure the following items are

included with your monitor.

If any items are missing, contact your dealer.

(Some models include a stand attached.)

Power Cord

Stand

Quick Setup Guide

Warranty card (Not available in all locations)

User's Guide and Driver Installation CD

USB (Option)

Unpacking

Introduction

User’s Manual

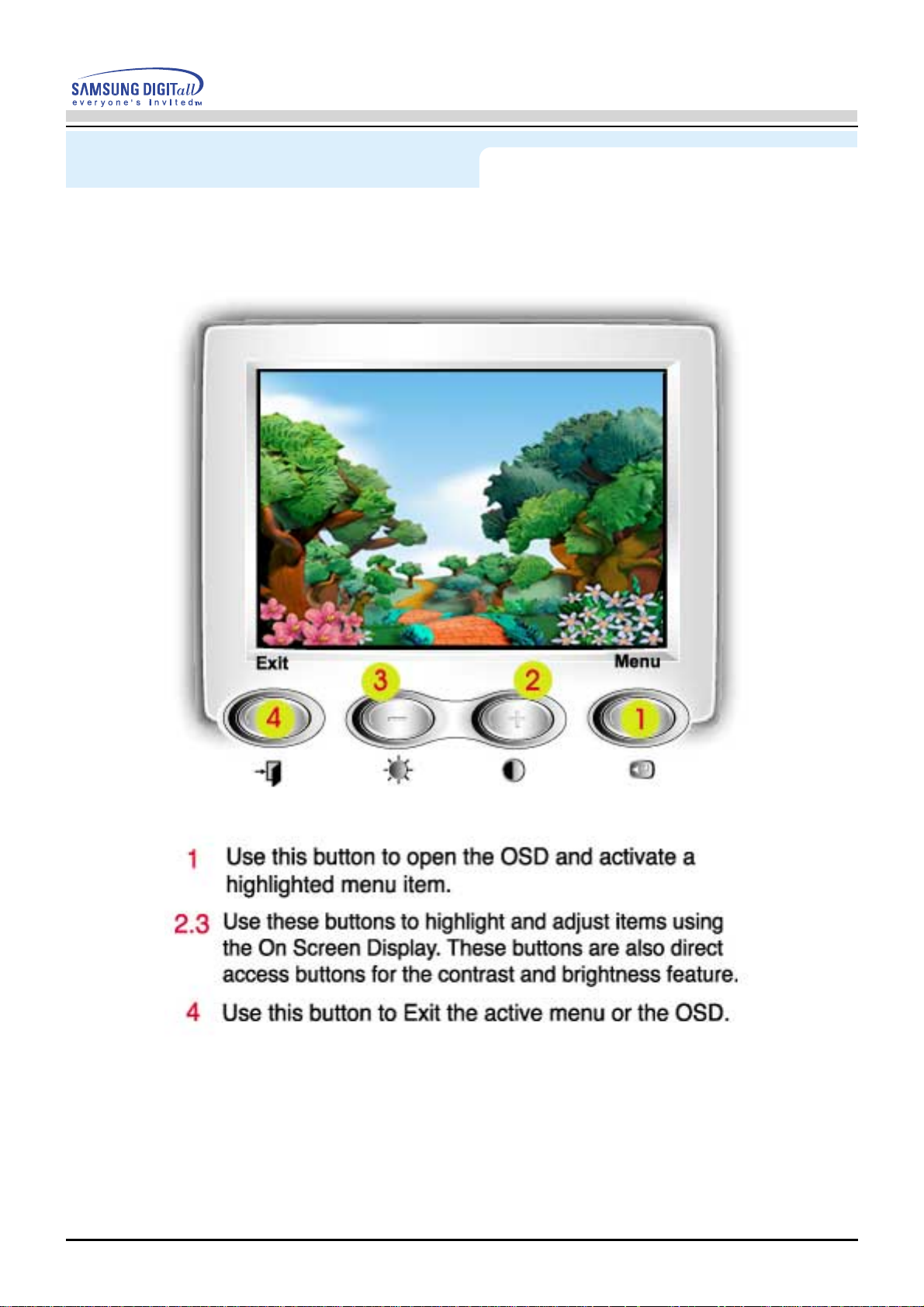

Front

1. Exit button : Use this button to Exit the active menu or the OSD. 2,3 Adjust buttons : These buttons allow you to highlight and adjust items in the menu.

4. Menu button : Use this button to open the OSD and activate a highlighted menu item.

5. Power indicator : This light glows green during normal operation, and grows green when you are making adjustments.

6. Power button : Use this button to turn the monitor on and off.

Note: See PowerSaver described in the manual for further information regarding power saving functions.

For energy conservation,turn your monitor OFF when it is not needed,or when leaving it unattended for long periods.

Introduction

User’s Manual

1. Power port : Connect the power cord for your monitor to the power port on the back of the monitor.

2.Signal cable :Connect the end of the signal cable to your computer's video port (video board,video card or graphics card).

1. Signal cable : Connect the end of the signal cable to your computer's video port (video board, video card or graphics card).

2. Power port : Connect the power cord for your monitor to the power port on the back of the monitor.

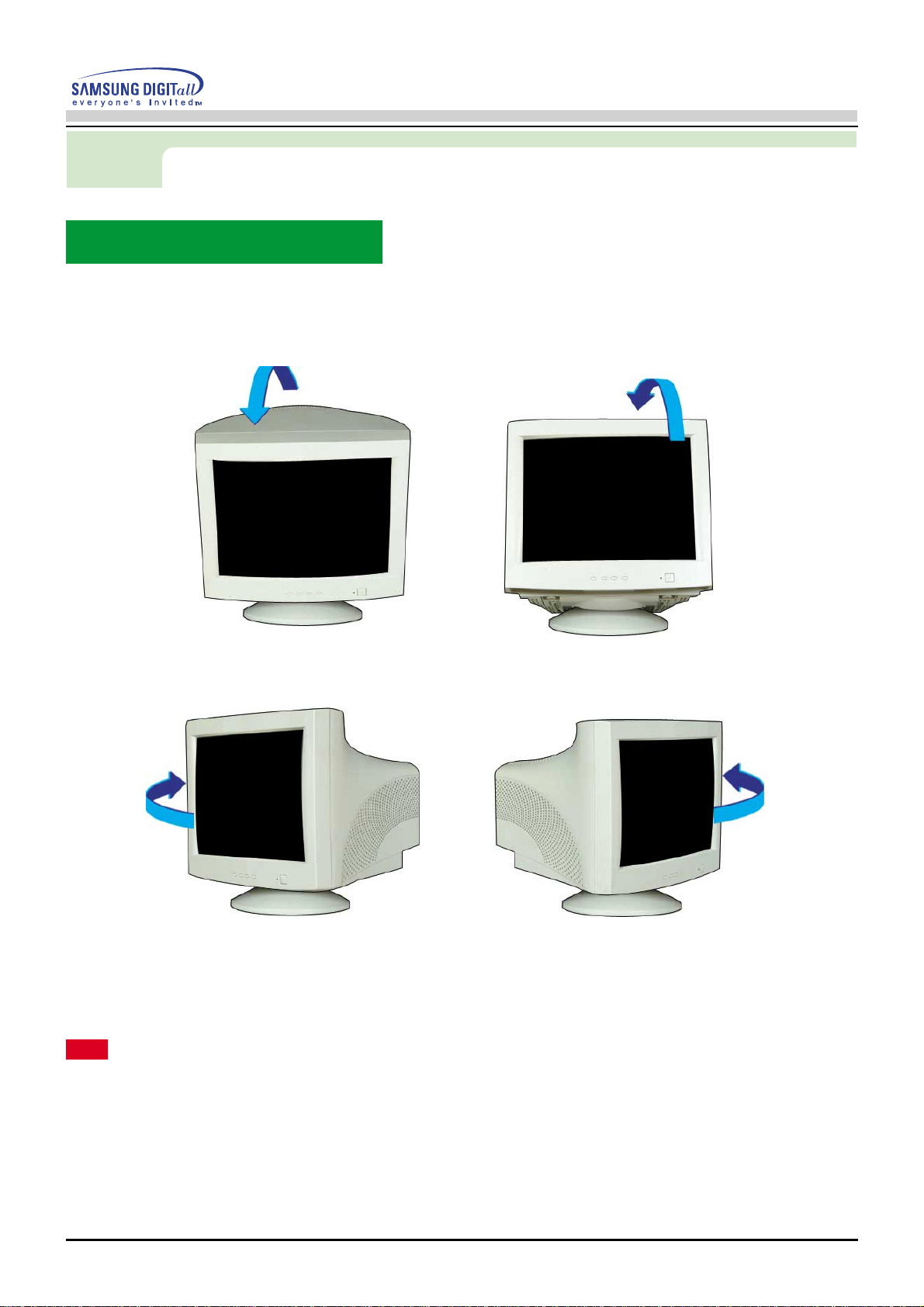

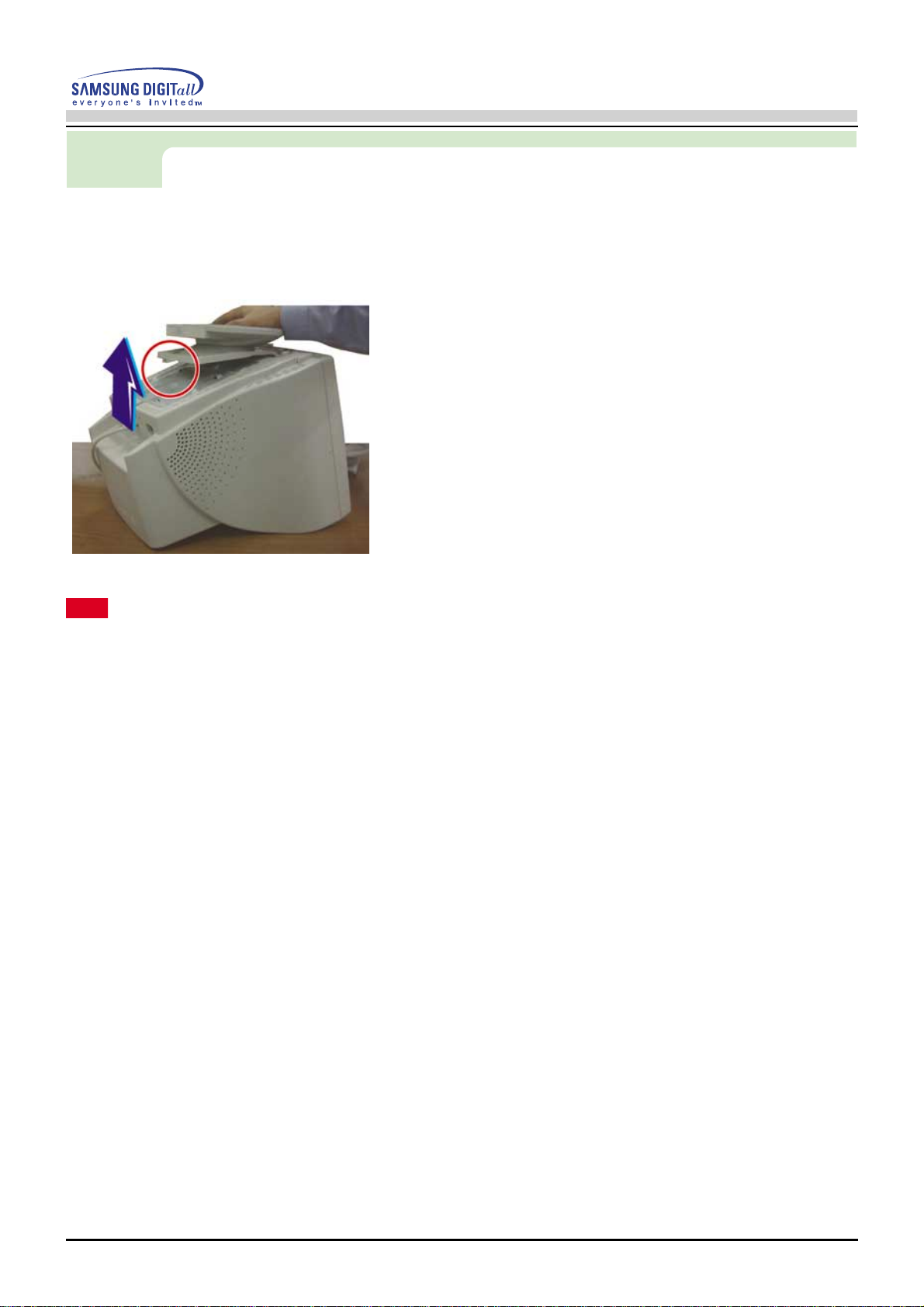

3. Tilt/Swivel Base : You can separate the base from the monitor.

Note See Connecting Your Monitor for further information

regarding cable connections.

(The configuration at the back of the moniter

may vary from product to product.)

Rear

Bottom

Setup

User’s Manual

Connecting Your Monitor

1. Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

2. Connect the end of the signal cable to your computer's video port

(video board, video card or graphics card).

3. If you are using a Macintosh computer, connect the cable to a Macintosh adapter, and set

the pins on your adapter(Adapter not included). A PC-compatible computer does not need an adapter.

Note

Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Setup

When prompted by the operating system for the monitor driver, insert the CD-ROM included with this monitor. Driver installation is slightly different from one operating system to another. Follow the directions as appropriate for the operating system you have.

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site : http://www.samsung-monitor.com/ (Worldwide)

http://www.samsungmonitor.com/ (USA) http://www.sec.co.kr/ (Korea) http://www.samsungmonitor.com.cn/ (China)

Windows ME/98/95

1. Insert CD into the CD-ROM driver.

2. Click "Windows ME/98/95 Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.

5. Monitor driver installation is completed.

Setup

Windows XP/2000

1. Insert CD into the CD-ROM driver.

2. Click "Windows XP/2000 Driver".

3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.

5. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button.

This monitor driver is under certifying MS logo,and this installation don't damage your system.The certified driver will be posted on Samsung Monitor Homepage

http://www.samsung-monitor.com/.

6. Monitor driver installation is completed.

Setup

Prepare a blank disk and download the driver program file at the Internet web site shown here.

Internet web site : http://www.samsung-monitor.com/ (Europe)

http://www.samsungmonitor.com/ (USA) http://www.sec.co.kr/ (Korea) http://www.samsungmonitor.com.cn/ (China)

Microsoft® Windows® XP Operating System

1. Insert CD into the CD-ROM driver.

2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.

3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".

4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

Setup

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.

6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".

7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the model list and click the "Next" button.

8. If you can see following "Message" window, then click the "Continue Anyway" button. Then click "OK" button.

Thi

tifyi

this installati

Setup

s monitor driver is under cer system.The certified driver will be posted on Samsung Monitor Homepage

http://www.samsung-monitor.com/.

9. Click the "Close" button then click "OK" button continually.

10. Monitor driver installation is completed.

ng MS logo,and

on don't damage your

Microsoft® Windows® 2000 Operating System

When you can see "Digital Signature Not Found" on your monitor, follow these steps.

1. Choose "OK" button on the "Insert disk" window.

2. Click the "Browse" button on the "File Needed" window.

3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.

How to install

1. Click "Start" , "Setting" , "Control Panel".

2. Double click the "Display" Icon.

3. Choose the "Settings" tab and then click "Advanced..".

4. Choose "Monitor".

Case1: If the "Properties" button is inactive, it means your monitor is properly configured.

Case2: If the "Properties" button is active, click the "Properties" button then follow next

5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.

6. Choose "Display a list of the known drivers for this device so that I can choose a specific driver" then click "Next" and then click "Have disk".

7. Click the "Browse" button then choose A:(D:\Driver).

8. Click the "Open" button, then click "OK" button.

9. Choose your monitor model and click the "Next" button then click "Next" button.

10. Click the "Finish" button then the "Close" button.

If you can see the "Digital Signature Not Found" window then click the "Yes"button. And click the "Finish" button then the "Close" button.

Please stop installation

steps continually.
