PLC3 Programmable Controller Backup Systems

User Manual

Important User Information

Because of the variety of uses for this product and because of the differences between solid-state products and electromechanical products, those responsible for applying and using this product must satisfy themselves as to the acceptability of each application and use of this product. For more information, refer to publication SGI-1.1 (Safety Guidelines for the Application, Installation and Maintenance of Solid-State Control).

The illustrations, charts, and layout examples shown in this manual are intended solely to illustrate the text of this manual. Because of the many variables and requirements associated with any particular installation, Allen-Bradley Company cannot assume responsibility or liability for actual use based upon illustrative uses and applications.

No patent liability is assumed by Allen-Bradley Company with respect to use of information, circuits, equipment, or software described in this text.

Reproduction of the contents of this manual, in whole or in part, without written permission of Allen-Bradley Company is prohibited.

Throughout this manual we make notes to alert you to possible injury to people or damage to equipment under specific circumstances.

WARNING: Tells readers where people may be hurt if procedures are not followed properly.

CAUTION: Tells readers where machinery may be damaged or economic loss can occur if procedures are not followed properly.

Warnings and cautions:

identify a possible trouble spot tell what causes the trouble give the result of improper action tell the reader how to avoid trouble

Important: We recommend that you frequently backup your application programs on appropriate storage media to avoid possible data loss.

PLC is a registered trademark of Allen-Bradley Company

Preface P1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Manual

Objectives Audience P1 What This Manual Contains P1 WARNINGS, Terms and Conventions P2 Related

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

CAUTIONS and Important Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Publications

Choosing a Backup Configuration 11. . . . . . . . . . . . . . . . . . .

P1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

P2. . . . . . . . . . .

P3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter Backup Concepts 11 Choosing a Backup Configuration 14 Choosing a Switchover Method 17

Objectives

11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . .

Installing a Backup System 21. . . . . . . . . . . . . . . . . . . . . . . .

Chapter Installing the Hardware 21 Power Supply Considerations 26 Grounding Considerations 26 Shielding Considerations 26 Configuring Configuring Scanner Modules 28 Connecting the I/O Channel Wiring 215 Configuring 1775MX Memory Communication Modules 224

Objectives

the I/O Chassis

21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

27. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . .

Operating a Backup System 31. . . . . . . . . . . . . . . . . . . . . . .

Chapter Starting Up a Backup System 31 Shutting Down a Backup System 34 Restarting a Backup System 34 Disconnecting a Faulted Processor 35 Restarting a Repaired Processor 35

Objectives

31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

Using the 1775MX Memory Communication Module 41. . . . .

Chapter Controlling the Operation of Memory Communication Modules 42 Using LIST Functions for Control 43 Using Message Instructions for Control 417 Error Codes 433

Objectives

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

Table of Contentsii

Programming Techniques 51. . . . . . . . . . . . . . . . . . . . . . . . .

Chapter Signal Timers and Counters at Switchover 52 Timing Considerations at Switchover 53 Forcing Executing Block Transfers 55 Restarting a Repaired Processor 55 Reducing Backup Communication Overhead 56 Using Data T Programming Considerations for Data Highway and

Programming Considerations for Memory Communication Modules 522

Objectives

Conditioning

. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . .

I/O

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . .

able Status Bits

Data Highway Plus 516

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

59. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diagnosing Faults 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter How the Backup System Behaves When a Major Fault Occurs 61 Locating A Logic Diagnostic Routine 68

Objectives

a Fault

61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . .

62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preface

Manual Objectives

Audience

What This Manual Contains

This manual shows you how to install, configure, and operate a backup system configured with PLC-3 or PLC-3/10 processors.

In this manual we describe:

backup system concepts procedures for installing backup systems procedures for operating backup systems programming techniques fault diagnosis

Before you read this manual or attempt to use a backup system, you should be familiar with the PLC-3 or PLC-3/10 programmable controller. Also, you may need to be familiar with one or more optional modules used in backup systems.

Table A describes the contents of each chapter in this manual.

Table A Manual

Contents

If you want to read about: Refer to Chapter:

an overview of backup concepts; description of scanner and memory backup configurations

procedures for installing a backup system; wiring diagrams

procedures for starting up, shutting down, restarting, disconnecting and restarting a repaired processor

controlling memory communication modules using LIST commands and message instructions

signal conditioning, timing requirements, forcing I/O, block transfers, status words, considerations when using communication adapter and memory communication modules

what happens when a fault occurs; locating faults by using indicators and status words

1  Choosing a Backup Configuration

2  Installing a Backup System

3  Operating a Backup System

4  Using the 1775MX Memory Communication Module

5  Programming Techniques

6  Diagnosing Faults

P-1

Preface

WARNINGS, CAUTIONS and Important Information

Terms and Conventions

Information that is especially important to note is identified by three labels:

WARNING CAUTION Important

WARNING: tells you of circumstances or practices that can lead to personal injury as well as damage to equipment.

CAUTION: tells you of circumstances or practices that can lead to damage of equipment.

Important: provides you with information that is important for the successful application of the PLC-3 backup system.

Some terms used in this manual may be unfamiliar to you. We list these terms with a brief definition of each.

Bit terminology - the states of logic bits are defined as follows:

ON = Set = 1 = high state OFF = Reset = 0 = low state

Channel configuration - using LIST functions or message instructions to assign specific parameters to the I/O channels on scanner modules.

Communication adapter module - refers to the 1775-KA module used in PLC-3 and PLC-3/10 processors.

Memory communication module - refers to the 1775-MX module used in PLC-3 processors.

Processor - refers to a PLC-3 or PLC-3/10 programmable controller system consisting of a power supply, chassis, modules, cables, and all other components needed to achieve an operational system.

Programming terminal - refers to an industrial terminal system, e.g., Allen-Bradley -T4, -T47, -T50, or -T60 terminals, or an AT-type computer with 6200 software.

Scanner module - refers to 1775-S4A or -S5 modules used in PLC-3 processors and/or 1775-SR or -SR5 modules used in PLC-3/10 processors.

P-2

Preface

Related Publications

For more information about components used with the PLC-3 backup system, see the publications listed in Table B.

Table B Related

Publications

Publication Title Publication Number

PLC3 Programmable Controller Installation and Operation Manual

PLC3 Family Programmable Controller Programming Reference Manual

I/O ScannerProgrammer Interface Module User's Manual

PLC3 Communication Adapter Module User's Manual

1770T4 Industrial Terminal System 17706.5.15

PLC3 Family I/O Scanner Communication Adapter Module User's Manual

17756.7.1

17756.4.1

17756.5.2

17756.5.1

17756.5.5

Additionally, you can use our publication index (publication SD499) as a guide to further information about products related to the PLC-3 and PLC-3/10 processors. Consult your local Allen-Bradley Company sales engineer or distributor for information regarding this publication or others.

P-3

Chapter

Choosing a Backup Configuration

Chapter Objectives

Backup Concepts

The information in this chapter can help you:

understand backup concepts evaluate different backup configurations choose a switchover method

A backup system consists of two processors configured in such a way that the backup processor will take control of outputs if the primary processor faults. Figure 1.1 shows the basic concept of a backup system.

Figure 1.1 Basic

Backup System

BACKUP

PRIMARY

PROCESSOR

I/O I/O

COMMUNICATION

BACKUP

PROCESSOR

TO/FROM I/O

A second processor, which is identical to the first, is connected to the main processor. During normal operation, the backup processor operates in a listen-only mode. If the primary processor encounters a major fault, the backup processor takes control of the outputs. This transfer of control also can occur due to a loss of power to the primary processor or a broken cable.

10971I

1-1

Chapter 1

Choosing a Backup Configuration

Why

Use a Backup System?

Backup is useful for applications in which an unexpected shutdown is costly or otherwise undesirable. By configuring a PLC-3 or PLC-3/10 system for backup communication, you can guard against shutdowns caused by processor faults.

Shutdowns can also be caused by power losses or faults in equipment other than the programmable controller. For these cases, you must take other measures to guard against shutdown.

Important: Backup does not protect you from faults caused by programming errors or system timeouts, because the error or timeout will also occur in the backup processor.

Backup

Some terms you should be familiar with are: Backup communication - communication between the primary and the

backup processors. Backup communication channel - transfers data from the primary to the

backup processor; transfers data table values from the backup to the primary processor; and, identifies the default processor if a cable breaks. A backup communication channel is required for backup systems using the scanner backup configuration.

Backup mode - a mode in which a processor performs a listen-only function (monitors inputs without controlling outputs) while remaining ready to take control of the outputs.

Backup processor - a programmable controller which performs a listen-only function (monitors inputs without controlling outputs). It remains ready to take control of outputs should a fault occur in the primary processor.

Backup system - includes the primary and backup processor. When we use the term processor we are referring to a processor chassis, modules, cables, and the other components needed for operation.

erminology

1-2

Channel configuration - a procedure using the LIST feature of the processor to assign a specific operation to one of the channels on an I/O scanner module.

Hardware configuration - the manner in which the backup processor is installed with the primary processor.

Chapter 1

Choosing a Backup Configuration

Primary processor - the processor that is controlling outputs. When switchover to the backup processor occurs, the backup processor becomes the primary processor, since now it is controlling outputs.

Stand-alone processor - a programmable controller that is not configured for backup.

Switchover - transfer of control from the primary processor to the backup processor.

Backup

Backup communication is communication between the primary and backup processors. Without backup communication, the backup processor receives only input and peer-to-peer data.

Since the primary and backup processors may have started at different times and are not synchronized, the data table values may be different in each processor. You can reduce these differences by transferring internal storage points via backup communication.

You can establish backup communication using:

Communication

one or more of the serial I/O channels as a backup communication

channel.

the parallel data communication of the 1775-MX memory

communication module

Data Highway or Data Highway Plus communication

1-3

Chapter 1

Choosing a Backup Configuration

TO/FROM

OTHER

PEERTOPEER

CHANNELS

I/O

There are two backup configurations:

scanner backup (Figure 1.2) which uses only I/O scanner modules MX backup (Figure 1.3) which uses 1775-MX memory communication

modules

How

Scanner Backup W

orks

Figure 1.2 shows the implementation of scanner backup. The number one scanner module controls switchover as well as backup, peer-to-peer, and I/O communication channels.

Figure 1.2 Scanner

CH2

CH3TO/FROM

Backup Configuration

PRIMAR

Y PROCESSOR

SCANNER

MODULE #1

B/U

CH1

CH2

CH3

CH4

BACKUP CABLE

BACKUP COMMUNICA

PEERTOPEER

COMMUNICATION

I/O COMMUNICA

TION

BACKUP PROCESSOR

SCANNER

MODULE

B/U

CH1

CH2

CH3

CH4

1-4

10972I

The data table of the backup processor can be updated in three ways.

The backup processor listens only to discrete real world inputs.

The input/output buffer transfers data files over the backup

communication cable. (You must program move and move file instructions to transfer critical data table information.)

Data Highway or Data Highway Plus communication

Chapter 1

Choosing a Backup Configuration

How MX Backup Works

Figure 1.3 shows the implementation of MX backup. The scanner modules still control I/O communication channels but the memory communication modules handle data transfers between the primary and backup processors.

Figure 1.3

Backup Configuration

PRIMAR

Y PROCESSOR

BACKUP PROCESSOR

TO/FROM

OTHER

PEERTOPEER

CHANNELS

TO/FROM

I/O

CH1

CH2

CH3

SCANNER

MODULE #1

B/U

CH1

CH2

CH3

CH4

MEMORY

COMMUNICATION

MODULE

B/U

XMTG

RCVG

PEERTOPEER

COMMUNICATION

I/O COMMUNICA

INTERCONNECT CABLE

BACKUP COMMUNICA

TION

SCANNER

MODULE

B/U

CH1

CH2

CH3

CH4

MEMORY

COMMUNICATION

MODULE

B/U

XMTG

RCVG

10973I

1-5

Chapter 1

Choosing a Backup Configuration

Selecting Scanner or MX Backup

Table 1.A and Table 1.B summarize the attributes of scanner backup and MX backup, respectively. Choose the backup configuration most suitable for your application.

Table 1.A Scanner

Advantages: Disadvantages:

Backup Attributes

 No additional cost (every 1775S4A, SR, S5, and SR5 has this feature built in).

 Backup communication channel is necessary for transferring data table and the transfer is relatively slow (8 words per 14 milliseconds.)

 External switch box may be required.

 Processor restart procedure is not flexible.

Table 1.B MX

Backup Attributes

Advantages: Disadvantages:

 Data table in the backup processor is virtually identical to the one in the primary processor.

 No external hardware is needed.

 Highspeed data transfer from the primary to the backup processor. (100k words per second for continuous or 10k words per second for onetime transfers).

 Ability to transfer program data from the primary processor to the backup processor.

 Extra features are available, such as memory download, memory compare, backup status, etc.

 More costly than scanner backup.

 Requires an extra slot in each processor chassis.

 Increased time required for other operations such as program scan. This increase is approximately 10% for file intensive programs and approximately 15% for I/O intensive programs. You must consider this increase when developing your program and configuring your system.

 The only permissible switchover method is automatic switchover with controllable switchback.

1-6

 Easily configurable through LIST.

 Simple restart procedure.

Chapter 1

Choosing a Backup Configuration

Choosing a Switchover Method

The three methods of switching control of outputs from the primary to the backup processor are:

automatic switchover with no switchback automatic switchover with controllable switchback manual switchover

You can use any one of these methods for scanner backup, but you must use automatic switchover with controllable switchback for MX backup. Table 1.C lists the attributes associated with each method.

Table 1.C Switchover

Switchover Method:

Automatic Switchover with No Switchback

Method Attributes

Attributes:

 Backup processor automatically takes control of outputs when the primary processor faults.

 No operator intervention required at switchover.

 Shutting off the primary processor initiates switchover.

 Both the primary and the backup processor must be shut down and restarted when reinstalling a repaired processor.

Automatic Switchover with Controllable Switchback

 Not recommended for applications using multidrop modems with 1775KA modules because the modem port is not disabled after a processor fault.

 Backup processor automatically takes control of outputs when the primary processor faults.

 No operator intervention required at switchover.

 Shutting off the primary processor initiates switchover.

 Either processor can be the primary" processor.

 The backup processor does not have to be shut down when reinstalling a repaired primary processor.

 Not recommended for applications using multidrop modems with 1775KA modules because the modem port is not disabled after a processor fault.

Continued

on Next Page

1-7

Chapter 1

Choosing a Backup Configuration

Switchover Method:

Manual Switchover

Attributes:

 When the primary processor faults, the system shuts down as though no backup system were available.

 Operator intervention is required at switchover.

 Control of the process is lost until switchover occurs.

 Quickly resume control of a process following a fault in the primary processor.

 Easy to transfer between primary and backup processor.

 Manual switchovers do not guard against unexpected shutdowns as well as automatic switchovers do.

 We suggest this method for applications using multidrop modems with 1775KA modules.

1-8

Chapter

Installing a Backup System

Chapter Objectives

Installing the Hardware

This chapter describes how to install PLC-3 and PLC-3/10 backup systems. Specifically, it provides recommendations for:

power supplies grounding shielding configuring I/O chassis configuring scanner modules connecting I/O channel wiring configuring memory communication modules

In general, the recommendations and procedures for installing a PLC-3 or PLC-3/10 backup system closely resemble those of a stand-alone

processor. To install a backup system, do the following:

read the power supply, grounding, and shielding recommendations.

configure all I/O chassis.

configure all scanner modules.

connect and configure I/O channels.

configure 1775-MX memory communication modules (necessary only if

MX backup will be used).

This chapter describes each of these tasks. For additional detailed information about installing PLC-3 and PLC-3/10 processors, see the PLC-3 Programmable Controller Installation and Operation Manual (publication 1775-6.7.1).

CAUTION: To guard against damage to equipment, make sure that all modules in the backup processor are the same series and revision as their counterparts in the primary processor. If not, the backup system may not work properly.

2-1

Chapter 2

Installing a Backup System

Important: The number one scanner module (thumbwheel set to 1) in both primary and backup processors must be a 1775-S4A or -S5 for PLC-3 based processors, or a 1775-SR or -SR5 for PLC-3/10 based processors.

Figure 2.1 on page 2-3 shows typical connections for a PLC-3 backup system using scanner backup. Figure 2.2 on page 2-4 shows typical connections for a PLC-3 backup system using MX backup. Figure 2.3 on page 2-5 shows typical connections for a PLC-3/10 backup system using scanner backup.

2-2

Figure 2.1 Connections

Chapter 2

Installing a Backup System

for a PLC3 Backup System Using Scanner Backup

To Earth Ground

6 6

Blue

Shield

1. PLC-3 Processor (Primary)

2. Power Supply (cat. no. 1775-P1)

Clear

3. 1771 I/O Chassis (cat. no. 1771-A1B, -A2B, A3B, -A4B)

4. Power Supply (cat. no. 1771-P2)

5. Processor Chassis Power Cable, 6ft. (cat. no. 1775-CAP)

6. I/O Power Cable, 1ft. (cat. no. 1771-CE)

7. Twinaxial Cable (cat. no. 1770-CD) 10,000 ft. Max. Each I/O Channel at 57.6K Baud

8. Terminator (cat. no. 1770-XT) Connect one at each end of the I/O Channel

9. PLC-3 Processor (backup)

10. Backup Cable (cat. no. 1775-CBA, -CBB)

11. Backup Communication Cable (cat.no. 1770-CD)

12. Ground Bus Plate

13. Connection between Power Supply System Common studs

To other I/O Chassis in the Channel

10391

2-3

Chapter 2

Installing a Backup System

Figure 2.2 Connections for a PLC3 Backup System Using MX Backup

To Earth Ground

6 6

Blue

Shield

1. PLC-3 Processor (Primary)

2. Power Supply (cat. no. 1775-P1)

Clear

3. 1771 I/O Chassis (cat. no. 1771-A1B, -A2B, A3B, -A4B)

4. Power Supply (cat. no. 1771-P2)

5. Processor Chassis Power Cable, 6ft. (cat. no. 1775-CAP)

6. I/O Power Cable, 1ft. (cat. no. 1771-CE)

7. Twinaxial Cable (cat. no. 1770-CD) 10,000 ft. Max. Each I/O Channel at 57.6K Baud

8. Terminator (cat. no. 1770-XT) Connect one at each end of the I/O Channel

9. PLC-3 Processor (backup)

10. Memory Communication Cable (cat. no. 1775-CM)

11. Memory Communication Cable (cat. no. 1775-CM)

12. Ground Bus Plate

13. Connection between Power Supply System Common studs

To other I/O Chassis in the Channel

18720

2-4

Chapter 2

Installing a Backup System

Figure 2.3 Connections for a PLC3/10 Backup System Using Scanner Backup

4 4

Blue

Shield

Clear

1. PLC-3/10 Processor (Primary)

2. 1771 I/O Chassis (cat. no. 1771-A1B, -A2B, A3B, -A4B)

3. Power Supply (cat. no. 1771-P2)

4. I/O Power Cable, 1ft. (cat. no. 1771-CE)

5. Twinaxial Cable (cat. no. 1770-CD) 10,000 ft. Max. Each I/O Channel at 57.6K Baud

6. Terminator (cat. no. 1770-XT) Connect one at each end of the I/O Channel

7. PLC-3/10 Processor (backup)

8. Backup Cable (cat. no. 1775-CBA, -CBB)

9. Backup Communication Cable (cat.no. 1770-CD)

10. Ground Bus Plate

To Earth Ground

To other I/O Chassis in the Channel

18756

2-5

Chapter 2

Installing a Backup System

Power Supply Considerations

Grounding Considerations

For a PLC-3 backup system, it is important to choose suitable power supplies and make sure they are connected properly.

To reduce the chance of inadvertent shutdowns due to loss of power, we recommend using two separate 1775-P1 or -P3 power supplies. Use one power supply for the primary processor and the other power supply for the backup processor. Further, connect each power supply to a separate source of AC power.

Important: In backup systems, never use the processor supply for powering an I/O chassis. A processor failure could cause the I/O to fail also.

For detailed information about installing power supplies, refer to the PLC-3 Programmable Controller Installation and Operation Manual (publication 1775-6.7.1).

All grounding requirements applicable to a stand-alone PLC-3 or PLC-3/10 processor also apply to backup systems. In addition, you need to do the following:

When using a 1775-P1 power supply, connect the system common studs

together on the power supplies of the primary and backup processors . Use 1-inch braid or 8 AWG wire.

Shielding Considerations

If the primary and backup processors are in separate enclosures, connect

the ground bus plates of the primary and backup processors together. Use 1-inch braid or 8 AWG wire.

Connect the ground bus plate of either the primary or backup processor,

but not both, to earth ground.

Use star washers to assure a positive ground connection between metal

surfaces and ground lugs.

For detailed information about grounding, see Wiring and Grounding Guidelines (publication 1770-4.1).

Use shielded cable for I/O channel wiring as specified in the PLC-3 Programmable Controller Installation and Operation Manual (publication 1775-6.7.1) to minimize noise pickup. Also, use shielded cable for peer-to-peer communication channels, backup communication channels, and Data Highway/Data Highway Plus channels. We recommend using 1770-CD twinaxial cable (Belden 9463), or equivalent.

2-6

Chapter 2

Installing a Backup System

Configuring the I/O Chassis

OFF

You must configure all I/O chassis for backup mode operation. Each I/O chassis has eight switches. Two of the switches, switches 2 and 8, are especially important because they affect the operation of a backup system. See Figure 2.4 for the function and location of the I/O chassis switches.

Figure 2.4 Location

and Function of I/O Chassis Backplane Switches

Switch

OFF

Switch

Always On

OFF

Always On

OFF

Outputs of this I/O chassis remain in their last state when a fault is detected by this I/O adapter.

Outputs of this I/O chassis are turned off when a fault is detected by this I/O adapter.

Switches

Processor Restart Lockout

The I/O chassis can be restarted from the processor.

The processor is locked out from restarting the I/O chassis after a fault.

Addressing

2-slot

OFF

1-slot

OFF

1/2 - slot

Not allowed

Last S tate

2, 3

Pressed in attopClosed(ON)

Pressed in at bottom Open (OFF)

NOTES:

1. CAUTION: If you set this switch to the ON position, when a fault is detected, outputs connected to this

chassis remain in their last state to allow machine motion to continue. We recommend that you set switch 1 to the OFF position to de - energize outputs wired to this chassis when a fault is detected.

2. The 1771 - AS adapter does not support 1 -slot or 1/2 - slot addressing. When you use this adapter, set switches 5 and 6 to the OFF position.

3. The 1771 - ASB series A adapter does not support 1/2 - slot addressing.

16191

2-7

Chapter 2

Installing a Backup System

Setting

The processor restart lockout switch (switch 2) must be ON so the backup processor is capable of restarting the I/O chassis at switchover, if necessary. If the system has more than one I/O chassis, switch 2 must be ON in each chassis. For more detailed information about the processor restart lockout feature, refer to the PLC-3 Programmable Controller Installation and Operations Manual (publication 1775-6.7.1).

Setting

The chassis I/O to backup processor switch (switch 8) must be ON so the backup processor can receive inputs from the I/O chassis. The backup processor will not be able to receive inputs from the I/O chassis if switch 8 is set incorrectly.

Switch 2

Switch 8

CAUTION: To guard against damage to equipment, make sure that switch 8 on a 1771-A1B I/O chassis with starting module group 0 is set to ON. If this switch is not ON, the backup processor will not receive inputs from the I/O chassis.

Configuring Scanner Modules

You set up and install scanner modules whether you are configuring a system for scanner backup or MX backup. The only difference is the cable used between the backup connectors on the various modules.

To configure a scanner module you must:

set backup switches select a backup cable connect the backup cable connect I/O channel wiring.

Setting

Each scanner module has four switches for selecting a switchover method or stand-alone mode. Figure 2.5 and Figure 2.7 show the location of these switches for the various scanner modules.

To select the backup mode, do the following:

1. Set backup switches 1 through 4 on the number one scanner module

Backup Switches

(thumbwheel set to 1) in both primary and backup processors for the type of switchover desired. See Table 2.A for 1775-S4A and 1775-SR scanners or Table 2.B for 1775-S5 and 1775-SR5 scanners.

2-8

Chapter 2

Installing a Backup System

2. Set all backup switches on all other scanner modules, if any are

present, in both the primary and backup processors to the up position.

Figure 2.5 Location Modules

of Backup Switches for 1775S4A and 1775SR Scanner

TopEdge ofModule

18753

Figure 2.6 Setting Backup Switches on the 1775S4A and 1775SR Scanner Modules

OFF

Not Used

(always UP)

1234

Set per

Table 2.A

Not Used

(always UP)

Switch Positions:

UP = DOWN=

Set per

Table 2.A

Table 2.A Backup

Switches on 1775S4A and 1775SR Scanner Modules

Switch

Switchover Method 2 4 Processor

Automatic switchover with controllable switchback

DOWN UP both primary and backup

Switch is away from board Switch is toward board

10794I

Automatic switchover with no switchback DOWNUPUPUPprimary

backup

Manual switchover UP DOWN both primary and backup

Standalone mode UP UP both primary and backup

2-9

Chapter 2

Installing a Backup System

Figure 2.7 Location

of Backup Switches for 1775S5 and 1775SR5 Scanner

Modules

Backup Switch at Bottom Edge of Module

erminator Switch at

Bottom Edge of Module

Figure 2.8 Setting

Backup Switches on 1775S5 and 1775SR5 Scanner Modules

18754

OFF

Not Used

(always UP)

1234

Set per

Table 2.B

Not Used

(always UP)

Switch Positions:

UP = DOWN=

Table 2.B Backup

Switches for 1775S5 and 1775SR5 Scanner Modules

Switch

Switchover Method 2 3 Processor

Automatic switchover with controllable switchback

Automatic switchover with no switchback

DOWN UP both primary and backup

DOWNUPUP

primary backup

Switch is away from board Switch is toward board

10975I

2-10

Manual switchover UP DOWN both primary and backup

Standalone mode UP UP both primary and backup

Chapter 2

Installing a Backup System

Selecting

a Backup Cable

Choose a backup cable for the switchover method desired. Table 2.C lists the choices. See Figure 2.9 through Figure 2.11 for wiring information.

Table 2.C Backup

Cables

Switchover Method: Backup Cable:

Automatic switchover with no switchback 1775CBA

Automatic switchover with controllable switchback 1775CBB

1775CM

Manual switchover 1775CBB

1. Use for scanner backup configuration.

2. Use for MX backup configuration.

Figure 2.9 Backup

Cable W

iring for Scanner Backup with Automatic Switchover

with No Switchback (Cat. No. 1775CBA)

PRIMARY

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

SHIELD

1775CBA

BACKUP

CABLE

BACKUP

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

10976I

2-11

Chapter 2

Installing a Backup System

Figure 2.10 Backup

Cable W

iring for Scanner Backup with Automatic Switchover

with Controllable Switchback (Cat. No. 1775CBB)

PRIMARY

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

SHIELD

SWITCH

1775CBB

BACKUP

CABLE

BACKUP

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

10977I

CAUTION: To guard against damage to equipment, make sure that:

switch 2 closes within 8 milliseconds of switch 4 switch 3 closes within 8 milliseconds of switch 1

CAUTION: If these conditions are not satisfied when you throw the switch to change the processor that is designated as the primary processor to the processor currently controlling outputs, the new primary processor may fault.

2-12

Figure 2.11 Backup

Cable W

Chapter 2

Installing a Backup System

iring for Manual Switchover (Cat. No. 1775CBB)

PRIMARY

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

SWITCH

1775CBB

BACKUP

CABLE

SYSTEM

COMMON

BACKUP

PROCESSOR

SCANNER #1

BACKUP

CONNECTOR

10978I

Connecting

the Backup Cable

Figure 2.12 shows how to connect a backup cable for the scanner backup configuration.

Important: If you are configuring the system for MX backup instead of scanner backup, do not connect the backup cable as shown. See the instructions in Configuring 1775-MX Memory Communication Modules for information about installing the interconnect cables.

To configure scanner backup, do the following:

1. Locate the backup cable.

2. Connect one end of the backup cable to the backup connector on the

number one scanner module (thumbwheel set to 1) in the primary processor.

3. Connect the other end to the backup connector on the number one

scanner module (thumbwheel set to 1) in the backup processor.

2-13

Chapter 2

Installing a Backup System

Figure 2.12 Connections

for Scanner Backup

Primary Processor Backup Processor

Backupcable(seetext)

Application: Cable:

Automatic switchover with no switchback 1775CBA

Automatic switchover with controllable switchback 1775CBB

Manual switchover 1775CBB

10395

2-14

Chapter 2

Installing a Backup System

Connecting the I/O Channel Wiring

There are four I/O serial communication channels per scanner. Depending on your system architecture, you can use one or more of them for:

I/O communication Peer-to-peer communication Backup communication

To do this, you connect I/O cables to the terminal swing arm and configure each channel for the type of communication desired. You configure I/O channels by using LIST.

Figure 2.13 shows how to identify the terminals on a terminal swing arm.

Figure 2.13 I/O

Cables Terminate at Terminal Swing Arms

Line 1

Shield

Line 2

Line 1

Shield

Line 2

Channel No. 4

Channel No. 2

Channel No. 3

Channel No. 1

Line 1

Shield

Line 2

Line 1

Shield

Line 2

10044

Important: For 1775-S4A or -SR scanner modules used as the number one scanner, when using I/O channel 5 to communicate with a peripheral device, I/O channel 4 of the number one scanner module cannot be used. Do not make any connections to I/O channel 4.

2-15

Chapter 2

Installing a Backup System

Shield

Blue

Connecting

I/O Communication Channels

Figure 2.14 shows the connections when using I/O channel 1.

Figure 2.14 Connections

Primary Processor Backup Processor

for I/O Communication

Twinaxial Cable (cat. no. 1770-CD)

Shield

Blue

Terminator (cat. no. 1770-XT)

to page 223)

(Refer

Clear

To I/O Chassis

Clear

Channel No. 1 Shown

10392

2-16

Chapter 2

Installing a Backup System

If you designate another I/O channel for use as an I/O communication channel, replace the references to I/O channel 1 with the actual I/O channel in the following procedure.

1. Connect one end of a 1770-CD twinaxial cable (Belden 9463) to the

I/O channel 1 terminals on the terminal swing arm of a scanner module in the backup processor.

2. For 1775-S4A, -SR scanner modules, install a 1770-XT terminator to

the I/O channel 1 terminals in the backup processor as shown in Figure 2.14. For 1775-S5 and -SR5 scanner modules, you can either install a 1770-XT terminal or select a terminator by using the internal switches as shown in Figure 2.17.

Important: If the internal terminator option is used, the link will be unterminated if the swing arm is removed from the scanner.

3. Connect the other end of the 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of the corresponding scanner module in the primary processor.

4. Connect one end of another 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of the scanner module in the primary processor.

5. Connect the other end of this cable to the designated I/O device.

6. Repeat steps 1 through 5 for other channels used for I/O

communication.

7. Using LIST, configure each channel for use as I/O communication.

2-17

Chapter 2

Installing a Backup System

Shield

Blue

Connecting

an I/O Channel for PeertoPeer Communication

Any I/O channel can be used for peer-to-peer communication. Figure 2.15 shows the connections when using I/O channel 1.

Figure 2.15 Connecting

Primary Processor Backup Processor

an I/O Channel for PeertoPeer Communication

Twinaxial Cable (cat. no. 1770-CD)

Shield

Blue

Terminator (cat. no. 1770-XT) (Refer

to page 223)

Clear

To other PLC-3 systems

Clear

Channel No. 1 Shown

10393

2-18

Chapter 2

Installing a Backup System

If you designate another I/O channel for use as a peer-to-peer communication channel, replace the references to I/O channel 1 with the actual I/O channel used in the following procedure.

1. Connect one end of a cat. no. 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of a scanner module in the backup processor. If this is a 1775-S4A or 1775-SR scanner module, do not connect the shield.

For 1775-S4A and 1775-SR scanner modules, install a cat. no. 1770-XT terminator to the I/O channel 1 terminals in the backup processor as shown in Figure 2.15. For 1775-S5 and 1775-SR5 scanner modules, you can either install a 1770-XT terminator or select a terminator by using the internal switches as shown in Figure 2.17 on page 2-23.

Important: If the internal terminator option is used, the link will be unterminated if the swing arm is removed from the scanner.

2. Connect the other end of the 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of the corresponding scanner module in the primary processor. Connect the shield.

3. Connect one end of another 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of the scanner module in the primary processor. Connect the shield.

4. Connect the other end of this 1770-CD twinaxial cable to the

designated peer-to-peer channel in another processor. If this is a 1775-S4A or 1775-SR scanner module, do not connect the shield.

5. Connect one end of another 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of this scanner module. Connect the shield.

6. Connect the other end of this 1770-CD twinaxial cable to the

designated peer-to-peer channel in another processor. If this is a 1775-S4A or 1775-SR scanner module, do not connect the shield.

7. Repeat steps 5 and 6 for up to 6 slaves and 1 master.

2-19

Chapter 2

Installing a Backup System

8. If the last scanner is a 1775-S4A or 1775-SR scanner module, install

a 1770-XT terminator to the I/O channel 1 terminals as shown in Figure 2.15. For 1775-S5 and 1775-SR5 scanner modules, you can either install a 1770-XT terminator or select a terminator by using the internal switches as shown in Figure 2.17 on page 2-23.

9. Using the LIST function, configure I/O channel 1 in the backup

processor for peer-to-peer communication. Use the same peer-to-peer station number as the primary processor. If the primary processor is a master, configure the backup processor as a master. If the primary processor is a slave, configure the backup processor as a slave.

Important: The master number must be different from all slave numbers on the link. The master number and all slave numbers must be unique and selected from numbers 81 through 89.

As shown in the above procedure, the twinaxial cable shield is always connected on 1775-S5 or 1775-SR5 scanner modules but alternately connected between 1775-S4A or 1775-SR scanner modules.

2-20

Chapter 2

Installing a Backup System

Shield

Blue

Connecting

an I/O Channel for Backup Communication

Any I/O channel can be used for backup communication. Figure 2.16 shows the connections when using I/O channel 1.

Figure 2.16 Connecting

Primary Processor Backup Processor

an I/O Channel for Backup Communication

Twinaxial Cable (cat. no. 1770-CD)

Terminator (cat. no. 1770-XT)

(Refer to page 223)

Blue

Clear

Channel No. 1 Shown

Terminator (cat. no. 1770-XT)

(Refer to page 223)

Shield

Clear

Channel No. 1 Shown

10394

2-21

Chapter 2

Installing a Backup System

If you designate another I/O channel for use as a backup communication channel, replace the references to I/O channel 1 with the actual I/O channel used in the following procedure.

1. Connect one end of a 1770-CD twinaxial cable to the I/O channel 1

terminals on the terminal swing arm of a scanner module in the backup processor.

2. For 1775-S4A, -SR scanner modules, install a 1770-XT terminator to

the I/O channel 1 terminals in the backup processor as shown in Figure 2.16. For 1775-S5 and -SR5 scanner modules, select a terminator by using the internal switches as shown in Figure 2.17.

3. Connect the other end of the 1770-CD twinaxial cable to the I/O

channel 1 terminals on the terminal swing arm of the corresponding scanner module in the primary processor.

4. For 1775-S4A, -SR scanner modules, install a 1770-XT terminator to

the I/O channel 1 terminals in the primary processor as shown in Figure 2.16. For 1775-S5 and -SR5 scanner modules, select a terminator by using the internal switches as shown in Figure 2.17.

5. Using the LIST function, configure I/O channel 1 for backup

communication in both the primary and backup processors.

Important: Use numbers 81 through 89 for the resident and partner numbers.

CAUTION: To guard against damage to equipment, make sure that you configure each channel in the backup system with the same resident and partner numbers, when using multiple backup communication channels. If you use a different resident or partner number on different channels of the same processor, both processors may shut down if the backup cable breaks.

2-22

Chapter 2

Installing a Backup System

Terminators

The first and last physical device of each I/O channel requires a terminator. Use discrete terminators (cat. no. 1770-XT) for 1775-S4A, -SR scanner modules. The 1775-S5, -SR5 scanner modules have internal terminators that can be enabled/disabled with a switch. See Figure 2.17 and Figure 2.7.

Figure 2.17

Selecting

OFF

erminators on 1775S5, SR5 Scanner Modules

Switch Positions:

1234

OFF

UP = DOWN =

When DOWN, a terminator is connected on the corre sponding communication channel.

Connect a terminator when the scanner is physically the first or last device on a Data Highway way Plus, I/O, peertopeer tions link; otherwise, set the switch to the UP position.

Switch is away from board Switch is toward board

, or backup communica

Important: When using internal terminators, removing the terminal swing arm from a module causes the communication channels to be unterminated.

For more information about terminators and I/O channel wiring, refer to the PLC-3 Programmable Controller Installation and Operation Manual (publication 1775-6.7.1).

, Data High

10979I



2-23

Chapter 2

Installing a Backup System

Configuring 1775MX Memory Communication Modules

RCVG

To implement MX backup you need two 1775-MX memory communication modules, one for the primary processor and another for the backup processor, and one 1775-CM memory communication cable assembly. The cable assembly consists of four cables. Two of them are interconnect cables (3 feet long) that eliminate the need for a 1775-CBA or 1775-CBB backup cable. The other two cables are communication cables (30 feet long).

Figure 2.18 shows the connections required for MX backup.

Figure 2.18 Connections

Primary Processor Backup Processor

for MX Backup

RCVG

Interconnect Cable

XMTG

2-24

Memory Communication Cable Assembly (cat. no. 1775-CM)

XMTG

12187

Chapter 2

Installing a Backup System

To configure MX backup, do the following:

1. Insert one memory communication module in the primary processor

and one in the backup processor. A memory communication module can occupy any slot in a PLC-3 processor chassis; however, to obtain the best system performance in multi-chassis systems, you should place the memory communication module in the same chassis as the memory modules.

2. Connect the XMTG end of a 1775-CM cable to the XMTG connector

on the memory communication module in the backup processor.

3. Connect the RCVG end of this cable to the RCVG connector on the

memory communication module in the primary processor.

4. Connect the RCVG end of the other 1775-CM cable to the RCVG

connector on the memory communication module in the backup processor.

5. Connect the XMTG end of this cable to the XMTG connector on the

memory communication module in the primary processor.

6. Connect one end of a 1775-CM interconnect cable to the backup

connector on the number one scanner module in the primary processor.

7. Connect the other end of this cable to the backup connector on the

memory communication module in the primary processor.

8. Connect one end of the other 1775-CM interconnect cable to the

backup connector on the number one scanner module in the backup processor.

9. Connect the other end of this cable to the backup connector on the

memory communication module in the backup processor.

10.Set the option switches on the number one scanner modules in both

the primary and backup processor for automatic switchover with controllable switchback. See Table 2.A on page 2-9 or Table 2.B on page 2-10.

CAUTION: To guard against damage to equipment, support 1775-CM cables so the weight of the cable does not cause stress at the connectors. If you don’t support the cables, the wires may break.

2-25

Chapter

Operating a Backup System

Chapter Objectives

Starting Up a Backup System

This chapter describes how to operate a backup system. It recommends procedures for:

starting up a backup system shutting down a backup system restarting a backup system disconnecting a faulted processor restarting a repaired processor.

CAUTION: To guard against damage to equipment, make sure you follow the startup procedure recommended for your backup system configuration. If you use the wrong procedure, the backup processor could be configured improperly, or the primary processor could be prevented from regaining control of outputs.

To start up a backup system for the first time, find the appropriate startup method for your backup configuration in Table 3.A, then follow that procedure.

Table 3.A Startup

Procedure Selection

If You Have This Backup Configuration:

Scanner backup

MX backup if programs in the primary and backup

processors are different

MX backup if programs in the primary and backup

processor are identical

Use This Startup Procedure:

Method 1 32

Method 2 33

Page

3-1

Chapter 3

Operating a Backup System

Startup Procedure Method 1

1. Turn off both the primary and backup processors, if they are not

already off.

2. Turn on the backup processor.

3. Select program load mode in the backup processor.

4. Load the program into the backup processor.

5. Select automatic configuration to configure the I/O channels in the

backup processor.

6. Manually configure peer-to-peer or backup communication channels,

if any are used. If you need additional information to complete this step, refer to the PLC-3 Family Programmable Controller Programming Reference Manual (publication 1775-6.4.1).

7. Turn off the backup processor.

8. Turn on the primary processor.

9. Select program load mode in the primary processor.

10. Load the program into the primary processor.

11. Select automatic configuration to configure the I/O channels in the

primary processor.

12. Manually configure peer-to-peer or backup communication channels,

if any are used. If you need additional information to complete this step, refer to the PLC-3 Family Programmable Controller Programming Reference Manual (publication 1775-6.4.1).

13. Turn on the backup processor.

14. If a series A, revision C (or earlier) communication adapter module

(1775-KA) is in the backup processor, change the Data Highway station number now. If you need additional information to complete this step, refer to the section Programming Considerations for Data Highway and Data Highway Plus on page 5-13, or the PLC-3 Communication Adapter Module User’s Manual (publication 1775-6.5.2).

3-2

15. Select run mode in the backup processor.

16. Select run mode in the primary processor.

Chapter 3

Operating a Backup System

Startup Procedure Method 2

1. Turn off both the primary and backup processors, if they are not

already off.

2. Turn on the primary processor. Important: Whichever processor you turn on first is designated as the

primary processor; the other is designated as the backup processor.

3. Select program load mode in the primary processor.

4. Load the program into the primary processor.

5. Using the LIST functions in the primary processor, configure all

modules in the primary processor.

6. Turn on the backup processor.

7. Select program load mode in the backup processor.

8. Using the LIST function, perform a memory download. Important: If the primary processor was in run mode when you executed

memory download, the backup processor will be in run mode when the download is completed.

9. If a series A, revision C (or earlier) communication adapter module

(1775-KA) is in the backup processor, change the Data Highway station number now. If you need additional information to complete this step, refer to the PLC-3 Communication Adapter Module User’s Manual (publication 1775-6.5.1).

10.Select run mode in the backup processor.

11. Select run mode in the primary processor. Important: You can write the ladder program so the primary processor

automatically performs a memory download when it enters the run mode. Doing this would allow you to skip step 8 in the startup procedure. The example rungs in Figure 3.1 show how to program the download.

3-3

Chapter 3

Operating a Backup System

Inputs

B1:0

S0:3

Figure 3.1 Example

Rung for Performing Memory Download at Startup

MSG

Message Control Channel Download

#B0:0

E2.14.1

Shutting Down a Backup System

Restarting a Backup System

To shut down a backup system, do the following:

1. Select program load mode in the primary processor.

2. Select program load mode in the backup processor.

3. Turn off the backup processor.

4. Turn off the primary processor.

If you followed the shutdown procedure previously described, you can restart the backup system by doing the following:

1. Turn on the primary processor.

2. Turn on the backup processor.

3. Select run mode in the backup processor.

4. Select run mode in the primary processor.

3-4

Chapter 3

Operating a Backup System

Disconnecting a Faulted Processor

To troubleshoot and/or repair a faulted processor, you may have to disconnect it.

To disconnect a faulted processor, do the following:

1. Turn off the faulted processor.

2. Disconnect the following cables:

a. For the scanner backup configuration, disconnect the backup

cable from the number one scanner module in the faulted processor.

b. For the MX backup configuration, disconnect the

communication cables from the RCVG and XMTG connectors on the memory communication module in the faulted processor.

3. Remove the terminal swing arms from all scanner modules in the

faulted processor.

CAUTION: To guard against damage to equipment, be careful not to short any of the field wiring while removing terminal swing arms. If shorts occur in field wiring, equipment may be damaged.

Restarting a Repaired Processor

The procedure for restarting a repaired processor depends on the backup system configuration and switchover method used.

To restart a repaired processor, find the appropriate restarting method to use in Table 3.B, then follow that procedure.

Table 3.B Restarting

If You Have This Backup Configuration:

Scanner backup if using automatic switchover with no

Scanner backup if using automatic switchover with

MX backup

Scanner backup if using manual switchover Method 3 37

Procedure Selection

switchback

controllable switchback;

Use This Restarting Procedure:

Method 1 36

Method 2 37

Page

3-5

Chapter 3

Operating a Backup System

Restart Procedure Method 1

1. Turn off both processors, if they are not already off.

2. Reconnect the backup cable to the number one scanner module in the

repaired processor.

3. Reconnect the terminal swing arms to all scanner modules in the

repaired processor.

4. Turn on the backup processor.

5. Select program load mode in the backup processor.

6. Verify that channel configurations, values in data tables, and user

program are correct in the backup processor. If there are any incorrect entries, correct them before proceeding.

7. Turn off the backup processor.

8. Turn on the primary processor.

9. Select program load mode in the primary processor.

10. Verify that channel configurations, values in data tables, and user

program are correct in the primary processor. If there are any incorrect entries, correct them before proceeding.

11. Turn on the backup processor.

12. Select run mode in the backup processor.

13. Select run mode in the primary processor.

3-6

Chapter 3

Operating a Backup System

Restart Procedure Method 2

1. For the scanner backup configuration, place the switch, located in the

backup cable, so that the processor currently controlling outputs is the primary processor.

2. Reconnect the following cables:

a. For scanner backup configuration, reconnect the backup cable to

the number one scanner module in the repaired processor.

b. For the MX backup configuration, reconnect the communication

cables to the RCVG and XMTG connectors on the memory communication module in the faulted processor.

3. Reconnect the terminal swing arms to all scanner modules in the

repaired processor.

4. Turn on the repaired processor.

5. Check the configuration of each I/O channel, values in the data

tables, and the program in the repaired processor. If there are any incorrect entries, correct them before proceeding. Manually reconfigure the repaired processor, if necessary.

6. Select run mode in the repaired processor.

Restart Procedure Method 3

1. Reconnect the backup cable to the number one scanner in the repaired

processor.

2. Reconnect the terminal swing arms to all scanner modules in the

repaired processor.

3. Turn on the repaired processor.

4. Check the configuration of each I/O channel, values in the data

tables, and the program in the repaired processor. If there are any incorrect entries, correct them before proceeding. Manually reconfigure the repaired processor, if necessary.

5. Select run mode in the repaired processor.

3-7

Chapter

Using the 1775MX Memory Communication Module

Chapter Objectives

This chapter describes how to use 1775-MX memory communication modules. Depending on your application, you can program the memory communication module to:

transfer data from the primary processor to the backup processor to

ensure that the data table in the backup processor matches that in the primary processor.

transfer data from the backup processor to the primary processor to

provide data or status back to the primary.

download memory from the primary processor to the backup processor

to initialize the backup processor with the same data and configuration as the primary processor.

control on-line editing capability to prevent the primary processor or

backup processor from being programmed independently.

compare the ladder programs in the primary and backup processors to

ensure that all or part of the programs are identical.

voluntarily transfer control to the backup processor. For example, you

could switch over to the backup processor when performing maintenance on the primary processor.

disable the backup processor from assuming control of the outputs after

switchover. For example, when on-line editing is occurring in the primary processor but the changes have not yet been sent to the backup processor.

4-1

Chapter 4

Using the 1775MX Memory Communication Module

Controlling the Operation of Memory Communication Modules

As shown in Table 4.A, you can control operation of memory communication modules by using:

LIST functions (see page 4-3). message (MSG) instructions (see page 4-16).

Typically, you use LIST functions during the development of your application. This approach lets you select and deselect options manually.

In addition to providing additional selections, you can use message instructions to automate memory communication module setup once you are sure of the application. By inserting message instructions into the ladder program, the memory communication module can be configured automatically when powering up in the run mode or whenever the system changes from program mode to run mode.

Table 4.A LIST

Functions and MSG Instructions

By Using:

You can: LIST Function MSG Instruction

transfer the contents of the data table from the primary to the backup processor continuously

Yes Yes

transfer the contents of selected files from the primary to the backup processor continuously

transfer the contents of the data table from the primary to the backup processor one time

transfer the contents of selected files from the primary to the backup processor one time

stop further continuous transfers once the transfer in progress completes

download memory from the primary to the backup processor

control online editing capability for a programmable terminal

compare the ladder program in the backup processor with the one in the primary processor continuously

transfer control to the backup processor No Yes

inhibit the backup processor from taking control of outputs when the primary processor faults

transfer backup processor data to the primary processor

Yes Yes

No Yes

Yes Yes

No Yes

Yes Yes

4-2

Chapter 4

Using the 1775MX Memory Communication Module

The following sections describe how to control memory communication modules by using LIST functions and message instructions.

Using LIST Functions for Control

The LIST functions for memory communication modules follow the same convention as other modules in a PLC-3 system.

Important: Concerning the operation of LIST functions, note the following points:

If the primary processor faults, switchover occurs and the backup

processor takes control of outputs. The backup processor assumes that LIST is active unless it encounters a program control command to redirect control to the ladder program. When the primary processor is repaired and restarted, it becomes the “backup” processor, and the memory communication module resumes operation.

If the backup processor faults, all data transfers in progress stop until the

backup processor is repaired and restarted. Once the backup processor is active again, the memory communication module resumes operation.

You can view the status of a memory communication module by making a series of selections in the LIST menu. You can view the status of a memory communication module from either the primary processor or the backup processor Figure 4.1. If you make selections from the backup processor, however, they have no effect on the operation of the memory communication module until the backup processor takes control of outputs. The only exception is the backup to primary data transfer function; it can be accessed through the backup processor.

Important: In this manual, the term MCM refers to the memory communication module not to the PLC-3 high-speed interface and diagnostic software (cat. no. 1775-MCM).

4-3

Chapter 4

Using the 1775MX Memory Communication Module

Figure 4.1 LIST

Menu for Primary and Backup Processor

SYSTEM 1 2* 3 4* 5 6 ENTER NEXT >

MODE TEST MONITOR RUN MONITOR PROGRAM LOAD REMOTE ENABLE SYSTEM STATUS MODULE STATUS

MODULES 101

1775-ME8 A/A

201

1775-L3 A/E

301

1775-S5 A/G

401

1775-MX A/C

ENTER NEXT >

MCM OPERATION CHASSIS 00 SLOT 06 SYSTEM ID. 03 LIST CONTROL 1 INACTIVE

FILE TRANSFER

2* 3

DATA TABLE XFER

MEMORY DOWNLOAD

LOCK SYSTEM

UNLOCK SYSTEM

ENABLE PROG COMP

DISABLE PROG COMP

FILE SELECTION

PROG COMP LIMITS

BACKUP TO PRIMARY DATA TRANS FER ENTER NEXT >

THIS

FEA TEM IS IN PROGRAM MODE. THIS FEATURE MUST BE CONFIGURED IDENTICALLY IN BOTH THE PRIMARY AND BACKUP MX MODULES.

ENTER E TO ENABLE THIS FEATURE OR D TO DISABLE IT.

TURE CAN ONLY BE ENABLED/DISABLED WHEN SYS-

The MCM OPERATION menu shows you three things:

the source of control functions selections made in LIST present operational status of the memory communication module

Chassis and slot information appear directly beneath the title of the menu. A system identification number, which is derived from the chassis and slot numbers of scanner number one, is also shown.

4-4

PROG COMP LIMITS 0=COMP DISABLED MAIN 00004 SUBROUTINE 00003 FAULT 00000

FILE SELECTIONS 1O0 2I0 3 N23 4D2 5T0 6C0 ENTER NEXT >

10980I

Chapter 4

Using the 1775MX Memory Communication Module

As shown in Table 4.B, a heading, which appears directly beneath the system identification, identifies the current source of control commands for the memory communication module.

Table 4.B Menu

Headings

This heading: Tells you that:

LIST

CONTROL

operation of the memory communication module is being controlled by selections made in LIST

PROGRAM

BACKUP you are viewing LIST selections for the memory communication

CONTROL

operation of the memory communication module is being controlled by message instructions in the ladder program

module in the backup processor. These selections have no affect on system operation (except for the Backup to Primary Data Transfer function) as long as the primary processor is controlling outputs.

Important: At switchover, the backup processor takes control of the outputs and LIST selections in the backup processor take effect immediately.

As shown in Table 4.C, symbols, which appear to the left of the entries on the menu, identify the LIST selections that have been made and the current operational status of the memory communication module.

Table 4.C Menu

Symbols

This symbol: Means that:

* the command has been selected in LIST and is active.

the command has been selected in LIST and would be active if

module operation were under LIST control. LIST selections could also be inactive if the primary processor is in program load mode.

the command has not been selected in LIST, but is active. This could occur for the following reasons:

 operation of the module is being controlled by the

ladder program

 the module cannot execute the LIST function selected  the processor is in program load mode  the MCM OPERATION menu displayed is for the

memory communication module in the backup processor

Note that there is an A entry for every L.

4-5

Chapter 4

Using the 1775MX Memory Communication Module

The MCM OPERATION menu contains an entry for each LIST function listed in Table 4.D. These functions are a subset of those available when using message instructions.

Table 4.D LIST

Functions

Command Description

INACTIVE The memory communication module stops both continuous

data transfers and continuous file transfers to the backup processor.

FILE

TRANSFER

FILE

SELECTION

The memory communication module transfers the selected files from the primary to the backup processor continuously.

Lets you select up to 16 files for use with the file transfer function.

DATA

TABLE XFER

MEMORY

LOCK

UNLOCK

ENABLE

DISABLE

PROG

BACKUP DATA TRANSFER

DOWNLOAD

SYSTEM

PROG COMP

COMP LIMITS

TO PRIMARY

The memory communication module continuously transfers the entire data table, except the data table status section, from the primary to the backup processor.

The memory communication module stops any data transfer in progress and transfers the entire contents of PLC3 memory from the primary to the backup processor.

The memory communication module has the edit resource for both the primary and backup processors. This protects the ladder program in the current context from being edited while in the run or test mode.

The memory communication module releases the edit resource for both the primary and backup processors.

The memory communication module compares the ladder diagram program in the backup processor with the one in the primary processor on a wordbyword basis.

The memory communication module prevents the execution of the program compare function.

Lets you select specific sections of the ladder program to be compared when ENABLE selected.

Lets you transfer up to 16 words from the backup to the primary processor.

PROG COMP

has been

4-6

The following sections describe each LIST command in detail.

Chapter 4

Using the 1775MX Memory Communication Module

Inactive

The INACTIVE command lets you discontinue continuous data table and file transfers. As long as the selection INACTIVE is active, the memory communication module inhibits data and file transfers between the primary processor and the backup processor.

If a data or file transfer was in progress when you selected the INACTIVE function, it will become effective on completion of the transfer in progress. Then, all subsequent data and file transfers will be inhibited.

File

The FILE TRANSFER command lets you transfer a group of selected files from the primary to the backup processor. You can specify from 1 to 16 files by using the file selection function.

When the selection FILE TRANSFER is active, the memory communication module transfers the selected files from the primary to the backup processor continuously. If the list of files contains a file that does not exist in the primary processor, the memory communication module:

Command

ransfer Command

displays the message FILE

on the programming terminal

LIST ERROR

on the PLC-3 front panel or

proceeds to the next legitimate file in the list.

For the file transfer function to work properly, the primary processor must be in run mode or test mode. File transfer will stop if you switch the primary processor to program mode. When you switch the primary processor out of program mode, file transfer will become active again as long as the selection FILE TRANSFER is still active in LIST.

4-7

Chapter 4

Using the 1775MX Memory Communication Module

File

Selection Command

To specify a group of files, select the entry FILE SELECTION in the MCM OPERATION menu. The files currently in the list are displayed, followed by the prompt FILE

SELECTION ENTER NEXT>

You select up to 16 files, one at a time, by entering information using the following syntax:

e/sf

[ENTER]

where:

Table 4.E Data

able Section Specifiers

Data Table Section Specifier

Output Image O

Input Image I

Timer T

Counter C

Integer N

Floating Point F

Decimal (BCD) D

Binary B

ASCII A

High Order Integer H

Pointers P

Status S

is the entry number (1 to 16)

is the data table section specifier (Table 4.E)

is the file number

4-8

Important: You must use the slash (/) as the delimiter separating the entry number from the data table section specifier. For example, to add decimal file 2 to the fourth position in the list, type:

4/D2

[ENTER]

Chapter 4

Using the 1775MX Memory Communication Module

Important: Timers and counters cannot be separated into control, preset, and accumulated value for the purpose of file transfers. In addition, pointers cannot be separated into section, file, and word. Therefore, no file number is necessary (although you can specify file 0). For example, to add the timer section to the fifth position in the list, the counter section to the sixth position, and the pointer section to the seventh position in the list, type:

5/T

or 5/T0 [ENTER]

6/C 7/P

Important: Changes to the file list do not become effective until you reselect the FILE TRANSFER function. This helps prevent deleting a file by mistake. To delete a file, use the following procedure:

1. To delete the third file, for example, type:

6/C0 [ENTER]

7/P0 [ENTER]

[ENTER]

2. Move back to the MCM OPERATION menu by pressing:

[ENTER]

3. To make the change effective, type:

[ENTER]

Now, the third file on the file list has been deleted.

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate the files when the memory communication module (1775-MX) executes a file transfer. If not enough memory is available, the backup processor will shut down.

4-9

Chapter 4

Using the 1775MX Memory Communication Module

Data Table T

The DATA TABLE XFER command lets you transfer all of the data table sections except the status section (section 13), from the primary processor to the backup processor continuously. The memory communication module transfers all undefined sections, i.e., 14, 15, and so on, as well.

The primary processor must be in run mode or test mode for transfers to occur. If you switch the primary processor to program mode, data table transfer becomes inactive.

The memory communication module forces the data table in the backup processor to be identical to the one in the primary processor. Thus, deletions as well as creations may take place in the backup processor. Further, if a section of the data table exists in the backup processor but not in the primary processor, that section will be deleted in the backup processor.

LIST commands INACTIVE, FILE TRANSFER, and DATA TABLE XFER are mutually exclusive, i.e., only one may be used at a time.

ransfer Command

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate the data when the memory communication module (1775-MX) executes a data table transfer. If not enough memory is available, the backup processor will shut down.

4-10

Chapter 4

Using the 1775MX Memory Communication Module

Memory Download Command

The MEMORY DOWNLOAD command lets you transfer the entire contents of the PLC-3 memory from the primary to the backup processor. This transfer occurs once each time you request it, and has a higher priority than the data transfer function.

The backup processor cannot take control of outputs if the primary processor faults during the download. After the transfer is completed, the LIST menu is redisplayed and the memory communication module resumes operation.

Important: A memory download will not occur if:

- the backup processor has insufficient memory to accommodate the memory contents of the primary processor. Should this occur, the memory communication module will abort the memory download and resume operation.

- an error occurs during download. In this case, the memory communication module aborts the memory download and the backup processor shuts down.

- the keyswitch on the primary processor is in the MEMORY PROTECT ON position. This causes the primary processor to display an error message unless the ignore keyswitch option is enabled on privilege 72.

Important: If you are using a series A, revision C (or earlier) communication adapter module (1775-KA) in the backup processor, you must change its Data Highway station number after performing a memory download.

Lock

System Command

The LOCK SYSTEM command lets you protect the ladder program in the current context of both the primary and backup system from being edited by a programming terminal. This protection remains in effect until you unlock the processor or place it in program mode.

For this command to function properly, the primary processor must be in run mode or test mode. If you switch the primary processor to program mode, the memory communication module unlocks both the primary and backup processors.

4-11

Chapter 4

Using the 1775MX Memory Communication Module

When you select the LOCK SYSTEM command, the memory communication module attempts to acquire the edit resource for both the primary and backup processors. The edit resource is defined as the ability of a programming terminal to create and/or edit the ladder program in the current context and manipulate the data table. If a ladder program is already being edited with a programming terminal, the memory communication module cannot acquire the edit resource until the editing session is terminated.

Even though a PLC-3 backup system is locked, you can still:

create and delete PLC-3 memory sections edit contexts other than the current context

Important: When the PLC-3 backup system is locked, a programming terminal cannot edit the ladder program in the current context. Other intelligent devices must honor the edit resource.

Important: The PLC-3 backup system is not considered locked unless the edit resource is acquired for both processors.

You can check the status of each processor by looking at file 4, word 0 of the status section. For further information about interpreting status words refer to Using Data Table Status Bits in chapter 5.

Unlock

System Command

The UNLOCK SYSTEM command lets you release the edit resource for both the primary and backup processors, thus allowing you to edit the program in the current context with a programming terminal.

4-12

Chapter 4

Using the 1775MX Memory Communication Module

Enable Program Compare Command

The ENABLE PROG COMP command lets you compare the ladder program in the backup processor with the one in the primary processor on a word-by-word basis. This function works in conjunction with the program compare limits selections. See Table 4.F.

Table 4.F Program

Compare

If the memory communication module: Then:

completes the program compare without error

encounters a miscompare, LIST will show:

L Enable Program Compare A Disable Program Compare

bit 13 is set in file 4, word 0 of the status section. (You must reset this bit.) The memory communication module continues the comparison until a miscompare occurs.

bit 12 is set in file 4, word 0 of the status section; the address of the rung containing the miscomparison is put into file 4, words 1 and 2; and bit 14 is reset in file 4, word 0.

To continue the comparison, you must reset the status bit (bit 12 in file 4 word 0) and reselect ENABLE PROG COMP

For a further description of status bits, see Using Data Table Status Bits in chapter 5 of this manual.

For a program comparison to occur, the primary processor must be in run mode or test mode. If you switch the primary processor to program mode, the program comparison function becomes inactive. When you switch the primary processor out of program mode, program comparison will become active again if the selection ENABLE PROG COMP is still active in LIST.

Important: Some data appearing in the ladder diagram is actually contained in the data table. If you alter a ladder diagram (in either the primary or the backup processor) in such a way that the information in the data table changes but the information in the program section remains unchanged, then the program comparison function will not detect a miscomparison. This may happen when using the following instructions:

- message send - diagnostic detect

- block transfer - timers

- file instructions - counters

- bit shifts - first-in-first-out (FIFO)

4-13

Chapter 4

Using the 1775MX Memory Communication Module

Disable Program Compare Command

The DISABLE PROG COMP command lets you disable the program comparison function. When this command is active, the memory communication module resets the program comparison status bit.

Program

Compare Limits Command

The PROG COMP LIMITS command lets you select specific sections of the ladder program to be compared when ENABLE PROG COMP has been selected.

This function works in conjunction with the enable program compare function. For the command to operate properly, you must select the limit before you select ENABLE PROG COMP.

When you select PROG COMP LIMITS, the PROG COMP LIMITS menu appears. The menu shows the current value of limits used for the program compare function. The first time you select this function, all limits are set to zero. The display will show the values of limits upon subsequent use. Legitimate values for limits range from 1 to 32,767.

PROG

COMP LIMITS 0=COMP DISABLED MAIN 00000 SUBROUTINE 00000 FAULT 00000 ENTER NEXT >

4-14

Each limit has a corresponding label comment number in the ladder program. If you need further assistance with label comment numbers, refer to the PLC-3 Programmable Controller Programming Manual (publication 1775-6.4.1) for detailed information.

When the enable program compare selection is active, the memory communication module compares each section of the ladder program from the first rung through the specified rung. As shown in LIST by 0 = COMPARE DISABLED, if you set the limit for a particular section at zero, the module does not compare that section. If the memory communication module cannot find the label comment number for a section, it will compare that entire section of the ladder program.

Chapter 4

Using the 1775MX Memory Communication Module

To enter the program compare limits, do the following:

1. Select the command PROG COMP LIMITS from the MCM

OPERATION menu by typing:

[ENTER]

2. Enter the program limits into the PROG COMP LIMITS menu using

the following syntax:

m/s/f

where:

is the limit for the main program section

is the limit for the subroutine program section

is the limit for the fault program section

3. To begin the program compare function, select the command

ENABLE PROG COMP from the MCM OPERATION menu by typing:

[ENTER]

Important: If a limit is modified while a program comparison is in progress, the new value will not be used until you select the command ENABLE PROG COMP again.

4-15

Chapter 4

Using the 1775MX Memory Communication Module

Backup

The BACKUP TO PRIMARY DATA TRANSFER command lets you enable the backup to primary data transfer function. When enabling or disabling this feature, the processor must be in program mode.

When you enable BACKUP TO PRIMARY DATA TRANSFER, the backup processor transmits up to sixteen words from the memory communication module’s data table status section (beginning at S4:4) into corresponding data table locations of the memory communication module in the primary processor.

The following conditions must exist for the backup to primary data transfer to occur:

to Primary Data T

Both the primary and backup memory communication modules must be

revision A/C or later.

The backup to primary data transfer function must be selected in both

the primary and backup processors via LIST function or message command.

The number of words to be transferred must be created beginning with

S4:4. Note that there is no requirement to have the files the same length. However, the backup processor will send only the number of words contained in the smaller of the two backup and primary files.

ransfer Command

This transfer occurs only in conjunction with a data table transfer or a

file transfer from the primary to the backup.

4-16

Chapter 4

Using the 1775MX Memory Communication Module

Using Message Instructions for Control

Operation of a memory communication module using message (MSG) instructions follows the same convention as other modules in a PLC-3 system. The memory communication module has additional functions, however, that let you enable and disable operation of memory communication modules from the ladder program.

Table 4.G lists the commands available for use in message instructions. All of the functions available in LIST are also available in message instructions. In addition, there are four commands - TRANSFER DATA, TRANSFER $<file list>, DISABLE OUTPUTS, PROGRAM CONTROL

- available in message instructions that are not available when using LIST control.

Table 4.G MSG

Instruction Functions

Command Abbreviation Description

STOP STO The memory communication module stops

both continuous data transfers and continuous file transfers to the backup processor.

START $<file list> STA $<file list> The memory communication module transfers

the selected files from the primary to the backup processor continuously. You can select up to 16 files for the transfer.

TRANSFER $<file list> T $<file list> The memory communication module transfers

the selected files from the primary to the backup processor one time only. You can select up to 16 files for the transfer.

START DATA STA D The memory communication module transfers

the entire data table except the data table status section from the primary to the backup processor continuously.

TRANSFER DATA TD The memory communication module transfers

the entire data table except the data table status section from the primary to the backup processor one time only.

DOWNLOAD DO The memory communication module stops

any data transfer in progress and transfers the entire contents of PLC3 memory from the primary to the backup processor.

LOCK LO The memory communication module acquires

the edit resource for both the primary and backup processors. This protects the ladder program in the current context from being edited with a programming terminal.

UNLOCK U The memory communication module releases

the edit resource for both the primary and backup processors.

4-17

Chapter 4

Using the 1775MX Memory Communication Module

Command DescriptionAbbreviation

ENABLE COMPARE E C The memory communication module

compares a specified section of the ladder program in the backup processor with the corresponding section in the primary processor on a wordbyword basis.

DISABLE COMPARE DI C The memory communication module prevents

the execution of the program compare function.

DISABLE OUTPUTS DI O The memory communication module inhibits

the backup processor from taking control of outputs when the primary processor faults.

ENABLE OUTPUTS E O The memory communication module allows

the backup processor to assume control of the outputs after switchover.

LIST CONTROL LI C The memory communication module will be

controlled by selections in LIST rather than by commands in message instructions of a ladder program.

PROGRAM CONTROL P C The memory communication module will be

controlled by commands in message instructions of a ladder program rather than the selections made in LIST.

TRANSFER CONTROL T C The memory communication module forces a

switchover from the primary to the backup processor.

STATUS ON * STAT ON The memory communication module enables

data transfer from the backup processor to the primary processor.

STATUS OFF * STAT OFF The memory communication module disables

data transfer from the backup processor to the primary processor.

* Supported by series A release C (or later) 1775MX modules.

To modify the operation of memory communication modules, you enter commands into the ladder program using one or more message instructions. Figure 4.2 shows the format of a typical message instruction.

Figure 4.2 Example

+MSG–––––––––––––––––––––––––+ | +MESSAGE +–(EN)–+ |Control #B0:0| | |Channel E2.14.1+–(DN) | |<command> | | | +–(ER) | | | | | | | +––––––––––––––––––––––––––––+ |

MSG Instruction for a Memory Communication Module

4-18

Chapter 4

Using the 1775MX Memory Communication Module

See Table 4.H when creating a message instruction:

Table 4.H Message

Important: You may enter either the entire name or the abbreviated name as listed in Table 4.G.

Instruction Components

Enter the: Which is:

Control section and starting word of the control file. (The control file is

usually a binary file; and, binary files must start at word 0.)

Channel always the address E2.14.1 where: E2 is the module status area

of PLC3 memory; 14 is the section number of the memory communication module; and, 1 is the number of the memory communication module

<command> one of the function commands for controlling memory

communication module operation.

In the remainder of this section, we describe the operation of each command. Some functions require one or more parameters following the command. Parameters you have to enter, we enclose in angle brackets (< >).

If you need additional assistance with message instructions, refer to the PLC-3 Programmable Controller Programming Manual (publication 1775-6.4.1) for detailed information.

Stop

Command

The STOP command lets you discontinue continuous data table transfers, continuous file transfers, or both. The STOP function is equivalent to the INACTIVE function in LIST.

After the primary processor executes a message instruction containing the STOP command, the memory communication module stops transferring data tables, files, or both from the primary to the backup processor. If you execute this command while a data or file transfer is active, the current transfer will be allowed to complete before the stop function becomes effective. Then, all subsequent data table and file transfers will be inhibited.

4-19

Chapter 4

Using the 1775MX Memory Communication Module

Start

$ <file list> Command

The START $<file list> command lets you transfer selected files from the primary to the backup processor. You can select from 1 to 16 files for use with this function. The START $<file list> function is equivalent to the FILE TRANSFER function in LIST.

After the primary processor executes a message instruction containing the START $<file list> command, the memory communication module transfers the group of selected files from the primary to the backup processor continuously. For file transfer to occur, the primary processor must be in run mode or test mode. If you switch the primary processor to program mode, file transfer will stop.

You may use either commas (,) or slashes (/) as delimiters when specifying files. You can specify files like this:

s2f

s3f

, ... ,

s16f

or like this:

s2f

s3f

/ ... /

s16f

where: s is the data table section specifier (Table 4.I)

f is the file number

If the list of files contains a file that does not exist in the primary processor, the memory communication module:

displays the message FILE

LIST ERROR

on the PLC-3 front panel or

on the programming terminal

proceeds to the next legitimate file in the list

4-20

Chapter 4

Using the 1775MX Memory Communication Module

Table 4.I Data

able Section Specifiers

Data Table Selection Specifier

Output Image O

Input Image I

Timer T

Counter C

Integer N

Floating Point F

Decimal (BCD) D

Binary B

ASCII A

High Order Integer H

Pointers P

Status S

For example, to add the timer section to the fifth position in the list, the counter section to the sixth position, and the pointer section to the seventh position in the list, type:

5/T or 5/T0 6/C or 6/C0 7/P or 7/P0

[ENTER] [ENTER] [ENTER]

Figure 4.3 shows a rung for executing a continuous file transfer. It uses integer file 2 and the timer section of the data table.

4-21

Chapter 4

Using the 1775MX Memory Communication Module

Figure 4.3 Example

Rung Illustrating Continuous File T

ransfer

Bit B1:0/00 is an internal storage bit used to control execution of the transfer command. You can use any unused data table bit for this purpose. Bit S0:3/17 is the run/backup bit.

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate

(1775-MX) executes a file transfer. If not enough memory is available, the backup processor will shut down.

the files when the memory communication module

Important: If the file list is modified while a file transfer is active, the changes do not go into effect until the next time you invoke the START $<file list> command.

4-22

Chapter 4

Using the 1775MX Memory Communication Module

Transfer

$ <file list> Command

The TRANSFER $<file list> command lets you transfer selected files from the primary processor to the backup processor one time. You can select from 1 to 16 files for use with this function.

The TRANSFER $<file list> command and START $<file list> command are quite similar. The primary difference between them being that the TRANSFER $<file list> command causes the transfer to occur only one time whereas the START $<file list> command causes the transfer to occur continuously. The syntax of both commands is identical. See Figure 4.4.

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate

(1775-MX) executes a file transfer. If not enough memory is available, the backup processor will shut down.

the files when the memory communication module

Important: If you selected continuous file transfer previously, you must stop it before you can use the TRANSFER $<file list> command. Use the STOP command to terminate a continuous file transfer.

Figure 4.4 Example

Bit B1:0/00 is an internal storage bit used to control execution of the transfer command. You can use any unused data table bit for this purpose. Bit S0:3/17 is the run/backup bit.

Rung for Performing a One T

ime File T

ransfer

4-23

Chapter 4

Using the 1775MX Memory Communication Module

Start

Data Command

The START DATA command lets you transfer the entire contents of the data table, except the status section, from the primary processor to the backup processor. The START DATA function is equivalent to the DATA TABLE XFER function in LIST.

After the primary processor executes a message instruction containing the START DATA command, the memory communication module continuously transfers the entire data table, less the status section, from the primary to the backup processor.

For the transfer to occur, the primary processor must be in run mode or test mode; however, the backup processor may be in any mode. Even if the backup processor is in program mode, the data table will be transferred successfully. If you switch the primary processor to program mode, the transfer will stop and the memory communication module reverts to LIST control. If you switch the processor to program mode then back to run mode or test mode, the message instruction must be executed for the transfer to become active again.

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate the data table when the memory communication module (1775-MX) executes a START DATA command. If not enough memory is available, the backup processor will shut down.

Important: Use of the commands STOP, TRANSFER $<file list>, and START DATA is mutually exclusive. You can use one, and only one, at a time.

4-24

Chapter 4

Using the 1775MX Memory Communication Module

Transfer

The TRANSFER DATA command lets you transfer all sections of the data table, except the status section, from the primary processor to the backup processor one time only. The transfer includes all sections of the data table except the status section (section 13).

The TRANSFER DATA command and the START DATA commands are quite similar. The primary difference between them being that the TRANSFER DATA command causes the transfer to occur only one time whereas the START DATA command causes the transfer to occur continuously.

Important: If you previously selected continuous data table transfer, you must stop it before you can use the TRANSFER DATA command. Use the STOP command to terminate a continuous data table transfer.

Data Command

CAUTION: To guard against damage to equipment, make sure there is sufficient memory available in the backup processor to accommodate the data table when the memory communication module (1775-MX) executes a data table transfer. If not enough memory is available, the backup processor will shut down.

Download

The DOWNLOAD command lets you transfer the entire contents of the PLC-3 memory from the primary processor to the backup processor. This transfer occurs once each time you request it, and it has a higher priority than the data transfer function.

After the primary processor executes a message instruction containing the DOWNLOAD command, the memory communication module stops any active data transfer and immediately transfers the entire contents of the PLC-3 memory in the primary processor to the backup processor. The transfer occurs once each time this function executes.

The backup processor cannot take control of outputs if the primary processor faults during a memory download. The memory communication module resumes its previous operation at the conclusion of the transfer.

Command

4-25

Chapter 4

Using the 1775MX Memory Communication Module

Important: A memory download will not occur if:

- an error occurs during download. In this case, the memory communication module aborts the memory download function and the backup processor shuts down.

-the keyswitch on the primary processor is in the MEMORY PROTECT ON position. This causes the primary processor to display an error message unless the ignore keyswitch option is enabled on privilege 72.

Lock

Command

The LOCK command lets you protect the ladder program in the current context from being edited by a programming terminal. This protection remains in effect until you unlock the processor or place it in program mode. The LOCK function is equivalent to the LOCK SYSTEM function in LIST.

When the primary processor executes a message instruction containing the LOCK command, the memory communication module attempts to acquire the edit resource for both the primary and backup processors. The edit resource is defined as the ability of a programming terminal to create and/or edit the ladder program and manipulate the data table. If a ladder program is already being edited with a programming terminal, the memory communication module cannot acquire the edit resource until the editing session is terminated.

For the LOCK command to function properly, the primary processor must be in run mode or test mode. If you switch the primary processor to program mode, the memory communication module unlocks both the primary and backup processors.

Even though a PLC-3 backup system is locked, you can still:

4-26

create and delete PLC-3 memory sections edit contexts other than the current context

Chapter 4

Using the 1775MX Memory Communication Module

Important: The PLC-3 backup system is not considered locked unless the edit resource is acquired for both processors. When the PLC-3 backup system is locked, a programming terminal cannot edit the ladder program in the current context. Other programming devices must honor the edit resource.

Unlock

Command

The UNLOCK command lets you release the edit resource for both the primary and backup processors; thus, allowing you to edit the program in the current context with a programming terminal. The UNLOCK function is equivalent to the UNLOCK SYSTEM function in LIST.

Enable

Compare Command

The ENABLE COMPARE command lets you compare specific sections of the ladder program in the backup processor with corresponding sections in the primary processor on a word-by-word basis.

When the primary processor executes a message instruction containing the ENABLE COMPARE command, the memory communication module compares each section of the ladder program from the first rung through the specified rung. If you set the limit for a particular section at zero, that section will not be compared. If the memory communication module cannot find the label comment number for a section, it will compare that entire section of the ladder program. See Table 4.J.

4-27

Chapter 4

Using the 1775MX Memory Communication Module

Table 4.J Enable

Compare

If the memory communication module: Then:

completes the program compare without error

encounters a miscompare LIST will show:

L Enable Program Compare A Disable Program Compare

bit 13 is set in file 4, word 0 of the status section. (You must reset this bit.) The memory communication module continues the comparison until a miscompare occurs.

bit 12 is set in file 4, word 0 of the status section; the address of the rung containing the miscomparison is put into file 4, words 1 and 2; and bit 14 is reset in file 4, word 0.

To continue the comparison, you must reset the status bit (bit 12 in file 4 word 0) and reselect ENABLE COMP

For a further description of status bits, see Using Data Table Status Bits in chapter 5 of this manual.

To specify limits in the ladder program, use the syntax shown below. You can use either the slash (/) or the comma (,) as a delimiter between parameters.

where:

ENABLE

COMPARE

m/s/f

is the limit for the main program section

is the limit for the subroutine program section

is the limit for the fault program section

4-28

Chapter 4

Using the 1775MX Memory Communication Module

For example, if the primary processor encountered a message instruction containing the command:

ENABLE

COMPARE 1/2/0

(assuming the proper label comment numbers exist in the sections of the ladder program) the memory communication module would:

compare the section in the main routine of the ladder programs starting

at the first rung and ending at the rung containing the label with comment number 1.

compare the section in the subroutine of the ladder programs starting at

the first rung and ending at the rung containing the label with comment number 2.

does not compare the section in the fault routine of the ladder programs.

Important: Some data appearing in the ladder diagram is actually contained in the data table. If you alter a ladder diagram (in either the primary or backup processor) in such a way that the information in the data table changes but the information in the program section remains unchanged, then the program comparison function will not detect a miscomparison. This may happen when using the following instructions:

- message send - diagnostic detect

- block transfer - timers

- file instructions - counters

- bit shifts - first-in-first-out (FIFO)

Disable Compare

The DISABLE COMPARE command lets you disable the program comparison function. The DISABLE COMPARE command is equivalent to the DISABLE PROG COMP in LIST.

When the primary processor executes a message instruction containing the DISABLE COMPARE command, the memory communication module disables the program comparison function and resets the program comparison status bit.

4-29

Chapter 4

Using the 1775MX Memory Communication Module

Disable Outputs Command

The DISABLE OUTPUTS command lets you inhibit the backup processor from taking control of outputs when the primary processor faults. This command is useful during an on-line editing session in an application where control of the outputs by the backup processor after switchover is undesirable while the programs are different.

When the primary processor executes a message instruction containing the DISABLE OUTPUTS command, the memory communication module inhibits the backup processor from taking control of outputs when the primary processor faults. Some conditions that influence the operation of this command are:

If the primary processor is not in run mode, the memory communication

module disables the outputs of the backup processor regardless of your selection for the outputs.

If the primary processor shuts down while the outputs are disabled, the

backup processor cannot take control of outputs.

If the primary processor encounters a memory DOWNLOAD command

while the DISABLE OUTPUTS command is executing, the memory communication module temporarily enables the outputs of the backup processor. At the conclusion of the memory download, the outputs will be disabled.

To restore normal operation, you must re-enable the outputs by using the ENABLE OUTPUTS command.

Enable Outputs Command

The ENABLE OUTPUTS command lets you re-enable the backup processor to assume control of the outputs after switchover.

When the primary processor executes a message instruction containing the ENABLE OUTPUTS command, the memory communication module enables the outputs in the backup processor.

4-30

Chapter 4

Using the 1775MX Memory Communication Module

List Control Command

The LIST CONTROL command lets you redirect control of a memory communication module from the ladder program to LIST. Only the primary processor can execute the LIST CONTROL command.

After the primary processor executes a message instruction containing the LIST CONTROL command, operation of the memory communication module will be controlled by selections in LIST. Any subsequent message instructions containing commands intended for a memory communication module will be ignored.

Program Control Command

The PROGRAM CONTROL command lets you redirect control of the memory communication module from LIST to message instructions in the ladder program of the primary processor. Only the primary processor can execute a PROGRAM CONTROL command.

After the primary processor executes a message instruction containing the PROGRAM CONTROL command, operation of the memory communication module will be controlled by subsequent message instructions in the ladder program. As long as the memory communication module is being controlled by the ladder program, selections made in LIST will not affect the operation of the memory communication module until:

either the ladder program executes a message instruction containing a

LIST CONTROL command, or

the primary processor is placed in program load mode.

Transfer Control Command

The TRANSFER CONTROL command lets you force a switchover from the primary processor to the backup processor.

After the primary processor executes a message instruction containing the TRANSFER CONTROL command, the following events occur:

switchover begins the primary processor shuts down the backup processor takes control of outputs.

4-31

Chapter 4

Using the 1775MX Memory Communication Module

Status On Command

The STATUS ON command lets you enable data transfer from the backup processor to the primary processor.

When the primary processor executes a message instruction containing the STATUS ON command, the backup processor transmits up to sixteen words from the data table status section (beginning at S4:4) of the memory communication module into corresponding data table locations of the memory communication module in the primary processor.

The following conditions must exist for the backup to primary data transfer to occur:

Both the primary and backup memory communication modules must be

revision A/C or later.

The backup to primary data transfer function must be selected in both

the primary and backup processors via LIST or message command.

The number of words to be transferred must be created beginning with

S4:4. Note that there is no requirement to have the files be the same length. However, the backup processor will send only the number of words contained in the smaller of the two files.

This transfer occurs only in conjunction with a data table transfer or a

file transfer from the primary to the backup.

When enabling this feature, data table transfers and file transfers must be stopped. An ERROR 12 will result if any transfers are occurring. Once the STATUS ON command has been initiated, continuous data table and/or file transfers may be re-enabled. If the command is sent to a memory communication module of an earlier revision, an unknown command error (ERROR 1) will result.

Status Off Command

The STATUS OFF command lets you disable data transfer from the backup processor to the primary processor.

4-32

When the primary processor executes a message instruction containing the STATUS OFF command, the memory communication module disables data transfer from the backup processor to the primary processor. When disabling this feature, data table transfers and file transfers must be stopped. An ERROR 12 will result if any transfers are occurring. Once the STATUS OFF command has been initiated, continuous data table and/or file transfers may be re-enabled.

Chapter 4

Using the 1775MX Memory Communication Module

Error Codes

Table 4.K is a list of error codes. These error codes may appear while you are controlling the operation of a memory communication module through message instructions from a ladder program.

Table 4.K Program

Syntax errors that can 3 Invalid compare limits be detected when the 4 Unknown object instruction is enabled. 5 Invalid data table section

Control Error Codes

Error Code Description

1 Unknown command 2 Ambiguous command

6 Missing object

7 Too many files in file list 8 Program control is not enabled 9 No communication between memory communication

modules in primary and backup processors

10 Commands not being sent by primary processor

Processing errors that 11 Insufficient memory available in backup processor can occur while 12 Continuous transfer was not stopped executing commands. 13 Memory communication module cannot lock the

backup system

14 Memory communication module cannot unlock the

backup system

15 File cannot be found or has zero length in primary

processor

16 Memory communication module cannot enable

outputs

4-33

Chapter 4

Using the 1775MX Memory Communication Module

If an error occurs, check the following:

If the backup processor is powered down or faulted due to a memory

error, communication between memory communication modules will be interrupted until the backup processor is functional again.

A broken communication cable between memory communication

modules will cause both the primary and backup processors to fault.

If a memory error occurs while executing a memory download, the

memory communication modules will attempt to complete the download endlessly but without success.

4-34

Chapter

Programming Techniques

Chapter Objectives

Signal Conditioning

This chapter describes techniques you can use to program a PLC-3 backup system. In this chapter we describe:

input conditioning and timing requirements so switchover from primary

to backup processor occurs as smoothly as possible

recommendations for forcing I/O, executing block transfers, using status

bits, and reducing backup communication overhead

special considerations that apply when using communication adapter

and memory communication modules

To ensure that all rungs in the ladder program that read inputs read them correctly, each input must remain in a steady state for at least the sum of:

(input module delay time) + (I/O scan time) + (program scan time)

This is the minimum recommended length of time during which an input should not change state. Any input having a pulse of shorter duration may be missed by the primary, backup, or both processors.

There are several ways you can reduce the occurrence of missed inputs, including:

use external circuitry to keep inputs in one state for the recommended

length of time

repeat rungs that read troublesome inputs as often as necessary in the

ladder program to ensure accurate reads

use the real-time interrupt routine to scan a selected area of the program

on a real-time basis.

5-1

Chapter 5

Programming Techniques

Using

Repetition to Handle Short Input Pulses

One method of handling short input pulses is to repeat the rungs that read those inputs. For example, if the duration of an input pulse is only 70% of the recommended time, you could repeat rungs depending on this input at least twice in the program. Put approximately one third of the program between the rungs.

Using

Interrupts to Handle Short Input Pulses

Another method of handling short input pulses is to use a real-time interrupt routine to scan a selected area of the program on a real-time basis. For further information about this technique, refer to the PLC-3 Family Programmable Controller Programming Reference Manual (publication 1775-6.4.1).

Timers and Counters at Switchover

Special consideration must be given when timers and counters are being transferred from the primary processor to the backup processor. Both timers and counters consist of three words. The memory communication module transfers only one word at a time and a switchover could occur before all three words have been transferred.

One of the timer words contains the timer accumulator and another word contains the information used to maintain the accuracy of the timer. Because the primary and backup hardware are asynchronous, at switchover the accumulator may be increased to a larger value than has actually elapsed. Timers having a time base of:

10 milliseconds may be off by as much as +150 milliseconds 100 milliseconds may be off by as much as +300 milliseconds 1 second may be off by as much as +1.5 seconds

In a similar manner, the possibility exists that the counter accumulator may increment twice at switchover.

5-2

Chapter 5

Programming Techniques

Timing Considerations at Switchover

When using PLC-3 processors in a backup system configuration, program scans are not synchronized; and, although switchover is fast (approximately 100 milliseconds), it is not instantaneous. Therefore, it is possible that the primary and backup processors could read different input conditions during a particular scan.

If all input signals are present for at least the recommended length of time, the primary and backup processors will see the same input condition. If these conditions are not met, however, outputs may be assigned different states in the two processors. This could cause a sudden change in operation at switchover.

Although using a backup communication channel can reduce the probability of such an event, it is better to avoid this condition by adjusting the program accordingly. The best course of action is to consider the various options and risks while designing the system, writing the program, or both.

To illustrate this point, consider the rung shown in Figure 5.1. This rung represents a “3-wire circuit” used to activate or deactivate a motor starter.

Figure 5.1 Example

Rung for Motor Starter

| I0:2 I0:2 O0:3 | +–+––] [––+––]\[––––––––––––––––––––––––––––––––––––––––––––––––––––––––––( )––+ | | 00 | 01 00 | | | I0:2 | | | +––] [––+ | | 02 |

10981I

Pressing the start pushbutton energizes input I2/0. This energizes output O3/0 which supplies power to the motor starter. When the motor starter receives power, an auxiliary contact closes that energizes input I2/2. I2/2 seals in output O3/0 (that is, it keeps output O3/0 energized) until the stop pushbutton is pressed.

5-3

Chapter 5

Programming Techniques

If the start pushbutton is pressed for too short a time, the input change may be seen by the primary processor but not by the backup processor. Should this occur, bit O3/0 would be set in the backup processor one program scan later than in the primary processor (because input I2/2 from the auxiliary contact would be set and energize output O3/0).

WARNING: To guard against personal injury and damage to equipment, examine output bit O3/0 in series with the auxiliary contact (I2/2) (Figure 5.1) for the seal-in when using a stand alone processor. If you force output O3/0 on, removing the force will not return the motor to its initial state.

Now, suppose you used the output bit (O3/0) as the seal-in instead of the input from the auxiliary contact (I2/2) as shown in Figure 5.2. At first glance this appears to have the same effect as the previous example; but a closer look reveals that a problem could occur by making this substitution.

Figure 5.2 Example

| I0:2 I0:2 O0:3 | +–+––] [––+––]\[––––––––––––––––––––––––––––––––––––––––––––––––––––––––––( )––+ | | 00 | 01 00 | | | O0:3 | | | +––] [––+ | | 00 |

for False Sealin

10981I

If you use bit O3/0 as the seal-in instead of the auxiliary contact (I2/2), the backup processor would not set bit O3/0 at all (unless it was transferred to the backup processor via a backup communication channel or memory communication module). Even worse, a similar problem could occur if the backup processor reads an input change that the primary processor misses, or if the stop pushbutton is pressed for too short a time.

5-4

Chapter 5

Programming Techniques

Forcing

I/O

Executing Block Transfers

The force table is not transferred from the primary to the backup processor over any communication channel. Thus, if forces have been set in the primary processor, they will not be transferred to the backup processor. If switchover occurs, the backup processor will become active but no forces will be set.

To prevent this undesirable situation, we suggest that you set the forces first in the primary processor and then in the backup processor. When it is necessary to remove forces, we suggest that you remove forces from the backup processor before removing them from the primary processor.

If switchover occurs while a block transfer is in progress, the transfer may abort prematurely.

To ensure the integrity of block transfers, you must enter the block transfer instruction(s) in both the primary and backup processors. Then, the ladder program in the backup processor should reinitialize the block transfer after switchover.

You should use memory communication modules or a backup communication channel to transfer block data transfers from the primary to backup processors. For more information about system configuration, refer to chapter 1 in this manual.

Restarting a Repaired Processor

When you restart a repaired processor, you must update its internal storage areas. These are the areas that store dynamic variables, for example, the values of counters and timers.

To update the internal storage areas, perform data transfers between the working and repaired processors using either memory communication modules or a backup communication channel.

5-5

Chapter 5

Programming Techniques

Reducing Backup Communication Overhead

A PLC-3 backup system using memory communication modules requires the least amount of communication overhead. Data is transferred quickly and efficiently from the memory communication module in the primary processor to its partner in the backup processor over a dedicated parallel communication link.

In PLC-3 scanner backup systems, the only practical method of getting data from the primary to the backup processor is by using a backup communication channel or Data Highway/Data Highway Plus communication. In some applications, it may be possible to reduce the amount of data being transferred across the backup communication channel. This provides faster backup communication updates.

Figure 5.3 illustrates one technique that could eliminate the need to transfer block-transfer inputs to the backup processor. This program minimizes the number of unnecessary block transfers. Block transfer write operations are performed only if the done bit of the associated block transfer read operation is enabled. The run/backup bit is used to keep the done bit off in the backup processor. This technique can eliminate the need to use backup communication for block transfer inputs if the following conditions are true:

only block transfer outputs depend on the block transfer input

conditions

the block transfer outputs can withstand a one-time update time (at

switchover) of twice the normal update time plus 100 milliseconds

all operations using the block transfer input data require only current

values of the input data

If your system does not meet these conditions, use backup communication to transfer the block transfer input data to the backup processor.

5-6

Chapter 5

Programming Techniques

Figure 5.3 Programming

for Block T

ransfer Inputs

. . .

| BTR BTR | | Done Error | | B200:12 B200:12 | +–––] [–––––]/[––––––––––––––––––––––––––––––––––––––––––––––––––––––––––(MCR)–+ | 15 13 |

. . .

Rungs Which Use Block Transfer Input Data To Control Block Transfer Outputs

. . .

| |

5-7

Chapter 5

Programming Techniques

+––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––(MCR)– + | |

Other Program Rungs

10982I

5-8

Chapter 5

Programming Techniques

Another approach for reducing the amount of data transferred across a backup communication channel is to use Data Highway or Data Highway Plus communication. Although you will still need a backup communication channel to provide protection against having both processors controlling outputs at the same time, you can use a Data Highway or Data Highway Plus port as an additional backup communication channel.

For further information about using communication adapter modules, refer to the 1775-KA Communication Adapter Module User’s Manual (publication 1775-6.5.1) and the 1775-S5, -SR5 I/O Scanner Communication Adapter Module User’s Manual (publication 1775-6.5.5).

Using Data Table Status Bits

The data table status section of PLC-3 memory contains information about PLC-3 operation. Table 5.A lists the status information for the backup system configuration.

Table 5.A Data

able Status

Status Information File Word Bit

Run/Backup Bit S0 3 17

Backedup/notbackedup Bit S0 3 16

Communication Error Bit S0 2 10

Program Checksum S0 4 & 5 -

1775MX Module Communication S4 0 -

1775MX Module Program Compare S4 1 & 2 -

1775MX Module System ID S4 3 -

1775MX Module Backup to Primary Transfer Data Words

S4 4 - 19 -

Run/Backup Bit

The run/backup bit (file 0, word 3, bit 17) indicates whether or not the processor is acting as a backup processor. This bit is set in the primary processor and reset in the backup processor.

5-9

Chapter 5

Programming Techniques

Backedup/Notbackedup Bit

The backed-up/not-backed-up bit (file 0, word 3, bit 16) is set when option switch 2 on the number one scanner module is in the down position. The status of this bit is influenced by the switchover configuration.

The backed-up/not-backed-up bit is:

set in the primary processor when using the automatic switchover with

no switchback configuration

set in both the primary and backup processors when using the automatic

switchover with controllable switchback configuration

reset when using any other switchover configuration

Communication Error Bit

The communication error bit (status file 0, word 2, bit 10) indicates the presence of a communication error.

This bit is set when:

either the primary or backup processor detects an error on a backup

communication channel

the primary processor detects an error on a peer-to-peer communication

channel

the designated input file is too small for the data received on either a

peer-to-peer or backup communication channel

Program

The checksum provides a preliminary indication of whether or not the programs are exactly the same in the primary and backup processors. When the checksums do not agree, the programs are definitely different. Just because the checksums agree, however, does not guarantee that the programs are identical. Because of this, you should not use the checksum as the only verification that the programs are identical. You may use it as an additional check, for example, after you load a program from tape.

Checksum

5-10

A 16-bit checksum is generated for the application program if you created words 4 and 5 in file 0 of the data table status section. You create these words by using the create command or by referencing them in an application program instruction.

Chapter 5

Programming Techniques

The checksum is stored in file 0, word 5 and the checksum done bit is stored in file 0, word 4, bit 17 of the data table status section. The done bit is set when the checksum operation is completed. It remains set until reset manually or cleared automatically by the application program.

Figure 5.4 shows one use of the checksum. In this example, the status value is compared to a known good value, which you previously stored in file 0, word 1 of the binary section. If the values are not equal, the program jumps to an unused label (label 255). The PLC-3 processor then declares a major fault (BAD ADDRESS) and shuts down. The checksum done bit (S0:4/17) keeps the PLC-3 processor from performing the comparison before a checksum is calculated.

Figure 5.4 Checksum

Operation

| S0:4 +NEQ–––––––––––––––+ 255 | +––] [––+A <> B +–––––––––––––––––––––––––––––––––––––––––––––(JMP)–+ | 17 |Source A S0:5| | | | 0000000000000000| | | |Source B B0:1| | | | 0000000000000001| | | +––––––––––––––––––+ |

| S0:4 S0:4 | +––] [––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––(U)––+ | 17 17 |

10983I

Important: When using rungs like those in Figure 5.4, be sure to disable the rungs before editing the program. The PLC-3 does not calculate a checksum during on-line editing, but when on-line editing is complete, it recalculates the checksum. You can re-enable the rungs after editing is complete and you update the reference value.

5-11

Chapter 5

Programming Techniques

Refer to the PLC-3 Family Programmable Controller Programming Reference Manual (publication 1775-6.4.1) for detailed information regarding the data table status section.

5-12

Chapter 5

Programming Techniques

1775MX Module Communication

If the PLC-3 backup system uses memory communication modules, there are additional bits in the data table status section (file 4, word 0) to indicate communication status between memory communication modules. Status information for the memory communication module resides in file 4, words 0, 1, and 2 of the data table status section. You can monitor the operation of a memory communication module by examining the contents in word 0 of status file 4 (S4:0). Figure 5.5 and Table 5.B show the meaning of each bit of this word.

Figure 5.5 Status

Information for the Memory Communication Module

Status File 4, Word 0 in the Data Table

17161514131211100706050403020100

Transmissions occurring

Continuous/single xfer

Data table file xfer

Program compare enabled

Program compare done

Program compare fail

LIST/program control

Backup to primary data

xfer enabled

Backup in RUN mode

Backup in TEST mode

Backup in PROGRAM mode

Backup faulted

Backup outputs enabled

Backup locked

Primary locked

Communications error

10984I

Important: Bit 17 preconditions bits 15 and 16.

1775MX Module Program Compare

If an error occurred while executing a program comparison function, you can pinpoint the rung location by examining words 1 and 2 of status file 4. As shown in Figure 5.6, word 1 gives you the extended address of the miscomparison. For example, if word 1 contained the hexadecimal value 0412 then the miscomparison is located in the user program section, current operating context 1, in a subroutine. This information was obtained as follows:

the value 4 designates the user program section of PLC-3 memory the value 1 designates the current operating context the value 2 designates the subroutine program section

5-13

Chapter 5

Programming Techniques

Important: Upon completing the program compare function, the memory communication module sets either bit 12 or 13 in status file 4, word 0, to show the condition of the transferred data. You must reset these bits before checking the status of the next program compare function.

Table 5.B

Status

File 4, W

Bit: Meaning:

00 On when the backup processor is in the run mode.

01 On when the backup processor is in the test mode.

02 On when the backup processor is in the program mode.

03 On when the backup processor is faulted.

04 On when the backup processor has its outputs enabled.

ord 0 in the Data T

able

05 On when the backup processor is locked.

06 On when the primary processor is locked.

07 On when a communication error has occurred.

10 On when backup to primary data transfer is enabled.

11 On when LIST is controlling operation of the 1775MX modules. Off when the ladder

program is controlling operation of the 1775MX modules.

12 On when the program compare function detects an error.

13 On when the program compare function has successfully executed a complete pass.

14 On when the program compare function is enabled.

Upon completing the program compare function, the 1775MX module sets either bit 12 or 13 to show the condition of the transferred data. In order to check the status for the next program comparison, you must reset these bits.

15 On when a data table transfer is selected. Off when a file transfer is selected.

16 On when a continuous transfer is selected. Off when a single transfer is selected.

17 On when the 1775MX modules are transferring data from the primary to the backup

processor.

Bit 17 preconditions bits 15 and 16.

5-14

Chapter 5

Programming Techniques

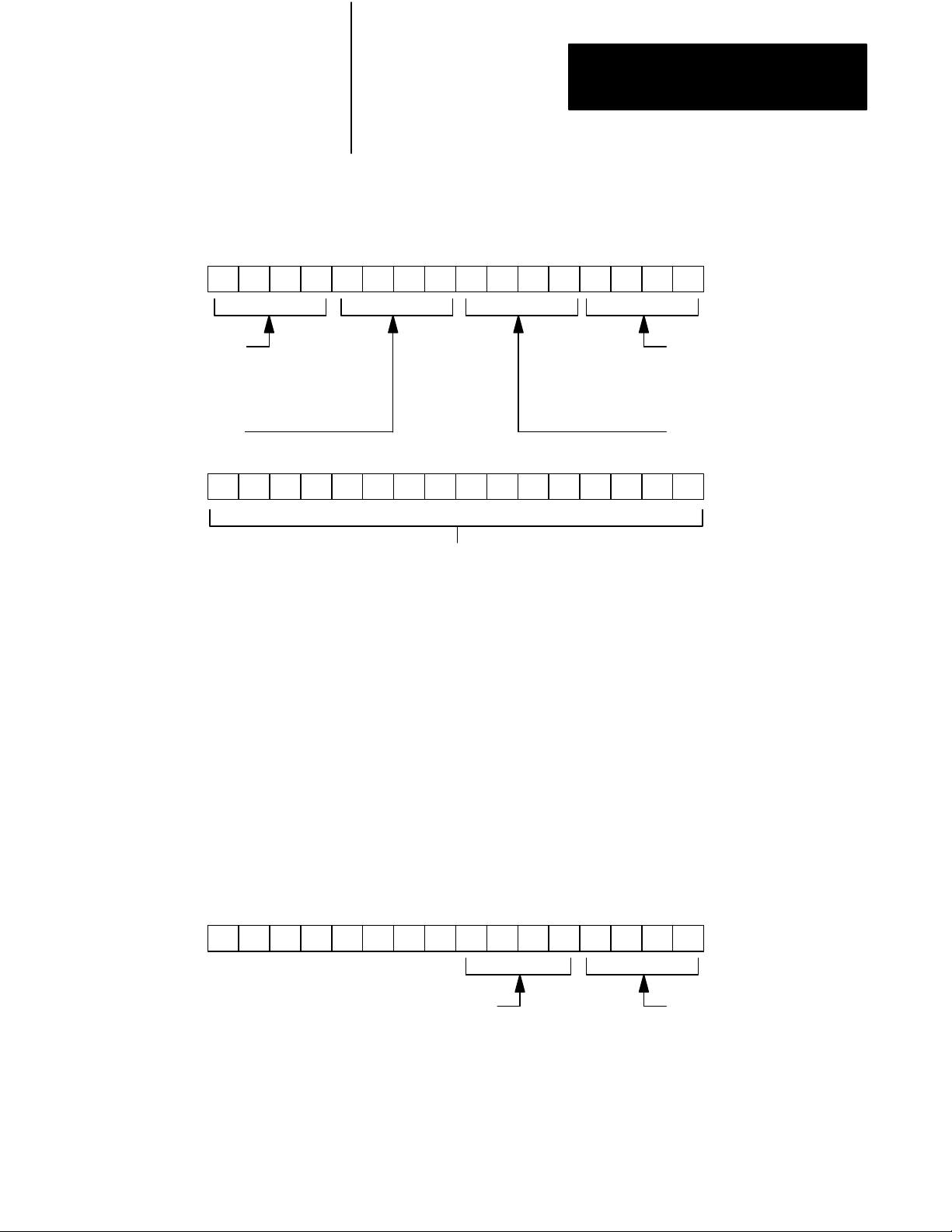

Figure 5.6 Program Module

Status File 4, Word 1 in the Data Table

17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00

Compare Status Information for the Memory Communication

Unused value (always 0)

User program section of

PLC3 memory (always 4)

17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00

Ladder program section: 1 for main program 2 for subroutine 3 for fault routine

Current operating context number

Status File 4, Word 2 in the Data Table

This word stores the rung number where the memory communication module detected the miscomparison

(1 to 15)

10985I

Word 2 gives you the rung number where the miscomparison occurred. For example, if word 2 contained the value 12 then, the miscomparison is located on rung 12 of the ladder logic program section designated in status file 4, word 0.

1775MX

Module System ID

A system ID is automatically assigned to each 1775-MX module and stored in S4:3 (status file 4, word 3). The MCM OPERATION menu in LIST also displays this system ID. This ID is dependent on the physical location (chassis number and slot number) of scanner #1.

Status File 4, Word 1 in the Data Table

17 16 15 14 13 12 11 10 07 06 05 04 03 02 01 00

Number of chassis in which Scanner #1 resides (0 thru 3)

Number of chassis slot in which Scanner #1 resides (1 thru 6)

10986I

5-15

Chapter 5

Programming Techniques

Programming Considerations for Data Highway and Data Highway Plus

1775MX Module BackuptoPrimary T

In response to the BACKUP TO PRIMARY DATA TRANSFER in LIST or the STATUS ON command from a message instruction, up to 16 words are sent from the backup system to the primary system. The backup system transmits a maximum of 16 words from the MX data table status area beginning at S4:4 into the corresponding data table status locations in the primary system.

The number of words to be transferred must be created beginning with S4:4. There is no requirement to have the files the same length. However, the backup system will send only the number of words contained in the smaller of the two backup and primary files.

You can use Data Highway or Data Highway Plus modules to connect the primary and backup PLC-3 processors to a data highway. Two modules are required, one in the primary processor and another one in the backup processor.

Series

A, Revision C (or earlier) 1775KA Modules

ransfer Data W

ords

When using series A, revision C (or earlier) communication adapter modules, use the following guidelines:

assign a unique station address (0008 to 3768) to each communication

adapter module

if the programs in the primary and backup processors are identical, then

you must:

- make sure all information sent to the primary processor is also sent to the backup processor

- examine the run/backup bit on every rung used to transmit data

5-16

Chapter 5

Programming Techniques

Series

A, Revision D (or later) 1775KA Modules

When using series A, revision D (or later) communication adapter modules, you can either follow the guidelines previously described for early communication adapter modules or select backup operation with the LIST function.

Important: Do not select backup operation for multidrop modem applications because the modem port is not disabled after a processor fault.

If you select backup operation, you must assign the same station address to both communication adapter modules. Even though they have an identical station address, the backup processor modifies its station number automatically before and after switchover.

To implement backup operation, follow these steps:

1. On both communication adapter modules, set option switch 2 OFF.

This causes the Data Highway port on the communication adapter module in the primary processor to deactivate when automatic switchover occurs.

WARNING: To guard against personal injury and damage to equipment, make sure switch 2 is set correctly. If not, both communication adapter modules will assume the same station address at switchover causing a data highway communication shut down. This may cause unpredictable machine motions.

2. Use the LIST function to disable the modem and the Data Highway

ports. This allows you to change the LIST options of the communication adapters.

3. Use the LIST function to select backup operation for the

communication adapter modules in both the primary and backup processors.

4. Use the LIST function to assign the same Data Highway station

address to the communication adapter modules in both the primary and backup processors. Legitimate station addresses range from 000 to 2768 and 3008 to 3768.

Important: Never give the 1775-KA module the reserved station address of 377 module a station address of 277

and, when you select the backup operation, you cannot give the

5-17

Chapter 5

Programming Techniques

As long as the primary processor is controlling outputs, the station address of the communication adapter module in the backup processor is modified as shown in Table 5.C.

Table 5.C Data

Highway Station Numbers for 1775KA Modules

If the station address is between:

0008 and 276

3008 and 376

The backup module assumes a station address that is:

1008 higher than the station address assigned to the communication adapter module in the primary processor.

2008 lower than the station address assigned to the communication adapter module in the primary processor.

At switchover, the communication adapter module in the backup processor assumes the station address assigned to it with the LIST function.

5. Use the LIST function to enable the port used to connect the primary

processor to the backup processor, i.e., the Data Highway port or the modem port.

1775S5, SR5 Modules

When configuring the Data Highway and Data Highway Plus channel through LIST, you must make a backup selection. See Table 5.D.

5-18

Table 5.D Data

Highway Options

If backup is:

Selected will be automatically modified before and after switchover.

Not Selected will remain the same both before and after switchover. The

The Data Highway and Data Highway Plus station number of the backup scanner module:

This allows you to have identical configurations in both the primary and the backup processor.

primary and backup processors must have unique station numbers.

Regardless of which mode you select, both the primary and the backup Data Highway and Data Highway Plus channels are active. There is no selection for the backup Data Highway or Data Highway Plus channel to remain silent on the link until switchover.

Chapter 5

Programming Techniques

When you select backup, you assign the same Data Highway or Data Highway Plus station number to both the scanner module in the primary processor and the one in the backup processor.

As long as the primary processor is controlling the outputs, the station address of the Data Highway or Data Highway Plus channel in the backup processor is modified. Table 5.E and Table 5.F show the station number modifications for Data Highway and Data Highway Plus, respectively. At switchover, the Data Highway or Data Highway Plus station number in the backup processor assumes the station address assigned to it with the LIST function.

Table 5.E

Highway Station Numbers for 1775S5, SR5 Modules

Data

If the station address between:

000 and 276

300

and 376

The backup scanner module assumes a station address that is:

100

higher than the assigned station number

100

lower than the assigned station number

Important: Never give the 1775-S5, -SR5 module the reserved station address of 377 give the module a station address of 277

Table 5.F Data

Highway Plus Station Numbers for 1775S5, SR5 Modules

If the station address between:

00 and 37

and 77

; and, when you select the backup operation, you cannot

The backup scanner module assumes a station address that is:

higher than the assigned station number

lower than the assigned station number

5-19

Rockwell Automation 1775-MX, 1775-S4A, D17756.3.1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Important User Information

Table of Contents

Preface
