Make sure to read these instructions carefully before starting/using the unit!
Our guarantee will become void when the unit supplied by us is used and installed for inadequate purposes, or maintained incorrectly, etc.,
or if it is changed without our prior consent.
!
$ ! |
Seite |
$ ! |
Seite |

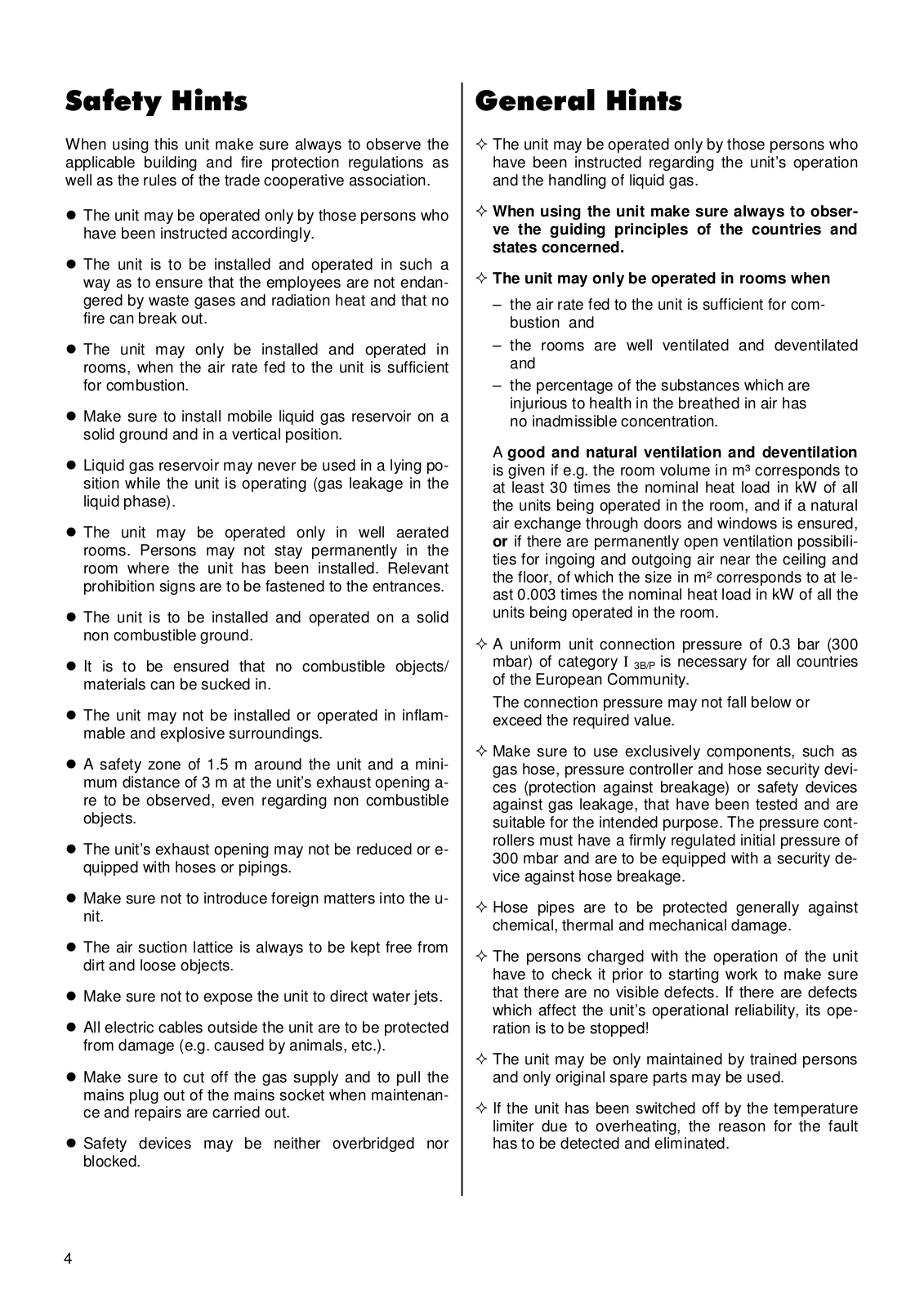

Safety Hints |
4 |

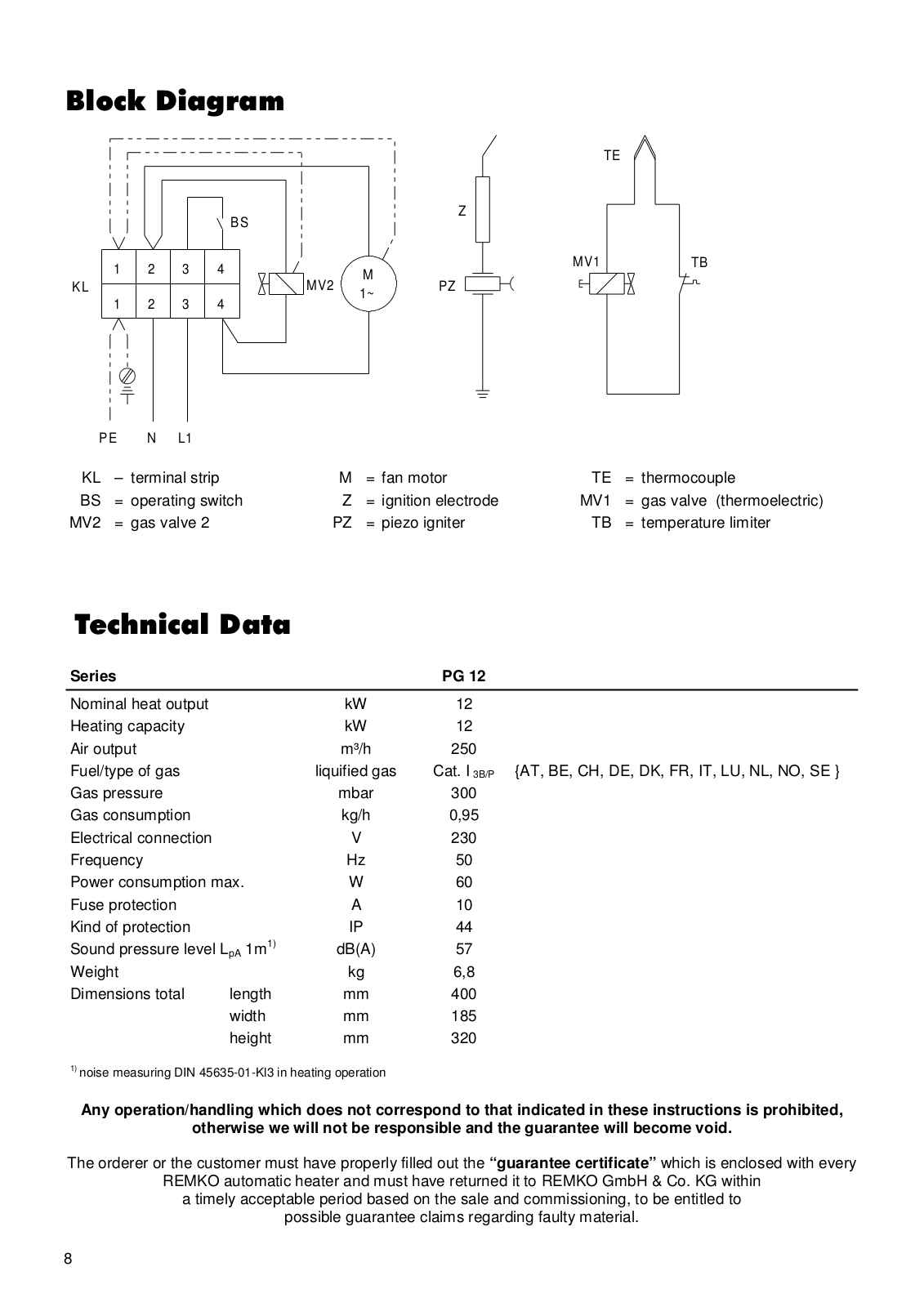

Block Diagram |
8 |
General Hints |
5 |
Technical Data |
8 |
Starting |
5 –6 |

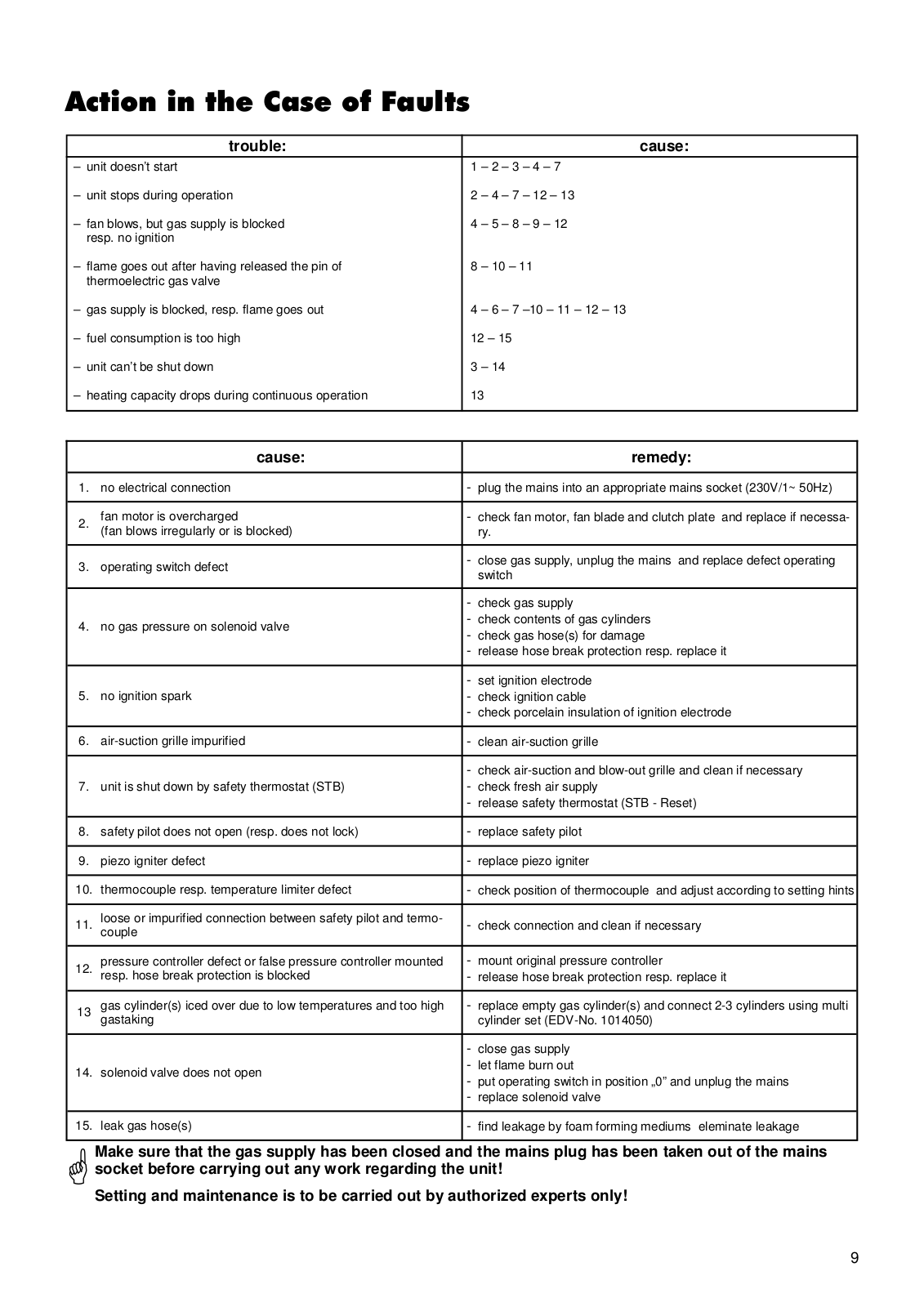

Action in Case of Faults |
9 |
Putting out of Service |
6 |

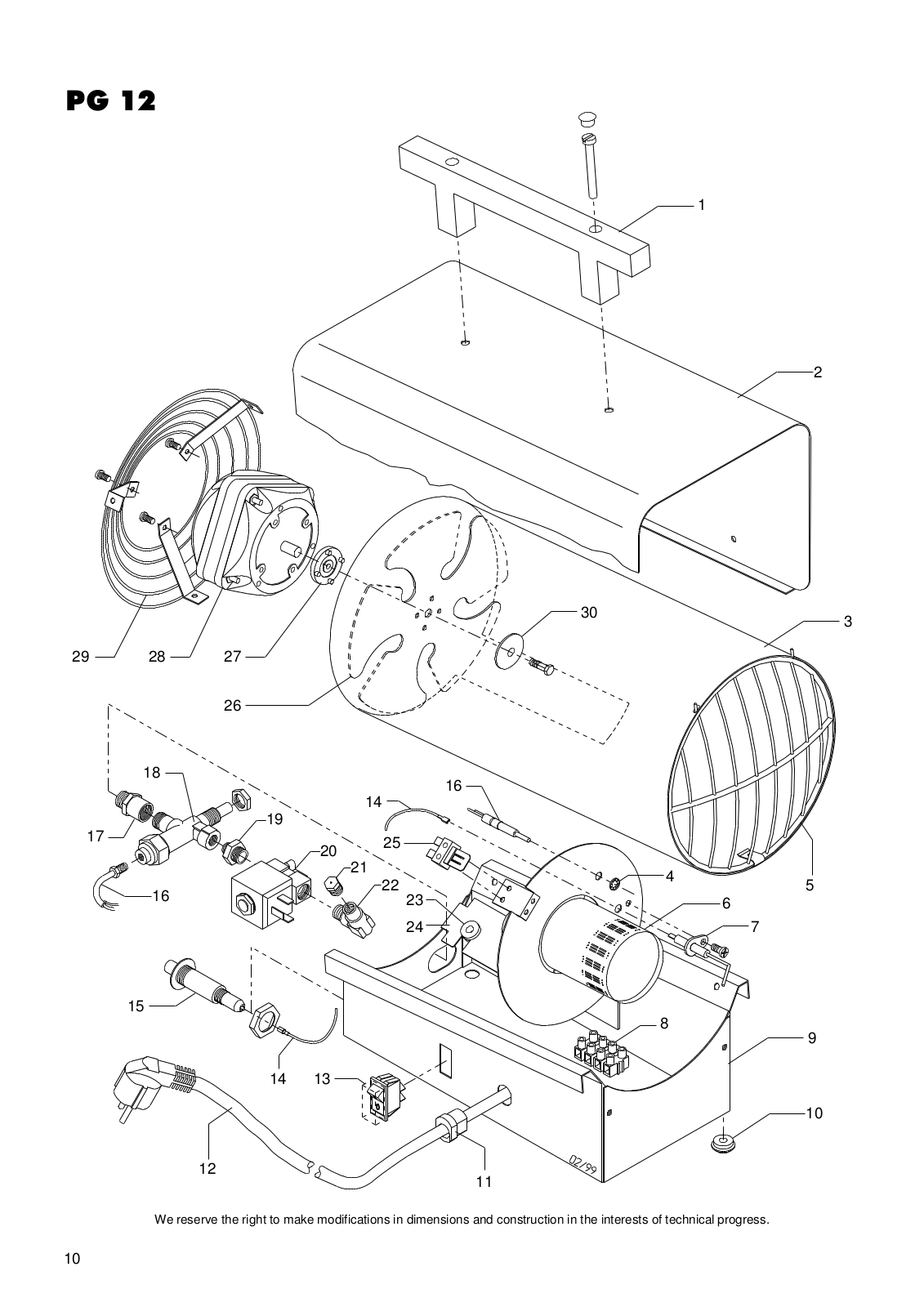

Drawing |
10 |
Maintenance |
7 |

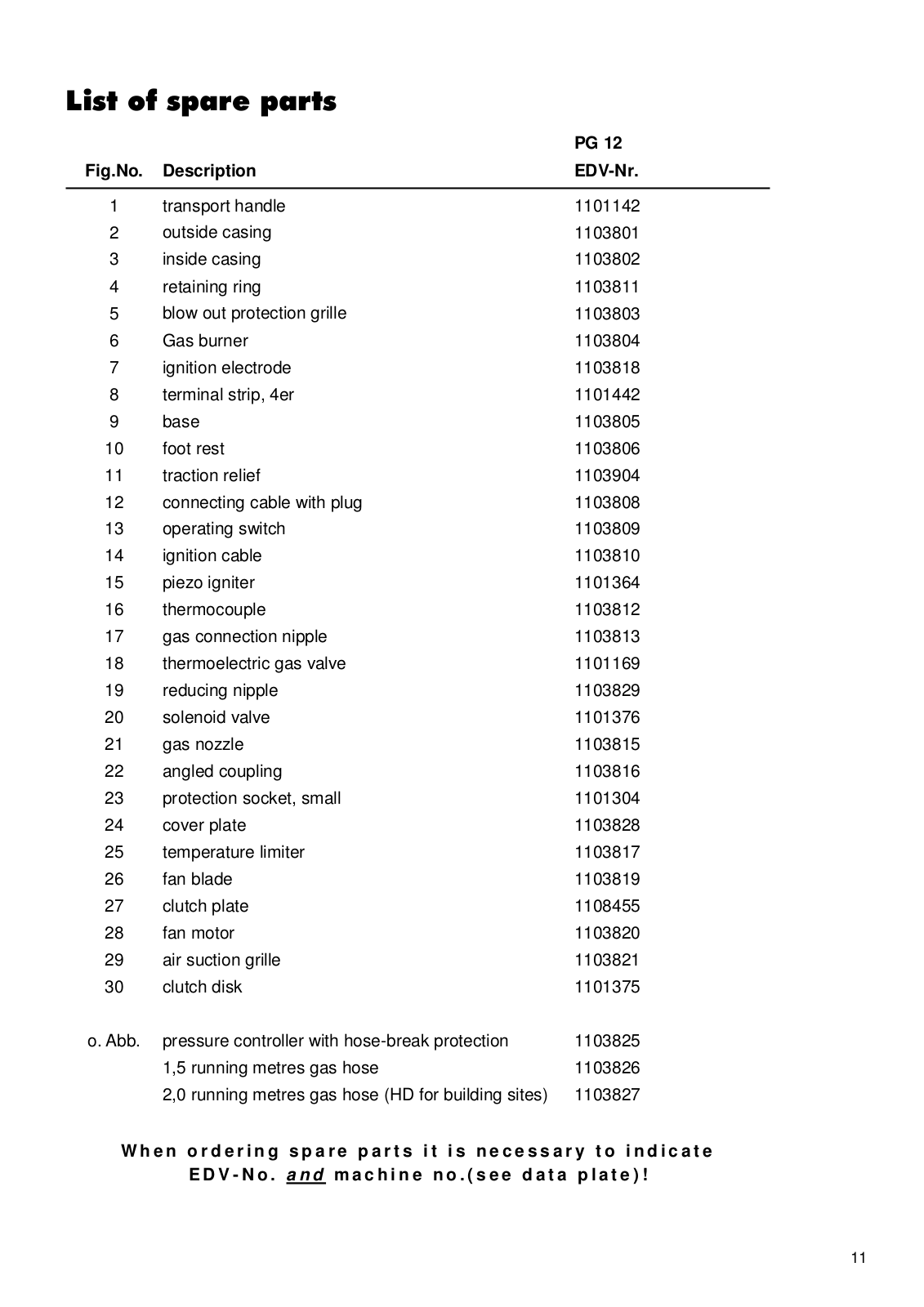

List of Spare Parts |
11 |
|
|
Always keep these operating instructions near or on the device! |
|
3
# & "
When using this unit make sure always to observe the applicable building and fire protection regulations as well as the rules of the trade cooperative association.
The unit may be operated only by those persons who have been instructed accordingly.
The unit is to be installed and operated in such a way as to ensure that the employees are not endangered by waste gases and radiation heat and that no fire can break out.
The unit may only be installed and operated in rooms, when the air rate fed to the unit is sufficient for combustion.

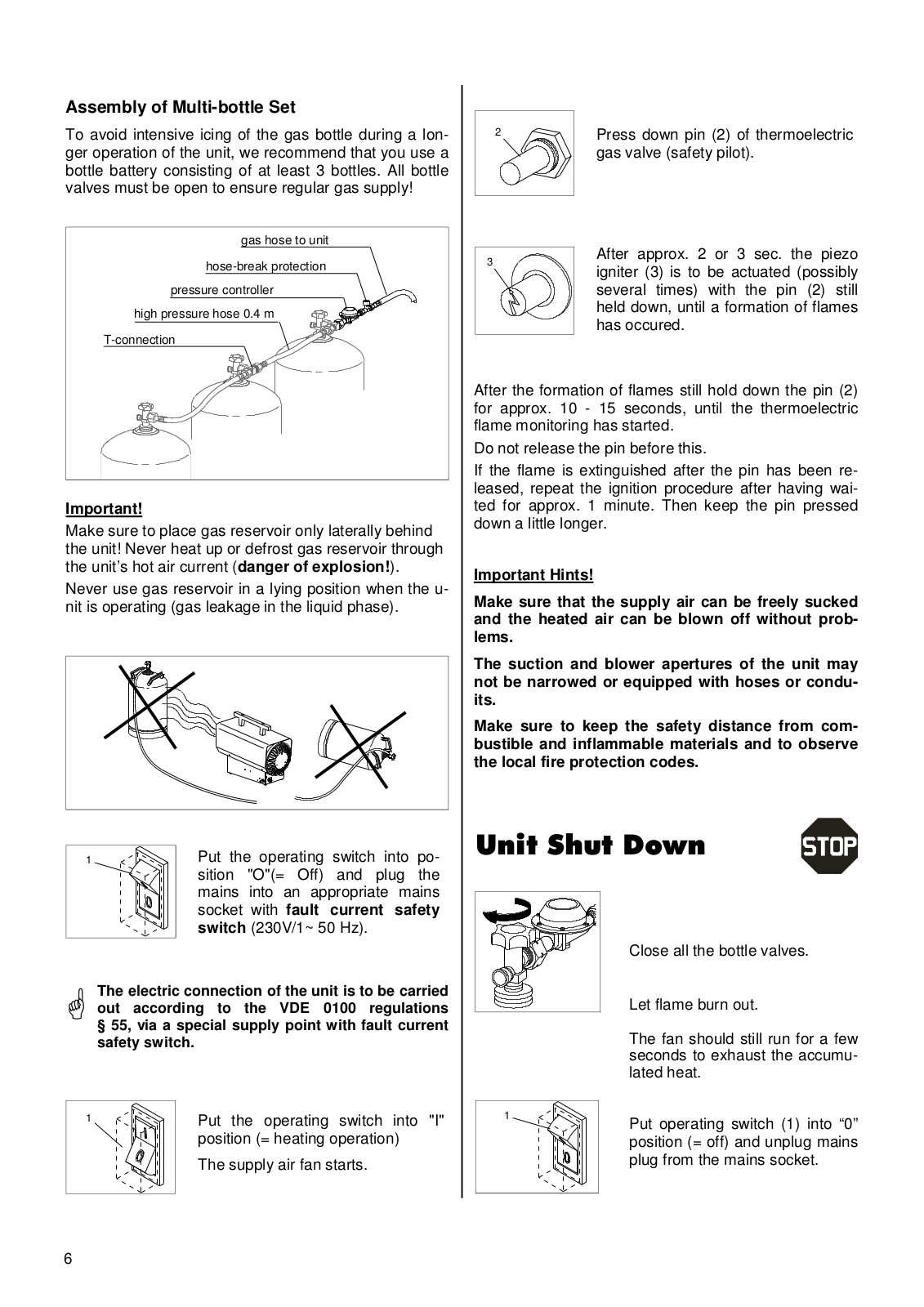

Make sure to install mobile liquid gas reservoir on a solid ground and in a vertical position.
Liquid gas reservoir may never be used in a lying position while the unit is operating (gas leakage in the liquid phase).
The unit may be operated only in well aerated rooms. Persons may not stay permanently in the room where the unit has been installed. Relevant prohibition signs are to be fastened to the entrances.
The unit is to be installed and operated on a solid non combustible ground.
It is to be ensured that no combustible objects/ materials can be sucked in.
The unit may not be installed or operated in inflammable and explosive surroundings.
A safety zone of 1.5 m around the unit and a minimum distance of 3 m at the unit’s exhaust opening a- re to be observed, even regarding non combustible objects.
The unit’s exhaust opening may not be reduced or e- quipped with hoses or pipings.
Make sure not to introduce foreign matters into the u- nit.
The air suction lattice is always to be kept free from dirt and loose objects.
Make sure not to expose the unit to direct water jets.
All electric cables outside the unit are to be protected from damage (e.g. caused by animals, etc.).
Make sure to cut off the gas supply and to pull the mains plug out of the mains socket when maintenance and repairs are carried out.
Safety devices may be neither overbridged nor blocked.
!
The unit may be operated only by those persons who have been instructed regarding the unit’s operation and the handling of liquid gas.
When using the unit make sure always to observe the guiding principles of the countries and states concerned.
The unit may only be operated in rooms when
–the air rate fed to the unit is sufficient for combustion and
–the rooms are well ventilated and deventilated and
–the percentage of the substances which are injurious to health in the breathed in air has no inadmissible concentration.
A good and natural ventilation and deventilation is given if e.g. the room volume in m³ corresponds to at least 30 times the nominal heat load in kW of all the units being operated in the room, and if a natural air exchange through doors and windows is ensured, or if there are permanently open ventilation possibilities for ingoing and outgoing air near the ceiling and the floor, of which the size in m² corresponds to at least 0.003 times the nominal heat load in kW of all the units being operated in the room.
A uniform unit connection pressure of 0.3 bar (300 mbar) of category I 3B/P is necessary for all countries of the European Community.
The connection pressure may not fall below or exceed the required value.
Make sure to use exclusively components, such as gas hose, pressure controller and hose security devices (protection against breakage) or safety devices against gas leakage, that have been tested and are suitable for the intended purpose. The pressure controllers must have a firmly regulated initial pressure of 300 mbar and are to be equipped with a security device against hose breakage.
Hose pipes are to be protected generally against chemical, thermal and mechanical damage.

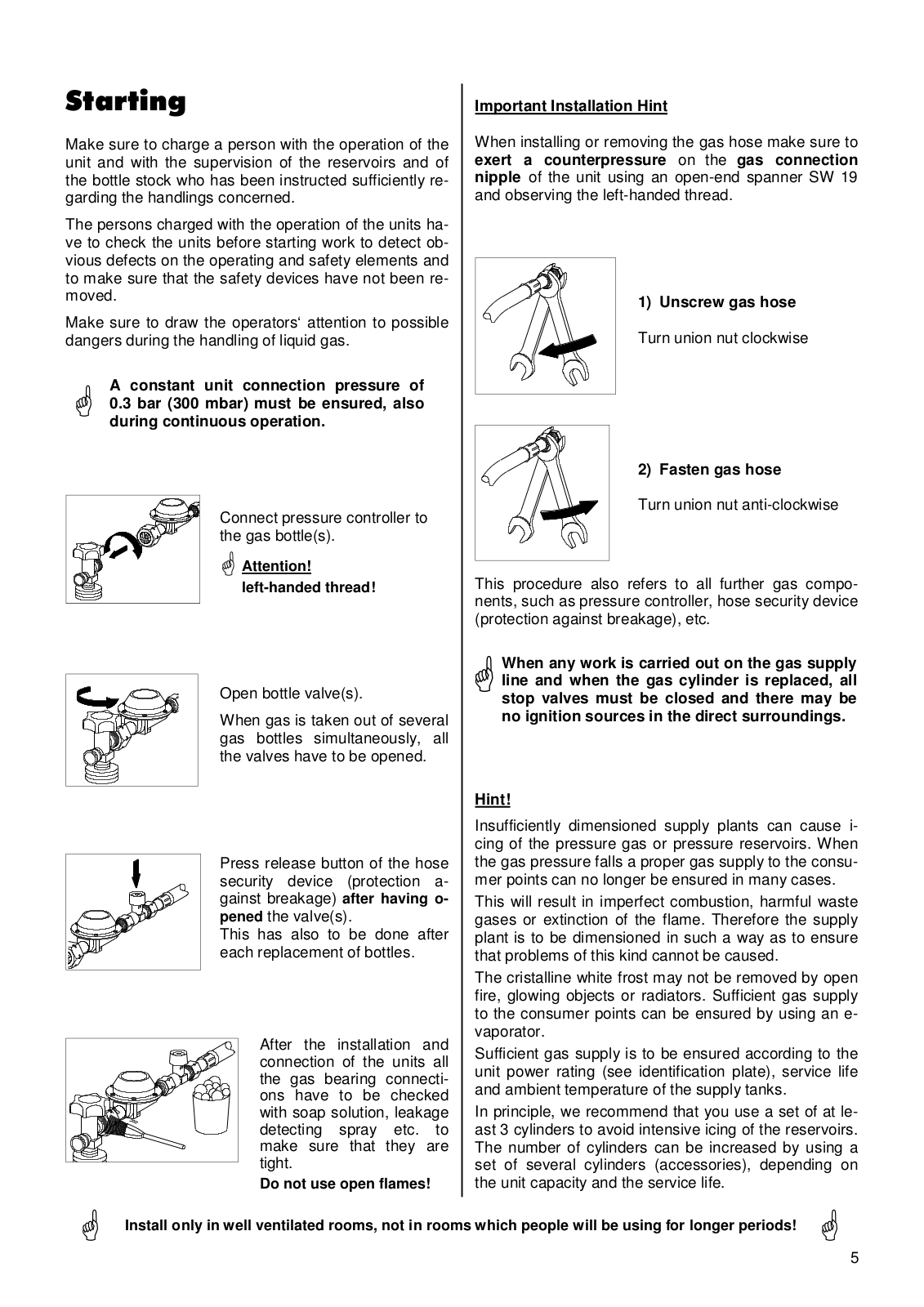

The persons charged with the operation of the unit have to check it prior to starting work to make sure that there are no visible defects. If there are defects which affect the unit’s operational reliability, its operation is to be stopped!

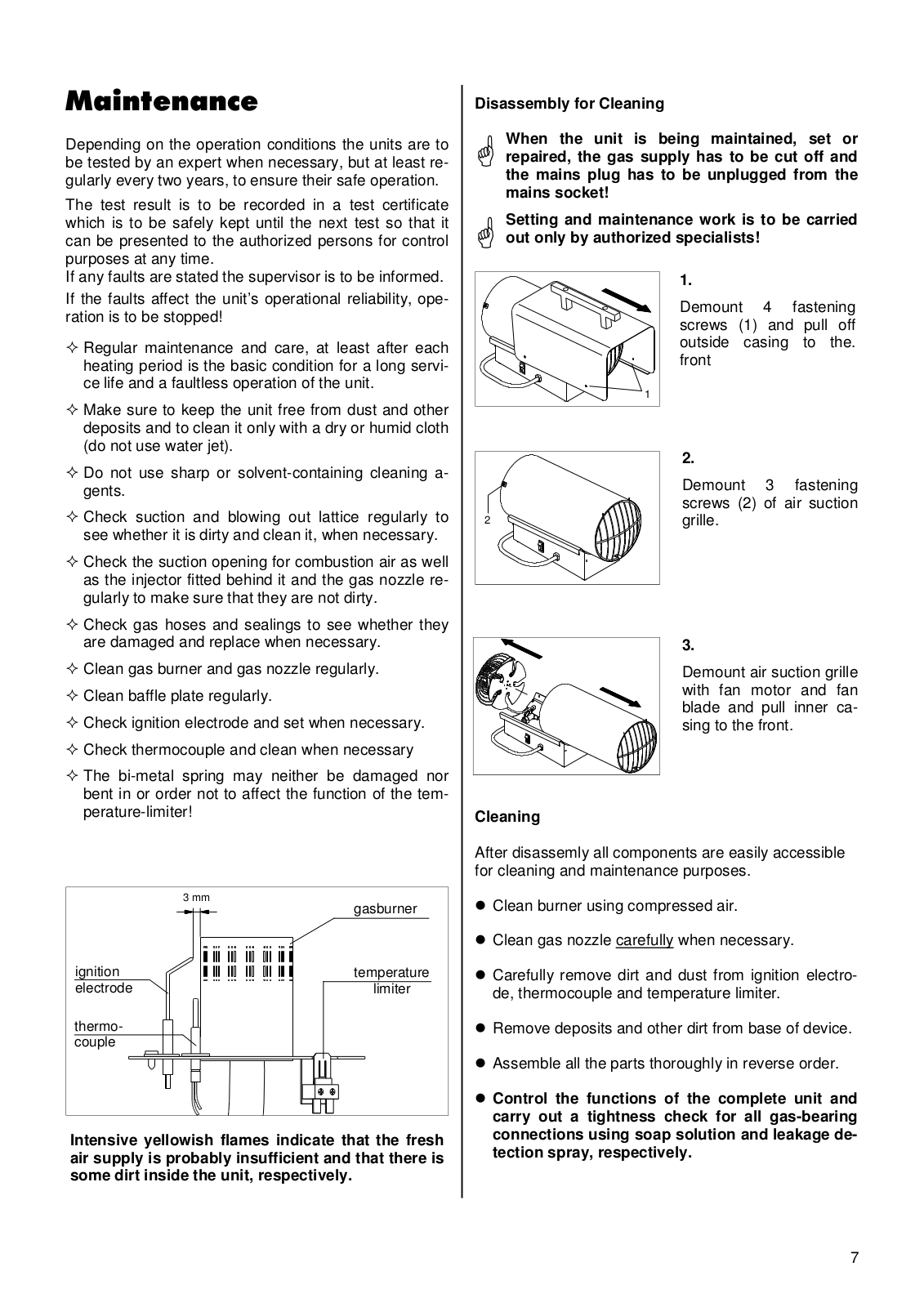

The unit may be only maintained by trained persons and only original spare parts may be used.
If the unit has been switched off by the temperature limiter due to overheating, the reason for the fault has to be detected and eliminated.
