M95

Quectel Cellular Engine

Hardware Design

M95_HD_V1.0

M95 Hardware Design





Document Title



M95 Hardware Design































Revision



1.0





















Date



2012-02-06































Status



Released































Document Control ID



M95_HD_V1.0































General Notes

Quectel offers this information as a service to its customers, to support application and engineering efforts that use the products designed by Quectel. The information provided is based upon requirements specifically provided for customers of Quectel. Quectel has not undertaken any independent search for additional information, relevant to any information that may be in the customer’s possession. Furthermore, system validation of this product designed by Quectel within a larger electronic system remains the responsibility of the customer or the customer’s system integrator. All specifications supplied herein are subject to change.

Copyright

This document contains proprietary technical information of Quectel Co., Ltd. Copying this document, distribution to others, and communication of the contents thereof, are forbidden without permission. Offenders are liable to the payment of damages. All rights are reserved in the event of a patent grant or registration of a utility model or design. All specifications supplied herein are subject to change without notice at any time.

Copyright © Shanghai Quectel Wireless Solutions Ltd. 2012

M95_HD_V1.0

- 2 -

M95 Hardware Design

Contents



Contents ............................................................................................................................................

3

Table Index .......................................................................................................................................

5

Figure Index ......................................................................................................................................

6

0. Revision history ............................................................................................................................

8

1. Introduction...................................................................................................................................

9

1.1. Related documents .............................................................................................................

9

1.2. Terms and abbreviations ..................................................................................................

10

1.3. Directives and standards ..................................................................................................

12

1.3.1. FCC Statement ......................................................................................................

12

1.3.2. FCC Radiation exposure statement .......................................................................

12

1.3.3. Industry Canada licence ........................................................................................

12

1.4. Safety cautions .................................................................................................................

13

2. Product concept...........................................................................................................................

15

2.1. Key features .....................................................................................................................

15

2.2. Functional diagram ..........................................................................................................

17

2.3. Evaluation board ..............................................................................................................

18

3. Application interface...................................................................................................................

19

3.1. Pin ....................................................................................................................................

20

3.1.1. Pin assignment ......................................................................................................

20

3.1.2. Pin description.......................................................................................................

21

3.2. Operating modes ..............................................................................................................

26

3.3. Power supply....................................................................................................................

27

3.3.1. Feature of GSM power..........................................................................................

27

3.3.2. Minimize supply voltage drop...............................................................................

27

3.3.3. Reference power design for the module................................................................

28

3.3.4. Monitor power supply ...........................................................................................

29

3.4. Power on and down scenarios ..........................................................................................

29

3.4.1. Power on ...............................................................................................................

29

3.4.2. Power down...........................................................................................................

31

3.4.3. Restart ...................................................................................................................

35

3.5. Power saving ....................................................................................................................

36

3.5.1. Minimum functionality mode................................................................................

36

3.5.2. Sleep mode ............................................................................................................

36

3.5.3. Wake up the module from SLEEP mode ..............................................................

37

3.6. Summary of state transitions ............................................................................................

37

3.7. RTC backup .....................................................................................................................

37

3.8. Serial interfaces................................................................................................................

39

3.8.1. UART Port ............................................................................................................

40

3.8.2. Debug Port ............................................................................................................

44

3.8.3. UART Application ................................................................................................

44

3.9. Audio interfaces ...............................................................................................................

48

M95_HD_V1.0

- 3 -

M95 Hardware Design

3.9.1. Decrease TDD noise and other noise ....................................................................

49

3.9.2. Microphone interfaces design ...............................................................................

50

3.9.3. Receiver interface design ......................................................................................

50

3.9.4. Earphone interface design .....................................................................................

51

3.9.5. Loud speaker interface design...............................................................................

51

3.9.6. Audio characteristics .............................................................................................

52

3.10. SIM card interface..........................................................................................................

52

3.10.1. SIM card application ...........................................................................................

52

3.10.2. 6 Pin SIM cassette ...............................................................................................

54

3.12. Behaviors of the RI ........................................................................................................

55

3.13. Network status indication...............................................................................................

57

3.14. Operating status indication.............................................................................................

57

4. Antenna interface ........................................................................................................................

59

4.1. RF reference design .........................................................................................................

59

4.2. RF output power...............................................................................................................

60

4.3. RF receiving sensitivity....................................................................................................

60

4.4. Operating frequencies ......................................................................................................

60

4.5. RF cable soldering ...........................................................................................................

60

5. Electrical, reliability and radio characteristics ............................................................................

62

5.1. Absolute maximum ratings ..............................................................................................

62

5.2. Operating temperature......................................................................................................

62

5.3. Power supply ratings ........................................................................................................

62

5.4. Current consumption........................................................................................................

63

5.5. Electro-static discharge ....................................................................................................

64

6. Mechanical dimensions...............................................................................................................

65

6.1. Mechanical dimensions of module...................................................................................

65

6.2. Footprint of recommendation...........................................................................................

67

6.3. Top view of the module ...................................................................................................

68

6.4. Bottom view of the module..............................................................................................

69

7. Storage and Manufacturing .........................................................................................................

70

7.1. Storage .............................................................................................................................

70

7.3. Packaging .........................................................................................................................

72

Appendix A: GPRS coding schemes...............................................................................................

73

Appendix B: GPRS multi-slot classes.............................................................................................

74

M95_HD_V1.0

- 4 -

M95 Hardware Design

Table Index



TABLE 1: RELATED DOCUMENTS ....................................................................................................

9

TABLE 2: TERMS AND ABBREVIATIONS ......................................................................................

10

TABLE 3: MODULE KEY FEATURES...............................................................................................

15

TABLE 4: CODING SCHEMES AND MAXIMUM NET DATA RATES OVER AIR INTERFACE17

TABLE 5: M95 PIN ASSIGNMENT.....................................................................................................

20

TABLE 6: PIN DESCRIPTION.............................................................................................................

21

TABLE 7: OVERVIEW OF OPERATING MODES ............................................................................

26

TABLE 8: SUMMARY OF STATE TRANSITION .............................................................................

37

TABLE 9: LOGIC LEVELS OF THE UART INTERFACE.................................................................

40

TABLE 10: PIN DEFINITION OF THE UART INTERFACES ..........................................................

40

TABLE 11: PIN DEFINITION OF AUDIO INTERFACE ...................................................................

48

TABLE 12: AOUT2 OUTPUT CHARACTERISTICS .........................................................................

49

TABLE 13: TYPICAL ELECTRET MICROPHONE CHARACTERISTICS ......................................

52

TABLE 14: TYPICAL SPEAKER CHARACTERISTICS ...................................................................

52

TABLE 15: PIN DEFINITION OF THE SIM INTERFACE ................................................................

53

TABLE 16: PIN DESCRIPTION OF AMPHENOL SIM CARD HOLDER.........................................

54

TABLE 17: BEHAVIORS OF THE RI..................................................................................................

55

TABLE 18: WORKING STATE OF THE NETLIGHT ........................................................................

57

TABLE 19: PIN DEFINITION OF THE STATUS ...............................................................................

57

TABLE 20: PIN DEFINITION OF THE ANTENNA INTERFACE ....................................................

59

TABLE 21: THE MODULE CONDUCTED RF OUTPUT POWER ...................................................

60

TABLE 22: THE MODULE CONDUCTED RF RECEIVING SENSITIVITY ...................................

60

TABLE 23: THE MODULE OPERATING FREQUENCIES ...............................................................

60

TABLE 24: ABSOLUTE MAXIMUM RATINGS................................................................................

62

TABLE 25: OPERATING TEMPERATURE........................................................................................

62

TABLE 26: THE MODULE POWER SUPPLY RATINGS .................................................................

62

TABLE 27: THE MODULE CURRENT CONSUMPTION .................................................................

63

TABLE 28: THE ESD ENDURANCE (TEMPERATURE:25 ,HUMIDITY:45 %) ..........................

64

TABLE 29: DESCRIPTION OF DIFFERENT CODING SCHEMES ..................................................

73

TABLE 30: GPRS MULTI-SLOT CLASSES .......................................................................................

74

M95_HD_V1.0

- 5 -

M95 Hardware Design

Figure Index



FIGURE 1: MODULE FUNCTIONAL DIAGRAM .............................................................................

18

FIGURE 2: PIN ASSIGNMENT ...........................................................................................................

20

FIGURE 3: RIPPLE IN SUPPLY VOLTAGE DURING TRANSMITTING BURST..........................

27

FIGURE 4: REFERENCE CIRCUIT OF THE VBAT INPUT..............................................................

28

FIGURE 5: REFERENCE CIRCUIT OF THE SOURCE POWER SUPPLY INPUT ..........................

28

FIGURE 6: TURN ON THE MODULE USING DRIVING CIRCUIT ................................................

30

FIGURE 7: TURN ON THE MODULE USING KEYSTROKE...........................................................

30

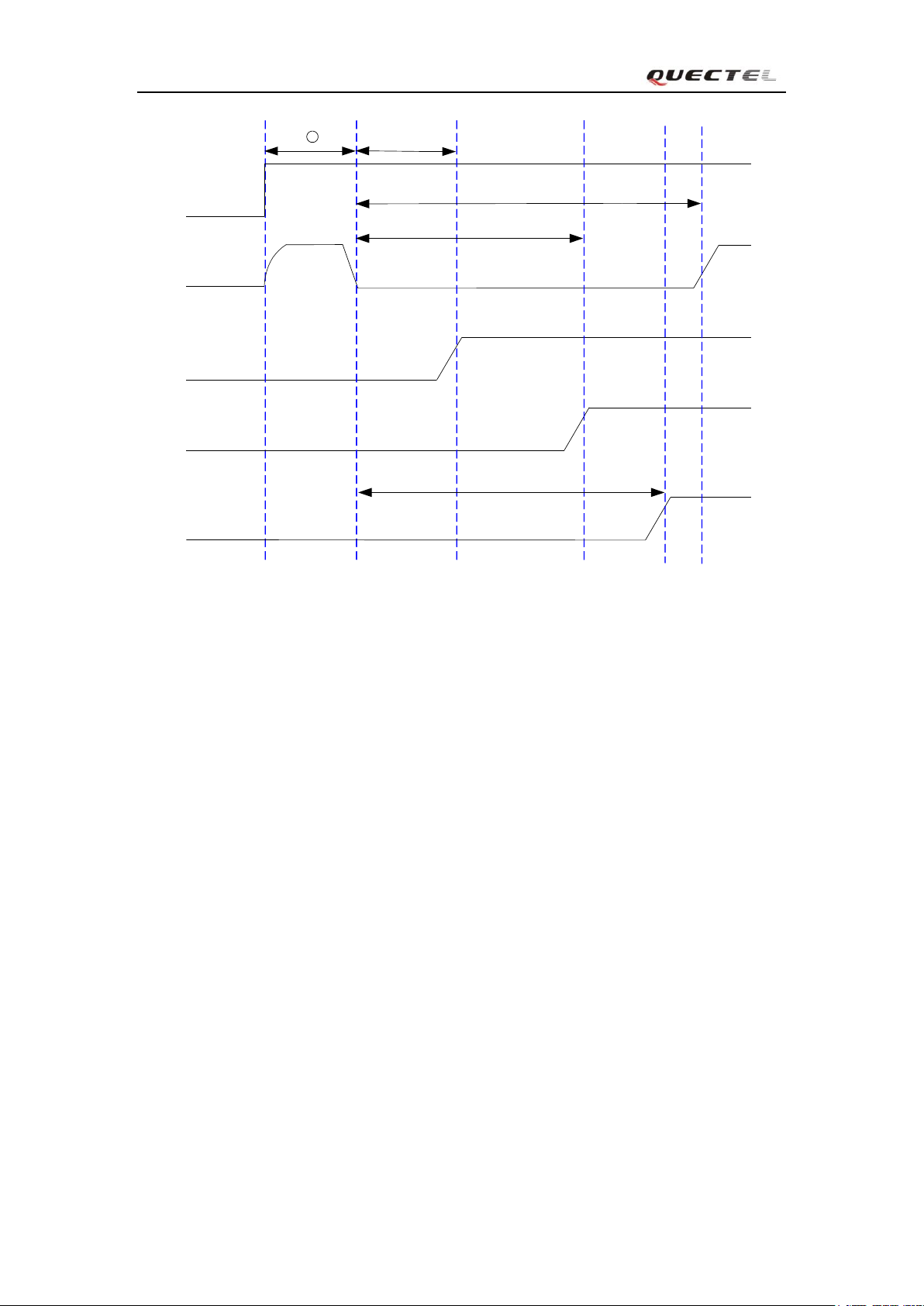

FIGURE 8: TIMING OF TURNING ON SYSTEM..............................................................................

31

FIGURE 9: TIMING OF TURNING OFF THE MODULE ..................................................................

32

FIGURE 10: REFERENCE CIRCUIT FOR EMERG_OFF BY USING DRIVING CIRCUIT............

34

FIGURE 11: REFERENCE CIRCUIT FOR EMERG_OFF BY USING BUTTON .............................

34

FIGURE 12: TIMING OF RESTARTING SYSTEM............................................................................

35

FIGURE 13: TIMING OF RESTARTING SYSTEM AFTER EMERGENCY SHUTDOWN.............

35

FIGURE 14: RTC SUPPLY FROM NON-CHARGEABLE BATTERY..............................................

38

FIGURE 15: RTC SUPPLY FROM RECHARGEABLE BATTERY...................................................

38

FIGURE 16: RTC SUPPLY FROM CAPACITOR ...............................................................................

38

FIGURE 17: SEIKO XH414H-IV01E CHARGE CHARACTERISTICS.............................................

39

FIGURE 18: CONNECTION OF ALL FUNCTIONAL UART PORT.................................................

42

FIGURE 19: CONNECTION OF THREE LINES UART PORT..........................................................

42

FIGURE 20: CONNECTION OF UART PORT ASSOCIATED HARDWARE FLOW CONTROL .. 43

FIGURE 21: CONNECTION OF SOFTWARE UPGRADE ................................................................

43

FIGURE 22: CONNECTION OF SOFTWARE DEBUG......................................................................

44

FIGURE 23: 3.3V LEVEL MATCH CIRCUIT .....................................................................................

45

FIGURE 24: 5V LEVEL MATCH CIRCUIT ........................................................................................

46

FIGURE 25: RS232 LEVEL MATCH CIRCUIT ..................................................................................

47

FIGURE 26: MICROPHONE INTERFACE DESIGN OF AIN1&AIN2..............................................

50

FIGURE 27: RECEIVER INTERFACE DESIGN OF AOUT1.............................................................

50

FIGURE 28: EARPHONE INTERFACE DESIGN ...............................................................................

51

FIGURE 29: LOUD SPEAKER INTERFACE DESIGN ......................................................................

51

FIGURE 30: REFERENCE CIRCUIT OF THE 6 PINS SIM CARD ...................................................

53

FIGURE 31: AMPHENOL C707 10M006 512 2 SIM CARD HOLDER .............................................

54

FIGURE 32: RI BEHAVIOR OF VOICE CALLING AS A RECEIVER .............................................

55

FIGURE 33: RI BEHAVIOR OF DATA CALLING AS A RECEIVER ..............................................

56

FIGURE 34: RI BEHAVIOR AS A CALLER.......................................................................................

56

FIGURE 35: RI BEHAVIOR OF URC OR SMS RECEIVED..............................................................

56

FIGURE 36: REFERENCE CIRCUIT OF THE NETLIGHT ...............................................................

57

FIGURE 37: REFERENCE CIRCUIT OF THE STATUS ....................................................................

58

FIGURE 38: REFERENCE CIRCUIT OF RF .......................................................................................

59

FIGURE 39: RF SOLDERING SAMPLE .............................................................................................

61

FIGURE 40: M95 TOP AND SIDE DIMENSIONS UNIT: MM ...................................................

65

FIGURE 41: M95 BOTTOM DIMENSIONS UNIT: MM .............................................................

66

M95_HD_V1.0

- 6 -

M95 Hardware Design

FIGURE 42: FOOTPRINT ONE OF RECOMMENDATION UNIT: MM ....................................

67

FIGURE 43: TOP VIEW OF THE MODULE .......................................................................................

68

FIGURE 44: BOTTOM VIEW OF THE MODULE..............................................................................

69

FIGURE 45: PASTE APPLICATION ...................................................................................................

71

FIGURE 46: RAMP-SOAK-SPIKE REFLOW PROFILE ....................................................................

72

FIGURE 47: MODULE TRAY..............................................................................................................

72

FIGURE 48: RADIO BLOCK STRUCTURE OF CS-1, CS-2 AND CS-3 ...........................................

73

FIGURE 49: RADIO BLOCK STRUCTURE OF CS-4 ........................................................................

73

M95_HD_V1.0

- 7 -

M95 Hardware Design

0. Revision history



Revision





Date





Author





Description of change











































1.0



2011-12-29





Luka WU





Initial



















































M95_HD_V1.0

- 8 -

M95 Hardware Design

1. Introduction

This document defines Module M95 and describes its hardware interface which are connected with the customer application and the air interface.

This document can help customers quickly understand the interface specifications, electrical and mechanical details of M95. Associated with application notes and user guide, customers can use M95 to design and set up mobile applications easily.

1.1. Related documents

Table 1: Related documents



SN





Document name





Remark















[1]





M95_ATC





AT commands set



















[2]





ITU-T Draft new





Serial asynchronous automatic dialing and control











recommendation V.25ter

























[3]





GSM 07.07





Digital cellular telecommunications (Phase 2+); AT

















command set for GSM Mobile Equipment (ME)



















[4]





GSM 07.10





Support GSM 07.10 multiplexing protocol



















[5]





GSM 07.05





Digital cellular telecommunications (Phase 2+); Use of

















Data Terminal Equipment – Data Circuit terminating

















Equipment (DTE – DCE) interface for Short Message

















Service (SMS) and Cell Broadcast Service (CBS)



















[6]





GSM 11.14





Digital cellular telecommunications (Phase 2+);

















Specification of the SIM Application Toolkit for the

















Subscriber Identity module – Mobile Equipment (SIM –

















ME) interface



















[7]





GSM 11.11





Digital cellular telecommunications (Phase 2+);

















Specification of the Subscriber Identity module – Mobile

















Equipment (SIM – ME) interface



















[8]





GSM 03.38





Digital cellular telecommunications (Phase 2+);

















Alphabets and language-specific information



[9]





GSM 11.10





Digital cellular telecommunications (Phase 2); Mobile

















Station (MS) conformance specification; Part 1:

















Conformance specification



















[10]





GSM_UART_AN





UART port application notes



















[11]





GSM_FW_Upgrade_Tool_





GSM Firmware upgrade tool lite GS2 user guide











Lite_GS2_UDG

























[12]





M95_EVB_UGD





M95 EVB user guide



M95_HD_V1.0

- 9 -



M95 Hardware Design

1.2. Terms and abbreviations

Table 2: Terms and abbreviations



Abbreviation





Description











ADC





Analog-to-Digital Converter









AMR





Adaptive Multi-Rate









ARP





Antenna Reference Point









ASIC





Application Specific Integrated Circuit









BER





Bit Error Rate









BOM





Bill Of Material









BTS





Base Transceiver Station









CHAP





Challenge Handshake Authentication Protocol









CS





Coding Scheme









CSD





Circuit Switched Data









CTS





Clear To Send









DAC





Digital-to-Analog Converter









DRX





Discontinuous Reception









DSP





Digital Signal Processor









DCE





Data Communications Equipment (typically module)









DTE





Data Terminal Equipment (typically computer, external controller)









DTR





Data Terminal Ready









DTX





Discontinuous Transmission









EFR





Enhanced Full Rate









EGSM





Enhanced GSM









EMC





Electromagnetic Compatibility









ESD





Electrostatic Discharge









ETS





European Telecommunication Standard









FCC





Federal Communications Commission (U.S.)









FDMA





Frequency Division Multiple Access









FR





Full Rate









GMSK





Gaussian Minimum Shift Keying









GPRS





General Packet Radio Service









GSM





Global System for Mobile Communications









HR





Half Rate

I/O





Input/Output









IC





Integrated Circuit









IMEI





International Mobile Equipment Identity









Imax





Maximum Load Current









Inorm





Normal Current









kbps





Kilo Bits Per Second









LED





Light Emitting Diode

M95_HD_V1.0

- 10 -

M95 Hardware Design

Li-Ion



Lithium-Ion







Abbreviation



Description

MO



Mobile Originated







MS



Mobile Station (GSM engine)







MT



Mobile Terminated







PAP



Password Authentication Protocol







PBCCH



Packet Switched Broadcast Control Channel







PCB



Printed Circuit Board







PDU



Protocol Data Unit







PPP



Point-to-Point Protocol







RF



Radio Frequency







RMS



Root Mean Square (value)







RTC



Real Time Clock







RX



Receive Direction







SIM



Subscriber Identification Module







SMS



Short Message Service







TDMA



Time Division Multiple Access







TE



Terminal Equipment







TX



Transmitting Direction







UART



Universal Asynchronous Receiver & Transmitter







URC



Unsolicited Result Code







USSD



Unstructured Supplementary Service Data







VSWR



Voltage Standing Wave Ratio







Vmax



Maximum Voltage Value







Vnorm



Normal Voltage Value







Vmin



Minimum Voltage Value







VIHmax



Maximum Input High Level Voltage Value







VIHmin



Minimum Input High Level Voltage Value







VILmax



Maximum Input Low Level Voltage Value







VILmin



Minimum Input Low Level Voltage Value







VImax



Absolute Maximum Input Voltage Value







VImin



Absolute Minimum Input Voltage Value







VOHmax



Maximum Output High Level Voltage Value







VOHmin



Minimum Output High Level Voltage Value







VOLmax



Maximum Output Low Level Voltage Value







VOLmin



Minimum Output Low Level Voltage Value





Phonebook abbreviations

FD



SIM Fix Dialing phonebook







LD



SIM Last Dialing phonebook (list of numbers most recently dialed)







MC



Mobile Equipment list of unanswered MT Calls (missed calls)







ON



SIM (or ME) Own Numbers (MSISDNs) list







RC



Mobile Equipment list of Received Calls

M95_HD_V1.0

- 11 -

M95 Hardware Design

SM

SIM phonebook





1.3. Directives and standards

The M95 module is designed to comply with the FCC statements. FCC ID is XMR201202M95. The Host system using M95, should have label indicated FCC ID: XMR201202M95.

1.3.1. FCC Statement

1.This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:

a)This device may not cause harmful interference.

b)This device must accept any interference received, including interference that may cause undesired operation.

2.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

1.3.2. FCC Radiation exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body as well as kept minimum 20cm from radio antenna depending on the portable or Mobile status of this module usage.

The manual of the host system, which uses M95, must include RF exposure warning statement to advice user should keep minimum 20cm from the radio antenna of M95 module depending on portable or Mobile status.

Note: If a portable device (such as PDA) uses M95 module, the device needs to do permissive change and SAR testing.

1.3.3. Industry Canada licence

English version

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

a)This device may not cause harmful interference.

b)This device must accept any interference, including interference that may cause undesired operation of the device.

M95_HD_V1.0

- 12 -

M95 Hardware Design

The Host system using M95, should have label indicating “transmitter module

IC:10064-201202M95.

French version

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :

a)l'appareil ne doit pas produire de brouillage, et

b)L’utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

1.4. Safety cautions

The following safety precautions must be observed during all phases of the operation, such as usage, service or repair of any cellular terminal or mobile incorporating M95 module. Manufacturers of the cellular terminal should send the following safety information to users and operating personnel and to incorporate these guidelines into all manuals supplied with the product. If not so, Quectel does not take on any liability for customer failure to comply with these precautions.

When in a hospital or other health care facility, observe the restrictions about the use of mobile. Switch the cellular terminal or mobile off. Medical equipment may be sensitive to not operate normally for RF energy interference.

Switch off the cellular terminal or mobile before boarding an aircraft. Make sure it switched off. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communication systems. Forget to think much of these instructions may lead to the flight safety or offend against local legal action, or both.

Do not operate the cellular terminal or mobile in the presence of flammable gas or fume. Switch off the cellular terminal when you are near petrol station, fuel depot, chemical plant or where blasting operations are in progress. Operation of any electrical equipment in potentially explosive atmosphere can constitute a safety hazard.

Your cellular terminal or mobile receives and transmits radio frequency energy while switched on. RF interference can occur if it is used close to TV set, radio, computer or other electric equipment.

M95_HD_V1.0

- 13 -

M95 Hardware Design

Road safety comes first! Do not use a hand-held cellular terminal or mobile while driving a vehicle, unless it is securely mounted in a holder for hands-free operation. Before making a call with a hand-held terminal or mobile, park the vehicle.

GSM cellular terminals or mobiles operate over radio frequency signal and cellular network and cannot be guaranteed to connect in all conditions, for example no mobile fee or an invalid SIM card. While you are in this condition and need emergent help, Please Remember using emergency call. In order to make or receive call, the cellular terminal or mobile must be switched on and in a service area with adequate cellular signal strength.

Some networks do not allow for emergency call if certain network services or phone features are in use (e.g. lock functions, fixed dialing etc.). You may have to deactivate those features before you can make an emergency call.

Also, some networks require that a valid SIM card be properly inserted in cellular terminal or mobile.

M95_HD_V1.0

- 14 -

M95 Hardware Design

2. Product concept

M95 is a Quad-band GSM/GPRS engine that works at frequencies of GSM850MHz, GSM900MHz, DCS1800MHz and PCS1900MHz. The M95 features GPRS multi-slot class 12 and supports the GPRS coding schemes CS-1, CS-2, CS-3 and CS-4. For more details about GPRS multi-slot classes and coding schemes, please refer to Appendix A and Appendix B.

With a tiny profile of 19.9mm × 23.6mm × 2.65mm, the module can meet the requirements of almost all M2M applications, including Tracking and Tracing, Industrial PDA, Wireless POS, Intelligent Measurement, Remote Controlling, etc.

M95 is an SMD type module with LCC package, which can be embedded in customer applications. It provides abundant hardware interfaces between the module and customer’s host board.

Designed with power saving technique, the current consumption of M95 module is as low as 0.9 mA in SLEEP mode when DRX is 5.

M95 is integrated with Internet service protocols, which are TCP/IP, UDP, FTP and PPP. Extended AT commands have been developed for customer to use these Internet service protocols easily.

The module fully complies to FCC statements and RoHS directive of the European Union.

2.1. Key features

Table 3: Module key features



Feature





Implementation











Power supply





Single supply voltage 3.3V ~ 4.6V











Typical supply voltage 4V













Power saving





Typical power consumption in SLEEP mode: 0.9 mA@ DRX=5













0.7 mA@ DRX=9













Frequency bands





Quad-band: GSM850, GSM900, DCS1800, PCS1900.











The module can search these frequency bands automatically











The frequency bands can be set by AT command.











Compliant with GSM Phase 2/2+



GSM class





Small MS













Transmitting power





Class 4 (2W) at GSM850 and GSM900











Class 1 (1W) at DCS1800 and PCS1900



GPRS connectivity





GPRS multi-slot class 12 (default)











GPRS multi-slot class 1~12 (configurable)











GPRS mobile station class B



M95_HD_V1.0







- 15 -



M95 Hardware Design

Temperature range

Normal operation: -35°C ~ +80°C



Restricted operation: -40°C ~ -35°C and +80°C ~ +85°C 1)



Storage temperature: -45°C ~ +90°C

DATA GPRS:

GPRS data downlink transfer: max. 85.6 kbps



GPRS data uplink transfer: max. 85.6 kbps



Coding schemes: CS-1, CS-2, CS-3 and CS-4



Support the protocols PAP (Password Authentication Protocol)





usually used for PPP connections



Internet service protocols TCP/UDP/FTP/HTTP



Support Packet Switched Broadcast Control Channel (PBCCH)

CSD:

CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps non-transparent



Support Unstructured Supplementary Services Data (USSD)

SMS

Text and PDU mode



SMS storage: SIM card

FAX

Group 3 Class 1 and Class 2





SIM interface

Support SIM card: 1.8V, 3V





Audio features

Speech codec modes:



Half Rate (ETS 06.20)



Full Rate (ETS 06.10)



Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80)



Adaptive Multi-Rate (AMR)



Echo Cancellation



Echo Suppression



Noise Reduction



Embedded one amplifier of class AB with maximum driving





power up to 800mW





UART interface

UART Port:



Seven lines on UART port interface



Use for AT command, GPRS data and CSD data



Multiplexing function



Support autobauding from 4800 bps to 115200 bps



Debug Port:



Two lines on debug UART port interface DBG_TXD and





DBG_RXD



Debug Port only used for software debugging

Phonebook management

Support phonebook types: SM, ME, FD, ON, MT





SIM Application Toolkit

Support SAT class 3, GSM 11.14 Release 99





Real time clock

Implemented







Physical characteristics

Size:





19.9±0.15 ×23.6±0.15 ×2.65±0.2mm



Weight: 3g





Firmware upgrade

Firmware upgrade via UART Port





Antenna interface

Connected via 50 Ohm antenna pad

M95_HD_V1.0



- 16 -

M95 Hardware Design

Table 4: Coding schemes and maximum net data rates over air interface



Coding scheme





1 Timeslot





2 Timeslot





4 Timeslot



















CS-1:





9.05kbps





18.1kbps





36.2kbps

























CS-2:





13.4kbps





26.8kbps





53.6kbps

























CS-3:





15.6kbps





31.2kbps





62.4kbps

























CS-4:





21.4kbps





42.8kbps





85.6kbps



























2.2. Functional diagram

The following figure shows a block diagram of the M95 module and illustrates the major functional parts:

Power management

Baseband

The GSM radio frequency part

The Peripheral interface

SIM interface

Audio interface

UART interface

Power supply

RF interface

Turn on/off interface

RTC interface

M95_HD_V1.0

- 17 -

M95 Hardware Design



Power



UART

Application













Interface

26M

supply



SIM





MT6252D













VDD_EXT







PWRKEY







SMD-(42

PA



Contro

EMERG_OFF



l





TQM6M4068





VRTC







AUDIO







Pads)



32.768K

















RF_ANTENNA



Figure 1: Module functional diagram

2.3. Evaluation board

In order to help customer to develop applications with M95, Quectel supplies an evaluation board (EVB), RS-232 to USB cable, power adapter, earphone, antenna and other peripherals to control or test the module. For details, please refer to the document [12].

M95_HD_V1.0

- 18 -

M95 Hardware Design

3. Application interface

The module is equipped with 42 pin SMT pad and it adopts LCC package. Detailed descriptions on Sub-interfaces included in these pads are given in the following chapters:

Power supply

Turn on/off

Power saving

RTC

UART interfaces

Audio interfaces

SIM interface

M95_HD_V1.0

- 19 -

M95 Hardware Design

3.1. Pin

3.1.1. Pin assignment

Figure 2: Pin assignment

Table 5: M95 pin assignment



PIN NO.





PIN NAME





I/O







PIN NO.





PIN NAME





I/O





























1





AGND











2





MIC2P





I

































3





MIC2N





I





4





MIC1P





I

































5





MIC1N





I





6





SPK1N





O

































7





SPK1P





O





8





LOUDSPKN





O

































9





LOUDSPKP





O





10





PWRKEY





I

































11





EMERG_OFF





I





12





STATUS





O

M95_HD_V1.0























- 20 -

M95 Hardware Design



13



NETLIGHT



O





14



DBG_RXD



I









































15



DBG_TXD



O





16



RESERVED













































17



RESERVED









18



RESERVED











































19



VDD_EXT



O





20



DTR



I







































21



RXD





I





22



TXD



O







































23



CTS





O





24



RTS



I







































25



DCD





O





26



RI



O







































27



SIM_VDD



O





28



SIM_RST



O







































29



SIM_DATA



I/O





30



SIM_CLK



O







































31



SIM_GND









32



VRTC



I/O







































33



VBAT





I





34



VBAT



I









































35



GND











36



GND













































37



GND











38



GND













































39



RF_ANT





I/O





40



GND













































41



RESERVED









42



RESERVED











3.1.2. Pin description



























Table 6: Pin description























































Power supply



























PIN NAME



PIN

I/

DESCRIPTION



DC

COMMENT









NO.

O











CHARACTERISTICS



























VBAT



33,

I

Main power supply of

Vmax= 4.6V

Make sure that supply









34



module:



Vmin=3.3V

sufficient current in a













VBAT=3.3V~4.6V



Vnorm=4.0V

transmitting burst



























which typically rises



























to 1.6A.



VRTC



32

I/

Power supply for RTC

VImax=VBAT

If unused, keep this











O

when VBAT is not



VImin=2.6V

pin open.













supplied for the



VInorm=2.8V





















system.



VOmax=2.85V





















Charging for backup

VOmin=2.6V





















battery or golden



VOnorm=2.8V





















capacitor when the



Iout(max)= 730uA





















VBAT is supplied.



Iin=2.6~5 uA





























VDD_EXT



19

O

Supply 2.8V voltage



Vmax=2.9V

1. If unused, keep this













for external circuit.



Vmin=2.7V

pin open.























Vnorm=2.8V

2. Recommended to























Imax=20mA

add a 2.2~4.7uF



M95_HD_V1.0





















- 21 -





M95 Hardware Design











bypass capacitor,











when using this pin











for power supply.













GND

35,



Ground







36,











37,











38,











40





















Turn on/off











PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT



NO.

O



CHARACTERISTICS















PWRKEY

10

I

Power on/off key.

VILmax=

Pulled up to VBAT







PWRKEY should be

0.1*VBAT

internally.







pulled down for a

VIHmin=









moment to turn on or

0.6*VBAT









turn off the system.

VImax=VBAT















Emergency shutdown









PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT



NO.

O



CHARACTERISTICS















EMERG_

11

I

Emergency off. Pulled

VILmax=0.4V

Open drain/collector

OFF





down for at least

VIHmin=2.2V

driver required in







20ms, which will turn

Vopenmax=2.8V

cellular device







off the module in case



application.







of emergency. Use it



If unused, keep this







only when normal



pin open.







shutdown through











PWRKEY or AT











command cannot











perform well.

















Module indicator









PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT



NO.

O



CHARACTERISTICS



STATUS

12

O

Indicate module

VOHmin=

If unused, keep this







operating status. High

0.85*VDD_EXT

pin open.







level indicates module

VOLmax=









is power-on and low

0.15*VDD_EXT









level indicates











power-down.

















Audio interface

































PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT



NO.

O



CHARACTERISTICS















MIC1P

4

I

Channel one of



If unused, keep these

MIC1N

5



positive and negative



pins open.

M95_HD_V1.0









- 22 -

M95 Hardware Design







voice-band input





















MIC2P

2

I

Channel two of







MIC2N

3



positive and negative













voice-band input





















SPK1N

6,

O

Channel one of



If unused, keep these



SPK1P

7



positive and negative



pins open.









voice-band output





















AGND

1



Cooperate with



If unused, keep this









LOUDSPKP



pin open.

















LOUDSPKN

8 9

O

Channel two of



1. If unused, keep









positive and negative



these pins open.



LOUDSPKP





voice-band output



2. Embedded













amplifier of class AB













internally.













3. Support both Voice













and ring.

















Net status indicator











PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT





NO.

O



CHARACTERISTICS





NETLIGHT

13

O

Network status

VOHmin=

If unused, keep this









indication

0.85*VDD_EXT

pin open.











VOLmax=













0.15*VDD_EXT



















Main UART port











PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT





NO.

O



CHARACTERISTICS



















DTR

20

I

Data terminal ready

VILmin=-0.3V

If only use TXD,











VILmax=

RXD and GND to



RXD

21

I

Receiving data











0.25*VDD_EXT

communicate,



TXD

22

O

Transmitting data











VIHmin=

recommended keeping



CTS

23

O

Clear to send











0.75*VDD_EXT

other pins open,



RTS

24

I

Request to send

















VIHmax=

except RTS. Pull



DCD

25

O

Data carrier detection









RI

26

O

Ring indicator

VDD_EXT+0.3V

down RTS.

















VOHmin=













0.85*VDD_EXT













VOLmax=













0.15*VDD_EXT



















Debug UART port











PIN NAME

PIN

I/

DESCRIPTION

DC

COMMENT





NO.

O



CHARACTERISTICS



















M95_HD_V1.0

- 23 -
