Page 1
QSDB8209C
Digital LCD Baby Monitor
and
Wireless Camera
Visit Us on the Web at http://www.q-see.com
Rev 072208
Page 2
1 Packing List
2 Diagram
3 Structure
4 Installation
5 Specifications
6 FCC and EU
1. Packing List
Contents
Contents
ContentsContents
1) 2.4GHz Wireless Camera ╳ 1
2) 2.4GHz Wireless Receiver ╳ 1
3) Earphone ╳1
4) Power Adapter for camera ╳ 1
5) Power Adapter for receiver ╳ 1
Note: AA Batteries are not included
Page 3
2. Diagram
3. Structure
3-1. Layout of Camera
Page 4
3-2. Layout of Receiver
4. Installation
4-1. Setting Up the Camera
1. Setup the camera in the desired location
Page 5
2. Connect the camera to the adapter and then slide the power switch to the ON
position
Note:
--This camera can also use dry batteries as a power source by loading 4 AA
batteries into the battery compartment on the back of the camera with their
polarities in the correct position.
--The AC adapter will work instead of batteries after it is plugged in. If the
camera is not going to be used for a long period of time, please unplug the
adapter and remove the batteries.
* The camera can run off of batteries for up to 5 hours (IR OFF)
3. Rotate the rounded head of the camera to the desired angle for surveillance.
Page 6
4-1-1. Camera Learning Setup
If there is interference from another wireless device the Learning Switch can
program the unit to avoid it. Push the Learning Switch on the back of the camera
from OFF to ON, then press the Eliminate button on the receiver for 3 seconds.
The picture will become clearer on the screen.
4-1-2. Camera Alarm Setup
1. The camera provides a Sound Detection alarm.
Page 7
Sound Alarm Setup:
To set up the sound alarm slide the alarm switch to the VOX position. The
system will enter standby mode until a sound triggers the alarm. When sound is
detected the alarm sounds for two minutes or until the Eliminate Alarm button is
pressed, which will put the system into snooze mode for 35 seconds. After the
35 seconds is up the alarm will go back into standby mode until triggered by the
next sound alarm event.
Turn Off Alarm:
To turn off the alarm slide the alarm setting switch to the Off position. The alarm
function will be disabled.
Note:
The Sound alarm will be turned off automatically if the Eliminate Alarm button
is not pressed within 2 minutes after the alarm sounds. If both the battery and
A/C adapter are in use and the alarm setup failed to trigger, turn the camera and
the receiver off and then back on to re-activate the alarm.
4-2. Setting Up the Receiver
1. Connect the receiver to the adapter and then slide the power switch to the ON
position.
Page 8
Note:
--This receiver can also use dry batteries as a power source by loading 4 AA
batteries into the battery compartment at the back of the camera with their
polarities in the correct position.
--The AC adapter will work instead of batteries after it is plugged in. If the
camera is not going to be used for a long period of time, please unplug the
adapter and remove the batteries.
* The camera can run off of batteries for up to 5 hours.
2. Adjust the volume control to the desired level.
Page 9
3. Set the channel of the receiver to the same channel as the camera by pressing
the channel button continuously, the pictures will display on the screen when the
channels match.
Note:
The receiver supports up to 4 cameras working at the same time. If there are 2, 3,
or 4 cameras working you can press and hold the channel button about 3 seconds
to enter auto-switch-browse mode and the channels will by displayed one by one
for 6 seconds at a time.
Page 10
5. Specifications
Unobstructed Effective
Spread
Item
GENERAL
CAMERA
MONITOR
Transmission Frequency ISM 2,400~2,483 MHz
Transmission Power
Operating Frequency
Range
Spectrum/Modulation Mode
Operating Temperature -10 ~ +50(Degree C) / +14~ +122(Degree F)
Operating Humidity
Imaging Sensor Type
Picture Total Pixels
Horizontal Resolution
View Angle
Minimum Illumination
Image Resolution
Night Vision Range
Battery Working Time
Motion Detection Distance 5m (16ft)
Sound Control Sensitivity >65dB
Consumption Current
Power Supply
Dimensions(W×D×H)
Weight
LCD Screen Type
Effective Pixels
Receiving Sensitivity
Battery Working Time
Consumption Current
Power Supply
Dimensions(W×D×H)
Weight
Value
10mW/CE; 2mW/FCC
2414MHz;2432MHz;2450MHz;2468MHz
100m (328ft)(Min.)
FHSS/GFSK
≤85%RH
CMOS
PAL:720×480 Pixels;
NTSC: 720×576 Pixels
380 TV Lines
55°
0Lux (IR ON)
320x240 @ 10fps
5m
5 hours (IR OFF)
280mA (Max.)
DC +8V
86*48*135 mm (3.5*2*5.5 in)
146 g (5.2 oz)
2.36 inches TFT-LCD
480×234
≤-85dBm
5 hours
200mA (Max.)
DC +8V
86*54*143 mm (3.5*2.25*5.75 in)
130 g (4.6 oz)
Page 11
* Actual transmission range may vary according to weather, Location,
interference and building construction.
* All the specifications are subject to minor change without prior notice.
6. FCC information
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
CAUTIONS:
Do not expose the device to water or other liquids.
Turn off the Camera/Receiver when the system is not in use.
Make sure the power adapter is easily accessible.
Only remove the Camera/Receiver from the main power line by
unplugging the adapter.
Do not cut the DC power cable of the device to fit with another power
source.
Make sure batteries are disposed of properly.
Page 12

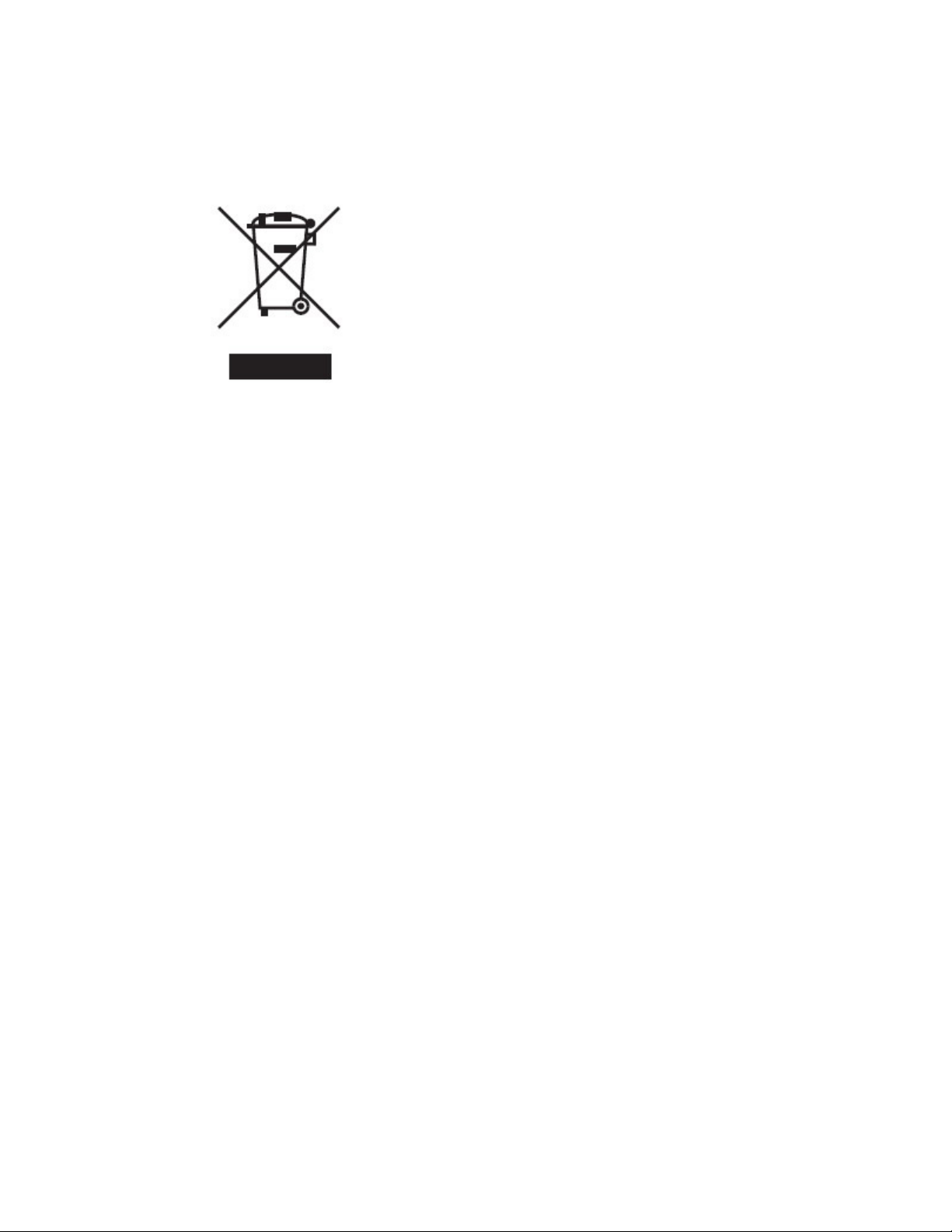

EU Environmental Protection
Electrical waste products (discharged batteries) should not
be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or
retailer for recycling advice.
TRADEMARKS
All brand names and products are registered trademarks of their respective
Companies.
DISCLAIMER
The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties with respect to the contents
hereof and specifically disclaim any implied warranties of selling or
functionality for any particular purpose.
LEGAL DISCLAIMER
Warning: Your security camera is a quality digital product.
You have to take utmost care while handling this product
in order to ensure its reliability & durability.
Page 13
Digital Peripheral Solutions Inc.
8015 E Crystal Drive.
Anaheim, CA 92807
1-877-998-3440.
Q-See Tech Support in U.S.A.
Mon-Fri: 9 am 5 pm PST.
TEL:1-877-998-3440 x 539
E-mail: ts@dpsi-usa.com
Website: www.q-see.com
