ProSoft Technology MVI69-GEC User Manual
MVI69-GEC
CompactLogix or MicroLogix Platform
Generic ASCII Ethernet Communication
Module
February 18, 2014
USER MANUAL
Your Feedback Please
We always want you to feel that you made the right decision to use our products. If you have suggestions, comments,
compliments or complaints about our products, documentation, or support, please write or call us.
ProSoft Technology
5201 Truxtun Ave., 3rd Floor
Bakersfield, CA 93309
+1 (661) 716-5100
+1 (661) 716-5101 (Fax)
www.prosoft-technology.com
support@prosoft-technology.com
© 2014 ProSoft Technology, Inc. All rights reserved.
MVI69-GEC User Manual
February 18, 2014
ProSoft Technology ®, is a registered Copyright of ProSoft Technology, Inc. All other brand or product names are or
may be trademarks of, and are used to identify products and services of, their respective owners.
In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments.
User Manuals, Datasheets, Sample Ladder Files, and Configuration Files are provided on the enclosed DVD and are
available at no charge from our web site: http://www.prosoft-technology.com
Important Installation Instructions
Power, Input, and Output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods, Article 501-4 (b)
of the National Electrical Code, NFPA 70 for installation in the U.S., or as specified in Section 18-1J2 of the Canadian
Electrical Code for installations in Canada, and in accordance with the authority having jurisdiction. The following
warnings must be heeded:
WARNING - EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS
I, DIV. 2;
WARNING - EXPLOSION HAZARD - WHEN IN HAZARDOUS LOCATIONS, TURN OFF POWER BEFORE
REPLACING OR WIRING MODULES
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
THIS DEVICE SHALL BE POWERED BY CLASS 2 OUTPUTS ONLY.
MVI (Multi Vendor Interface) Modules
WARNING - EXPLOSION HAZARD - DO NOT DISCONNECT EQUIPMENT UNLESS POWER HAS BEEN
SWITCHED OFF OR THE AREA IS KNOWN TO BE NON-HAZARDOUS.
AVERTISSEMENT - RISQUE D'EXPLOSION - AVANT DE DÉCONNECTER L'ÉQUIPEMENT, COUPER LE
COURANT OU S'ASSURER QUE L'EMPLACEMENT EST DÉSIGNÉ NON DANGEREUX.
Warnings
North America Warnings
A Warning - Explosion Hazard - Substitution of components may impair suitability for Class I, Division 2.
B Warning - Explosion Hazard - When in hazardous locations, turn off power before replacing or rewiring modules.
Warning - Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area is
known to be non-hazardous.
C Suitable for use in Class I, Division 2 Groups A, B, C and D Hazardous Locations or Non-Hazardous Locations.
ATEX Warnings and Conditions of Safe Usage
Power, Input, and Output (I/O) wiring must be in accordance with the authority having jurisdiction.
A Warning - Explosion Hazard - When in hazardous locations, turn off power before replacing or wiring modules.
B Warning - Explosion Hazard - Do not disconnect equipment unless power has been switched off or the area is
known to be non-hazardous.
C These products are intended to be mounted in an IP54 enclosure. The devices shall provide external means to
prevent the rated voltage being exceeded by transient disturbances of more than 40%. This device must be used
only with ATEX certified backplanes.
D DO NOT OPEN WHEN ENERGIZED.
Warning: This module is not hot-swappable! Always remove power from the rack before inserting or removing this
module, or damage may result to the module, the processor, or other connected devices.
Battery Life Advisory
The MVI46, MVI56, MVI56E, MVI69, and MVI71 modules use a rechargeable Lithium Vanadium Pentoxide battery to
backup the real-time clock and CMOS. The battery should last for the life of the module. The module must be
powered for approximately twenty hours before the battery becomes fully charged. After it is fully charged, the battery
provides backup power for the CMOS setup and the real-time clock for approximately 21 days. When the battery is
fully discharged, the module will revert to the default BIOS and clock settings. The battery is not user-replaceable.
Markings
Electrical Ratings
Backplane Current Load: 800 mA @ 5.1 Vdc
Power Supply Distance Rating: 2
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% (with no condensation)
All phase conductor sizes must be at least 1.3 mm(squared) and all earth ground conductors must be at least
4mm(squared).
Label Markings
Class I, Division 2 Groups A, B, C, D
II 3 G
Ex nA IIC X
0°C <= Ta <= +60°C
II - Equipment intended for above ground use (not for use in mines).
3 - Category 3 equipment, investigated for normal operation only.
G - Equipment protected against explosive gasses.
Agency
Applicable Standard(s)
ATEX
EN 60079-0:2006, EN 60079-15:2005
DNV
DET NORSKE VERITAS Test 2.4
CE
EMC-EN61326-1:2006; EN61000-6-4:2007
CB Safety
CA/10533/CSA, IEC 61010-1 Ed. 2, CB 243333-2056722
(2090408)
GOST-R
EN 61010
ME06
Agency Approvals and Certifications
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
Contents
Your Feedback Please ........................................................................................................................ 2
Important Installation Instructions ....................................................................................................... 2
MVI (Multi Vendor Interface) Modules ................................................................................................ 2
Warnings ............................................................................................................................................. 3
Battery Life Advisory ........................................................................................................................... 3
Markings .............................................................................................................................................. 3
1 Start Here 7
1.1 System Requirements ............................................................................................... 7
1.2 Package Contents ..................................................................................................... 8
1.3 Installing ProSoft Configuration Builder Software ..................................................... 9
1.4 Setting Jumpers ........................................................................................................ 9
1.5 Installing the Module ............................................................................................... 10
1.6 Connecting Your PC to the Processor .................................................................... 14
1.7 Downloading the Sample Program to the Processor .............................................. 14
1.7.1 Configuring the RSLinx Driver for the PC COM Port .............................................. 15
1.8 Connecting Your PC to the Module ......................................................................... 17
2 MVI69-GEC Configuration 19
2.1 Using ProSoft Configuration Builder ....................................................................... 19
2.1.1 Setting Up the Project ............................................................................................. 20
2.1.2 Renaming PCB Objects .......................................................................................... 21
2.2 [Module] ................................................................................................................... 22
2.3 [Server x] ................................................................................................................. 22
2.3.1 Enabled ................................................................................................................... 22
2.3.2 Service Port Number ............................................................................................... 22
2.3.3 Connection Timeout ................................................................................................ 22
2.3.4 Connection Close Type ........................................................................................... 23
2.3.5 Swap Rx Data Bytes ............................................................................................... 23
2.3.6 Swap Tx Data Bytes ................................................................................................ 23
2.4 Ethernet Configuration - MVI56E ............................................................................ 23
2.5 Downloading the Configuration to the Module Using Serial .................................... 24
3 Ladder Logic 27
3.1 Module Data ............................................................................................................ 27
3.1.1 GECInStat (Status Object) ...................................................................................... 31
3.1.2 GECServerStat (Server Status Object) ................................................................... 32
3.1.3 GECBlkStat (Block Error Status Object) ................................................................. 32
3.1.4 GECClientStat ......................................................................................................... 33
3.1.5 GECBackplane (Backplane Object) ........................................................................ 34
3.2 Adding the Module to an Existing CompactLogix Project ....................................... 35
3.3 Adding the Module to an Existing MicroLogix Project ............................................. 37
ProSoft Technology, Inc. Page 5 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
4 Diagnostics and Troubleshooting 41
4.1 LED Status Indicators ............................................................................................. 41
4.1.1 Ethernet LED Indicators .......................................................................................... 42
4.1.2 Clearing a Fault Condition ...................................................................................... 42
4.1.3 Troubleshooting ...................................................................................................... 42
4.2 Using ProSoft Configuration Builder (PCB) for Diagnostics ................................... 43
4.2.1 Using the Diagnostic Window in ProSoft Configuration Builder ............................. 43
4.2.2 Navigation ............................................................................................................... 45
4.2.3 Main Menu .............................................................................................................. 46
4.2.4 Network Menu ......................................................................................................... 50
4.3 Reading Status Data from the Module ................................................................... 51
5 Sending and Receiving ASCII Data 53
5.1 Sending ASCII Data ................................................................................................ 53
5.2 Receiving ASCII Data ............................................................................................. 53
5.2.1 Receiving ASCII Text as a Client............................................................................ 54
5.2.2 Receiving ASCII Text as a Server .......................................................................... 54
6 Reference 55
6.1 Product Specifications ............................................................................................ 55
6.1.1 General Specifications ............................................................................................ 55
6.1.2 Hardware Specifications ......................................................................................... 55
6.1.3 Functional Specifications - MVI69-GEC ................................................................. 56
6.2 Functional Overview ............................................................................................... 57
6.2.1 General Concepts ................................................................................................... 57
6.3 Cable Connections ................................................................................................. 71
6.3.1 Ethernet Connection ............................................................................................... 72
6.3.2 RS-232 Configuration/Debug Port .......................................................................... 72
6.3.3 DB9 to RJ45 Adaptor (Cable 14) ............................................................................ 75
6.4 MVI69-GEC Status Data For Block Transfer .......................................................... 75
7 Support, Service & Warranty 83
7.1 Contacting Technical Support ................................................................................. 83
7.2 Warranty Information .............................................................................................. 84
Index 85
Page 6 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
In This Chapter
System Requirements............................................................................. 7
Package Contents .................................................................................. 8
Installing ProSoft Configuration Builder Software ................................... 9
Setting Jumpers ...................................................................................... 9
Installing the Module ..............................................................................10
Connecting Your PC to the Processor ...................................................14
Downloading the Sample Program to the Processor .............................14
Connecting Your PC to the Module .......................................................17
User Manual
1 Start Here
To get the most benefit from this User Manual, you should have the following skills:
Rockwell Automation® RSLogix™ software: launch the program, configure ladder
logic, and transfer the ladder logic to the processor
Microsoft Windows: install and launch programs, execute menu commands, navigate
dialog boxes, and enter data
Hardware installation and wiring: install the module, and safely connect GEC and
CompactLogix or MicroLogix devices to a power source and to the MVI69-GEC module’s
application port(s)
1.1 System Requirements
The MVI69-GEC module requires the following minimum hardware and software
components:
Rockwell Automation CompactLogix processors or MicroLogix 1500 LRP processor, with
compatible power supply and one free slot in the rack, for the MVI69-GEC module. The
module requires 800 mA of available power.
Important: The MVI69-GEC module has a power supply distance rating of 2 (L43 and L45 installations on first 2
slots of 1769 bus).
Important: For 1769-L23x processors, please make note of the following limitations.
1769-L23-QBFC1B = 800 mA at 5 Vdc (One MVI69-GEC will use all 800 mA of available power. No other
ProSoft Technology, Inc. Page 7 of 86
February 18, 2014
modules can be used with an MVI69 module connected to this processor.)
1769-L23E-QB1B = 1000 mA at 5 Vdc (One MVI69-GEC will use 800 mA of available power. One other
module can be used on this rack provided it consumes less than 200 mA at 5 Vdc.)
1769-L23E-QBFC1B = 450 mA at 5 Vdc (No MVI69 module can be used with this processor.)
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
Qty.
Part Name
Part Number
Part Description
1
MVI69-GEC Module
MVI69-GEC
Generic ASCII Ethernet Communication
Module
1
Cable
Cable #15 - RS232
Null Modem
For RS232 between a Personal Computer
(PC) and the CFG port of the module
1
Cable
Cable #14 - RJ45
to DB9 Male
Adapter
For connecting the module’s port to Cable
#15 for RS-232 connections
1
inRAx Solutions CD
Contains sample programs, utilities and
documentation for the MVI69-GEC module.
User Manual
Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500 (MicroLogix)
programming software
Rockwell Automation RSLinx communication software
Pentium® II 450 MHz minimum. Pentium III 733 MHz (or better) recommended
Supported operating systems:
o Microsoft Windows XP Professional with Service Pack 1 or 2
o Microsoft Windows 2000 Professional with Service Pack 1, 2, or 3
o Microsoft Windows Server 2003
128 Mbytes of RAM minimum, 256 Mbytes of RAM recommended
100 Mbytes of free hard disk space (or more based on application requirements)
256-color VGA graphics adapter, 800 x 600 minimum resolution (True Color 1024 768
recommended)
CD-ROM drive
HyperTerminal or other terminal emulator program capable of file transfers using
Ymodem protocol.
NOTE: MVI69/PS69 modules will not work with CompactLogix L4x processors using RSLogix 5000 v17. All other
processor combinations and RSLogix versions will work correctly.
1.2 Package Contents
The following components are included with your MVI69-GEC module, and are all required
for installation and configuration.
Important: Before beginning the installation, please verify that all of the following items are present.
If any of these components are missing, please contact ProSoft Technology Support for
replacement parts.
Page 8 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
1.3 Installing ProSoft Configuration Builder Software
You must install the ProSoft Configuration Builder (PCB) software to configure the module.
You can always get the newest version of ProSoft Configuration Builder from the ProSoft
Technology website (http://www.prosoft-technology.com). The filename contains the version
of PCB. For example, PCB_4.1.0.4.0206.exe.
To install ProSoft Configuration Builder from the ProSoft Technology website
1 Open your web browser and navigate to www.prosoft-technology.com/pcb
2 Click the link at the Current Release Version section to download the latest version of
ProSoft Configuration Builder.
3 Choose SAVE or SAVE FILE when prompted.
4 Save the file to your Windows Desktop, so that you can find it easily when you have
finished downloading.
5 When the download is complete, locate and open the file, and then follow the
instructions on your screen to install the program.
If you do not have access to the Internet, you can install ProSoft Configuration Builder from
the ProSoft Solutions DVD, included in the package with your module.
To install ProSoft Configuration Builder from the DVD
1 Insert the ProSoft Solutions DVD into the DVD drive of your PC. Wait for the startup
screen to appear.
2 On the startup screen, click PRODUCT DOCUMENTATION. This action opens a Windows
Explorer file tree window.
3 Click to open the UTILITIES folder. This folder contains all of the applications and files you
will need to set up and configure your module.
4 Double-click the SETUP CONFIGURATION TOOL folder, double-click the PCB_*.EXE file and
follow the instructions on your screen to install the software on your PC. The information
represented by the "*" character in the file name is the PCB version number and,
therefore, subject to change as new versions of PCB are released.
Note: Many of the configuration and maintenance procedures use files and other utilities on the DVD. You may
wish to copy the files from the Utilities folder on the DVD to a convenient location on your hard drive.
1.4 Setting Jumpers
The Setup Jumper acts as "write protection" for the module’s flash memory. In "write
protected" mode, the Setup pins are not connected, and the module’s firmware cannot be
overwritten. The module is shipped with the Setup jumper OFF. Do not jumper the Setup
pins together unless you are directed to do so by ProSoft Technical Support (or to update
the module firmware).
ProSoft Technology, Inc. Page 9 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
The following illustration shows the MVI69-GEC jumper configuration with the Setup Jumper
OFF.
Note: If you are installing the module in a remote rack, you may prefer to leave the Setup pins jumpered. That
way, you can update the module’s firmware without requiring physical access to the module.
1.5 Installing the Module
Before you attempt to install the module, make sure that the bus lever of the adjacent
module is in the unlocked (fully right) position.
Warning: This module is not hot-swappable! Always remove power from the rack before inserting or
removing this module, or damage may result to the module, the processor, or other connected devices.
Page 10 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
1 Align the module using the upper and lower tongue-and-groove slots with the adjacent
module and slide forward in the direction of the arrow.
2 Move the module back along the tongue-and-groove slots until the bus connectors on
the MVI69 module and the adjacent module line up with each other.
ProSoft Technology, Inc. Page 11 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
3 Push the module’s bus lever back slightly to clear the positioning tab and move it firmly
to the left until it clicks. Ensure that it is locked firmly in place.
4 Close all DIN-rail latches.
Page 12 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
5 Press the DIN-rail mounting area of the controller against the DIN-rail. The latches will
momentarily open and lock into place.
ProSoft Technology, Inc. Page 13 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
1.6 Connecting Your PC to the Processor
1 Connect the right-angle connector end of the cable to your controller at the
communications port.
2 Connect the straight connector end of the cable to the serial port on your computer.
1.7 Downloading the Sample Program to the Processor
Note: The key switch on the front of the CompactLogix processor must be in the REM or PROG position.
1 If you are not already online to the processor, open the COMMUNICATIONS menu, and
then choose DOWNLOAD. RSLogix will establish communication with the processor.
Page 14 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
2 When communication is established, RSLogix will open a confirmation dialog box. Click
the DOWNLOAD button to transfer the sample program to the processor.
3 RSLogix will compile the program and transfer it to the processor. This process may take
a few minutes.
4 When the download is complete, RSLogix will open another confirmation dialog box.
Click OK to switch the processor from PROGRAM mode to RUN mode.
Note: If you receive an error message during these steps, refer to your RSLogix documentation to interpret and
correct the error.
1.7.1 Configuring the RSLinx Driver for the PC COM Port
If RSLogix is unable to establish communication with the processor, follow these steps.
1 Open RSLinx.
2 Open the COMMUNICATIONS menu, and choose CONFIGURE DRIVERS.
ProSoft Technology, Inc. Page 15 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
This action opens the Configure Drivers dialog box.
Note: If the list of configured drivers is blank, you must first choose and configure a driver from the Available
Driver Types list. The recommended driver type to choose for serial communication with the processor is RS-232
DF1 Devices.
3 Click to select the driver, and then click CONFIGURE. This action opens the Configure
RS-232 DF1 Devices dialog box.
4 Click the AUTO-CONFIGURE button. RSLinx will attempt to configure your serial port to
work with the selected driver.
Page 16 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
5 When you see the message Auto Configuration Successful, click the OK button to
dismiss the dialog box.
Note: If the auto-configuration procedure fails, verify that the cables are connected correctly between the
processor and the serial port on your computer, and then try again. If you are still unable to auto-configure the
port, refer to your RSLinx documentation for further troubleshooting steps.
1.8 Connecting Your PC to the Module
With the module securely mounted, connect your PC to the CFG (Configuration/Debug) port
using an RJ45-DB-9 Serial Adapter Cable and a Null Modem Cable.
1 Attach both cables as shown.
2 Insert the RJ45 cable connector into the CFG port of the module.
3 Attach the other end to the serial port on your PC.
ProSoft Technology, Inc. Page 17 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
Page 18 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
In This Chapter
Using ProSoft Configuration Builder ......................................................19
[Module] ................................................................................................ .22
[Server x] ...............................................................................................22
Ethernet Configuration - MVI56E ...........................................................23
Downloading the Configuration to the Module Using Serial ...................24
User Manual
2 MVI69-GEC Configuration
2.1 Using ProSoft Configuration Builder
ProSoft Configuration Builder (PCB) provides a quick and easy way to manage module
configuration files customized to meet your application needs. PCB is not only a powerful
solution for new configuration files, but also allows you to import information from previously
installed (known working) configurations to new projects.
ProSoft Technology, Inc. Page 19 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
2.1.1 Setting Up the Project
To begin, start ProSoft Configuration Builder. If you have used other Windows configuration
tools before, you will find the screen layout familiar. ProSoft Configuration Builder’s window
consists of a tree view on the left, an information pane and a configuration pane on the right
side of the window. When you first start ProSoft Configuration Builder, the tree view consists
of folders for Default Project and Default Location, with a Default Module in the Default
Location folder. The following illustration shows the ProSoft Configuration Builder window
with a new project.
1 Use the mouse to select DEFAULT MODULE in the tree view, and then click the right
mouse button to open a shortcut menu.
Page 20 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
2 On the shortcut menu, select CHOOSE MODULE TYPE. This action opens the Choose
Module Type dialog box.
3 In the Product Line Filter area of the dialog box, select MVI69. In the Select Module Type
dropdown list, select MVI69-GEC, and then click OK to save your settings and return to
the ProSoft Configuration Builder window.
2.1.2 Renaming PCB Objects
You can rename objects such as the Default Project and Default Location folders in the tree
view. You can also rename the Module icon to customize the project.
1 Right-click the object you want to rename and choose RENAME.
2 Type the new name for the object and press Enter.
Configuring Module Parameters
1 Click the [+] sign next to the module icon to expand module information.
ProSoft Technology, Inc. Page 21 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
2 Click the [+] sign next to any icon to view module information and configuration
options.
3 Double-click any icon to open an Edit dialog box.
4 To edit a parameter, select the parameter in the left pane and make your changes in the
right pane.
5 Click OK to save your changes.
Printing a Configuration File
1 In the main PCB window, right-click the MODULE icon and choose VIEW CONFIGURATION.
2 In the View Configuration dialog box, open the FILE menu, and choose PRINT.
3 In the Print dialog box, choose the printer to use from the drop-down list, select the
printing options, and then click OK.
2.2 [Module]
This section of the file describes the database setup and module level parameters.
[Module]
Module Name: MVI69-GEC Communication Module DEFAULT
0 to 80 characters
Specifies a name to identify the module and the configuration file.
2.3 [Server x]
You can configure up to five servers ([Server 0] through [Server 4]). The configuration
section for each server contains the same set of parameters. You can configure the
parameters for each server to meet the requirements of your application.
2.3.1 Enabled
Yes or No
This parameter determines if the server will be utilized by the module. If a value of "Yes" is
entered, the server will be used. Any other value will disable the server.
2.3.2 Service Port Number
1 to 65535
This parameter sets the TCP/IP service port for this server. Each server can have its own
unique service port or can share the same number with other servers.
2.3.3 Connection Timeout
0 or 5000 to 65535
This parameter specifies the number of milliseconds the server will permit the server to be
inactive after a connection is made before closing the socket. This timeout period is reset on
each read or write packet. If the parameter is set to 0, the connection will not timeout.
Page 22 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
2.3.4 Connection Close Type
0, 1 or 2
This coded parameter defines the personality of the server after a connection is made. If the
parameter is set to 0, the socket will only be closed when a request from the client is
received or the connection timeout is exceeded. If a value of 1 is selected, the server will
close the socket after it transmits a single message. If a value of 2 is selected, the server will
close the socket after it receives a message.
2.3.5 Swap Rx Data Bytes
Yes or No
This parameter determines if the data received by the server will have the byte order of the
data swapped. If the parameter is set to No, no byte swapping will occur. If the parameter is
set to Yes, the odd byte will be swapped with the even byte in each word of data received.
2.3.6 Swap Tx Data Bytes
Yes or No
This parameter determines if the data to be transmitted by the module will have the byte
order of the data swapped. If the parameter is set to No, no byte swapping will occur. If the
parameter is set to Yes, the odd byte will be swapped with the even byte in each word of
data received.

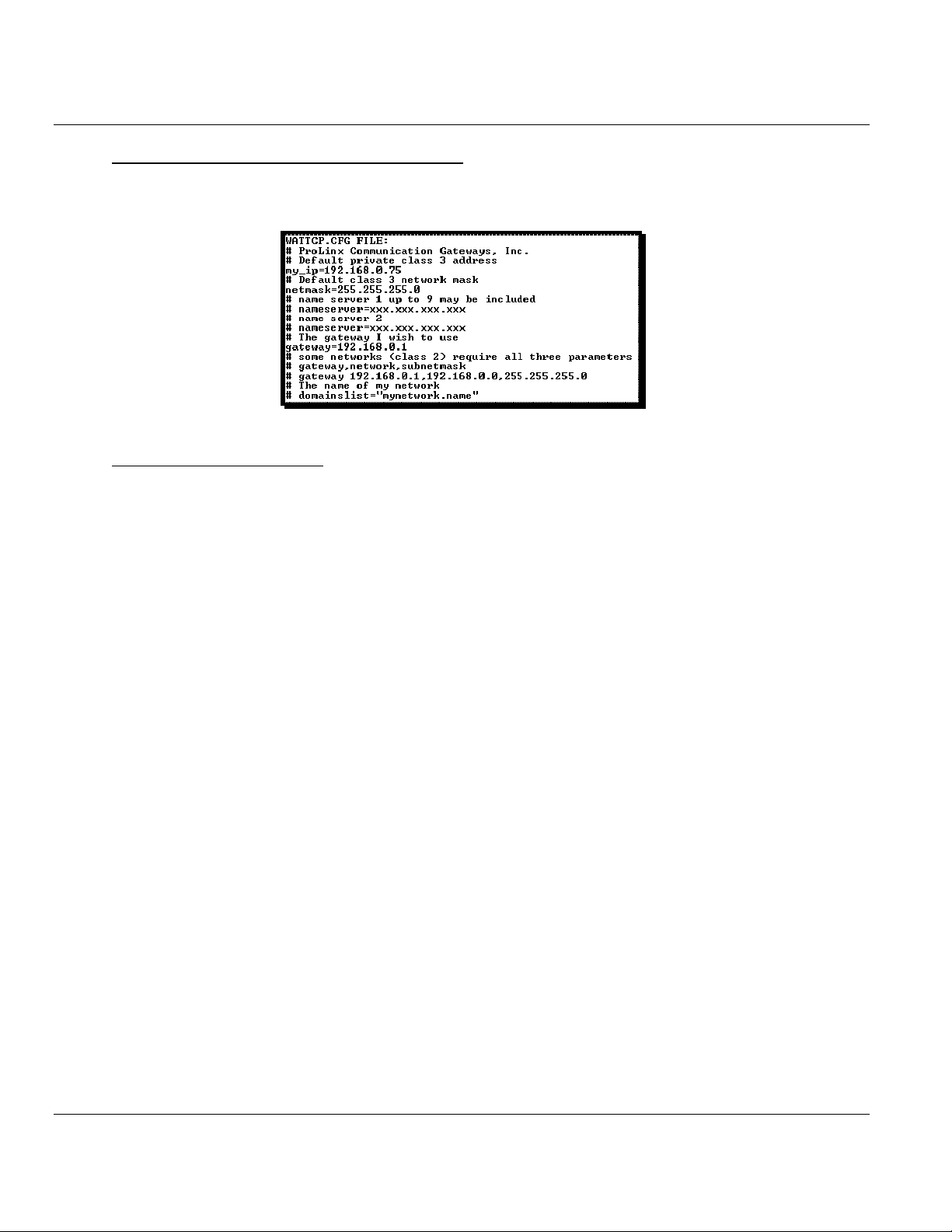

2.4 Ethernet Configuration - MVI56E
Use this procedure to configure the Ethernet settings for your module. You must assign an
IP address, subnet mask and gateway address. After you complete this step, you can
connect to the module with an Ethernet cable.
1 Determine the network settings for your module, with the help of your network
administrator if necessary. You will need the following information:
o IP address (fixed IP required) _____ . _____ . _____ . _____
o Subnet mask _____ . _____ . _____ . _____
o Gateway address _____ . _____ . _____ . _____
Note: The gateway address is optional, and is not required for networks that do not use a default gateway.
ProSoft Technology, Inc. Page 23 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
2 Double-click the ETHERNET CONFIGURATION icon. This action opens the Edit dialog box.
3 Edit the values for my_ip, netmask (subnet mask) and gateway (default gateway).
4 When you are finished editing, click OK to save your changes and return to the ProSoft
Configuration Builder window.
2.5 Downloading the Configuration to the Module Using Serial
For the module to use the settings you configured, you must download (copy) the updated
Project file from your PC to the module. Refer to Connecting Your PC to the ProTalk
Configuration/Debug Port.
Note: The first time you download the project to the module, you must use the serial COM port to download the
project, including the IP address. After that, you can use the Ethernet port to communicate with the module.
To download the project file
1 In the tree view in ProSoft Configuration Builder, right-click the module icon.
Page 24 of 86 ProSoft Technology, Inc.
February 18, 2014
MVI69-GEC ♦ CompactLogix or MicroLogix Platform Contents
User Manual
2 From the right-click shortcut menu, choose DOWNLOAD FROM PC TO DEVICE. The
program scans your PC for a valid com port (this may take a few seconds). When PCB
finds a valid COM port, it opens the Download dialog box.
3 Choose the COM port to use from the dropdown list, and then click the DOWNLOAD
button.
The module performs a platform check to read and load its new settings. When the
platform check is complete, the status bar in the Download dialog box displays the
message Module Running.
ProSoft Technology, Inc. Page 25 of 86
February 18, 2014
Contents MVI69-GEC ♦ CompactLogix or MicroLogix Platform
User Manual
Page 26 of 86 ProSoft Technology, Inc.
February 18, 2014
Loading...
